OPR 2001
Laser Barcode Scanner
Specifications Manual
All information subject to change without notice.
Document History
Opticon
OPR 2001
Specifications Manual
Model Number:
Edition:
Date:
OPR 2001
1
2007-02-14
Specification Number:
Original Spec Number:
SS07011
SS06121
Copyright 2007 Opticon. All rights reserved.
This manual may not, in whole or in part, be copied, photocopied, reproduced, translated or converted to any electronic or
machine readable form without prior written consent of Opticon.
Limited Warranty and Disclaimers
PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING OR USING THE PRODUCT.
Serial Number
A serial number appears on all Opticon products. This official registration number is directly related to the device
purchased. Do not remove the serial number from your Opticon device. Removing the serial number voids the warranty.
Warranty
Unless otherwise agreed in a written contract, all Opticon products are warranted against defects in materials and
workmanship for two years after purchase. Opticon will repair or, at its option, replace products that are defective in
materials or workmanship with proper use during the warranty period. Opticon is not liable for damages caused by
modifications made by a customer. In such cases, standard repair charges will apply. If a product is returned under
warranty and no defect is found, standard repair charges will apply. Opticon assumes no liability for any direct, indirect,
consequential or incidental damages arising out of use or inability to use both the hardware and software, even if Opticon
has been informed about the possibility of such damages.
Packaging
The packing materials are recyclable. We recommend that you save all packing material to use should you need to
transport your scanner or send it for service. Damage caused by improper packaging during shipment is not covered by
the warranty.
Trademarks
Trademarks used are the property of their respective owners.
Opticon Inc. and Opticon Sensors Europe B.V. are wholly owned subsidiaries of OPTOELECTRONICS Co., Ltd., 5-3,
Tsukagoshi 5-chome, Warabi-shi, Saitama, Japan 335-0002. TEL +81-(0) 48-446-1183; FAX +81-(0) 48-446-1180
SUPPORT
USA Europe
Phone: 800-636-0090
Email: support@opticonusa.com Email: support@opticon.com
Web: www.opticonusa.com Web: www.opticon.com
2
Opticon
OPR 2001
Specifications Manual
Contents
1. Abstract....................................................................................................................................7
2. Overview ..................................................................................................................................7
3. Physical Features....................................................................................................................8
3.1. Dimensions ......................................................................................................................8
3.2. Weight.............................................................................................................................. 8
4. Environmental Specifications................................................................................................8
4.1. Operating Temperature and Humidity.............................................................................. 8
4.2. Storage Temperature and Humidity.................................................................................8
4.3. Ambient Light Immunity ...................................................................................................9
5. Electrical Specifications.......................................................................................................10
5.1. RS-232C ........................................................................................................................10
5.2. USB, Wedge .................................................................................................................. 10
6. Optical Specifications ...........................................................................................................11
6.1. Laser Scanning Specifications....................................................................................... 11
6.2. Laser Scanning Standard ..............................................................................................11
6.2.1. Laser Scanning Tilt ................................................................................................................ 11
6.2.2. Scanning Curvature ............................................................................................................... 11
7. Technical Specifications ......................................................................................................12
7.1. Print Contrast Signal (PCS) ........................................................................................... 12
7.2. Scan Area and Resolution ............................................................................................. 13
7.3. Pitch, Skew, and Tilt ......................................................................................................14
7.3.1. Pitch Angle ............................................................................................................................. 14
7.3.2. Skew Angle and Dead Zone .................................................................................................. 15
7.3.3. Tilt Angle ................................................................................................................................16
7.4. Curvature .......................................................................................................................17
8. Interface Specifications........................................................................................................18
8.1. RS-232C Interface ......................................................................................................... 18
8.1.1. Settings and Communication ................................................................................................. 18
8.1.2. Signal Level............................................................................................................................ 18
8.1.3. Pin Assignment ...................................................................................................................... 19
8.1.4. Interface Circuit ...................................................................................................................... 19
8.1.5. Character Format ................................................................................................................... 20
8.1.6. Communication Format.......................................................................................................... 20
3
Opticon
OPR 2001
Specifications Manual
Handshaking .......................................................................................................................... 20
8.1.7.
8.2. USB Interface Specifications .........................................................................................25
8.2.1. Settings ..................................................................................................................................25
8.2.2. Connectors............................................................................................................................. 25
8.2.3. Interface Circuit ...................................................................................................................... 26
8.3. DOS/V Wedge Interface Specification........................................................................... 26
8.3.1. Settings ..................................................................................................................................26
8.3.2. Connectors............................................................................................................................. 27
9. Cable and Connector............................................................................................................28
9.1. RS-232C Cable.............................................................................................................. 28
9.2. USB Cable ..................................................................................................................... 28
9.3. Wedge Cable ................................................................................................................. 29
9.4. Connector Specification (Scanner Side)........................................................................ 29
10. Default Settings.....................................................................................................................30
10.1. Barcodes........................................................................................................................30
10.2. Default Settings 1: Readable Codes.............................................................................. 31
10.3. Default Settings 2: Read Options, Trigger, Buzzer ........................................................ 33
11. Serial Number........................................................................................................................34
12. Packaging Specifications.....................................................................................................34
12.1. Individual Packaging Specification................................................................................. 34
12.2. Collective Packaging Specification ................................................................................34
13. Durability................................................................................................................................35
13.1. Electrical Noise ..............................................................................................................35
13.2. Shock .............................................................................................................................35
13.2.1. Drop Test (without packaging)............................................................................................... 35
13.2.2. Drop Test (with individual packaging).................................................................................... 35
13.3. Vibration Strength ..........................................................................................................36
13.4. Static Electricity ............................................................................................................. 36
13.5. Dust and Drip Proof .......................................................................................................36
13.6. Cable Strength ............................................................................................................... 36
13.6.1. Cable Pulling Test.................................................................................................................. 36
13.6.2. Cable Tail Bending Test.........................................................................................................36
14. Reliability...............................................................................................................................37
15. Auto Trigger (Option)............................................................................................................37
4
Opticon
OPR 2001
Specifications Manual
15.1. Auto Trigger Settings .....................................................................................................38
15.1.1. Stand Only ............................................................................................................................. 38
15.1.2. Always.................................................................................................................................... 39
15.1.3. Manually................................................................................................................................. 39
16. Regulatory Compliance........................................................................................................40
16.1. Laser Safety................................................................................................................... 40
16.2. Product Safety ...............................................................................................................40
16.3. EMC ...............................................................................................................................40
16.4. Compliance to RoHS .....................................................................................................40
17. Safety .....................................................................................................................................41
17.1. Shock .............................................................................................................................41
17.2. Temperature Conditions ................................................................................................41
17.3. Foreign Materials ...........................................................................................................41
17.4. Other ..............................................................................................................................41
18. Mechanical Drawing..............................................................................................................42
Table of Figures
Figure 1: Ambient light immunity .................................................................................................9
Figure 2: Laser scanning tilt and curvature ............................................................................... 11
Figure 3: Depth of field. .............................................................................................................13
Figure 4: Pitch ...........................................................................................................................14
Figure 5: Skew angle and dead zone ........................................................................................ 15
Figure 6: Tilt angle.....................................................................................................................16
Figure 7: Curvature.................................................................................................................... 17
Figure 8: Interface circuit ...........................................................................................................19
Figure 9:Character format (same for both sending and receiving) ............................................ 20
Figure 10: Communication format .............................................................................................20
Figure 11: No handshaking........................................................................................................ 20
Figure 12: Busy/Ready communication..................................................................................... 21
Figure 13: Cannot receive command ........................................................................................21
Figure 14: Signal timing............................................................................................................. 22
Figure 15: Modem transmit data................................................................................................ 22
Figure 16: ACK/NAK.................................................................................................................. 23
Figure 17: ACK/NAK—No response.......................................................................................... 24
Figure 18: USB "A" connector ...................................................................................................25
Figure 19: Interface circuit .........................................................................................................26
Figure 20: DOS/V host connector.............................................................................................. 27
Figure 21: DOS/V keyboard connector...................................................................................... 27
Figure 22: RS-232C cable .........................................................................................................28
Figure 23: USB cable ................................................................................................................28
5
Opticon
OPR 2001
Specifications Manual
Figure 24: Wedge cable.............................................................................................................29
Figure 25: Serial number diagram ............................................................................................. 34
Figure 26: Drop test................................................................................................................... 35
Figure 27: Cable tail bending test..............................................................................................36
Figure 28: Auto trigger operation...............................................................................................37
Figure 29: Trigger options.......................................................................................................... 38
Figure 30: Mechanical drawing.................................................................................................. 42
6
Specifications Manual
1. Abstract
This manual provides specifications for the OPR 2001 laser barcode scanner.
2. Overview
The OPR 2001 is a handheld laser barcode scanner. The use of a short-wavelength red laser
beam enhances visibility when scanning lines.
The OPR 2001 can be configured to scan both positive and negative barcodes. Scanned data
is transferred via an RS-232C, USB, or Wedge interface. Auto-trigger settings are available.
The OPR 2001 complies with RoHS.
Supported symbologies:
• JAN/UPC/EAN/ all add-on
• Chinese Post Matrix 2 of 5
Opticon
OPR 2001
• Codabar/NW-7, including ABC and CX
• Code 11
• Code 39: Normal Code 39 / Full ASCII Code 39 / Italian Pharmaceutical
• Code 93
• Code 128: EAN-128
• Composite Codes: UCC/EAN-128 (incl. CC-A/B/C)
• IATA
• Industrial 2of5
• Interleaved 2of5
• ISBN-ISMN-ISSN
• Korean Postal Authority code
• Matrix 2of5
• MicroPDF417
• MSI/Plessey-UK/Plessey
• PDF417
• RSS: RSS-14 (incl. CC-A/B) / RSS-Limited (incl. CC-A/B) / RSS-Expanded (incl. CC-
A/B)
• S-Code
• Telepen
• Tri-Optic
7
3. Physical Features
3.1. Dimensions
W 151.0 x D 56.0 x H 30.5 mm
3.2. Weight
60 grams max. (excluding cable weight)
4. Environmental Specifications
4.1. Operating Temperature and Humidity
Temperature: -5° to +50° C
Humidity: 20 to 85% RH
4.2. Storage Temperature and Humidity
Temperature: -20° to +60° C
Humidity: 10 to 90% RH
Opticon
OPR 2001
Specifications Manual
8
4.3. Ambient Light Immunity
Decoding performance is guaranteed when the range of illumination on a barcode
surface is between zero and the following values:
Incandescent light 3,000 lx
Fluorescent light 3,000 lx
Sunlight 50,000 lx
Opticon
OPR 2001
Specifications Manual
Figure 1: Ambient light immunity
Conditions
Barcode Sample: OPTOELECTRONICS Test Sample
PCS: 0.9
Resolution: 0.25 mm
Symbology: 9-digit Code-39
Quiet Zone: 10 mm
N/W Ratio: 1:2.5
Distance: 70 mm
Angle: α = 0° β = 15° γ = 0°
Curvature:
Power Supply Voltage: 5.0 V
Ｒ = ∞
Direct light or specular reflection light from a source should be prevented from entering
the acceptance area.
9
5. Electrical Specifications
5.1. RS-232C
Parameter Symbol Min Typ Max Unit Notes
Power supply voltage VDD 4.5 6.0 6.5 V
Operating current IOP - 90 150 mA No buzzer
Peak current I
Standby current I
Startup time TD - 100 - ms
5.2. USB, Wedge
Parameter Symbol Min Typ Max Unit Notes
Power supply voltage VDD 4.5 5.0 5.5 V
Operating current IOP - 90 150 mA No buzzer
Peak current I
Standby current I
Startup time TD - 100 - ms
PEAK
PRE
PEAK
PRE
Opticon
OPR 2001
Specifications Manual
- 550 600 mA
- 35 70 mA
- 450 500 mA
- 35 70 mA
Conditions
• Connect 1Ω resistance to a power supply line in series and measure the current
by the voltage between both ends of resistance.
• Power supply voltage is measured at a connector terminal area.
• The current value depends on the interface type and host computer to which the
device is connected.
10
6. Optical Specifications
6.1. Laser Scanning Specifications
Parameter Specification Unit
Light-emitting element Red laser diode -
Emission wavelength 650 ±10 (25° C) nm
Light output 1.0 or less mW
Scanning method Bi-directional scanning -
Scanning speed 100 ±20 scans/s
6.2. Laser Scanning Standard
Opticon
OPR 2001
Specifications Manual
Scan angle: 54 ±5 ° Scan angle
Read angle: 44 (Min) °
6.2.1. Laser Scanning Tilt
Scanning tilt is the vertical difference between the ends of a laser scan line.
• Up to 0.92° in a vertical direction from the scan origin (mirror motor mirror).
• Up to 2.46 mm when measured at 150 mm from the scan origin.
Measurement is done at the center of the laser scan line.
6.2.2.
Scanning Curvature
Scanning curvature is the maximum difference between the laser scan line and
the line between the ends of the laser scan line.
• Up to 1.17° in a vertical direction from the scan origin (mirror motor mirror).
• Up to 3.06 mm when measured at 150 mm from the scan origin.
Measurement is done from the center of the laser scan line.
Figure 2: Laser scanning tilt and curvature
11
Specifications Manual
7. Technical Specifications
The conditions for technical specifications are as follows, unless otherwise specified in each
section.
Conditions
Ambient temperature and humidity 21º C / 70º F, 60% RH
Ambient light 500 to 900 lx
Background Barcode = black
Space = white
Margin = white
Background of label = black
Power supply voltage 6.0 V (RS-232C) / 5.0 V (USB, Wedge)
Decoding test Approve the performance when decoding is
successful in all ten tests.
(Decoding is deemed successful when completed
in 0.5 seconds or less.)
Opticon
OPR 2001
7.1. Print Contrast Signal (PCS)
0.45 or higher (over 70% of reflectivity of space and quiet zone).
12
Specifications Manual
7.2. Scan Area and Resolution
The scan area is a circular area centered around the beam, which appears at various
resolutions.
Opticon
OPR 2001
Figure 3: Depth of field.
Resolution Symbology PCS Quiet Zone Digits Depth of Field (mm)
1.0 mm CODE-39 0.9 25 mm 1 40 to 500
0.5 mm CODE-39 0.9 18 mm 3 20 to 350
0.25 mm CODE-39 0.9 10 mm 8 20 to 200
0.15 mm CODE-39 0.9 7 mm 10 20 to 100
0.127 mm CODE-39 0.9 5 mm 4 30 to 70
Conditions
Barcode Sample: OPTOELECTRONICS Test Sample
N/W Ratio: 1:2.5
Angle: α = 0°, β = 15°, γ = 0°
Curvature: R = ∞
13
7.3. Pitch, Skew, and Tilt
7.3.1. Pitch Angle
Scanning performance is guaranteed when α = ±35°
Opticon
OPR 2001
Specifications Manual
Figure 4: Pitch
14
7.3.2. Skew Angle and Dead Zone
Scanning performance is guaranteed when skew angle: β ≤ ±50° (Excluding dead
zone)
Dead zone: β = ±8° (There are some areas in which decoding fails due to
specular reflection)
Opticon
OPR 2001
Specifications Manual
Figure 5: Skew angle and dead zone
15
7.3.3. Tilt Angle
Scanning performance is guaranteed when γ ≤ ±20°
Figure 6: Tilt angle
Conditions
Barcode Sample: OPTOELECTRONICS Test Sample
Distance: 70 mm from the front edge of the scanner
Opticon
OPR 2001
Specifications Manual
Label:
Angles:
Curvature: R = ∞
Pitch, Skew Angle, Dead Zone
PCS = 0.9, Resolution = 0.25 mm, Symbology = 9-digit Code-39,
Quiet Zone = 10 mm, N/W Ratio = 1:2.5
Tilt Angle
PCS = 0.9, Resolution = 0.26 mm, Symbology = 13-digit JAN, Quiet Zone = 10 mm
Pitch angle: Skew angle: β = +15°, Tilt angle: γ = 0°
Tilt angle: Pitch angle: α = 0°, Skew angle: β = +15°
Skew angle, Dead zone: Pitch angle: α = 0°, Tilt angle: γ = 0°
16
7.4. Curvature
With 8-digit JAN/UPC/EAN barcodes, decoding performance is guaranteed when
R = 15 mm.
With 13-digit JAN/UPC/EAN barcodes, decoding performance is guaranteed when
R = 20 mm.
Figure 7: Curvature
Opticon
OPR 2001
Specifications Manual
Conditions
Barcode Sample: OPTOELECTRONICS Test Sample
PCS = 0.9, Resolution = 0.26 mm, Quiet Zone = 10 mm
Distance: 70 mm from the front edge of the scanner
Angle: Skew Angle β = +15°
17
8. Interface Specifications
8.1. RS-232C Interface
8.1.1. Settings and Communication
Reading menu barcodes [ZZ] + [U2] + [ZZ] can set the RS-232C interface default.
Item [U2] setting
Baud rate 9600 BPS
Start/stop bits 1 bit
Data bits 8 bits
Parity bits No parity
Handshaking No handshake
Flow control time out Indefinitely
Opticon
OPR 2001
Specifications Manual
8.1.2.
You can change the communication condition using the menu barcode.
Signal Level
Signal Name I/O RS-232C Level (V)
Mark/OFF Space/ON
TxD OUT -5 to -15 +5 to +15
RxD IN -3 to -15 +3 to +15
RTS OUT -5 to -15 +5 to +15
CTS IN -3 to -15 +3 to +15
18
8.1.3. Pin Assignment
Signal Pin Notes
Opticon
OPR 2001
Specifications Manual
8.1.4.
NC
TXD
RXD
---
GND
---
CTS
RTS
NC
FG
SHELL
Open (not connected)
1
2
3
Connected to pin 6 with jumper cable.
4
5
Connected to pin 4 with jumper cable.
6
7
8
Open (not connected)
9
Shield
Connector: D-sub, 9-pin, Female
Power supply: DC jack, EIAJ voltage Class 2
Interface Circuit
Figure 8: Interface circuit
19
8.1.5. Character Format
Figure 9:Character format (same for both sending and receiving)
8.1.6. Communication Format
Figure 10: Communication format
8.1.7. Handshaking
Select handshaking options using the menu or command listed below.
Opticon
OPR 2001
Specifications Manual
Handshaking Menu/Command
No handshake P0
BUSY/READY P1
MODEM P2
ACK/NAK P3
ACK/NAK NO RESPONSE P4
a) No Handshaking
The scanner attempts the communication regardless of the state of the host
computer.
Figure 11: No handshaking
20
OPR 2001
Specifications Manual
b) BUSY/READY
The scanner and the host computer notify each other of their state and
whether they can receive data with BUSY/READY through an RTS line. They
can communicate state to each other through a CTS line when connected as
in the following figure.
Figure 12: Busy/Ready communication
The scanner stays ON (is able to receive data) except during certain parts of
the process, such as receiving data (buzzer command execution), transmitting
data, and menu processing. The scanner checks the CTS line before
transmitting data. When it is ON, the scanner transmits data. When it is OFF,
the scanner waits for it to turn ON within a set time. The scanner will abort
transmission with an error indication (buzzer) when the CTS line is not ON
within a specified period. The Flow Control time-outs are as follows, and the
default setting is “indefinitely“ (I0).
Opticon
Flow Control Time Out Menu/Command
Indefinitely I0
100 ms I1
200 ms I2
400 ms I3
Figure 13: Cannot receive command
21
OPR 2001
Specifications Manual
CTS, TXD signal timing
When the CTS line (RTS signal of the host) is turned OFF while sending a TXD
signal, the scanner transmits one character and waits. When the CTS signal is turned
ON while transmitting a character, the character will be transmitted.
Figure 14: Signal timing
Note: When using loopback (wire connection) for RTS, CTS line of the scanner in this
setting, No handshake is not enabled.
c) MODEM
The scanner turns CTS line ON before transmitting data. Other processes are
the same as BUSY/READY.
Opticon
Figure 15: Modem transmit data
22
Opticon
OPR 2001
Specifications Manual

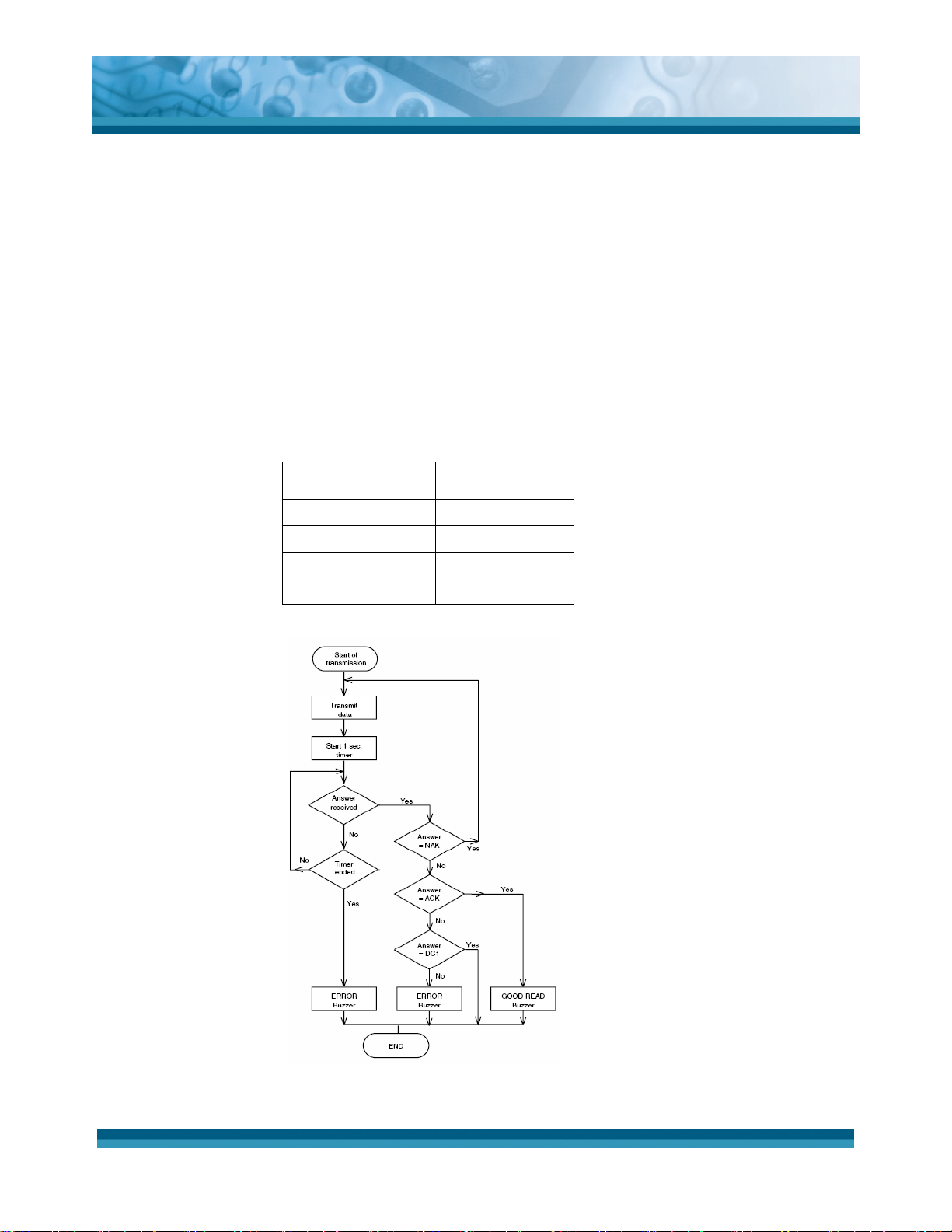

d) ACK/NAK
After data has been transmitted, the scanner expects to receive one of the
following responses from the host:
• ACK response—Action: The scanner completes transmission with the
good-read buzzer and returns to the initial state.
• NAK response—Action: The scanner sends the data again and waits for
the response from the host.
• DC1 response—Action: The scanner returns to waiting for the trigger, if it
has a trigger (the initial state).
• None response—Action: The scanner sounds the error buzzer and returns
to the initial state.
ACK/NAK timeout can be set as follows using the menu or commands.
ACK/NAK Timeout Menu/Command
Indefinitely (default) XI4
100 ms XI5
500 ms XI6
1000 ms XI7
Figure 16: ACK/NAK
23
OPR 2001
Specifications Manual
e) ACK/NAK NO RESPONSE
When no response from the host is received within the setting time, the
scanner assumes an ACK response, and returns to the initial state without the
error buzzer. The other actions are the same as ACK/NAK.
Opticon
Figure 17: ACK/NAK—No response
24
8.2. USB Interface Specifications
8.2.1. Settings
a) USB-HID
Reading menu barcodes [ZZ] + [SU] + [ZZ] can set the USB-HID interface
default.
The OPR 2001 USB model uses a full-speed USB interface.
b) USB-VCP
Reading menu barcodes [ZZ] + [C01] + [ZZ] can set the USB-VCP interface
default.
The OPR 2001 USB model uses a full-speed USB interface.
Note: You must install the USB-VCP driver on the host
Opticon
OPR 2001
Specifications Manual
8.2.2.
Connectors
a) USB "A" connector
#1
1
2
#4
Figure 18: USB "A" connector
Contact Number Signal Name
1 VCC
2 -DATA
3 +DATA
4 GND
3
4
25

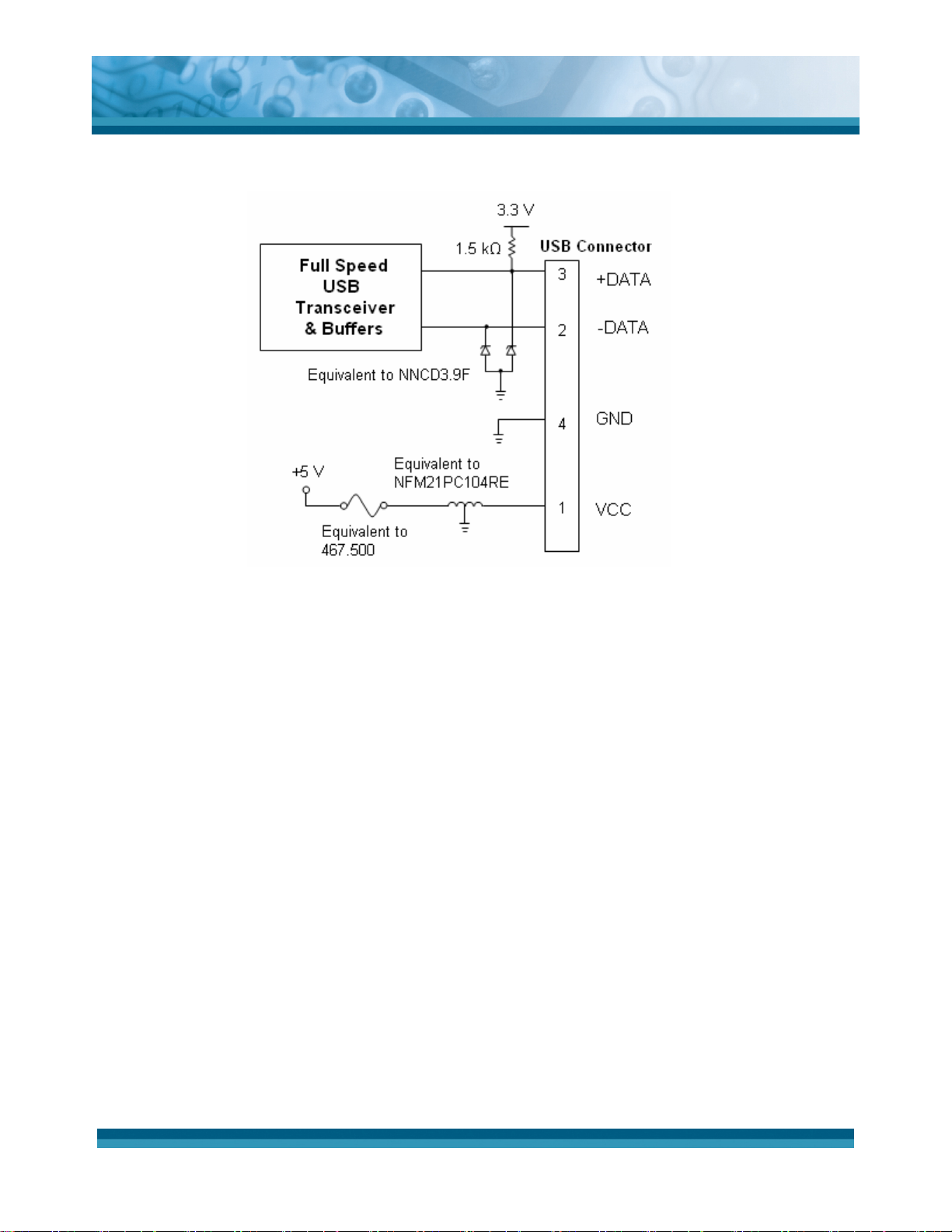

8.2.3. Interface Circuit
Opticon
OPR 2001
Specifications Manual
Figure 19: Interface circuit
Do not use the keyboard while the scanner is transmitting the data to the host.
Doing so may cause failure in data transactions.
8.3. DOS/V Wedge Interface Specification
8.3.1. Settings
a) Desktop PC (When using external keyboard)
Reading menu barcodes [ZZ] + [UB] + [KM] + [ZZ] can set the DOS/V Wedge
interface default.
b) Notebook PC (When not using external keyboard)
Reading menu barcodes [ZZ] + [UB] + [KL] + [ZZ] can set the DOS/V Wedge
interface default.
26

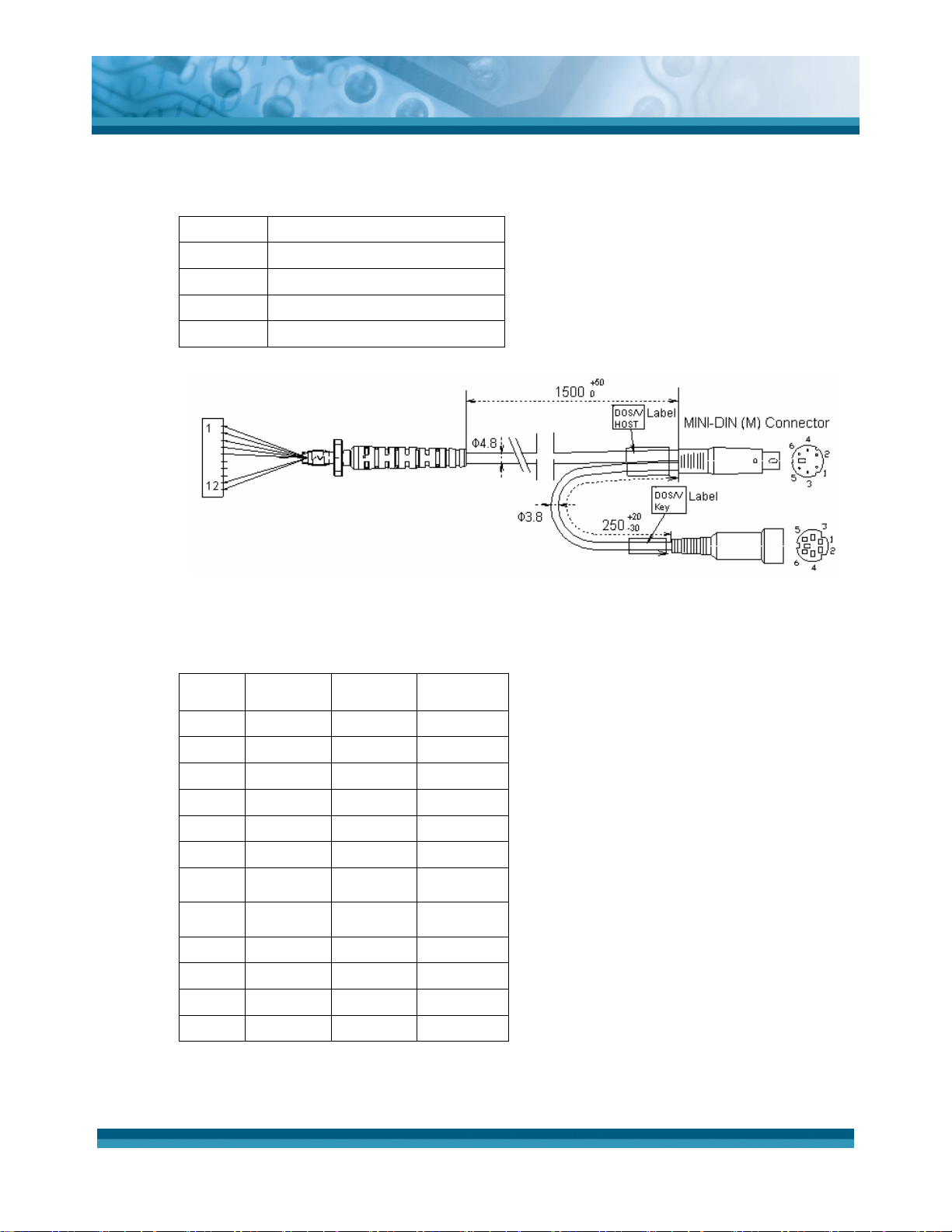

8.3.2. Connectors
2
a) DOS/V Host Connector
Opticon
OPR 2001
Specifications Manual
4
6
2
5
Figure 20: DOS/V host connector
1
3
Contact Number Signal Name
1 CPU_DATA
2 NC
3 GND
4 VCC
5 CPU_CLK
6 NC
b) DOS/V Keyboard Connector
3
5
1
6
4
Figure 21: DOS/V keyboard connector
Contact Number Signal Name
1 KEY_DATA
2 NC
3 GND
4 VCC
5 KEY_CLK
6 NC
Do not use the keyboard while the scanner is transmitting the data to the host.
Doing so may cause failure in data transactions.
27
9. Cable and Connector
9.1. RS-232C Cable
(Standard specification)
Type: Straight
Diameter: Φ4.8±0.5 mm
Length: 1500 +50, -0 mm
Cores: 6 insulated wires, 1 conductive wire
Weight: Approximately 40 g
Opticon
OPR 2001
Specifications Manual
9.2. USB Cable
(Standard specification)
Diameter: Φ4.8 ±0.5 mm
Figure 22: RS-232C cable
Type: Straight
Length: 1500 +50, -0 mm
Cores: 4 insulated wires, 1 conductive wire
Weight: Approximately 40 g
Figure 23: USB cable
28
9.3. Wedge Cable
(Standard specification)
Type: Y cable
Diameter: Φ4.8 ±0.5 mm
Length: 1500 +50, -0 mm
Cores: 6 insulated wires, 1 conductive wire
Weight: Approximately 50 g
Opticon
OPR 2001
Specifications Manual
Figure 24: Wedge cable
9.4. Connector Specification (Scanner Side)
CN1 (12-pin)
Pin No RS-232C USB Wedge
1 GND GND GND
2 RXD --- ---
3 TXD --- ---
4 CTS --- ---
5 RTS --- ---
6 NC --- ---
7 NC
8 NC
9 NC --- CPU_CLK
10 NC --- CPU_DATA
11 VCC VCC VCC
12 FG (shield) FG (shield) FG (shield)
－DATA
＋DATA
KEY_CLK
KEY_DATA
29
10. Default Settings
10.1. Barcodes
Scan the following menu barcodes to return to the default settings.
RS-232C Default
Functions Menu labels Menu codes
Opticon
OPR 2001
Specifications Manual
SET
RS232C
END
USB-HID Default
Functions Menu labels Menu codes
SET
USB-HID
END
USB-VCP Default
Functions Menu labels Menu codes
SET
USB-COM
_ZZ_
_U2_
_ZZ_
_ZZ_
_SU_
_ZZ_
_ZZ_
_C01_
ZZ
U2
ZZ
ZZ
SU
ZZ
ZZ
C01
END
Wedge Default (with external keyboard)
Functions Menu labels Menu codes
SET
AT wedge default
With keyboard
END
_ZZ_
_ZZ_
_UB_
_KM_
_ZZ_
30
ZZ
ZZ
UB
KM
ZZ
Wedge Default (without external keyboard)
Functions Menu labels Menu codes
Opticon
OPR 2001
Specifications Manual
SET
AT wedge default
With keyboard
END
_ZZ_
_UB_
_KL_
_ZZ_
10.2. Default Settings 1: Readable Codes
Symbology Read Transmit
Code
Length
UPC-A
UPC-A Add-on X X
UPC-E
UPC-E Add-on X X
EAN-13
X
X
X
Transmit
CD
ZZ
UB
KL
ZZ
Calculate
CD
Set
Prefix
—
—
—
—
—
Set
Others
Suffix
CR
CR
CR
CR
CR
EAN-13 Add-on X X
EAN-8
EAN-8 Add-on X X
Chinese Post Matrix
2of5
Code-11 X X X
Code-39
Code-39 Trioptic
Code-93
Code-128
EAN-128 X X X
IATA
X X
X
X
X
X X
X X
X
— — —
X
X
X
31
—
—
—
—
—
—
—
—
—
—
CR
CR
CR
CR
CR
CR Not transmit
ST/SP
CR Not transmit
ST/SP
CR
CR
CR
CR
Opticon
OPR 2001
Specifications Manual
Symbology Read Transmit
Code
Transmit
CD
Length
Industrial2of5
Interleaved2of5
Korean Postal Code
(Code 3of5)
Matrix2of5 X X
MicroPDF417 X X
MSI/Plessey
NW-7(CODABAR)
PDF417 X X
RSS-14 X X
RSS-limited X X
RSS-expanded X X
X X X
X
X
X CD1 CD1
X
— — —
— — —
Calculate
CD
X
X
X
X
Set
Prefix
—
—
—
—
—
—
—
—
—
Set
Others
Suffix
CR
CR
CR
CR
CR
CR
CR Not transmit
ST/SP
CR
CR
CR
CR
S-Code
Telepen
UK/Plessey
Notes:
• In the “Reading” column, “
• In the “Transmit code length” column, “
• In the “Transmit CD” column, “
• In the “Calculate CD” column, “
• “— “ means “not supported.”
• In the “Prefix” column, “—“ means “there is no prefix setting.”
X
X X
X
” means “Enable reading” and “X” means “Disable
reading.”
means “Do not transmit code length.”
” means “Transmit check digit” and “X” means “Do
not transmit check digit.”
” means “Calculate check digit” and “X” means
“Do not calculate check digit.”
X
” means “Transmit code length” and “X”
—
—
—
CR
CR
CR
32
10.3. Default Settings 2: Read Options, Trigger, Buzzer
Item Default Setting
Setting the number of characters Fixed length OFF all codes
Read mode Single read
Multiple read reset time 500 ms
Add-on wait time 500 ms
Multiple columns read Disabled
Default option
Redundancy
Trigger switch Enabled
Trigger repeat Disable trigger repeat
Auto trigger Disable auto trigger
Margin check Margin check normal
Buzzer duration 50 ms
Buzzer tone 3 kHz (single tone)
Buzzer loudness Loud (Maximum)
Buzzer timing Buzzer before transmission
Startup buzzer Enable startup buzzer
Indicator duration 200 ms
([X0] setting)
Other options
([X1 .. X3] setting)
([BS .. BW] setting)
Read 1 times, redundancy = 0
Read n times, redundancy = n+1
for following symbologies and lengths:
● Code39 with length <= 5
● MSI/Plessey with length <= 4
● IATA,Industrial 2of5, Interleaved 2of5
with length <= 8
● Matrix 2of5 (& Chin.Post), Scode
with length <= 8
● Codabar (NW7) with all lengths
● Code-11 with length <= 5
Opticon
OPR 2001
Specifications Manual
33
11. Serial Number
The serial number as shown below is affixed to the scanner.
Opticon
OPR 2001
Specifications Manual
Figure 25: Serial number diagram
12. Packaging Specifications
12.1. Individual Packaging Specification
Put the scanner in a protective foam bag and place it in a single packing box.
Size of the package (after assembly: 245 (W) x 110 (D) x 40 (H) mm
12.2. Collective Packaging Specification
Put 50 individually packaged OPR 2001 scanners in a collective packaging box.
Dimensions: 650 mm (W) x 550 mm (D) x 250 mm (H)
Note: The “RO” mark labeled on the package tray or package box guarantees that the
applicable product has passed our test of RoHS restrictions compliance (the restriction of
the use of certain hazardous substances in electrical and electronic equipment,
2002/95/EC). However, this document does not have any legal weight in the European
Union.
34
13. Durability
13.1. Electrical Noise
No malfunction occurred when sinusoidal electrical noise (10Hz -100kHz, < 0.1Vpp) was
added to a power supply line.
Conditions
Barcode Sample: OPTOELECTRONICS Test Sample
PCS: 0.9
Resolution: 0.25 mm
Symbology: 9-digit Code-39
Quiet Zone: 10 mm
N/W Ratio: 1:2.5
Distance: 90 mm
Angle: α = 0° β = 15° γ = 0°
Curvature: R = ∞
Power Supply Voltage: 5.0 V
Opticon
OPR 2001
Specifications Manual
13.2. Shock
13.2.1. Drop Test (without packaging)
No malfunction occurred after the following drop test.
Drop Test: Drop the scanner from a height of 150 cm onto a concrete floor three
times on each of 5 sides.
Figure 26: Drop test
13.2.2. Drop Test (with individual packaging)
No malfunction occurred after the following drop test.
Drop Test: Drop the scanner from a height of 150 cm onto a concrete floor on
each of one corner, three edges, and six sides (10 drop tests in total).
35
13.3. Vibration Strength
No malfunction occurred after the following vibration test.
Opticon
OPR 2001
Specifications Manual
Vibration Test: Increase the frequency of the vibration from 10 Hz to 100 Hz with
accelerated velocity 19.6m/s
2
(2G) for 60 minutes in non-operating state. Repeat this
routine in each X, Y, Z direction once for 60 minutes each.
13.4. Static Electricity
Air discharge: 10 kV Max. (No malfunction)
15 kV Max. (No destruction)
Measurement environment: Use electrostatic testing device compliant with IEC 61000-4-2
Discharge resistance: 330 Ω
Capacitor charging: 150 pF
13.5. Dust and Drip Proof
IEC IP42
13.6. Cable Strength
13.6.1. Cable Pulling Test
No malfunction occurred after the following pulling test.
Pulling test: Fix the scanner and pull the cable with the force of 2.5 kg (24.5N) for
1 second. Repeat 20 times.
13.6.2.
Cable Tail Bending Test
No malfunction occurred after the following bending test.

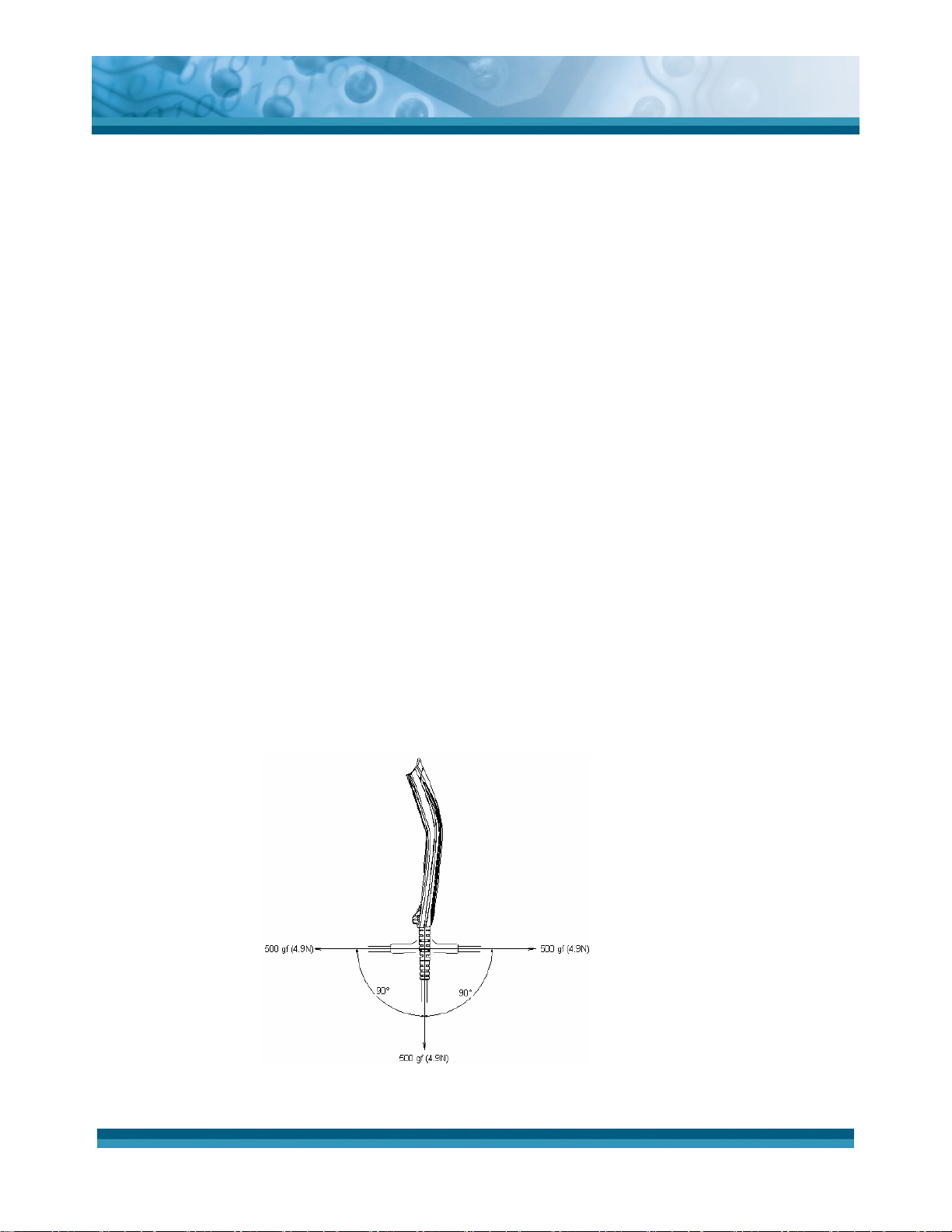

Bending test: Fix the scanner and attach a weight of 500 grams (4.9N); swing the
cable back and forth at an angle of 90°. Repeat it 1,000,000 times.
Figure 27: Cable tail bending test
36
Specifications Manual
14. Reliability
MTBF (Mean Time Between Failures) of this product is 10,000 hours.
The estimate of MTBF is based on standard operation of the product within the recommended
temperature range and without extreme electronic or mechanical shock.
15. Auto Trigger (Option)
The product has an optional auto trigger setting, which starts barcode reading automatically by
using sensor detection. The scanner starts barcode reading after detecting reflection from the
surface when the auto trigger is used.
Auto trigger distance: 50 ±10 mm from the edge of the scanner.
Conditions
Moving Speed: 100 ±10 mm/s (the moving direction is not specified)
Angle: Skew angle, excluding Pitch Angle and Dead Zone, specified
in section 7.3 Pitch, Skew and Tilt.
Environmental Temperature and
Humidity:
Environmental Illuminance: 500 to 900 lx
Conditions for the auto trigger: 1. Barcode sheet: OPTOELECTRONICS Test Sheet (white)
Room temperature and humidity
Background: OPTOELECTRONICS Test Sheet (black)
2. Barcode sheet: OPTOELECTRONICS Test Sheet (black)
Background: OPTOELECTRONICS Test Sheet (white)
Opticon
OPR 2001
Figure 28: Auto trigger operation
37
Opticon
OPR 2001
Specifications Manual
Auto trigger can be enabled in 2 ways:
• Stand detection mode: This option enables auto trigger automatically in case the
scanner is inserted into the stand.
• Normal auto trigger mode.
*Descriptions in ( ) show menu IDs.

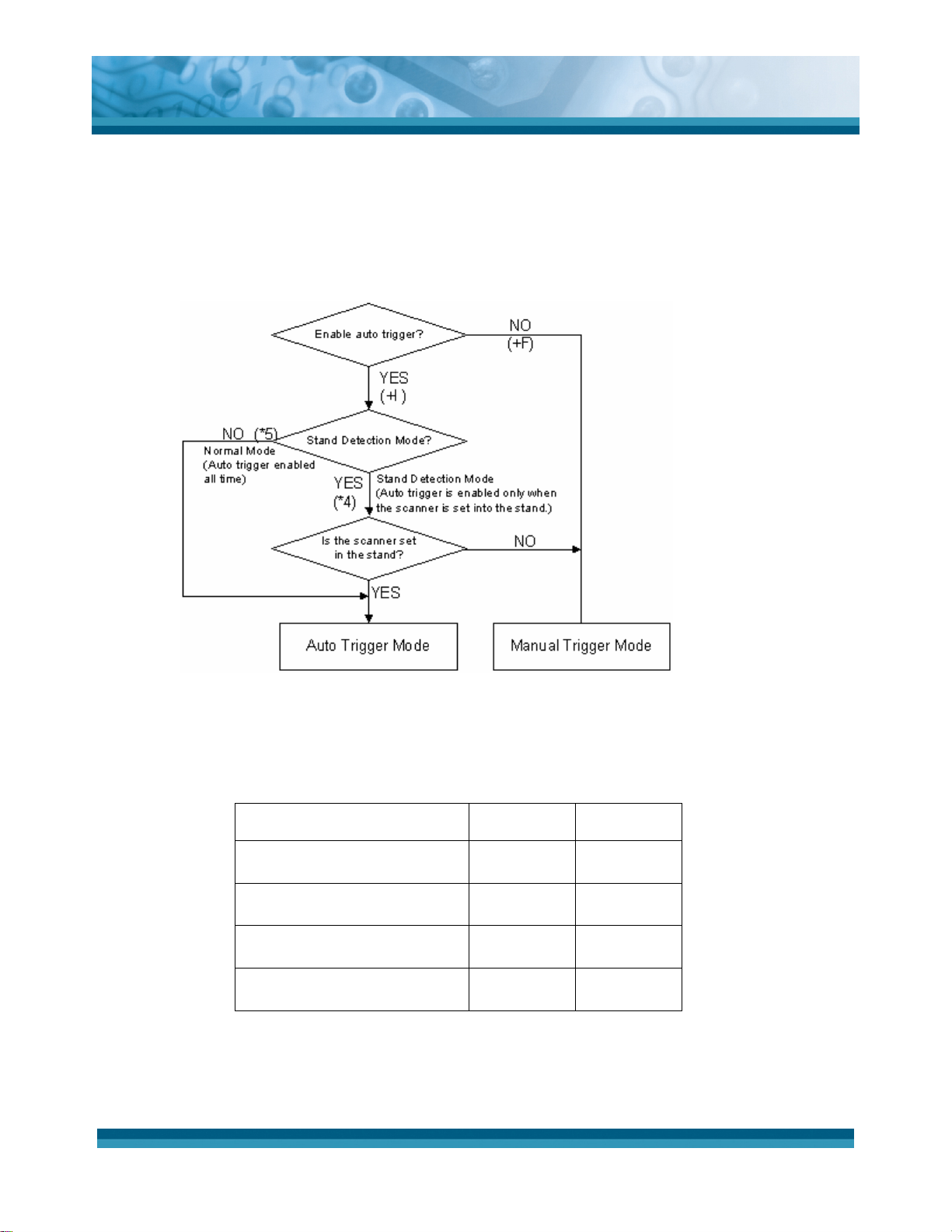

Figure 29: Trigger options
15.1. Auto Trigger Settings
15.1.1. Stand Only
Enable auto trigger only when the scanner is inserted into the stand.
Functions Menu labels Menu codes
SET
Enable auto trigger
Enable auto trigger stand detection
END
(If the scanner is removed from the stand, auto trigger is disabled and the scanner
should be triggered manually.)
_ZZ_
_+I_
_*4_
_ZZ_
ZZ
+I
*4
ZZ
38
15.1.2. Always
Enable auto trigger all the time.
Opticon
OPR 2001
Specifications Manual
Functions Menu labels Menu codes
SET
Enable auto trigger
Disable auto trigger stand detection
END
15.1.3. Manually
Only trigger manually (default).
SET
Disable auto trigger
Disable auto trigger stand detection
END
A magnetic switch and a magnet are used for stand detection operation.
Therefore, auto trigger may be activated when there is a magnetic substance
nearby.
_ZZ_
_+I_
_*5_
_ZZ_
Functions Menu labels Menu codes
_ZZ_
_+F_
_*4_
_ZZ_
ZZ
+I
*5
ZZ
ZZ
+F
*5
ZZ
39
16. Regulatory Compliance
16.1. Laser Safety
JIS C 6802:2005 Class 2
IEC60825-1+A2:2001 Class 2
Opticon
OPR 2001
Specifications Manual
CDRH Class II
16.2. Product Safety
EN60950-1: 2001
IEC60950-1: 2001
16.3. EMC
EN55022
EN55024
VCCI Class B: This is a Class B product, to be used in a domestic environment based on
the Technical Requirement of the Voluntary Control Council for Interference from
Information Technology Equipment (VCCI). If this is used near a radio or television
receiver in a domestic environment, it may cause radio interference. Please install and
use the equipment according to the instruction manual.
FCC Part 15 Subpart B Class B: This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
16.4. Compliance to RoHS
RoHS: The restriction of the use of certain hazardous substances in electrical and
electronic equipment, 2002/95 EC
40
17. Safety
Handle this product carefully. Do not deliberately subject it to any of the following.
17.1. Shock
• Do not throw or drop the scanner.
• Do not place heavy objects on the cables.
17.2. Temperature Conditions
• Do not use the scanner at temperatures outside the specified range.
• Do not pour boiling water on the scanner.
• Do not throw the scanner into the fire.
• Do not forcibly bend the cables at low temperatures.
17.3. Foreign Materials
• Do not immerse the scanner in liquids.
Opticon
OPR 2001
Specifications Manual
• Do not subject the scanner to chemicals.
17.4. Other
• Do not plug/unplug the connectors before disconnecting the power.
• Do not disassemble this product.
• Do not use the scanner near a radio or a TV receiver. It may cause reception
problems.
• The scanner may be damaged by voltage drops.
• The scanner may not perform properly in environments when placed near a flickering
light, such as a computer monitor, television, etc.
41
18. Mechanical Drawing
Dimensions: 151.0 mm x 56.0 mm x 30.5 mm (except protruding parts)
Opticon
OPR 2001
Specifications Manual
Figure 30: Mechanical drawing
42
Loading...
