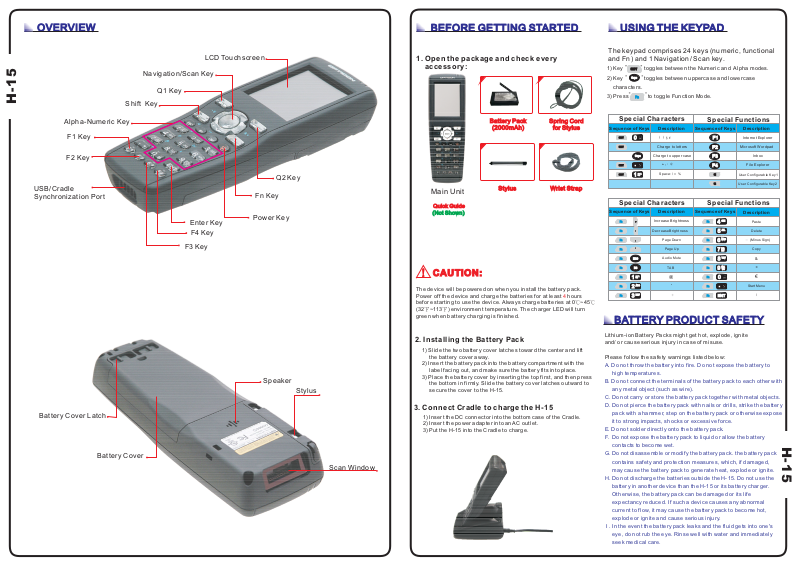

Opticon H15 Quick Guide

OVERVIEW

H-15

Navigation/Scan Key

Q1 Key

Shift Key

LCD Touchscreen

BEFORE GETTING STARTEDBEFORE GETTING STARTED

1. Open the package and check every accessory:

USING THE KEYPADUSING THE KEYPAD

The keypad comprises 24 keys (numeric, functional and Fn) and 1 Navigation/ Scan key.

1) Key toggles between the Numeric and Alpha modes.

2) Key toggles between uppercase and lowercase

3) Press to toggle Function Mode.

SHIFT

Caps

characters.

Alpha-Numeric Key

F1 Key

F2 Key

USB Cradle

Synchronization Port

Enter Key

F4 Key

F3 Key

Q2 Key

Fn Key

Power Key

Battery Pack

Main Unit

Battery Pack

(2000mAh)

Stylus

Spring Cord

Stylus

for Stylus

for

Wrist StrapWrist Strap

Quick GuideQuick Guide

(Not Shown)(Not Shown)

CAUTION:

The device will be powered on when you install the battery pack. Power off the device and charge the batteries for at least hours before starting to use the device. Always charge batteries at 0 ~45 (32 ~113 ) environment temperature. The charger LED will turn

℉℉

℃℃

green when battery charging is finished.

Special Characters

Sequence of Keys

SHIFT

Caps

SHIFT

SP \

SHIFT

﹙﹚

Charge toletters

Charge toupper case

Description

()

Space :\ = %

Special Characters

Sequence of Keys

ESC

SP \

ABC

DEF

Description

Increase Brightness

Decrease Brightness

＄ €

；@

，

Page Down

Page Up

Audio Mute

TAB

’

＋

Special Functions

Sequence of Keys

Microsoft Wordpad

User ConfigurableKey1

User ConfigurableKey2

Special Functions

Sequence of Keys

GHI

JKL

MNO

PQRSPQ

TUV

WXYZWX

﹙﹚

ENT

Description

Internet Explorer

File Explorer

Description

－ (Minus Sign)

Start Menu

BATTERY PRODUCT SAFETY

Inbox

Paste

Delete

Copy

＊

€

Battery Cover Latch

Battery Cover

Speaker

Stylus

Scan Window

2. Installing the Battery Pack

1) Slide

the two battery cover latches toward the center and lift

the battery cover away.

Insert the battery pack into the battery compartment with the

label facing out, and make sure the battery fits into place.

Place the battery cover by inserting the top first, and then press

the bottom in firmly. Slide the battery cover latches outward to secure the cover to the H-15.

3. Connect Cradle to charge the H-15

1) Insert the DC connector into the bottom case of the Cradle.

Insert the power adapter into an AC outlet.

3) Put the H-15 into the Cradle to charge.

Lithium-ion Battery Packs might get hot, explode, ignite and/ or cause serious injury in case of misuse.

Please follow the safety warnings listed below:

A. Do not throw the battery into fire. Do not expose the battery to

high temperatures.

Do not connect the terminals of the battery pack to each other with

any metal object (such as wire).

Do not carry or store the battery pack together with metal objects.

Do not pierce the battery pack with nails or drills, strike the battery

pack with a hammer, step on the battery pack or otherwise expose

it to strong impacts, shocks or excessive force.

Do not solder directly onto the battery pack.

Do not expose the battery pack to liquid or allow the battery

contacts to become wet.

Do not disassemble or modify the battery pack. the battery pack

contains safety and protection measures, which, if damaged,

may cause the battery pack to generate heat, explode or ignite.

Do not discharge the batteries outside the H-15. Do not use the

battery in another device than the H-15 or its battery charger.

Otherwise, the battery pack can be damaged or its life

expectancy reduced. If such a device causes any abnormal

current to flow, it may cause the battery pack to become hot,

explode or ignite and cause serious injury.

I . In the event the battery pack leaks and the fluid gets into one's

eye, do not rub the eye. Rinse well with water and immediately

seek medical care.

H-15

SETTING DEVICESETTING DEVICE

H-15

Quick Guide

4615-810001-01

1. Initial Boot Up

The initial boot up screen will be displayed when you install the the battery pack for the first time. Do not remove when the system is booting.

the battery pack

H-15

2. Calibrating Touchscreen

This calibration is already done by the manufacturer. If you want to calibrate the touch screen again, please tap “Start” --- “Settings”

--- “Control Panel” --- “Stylus” --- “Calibration"

--- "Recalibrate”, then hold the stylus and press on the center of the target as it moves around the screen.

CAUTION:

Be sure to use the supplied stylus or plastictipped pens for the touch screen display. Don't use pencils, pens or any sharp objects on the touch screen display.

3. Setting Up Wireless LAN for Summit

Enable Wireless LAN by clicking on the

WLAN icon on the main screen.

2) Wait until the SCU icon appears on the task

barandthenclickonittostartthe

"Summit Client Utility".

3 In the Profile tab tap the Scan button to

connect/refresh the network.

4) Select a network, tap the Connect button or

double tap it to create a new profile SSID

Set the AP then press the Connect button

to connect it

Note:

Availability depends on H-15 model.

4. Bluetooth Device Properties

1) Press “Start”---“Programs” -- “

Device Properties to enable the Bluetooth device.

2) Wait for 20 seconds in order to initialize the

Bluetooth hardware correctly.

)PresstheScanDevicebuttontosearchfor

Bluetooth devices.

Note :

Availability depends on H-15 model.

Bluetooth

”

5. Brightness Setting

The device is equipped with backlight for both sunlight-readable LCD display and keypad. To adjust the LCD backlight brightness, press the “Fn” key and then press navigation key “>” or “<” to adjust display brightness. Press “Start”---“Settings”---“Control Panel” --“Control Center” “Brightness” both LCD and keypad brightness.

to set

6. Volume Adjustment

1) Press “Start”---“Settings”---“Control Panel”

-- “Volume & Sounds”.

2) Adjust the volume bar to meet your demand.

Note:

To mute the sound, press the “Fn” key and then press “ESC” key to turn off and on the sound.

USING THE APPLICATIONS

1. Execute an Application

Tap an application icon on the desktop, or tap

“Start”---“Programs”. Select one of the applications.

2. Close an Application

Tap the “X” to close the application.

Close Button

Start Button

3. Using the Software Input Panel

1) Tap the “Stylus” icon on the task bar.

2) Tap the “Keyboard” icon.

3) When the Software Input Panel appears, input characters with the Stylus.

Keyboard inputpanel.

4. Task Switch

Win CE can execute multiple applications at the same time.

1) Press “Task Switch” icon in the task bar.

2) Select the task you want in the task menu.

You can use this to bring the selected application to the foreground. It does not close the other applications.

Stylus/Keyboard icon

TaskSwitch

BAR CODE READINGBAR CODE READING

CAUTION:

Remove the protective film from the scan window before use.

1. Start your application

2. Aim the scan window at the bar code

3. Press the scan key.

4. Aiming :

1D laser: aim the red laser beam on the center of the bar code

Bar codes can be read from 50 to 650 mm distance.

Good scanning positions

H-15

Bad scanning positions

H-15

H-15 H-15

5. Check the bar code reading result

You can verify the result of the bar code reading in your application,

by beep sound(s) or the LED indicator.

USING PERIPHERALSUSING PERIPHERALS

1. Using a microSD Card

Remove the battery cover

2) Remove the Battery Pack. Insert a correctly oriented card.

Note:

To remove a microSD card, follow the “Open” and “Lock” direction to pull out the .

The microSD slot supports memory cards only. It does not support

I/O peripherals.

SD I/O peripherals.

card

2. USB Connection

Connect to the Cradle to synchronize data with a computer.

RESETTING DEVICERESETTING DEVICE

1. Warm Reset

1) If an application hangs, initiate a Warm Reset to terminate the application.

2) The Warm Reset will close all applications and clear the working RAM, but all files will be preserved.

3) To perform a Warm Reset, press “F1” and “F4” keys simultaneously.

2. Cold Reset

CAUTION:

Try before you initiate a Cold Reset. All

Warm Reset applications will be closed, and working RAM as well as all files will be cleared if you initiate the Cold Reset. It is strongly recommended to back up your files to Flash ROM, Flash Card or PC.

1) You can use Cold Reset to initialize the device if the WinCE.NET OS locks up or in case a Warm Reset has no effect.

2) To perform a Cold Reset, press “Power”, “F1” and “F4” keys simultaneously.

3) The device will boot up after the Cold Reset.

User and Product Safety

A. Do not stare into the laser beam directly or shine it

into a person s eyes.

B. Never use strong pressure onto the screen or subject

it to severe impact, as the LCD panel could become cracked and possibly cause personal injury. If the LCD panel is broken, do not touch the liquid inside, because the liquid irritates the skin.

C. Use only the original approvedAC adapter with the

H-15. Use of an unapproved AC Adapter could result in electrical problems, or even cause a fire or electrical shock to the user.

D. Do not disassemble the H-15. Servicing should

be done by authorized suppliers only. If the device or accessories get damaged due to wrong handling or unauthorized repair, warranty is void. In case the

H-15

warranty seals are broken, warranty is void, too. E. Make regular backups of all important data. F. Under no circumstance will Manufacturer be liable

for any

damages

the hardware

even if Manufacturer

possibility of such

Do not throw this product in the home waste bin.

’

direct, indirect, consequential or incidental

arising out of use or inability to use both

and software and/or any data loss,

has been informed about the

damages.
