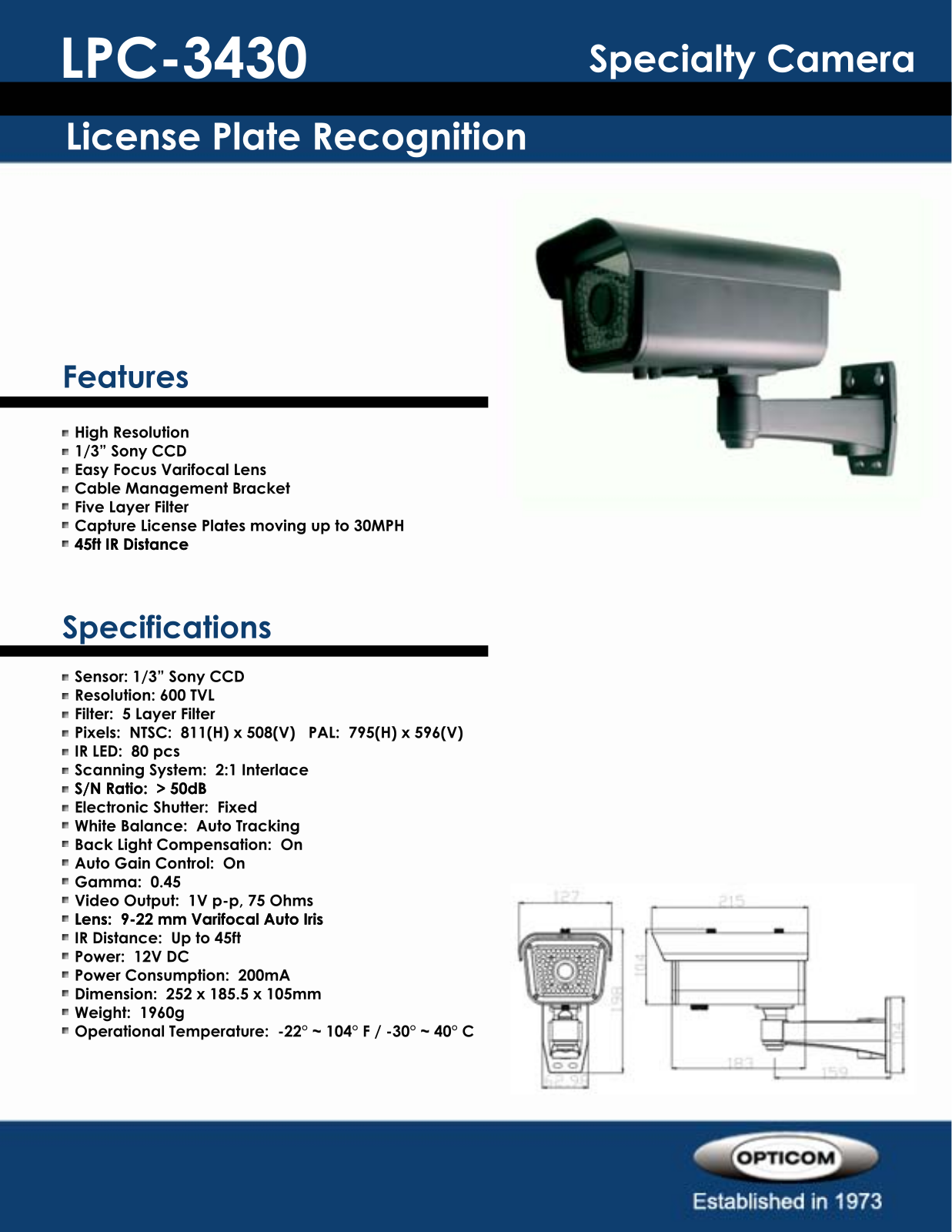

Opticom LPC-3430 SPECIFICATION SHEET

LPC-3430

License Plate Recognition

Features

High Resolution
1/3” Sony CCD
Easy Focus Varifocal Lens
Cable Management Bracket
Five Layer Filter
Capture License Plates moving up to 30MPH
45ft IR Distance45ft IR Distance

Specialty Camera

Specifications

Sensor: 1/3” Sony CCD
Resolution: 600 TVL
Filter: 5 Layer Filter
Pixels: NTSC: 811(H) x 508(V) PAL: 795(H) x 596(V)
IR LED: 80 pcs
Scanning System: 2:1 Interlace
S/N Ratio: > 50dBS/N Ratio: > 50dB
Electronic Shutter: Fixed
White Balance: Auto Tracking
Back Light Compensation: On
Auto Gain Control: On
Gamma: 0.45
Video Output: 1V p-p, 75 Ohms
Lens: 9-22 mm Varifocal Auto Iris Lens: 9-22 mm Varifocal Auto Iris
IR Distance: Up to 45ft
Power: 12V DC
Power Consumption: 200mA
Dimension: 252 x 185.5 x 105mm
Weight: 1960g
Operational Temperature: -22° ~ 104° F / -30° ~ 40° C
