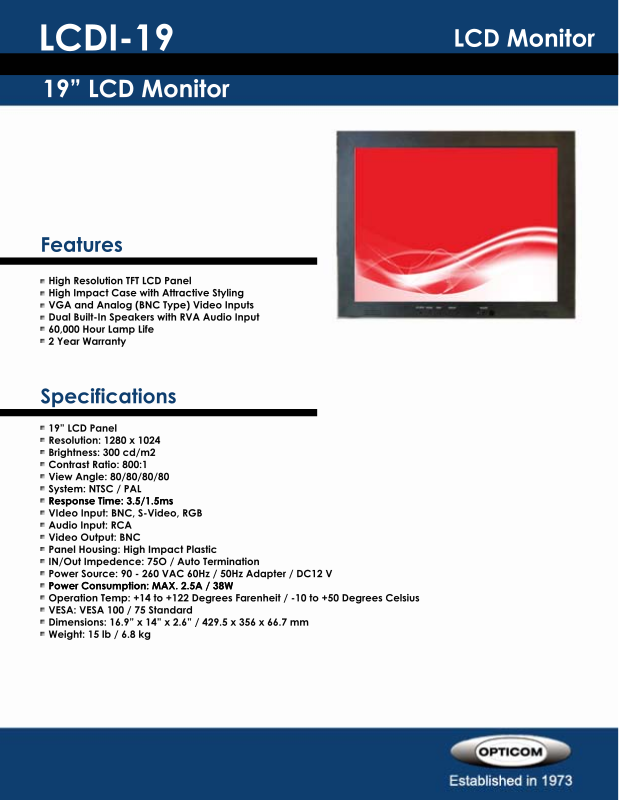

Opticom LCDI-19 DATASHEET

LCDI-19

19” LCD Monitor

Features

High Resolution TFT LCD Panel
High Impact Case with Attractive Styling
VGA and Analog (BNC Type) Video Inputs
Dual Built-In Speakers with RVA Audio Input
60,000 Hour Lamp Life
2 Year Warranty

LCD Monitor

Specifications

19” LCD Panel
Resolution: 1280 x 1024
Brightness: 300 cd/m2
Contrast Ratio: 800:1
View Angle: 80/80/80/80
System: NTSC / PAL
Response Time: 3.5/1.5msResponse Time: 3.5/1.5ms
VIdeo Input: BNC, S-Video, RGB
Audio Input: RCA
Video Output: BNC
Panel Housing: High Impact Plastic
IN/Out Impedence: 75O / Auto Termination
Power Source: 90 - 260 VAC 60Hz / 50Hz Adapter / DC12 V
Power Consumption: MAX. 2.5A / 38WPower Consumption: MAX. 2.5A / 38W
Operation Temp: +14 to +122 Degrees Farenheit / -10 to +50 Degrees Celsius
VESA: VESA 100 / 75 Standard
Dimensions: 16.9” x 14” x 2.6” / 429.5 x 356 x 66.7 mm
Weight: 15 lb / 6.8 kg
