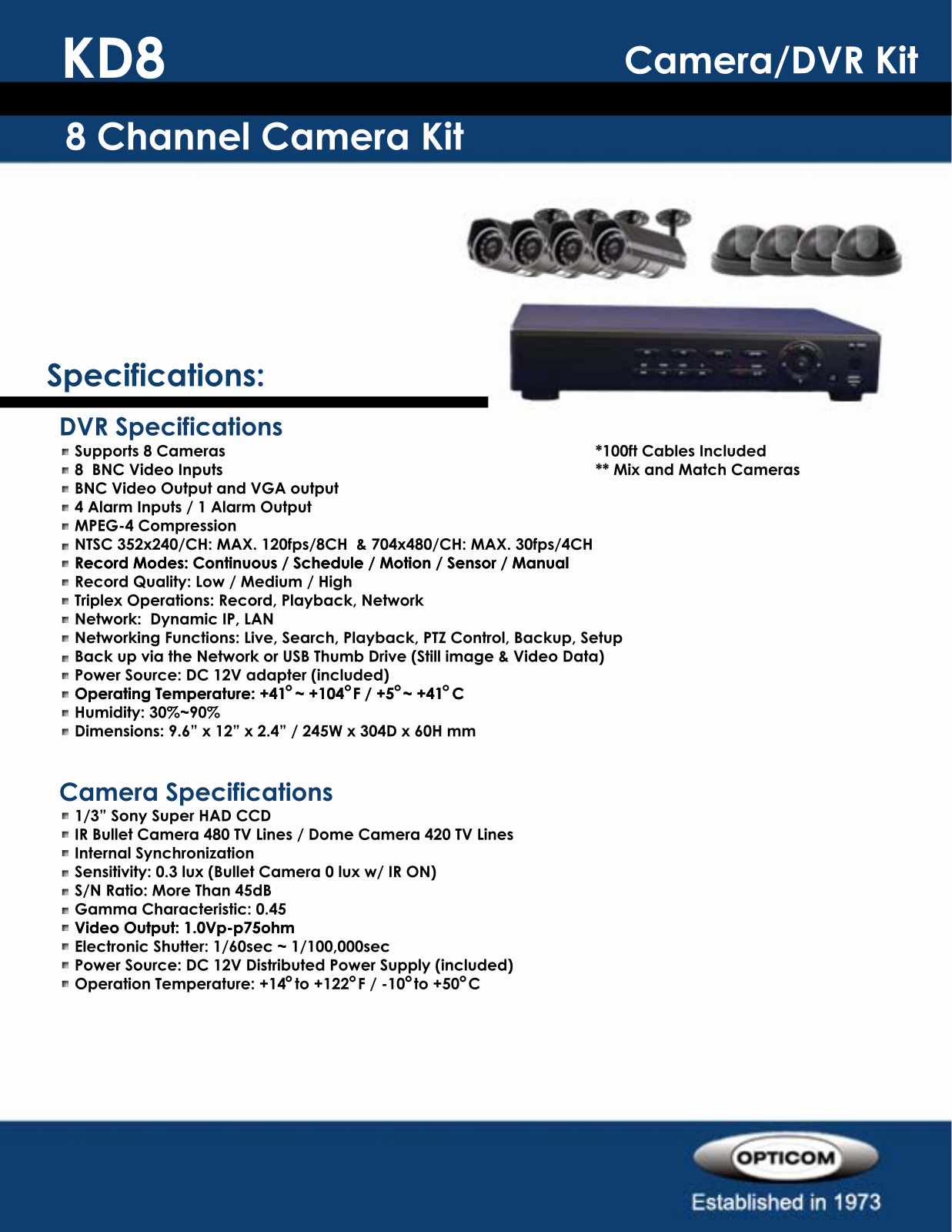

Opticom KD8 DATASHEET

KD8

8 Channel Camera Kit

Specifications:

DVR Specifications

Supports 8 Cameras
8 BNC Video Inputs
BNC Video Output and VGA output
4 Alarm Inputs / 1 Alarm Output
MPEG-4 Compression
NTSC 352x240/CH: MAX. 120fps/8CH & 704x480/CH: MAX. 30fps/4CH
Record Modes: Continuous / Schedule / Motion / Sensor / ManualRecord Modes: Continuous / Schedule / Motion / Sensor / Manual
Record Quality: Low / Medium / High
Triplex Operations: Record, Playback, Network
Network: Dynamic IP, LAN
Networking Functions: Live, Search, Playback, PTZ Control, Backup, Setup
Back up via the Network or USB Thumb Drive (Still image & Video Data)
Power Source: DC 12V adapter (included)
Operating Temperature: +41 ~ +104 F / +5 ~ +41 COperating Temperature: +41 ~ +104 F / +5 ~ +41 C
Humidity: 30%~90%
Dimensions: 9.6” x 12” x 2.4” / 245W x 304D x 60H mm

Camera/DVR Kit

*100ft Cables Included
** Mix and Match Cameras

8 60’ Cables Included

Camera Specifications

1/3” Sony Super HAD CCD
IR Bullet Camera 480 TV Lines / Dome Camera 420 TV Lines
Internal Synchronization
Sensitivity: 0.3 lux (Bullet Camera 0 lux w/ IR ON)
S/N Ratio: More Than 45dB
Gamma Characteristic: 0.45
Video Output: 1.0Vp-p75ohmVideo Output: 1.0Vp-p75ohm
Electronic Shutter: 1/60sec ~ 1/100,000sec
Power Source: DC 12V Distributed Power Supply (included)
Operation Temperature: +14 to +122 F / -10 to +50 C
