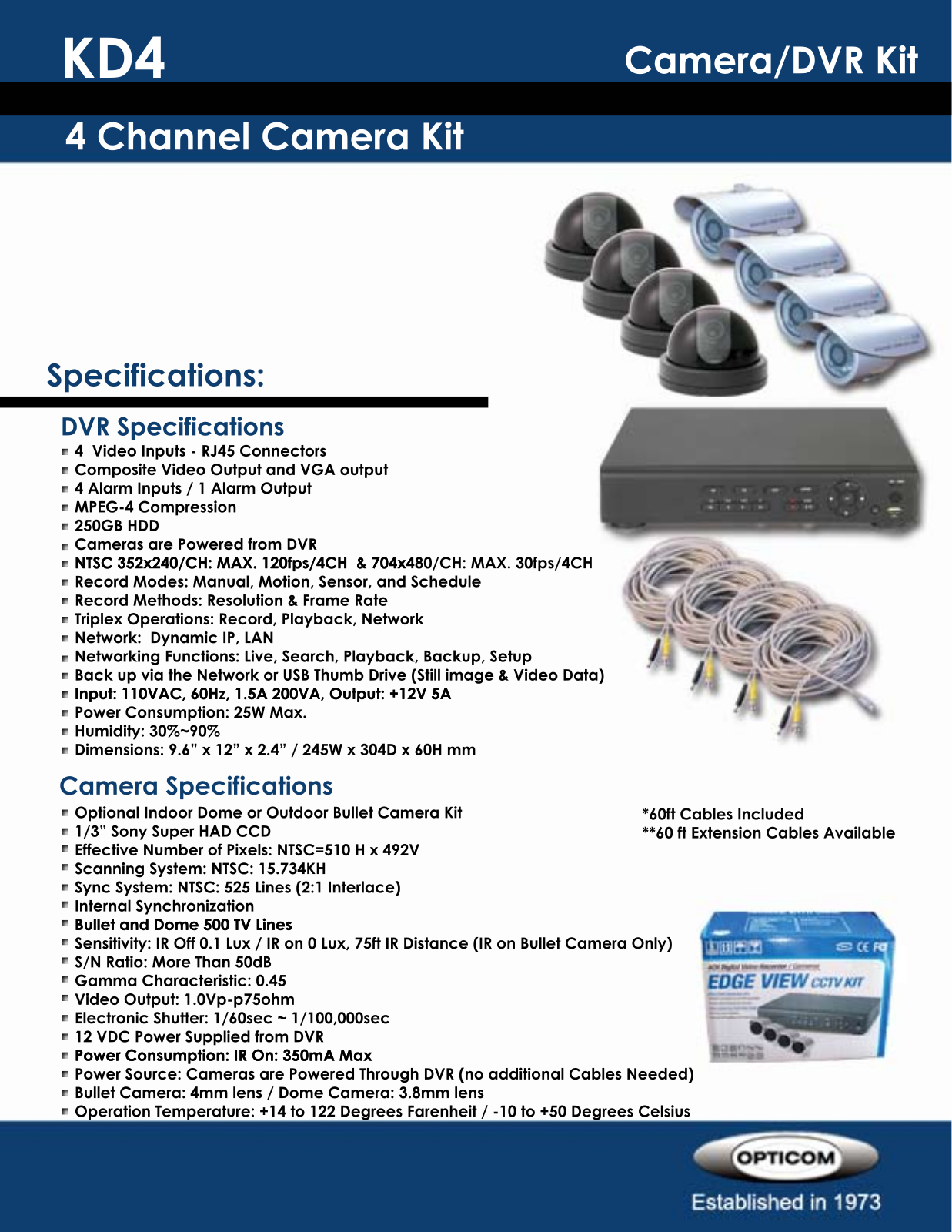

Opticom KD4 SPECIFICATIONS SHEET

KD4

4 Channel Camera Kit

Specifications:

DVR Specifications

4 Video Inputs - RJ45 Connectors
Composite Video Output and VGA output
4 Alarm Inputs / 1 Alarm Output
MPEG-4 Compression
250GB HDD
Cameras are Powered from DVR
NTSC 352x240/CH: MAX. 120fps/4CH & 704x480/CH: MAX. 30fps/4CHNTSC 352x240/CH: MAX. 120fps/4CH & 704x480/CH: MAX. 30fps/4CH
Record Modes: Manual, Motion, Sensor, and Schedule
Record Methods: Resolution & Frame Rate
Triplex Operations: Record, Playback, Network
Network: Dynamic IP, LAN
Networking Functions: Live, Search, Playback, Backup, Setup
Back up via the Network or USB Thumb Drive (Still image & Video Data)
Input: 110VAC, 60Hz, 1.5A 200VA, Output: +12V 5AInput: 110VAC, 60Hz, 1.5A 200VA, Output: +12V 5A
Power Consumption: 25W Max.
Humidity: 30%~90%
Dimensions: 9.6” x 12” x 2.4” / 245W x 304D x 60H mm

Camera/DVR Kit

4 60’ Cables Included

Camera Specifications

Optional Indoor Dome or Outdoor Bullet Camera Kit
1/3” Sony Super HAD CCD
Effective Number of Pixels: NTSC=510 H x 492V
Scanning System: NTSC: 15.734KH
Sync System: NTSC: 525 Lines (2:1 Interlace)
Internal Synchronization
Bullet and Dome 500 TV LinesBullet and Dome 500 TV Lines
Sensitivity: IR Off 0.1 Lux / IR on 0 Lux, 75ft IR Distance (IR on Bullet Camera Only)
S/N Ratio: More Than 50dB
Gamma Characteristic: 0.45
Video Output: 1.0Vp-p75ohm
Electronic Shutter: 1/60sec ~ 1/100,000sec
12 VDC Power Supplied from DVR
Power Consumption: IR On: 350mA MaxPower Consumption: IR On: 350mA Max
Power Source: Cameras are Powered Through DVR (no additional Cables Needed)
Bullet Camera: 4mm lens / Dome Camera: 3.8mm lens
Operation Temperature: +14 to 122 Degrees Farenheit / -10 to +50 Degrees Celsius

*60ft Cables Included
**60 ft Extension Cables Available
