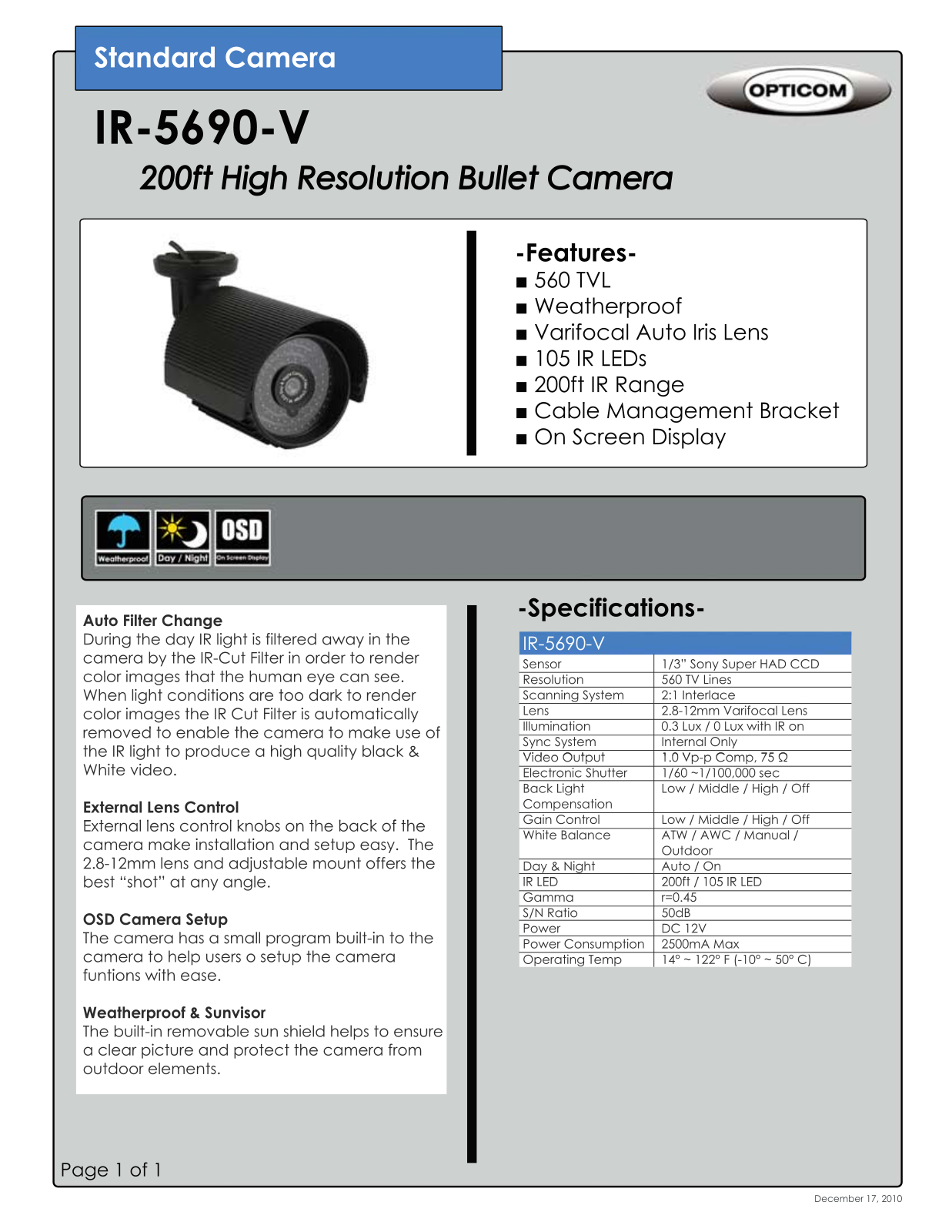

Opticom IR-5690-V DATASHEET

Standard Camera

IR-5690-V

200ft High Resolution Bullet Camera

-Features-

■ 560 TVL

■ Weatherproof

■ Varifocal Auto Iris Lens

■ 105 IR LEDs

■ 200ft IR Range

■ Cable Management Bracket■ Cable Management Bracket

■ On Screen Display

Auto Filter Change

During the day IR light is filtered away in the
camera by the IR-Cut Filter in order to render
color images that the human eye can see.
When light conditions are too dark to render
color images the IR Cut Filter is automatically
removed to enable the camera to make use of removed to enable the camera to make use of
the IR light to produce a high quality black &
White video.

External Lens Control

External lens control knobs on the back of the External lens control knobs on the back of the
camera make installation and setup easy. The

2.8-12mm lens and adjustable mount offers the
best “shot” at any angle.

OSD Camera Setup

The camera has a small program built-in to the
camera to help users o setup the camera
funtions with ease.funtions with ease.

Weatherproof & Sunvisor

The built-in removable sun shield helps to ensure
a clear picture and protect the camera from
outdoor elements.

-Specifications-

IR-5690-V

Sensor
Resolution
Scanning System
Lens
Illumination
Sync System
Video OutputVideo Output
Electronic Shutter
Back Light
Compensation
Gain Control
White Balance

Day & Night
IR LEDIR LED
Gamma
S/N Ratio
Power
Power Consumption
Operating Temp

1/3” Sony Super HAD CCD
560 TV Lines
2:1 Interlace

2.8-12mm Varifocal Lens

0.3 Lux / 0 Lux with IR on
Internal Only

1.0 Vp-p Comp, 75 Ω1.0 Vp-p Comp, 75 Ω
1/60 ~1/100,000 sec
Low / Middle / High / Off

Low / Middle / High / Off
ATW / AWC / Manual /
Outdoor
Auto / On
200ft / 105 IR LED200ft / 105 IR LED
r=0.45
50dB
DC 12V
2500mA Max
14° ~ 122° F (-10° ~ 50° C)

Page 1 of 1

December 17, 2010
