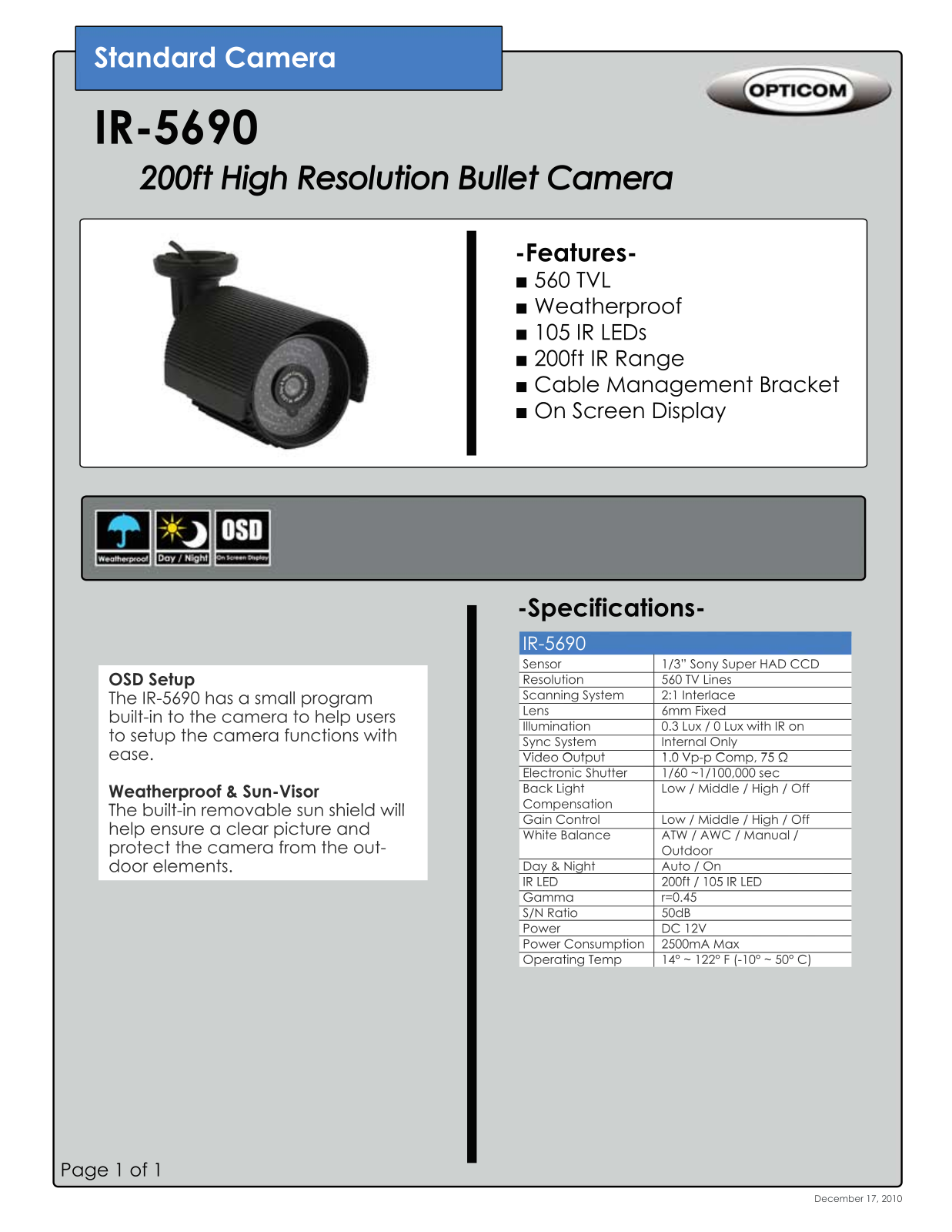

Opticom IR-5690 DATASHEET

Standard Camera

IR-5690

200ft High Resolution Bullet Camera

-Features-

■ 560 TVL

■ Weatherproof

■ 105 IR LEDs

■ 200ft IR Range

■ Cable Management Bracket

■ On Screen Display■ On Screen Display

OSD Setup

The IR-5690 has a small program
built-in to the camera to help users
to setup the camera functions with
ease.

Weatherproof & Sun-Visor

The built-in removable sun shield will The built-in removable sun shield will
help ensure a clear picture and
protect the camera from the out-
door elements.

-Specifications-

IR-5690

Sensor
Resolution
Scanning System
Lens
Illumination
Sync System
Video OutputVideo Output
Electronic Shutter
Back Light
Compensation
Gain Control
White Balance

Day & Night
IR LEDIR LED
Gamma
S/N Ratio
Power
Power Consumption
Operating Temp

1/3” Sony Super HAD CCD
560 TV Lines
2:1 Interlace
6mm Fixed

0.3 Lux / 0 Lux with IR on
Internal Only

1.0 Vp-p Comp, 75 Ω1.0 Vp-p Comp, 75 Ω
1/60 ~1/100,000 sec
Low / Middle / High / Off

Low / Middle / High / Off
ATW / AWC / Manual /
Outdoor
Auto / On
200ft / 105 IR LED200ft / 105 IR LED
r=0.45
50dB
DC 12V
2500mA Max
14° ~ 122° F (-10° ~ 50° C)

Page 1 of 1

December 17, 2010
