Oppo DV983H User Manual
®
DVD PLAYER
DV-983H
USER MANUAL
READ CAREFULLY
BEFORE OPERATION
Table of Contents
Important Information ............................................................... 1
Important Safety Instructions .................................................................................... 2
Additional Safety Instructions .................................................................................... 2
Cautions....................................................................................................................... 3
FCC Statement ............................................................................................................ 3
Copyright Protection ................................................................................................... 4
Trademarks ................................................................................................................. 4
Compatible Disc Types ............................................................................................... 4
INSTALLATION .......................................................................... 5
Front Panel Controls ................................................................................................... 5
Front Panel Display Window .......................................................................................5
Rear Panel Connectors ............................................................................................... 6
Remote Control ........................................................................................................... 7
Battery Installation ...........................................................................................................................8
Using the Remote Control ...............................................................................................................8
Making the Video Connection..................................................................................... 9
HDMI Connection.............................................................................................................................9
DVI Connection..............................................................................................................................10
Component Video Connection.......................................................................................................11
Connecting to an Audio System ............................................................................... 12
Connecting to a Receiver/Amplifier with HDMI Input/Output .........................................................12
Connecting to a Receiver/Amplifier with 7.1ch Audio Input ...........................................................13
Connecting to a Receiver/Amplifier with 5.1ch Audio Input ...........................................................14
Connecting to a Receiver/Amplifier with Dolby Digital or DTS Decoder........................................15

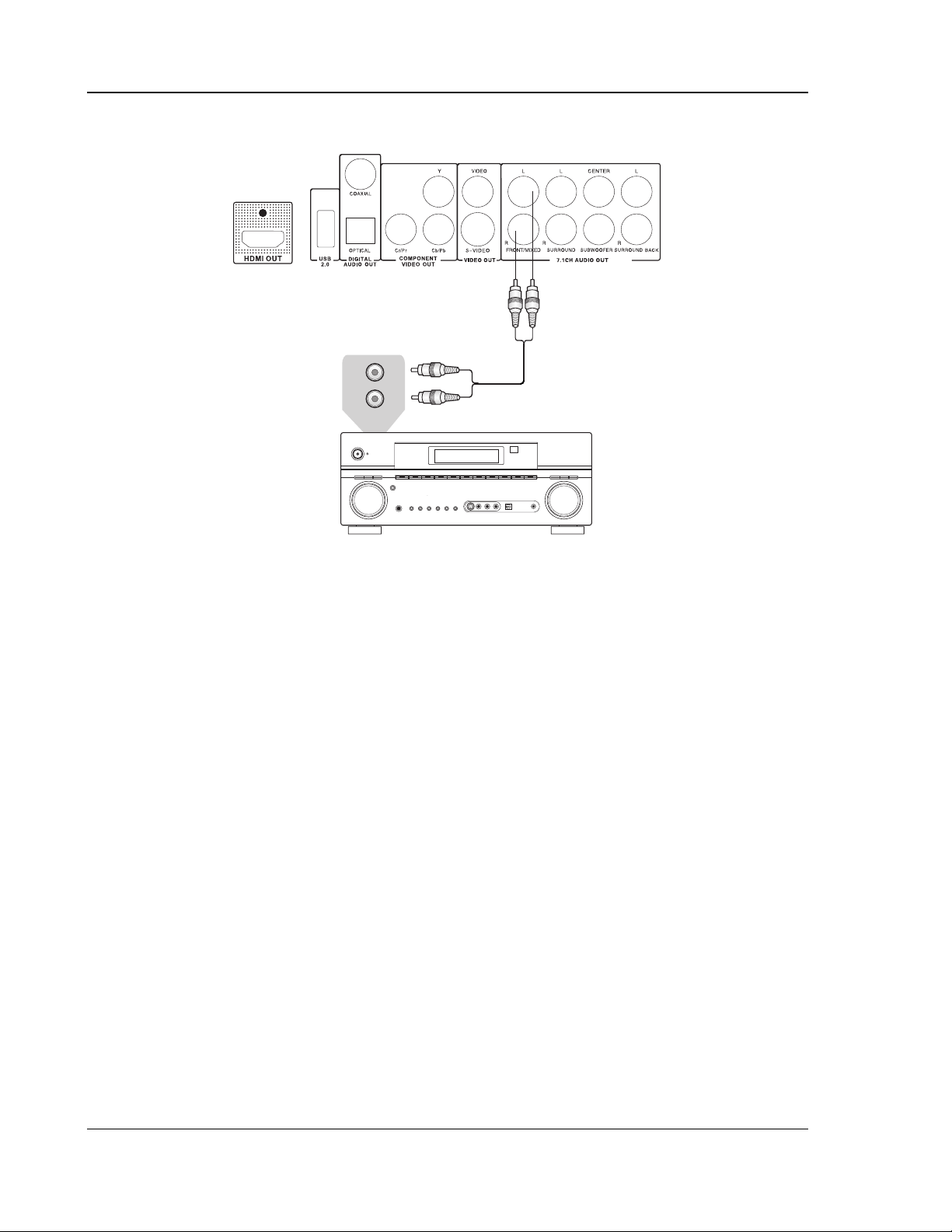

Connecting to a Stereo or Surround Audio System .......................................................................16
Custom Installation Options ..................................................................................... 17

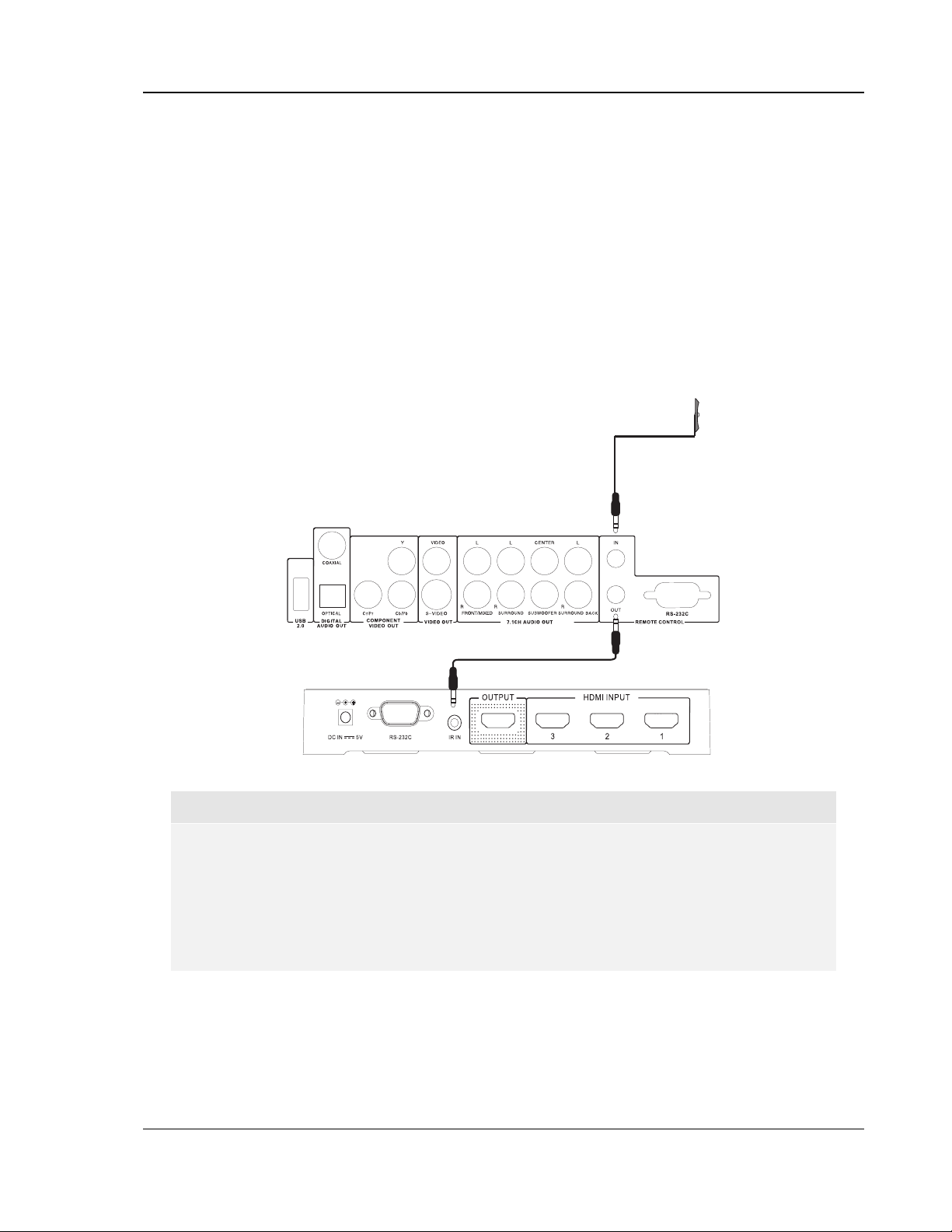

Infrared Remote (IR) Installation....................................................................................................17
RS232 Control ...............................................................................................................................17
Setting Up the Player - Initial Setup ......................................................................... 18
Use the Setup Menu System .........................................................................................................18
Determine Your Display Type........................................................................................................20
Select the Best Output Resolution.................................................................................................21
Set up Audio Options .....................................................................................................................23
BASIC OPERATIONS ................................................................ 26

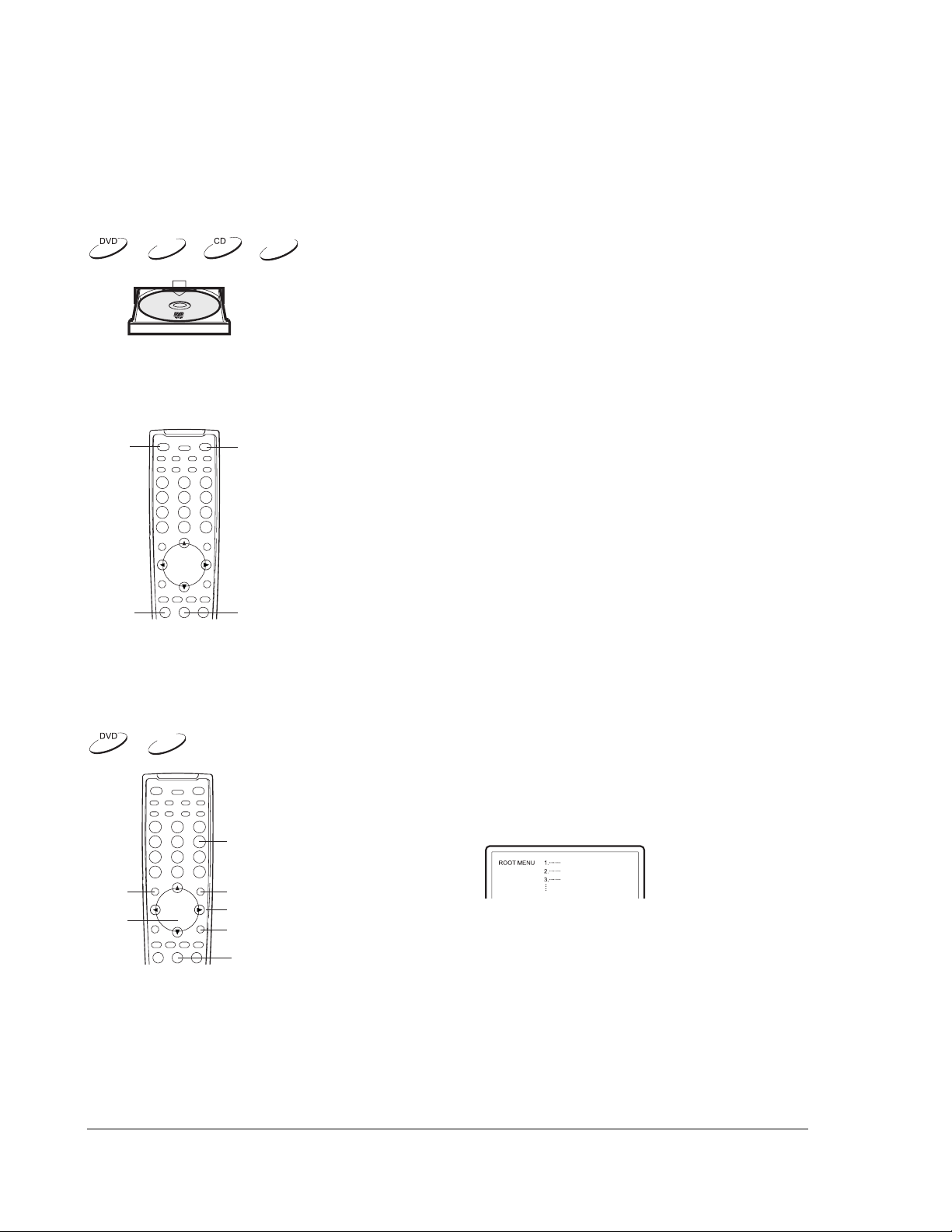

Disc Playback ............................................................................................................ 26
DVD Menu Playback .................................................................................................. 26

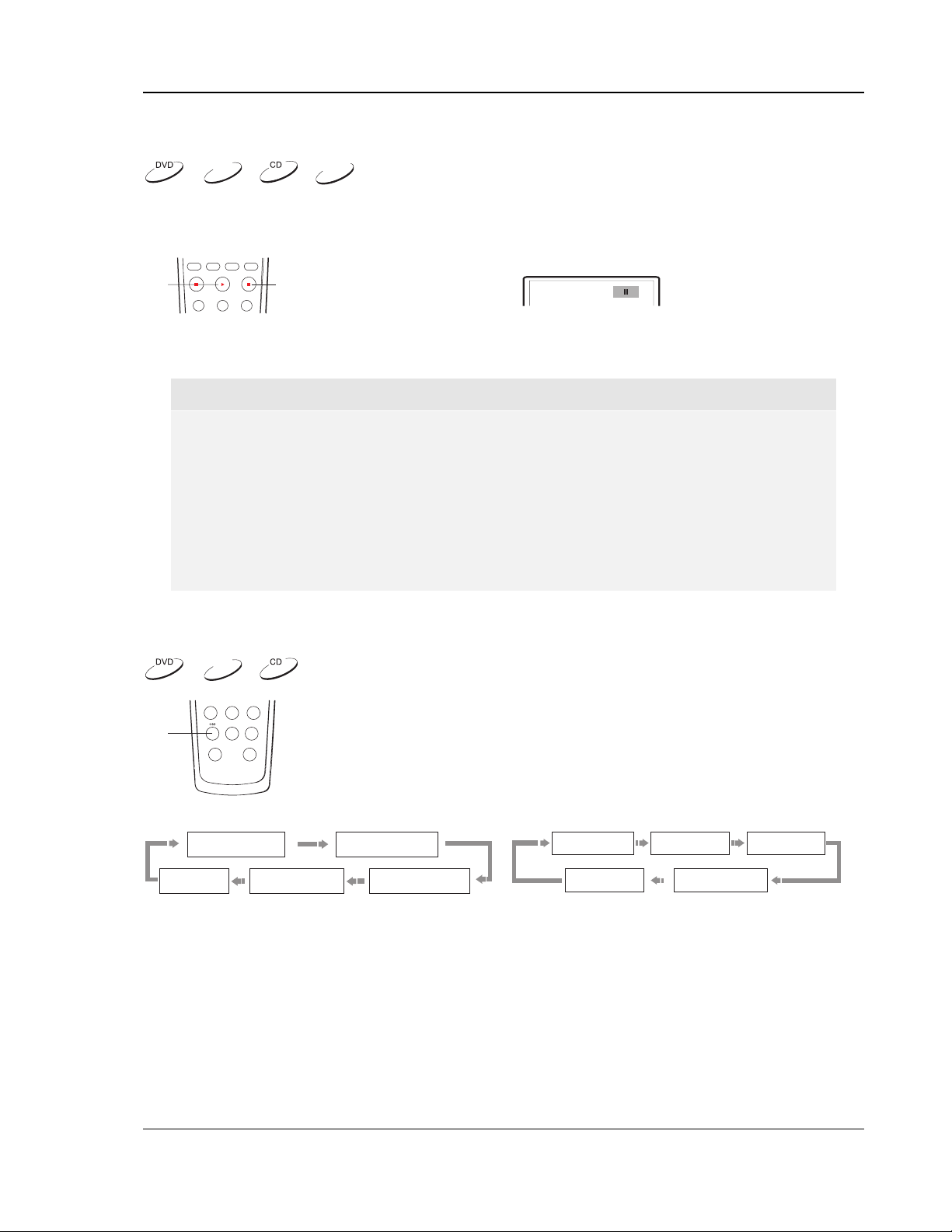

Pause Playback ......................................................................................................... 27
OSD (On-Screen Display)........................................................................................... 27
i

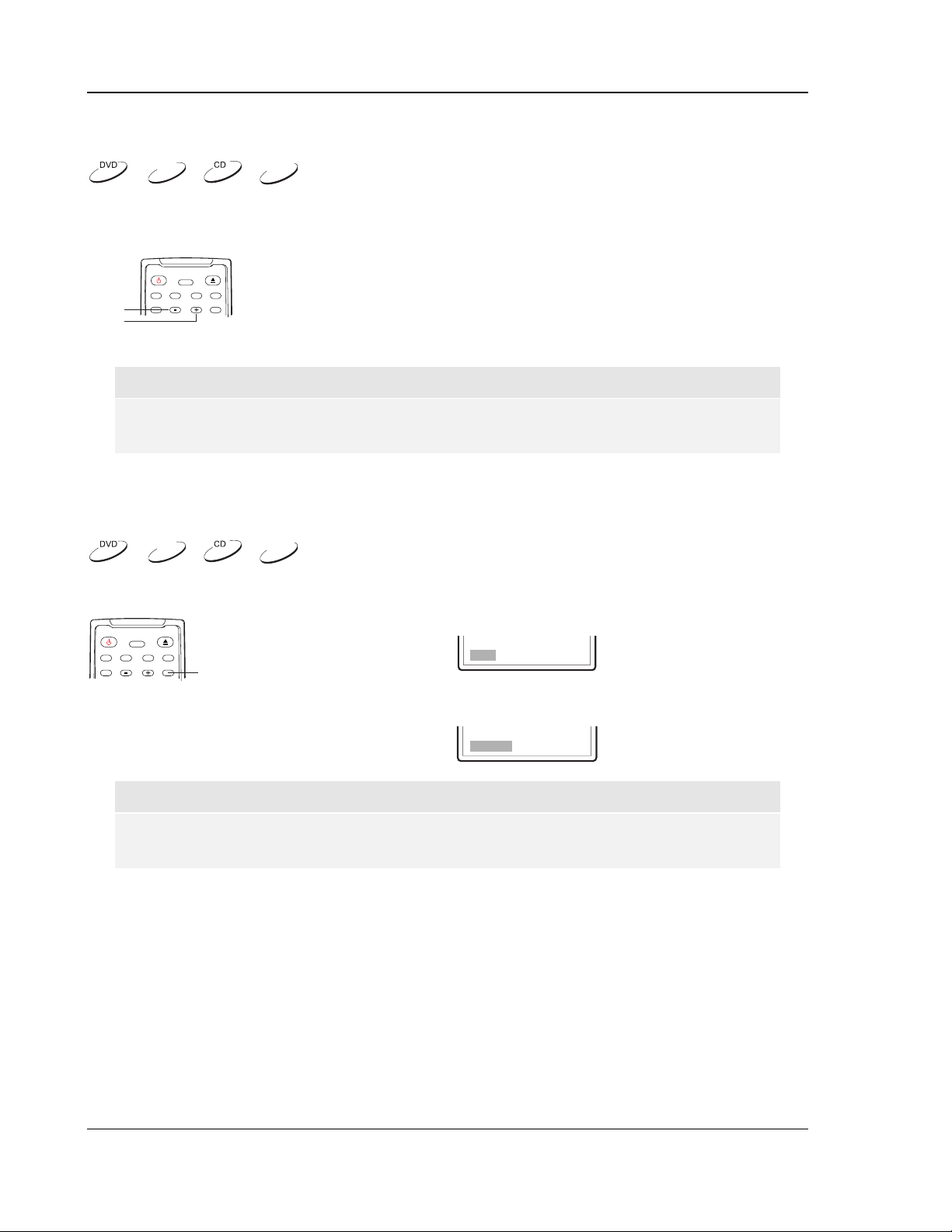

Volume Control ......................................................................................................... 28
Mute........................................................................................................................... 28
Audio Language/Channel Selection ......................................................................... 29
Subtitle Selection ..................................................................................................... 29
Angle Selection ......................................................................................................... 30
ADVANCED OPERATIONS ....................................................... 31
TV System Selection ................................................................................................ 31

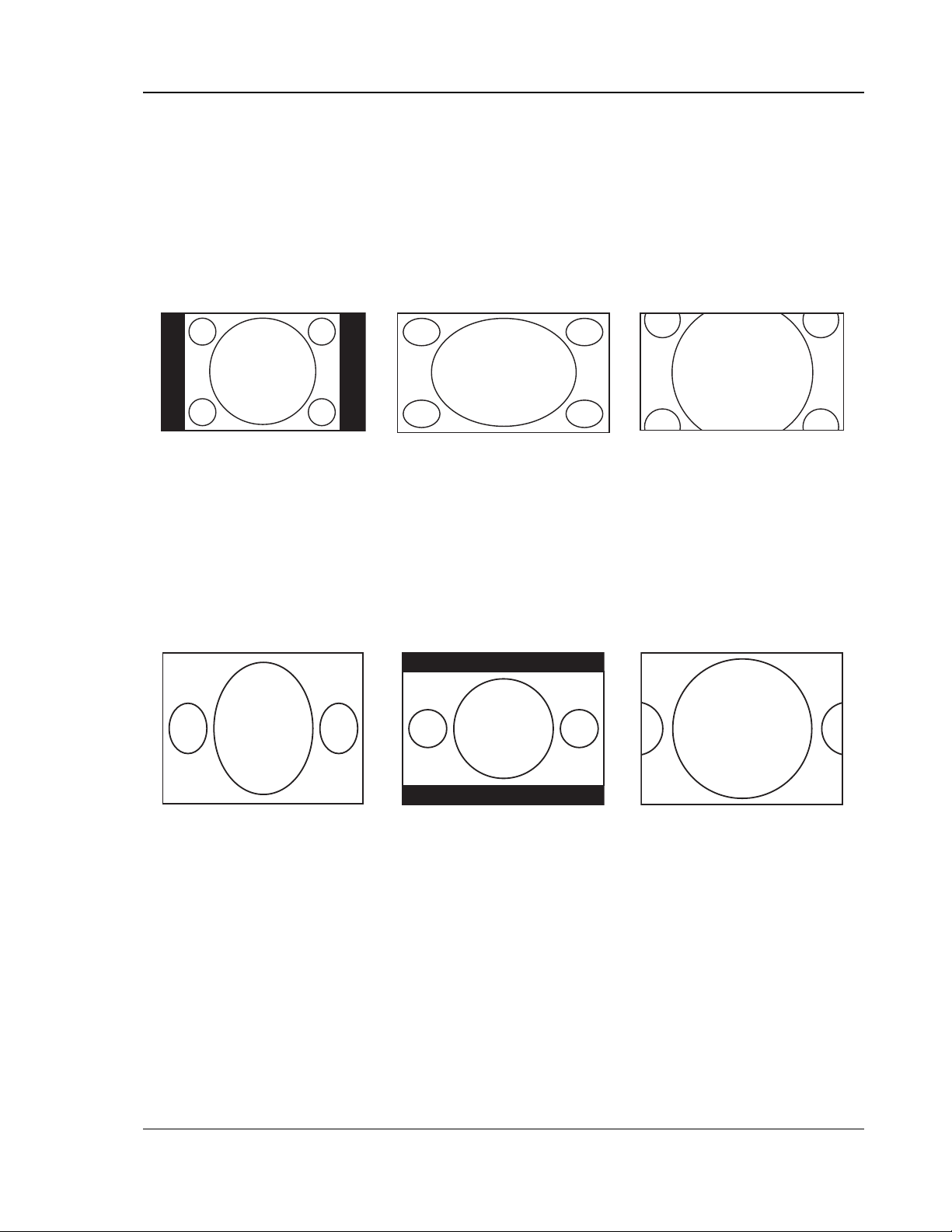

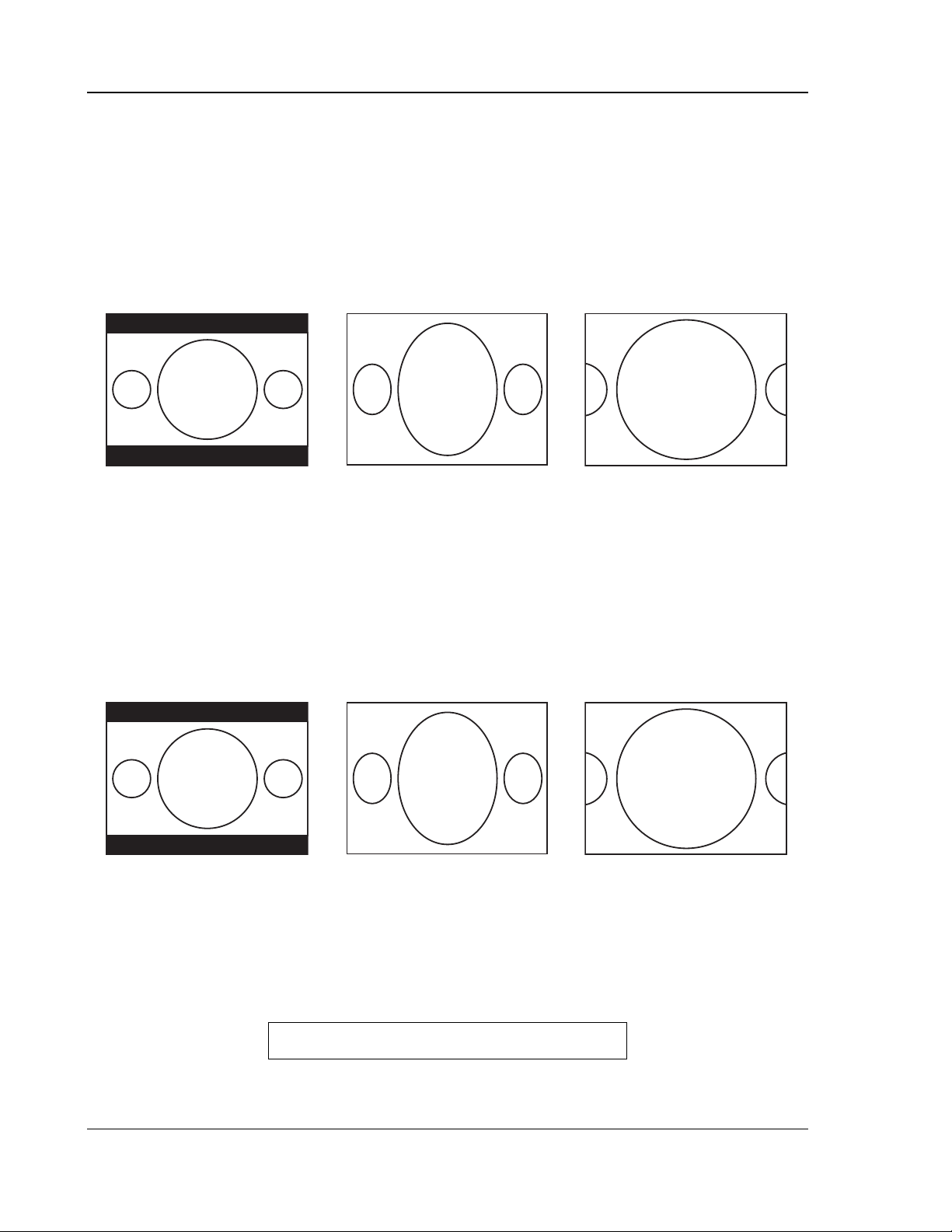

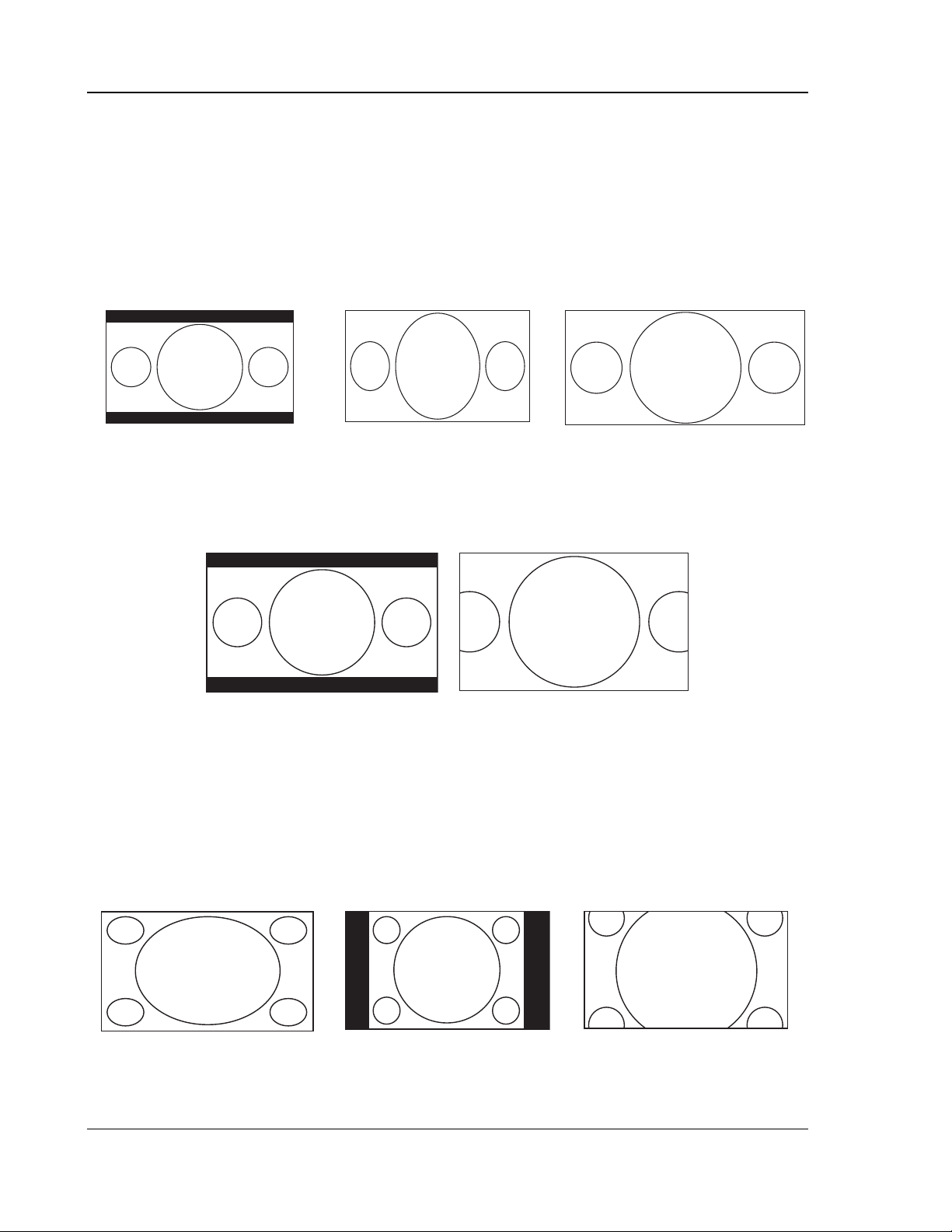

Zooming and Aspect Ratio Control .......................................................................... 31
Zoom Levels for HDMI Output .......................................................................................................31
Zoom Levels for Component Video Output....................................................................................34

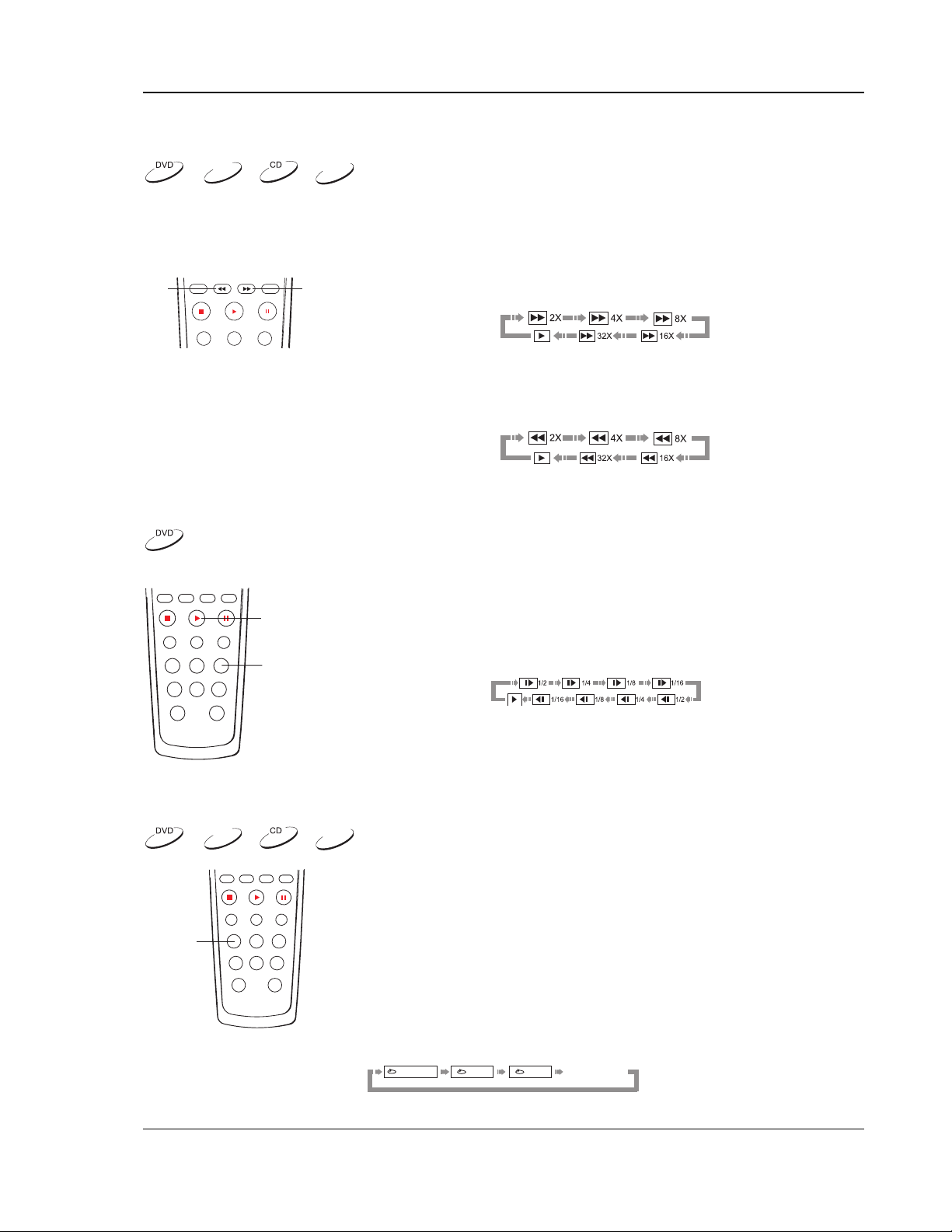

Fast Playback............................................................................................................ 35
Slow Playback........................................................................................................... 35
Repeat, Random and Shuffle Playback.................................................................... 35
Repeat the Selected Section ................................................................................... 36
Playback by Track Number ...................................................................................... 37
CD discs.........................................................................................................................................37
SACD discs....................................................................................................................................37
Playback from a Specific Location .......................................................................... 37
DVD discs ......................................................................................................................................37

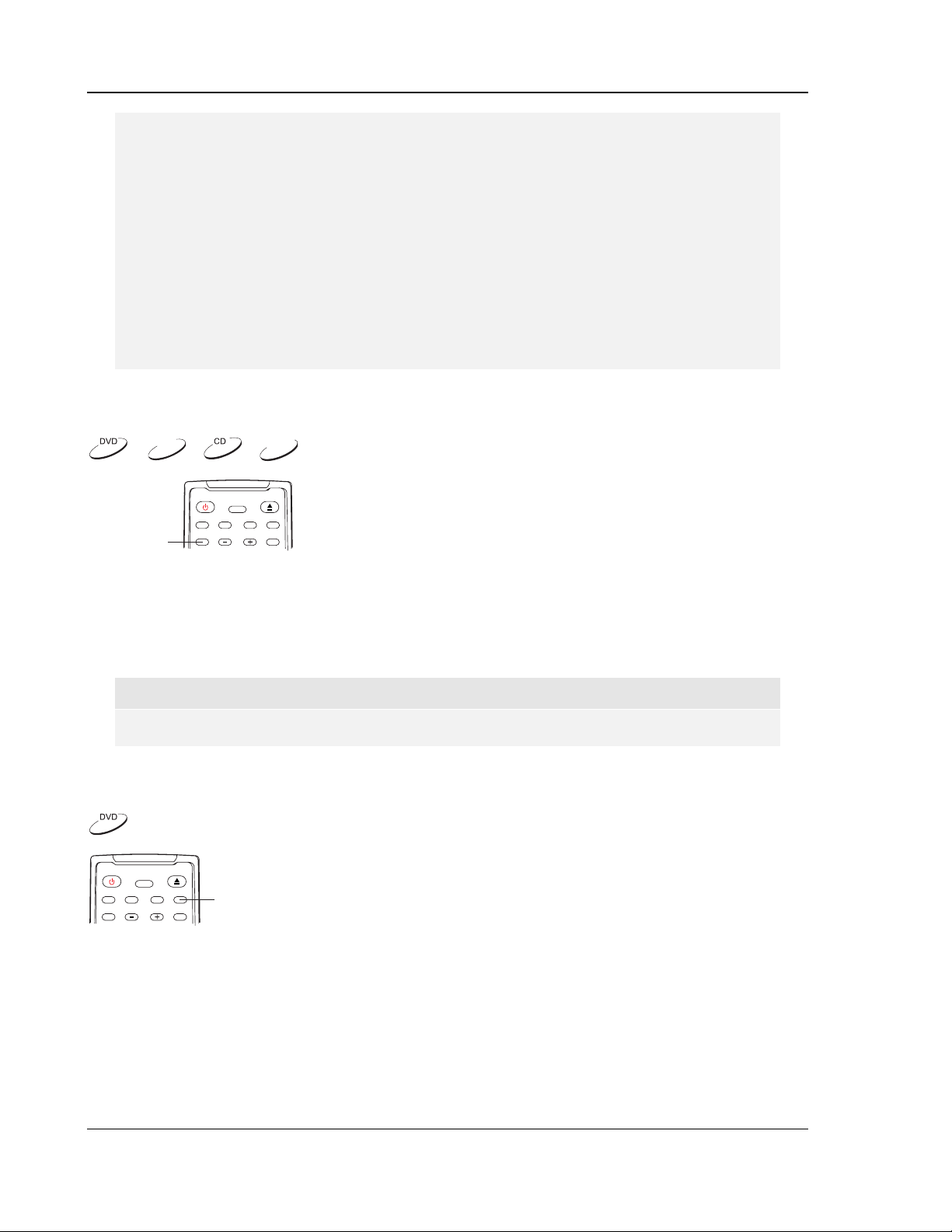

CD discs.........................................................................................................................................38
Bookmarks ................................................................................................................ 39
Memory and Automatic Resume .............................................................................. 39
Viewing Static Pictures on DVD-Audio Discs .......................................................... 40

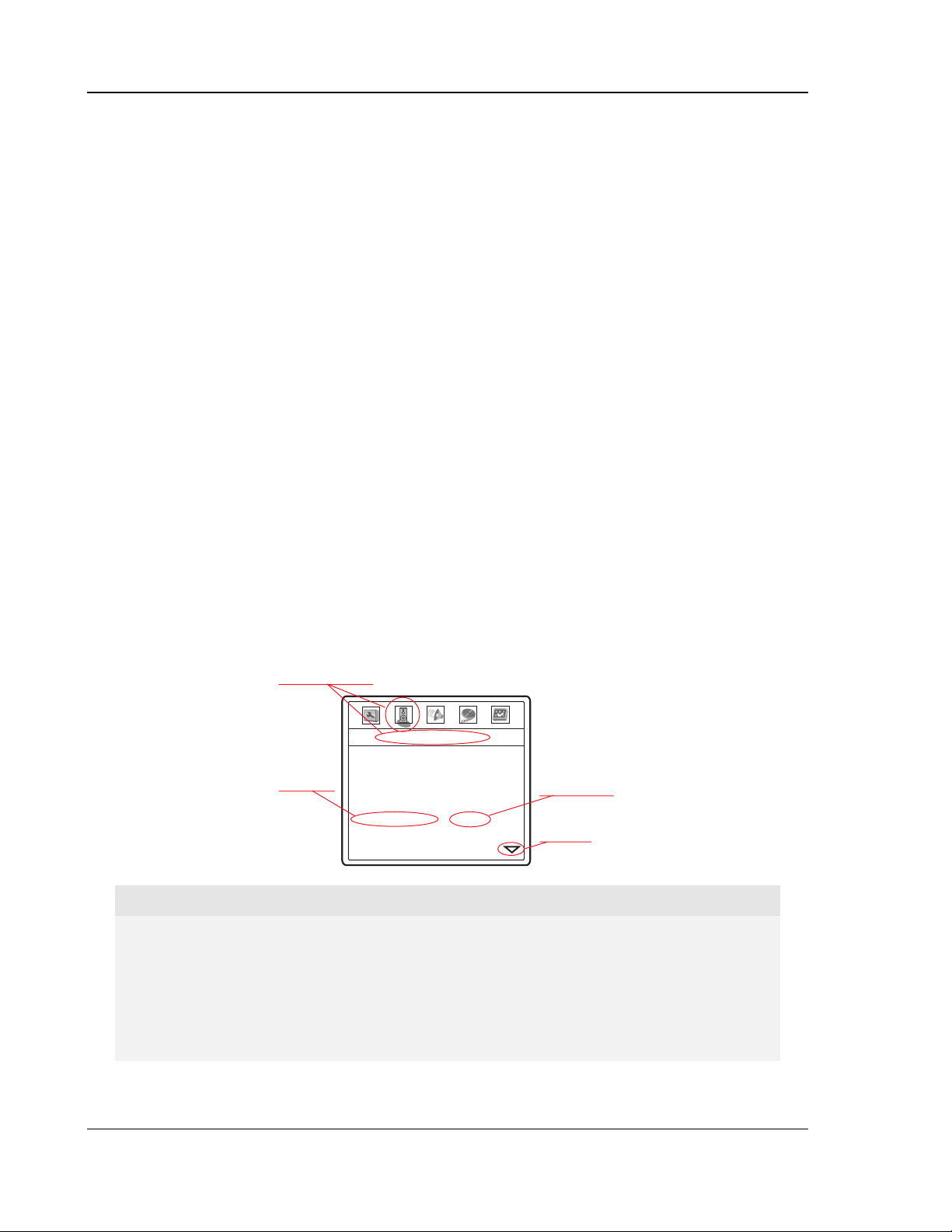

Disc Information Browser......................................................................................... 40
Playing Digital Video, Audio and Picture Files ........................................................ 41
Digital Music Play Operations ........................................................................................................42
Digital Picture Play Operations ......................................................................................................42
Playing a Disc with Both Digital Audio and Picture Files ...............................................................43
Use of USB Device .................................................................................................... 43
Audio-Only Mode ....................................................................................................... 44
Customized Background Screen .............................................................................. 44
SETUP MENU OPTIONS........................................................... 45
General Setup Page .................................................................................................. 45

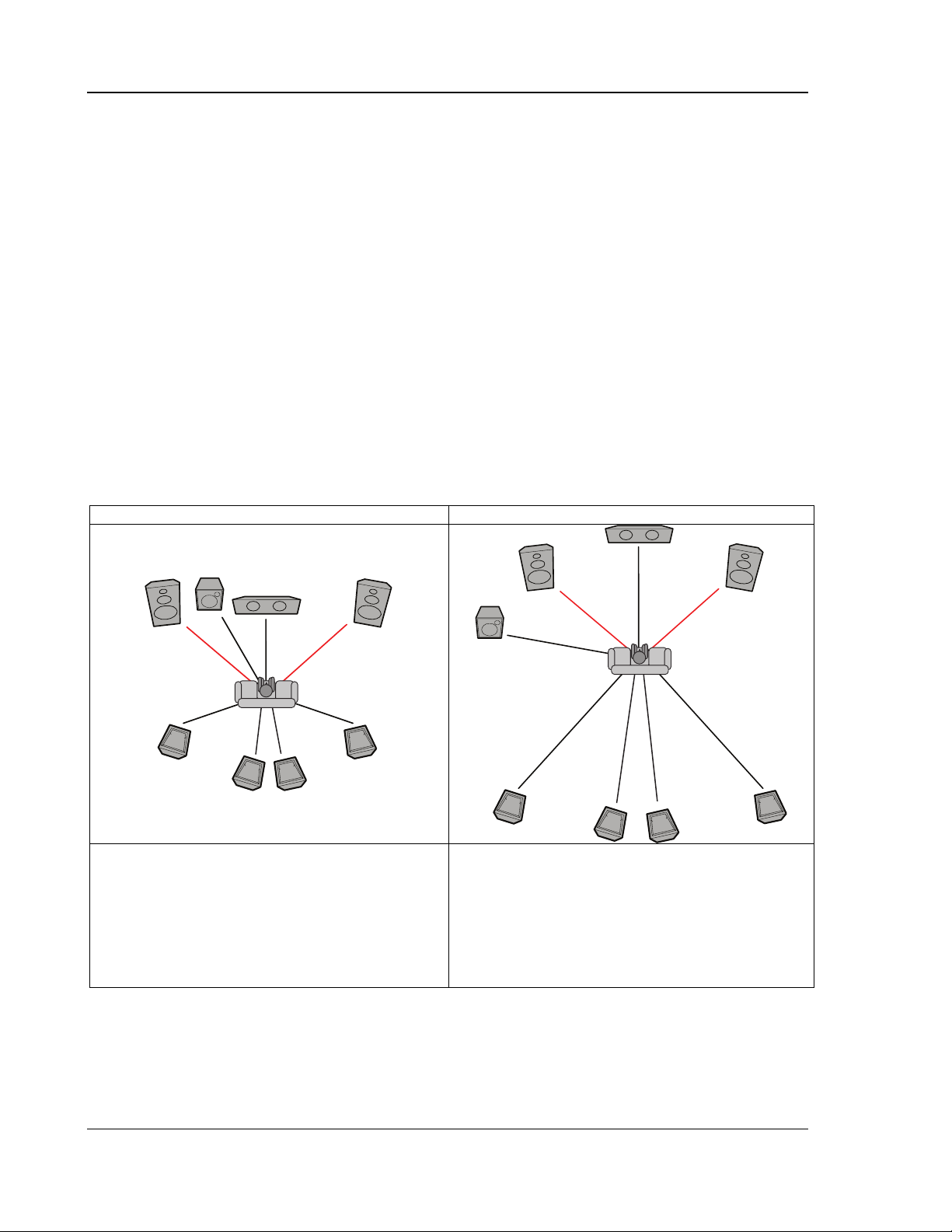

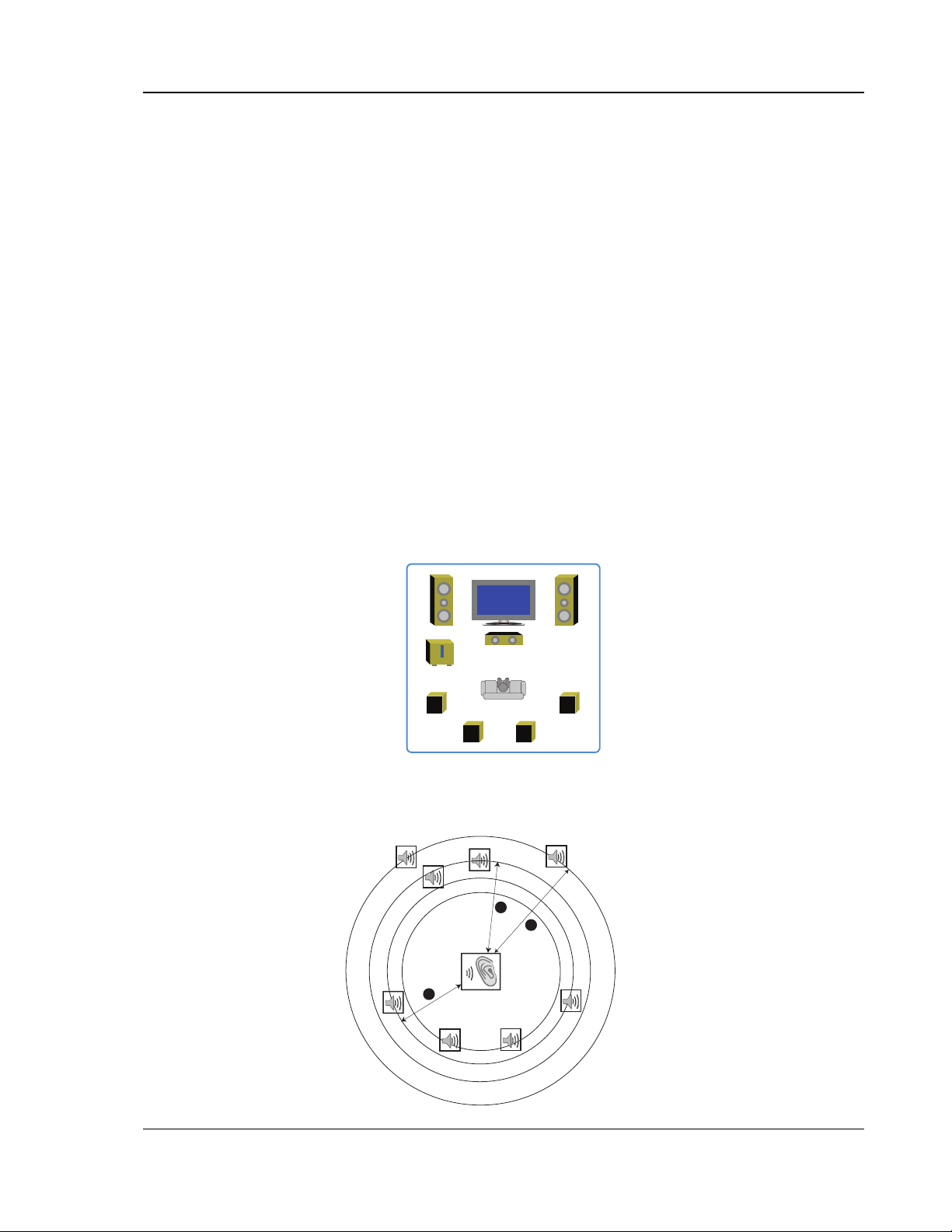

Speaker Setup Page ................................................................................................. 48
Audio Setup Page...................................................................................................... 52
Video Setup Page...................................................................................................... 55
Preference Page........................................................................................................ 58
REFERENCES........................................................................... 60
Useful Notes.............................................................................................................. 60
Troubleshooting ........................................................................................................ 60
ii
Specifications............................................................................................................ 61
Language Code List .................................................................................................. 62
LIMITED WARRANTY ............................................................... 63
OPPO Digital, Inc. Limited One Year Warranty ........................................................ 63
iii
Important Information
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
CAUTION:
TO PREVENT ELECTRICAL SHOCK, DO NOT
REMOVE THE COVER. NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING:
TO PREVENT DAMAGE WHICH MAY RESULT IN
FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT
INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO
QUALIFIED PERSONNEL ONLY.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to alert
the user to the presence of uninsulated
“dangerous voltage” within the product's
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operation and
maintenance (servicing) instruction in the
literature accompanying the appliance.
WARNING: THE APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR
SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH
AS VASES SHALL BE PLACED ON THE APPARATUS.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT,
FULLY INSERT.
CAUTION: THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED SERVICE
PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT PERFORM
ANY SERVICING OTHER THAN THAT CONTAINED IN THE OPERATING
INSTRUCTIONS UNLESS YOU ARE QUALIFIED TO DO SO.
CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY
WITH THE SAME OR EQUIVALENT TYPE.
CAUTION: THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO
NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
1
IMPORTANT INFORMATION
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong is provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched, particularly at plug, receptacle, and
the point where it exits from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods
of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
Additional Safety Instructions
1) Before connecting the AC power cord to the appliance, make sure the voltage designation of
the appliance corresponds to the local electrical supply. If you are unsure of your power supply,
ask your local power company.
2) To avoid electric shock, never touch the inside components. Only a qualified technician should
open the case of the product.
3) Do not use this product if power cord is damaged. Do not hang any object on the power cord
and do not install the power cord at places where people walk.
4) Please hold the power plug when unplugging power. Do not hold the power cord.
5) Please do not unplug the power plug when this unit is working well. Turn off the unit before
unplugging.
6) If this unit is damaged, do not service it yourself and you should contact professional
maintenance personnel.
7) Please use equipped accessories to ensure proper operation of the product and reduce
incidents.
8) Please unplug the power cord if you are not going to use the product for a long period.
9) High temperature will lead to abnormal operation of this unit. Do not expose this unit and
batteries to direct sunlight or near other heating objects.
10) To ensure the good ventilation around this product, please do not place this product on a sofa,
bed or rug. When installing this product on a wall or bookshelf, you need to leave appropriate
space.
11) Do not expose this unit in rain or near humid places such as kitchen and swimming pool to
avoid electric shock or fire. Prevent this unit from dripping or splashing. Do not place objects full
of liquid such as vases on the unit.
12) Do not place this product on unstable cart, stand, tripod, bracket and table. Do not clean the
LCD screen with ethyl alcohol, toluene, ethyl acid, or methyl.
2
IMPORTANT INFORMATION
13) When smoke, abnormal smell or sound appears from the product, please cut off power
immediately and contact your dealer or service center.
14) Never insert any metal object into the cabinet. It may create danger of electric shock.
15) After service and maintenance, please let the service person do safety check to ensure proper
operation of the unit.
16) The main plug is used as the device for cutting off power, so make sure the main plug easy to
unplug.
17) When replacing accessories, please ensure the maintenance person use the accessories and
tools appointed by manufacturer.
Cautions
• Ensure that all audio/video cables are properly connected before plugging in the power plug.
The player is not disconnected from the AC power source as long as it is connected to the wall
outlet, even if the player itself has been turned off.
• The acceptable power input range is AC ~ 100V-240V, 50/60Hz
• Before turning on the power of the player, please adjust the volume level of TVs, audio system
speakers and amplifiers to the minimum. Adjust the volume as necessary only after normal
playback has started to avoid damage to your hearing and equipments.
• Do not put the player near any high power loudspeakers so as to avoid any interference due to
vibration or magnetic fields.
• Before moving the player, take out any discs. Otherwise the disc may be damaged.
• When moving the player from a cold place to a warm one, or vice versa, moisture may
condense on the laser pickup unit inside the player. Should this occur, the player may not
operate properly. In such a case please turn the power on for 1-2 hours (without disc) until the
moisture evaporates.
• Clean the cabinet, panel, and controls only with a soft cloth slightly moistened with water or a
mild detergent solution. Never use any type of abrasive pad, scouring powder or solvent such
as alcohol or benzene for cleaning.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Any unauthorized changes or modifications to this equipment would void the user’s authority to operate this
device.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
3
IMPORTANT INFORMATION
Copyright Protection
This product incorporates copyright protection technology that is protected by U.S. patents and other
intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision
Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by
Macrovision Corporation. Reverse engineering or disassembly is prohibited.
Trademarks
• DVD Logo is a trademark of DVD Format/Logo Licensing Corp., registered in the U.S., Japan
and other countries.
• Super Audio CD, SACD and the SACD logo are joint trademarks of Sony Corporation and
Philips Electronics N.V. Direct Stream Digital (DSD) is a trademark of Sony Corporation.
• Designed for Windows Media, Microsoft, HDCD, and the HDCD logo are trademarks or
registered trademarks of Microsoft Corporation in the United States and/or other countries.
• VRS™, Video Reference Series™, Precision De-interlacing™, Precision Video Scaling™,
Progressive Cadence Detection™ and AutoCUE-C™ are trademarks of Anchor Bay
Technologies Inc. All products bearing the DVDO®, iScan™ and VRS™ trademarks are based
upon technologies, architectures, and product designs originally created and developed by the
Anchor Bay Team.
• Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are
trademarks of Dolby Laboratories. Surround EX is a trademark of Dolby Laboratories.
• “DTS” and “DTS Digital Surround” are trademarks of Digital Theater Systems, Inc.
• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.
• The 480p/720p/1080i/1080p up-converting arrow logo is a trademark of OPPO Digital, Inc.
• “Precision Track 3” is a trademark of OPPO Digital, Inc.
• All other trademarks are the properties of their respective owners.
Compatible Disc Types
Type Size Recorded Contents
12cm or 8cm
12cm or 8cm
12cm or 8cm Super Audio CD: Multi-channel digital audio
12cm or 8cm CD-DA: Digital Audio
This manual uses the following icons to indicate items applicable to the compatible disc types:
Applies to DVD discs
SACD
Applies to Super Audio CD
discs
DVD: Compressed digital audio + compressed digital video
(dynamic picture)
DVD-Audio: Multi-channel digital audio + compressed digital video
or still pictures
DVD-A
Applies to DVD-Audio discs
Applies to CD discs
4
INSTALLATION
Front Panel Controls
1 2 3 4 5 6 7
1. POWER Button 2. Resolution Indicators 3. Disc Tray
4. OPEN/CLOSE Button 5. IR Remote Sensor 6. Display Window
7. HDMI Button 8. STOP Button 9. PLAY/PAUSE Button
Front Panel Display Window
1 2 3 4 5 6
8
9
7 8 9 10
1. Disc Type Indication – Indicates the
currently playing disc type
3. Track/Chapter – When illuminated, the
displayed time applies to a track or chapter
5. A – B Repeat – Indicates that the A – B
Repeat function is engaged
7. Audio Only – Indicates that the Audio Only
mode is engaged
9. Time and Message Display – Displays
playback time and various messages
2. Title/Group – When illuminated, the
displayed time applies to a title or group
4. Remaining – When illuminated, the
displayed time is the remaining play time
6. Playback Status – Indicates playback
status such as Play, Pause, Repeat and
Angle
8. Mute – Indicates that the audio is muted
10. Sound Track – Indicates the currently
playing sound track type
5
INSTALLATION
Rear Panel Connectors
1
2 3 4 5
6
7
8 9
1. HDMI Output 2. USB 2.0 Port 3. Coaxial and Optical Digital
Audio Output
4. Component Video Output 5. Composite Video Output 6. S-Video Output
7. 7.1CH Audio Output 8. IR IN and OUT Ports 9. RS-232 Port
In addition to the above connectors, the AC power inlet is also located on the rear panel. The inlet is the
IEC60-320 C18 type. Only the included AC power cord or an approved power cord with an IEC60-320 C17
type plug should be used.
6
INSTALLATION
Remote Control
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
DV-983H
1. POWER Button: Toggle power
STANDBY and ON
2. DVD/USB Button: Select DVD or
USB device as content source
3. ON Button: Turn power ON
4. OFF Button: Turn power OFF
5. AUDIO ONLY Button: Turn off/on
video
6. VOLUME - :
37
36
35
34
33
Decrease volume
7. NUMBER Buttons:
Enter numeric
values
8. TITLE Button:
Show DVD title
menu
9. ARROW Buttons:
Navigate menu
selection
10. SELECT Button:
32
Confirm menu
selection
31
11. SETUP Button:
Enter the DVD
player setup menu
12. PREV Button: Skip
previous
30
29
28
27
26
13. REV Button: Fast
reverse play
14. STOP Button: Stop
playback
15. PLAY Button: Start
playback
16. SUBTITLE Button:
Change subtitle
25
language / PREV
PAGE Button:
24
Show previous
page (DVD-Audio)
23
17. AUDIO Button:
Change the audio
language or
channel
18. REPEAT Button:
Repeat play
19. A-B Button: Repeat
play the selected
section
20. OSD Button:
Show/hide OnScreen Display
21. INFO Button:
Display disc info
browser
22. HDMI Button:
Switch HDMI output
resolution
23. P/N Button: Switch
output TV system:
NTSC, PAL or
AUTO
24. ZOOM Button:
Zoom in/out the
display
25. SLOW Button: Slow
play
26. ANGLE Button:
Change camera
angles / NEXT
PAGE Button: Show
next page (DVDAudio)
27. PAUSE Button:
Pause play
28. FWD Button: Fast
forward play
29. NEXT Button: Skip
next
30. RETURN Button:
Return to the
previous menu /
Clear input numbers
31. MENU Button:
Show DVD menu
32. GOTO Button: Play
from a specified
location
33. VOLUME + :
Increase volume
34. MUTE Button: Mute
audio
35. BOOKMARK
Button: Bookmark
playing point or
retrieve bookmarks
36. CAPTURE Button:
Capture background
37. EJECT Button:
Open/close the disc
tray
7
INSTALLATION
Battery Installation
1. Remove the battery
compartment cover
2. Insert batteries
3. Replace the battery
compartment cover
Using the Remote Control
When using the remote control, the front window of the remote control should be pointed to the infrared sensor
on the front panel within an angle of ±30° and a range of about 26 ft.
Within about 26ft
CAUTIONS
• Never drop the remote control or expose it to moisture.
• Never expose the infrared remote sensor on the front panel to direct sunlight or
strong light sources.
• Remote may not operate consistently when batteries become low. Replace them if
operation deteriorates.
• If the remote control will not be used for a long time, please remove the batteries.
NOTE
When a button is pressed but its function is invalid or unavailable at the moment, the TV
screen displays:
8
INSTALLATION
Making the Video Connection
HDMI Connection
HDMI Cable
HDMI In
Video In
S-Video
Rear Panel
Composite Video Cable
(Included, Optional)
S-Video Cable (Optional)
Method 1 – HDMI Connection Directly to TV
• If your TV has an HDMI (High-Definition Multimedia Interface) input, you can use the included
HDMI cable to connect the DVD player to the TV. This connection method delivers both video
and audio in pure digital format via a single cable. The HDMI video output of the DVD player
presents the highest possible resolutions and video quality.
• You may connect the composite video or S-Video cable to the TV for trouble-shooting purpose,
just in case there is a problem with HDMI. However it is not recommended to use the
composite video or S-Video as the primary method of video delivery to the TV, because using it
will lose the advantage of video up-conversion and you will only get standard definition video.
9
INSTALLATION
DVI Connection
DVI
HDMI - DVI
Cable
Rear Panel
DVI
Audio
Video In
S-Video
Audio Cable
Composite Video Cable
(Included, Optional)
S-Video Cable (Optional)
Method 2 – DVI Connection to TV
• If your TV has a DVI input that supports HDCP, you can purchase an HDMI-DVI adapter cable
to connect the DVD player to the TV. This connection method delivers digital video to the TV
without any signal degradation. The HDMI video output of the OPPO DVD player presents the
highest possible resolutions and video quality.
• Please use the Red/White audio cables to connect the FRONT/MIXED audio output of the DVD
player to the TV. Make sure the audio cables are connected to the same input terminal group
on the TV as the DVI input. Usually the input terminals are marked as “DVI Audio” or “PC
Audio”. On some TVs you may need to use an RCA-3.5mm Mini-Jack adapter cable to connect
the audio.
• You may connect the composite video or S-Video cable to the TV for trouble-shooting purpose,
just in case there is a problem with DVI. However it is not recommended to use the composite
video or S-Video as the primary method of video delivery to the TV, because using it will lose
the advantage of video up-conversion and you will only get standard definition video.
NOTE
HDCP stands for High-bandwidth Digital Content Protection system. The HDMI output of the
DVD player follows HDCP to encrypt the digital audio and video content. The TV needs to
support HDCP so it can decrypt the content and properly display it.
10
INSTALLATION
Component Video Connection
Component
Video
Y
Pb/Cb
Pr/Cr
L
Audio
R
Video In
S-Video
Method 3 – Component Video Connection to TV
• If your TV has no digital video input but has component video inputs, please use a set of
component video cable to connect the component video output of the DVD player to the TV.
The connectors are color coded, so please make sure the cable connections match on both
ends. The component video connection will produce a very clear picture with high color
accuracy.
• Please use the Red/White audio cables to connect the FRONT/MIXED audio output of the DVD
player to the TV. Make sure the audio cables are connected to the same input terminal group
on the TV as the component video input.
• You may connect the composite video or S-Video cable to the TV for trouble-shooting purpose,
just in case there is a problem with component video. However it is not recommended to use
the composite video or S-Video as the primary method of video delivery to the TV, because
using it will lose the advantage of video up-conversion and you will only get standard definition
video.
• Video up-conversion over the component output is only available for unencrypted discs such as
home video and consumer-created contents. Most commercially pressed DVD discs are CSSencrypted and will be limited to 480i/480p resolution. This restriction applies to the component
output only. The HDMI output is protected with HDCP and has no such restriction.
• The component output will only output progressive-scan (480p/576p) and up-converted
resolutions (720p/1080i/1080p) when the HDMI output is not in use (The HDMI cable is
unplugged and the “Primary Output” setup menu item in the “Video Setup Page” is set to
“Component” – see page
55 for details). When the HDMI output is in use, or when “Primary
Output” is set to “HDMI”, the player will output interlaced video (480i/576i) through its
component output.
Component
Video Cable
Composite Video Cable
(Included, Optional)
S-Video Cable (Optional)
Audio
Cable
Rear Panel
11
INSTALLATION
Connecting to an Audio System
Connecting to a Receiver/Amplifier with HDMI Input/Output
Rear Panel
HDMI Cable
HDMI In
HDMI Cable
HDMI InHDMI Out
AUD
IO/VIDEO MULTI-
CHANNEL RECEIVE
R
Method 4 – HDMI Connection to Receiver and TV
• HDMI can transmit both audio and video signals over a single cable. If you have an HDMI-
capable receiver that can support HDMI audio, you can simply run an HDMI cable from the DVD
player to your receiver and enable HDMI audio on the receiver (see your receiver’s owners’
manual for more information). The receiver usually has an HDMI output that you can connect to
your TV to pass the video signal.
12
INSTALLATION
Connecting to a Receiver/Amplifier with 7.1ch Audio Input
Rear Panel
Audio Interconnect Cable
L
L
R
FRONT SURROUND SUBWOOFER S. BACK
CENTER
R
AUD
IO/VIDEO MULTI-
CHANNEL RECEIVE
L
R
R
Receiver/Amplifier with 7.1ch Audio Input
Method 5 – 7.1ch Analog Audio Connection
• Please use 8 RCA-style audio interconnect cables to connect the FRONT/MIXED L/R,
SURROUND L/R, CENTER, SUBWOOFER and SURROUND BACK L/R analog outputs of the
OPPO DVD player to the corresponding multi-channel analog audio input jacks of your A/V
receiver.
13
INSTALLATION
Connecting to a Receiver/Amplifier with 5.1ch Audio Input
Rear Panel
Audio Interconnect Cable
L
L
R
FRONT SURROUND SUBWOOFER
CENTER
R
AUD
IO/VIDEO MULTI-
CHANNEL RECEIVE
R
Receiver/Amplifier with 5.1ch Audio Input
Method 6 – 5.1ch Analog Audio Connection
• Please use 6 RCA-style audio interconnect cables to connect the FRONT/MIXED L/R,
SURROUND L/R, CENTER and SUBWOOFER analog outputs of the OPPO DVD player to the
corresponding multi-channel analog audio input jacks of your A/V receiver. The SURROUND
BACK L/R outputs do not need to be connected.
14
INSTALLATION
Connecting to a Receiver/Amplifier with Dolby Digital or DTS Decoder
Rear Panel
Connect one of these cables
Coaxial In
Optical In
Coaxial Digital Audio Cable
Optical Digital Audio Cable
AUD
IO/VIDEO MULTI-
CHANNEL RECEIVE
R
Receiver/Amplifier with Dolby Digital or DTS Decoder
Method 7 – Digital Audio Connection
• Please use either a 75-Ohm coaxial digital audio cable with RCA-style connectors or an S/PDIF
optical digital audio cable to connect one of the digital audio outputs to the corresponding input
terminal on your A/V receiver.
NOTE
• Manufactured under license from Dolby Laboratories. “Dolby” and the double-D
symbol are trademarks of Dolby Laboratories.
• “DTS” and “DTS Digital Surround” are trademarks of Digital Theater Systems, Inc.
• Due to copy-control restrictions and bandwidth limitation, full resolution audio output
from DVD-Audio or SACD playback cannot be sent through the coaxial or optical
digital audio output. To listen to DVD-Audio or SACD in full resolution, please use
HDMI or analog audio connections.
