Onkyo HTP-350 Service Manual

SERVICE MANUAL

SERVICE MANUAL

5.1-CH HOME THEATER SPEAKER PACKAGE

MODEL HTP-350(B)/(S)

Passive Subwoofer

"SKW-350"

Front Speakers (L / R)

"SKF-350F"

Center Speaker

"SKC-350C"

Surround Speakers (L / R)

"SKM-350S"

HTP-350

Ref. No. 4002

032007

Cannot remove the speaker grill.

Black and Silver models

B : Color B MD MD : USA model
S : Color S MC MC : Canadian model
S : Color S MA MA : Australian model
S : Color S MK MK : Korean model
S : Color S MO MO : World wide model

EXPLODED VIEWS-1

SKW-350 : PASSIVE SUBWOOFER

SP09

HTP-350

SP01a /
SP01b

SP05

SP03

x 8 pcs.

HTP-350

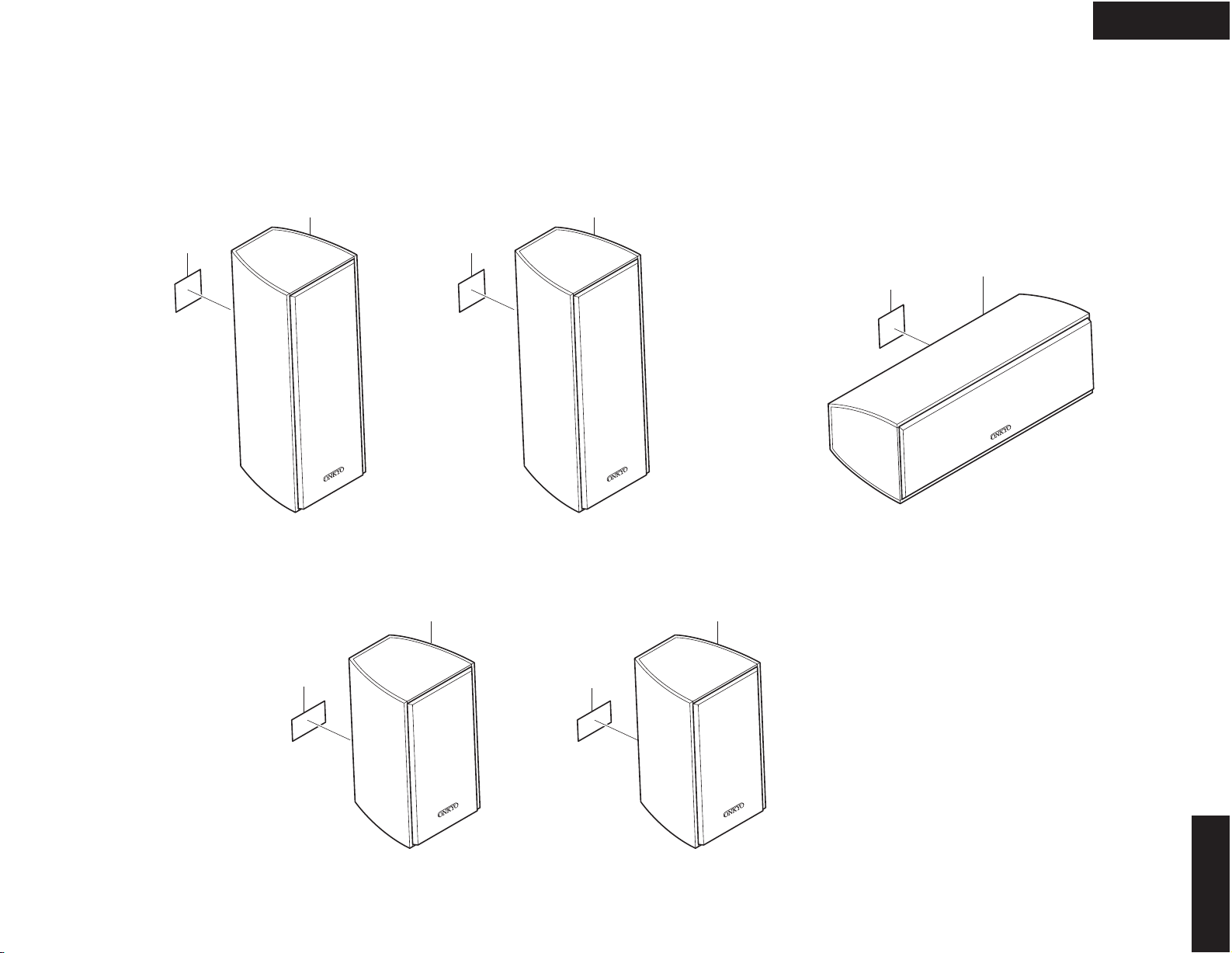

EXPLODED VIEWS-2

SKF-350F / SKC-350C / SKM-350S

SP10a /
SP10b /
SP10c

SP11a /
SP11b

SP12a /
SP12b

SP10a /
SP10b /
SP10c

<Note>

Cannot remove the speaker grill.

SP14a /
SP14b

HTP-350

SP13a /
SP13b /
SP13c

TERMINAL :
White / Black

TERMINAL :
Red / Black

"SKF-350F (L)" "SKF-350F (R)"

SP15a /
SP15b /
SP15c

SP16a /
SP16b

TERMINAL :
Blue / Black

SP17a /
SP17b

TERMINAL :
Gray / Black

TERMINAL :
Green / Black

"SKC-350C"

SP15a /
SP15b /
SP15c

<Notes>

USA and Canadian models : inch nut.
Other models : mm nut.

"SKM-350S (R)""SKM-350S (L)"

NOT MAGNETICALLY SHIELDED NOT MAGNETICALLY SHIELDED

HTP-350

T

EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED

1/2 PAGE

HTP-350

EXPLODED VIEWS PARTS LIS

<Notes>

(B) : Black model
(S) : Silver model
<MD> : USA model
<MC> : Canadian model
<MA> : Australian model
<MK> : Korean model
<MO> : World wide model

REF. NO. PART NAME DESCRIPTION Q'TY PART NO. (SN) REMARKS

SKW-350 : PASSIVE SUBWOOFER

SP01a SUBWOOFER ASS'Y SKW-350 BLACK 1 ANW8W600B-BM10 (B)
SP01b SUBWOOFER ASS'Y SKW-350 SILVER 1 ANW8W600S-BM10 (S)

SP03 WOOD SCREW 4 x 20 BIND HEAD (FOR SP UNIT) 8 NST8550518201
SP05 WOOFER SPEAKER 20cm 8ohm 50W RoHS 1 W20178D
SP09 BACK LABEL BLACK / E2 GRADE 1 YLB8100010106

SKF-350F : FRONT SPEAKERS (L)/(R)

SP10a COMPLETE UNIT "SKF-350F (B) L & R" / (Inch nut) 1 ASL5M0503-BM04 (B) <MD>
SP10b COMPLETE UNIT "SKF-350F (S) L & R" / (Inch nut) 1 ASL5M0503-BM01 (S) <MC>
SP10c COMPLETE UNIT "SKF-350F (S) L & R" / (mm nut) 1 ASL5M0503-BM02 (S) <MA>
SP10c COMPLETE UNIT "SKF-350F (S) L & R" / (mm nut) 1 ASL5M0503-BM02 (S) <MK>
SP10c COMPLETE UNIT "SKF-350F (S) L & R" / (mm nut) 1 ASL5M0503-BM02 (S) <MO>
SP11a BACK LABEL (L) BLACK 1 YLB5101690441 <MD>
SP11a BACK LABEL (L) BLACK 1 YLB5101690441 <MC>
SP11b BACK LABEL (L) GRAY 1 YLB5101690446 <MA>
SP11b BACK LABEL (L) GRAY 1 YLB5101690446 <MK>
SP11b BACK LABEL (L) GRAY 1 YLB5101690446 <MO>
SP12a BACK LABEL (R) BLACK 1 YLB5101690442 <MD>
SP12a BACK LABEL (R) BLACK 1 YLB5101690442 <MC>
SP12b BACK LABEL (R) GRAY 1 YLB5101690447 <MA>
SP12b BACK LABEL (R) GRAY 1 YLB5101690447 <MK>
SP12b BACK LABEL (R) GRAY 1 YLB5101690447 <MO>

SKC-350C : CENTER SPEAKER

SP13a COMPLETE UNIT "SKC-350C (B)" / (Inch nut) 1 ASL5C0503-BM04 (B) <MD>
SP13b COMPLETE UNIT "SKC-350C (S)" / (Inch nut) 1 ASL5C0503-BM01 (S) <MC>
SP13c COMPLETE UNIT "SKC-350C (S)" / (mm nut) 1 ASL5C0503-BM02 (S) <MA>
SP13c COMPLETE UNIT "SKC-350C (S)" / (mm nut) 1 ASL5C0503-BM02 (S) <MK>
SP13c COMPLETE UNIT "SKC-350C (S)" / (mm nut) 1 ASL5C0503-BM02 (S) <MO>
SP14a BACK LABEL BLACK 1 YLB5101690443 <MD>
SP14a BACK LABEL BLACK 1 YLB5101690443 <MC>
SP14b BACK LABEL GRAY 1 YLB5101690448 <MA>
SP14b BACK LABEL GRAY 1 YLB5101690448 <MK>
SP14b BACK LABEL GRAY 1 YLB5101690448 <MO>

SKM-350S : SURROUND SPEAKERS (L)/(R)

SP15a COMPLETE UNIT "SKM-350S (B) L & R" / (Inch nut) 1 ASL5U0503-BM04 (B) <MD>
SP15b COMPLETE UNIT "SKM-350S (S) L & R" / (Inch nut) 1 ASL5U0503-BM01 (S) <MC>
SP15c COMPLETE UNIT "SKM-350S (S) L & R" / (mm nut) 1 ASL5U0503-BM02 (S) <MA>
SP15c COMPLETE UNIT "SKM-350S (S) L & R" / (mm nut) 1 ASL5U0503-BM02 (S) <MK>

2/2 PAGE

EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED
EXPLODED

SP15c COMPLETE UNIT "SKM-350S (S) L & R" / (mm nut) 1 ASL5U0503-BM02 (S) <MO>
SP16a BACK LABEL (L) BLACK 1 YLB510169-0444 <MD>
SP16a BACK LABEL (L) BLACK 1 YLB510169-0444 <MC>
SP16b BACK LABEL (L) GRAY 1 YLB5101690449 <MA>
SP16b BACK LABEL (L) GRAY 1 YLB5101690449 <MK>
SP16b BACK LABEL (L) GRAY 1 YLB5101690449 <MO>
SP17a BACK LABEL (R) BLACK 1 YLB5101690445 <MD>
SP17a BACK LABEL (R) BLACK 1 YLB5101690445 <MC>
SP17b BACK LABEL (R) GRAY 1 YLB5101690450 <MA>
SP17b BACK LABEL (R) GRAY 1 YLB5101690450 <MK>
SP17b BACK LABEL (R) GRAY 1 YLB5101690450 <MO>

SATELLITE PACKAGE

--- SATELLITE PACKAGE (B) --- 1 ANB5NS503-BM04 <MD>

--- SATELLITE PACKAGE (S) --- 1 ANB5NS503BM01 <MC>

--- SATELLITE PACKAGE (S) --- 1 ANB5NS503BM02 <MA>

--- SATELLITE PACKAGE (S) --- 1 ANB5NS503BM02 <MK>

--- SATELLITE PACKAGE (S) --- 1 ANB5NS503BM02 <MO>
