Onkyo CS-345 Owner's Manual

Fr Es

Français EspañolEnglish

Getting Started............................En-2

Premiers pas

.................................Fr-2

CD Receiver

CR-245

CD Receiver System

CS-345

CD Receiver (CR-245) Speakers (D-U1)

Instruction Manual

Thank you for purchasing an Onkyo product. Please read this manual carefully before making any connections or using this product. By following these instructions, you’ll get the best audio performance and the most listening pleasure from your Onkyo product. Keep this manual for future reference.

Primeros pasos

Connections Connexions Conexiones

Basic Operation Fonctionnement de base Funcionamiento básico

Playing CDs Lecture de CD Reproducción de CDs

Playing Your iPod/iPhone Lecture d’un iPod/iPhone Reproducir su iPod/iPhone

Listening to the Radio

...........................Es-2

.............................. En-14

................................. Fr-13

................................ Es-13

....................... En-17

....... Es-16

............................... En-19

............................ Fr-18

.......... Es-18

.......... En-26

..... Fr-16

... En-24

.... Fr-23

... Es-23

Manuel d’instructions

Nous vous remercions d’avoir opté pour un produit Onkyo. Veuillez lire ce manuel d’instructions attentivement avant d’effectuer la moindre connexion et d’utiliser ce produit. En suivant les instructions données, vous profiterez au mieux des possibilités de ce produit Onkyo et de tout le plaisir qu’il peut procurer. Conservez ce manuel afin de pouvoir le consulter ultérieurement.

Manual de instrucciones

Gracias por adquirir un producto de Onkyo. Por favor, lea este manual con atención antes de realizar las conexiones o de utilizar este producto. Si sigue estas instrucciones, conseguirá el mejor rendimiento de audio y el mejor sonido del producto Onkyo. Guarde este manual para futuras consultas.

Écoute de la radio Escuchar la radio

Clock and Timer Horloge et minuterie Reloj y Temporizador

Miscellaneous Divers Varios

............................................. Fr-31

............................................ Es-31

................... Fr-25

.................... Es-25

...................... En-28

.......................... En-32

.............. Fr-27

............ Es-27

Important Safety Instructions

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to

persons. The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

RISQUE DE CHOC ELECTRIQUE

NE PAS OUVRIR

AVIS

PORTABLE CART WARNING

S3125A

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12.

Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

En-2

15. Damage Requiring Service Unplug the apparatus from the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power-supply cord or plug is damaged, B. If liquid has been spilled, or objects have fallen

into the apparatus,

C. If the apparatus has been exposed to rain or

water,

D. If the apparatus does not operate normally by

following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the apparatus to its normal operation,

E. If the apparatus has been dropped or damaged in

any way, and

F. When the apparatus exhibits a distinct change in

performance this indicates a need for service.

16. Object and Liquid Entry Never push objects of any kind into the apparatus through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases shall be placed on the apparatus. Don’t put candles or other burning objects on top of this unit.

17. Batteries Always consider the environmental issues and follow local regulations when disposing of batteries.

18. If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is adequate ventilation. Leave 20 cm (8") of free space at the top and sides and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a fluelike gap for warm air to escape.

Precautions

1. Recording Copyright—Unless it’s for personal use

only, recording copyrighted material is illegal without the permission of the copyright holder.

2. AC Fuse—The AC fuse inside the unit is not user-

serviceable. If you cannot turn on the unit, contact your Onkyo dealer.

3. Care

4. Power

5. Preventing Hearing Loss

6. Batteries and Heat Exposure

7. Never Touch this Unit with Wet Hands—Never

8. Handling Notes

—Occasionally you should dust the unit all over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afterwards with a clean cloth. Don’t use abrasive cloths, thinners, alcohol, or other chemical solvents, because they may damage the finish or remove the panel lettering.

WARNING

BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY. AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the voltage requirements printed on the unit’s rear panel (e.g., AC 230 V, 50 Hz or AC 120 V, 60 Hz).

The power cord plug is used to disconnect this unit from the AC power source. Make sure that the plug is readily operable (easily accessible) at all times.

For models with [POWER] button, or with both [POWER] and [ON/STANDBY] buttons: Pressing the [POWER] button to select OFF mode does not fully disconnect from the mains. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet.

For models with [ON/STANDBY] button only: Pressing the [ON/STANDBY] button to select

Standby mode does not fully disconnect from the mains. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet.

Caution

Excessive sound pressure from earphones and headphones can cause hearing loss.

War nin g

Batteries (battery pack or batteries installed) shall not be exposed to excessive heat as sunshine, fire or the like.

handle this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by your Onkyo dealer.

• If you need to transport this unit, use the original

packaging to pack it how it was when you originally bought it.

• Do not leave rubber or plastic items on this unit

for a long time, because they may leave marks on the case.

• This unit’s top and rear panels may get warm

after prolonged use. This is normal.

• If you do not use this unit for a long time, it may not work properly the next time you turn it on, so be sure to use it occasionally.

• When you’ve finished using this unit, remove all discs and turn off the power.

9. Installing this Unit

• Install this unit in a well-ventilated location.

• Ensure that there’s adequate ventilation all around this unit, especially if it’s installed in an audio rack. If the ventilation is inadequate, the unit may overheat, leading to malfunction.

• Do not expose this unit to direct sunlight or heat sources, because its internal temperature may rise, shortening the life of the optical pickup.

• Avoid damp and dusty places, and places subject to vibrations from loudspeakers. Never put the unit on top of, or directly above a loudspeaker.

• Install this unit horizontally. Never use it on its side or on a sloping surface, because it may cause a malfunction.

• If you install this unit near a TV, radio, or VCR, the picture and sound quality may be affected. If this occurs, move this unit away from the TV, radio, or VCR.

10. Moisture Condensation Moisture condensation may damage this unit.

Read the following carefully: Moisture may condense on the lens of the optical pickup, one of the most important parts inside this

unit.

• Moisture condensation can occur in the following

situations: – The unit is moved from a cold place to a warm

place.

– A heater is turned on, or cold air from an air

conditioner is hitting the unit.

– In the summer, when this unit is moved from

an air conditioned room to a hot and humid place.

– The unit is used in a humid place.

• Do not use this unit when there’s the possibility

of moisture condensation occurring. Doing so may damage your discs and certain parts inside this unit.

If condensation does occur, unplug the power cord and leave the unit for two to three hours in the room temperature.

En-3

Precautions—Continued

This unit contains a semiconductor laser system and is classified as a “CLASS 1 LASER PRODUCT”. So, to use this model properly, read this Instruction Manual carefully. In case of any trouble, please contact the store where you purchased the unit. To prevent being exposed to the laser beam, do not try to open the enclosure.

CAUTION:

CLASS 1M VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS. THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

1. This unit is a CLASS 1 LASER PRODUCT and employs a laser inside the cabinet.

2. To prevent the laser from being exposed, do not remove the cover. Refer servicing to qualified personnel.

For U.S. models

FCC Information for User

CAUTION:

The user changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and

receiver.

• Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV

technician for help.

For Canadian Models

NOTE:

THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003. For models having a power cord with a polarized plug:

CAUTION:

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Modèle pour les Canadien

REMARQUE:

CET APPAREIL NUMÉRIQUE DE LA CLASSE B EST CONFORME À LA NORME NMB-003 DU CANADA.

Sur les modèles dont la fiche est polarisée:

ATTENTION:

POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

En-4

Precautions—Continued

Before Using Your New Speakers

• Place the speakers on sturdy, flat surfaces. Putting them on uneven or unstable surfaces where they may fall and cause damage will affect the sound quality.

• Do not keep water or other liquids close to the speakers. If a liquid is spilled over them, the woofer and tweeter inside may be damaged.

• Do not handle the speakers with wet or damp hands.

Speaker Precautions

The speakers can handle the specified input power when used for normal music reproduction. If they’re fed any of the following signals, even if the input power is within the specified rating, excessive current may flow in the speaker coils, causing burning or wire breakage:

1. Interstation noise from an untuned FM radio.

2. Audio from a cassette that’s being fast-forwarded.

3. High-pitched sounds generated by an oscillator, electronic musical instrument, and so on.

4. Amplifier oscillation.

5. Special test tones from audio test CDs and so on.

6. Thumps and clicks caused by connecting or disconnecting audio cables (always turn off your amplifier before connecting or disconnecting cables).

7. Microphone feedback.

The speakers contain powerful magnets. Do not put metal items, such as screwdrivers, close to the speakers, as they may be attracted toward the magnet, causing injury, or damage to the tweeter diaphragm.

Using Close to a TV or Computer

TVs and computer monitors are magnetically sensitive devices and as such are likely to suffer from discoloration or picture distortion when conventional speakers are placed nearby. To prevent this, the speakers feature internal magnetic shielding. In some situations, however, discoloration may still be an issue. In this case, turn off your TV or monitor, wait 15 to 30 minutes, and then turn it back on again. This normally activates the degaussing function, which neutralizes the magnetic field, thereby removing any discoloration effects. If discoloration problems persist, try moving the speakers away from your TV or monitor. Note that discoloration can also be caused by a magnet or demagnetizing tool that’s too close to your TV or monitor.

Note:

• If the speakers are placed close to a TV or monitor, due to the electromagnetic waves radiated by the TV or monitor, you may hear noise from the speakers even after your amplifier has been turned off. To prevent this, position the speakers away from your TV or monitor.

En-5

Package Contents

Make sure you have the following items:

CR-245

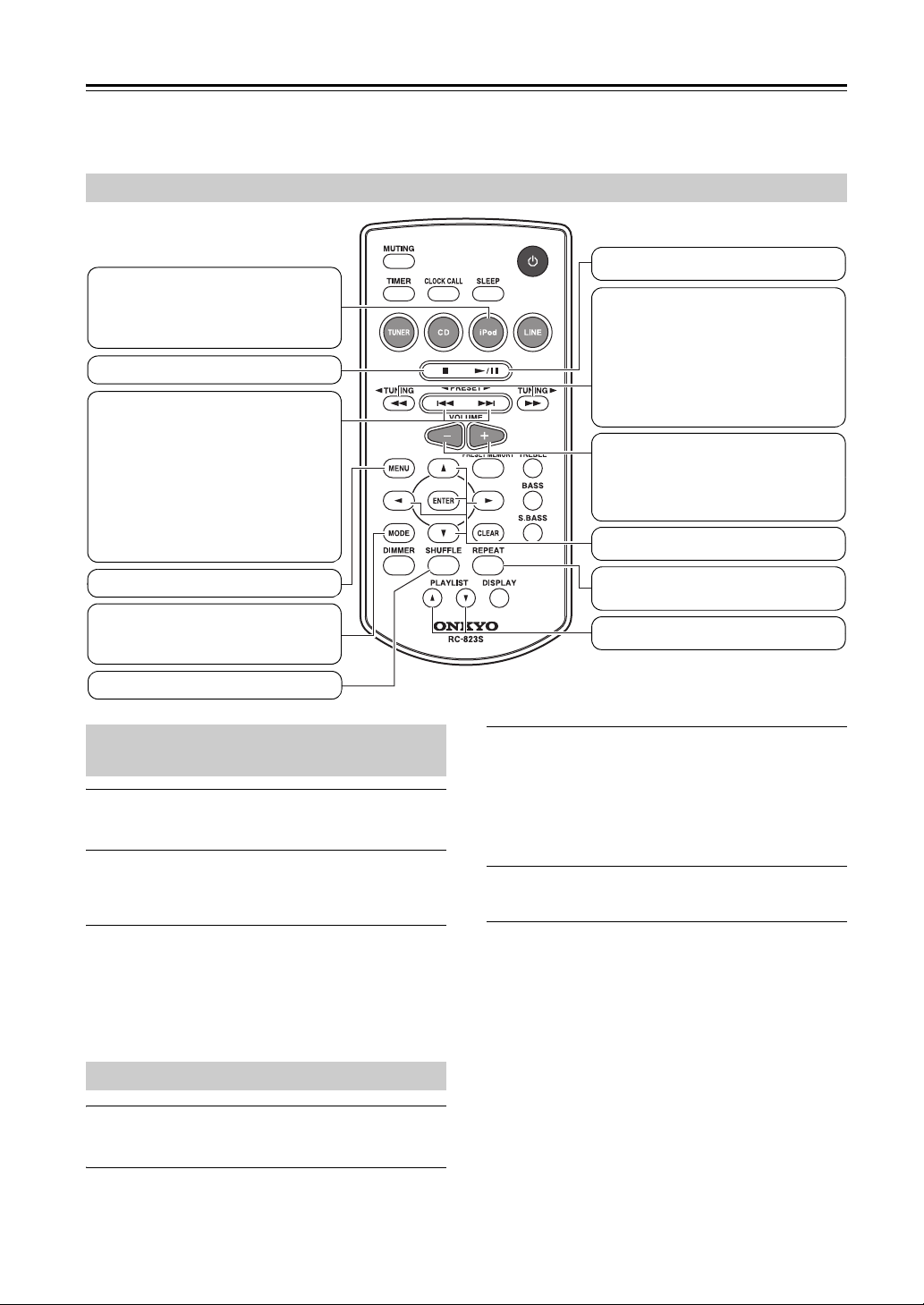

Remote controller (RC-823S)

Indoor FM antenna

AM loop antenna

Speakers (D-U1)

Speakers are included only with the CS-345.

Speaker cables

8 cork spacers

Power cord

(Connector type varies from country to country.)

En-6

* In catalogs and on packaging, the letter at the end of

the product name indicates the color. Specifications and operation are the same regardless of color.

Features

General

• CD tuner audio system with built-in iPod/iPhone*1 dock

• Super Bass (S.Bass) function for deeper bass sounds

• Bass and treble tone controls

• Line input for external audio source

• AUDIO OUT (SUBWOOFER) jack

• VIDEO OUT jack for the video output of the iPod/ iPhone

• Headphones jack

• Dimmable display

Speakers

• Stylish cabinet

• 2 Way Bass-reflex

iPod

• iPod/iPhone direct digital connection

• Control your iPod/iPhone with the remote controller

• Made for iPod touch (1st, 2nd, 3rd and 4th generation), iPod classic, iPod nano (2nd, 3rd, 4th, 5th and 6th generation), iPhone 4, iPhone 3GS, iPhone 3G and iPhone

*1. iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod

touch are trademarks of Apple Inc., registered in the U.S. and other countries. “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

*2. An iPod/iPhone can only be used by connecting it to the iPod

dock connector on the top panel of the CD receiver.

*3. This functionality might not be available depending on the

iPod/iPhone model or apps.

Radio

•FM/AM tuner

• 30 FM, 30 AM presets

• FM Auto Preset function

CD Player

• Play audio CDs, MP3 CDs (CD-R and CD-RW)

• RANDOM playback mode

• 2-mode repeat function (current track or all tracks)

Timer and Clock

• Programmable timer

• Sleep timer

• The alarm play function of the iPod/iPhone can power-on the CD receiver and switch the input to iPod/iPhone

En-7

Important Safety Instructions ........................... 2

Precautions......................................................... 3

Package Contents.............................................. 6

Features .............................................................. 7

Getting to Know the CD receiver...................... 9

Top and Front Panels.................................................9

Display.....................................................................10

Rear Panel................................................................10

Remote Controller ...................................................11

Before Using the CD Receiver ........................ 12

Using the Included Cork Spacers for speakers

(CS-345 only)........................................................12

Using the Remote Controller ...................................12

Replacing the Battery ..............................................12

Disc (Audio CD and MP3) Notes..................... 13

Connecting Speakers ...................................... 14

Connecting Antennas...................................... 15

Connecting Other Components...................... 15

Connecting a Powered Subwoofer ..........................16

Connecting an Audio Playback Device...................16

Connecting a TV......................................................16

Connecting the Power Cord.....................................16

Basic Operation................................................ 17

Turning On the CD Receiver...................................17

Selecting the Input Source.......................................17

Adjusting the Volume..............................................17

Muting the CD Receiver

(remote controller only) ........................................17

Using Headphones...................................................17

Adjusting the Bass and Treble

(remote controller only) ........................................18

Using Super Bass

(remote controller only) ........................................18

Changing the Display Brightness

(remote controller only) ........................................18

Playing CDs.......................................................19

Using the CD receiver............................................. 19

Using the Remote Controller .................................. 20

Displaying CD Information .................................... 20

Selecting MP3 Files ................................................ 21

Displaying MP3 Information .................................. 22

Random Playback ................................................... 22

Repeat Playback...................................................... 23

Playing Your iPod/iPhone................................24

Installing the iPod Dock Adapters .......................... 24

Using the Top Panel Buttons .................................. 24

Using the Remote Controller .................................. 25

Navigating the iPod Menus with the Remote

Controller.............................................................. 25

Playing video from the iPod/iPhone .......................25

Listening to the Radio......................................26

Tuning into FM/AM Radio Stations ....................... 26

Presetting FM Stations Automatically

(Auto Preset)......................................................... 26

Presetting FM/AM Stations Manually .................... 27

Selecting Preset Stations ......................................... 27

Erasing Presets ........................................................ 27

Setting the Clock ..............................................28

Setting the Clock..................................................... 28

Using the Timer ................................................29

Programming the Timer .......................................... 29

Turning Timer On and Off...................................... 30

Using the Sleep Timer ............................................ 30

Timer Playback using the Alarm Play Function of

your iPod/iPhone .................................................. 31

Troubleshooting ...............................................32

Specifications ...................................................35

En-8

Getting to Know the CD receiver

a b

j k ml n

cidefgh

Top Panel

Front Panel

Top and Front Panels

For detailed information, see the pages in parentheses.

a iPod/iPhone Dock (24) b Dock cover (24) c  ON/STANDBY button (17, 29, 31, 32) d INPUT button (17, 24, 25, 26, 27) e Previous []/PRESET [] button

(19, 24, 27)

f Next []/PRESET [] button (19, 24, 27) g Stop [] button (19, 24, 32) h Play/Pause [/] button (19) i VOLUME [–]/[+] buttons (17, 25)

j Headphones jack (17) k Display l Disc tray (19) m Remote control sensor (12) n Open/Close [] button (19)

En-9

Getting to Know the CD receiver—Continued

ˆˆˆ„„ˆˆ…„ˆˆ„„ˆ„„ˆˆ…‡ˆˆ

a 4 5 6b 3

7k9j l8

2a 3 4 5 6 7

See pages 14 to 16 for connection information.

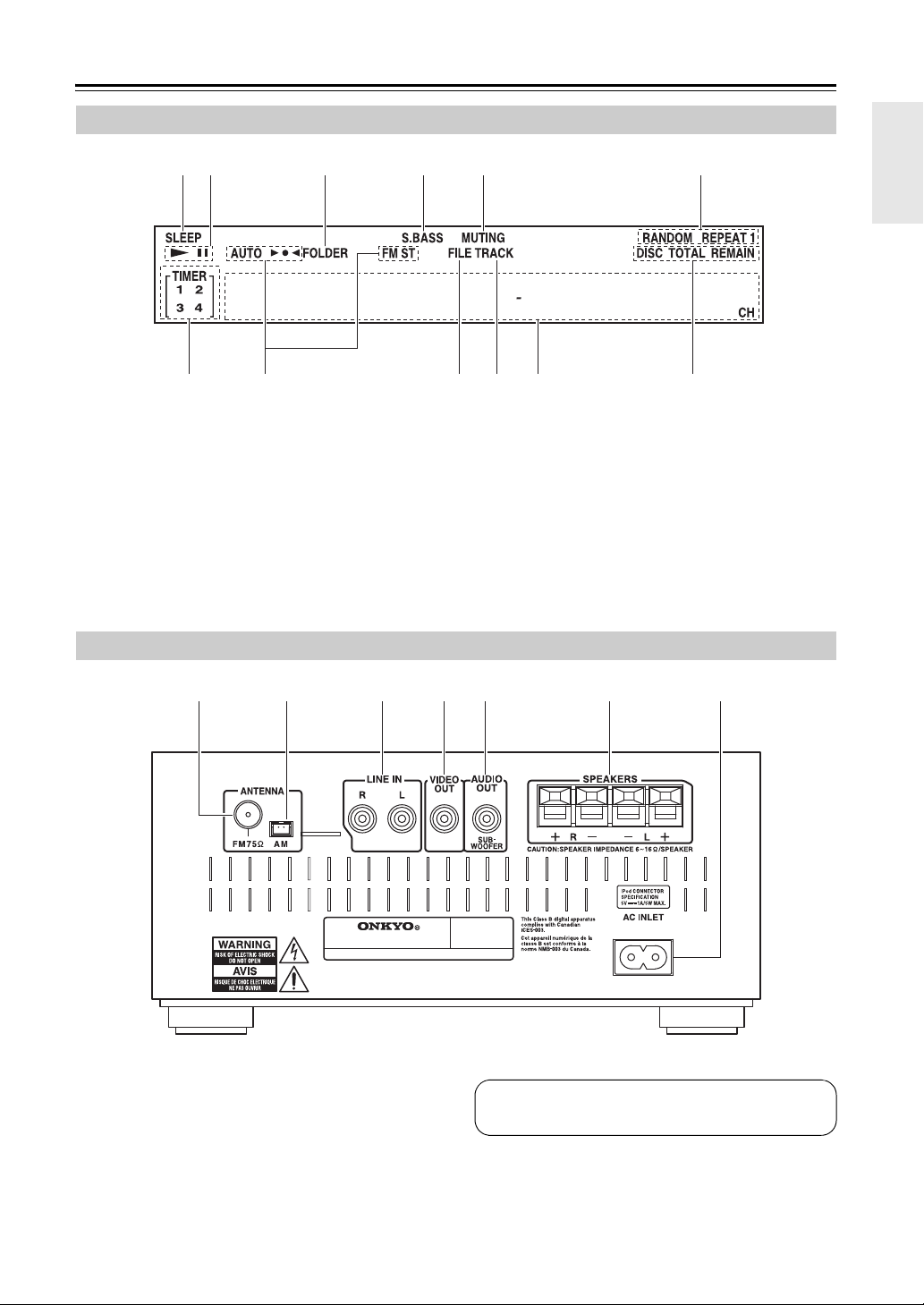

Display

SLEEP indicator

a b Play  and Pause  indicators c FOLDER indicator d S.BASS indicator e MUTING indicator f Playback mode indicators

Rear Panel

g TIMER indicators h Tuning indicators i FILE indicator j TRACK indicator k Message area l DISC, TOTAL, and REMAIN indicators

a FM ANTENNA jack b AM ANTENNA jack c LINE IN jack d VIDEO OUT jack e AUDIO OUT (SUBWOOFER) jack f SPEAKERS terminals g AC INLET

En-10

Getting to Know the CD receiver—Continued

j k l

q r

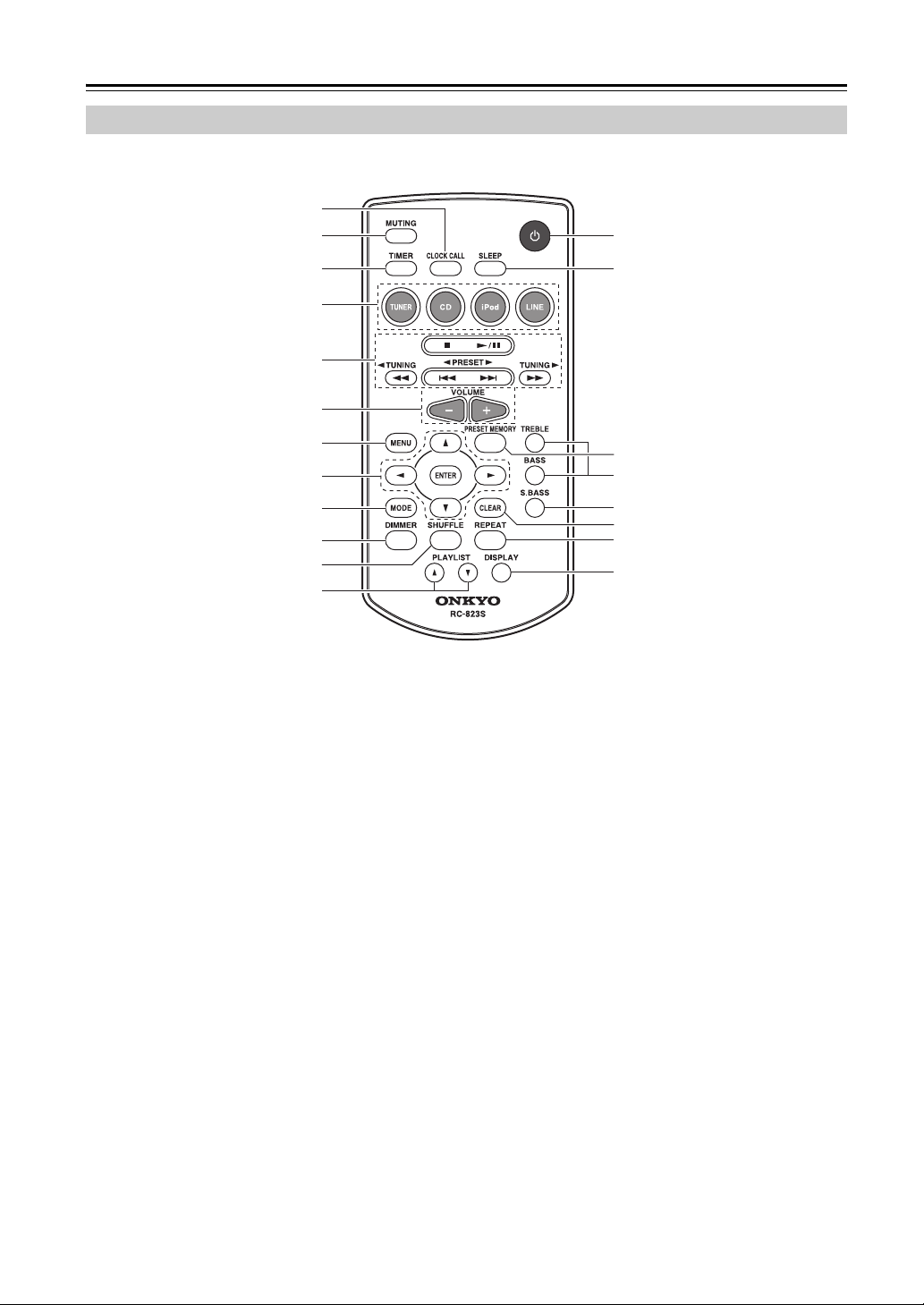

Remote Controller

For detailed information, see the pages in parentheses.

a CLOCK CALL button (28) b MUTING button (17) c TIMER button (28, 29, 30) d Input Selector buttons (17) e Stop [] (20, 25),

Play/Pause [/] (20, 21, 22, 25), []/[], PRESET []/[] (20, 25, 27), []/[], TUNING []/[] (20, 25, 26) buttons

f VOLUME [–]/[+] buttons (17) g MENU button (25) h Arrow []/[]/[]/[] buttons and ENTER

button

i MODE button (21, 25, 26) j DIMMER button (18) k SHUFFLE button (22, 23, 25) l PLAYLIST []/[] buttons (25)

m  button (17, 29, 31) n SLEEP button (30) o PRESET MEMORY button (26, 27) p TREBLE/BASS buttons (18) q S.BASS button (18) r CLEAR button (18, 22, 27) s REPEAT button (23) t DISPLAY button (20, 22, 28, 30)

En-11

Before Using the CD Receiver

Cork spacers

Bottom

D-U1

30°

Appro

. 5

(

ft.)

Remote control sensor

CR-245

Positive + side

Back side

Firmly insert a thin stick or similar object into the hole, and pull out firmly in the direction of the arrow.

Using the Included Cork Spacers for speakers (CS-345 only)

You can improve the sound quality by attaching the included cork spacers to raise the speakers off the surface and reduce the contact area. The cork spacers also make the speakers stable and prevent them from slipping.

Using the Remote Controller

Replacing the Battery

Use only a battery of the same type (CR2025).

Remove the plastic film before using the remote controller.

When using the remote controller, point it toward the CD receiver’s remote control sensor, as shown below.

Notes:

• If the remote controller doesn’t work reliably, try replacing the batteries.

• If you intend not to use the remote controller for a long time, remove the batteries to prevent damage from leakage or corrosion.

• Expired batteries should be removed as soon as possible to prevent damage from leakage or corrosion.

Caution:

• Replacing the battery incorrectly may cause an explosion. Use only a battery of the same type or an equivalent.

En-12

Disc (Audio CD and MP3) Notes

Label surface (printed surface)

Playback surface

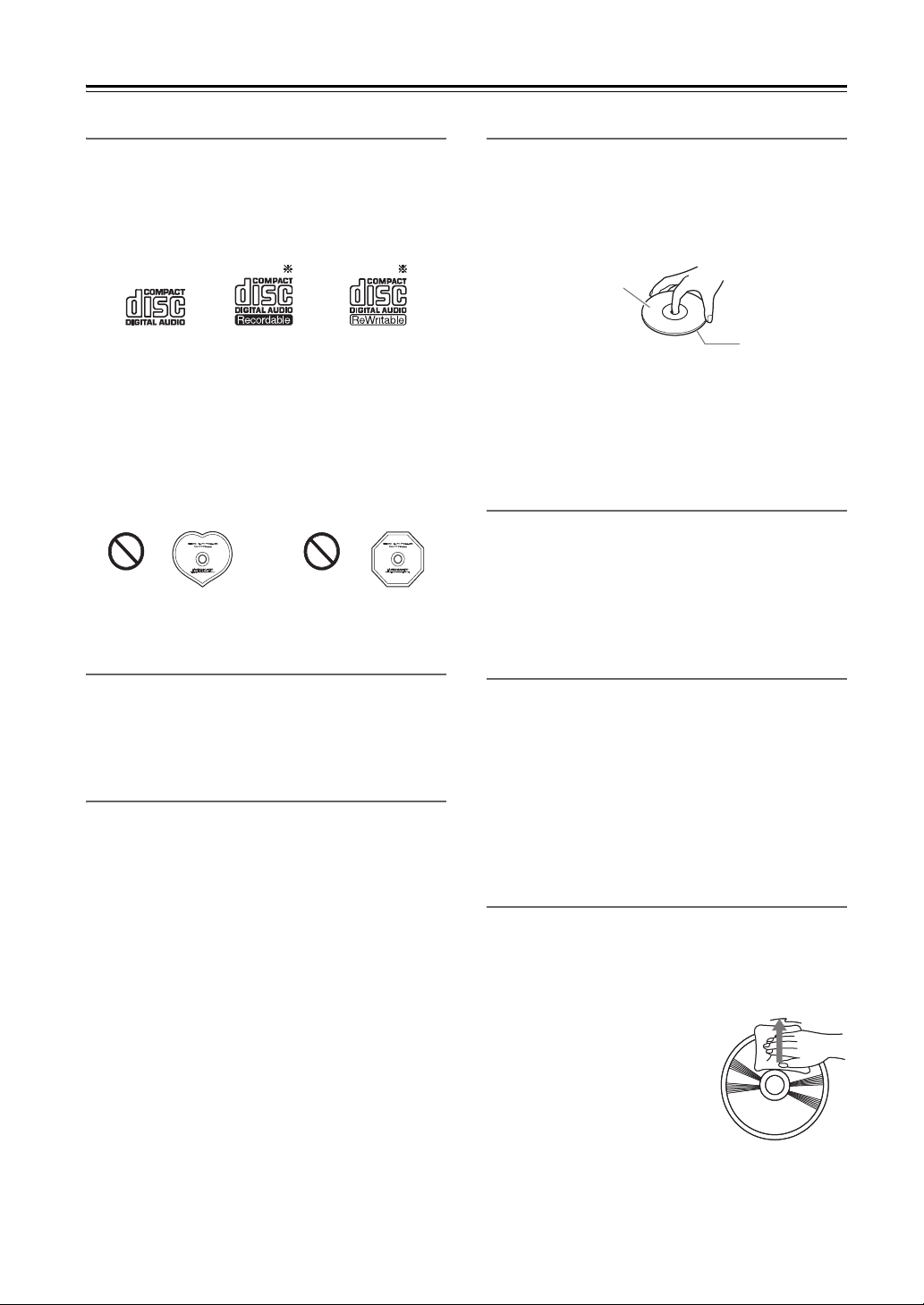

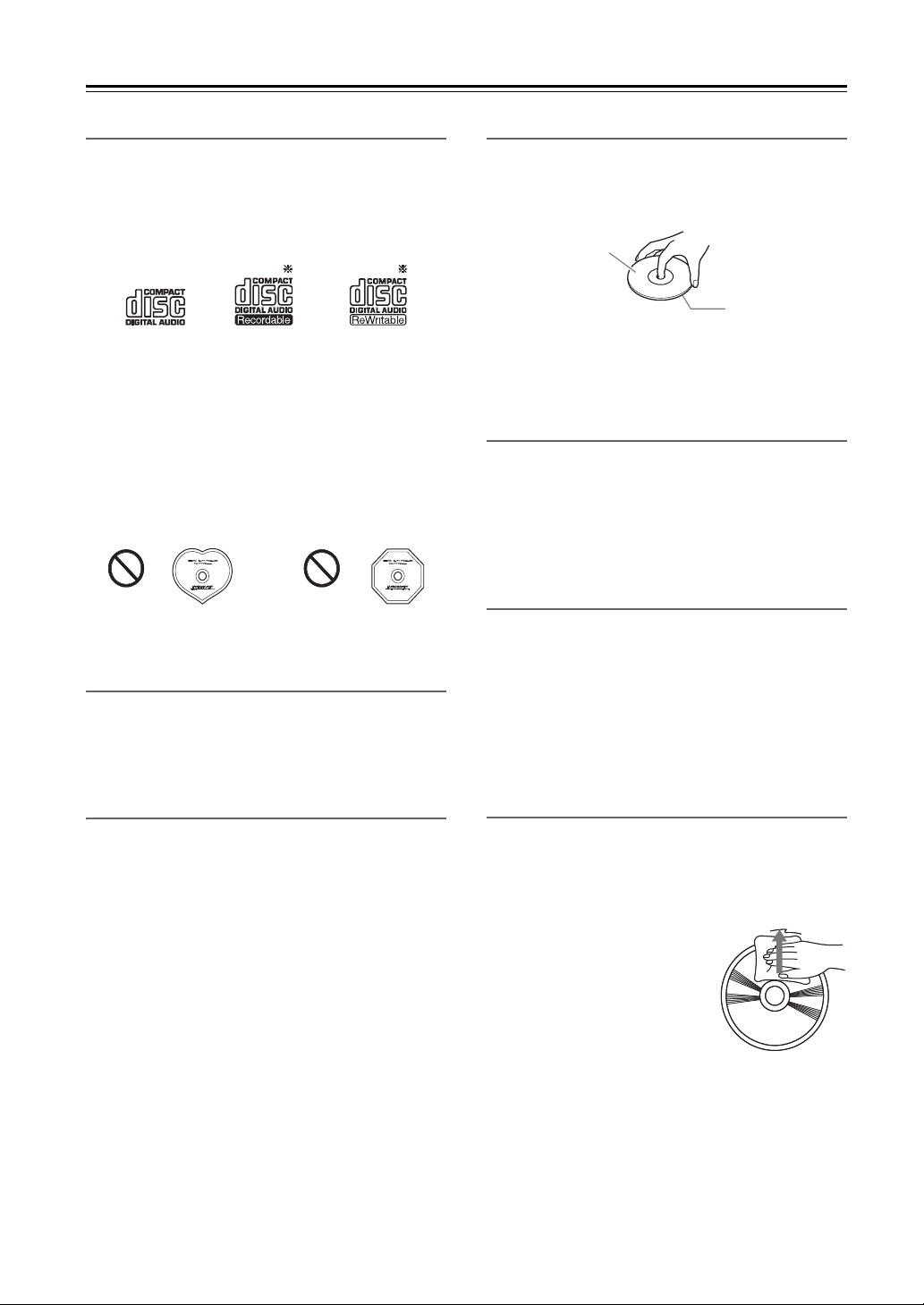

Precautions for Playback

Compact discs (CDs) with the following logo on the label surface can be used. Do not use discs designed for purposes other than audio, such as CD-ROMs for PC use. Abnormal noise could damage the CD receiver.

* The CD receiver supports CD-R and CD-RW discs.

Note that some discs may not playback because of the disc characteristics, scratches, contamination or the recording state. A disc recorded with an audio CD record will not playback unless it is finalized.

Never use discs which have a special shape (such as hearts or octagons). These types of discs could jam and damage the CD receiver.

CD Playback with Copy-control Function

Some audio CDs with copy-control function do not comply with official CD standards. These are special discs and cannot be played with the CD receiver.

Handling Discs

Hold discs by the edge, or by the center hole and edge. Avoid touching the playback surface (surface with nothing printed on it).

Do not attach paper or stickers, or write on the playback or label surface of the disc. Take care not to scratch or damage the disc.

Precautions for Rental Discs

Do not use discs with residue from cellophane tape, rental discs with labels which are peeling off, or discs with decorative labels. This type of disc could get stuck in the CD receiver, or could damage the CD receiver.

Precautions for Inkjet Printable Discs

Do not leave a CD-R/CD-RW having a label printed with an inkjet printer in the CD receiver for a long time. The disc could get stuck in the CD receiver, or could damage the CD receiver.

Remove the disc from the CD receiver when not being played, and store it in a case. A freshly printed disc will stick easily, and should not be played immediately.

Playback of MP3 Discs

MP3 files recorded on a CD-R/CD-RW can be played with the CD receiver.

• Use discs which have been recorded following the ISO 9660 Level 2 file system. (The supported directory depth is eight levels, the same as ISO 9660 Level 1)

• Discs recorded with the hierarchical file system (HFS) cannot be played.

• Discs must be closed (finalized).

• Only MP3 files with the extension “.MP3” or “. mp3” are supported.

• Files recorded using MPEG 1 audio layer 3 at sampling frequencies of 32/44.1/48 kHz and a constant bit rate (CBR) of 32–320 kbps are supported.

• A maximum of 299 folders can be recognized on a single CD. A maximum of 648 files can be recognized in a single folder.

Caring for Discs

If the disc is dirty, the CD receiver will have a hard time reading signals, and the audio quality may drop. If the disc is dirty, gently wipe off fingerprints and dust with a soft cloth. Lightly wipe from the center outwards.

To remove stubborn dust or dirt, wipe the disc with a soft cloth dampened with water, and then dry it with a dry cloth. Do not use cleaning spray for analog records or antistatic agents, etc. Never use volatile chemicals such as benzine or paint thinner as they can impregnate the disc surface.

En-13

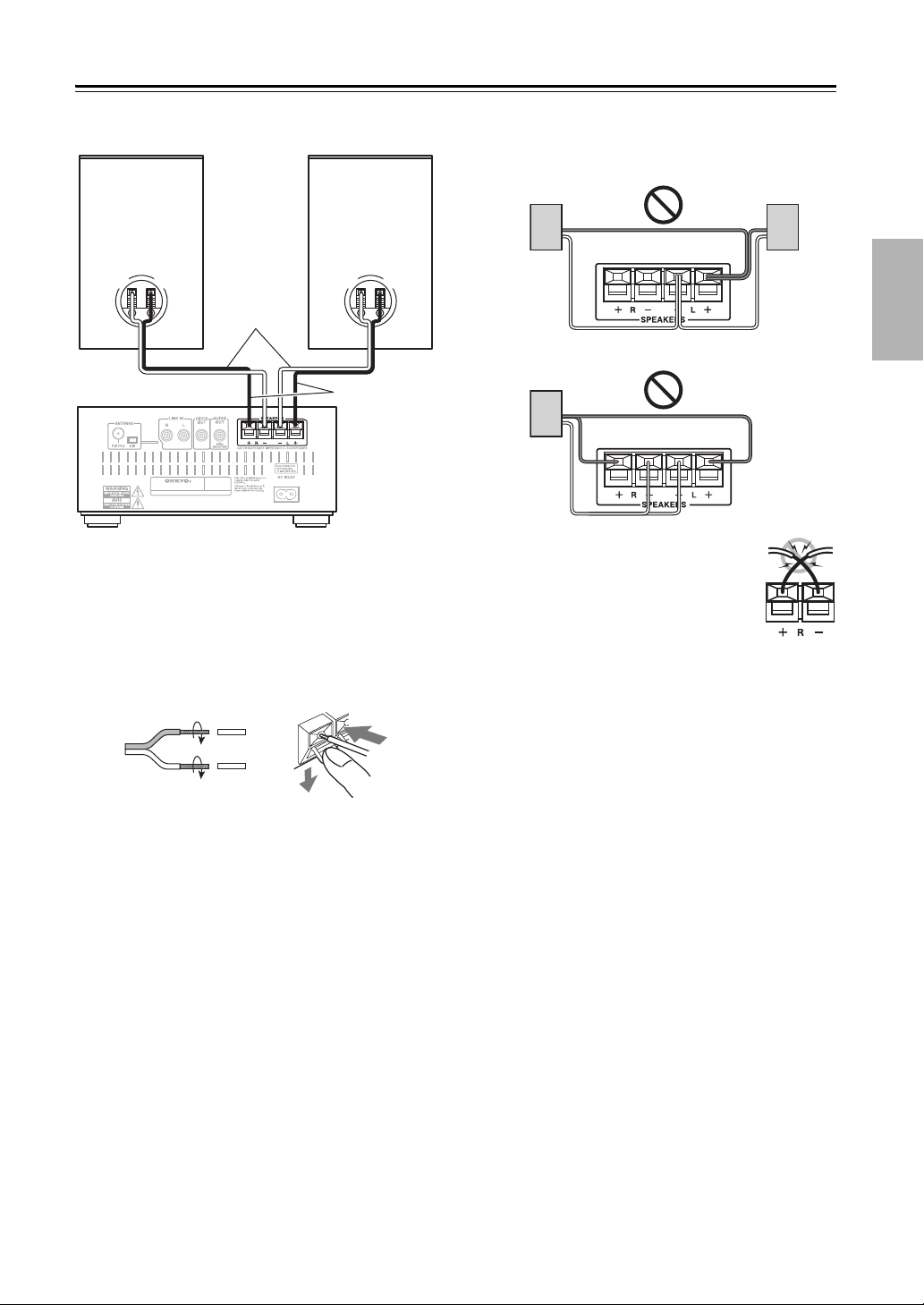

Connecting Speakers

- + - +

Speaker

cable

Right speaker Left speaker

CD receiver

Red line side

Remove the precut insulation from the ends of the speaker cables, and twist the bare wires tightly.

Push the lever to open the hole, insert the bare wire into the hole, and then release the lever.

Make sure that the speaker terminals are gripping the bare wires, not the insulation.

• Do not connect both speaker cables to the same L or R terminals. Do not connect more than two speaker terminals to each speaker.

• Be careful not to short the positive and negative wires. Doing so may damage the CD receiver and/or speakers.

• Connect the right speaker to the CD receiver’s right (R) SPEAKERS terminals. Connect the left speaker to the left (L) SPEAKERS terminals.

• Pay close attention to speaker wiring polarity. Connect positive (+) terminals to only positive (+) terminals, and negative (–) terminals to only negative (–) terminals. If you get them the wrong way around, the sound will be out of phase and will sound unnatural.

• Use the red line wires to connect the positive (+) terminals.

• Do not connect anything other than the included speakers (D-U1). We cannot take responsibility for

• You can connect speakers with an impedance of

En-14

malfunctions or poor results if this CD receiver is used with any other speakers. (CS-345 only)

between 6 and 16 ohms. (CR-245 only)

Connecting Antennas

Insert the plug fully into the jack.

VIDEO

CD receiver

Analog audio cable (RCA)

Powered

subwoofer

e.g., casette tape deck

TV, projector, etc.

To wall outlet

(Connector type varies from country to country.)

This section explains how to connect the supplied indoor FM antenna.

The CD receiver won’t pick up any radio signals if no antenna is connected, so you must connect the antenna to use the tuner.

Note:

• Once your CD receiver is ready for use, you’ll need to tune into a radio station and position the antenna to achieve the best possible reception.

Tip:

• If you cannot achieve good reception with the supplied indoor FM antenna, try a commercially available outdoor FM antenna instead.

Connecting the AM Loop Antenna

The supplied indoor AM loop antenna is for indoor use only.

Assemble the AM loop antenna, inserting

the tabs into the base, as shown.

Plug the AM loop

antenna into the AM antenna jack, as shown.

■ Adjusting the AM Loop Antenna

Adjust the location and position of the AM antenna while listening to an AM station to achieve the best possible reception.

Connecting Other Components

En-15

Connecting Other Components—Continued

Right!

Wrong!

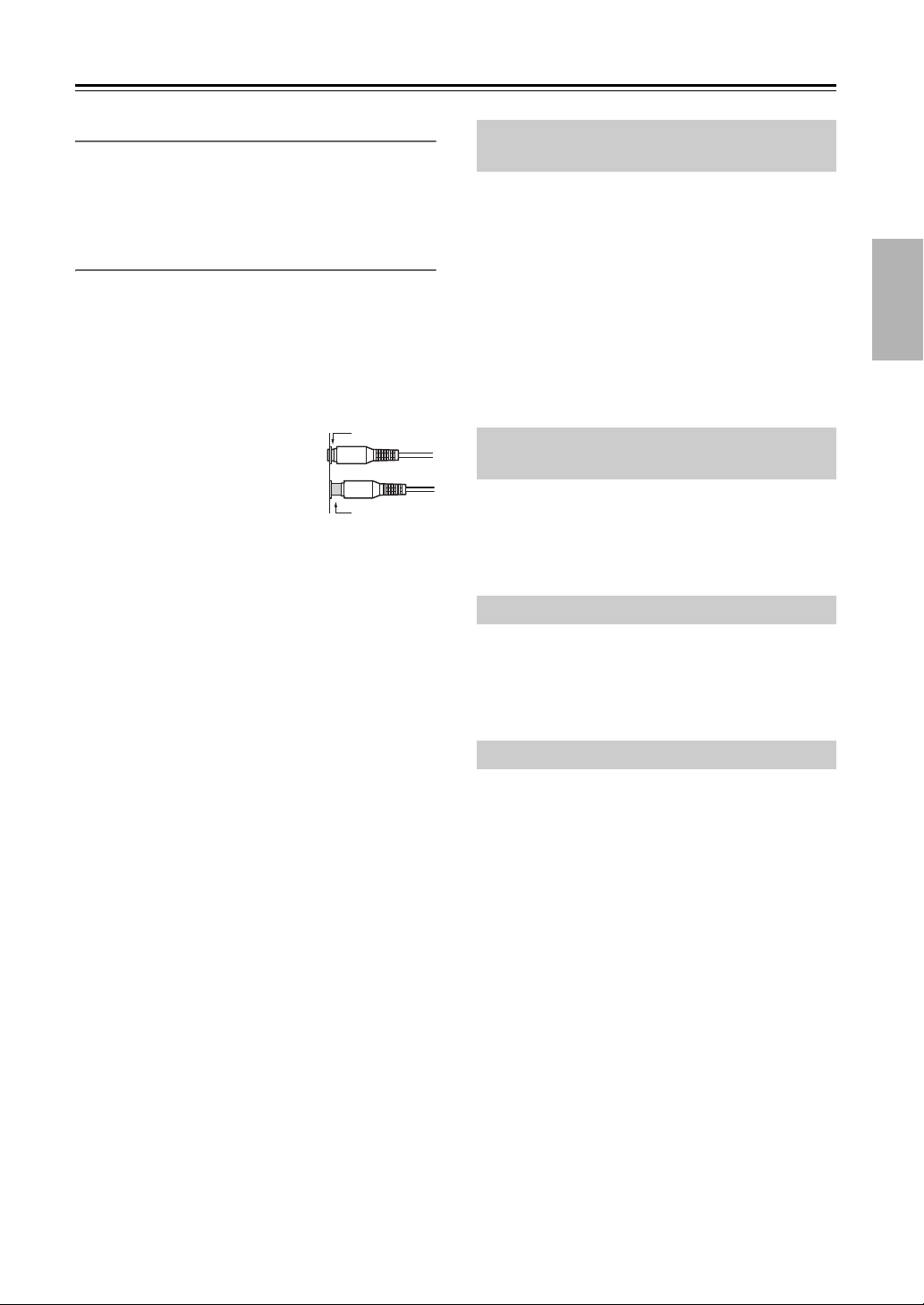

About Connections

• Before making any connections, read the manuals supplied with your other components.

• Don’t connect the power cord until you’ve completed and double-checked all connections.

Connection Color Coding

RCA-type audio connections are usually color-coded: red and white. Use red plugs to connect right-channel audio inputs and outputs (typically labeled “R”). Use white plugs to connect left-channel audio inputs and outputs (typically labeled “L”).

Push plugs in all the way to make good connections (loose connections can cause noise or malfunctions).

Note:

• Do not put anything on top of the CD receiver, as it may interfere with proper ventilation.

Connecting a Powered Subwoofer

Using a suitable cable, connect the CD receiver’s AUDIO OUT: SUBWOOFER to the input on your powered subwoofer.

If your subwoofer is unpowered and you’re using an external amplifier, connect the AUDIO OUT: SUBWOOFER to the amp’s input.

Note:

• Do not connect or disconnect the power cord while the subwoofer is powered-on. Doing so may damage the subwoofer. You must power-off the subwoofer before connecting or disconnecting the power cord.

Connecting an Audio Playback Device

Using a suitable cable, connect the CD receiver’s LINE IN jacks to the OUTPUT (PLAY) jacks of your cassette tape deck, TV, or other audio playback device.

Connecting a TV

If you want to view the contents of videos from your iPod/iPhone on your TV, connect the CD receiver’s VIDEO OUT jack to the VIDEO IN jack of your TV or projector.

Connecting the Power Cord

Connect the CD receiver’s power cord to a suitable wall outlet.

Notes:

• Do not use any cord other than the included power cord. Do not connect the included power cord to any other device. Doing so may cause malfunctions or accidents.

• Do not unplug the power cord from the AC INLET while the other end of the cord is still connected to an AC outlet. You may receive an electric shock if you accidentally touch the internal terminals of the power cord.

• Before connecting the power cord, connect all of your speakers and AV components.

• Turning on the CD receiver may cause a momentary power surge that might interfere with other electrical equipment on the same circuit. If this is a problem, plug the receiver into a different branch circuit.

• Plug the power cord into an AC outlet that is easily accessible so that you can quickly unplug it if necessary.

En-16

Basic Operation

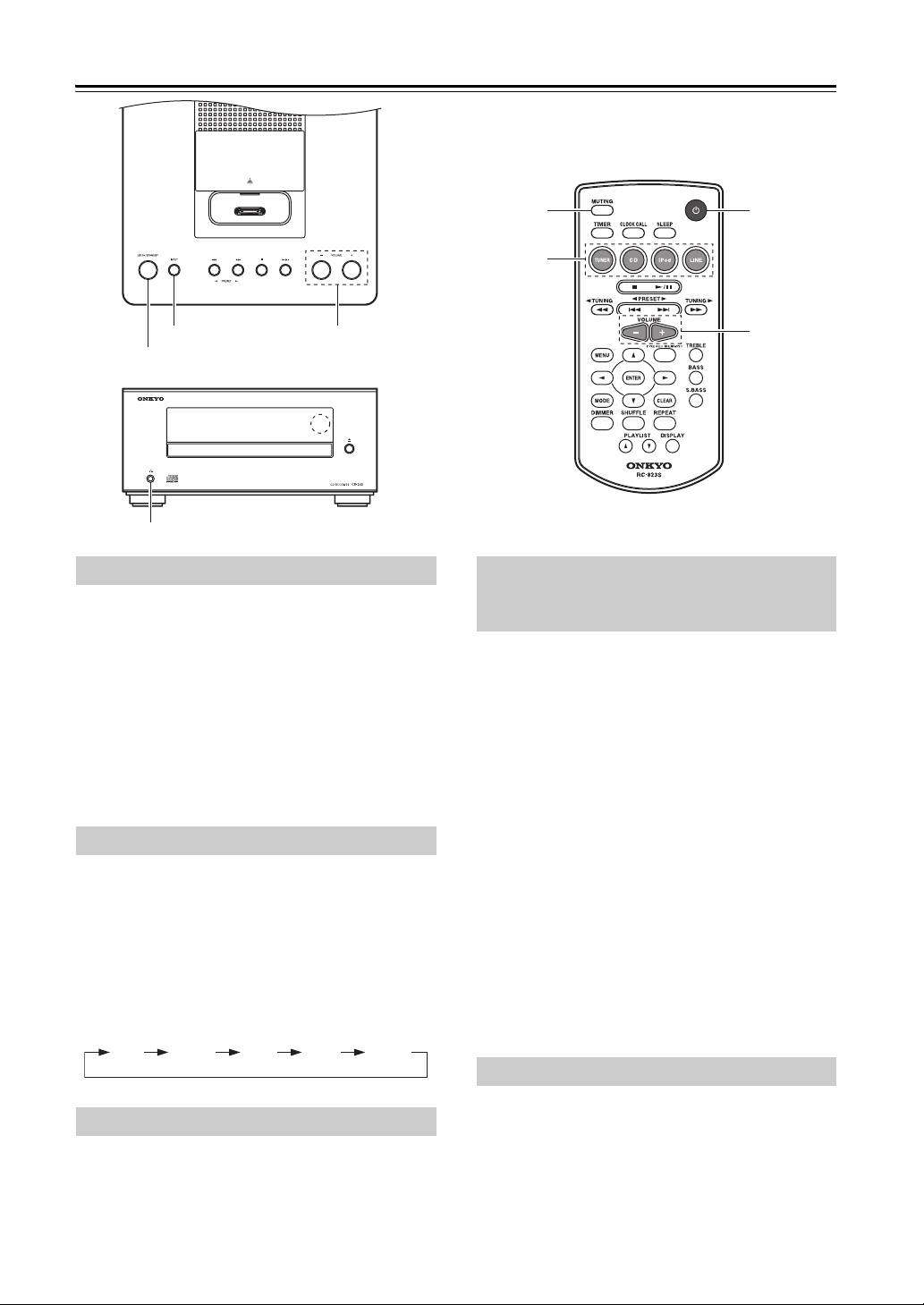

VOLUME [–]/[+]

ON/STANDBY

INPUT VOLUME

[–]/[+]

MUTING

Input Selector

buttons

FM AM iPod LINECD

Turning On the CD Receiver

Press the [ ON/STANDBY] button.

Alternatively, press the remote controller’s [] button. The CD receiver comes on, and the display lights up. If you insert an iPod/iPhone to the CD receiver, the

“Connecting” message will be shown and the iPod/iPhone will be charged. Even if the CD receiver is in standby mode, the “Charging” message will be shown and charging will occur.

Selecting the Input Source

You can select CD, iPod, FM, AM, or LINE, which can be an external component.

To select the input source, use the remote controller’s Input Selector buttons. On the CD receiver, press the [INPUT] button repeatedly.

The input sources are selected in the following order.

Adjusting the Volume

Press the VOLUME [+] button to increase the volume or the VOLUME [–] button to decrease it.

You can also use the remote controller’s VOLUME [–]/[+] buttons.

Muting the CD Receiver (remote controller only)

You can temporarily mute the output of the CD receiver.

Press the remote controller’s [MUTING] button.

The CD receiver is muted. “Muting” appears on the display for a few seconds. The

MUTING indicator flashes continuously while the CD receiver is muted.

To unmute the receiver, press the [MUTING] button again.

Notes:

• Press the VOLUME [–]/[+] buttons on the CD receiver or pressing the VOLUME [–]/[+] buttons on the remote controller will unmute the CD receiver.

• If you turn the CD receiver off, the next time you turn it on, the CD receiver will be unmuted.

Using Headphones

You can connect a pair of stereo headphones (ø3.5 mm, 1/8-inch phone plug) to the receiver’s headphones [] jack for private listening.

Notes:

• Always turn down the volume before connecting your headphones.

• While the headphones plug is inserted in the headphones [] jack, the speakers are turned off.

En-17

Basic Operation—Continued

TREBLE BASS S.BASS

F/H

CLEAR

DIMMER

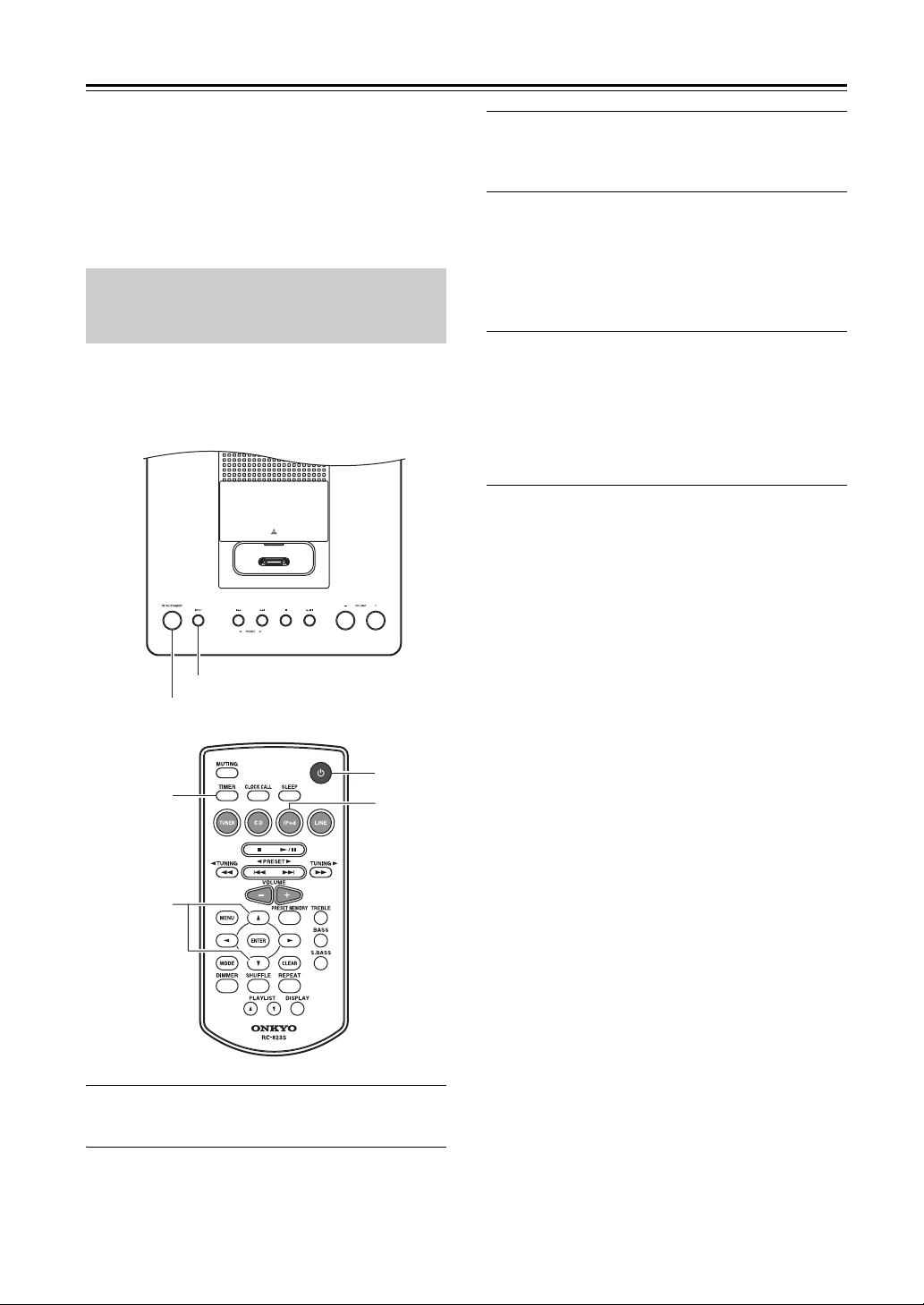

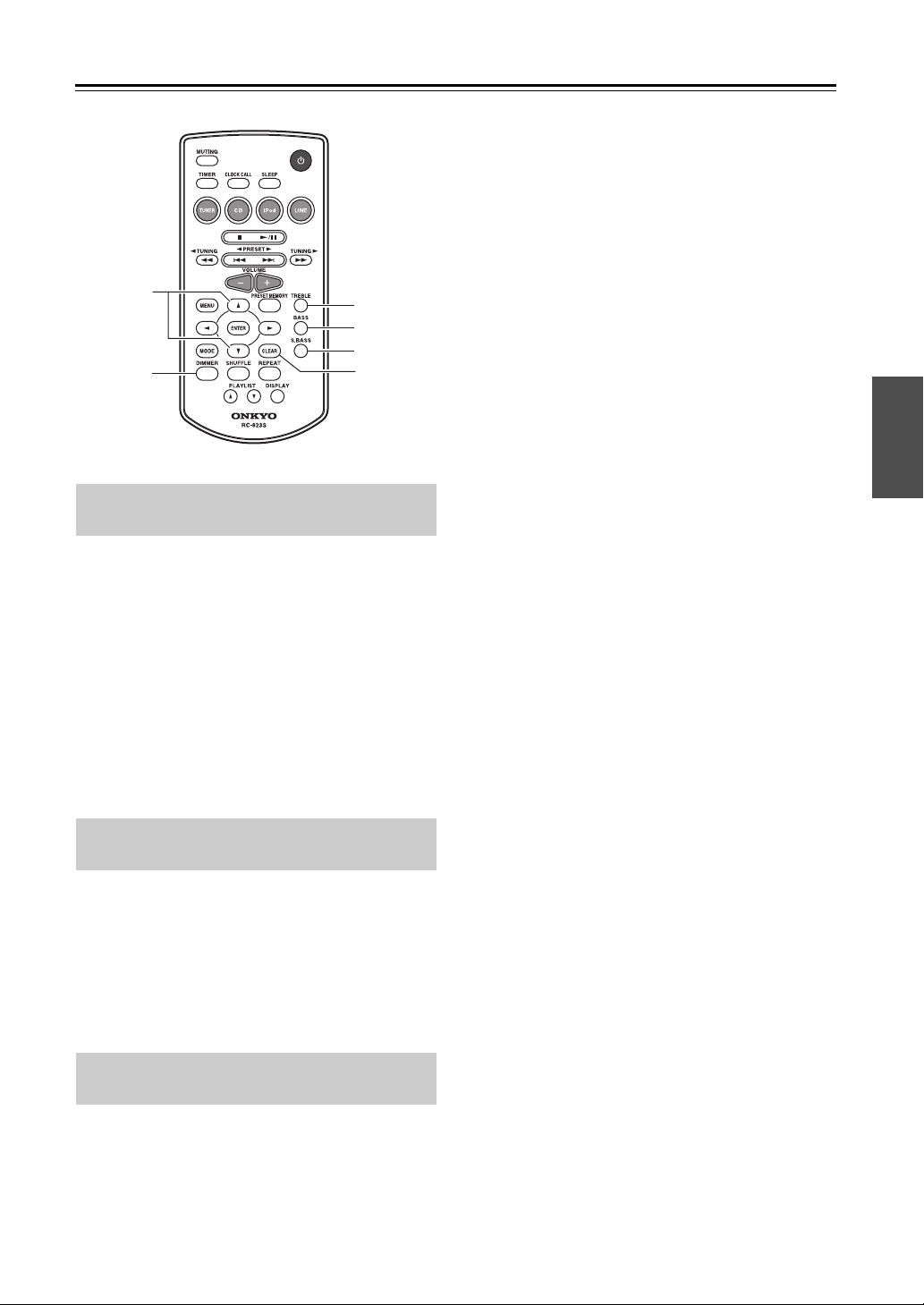

Adjusting the Bass and Treble (remote controller only)

Press the [BASS] or [TREBLE] button, and then use the []/[] buttons to adjust the bass or treble, respectively.

The default setting is “0.” You can adjust the bass and treble from –5 to +5.

While adjusting the bass or treble, you can press the [CLEAR] button to return the setting to “0”.

Note:

• If you press no buttons for 5 seconds, the previous display will appear automatically.

Using Super Bass (remote controller only)

To turn on Super Bass, press the [S.BASS] button.

The setting will alternate between S.Bass Off, S.Bass 1, and S.Bass 2 each time you press the button.

To turn off Super Bass, press the [S.BASS] button repeatedly until “S.Bass Off” appears.

Changing the Display Brightness (remote controller only)

You can adjust the brightness of the display.

Press the remote controller’s [DIMMER] button repeatedly to select: dim, or normal brightness.

En-18

Playing CDs

U/I

[

QRJ

Disc tray

CD „„ „„19„† „„67„‡29

“DISC TOTAL” lights up

• Audio CD

Total number of tracks Total playing time

Using the CD receiver

■ Information Displayed When Playback is Stopped:

Selecting Tracks

To return to the beginning of the track currently playing, press the Previous [] button.

Press the Previous [] button repeatedly to select earlier tracks.

Press the Next [] button repeatedly to select subsequent tracks.

Press the [] button to open the disc tray.

Tip:

• Pressing the [] button while the CD receiver is on Standby will turn on the CD receiver and open the disc tray.

Place the CD on the tray with the label-side

facing up.

Place 8 cm CDs in the center of the tray.

To start playback, press the [/] button.

The disc tray closes and playback starts. Then the “” indicator appears.

To stop playback:

Press the [] button. Playback stops automatically when the last track has

been played.

To pause playback:

Press the [/] button. The Pause “” indicator appears. To resume playback, press the [/] button again.

To remove the CD:

Press the [] button to open the disc tray.

Note:

• Operation using the remote controller is explained on the next page.

En-19

Playing CDs—Continued

Press to stop playback

Press to select tracks

• Press the Previous [] button to locate the beginning of the currently playing track.

• Press it repeatedly to select earlier tracks.

• Press the Next [] button repeatedly to select subsequent tracks.

Press to start playback

If you press this while the CD receiver is in standby mode, the CD receiver will power-on. If a CD had been selected before the receiver entered standby mode, the CD will begin playing.

Press to pause playback

To resume playback, press the Play/ Pause [/] button.

Press to adjust the volume

Press the VOLUME [+] button to turn up the volume. Press the VOLUME [–] button to turn it down.

Press to fast forward or fast reverse

During playback, press and hold the Fast Forward [] button to fast forward, or the Fast Reverse [] button to fast reverse.

Press to select CD as the input source

If a CD is already inserted, playback will start automatically.

Press to return to the root folder (MP3 only)

Available only when the [MODE] button is pressed to choose folder/file select mode.

Select folders/files (MP3 only)

Press the [MODE] button; then press the [] button to select the previous folder/file, or press the [] button to select the next folder/file. Press the [] button to enter the folder. Press the [] button to select a higher-level folder. Press the [] button to view the files inside the selected folder.

Press to show various information on the front panel display

CD „„ „„ 1„† „„ 4„‡38

CD „„ „„ 1„† „„ 0„‡13

CD „„ „„12„† „„67„‡16

Audio CD

No indicator The elapsed time is normally displayed.

“REMAIN”

Lights up while the remaining track time is being displayed.

“TOTAL REMAIN”

Lights up while the remaining disc time is being displayed.

Type of CD that is inserted.

Using the Remote Controller

Displaying CD Information

During playback or while playback is paused, press the remote controller’s [DISPLAY] button repeatedly to display the following CD information.

Note:

• See page 22 for details on displaying MP3 information.

En-20

Playing CDs—Continued

File #11

File #4

File #10

Folder #3

File #12

Root Folder #1

Folder #2

File #13

Folder #4

File #14

File #18

File #1

File #2

File #3

U/I

F/H/C/U

, ENTER

MODE

MY „„FA„„VO„„R„„IT„„E

Son„„gs„„-1„„ „„ „„

Mus„„ic„„-1„„ „„ „„

Selecting MP3 Files

The files on an MP3 CD can be located at the disc’s root level or within a folder.

A folder can contain additional folders, with other folders inside them in a hierarchical structure as shown in the following illustration.

A maximum of 648 files and folders (total) can be shown within a folder. Files and folders are listed alphabetically without distinction.

While playback is stopped, press the

[MODE] button.

“FOLDER” will light, and the name of the first folder will be shown.

Use the arrow []/[] buttons to select a

folder.

Press the [ENTER] button or the [] button to enter the folder. Repeat this operation to select the desired folder. When the “ ” message is shown, you can press the [ENTER] button to return to the upper-level folder.

Use the arrow []/[] buttons to select the

MP3 files within the folder.

The name of the MP3 file inside the folder is displayed.

If you don’t select a specific MP3 file or folder for playback, all of the MP3 files will be played in numerical order starting with file #1.

If random playback is selected, the files will not be played in the numerical order shown above. If you want the files to play in the numerical order shown above, you must cancel random playback (see page 22).

To select a different folder, press the []/[] button, then use the []/[] buttons to select the desired folder, and finally press the [ENTER] button. Use the []/[] buttons to select the desired file.

To start playback, press the [ENTER] button

or Play/Pause [/] button.

Playback will start with the specified file and continue until all of the MP3 files have been played. To select an MP3 file in another folder during playback, press the [MODE] button, select the folder by using the arrow []/[]/[]/[] buttons, and then press the [ENTER] button. Now use the arrow []/[] buttons to select the MP3 files within that folder.

■ Pausing Playback

To pause playback, press the Play/Pause [/] button. To resume playback, press it again.

■ Selecting a higher or lower folder

Press the [] button to select a higher-level folder, or the [] button to select a lower-level folder.

■ To return to the root

Press the [MODE] button, and then press the [MENU] button.

En-21

Playing CDs—Continued

DISPLAY

SHUFFLE

U/I

CLEAR

Displaying MP3 Information

You can display various information about the MP3 file currently playing, such as title, artist, and album.

During playback, press the [DISPLAY] button repeatedly to display the following MP3 information.

The information is shown in the following order.

Elapsed time: The length of time that the current MP3 file has been playing (default display).

Remain time: The length of remaining time for the current MP3 file.

File name: Name of the current MP3 file. Folder name: Name of the current folder. Sampling rate and bit rate: Sampling rate and bit rate

of the current MP3 file.

Volume label: Title of the current disc.

Notes:

• Only single-byte alphanumeric characters can be shown.

• A folder name, file name, or volume label that contains anything other than single-byte alphanumeric characters might be garbled.

Random Playback

With random playback, all of the tracks on the disc are played in random order.

Random playback can also be used in conjunction with repeat playback.

Note:

• In the case of MP3 files, the same song might be played.

Random playback can be set when the input source is set to CD.

Press the [SHUFFLE] button until the

RANDOM indicator appears.

To start random playback, press the Play/

Pause [/] button.

■ Cancelling Random Playback

To cancel random playback, press the [SHUFFLE] or [CLEAR] button.

When playing a CD, random playback will be cancelled automatically when the CD is removed.

En-22

Playing CDs—Continued

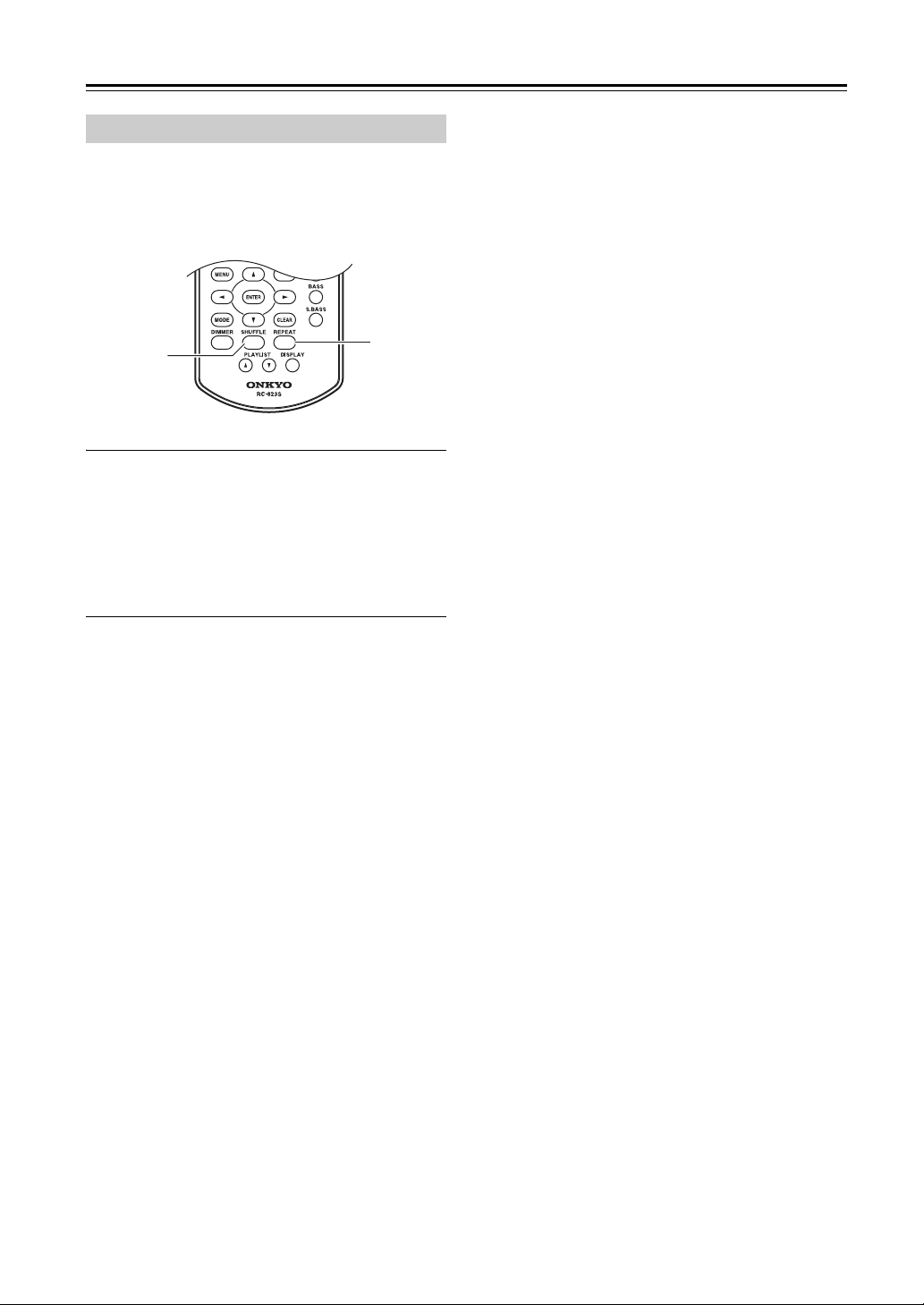

REPEAT

SHUFFLE

Repeat Playback

With repeat playback, you can play an entire CD repeatedly or play one track repeatedly.

Repeat playback can also be used in conjunction with random playback.

Press the [REPEAT] button repeatedly until the REPEAT or REPEAT 1 indicator appears.

“REPEAT” will repeatedly play all songs. “REPEAT 1” will repeatedly play the currently-playing

song or the selected song.

Note:

• If REPEAT 1 is selected, pressing the [SHUFFLE] button will cancel REPEAT 1; random playback will occur.

■ Cancelling Repeat Playback

To cancel repeat playback, press the [REPEAT] button repeatedly until both the REPEAT and REPEAT 1 indicators disappear.

When playing a CD, repeat playback will be cancelled automatically when the CD is removed.

En-23

Playing Your iPod/iPhone

iPod/iPhone

Dock Adapter

Make sure the slot is at the rear.

INPUT

U/I

Q J

iPod/iPhone

iPod dock

• Before using your iPod/iPhone with the CD receiver, be sure to update your iPod/iPhone with the latest software, available from the Apple Web site.

• If you leave your iPod/iPhone paused when using it on its own, eventually it will go into hibernation. If you insert it into the CD receiver dock in this state, you’ll need to wait a few moments before your iPod/iPhone is ready for use.

• Always remove your iPod/iPhone before moving the CD receiver.

• Depending on your iPod/iPhone, or the type of content being played, some functions may not work as expected.

Installing the iPod Dock Adapters

Gently push down and slide open the dock cover on the CD receiver.

First, with the adapter slot facing the back, fit in the front of the adapter and then press in the back until a click is heard. To remove the adapter, lift the back side up. If the adapter is difficult to remove, insert a thin object into the slot and lift the adapter up.

Always use the Universal Dock Adapter enclosed with the iPod model to correctly set the iPod in the CD receiver.

Press the [INPUT] button repeatedly to

select “iPod”.

Insert your iPod/iPhone into the CD

receiver’s iPod dock.

The “Connecting” message will be shown.

Make sure your iPod/iPhone is properly seated in the CD receiver’s iPod dock.

Notes:

• To prevent damage to the dock connector, do not twist or force your iPod/iPhone into the dock, and be careful not to wiggle your iPod/iPhone while inserting it.

• Do not use with any iPod/iPhone accessories, such as FM transmitters and microphones, as they may cause a malfunction.

• If you use a case with your iPod/iPhone, always remove it before you insert it. Otherwise, it may not connect properly and a malfunction may occur.

• When you remove your iPod/iPhone from the iPod dock, always close the dock cover afterward.

Note:

• Inserting your iPod/iPhone into the iPod dock without the appropriate adapter may damage the dock connector.

Using the Top Panel Buttons

En-24

Press the Play/Pause [/] button.

Playback starts.

■ Selecting Tracks

To return to the beginning of the track that’s currently playing or paused, press the Previous [] button.

Press the Previous [] button repeatedly to select earlier tracks.

Press the Next [] button repeatedly to select subsequent tracks.

■ Pausing Playback

To pause playback, press the Play/Pause [/] button. Press the Play/Pause [/] button again to resume

playback. You can also pause playback by pressing the [] button.

Playing Your iPod/iPhone—Continued

Press to select songs

• Press the Previous [] button to locate the beginning of the currently playing or paused track. Press it repeatedly to select earlier tracks.

• Press the Next [] button repeatedly to select subsequent tracks.

Select the iPod as the source

If an iPod/iPhone is already inserted, playback will start automatically.

Start or pause playback

Press to adjust the volume

Press the VOLUME [+] button to turn up the volume. Press the VOLUME [–] button to turn it down.

Press to pause playback

View the menu

Set the Shuffle function of the iPod

Press to fast forward or fast reverse

During playback or while playback is paused, press and hold the Fast Forward [] button to fast forward, or the Fast Reverse [] button to fast reverse.

Select menu items

Select playlist

Set the Repeat function of the iPod

Press and hold to select the “Video On/Off” setting

Note:

• Operation using the remote controller is explained below.

Using the Remote Controller

Navigating the iPod Menus with the Remote Controller

Press the [MENU] button to display the iPod

menu.

Use the Arrow []/[]/[]/[] buttons to

select an item on the menu, and then press the [ENTER] button.

Note:

• The volume level is adjusted by using the VOLUME [–]/[+] buttons on the CD receiver or its remote controller. Adjusting the volume on your iPod/iPhone has no effect.

Playing video from the iPod/iPhone

Connect your iPod/iPhone to the iPod dock.

Press the [iPod] button, or the [INPUT]

button on the top panel, repeatedly to select “iPod”.

“iPod” appears on the display.

Press and hold down the [MODE] button.

Each time you hold down the [MODE] button, the setting will alternate between “Video On” and “Video Off.” Select “Video On,” and then remove and reinsert your iPod/iPhone.

Press the Play/Pause [/] button.

Playback starts.

Notes:

• The [MODE] button will not work unless an iPod/ iPhone is inserted and iPod is selected as the input source.

• This function will become available after you have specified the Video On/Off setting and then removed and reinserted your iPod/iPhone.

• For some models of iPod/iPhone, the output settings of the iPod/iPhone might take priority.

• This function might not work depending on the model of iPod/iPhone or depending on its apps.

En-25

Listening to the Radio

INPUT

TUNER

TUNING C/

ENTER

MODE

PRESET MEMORY

CLEAR

FM „„87…„5M„„H„„z „„

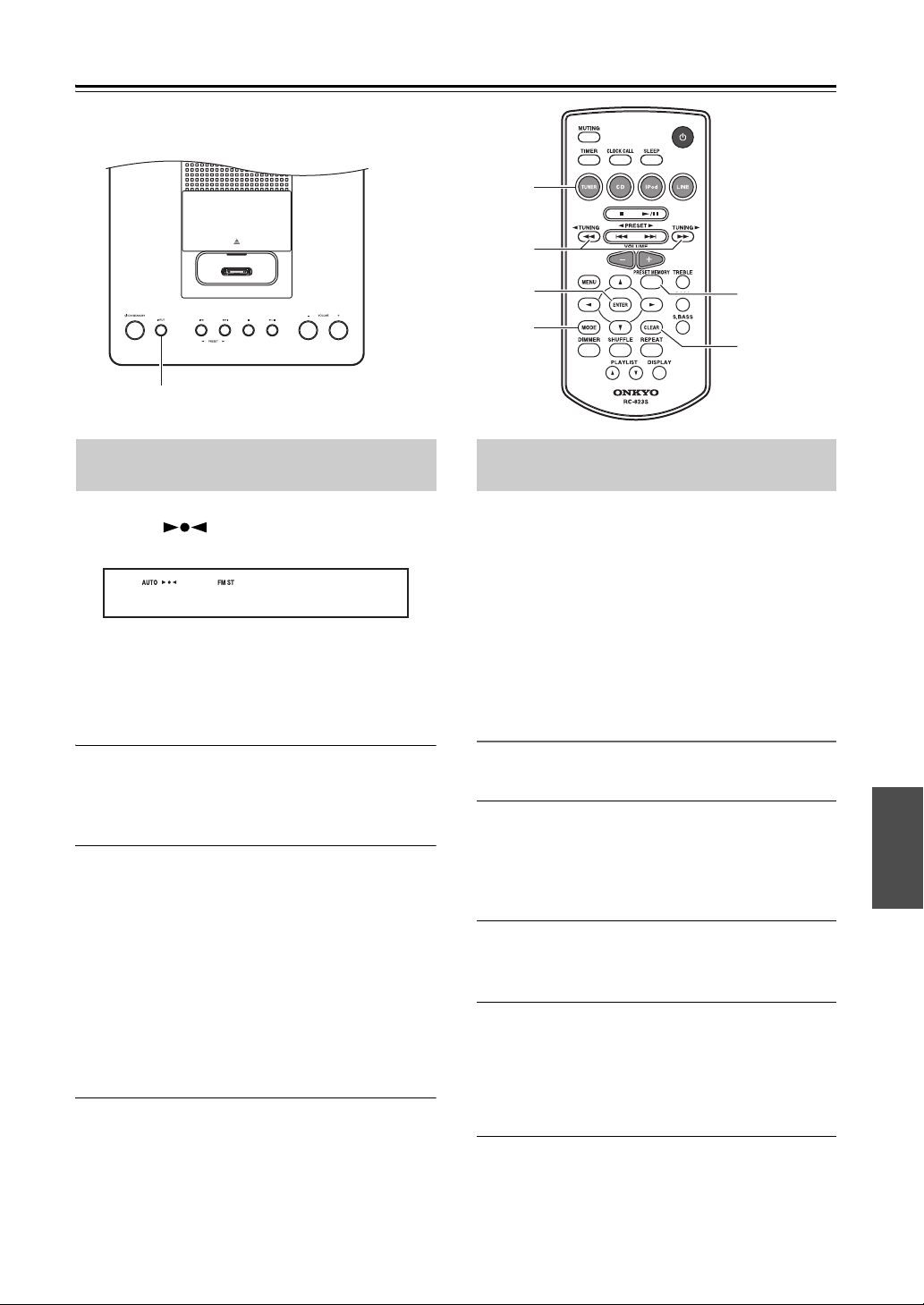

Tuning into FM/AM Radio Stations

When tuned to a station, the Tuned ( ) indicator appears. When receiving a stereo FM signal, the FM ST indicator appears as well.

The [MODE] button is used to select Mono mode or Auto mode. In Auto mode, the output will be stereo or mono depending on the station being received. In Mono mode, the output will be mono regardless of the station.

Press the [TUNER] button on the remote

controller, or the [INPUT] button on the top panel, repeatedly to select “FM” or “AM”.

Use the TUNING []/[] buttons to tune

into a station.

Each time you press the TUNING button, the frequency changes 0.2 MHz steps for FM and 10 kHz steps for AM. If you press and hold the TUNING button, the frequency will change continuously. Once you release the button, tuning will stop automatically when a frequency on which a radio station is broadcasting is found. If you want to interrupt this process, press the [CLEAR] button.

Tuning into weak stereo FM stations

If the signal from a stereo FM station is weak, it may be impossible to get good reception. In this case, press the [MODE] button to switch to Mono mode and listen to the station in mono.

Presetting FM Stations Automatically (Auto Preset)

With the Auto Preset function, you can automatically preset all of the FM radio stations available in your area in one go. Presets make it easy to select your favorite stations and eliminate the need to tune the radio manually each time you want to change stations.

As an alternative to this Auto Preset function, there’s also a Manual Preset function that lets you manually preset individual FM stations (see page 27).

Auto Preset Caution!

Any existing presets will be deleted when the Auto Preset function is run.

Press the [TUNER] button, or the [INPUT]

button on the top panel, repeatedly until “FM” appears.

Make sure the FM antenna is positioned to achieve the best possible reception.

Press the [PRESET MEMORY] button.

“Auto Preset?” appears on the display.

To start the Auto Preset function, press

[ENTER].

Up to 30 stations can be preset and presets are stored in frequency order. If you want to interrupt the Auto Preset process, press the [CLEAR] button.

Note:

• Depending on your location, a preset may be stored with no station, and you’ll hear only noise when you select it. In this case, delete the preset (see page 27).

En-26

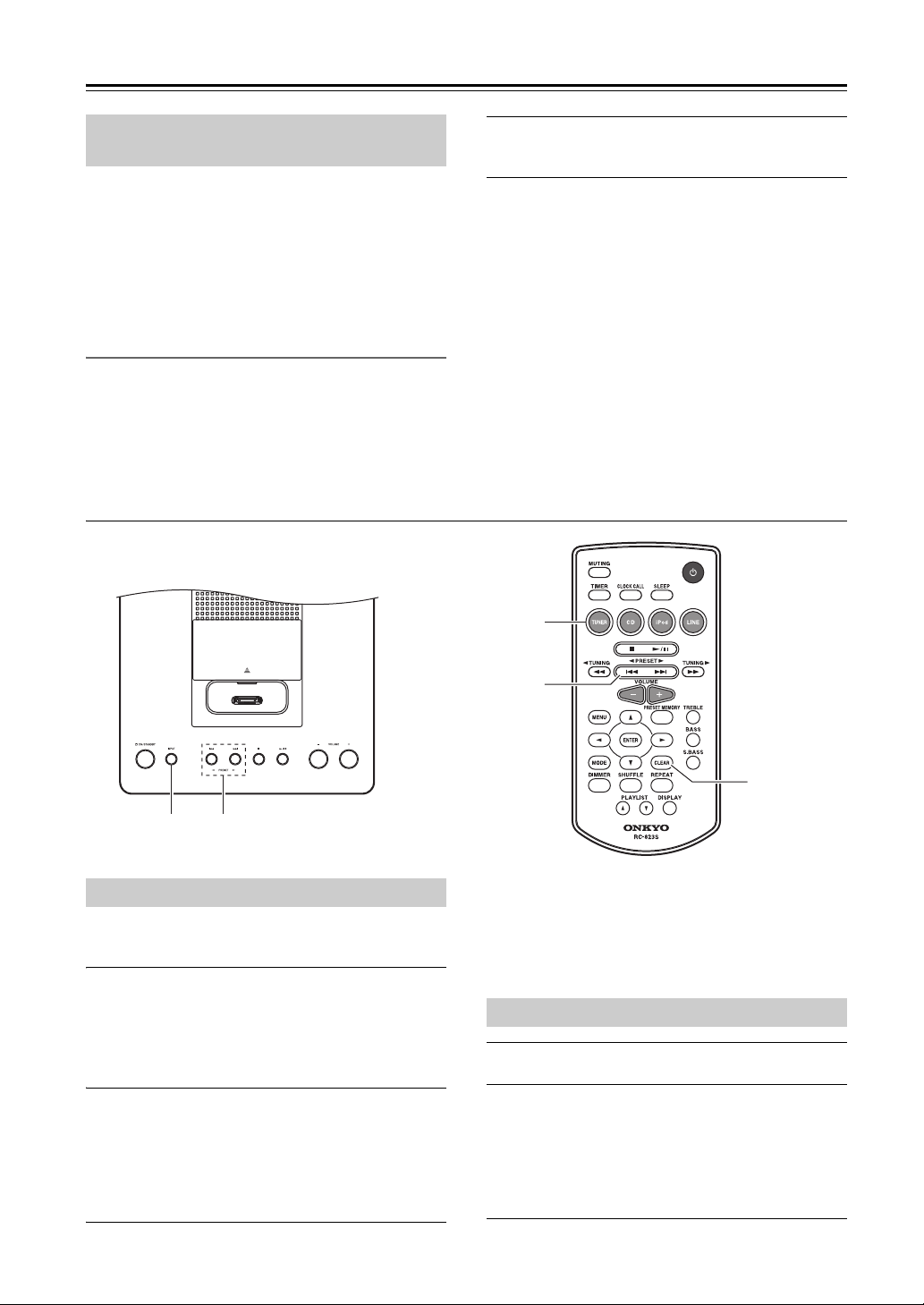

Listening to the Radio—Continued

INPUT

TUNER

PRESET C/

CLEAR

Presetting FM/AM Stations Manually

With the Preset Write function, you can manually preset individual FM and AM radio stations. Presets make it easy to select your favorite stations and eliminate the need to tune the radio manually each time you want to change stations.

FM stations can also be preset automatically (see page 26).

About Presets

You can store up to 30 FM and 30 AM stations as presets.

Tune into the station that you want to store

as a preset (see page 26).

Press and hold down the [PRESET

MEMORY] button to the preset number flashes.

When the preset has been stored, the preset number will change from blinking to steadily lit. Preset numbers are automatically stored starting with the lowest unused number. If all 30 FM or 30 AM presets have been set, the display will indicate “Preset FULL,” and no further presets can be stored. You’ll need to erase an existing preset before storing another one.

Selecting Preset Stations

You must store some presets before you can select them (see pages 26 to 27).

Press the [TUNER] button, or the [INPUT]

button on the top panel, repeatedly to select “FM” or “AM”.

The preset you selected the last time you listened to the radio will be selected.

Use the PRESET []/[] buttons to select a

preset.

Press the PRESET [] button to select the previous preset. Press the PRESET [] button to select the next preset.

Tip:

• If you press the remote controller’s [TUNER] button while the CD receiver is on Standby, it will turn on automatically and the station that you listened to last time will be heard.

Erasing Presets

Select the preset you want to erase.

Press and hold down the [CLEAR] button to

erase the preset.

When the preset has been erased, presets following the erased preset will be renumbered forward and redisplayed.

En-27

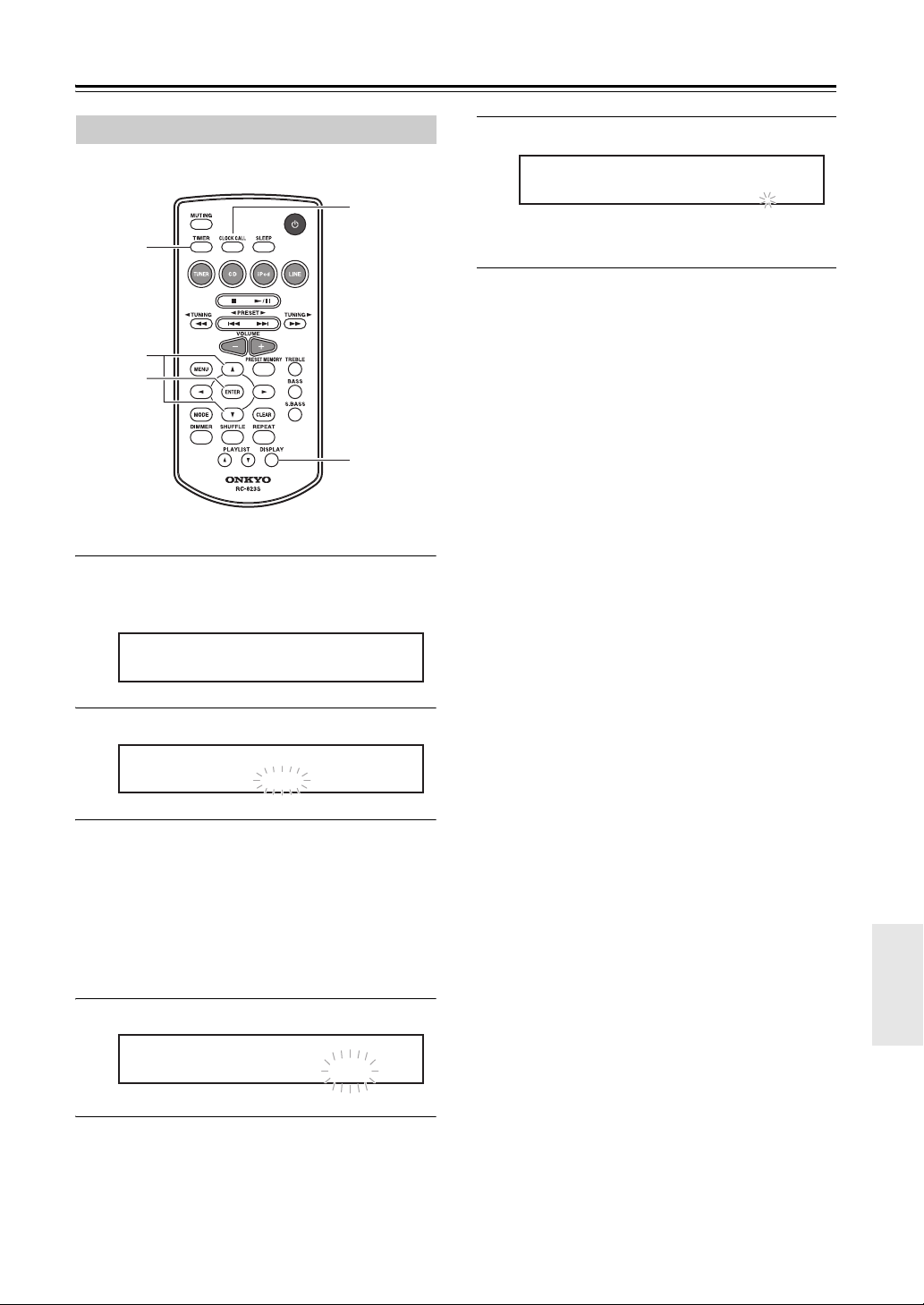

Setting the Clock

C„„lo„„ck„„ „„ „„

„„ „„--„„:„„--„„

„„ „„ 7„„:„„00„„am

„„ „„ 7„„:„„03…„am

Setting the Clock

TIMER

F/H

ENTER

Press the [TIMER] button repeatedly until

“Clock” appears.

CLOCK CALL

DISPLAY

Displaying the Time

To display the time, press the remote controller’s [CLOCK CALL] button. Press the button again or perform another operation to cancel the time display.

If the CD receiver is on Standby, the time will be displayed for 8 seconds.

While the CD receiver is on, the time is displayed continuously.

Change the time format

To change the time format between 12-hour and 24-hour, press the [DISPLAY] button.

Press [ENTER].

Use the arrow []/[] buttons to enter the

current hour.

When the CD receiver is shipped from the factory, the time display format is set to 12-hour time. Set the current hour as it would appear in 12-hour time. If you want to set the current hour as 24-hour time, press the [DISPLAY] button.

Press [ENTER].

Use the arrow []/[] buttons to enter the

current minute.

Press [ENTER].

The clock is set and the second dot starts flashing.

En-28

Using the Timer

F/H

ENTER

TIMER

DISPLAY

Tim„„er„„ F„„M„„ „„

Tim„„er„„--„„:„„--„„

Tim„„er„„ 6„„:„„00„„

The CD receiver has a programmable timer for automated playback, and a sleep timer for turning the CD receiver off after a specified period.

You can also use the alarm playback function of your iPod/iPhone to initiate timer playback on the CD receiver.

The timer can be used to start FM/AM, CD, iPod, or LINE playback at a specified time. You could, for example, use a timer to turn on the CD receiver every morning, just like a radio alarm clock.

Programming the Timer

Notes:

• You must set the clock before you can program the timer.

• If you don’t operate any buttons for 5 seconds while programming a timer, the procedure will be cancelled and the previous display will reappear.

• When the CD receiver is turned on by the timer, playback will begin with the most recently received station in the case of FM/AM, the first song in the case of a CD or iPod, and the current state of the connected device in the case of LINE.

• Only one timer can be set.

Press the [TIMER] button repeatedly until

“Timer XX” appears.

“XX” indicates the source that was last selected for timer playback.

Use the arrow []/[] buttons to select the

source, and then press [ENTER].

You can select the following sources: CD, iPod, FM/AM, LINE. In the display, “TIMER” and a number indication will blink according to the input source you’ve selected. The number will be “1” for FM/AM, “2” for CD, “3” for iPod, and “4” for LINE.

Use the arrow []/[] buttons to specify the

“hour” at which you want the timer to play, and then press [ENTER].

Prepare the source that you want the timer

to play.

If you want FM/AM to play, tune to the station you want to hear. If you want a CD to play, insert the disc. For an iPod/iPhone, place it in the dock. If you want to play a device connected to LINE, make settings on the connected device so that it will start playing when the timer operates.

Use the arrow []/[] buttons to specify the

“minute” at which you want to timer to play, and then press [ENTER].

Use the arrow []/[] buttons to select

“Timer On,” and then press the [ENTER] button.

When a timer is turned on, its TIMER and number appears on the display. If there is no operation for several seconds, the setting will be made with the currently-shown content. The display will return to its previous state except for “TIMER” and the number of the selected input source; the timer is now set.

Press the [ ON/STANDBY] button or the

remote controller’s [] button to set the CD receiver to Standby.

En-29

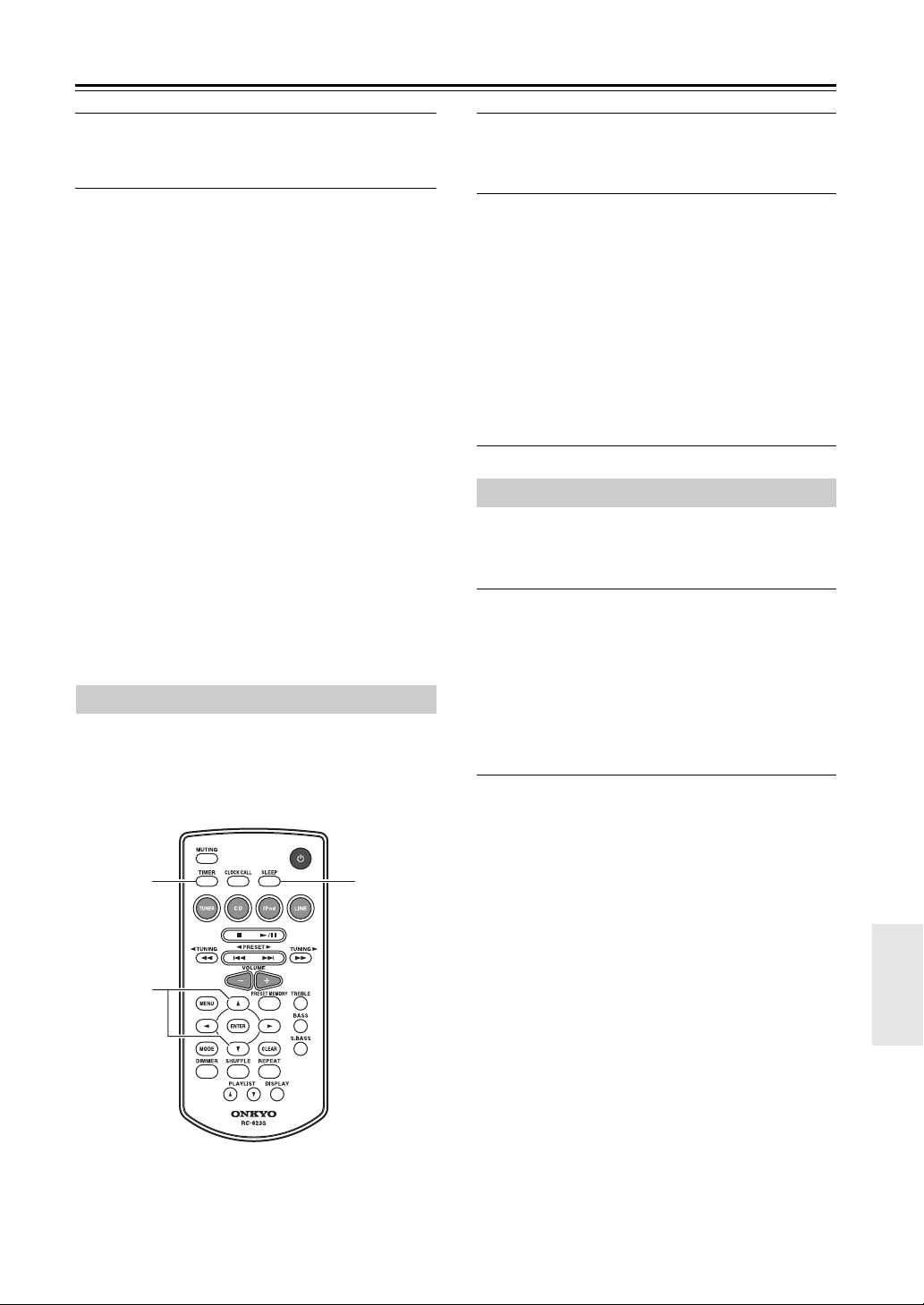

Using the Timer—Continued

SLEEP

F/H

TIMER

Tips:

• If you decide to cancel during this procedure without making timer settings, press the [TIMER] button.

• By pressing the [DISPLAY] button when specifying the time, you can switch between 12-hour and 24-hour displays.

Notes:

• Be sure to set the CD receiver to Standby, otherwise the timed operation will not work. If the timer has been set, timed operation will work even if the SLEEP timer caused the CD receiver to enter Standby mode. Once the timer has been turned on, playback will start at the same time every day. Be sure to turn off the timer before leaving on vacation.

• If the timer turns the power on, the “SLEEP” indication will light. If no operation is performed for one hour, the CD receiver will automatically enter Standby mode. If you perform any operation, the “SLEEP” indication will turn off, and the CD receiver will continue operating.

Turning Timer On and Off

Once a timer has been programmed, you can turn it on or off as necessary. For example, while you’re on holiday, you may want to turn off the timer you use as an early morning alarm.

If you specify Timer On (set), the “TIMER” indication and the number of the selected input source will light. If you select Timer Off (i.e., turn off the timer), the “TIMER” indicator will disappear.

Using the Sleep Timer

With the sleep timer, you can set the CD receiver so that it automatically turns off after a specified period.

Press the [SLEEP] button repeatedly to select the required sleep time.

With the [SLEEP] button, you can set the sleep time from 90 to 10 minutes in 10 minute steps.

When the sleep timer has been set, the SLEEP indicator appears on the display. The sleep time appears on the display for about 3 seconds, then the previous display reappears.

Checking the Remaining Sleep Time

To check the remaining sleep time, press the [SLEEP] button.

Note that if you press the [SLEEP] button while the sleep time is being displayed, you’ll shorten the sleep time by 10 minutes.

For example if you press the [SLEEP] button and the remaining time is shown as 55 minutes, pressing the [SLEEP] button once again will shorten this time to 50, and each subsequent press will shorten the time in 10 minute increments.

En-30

Press the [TIMER] button repeatedly until “Timer On” or “Timer Off” appears.

Use the arrow []/[] buttons to select either “Timer On” (set) or “Timer Off” (cancel), and then press the [ENTER] button.

If there is no operation for several seconds, the setting will be made with the currently-shown content, and the display will return to its previous state.

Canceling the Sleep Timer

To cancel the sleep timer, press the [SLEEP] button repeatedly until “Sleep Off” appears.

Note:

• If the timer turns the power on, the “SLEEP” indication will light. If you perform any operation, the “SLEEP” indication will turn off. If you want to set the SLEEP timer, you’ll need to make the setting again after the “SLEEP” indication turns off.

+ 74 hidden pages
