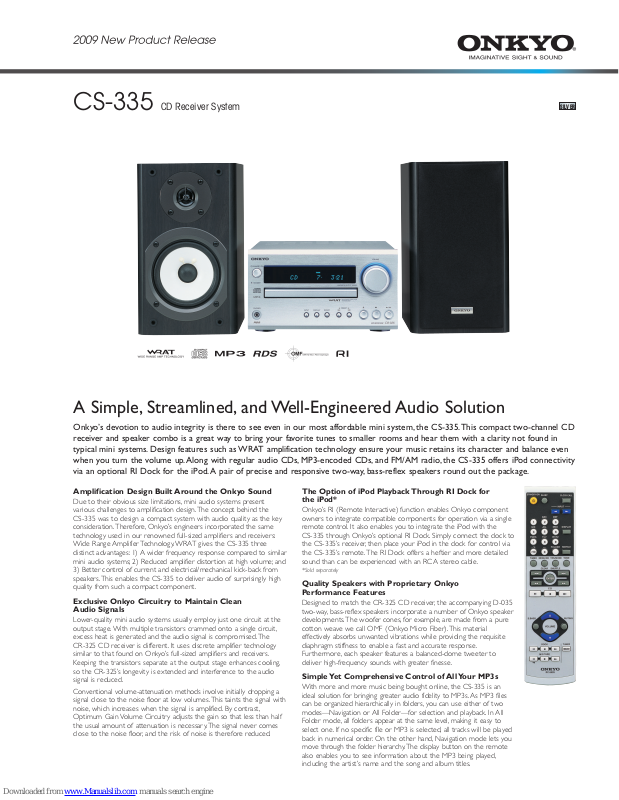

CS-335 CD Receiver System

SILV ER

A Simple, Streamlined, and Well-Engineered Audio Solution

Onkyo’s devotion to audio integrity is there to see even in our most affordable mini system, the CS-335. This compact two-channel CD
receiver and speaker combo is a great way to bring your favorite tunes to smaller rooms and hear them with a clarity not found in
typical mini systems. Design features such as WRAT amplification technology ensure your music retains its character and balance even
when you turn the volume up. Along with regular audio CDs, MP3-encoded CDs, and FM/AM radio, the CS-335 offers iPod connectivity
via an optional RI Dock for the iPod. A pair of precise and responsive two-way, bass-reflex speakers round out the package.

Amplification Design Built Around the Onkyo Sound

Due to their obvious size limitations, mini audio systems present
various challenges to amplification design. The concept behind the
CS-335 was to design a compact system with audio quality as the key
consideration. Therefore, Onkyo’s engineers incorporated the same
technology used in our renowned full-sized amplifiers and receivers:
Wide Range Amplifier Technology. WRAT gives the CS-335 three
distinct advantages: 1) A wider frequency response compared to similar
mini audio systems; 2) Reduced amplifier distor tion at high volume; and

3) Better control of current and electrical/mechanical kick-back from
speakers. This enables the CS-335 to deliver audio of surprisingly high
quality from such a compact component.

Exclusive Onkyo Circuitry to Maintain Clean
Audio Signals

Lower-quality mini audio systems usually employ just one circuit at the
output stage. With multiple transistors crammed onto a single circuit,
excess heat is generated and the audio signal is compromised. The
CR-325 CD receiver is different. It uses discrete amplifier technology
similar to that found on Onkyo’s full-sized amplifiers and receivers.
Keeping the transistor s separate at the output stage enhances cooling,
so the CR-325’s longevity is extended and interference to the audio
signal is reduced.

Conventional volume-attenuation methods involve initially dropping a
signal close to the noise floor at low volumes. This taints the signal with
noise, which increases when the signal is amplified. By contrast,
Optimum Gain Volume Circuitry adjusts the gain so that less than half
the usual amount of attenuation is necessary. The signal never comes
close to the noise floor, and the risk of noise is therefore reduced.

The Option of iPod Playback Through RI Dock for
the iPod*

Onkyo’s RI (Remote Interactive) function enables Onkyo component
owners to integrate compatible components for operation via a single
remote control. It also enables you to integrate the iPod with the
CS-335 through Onkyo’s optional RI Dock. Simply connect the dock to
the CS-335’s receiver, then place your iPod in the dock for control via
the CS-335’s remote. The RI Dock offers a heftier and more detailed
sound than can be experienced with an RCA stereo cable.

*Sold separately

Quality Speakers with Proprietary Onkyo
Performance Features

Designed to match the CR-325 CD receiver, the accompanying D-035
two-way, bass-reflex speakers incorporate a number of Onkyo speaker
developments. The woofer cones, for example, are made from a pure
cotton weave we call OMF (Onkyo Micro Fiber). This material
effectively absorbs unwanted vibrations while providing the requisite
diaphragm stiffness to enable a fast and accurate response.
Furthermore, each speaker features a balanced-dome tweeter to
deliver high-frequency sounds with greater finesse.

Simple Yet Comprehensive Control of All Your MP3s

With more and more music being bought online, the CS-335 is an
ideal solution for bringing greater audio fidelity to MP3s. As MP3 files
can be organized hierarchically in folders, you can use either of two
modes—Navigation or All Folder—for selection and playback. In All
Folder mode, all folders appear at the same level, making it easy to
select one. If no specific file or MP3 is selected, all tracks will be played
back in numerical order. On the other hand, Navigation mode lets you
move through the folder hierarchy. The display button on the remote
also enables you to see information about the MP3 being played,
including the ar tist’s name and the song and album titles.

CS-335 CD Receiver System

CR-325

CD Receiver

Amplifier Features

• 19 W/Ch, 4 Ω, 1 kHz, 2 Channels Driven, IEC

• WRAT (Wide Range Amplifier Technology)

• High-Current, Low-Impedance Drive

• Discrete Output Stage Circuitry
Optimum Gain Volume Circuitry

•

• Direct Mode
2 Audio Inputs and 1 Output

•
Subwoofer Pre Out

•

CD Player Features

• Plays Audio CDs and MP3s Burned to CD-R and

D-RW*

C

• 4 Play Modes (Normal/Memory/Random/1 Folder)
Navigation/All Folder Modes for Selecting and

•

Playing MP3 Files

• MP3 Settings for Personal Preferences

• Memory Playback (25-Track Programming)

• 2 Repeat Modes (Track/Full)

*Discs that have not been properly finalized may be only partially

layable or not playable at all.

p

Tuner & Other Features

• 4-Mode Timer (Play or Rec/Once or Every)

• Sleep Timer
Accuclock

•

• RDS (PS/RT)
Preset Function with 40 FM/AM/RDS Selections

•
Preset Naming (Up to 8 Characters)

•

• Manual and Automatic FM/AM Tuning

• FM Auto Preset

• Tone Control (Bass/Treble) via Remote Control

• Super Bass Function

• Battery-Free Memory Backup

• Aluminum Front Panel

• FM Indoor Antenna Supplied

• AM Loop Antenna Supplied

• Headphone Jack

• Banana Plug-Compatible Speaker Posts

• Compatible with RI (Remote Interactive) Dock for

the iPod

• RI (Remote Interactive) Remote Control

D-035

• 10 cm OMF Diaphragm Woofer

• 2.5 cm Balanced-Dome Tweeter

• Magnetically Shielded

• Impedance: 4 Ω

• Max. Input Power: 40 W

• Frequency Response: 50 Hz–50 kHz

Note: Speaker cable and cork spacers included.

2-Way Bass Reflex Speakers

SPECIFICATIONS

■ RECEIVER SECTION

AMPLIFIER SECTION

Power Output 19 W + 19 W

Dynamic Power 22 W + 22 W (3 Ω)

Total Harmonic Distortion 0.9% (Rated power),

amping Factor 25 (Front, 1 kHz, 8 Ω)

D

nput Sensitivity and Impedance 150 mV/50 kΩ (Line)

I
Output Level and Impedance 150 mV/2.2 kΩ (Rec Out)
Frequency Response 10 Hz–100 kHz/±3 dB (Line)
Tone Control ±6 dB, 80 Hz (Bass)

Signal-to-Noise Ratio 100 dB (Line, IHF-A)
Speaker Impedance 4 Ω–16 Ω

TUNER SECTION

Tuning Frequency Range

FM 87.5 MHz–108 MHz

M 522 kHz–1,611 kHz

A

CD PLAYER SECTION

Frequency Response 10 Hz–20 kHz

udio Dynamic Range 95 dB

A

otal Harmonic Distortion 0.009%

T
Wow and Flutter Below threshold of measurability
Audio Output/Impedance 1.3 V (rms)/1.0 kΩ

GENERAL

Power Supply AC 220–230 V, 50/60 Hz

ower Consumption 58 W

P
Standby Power Consumption 0.25 W
Dimensions (W x H x D) 205 x 116 x 367 mm
Weight 4.0 kg

■ SPEAKER SECTION

Speaker Type 2-way, bass reflex
Drivers

oofer 10 cm OMF diaphragm

W
Tweeter 2.5 cm balanced-dome

Frequency Response 50 Hz–50 kHz

rossover Frequency 7 kHz

C
Output Sound Pressure Level 83 dB/W/m
Max. Input Power 40 W
Nominal Impedance 4 Ω

GENERAL

Dimensions (W x H x D) 137 x 234 x 230 mm

eight 2.3 kg

W

■ CARTON

Dimensions (W x H x D) 454 x 540 x 318 mm
Weight 10.8 kg

■ PACKAGE CONTENTS

• CR-325 CD receiver • D-035 2-way bass reflex speakers

• AM loop antenna • FM indoor antenna • Remote controller and
two batteries • Speaker cable and cork spacers • Instruction manual

(4 Ω, 1 kHz, 2 channels driven, IEC)

0 W + 20 W (4 Ω)

2

4 W + 14 W (8 Ω)

1

0.4% (1 kHz, 1 W)

±8 dB, 10 kHz (Treble)

7 dB, 80 Hz (Super bass)

+
