Onkyo HT-S3400, AVX-290, HT-R390, HT-R290 User Manual

AV Receiver

HT-R390 HT-R290

Instruction Manual

Thank you for purchasing an Onkyo AV Receiver. Please read this manual thoroughly before making connections and plugging in the unit. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new AV Receiver. Please retain this manual for future reference.

Contents

Introduction ...................................2

Connections.................................10

Turning On & Basic Operations

......17

Advanced Operations .................27

Controlling Other Components

...38

Appendix......................................44

Introduction

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Damage Requiring Service Unplug the apparatus from the wall outlet and refer servicing to qualified service personnel under the following conditions:

A. When the power-supply cord or plug is damaged, B. If liquid has been spilled, or objects have fallen

into the apparatus,

C. If the apparatus has been exposed to rain or water, D. If the apparatus does not operate normally by

following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the apparatus to its normal operation,

E. If the apparatus has been dropped or damaged in

any way, and

F. When the apparatus exhibits a distinct change in

performance this indicates a need for service.

16. Object and Liquid Entry Never push objects of any kind into the apparatus through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases shall be placed on the apparatus. Don’t put candles or other burning objects on top of this unit.

17. Batteries Always consider the environmental issues and follow local regulations when disposing of batteries.

18. If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is adequate ventilation. Leave 20 cm (8") of free space at the top and sides and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a flue-like gap for warm air to escape. The temperature protection operates if the apparatus attain an abnormal high temperature. The apparatus cannot operate until it has cooled down.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to

persons. The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

RISQUE DE CHOC ELECTRIQUE

NE PAS

OUVRIR

AVIS

PORTABLE CART WARNIN

S3125A

Precautions

1. Recording Copyright—Unless it’s for personal use only, recording copyrighted material is illegal without the permission of the copyright holder.

2. AC Fuse—The AC fuse inside the unit is not userserviceable. If you cannot turn on the unit, contact your Onkyo dealer.

3. Care—Occasionally you should dust the unit all over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afterwards with a clean cloth. Don’t use abrasive cloths, thinners, alcohol, or other chemical solvents, because they may damage the finish or remove the panel lettering.

4. Power WARNING

BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY. AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the voltage requirements printed on the unit’s rear panel (e.g., AC 230 V, 50 Hz or AC 120 V, 60 Hz).

The power cord plug is used to disconnect this unit from the AC power source. Make sure that the plug is readily operable (easily accessible) at all times.

Pressing the [ON/STANDBY] button to select Standby mode does not fully disconnect from the mains. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet.

5. Preventing Hearing Loss Caution

Excessive sound pressure from earphones and headphones can cause hearing loss.

6. Batteries and Heat Exposure Warning

Batteries (battery pack or batteries installed) shall not be exposed to excessive heat as sunshine, fire or the like.

7. Never Touch this Unit with Wet Hands—Never handle this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by your Onkyo dealer.

8. Handling Notes

• If you need to transport this unit, use the original

packaging to pack it how it was when you originally bought it.

• Do not leave rubber or plastic items on this unit for

a long time, because they may leave marks on the case.

• This unit’s top and rear panels may get warm after

prolonged use. This is normal.

• If you do not use this unit for a long time, it may not

work properly the next time you turn it on, so be sure to use it occasionally.

For U.S. models

FCC Information for User CAUTION:

The user changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

For Canadian Models

NOTE: THIS CLASS B DIGITAL APPARATUS

COMPLIES WITH CANADIAN ICES-003. For models having a power cord with a polarized plug:

CAUTION: TO PREVENT ELECTRIC SHOCK,

MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Modèle pour les Canadien

REMARQUE: CET APPAREIL NUMÉRIQUE DE

LA CLASSE B EST CONFORME À LA NORME NMB003 DU CANADA.

Sur les modèles dont la fiche est polarisée:

ATTENTION: POUR ÉVITER LES CHOCS

ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

For British models

Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel.

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:

Blue: Neutral

Brown: Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

IMPORTANT

The plug is fitted with an appropriate fuse. If the fuse needs to be replaced, the replacement fuse must approved by ASTA or BSI to BS1362 and have the same ampere rating as that indicated on the plug. Check for the ASTA mark or the BSI mark on the body of the fuse.

If the power cord’s plug is not suitable for your socket outlets, cut it off and fit a suitable plug. Fit a suitable fuse in the plug.

For European Models

Supplied Accessories

Make sure you have the following accessories:

In catalogs and on packaging, the letter at the end of the product name indicates the color. Specifications and operations are the same regardless of color.

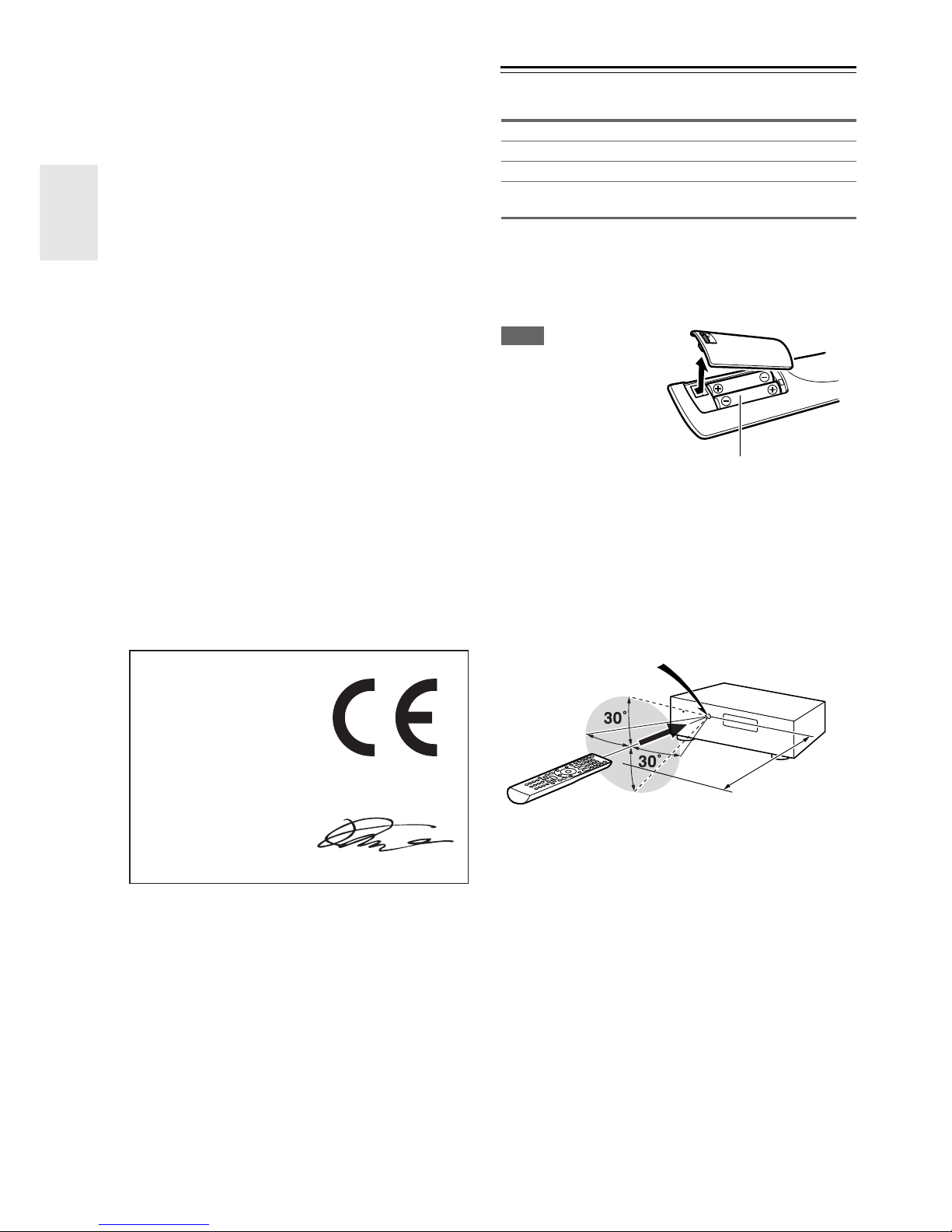

■ Installing the batteries

Note

• If the remote controller doesn’t work reliably, try replacing the batteries.

• Don’t mix new and old batteries or different types of batteries.

• If you intend not to use the remote controller for a long time, remove the batteries to prevent damage from leakage or corrosion.

• Remove expired batteries as soon as possible to prevent damage from leakage or corrosion.

■ Aiming the remote controller

To use the remote controller, point it at the AV receiver’s remote control sensor, as shown below.

Declaration of Conformity

We,

ONKYO EUROPE ELECTRONICS GmbH LIEGNITZERSTRASSE 6, 82194 GROEBENZELL, GERMANY

GROEBENZELL, GERMANY

ONKYO EUROPE ELECTRONICS GmbH

K. MIYAGI

declare in own responsibility, that the ONKYO product described in this instruction manual is in compliance with the corresponding technical standards such as EN60065, EN55013, EN55020 and EN61000-3-2, -3-3.

Indoor FM antenna (➔ page 16)

AM loop antenna (➔ page 16)

Power cord (Brazilian models) (➔ page 16)

Remote controller (RC-762M) and two batteries (AA/R6) (➔ page 4)

Batteries (AA/R6)

Remote control sensor

AV receiver

Approx. 16 ft. (5 m)

Contents

Important Safety Instructions ......................................... 2

Precautions....................................................................... 3

Supplied Accessories...................................................... 4

Features ............................................................................ 6

Front & Rear Panels......................................................... 7

Front Panel..................................................................... 7

Display............................................................................ 8

Rear Panel ..................................................................... 8

Remote Controller............................................................ 9

Controlling the AV Receiver ........................................... 9

Connecting the AV Receiver ......................................... 10

Connecting Your Speakers .......................................... 10

About AV Connections ................................................. 12

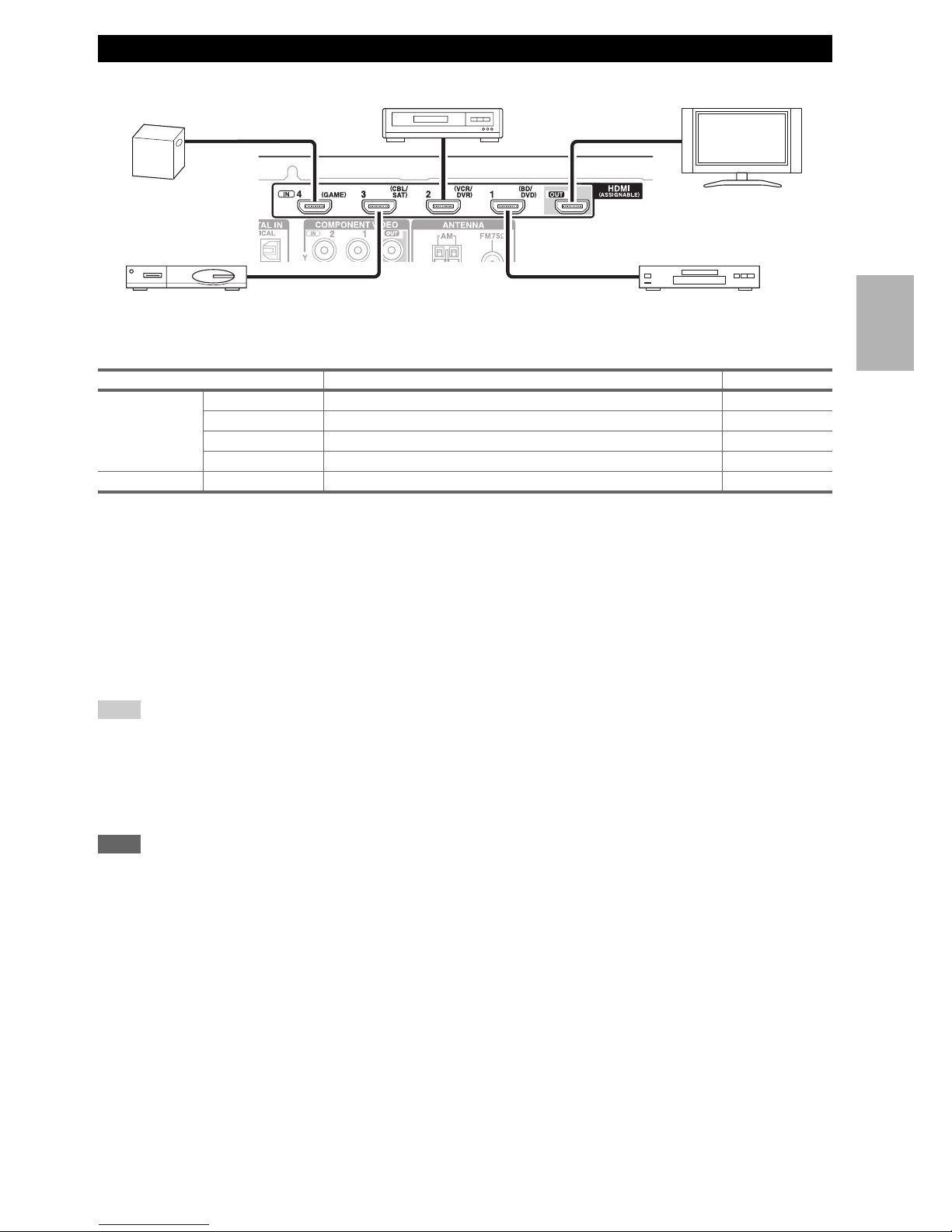

Connecting Components with HDMI ............................ 13

Connecting Your Components ..................................... 14

Connecting Onkyo u Components ............................ 15

Connecting a Recording Component ........................... 15

Connecting Antenna..................................................... 16

Connecting the Power Cord ......................................... 16

Turning On/Off the AV Receiver ................................... 17

Turning On ................................................................... 17

Turning Off ................................................................... 17

Playback.......................................................................... 18

Playing the Connected Component.............................. 18

Listening to AM/FM Radio ............................................ 18

Using Basic Functions .................................................. 21

Using the Listening Modes ........................................... 21

Using the Home Menu.................................................. 24

Selecting Speakers A and B......................................... 24

Using the Sleep Timer.................................................. 24

Setting the Display Brightness ..................................... 25

Displaying Source Information ..................................... 25

Changing the Input Display .......................................... 25

Using the Music Optimizer ........................................... 25

Muting the AV Receiver................................................ 26

Using Headphones....................................................... 26

Recording ..................................................................... 26

Advanced Setup ............................................................. 27

On-screen Setup Menus .............................................. 27

Common Procedures in Setup Menu ........................... 27

HDMI Input ................................................................... 28

Component (Component Video Input).......................... 28

Digital Audio (Digital Audio Input)................................. 28

Sp Config (Speaker Configuration) .............................. 29

Sp Distance (Speaker Distance) .................................. 30

Level Cal (Level Calibration) ........................................ 30

Audio Adjust ................................................................. 31

Source Setup................................................................ 32

Hardware...................................................................... 34

HDMI Setup.................................................................. 34

Using the Audio Settings .............................................. 36

iPod/iPhone Playback via Onkyo Dock ........................ 38

Using the Onkyo Dock.................................................. 38

Controlling Your iPod/iPhone .......................................39

Controlling Other Onkyo Components ........................ 41

Preprogrammed Remote Control Codes ...................... 41

Entering Remote Control Codes................................... 41

Remote Control Codes for

Onkyo Components Connected via u ..................... 41

Resetting REMOTE MODE Buttons ............................. 42

Resetting the Remote Controller ..................................42

Controlling Other Components ..................................... 42

Troubleshooting ............................................................. 44

Connection Tips and Video Signal Path ...................... 48

About HDMI..................................................................... 49

Using an RIHD-compatible TV, Player,

or Recorder................................................................... 50

Specifications ................................................................. 52

Introduction

Connections

Turning On & Basic Operations

Advanced Operations

Controlling Other Components

Appendix

To reset the AV receiver to its factory defaults, turn it on and, while holding down VCR/DVR, press

8 ON/STANDBY (➔ page 44).

Features

Amplifier

• 110 Watts/Channel @ 6 ohms

• 100 Watts/Channel @ 6 ohms (IEC)

• 120 Watts/Channel @ 6 ohms (JEITA)

• Optimum Gain Volume Circuitry

• H.C.P.S. (High Current Power Supply) Massive High Power Transformer

Processing

• HDMI (Audio Return Channel, 3D, DeepColor, x.v.Color*1, Lip Sync, DTS*2-HD Master Audio, DTSHD High Resolution Audio, Dolby TrueHD

, Dolby

Digital Plus, DSD and Multi-CH PCM)

• Non-Scaling Configuration

• A-Form Listening Mode Memory

• Direct Mode

• Music Optimizer

for Compressed Digital Music files

• 192 kHz/24-bit D/A Converters

• Powerful and Highly Accurate 32-bit Processing DSP

Connections

• 4 HDMI*5 Inputs and 1 Output

• Onkyo p for System Control

• 3 Digital Inputs (2 Optical/1 Coaxial)

• Component Video Switching (2 Inputs/1 Output)

• Universal Port for the Dock for iPod

/iPhone

®*6

/HD Radio™*7 tuner module (North American, Central American and South American models)/DAB+ tuner module (European and Asian models)

Miscellaneous

• 40 FM/AM Presets

• Audyssey Dynamic EQ

for loudness correction

• Audyssey Dynamic Volume

to maintain optimal

listening level and dynamic range

• EX.BASS for natural deeper bass

• Crossover Adjustment (40/50/60/70/80/90/100/120/150/200 Hz)

• A/V Sync Control Function (up to 400 ms)

• Auto Standby Function

• On-Screen Display via HDMI

“x.v.Color” is a trademark of Sony Corporation.

Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks, & DTS-HD, DTS-HD Master Audio, and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

Manufactured under license from Dolby Laboratories. Dolby, Pro Logic and the double-D symbol are trademarks of Dolby Laboratories.

Music Optimizer™ is a trademark of Onkyo Corporation.

“HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.”

Apple, iPhone, iPod, and iPod nano are trademarks of Apple Inc, registered in the U.S. and other countries.

The HD Radio Ready logo is a proprietary trademark of iBiquity Digital Corp. To receive HD Radio broadcasts, you must install an Onkyo UP-HT1 HD Radio tuner module (sold separately).

Manufactured under license from Audyssey Laboratories™, Inc. U.S. and foreign patents pending. Audyssey Dynamic EQ

and Audyssey Dynamic Volume®

are registered trademarks of Audyssey Laboratories, Inc.

Front & Rear Panels

The page numbers in parentheses show where you can find the main explanation for each item.

a 8 ON/STANDBY button (17) b HDMI THRU indicator (35) c SPEAKERS A and B buttons (24) d Remote control sensor (4) e LISTENING MODE buttons (21) f Display (8) g DIMMER button (North American and Brazilian

models) (25)

h MEMORY button (19) i TUNING MODE button (18) j DISPLAY button (25) k SETUP button (27)

l TUNING, PRESET (18 to 19), arrow and ENTER

buttons

m RETURN button n MASTER VOLUME control (18) o MUSIC OPTIMIZER button (25, 37) p PHONES jack (26) q TONE and Tone Level buttons (36) r Input selector buttons (18) s AUX INPUT AUDIO and VIDEO jacks (14, 26) t RT/PTY/TP button (European and Asian models)

(20)

Front Panel

bcd egfhijklmn

(North American and Brazilian models)

(European and Asian models)

For detailed information, see the pages in parentheses.

a A and B speaker indicators (24) b Audio input indicators c Listening mode and format indicators (21, 25) d Audyssey indicators (32) e Tuning indicators (18)

f RDS indicator (excluding North American and

Brazilian models) (19)

g SLEEP indicator (24, 34) h MUTING indicator (26) i Message area

a DIGITAL IN COAXIAL and OPTICAL jacks b COMPONENT VIDEO IN and OUT jacks c HDMI IN and OUT jacks d FM ANTENNA jack and AM ANTENNA terminal e UNIVERSAL PORT jack f SPEAKERS terminals

(FRONT A, CENTER, SURR, SUBWOOFER, FRONT B)

g Power cord (North American, European and Asian

models)

h u REMOTE CONTROL jack i Composite video and analog audio jacks

(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT IN, GAME IN, TV/CD IN)

j MONITOR OUT V jack k AC INLET (Brazilian models)

Display

bc dafg

Rear Panel

ab c

Illustrations are based on HT-R390.

(North American, European and Asian models)

(Brazilian models)

See “Connecting the AV Receiver” for connection (➔ pages 10 to 16).

Remote Controller

For detailed information, see the pages in parentheses.

a 9 ON/STANDBY button (17) b REMOTE MODE/INPUT SELECTOR buttons (18,

41 to 42)

c TONE and Tone Level buttons (36) d SP A/B button (24) e Arrow q/w/e/r and ENTER buttons f SETUP button (27) g LISTENING MODE buttons (21) h DIMMER button (25) i DISPLAY button (25) j MUTING button (26) k VOL q/w button (18) l RETURN button m AUDIO button (24) n SLEEP button (24)

■ Controlling the tuner

To control the AV receiver’s tuner, press TUNER (or RECEIVER).

You can select AM or FM by pressing TUNER repeatedly.

a Arrow q/w buttons (18) b D.TUN button (19) c DISPLAY button (19) d TUN MODE button (18) e CH +/– button (19) f Number buttons (19)

Controlling the AV Receiver

To control the AV receiver, press RECEIVER to select Receiver mode.

You can also use the remote controller to control Onkyo Blu-ray Disc/DVD player, CD player, and other components.

See “Entering Remote Control Codes” for more details (➔ page 41).

Connections

Connecting the AV Receiver

Connecting the Speaker Cables

The following illustration shows which speaker should be connected to each pair of terminals.

■ Using a Passive Subwoofer.

To find the best position for your subwoofer, while playing a movie or some music with good bass, experiment by placing your subwoofer at various positions within the room, and choose the one that provides the most satisfying results

■ Push-type speaker terminals

Strip 3/8" to 1/2" (10 to 12 mm) of insulation from the ends of the speaker cables, and twist the bare wires tightly, as shown.

Connecting Your Speakers

Surround

right

Surround

left

Front B right Front B left Front A leftFront A right Center

Speakers ASpeakers B

Passive

Subwoofer

Corner position

1/3 of wall

position

3/8" to 1/2" (10 to 12 mm)

Speaker Configuration

The following table indicates the channels you should use depending on the number of speakers that you have.

No matter how many speakers you use, a passive subwoofer is recommended for a really powerful and solid bass.

To get the best from your surround sound system, you need to set the speaker settings manually (➔ page 29).

Connecting the Speaker Cables

The AV receiver’s positive (+) speaker terminals are color-coded for ease of identification. (The negative (–) speaker terminals are all black.)

Speaker Connection Precautions

Read the following before connecting your speakers:

• You can connect speakers with an impedance of between 6 and 16 ohms. If you use speakers with a lower impedance, and use the amplifier at high volume levels for a long period of time, the built-in amp protection circuit may be activated.

• Disconnect the power cord from the wall outlet before making any connections.

• Read the instructions supplied with your speakers.

• Pay close attention to speaker wiring polarity. In other words, connect positive (+) terminals only to positive (+) terminals, and negative (–) terminals only to negative (–) terminals. If you get them the wrong way around, the sound will be out of phase and will sound unnatural.

• Unnecessarily long, or very thin speaker cables may affect the sound quality and should be avoided.

• Be careful not to short the positive and negative wires. Doing so may damage the AV receiver.

• Make sure the metal core of the wire does not have contact with the AV receiver’s rear panel. Doing so may damage the AV receiver.

• Don’t connect more than one cable to each speaker terminal. Doing so may damage the AV receiver.

• Don’t connect one speaker to several terminals.

Number of channels 2345

Front speakers ✔✔✔✔ Center speaker ✔✔ Surround speakers ✔✔

Speaker Color

Front left White Front right Red Center Green Surround left Blue Surround right Gray Subwoofer Purple

Connected image with AV components

• Before making any AV connections, read the manuals supplied with your AV components.

• Don’t connect the power cord until you’ve completed and double-checked all AV connections.

• Push plugs in all the way to make good connections (loose connections can cause noise or malfunctions).

• To prevent interference, keep audio and video cables away from power cords and speaker cables.

AV Cables and Jacks

Available sampling rate for PCM input signal is 32/44.1/48/88.2/96 kHz. Even 176.4/192 kHz is effective in case of the HDMI connection.

Note

• The AV receiver does not support SCART plugs.

• The AV receiver’s optical digital jacks have shutter-type covers that open when an optical plug is inserted and close when it’s removed. Push plugs in all the way.

Caution

• To prevent shutter damage, hold the optical plug straight when inserting and removing.

About AV Connections

Signal Cable Jack Description

Video and Audio

HDMI HDMI connections can carry digital video and audio.

Video Component video Component video separates the luminance (Y) and color

difference signals (P

B, PR), providing the best picture

quality (some TV manufacturers label their component video sockets slightly differently).

Composite video Composite video is commonly used on TVs, VCRs, and

See also:

• “Connection Tips and Video Signal Path” (➔ page 48)

• “About HDMI” (➔ page 49)

• “Using an RIHD-compatible TV, Player, or Recorder” (➔ page 50)

■ Audio return channel (ARC) function

Audio return channel (ARC) function enables an HDMI capable TV to send the audio stream to the HDMI OUT of the AV receiver (➔ page 35).

• To use ARC function, you must select the TV/CD input selector, your TV must support ARC function and “HDMI

Ctrl(RIHD)” is set to “On” (➔ page 34).

Tip

• To listen to audio received by the HDMI IN jacks through your TV’s speakers: – Set the “HDMI Ctrl(RIHD)” setting to “On” for an p-compatible TV. – Set the “Audio TV Out” setting to “On” (➔ page 35) when the TV is not compatible with p or the “HDMI Ctrl(RIHD)”

setting to “Off”. – Set your Blu-ray Disc/DVD player’s HDMI audio output setting to PCM. – To listen to TV audio through the AV receiver, see “Connecting Your Components” (➔ page 14).

Note

• When listening to an HDMI component through the AV receiver, set the HDMI component so that its video can be seen on the TV screen (on the TV, select the input of the HDMI component connected to the AV receiver). If the TV power is off or the TV is set to another input source, this may result in no sound from the AV receiver or the sound may be cut off.

•When the “Audio TV Out” setting is set to “On” (➔ page 35) to hear from your TV’s speakers, by controlling the AV receiver’s volume, the sound will be output from the AV receiver’s speakers, too. When the

“HDMI Ctrl(RIHD)” setting is set to “On”

(➔ page 35) to hear from speakers of p-compatible TV, by controlling the AV receiver’s volume, the AV receiver’s speakers will produce sound while the TV’s speakers are muted. To stop the AV receiver’s speakers producing sound, change the settings, change your TV’s settings, or turn down the AV receiver’s volume.

Connecting Components with HDMI

Jack Components Assignable

Input HDMI IN1 Blu-ray Disc/DVD player ✔

HDMI IN2 VCR or DVD recorder/Digital Video Recorder ✔ HDMI IN3 Satellite/cable set-top box, etc. ✔ HDMI IN4 Game console ✔

Output HDMI OUT TV, projector, etc.

Game console

TV, projector, etc.

Satellite/cable set-top box, etc. Blu-ray Disc/DVD player

VCR or DVD recorder/Digital Video Recorder

Connect your components to the appropriate jacks. The default input assignments are shown below.

✔: Assignment can be changed (➔ page 28).

Connect a turntable (MM) that has a phono preamp built-in. If your turntable (MM) doesn’t have it, you’ll need a commercially available phono preamp. If your turntable has a moving coil (MC) type cartridge, you’ll need a commercially available MC head amp or MC transformer as well as a phono preamp. See your turntable’s manual for details.

• With connection B, you can enjoy Dolby Digital and DTS.

• If your Blu-ray Disc/DVD player has both the main stereo and multichannel outputs, be sure to connect the main stereo output using connection

■ How to record the video

See “Recording” to make a connection for video recording (➔ page 26).

Connecting Your Components

The on-screen setup menus appear only on a TV that is connected to the HDMI OUT. If your TV is connected to the MONITOR OUT V or the COMPONENT VIDEO OUT, use the AV receiver’s display when changing settings.

No. Jack Components Assignable

AUX INPUT VIDEO Camcorder, etc

AUDIO L/R

DIGITAL IN OPTICAL 1 (GAME) Game console ✔

2 (TV/CD) TV, CD player ✔

COAXIAL (BD/DVD) Blu-ray Disc/DVD player ✔

COMPONENT VIDEO

IN 1 (BD/DVD) Blu-ray Disc/DVD player, RI dock ✔ IN 2 (CBL/SAT) Satellite/cable set-top box, RI dock, etc. ✔ OUT TV, projector, etc.

MONITOR OUT TV, projector, etc. BD/DVD IN Blu-ray Disc/DVD player VCR/DVR IN VCR, DVD recorder/Digital Video Recorder,

RI dock CBL/SAT IN Satellite/cable set-top box, etc. GAME IN Game console, RI dock TV/CD IN TV, CD player, cassette tape deck, MD, CD-R,

Turntable

, RI dock

UNIVERSAL PORT Universal port option dock (UP-A1 etc.)

CBDE

With u (Remote Interactive), you can use the following special functions:

■ System On/Auto Power On

When you start playback on a component connected via u, if the AV receiver is on Standby, it will

automatically turn on and select that component as the input source.

■ Direct Change

When playback is started on a component connected via u, the AV receiver automatically selects that

component as the input source.

■ Remote Control

You can use the AV receiver’s remote controller to control your other u-capable Onkyo components,

pointing the remote controller at the AV receiver’s remote control sensor instead of the component. You must enter the appropriate remote control code first (➔ page 41).

Note

•Use only u cables for u connections. u cables are supplied with Onkyo players (DVD, CD, etc.).

• Some components have two u jacks. You can connect either one to the AV receiver. The other jack is for connecting

additional u-capable components.

• Connect only Onkyo components to u jacks. Connecting other manufacturer’s components may cause a malfunction.

• Some components may not support all u functions. Refer to the manuals supplied with your other Onkyo components.

See “Recording” on the recording (➔ page 26).

Note

• The AV receiver must be turned on for recording. Recording is not possible while it’s in Standby mode.

• If you want to record directly from your TV or playback VCR to the recording VCR without going through the AV receiver, connect the TV/VCR’s audio and video outputs directly to the recording VCR’s audio and video inputs. See the manuals supplied with your TV and VCR for details.

• Video signals connected to composite video inputs can be recorded only via composite video outputs. If your TV/VCR is connected to a composite video input, the recording VCR must be connected to a composite video output.

• The surround sound and DSP listening modes cannot be recorded.

• Copy-protected Blu-ray discs and DVDs cannot be recorded.

• Sources connected to a digital input cannot be recorded. Only analog inputs can be recorded.

• DTS signals will be recorded as noise, so don’t attempt analog recording of DTS CDs or LDs.

Connecting Onkyo u Components

Make sure that each Onkyo component is connected with an analog audio cable (connection

D in the hookup examples) (➔ page 14).

Make the u connection (see the illustration).

If you’re using an RI Dock or cassette tape deck, change the Input Display (➔ page 25).

ANALOG

AUDIO OUT

ANALOG

AUDIO OUT

e.g., CD player

e.g., DVD player

Connecting a Recording Component

AUDI O

VIDEO

VCR, DVD recorder,

cassette tape deck,

CDR, MD recorder, etc.

This section explains how to connect the supplied indoor FM antenna and AM loop antenna. The AV receiver won’t pick up any radio signals without any antenna connected, so you must connect the antenna to use

the tuner.

Note

• Once your AV receiver is ready for use, you’ll need to tune into a radio station and position the antenna to achieve the best possible reception.

• Keep the AM loop antenna as far away as possible from your AV receiver, TV, speaker cables, and power cords.

Tip

• If you cannot achieve good reception with the supplied indoor FM antenna, try a commercially available outdoor FM antenna instead.

• If you cannot achieve good reception with the supplied indoor AM loop antenna, try using it with a commercially available outdoor AM antenna.

Note

• Before connecting the power cord, connect all of your speakers and AV components.

• Turning on the AV receiver may cause a momentary power surge that might interfere with other electrical equipment on the same circuit. If this is a problem, plug the AV receiver into a different branch circuit.

• Do not use a power cord other than the one supplied with the AV receiver. The supplied power cord is designed exclusively for use with the AV receiver and should not be used with any other equipment.

• Never disconnect the power cord from the AV receiver while the other end is still plugged into a wall outlet. Doing so may cause an electric shock. Always disconnect the power cord from the wall outlet first, and then the AV receiver.

Connecting Antenna

Connecting the Power Cord

Thumbtacks, etc.

Insert the plug fully into the jack.

North American and Brazilian models

European and Asian models

Push. Insert wire. Release.

Assembling the AM loop antenna

Indoor FM antenna (supplied)AM loop antenna (supplied)

Caution

• Be careful that you don’t injure yourself when using thumbtacks.

(Brazilian models) Connect the supplied power cord to the AV receiver’s AC INLET.

Plug the power cord into an AC wall outlet.

To AC wall outlet

Turning On & Basic Operations

Turning On/Off the AV Receiver

Tip

• See “Auto Standby” about a power management setting (➔ page 34).

Turning On

Press 8 ON/STANDBY on the front panel.

Press RECEIVER followed by 9 ON/STANDBY on the remote controller.

The AV receiver comes on, the display lights.

Turning Off

Press 8 ON/STANDBY on the front panel.

Press RECEIVER followed by 9 ON/STANDBY on the remote controller.

The AV receiver will enter standby mode. To prevent any loud surprises when you turn on the AV receiver, always turn down the volume before you turn it off.

8ON/STANDBY

9 ON/STANDBY

RECEIVER
