One for All URC-9960 User Manual

8-Device

Universal Remote Control

URC-9960

User’s Guide

OFA Kameleon UG 5/8/03 3:22 PM Page 1

TABLE OF CONTENTS

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Installing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

How Kameleon™ Works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Features And Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Key Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Device Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Adjusting Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Programming Device Control . . . . . . . . . . . . . . . . . . . . . . . . . 8

Programming A DVD/VCR Player Combo . . . . . . . . . . . . . . 10

Searching For Your Code. . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Checking The Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Using The Home Theater Mode . . . . . . . . . . . . . . . . . . . . . . 12

Control Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Programming The Home Theater Mode . . . . . . . . . . . . . . . . 13

Changing Volume Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Programming Volume Lock . . . . . . . . . . . . . . . . . . . . . . . . . 14

Programming Volume Unlock . . . . . . . . . . . . . . . . . . . . . . . 15

Using Macros . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Programming A Favorite Channel Macro . . . . . . . . . . . . . . . 16

Programming A Master Power Macro In

The Home Theater Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Clearing A Macro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Using Learning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Learning Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Programming A Learning Key . . . . . . . . . . . . . . . . . . . . . . . 18

Deleting A Single Learned Key . . . . . . . . . . . . . . . . . . . . . . . 19

Deleting All Learned Keys In A Specific Mode . . . . . . . . . . . 19

Reassigning Device Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Using Keymover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Programming Keymover . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Restoring A Single Keymoved Key . . . . . . . . . . . . . . . . . . . . 21

Restoring All Keymoved Keys In A Single Mode . . . . . . . . . . 21

Using Channel Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Programming Favorite Channel Scan . . . . . . . . . . . . . . . . . 22

Restoring Factory Default Settings . . . . . . . . . . . . . . . . . . . 23

Clearing All Custom Programming . . . . . . . . . . . . . . . . . . . 23

Manufacturer’s Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Setup Codes For Audio Amplifiers . . . . . . . . . . . . . . . . . . . . 24

Setup Codes For Audio Receivers . . . . . . . . . . . . . . . . . . . . 24

Setup Codes For Cable Boxes . . . . . . . . . . . . . . . . . . . . . . . 24

Setup Codes For CD Players . . . . . . . . . . . . . . . . . . . . . . . . 25

Setup Codes For DVD Players . . . . . . . . . . . . . . . . . . . . . . . 25

Setup Codes For DVD Player/VCR Combos. . . . . . . . . . . . . . 26

Setup Codes For Home Automation . . . . . . . . . . . . . . . . . . . 26

Setup Codes For PVRs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Setup Codes For Satellite Receivers . . . . . . . . . . . . . . . . . . 26

Setup Codes For Satellite Receiver/PVR Combos. . . . . . . . . 26

Setup Codes For TVs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Setup Codes For TV/DVD Player Combos . . . . . . . . . . . . . . . 28

Setup Codes For TV/VCR Combos . . . . . . . . . . . . . . . . . . . . 28

Setup Codes For VCRs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Setup Codes For Video Accessories . . . . . . . . . . . . . . . . . . 30

About Upgrading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Upgrade Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Upgrade Exclusions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Device Mode Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Customer Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Instruction To The User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Battery Use And Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

INTRODUCTION

The OFA Kameleon™ 8-Device Remote (URC-9960)
is a revolutionary universal remote control that
uses Universal Electronics’ Kameleon Technology.
Moreover,it allows you to consolidate the clutter of
all of your original remote controls into one easy-to­use product.Advanced features include:

• Kameleon Technology – dynamic menu
screens that respond to device selection and
illuminate only active keys

• Home Theater Mode – a cusxqwnA4wodbx–1wm•q–bwa d•bS–Bwmxb–PwodVq–SwddV1–Swe d•bS–BwthadbPwTd]TYmmP–Px1Iu•b–b1qBuTjm•q–qIbbuTcm•q–qqIuTwm[gcd•b4–SwrdIIA4wod–Iwpes d•b1–xwtdqV–Bwh•B–PetdqV–Bs d•b1–xwm•q–•Vwo•V–1sFdP–1t-wodbx–Swfd•bBwtdbweeT-utd•bI–Bswed d•b1xbwkd41–Sweq–bwyddbB–Swsd•q1ws d•b1–xwt1q1wlogxqwetwh•BSPetdqV–Br.d]TYmTfm•q–qx1VuTcmquTwm[fowrdbxI–Vw d4b4–IwodSwp•bV1–Swed•b4–Swr•dbx–BhadVwtd••BSPip•bV1VIwndP[gcd•xS–Pw d4b4–Icoindbq–bwvbqB–Iwed•bq–SwTrdbxI–Vip•bqIwed•bq–SwTrdb•q1wcerdbxI–Vw d4b4–Iip•bV1–SwTrdbxI–Pw d4b4–IowTrdb•werdbxI–Pw d4b4–Iwm•bdq–bwod•Ib–Vwd•–Swed]TYm•b–4Pbxu•b–PB1VuTjmquTcmw•dTjmk5SubuTfmb–4PbxuquTjm•q–qSb4uTcm[DhrdbxI–Pwm•bbx–S-dbx–1Frd•11Iip•bx1–VwKd]TYmk5xubuTfI–1bqqbuquTjm•q–qI1VuTcm[wrd•1–Bs dI–SwfBb–4wodB–xwrd1b–4w d•SPip•bb4–BwTtdqVPwswtd•1–xwa•P1VIwndb4–xwtd•1–xw d•SPaodVqVBwcd•Iq–Vtcd•IqBxwid4–BvadS4–xwtd•IqBxwi•dx–BwoB4–xwnd•1–xw d•SPwo•V4Iwfd•dx4PIwfd•1–xwabSI–4wvS4–xwodB–xwrdbd1–Iitwed]TYmI–1bqqbu•b–b1qBuTjm•q–qIbbuTcm•q–q41quTwm[wkd4PetdqV14wy d•IqBxseqd•P–Pueincxqwes d]TYm•b–4Pbxu•b–PB1VuTjmquTcmquTwmw•dTjmk5SubuTfmb–4PbxuquTjm•q–qbb4uTcm[c h-f ARABK– t c•q–4wtdbqVSwpBb–4tuwrdIx–4weqb–4w d•bBuwnqod1–IuodB–xse d•bIwfdbP–xuinc•bb4–Vwtd•bb–Bwidx–Bwodbx–xwnSP–Iwsd]TYmd4–P41Iu•b–b1qBuTjm•q–bIVbuTcmq–bIbxuTwm[wfd•IB–xwrdbqVSowm•bI1–Bs d4qV14wodbV–Iourcd••B–Peti•s4b4–Vw’d•VIq1wlrcd n•bV–Pavl•m••P–Sotecr

•

INSTALLING BATTERIES

1. On the remote control’s back, push the tab
and lift off the battery cover.

2. Obtain four (4) new AAA alkaline batteries.
Match the + and – marks on the batteries to
the + and – marks in the battery case, then
insert the new batteries.

3. Press the battery cover back into place.The
tab should click when the cover is locked.

4. If batteries are inserted correctly, the display
will turn on and show all keys.If a key is
not pressed after 7 seconds, the display will
turn off.

NOTE: The batteries will need replacement if one of
the follow ing conditions o ccurs:

1. Pressing any key turns on all keys and icons.

2. The remote control no longer operates and the
display flashes on and off continously.

See “Battery Use And Safety”on page 42 for
additional inform ation.

HOW KAMELEON™WORKS

Kameleon™ allows wireless controllers to
dynamically change their appearance and
functionality,to match the home entertainment
environment.Moreover, this technology provides
unparalleled ease-of-use and superior control by
delivering a uniquely intuitive,graphical interface
that intelligently illuminates only the active keys.

The OFA Kameleon 8-Device Remote uses
Kameleon technology to provide the versatility
of an LCD remote control with the feel of a
traditional push button unit. The result is a
stunning, bright display with engaging anima­tion and touch-sensitive graphics for the user.

The remote control includes convenient Menu
Driven programming. The displays are divided
into two types of interactive screens: Device Menus
for normal remote control use,and Programming
Menus for feature setup. Ac ting like it namesake,
Kameleon changes the Device Menu for the device
being selected. For example,selecting TV displays
a main menu that contains channel selection,
volume control, and a keypad. However, selecting a
DVD player still displays a menu with those same
keys as the TV,but now navigation keys and
transport controls are added for the DVD device.

Several devices have additional menus that can be
accessed using SCROLL (see Device Menu Screens,
starting on page 32). For example,TV has three
menus: a main menu with keys for a general­purpose TV, a second menu screen that adds
navi gation keys an d removes FORMAT,INPUT and

ENTER keys,and a third menu screen that adds
INPUT, ENTER,and PIP keys. Dep ending on d esired

features,a user has the flexibility to use any menu
screen that works best for the selected device.

NOTE:The AUX,CD, DVD,and PVR modes do not
have additional menu screens even though SCROLL
is displayed.

Animated key graphics also provided enhanced
operational feedback, so the user can easily see
what mode is active and when the commands
are communicating with a device. The end result
of Kameleon technology is a simple, elegant, and
intelligent way of organizing a large number of
remote control keys for eight different devices in
a relatively small case.

USER’S GUIDE

Installing Batteries/How Kameleon Works 3

❶

❸

❷

OFA Kameleon UG 5/8/03 3:22 PM Page 3

FEATURES AND FUNCTIONS

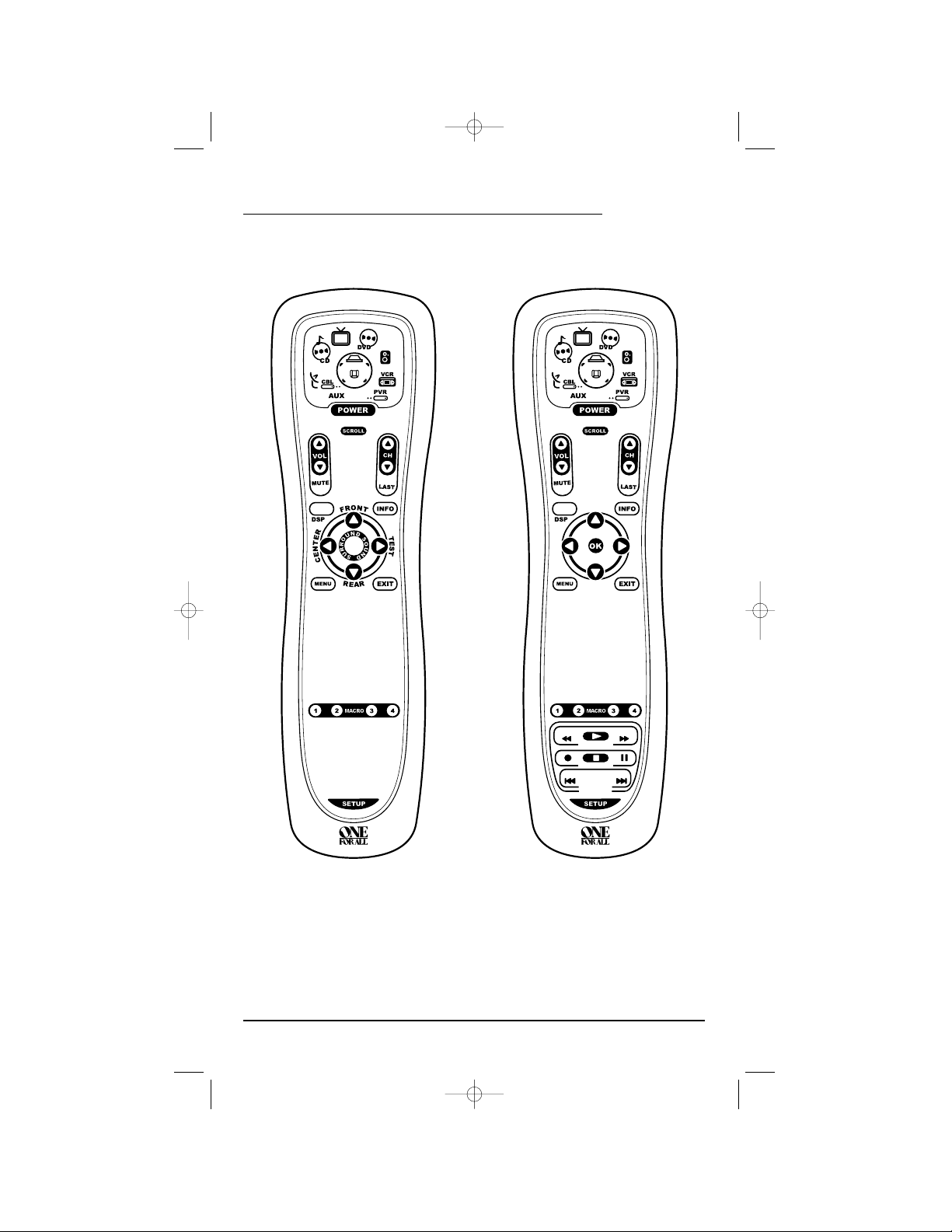

Use the illustration below to locate features on the
OFA Kameleon 8-Device Remote (URC-9960) and
then refer to the Key Char ts (starting on the right)
to learn how they function.

NOTE: The illustration shows all remote control keys. In
actual operation, only active keys used by the selected
device are displayed and non-active keys are hidden.

To find out what type of devices can be controlled
by each device key after programming, see the
Device Table on page 7.

KEY CHARTS

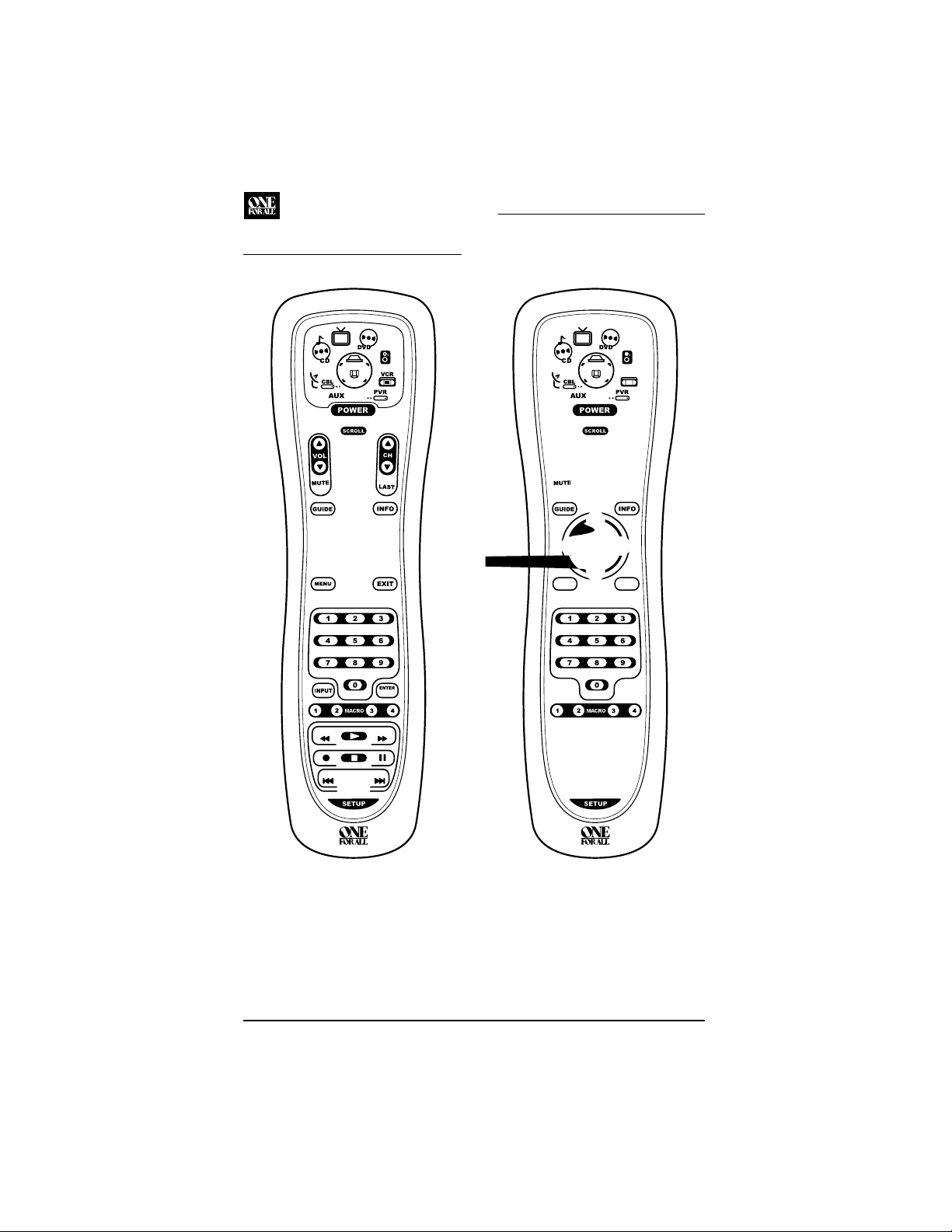

When a key is pressed, the
IR Segments will animate.
Outgoing animation (see
arrows) indicates the remote
control is sending IR signals
to a selected device.

Incoming animation (see
arrows) indicates the
remote control is receiving
IR signals from a device
being learned (see Us ing
Learning on page 17).

Press a Device Key once
to select a desired home
entertainment device to
control (e.g.,DVD). When
selected, the Device Key
will animate to indicate it
is currently active.Also see
the Device Table on page 7.

After programming, press
the Home Theater key once
to select the home theater
mode (see Using The Home
Theater Mode on page 12).

Press POWER once to turn
on or off a se lected devi ce.

During programming,
the HOME key will appear.
Use it to exit the program
screen or to return to the
last-selected device key
screen.

In the AUX, CBL/SAT,and
TV modes, use FAV to sc an
through all channels, or
after programming, to
scan through 10 favorite
channels.

In the AUX, CBL/SAT,TV,
AUDIO,and VCR modes,
use SCROLL to view
additional key screens for
the selected device.

KAMELEON 8-DEVICE REMOTE

4 Features And Functions

Use VOL ▲(or VOL▼)

to raise (or lower) the
sound volume for the
selected device (also see
Changing Volume Lock on
page 14).

Press MUTE once to turn
the sound off or on.

In the AUX and CBL/SAT
modes, use PVR/VOD to
access PVR/VOD programs
(if available on your cable
or satellite service).

In the AUDIOmode, use
PRESET to access prese t sta­tions on your audio device.

In the TVmode, use FORMAT
to change the aspect ratio or
zoom (if feature is available
on your TV).

In the DVD or PVR mode,
press REPLAY once to
replay a DVD chapter or
a recorded program on
your PVR (or DVR).

In the CBL/SAT and AUX
modes, press SCROLL once
to display REPLAY and then
press REPLAY once to
replay a VOD program (if
available on your cable or
satellite service).

Use CH ▲(or CH ▼) to

select the next higher (or
lower) channel.

In all modes except CD,DVD,
and PVR,press LAST once to
recall the last channel.

In the PVRmode, use LAST
to select live or recorded
video.

In the CDor DVD modes,
press RAND to play random
tracks or chapters.

or

In the AUX and CBL/SAT
modes, use PAGE+ or
PAGE- to page up or down
through channels in the
program guide.

In the DVDmode, press
AUDIO once to acce ss DVD
audio formats (if available).

In all modes except AUDIO,
use GUIDE to display your
selected device’s program
guide or setup menu.

In the AUDIOmode, use
DSP to access DSP features
(if available) on your audio
device.

Use INFO to display the
current channel and
program information.

In the AUX, CBL/SAT,CD,
DVD,and PVR modes,use
the Cursor Keys to move
the cursor in the program
guide and menu screens.

Use OK to choose options
from your selected device’s
menu or guide.

In the TVor VCR mode,
press SCROLL once to access
the Cursor and OK Keys .

In the AUDIO mode, press

SCROLL twice to access the
Cursor and OK Keys .

In the AUDIO mode, use the
Cursor Keys to move the

cursor to select or test
surround sound channels
on your audio device.Also
see VOL keys (above left).

Use OK to choose options
from your audio device’s
menu or guide.

continued on next page...

FEATURES AND FUNCTIONS

KEY CHARTS (CONTINUED)

Press MENU once to display
your selected device’s main
menu.

Use EXIT to exit from your
selected device’s guide or
menu.

In the DVD or AUDIO mode,
press SUBTITLE once to
display (or turn off)
subtitles, if available on
your DVD or audio device.

In all modes except AUDIO,
use the Number Keys
(1 ~ 9 and 0) to directly
select channels (e.g., 009
or 031) or enter numbers.

In the AUDIO mode, use the
Number Keys to direc tly
select inputs 1 ~ 9 and 10.

To enter channels in the
AUDIO mode, press SCROLL
three times to view channel
Number Keys (see above)

Use INPUT to change the
input source for a selected
device.

For certain brands in all
modes except CD and
AUDIO,press ENTER once
after entering numbers (if
required on your original
remote control).

For CD or AUDIO modes,
press SKIP once to skip to
the next track on your

In the program mode,
use the Program Keys to
personalize the remote
control as follows:

Use DEV SET to program
your device codes. See

Programming Device Control

on page 8.

Use SEARCH as an alternate
way to set up a device by
searching available codes.
See Searching For Your Code
on page 11.

Use THEATERto create a
custom mode with favorite
remote control keys from
different devices in your
home theater system. See

Using The Home Theater
Mode on page 12.

Use VOL (Volume Lock)
to set volume controls for
individual or global device
use. See Changing Volume
Lock on page 14.

Use MACRO to program a
series of commands on five
available macro keys.See
Using Macros on page 16.

Use (Brightness) to
adjust the brightness level of
the EL display. See Adj usti ng
Brightness on page 8.

Use IR LRN and IR DEL to
add and delete key functions
learned from your original
device remote controls. See
Using Learni ng on page 17.

Use MODE to reassign
an unu sed device key to
control a second device.See
Reass igning De vice Key s on
page 20.

Use OTHER to program
other functions. See the
Table of Contents on page 2
for sections on Checking

The Codes, Programming
Favorite Channel Scan,
Using Keymover,or
Upg rading.

DEVICE TABLE

NOTE: Please refer to the table below when performing
the instruc tions in “Programming Device Control” on
page 8.

After programming, the OFA Kameleon 8-Device
Remote will be able to control the following
types of devices:

USER’S GUIDE

Features And Functions 7

DEVICE KEY CONTROLS THESE DEVICES

Video Accessory or second
device (e.g., Cable Box,Satellite
Receiver, DVD Player, etc.) by
reassigning device keys (see

Reass igning Devi ce Keys on

page 20)

Cable Box (Converter),
Satellite Receiver,or
Satellite/PVR Combo

CD Player or Home Automation

Te l e v i s i o n

DVD Player, TV/DVD Player
Combo, or DVD/VCR Player
Combo

Audio Amplifier,Audio
Receiver, or Home-Theater
In-A-Box Device (listed under

Setup Codes For Audio Receivers

on page 24)

VCR or TV/VCR Combo

PVR (DVR)

OFA Kameleon UG 5/8/03 3:22 PM Page 7

ADJUSTING BRIGHTNESS

The OFA Kameleon 8-Dev ice Remote has five
levels of brightness adjustment and is set to the
middle one at the factory. To increase or decrease
the brightness, perform the following steps:

1. Press and hold SETUP until the two bottom
IR segments flash twice. The Program Keys
will appear.

NOTE: If the display turns off because of inactivity,
you will need to start the programming sequence
again by repeating this step.

2. Press (Brightness) once. The Brightness
programming screen will appear:

• To increase brightness, press ▲one or

more times.

• To decrease brightness, press ▼on e or

more times.

3. When the desired br tnsd fae, r(

uMrK:

4. Press a device key once (i.e., AUX, CBL/SAT,
CD, TV,DVD, AUDIO, VCR,or PVR).The selected
device key w ill animate.

NOTE: Please refer to the Device Table on page 7
when choosing a device key for programming.

5. Use the Manufacturer’s Cod es (starting on
page 24) to locate the type of device and
brand name and then use the Number Keys
to enter the first four-digit code for your
device. If performed correctly, the bottom two
IR segments will flash twice.

NOTE: If the bottom two IR segments displayed one
long flash instead, a mistake has occurred. Try
entering the same code again.

6. Aim the remote control at the device and
press POWER once. The device should turn
off. If it does not, repeat steps 5 and 6, trying
each code for your brand until you find one
that works. If it still doesn’t work,try
Searching For Your Code on page 11.

NOTE: If the device does not have a POWER key,
press the (Play) key.

7. If the code works, press OK once.The two bot­tom IR segments will display one long flash.

8. If desired, repeat steps 4 through 7 for each
device you want to control. If finished, press
HOME twice to exit programming and return
to the last-selected device menu screen.

9. For future reference, write down each
working device code in the following boxes:

AUX Code:

Device Type:_______________________

CBL/SAT Code:

Device Type:_______________________

CD Code:

Device Type:_______________________

DVD Code:

Device Type:_______________________

TV Code:

DVD Code:

Device Type:_______________________

AUDIO Code:

Device Type:_______________________

VCR Code:

Device Type:_______________________

PVR Code:

USER’S GUIDE

Programming Device Control 9

OFA Kameleon UG 5/8/03 3:22 PM Page 9

PROGRAMMING DVD PLAYER/
VCR COMBO CONTROL

1. Turn on the DVD Player/VCR Combo and
insert a DVD.

NOTE: Please read steps 2 through 10 completely
before proceeding. Before star ting step 2, revi ew
the “Setup Codes For DVD Player/VCR Combos”(on
page 26). Brands are listed alphabetically in order of
most popular ones first. Highlight or write down the
devices and the codes you wish to program.

2. Press and hold SETUP until the two bottom
IR segments flash twice. The Program Keys
will appear as SETUP flashes repeatedly.

3. Press DEV SET once. The De vice Setup
programming screen will appear:

4. Press DVD once. The key will ani mate.

5. Use the Setup Codes For DVD Player/VCR
Combos (on page 26) to locate the brand
name and then use the Number Keys to enter
the first four-digit code for your device.
If performed correctly, the two bottom
IR segments will flash twice.

NOTE: If the two bottom IR segments displayed
one long flash instead, an error has occurred.
Try entering the same code again.

6. Aim the remote control at the device and press

POWER once. The device should turn off.

7. If the code works, press OK once.The two bot-

tom IR segments will display one long flash.

8. (Optional) If you’ve located a setup code that
works, but it also has a separate VCR code as
listed on page 26, you’ll also need to program it
into the remote control to access VCR controls
as follows:

a. Press VCR once.

b. Usi ng the Number Keys, enter the four-

digit VCR code for your DVD Player/VCR
Combo.If performed correctly, the
two bottom IR segments will flash twice.

c. Press OK once.The two bottom IR

segments will display one long flash.

NOTE: If a separate VCR setup code is not listed,
you can use the VCR key to program a separate VCR
device or another device (see “Reassigning Device
Keys”on page 20).

9. To exit programming, press HOME twice. The
display will return to the last-selected device
menu screen.

10. For future reference, write down the working
DVD Player/VCR Combo code in the below
boxes:

DVD Player/VCR Code:

VCR Code (if used):

KAMELEON 8-DEVICE REMOTE

10 Programming DVD Player/VCR Combo Control

OFA Kameleon UG 5/8/03 3:22 PM Page 10

SEARCHING FOR YOUR CODE

If your device does not respond to the remote
control after trying all codes listed for your
brand, or if your brand is not listed at all, try
searching for your code.

NOTE: Before performing a code search for a CD or
DVD player or a VCR, turn on the device and insert
the required media.

For example,to search for a code for your TV:

1. Press and hold SETUP until the two bottom
IR segments flash twice. The Program Keys
will appear as SETUP flashes repeatedly.

2. Press SEARCH once. The Search Codes

programming screen will appear:

3. Press a device key once (e.g., TV). The selected
device key will animate.The device’s Mai n
Menu screen will appear with the HOME key
still displayed.

4. Press POWER once to select it as the search
test func tion. The Search Programming screen
will appear again.

NOTE:With POWER as the search test function, a
“Power On” IR command will be sent to the de vice
each time a test code is sent. As a confirmation, the
IR segments will display an outgoing animation.

NOTE: If your device or its original remote control
does not have a Power key, select a different test
function in this step (e.g., CH+,VOL+, Play, etc).

5. Aim the remote control at the device (e.g., TV)

press ▲ one or more times and stop when a

working code performs the test function

selected in step 4. If desired, use ▼ to try a

previous code.

NOTE: In the search mode, the remote control will
send IR codes from its library to the selected device,
starting with the most popular code first.

6. To lock in the code,press OK once. The two

bottom IR segments flash twice.

7. To search for codes of your other devices,
repeat steps 3 to 6, but use the appropriate
device key and test function key for the device
you are searching for.

8. To exit programming, press HOME twice. The
display will return to the last-selected device
menu screen.

CHECKING THE CODES

If you have set up the remote control using the
Searching For Your Code procedure (on the left),
you may need to find out which four-digit code
is operating your equipment.For example,to
find out which code is operating your TV:

1. Press and hold SETUP until the two bottom
IR segments flash twice. The Program Keys
will appear as SETUP flashes repeatedly.

continued on next page...

USER’S GUIDE

Searching For Your Code/Checking The Codes 11

OFA Kameleon UG 5/8/03 3:22 PM Page 11

CHECKING THE CODES (cont’d)

2. Press OTHER once. The Other programming

screen will appear:

3. Using the Number Keys,enter 9 9 0.The

bottom two IR segments will flash twice.

4. Press a desired device key once (i.e., AUX,
CBL/SAT,CD, TV,DVD, AUDIO, VCR,or PVR).
The selected device key will animate.

5. To view the code for the first digit, press 1
once. Count the number of times the two
bottom IR segments flash (e.g., three flashes
= 3) and write down the number in leftmost
box in the TV code boxes on page 9.

NOTE: If a code digit is “0”, the two bottom IR
segments will not flash.

6. Repeat step 5 three more times for remaining
digits. Use 2 for the second digit, 3for t he
third digit, and 4 for the fourth digit. Write
down the code digits in the remaining TV
code boxes on page 9.

NOTE: If you enter an invalid number (e.g., 7) or
key (e.g., Play), the two bottom IR segments will
display one long flash and return to the “Other”
programming screen. Start again with step 2 above.

7. To check for codes of other devices,repeat
steps 4 to 6, but substitute the appropriate
device key for each device you are checking.
Write down the device’s code digits in the
appropriate code boxes on page 9.

8. To exit programming, press HOME twice. The
display will return to the last-selected device
menu screen.

USING THE HOME THEATER MODE

The OFA Kameleon 8-Device Remote includes a
custom Home Theater mode. After the Home
Theater key is programmed, it will allow you to
access four groups of remote control keys
without having to change device modes.

CONTROL ORGANIZATION

ABOUT CONTROL GROUPS

For Home Theater programming,the remote
control’s keys are grouped by type of control
into the following four control groups:

Vide o Pl ayba ck Group: Transport Controls

(Rewind,Play, Fast
Forward,Stop,
Pause,Record,
Skip Forward,
Skip Back),and
LIVE TV

Volume Controls Group: VOL+, VOL-,and

MUTE

Channel Controls Group: CH+, CH-, INPUT,

Keypad (0 ~ 9),
FAV, ENTER,and LAST

Menu Controls Group: Cursor Controls

(Up, Down, Left,and
Right), OK, PAGE+,
PAGE-, MENU, INFO,
GUIDE,and EXIT

ABOUT DEVICE MODES

Moreover, th e above Control Groups can be used
in the following modes:

Vide o Pl ayba ck Group: AUDIO, AUX,CBL/SAT,

CD, DVD,PVR,and
VCR

Volume Controls Group: AUDIO, AUX,CBL/SAT,

CD, DVD,PVR, TV,and
VCR

Channel Controls Group: AUX, CBL/SAT, DVD,

PVR, TV,and VCR

Menu Controls Group: AUDIO, AUX,CBL/SAT,

CD, DVD,PVR, TV,and
VCR

KAMELEON 8-DEVICE REMOTE

12 Checking The Codes/Using The Home Theater Mode

OFA Kameleon UG 5/8/03 3:22 PM Page 12

FACTORY DEFAULT SETTINGS

At the factor y, the Control Groups are assigned
the following modes as default settings:

Vide o Pl ayba ck Group: DVD

Volume Controls Group: AUDIO

Channel Controls Group: CBL/SAT

Menu Controls Group: CBL/SAT

If the default settings fit your needs, you can
skip programming this mode. Otherwise, per­form the steps in the following section to assign
device modes to the Control Groups.

PROGRAMMING THE HOME THEATER MODE

1. Press any device key once (i.e., AUX,CBL/SAT,
CD, TV,DVD, AUDIO, VCR,or PVR).The selected

device key w ill animate.

2. Press and hold SETUP until the two bottom
IR segments flash twice. The Program Keys
will appear as SETUP flashes repeatedly.

3. Press THEATER once. The Vid eo Play back
programming screen will appear:

NOTE: If a device key is animated,it is assigned to
this f unction group. To continue programming t he
Home Theater mode, you must select a device key,
even if it is the same one that is currently animated.

3. To assign a mode to the Video Playback group,

press a device key once (i.e., AUX, CBL/SAT,
CD, TV,DVD, AUDIO, VCR,or PVR).Then the
Volu m e C o n tro l s programming screen will appear:

NOTE: If a device key is animated,it is assigned to
this f unction group. To continue programming the
Home Theater mode, you must select a device key,
even if it is the same one that is currently animated.

4. To assign a mode to the Vo l u m e C o n t r o l s group,
press a device key once. Then the Channel
Controls programming screen will appear:

NOTE: If a device key is animated,it is assigned to
this f unction group. To continue programming the
Home Theater mode, you must select a device key,
even if it is the same one that is currently animated.

continued on next page...

USING THE HOME THEATER MODE

PROGRAMMING THE HOME THEATER MODE
(CONTINUED)

5. To assign a mode to the Channel Cont rols
group,press a dev ice key once. Then the Menu
Controls programming screen will appear:

NOTE: If a device key is animated,it is assigned to
this f unction group. To continue programming t he
Home Theater mode, you must select a device key,
even if it is the same one that is currently animated.

6. To assign a mode to the Menu Control s group,
press a device key once. Since Home Theate r
programming is now complete, the Program
Keys will appear again.

7. To exit programming, press HOME once. The
display will return to the last-selected device
menu screen

.

CHANGING VOLUME LOCK

The OFA Kameleon 8-Device Remote is set at the
factory for independent volume control of each
selected device.

However, you may change the Volume Lock
setting to Global Volume Lock so that a device’s
volume will be locked to one mode (e.g., to
control TV volume in all other modes). After
that, if desired,you can perform Indivi dual
Vo l u m e U n l o c k on a selected device to set its
volume control for independent operation.

LOCKING VOLUME CONTROL TO ONE MODE
(GLOBAL VOLUME LOCK)

1. Press and hold SETUP until the two bottom
IR segments flash twice. The Program Keys
will appear as SETUP flashes repeatedly.

2. Press VOL once. The Vo l u m e L o c k
programming screen will appear:

3. Press a device key once (i.e., AUX, CBL/SAT,
CD, TV,DVD, AUDIO, VCR,or PVR) where you
want the volume controls locked to. The two
bottom IR segments will flash tw ice and the
Program Keys will appear again.

4. To exit programming, press HOME once. The
display will return to the last-selected device
menu screen

.

5. Now, when you press VOL ▲, VOL▼,or MUTE,

the selected device’s volume will be con­trolled, regardless of the mode selected.
