Omron Y92E-M08, Y92E-S08, Y92E-S12, Y92E-M08PUR3A2M, Y92E-M08PUR3A5M Datasheet

A-1

Accessories for Standard Sensors (photoelectric, inductive, capacitive)

Sensor Accessories

Cable connectors . . . . . . . . . . . . . . A-2

Extended wiring accessories . . . . . . A-19

Mounting brackets . . . . . . . . . . . . A-28

Reflectors . . . . . . . . . . . . . . . . . A-34

A-2 Standard Photoelectric Sensors

Cable Connectors

Product group Cable Connectors

Typ e General purpose (screw)

General purpose

(snap)

General purpose -

extended wiring

small size

(screw or snap)

Order reference Y92E-M08 Y92E-M12 Y92E-MS08 XS2F-@-A XS3F-@-A

Applicable/

Recommended Sensors

Inductive:
E2A-@-M5,
E2A-@-M3,
E2E small diameter,
E2EL, E2C-EDA

photoelectric: E3Z,
E3G-L1/L3, E3C,
E3X

All sensors with
M8-junction connec­tors -M3J, -M5J

Photoelectric:
E3F2, E3G-(M)R,
E3G-(M)L7, E3S-C,
E3MV, E3NT

Inductive:
E2@-@-M1, E2E,
E2E@, E2F

All sensors with
M12 junction connec­tor -M1J

Inductive:
E2A-@-M5,
E2A-@-M3,
E2E small diameter,
E2EL, E2C-EDA

Photoelectric: E3Z,
E3G-L1/L3, E3C,
E3X

See Y92E-M12 plus
AC 2-wire types:
E2E-@Y, E2F-@Y,
E3F2-@Z

Inductive:
E2A-@-M3,
E2E small diameter,
E2EL, E2C-EDA

Photoelectric:
E3Z, E3G-L1/L3,
E3C, E3X

All sensors with
M8-junction connec­tors -M3J

Features

- 3 or 4 pin

- LED optionally

- 3, 4 or 5 wire

- LED optionally

3 or 4 pin 2, 3, 4 or 5 wire 4 pin

Size M8 M12 M8 M12 M8

Material

Nut

Brass (CuZn) or
zinc diecast (ZnAl Cu)

PUR brass

Cable PVC or PUR PVC or PUR PVC

Product group Cable Connectors

Typ e Robot cable (vibration resistant) Detergent resistant Fire retardant Spatter proof

Order reference XS3F-@-R XS2F-@-R Y92E-S08 Y92E-S12 XS2F-@-F XS2F-@-AS

Applicable/

Recommended Sensors

See Y92E-M08 See Y92E-M12 E3ZM E2FM See Y92E-M12 E2FM

Features 4 pin 3, 4 or 5 wire 3 or 4 pin 4 wire 3, 4 or 5 wire 4 wire

Size M8 M12 M8 M12 M12 M12

Material

Nut brass stainless steel brass brass

Cable PVC PVC PVC Polyethylene

A-3

General Purpose Cable Connectors (M8 / M12)

Y92E

Model Number Legend

1. Connector type

M: standard female screw on connector
S: stainless steel female screw on connector
MM: male metric screw plug
MS: female snap connector

2. Size

08: M8 size
12: M12 size

3. Material

PVC: PVC cable
PUR: PUR cable

4. Nr of poles

3: 3 poles
4: 4 poles
5: 5 poles

5. Shape

A: angled
S: straight

6. Length

2M: standard 2 m length
5M: standard 5 m length
10M: standard 10 m length

7. LED

LED: with LED
[blank]: no LED

8. Specials

9. Supply code

-L designed and manufactured by Lumberg

-H designed and manufactured by Hirschmann

Ordering information

General purpose models

1234

Y92E - @@@@ - @@@ - @

5 678 9

Product description

1

Connector Size

Cable
material

Poles Type

Length
(m)

LED Nut

Y92E-M08PUR3A2M-x

female M8

PUR

3

Angled

2

no

-H: Zinc diecast (ZnAl Cu)

-L: brass (CuZn)

Y92E-M08PUR3A5M-x 5
Y92E-M08PUR3A10M-x 10
Y92E-M08PUR3S2M-x

Straight

2
Y92E-M08PUR3S5M-x 5
Y92E-M08PUR3S10M-x 10
Y92E-M08PUR4A2M-x

4

Angled

2
Y92E-M08PUR4A5M-x 5
Y92E-M08PUR4A10M-x 10
Y92E-M08PUR4S2M-x

Straight

2
Y92E-M08PUR4S5M-x 5
Y92E-M08PUR4S10M-x 10
Y92E-M08PVC3A2M-x

PVC

3

Angled

2
Y92E-M08PVC3A5M-x 5
Y92E-M08PVC3A10M-x 10
Y92E-M08PVC3S2M-x

Straight

2
Y92E-M08PVC3S5M-x 5
Y92E-M08PVC3S10M-x 10
Y92E-M08PVC4A2M-x

4

Angled

2
Y92E-M08PVC4A5M-x 5
Y92E-M08PVC4A10M-x 10
Y92E-M08PVC4S2M-x

Straight

2
Y92E-M08PVC4S5M-x 5
Y92E-M08PVC4S10M-x 10

A-4 Standard Photoelectric Sensors

Y92E-M12PUR3A2M-x

female

M12

PUR

3

Angled

2

no

-H: Zinc diecast (ZnAl Cu)

-L: brass (CuZn)

Y92E-M12PUR3A5M-x 5
Y92E-M12PUR3A10M-x 10
Y92E-M12PUR3S2M-x

Straight

2
Y92E-M12PUR3S5M-x 5
Y92E-M12PUR3S10M-x 10
Y92E-M12PUR4A2M-x

4

Angled

2
Y92E-M12PUR4A5M-x 5
Y92E-M12PUR4A10M-x 10
Y92E-M12PUR4S2M-x

Straight

2
Y92E-M12PUR4S5M-x 5
Y92E-M12PUR4S10M-x 10
Y92E-M12PUR5A2M-x

5

Angled

2
Y92E-M12PUR5A5M-x 5
Y92E-M12PUR5S2M-x

Straight

2
Y92E-M12PUR5S5M-x 5
Y92E-M12PVC3A2M-x

PVC

3

Angled

2
Y92E-M12PVC3A5M-x 5
Y92E-M12PVC3A10M-x 10
Y92E-M12PVC3S2M-x

Straight

2
Y92E-M12PVC3S5M-x 5
Y92E-M12PVC3S10M-x 10
Y92E-M12PVC4A2M-x

4

Angled

2
Y92E-M12PVC4A5M-x 5
Y92E-M12PVC4A10M-x 10
Y92E-M12PVC4S2M-x

Straight

2
Y92E-M12PVC4S5M-x 5
Y92E-M12PVC4S10M-x 10
Y92E-M12PVC5A2M-x

5

Angled

2
Y92E-M12PVC5A5M-x 5
Y92E-M12PVC5A10M-x 10
Y92E-M12PVC5S2M-x

Straight

2
Y92E-M12PVC5S5M-x 5
Y92E-M12PVC5S10M-x 10
Y92E-M08PUR3A2MLED-x

M8

PUR

3

Angled

2

yes

Y92E-M08PUR3A5MLED-x 5
Y92E-M08PVC3A2MLED-x

PVC

2
Y92E-M08PVC3A5MLED-x 5
Y92E-M12PUR3A2MLED-x

M12

PUR

2
Y92E-M12PUR3A5MLED-x 5
Y92E-M12PUR3A10MLED-x 10
Y92E-M12PVC3A2MLED-x

PVC

2
Y92E-M12PVC3A5MLED-x 5
Y92E-M12PVC3A10MLED-x 10
Y92E-MS08PVC3A2M-x

female
(snap)

M8

2

no

Snap (PUR)

Y92E-MS08PVC3A5M-x 5
Y92E-MS08PVC3S5M-x Straight 5
Y92E-MS08PVC4S5M-x 4 Straight 5
Y92E-MS08PVC3A5MLED-x 3 Angled 5 yes

1

‘-L‘ or ‘-H‘ are added to the product description

Product description

1

Connector Size

Cable
material

Poles Type

Length

(m)

LED Nut

A-5

Detergent resistant models

Specifications

M8 pin assignment

M12 pin assignment

Product description Connector Size

Cable
material

Poles Type

Length
(m)

LED Nut

Y92E-S08PVC4A2M-L

female

M8

PVC 4

Angled

2

no SUS

Y92E-S08PVC4A5M-L 5
Y92E-S08PVC4S2M-L

Straight

2
Y92E-S08PVC4S5M-L 5
Y92E-S12PVC4A2M-L

M12

Angled

2
Y92E-S12PVC4A5M-L 5
Y92E-S12PVC4C2M-L

Straight

2
Y92E-S12PVC4S5M-L 5

Rated current 4A

Rated voltage

M8 3 pin: 60 V
M8 4 pin: 60 V (-H), 30 V (-L)
M12 3- or 4-wire: 240 V
M12 5-wire: 60 V
with LED: 10-30 V

Degree of protection IP67

Ambient temperature

-25 to +70 °C M8 and M12 (PVC cable)

-25 to +80 °C M8 and M12 (PUR cable)

Specials

-H: Silicone-free
PUR cable: Halogene-free

3 poles 4 poles

1 = brown
3 = blue
4 = black

1 = brown
2 = white
3 = blue
4 = black

3 poles 4 poles 5 poles

1 = brown
2 = n.c.
3 = blue
4 = black

1 = brown
2 = white
3 = blue
4 = black
5 = n.c.

1 = brown
2 = white
3 = blue
4 = black
5 = green /

yellow

31

4

31

42

34

21

34

21

5

34

21

5

A-6 Standard Photoelectric Sensors

Dimensions

General purpose

Y92E-M08@-L

Y92E-M08@-LED-L

Y92E-M12@-L

*a O-Ring

O-ring

B Betriebsanzeige grün
operation indicator green
F Funktionsanzeige gelb
function indicator yellow

*a O-Ring
O-ring

*a O-Ring
O-ring
*b Schutzschlauchmontage
hose mounting

A-7

Detergent resistant

Y92E-S08

Y92E-S12

A-8 Standard Photoelectric Sensors

M12 Extended Wiring and Robot Cable Connectors

XS2F

Model Number Legend

Use this model number legend to identify products from their model number. When ordering, use a model number from the table in

Ordering Information.

1. Type

F: Connector connected to cable, socket on one cable end

2. AC/DC (Mating Section Form)

A: For AC
D: For DC

3. Connector Poles

4: 4 poles
5: 5 poles

4. Contact Plating

2: 0.4-μm gold plating

5. Cable Connection Direction

1: Straight
2: L-shaped (angled)

6. Cable Length

A: 0.3 m
B: 0.5 m
C: 1 m
D: 2 m
E: 3 m
F: 4 m
G: 5 m
H: 7 m
J: 10 m
K: 15 m
L: 20 m

Only the 2 m (D) and 5 m (G) cables are available for cables with
5 poles.

7. Connections

A: Brown --- --- Blue (for DC)
B: --- --- Brown Blue (for AC)
C: Brown --- Blue Black
8: Brown White Blue Black (for DC)
9: Brown White Blue Black (for AC)

G: Brown White Blue Black Gray

8. Connectors on One End/Both Ends

0: One end

9. Cable Specifications

A: Standard cable
R: Vibration-proof robot cable (straight/straight only)

F: Fire-

retardant, vibration-proof cable

AS: Spatter proof

1234

XS2F - @@2@ - @@0 - @

5 678 9

Pin No.

1234

Pin No.

12345

XS2F

A-9XS2F

XS2F-@42@-@@0-A Connectors with Standard Cable (2, 3 or 4 wires)

XS2F-@42@-@@0-R Connectors with Vibration-proof Robot Cable

Ordering Information

Cable type Cable

connection

direction

No. of

cable

cores

Core

diameter

Cable

length

(m)

Model UL-listed

DC AC

Standard cable Straight 2

0.5 mm

2

2 XS2F-D421-DA0-A XS2F-A421-DB0-A --­3 XS2F-D421-DC0-A --- --­4 XS2F-D421-D80-A XS2F-A421-D90-A Yes
2 5 XS2F-D421-GA0-A XS2F-A421-GB0-A --­3 XS2F-D421-GC0-A --- --­4 XS2F-D421-G80-A XS2F-A421-G90-A Yes
2 10 XS2F-D421-JA0-A XS2F-A421-JB0-A --­3 XS2F-D421-JC0-A --- --­4 XS2F-D421-J80-A XS2F-A421-J90-A Yes

L-shaped
(angled)

2 2 XS2F-D422-DA0-A XS2F-A422-DB0-A --­3 XS2F-D422-DC0-A --- --­4 XS2F-D422-D80-A --- Yes
2 5 XS2F-D422-GA0-A XS2F-A422-GB0-A --­3 XS2F-D422-GC0-A --- --­4 XS2F-D422-G80-A --- Yes
2 10 XS2F-D422-JA0-A XS2F-A422-JB0-A --­3 XS2F-D422-JC0-A --- --­4 XS2F-D422-J80-A --- Yes

Vibration-proof
robot cable

Straight 2 2 XS2F-D421-DA0-R XS2F-A421-DB0-R ---

4 XS2F-D421-D80-R XS2F-A421-D90-R --­2 5 XS2F-D421-GA0-R XS2F-A421-GB0-R --­4 XS2F-D421-G80-R XS2F-A421-G90-R --­2 10 XS2F-D421-JA0-R XS2F-A421-JB0-R --­4 XS2F-D421-J80-R XS2F-A421-J90-R ---

L-shaped
(angled)

2 2 XS2F-D422-DA0-R XS2F-A422-DB0-R --­4 XS2F-D422-D80-R --- --­2 5 XS2F-D422-GA0-R XS2F-A422-GB0-R --­4 XS2F-D422-G80-R --- --­2 10 XS2F-D422-JA0-R XS2F-A422-JB0-R --­4 XS2F-D422-J80-R --- ---

A-10 Standard Photoelectric Sensors

Specifications

Note: 1 .The contact resistance of the connector.

2 .The dielectric strength of the connector.

Materials and Finish

Note: The T-joint of the XS2R is aluminum/white.

Socket Appearance

Note: The AC and DC connectors are different as shown here and therefore

cannot be connected together.

Rated current 3 A
Rated voltage 125 VDC, 250 VAC

Contact resistance

40 mΩ max. (20 mV max., 100 mA max.)
(See note 1).

Insulation resistance 1,000 MΩ min. (at 500 VDC)

Dielectric strength

1,500 VAC for 1 min (leakage current:
1 mA max.) (See note 2).

Degree of protection IP67 (IEC529)
Insertion tolerance 200 times min.

Assembled fixture
strength

Tensile: 98 N/15 s
Torsion: 0.98 N·m/15 s

Ambient temperature Operating: -25°C to 70°C

Item XS2F XS2R XS2C/XS2G

Con­tacts

Materials

Phosphor
bronze

Brass

Finish Nickel base, 0.4-μm gold plating

Fixtures

Materials Brass (See note 1.)
Finish Nickel plated (See note 1.)

Pin
Block

Materials

PBT resin
(UL94V-0)

PA resin
(UL94V-0)

PBT resin
(UL94V-0)

Finish For DC: light gray; for AC: dark gray

O-ring/rubber bush­ing

Rubber

Cover

Polyester
elastomer

---

PBT resin
(UL94V-0)

Cap --- ---

PBT resin
(UL94V-0)

Cable clamp --- ---

PA resin
(UL94V-0)

Pin clamp --- ---

PBT resin
(UL94V-0)

Lock spring --- ---

LCP resin

(UL94V-0)
Watertight bushing --- --- Rubber
Ring --- --- Steel

DC type AC type

Male contacts

Female
contacts

Male contacts

Female
contacts

A-11XS2

XS2

Dimensions

Straight Connectors

L-shaped Connectors

Wiring Diagram

Item

Standard cable
Vibration-proof robot cable

XS2F-@42@-@@0-A
XS2F-@42@-@@0-R

Two-core model

Three-core model

Four-core model

DC AC

5 dia. 5 dia.

14.9 dia.

6 dia.

L50

5

40.7 30

DC AC

5 dia.

5 dia.

6 dia.

Brown

Blue
(DC)

Cable lead colors

Contact
No.

Brown
Blue
(AC)

Cable lead colors

Contact
No.

Brown

Blue
Black
(DC)

Cable lead colors

Contact
No.

White

Brown

Blue
Black

(DC/AC)

Cable lead colors

Contact
No.

A-12 Standard Photoelectric Sensors

5-wire Connectors for DC

XS2F-D521-@G0-A

Ordering Information

Dimensions

Straight Connectors

Cable connection
direction

No. of cable cores

Cable core cross-

sectional area

Cable length (m)

DC

Model

Straight 5

0.3 mm

2

2 XS2F-D521-DG0-A

5 XS2F-D521-GG0-A

5 dia.

M12

45°

14.9 dia.

18

48

34

L

6 dia.

30

50

5

Note: Use the XS2F-D521-@G0-A in combination

with the XS2H-D521-@G0-A.

Brown

Blue

Cable lead colors

Contact No.

Gray

White

Black

Wiring Diagram Pin Arrangements (Engagement Side)

A-13XS2

XS2

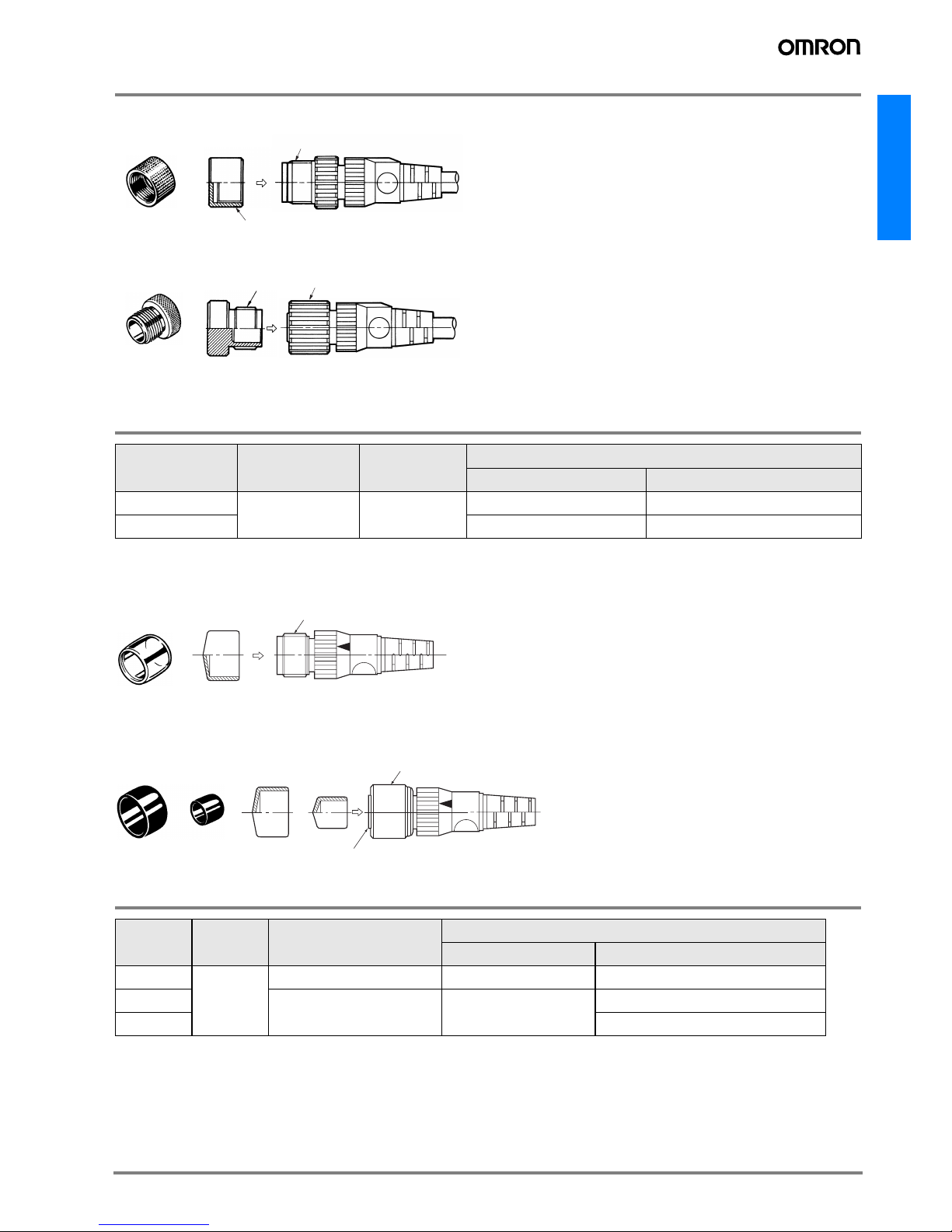

XS2 Connector Covers

Water-resistive Covers

XS2Z-11

XS2Z-12

The Water-resistive Cover ensures IP67. When mounting the Water-resistive Cover to a Connector, be sure to apply a torque range between 0.39
and 0.49 N·m to tighten the Water-resistive Cover.

Ordering Information

Note: Orders are accepted in multiples of the minimum order.

Dust Covers

XS2Z-13

The Dust Cover is for dust prevention and does not ensure IP67 degree of protection. When mounting the Dust Cover to a connector, be sure to
press the Dust Cover onto the Connector until the Connector is fully inserted into the Dust Cover.

XS2Z-15/XS1Z-14

Ordering Information

Note: Orders are accepted in multiples of the minimum order.

Model Minimum order Material

Suitable connector

Model Mounting portion

XS2Z-11

50 Brass/nickel plated

XS2R M12 male screw

XS2Z-12 XS2R/XS2F/XW3B M12 female screw (thread bracket)

Model

Minimum
order

Material

Suitable connector

Model Mounting portion

XS2Z-13

50

Transparent polyvinyl chloride XS2R M12 male screw

XS2Z-14

Red polyvinyl chloride XS2R/XS2F/XW3B

Pin block (female pins)

XS2Z-15 M12 female screw (thread bracket)

M12 male screwXS2Z-11

M12

M12 x 1.0 female screw
(thread bracket)

M12XS2Z-12

M12 male screw

XS2Z-13

M12 female screw
(thread bracket)

Pin block (female pins)

XS2Z-15

XS2Z-14

A-14 Standard Photoelectric Sensors

M8 Small Size and Robot Cable Connectors

XS3F

Model Number Legend

Use this model number legend to identify products from their model number. When ordering, use a model number from the table in

Ordering Information.

1. Fastening Method

M: M8
S: S8

2. Connector Poles

4: 4 poles

3. Cable Connection Direction

1: Straight
2: L-shaped

4. Connections

4: Brown White Blue Black

5. Cable Length

01: 1 m
02: 2 m
05: 5 m

6. Cable Specifications

A: Standard cable
R: Vibration-proof robot cable

Ordering Information

M8 Model

S8 Model

1234

XS3F - @42@ - 4@@ - @

5 678 9

Pin No.

1234

Item

Cable connection
direction

No. of cable

cores

Cable core
cross­sectional area

Cable length (m) Model

Standard cable

Straight

4

0.2 mm

2

2 XS3F-M421-402-A
5 XS3F-M421-405-A

L-shaped

2 XS3F-M422-402-A
5 XS3F-M422-405-A

Vibration-proof robot
cable

Straight

4

1 XS3F-M421-401-R
2 XS3F-M421-402-R
5 XS3F-M421-405-R

L-shaped

1 XS3F-M422-401-R
2 XS3F-M422-402-R
5 XS3F-M422-405-R

Cable connection
direction

No. of cable
cores

Cable core cross-sectional area Cable length (m) Model

Straight

4

0.2 mm

2

1 XS3F-S421-401-R
2 XS3F-S421-402-R
5 XS3F-S421-405-R

L-shaped

1 XS3F-S422-401-R
2 XS3F-S422-402-R
5 XS3F-S422-405-R

A-15XS3

XS3

Specifications

Note: 1 .The contact resistance of the connector.

2 .The dielectric strength of the connector.

Materials and Finish Pin Arrangement (Engaged Side)

Rated current 1 A
Rated voltage 125 VDC

Contact resistance

40 MΩ max. (20 mV max., 10 mA max.)
(See note 1.)

Insulation resistance 1,000 MΩ min. (at 500 VDC)

Dielectric strength

1,000 VAC for 1 min (leakage current:
1 mA max.) (See note 2.)

Degree of protection IP67 (IEC529)
Insertion tolerance 200 times
Cable tensile strength 50 N/15 s)
Ambient temperature Operating: -25°C to 70°C

Pin Block PBT resin/light gray or black
Contacts Brass/nickel base, 0.4-μm gold plating

Thread bracket (M8)
Shell (S8)

Brass/nickel plated

Cover Thermoplastic elastomer/black
O-ring Rubber

DC

Plug

Socket

A-16 Standard Photoelectric Sensors

Dimensions

M8 Screw-on cable connectors

Wiring Diagram

4 dia.

Straight Connectors

L-shaped Connectors

4 dia.

9 dia.

12

34

2.15

1.95 0.5

3

1

2

4

3.4

M8

9 dia.

12.9

L

21.5

31.4

5

30

50

White

Brown

Blue
Black

Cable lead colors

Contact No.

A-17XS3

XS3

Dimensions

M8 Snap-in cable connectors

Wiring Diagram

Straight Connectors

L-shaped Connectors

4 dia.

4 dia.

2.15

2

1

4

3

3.4

0. 5

1.95

L

30.7

21.1

13.9

50

5

30

2.15

3.4

0.5

1.95

8.2 dia.

19.8

1

3

2

4

23.1

L5 0

5

30

White

Brown

Blue
Black

Cable lead colors

Contact No.

A-18 Standard Photoelectric Sensors

Precautions

Refer to Correct Use for precautions for individual products.

Correct Use

Connections

• The XS3 and XS2 Sensor I/O Connectors cannot be connected to
each other.

• When using Sensors with Connectors or Limit Switches, use the
Sensor I/O Connectors specified in the catalog.

• Do not connect M8 screw models and S8 snap-in models together,
otherwise the proper degree of protection of the Connectors will not
be maintained.

Connector Connection and Disconnection

• Before connecting or disconnecting Connectors, make sure that no
power is being supplied to the Connectors.

• When connecting or disconnecting Connectors, be sure to hold the
Connectors by hand.

• Do not touch the engagement side of any Connector with wet
hands. If there is any water on the Connector or near the Connec­tor, be sure to wipe off the water before connecting or disconnect­ing the Connector, otherwise the Connector may short-circuit
internally or not ensure good insulation.

• Make sure that engagement side of any Connector is free of metal
dust or power.

• Do not use pliers to tighten mounting the thread bracket, otherwise
the thread bracket may be damaged. Be sure to tighten each
thread bracket by hand within a torque of 0.3 and 0.4 N·m. If the
thread bracket is not tightened securely, the Connector may not
maintain its proper degree of protection or the thread bracket may
fall off due to vibration.

• Fully insert S8 snap-in models until the Connectors are hidden by
the metal casing of the opposite parts, otherwise the Connectors
will not maintain their proper degree of protection or the thread
brackets may drop off due to vibration.

Cable Wire Color

• The M8/S8 Sensor I/O Connectors use the following lead wire col­ors.

Degree of Protection

• Do not impose external force continuously on the joints of pin
blocks and covers, otherwise the Connectors may not keep its
proper degree of protection (i.e., IP67).

• Connectors are not fully watertight. Do not use them underwater.

• The Connectors are not oil-resistant. Do not use them where they
would be subject to oil.

• If Connectors are used in places with vibration or shock, secure the
engaged side of each Connector, otherwise the Connectors may
be disconnected or fail to maintain their proper degree of protec­tion.

• Connectors are of resin mold construction. Do not impose exces­sive force on them.

Storage

Do not store Connectors for long periods of time in the following
locations

• Locations subject to dust or high humidity

• Locations subject to ammonia gas or sulfide gas

Model Pin No.

1 2 3 4

DC 8-mm-dia.

DC4

Brown White Blue Black

Accessories

A-19Accessories

Connector terminal boxes and extended wiring accessories

Overview

Note: 1 .Please contact your OMRON representative for these models

Shape

Product

group

Type

Housing
material

Features

Key

specifications

Order

reference

Applicable

Sensors

Extended wiring accessories

M12 I/O connec­tor terminal
boxes

- PBT case

- brass
connectors

-flat size

-for M12
connectors

- 4, 6 or 8 contacts
per box

-4A / port

- 10 or
30 V DC

- 4 or 5-pin

-IP67

XW3B

for all sensors
connected via M12
4-pin connections &
cables

I/O connector
terminal boxes
for bus
connection

Please contact your OMRON representative for our large portfolio of remote I/O

Waterproof
cover for M12
I/O connector

brass

water proof cover
for IP67 rating of
X3WB

XS2Z-12

M12 T-joint and
Y-joint plugs

- PVC cable

- brass nut

- daisy chain
model for ’AND’
configurations
(T-joint)

- direct wiring
models for ’OR’
configurations
(Y-joint)

- bifurcate mod­els for signal
splitting

- aggregate mod­els for reduced
wiring

- 3 A rated
current

-DC

-4-pin

-IP67

XS2R

- sensors with
built-in M12 4-pin
connector (-M1)

- sensors with M12
4-pin cable end
connector (-M1J)

M8 Y-joint plugs

- PBT case

- brass
connectors

- direct wiring
models for ’OR’
configurations

- aggregate mod­els for reduced
wiring

- 1 A rated
current

-125VDC

-4-pin

-IP67

XS3R

- sensors with built
in M8 4-pin
connector (-M3)

- sensors with M8
4-pin cable end
connector

12

A-20 Standard Photoelectric Sensors

M12 Connector Terminal Boxes

XW3B

Materials and Finish

Note: The positive power supply, negative power supply, and ground lines are

AWG18. Signal lines are AWG22.

Ratings and Characteristics

Note: 1 .The contact resistance of the Connector.

2 .The dielectric strength of the Connector.

Compatible Connectors *1

Note: 1 .Please refer to seperate datasheet X073-E1-01 for these models.

Item Part name Materials and finish

Connectors

Anchor Brass/nickel plated

Contacts

Brass/nickel base, 0.4-μm gold plat­ing

Cable Cable

Sheath color: gray
Core size: AWG18/AWG22
(See note.)

Case

Case PBT resin (UL94V-0)/light gray
Bushing Rubber
PCB Glass-epoxy board
Seal resin Urethane resin

Rated current

4 A/port (signal lines)
12 A/box (power lines)

Rated voltage 10 to 30 VDC

Contact resistance

40 MΩ max. (with 100 mA max.,
20 mV max.) (See note 1.)

Insulation resistance 100 MΩ min. (at 500 VDC)

Dielectric strength

500 VAC for 1 min (leakage current:
1 mA max.) (See note 2.)

Degree of protection IP67 (IEC529)
Cable retention force 98 N/15 s
Insertion tolerance 200 times

Operating
temperature

-25 to 70°C

XS2G

Connector Plug Assemblies
(crimping, soldering, or screw-on)

XS2W Connectors on cable ends (Sockets or Plugs)
XS2H Connectors on one cable end (Plugs)

A-21XW3B

XW3B

Ordering Information

Note: Here 1-4 and 3-4 are connector pin numbers.

Waterproof Cover (Sold Separately)

XW2Z-12

Note:The XW3B/XW3A comes with a dust cover. Use the optional XW2Z-12
Waterproof Cover when an IP67 degree of protection is required.

Connection Diagram

Sensor type and connections 3-wire DC NPN/2-wire 3-4

2-wire DC1-4/without polarity
3-4

3-wire DC PNP/2-wire DC 1-4

Actuator connections Actuator connections 1-4 --- Actuator connections 3-4

No. of ports Cable length (m) Model Model Model

4 5 XW3B-P455-G11 XW3B-P452-G11 XW3B-P453-G11

6 5 XW3B-P655-G11 XW3B-P652-G11 XW3B-P653-G11

8 5 XW3B-P855-G11 XW3B-P852-G11 XW3B-P853-G11

Model Materials

XW2Z-12 Brass/nickel plated

1

1

5

42

3

1

2

5

42

3

1

3

5

42

3

1

4

5

42

3

1

5

5

42

3

1

6

5

42

3

1

7

5

42

3

1

8

5

42

3

+ −

No. 1

No. 2

No. 3

No. 4

No. 5

No. 6

No. 7

No. 8

Ground

(Green/Yellow)

Connector
pin number

Negative power

supply (Blue)

Positive power
supply (Brown)

Signal 1

(White)

Signal 2
(Green)

Signal 3
(Yellow)

Signal 4

(Gray)

Signal 5

(Pink)

Signal 6

(Red)

Signal 7

(Black)

Signal 8
(Purple)

Power indicator
(Green LED)

Operation indicator
(Red LED)

Connector

number

Lead
color

1

1

5

42

3

1

2

5

42

3

1

3

5

42

3

1

4

5

42

3

1

5

5

42

3

1

6

5

42

3

1

7

5

42

3

1

8

5

42

3

+ −

No. 1

No. 2

No. 3

No. 4

No. 5

No. 6

No. 7

No. 8

Ground

(Green/Yellow)

Connector
pin number

Negative power

supply (Blue)

Positive power
supply (Brown)

Signal 1

(White)

Signal 2
(Green)

Signal 3
(Yellow)

Signal 4

(Gray)

Signal 5

(Pink)

Signal 6

(Red)

Signal 7

(Black)

Signal 8
(Purple)

Power indicator
(Green LED)

Operation indicator
(Red LED)

Connector

number

Lead
color

1

1

5

42

3

1

2

5

42

3

1

3

5

42

3

1

4

5

42

3

1

5

5

42

3

1

6

5

42

3

1

7

5

42

3

1

8

5

42

3

+ −

Ground

(Green/Yellow)

Connector
pin number

Negative power

supply (Blue)

Positive power
supply (Brown)

Signal 1

(White)

Signal 2
(Green)

Signal 3
(Yellow)

Signal 4

(Gray)

Signal 5

(Pink)

Signal 6

(Red)

Signal 7

(Black)

Signal 8
(Purple)

Power indicator
(Green LED)

Operation indicator
(Red LED)

No. 1

No. 2

No. 3

No. 4

No. 5

No. 6

No. 7

No. 8

Lead
color

Connector

number

Standard Japanese Specification

XW3B-P@55-G11 for 3-wire DC NPN,
2-wire DC (without polarity 3-4), and
Actuator (1-4)

European Specification

XW3B-P@53-G11 for 3-wire DC PNP,
2-wire DC (with polarity 1-4), and
Actuator (3-4)

3-Wire
NPN

Note: 1 .The above wiring diagrams are for eight-port use.

2 .Figures in parentheses indicate lead colors.
3 .The expression “white/red” means white and red stripes.
4 .Here 1-4 and 3-4 are pin numbers.
5 .Contact numbers 5 through 8 in the above diagrams do not exist on Terminal Boxes with four inputs. The

lead colors for signals 1 through 4, power supply, and ground are the same.

6 .Contact numbers 7 and 8 in the above diagrams do not exist on Terminal Boxes with six inputs. The lead

colors for signals 1 through 6, power supply, and ground are the same.

2-Wire

3-Wire
PNP

Japanese Specification

XW3B-P@52-G11 for 2-wire DC (with polarity 1-4,
without polarity 3-4)

Note: Cannot be used with NPN-type Photoelectric and Prox-

imity Sensors.
Cannot be used with Proximity Sensors with polarity 3-4.

A-22 Standard Photoelectric Sensors

Dimensions

XW3B-P45@-G11 (Four Input Ports)

XW3B-P65@-G11 (Six Input Ports)

XW3B-P85@-G11 (Eight Input Ports)

4

2

3

1

Three, 4.5 dia.

L

100

120

73

4.5

10

33 5427

13.5

6.5

9

Power indicator (green LED)

Operation indicator (red LED)

Internal connection indication

6.9 dia.

9 27 30.5

9

82

14 dia.

9

20

4

2

3

1

Three, 4.5 dia.

L

100

120

73

4.5

10

33 5427

13.5

6.5

7.7 dia.

65

2727 30.5

9

100

14 dia.9 dia.

4.5 dia.

9

20

Power indicator (green LED)

Operation indicator (red LED)

Internal connection indication

4

2

3

1

Three, 4.5 dia.

L

100

120

73

4.5

10

33 5427

13.5

6.5

8.2 dia.

65

8

7

272727 30.5

9

127

14 dia. 9 dia.

4.5 dia.

9

20

Power indicator (green LED)

Operation indicator (red LED)

Internal connection indication

33±0.1

Three, M4 or 4.5 dia.

73±

0.1

Mounting holes

Note: Mounting hole dimensions are always the same regardless of the number of ports.

XS2R

A-23XS2R

M12 Y-Joint and T-Joint Plug / Socket Connectors

XS2R

Ordering Information

Note: Orders are accepted in multiples of the minimum order.

Dimensions

Typ e Connector DC

Cable length L (m) Model

With cable

Connectors on cable ends

0.5 XS2R-D426-B11-F
1 XS2R-D426-C11-F
2 XS2R-D426-D11-F
3 XS2R-D426-E11-F

Connector on one cable end

2 XS2R-D426-D10-F
5 XS2R-D426-G10-F

Without cable Y-Joint plug/socket ---

XS2R-D426-1
XS2R-D426-5
XS2R-D426-81
XS2R-D426-82

1

XS2R-D426-@11-F
Connectors on Cable Ends
(Y-Joint Plug/Socket)

XS2R-D426-@10-F
Connectors on One Cable End
(Y-Joint Plug/Socket)

XS2R-D426-1
Y-Joint Plug/Socket without Cable

Internal Connections

Internal Connections

Internal Connections

6 dia.

4.6 dia.

Blue mark

6 dia.

4.6 dia.

Blue mark

Blue mark

4.5 dia.

Black
Blue
White
Brown

XS2R-D426-81 XS2R-D426-82

XS2R-D426-5 XS2R-D426-1

4
3
2
1

4
3
2
1

4
3
2
1

CN2

CN1

CN0

4
3
2
1

4
3
2
1

4
3
2
1

CN2

CN1

CN0

4
3
2

4
3
2
1

4
3
2
1

CN2

CN1

CN0

4
3
2
1

4
3
2
1

4
3
2
1

CN2

CN1

CN0

7

CN2

CN0

CN1

1
4

3

2

1

4

3

2

1

4

3

2

1
4

3

2

15

27

24.5

12.5

58.3

18(37)

CN2

CN1

A-24 Standard Photoelectric Sensors

Ordering Information

Dimensions

Type DC

Model

Aggregate model

XS2R-D422-1

XS2R-D422-5
Bifurcated model XS2R-D423-1
Daisy-chain model XS2R-D424-1

14.6 dia.

14.6 dia.

14.6 dia.

XS2R-D422-1
XS2R-D422-5
Aggregate Models

Internal Connections
XS2R-D422-1

XS2R-D423-1
Bifurcated Model

Internal Connections

XS2R-D424-1
Daisy-chain Model

Internal Connections

A (Female) B (Female)

C (Male)

XS2R-D422-5

A (Female) B (Female)

C (Male)

A (Male) B (Male)

C (Female)

A (Female) B (Male)

C (Female)

A-25XS2R

XS2R

Precautions

• Before using the XS2R for Sensors, make sure that the wiring of the Sensors and the internal connections of the XS2R are correct.

XS2R Application Examples

XS2R-D422-1 (Aggregate Model)

A pair of Two-wire Sensors
or Three-wire Sensors can
be connected as shown in
the illustration.
The XS2R-D422-5 has feed­through connections, thus
working as a connector for
the extension cable.

XS2R-D423-1 (Bifurcated Model)

Two or Three-wire Sensor
signals can be bifurcated.

XS2R-D424-1 (Daisy Chain Model)

Two-wire Sensors with con
tact output can be con
nected through a daisy
chain to obtain AND output.

Sensor

Photomicro­sensor

Proximity sensor

Sensor

Sensor
1

Sensor
2

Sensor
3

Sensor
4

XS2G/XS2H XS2R-D422-1 XS2G/XS2H

XS2W/XS2F/XS2C

Photomicro­sensor

Sensor

XS2W/XS2F/XS2C XS2R-D423-1 XS2W/XS2F/XS2C

XS2G/XS2H

PLC (A)

PLC (B)

A-26 Standard Photoelectric Sensors

M8 Y-Joint Plug / Socket Connectors

XS3R

Ratings and Characteristics

Note: 1 .The contact resistance of the connector.

2 .The dielectric strength of the connector.

Materials and Finish

Ordering Information

Dimensions

Rated current 1 A
Rated voltage 125 VDC

Contact resistance

60 MΩ max. (20 mV max., 100 mA max.)
(See note 1.)

Insulation resistance 1,000 MΩ min. (at 500 VDC)

Dielectric strength

1,000 VAC for 1 min (leakage current:
1 mA max.) (See note 2.)

Degree of protection IEC IP67
Insertion tolerance 200 times min.
Ambient temperature Operating: -25°C to 70°C

Pin Block PBT resin (UL94V-0)/light gray

Contacts

Phosphor bronze/nickel base,

0.4-μm gold plating

Thread bracket (M8)
Shell (S8)

Brass/nickel plated

Cover Polyester elastomer (UL94-0)/black
O-ring Rubber

Cable Connector

For M8 Connectors

Cable length L (m) Model

With cable

Connectors on cable ends

0.5 XS3R-M426-1C51-A
1 XS3R-M426-1011-A
2 XS3R-M426-1021-A
3 XS3R-M426-1031-A

Connector on one cable end

2 XS3R-M426-1020-A
5 XS3R-M426-1050-A

Without cable Connectors on both ends ---

XS3R-M426-1
XS3R-M426-5

31

24

12

CN1

CN2

Socket

4

4

Plug

CN0

2

2

4

4

1

1

3

3

10 dia.

32

L

5.6 dia.

3.5 dia.

16.4

12.5

10.5

23

4

3

2

1

CN2

CN1

CN0

4

3

2

1

1

2

3

4

XS3R-M426-1@@1-A
Connectors on Cable Ends (Y-Joint Plug/Socket)

Wiring Diagram

CN1

CN2

4

12

5

Socket

2

2

4

4

1

1

3

3

10.5

23

16.4

3.5 dia.

5.6 dia.

12.5

L

4 dia.

30

50

CN2

CN1

4

3

2

1

4

3

2

1

Brown

White

Blue

Black

Lead
colors

XS3R-M426-1@@0-A
Connector on One Cable End (Y-Joint Plug/Socket)

Wiring Diagram

A-27XS3R

XS3R

Accessories

XS3 M8/S8 Connector Cover (Order Separately)
Dust Cover

XS3Z-13 XS3Z-15

The Dust Cover is for dust prevention and does not ensure IP67.
When mounting the Dust Cover to a Connector, be sure to press the
Dust Cover onto the Connector until the Connector is fully inserted
into the Dust Cover.

Ordering Information

CN1

CN2

4

Plug

12

4

3

12

CN0

Socket

10.5

2

2

4

4

1

1

3

3

23

12.5

37.2

16.4

3.5 dia.

4

3

2

1

CN2

CN1

CN0

4

3

2

1

1

2

3

4

4

3

2

1

CN2

CN1

CN0

4

3

2

1

1

2

3

4

XS3R-M426-@
Connector on Both Ends (Y-joint Plug/Socket) without Cable

Wiring Diagram
XS3R-M426-1 XS3R-M426-5

M8 Plug

S8 Socket

S8 Plug

XS3Z-13

M8 Socket

XS3Z-15

Model Material

Suitable connector

Model Mounting portion

XS3Z-13 Polyvinyl chloride/red XS3F S8 socket

XS3Z-15 Polyvinyl chloride/red XS3F M8 socket

A-28 Standard Photoelectric Sensors

Accessories for Standard Photoelectric, Inductive and Capacitive Sensors

Accessories

Mounting brackets, covers, slits and adjustment aids

For cylindrical shapes

Shape

Product

group

Typ e Housing material Features Order reference Applicable sensors

Mounting brackets

general purpose ­screw fix

plastic

- cost efficient mounting
bracket

- for M8, M12, M18, M30

- surface mounting

Y92E-B

-E3F2

-E2A

-E2F

for dia 34 mm Y92E-A34 E2K-C

quick access ­snap fix

- snap fix for quick
sensor access

- for M8, M12, M18, M30

- surface mounting

Y92E-BC

-E3F2
(metal housing)

-E2A
(metal housing)

quick access ­clamp fix

stainless steel

- clamp fix for quick
sensor access with
exact repositioning

- for M8, M12, M18, M30

- through mounting

Y92E-G

Protective covers

general purpose
sensor head
protection

polyarylate

- for M8, M12, M18, M30

- for shielded and
unshielded

Y92E-E

-E2A
(-E2F)

sputter protection for
sensor head

silicone rubber

- increased protection in
weld fields

- for M12, M18, M30

- for shielded

Y92E@-2

general purpose lens
protection

metal rim with glas
cover

E39-F31 E3F2

A-29Accessories

Accessories

Accessories for photoelectric sensors

For square shapes

Mounting and protection

Slits

slit cover polyarylate

- slit cover for precision
detection and posi­tioning with through
beam photo sensors

-for M18

Y92E-ES18 E3F2-10

Adjustment aid for sensivity
adjuster

Polycarbonate E39-G2

photo electric sensors
with adjustable poten­tiometers

Shape Typ e Housing material Features Mounting type Order reference

Applicable

Sensors

General purpose
mounting

Stainless steel
(SUS 304)

inclination angle
adjustment

side wall mounting E39-L43

E3Zback wall mounting E39-L44

horizontal and
inclination angle
adjustment

surface mounting E39-L104

back wall mounting E39-L117

E3T-S

surface mounting E39-L116

Shape

Product

group

Typ e Housing material Features Order reference Applicable sensors

A-30 Standard Photoelectric Sensors

General purpose
mounting

Stainless steel
(SUS 304)

- back wall mounting E39-L119

E3T-F

- side wall mounting E39-L120

horizontal angle
adjustment

back wall mounting

E39-L132

E3G-R

inclination angle
adjustment

side and back wall
mounting

E39-L131

surface mounting

-E39-L139

-E39-L140

E3G-L

surface and back
wall mounting
(depending on
sensor model)

-E39-L87

-E39-L102

-E39-L103

E3S-C

Shape Type Housing material Features Mounting type Order reference

Applicable

Sensors

A-31Accessories

Accessories

General purpose
mounting

Stainless steel

(SUS 304)

3D rotation

surface, side and
backwell mounting

E39-EL4

E3G, E3MC, E3S­A, E3S-C, E3Z

E39-EL5

E3S-LS, E3S-B,
E3T, E3Z, E3C

E39-EL6

Side protection

inclination angle
adjustment

protective side wall
mounting

E39-L118 E3T-S

Shape Typ e Housing material Features Mounting type Order reference

Applicable

Sensors

A-32 Standard Photoelectric Sensors

Full protection

Stainlless steel
(SUS 304)

inclination angle
adjustment

protective side wall
mounting

E39-L142

E3Z
(pre-wired types)

horizontal angle
adjustment

protective surface
mounting

E39-L144

E39-L98

-E3Z

-E3S-C (horizontal)

E39-L97 E3S-C (vertical)

Telescope
mounting

- 360° horizontal
rotation

- max telescope
length

side and back wall
mounting

-E39-L150

-E39-L151

-E3Z

-E39-R3

3D rotation around
x, y, and z-axis

side wall, back wall
and surface moun­ting

E39-L93

Extension pipe with
XY joint

pipe mounting E39-L93XY E39-L93

Reflector adapter
for E39-L93

telescope mounting E39-L96

-E39-R1

-E39-R1S

Shape Type Housing material Features Mounting type Order reference

Applicable

Sensors

A-33Accessories

Accessories

Slit, filters and other accessories

Shape Typ e Features Mounting type Order reference

Applicable

Sensors

Precision detection
slit cover

- slit width from dia 0.5 mm for min object
size detection of dia 0.2 mm

snap on

E39-S65 E3Z-T

-E39-S63

-E39-S64

E3T-@T

E39-S61 E3S-CT

Mutual interfe­rence prevention

polarizing filter for close mounting
of multiple sensors

E39-E11 E3Z-T@A

Adjustment aid adjustment aid for sensitivity adjustment E39-E10 E3T-ST1

0.2

1

4.9

10.8

7.4

11.231.4

A-34 Standard Photoelectric Sensors

Reflectors for Retroreflective Photoelectric Sensors

E39-R

Product group Photo electric sensor accessories

Typ e General purpose reflectors Small size

Housing material

-ABS base

-Acrylic surface

Features

Surface screw
mounting
(diagonal holes)

Surface screw mounting
(holes on one side only)

Side screw mounting
or surface selfadhe­sive

Surface screw
mounting

Key specifications

size:

59.9 x 40.3 x 7.5

size:

35.4 x 42.3 x 8

size:

51.4 x 60.3 x 8.5

size:

41.8 x 22.5 x 11

size:
23 x 13.7 x 4.9

Order reference E39-R1S E39-R9 E39-R42 E39-R3 E39-R4

Applicable sensors

- Retroreflective photo electric sensors - non polarzing

- Retroreflective photo electric sensors - polarizing (MSR)

E39-R

A-35

Photo electric sensor accessories

Large size High precision

Simple

mounting

Harsh

environments

reflectors

Non-fogging

reflector

-ABS base

-Acrylic surface

- Mounting plate
stainless steel

- Reflector
acrylic

- ABS

- Acrylic surface

Surface screw mounting

Microtripel for improved performance with small
beam sensors

Round shape
with centered
mounting hole
for simple screw
mounting

Direct mount or
bracket mount

Anti-fogging
coating

size:
100 x 100 x 9

size: 84.5 x

84.5 x 8.7

size:
52 x 40 x 4.8

size:
30 x 45 x

size: 12 x 24 x

Diameter: 84
Depth: 7.4

size: 14 x 13 x 1
IP67

size:
40 x 60 x 7.5

E39-R8 E39-R40 E39-R6

E39-R12

E39-R13 E39-R7 E39-R37 E39-R1K

- Retroreflective photo electric
sensors - non polarzing

- Retroreflective photo electric
sensors - polarizing (MSR)

Recommended for fine beam and laser sensors
(E3S-CR62/67, E3C, E3X)

Polarizing and
non-polarizing
photoelectric
sensors

Recommended for harsh environ­ment sensors (e.g. E3F2-R@-S,
E3S-CR, E3ZM)

Product group Photo electric sensor accessories

Typ e General purpose tape reflectors

High precision tape

reflectors

Housing material Acrylic

Features

- Self adhesive

- Pre cut

-self adhesive

-self cut / roll material

- Self adhesive

- Pre cut

Key specifications

size:
35 x 10 x 0.6

size:
40 x 35 x 0.6

size:
80 x 70 x 0.6

size:
25 mm x 5 m

size: 25 mm x

22.8 m

size:
50 mm x 5 m

size:50 mm x

22.8 m

size:
195 x 22 x

size:
108 x 46 x

Order reference E39-RS1 E39-RS2 E39-RS3 E39-RS25 E39-RS50 E39-RS4 E39-RS5

Applicable sensors Polarizing and non-polarizing photoelectric sensors

Recommended for fine beam
and laser sensors
(E3S-CR62/67, E3C, E3X)

A-36 Standard Photoelectric Sensors

Reflectors dimensions (unit: mm)

E39-R7 E39-R40 E39-R8

E39-R1S
E39-R1K *

34

40.3

5259.9

2.

7

8

1.6

7.5

7

Two, 3.5 dia.

Material, reflective
surface: acrylic
Rear surface: ABS

*E39-R1 only
Coating on reflective surface

E39-R9

42.3

#30.9

15
25

35.4

8

3.5

5.5

8

(21)

4

Two, 3.6 dia.

Material, reflective surface: acrylic
Rear surface: ABS

E39-R42

4.5

4.5

84

84

7.4

7.4

for M3

8.7

84.5

84.5

77

77

ffor M3

or M3

9

9

100

100

100

100

92

92

92

92

E39-R3

29

4.5

6

R20

3.4

7

18.45

22.9

11

20

0.2

0.2

16

22.5

19.3

34

3834.8

2-M3

41.8

10.1

1.2

25.4

R25.4

3.4

10˚

1.2

2.6

Stainless steel
(SUS304)

Adhesive tape side

Two, 3.2 dia.

13.7

14˚

3.4

Material, reflective
surface: acrylic
Rear surface: ABS

E39-R4

13.7

9.7

2

4

23

19

Two, 2.2 dia.

1.4

4.9

4

2

Material:
Reflective surface:
acrylic
Rear surface: ABS

E39-R6

40

34

40

52

3.5

3.5

4.8

Material, reflective
surface: acrylic
Rear surface: ABS

E39-R37

10.2

8.7
(1.1)

13.7

13.7

8-R1

18.323

18.3 23

2-R1.55

Mounting
bracket: t 0.5

Two, 3.1 dia.

Reflector: t0.6
(adhesive tape side)

Reflector

Mounting bracket

Material:
Mounting plate: stainless steel (SUS301)
Reflective surface: acrylic

Note: The reflective plate and mounting plate (1) come as a set.

24

17.2

12

E39-R12/-R14

45

37

30

E39-R13

A-37E39-R

E39-R

Accessories

Reflectors

Tape Reflectors

E39-RS3

E39-RS1

E39-RS2

Type Appearance Model

Sheet (cuttable)
Effective area:
195 × 22 mm

E39-RS4

Sheet (cuttable)
Effective area:
108 × 46 mm

E39-RS5

80

4-R1

70

0.6

Adhesive tape side

35

10

0.7

Adhesive
tape

Reflecting
surface

4 x R1

40

35

0.7

Adhesive
tape

Reflecting
surface

4 x R1

A-38 Standard Photoelectric Sensors

In the interest of product improvement, specifications are subject to change without notice.Cat. No. E26E-EN2-03

OMRON EUROPE B.V.

Wegalaan 67-69,
NL-2132 JD, Hoofddorp,
The Netherlands
Phone: [phone]
Fax: [phone]
www.eu.omron.com
