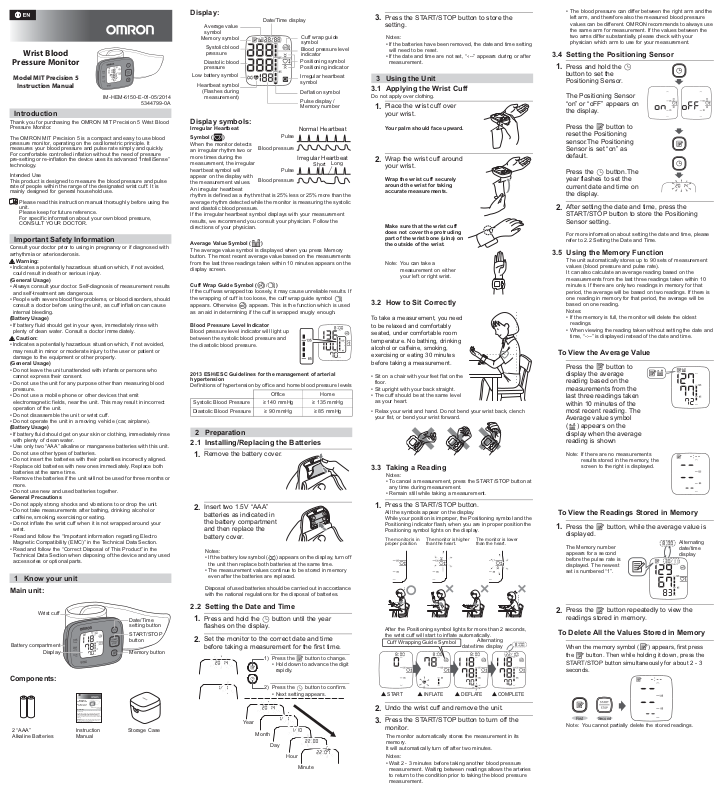

Omron MIT Precision 5 Instruction Manual

Wrist Blood

N

Pressure Monitor

Model MIT Precision 5

Instruction Manual

IM-HEM-6150-E-01-05/2014

Introduction

Thank you for purchasing the OMRON MIT Precision 5 Wrist Blood
Pressure Monitor.

The OMRON MIT Precision 5 is a compact and easy to use blood
pressure monitor, operating on the oscillometric principle. It
measures your blood pressure and pulse rate simply and quickly.
For comfortable controlled inflation without the need of pressure
pre-setting or re-inflation the device uses its advanced “IntelliSense”
technology.

Intended Use
This product is designed to measure the blood pressure and pulse
rate of people within the range of the designated wrist cuff. It is
mainly designed for general household use.

Please read this instruction manual thoroughly before using the
unit.
Please keep for future reference.
For specific information about your own blood pressure,
CONSULT YOUR DOCTOR.

Important Safety Information

Consult your doctor prior to using in pregnancy or if diagnosed with
arrhythmia or arteriosclerosis.

Warning:

• Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.

(General Usage)

• Always consult your doctor. Self-diagnosis of measurement results
and self-treatment are dangerous.

• People with severe blood flow problems, or blood disorders, should
consult a doctor before using the unit, as cuff inflation can cause
internal bleeding.

(Battery Usage)

• If battery fluid should get in your eyes, immediately rinse with
plenty of clean water. Consult a doctor immediately.

Caution:

• Indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury to the user or patient or
damage to the equipment or other property.

(General Usage)

• Do not leave the unit unattended with infants or persons who
cannot express their consent.

• Do not use the unit for any purpose other than measuring blood
pressure.

• Do not use a mobile phone or other devices that emit
electromagnetic fields, near the unit. This may result in incorrect
operation of the unit.

• Do not disassemble the unit or wrist cuff.

• Do not operate the unit in a moving vehicle (car, airplane).

(Battery Usage)

• If battery fluid should get on your skin or clothing, immediately rinse
with plenty of clean water.

• Use only two “AAA” alkaline or manganese batteries with this unit.
Do not use other types of batteries.

• Do not insert the batteries with their polarities incorrectly aligned.

• Replace old batteries with new ones immediately. Replace both
batteries at the same time.

• Remove the batteries if the unit will not be used for three months or
more.

• Do not use new and used batteries together.

General Precautions

• Do not apply strong shocks and vibrations to or drop the unit.

• Do not take measurements after bathing, drinking alcohol or
caffeine, smoking, exercising or eating.

• Do not inflate the wrist cuff when it is not wrapped around your
wrist.

• Read and follow the “Important information regarding Electro
Magnetic Compatibility (EMC)” in the Technical Data Section.

• Read and follow the “Correct Disposal of This Product” in the
Technical Data Section when disposing of the device and any used
accessories or optional parts.

1 Know your unit

Main unit:

5344799-0A

Display:

Date/Time display

Average value
symbol

Memory symbol

Systolic blood
pressure

Diastolic blood
pressure

Low battery symbol

Heartbeat symbol

(Flashes during

measurement)

Cuff wrap guide
symbol

Blood pressure level
indicator

Positioning symbol
Positioning indicator

Irregular heartbeat
symbol

Deflation symbol

Pulse display /
Memory number

Display symbols:

Irregular Heartbeat
Symbol ( )

When the monitor detects
an irregular rhythm two or
more times during the
measurement, the irregular
heartbeat symbol will
appear on the display with
the measurement values.
An irregular heartbeat
rhythm is defined as a rhythm that is 25% less or 25% more than the
average rhythm detected while the monitor is measuring the systolic
and diastolic blood pressure.
If the irregular heartbeat symbol displays with your measurement
results, we recommend you consult your physician. Follow the
directions of your physician.

Average Value Symbol ( )

The average value symbol is displayed when you press Memory
button. The most recent average value based on the measurements
from the last three readings taken within 10 minutes appears on the
display screen.

Cuff Wrap Guide Symbol ( / )
If the cuff was wrapped too loosely, it may cause unreliable results. If
the wrapping of cuff is too loose, the cuff wrap guide symbol
appears. Otherwise appears. This is the function which is used
as an aid in determining if the cuff is wrapped snugly enough.

Blood Pressure Level Indicator

Blood pressure level indicator will light up
between the systolic blood pressure and
the diastolic blood pressure.

2013 ESH/ESC Guidelines for the management of arterial
hypertension

Definitions of hypertension by office and home blood pressure levels

Systolic Blood Pressure  140 mmHg  135 mmHg

Diastolic Blood Pressure  90 mmHg  85 mmHg

Blood pressure

Blood pressure

Pulse

Pulse

Office Home

ormal Heartbeat

Irregular Heartbeat

Long

Short

2Preparation

2.1 Installing/Replacing the Batteries

Remove the battery cover.

1.

Insert two 1.5V “AAA”

2.

batteries as indicated in
the battery compartment
and then replace the
battery cover.

Notes:

• If the battery low symbol ( ) appears on the display, turn off
the unit then replace both batteries at the same time.

• The measurement values continue to be stored in memory
even after the batteries are replaced.

Disposal of used batteries should be carried out in accordance
with the national regulations for the disposal of batteries.

Press the START/STOP button to store the

3.

setting.

Notes:

• If the batteries have been removed, the date and time setting
will need to be reset.

• If the date and time are not set, “-:--” appears during or after
measurement.

3 Using the Unit

3.1 Applying the Wrist Cuff

Do not apply over clothing.

Place the wrist cuff over

1.

your wrist.

Your palm should face upward.

Wrap the wrist cuff around

2.

your wrist.

Wrap the wrist cuff securely
around the wrist for taking
accurate measurements.

Make sure that the wrist cuff
does not cover the protruding
part of the wrist bone (ulna) on
the outside of the wrist.

Note: You can take a

measurement on either
your left or right wrist.

3.2 How to Sit Correctly

To take a measurement, you need
to be relaxed and comfortably
seated, under comfortable room
temperature. No bathing, drinking
alcohol or caffeine, smoking,
exercising or eating 30 minutes
before taking a measurement.

• Sit on a chair with your feet flat on the
floor.

• Sit upright with your back straight.

• The cuff should be at the same level
as your heart.

• Relax your wrist and hand. Do not bend your wrist back, clench
your fist, or bend your wrist forward.

3.3 Taking a Reading

Notes:

• To cancel a measurement, press the START/STOP button at
any time during measurement.

• Remain still while taking a measurement.

Press the START/STOP button.

1.

All the symbols appear on the display.
While your position is improper, the Positioning symbol and the
Positioning indicator flash, when you are in proper position the
Positioning symbol lights on the display.

The monitor is in
proper position.

The monitor is higher
than the heart.

The monitor is lower
than the heart.

• The blood pressure can differ between the right arm and the
left arm, and therefore also the measured blood pressure
values can be different. OMRON recommends to always use
the same arm for measurement. If the values between the
two arms differ substantially, please check with your
physician which arm to use for your measurement.

3.4 Setting the Positioning Sensor

Press and hold the

1.

button to set the
Positioning Sensor.

The Positioning Sensor
“on” or “oFF” appears on
the display.

Press the button to
reset the Positioning
sensor.The Positioning
Sensor is set “on” as
default.

Press the button.The
year flashes to set the
current date and time on
the display.

After setting the date and time, press the

2.

START/STOP button to store the Positioning
Sensor setting.

For more information about setting the date and time, please
refer to 2.2 Setting the Date and Time.

3.5 Using the Memory Function

The unit automatically stores up to 90 sets of measurement
values (blood pressure and pulse rate).
It can also calculate an average reading based on the
measurements from the last three readings taken within 10
minutes. If there are only two readings in memory for that
period, the average will be based on two readings. If there is
one reading in memory for that period, the average will be
based on one reading.
Notes:

• If the memory is full, the monitor will delete the oldest
readings.

• When viewing the reading taken without setting the date and
time, “-:--” is displayed instead of the date and time.

To View the Average Value

Press the button to
display the average
reading based on the
measurements from the
last three readings taken
within 10 minutes of the
most recent reading. The
Average value symbol
( ) appears on the
display when the average
reading is shown

Note: If there are no measurements

results stored in the memory, the
screen to the right is displayed.

To View the Readings Stored in Memory

Press the button, while the average value is

1.

displayed.

The Memory number
appears for a second
before the pulse rate is
displayed. The newest
set is numbered “1”.

Alternating
date/time
display

Wrist cuff

Battery compartment

Display

Components:

2 “AAA”
Alkaline Batteries

Wrist Blood

Pressure Monitor

Model MIT Precision 5

Instruction Manual

IM-HEM-6150-E-01-05/2014

5344799-0A

Introduction

Thank you for purchasing the OMRON MIT Precision 5 Wrist Blood
Pressure Monitor.

The OMRON MIT Precision 5 is a compact and easy to use blood
pressure monitor, operating on the oscillometric principle. It
measures your blood pressure and pulse rate simply and quickly.
For comfortable controlled inflation without the need of pressure
pre-setting or re-inflation the device uses its advanced “IntelliSense”
technology.

Intended Use
This product is designed to measure the blood pressure and pulse
rate of people within the range of the designated wrist cuff. It is
mainly designed for general household use.

Instruction
Manual

Date/Time
setting button

START/STOP
button

Memory button

Storage Case

2.2 Setting the Date and Time

Press and hold the button until the year

1.

flashes on the display.

Set the monitor to the correct date and time

2.

before taking a measurement for the first time.

1) Press the button to change.

• Hold down to advance the digit
rapidly.

2) Press the button to confirm.

• Next setting appears.

Year

Month

Day

Hour

Minute

After the Positioning symbol lights for more than 2 seconds,
the wrist cuff will start to inflate automatically.

Cuff Wrapping Guide Symbol

START INFLATE DEFLATE COMPLETE

Undo the wrist cuff and remove the unit.

2.

Press the START/STOP button to turn off the

3.

Alternating

date/time display

monitor.

The monitor automatically stores the measurement in its
memory.
It will automatically turn off after two minutes.

Notes:

• Wait 2 - 3 minutes before taking another blood pressure
measurement. Waiting between readings allows the arteries
to return to the condition prior to taking the blood pressure
measurement.

Press the button repeatedly to view the

2.

readings stored in memory.

To Delete All the Values Stored in Memory

When the memory symbol ( ) appears, first press
the button. Then while holding it down, press the

START/STOP button simultaneously for about 2 - 3
seconds.

First Second

Note: You cannot partially delete the stored readings.

4.1 The Icons and Error Messages

4 Troubleshooting and Maintenance

5 Technical Data

6 Warranty

7

Some Useful Information about Blood Pressure

Example: fluctuation within a day (male, 35 years old)

mmHg

200

150

100

50

61218 24

Upper curve: systolic blood pressure
Lower curve: diastolic blood pressure

Time of day

Error Display Cause Remedy

Remove the wrist cuff. Wait

2 - 3 minutes and then take
Irregular heartbeats
are detected.

another measurement.

Repeat the steps in section

3.3. If this error continues to

appear, contact your doctor.

The batteries are

Blink

low.

The batteries are

Lit

exhausted.

Wrist cuff not
applied correctly.

You should replace them with

new ones ahead of time.

Refer to section 2.1.

You should replace them with

new ones at once.

Refer to section 2.1.

Apply the wrist cuff correctly.

Refer to section 3.1.

Repeat Measurement while

Movement during
measurement.

remaining still and refraining

from talking during the

measurement.

Refer to section 3.3.

Apply the wrist cuff correctly
Wrist cuff not
applied correctly, or
movement during
measurement.

and repeat measurement

while remaining still and

refraining from talking during

the measurement.

Refer to section 3.1 and 3.3.

Arm position
changed during
measurement.

Device error.

Remain still until the

measurement is complete.

Refer to section 3.3.

Contact your OMRON retail

outlet or distributor.

Note: The irregular heartbeat symbol ( ) may also be displayed

with error messages.

4.2 Troubleshooting

Problem Cause Remedy

Measure while in the
The wrist cuff is not
at heart level.

The cuff is not

The reading is
extremely low
(or high).

wrapped snugly
around the wrist.

The arms and
shoulders are
tense.

Movement or
talking during
measurement.

Wrist cuff pressure
does not rise.

Wrist cuff deflates
too soon.

Air is leaking from
the wrist cuff.

The wrist cuff is
loose.

The blood pressure is different
each time. The reading is
extremely low (or high).

The unit loses
power during
measurement.

The batteries are
exhausted.

Nothing happens
when you press
the buttons.

The batteries have
been inserted
incorrectly.

• Press the START/STOP button and repeat

measurement.

Other problems.

• If the problem continues, try replacing the

batteries with new ones.
If this still does not solve the problem, contact
your OMRON retail outlet or distributor.

correct posture.
Refer to section 3.2 and

3.3.

Wrap the cuff correctly.
Refer to section 3.1.

Relax and try taking the
measurement again.
Refer to section 3.3.

Remain still and do not
talk during Measurement.
Refer to section 3.3.

Consult your OMRON
retail outlet or distributor.

Apply the cuff correctly so
that it is firmly wrapped
around the wrist. Refer to
section 3.1.

Blood pressure readings
constantly vary with time
of day and how relaxed
you are. Take several
deep breaths and try to
remain relaxed before
taking a measurement.

Replace the batteries with
new ones.
Refer to section 2.1.

Insert the batteries with
the correct (+/-) polarity.
Refer to section 2.1.

4.3 Maintenance

To protect your unit from damage, please observe the following:

• Do not subject the main unit and the cuff to extreme
temperatures, humidity, moisture or direct sunlight.

• Do not disassemble the unit.

• Do not subject the unit to strong shocks or vibrations (for
example, dropping the unit on the floor).

• Do not use volatile liquids to clean the main unit.

• Do not wash the cuff or immerse it in water.

• Do not use petrol, thinners or similar solvents to clean the cuff.

• Do not carry out repairs of any kind yourself. If a defect occurs,
consult your OMRON retail outlet or distributor as mentioned on
the packaging.

• The unit should be cleaned with a soft, dry cloth.

• Use a soft, moistened cloth and soap to clean the cuff.

• Keep the unit in its storage case when not in use.

• Fold the cuff into the storage case.

Do not store the unit in the following situations:

• If the unit is wet.

• Locations exposed to extreme temperatures, humidity, direct
sunlight, dust or corrosive vapours.

• Locations exposed to vibrations, shocks or where it will be at an
angle.

Calibration and Service

• The accuracy of this blood pressure monitor has been carefully
tested and is designed for a long service life.

• It is generally recommended to have the unit inspected every
two years to ensure correct functioning and accuracy. Please
consult your authorised OMRON dealer or the OMRON
Customer Service at the address given on the packaging or
attached literature.

Product description OMRON Wrist Blood Pressure Monitor
Model MIT Precision 5 (HEM-6150-E)
Display LCD Digital Display
Measurement method Oscillometric method
Measurement range Pressure: 0 to 299 mmHg

Accuracy Pressure: ±3 mmHg

Inflation Automatic inflation by pump
Deflation Automatic rapid deflation
Memory 90 Measurements
Power source 2 “AAA” batteries 1.5V
Battery life Approx. 300 measurements with new

Applied part

Protection against
electric shock
Operating temperature/
humidity

Storage temperature/
humidity/air pressure
Console weight Approximately 123g without batteries
Outer dimensions Approximately 86.7 (w) mm x 67 (h) mm x

Measurable
circumference
Cuff material Nylon and polyester
Package content Main unit, storage case, battery set,

Note: Subject to technical modification without prior notice.

• This device fulfils the provisions of EC directive 93/42/EEC
(Medical Device Directive).

• This blood pressure monitor is designed according to the European
Standard EN1060, Non-invasive sphygmomanometers Part 1:
General Requirements and Part 3: Supplementary requirements
for electromechanical blood pressure measuring systems.

• This OMRON product is produced under the strict quality system of
OMRON HEALTHCARE Co. Ltd., Japan. The Core component for
OMRON blood pressure monitors, which is the Pressure Sensor, is
produced in Japan.

Pulse: 40 to 180 beats/min.

Pulse: ±5% of display reading

alkaline batteries at a room temperature of
23°C

= Type BF

Internally powered ME equipment

+10 to +40°C / Maximum: 15 to 85% RH

-20 to +60°C / Maximum: 10 to 95% RH /
700 to 1060hPa

28 (d) mm (without the wrist cuff)
Approximately 13.5 to 21.5 cm

instruction manual

Important information regarding Electro Magnetic
Compatibility (EMC)

With the increased number of electronic devices such as PC’s and
mobile (cellular) telephones, medical devices in use may be
susceptible to electromagnetic interference from other devices.
Electromagnetic interference may result in incorrect operation of
the medical device and create a potentially unsafe situation.
Medical devices should also not interfere with other devices.

In order to regulate the requirements for EMC (Electro Magnetic
Compatibility) with the aim to prevent unsafe product situations, the
EN60601-1-2:2007 standard has been implemented. This standard
defines the levels of immunity to electromagnetic interferences as
well as maximum levels of electromagnetic emissions for medical
devices.

This medical device manufactured by OMRON HEALTHCARE
conforms to this EN60601-1-2:2007 standard for both immunity and
emissions.
Nevertheless, special precautions need to be observed:

• Do not use mobile (cellular) telephones and other devices, which
generate strong electrical or electromagnetic fields, near the
medical device. This may result in incorrect operation of the unit
and create a potentially unsafe situation. Recommendation is to
keep a minimum distance of 7 m. Verify correct operation of the
device in case the distance is shorter.

Further documentation in accordance with EN60601-1-2:2007 is
available at OMRON HEALTHCARE EUROPE at the address
mentioned in this instruction manual.
Documentation is also available at www.omron-healthcare.com.

Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)

This marking shown on the product or its
literature, indicates that it should not be
disposed of, with other household wastes at the
end of its working life.

To prevent possible harm to the environment or human health from
uncontrolled waste disposal, please separate this product from
other types of wastes and recycle it responsibly to promote the
sustainable reuse of material resources.

Household users should contact either the retailer where they
purchased this product, or their local government office, for details
of where and how they can return this item for environmentally safe
recycling.
Business users should contact their supplier and check the terms
and conditions of the purchase contract. This product should not be
mixed with other commercial wastes for disposal.

Thank you for buying an OMRON product. This product is
constructed of high quality materials and great care has been taken
in its manufacturing. It is designed to give you every satisfaction,
provided that it is properly operated and maintained as described in
the instruction manual.
This product is guaranteed by OMRON for a period of 2 years after
the date of purchase. The proper construction, workmanship and
materials of this product is guaranteed by OMRON. During this
period of guarantee OMRON will, without charge for labour or parts,
repair or replace the defect product or any defective parts.

The guarantee does not cover any of the following:

a. Transport costs and risks of transport.
b. Costs for repairs and / or defects resulting from repairs done by

unauthorised persons.
c. Periodic check-ups and maintenance.
d. Failure or wear of attachments other than the main device itself,

unless explicitly guaranteed above.
e. Costs arising due to non-acceptance of a claim (those will be

charged for).
f. Damages of any kind including personal caused accidentally or

from misuse.
g. Calibration service is not included within the guarantee.

Should guarantee service be required please apply to the dealer
whom the product was purchased from or an authorised OMRON
distributor. For the address refer to the product packaging / literature
or to your specialised retailer.

If you have difficulties in finding OMRON customer services, contact
us for information.

www.omron-healthcare.com

Repair or replacement under the guarantee does not give rise to any
extension or renewal of the guarantee period.
The guarantee will be granted only if the complete product is
returned together with the original invoice / cash ticket issued to the
consumer by the retailer.

What is Blood Pressure?

Blood pressure is a measure of the force of blood flowing against the
walls of the arteries. Arterial blood pressure is constantly changing
during the course of the heart’s cycle.
The highest pressure in the cycle is called the Systolic Blood
Pressure; the lowest is the Diastolic Blood Pressure. Both
pressures, the Systolic and Diastolic, are necessary to enable a
physician to evaluate the status of a patient’s blood pressure.

What is Arrhythmia?

Arrhythmia is a condition where the heartbeat rhythm is abnormal
due to flaws in the bio-electrical system that drives the heartbeat.
Typical symptoms are skipped heartbeats, premature contraction,
an abnormally rapid (tachycardia) or slow (bradycardia) pulse.

Why is it a Good Thing to measure Blood Pressure
at Home?

Many factors such as physical
activity, anxiety, or the time of day,
can influence your blood pressure.
A single measurement may not be
sufficient for an accurate diagnosis.
Thus it is best to try and measure
your blood pressure at the same
time each day, to get an accurate indication of any changes in blood
pressure. Blood pressure is typically low in the morning and
increases from afternoon to evening. It is lower in the summer and
higher in the winter.

How are hypertension and irregular heartbeat
linked to stroke?

Hypertension (high blood pressure) and atrial fibrillation are two
major risk factors of stroke.
Irregular heartbeat is a potential indicator of atrial fibrillation.
Omron Blood Pressure monitors can help to detect hypertension
and irregular heartbeat*.
If either or both are indicated by the device, we recommend to
consult your doctor.
NOTE: Diagnosis can only be made by a doctor
* Irregular heartbeat detection is available on most Omron blood

pressure monitors.

Manufacturer

EU-representative

Production facility

Subsidiaries

OMRON HEALTHCARE Co., Ltd.

53, Kunotsubo, Terado-cho, Muko, KYOTO,
617-0002 JAPAN

OMRON HEALTHCARE EUROPE B.V.

Scorpius 33, 2132 LR Hoofddorp,
THE NETHERLANDS
www.omron-healthcare.com

OMRON HEALTHCARE MANUFACTURING
VIETNAM CO., LTD.

No.28 VSIP II, Street 2, Vietnam-Singapore
Industrial Park II,
Binh Duong Industry-Services-Urban Complex,
Hoa Phu Ward, Thu Dau Mot City,
Binh Duong Province,
Vietnam

OMRON HEALTHCARE UK LTD.

Opal Drive, Fox Milne, Milton Keynes, MK15 0DG,
UK
www.omron-healthcare.co.uk

OMRON MEDIZINTECHNIK
HANDELSGESELLSCHAFT mbH

Gottlieb-Daimler-Strasse 10, 68165 Mannheim,
GERMANY
www.omron-healthcare.de

OMRON SANTÉ FRANCE SAS

14, rue de Lisbonne, 93561 Rosny-sous-Bois
Cedex, FRANCE
www.omron-healthcare.fr

Made in Vietnam
