Digital Automatic Blood Pressure Monitor
Model MIT Elite Plus
• Instruction Manual
• Mode d’emploi
• Gebrauchsanweisung
• Manuale di istruzioni
• Manual de instrucciones
• Gebruiksaanwijzing
• РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
IM-HEM-7301-ITKE7-04-06/2013
5329378-0F
EN
FR
DE
IT
ES
NL
RU
AR
Contents
Before using the unit
Introduction................................................................................3
Important Safety Information....................................................4
1. Overview...............................................................................6
2. Preparation.........................................................................10
2.1 Installing/Replacing the Batteries....................................10
2.2 Setting the Date and Time ...................... .... ....................12
Operating instructions
3. Using the Unit.....................................................................15
3.1 How to Sit Correctly When Taking a Measurement........15
3.2 Applying the Arm Cuff.....................................................17
3.3 Taking a Reading............................................................20

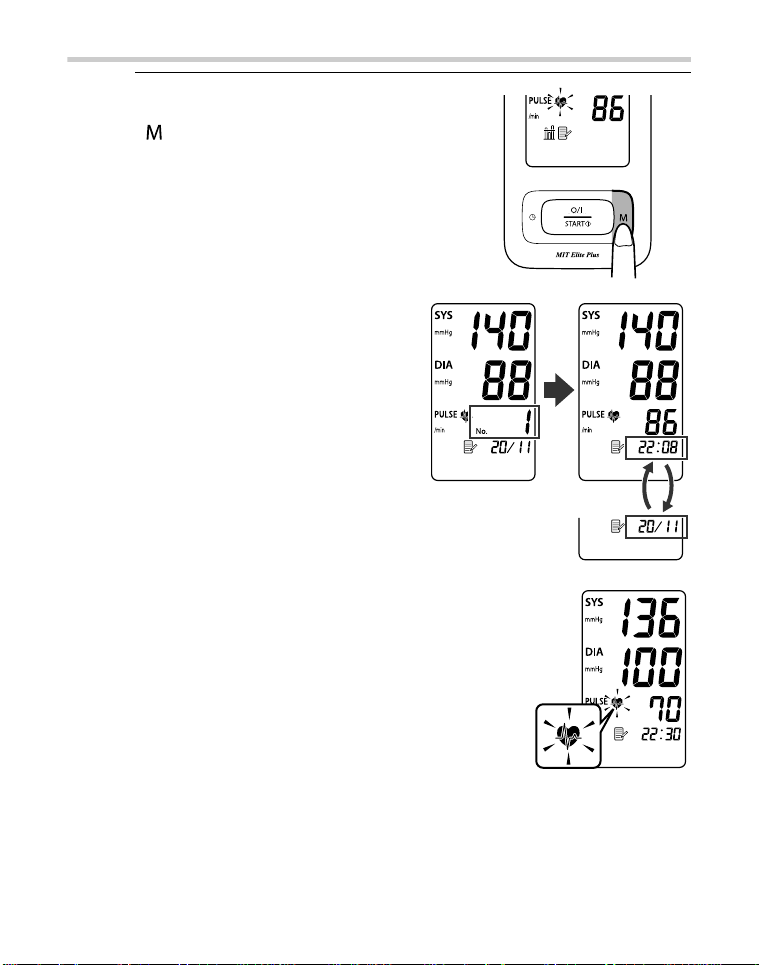

3.4 Using the Memory Function............................................25
4. Quick Reference Guide .....................................................29
5. Using the Software ............................................................30
Care and maintenance
6. Handling Errors and Problems.........................................32
6.1 Error Messages...............................................................32
6.2 Troubleshooting..............................................................34
7. Maintenance and Storage .................................................36
8. Optional Parts ....................................................................38
9. Technical Data....................................................................39
10. Some Useful Information about Blood Pressure ............41
2
Before using the unit
Introduction
Thank you for purchasing the OMRON MIT Elite Plus Upper Arm Blood
Pressure Monitor.
The OMRON MIT Elite Plus is a fully automatic blood pressure
monitor, operating on the oscillometric principle. It measures your
blood pressure and pulse rate simply and quickly. For comfortable
controlled inflation without the need for pressure pre-setting or reinflation the device uses its advanced “IntelliSense” technology.
The unit also stores up to 90 measureme nts in memor y and calculates
an average reading based on the three most recent measurements
taken within 10 minutes of the last reading.
Omron’s blood pressure management software included with this unit
allows you to view, manage and print data about blood pressure
measured by the OMRON MIT Elite Plus. Included software is in
English only.
Please read this instruction manual thoroughly before
using the unit. For specific information about your own
blood pressure, CONSULT YOUR DOCTOR.
EN
3
Important Safety Information
Important Safety Information
Consult your doctor during pregnancy, arrhythmia and arteriosclerosis. Please
read this section carefully before using the unit.
Warning:
Indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
(General Usage)
• Always consult your doctor. Self-diagnosis of measurement results and selftreatment are dangerous.
• People with severe blood flow problems, or blood disorders, should consult a
doctor before using the unit. Cuff inflation can cause internal bleeding.
(Battery Usage)
• If battery fluid should get in your eyes, immediately rinse with plenty of clean
water. Consult a doctor immediately.
(Optional AC Adapter Usage)
• Never plug in or unplug the power cord from the electric outlet with wet
hands.
Caution:
Indicates a potentially hazardous situation which, if not avoided, may result in
minor or moderate injury to the user or patient or damage to the equipment or
other property.
(General Usage)
• Do not leave the unit unattended with infants or persons who cannot express
their consent.
• Do not use the unit for any purpose other than measuring blood pressure.
• Do not disassemble the unit or arm cuff.
• Do not inflate the arm cuff over 299 mmHg.
• Do not use a mobile phone, or other devices that emit electromagnetic fields,
near the unit. This may result in incorrect operation of the unit.
• Do not operate unit in a moving vehicle (car, airplane).
• Do not play the CD-ROM disc included with this monitor on general audio
players, DVD players or personal game devices. It may damage the speaker
of the device and may harm your hearing ability.
4
Important Safety Information
(Optional AC Adapter Usage)
• Use only the original AC adapter designed for this unit. Use of unsupported
adapters may damage and/or may be hazardous to the unit.
• Plug the AC adapter into the appropriate voltage outlet.
• Do not use the AC adapter if the unit or the power cord is damaged. Turn off
the power and unplug the power cord immediately.
(Battery Usage)
• If battery fluid should get on your skin or clothing, immediately rinse with
plenty of clean water.
• Use only four “AAA” alkaline batteries with this unit. Do not use other types of
batteries.
• Do not insert the batteries with their polarities incorrectly aligned.
• Replace old batteries with new ones immediately. Replace all four batteries at
the same time.
• Remove the batteries if the unit will not be used for three months or more.
• When the batteries are replaced, you may need to reset the date and time. If
the year is flashing on the display screen, refer to “2.2 Setting the Date and
Time”.
• Do not use new and used batteries together.
General Safety Precautions
• Do not inflate the arm cuff when it is not wrapped around your arm.
• Do not apply strong shocks and vibrations to or drop the unit.
• Do not take measurements after bathing, drinking alcohol, smoking,
exercising or eating.
• Do not wash the arm cuff or immerse it in water.
• Read and follow the “Important information regarding Electro Magnetic
Compatibility (EMC)” in the Technical Data Section.
• Read and follow the “Correct Disposal of This Product” in the Technical Data
Section when disposing of the device and any used accessories or optional
parts.
Save these instructions for future reference.
EN
5
1.Overview
G
F
C
A
H
E
D
B
1. Overview
Main unit
A. Air jack
B. Date/time setting button ( )
C. O/I START button
D. Memory button ( )
E. AC adapter jack (for optional AC
adapter)
6
F. USB port
G. Display
H. Battery comp ar tment
Arm Cuff
K
J
I
I. Arm cuff
(Medium cuff: arm circumference 22-32 cm)
J. Air tube
K. Air plug
1.Overview
EN
7
1.Overview
L
M
O
Q
S
N
U
W
T
V
P
R
Display
L. Systolic blood pressure
M. Diastolic blood pressure
N. Heartbeat symbol
1.
Flashes during measurement
2.
If flashing after measurement
complete indicates blood
pressure out of recommended
range
O. Deflation symbol
P. Memory symbol
Displayed when viewing values
stored in memory
Q. Average value symbol
Displayed when viewing value for
the last three measurements
R. Battery low symbol
S. Movement error symbol
Displayed if you move your body
during the measurement
T. Pulse display
U. Date/Time display
V. Irregular heartbeat symbol
W. Guest symbol
Note: The backlight turns on when setting the date and time, when
taking measurement, and displaying measuremen t values.
8
Package contents
YX Z
AA
1.Overview
X. Storage case
Y. Four “AAA” alkaline (LR03)
batteries
Z. USB cable
AA.CD-ROM
• Instruction manual
• Guarantee card
• Blood pressure pass
• Software Installation Guide
EN
9
2.Preparation
2. Preparation
2.1 Installing/Replacing the Batteries
1. Turn the main unit upside down.
2. Slide the battery cover in the
direction of the arrow while
pressing the ribbed part of the
cover.
3. Install or rep lace four “AAA” size
batteries so that the + (positive)
and - (negative) polarities match
the polarities indicated on the
battery compartment.
4. Put the battery cover back in
place.
Slide the battery cover as
indicated, until it clicks into
place.
Note: The measurement values continue to be stored in
memory even after the batteries are replaced.
10
2.Preparation
Battery Life & Replacement
If the battery low symbol ( ) appears on the display, replace all four
batteries at the same time.
- When the battery low symbol ( ) starts to blink, you will still be
able to use the unit for a short while. You should replace the
batteries with new ones ahead of time.
- When the symbol ( ) remains lit, the batteries are exhausted. You
should replace the batteries with new ones at once. Turn the unit off
before replacing the batteries.
• Remove the batteries if the unit will not be used for three months or
more.
• If the batteries have been removed for more than 30 seconds, the
Date/Time setting will need to be reset. See “2.2 Setting th e Date and
Time” for details.
• Dispose of batteries according to applicable local regulations.
Four new
“AAA” alkaline batteries will last for approximately 300
measurements, when used to take three measurements a day.
Since the supplied batteries are for monitoring use only, they may have
a shorter life and not last for 300 measurements.
EN
11
2.Preparation
2.2 Setting the Date and Time
Your blood pressure monitor automatically stores up to 90
measurements values with the date and time. To make use of the
memory and average values functions:
• Set the unit to the correct date and time before taking a me asurement
for the first time.
• If the batteries have been removed for more than 30 seconds, the
Date/Time setting will need to be set.
1. Press and hold the Date/time setting
button ( ) to adjust the date and
time. The year digits (2008) will flash
on the display.
2. Press the Memory button ( ) to
advance the digits one at a time.
Notes:
• The range for the year setting is
2008 to 2030. If the year reaches
2030, it will return to 2008.
• If you hold down the Memory
button ( ), the digits will advance
rapidly.
12
3. Press the Date/time setting button
( ) to confirm the setting when the
desired number appears on the
display.
The year is set and the month digits
flash on the display.
4. Repeat steps 2 and 3 to set the
month.
The month is set and the day digits
flash on the display.
2.Preparation
5. Repeat steps 2 and 3 to set the day.
The day is set and the hour digits
flash on the display.
EN
13
2.Preparation
6. Repeat steps 2 and 3 to set the
hour.
The hour is set and the minutes
digits flash on the display.
7. Repeat steps 2 and 3 to set the minutes.
The minutes settings is set.
Press the Date/time setting button
( ) to turn the monitor off.
When adjusting the date and time,
press the Date/time setting button
( ) to turn the monitor on, follow
the steps above, and press the O/I START button to turn the
monitor off.
14
Correct
Posture
Remove tight fitting clothing from
your upper arm, and any thick
clothing such as a sweater.
Do not place the cuff over thick
clothes and do not roll up your sleeve
if it is too tight.
Sit upright
with your
back straight.
Place your arm on a table so
that the cuff will be at the same
level as your heart.
The gap between the
chair and the top of the
table should be between
25cm to 30cm.
Operating instructions
3. Using the Unit
3.Using the Unit
3.1
How to Sit Correctly When Taking a Measurement
You can take a measurement on either your left or right arm.
Notes:
• Measurements should be taken in a quiet place and you should be in
a relaxed, seated position. Make sure that the room is not too hot or
cold.
• Avoid eating, drinking alcohol, smoking, or exercising for at least 30
minutes before taking a measurement.
• Do not move or talk during measurement.
EN
15
3.Using the Unit
Incorrect Posture
These situations could lead to higher blood pressure values due to
strain or the arm cuff being lower than the heart.
If the arm cuff is at a lower position than your heart use cushions
etc., to adjust the height of your arm.
• Arched back (leaning
forwards)
• Sitting cross-legged
• Sitting on a sofa or at a low
table so that you tend to lean
forward
Notes:
• Correct posture during measurement is necessary to get accurate
results.
• You sh ould also try to m easur e yo ur blo od pr essu re at the same time
each day. (Within 1 hour after waking up is recommended.)
16
3.Using the Unit
3.2 Applying the Arm Cuff
Notes:
• Be sure to wrap the arm cuff correctly so that you get accurate
results.
• Measurements can be taken in light clothing. However, please
remove thick clothes, such as sweaters, before taking a reading.
• You can take a measurement on either your left or right arm. The
blood pressure can differ between the right arm and the left arm and
therefore also the measured blood pressure values can be different.
Omron recommends to always use the same arm for measu rement. If
the values between the two arms differ substantially, please check
with your doctor which arm to use for your measurement.
Taking measurements on the left arm
1. Insert the air plug into the air
jack on the left side of the main
unit.
EN
17
3.Using the Unit
2. Put your left ar m through the cuff
loop.
Note: If the cuff is not assembled,
pass the end of the cuff
furthest from the tubing
through the metal D-ring to
form a loop. The smooth cloth
should be on the inside of the
cuff loop.
18
3.Using the Unit
1) The air tube should run
down the inside of your
forearm and be in line with
your middle finger.
2) The bottom of the cuff
should be approximately 1
to 2 cm above your elbow.
3) Apply the cuff to your
upper arm so that the
coloured marker (blue
arrow under tube) is
centred on the middle of
your inner arm and points
down the inside of the
arm.
1 to 2 cm
3. Position the arm correctly.
Taking measurements on the right arm
Apply the cuff so that the
air tube is at the side of
your elbow.
• Be careful not to rest
your arm on the air tube,
or otherwise restrict the
flow of air to the cuff.
• The cuff should be 1 to 2
cm above the elbow.
4. When the cuff is positioned correctly, close the fabric fastener
FIRMLY.
EN
19
3.Using the Unit
3.3 Taking a Reading
1. Press the O/I START button to turn on the unit.
All symbols appear on the display.
The cuff starts to inflate automatically. As the cuff inflates, the
unit automatically determines your ideal inflation level. This unit
detects the pulse during inflation. Do not move your arm and
remain still until the entire measurement process is completed.
Note: To stop the inflation or measurement, press and release
the O/I START button. The unit will stop inflating, start
deflation and will turn off.
2. When the measurement is complete, the arm
cuff completely deflates. Your blood pressure
and pulse rate are displayed.
20
3.Using the Unit
3. Press the O/I START button to turn
the unit off.
Note: If you forget to turn the
monitor off, it will
automatically turn off after
two minutes.
Notes:
• Self-diagnosis of measured results and treatment are dangerous.
Please follow the instructions of your doctor.
• Wait 2-3 minutes before taking anot her blood pressure measurement.
Waiting between readings allows the arte ries to return to the condition
prior to taking the blood pressure measurement.
EN
21
3.Using the Unit
Using the Guest Mode
The monitor stores measurement values for one user in the memory.
The guest mode can be used to take a single measurement for anothe r
user.
No measurement values are stored in the memory when the guest
mode is selected.
1. Press and hold the O/I START button for 3 seconds.
The Guest symbol ( ) appears on
the display.
2. Release the O/I START button.
The cuff starts to inflate automatically.
Note: To stop the inflation, press the O/I START button. The
monitor will stop inflating, start deflating and turn off.
3. Inflation stops and the measurement is started. When the
measurement is completed, your blood pressure and pulse rate
appear on the display.
22
3.Using the Unit
Important:
• If your systolic or diastolic pressure is outside the
standard range, the heartbeat symbol will blink
when the measurement result is displayed.
Recent research suggests that the following
values can be used as a guide to high blood
pressure for measurements taken at home.
Systolic Blood Pressure Above 135 mmHg
Diastolic Blood Pressure Above 85 mmHg
This criteria is for home blood pressure measurement.
For professional office blood pressure measurement criteria, please
refer to Chapter 10 “Some Useful Information about Blood Pressure”.
• Your bloo d pressure monitor includes an irregular
heartbeat feature. Irregular heartbeats can
influence the results of the measurement. The
irregular heartbeat algorithm automatically
determines if the measurement is usable or
needs to be repeated. If the measurement resu lts
are affected by irregular heartbeats but th e re sult
is valid, the result is shown together with the
irregular heartbeat symbol. If the irregular
heartbeats cause the measurement to be invalid, no result is shown.
If the irregular heartbeat symbol ( ) is shown after you have taken
a measurement, repeat the measurement. If the irregular heartbeat
symbol is shown frequently, please make your doctor aware of it.
EN
23
3.Using the Unit

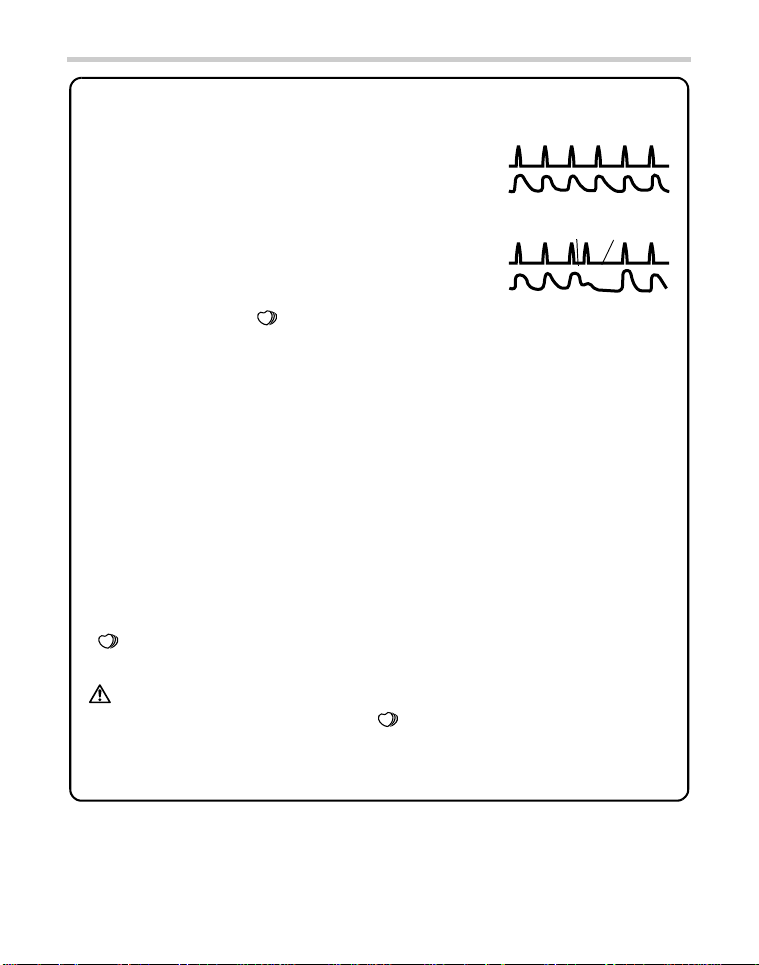

Normal Heartbeat
What is Irregular Heartbeat?
An irregular heartbeat is a
heartbeat rhythm that varies by
more than 25% from the average
heartbeat rhythm detected while
the unit is measuring the systolic
and diastolic blood pressure.
If such an irregular rhythm is
detected more than twice during
measurement, the irregular
Blood pressure
Blood pressure
Pulse
Irregular Heartbeat
Pulse
Short
Long
heartbeat symbol ( ) appears on the symbol when the
measurement results are displayed.
What is Arrhythmia?
A heartbeat is stimulated by electrical signals that cause the heart
to contract.
Arrhythmia is a condition where the heartbeat rhythm is abnormal
due to flaws in the bio-electrical system that drives the heartbeat.
Typical symptoms are skipped heartbeats, premature contraction,
an abnormally rapid (tachycard ia) or slow (bradycardia) pulse. This
can be caused by heart disease, aging, physical predisposition,
stress, lack of sleep, fatigue etc. Arrhythmia can only be diagnosed
by a doctor through a special examination.
Whether the appearance of the irregular heartbeat symbol
( ) in the results indicates arrhythmia or not can only be
determined by an examination and diagnosis by your doctor.
Warning:
If the Irregular heartbeat symbol
make your doctor aware of it. Conducting self-diagnosis and
treatment based on measurement results are dangerous. Be sure to
follow the instructions of your doct o r.
( ) is shown frequently, please
24
3.Using the Unit
3.4 Using the Memory Function
This unit has a memory capable of storing 90 sets of readings. Every
time you complete the measurement, the unit automatically stores the
blood pressure and pulse rate.
If there are three readings within 10 minutes of the last reading, the
average of the three readings is displayed.
Note: When 90 sets of readings are stored in memory, the oldest set
will be deleted to store a new set.
1. Press the Memory button ( ).
If there are three readings stored in memory that were taken
within 10 minutes of the last reading, an average value for
those reading is displayed. (If there are only two readings in
memory for that period, the average will be based on two
readings. If there is only one reading in memory for that period,
that reading will be displayed as the average value.)
EN
Note: If there are no measurements
results stored in memory , the screen
to the right is displayed.
25
3.Using the Unit
2. While the average value is
displayed, press the Memory button
( ) again.
The result from the most recent
measurement is displayed.
The date and time are
alternately displayed.
Note: If your systolic or diastolic
pressure is outside the standard
range, the heartbeat symbol will
blink when the measurement result
is displayed. Refer to section 3.3.
26
3.Using the Unit
3. Press the Memory button ( )
repeatedly to cycle through the
previous measurement results.
Keep the button pressed down to
cycle rapidly through the previous
results.
If the irregular heartbeat symbol was
displayed at the time of a
measurement, this is displayed when that result is displayed.
4. Press the O/I START button to turn the unit off.
If you forget to turn the unit off, it will automatically shut itself off
after two minutes.
EN
27
3.Using the Unit
To Delete All the Values Stored in Memory
You cannot delete individual stored readings, all the readings in the
unit will be deleted.
1. Press the Memory button
( ) to turn the monitor on.
2. Press the Memory button
( ) again. While holding the
Memory button ( ), press
the O/I Start button down for
approximately 5 seconds
until the digital display
appears as it does in the illustration to the right.
3. Press the O/I START button to turn the unit off.
If you forget to turn the unit off, it will automatically shut itself off
after two minutes.
Note: If the date and time are reset to a time before the most
recent measurement, the average value will be based on
any measurements taken after the date and time were
reset. However, you can still view the readings stored in
memory.
28
4.Quick Reference Guide
4. Quick Reference Guide
If you are using this device for the first time, please read carefully
chapter 3 of this instruction manual. To help ensure a reliable reading,
avoid eating, drinking alcohol, smoking, or exercising for at least 30
minutes before taking a measurement.
Note: Remove any tight-fitting clothing from your upper arm.
1.
Sit on a chair with your feet flat on the floor and place your arm on
a table so that the arm cuff will be at the same level as your heart.
2. Apply the arm cuff to your upper arm. The coloured marker
should be centred on the inside of your arm and point down the
inside of the arm, so that the air tube runs down the inside of
your forearm and is in line with your middle finger.
3. Secure the cuff around your arm using the fabric fastener strip.
4. Press the O/I START button.
When measurement is complete,
the monitor displays your blood
pressure and pulse rate, and
automatically deflates the cuff.
EN
Notes:
• Always wait at least 2-3 minutes before taking another blood
pressure measurement.
• Please note that all measurements are stored in the memory.
If different people measure with the same device make sure
that you are aware of this fact.
29
5.Using the Software
5. Using the Software
OMRON HEALTH MANAGEMENT SOFTWARE
Omron Health Management Software allows you to view, track and
print data about blood pressure measured by Omron blood pressure
monitors and steps measured by OMRON step counters with a PC
download.
Caution:
This is a CD-ROM disc. Do not play this disc on general audio players,
DVD players or personal game devices. It may dam age the spe aker of
the device and may harm your hearing ability.
Refer to the enclosed Software Installation Guide for details on
installing and using the software.
Use only the authorized Omron USB cable included with this unit.
Caution:
Use only Omron authorized parts and accessories. Parts and
accessories not approved for use with the device may damage the
unit.
1. Open the USB Port cover.
Note: Do not allow objects to come
into contact with the USB
Port.
30
5.Using the Software
Normal USB
Connector
Mini USB Connector
2. Plug the normal USB Connector
(Large Connector) into the personal
computer.
3. Plug the mini USB connector (Small
Connector) into the USB Port.
Notes:
• You cannot transfer the data while taking a blood pressure reading.
• Do not turn the PC off or unplug the USB cable while the data is being
transferred.
EN
31
Care and maintenance
Blinks or appears
continuously
6.Handling Errors and Problems
6. Handling Errors and Problems
6.1 Error Messages
Error Display Cause Remedy
Movement during
measurement
Air plug disconnected.
Arm cuff not applied
correctly.
Clothing is interfering with
the arm cuff.
Air is leaking from the arm
cuff.
Repeat measurement. Remain still
and do not talk during
measurement.
Refer to section 3.3.
Insert the air plug securely.
Refer to section 3.2.
Apply the arm cuff correctly.
Refer to section 3.2.
Remove any clothing interfering
with the arm cuff.
Refer to section 3.2.
Replace cuff with new one.
Refer to Chapter 8.
32
The arm cuff was inflated
above 299 mmHg when
inflating the cuff manually.
Battery power is low.
Remove the arm cuff and take
another measurement.
Refer to section 3.3.
Replace all four “AAA” batteries
with new ones.
Refer to section 2.1.
6.Handling Errors and Problems
Error Display Cause Remedy
Contact your OMRON retail outlet
Device error.
Note: The irregular heartbeat symbol may also be displayed with error messages.
or distributor.
Refer to Chapter 9.
EN
33
6.Handling Errors and Problems
6.2 Troubleshooting
Problem Cause Remedy
The reading is
extremely low (or high).
Arm cuff pressure does
not rise.
Arm cuff deflates too
soon.
Cannot measure or
readings are too high.
The unit loses power
during measurement.
Arm cuff not applied
correctly.
Movement or talking
during measurement.
Clothing is interfering
with the arm cuff.
Is the air jack securely
inserted into the main
unit?
Air is leaking from the
arm cuff.
The arm cuff is loose.
Is the cuff wrapped
correctly around the
arm?
The cuff pressure does
not rise although the
pump motor can be
heard.
The batteries are empty.
Apply the arm cuff
correctly.
Refer to section 3.2.
Remain still and do not
talk during
measurement.
Refer to section 3.3.
Remove any clothing
interfering with the arm
cuff.
Refer to section 3.1.
Make sure that the air
jack is connected
securely.
Refer to section 3.2.
Replace the arm cuff
with a new one.
Refer to Chapter 8.
Apply the cuff correctly
so that it is firmly
wrapped around the
arm.
Refer to section 3.2.
Attach the arm cuff
correctly.
Check that the air plug
is properly connected to
the unit. Push the air
plug firmly into the air
jack.
Replace the batteries
with new ones.
34
6.Handling Errors and Problems
Problem Cause Remedy
Nothing happens when
you press the buttons.
Other problems.
The batteries are empty.
The batteries have been
inserted incorrectly.
Press the O/I START button and repeat
measurement.
If the problem continues, try replacing the batteries
with new ones.
If this still does not solve the problem, contact your
OMRON retail outlet or distributor.
Replace the batteries
with new ones.
Insert the batteries with
the correct (+/ -) polarity.
EN
35
7.Maintenance and Storage
7. Maintenance and Storage
Maintenance
To protect your unit from damage, please observe the following:
• Do not subject the main unit and cuff to extreme temperatures,
humidity, moisture or direct sunlight.
• Do not fold the cuff or tubing tightly.
• Do not inflate the arm cuff over 299 mmHg.
• Do not disassemble the unit.
• Do not subject the unit to strong shocks or vibrations (for example,
dropping the unit on the floor).
• Do not use volatile liquids to clean the main unit.
• Do not wash the arm cuff or immerse it in water.
• Do not use petrol, thinners or similar solvents to clean the arm cuff.
• Do not carry out repairs of any kind by yourself. If a defect occurs,
consult your OMRON retail outlet or distributor as mentioned on the
packaging.
• The unit should be cleaned with a soft, dry cloth.
• Use a soft, moistened cloth and soap to clean the arm cuff.
Calibration and Service
• The accuracy of this blood pressure monitor has been carefully tested
and is designed for a long service life.
• It is generally recommended to have the unit inspected every two
years to ensure correct functioning and accuracy. Please consult your
authorised OMRON dealer or the OMRON Customer Service at the
address given on the packaging or attached literature.
Note: Inspections are normally not covered by guarantee, please
check the included guarantee card.
36
7.Maintenance and Storage
• Do not carry out any repairs yourself. If a defect occurs or you have
doubts about the correct functioning of the device, consult your
authorised OMRON dealer or the OMRON Customer Service.
Storage
Keep the unit in its storage case when not in use.
1. Unplug the air tube from the air jack.
2. Gently fold the air tube into the arm
cuff.
Note: Do not bend the air tube
excessively.
3. Place the arm cuff and main unit in
the storage case.
EN
Do not store the unit in the following situations:
• If the unit is wet.
• Locations exposed to extreme temperatures, humidity , direct sunlight,
dust or corrosive vapours.
• Locations exposed to vibrations, shocks or where it will be at an
angle.
37
8.Optional Parts
CM1-9997578-9
CL-MIT Elite
9999358-2
Note: CL1 cuff cannot be
used for this device.
Adapter-3094298-6
(Model: AC Adapter-E1600)
Note: Q Adapter-1098336-8 and
R Adapter-9997605-0 and
S Adapter-9515336-9
cannot be used for this
device.
1
2
8. Optional Parts
Medium Arm Cuff
Arm circumference 22 - 32 cm
Using the Optional AC Adapter
Insert batteries into the battery compartment even when using the AC
adapter.
Notes:
• Never unplug the power cord with wet hands.
• Use only the original AC adapter designed for this unit. Use of
unsupported adapters may damage the unit.
• When storing the optional AC adapter with the main unit, be
careful not to damage the main unit or cuff.
Large Arm Cuff
Arm circumference 32 - 42 cm
AC Adapter
1. Insert the AC adapter plug
into the AC adapter jack on
the right side of the main unit.
2. Plug the AC adapter into an
electrical outlet.
To disconnect the AC adapter, unplug the AC adapter from the
electrical outlet first and then immediately remove the AC adapter plug
from the main unit.
38
9. Technical Data
= Type B
Product Description Digital Automatic Blood Pressure Monitor
Model OMRON MIT Elite Plus (HEM-7301-ITKE7)
Display LCD Digital Display
Measurement Method Oscillometric method
Measurement Range
Accuracy
Inflation Fuzzy-logic controlled by electric pump
Deflation Automatic pressure release valve
Memory 90 Measurements with date and time
Power Source
Battery life
Operating temperature/
Humidity
Storage temperature/
Humidity/Air Pressure
Console Weight Approximately 270g without batteries
Cuff Weight Approximately 130g
Outer Dimensions Approximately 74 (w) mm × 34 (h) mm × 157 (l) mm
Cuff Dimensions
Package Content
Note: Subject to technical modification without prior notice.
Pressure: 0 mmHg to 299 mmHg
Pulse: 40 to 180/min.
Pressure: ± 3 mmHg
Pulse: ± 5% of display reading
4 “AAA” alkaline batteries 1.5V or AC/ DC adapter
(optional, 6V 4W)
Approximately 300 uses when used 3 times a day with new
alkaline batteries when inflated to 170mmHg at 23°C
+10°C to +40°C
Maximum: 30 to 85% RH
-20°C to +60°C
Maximum: 10 to 95% RH
700 - 1060hPa
Approximately 146 mm × 446 mm
(Medium cuff: arm circumference 22 to 32 cm)
Medium cuff, instruction manual, storage case, battery set,
USB cable, CD-ROM, guarantee card, blood pressure pass
9.Technical Data
EN
• This device fulfils the previsions of EC directive 93/42/EEC (Medical Device Directive).
• This blood pressure monitor is designed according to the European Standard EN1060,
Non-invasive sphygmomanometers Part 1: General Requirements and Part 3:
Supplementary requirements for electromechanical blood pressure measuring
systems.
• This OMRON product is produced under the strict quality system of OMRON
HEALTHCARE Co. Ltd., Japan. The Core component for OMRON blood pressure
monitors, which is the Pressure Sensor, is produced in Japan.
39
9.Technical Data
Important information regarding Electro Magnetic Compatibility (EMC)
With the increased number of electronic devices such as PC’s and mobile (cellular) telephones, medical
devices in use may be susceptible to electromagnetic interference from other devices. Electromagnetic
interference may result in incorrect operation of the medical device and create a potentially unsafe
situation.
Medical devices should also not interfere with other devices.
In order to regulate the requirements for EMC (Electro Magnetic Compatibility) with the aim to prevent
unsafe product situations, the EN60601-1-2:2007 standard has been implemented. This standard defines
the levels of immunity to electromagnetic interferences as well as maximum levels of electromagnetic
emissions for medical devices.
This medical device manufactured by OMRON HEALTHCARE conforms to this EN60601-1-2:2007
standard for both immunity and emissions.
Nevertheless, special precautions need to be observed:
Do not use mobile (cellular) telephones and other devices, which generate strong electrical or
electromagnetic fields, near the medical device. This may result in incorrect operation of the unit and
create a potentially unsafe situation. Recommendation is to keep a minimum distance of 7 m. Verify
correct operation of the device in case the distance is shorter.
Further documentation in accordance with EN60601-1-2:2007 is available at OMRON HEALTHCARE
EUROPE at the address mentioned in this instruction manual.
Documentation is also available at www.omron-healthcare.com
.
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
This marking shown on the product or its literature, indicates that it should not be disposed of,
with other household wastes at the end of its working life. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, please separate this from
other types of wastes and recycle it responsibly to promote the sustainable reuse of material
resources.
Household users should contact either the retailer where they purchased this product, or their local
government office, for details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product should not be mixed with other commercial wastes for disposal.
This product does not contain any hazardous substances.
Disposal of used batteries should be carried out in accordance with the national regulations for the
disposal of batteries.
40
10.Some Useful Information about Blood Pressure
10.Some Useful Information about Blood Pressure
What is Blood Pressure?
Blood pressure is a measure of the force of blood flowing against the
walls of the arteries. Arterial blood pressure is constantly changing
during the course of the heart’s cycle.
The highest pressure in the cycle is called the Systolic Blood Pressure;
the lowest is the Diastolic Blood Pressure.
Both pressure readings, the Systolic and Diastolic, are necessary to
enable a doctor to evaluate the status of a patient’s blood pressure.
Why is it a Good Thing to measure Blood Pressure at Home?
Having your blood pressure measured by a doctor can cause anxiety
which is itself a cause of high blood pr essure. As a variety of conditions
affect blood pressure, a single measurement may not be sufficient for
an accurate diagnosis.
Many factors such as physical activity, anxiety, or the time of day, can
influence your blood pressure. Thus it is best to try and measure your
blood pressure at the same time each day, to get an accurate
indication of any changes in blood pressure. Blood pressure is typically
low in the morning and increases from afternoon to evening. It is lower
in the summer and higher in the winter.
Blood pressure is measured in millimetres of mercury (mmHg) and
measurements are written with the systolic pressure before the
diastolic e.g. A blood pressure written as 135/85, is referred to as 135
over 85 mmHg.
EN
41
10.Some Useful Information about Blood Pressure
Example: fluctuation within a day (male, 35 years old)
mmHg
200
150
100
50
61218 24
Upper curve: systolic blood pressure
Lower curve: diastolic blood pressure
Time of day
Optimal blood
pressure
(target value)
Normal blood
pressure
Normal systolic value
Mild hypertension
Moderate hypertension
Severe hypertension
Systolic blood pressure
(mmHg)
Diastolic
blood
pressure
(mmHg)
80
180
160
140
130
120
85 90 100 110
Classification of Blood Pressure by the W orld Heat h Organization
The World Health Organization (WHO) and the International Society of
Hypertension (ISH) developed the Blood Press ur e Cla ssific at ion
shown in this figure.
This classification is based on the blood pressure values measured on
people in a sitting position in outpatient departments of hospitals.
*There is no universally accepted definition of hypotension. However,
those having the systolic pressure below 100 mmHg are assumed as
hypotensive.
42
10.Some Useful Information about Blood Pressure
EN
43
10.Some Useful Information about Blood Pressure
Manufacturer
OMRON HEALTHCARE Co., Ltd.
53, Kunotsubo, Terado-cho, Muko, Kyoto,
617-0002 JAPAN
EU-representative
OMRON HEALTHCARE EUROPE B.V.
Scorpius 33, 2132 LR Hoofddorp, THE NETHERLANDS
www.omron-healthcare.com
Production facility
OMRON (DALIAN) CO., LTD.
Dalian, CHINA
Subsidiary
OMRON HEALTHCARE UK LTD.
Opal Drive, Fox Milne, Milton Keynes, MK15 0DG, U.K.
OMRON MEDIZINTECHNIK
HANDELSGESELLSCHAFT mbH
Gottlieb-Daimler-Strasse 10, 68165 Mannheim, GERMANY
www.omron-healthcare.de
OMRON SANTÉ FRANCE SAS
14, rue de Lisbonne, 93561 Rosny-sous-Bois Cedex, FRANCE
Made in China
44
Loading...
