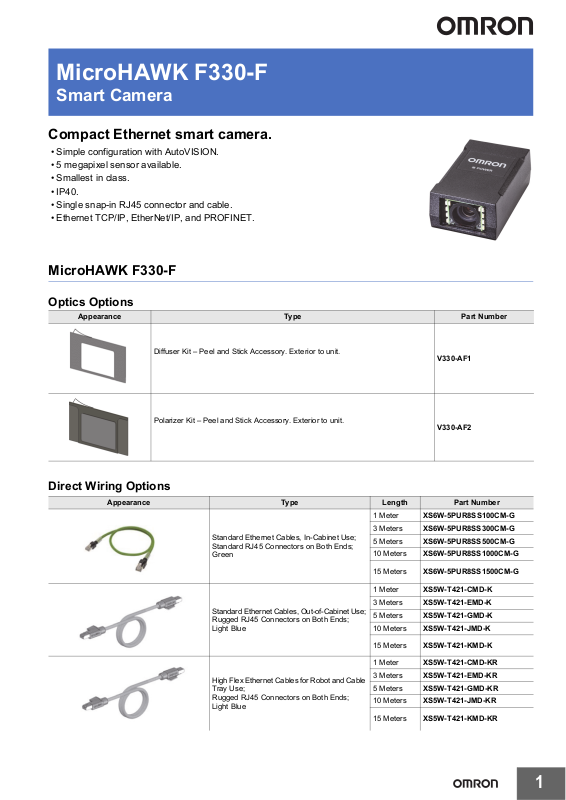

MicroHAWK F330-F
Smart Camera
Compact Ethernet smart camera.
• Simple configuration with AutoVISION.
• 5 megapixel sensor available.
• Smallest in class.
• IP40.
• Single snap-in RJ45 connector and cable.
• Ethernet TCP/IP, EtherNet/IP, and PROFINET.
MicroHAWK F330-F
Optics Options
Appearance Type Part Number
Diffuser Kit – Peel and Stick Accessory. Exterior to unit.
Polarizer Kit – Peel and Stick Accessory. Exterior to unit.
Direct Wiring Options
Appearance Type Length Part Number
Standard Ethernet Cables, In-Cabinet Use;
Standard RJ45 Connectors on Both Ends;
Green
Standard Ethernet Cables, Out-of-Cabinet Use;
Rugged RJ45 Connectors on Both Ends;
Light Blue
V330-AF1
V330-AF2
1 Meter XS6W-5PUR8SS100CM-G
3 Meters XS6W-5PUR8SS300CM-G
5 Meters XS6W-5PUR8SS500CM-G
10 Meters XS6W-5PUR8SS1000CM-G
15 Meters XS6W-5PUR8SS1500CM-G
1 Meter XS5W-T421-CMD-K
3 Meters XS5W-T421-EMD-K
5 Meters XS5W-T421-GMD-K
10 Meters XS5W-T421-JMD-K
High Flex Ethernet Cables for Robot and Cable
Tray Use;
Rugged RJ45 Connectors on Both Ends;
Light Blue
15 Meters XS5W-T421-KMD-K
1 Meter XS5W-T421-CMD-KR
3 Meters XS5W-T421-EMD-KR
5 Meters XS5W-T421-GMD-KR
10 Meters XS5W-T421-JMD-KR
15 Meters XS5W-T421-KMD-KR
1
F330-F
Verification Options
Appearance Type Part Number
AutoVISION Verification Calibration Card with NIST-Traceable Measurement Report 98-000265-01
AutoVISION Verification Calibration Card 98-000265-02
F330-F Part Number Structure
Use this legend when defining product part numbers. Please note that not all combinations of parameters are valid. For instance, fixed focus distance
of 50 mm is not available with Narrow Lens. When ordering, use valid part numbers from the tables in the Ordering Information section only.
F330-F[XXX][Y][ZZZ]-NN[P]
Key Classification Code Meaning
XXX Focus Distance (mm) 050 Fixed Focus at 50 mm
064 Fixed Focus at 64 mm
081 Fixed Focus at 81 mm
102 Fixed Focus at 102 mm
133 Fixed Focus at 133 mm
190 Fixed Focus at 190 mm
300 Fixed Focus at 300 mm
Y Lens W Wide Field of View - 5.2 mm Focal Length Lens
M Medium Field of View – 7.7 mm Focal Length Lens
N Narrow Field of View – 16 mm Focal Length Lens
ZZZ Sensor 03M 752 x 480 (0.3 MP) Pixel, Mono Sensor, Global Shutter
12M 1280 x 960 (1.2 MP) Pixel, Mono Sensor, Global Shutter
50C 2592 x 1944 (5 MP) Pixel, Color Sensor, Rolling Shutter
L Light Type N No Outer Light
C Light Color N No Outer Light
P Software License S AutoVISION Sensor (Vision Toolset Only)
A AutoVISION (Vision and Code Reading / Verification Toolsets)
V Visionscape (Full AutoVISION and Visionscape Toolsets)
Example Part Number:
• F330-F064W50C-NNV: Fixed Focus at 64 mm, Wide Lens, 5 MP Color – No Light, Visionscape (Full AutoVISION and Visionscape Toolsets)
F330-F Valid Product Matrix
Model Category Focus Type Sensor Lens Focus Distance (mm) Light License
Monochrome Fixed Focus 03M, 12M W, M 50, 64, 81, 102, 133, 190, 300 None S, A, V
F330-F
Color Fixed Focus 50C W, M 50, 64, 81, 102, 133, 190, 300 None S, A, V
Monochrome Fixed Focus 03M, 12M N 64, 81, 102, 133, 190, 300 None S, A, V
Color Fixed Focus 50C N 64, 81, 102, 133, 190, 300 None S, A, V
2
F330-F Ordering Information
Categories:
1. Fixed Focus Cameras
a) F330-F Monochrome and Color Fixed Focus Camera with Standard Lens
b) F330-F Monochrome and Color Fixed Focus Camera with Narrow Lens
1a) F330-F Mono and Color Camera with Standard Lens: Valid Combinations
F330-F[XXX][Y][ZZZ]-NN[P]
Key Classification Code Meaning
XXX Focus Distance (mm) 050 Fixed Focus at 50 mm
064 Fixed Focus at 64 mm
081 Fixed Focus at 81 mm
102 Fixed Focus at 102 mm
133 Fixed Focus at 133 mm
190 Fixed Focus at 190 mm
300 Fixed Focus at 300 mm
Y Lens W Wide Field of View - 5.2 mm Focal Length Lens
M Medium Field of View – 7.7 mm Focal Length Lens
ZZZ Sensor 03M 752 x 480 (0.3 MP) Pixel, Mono Sensor, Global Shutter
12M 1280 x 960 (1.2 MP) Pixel, Mono Sensor, Global Shutter
50C 2592 x 1944 (5 MP) Pixel, Color Sensor, Rolling Shutter
P Software License S AutoVISION Sensor (Vision Toolset Only)
A AutoVISION (Vision and Code Reading / Verification Toolsets)
V Visionscape (Full AutoVISION and Visionscape Toolsets)
F330-F
1b) F330-F Mono and Color Camera with Narrow Lens: Valid Combinations
Note: 50 mm Fixed Focus option not available with Narrow Lens.
F330-F[XXX]N[ZZZ]-NN[P]
Key Classification Code Meaning
XXX Focus Distance (mm) 064 Fixed Focus at 64 mm
081 Fixed Focus at 81 mm
102 Fixed Focus at 102 mm
133 Fixed Focus at 133 mm
190 Fixed Focus at 190 mm
300 Fixed Focus at 300 mm
ZZZ Sensor 03M 752 x 480 (0.3 MP) Pixel, Mono Sensor, Global Shutter
12M 1280 x 960 (1.2 MP) Pixel, Mono Sensor, Global Shutter
50C 2592 x 1944 (5 MP) Pixel, Color Sensor, Rolling Shutter
P Software License S AutoVISION Sensor (Vision Toolset Only)
A AutoVISION (Vision and Code Reading / Verification Toolsets)
V Visionscape (Full AutoVISION and Visionscape Toolsets)
3
F330-F

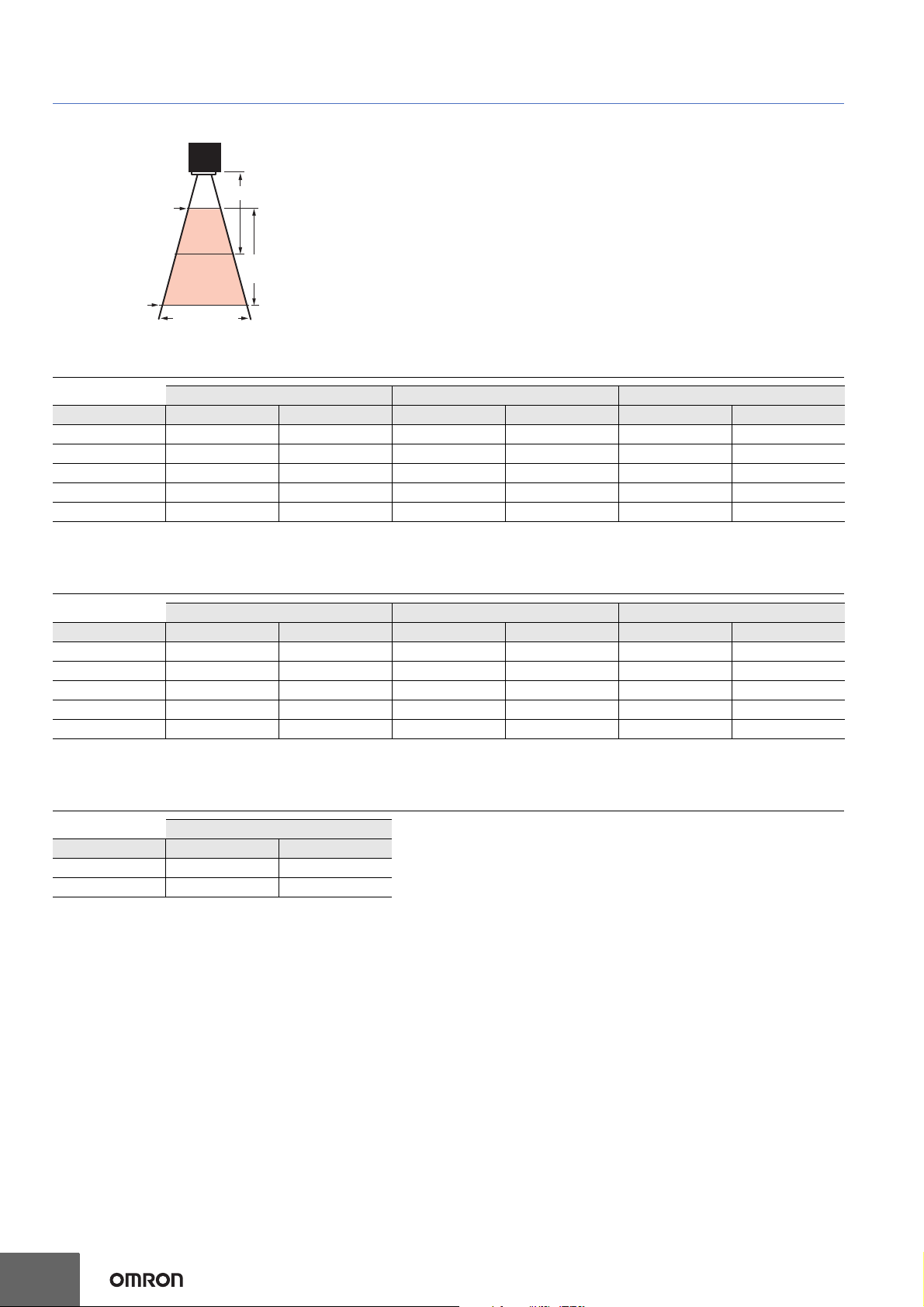

Field of View
Maximum Depth
of Field (Outside)
Maximum Depth
of Field (Inside)
Reading
Ranges
Reading Distance
Specifications are subject to change.
Field of View Charts
Fixed Focus Field of View (mm) - Wide Lens
0.3 MP 1.2 MP 5 MP
Distance (mm) Width Height Width Height Width Height
50 49 32 53 39 50 38
81 76 49 81 61 78 58
102 95 60 101 75 96 72
190 171 109 182 136 174 130
300 266 170 283 213 271 202
Fixed Focus Field of View (mm) - Medium Lens
0.3 MP 1.2 MP 5 MP
Distance (mm) Width Height Width Height Width Height
50 34 22 36 27 35 26
81 53 34 56 42 54 40
102 66 42 70 52 67 50
190 119 76 126 95 121 90
300 185 118 196 147 188 140
Fixed Focus Field of View (mm) - Narrow Lens
1.2 MP
Distance (mm) Width Height
64 21 15
400 118 88
4
F330-F
Pitch angle
Skew angle Tilt angle
Ratings and Specifications
F330-F F330-F□□□□03M-□□□ F330-F□□□□12M-□□□ F330-F□□□□50C-□□□
1D Symbologies
Symbologies *1
Reading
Performance
Vision Tools
Image Capture
Image Logging FTP
Trigger Communication Trigger (Ethernet)
I/O Specifications
Communication
Indicator LEDs PASS (Green), PWR (Green)
Power Supply Voltage Source: 44-57 VDC IEEE802.3af POE
Current Consumption Max Current: 0.10 A
Environmental
Immunity
Weight
Dimensions
Accessories ReadMeFirst, CE Compliance Sheet
LED Safety Standard IEC 62471-1: 2006 Risk-Exempt Group
Safety Standards
Materials
Software AutoVISION, Visionscape FrontRunner
*1. These symbologies are supported based on Omron’s read capability validation standard. Omron recommends that validation be performed for each application.
*2. Unless otherwise specified, reading performance is defined with center of field of view, angle R=
*3.
*4
2D Symbologies Data Matrix (ECC 0-200), QR Code, Micro QR Code, Aztec Code, DotCode, DMRE
Stacked Symbologies PDF417, MicroPDF417, GS1 Databar (Composite and Stacked)
Number of Reading Digits No Upper Limit (depending on bar width and reading distance)
Aiming Light Two Blue LEDs
*2
Illumination
Reading Distance /
Field of View
Pitch Angle (α) *3 ±30°
Skew Angle (β) *3 ±30°
Tilt Angle (γ) *3 ±180°
Focus Fixed Focus (Wide = 5.2 mm, Medium = 7.7 mm, Narrow = 16 mm)
Resolution 752 (H) x 480 (V) 1280 (H) x 960 (V) 2592 (H) x 1944 (V)
Color / Monochrome Monochrome CMOS Monochrome CMOS Color CMOS
Shutter Global Shutter Global Shutter Rolling Shutter
Frames per Second 52 fps 40 fps 5 fps
Exposure 50 to 66,667 μs 50 to 58,825 μs 50 to 66,667 μs
Input Signals Ethernet
Output Signals Ethernet
Connectivity Ethernet TCP/IP, EtherNet/IP, PROFINET
Ethernet Specifications 100BASE-TX / 10BASE-T
Ambient Temperature
Range
Ambient Humidity Range Operating and storage: 5% to 95% (Non-Condensing)
Ambient Atmosphere No Corrosive Gases
Vibration Resistance
(Destructive)
Shock Resistance
(Destructive)
Degree of Protection IEC 60529 IP40
Main Body Only 72 g
Packaging Weight Approx. 180 g (including packing)
Main Body Dimensions 40 (W) × 63 (D) × 24 (H) mm
Packaging Dimensions 170 (W) × 117 (D) × 86 (H) mm
Case Aluminum Diecast, Alumite (Black)
Reading Window Acrylic
Code 39, Code 128, BC412, Interleaved 2 of 5, UPC/EAN, Codabar, Code 93, Pharmacode, PLANET,
Postnet, Japanese Post, Australian Post, Royal Mail, Intelligent Mail, KIX
Inner LEDs: Four White and Four Red (Wavelength: 625 nm)
Outer LEDs:
None
Refer to Field of View Charts for details.
Locate, Decode, Optical Character Recognition (OCR), Count, Presence/Absence, Measure, Match Strings,
String Format, Logic, Optical Character Verification (OCV), Symbol Quality Verification, Color Identification,
Color Match
Operating: 0 to 40° C Storage: -50 to 75°C (No Icing or Condensation)
Oscillation Frequency: 10 to 150Hz, Half Amplitude: 0.35 mm, Vibration Direction: X/Y/Z, Sweep Time: 8
minute/count, Sweep Count: 10 times
Impact Force: 150 m/s2, Test Direction: 6 directions, three times each (up/down, front/back, left/right)
EN 61326-1:2013
FCC Part 15, Subpart B (Class B) UL60950-1
RCM, KC, EAC
Outer LEDs:
None
Outer LEDs:
None
∞.
*4. In an electrically noisy environment, use only the F430-F in combination with a noise filter cable (V430-W
□F-□M) to ensure proper operation.
5
F330-F

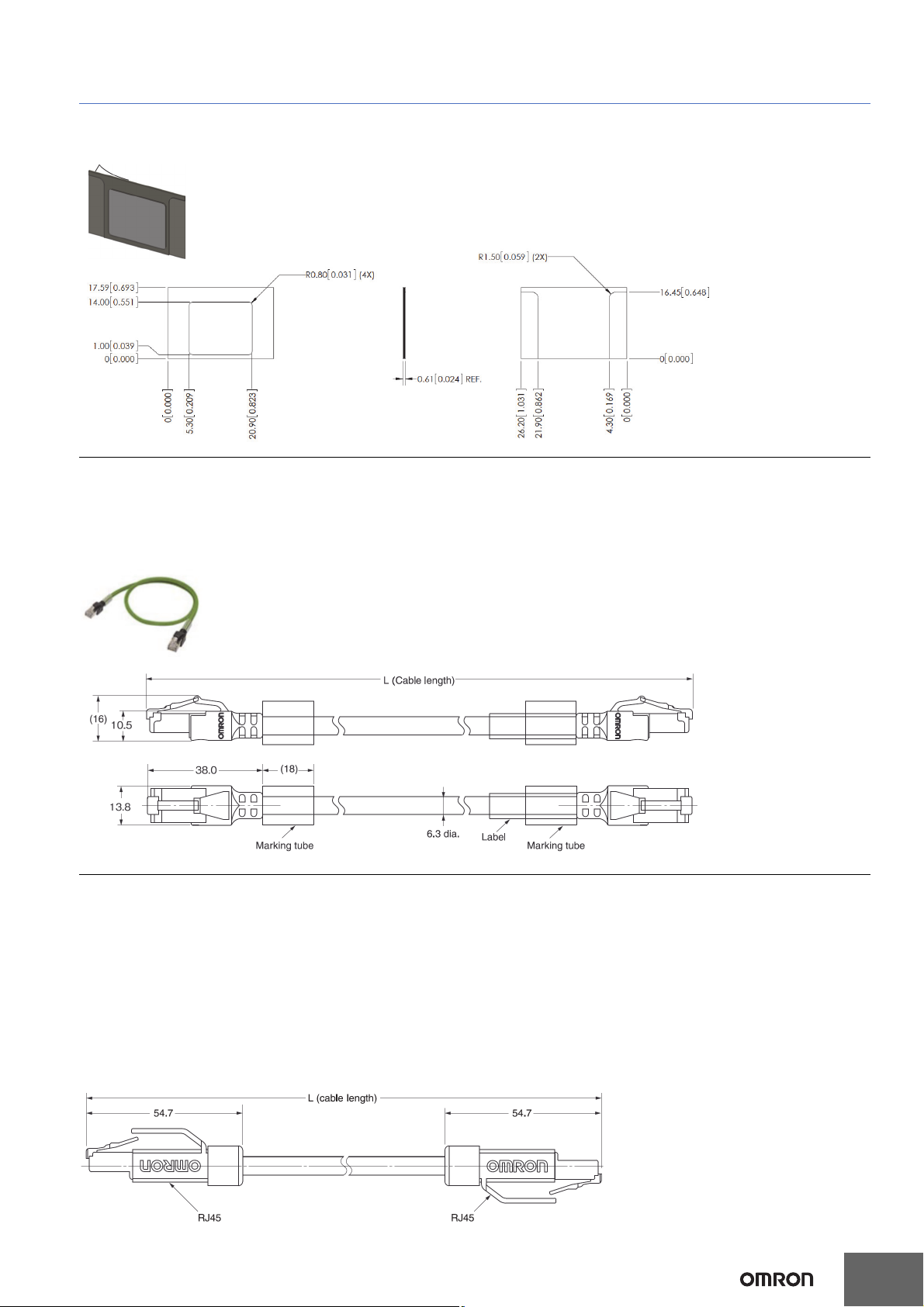

Diffuser Kit – Peel and Stick Accessory. Exterior to unit.
V330-AF1

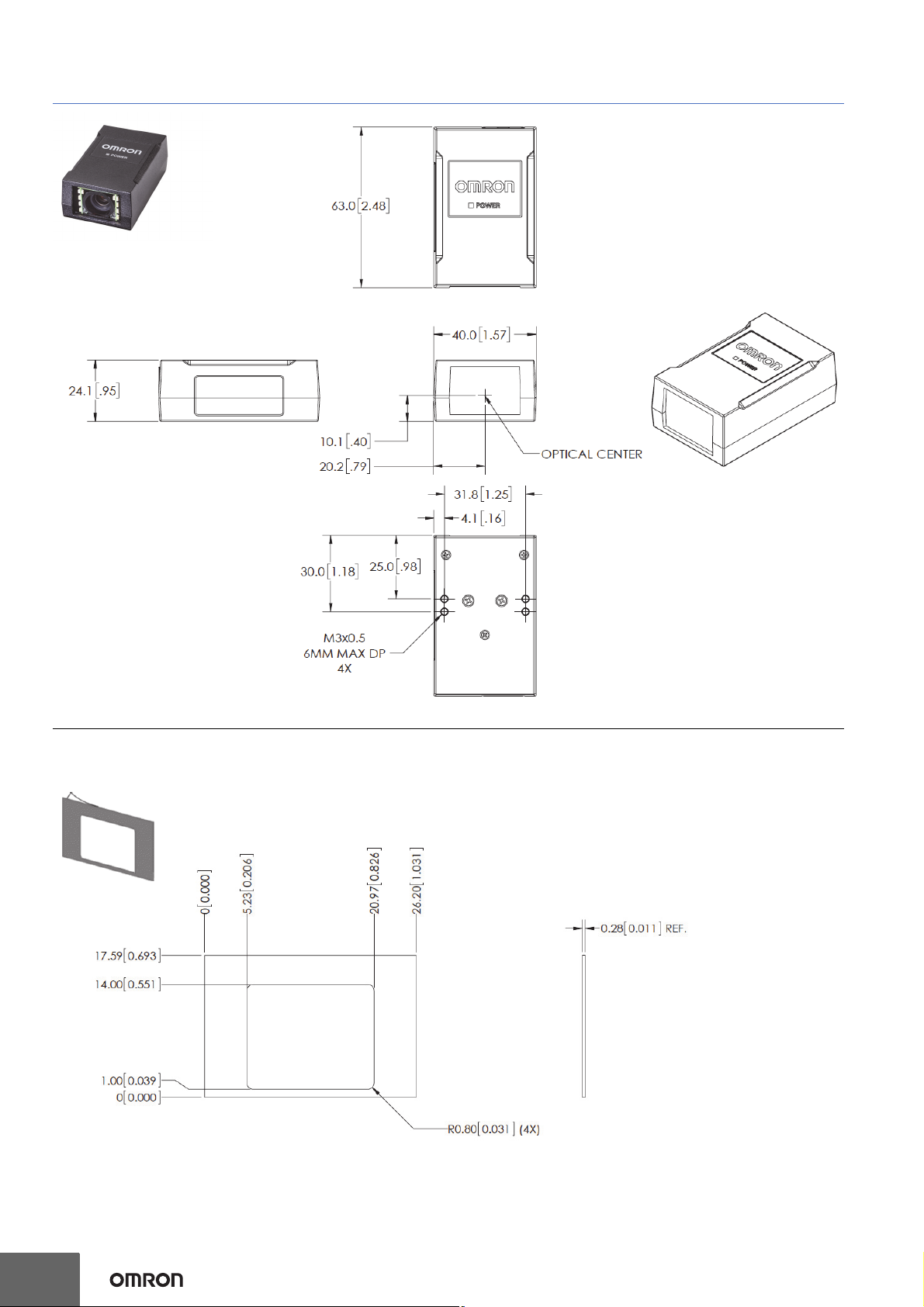

Dimensions (Unit: mm)
6
F330-F
Polarizer Kit – Peel and Stick Accessory. Exterior to unit.
V330-AF2
Standard Ethernet Cables, In-Cabinet Use; Standard RJ45 Connectors on Both Ends; Green
XS6W-5PUR8SS100CM-G
XS6W-5PUR8SS300CM-G
XS6W-5PUR8SS500CM-G
XS6W-5PUR8SS1000CM-G
XS6W-5PUR8SS1500CM-G
Standard Ethernet Cables, Out-of-Cabinet Use; Rugged RJ45 Connectors on Both Ends; Light Blue
XS5W-T421-CMD-K
XS5W-T421-EMD-K
XS5W-T421-GMD-K
XS5W-T421-JMD-K
XS5W-T421-KMD-K
High Flex Ethernet Cables for Robot and Cable Tray Use; Rugged RJ45 Connectors on Both Ends; Light Blue
XS5W-T421-CMD-KR
XS5W-T421-EMD-KR
XS5W-T421-GMD-KR
XS5W-T421-JMD-KR
XS5W-T421-KMD-KR
7
F330-F

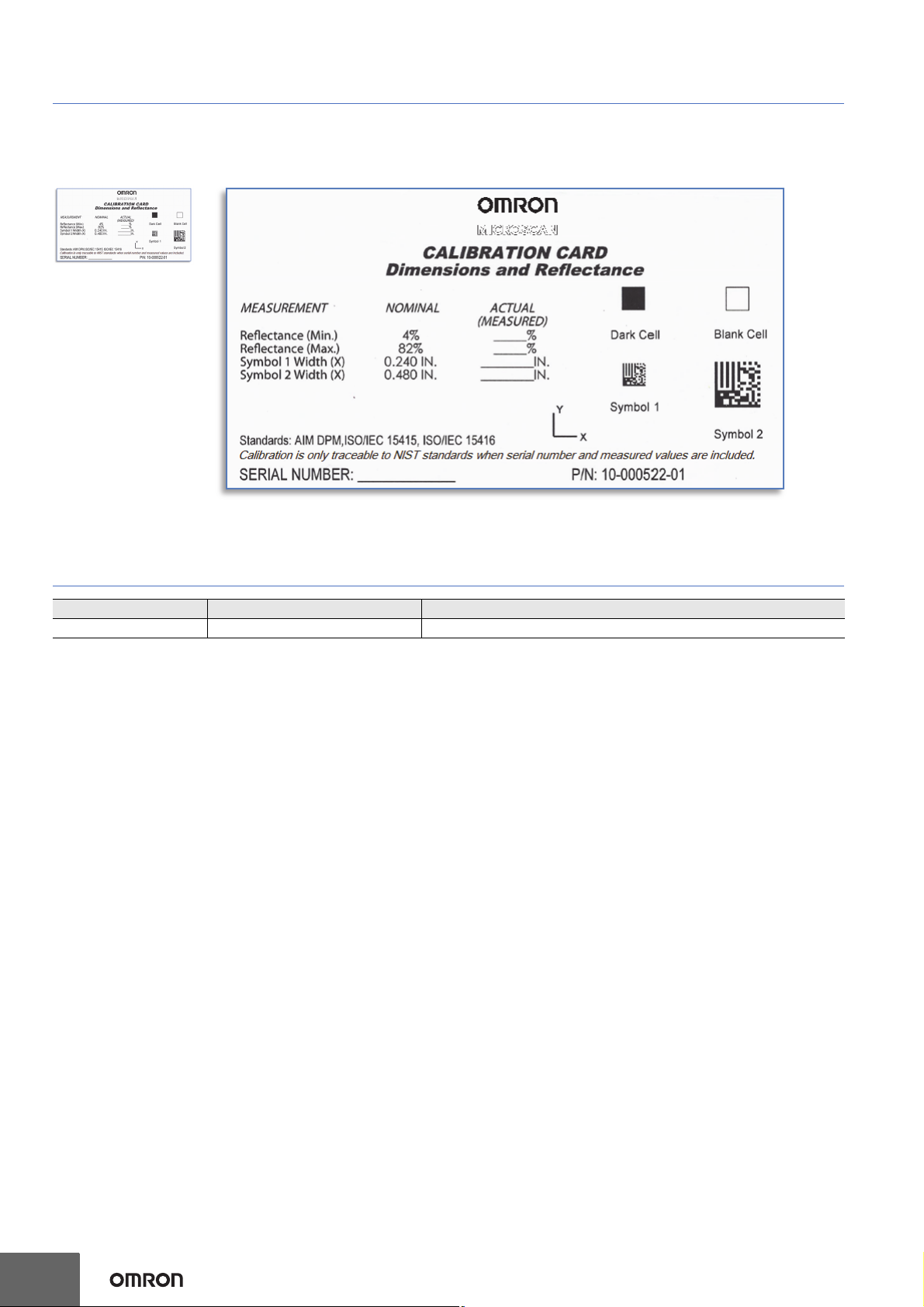

AutoVISION Verification Calibration Card with NIST-Traceable Measurement Report
98-000265-01
98-000265-02
Related Manuals
Man.No. Model Manual
Z433 (84-9000402-02) F320-F, F330-F, F420-F, F430-F MicroHAWK F320-F / F330-F / F420-F / F430-F User Manual
8
Printed on recycled paper.
OMRON AUTOMATION AMERICAS HEADQUARTERS • Chicago, IL USA • 847.843.7900 • 800.556.6766 • automation.omron.com
OMRON CANADA, INC. • HEAD OFFICE
Toronto, ON, Canada • 416.286.6465 • 866.986.6766 • automation.omron.com
OMRON ELECTRONICS DE MEXICO • HEAD OFFICE
Ciudad de México • 52.55.5901.4300
OMRON ELECTRONICS DE MEXICO • SALES OFFICE
San Pedro Garza García, N.L. • 81.12.53.7392 • 01.800.386.6766 • mela@omron.
com
OMRON ELECTRONICS DE MEXICO • SALES OFFICE
Eugenio Garza Sada,León, Gto • 01.800.386.6766 • mela@omron.com
• 01.800.386.6766 • mela@omron.com
Authorized Distributor:
OMRON ELETRÔNICA DO BRASIL LTDA • HEAD OFFICE
São Paulo, SP, Brasil • 55 11 5171-8920 • automation.omron.com
OMRON ARGENTINA • SALES OFFICE
Buenos Aires, Argentina
mela@omron.com
OTHER OMRON LATIN AMERICA SALES
+54.11.4521.8630 • +54.11.4523.8483 • mela@omron.com
• +54.11.4521.8630 • +54.11.4523.8483
Controllers & I/O
• Machine Automation Controllers (MAC) • Motion Controllers
• Programmable Logic Controllers (PLC) • Temperature Controllers • Remote I/O
Robotics
• Industrial Robots • Mobile Robots
Operator Interfaces
• Human Machine Interface (HMI)
Motion & Drives
• Machine Automation Controllers (MAC) • Motion Controllers • Servo Systems
requency Inverters
• F
Vision, Measurement & Identification
• Vision Sensors & Systems • Measurement Sensors • Auto Identification
Systems
Sensing
• Photoelectric Sensors • Fiber-Optic Sensors • Proximity Sensors
otary Encoders • Ultrasonic Sensors
• R
Safety
• Safety Light Curtains • Safety Laser Scanners • Programmable Safety Systems
• Safety Mats and Edges • Safety Door Switches • Emergency Stop Devices
• Safety Switches & Operator Controls • Safety Monitoring/Force-guided Relays
Control Components
• Power Supplies • Timers • Counters • Programmable Relays
• Digital Panel Meters • Monitoring Products
Switches & Relays
• Limit Switches • Pushbutton Switches • Electromechanical Relays
olid State Relays
• S
Software
• Programming & Configuration • Runtime
VS092-E-02
Note: Specifications are subject to change.
© 2021 Omron. All Rights Reserved.
Printed in U.S.A.
Loading...
