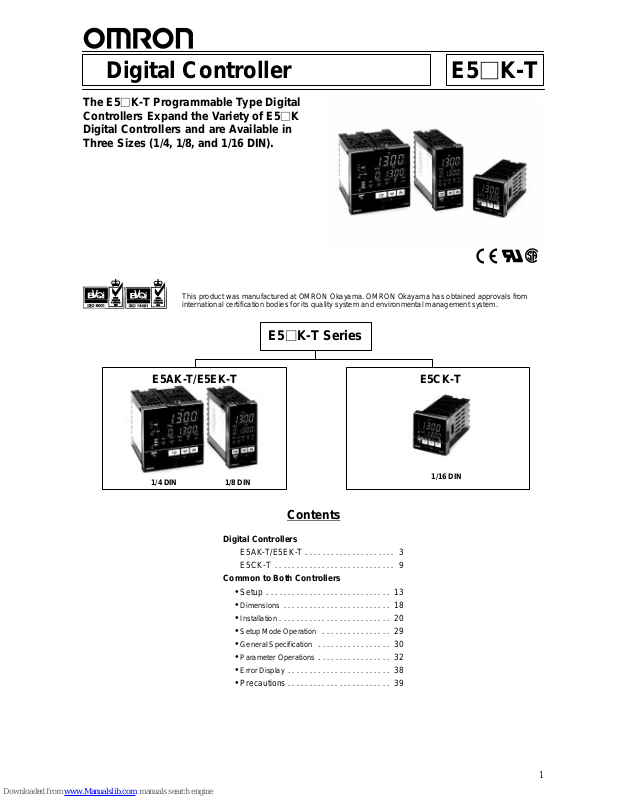

Omron E5xK-T, E5AK-T, E5EK-T, E5CK-T User Manual

1

Digital Controller E5jK-T

The E5jK-T Programmable Type Digital
Controllers Expand the Variety of E5jK
Digital Controllers and are Available in
Three Sizes (1/4, 1/8, and 1/16 DIN).

RC

This

product was manufactured at OMRON Okayama. OMRON Okayama has obtained approvals from

international certification bodies for its quality system and environmental management system.

E5jK-T Series

E5CK-TE5AK-T/E5EK-T

1/4 DIN

1/8 DIN

1/16 DIN

Contents

Digital Controllers

E5AK-T/E5EK-T 3.

. . . . . . . . . . . . . . . . . . . .

E5CK-T 9

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Common to Both Controllers

• Setup 13.

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

• Dimensions 18

. . . . . . . . . . . . . . . . . . . . . . . . .

• Installation 20

. . . . . . . . . . . . . . . . . . . . . . . . . .

• Setup

Mode Operation

29.

. . . . . . . . . . . . . . .

• General

Specification

30.

. . . . . . . . . . . . . . . .

• Parameter

Operations

32.

. . . . . . . . . . . . . . . .

• Error Display 38.

. . . . . . . . . . . . . . . . . . . . . . .

• Precautions 39

. . . . . . . . . . . . . . . . . . . . . . . .

E5jK-T

E5jK-T

2

Compact and Easy-to-use Controllers

Programming is as easy as following the steps below.

Program can be set in pattern 0 according to the following proce­dure.

Step

1

Step 2 Step 3

100

50

SP

0.20 0.40 0.20

T

ime: hours and minutes

Step No. T

arget value

Time

(hours.minutes)

0 50 0.00
1 100 0.20
2 100 0.40
3 50 0.20

1. Press the Display Key to shift to the display
for the number of steps.

5no

0 8

Parameter

for the number of

steps used
Number of steps

(Default setting: 8)
Pattern No.

Display key

2. Press the Down Key and set the number of
steps.

5no

0 4

Four steps in this case

Down key

3. Press the Display Key to shift to the display
for the target value of step 0.

Step

0

Parameter of the target value
Target value

(Default setting: 0)

5p0

0 0

Display key

4. Set the target value to “50.”

5p0

050

Target value

Up key

5. Press the Display Key to shift to the display
for the time of step 0.

ti0

0 000

Time

parameter for step 0.

Step time
(Default setting: 0.00)

Pattern No.

Display key

6. Press the Display Key again with the step
time set at 0 minutes, and the target value
parameter for step 1 will be displayed.

5p1

0 0

Display key

7. Press the Up Key to increment to “100.”

5p1

0 100

Up key

In the same manner, set the time for step 1, tar­get value for step 2, time for step 2, etc.

When the target value and time settings are
complete, press the Display Key.

3

Digital Controller

E5AK-T/E5EK-T

Advanced Programmable Digital
Controllers Ideal for Worldwide Use

Offers up to eight patterns of simple programming
control (16 steps per pattern).

Modular structure, one-stock type
High-accuracy:

100-ms sampling (for analog input)

Conforms to international EMC and safety
standards.

IP66/NEMA4 (indoor use) front face
Serial communications (RS-232C, RS-422 and

RS-485) and transfer output (4 to 20 mA)
Position-proportional control model
Heat/Cool control
24VAC/DC types are also available.

RC

Ordering Information

Description Model Specification

Base Unit

E5AK-T

AA2 AC100-240

Standard model

ase U

E5AK-T

AA2-500 AC100-240

Standard model with terminal cover

E5AK-TAA2 AC/DC24

Standard model

E5AK-T

AA2-500 AC/DC24

Standard model with terminal cover

E5AK-TPRR2 AC100-240

Position-proportional model

E5AK-TPRR2-500 AC100-240

Position-proportional model with terminal cover

E5AK-TPRR2 AC/DC24

Position-proportional model

E5AK-TPRR2-500 AC/DC24

Position-proportional model with terminal cover

E5EK-T

AA2 AC100-240

Standard model

E5EK-T

AA2-500 AC100-240

Standard model with terminal cover

E5EK-TAA2 AC/DC24

Standard model

E5EK-T

AA2-500 AC/DC24

Standard model with terminal cover

E5EK-TPRR2 AC100-240

Position-proportional model

E5EK-TPRR2-500 AC100-240

Position-proportional model with terminal cover

E5EK-TPRR2 AC/DC24

Position-proportional model

E5EK-TPRR2-500 AC/DC24

Position-proportional model with terminal cover

Note: 1. When

using the heater burnout alarm function with a standard model, the Linear

Output Unit cannot be used for the control outputs

(heat).

2. Be

sure to specify the Current T

ransformer

, Output Unit, and Option Unit when ordering.

E5AK-T/E5EK-T

E5AK-T/E5EK-T

4

Description Model Specification

Output Unit E53-R Relay

E53-S SSR
E53-Q

Pulse (NPN) 12 VDC at 40 mA max.

E53-Q3

Pulse (NPN) 24 VDC at 20 mA max.

E53-Q4

Pulse (PNP) 24 VDC at 20 mA max.

E53-C3

Linear (4 to 20 mA) under a load of 600 Ω max.

E53-C3D

Linear (0 to 20 mA) under a load of 600 Ω max.

E53-V34

Linear (0 to 10 V) under a load of 1 kΩ min.

E53-V35

Linear (0 to 5 V) under a load of 1 kΩ min.

Note: The

Digital Controller uses a dedicated, high-resolution Output Unit. The E53-C Current Output Unit for the E5jX cannot be used with

the

Digital Controller

.

Description

Model Specification

Option Unit E53-AKB

Event input

E53-AK01

Communication (RS-232C)

E53-AK02

Communication (RS-422)

E53-AK03

Communication (RS-485)

E53-AKF T

ransfer output

Note: 1.

The Option Unit can be used either by the E5AK or E5EK.

2.

The E5AK allows a maximum of three Option Units to be mounted. Refer to page

13 for mounting combinations.

The E5EK allows only one Option Unit to be mounted.

Inspection Report

The Digital Controller can be provided together with an inspection report.
Refer to the following legend with the suf

fix “K” when ordering a model provided together with an inspection report.

E5jK-T

AA2-K, E5

jK-TPRR2-K

Accessories (Order Separately)

Name Model Hole

diameter

Current Transformer E54-CT1

5.8 dia.

E54-CT3

12.0 dia.

Note:

No CT is required unless the heater burnout alarm function is used.

Name Model

Connectable models

T

erminal Cover

E53-COV0809 E5AK
E53-COV08 E5EK

Unit Label

Model Y92S-L1

Ranges

Platinum Resistance Thermometer

Input

(switch selectable)

JPt100 Pt100

Range °C

–199.9 to 650.0 –199.9 to 650.0

°F

–199.9 to 999.9 –199.9 to 999.9

Setting 0 1

Thermocouple

Input (switch

selectable)

(see note)

K1 K2 J1 J2 T E L1 L2 U N R S B W PLII

Range °C

–200
to
1,300

0.0

to

500.0

–100
to
850

0.0 to

400.0

–199.9
to

400.0

0 to
600

–100
to
850

0.0 to

400.0

–199.9
to

400.0

–200
to
1,300

0 to
1,700

0 to
1,700

100
to
1,800

0 to
2,300

0 to
1,300

°F

–300
to
2,300

0.0 to

900.0

–100
to
1,500

0.0 to

750.0

–199.9
to

700.0

0 to
1,100

–100
to
1,500

0.0 to

750.0

–199.9
to

700.0

–300
to
2,300

0 to
3,000

0 to
3,000

300
to
3,200

0 to
4,100

0 to
2,300

Setting 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Note: Setting

number is factory-set to 2 (K1).

E5AK-T/E5EK-T

E5AK-T/E5EK-T

5

Current/Voltage

Input (switch selectable)

Current input V

oltage input

4 to 20 mA 0 to 20 mA

1 to 5 V 0 to 5 V

0 to 10 V

Range

One of following ranges depending on results of scaling
–1999 to 9999
–199.9 to 999.9
–19.99 to 99.99
–1.999 to 9.999

Setting 17 18 19 20 21

Specifications

Ratings

Item 100-

to 240-V

AC type 24-VAC/VDC type

Supply voltage

100 to 240 V

AC, 50/60 Hz

24 V

AC/VDC, 50/60 Hz

Power consumption

E5AK:

16 V

A

E5EK:

15 V

A

12 V

A, 8 W

Operating voltage range

85% to 1

10% of rated supply voltage

Sensor input

Thermocouple: K, J, T

, E, L, U, N, R, S, B, W

, PL

II

Platinum resistance thermometer: JPt100, Pt100
Current input:

4 to 20 mA, 0 to 20 mA (Input impedance: 150

Ω)

V

oltage input:

1 to 5 V, 0 to 5 V, 0 to 10 V (Input impedance: 1 M

Ω)

Control output

According to Output Unit (see

Output Unit Ratings and Characteristics

)

Auxiliary output

SPST

-NO, 3 A at 250 V

AC (resistive load)

Control method

ON/OFF or 2-PID control (with auto-tuning)

Setting method

Digital setting using front panel keys

Indication method

7-segment digital display and LEDs

Event input

Contact input:

ON: 1 kΩ

max., OFF: 100 kΩ min.

No-contact input:

ON: residual voltage: 1.5 V max., OFF: leakage current: 0.1 mA max.

T

ransfer output

4 to 20 mA, permissible load impedance: 600 Ω max., resolution: approx. 2,600

Current T

ransformer input Connect an exclusive Current T

ransformer (E54-CT1 or E54-CT3)

Other functions Standard

Manual output, heating/cooling control, SP limiter

, loop burnout alarm, MV limiter

, MV change

rate limiter

, input digital filter

, input shift, run/reset, protect functions, scaling function

E5AK-T/E5EK-T

E5AK-T/E5EK-T

6

Characteristics

Indication

accuracy (see note)

Thermocouple:
(±

0.3% of indication value or

±1°

C, whichever greater) ±1 digit max.

Platinum resistance thermometer:
(±

0.2% of indication value or

±0.8°

C, whichever greater) ±1 digit max.

Analog input: ±0.2% FS ±1 digit max.

Hysteresis

0.01% to 99.99% FS (in units of 0.01% FS)

Proportional band (P)

0.1% to 999.9% FS (in units of 0.1% FS)

Integral (reset) time (I)

0 to 3,999 s (in units of 1 s)

Derivative (rate) time (D)

0 to 3,999 s (in units of 1 s)

Control period

1 to 99 s (in units of 1 s)

Manual reset value

0.0% to 100.0% (in units of 0.1%)

Alarm setting range

–1,999 to 9,999 or –199.9 or 999.9 (decimal point position dependent on input type or result of
scaling)

Set time

0 to 99 hrs 59 min or 0 to 99 min 59 s

Program capacity

8 patterns (E5AK) or 4 patterns (E5EK), 16 steps

Programming method

T

ime or ramp setting method

T

ime accuracy

±

0.2% (±500 ms) of the set value

Sampling period

T

emperature input:

250 ms

Analog input:

100 ms

Insulation resistance

20 MΩ min. (at 500 VDC)

Dielectric strength

2,000 V

AC, 50/60 Hz for 1 min between terminals of dif

ferent polarities

V

ibration resistance

Malfunction:

10 to 55 Hz, 10 m/s2 (approx. 1G) for 10 min each in X, Y, and Z directions

Destruction:

10 to 55 Hz, 20 m/s2 (approx. 2G) for 2 hrs each in X, Y

, and Z directions

Shock resistance

Malfunction:

200 m/s2 min. (approx. 20G), 3 times each in 6 directions
(100 m/s2 (approx. 10G) applied to the relay)

Destruction:

300 m/s2 min. (approx. 30G), 3 times each in 6 directions

Ambient temperature

Operating: –10°

C to 55°C (with no icing)/3-year warranty period: –10°C to 50

°C

Storage: –25°

C to 65°C (with no icing)

Ambient humidity

Operating: 35% to 85%

Enclosure ratings

Front panel:

NEMA4 for indoor use (equivalent to IP66)

Rear case:

IEC standard IP20

Terminals:

IEC standard IP00

Memory protection

Non-volatile memory (number of writings: 100,000 operations)

Weight E5AK:

approx. 450 g

E5EK:

approx. 320 g

Mounting bracket: approx. 65 g

EMC Emission Enclosure: EN55011 Group 1 class A

Emission AC Mains:

EN55011 Group 1 class A

Immunity ESD:

EN61000-4-2:

4 kV contact discharge (level 2)
8 kV air discharge (level 3)

Immunity RF-interference:

ENV50140:

10 V/m (amplitude modulated,
80 MHz to 1 GHz) (level 3)
10 V/m (pulse modulated, 900 MHz)

Immunity Conducted Disturbance:

ENV50141:

3 V (47 to 68 MHz)
10 V (0.15 to 47 MHz, 68 to 80 MHz)
(level 3)

Immunity Burst:

EN61000-4-4:

2 kV power-line (level 3)
2 kV I/O signal-line (level 4)

Approved standards

UL1092, CSA22.2 No. 14, CSA C22.2 No. 142
Conforms to EN50081-2, EN50082-2, EN61010-1 (IEC1010-1)
Conforms to VDE0106/part 100 (Finger Protection), when the separately-ordered terminal
cover is mounted.

Note: The

indication accuracy of the K1, T

, and N

thermocouples at a temperature of -100°C max. The indication accuracy of the U, L1, and

L2

thermocouples at any temperature is

±2°C ±

1 digit maximum.
The indication accuracy of the B thermocouple at a temperature of 400°C max. is unrestricted.
The indication accuracy of the R and S thermocouples at a temperature of 200

°C max. is ±3°C ±

1 digit maximum.

The indication accuracy of the W thermocouple at any temperature is (±0.3% of the indicated value or ±2°C, whichever is greater)

±

1 digit

maximum.

The

indication accuracy of the PLII thermocouple at any temperature is (±0.3% of the indicated

value or

±2°

C, whichever is greater)

±1

digit

maximum.

E5AK-T/E5EK-T

E5AK-T/E5EK-T

7

Output Unit Ratings and Characteristics

Model Specifications

E53-R Relay output

5 A at 250 V

AC (resistive load)

E53-S SSR output

1 A at 75 to 250 V

AC (resistive load)

E53-Q V

oltage output

NPN: 40 mA at 12 VDC (with short-circuit protection)

E53-Q3

NPN: 20 mA at 24 VDC (with short-circuit protection)

E53-Q4

PNP: 20 mA at 24 VDC

(with short-circuit protection)

E53-C3

Linear current output

4 to 20 mA, permissible load impedance: 600 Ω max., resolution: approx. 2,600

E53-C3D

0 to 20 mA, permissible load impedance: 600 Ω max., resolution: approx. 2,600

E53-V34

Linear voltage output

0 to 10 VDC, permissible load impedance: 1 kΩ min., resolution: approx. 2,600

E53-V35

0 to 5 VDC, permissible load impedance: 1 kΩ min., resolution: approx. 2,600

Note:

An output relay (1 A at 250 VAC) is mounted on the position-proportional model. (When replacing, use the E53-R.)

Option Unit Ratings and Characteristics

Model Specifications

E53-AKB Event

input

Contact input:
ON: 1 kΩ

max., OFF: 100 kΩ min.

No-contact input:
ON: residual voltage 1.5 V max., OFF: leakage current 0.1 mA max.

E53-AK01

Communications

RS-232C

T

ransmission method:

Half-duplex

E53-AK02

Co u caos

RS-422

a s ss o e od

adue

Synchronization method:

Start-stop synchronization (asynchronous method)

p

E53-AK03 RS-485

Baud

rate:

1.2/2.4/4.8/9.6/19.2 kb

ps

E53-AKF T

ransfer output

4 to 20 mA:
Permissible load impedance: 600 Ω max.
Resolution: approx. 2,600

Note: Event

input is used for switching the target value, run or stop command, or automatic and manual mode

with an external signal input.

Current Transformer Ratings

Dielectric

strength

1,000 V

AC (for 1 min)

V

ibration resistance

50 Hz, 98 m/s2 (10G)

Weight

E54-CT1: approx. 1

1.5 g; E54-CT3: approx. 50 g

Accessories (E54-CT3 only)

Armature: 2; Plug: 2

Heater Burnout Alarm

Max.

heater current

Single-phase 50 A V

AC (see note 1)

Heater current value display accuracy

±

5% FS±1 digit max.

Heater burnout alarm setting range

0.1 to 49.9 A (in units of 0.1 A) (see note 2)

Min. detection ON time

190 ms (see note 3)

Note: 1. Use the K2CU-FjjA-j

GS (with gate input terminals) for the detection of three-phase heater burnout.

2.

The heater burnout alarm is always OFF if the alarm is set to 0.0 A and always ON if the alarm is set to 50.0 A.

3. No

heater burnout detection or heater current value measurement is possible if the control output (heat) is ON for less than 190

ms.

E5AK-T/E5EK-T

E5AK-T/E5EK-T

8

Nomenclature

E5AK

E5EK

Operation

Indicators

• OUT1

Lit when the pulse output function
assigned

to control output

1 turns ON.

• OUT2

Lit when the pulse output function
assigned

to control output

2 turns ON.

• SUB1

Lit

when the output function assigned

to

auxiliary output 1 turns ON.

• SUB2

Lit

when the output function assigned

to

auxiliary output 2 turns ON.

• MANU

Lit

when the manual operation mode.

• RST

Lit

when the operation is reset.

• RMT

Lit during remote operation.

• AT

Flashes during auto-tuning.

• HOLD

Lit when the program is on hold.

• WAIT

Lit when the program is waiting.

RUN/RST Key

Switches between RUN and RESET mode.

Display 1

Displays the process value or
parameter code.

Display 2

Displays the present SP

, manip

­ulated variable, or parameter
settings.

Up Key/Down Key

Press to increase or decrease
the value on the No.2 display

.

RUN/RST Key

Display Key

Display 1

Display 2

Operation indicators

Up Key/Down Key

Pattern Number

Indicates the pattern number

.

Display Key

Press to shift the display to the
next parameter

.

Program Status Indicators

The top indicator indicates the rising
step, the middle indicator indicates the
constant step, and the bottom indicator
indicates the falling step.

Bar Graph

Indicates the rate of pattern elaps

-

ing time at the rate of 20% (5 lev

-

els) per one segment.

Pattern Number

9

Digital Controller E5CK-T

Advanced, Compact Programmable
Digital Controllers Ideal for Worldwide
Use

Offers up to four patterns of simple programming
control (16 steps per pattern).

IP66/NEMA4 (indoor use) front face.
Modular structure, one-stock type.
Heat/Cool control.
Serial communications (RS-232C and RS-485).
Temperature and analog inputs.
High-accuracy: 100-ms sampling (for analog

input).
Conforms to international EMC and safety

standards.
24 VAC/DC types are also available.

Ordering Information

Description Model Specification

Base Unit E5CK-T

AA1 AC100-240

Standard model

E5CK-T

AA1-500 AC100-240

Standard model with terminal cover

E5CK-TAA1 AC/DC24

Standard model

E5CK-T

AA1-500 AC/DC24

Standard model with terminal cover

Note:

A single Output Unit and Option Unit can be mounted to each Base Unit.

Description Model Specification

Output Unit E53-R4R4 Relay/Relay

E53-Q4R4 Pulse (NPN)/Relay
E53-Q4HR4 Pulse (PNP)/Relay
E53-C4R4

Linear (4 to 20 mA)/Relay

E53-C4DR4

Linear (0 to 20 mA)/Relay

E53-V44R4

Linear (0 to 10 V)/Relay
E53-Q4Q4 Pulse (NPN)/Pulse (NPN)
E53-Q4HQ4H Pulse (PNP)/Pulse (PNP)

Description Model Specification

Option Unit E53-CK01 RS-232C

E53-CK03 RS-485
E53-CKB

Event input: 1 point
E53-CKF T

ransfer output (4 to 20 mA)

Inspection Report

The Digital Controller can be provided together with an inspection report.
Refer to the following legend with the suf

fix “K” when ordering a model provided together with an inspection report.

E5CK-TAA1-K

Accessories (Order Separately)

Name Model

Terminal

Cover

E53-COV07

E5CK-T

E5CK-T

10

Temperature Ranges

Platinum Resistance Thermometer

Input

(switch selectable)

JPt100 Pt100

Range °C

–199.9 to 650.0 –199.9 to 650.0

°F

–199.9 to 999.9 –199.9 to 999.9

Resolution (

°C/°F)

(main setting and alarm)

0 1

Thermocouple

Input (switch

selectable)

(see note)

K1 K2 J1 J2 T E L1 L2 U N R S B W PLII

Range °C

–200
to
1,300

0.0

to

500.0

–100
to
850

0.0 to

400.0

–199.9
to

400.0

0 to
600

–100
to
850

0.0 to

400.0

–199.9
to

400.0

–200
to
1,300

0 to
1,700

0 to
1,700

100
to
1,800

0 to
2,300

0 to
1,300

°F

–300
to
2,300

0.0 to

900.0

–100
to
1,500

0.0 to

750.0

–199.9
to

700.0

0 to
1,100

–100
to
1,500

0.0 to

750.0

–199.9
to

700.0

–300
to
2,300

0 to
3,000

0 to
3,000

300
to
3,200

0 to
4,100

0 to
2,300

Resolution
(°C/°F)
(main setting
and

alarm)

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Note:

Setting number is factory-set to 2 (K1).

Current/Voltage

Input (switch selectable)

Current input V

oltage input

4 to 20 mA 0 to 20 mA

1 to 5 V 0 to 5 V

0 to 10 V

Range

One of following ranges depending on results of scaling
–1999 to 9999
–199.9 to 999.9
–19.99 to 99.99
–1.999 to 9.999

Resolution (

°C/°F)

(main setting and alarm)

17 18 19 20 21

Specifications

Ratings

Item 100-

to 240-V

AC type 24-VAC/VDC type

Supply voltage

100 to 240 V

AC, 50/60 Hz

24 V

AC/VDC, 50/60 Hz

Power consumption

15 V

A

6 V

A, 3.5 W

Operating voltage range

85% to 1

10% of rated supply voltage

Sensor input

Thermocouple: K, J, T

, E, L, U, N, R, S, B, W

, PL

II

Platinum resistance thermometer: JPt100, Pt100
Current input:

4 to 20 mA, 0 to 20 mA

V

oltage input:

1 to 5 V, 0 to 5 V

, 1 to 10 V

Input impedance

Current input:

150

Ω

V

oltage input:

1 MΩ min.

Control output

According to Output Unit (see

Output Unit Ratings and Characteristics

)

Auxiliary output

SPST

-NO, 3 A at 250 V

AC (resistive load)

Control method ON/OFF or 2-PID control
Setting method

Digital setting using front panel keys

Indication method

7-segment digital display and LEDs

Other functions Standard

Manual output, heating/cooling control, SP limiter

, loop burnout alarm, MV limiter

, MV change

rate limiter

, input digital filter

, input shift, run/reset, protect functions, scaling function

E5CK-T

E5CK-T

11

Characteristics

Indication

accuracy (see note 1)

Thermocouple:
(±

0.3% of indication value or

±1°

C, whichever greater) ±1 digit max.

Platinum resistance thermometer:
(±

0.2% of indication value or

±0.8°

C, whichever greater) ±1 digit max.

Analog input: ±0.2% FS ±1 digit max.

Hysteresis

0.01% to 99.99% FS (in units of 0.01% FS)

Proportional band (P)

0.1% to 999.9% FS (in units of 0.1% FS)

Integral (reset) time (I)

0 to 3,999 s (in units of 1 s)

Derivative (rate) time (D)

0 to 3,999 s (in units of 1 s)

Control period

1 to 99 s (in units of 1 s)

Manual reset value

0.0% to 100.0% (in units of 0.1%)

Alarm setting range

–1,999 to 9,999 or –199.9 or 999.9 (decimal point position dependent on input type)

Program capacity

4 patterns, 16 steps (possible to use up to 4 patterns with the communications function.)

Programming method

T

ime or ramp setting method

T

ime accuracy

±

0.2% (±500 ms) of the set value

Sampling period (see note 2)

T

emperature input:

250 ms

Analog input:

100 ms

Insulation resistance

20 MΩ min. (at 500 VDC)

Dielectric strength

2,000 V

AC, 50/60 Hz for 1 min between terminals of dif

ferent polarities

V

ibration resistance

Malfunction:

10 to 55 Hz, 10 m/s2 (approx. 1G) for 10 min each in X, Y, and Z directions

Destruction:

10 to 55 Hz, 20 m/s2 (approx. 2G) for 2 hrs each in X, Y

, and Z directions

Shock resistance

Malfunction:

200 m/s2 min. (approx. 20G), 3 times each in 6 directions
(100 m/s2 (approx. 10G) applied to the relay)

Destruction:

300 m/s2 min. (30G), 3 times each in 6 directions

Ambient temperature

Operating: –10°

C to 55°C (with no icing)/3-year warranty period: –10°C to 50

°C

Storage: –25°

C to 65°C (with no icing)

Ambient humidity

Operating: 35% to 85%

Enclosure ratings

Front panel:

NEMA4 for indoor use (equivalent to IP66)

Rear case:

IEC standard IP20

Terminals:

IEC standard IP00

Memory protection

Non-volatile memory (number of writings: 100,000 operations)

Weight

Approx. 170 g;
Adapter:

approx. 10 g

EMC Emission Enclosure: EN55011 Group 1 class A

Emission AC Mains:

EN55011 Group 1 class A

Immunity ESD:

EN61000-4-2:

4kV contact discharge (level 2)

8kV air discharge (level 3)

Immunity RF-interference:

ENV50140:

10V/m (amplitude modulated, 80 MHz to

1 GHz) (level 3)

10 V/m (pulse modulated, 900 MHz)

Immunity Conducted Disturbance:

ENV50141:

3 V (47 to 68 MHz)

10 V (0.15 to 47 MHz, 68 to 80 MHz)

(level 3)

Immunity Burst:

EN61000-4-4:

2kV power-line (level 3)

2kV I/O signal-line (level 4)

Approved standards

UL1092, CSA22.2 No. 14, CSA C22.2 No. 142
Conforms to EN50081-2, EN50082-2, EN61010-1 (IEC1010-1)
Conforms to VDE0106/ part 100 (Finger Protection), when the separately-ordered terminal
cover is mounted.

Note: The

indication accuracy of the K1, T

, and N

thermocouples at a temperature of -100°C max. The indication accuracy of the U, L1, and

L2

thermocouples at any temperature is

±2°C ±

1 digit maximum.
The indication accuracy of the B thermocouple at a temperature of 400°C max. is unrestricted.
The indication accuracy of the R and S thermocouples at a temperature of 200

°C max. is ±3°C ±

1 digit maximum.

The indication accuracy of the W thermocouple at any temperature is (±0.3% of the indicated value or ±3°C, whichever is greater)

±

1 digit

maximum.

The indication accuracy of the PLII thermocouple at any temperature is (±0.3% or

±2°

C, whichever is greater) ±1 digit maximum.

E5CK-T

E5CK-T

12

Output Unit Ratings and Characteristics

Model Control

output 1/Control output 2

E53-R4R4 Relay / Relay
E53-Q4R4 V

oltage (NPN) / Relay

E53-Q4HR4 V

oltage (PNP) / Relay

E53-C4R4

4 to 20 mA / Relay

E53-C4DR4

0 to 20 mA / Relay

E53-V44R4

0 to 10 mA / Relay

E53-Q4Q4 V

oltage (NPN) / V

oltage (NPN)

E53-Q4HQ4H V

oltage (PNP) / Voltage (PNP)

Output Type Specifications

Relay
Voltage (NPN)
Voltage (PNP)

250 V

AC. 3 A
12 VDC, 20 mA (with short-circuit protection)
12 VDC, 20 mA (with short-circuit protection)

0 to 10 V

4 to 20 mA

0 to 10 VDC, Permissible load impedance:

1 kΩ

min., Resolution: Approx. 2600

4 to 20 mA, Permissible load impedance:

500 Ω max., Resolution: Approx. 2600

Option Unit Ratings and Characteristics

Model Specifications

E53-CKB Event

input

Contact input:
ON: 1 kΩ

max., OFF: 100 kΩ min.

No-contact input:
ON: residual voltage 1.5 V max., OFF: leakage current 0.1 mA max.

E53-CK01

Communications

RS-232C

T

ransmission method:

Half-duplex

p

E53-CK03 RS-485

S

ynchronization method:Start-stop synchronization (asynchronous method

)

Baud rate: 1.2/2.4/4.8/9.6/19.2 kbps

E53-CKF T

ransfer output

4 to 20 mA DC:
Permissible load impedance: 600 Ω max.
Resolution: approx. 2,600

Note: Event

input is used for switching the target value, run or stop command, or automatic and manual mode

with an external signal input.

Nomenclature

Operation

Indicators

RUN/RST Key

Up Key/Down Key

Display Key

Display 1

Display 2

E5jK-T

E5jK-T

13

Setup

Note:

Always turn OFF the power supply to the Digital Controller before changing any switch settings.

Settings (E5AK/E5EK)

On

a standard model, set up the Output Units for control outputs 1

and

2 before mounting the Controller

.

On

a position-proportional model, the Relay Output Unit is already

set.

Therefore, this setup operation

is unnecessary

. (Do not replace

with

other Output Units.)

When

setting up the Output Units, draw out

the internal mechanism
from the housing and insert the Output Units into the sockets for
control

outputs 1 and 2.

E5AK

Draw-out

When drawing out the internal mechanism from the housing, pre­pare

a Phillips screwdriver matched to the size

of the screw on the

lower

part of the front panel.

1. Press

down on

the hook on the top of the front panel, and turn

the

Phillips screwdriver to the left to loosen the screw on the

lower

part of the front panel.

Hook

2. Draw out the internal mechanism towards you holding both
sides

of the front panel.

Setting Up the Output Unit

• Before Setup

Check the type of the Output Unit you are about to set up.

• Procedure

1. Check

the positions of the sockets you are about

to insert the

Output

Units into as shown in the following diagram.

OUT2

OUT1

Bracket

2. Insert the Output Unit for control output 1 into the socket
“OUT1” and the Output Unit for control output 2 into the
socket “OUT2.”

3. Fasten the Output Units with the bracket (accessory).

Setting Up the Option Unit

• Before Setup

Check the type of the Option Unit you are about to set up.

• Procedure

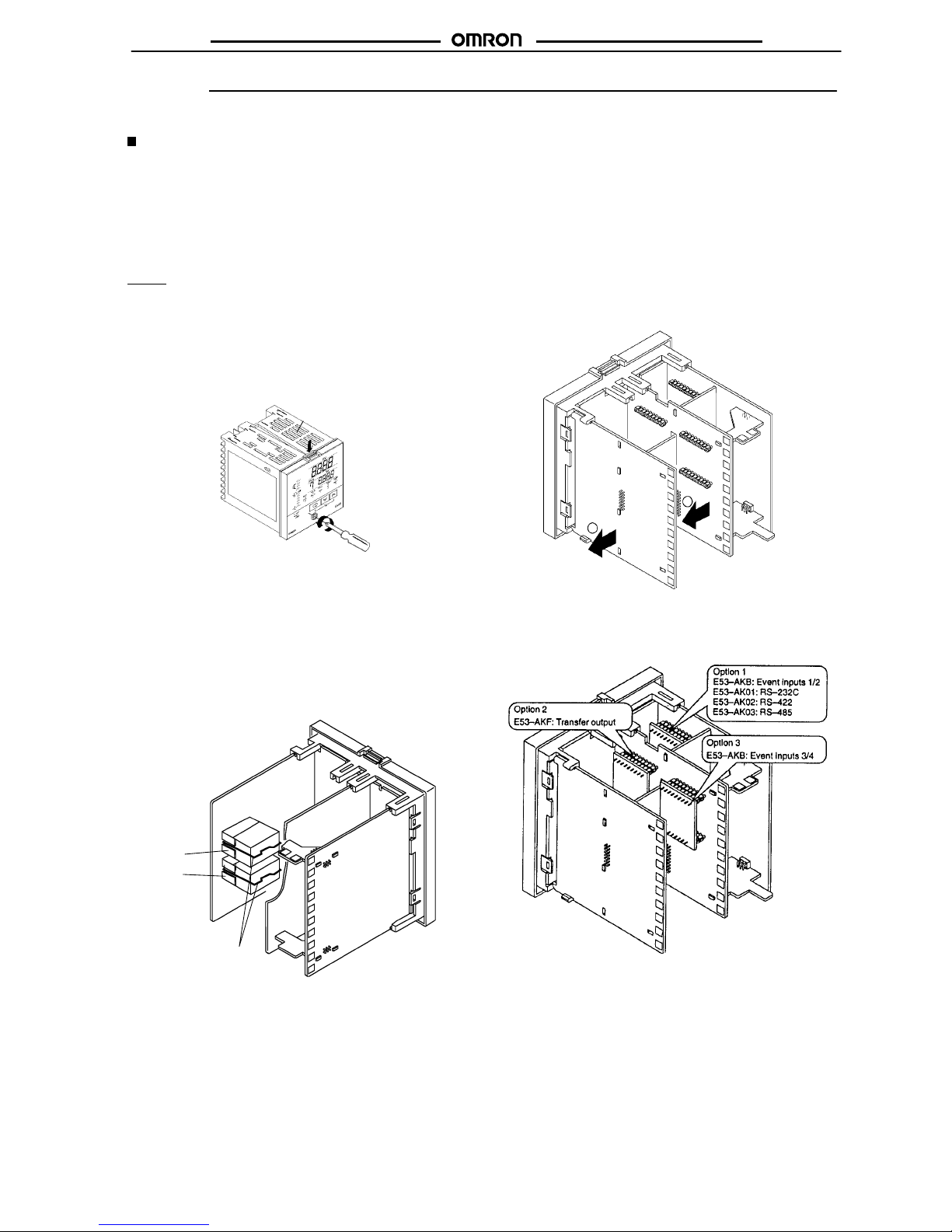

1. Remove the power board and option boards in the order
shown

in the following diagram.

2. Insert

the

Option Units into the sockets for options 1 to 3. The

following

diagram shows the relationship between the Option

Units

and mounting positions.

3. Mount the Option Boards and the power board in the order
shown.

E5jK-T

E5jK-T

14

Mounting

1. Insert the E5AK-T Controller into the mounting hole in the
panel.

2. Fit the mounting bracket (accessory) into the fixing slots on
the

top and bottom of the rear case.

3. Tighten the mounting bracket screws alternately a little at a
time

until the ratchet starts to slide.

Setting Up the T

erminal Cover

Fasten the T

erminal Covers (E53-COV0809) to protect terminals.

E5AK-VV2-500 Controller is provided with T

erminal Covers.

Use E53-COV09 for terminals 1 to 10, and E53-COV08 for termi­nals

11 to 33.

Fasten the T

erminal Covers as follows by using the snap pins.

E5AK-T

E53-COV0809

E5jK-T

E5jK-T

15

E5EK

Draw-out

When drawing out the internal mechanism from the housing, pre­pare

a Phillips screwdriver matched to the size

of the screw on the

lower

part of the front panel.

1. Press

down on

the hook on the top of the front panel, and turn

the

Phillips screwdriver to the left to loosen the screw on the

lower

part of the front panel.

2. Draw out the internal mechanism towards you holding both
sides

of the front panel.

Setting Up the Output Unit

• Before Setup

Check the type of the Option Unit you are about to set up.

• Procedure

1. Check

the positions of the sockets you are about

to insert the

Output

Units into as shown in the following diagram.

OUT2

OUT1

Bracket

2.

Remove the power board in the direction of the arrow in the
figure below. The power board is connected to the control
board

by a connector at the center of the board.

Power
board

Control
board

3. Insert the Output Unit for control output 1 into the socket
“OUT1” and the Output Unit for control output 2 into the
socket “OUT2.”

4. Fasten the Output Units with the bracket (accessory).

5.

Mount the power board at its original position.

Setting Up the Option Unit

• Before Setup

Check the type of the Option Unit you are about to set up.

• Procedure

1. Remove the power board and Option Boards in the order
shown

in the following diagram.

E5jK-T

E5jK-T

16

2. Insert the Option Unit into the socket for option 1. The
following diagram shows the relationship between Option
Unit

and mounting position.

Option

1
E53-AKB: Event inputs 1/2
E53-AK01: RS-232C
E53-AK02: RS-422
E53-AK03: RS-485
E53-AKF: T

ransfer output

3. Mount the Option Board and the power board in the order
shown.

Mounting

1. Insert the E5EK-T Controller into the mounting hole in the
panel.

2. Fit the mounting bracket (accessory) into the fixing slots on
the

top and bottom of the rear case.

3. Tighten the mounting bracket screws alternately a little at a
time

until the ratchet starts to slide.

Setting Up the T

erminal Cover

Fasten the T

erminal Covers (E53-COV0809) to protect terminals.

E5AK-VV2-500 Controller is provided with T

erminal Covers.

Use E53-COV09 for terminals 1 to 10, and E53-COV08 for termi­nals

11 to 33.

Fasten the T

erminal Covers as follows by using the snap pins.

E5AK-T

E53-COV08

T

o remove the Terminal Covers, pull the edges of the snap pins.

E5jK-T

E5jK-T

17

E5CK

Draw-out

Draw out the internal mechanism from the housing.

1. Press in both of the hooks on the left and right sides of the
front panel to unlock the internal mechanism from the
housing.

2. Draw out the internal mechanism towards you holding both
sides

of the front panel.

Setting Up the Output Unit

• Procedure

1. Two

rectangular holes for slotting are provided

on the power

board

(on right side of Controller). Fit the

two protrusions on

the

Output Unit into these two holes.

2. With

the Output Unit fitted

into the power board, fit the Output
Unit into the connector on the control board (on left side of
Controller).

Setting Up the Option Unit

• Procedure

1. Place

the Controller with its bottom facing up, and fit the

board
horizontally into the connector on the power board (on right
side

of Controller).

2.

With the power board connected, fit the board vertically into
the

connector on the control board (on left side of Controller).

Mounting

1. Insert the E5EK-T Controller into the mounting hole in the
panel.

2. Push

the adapter along the Controller body

from the terminals

up

to the panel, and fasten temporarily

.

3. Tighten

the two fixing screws on the adapter

. When tightening

screws,

tighten the two screws alternately keeping the torque

to

approximately 0.29 to 0.39 N S m, or 3 to 4 kgf

S cm.

Adapter

Panel

Waterproof packing

Setting

the Input T

ype Jumper

Set

the jumper to one of temperature input, voltage input or current

input

matched to the type of sensor connected to the input terminal.

I

: Current input

V : V

oltage input

TC/PT : T

emperature input

The

input type jumper is factory-set to “TC/PT (temperature input).”

When

you disconnect or insert the input type

jumper

, do not hold it

directly

by its pins.

When you have finished setting the input type jumper, insert the
internal

mechanism back into the housing.

To

do

this, push in the internal mechanism until you hear the hooks

on

the front panel snap into place.

E5jK-T

E5jK-T

18

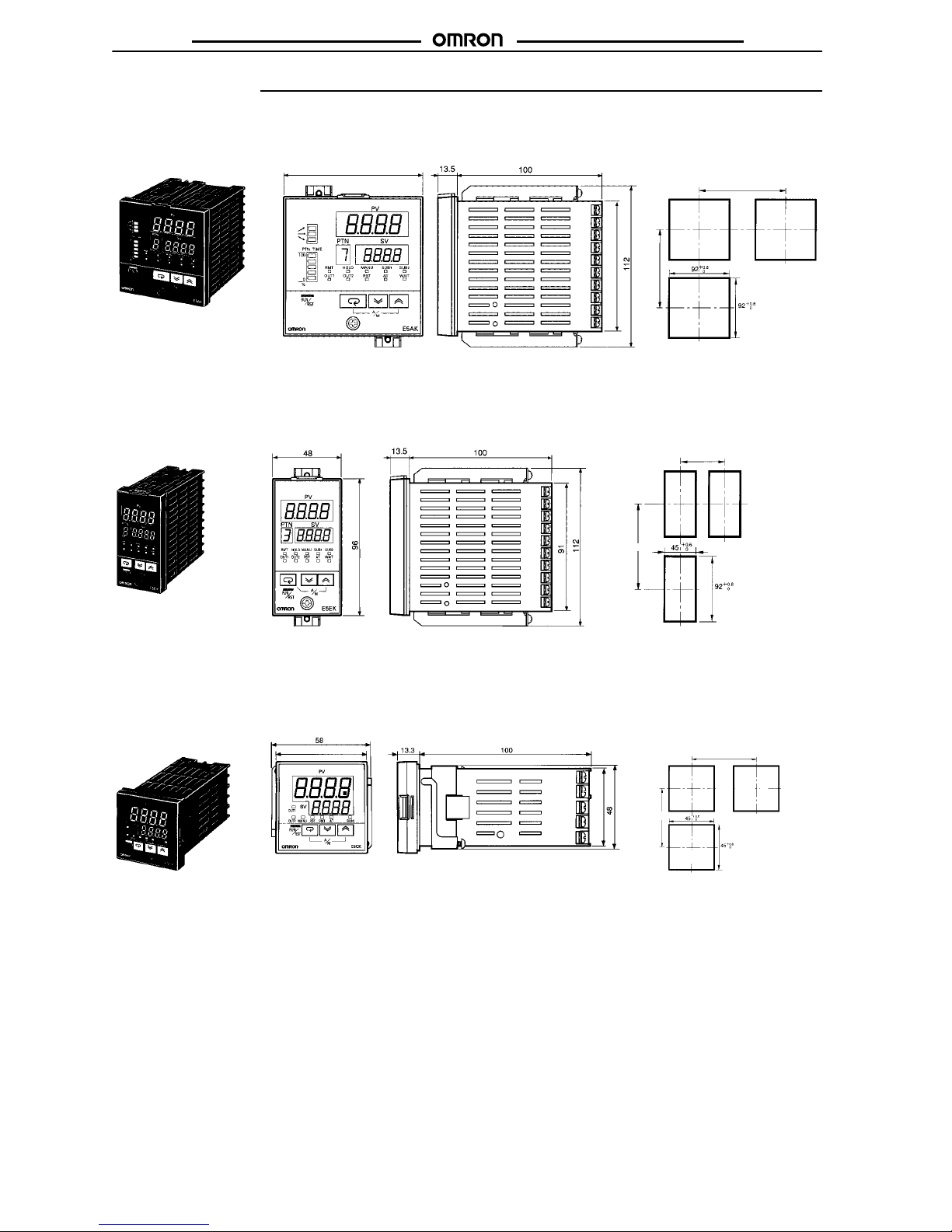

Dimensions

Note:

All units are in millimeters unless otherwise indicated.

96 x 96

91 x 91

110 min.

44.8 x 44.8

53 x 53

120 min.

E5AK

E5EK

Panel Cutouts

Note: 1.

Recommended panel thickness is 1 to 8 mm.

2. Maintain the specified vertical and horizontal
mounting

space between each Unit. Units must

not

be closely mounted vertically or horizontally

.

Panel Cutouts

Note: 1.

Recommended panel thickness is 1 to 8 mm.

2. Maintain the specified vertical and horizontal
mounting space between each Unit. Units must
not

be closely mounted

vertically or horizontally

.

E5CK

Panel Cutouts

60 min.

120 min.

60 min.

65 min.

Note: 1. Recommended

panel thickness is 1 to 5 mm.

2. Maintain the specified vertical and horizontal
mounting space between each Unit. Units must
not

be closely mounted

vertically or horizontally

.

E5jK-T

E5jK-T

19

Accessories (Order Separately)

Terminal Cover

E53-COV0809 (E5AK)

E53-COV08 (E5EK)

(With rivet) (With rivet)

E53-COV07

(With rivet)

Current Transformer

E54-CT1

E54-CT3

5.8 dia.

12 dia.

2.36 dia.

Two, M3 (depth: 4)

40x40

E5jK-T

E5jK-T

20

Rubber Seal

Installation

Wiring Terminals

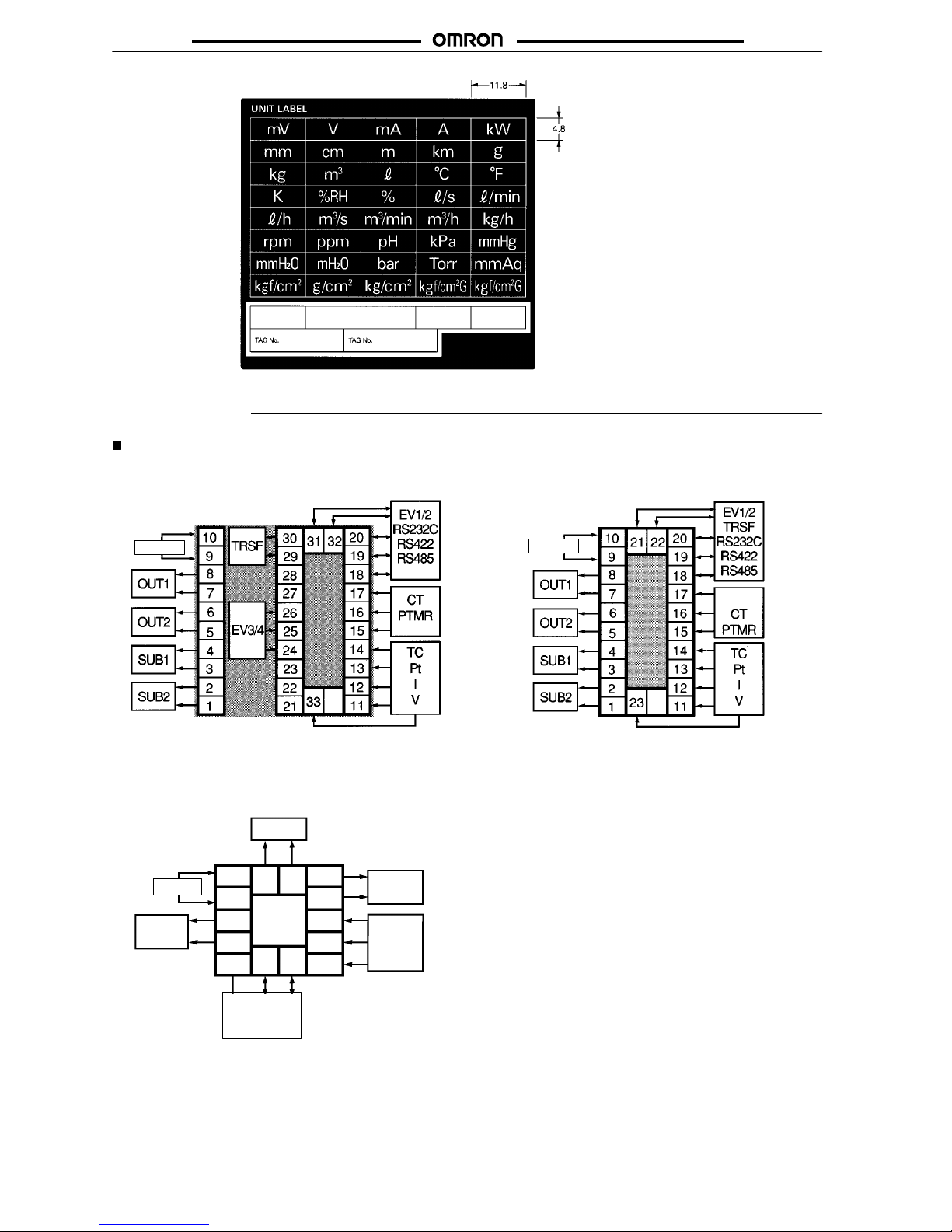

Terminal Arrangement

TRSF: Transfer

output

EV1 to 4:

Event input

PTMR: Potentiometer

100-240 VAC
24 VDC/AC

SOURCE

TRSF: Transfer

output

EV1/2:

Event input

PTMR: Potentiometer

SOURCE

E5AK-T E5EK-T

100-240 VAC
24 VDC/AC

E5CK-T

5
4
3

2

1

10

9

8
7

6

13 14

11 12

OUT1

OUT2

SUB1

IN

SOURCE

EV1
RS232C
RS485
TRSF

TRSF: Transfer output
EV1: Event input

100-240 VAC
24 VDC/AC

E5jK-T

E5jK-T

21

Precautions when Wiring

Use

ducts to separate input leads and power lines in order to protect the Controller and its lines from external noise.

Solderless terminals are recommended when wiring the Controller

.

Tighten

the terminal screws using a torque no greater than

0.78 N S m, or 8 kgf S cm max. T

ake care not to tighten the terminal screws too tightly

.

Power

Blocks

The E5AK/E5EK has independent power supplies for each of the terminal blocks shown below

.

10

9
8
7
6
5
4
3
2
1

30
29
28
27
26
25
24
23
22
21

20
19
18
17
16
15
14
13
12
11

31 32

33

AB C

B

FD

C

E

10

9
8
7
6
5
4
3

2
1

20
19
18
17
16
15
14
13
12
11

2122

23

A B/C C

B

FD

E

E5AK

E5EK

The E5CK has independent power supplies for each
of the terminal blocks shown below

. However

, note
that the power supplies for blocks C (exclude relay
output) and D are shared for the following Option
Unit.

•

Option Unit: E53-CKB or E53-CKF

AC

5
4
3
2
1

10

9
8
7
6

C

DB

11 12

13 14

E5CK

E5AK Wiring

In

the following wiring diagrams, the left side of the terminal numbers indicate the inside of the Controller

.

Power Supply

Input 100 to 240 V

AC or 24 V

AC/DC to terminal numbers 9 and 10 according to the specifications.

Sensor Input

Connect the sensor input to terminal numbers 1

1 to 14 and 33 as follows according to the input type.

E5jK-T

E5jK-T

22

Control Output

Terminal

numbers 7 and 8 are for control output 1 (OUT1), and terminal numbers 5 and 6 are for control output 2 (OUT2). The following dia

-

grams

show the available Output Units and their internal equalizing circuits.

With E53-Vjj Output Units, approx. 2 V is output for one second after the power is interrupted.
With E5AK-TPRR2 Controllers, the relay output (1 A at 250 V

AC) is fixed.

When

replacing the Output Unit, use the E53-R. The following diagrams show the relationship between terminals and open/close relay set

-

tings.

8

7

Open

6

5

Close

Auxiliary Output

Terminal numbers 3 and 4 are for auxiliary output 1 (SUB1) and terminal numbers 1 and 2 are for auxiliary output 2 (SUB2). The following
diagrams

show the internal equalizing circuits for the auxiliary outputs:

10

9
8

7
6
5

4
3
2

1

30
29

28
27
26
25

24
23
22

21

20
19

18
17
16
15

14
13
12

11

31 32

33

4

3

2

1

Auxiliary

output 1

Auxiliary
output 2

Output specifications are as follows:

SPST

-NO, 3 A at 250 V

AC

E5jK-T

E5jK-T

23

CT Input/Potentiometer

When

using the HBA function on the E5AK-AA2 Controller

, connect CT input (CT) to

terminal numbers 15 to 17. When monitoring the valve
opening on the E5AK-PRR2 Controller, connect the potentiometer (PTMR) to terminal numbers 15 to 17. Connect each of these inputs as
follows:

10

9
8
7
6
5
4
3
2
1

30
29
28
27
26
25
24
23
22
21

20
19
18

17
16
15

14
13
12
11

31 32

33

17
16
15

17
16
15

C

W

O

CT

CT

input

Potentiometer

Event

Input

Connect

event inputs 1 and 2 (EV1/2) to terminal numbers 18 to 20, and event events 3 and 4 (EV3/4) to terminal numbers 24 to 26. However

,

note

that terminal numbers 18 to 20 cannot be used on Controllers with a communications function. Connect the event inputs as follows:

10

9
8
7
6
5
4
3
2
1

30
29
28
27

26
25
24

23
22
21

20
19
18

17
16
15
14
13
12
11

31 32

33

20
19
18

26
25
24

+
+

–

Event

input 1 and 2

Event input 3 and 4

EV1
EV2
COM

EV3
EV4
COM

+
+

–

Terminals

18 and 24 (COM) are connected internally

.

Use event inputs under the following conditions:

Contact input

ON: 1 kΩ

max.

OFF:

100 kΩ min.

No-contact input

ON:

Residual voltage 1.5 V max.,

OFF:

Leakage current 0.1 mA max.

Polarities during no-contact input are as follows:

20

19

18

26
25

24

+
+

–

Event

input 1 and 2

Event input 3 and 4

EV1
EV2
COM

EV3
EV4
COM

+
+

–

E5jK-T

E5jK-T

24

Transfer Output

Connect transfer output (TRSF) to terminal numbers 29 and 30. The internal equalizing circuit for transfer output is as follows:

30

29

4 to 20mA

L

+

–

T

ransfer output specifications are as follows: 4 to 20 mA DC,
Permissible load impedance: 600 Ω max.,
Resolution: Approx. 2,600

Communications

Terminal

numbers 18 to 20, 31 and 32 can be used only on Controllers with Communications Units (E53-AK01/02/03). For details on wiring,

refer

to

Chapter 6, Using the Communications Function

in the

E5AK-T/E5EK-T/E5CK-T User’

s Manual (H88/H89/H90)

.

E5EK Wiring

In

the following wiring diagrams, the left side of the terminal numbers indicate the inside of the Controller

.

Power Supply

Input 100 to 240 V

AC or 24 V

AC/DC to terminal numbers 9 and 10 according to the specifications.

Sensor Input

Connect the sensor input to terminal numbers 1

1 to 14 and 23 as follows according to the input type.

E5jK-T

E5jK-T

25

Control Output

Terminal

numbers 7 and 8 are for control output 1 (OUT1), and terminal numbers 5 and 6 are for control output 2 (OUT2). The following dia

-

grams

show the available Output Units and their internal equalizing circuits.

With E53-Vjj Output Units, approx. 2 V is output for one second after the power is interrupted.
With E5EK-TPRR2 Controllers, the relay output (1 A at 250 V

AC) is fixed.

When

replacing the Output Unit, use the E53-R. The following diagrams show the relationship between terminals and open/close relay set

-

tings.

8

7

Open

6

5

Close

Auxiliary Output

Terminal numbers 3 and 4 are for auxiliary output 1 (SUB1) and terminal numbers 1 and 2 are for auxiliary output 2 (SUB2). The following
diagrams

show the internal equalizing circuits for the auxiliary outputs:

10

9
8

7
6
5

4
3
2
1

20
19

18
17
16
15

14
13
12
11

21 22

23

42

1

Auxiliary

output 1

Auxiliary

output 2

3

Output specifications are as follows:

SPST

-NO, 3A at 250 V

AC

E5jK-T

E5jK-T

26

CT Input/Potentiometer

When

using the HBA function on the E5EK-AA2 Controller

, connect CT input (CT) to

terminal numbers 15 to 17. When monitoring the valve

opening

on the E5EK-TPRR2 Controller

, connect

the potentiometer (PTMR) to terminal numbers 15 to 17. Connect each of these inputs as

follows:

10

9
8

7
6
5
4

3
2

1

20
19

18

17
16
15

14
13

12
11

21 22

23

17
16
15

17
16
15

O

W

C

CT

input

Potentiometer

For

details on CT inputs, refer to

Appendix, About Current T

ransformer

in the

E5AK-T/E5EK-T/E5CK-T User’

s Manual (H88/H89/H90)

. For

details

on the potentiometer

, refer

to the

Instruction Manual

for the valve connected to the Controller

. The variable resistance range is 100 Ω to

2.5 kΩ.

Event Input

Connect

event inputs 1 and 2 (EV1/2) to terminal numbers 18 to 20. However

, note that terminal numbers 18 to 20 cannot be used on Control

-

lers

with a communications function. Connect the event inputs as follows:

10

9
8
7

6
5
4
3
2
1

20
19
18

17
16
15
14
13
12

11

21 22

23

20
19
18

Event

input 1 and 2

EV1
EV2
COM

+
+

–

Use

event inputs under the following conditions:

Contact input

ON: 1 kΩ

max., OFF: 100 kΩ min.

No-contact input

ON:

Residual voltage 1.5 V max.,

OFF:

Leakage current 0.1 mA max.

Polarities during no-contact input are as follows:

20

19

18

Event

input 1 and 2

EV1
EV2
COM

+
+

–

Transfer Output

Connect transfer output (TRSF) to terminal numbers 21 and 22. The internal equalizing circuit for transfer output is as follows:

21

22

4 to 20mA

L

+

–

E5jK-T

E5jK-T

27

T

ransfer output specifications are as follows:4 to 20 mA DC,
Permissible load impedance: 600 Ω max.,
Resolution: Approx. 2,600

Communications

Terminal

numbers 18 to 22

can be used only on Controllers with Communications Units (E53-AK01/02/03). For details on wiring, refer to

Chap-

ter

6, Using the Communications Function

in the

E5AK-T/E5EK-T/E5CK-T User’

s Manual (H88/H89/H90)

.

E5CK Wiring

Power

Supply

Input 100 to 240 V

AC or 24 V

AC/DC to terminal numbers 4 and 5 according to the specification.

5

4

3
2
1

10

9
8
7
6

13 14

11 12

Sensor Input

Connect the input to terminal numbers 6 to 8 as follows according to the input type.

8

7

6

8

7

6

8

7

6

8

7

6

-

+

-

+

-

+

VmA

TC ⋅ PT V I

Thermocouple Platinum resistance

thermometer

Voltage input Current input

5

4

3
2
1

10

9

8

7

6

13 14

11 12

Match

the inputs with the internal jumper settings

for each input type. For thermocouple or platinum resistance thermometer inputs, set the

inputs to a common position (TC/PT) as the temperature input.

Control Output

Terminal

numbers 11 and 12 are for control output 1 (OUT1). The five output types and internal equalizing circuits are available according to the

Output

Unit.

5

4
3
2
1

10

9

8
7
6

13 14

11 12

11

12

11

12

L

11

12

L

11

12

L

11

12

L

E53-R4R4 E53-Q4R4

E53-Q4Q4

E53-Q4HR4
E53-Q4HQ4H

E53-V44R4 E53-C4R4

E53-C4DR4

NPN PNP 0 to 10 V 4 to 20mA

+v

+

-

+

-

+

-

+

-

GND

mA

Relay

V

+v

GND

Terminal

numbers 9 and 10 are for control output 2 (OUT2). The three output types and internal equalizing circuits are available according to the

Output

Unit.

10

9

10

9

L

10

9

L

+V

+

-

+

-

GND

E53-Q4Q4 E53-Q4HQ4H

NPN PNP

E53-R4R4 /E53-V44R4
E53-Q4R4 /E53-C4R4
E53-Q4HR4/E53-C4DR4

Relay

+V

GND

E5jK-T

E5jK-T

28

Auxiliary Output 1

T

erminal numbers 2 and 3 are for auxiliary output 1 (SUB1).

The internal equalizing circuit for auxiliary output 1 is as follows:

5

4

3

2

1

10

9
8
7
6

13 14

11 12

3

2

Relay specifications are as follows:

SPST

-NO, 250 VAC, 1 A

Option

T

erminal numbers 1, 13, and 14 are valid only when the Option Unit is set in the Controller

.

The following four connections are possible depending on the model of the Option Unit.

5

4
3
2

1

10

9
8
7
6

13 14

11 12

13
14

1

13
14

1

13
14

1

13
14

1

SD
RD
SG

A

B

+

–

4 to 20mA

E53-CK01

RS-232C

E53-CK03

RS-485

E53-CKB E53-CKF

Event input Transfer output

Use

event inputs under the following conditions:

Contact input

ON: 1 kΩ

max., OFF: 100 kΩ min.

No-contact input

ON: residual voltage 1.5 V max., OFF: leakage current 0.1 mA max.

The polarity for no-contact input is as follows:

13
14

1

+

–

T

ransfer output specifications are as follows:

4 to 20 mA DC, load: 500 Ω max., resolution approx. 2,600

E5jK-T

E5jK-T

29

After Turning Power ON

Determine the I/O specifications of the Digital Controller in setup
mode.

Setup

Mode

Power ON

Process value

1 s min.

1 s min.

Input type

Temperature input Current/Voltage input

°C/°F
selection

Scaling
upper limit

Scaling
lower limit

Decimal point

Parameter initialize

From next column To next column

prgn

To previous column From previous column

Control output 1
assignment (Not
displayed by the
E5jK-TPRR2)

Control output 2
assignment (Not
displayed by the
E5jK-TPRR2)

Auxiliary output 1
assignment

Output
assignment

Auxiliary output 2
assignment (Not
displayed by the
E5CK)

Alarm 1 type

Alarm 1
open in
alarm

Alarm 2 type

Alarm type

Alarm 2
open in
alarm

Alarm
1, 2, or
3 is not
set.

Alarm 3 type

Alarm 3
open in
alarm

Direct/Reverse
operation

Note: Parameter

Initialize

Parameter initialization sets all parameters to default val­ues except for the input type, scaling upper limit, scaling
lower

limit, decimal point, and

°C/°

F selection parameters.

E5jK-T

E5jK-T

30

Specifications

Input Type

Set

the code according to the following table. Default is

“2: K1 ther

-

mocouple.”

Platinum Resistance Thermometer

Set Input

type

Set

value

Input type

0 JPt100

–199.9 to 650.0 (

°C)

/–199.9 to 999.9 (

°F)

Platinum
resistance

1 Pt100

–199.9 to 650.0 (

°C)

/–199.9 to 999.9 (

°F)

thermometer

2 K1

–200 to 1,300 (

°C)

/–300 to 2,300 (

°F)

Thermocouple

3 K2

0.0 to 500.0 (

°C)

/0.0 to 900.0 (

°F)

4 J1

–100 to 850 (

°C)

/–100 to 1,500 (

°F)

5 J2

0.0 to 400.0 (

°C)

/0.0 to 750.0 (

°F)

6 T

–199.9 to 400.0 (

°C)

/–199.9 to 700.0 (

°F)

7 E

0 to 600 (

°C)

/0 to 1,100 (

°F)

8 L1

–100 to 850 (

°C)

/–100 to 1,500 (

°F)

9 L2

0.0 to 400.0 (

°C)

/0.0 to 750.0 (

°F)

10 U

–199.9 to 400.0 (

°C)

/–199.9 to 700.0 (

°F)

11 N

–200 to 1,300 (

°C)

/–300 to 2,300 (

°F)

12 R

0 to 1,700 (

°C)

/0 to 3,000 (

°F)

13 S

0 to 1,700 (

°C)

/0 to 3,000 (

°F)

14 B

100 to 1,800 (

°C)

/300 to 3,200 (

°F)

15 W

0 to 2,300 (

°C)

/0 to 4,100 (

°F)

16 PLII

0 to 1,300 (

°C)

/0 to 2,300 (

°F)

17

4 to 20 mA

Current input

18

0 to 20 mA

19

1 to 5 V

V

oltage input

20

0 to 5 V

21

0 to 10 V

Output Assignments

Thirteen

output functions are available. Allocate these functions to

the

control outputs 1 and 2 and auxiliary outputs 1 and 2.
There are some limitations on some output function allocations.
Output

function types and allocation

limitations are as described in

the

following.
Identical

output functions cannot be

allocated doubly to the control

output

1 or 2 and auxiliary output 1 or 2.

Standard Models

Assignment

Destination

Control Output Auxiliary Output

Destination

Output Function

1 2 1 2

Control output (heat)
(see note 1)

Yes Yes No No

Control output (cool)
(see note 1)

Yes Yes No No

Alarm 1

Yes Yes Yes Yes

Alarm 2

Yes Yes Yes Yes

Alarm 3

Yes Yes Yes Yes

HBA (see notes 1, 2)

Yes Yes Yes Yes

LBA (see note 1)

Yes Yes Yes Yes

T

ime signal 1

Yes Yes Yes Yes

T

ime signal 2

Yes Yes Yes Yes

Program end

Yes Yes Yes Yes

Stage output
(see note 1)

Yes Yes Yes Yes

Error 1 : Input error

No No Yes Yes

Error 2 : A/D convertor
error

No No Yes Yes

Note: 1. Assignment

is not possible with the control valve control

type.

2. Heater

burnout alarm is not available for the E5CK.

Position-proportional Models

Position-proportional-type Controllers support nine output func­tions.

These are assigned to auxiliary outputs 1 and 2.

Restrictions

on assignment destinations are placed on

some of the

outputs.

The following table shows where outputs may be assigned

to.

Assignment

Destination

Control Output Auxiliary Output

Destination

Output Function

1 2 1 2

Alarm 1

No No Yes Yes

Alarm 2

No No Yes Yes

Alarm 3

No No Yes Yes

T

ime signal 1

No No Yes Yes

T

ime signal 2

No No Yes Yes

Stage output

No No Yes Yes

Program end output

No No Yes Yes

Error 1 : Input error

No No Yes Yes

Error 2 : A/D converter
error

No No Yes Yes

With control output (cool), the conditions for switching from stan­dard control to heating and cooling control are reached when the
output function is assigned at the cooling side during heating and
cooling

control.

In

other words, heating and

cooling control is carried out when con

­trol output (cool) is assigned, and standard control is carried out
when

output is not assigned.

E5jK-T

E5jK-T

31

LBA

The

LBA (loop break alarm) function is available when it is assigned

as

an output. The LBA function is not available when a memory or

A/D converter error results.
LBA

is a function for determining that an error has occurred some

-

where

on the control loop and outputting an alarm

when the process

value

does not change with the manipulated variable at a maximum

or

minimum state.

Accordingly

, the LBA function can be used as a

means

for detecting a malfunctioning control loop.

Alarm Mode Selectors

Alarm

outputs are available if they are allocated as outputs. Factory setting is “2: Upper-limit alarm (deviation).”

Switch

Alarm operation

Alarm output

setting

When X is positive When X is negative

1

Upper- and lower-limit alarm (deviation)

XX

ON
OFF

SP

Always ON

2

Upper-limit alarm (deviation)

X

SP

ON
OFF

X

SP

ON
OFF

3

Lower-limit alarm (deviation)

X

SP

ON
OFF

X

SP

ON
OFF

4

Upper- and lower-limit range alarm (deviation)

XX

SP

ON
OFF

Always OFF

5 Upper- and lower-limit alarm with standby

sequence

(deviation)

XX

SP

ON
OFF

Always OFF

6

Upper-limit alarm with standby sequence
(deviation)

X

SP

ON
OFF

X

SP

ON
OFF

7

Lower-limit alarm with standby sequence
(deviation)

X

SP

ON
OFF

X

SP

ON
OFF

8

Absolute-value upper-limit alarm

X

0

ON
OFF

0

X

ON
OFF

9

Absolute-value lower-limit alarm

X

0

ON
OFF

0

X

ON
OFF

10

Absolute-value upper-limit alarm with standby
sequence

X

0

ON
OFF

0

X

ON
OFF

11

Absolute-value lower-limit alarm with standby
sequence

X

0

ON
OFF

0

X

ON
OFF

Deviation Alarm

If

the alarm mode selector is set to a number between 1 to 7, alarm

values

are set to the width deviated from the set point as shown in

the

following illustration.

Set point (SP)
100°C/°F

Alarm value

10°C/°F

110°C/°F

Absolute Alarm

If

the alarm mode selector is set to 8 or 9, alarm values are set to the

absolute

value based on 0

°C/°

F as shown in the following illustra

-

tion.

0°C/°F

Alarm value

110°C/°F

110°C/°F

E5jK-T

E5jK-T

32

Close in Alarm/Open in Alarm

When

the Controller is set to “close in alarm,” the status of the alarm

output

function is output as it is. When set to “open in alarm,” the

sta

-

tus

of the alarm output function is output inverted.

Condition Alarm Output Output LED

Close in

ON ON Lit

C ose

alarm

OFF OFF

Not lit

Open in

ON OFF Lit

Oe

alarm

OFF ON

Not lit

Alarm

type

and close in alarm (normally open)/open in alarm (nor

-

mally

close) can be set independently from each alarm.

Close in alarm/Open in alarm is set in the “alarm 1 to 3 open in
alarm”

parameters (setup mode). Factory setting is “close in alarm”

[ no ].

Parameter Operations

Parameter Operation List

Switching

to modes other than manual or protect mode is carried out using the mode selection in the menu display

.

The

figure below shows all parameters in the order that they are displayed. Some parameters are not displayed depending on the protect mode

setting

and conditions of use.

Power ON

Level

0 mode

Level

1 mode

Level

2 mode

Setup

mode

Expansion mode

Option mode

Calibration mode

1 second min.

Program

mode

Protect mode

Manual mode

1 second min.

1 second min. 1 second min.

1 second min.

1 second min.

1 second min.

1 second min.

1 second min.

1 second min.

1 second min.

1 second min.

1 second min.

Parameters and Menus

Note: For more details on the functions of each part and display contents, refer to the

E5AK-T/E5EK-T/E5CK-T User’s Manual

(H88/H89/H90)

.

Protect Mode The

protect function is for preventing unwanted modification of parameters

and switching between

run

and reset operation or auto and manual operation.

Manual Mode

In

this mode, the Controller can be switched to

manual operation. The manipulated variable can be

manipulated

manually only in this mode.

E5jK-T

E5jK-T

33

Level 0

Mode

Set

the Controller to this mode during normal operation. In this mode, you can change the set point

and

pattern during operation, and execute step operation (e.g. advance). Y

ou can only monitor (not

change)

the process value, step No., standby time, pattern elapsing time, pattern execution count,

and

manipulated variable.

Program Mode This

is the programming mode. In this mode, you can set the number of steps used in each pattern,

pattern

execution count, alarm values, set points for each step,

step time, and time signals for two

steps.

Level 1

Mode

This

is the main mode for adjusting control. In this mode, you can execute A

T (auto-tuning), and set

up

the control period, PID parameters and heater burnout alarm (HDA) conditions.

Level 2 Mode

This

is the auxiliary mode for adjusting control. In this mode, you can set the parameters for

limiting

the

manipulated variable, switch between the remote and local modes, and set the loop break alarm

(LBA),

alarm hysteresis, and the digital filter value of inputs.

Setup Mode

This

is the mode for setting the basic specifications. In this mode, you can set parameters that must
be checked or set before an operation such as the input type, scaling, output assignments, and
direct/reverse

operation.

Expansion Mode

This

is the mode for setting expanded functions. In this mode, you can set SP setting limiter, switch

-

ing

between 2-PID control or ON/OFF control, program time unit, selection of step time/rate of rise,

time

unit of ramp rise rate, and the time for automatic return to the monitoring display

.

Option Mode

This

is

the mode for setting optional functions. Y

ou can select this mode only when an Option Unit is

mounted in the

Controller. In this mode, you can set the communications conditions, transfer output

and

event input parameters to match the type

of Option Unit mounted in the Controller

. Heater burn

-

out

alarm function and position-proportional travel time are also found in this mode.

Calibration Mode This

mode is provided so that the user can calibrate inputs and output. When calibrating input, the
selected

input type is calibrated. Whereas,

transfer output can be calibrated only when the Commu

-

nications

Unit (E53-AKF) is set in the Controller

.

E5jK-T

E5jK-T

34

Parameter Operation

Refer

to the

E5AK-T/E5EK-T/E5CK-T User’

s Manual (H88/H89/H90)

for each parameter and the calibration mode in detail.

Refer to page

13 for the setting in detail.

Level 0 Mode

Process Value
Set Point

Pattern Number
(With E5CK, this display appears when more than
two patterns are used.)

Step Number Monitor

Hold

Advance

Standby Time (displays remaining time) Monitor

Pattern Elapsing Time Monitor

Pattern Execution Count Monitor

MV Monitor (heating)

(Control Valve Control)

(Heating/Cooling Control)

MV Monitor
(Cooling)

MV

Valve Opening

MV

Time

Time

Number of times

Measured
value

Protect Mode

Under

this mode, key operations

are invalidated for the Auto/Manu

-

al

and Run/Reset.

Press 1 s min.
simultaneously.

Security

Key protect

To level 0

Press 1 s min.
simultaneously.

RUN/RST

RUN/RST

0

Security

Before starting operation, apply key protection to the parameters
that

will not be changed during operation in order to prevent any ac

-

cidental

parameter changes.

Depending on the set values for the Security parameter (protect
mode), ranges of parameter application will be restricted. The fol­lowing table shows relationship between the set values and the
scope

of protection.

Mode

Set value

0 1 2 3 4 5 6

Calibration Yes No No No No No No
Option Yes Yes No No No No No
Expansion Yes Yes No No No No No
Setup Yes Yes No No No No No
Level 2

Yes Yes Yes No No No No

Level 1, 0

Yes Yes Yes Yes No No No

Program Yes Yes Yes Yes Yes No No
Level 0

Yes Yes Yes Yes Yes Yes *

Note: *Only the “Process Value/Set Point” parameter display is

possible.

When

the set value is “0,” protection will not be applied.

When

the set value is “5,” only the parameter in the level 0 mode

can

be

used and not possible to change to the menu screen.

When

the

set value is “6,” only the “Process V

alue/Set Point” can be

monitored.
The

default setting is “1.”

Manual Mode

Process value

Manipulated variable/
Valve opening monitor

MANU indicator

+

+

Press simul­taneously 1 s
min.

Press simultaneously
1 s min.

E5jK-T

E5jK-T

35

Program Mode

Pattern number
Synchronized with with the pattern
number of level 0 mode.

Step number

Changed to the ramp setting method. Refer to the
Operation Manual for the ramp setting method.

Time setting method

Target SP 0

Step 0 SP

Ramp Rate 0

Step 0 time

Soak time 0

Target SP 7

Step 7 SP

Ramp rate 7

Step 7 time
(see note)

Soak time 7 (max.)

Time Setting Method

Set the number of steps to be used beginning with step 0 (e.g., step
0 SP, step 0 time, step 1 SP

, and step 1 time).

The step target value can be set within a range between the
lower and upper target value limits. The default value is zero.

The step time can be set within a range between 0.00 and 99.59
(in hr and min or min and s). The default value is 0.00.

Step 0 Step 1 Step 3Step 2

Step 0 time Step 1 time Step 2 time Step 3 time

A: Step 0 and step 3 SP
B: Step 1 and step 2 SP

Time

Step 0 is flat as shown in the above graph. Set step 0 to 0.00 so that
step 1 will be the actual first step when writing ramp-start programs.

Note: Up

to

step 15 (i.e., a total of 16 steps) can

be

set in the time setting method.

Time signal 1 enabled step

Time signal 1 ON time

Time signal 1 OFF time

Time signal 2 enabled step

Time signal 2 ON time

Time signal 2 OFF time

Time Signal

Two types of time signal patterns can be set in each pattern.

Time signal output

ON time

Time

OFF time

Two types of time signal timers are available (i.e., ON-time and OFF-time use), each
of which starts with the edge of the step.

The output is ON from the moment the ON time elapses until the OFF time elapses.

Set the step so that the time signal is triggered by the time signal 1/2 enabled step
parameters. The default is step 0.

Set the ON/OFF timing with the timing signal 1/2 ON-time and time signal 1/2
OFF-time parameters in Program mode.

ON Conditions

If the ON time is shorter than the OFF time, the signal will be reset or ON after the ON
time elapses until the next pattern starts.

The signal is not ON if there is no difference in period between the ON time and OFF time.

If ADVANCE is executed while the time signal setting step is executed, the time equiv­alent to the setting step will be deemed to have elapsed. In the above graph, for exam­ple, the signal is ON from the edge of the next step until the OFF time elapses.

Pattern execution count

Alarm value 1 (displayed only if the alarm is allocated.)

Alarm value 2 (displayed only if the alarm is allocated.)

Alarm value 3 (displayed only if the alarm is allocated.)

E5jK-T

E5jK-T

36

Level 1 Mode

AT Execute/Cancel

Proportional Band
Available if the Controller is in 2-PID control.

Integral Time
Available if the Controller is in 2-PID control.

Derivative Time
Available if the Controller is in 2-PID control.

For heating/cooling control

For E5jK-PRR2

Cooling Coefficient
Used with the Controller is in
heating and cooling control.

Dead Band
Used with the Controller is in
heating and cooling control.

Manual Reset Value
Available when the integral time parameter
of the Controller in standard control is “0.”

Hysteresis (Heat)
Available when the Controller is in
ON/OFF control.

For heating/cooling control

Hysteresis (Cool)
Available when the Controller is in
ON/OFF control

Control Period (Heat)
Available when the Controller has a relay or
voltage output, or is in 2-PID control.

For heating/cooling control

Control Period (Cool)
Available when the Controller has a relay
or voltage output, or is in 2- PID control.

Current value

Heater Current Monitor
Available when the heater
burnout alarm is assigned.

Heater Burnout Detection
Available when the heater
burnout alarm is assigned.

Position­proportional
dead band

Level 2 Mode

Remote/Local
Used

for the

communications function.

LBA Detection Time
Available when the LBA (loop break
alarm) is assigned as an output.
Unavailable to the E5jK-PRR2.

MV at Reset

MV at PV Error

MV Upper Limit
Unavailable to the
E5jK-PRR2.

MV Lower Limit
Unavailable to the
E5jK-PRR2.

MV Change Rate Limit

Input Digital Filter

Alarm 1 Hysteresis
Available only when the alarm
output 1 is assigned.

Alarm 2 Hysteresis
Available only when the alarm
output 2 is assigned.

Alarm 3 Hysteresis
Available only when the alarm
output 3 is assigned.

Input Shift Upper Limit
Available if the input type is a
thermocouple or platinum resistance
thermometer.

Input Shift Lower Limit
Available if the input type is a
thermocouple or platinum resistance
thermometer.

(See

Input Shift

)

For E5jK-PRR2

Open/Close Hysteresis

Standby Time

Input Shift

When

temperature input is

selected, scaling is not required. This is

because

input is treated as the “temperature” as it is

matched to the

input

type. However

, note that the upper- and lower-limit values of

the

sensor can be shifted. For example, if both the upper- and lower-

limit

values are shifted by 1.2°C, the process value (before shift) is

regarded

as 201.2°C after shift when input is 200°C before shift.

To set the input shift, set shift values in the “input shift upper limit”
and

“input shift lower limit” parameters (level 2 mode).

Temperature

Upper limit

Upper-limit compensation value

After
compensation

Before compensation

Lower limit

Lower-limit
compensation value

Input (% of full scale)

E5jK-T

E5jK-T

37

Expansion Mode

Set Point Upper
Limit

Set Point
Lower Limit

PID/ON/OFF
(not displayed for control valve control)

α

Available if the Controller is in 2-PID
control.

AT Calculated Gain
Available if the Controller is in 2-PID
control.

AT Hysteresis
Available if the Controller is in 2-PID
control.

LBA Detection Width
Available only when the LBA (loop break
alarm) function is assigned.
Unavailable to the E5jK-PRR2.

Operation at Power ON

End condition

Automatic Return of Display Mode

Number of Patterns (Displayed for E5CK.)

Program Time Unit

Stop Time/Rate of Rise Programming

Time Unit of Ramp Rate (used for Rate of Rise Setting)

PV Start (used for setting time)

Wait Width (available for E5AK or E5EK.)

Alarm During Ramp Step Enable

Run All Enable (with E5CK, this display appears
when more than two patterns are used.)

Option Mode

Event Input Assignment 1
Available for the event input function.

Event Input Assignment 2
Available for the event input function.

Event Input Assignment 3
Available for the event input function.

Event Input Assignment 4
Available for the event input function.

Communication Stop Bit
Used when the communications function is being used.

Communication Data Length
Used when the communications function is being used.

Communication Parity
Set when the communications function is being used.

Communication Baud Rate
Set when the communications function is being used.

Communication Unit No.
Set when the communications function is being used.

Transfer Output Type
Set when the transfer output function is being used.

Transfer Output Upper Limit
Set when the transfer output function is being used.

Transfer Output Lower Limit
Set when the transfer output function is being used.

For E5jK-PRR2

Motor
calibration

Travel time

PV dead
band

HBA latch

E5jK-T

E5jK-T

38

How to Use the Error Display

When

an error has occurred, the No.1 display alternately indicates error codes together with the current display item.

This section describes how to check error codes on the display

, and the actions that must be taken to remedy the problem.

Input

Error

Meaning Input

is in error

.

Action Check

the wiring of inputs, disconnections, and shorts, and check the input type and the input type

jumper

connector

.

Operation at Error For

control output functions, output the manipulated variable matched to

the setting of the “MV at PV
error” parameter (level 2 mode). Alarm output functions are activated when the upper limit is
exceeded.

Memory

Error

Meaning Internal

memory operation is in error

Action First,

turn the power OFF then back ON again. If the display remains the same, the E5jK-T Control

-

ler

must be repaired. If the display is restored to normal,

the probable cause may be external noise

affecting

the control system. Check for external noise.

Operation at Error Control

output functions turn OFF (2 mA max. at 4 to 20 mA output, and

output equivalent to 0% in

case

of other outputs). Alarm output functions turn OFF

.

A/D Converter Error

Meaning Internal

circuits are in error

.

Action First,

turn the power OFF then back ON again. If the display remains the same, the E5jK-T Control

-

ler

must be repaired. If the display is restored to normal,

the probable cause may be external noise

affecting

the control system. Check for external noise.

Operation at Error Control

output functions turn OFF (2 mA max. at 4 to 20 mA output, and

output equivalent to 0% in

case

of other outputs). Alarm output functions turn OFF

.

Calibration

Data Error

This

error is output only during temperature input and is displayed for two seconds when the power is

turned ON.

Meaning

Calibration data is in error

.

Action

Must repair

.

Operation at Error Both

control output functions and alarm

output functions are active. However

, note that the readout

accuracy

is not assured.

Display Range Over

Meaning Though

not an error

, this is displayed when

the process value exceeds the display range when the

control

range (setting range ±10%) is larger than the display range (–1999 to 9999).

•

When less than “–1999”

•

When greater than “9999”

Operation

Control continues, allowing normal operation.

E5jK-T

E5jK-T

39

Precautions

WARNING

Do not touch the terminals while the power is ON.
This may cause an electric shock.

General Precautions

Be

sure to observe these precautions to ensure safe use.

• Do

not use the product in places where explosive or flammable

gases

may be present.

•

Never disassemble, repair or modify the product.

• T

ighten the terminal screws properly

.

•

Use the specified size of solderless terminals for wiring.

•

Use the product within the rated supply voltage.

•

Use the product within the rated load.

• The life expectancy of the output relay varies considerably

according

to its switching capacity and operating conditions. Be

sure

to use the output relay within its rated load and electrical life

expectancy.

If

the output relay is used beyond its life expectancy

,

its

contacts may become fused or burned.

Correct Use

If you remove the Controller from its case, never touch nor apply
shock

to the electronic parts inside.

Do

not cover the E5

jK-T

. (Ensure suf

ficient space around the Con

-

troller

to allow heat radiation.)

Do not use the Controller in the following places:

• Places subject to icing, condensation, dust, corrosive gas

(especially

sulfide gas or ammonia gas).

•

Places subject vibration and large shocks.

•

Places subject to splashing liquid or oil atmosphere.

•

Places subject to intense temperature changes.

•

Places subject to heat radiation from a furnace.
Be sure to wire properly with correct polarity of terminals.
When

wiring input or output lines to the Controller

, keep the follow

-

ing

points in mind to reduce the influence from inductive noise:

• Allow adequate space between the high voltage/current power

lines

and the input/output lines.

• Avoid parallel or common wiring with high voltage sources and

power lines carrying large currents.

• Using

separating pipes, ducts, and shielded line is also useful

in

protecting

the Controller

, and its lines from inductive noise.

Cleaning: Do not use paint thinner or organic solvents. Use stan­dard

grade alcohol to clean the product.

Use

a voltage (100 to 240 V

AC at 50/60 Hz, or 24 VDC). At power
ON, the prescribed voltage level must be attained within two
seconds.

Allow as much space as possible between the Controller and
devices that generate a powerful high frequency (high-frequency
welders, high-frequency sewing machines, etc.) or surge. These
devices

may cause malfunctions.

If

there is a large power-generating peripheral device and any of its

lines

near the Controller

, attach a surge suppressor or noise filter

to

the

device to stop the noise af

fecting the Controller system. In par

-

ticular,

motors, transformers, solenoids and magnetic coils have

an
inductance component, and therefore can generate very strong
noise.

When

mounting a noise filter on the

power supply to the Controller

,
be sure to first check the filter’s voltage and current capacity, and
then

mount the filter as close as possible to the Controller

.

Use within the following temperature and humidity ranges:

• T

emperature: –10°C to 55°C (with no icing or condensation)
Humidity: 35% to 85% (with no icing or condensation)
If the Controller is installed inside a control board, the ambient
temperature must be kept to under 55°C, including the
temperature

around the Controller

.

If

the Controller is subjected to heat radiation, use a fan to cool

the surface of the Controller to under 55

°C.

Store within the following temperature and humidity ranges:

• T

emperature: –25°C to 65°C (with no icing or condensation)
Humidity: 35% to 85% (with no icing or condensation)

Never place heavy objects on, or apply pressure to the Controller
that

may cause it to deform and deteriorate during use or storage.

A

void using the Controller in places near a radio, television set, or
wireless installing. These devices can cause radio disturbances
which adversely af

fect the performance of the Controller

.

Mounting

The dimensions of the Digital Controller conform to DIN 43700.
Recommended

panel thickness is 1

to 8 mm (1 to 5 mm for E5CK).

Mount

the Unit horizontally

.

Connection

To

reduce inductive noise influence, the lead wires connecting the

input

type to the Digital Controller must be separated from the power

lines

and load lines.

Use the specified compensating conductors for thermocouples.
Use lead wires having a small resistance for platinum resistance
thermometers.

Connection Example

Wire

the terminals of the Unit using solderless terminals.

The

tightening torque applied to the terminal screws of the Unit must

be

approximately 0.78 N S m or 8 kgf

S cm.

Use the following type of solderless terminals for M3.5 screws.

7.2

mm max.

7.2 mm max.

!

E5jK-T

E5jK-T

40

SSR

Connection Example of Digital Controller and SSR

+

–

+

–

Digital Controller

Voltage output
terminal (for driv­ing SSR)

Connectable

Load

Heater

Power supply
for load

Power SSR

SSR

E5AK-T, E5EK-T

Digital Controller with
Voltage Output
(12 VDC, 40 mA max.)

See the following table.

E5CK

Digital Controller with
Voltage Output
(12 VDC, 20 mA max.)

INPUT LOAD

Model G3PA G3NH G3NA G3NE G3B

Appearance

SSRs connected
in parallel

E5AK/E5EK:5 pcs.
E5CK: 3 pcs.

E5AK/E5EK:8 pcs.
E5CK: 4 pcs.

E5AK/E5EK:5 pcs.
E5CK: 2 pcs.

E5AK/E5EK:2 pcs.
E5CK:

1 piece

E5AK/E5EK:5 pcs.
E5CK: 2 pcs.

Rated input
voltage

5 to 24 VDC 5 to 24 VDC 5 to 24 VDC

12 VDC

5 to 24 VDC

Features

Thin, monoblock
construction with
heat sink

For high-power
heater control

Standard model with
screw terminals

Compact, low-cost
model with tab
terminals

Socket, model with
5-A switching
capacity

E5jK-T

E5jK-T

41

E5jK-T

E5jK-T

42

E5jK-T

E5jK-T

43

E5jK-T

E5jK-T

44

OMRON Corporation

Supervisory Control Devices Division
28th Fl., Crystal T

ower Bldg.,
1-2-27, Shiromi, Chuo-ku,
Osaka 540-6028 Japan
Phone:

(81)6-949-6035 Fax: [phone]

ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.

To

convert millimeters into inches, multiply by 0.03937. T

o convert grams into ounces, multiply by 0.03527.

Cat. No. H087-E1-2 In the interest of product improvement, specifications are subject to change without notice.

Printed

in Japan

1098-2M (1297)

a

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Omron:
E5EK-TAA2-K-500 AC100-240
