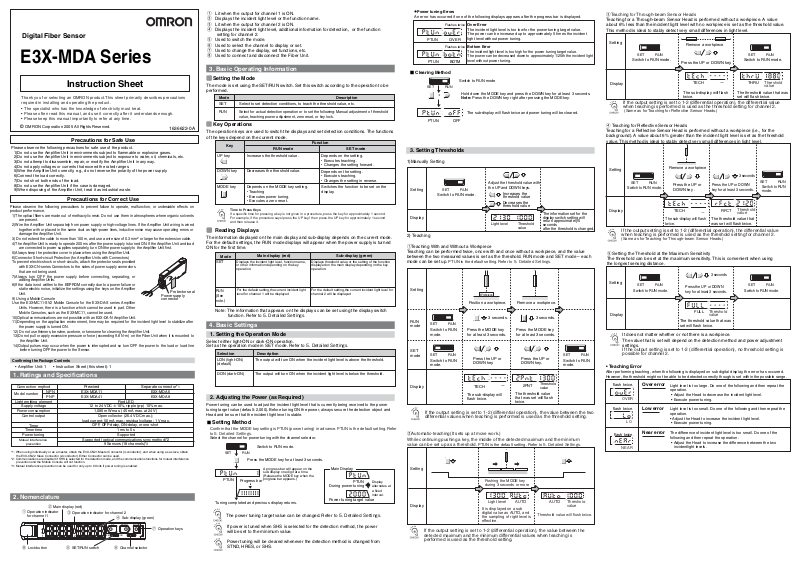

Omron E3X-MDA DATASHEET

Digital Fiber Sensor

E3X-MDA Series

Instruction Sheet

Thank you for selecting an OMRON product.This sheet primarily describes precautions required in installing and operating the product.

• The specialist who has the knowledge of electricity must treat.

• Please often read this manual, and use it correctly after it understands enough.

• Please keep this manual importantly to refer at any time.

Precautions for Safe Use

Please observe the following precautions for safe use of the product.

1)Do not use the Amplifier Unit in environments subject to flammable or explosive gases.

2)Do not use the Amplifier Unit in environments subject to exposure to water, oil, chemicals, etc.

3)Do not attempt to disassemble, repair, or modify the Amplifier Unit in any way.

4)Do not apply voltages or currents that exceed the rated ranges.

5)Wire the Amplifier Unit correctly, e.g., do not reverse the polarity of the power supply.

6)Connect the load correctly.

7)Do not short both ends of the load.

8)Do not use the Amplifier Unit if the case is damaged.

9)When disposing of the Amplifier Unit, treat it as industrial waste.

Precautions for Correct Use

Please observe the following precautions to prevent failure to operate, malfunction, or undesiable effects on product performance.

1)The optical fibers are made out of methacrylic resin. Do not use them in atmospheres where organic solvents are present.

2)Wire the Amplifier Unit separately from power supply or high-voltage lines. If the Amplifier Unit wiring is wired together with or placed in the same duct as high-power lines, inductive noise may cause operating errors or damage the Amplifier Unit.

3) Do not extend the cable to more than 100 m, and use a wire size of 0.3 mm

4)The Amplifier Unit is ready to operate 200 ms after the power supply is turned ON. If the Amplifier Unit and load are connected to power supplies separately, turn ON the power supply to the Amplifier Unit first.

5)Always keep the protective cover in place when using the Amplifier Unit.

6)Connector Short-circuit Protection (for Amplifier Units with Connectors)

To prevent electric shock or short-circuits, attach the protector seals provided

with E3X-CN-series Connectors to the sides of power supply connectors that are not being used.

7)Always turn OFF the power supply before connecting, separating, or adding Amplifier Units.

8)If the data is not written to the EEPROM correctly due to a power failure or static-electric noise, initialize the settings using the keys on the Amplifier Unit.

9) Using a Mobile Console

Use the E3X-MC11-SV2 Mobile Console for the E3X-DA-S series Amplifier

Units. However, there is a function which cannot be used in part. Other Mobile Consoles, such as the E3X-MC11, cannot be used.

10) Optical communications are not possible with an E3X-DA-N Amplifier Unit.

11) Depending on the application environment, time may be required for the incident light level to stabilize after the power supply is turned ON.

12) Do not use thinners, benzine, acetone, or kerosene for cleaning the Amplifier Unit.

13) Do not pull or apply excessive pressure or force (exceeding 9.8 N・m) on the Fiber Unit when it is mounted to

the Amplifier Unit.

14) Output pulses may occur when the power is interrupted and so turn OFF the power to the load or load line before turning OFF the power to the Sensor.

Confirming the Package Contents

• Amplifier Unit: 1 • Instruction Sheet (this sheet): 1

or larger for the extension cable.

1. Ratings and Specifications

Connection method

Model number

Light emitting element

Supply voltage

Power consumption

Control output

Timer time

Power tuning

Mutual interference

prevention

*1: When using individually or as a master, obtain the E3X-CN21 Master Connector (4-conductor), and when using as a slave, obtain the E3X-CN22 Slave Connector (2-conductor). Either Connector can be used. *2: Communications are disabled if SHS is selected for the detection mode, and the communications functions for mutual interference prevention and the Mobile Console will not function. *3: Mutual interference prevention can be used for only up to 6 Units if power tuning is enabled.

Timer

NPN PNP

Prewired Separate connector*

E3X-MDA11 E3X-MDA6 E3X-MDA41 E3X-MDA8

12 to 24 VDC ±10%, ripple (p-p) 10% max.

1,080 mW max. (45 mA max. at 24 V)

Open collector (26.4 VDC max.);

load current: 50 mA max.; residual voltage: 1 V max.

OFF, OFF-delay, ON-delay, or one-shot

Supported (optical communications sync method)*2

Red LED

1 ms to 5 s

Supported

9 Sensors (18 channels)*

2. Nomenclature

①Operation indicator

for channel 1

⑧Lock button

②Main display (red)

③Operation indicator for channel 2

⑤SET/RUN switch

④Sub-display (green)

SET RUN 1 2

⑥Channel selector

DOWN MODE

1636622-0A

Protector seal

Power supply connector

⑦Operation keys

①Lit when the output for channel 1 is ON. ②Displays the incident light level or the function name. ③Lit when the output for channel 2 is ON. ④Displays the incident light level, additional information for detection, or the function

setting for channel 2.

⑤Used to switch the mode. ⑥Used to select the channel to display or set. ⑦Used to change the display, set functions, etc. ⑧Used to connect and disconnect the Fiber Unit.

3. Basic Operating Information

Setting the Mode

The mode is set using the SET/RUN switch. Set this switch according to the operation to be performed.

Mode Description

SET Select to set detection conditions, to teach the threshold value, etc.

RUN Select for actual detection operation or to set the following: Manual adjustment of threshold value, teaching power adjustment, zero reset, or key lock.

Key Operations

The operation keys are used to switch the displays and set detection conditions. The functions of the keys depend on the current mode.

Key

UP key

DOWN key

MODE key

Increases the threshold value. Depends on the setting.

Decreases the threshold value.

Depends on the MODE key setting.

• Teaching

• Executes power tuning.

• Executes a zero reset.

Time to Press Keys

If a specific time for pressing a key is not given in a procedure, press the key for approximately 1 second. For example, if the procedure says ìpress the UP key,î then press the UP key for approximately 1 second and then release it.

RUN mode SET mode

Function

• Executes teaching.

• Changes the setting forward.

Depends on the setting.

• Executes teaching.

• Changes the setting in reverse.

Switches the function to be set on the display.

Reading Displays

The information displayed on the main display and sub-display depends on the current mode. For the default settings, the RUN mode displays will appear when the power supply is turned ON for the first time.

Mode

SET

RUN (See note.)

Note: The information that appears on the displays can be set using the display switch function. Refer to 5.DetailedSettings.

Displays the incident light level, function name, or other information depending on the key operation.

For the default setting,the current incident light level for channel 1 will be displayed

Main display (red) Sub-display (green)

Displays threshold value or the setting of the function displayed on the main display depending on the key operation.

For the default setting,the current incident light level for channel 2 will be displayed

4. Basic Settings

1. Setting the Operation Mode

Select either light-ON or dark-ON operation. Set as the operation mode in SET mode. Refer to

Selection Description

LON (light-ON) (default)

DON (dark-ON)

The output will turn ON when the incident light level is above the threshold.

The output will turn ON when the incident light level is below the threshold.

2. Adjusting the Power (as Required)

Power tuning can be used to adjust the incident light level that is currently being received to the power tuning target value (default: 2,000). Before tuning ON the power, always secure the detection object and Head and be sure that the incident light level is stable.

■ Setting Method

Confirm that the MODE key setting is PTUN (power tuning) in advance. PTUN is the default setting. Refer to 5.DetailedSettings.

Select the channel for power tuning with the channel selector.

Switch to RUN mode.

RUNSET

Press the MODE key for at least 3 seconds.

A progress bar will appear on the sub-display one digit at a time. (Release the MODE key when the

PTUN

Progress bar

Tuning completed and previous display returns.

The power tuning target value can be changed. Refer to 5.DetailedSettings.

If power is tuned when SHS is selected for the detection method, the power will be set to the minimum value.

Power tuning will be cleared whenever the detection method is changed from STND, HRES, or SHS.

progress bar appears.)

5.DetailedSettings.

Main Display

During power tuning

Power tuning target value

PTUN

Display alternates at a fixed interval.

Power tuning Errors

•

An error has occurred if one of the following displays appears after the progress bar is displayed.

Flashes twice

PTUN OVER

Flashes twice

PTUN BOTM

■ Clearing Method

RUNSET

PTUN OFF

Over Error

The incident light level is too low for the power tuning target value. The power can be increased up to approximately 5 times the incident light level without power tuning.

Bottom Error

The incident light level is too high for the power tuning target value. The power can be decreased down to approximately 1/25th the incident light level without power tuning.

Switch to RUN mode

Hold down the MODE key and press the DOWN key for at least 3 seconds. Note: Press the DOWN key right after pressing the MODE key.

The sub-display will flash twice and power tuning will be cleared.

3. Setting Thresholds

1)Manually Setting

Adjust the threshold value with

Setting

Display

Switch to RUN mode.

RUNSET

2) Teaching

①Teaching With and Without a Workpiece Teaching can be performed twice, once with and once without a workpiece, and the value between the two measured values is set as the threshold. RUN mode and SET mode – each mode can be set up.

Setting

RUN mode

SET mode

Display

If the output setting is set to 1-2 (differential operation), the value between the two differential values when teaching is performed is used as the threshold setting.

PTUN is the default setting. Refer to 5.DetailedSettings.

RUNSET

Switch to RUN mode.

RUNSET

Press the MODE key for at least 3 seconds.

The sub-display will flash twice.

②Automatic-teaching(It sets up at move work.)

While continuing pushing a key, the middle of the detected maximum and the minimum value can be set up as a threshold. PTUN is the default setting. Refer to 5.DetailedSettings.

Setting

Display

If the output setting is set to 1-2 (differential operation), the value between

detected maximum and the minimum differential values when teaching is

performed is used as the threshold setting.

the UP and DOWN keys.

Increases the threshold value

Decreases the threshold value

The information set for the display switch setting will

Light level

Workpiece

Position a workpiece. Remove a workpiece.

3 seconds. 3 seconds.

Press the UP or DOWN key.

TECH

Pushing the MODE key during 3 seconds or more

It is displayed on a sub digital value as AUTO, and the sampling of right level is effective.

Threshold value

Press the MODE key for at least 3 seconds.

ー

The threshold value that was set will flash twice.

AUTOLight level

Press the UP or DOWN key.

return approximately 5 seconds after the threshold is changed.

Threshold

2PNT

value

AUTO Threshold

Threshold value will flush twice.

RUNSET

Switch to RUN mode.

value

the

③Teaching for Through-beam Sensor Heads

Teaching for a Through-beam Sensor Head is performed without a workpiece. A value about 6% less than the incident light level with no workpiece is set as the threshold value. This method is ideal to stably detect very small differences in light level.

Setting

Switch to RUN mode.

Display

If the output setting is set to 1-2 (differential operation), the differential value when teaching is performed is used as the threshold setting for channel 2.

(Same as for Teaching for Reflective Sensor Heads.)

④ Teaching for Reflective Sensor Heads

Teaching for a Reflective Sensor Head is performed without a workpiece (i.e., for the background). A value about 6% greater than the incident light level is set as the threshold value. This method is ideal to stably detect very small differences in light level.

Setting

Switch to RUN mode.

Display

If the output setting is set to 1-2 (differential operation), the differential value when teaching is performed is used as the threshold setting for channel 2.

(Same as for Teaching for Through-beam Sensor Heads.)

⑤ Setting the Threshold at the Maximum Sensitivity

The threshold can be set at the maximum sensitivity. This is convenient when using the longest sensing distance.

Setting

Switch to RUN mode.

Display

It does not matter whether or not there is a workpiece. The value that is set will depend on the detection method and power adjustment settings.

If the output setting is set to 1-2 (differential operation), no threshold setting is possible for channel 2.

• Teaching Error

After performing teaching, when the following is displayed on sub digital display, the error has occurred. However, the threshold might not be able to be detected correctly though is set within the possible range.

flash twice.

OVER

flash twice.

NEAR

RUNSET

Over error

Low error

Near error

The sub-display will flash twice.

Remove a workpiece

Press the UP or DOWN key.

TECH ー THRU Threshold

The sub-display will flash twice.

Remove a workpiece

Press the UP or DOWN key .

TECH

Press the UP or DOWN key for at least 3 seconds.

The threshold value that was set will flash twice.

Light level is too large. Do one of the following and then repeat the operation.

• Adjust the Head to decrease the incident light level.

• Execute power tuning.

Light level is too small. Do one of the following and then repeat the operation.

• Adjust the Head to increase the incident light level.

• Execute power tuning.

The difference of incident light level is too small. Do one of the following and then repeat the operation.

• Adjust the Head to increase the difference between the two incidentlight levels .

Press the UP or DOWN key for at least 3 seconds.

ー

The threshold value that was set will flash twice.

3 seconds

FULL

Threshold value

RFCT

Switch to RUN mode.

The threshold value that was set will flash twice.

3 seconds

Threshold value

Switch to RUN mode.

RUNSET

value

RUNSET

Switch to RUN mode.

RUNSET

5. Detailed Settings 6. Convenient Functions 9. I/O Circuits

The following functions can be set in SET mode. The default settings are shown in the transition boxes between functions. All settings except for the operation mode and timer settings are the same for both channels.

*: The values shown for thresholds, incident light levels, percentages, etc., are examples only. Actual displays may vary.

Switch to SET mode.

Teaching (Light level/Threshold display)

0. Operation Mode

1. Detection Method

Not

2. Timer

3. Output Setting

RUNSET

Adisplayischangedinﬁxedtime.

Differential Edge Selection

Differential Response Time

Not

Timer Time

Note: Refer to 4. Basic Settings for teaching methods.

Set separately for each channel.

Light-ON

LON

Dark-ON

DON

Standard mode Response Time:1ms

STND

High-resolution mode: Response Time:4ms

HRES

Super-high-speed mode Response time: 130

SHS

(200 μs when AND, OR, leading edge sync,falling edge sync, or differ-ential output is enabled)

High-speed mode Response time:450μs

This setting depends on the setting for the differential edge selection.

Set separately for each channel.

Timer disabled.

----

OFF D

ON-D

1SHT

The operation of channel 2 output can be selected.

2OUT

The settings described below apply to channel 2 output. (Channel 1 output is not affected.)

And

1-2

OFF-delay timer

ON-delay timer

One-shot timer

Setting range: 1 to 5,000

20 to 200 ms

Output for each channel

Output when the output is ON for both channels 1 and 2.

Output when the output is ON for either channel 1 or channel 2.

Rising edge sync. Output if channel 1 is ON when channel 2 changes from OFF to ON.

Falling edge sync. Output if channel 1 is ON when channel 2 changes from ON to OFF.

Operates according to the difference between channels (channel 1 - channel 2). The difference is used for both threshold and output judgement execution.

Single edge Either the rising or falling edge is detected.

Double edge Both the rising and falling edge are detected.

Single edge

250 μs 500 μs

500 μs 1 ms

1 ms 2 ms

10 ms 20 ms

100 ms 200 ms

Double edge

1-ms increments1 to 20 ms

5-ms increments

100-ms increments200 ms to 1 s

1-s increments1 to 5 s

4. MODE Key Setting

5. Display Switch

6. Display Orientation

Not

Timer

Timer time

The timer for the output of either AND or OR can be set, depending on which is selected.

Timer disabled

Not

The function of the MODE key in RUN mode can be selected.

PTUN

0RST

2PNT

AUTO

Setting range: 100 to 3,900

FULL

The information displayed in RUN mode can be selected. When going to SET mode, this setting will be ignored and the incident light level and threshold value will be displayed.

Channel 1 light level Channel 2 light level

Light level Threshold

% light level

PEAK BOTM

Peak level

L-PE D-BT

Detection status

Light level PEAK

Light level Channel

D123

321D

----

OFFD

ON-D

1SHT

Note 1: When rising edge sync or falling edge sync is

selected, the one-shot timer is automatically set, i.e., the timer function cannot be selected.

2: Set the timer for channel 2 output or differential

output (1-2) using the normal timer setting (2-tF) for channel 2.

Setting range: 1 to 5,000

Tunes the power.

Executes a zero reset.

Teaching With and Without a Workpiece

Automatic-teaching

Maximum power

Threshold

Alternates at

a fixed interval

Bottom level

Normal display

Reversed display

OFF delay timer

ON delay timer

One-shot timer

1-ms increments1 to 20 ms

5-ms increments20 to 200 ms

100-ms increments200 ms to 1 s

1-s increments1 to 5 s

The incident light levels for channels 1 and 2.

The incident light level and threshold value

The incident light level as a percentage of the threshold value and the threshold value.

The peak incident level and bottom incident level of fixed time(2s).

The incidient light peak level and no incident light bottom level.

Analog bar display. The current detection status is displayed as an analog bar. The bar will lengthen from the right

The current incident light level and the peak incident light level.

The incident light level and the channel.

Zeroing the Main Display

The incident light level displayed on the main display can be zeroed. The threshold displayed in the sub-display is shifted by an amount corresponding to the amount the incident light level was changed. Confirm that the MODE key setting is 0RST (zero reset) in advance. PTUN (power tuning) is the default setting. Refer to 5. Detailed Settings. Select the channel for zeroing with the channel selector.

If the output setting is set to 1-2 (differential operation), channel 2 cannot be zeroed.

■ Setting Method ■ Clearing Method

Switch to RUN mode. Switch to RUN mode.

RUNSET RUNSET

Press the MODE key for at least 3 seconds. The display of the incident light level will stop changing.

Channel 1 light level Channel 2 light level

The display will be zeroed, i.e., the incident light level will be displayed as 0.

Channel 1 light level Channel 2 light level

Hold down the MODE key and press the DOWN key for at

least 3 seconds. Press the DOWN key right after pressing the MODE key.

The zero reset function will be cleared.

Key Lock

All key operations can be disabled to help prevent key operating errors. Only the operation keys are disabled. The switches and selectors will still function.

■ Setting Method ■ Clearing Method

Switch to RUN mode.

RUNSET

Hold down the MODE key and press the UP key for at least 3

seconds. Press the UP key right after pressing the MODE key.

The sub-display will flash twice and key input will be

LOC ON

If a key is pressed while key operations are locked, "LOC ON" will flash twice on the display to indicate that key operations have been disabled.

disabled.

LOC ON

LOC OFF

Switch to RUN mode.

RUNSET

Hold down the MODE key and press the UP key for at least 3 seconds. Press the

UP key right after pressing the MODE key.

The sub-display will flash twice and key input will be enabled.

Initializing Settings

This procedure can be used to return all the settings to the original default values.

■ Setting Method

Switch to SET mode.

RUNSET

Press the UP or DOWN key for at least 3 seconds.

Settings not initialized.

INIT Press the MODE key at the

INIT GOOD

NO? or YES? display.

Initialization has been completed.

NO?

YES?

Settings initialized.

7. Installing the Amplifier Unit

■ Mounting Units

Catch the hook on the Fiber Unit connector end of the Unit on the DIN Track and then press down on the other end of the Unit until it locks into place.

Always attach the Fiber Unit connector end first. If the incorrect end is attached first, the mounting strength will be reduced.

■ Removing Units

Press the Unit in the direction indicated by "1" and then lift up on the Fiber Unit connector end of the Unit in the direction indicated by "2."

■ Joining Amplifier Units (for Units with Connectors)

Up to 16 Units can be joined.

1. Mount the Amplifier Units one at a time onto the DIN Track.

2. Slide the Amplifier Units together and press the Amplifier Units together until they click into place.

Secure the Units with an End Plate (PFP-M) if there is a possibility of the Amplifier Units moving, e.g., due to vibration.

Reverse the above procedure to separate and remove the Units. Do not attempt to remove Amplifier Units from the DIN Track without separating them first.

Hook on the Fiber Unit connector end

DIN Track

8. Connecting the Fiber Unit

1. Open the protective cover

2. Press up the lock button.

3. Insert the fibers all the way to the back of the connector insertion opening.

4. Return the lock button to its original position to secure the fibers.

Reverse the above procedure to disconnect the Fiber Unit.

■ NPN Models ■ PNP Models

Internal circuits

10. Dimensions

4.50

Four, 2.40 dia.

4.50

5.65

THE PRODUCTS CONTAINED IN THIS SHEET ARE NOT SAFETY RATED. THEY ARE NOT DESIGNED OR RATED FOR ENSURING SAFETY OF PERSONS, AND SHOULD NOT BE RELIED UPON AS A SAFETY COMPONENT OR PROTECTIVE DEVICE FOR SUCH PURPOSES.

Please refer to separate catalogs for OMRON's safety rated products. OMRON shall not be responsible for conformity with any standards, codes, or regulations that apply to the combination of the products in the customer's application or use of the product. Take all necessary steps to determine the suitability of the product for the systems, machines, and equipment with which it will be used. Know and observe all prohibitions of use applicable to this product.

NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR PROPERTY WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS, AND THAT THE OMRON PRODUCT IS PROPERLY RATED AND INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM.

See also Product catalog for Warranty and Limitation of Liability.

EUROPE OMRON EUROPE B.V. Sensor Business Unit Carl-Benz Str.4, D-71154 Nufringen Germany Phone:49-7032-811-0 Fax: 49-7032-811-199

NORTH AMERICA OMRON ELECTRONICS LLC One Commerce Drive Schaumburg,IL 60173-5302 U.S.A Phone:1-847-843-7900 Telephone Consultation 1-800-55-OMRON Fax : 1-847-843-7787

ASIA-PACIFIC OMRON ASIA PACIFIC PTE LTD 83 Clemenceau Avenue,#11-01 UE Square,Singapore 239920 Phone : 65-6-835-3011 /Fax :65-6-835-2711

OMRON Corporation

4.30

9.90

3.40

Brown

Black

Orange

Blue

Channel 1 output

15.10

12.15

18.70

Channel 2 output

29.80

Load

32.80

44.30

Load

12 to 24 VDC

Suitability for Use

36.70

Internal circuits

8.10

Brown

Channel

Black

1 output

Orange

Channel 2 output

Blue

11.703.9×3=

(Unit: mm)

(Prewired Models)

Load

12 to 24 VDC

12.50
