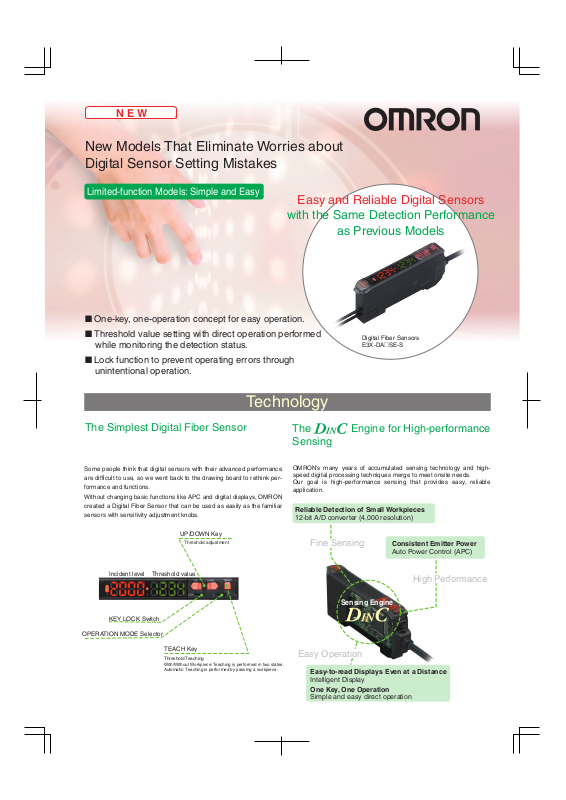

Omron E3X-DA-SE-S DATASHEET

N E W

New Models That Eliminate Worries about
Digital Sensor Setting Mistakes

Limited-function Models: Simple and Easy

Easy and Reliable Digital Sensors

with the Same Detection Performance

as Previous Models

■ One-key, one-operation concept for easy operation.

■ Threshold value setting with direct operation performed

while monitoring the detection status.

■ Lock function to prevent operating errors through
unintentional operation.

Technology

The Simplest Digital Fiber Sensor

Some people think that digital sensors with their advanced performance

are difficult to use, so we went back to the drawing board to rethink per-

formance and functions.

Without changing basic functions like APC and digital displays, OMRON

created a Digital Fiber Sensor that can be used as easily as the familiar

sensors with sensitivity adjustment knobs.

UP/DOWN Key

Threshold adjustment

The Engine for High-performance
Sensing

OMRON's many years of accumulated sensing technology and high­speed digital processing techniques merge to meet onsite needs.
Our goal is high-performance sensing that provides easy, reliable
application.

Reliable Detection of Small Workpieces

12-bit A/D converter (4,000 resolution)

Fine Sensing

Digital Fiber Sensors
E3X-DA@SE-S

Consistent Emitter Power

Auto Power Control (APC)

Incident level Threshold value

KEY LOCK Switch

OPERATION MODE Selector

TEACH Key

Threshold Teaching

With/Without Workpiece: Teaching is performed in two states.
Automatic: Teaching is performed by passing a workpiece.

High Performance

Sensing Engine

Easy Operation

Easy-to-read Displays Even at a Distance

Intelligent Display

One Key, One Operation

Simple and easy direct operation

Ordering Information

Type Appearance

Pre-wired Models

Connector Models

Ratings and Specifications

Model Digital Fiber Sensor

Type

Item

Light source (wavelength)

Power supply voltage

Power consumption

NPN output

PNP output

Red LED (650 nm)

12 to 24 VDC ±10%, ripple (p-p): 10% max.

960 mW max. (Power supply: 24 V, Current consumption: 40 mA max.)

E3X-DA11SE-S

E3X-DA41SE-S

Model

NPN output PNP output

E3X-DA11SE-S

E3X-DA6SE-S

E3X-DA41SE-S

E3X-DA8SE-S

E3X-DA6SE-S

E3X-DA8SE-S

Control output

Protection circuits

Response time

Sensitivity setting

Auto power

Functions

control

Mutual interference
prevention

Indicators

Digital displays

Basic performance is the same as the E3X-DA-S Series. Refer to the E3X-DA-S Datasheet (E336) for details. Note:

Load power supply: 26.4 VDC max., Open-collector output, Load current: 50 mA max. (Residual voltage: 1 V max.)

Power supply reverse polarity protection, Output short-circuit protection

Operate or Reset: 1 ms

Teaching or manual adjustment

High-speed control method for emission current

Optical communications sync, possible for up to 10 Units

Operation indicator (orange)

Twin digital displays (incident level + threshold)

This document provides information mainly for selecting suitable models.
Please read the Instruction Sheet carefully for information that the user must
understand and accept before purchase, including information on warranty,
limitations of liability, and precautions.

Note: Do not use this document to operate the Unit.
