Omron CX-PROGRAMMER V9 - REV 12-2009, WS02-CXPC-V9 - REV 12-2009, CX-Programmer 9, SYSMAC WS02-CXPC*-V9 Operation Manual

Cat. No. W446-E1-10

CX-Programmer Ver. 9

SYSMAC
WS02-CXPC_-V9

OPERATION MANUAL

SYSMAC
WS02-CXPC@-V9

CX-Programmer Ver. 9.@

Operation Manual

Revised December 2009

OMRON CX-Programmer – Operation Manual

CX-Programmer_Page (ii)

About this Manual (W446):

This manual describes the operation of the CX-Programmer and consists of the following three parts.

• Part 1: CX-Programmer

This part describes the CX-Programmer software that is a PLC
Programming Device, and also provides the overall precautions and the
version upgrades information.

• Part 2: CX-Server PLC Tools

This part describes the CX-Server PLC Tools software, which is a
collection of the following components:
PLC Memory, IO Table, PLC Setup, Data Trace/Time Chart Monitor, PLC
Error, Memory Card, PLC-Clock, and CX-Net Network Configuration
(including Data Link Editor and Routing Table).

• Part 3: CX-Server Runtime

This part describes the CX-Server software that is a communications
middleware.

Note: References within each part are references to the pages or chapters within that part.

Related Manual

For details on the function block functions and ST programming, refer to the CX-Programmer Operation
Manual Function Blocks and Structured Text (Cat. No. W447).

For details on the SFC programming functions, refer to the CX-Programmer Operation Manual SFC (Cat.
No. W469).

For details on procedures for installing the CX-Programmer from the CX-One FA Integrated Tool Package,
refer to the CX-One Setup Manual provided with CX-One.

Cat. No. Model Manual name Contents

W463

CXONE-AL@@C-V4/
AL@@D-V4

CX-One Setup Manual Installation and overview of CX-One FA

Integrated Tool Package.

WARNING: Failure to read and understand the information provided in this manual may

result in personal injury or death, damage to the product, or product failure.
Please read each chapter in its entirety and be sure you understand the
information provided in the chapter and related chapters before attempting
any of the procedures or operations given.

OMRON CX-Programmer – Operation Manual

CX-Programmer_Page (iv)

Read and Understand this Manual

Please read and understand this manual before using the product. Please consult your OMRON
representative if you have any questions or comments.

Warranty and Limitations of Liability

WARRANTY

(1) The warranty period for the Software is one year from either the date of purchase or the date on which

the Software is delivered to the specified location.

(2) If the User discovers a defect in the Software (i.e., substantial non-conformity with the manual), and

returns it to OMRON within the above warranty period, OMRON will replace the Software without
charge by offering media or downloading services from the Internet. And if the User discovers a defect
in the media which is attributable to OMRON and returns the Software to OMRON within the above
warranty period, OMRON will replace the defective media without charge. If OMRON is unable to
replace the defective media or correct the Software, the liability of OMRON and the User’s remedy shall
be limited to a refund of the license fee paid to OMRON for the Software.

LIMITATIONS OF LIABILITY

(1) THE ABOVE WARRANTY SHALL CONSTITUTE THE USER’S SOLE AND EXCLUSIVE REMEDIES

AGAINST OMRON AND THERE ARE NO OTHER WARRANTIES, EXPRESSED OR IMPLIED,
INCLUDING BUT NOT LIMITED TO, WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. IN NO EVENT WILL OMRON BE LIABLE FOR ANY LOST PROFITS OR
OTHER INDIRECT, INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING OUT OF
USE OF THE SOFTWARE.

(2) OMRON SHALL ASSUME NO LIABILITY FOR DEFECTS IN THE SOFTWARE BASED ON

MODIFICATION OR ALTERATION OF THE SOFTWARE BY THE USER OR ANY THIRD PARTY.

(3) OMRON SHALL ASSUME NO LIABILITY FOR SOFTWARE DEVELOPED BY THE USER OR ANY

THIRD PARTY BASED ON THE SOFTWARE OR ANY CONSEQUENCE THEREOF.

OMRON CX-Programmer – Operation Manual

CX-Programmer_Page (v)

Application Considerations

SUITABILITY FOR USE

THE USER SHALL NOT USE THE SOFTWARE FOR A PURPOSE THAT IS NOT DESCRIBED IN THE
ATTACHED USER MANUAL.

OMRON CX-Programmer – Operation Manual

CX-Programmer_Page (vi)

Disclaimers

CHANGE IN SPECIFICATIONS

The software specifications and accessories may be changed at any time based on improvements or for
other reasons.

EXTENT OF SERVICE

The license fee of the Software does not include service costs, such as dispatching technical staff.

ERRORS AND OMISSIONS

The information in this manual has been carefully checked and is believed to be accurate; however, no
responsibility is assumed for clerical, typographical, or proofreading errors, or omissions.

OMRON CX-Programmer – Operation Manual

CX-Programmer_Page (vii)

Precautions

Intended Audience

This manual is intended for the following personnel, who must also have
knowledge of electrical systems (an electrical engineer or the equivalent).

• Personnel in charge of installing FA systems.

• Personnel in charge of designing FA systems.

• Personnel in charge of managing FA systems and facilities.

General Precautions

The user must operate the product according to the performance
specifications described in the operation manuals.
Before using the product under conditions which are not described in the
manual or applying the product to nuclear control systems, railroad
systems, aviation systems, vehicles, combustion systems, medical
equipment, amusement machines, safety equipment, and other systems,
machines, and equipment that may have a serious influence on lives and
property if used improperly, consult your OMRON representative.
Make sure that the ratings and performance characteristics of the product
are sufficient for the systems, machines, and equipment, and be sure to
provide the systems, machines, and equipment with double safety
mechanisms.
This manual provides information for programming and operating the Unit.
Be sure to read this manual before attempting to use the Unit and keep this
manual close at hand for reference during operation.

WARNING

It is extremely important that a PLC and all PLC Units be used for the
specified purpose and under the specified conditions, especially in
applications that can directly or indirectly affect human life. You must
consult with your OMRON representative before applying a PLC System to
the above-mentioned applications.

Safety Precautions

WARNING

Confirm safety sufficiently before transferring I/O memory area status from
the CX-Programmer to the PLC. The devices connected to Output Units
may malfunction, regardless of the operating mode of the CPU Unit.
Caution is required in respect to the following functions.

• Transferring from the CX-Programmer to real I/O (CIO Area) in the CPU

Unit using the PLC Memory window.

• Transferring from file memory to real I/O (CIO Area) in the CPU Unit

using the Memory Card window.

OMRON CX-Programmer – Operation Manual

CX-Programmer_Page (viii)

WARNING

Observe the following precautions when using the PLC Backup Tool.

• Sufficiently check the data that is selected for restoring before performing

the next step. If the correct data is not restored, unexpected operation
may occur in the controlled system after the data is restored.

• Some Special I/O Units and CPU Bus Units operate with parameters that

are stored in the CPU Unit. If one of these Units is selected for backup,
restrictions will be displayed in the Comments Area of the Backup from
PLC Dialog Box. Confirm the restrictions, and always select the Special
I/O Unit or CPU Bus Unit together with the CPU Unit when backing up or
restoring data. If the data from both Units is not backed up or restored
together, unexpected operation may occur in the controlled system.

• If there are any backup restrictions for the Units to which data is being

restored, the restrictions will be displayed in the Comments Area of the
Backup from PLC Dialog Box. Confirm the restrictions, and always take
the required measures. If required measures are not taken, unexpected
operation may occur in the controlled system after the data is restored.

• Forced status can be backed up, but it cannot be restored. If you

restored data that contained forced status, use the CX-Programmer after
restoring the data to force-set or force-reset bits as required. If required
bits are not force-set or force-reset, differences in the forced status in
memory may cause unexpected operation of the controlled system.

• Confirm that stopping PLC operation will not create any problems before

restoring data during PLC operation. If the PLC stops at an unanticipated
time, unexpected operation may occur in the controlled system.

• Always turn the power supply to the PLC OFF and then ON after

restoring data. If the power supply is not turned OFF and then ON,
memory in the PLC may not be updated to the restored data, which may
cause unexpected operation of the controlled system.

Caution

Observe the following precaution when specifying a symbol or word
address for an array variable index in a ladder program or when specifying
a symbol for an array variable index in an ST program.

When using a symbol or address to indirectly specify the element number
of an array variable, be sure that the resulting address is not outside the
memory area that contains the first word in the array. For example, use a
symbol comparison instruction or an IF statement to ensure that processing
is performed only when the memory area is not exceeded. If an element
number that exceeds the memory area is specified, data in another
memory area will be read or written, possibly resulting in unexpected
operation.

Caution

Observe the following precaution when specifying a symbol or word
address for an offset in a ladder program.

When using a symbol or address to indirectly specify an offset for a
memory address, be sure that the resulting address is not outside the
memory area that contains original address. For example, use a symbol
comparison instruction to ensure that processing is performed only when
the memory area is not exceeded. If the final address (i.e., the original
address plus the specified offset) exceeds the memory area, data in
another memory area will be read or written, possibly resulting in
unexpected operation.

OMRON CX-Programmer – Operation Manual

CX-Programmer_Page (ix)

Caution

Confirm safety at the destination node before transferring a program to
another node or changing contents of the I/O memory area. Doing either of
these without confirming safety may result in injury.

Caution

Execute online edit only after confirming that no adverse effects will be
caused by extending the cycle time. Otherwise, the input signals may not
be readable.

Caution

If synchronous unit operation is being used, perform online editing only
after confirming that an increased synchronous processing time will not
affect the operation of the main and slave axes.

Caution

Confirm safety sufficiently before monitoring power flow and present value
status in the Ladder Section window or when monitoring present values in
the Watch window. If force-set/reset or set/reset operations are
inadvertently performed by pressing short-cut keys, the devices connected
to Output Units may malfunction, regardless of the operating mode of the
CPU Unit.

Caution

Caution is required when connecting peripheral devices, such as a
personal computer, to the PLC when Units with non-isolated power
supplies, such as the CS1W-CLK12/CLK52(-V1), that are connected to an
external power supply are mounted to the PLC. If the 24-V side is grounded
on the external power supply, a short will be created if the 0-V side of the
peripheral device is grounded. When connecting peripheral devices, either
ground the 0-V side of the external power supply or do not ground the
external power supply at all.

24-VDC

0-VDC

0-VDC

Non-isolated
power supplies

0-VDC

Controller Link unit Peripheral devices

FG

FG

CPU unit

External power
supply

FG

FG

Cable

OMRON CX-Programmer – Operation Manual

CX-Programmer_Page (x)

Application Precaution

Observe the following precautions when using the CX-Programmer.

• Observe the following precautions before starting the CX-Programmer.

• Exit all applications not directly related to the CX-Programmer.

Particularly exit any software such as screen savers, virus checkers,
email or other communications software, and schedulers or other
applications that start up periodically or automatically.

• Disable sharing hard disks, printers, or other devices with other

computers on any network.

• With some notebook computers, the RS-232C port is allocated to a

modem or an infrared port by default. Follow the instructions in
documentation for your computer and enable using the RS-232C port
as a normal serial port.

• With some notebook computers, the default settings for saving

energy do not supply the rated power to the RS-232C port. There
may be both Windows settings for saving energy, as well as setting
for specific computer utilities and BIOS. Following the instructions in
documentation for your computer, disable all energy saving settings.

• Do not turn OFF the power supply to the PLC or disconnect the

connecting cable while the CX-Programmer is online with the PLC. The
computer may malfunction.

• With the CS/CJ-series PLCs, when creating an AUTOEXEC.IOM file

from the CX-Programmer to automatically transfer data at startup, set the
first write address to D20000 and be sure that the size of data written
does not exceed the size of the DM Area. When the data file is read from
the Memory Card at startup, data will be written in the CPU Unit starting
at D20000 even if another address was set when the AUTOEXEC.IOM
file was created. Also, if the DM Area is exceeded (which is possible
when the CX-Programmer is used), the remaining data will be written to
the EM Area. Refer to information on file operations in the CS/CJ-series
Programming Manual for details.

• Confirm that no adverse effect will occur in the system before attempting

any of the following. Not doing so may result in an unexpected operation.

Changing the operating mode of the PLC.

• Force-setting/force-resetting any bit in memory.

• Changing the present value of any word or any set value in memory.

• Check the user program for proper execution before actually running it

on the Unit. Not checking the program may result in an unexpected
operation.

• Precaution on Using Indirect DM and EM Addresses in Comparison

Instructions:
When indirect DM or EM addresses are used as operands in comparison
instructions, the top portion of the comparison instruction will be displayed
in yellow when it is being monitored. At that time the power flow will not be
monitored to the right of such comparison instructions. The contact and
coil status, and present values of operands in special instructions will be
displayed normally.

OMRON CX-Programmer – Operation Manual

CX-Programmer_Page (xi)

• The user program and parameter area data in CS1-H CPU Units is

backed up in the built-in flash memory. The BKUP indicator will light on
the front of the CPU Unit when the backup operation is in progress. Do
not turn OFF the power supply to the CPU Unit when the BKUP indicator
is lit. The data will not be backed up if power is turned OFF.
To display the status of writing to flash memory on the CX-Programmer,
place a checkmark by Display dialog to show PLC Memory Backup

Status on the PLC properties and then select Windows | PLC Memory
Backup Status from the Windows menu.

• Precaution in Changing the PLC Type

On the CX-Programmer, you can change the PLC (device) type or CPU
type. When these are changed, however, only the data for the ladder
program and the symbol tables are changed. The following data will be
initialized and must be reset.

• PLC Setup

• Expansion instructions

• I/O tables

• PLC memory

Particularly the PLC Setup has a large impact on PLC system operation.
Be careful to reset all require settings after changing the PLC type.
If expansion instruction allocations are not reset, program errors could
occur, preventing the PLC from running. Always restore the expansion
instruction allocates to the previous settings after changing the PLC
type.

OMRON CX-Programmer – Operation Manual

CX-Programmer_Page (xii)

Observe the following precautions when using the CX-Net.

• Do not change the operating mode of the CPU Unit without first

confirming that operation of the controlled system will not be affect.

• Do not run the user program on the PLC until its operation has been

checked sufficiently.

• The data link mode (manual setting or automatic setting) and data link

method are determined according to the data link setting in the startup
node. In the startup node, set a data link table in the case of manual
setting and data link automatic setting parameters in the case of
automatic setting. If the settings are incorrect, the data link will not start.

• Check the following items before starting data links. If incorrect data link

tables or parameters are set, injury may result due to unexpected
operation of the system. Even if the correct data link tables and
parameters have been set, do not start or stop data links before verifying
that there will be no adverse influence on the system.

(1) Manually Set Data Links

Check the data link tables in each node participating in the data link to
see that they are correct.

Be sure that data link tables are deleted from nodes that are not
participating in the data links.

(2) Automatically Set Data Links

Be sure that the correct DM parameters have been set in the data link
startup node.

• CPU Bus Units will be automatically restarted when routing tables are

transferred from a Programming Device to the CPU Unit. Resetting is
required to use the new tables. Confirm that restarting the CPU Bus
Units will not adversely affect system operation before transferring
routing tables.

• When Special I/O Unit or CPU Unit settings are performed in the I/O

Table Window and then transferred from the PLC Memory Window, the
following warning will be displayed if the allocated DM Area/CIO Area
addresses set for Special I/O Units or CPU Bus Units in the I/O Table
Window on the computer overlap with the PLC data table addresses.

Unless the CPU Bus Unit or Special I/O Unit settings have been

previously transferred to the CPU Unit and the allocated DM Area/CIO
Area data in the PLC data table for Special I/O Units or CPU Bus Units is
to be overwritten, always click the No Button, shift the address, and
repeat the transfer procedure.

• CPU Bus Unit and Special I/O Unit settings are not checked for logical

consistency. Be very careful of the logical consisting of the overall
settings when making any setting that affects other settings, e.g., settings
that enable or disable other settings. Transfer the Special I/O Unit or
CPU Bus Unit settings to the PLC and then start operation, being aware
that any logical inconsistencies may produce unexpected operation.

• For example, if one setting selects either user settings or default settings

and is set to use the default settings, it will not automatically change to
enable user settings even if the related user settings are made. To use
the user settings, they will have to be enabled manually and specifically
in the setting that selects either user settings or default settings.

CX-Programmer_Page (xiii)

Unit Versions of CS/CJ/CP-series CPU Units

Unit Versions

A “unit version” has been introduced to manage CPU Units in the CS/CJ/CP
Series according to differences in functionality accompanying Unit upgrades.
This applies to the CJ2, CS1-H, CJ1-H, CJ1M, CS1D, CP1H, CP1L, and
CP1E CPU Units.

Notation of Unit Versions on Products

The unit version is given to the right of the lot number on the nameplate of
the products for which unit versions are being managed, as shown below.

Unit version

Example for unit version 3.0

CS1H-CPU67H

CPU UNIT

Lot No. 040715 0000 Ver.3.0

OMRON Corporation MADE IN JAPAN

Produce nameplateCS/CJ/CP-series CPU Unit

Lot No.

• CS1-H, CJ1-H, and CJ1M CPU Units (except for low-end models)
manufactured on or before November 4, 2003 do not have a unit version
given on the CPU Unit (i.e., the location for the unit version shown above is
blank).

• The unit version of the CJ1-H-R CPU Units begins at version 4.0.

• The unit version of the CS1-H, CJ1-H, and CJ1M CPU Units, as well as the
CS1D CPU Units for Single-CPU Systems, begins at version 2.0.

• The unit version of the CS1D CPU Units for Duplex-CPU Systems begins
at version 1.1.

• The unit version of the CP1H/CP1L/CP1E CPU Units begins at version 1.0,
except for the CP1H-Y@@@@-@, for which the unit version begins at
version 1.1.

• CPU Units for which a unit version is not given are called Pre-Ver.

@.@

CPU Units, such as Pre-Ver. 2.0 CPU Units and Pre-Ver. 1.1 CPU Units.

Confirming Unit Versions
with Support Software

CX-Programmer version 4.0 can be used to confirm the unit version using
one of the following two methods.

• Using the PLC Information

• Using the Unit Manufacturing Information (This method can be used for
Special I/O Units and CPU Bus Units as well.)

Note CX-Programmer version 3.3 or lower cannot be used to confirm unit versions.

PLC Information

• If you know the device type and CPU type, select them in the Change PLC
Dialog Box, go online, and select PLC - Edit - Information from the
menus.

• If you don’t know the device type and CPU type, but are connected directly
to the CPU Unit on a serial line, select PLC - Auto Online to go online, and
then select PLC - Edit - Information from the menus.

In either case, the following PLC Information Dialog Box will be displayed.

CX-Programmer_Page (xiv)

Unit version

Use the above display to confirm the unit version of the CPU Unit.

Unit Manufacturing Information

In the IO Table Window, right-click and select Unit Manufacturing
information - CPU Unit.

The following Unit Manufacturing information Dialog Box will be displayed

Unit version

Use the above display to confirm the unit version of the CPU Unit connected
online.

CX-Programmer_Page (xv)

Using the Unit Version Labels

The following unit version labels are provided with the CPU Unit.

These labels can be attached to the front of previous CPU Units to
differentiate between CPU Units of different unit versions.

Unit Version Notation

In this manual, the unit version of a CPU Unit is given as shown in the
following table.

Product nameplate

Meaning

CPU Units on which no unit version is

given

Lot No. XXXXXX XXXX

OMRON Corporation MADE IN JAPAN

Units on which a version is given

(Ver.

@.@)

Lot No. XXXXXX XXXX

Ver.@.@

Designating individual
CPU Units (e.g., the
CS1H-CPU67H)

Pre-Ver. 2.0 CS1-H CPU Units CS1H-CPU67H CPU Unit Ver. @.@

Designating groups of
CPU Units (e.g., the
CS1-H CPU Units)

Pre-Ver. 2.0 CS1-H CPU Units CS1-H CPU Units Ver. @.@

Designating an entire
series of CPU Units
(e.g., the CS-series
CPU Units)

Pre-Ver. 2.0 CS-series CPU Units CS-series CPU Units Ver. @.@

CX-Programmer_Page (xvi)

Unit Versions and Lot Numbers

CX-Programmer_Page (xvii)

Function Support by Unit Version

CS1-H CPU Units (CS1@-CPU@@H)

Unit version

Function

Pre-Ver. 2.0 CPU

Units

CPU Units Ver. 2.0 or

later

Downloading and Uploading Individual Tasks

--- OK

Improved Read Protection Using Passwords

--- OK

Write Protection from FINS Commands Sent to CPU Units via

Networks

--- OK

Online Network Connections without I/O Tables

--- OK

Communications through a Maximum of 8 Network Levels

--- OK

Connecting Online to PLCs via NS-series PTs

OK from lot number
030201

OK

Setting First Slot Words

OK for up to 8 groups OK for up to 64 groups

Automatic Transfers at Power ON without a Parameter File

--- OK

Automatic Detection of I/O Allocation Method for Automatic

Transfer at Power ON

--- ---

Operation Start/End Times

--- OK

MILH, MILR, MILC

--- OK

=DT, <>DT, <DT, <=DT, >DT, >=DT

--- OK

BCMP2

--- OK

GRY

OK from lot number
030201

OK

TPO

--- OK

DSW, TKY, HKY, MTR, 7SEG

--- OK

EXPLT, EGATR, ESATR, ECHRD, ECHWR

--- OK

Reading/Writing CPU Bus Units with IORD/IOWR

OK from lot number
030418

OK

New
Application
Instructions

PRV2

--- ---

CX-Programmer_Page (xviii)

CS1D CPU Units

CS1D CPU Units for Duplex-CPU

Systems (CS1D-CPU@@H)

CS1D CPU Units

for Single-CPU

Systems

(CS1D-CPU@@S)

Function

Pre-Ver. 1.1 CPU

Units

CPU Unit Ver. 1.1 CPU Unit Ver. 2.0

or later

Duplex CPU Units OK OK ---

Online Unit Replacement OK OK OK

Duplex Power Supply Units OK OK OK

Duplex Controller Link Units OK OK OK

Functions
unique to
CS1D CPU
Units

Duplex Ethernet Units --- OK OK

Downloading and Uploading Individual Tasks

--- --- OK

Improved Read Protection Using Passwords

--- --- OK

Write Protection from FINS Commands Sent

to CPU Units via Networks

--- --- OK

Online Network Connections without I/O

Tables

--- --- OK

Communications through a Maximum of 8

Network Levels

--- --- OK

Connecting Online to PLCs via NS-series

PTs

--- --- OK

Setting First Slot Words

--- --- OK for up to 64
groups

Automatic Transfers at Power ON without a

Parameter File

--- --- OK

Automatic Detection of I/O Allocation Method

for Automatic Transfer at Power ON

--- --- ---

Operation Start/End Times

--- OK OK

MILH, MILR, MILC

--- --- OK

=DT, <>DT, <DT, <=DT, >DT,
>=DT

--- --- OK

BCMP2

--- --- OK

GRY

--- --- OK

TPO

--- --- OK

DSW, TKY, HKY, MTR, 7SEG

--- --- OK

EXPLT, EGATR, ESATR,
ECHRD, ECHWR

--- --- OK

Reading/Writing CPU Bus
Units with IORD/IOWR

--- --- OK

New
Application
Instructions

PRV2

--- --- ---

CX-Programmer_Page (xix)

CJ1-H/CJ1M CPU Units

CJ1-H CPU Units CJ1M CPU Units

(CJ1H-CPU@@H-R)

(CJ1@-CPU@@H)
(CJ1G-CPU@@P)

CJ1M-CPU12/13/22/23 CJ1M-

CPU11/21

Function

Pre-Ver. 2.0

CPU Units

CPU Units

Ver. 2.0

Pre-Ver. 2.0

CPU Units

CPU Units

Ver. 2.0

CPU Units

Ver. 2.0 or

later

Downloading and Uploading
Individual Tasks

--- OK --- OK OK

Improved Read Protection
Using Passwords

--- OK --- OK OK

Write Protection from FINS
Commands Sent to CPU Units
via Networks

--- OK --- OK OK

Online Network Connections
without I/O Tables

OK, but only if
I/O table
allocation at
power ON is set

OK OK, but only if

I/O table
allocation at
power ON is set

OK OK

Communications through a
Maximum of 8 Network Levels

OK for up to 8
groups

OK for up to 64
groups

OK for up to 8
groups

OK for up to 64
groups

OK for up to 64
groups

Connecting Online to PLCs via
NS-series PTs

OK from lot
number 030201

OK OK from lot

number 030201

OK OK

Setting First Slot Words

--- OK --- OK OK

Automatic Transfers at Power
ON without a Parameter File

--- OK --- OK OK

Automatic Detection of I/O
Allocation Method for
Automatic Transfer at Power
ON

--- OK --- OK OK

Operation Start/End Times

--- OK --- OK OK

MILH, MILR,
MILC

--- OK --- OK OK

=DT, <>DT, <DT,
<=DT, >DT,
>=DT

--- OK --- OK OK

BCMP2

--- OK OK OK OK

GRY

OK from lot
number 030201

OK OK from lot

number 030201

OK OK

TPO

--- OK --- OK OK

DSW, TKY, HKY,
MTR, 7SEG

--- OK --- OK OK

EXPLT, EGATR,
ESATR, ECHRD,
ECHWR

--- OK --- OK OK

Reading/Writing
CPU Bus Units
with IORD/IOWR

--- OK --- OK OK

New
Application
Instructions

PRV2

--- --- --- OK, but only for
models with
built-in I/O

OK, but only for
models with
built-in I/O

CX-Programmer_Page (xx)

Functions Supported by Unit Version 3.0 or Later

CS1-H CPU Units (CS1@-CPU@@H)

Unit version Function

Pre-Ver. 2.0, Ver.

2.0

Ver. 3.0 Ver. 4.0

(See note.)

Function blocks (supported for CX-Programmer Ver.

5.0 or higher)

--- OK OK

Serial Gateway (converting FINS commands to
CompoWay/F commands at the built-in serial port)

--- OK OK

Comment memory (in internal flash memory) --- OK OK

Expanded simple backup data --- OK OK

TXDU(256), RXDU(255) (support
no-protocol communications with
Serial Communications Units with
unit version 1.2 or later)

--- OK OK

Model conversion instructions:
XFERC(565), DISTC(566),
COLLC(567), MOVBC(568),
BCNTC(621)

--- OK OK

New
application
instructions

Special function block instructions:
GETID(286)

--- OK OK

Additional
instruction
functions

TXD(235) and RXD(236)
instructions (support no-protocol
communications with Serial
Communications Boards with unit
version 1.2 or later)

--- OK OK

New
application
instructions

ASCII conversion instructions
(NUMBER-TO-ASCII and ASCII­TO- NUMBER)
Text File Write (TWRIT)

--- --- OK

Online editing of function blocks --- --- OK

Input-output variables are
supported.
(Input-output variables can be
specified in arrays.)

--- --- OK

Improved
function block
(FB) functions

The STRING data type and text­string processing functions are
supported in ST language.

--- --- OK

Using ST language programming in tasks --- --- OK with CX-

Programmer Ver. 7.2
or higher

Using SFC programming in tasks --- --- OK with CX-

Programmer Ver. 7.2
or higher

Note: CX-Programmer version 7.0 or higher is required to use functions added for unit version

4.0. Additional functions are supported if CX-Programmer version 7.2 or higher is used.

CS1D CPU Units

Unit version 3.0 (Ver. 3.0) is not supported.

CX-Programmer_Page (xxi)

CJ1-H/CJ1M CPU Units (CJ1@-CPU@@H, CJ1M-CPU@@)

Unit version Function

Pre-Ver. 2.0,

Ver. 2.0

Ver. 3.0 Ver. 4.0

(See note.)

Function blocks (supported for CX-Programmer Ver.

5.0 or higher)

--- OK OK

Serial Gateway (converting FINS commands to
CompoWay/F commands at the built-in serial port)

--- OK OK

Comment memory (in internal flash memory) --- OK OK

Expanded simple backup data --- OK OK

Additional
instruction
functions

PRV(881) and PRV2(883)
instructions: Added high-frequency
calculation methods for calculating
pulse frequency. (CJ1M CPU Units
only)

--- OK OK

TXDU(256), RXDU(255) (support
no-protocol communications with
Serial Communications Units with
unit version 1.2 or later)

--- OK OK

Model conversion instructions:
XFERC(565), DISTC(566),
COLLC(567), MOVBC(568),

BCNTC(621)

--- OK OK

New
application
instructions

Special function block instructions:
GETID(286)

--- OK OK

Additional
instruction
functions

TXD(235) and RXD(236)
instructions (support no-protocol
communications with Serial
Communications Boards with unit
version 1.2 or later)

--- OK OK

New
application
instructions

ASCII conversion instructions
(NUMBER-To-ASCII and ASCII­TO NUMBER)

--- --- OK

Online editing of function blocks --- --- OK

Input-output variables are
supported. (Input-output variables
can be specified in arrays.)

--- --- OK

Improved
function block
(FB) functions

The STRING data type and text­string processing functions are
supported in ST language.

--- --- OK

Using ST language programming in tasks --- --- OK with CX-

Programmer Ver. 7.2
or higher

Using SFC programming in tasks --- --- OK with CX-

Programmer Ver. 7.2
or higher

Note: CX-Programmer version 7.0 or higher is required to use functions added for unit version

4.0. Additional functions are supported if CX-Programmer version 7.2 or higher is used.

CX-Programmer_Page (xxii)

Functions Supported by Unit Version for CJ2 CPU Units (CJ2H-CPU6@-EIP, CJ2H­CPU6@)

Unit Version 1.2 or Later

CX-Programmer version 8.3

or higher must be used to enable using the

functions added for unit version 1.2.

Unit CJ2H CPU Unit

Model

CJ2H-CPU6@-EIP

CJ2H-CPU6@

Unit version

Item

Unit version 1.2

EM Area force-setting/resetting Supported.

Unit Version 1.1 or Later

CX-Programmer version 8.1

or higher must be used to enable using the

functions added for unit version 1.1.

Unit CJ2H CPU Unit

Model

CJ2H-CPU6@-EIP

CJ2H-CPU6@

Unit version

Item

Unit version 1.1 Unit version 1.0

High-speed interrupt function
Decreased overhead time for interrupt tasks
Minimum interval setting of 0.1 ms for Scheduled

Interrupt Task

Supported. Not supported.

Changing the minimum cycle time setting in
MONITOR mode

Supported. Not supported.

Synchronous unit operation Supported. Not supported.

Unit Version 1.0

All functions that are supported by unit version 4.0 or later of the CJ1 CPU
Units are supported by unit version 1.0 of the CJ2 CPU Units.

CX-Programmer version 8.0 or higher must be used to enable using unit
version 1.0 of the CJ2 CPU Units.

CX-Programmer_Page (xxiii)

Functions Supported by Unit Version for CP-series CPU Units

Functions Supported by Unit Version 1.0 and 1.1

Functionality is the same as that for CS/CJ-series CPU Units with unit version

3.0. The functionality added for CS/CJ-series CPU Unit unit version 4.0 is not
supported.

CP1H CPU Units

• CX-Programmer version 6.11 or higher is required to use CP1H-X@@@@-

@/XA@@@@-@ with unit version 1.1 or 1.0.

• CX-Programmer version 6.20 or higher is required to use CP1H-Y@@@@-

@ with unit version 1.1.

CPU Unit CP1H CPU Unit

Model CP1H-@@@@-@

CP1H-XA@@@@-@
(See note 1.)

CP1H-Y@@@@-@
(See note 2.)

Unit version

Function

Ver. 1.1 or
later

Ver. 1.0 Ver. 1.1

Allocated built-in
I/O terminals

4 axes at
100 kHz

2 axes at
100 kHz

2 axes at
30 kHz

2 axes 100 kHz

Pulse
outputs

Special pulse
output terminals

None 2 axes at 1 kHz

Note 1. The unit version for the CP1H-X@@@@-@/XA@@@@-@ begins at 1.0.

2. The unit version for the CP1H-X@@@@-@ begins at 1.1.

3. CX-Programmer version 7.11 or higher is required to use CP1L CPU Units with unit

version 1.0.

CX-Programmer_Page (xxiv)

Unit Versions and Programming Devices

CX-Programmer version 4.0 or higher must be used to enable using the
functions added for CPU Unit Ver. 2.0. The following tables show the
relationship between unit versions and CX-Programmer versions.

Unit Versions and Programming Devices for CJ2 CPU Units

Required Programming Device

CX-Programmer

CPU Unit Functions

Ver. 7.1 or lower Ver. 8.0 Ver. 8.1 Ver. 8.2 Ver. 8.3

CJ2H-CPU6@-EIP
Unit version 1.0

Functions for unit version

1.0

×

❍ ❍ ❍ ❍

CJ2H-CPU6@-EIP
Unit version 1.1

Functions added for unit
version 1.1

×

∆

❍ ❍ ❍

CJ2H-CPU6@
Unit version 1.1

Functions added for unit
version 1.1

×

∆

❍ ❍ ❍

CJ2H-CPU6@-EIP
Unit version 1.2

Functions added for unit
version 1.2

×

∆ ∆ ∆

❍

CJ2H-CPU6@
Unit version 1.2

Functions added for unit
version 1.2

×

∆ ∆ ∆

❍

×: Cannot be used, ∆: Can be used except for new functions added for unit versions, ❍: Can be used

Note 1. It is not necessary to upgrade the version of the CX-Programmer if functionality that was

enhanced for the upgrade of the CPU Unit will not be used.

2. CX-Programmer version 8.1 or higher is required to use the functions added for unit
version 1.1. The high-speed interrupt function and changing the minimum cycle time
setting in MONITOR mode, however, are also supported by CX-Programmer version

8.02.

3. A Programming Console cannot be used with a CJ2H CPU Unit.

Unit Versions and Programming Devices for CPU Units Other Than CJ2 CPU Units

Required Programming Device

CX-Programmer

CPU Unit Functions

Ver. 3.3 Ver. 4.0 Ver. 5.0

Ver. 6.0

Ver. 7.0 Ver. 7.2 Ver. 8.0

or later

CS/CJ Series CPU
Units, Unit Ver. 4.0

Functions added for unit
version 4.0

∆ ∆ ∆

❍ ❍ ❍

(See note

4.)

CS/CJ Series CPU
Units, Unit Ver. 3.0

Functions added for unit
version 3.0

∆ ∆

❍ ❍ ❍ ❍

CS/CJ Series CPU
Units, Unit Ver. 2.0

Functions added for unit
version 2.0

∆

❍ ❍ ❍ ❍ ❍

CS1D CPU Units for
Single-CPU Systems,
Unit Ver. 2.0

Functions added for unit
version 2.0

∆

❍ ❍ ❍ ❍ ❍

CS1D CPU Units for
Duplex-CPU Systems,
Unit Ver.1.1

Functions added for unit
version 1.1

∆

❍ ❍ ❍ ❍ ❍

×: Cannot be used, ∆: Can be used except for new functions added for unit versions, ❍: Can be used

Note 1. As shown above, there is no need to upgrade to CX-Programmer version 4.0 as long as

the functions added for unit version 2.0 or unit version 1.1 are not used.

2. CX-Programmer version 7.0 or higher is required to use functions added for unit version

4.0. Additional functions are supported if CX-Programmer version 7.2 or higher is used.

3. Unit version 4.2 of the CJ1H-CPU6@-R is supported only by CX-Programmer version 8.0
or higher.

4. CX-Programmer version 8.0 or higher is required to use unit version 4.2 of the CJ1H-
CPU6@-R.

CX-Programmer_Page (xxv)

Unit Versions of CP-series CPU Units and Programming Devices

CX-Programmer version CPU Unit Model Unit

version

Ver. 6.11 Ver. 6.20 Ver. 7.11 Ver. 8.2

or later

CP1H-X@@@@-@

Ver. 1.1 OK OK OK OK

CP1H-XA@@@@-@

Ver. 1.0 OK OK OK OK

CP1H CPU Units

CP1H-Y@@@@-@

Ver. 1.1 --- OK OK OK

CP1L-M@@@@-@

CP1L CPU Units

CP1L-L@@@@-@

Ver. 1.0 --- --- OK OK

CP1E-E@@D@-A

CP1E CPU Units

CP1E-N@@D@-@

Ver. 1.0 --- --- --- OK

Note 1. Functionality of CP1H CPU Units with unit version 1.0 or 1.0 and CP1L CPU Units with

unit version 1.0 is the same as that for CS/CJ-series CPU Units with unit version 3.0.
The functionality added for CS/CJ-series CPU Unit unit version 4.0 is not supported.

2. There is no need to upgrade to CX-Programmer as long as the upgraded functionality is
not used.

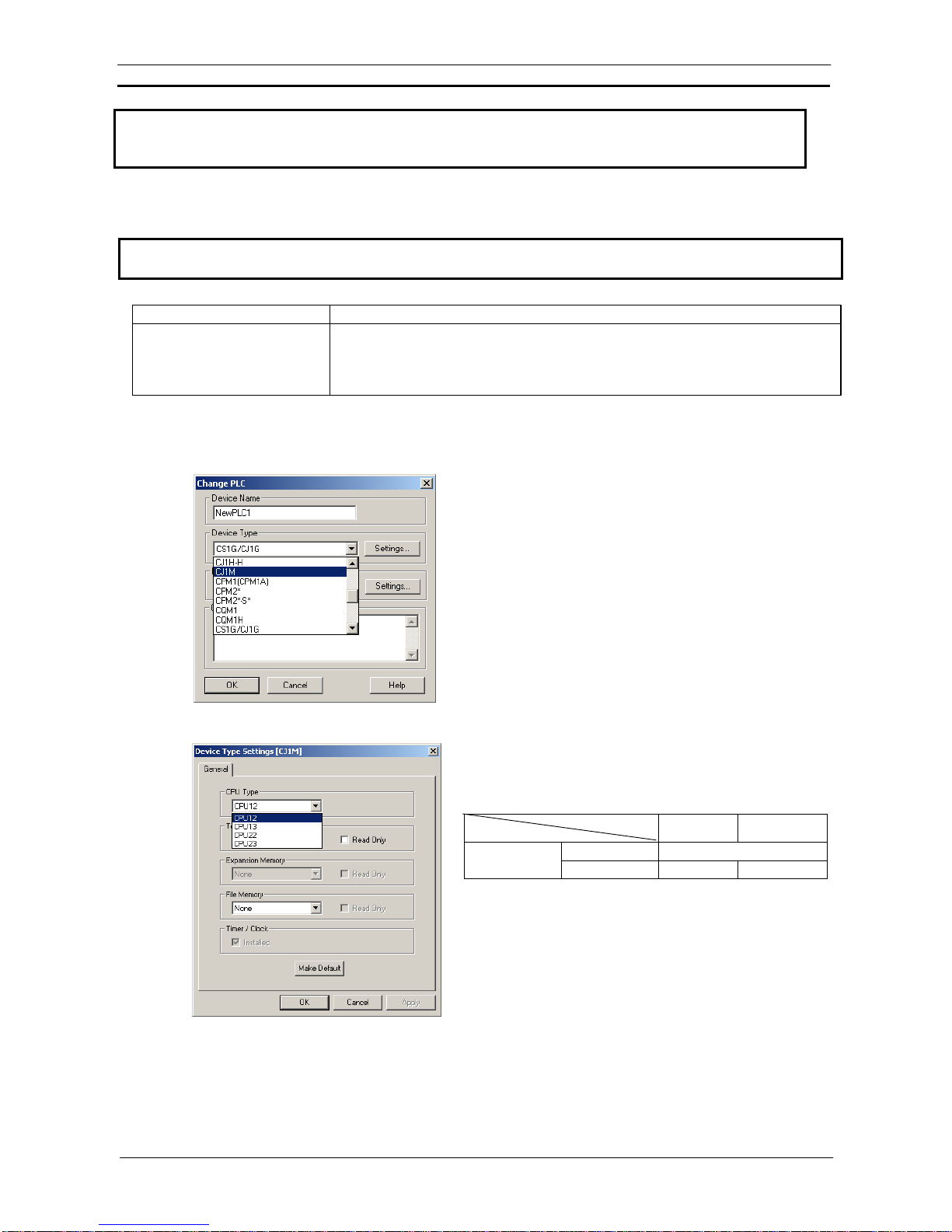

Device Type Setting

The unit version does not affect the setting made for the device type on the
CX-Programmer. Select the device type as shown in the following table
regardless of the unit version of the CPU Unit.

Series CPU Unit group CPU Unit model Device type setting on

CX-Programmer

CS1G-CPU@@H

CS1G-H CS1-H CPU Units

CS1H-CPU@@H

CS1H-H

CS1D CPU Units for Duplex-CPU Systems

CS1D-CPU@@H

CS1D-H (or CS1H-H)

CS Series

CS1D CPU Units for Single-CPU Systems

CS1D-CPU@@S

CS1D-S

CJ2 CPU Units

CJ2H-CPU6@(-EIP)

CJ2H

CJ1G-CPU@@H
CJ1G- CPU@@P

CJ1-H CPU Units

CJ1H-CPU@@H–R
CJ1H-CPU@@H

CJ1G-H

CJ Series

CJ1M CPU Units

CJ1M-CPU@@

CJ1M

CP1H CPU Units

CP1H-X@@@@-@
CP1H-XA@@@@-@
CP1H-Y@@@@-@

CP1H

CP1L CPU Units

CP1L-M@@@@-@
CP1L-L@@@@-@

CP1L

CP Series

CP1E CPU Units

CP1E-E@@D@-A
CP1E-N@@D@-@

CP1E

Note Device types not supported by the CX-Programmer version that is being used will not be

displayed on the pull-down list of the Device type Field.

CX-Programmer_Page (xxvi)

Troubleshooting Problems with Unit Versions on the CX-Programmer

Problem Cause Solution

After the above message is displayed, a compiling
error will be displayed on the Compile Tab Page in
the Output Window.

An attempt was made using CX­Programmer version 4.0 or
higher to download a program
containing instructions supported
only by CPU Units Ver. 2.0 or
later to a Pre-Ver. 2.0 CPU Units.

Check the program or change
the CPU Unit being
downloaded to a CPU Unit
Ver. 2.0 or later.

An attempt was made using CX­Programmer version 4.0 or
higher to download a PLC Setup
containing settings supported
only by CPU Units Ver. 2.0 or
later (i.e., not set to their default
values) to a Pre-Ver. 2.0 CPU
Units.

Check the settings in the PLC
Setup or change the CPU Unit
being downloaded to a CPU
Unit Ver. 2.0 or later.

"????" is displayed in a program transferred from the
PLC to the CX-Programmer.

CX-Programmer version 3.3 or
lower was used to upload a
program containing instructions
supported only by CPU Units
Ver. 2.0 or later from a CPU Unit
Ver. 2.0 or later.

The new instructions cannot
be uploaded using CX­Programmer version 3.3 or
lower. Use CX-Programmer
version 4.0 or higher.

PART 1:

CX-Programmer

OMRON PART 1: CX-Programmer

CX-Programmer_Page (i)

Notice

OMRON products are manufactured for use according to proper procedures by a qualified operator and
only for the purposes described in this manual.

The following conventions are used to indicate and classify precautions in this manual. Always heed the
information provided in them. Failure to heed precautions can result in injury to people or damage to the
product.

DANGER Indicates an imminently hazardous situation which, if not avoided, will result in

death or serious injury. Additionally, there may be severe property damage.

WARNING Indicates a potentially hazardous situation which, if not avoided, could result in

death or serious injury. Additionally, there may be severe property damage.

Caution Indicates a potentially hazardous situation which, if not avoided, may result in

minor or moderate injury, or property damage.

OMRON Product References

All OMRON products are capitalized in this manual. The word “Unit” is also capitalized when it refers to
an OMRON product, regardless of whether or not it appears in the proper name of the product.

The abbreviation “PLC” means Programmable Logic Controller and is not used as an abbreviation for
anything else.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (ii)

Visual Aids

The following headings appear in the left column of the manual to help you locate different types of
information.

Indicates information of particular interest for efficient and convenient operation of the product.

1, 2, 3…

Indicates lists of one sort or another, such as procedures, checklists etc.

Represents a shortcut on the Toolbar to one of the options available on the menu of the same
window.

 OMRON, 2005

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or
transmitted, in any form, or by any means, mechanical, electronic, photocopying, recording, or otherwise,
without the prior written permission of OMRON.

All copyright and trademarks acknowledged.

No patent liability is assumed with respect to the use of the information contained herein. Moreover,
because OMRON is constantly striving to improve its high-quality products, the information contained in
this manual is subject to change without notice. Every precaution has been taken in the preparation of this
manual. Nevertheless, OMRON assumes no responsibility for errors or omissions. Neither is any liability
assumed for damages resulting from the use of the information contained in this publication.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (iii)

About this Part

This part describes the CX-Programmer application and its ability to create and maintain programs for use
with OMRON SYSMAC CS/CJ/CP, CV and C PLCs. It does not provide detailed information concerning
the PLCs themselves, for this information the commercial manual for the device must be consulted.

This part contains the following chapters:

• Precautions. This portion describes general precautions for using the CX-Programmer (including

CX-Server PLC Tools).

• Version Upgrade Information. This portion describes the changes that have been made from version

3.0 to version 3.1 of the CX-Programmer.

• Chapter 1 Technical Specifications. This chapter describes the CX-Programmer software in general

terms and also provides details of the operating environment and minimum configuration necessary
for the satisfactory operation of CX-Programmer.

• Chapter 2 Quick Start Guide. This chapter describes the basic features of CX-Programmer together

with a simple tutorial for familiarization purposes.

• Chapter 3 Project Reference. This describes the features common to two or more parts of CX-

Programmer.

• Chapter 4 Reference. This chapter introduces the features contained in the Project workspace and

discusses their associated commands and features.

• Chapter 5 Advanced Topics. This chapter discusses the more advanced topics in relation to CX-

Programmer.

• Appendix A Toolbars and Keyboard Shortcuts. This appendix summarizes the toolbar and keyboard

shortcuts available from CX-Programmer.

A Glossary of Terms and Index are also provided.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (iv)

Functions Supported by the CX­Programmer Installed from the CX-One

• Starting Specialized Support Tools from the I/O Table Window

Previous version New version (CX-Programmer Installed from CX-One)

Each CPU Bus Unit or
Special I/O Unit’s
Programming Tool was
started individually.

If the PLC model is set to the CS/CJ/CP-series, each Unit’s Programming Tool (e.g.,
CX-Integrator, CX-Protocol, CX-Position, or CX-Process Tool) can be started directly
from the Special I/O Unit or CPU Bus Unit in the I/O Table Window. When the
Specialized Support Tool is started, the CX-Programmer can pass information such as
the PLC model, Unit model, and online/offline status.

Functionality Improved from Version 8.3 to 9.0

 Compatible PLC Models

The CX-Programmer also supports CP1E-NA20 CPU Units (20-point CPU Units).

 Supported Operating Systems

The CX-Programmer will run on Windows 7.

 Data Structures Supported as Symbol Data Types

Previous version (version 8.3) New version (version 9.0)

Data structures are not supported. CJ2 CPU Units now support data structures as

symbol data types.

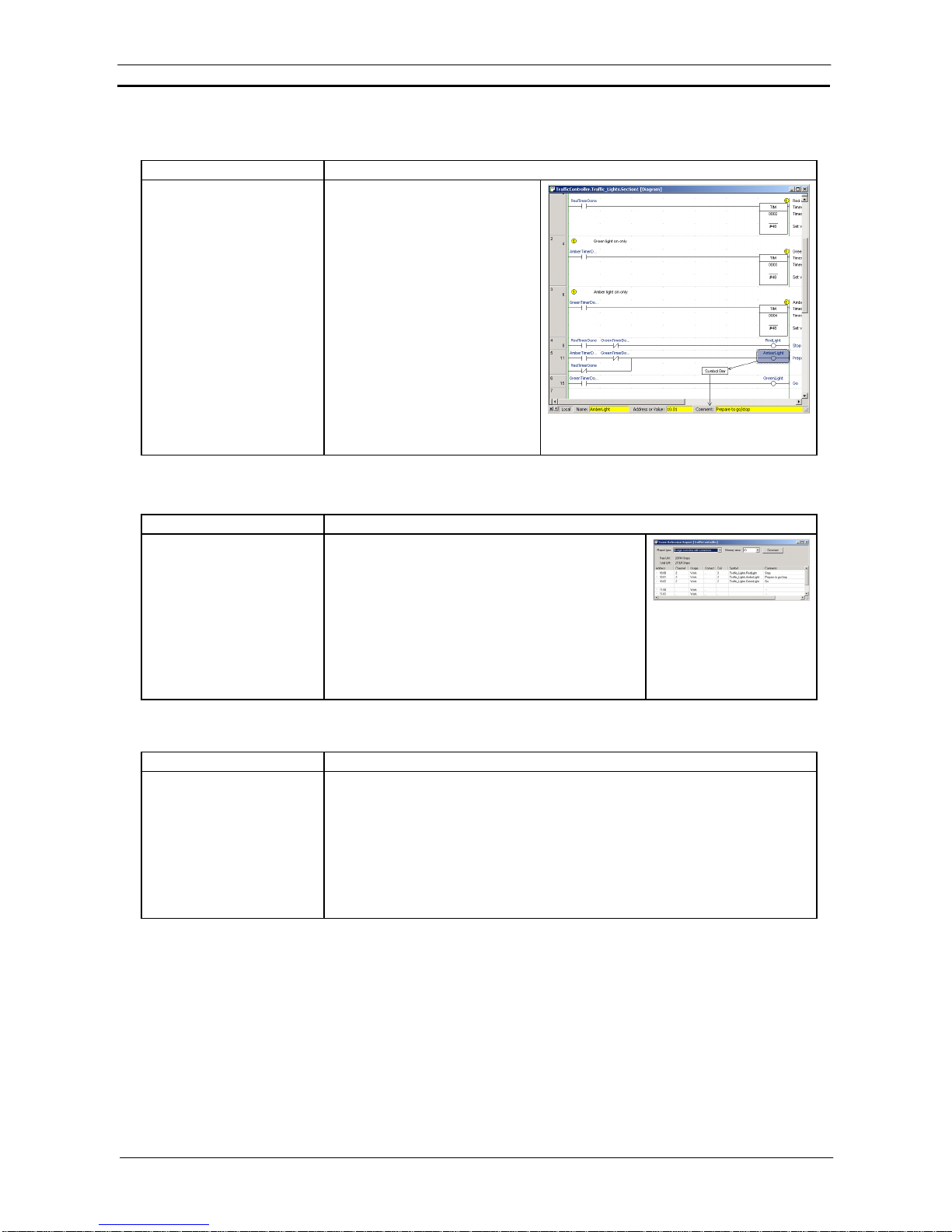

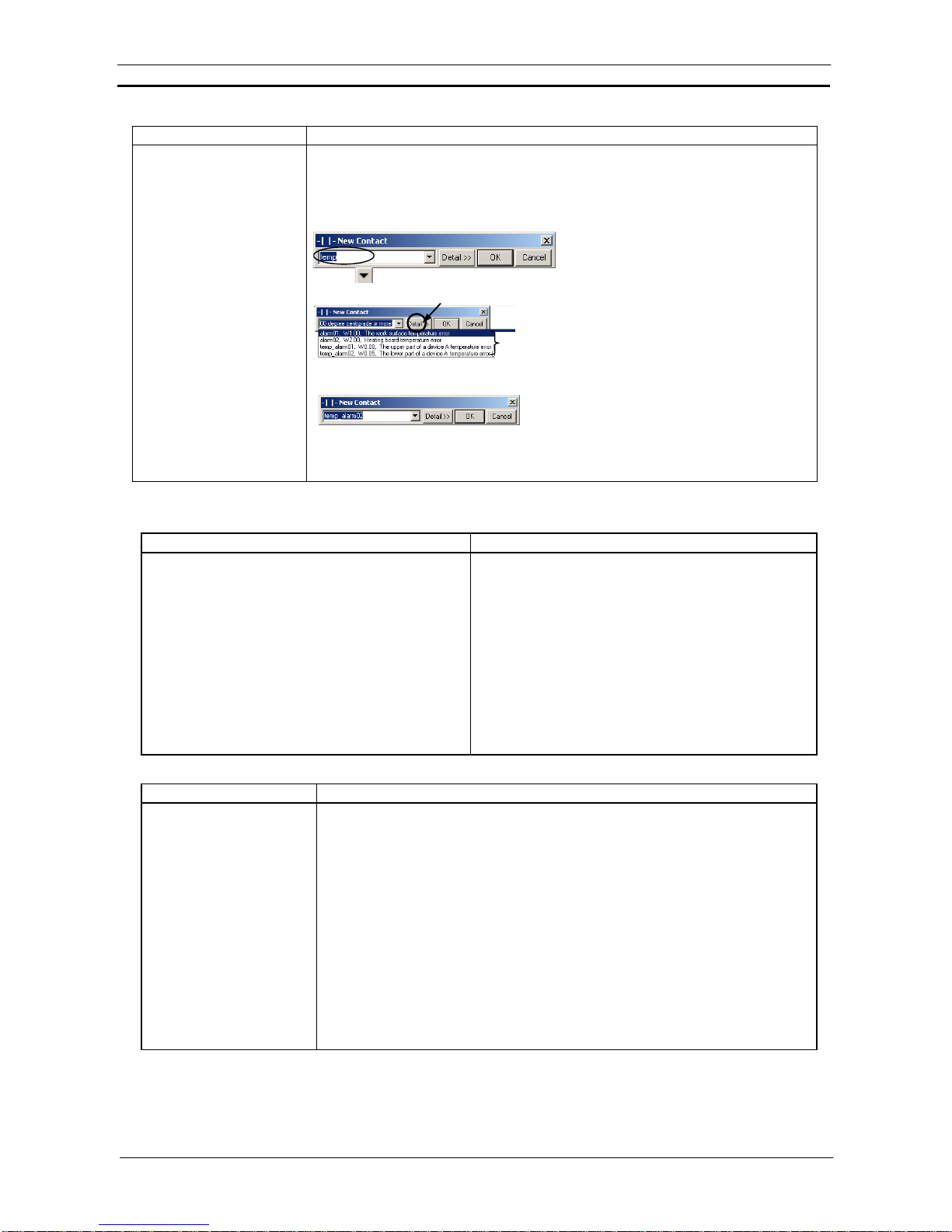

 Enhanced Program Input Functions

Previous version (version 8.3) New version (version 9.0)

The input mode cannot be changed. A Smart Input Mode is supported that

automatically displays suggested instructions
and addresses.
The input mode can be changed from a menu or
a tool bar.

When copying circuits to create similar rungs
with different addresses, the addresses must be
input again.

The Address Incremental Copy function can be
used to easily create copies of similar circuit
structures with offset addresses.

 Enhanced User Interface for Menu and Option Settings

Previous version (version 8.3) New version (version 9.0)

The display configuration for menus and options
cannot be changed.

Switching to Smart Style Mode is now possible
for the menu and option setting style.
Smart Style is the same type of menu and option
setting function as the one supported in CX­Programmer for CP1E.
Either the previous Classic Mode or the new
Smart Style Mode can be selected for the menus
and options by selecting Tools - Options and
then setting the Menu/Options Style on the
General Tab Page.

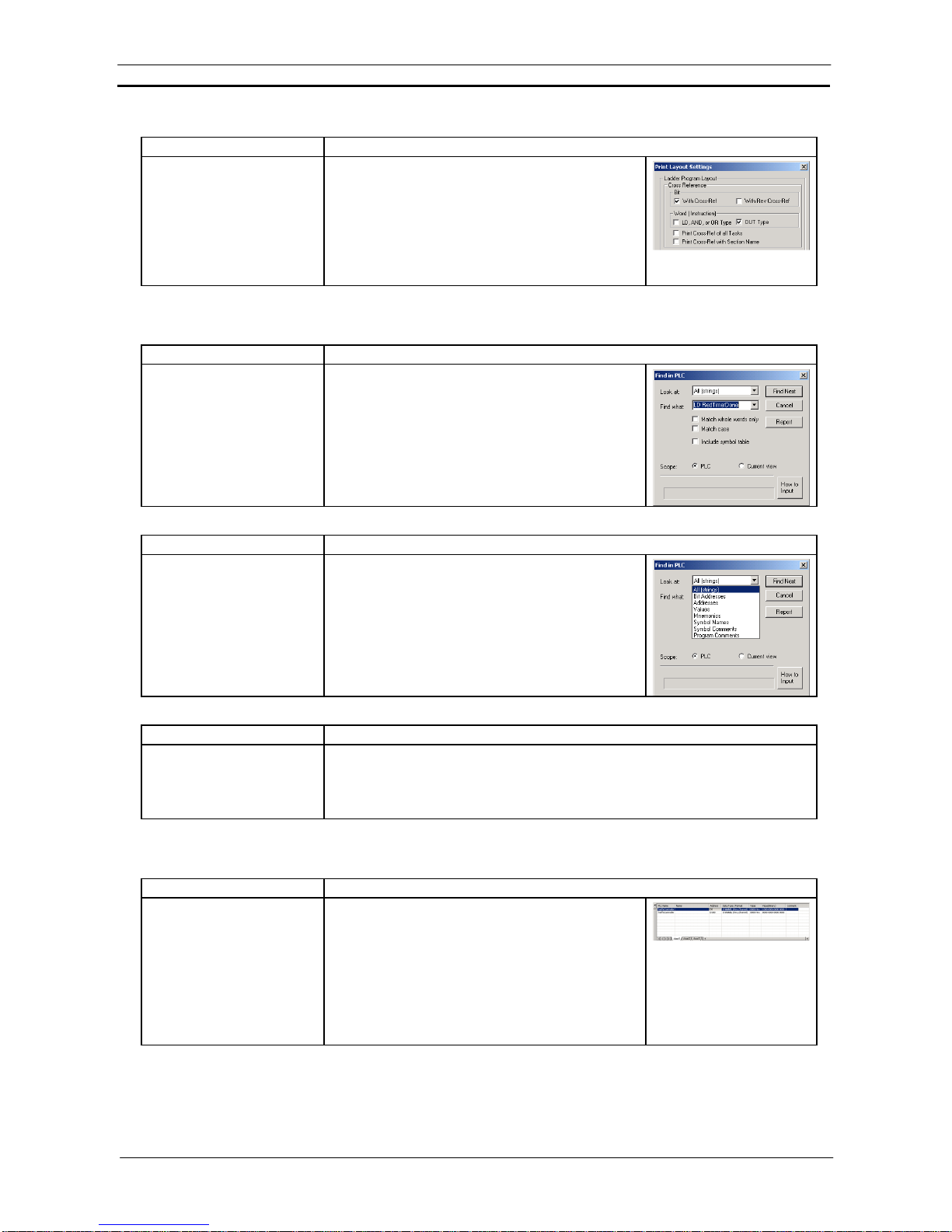

 Changes to Search/Replace Dialog Boxes

Previous version (version 8.3) New version (version 9.0)

Searches can be performed only in the entire
PLC or in the data in the current view.

"Programs" has been added to the search range.

The setting for the item to be searched for was
very detailed and included bit addresses,
address, values (constants/numbers),
mnemonics, symbols, and I/O comments.

Searched objects have been grouped into
addresses, symbol names, and all (text strings).

OMRON PART 1: CX-Programmer

CX-Programmer_Page (v)

Previous version (version 8.3) New version (version 9.0)

Replacements can be performed only in the
entire PLC or in the data in the current view.

"Programs" has been added to the replacement
range.
Also, the selected circuits can be set as the
replacement range.

The setting for the item to be replaced was very
detailed and included bit addresses, address,
values (constants/numbers), mnemonics,
symbols, and I/O comments.

Searched objects have been grouped into
addresses, symbol names, mnemonics, and
comments.

Version 8.3 Upgrade Information

Functionality Improved from Version 8.2 to 8.3

 Compatible PLC Models

The functionality improvements are supported for CJ2H CPU Units with unit version

1.2 or later.

 TIMER and COUNTER Added as Symbol Data Types

Previous version (version 8.2) New version (version 8.3)

When defining timer numbers and counter
numbers as symbols, the following three different
symbols had to be registered in the symbols
table.

1. Timer numbers and counter numbers
specified in instruction operands had to
be defined as NUMBER symbols.

2. Timer and Counter Completion Flags
had to be defined as BOOL symbols.

3. Timer and counter present values had
to be defined as CHANNEL symbols.

TIMER and COUNTER symbols are supported
so that all of the previous three types of symbols
can be managed as one data type. (TIMER and
COUNTER are supported only by CJ2H CPU
Units with unit version 1.0 or later.)
TIMER: Can be used for 1) the timer number, 2)
the Timer Completion Flag, and 3) the timer
present value.
COUNTER: Can be used for 1) the counter
number, 2) the Counter Completion Flag, and 3)
the counter present value.

Automatically assigning timer and counter
numbers in ladder programs was not possible.

Automatic address assignment and layout are
supported for TIMER and COUNTER symbols.
(TIMER and COUNTER are supported only by
CJ2H CPU Units with unit version 1.0 or later.)

 Force-setting/resetting Bits in EM Area

Previous version (version 8.2) New version (version 8.3)

Bits in the EM Area could be force-set/reset in
CJ2H CPU Units only for specific EM Area banks
for which automatic address assignment was
used.

With CJ2H CPU Units with unit version 1.2 or
later, PLC • Memory Allocate • EM Memory
Settings can be used to specify the EM Area
banks for which bits can be force-set/reset. (The
first bank is specified and force-setting/resetting
bits is possible in that bank and all banks
following it.) This is called the EM Area force­setting/resetting function.

 Searching for Symbol Names and Displaying Usage Locations from Cross-reference Pop-

ups

Previous version (version 8.2) New version (version 8.3)

Searching from cross-reference pop-ups was
possible only for address specifications. (To
search for symbols, you had to click the Browse
button and search for symbol names from the
Symbol Search Dialog Box.)

Symbol names can be specified directly in cross­reference pop-ups to display a list of locations
that use the address of that symbol.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (vi)

Version 8.2 Upgrade Information

Functionality Improved from Version 8.1 to 8.2

 Connecting Online to the PLC through an NV-series PT*

Previous version (version 8.1) New version (version 8.2)

It was not possible to connect online from the
CX-Programmer through an NV-series PT to a
PLC connected to the NV-series PT.

It is now possible to connect online from the CX­Programmer through an NV-series PT to a PLC
connected to the NV-series PT.

*Functionality improved in version 8.21 over version 8.20.

 CP1E CPU Unit Supported for Connecting Online to a PLC via an NS-series PT

Previous version (version 8.1) New version (version 8.2)

With a CP1E CPU Unit, it was not possible to
connect online from the CX-Programmer through
an NS-series PT to a PLC connected to the NS­series PT.

With a CP1E-N@@D@-@ CPU Unit, it is now
possible to connect online from the CX­Programmer through an NS-series PT to a PLC
connected to the NS-series PT.

 Compatible PLC Models

The functionality improvements are supported for CP-series CP1E CPU Units
with unit version 1.0.

 Online Connection to the PLC via an NS-series PT

Previous version (version 8.1) New version (version 8.2)

An online connection from the CX-Programmer
through an NS-series PT to a PLC connected to
the PT was not possible.

An online connection from the CX-Programmer
through an NS-series PT to a PLC connected to
the PT is possible when the PLC is connected to
the PT using a serial connection, Ethernet
connection, or Controller Link connection.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (vii)

Version 8.1 Upgrade Information

Functionality Improved from Version 8.0 to 8.1

 Compatible PLC Models

The functionality improvements are supported for CJ-series CJ2 CPU Units
(CJ2H-CPU6@(-EIP)) with unit version 1.1.

 Support for Synchronous Unit Operation

Support has been added for the synchronous unit operation function for a
combination of a CJ-series CJ2 CPU Unit (CJ2H-CPU6@ (-EIP)) with unit version

1.1 and CJ-series Position Control Units (CJ1W-NC@@4). Settings and
monitoring are now possible for synchronous unit operation.

 Improved Special I/O Unit and CPU Bus Unit Setup Functionality

Multiple dialog boxes can now be opened simultaneously when setting CJ-series
Position Control Unit (CJ1W-NC@@4) parameters. In addition, the CAM Data
Creation Software (WS02-MOPC2) can be used to convert cam data in a CSV file
into data that can be used by a Position Control Unit, and the data can be
imported to the PLC memory component of the CX-Programmer.

 Improved CS/CJ Data Tracing Function

• Improved

Trace Settings
With support for the synchronous unit operation function of CJ2 CPU Units with unit
version 1.1, tracing can now be executed for each synchronous cycle.

• Improved Bit Graph Display

Bit graphs are displayed according to screen size, and addresses are displayed
beside the graphs.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (viii)

Version 8.0 Upgrade Information

Functionality Improved from Version 7.2 to 8.0

Support has been added for the following PLC models as part of the version 7.2 to version 7.3

upgrade.

 Compatible PLC Models

New CP-series CP1L CPU Units
The CP-series CP1L CPU Units (CP1L-L10D@-@ and CP1L-M60D@-@) are
supported.

The following functions have been added or improved as part of the upgrade from version 7.3 to

8.0.

 Compatible PLC Models

CJ-series CJ2 CPU Units
The CJ-series CJ2 CPU Units (CJ2H-CPU6@-EIP) are supported.

• EtherNet/IP

Connection is possible to the CJ2H-CPU6@-EIP and EtherNet/IP Units.

• New Ladder Programming Instructions

The new instructions for the CJ2 CPU Units can be used, including the Tracking
Instructions and Data Search/Sort Instructions.

 Improved Data Trace Function

Overhaul of Data Tracing Function for CS/CJ-series PLCs
If a CJ2 CPU Unit is used, long-term continuous data tracing is possible.
Operations have been improved, including zooming in and out of trace results
graphs and adjusting offsets. Trace results can also be printed or saved as bit
maps.

 PLC Backups

Data from the CPU Unit, Special I/O Units, and CPU Bus Units can be backed up
as a batch from a personal computer. The backup data can be compared or
restored as a batch, or the data for only selected Units can be restored.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (ix)

 Improvements in Programming

• Symbols in Array Variable Subscripts.

Previous version (version 7.2) New version (version 8.0)

Symbols could be used for array variable
subscripts only inside function blocks.

With a CJ2 CPU Unit, symbols can be used for array variable
subscripts in ladder diagram programming in tasks.

• Address Offsets

Previous version (version 7.2) New version (version 8.0)

With a CJ2 CPU Unit, an offset value can be input to offset a

specific bit or word address in ladder diagram programming.

• DM/EM Bit Addresses

Previous version (version 7.2) New version (version 8.0)

Only word addresses could be used in the EM
and DM Areas.

With a CJ2 CPU Unit, bit addresses can be specified in the EM and
DM Areas.

 Improvements to Online Functions

With a CJ2 CPU Unit, you can easily connect to a PLC on an EtherNet/IP network.

 Improvements to Monitoring

When registering an array variable in the Watch Window, it is now possible to
register and monitor a selected range of array elements.

 Improvements to Symbol Tables

It is now possible to edit data items (i.e., arrange or delete) when copying and
pasting variable table data via the clipboard from external applications. It is also
possible to set the contents of symbol table data to be copied to the external
application in advance using option settings.

 Other Improvements

Previous version (version 7.2) New version (version 8.0)

The error log of the CPU Unit only displayed
the error code.

In the error log of the CPU Unit, a code which gives more detailed
information about the error is displayed in addition to the error code.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (x)

Version 7.2 Upgrade Information

Functionality Improved from Version 7.0 to Version 7.2

Support has been added for the following PLC models as part of the version 7.0 to version 7.10
upgrade.

 Compatible PLC Models

The high-speed CJ1-H-R CPU Units (CJ1-CPU@@H-R) are supported.

Support has been added for the following PLC models as part of the upgrade from version 7.10 to

7.11.

 Compatible PLC Models

The CP-series CP1L CPU Units (CP1L-M and CP1L-L) are supported.

The following functions have been added or improved as part of the upgrade from version 7.11 to

7.2.

 Improved IEC 61131-3 Language Support

Support has been strengthened for the ST and SFC languages, which are IEC
61131-3 languages.
Ladder, ST, and SFC programs can be combined freely, so the user program can
be written in the language most appropriate for the required processing. Using the
most appropriate language can reduce program development time and simplify
programming.

• Support for ST Language Programming in Tasks

Previous version (version 7.0) New version (version 7.2)

The ST language could be used only in function
blocks.

The ST language can be used in programs other than function
blocks. (ST programs can be allocated to tasks.)
Different languages can be used in a single user program, which
allows numerical processing and string processing to be written in
ST programs, while other processing is written in ladder or SFC
programs.
Note: The ST language is supported only in CS/CJ-series CPU

Units with unit version 4.0 or later. It is not supported in CP­series CPU Units.

• Support for SFC Language Programming in Tasks

Previous version (version 7.0) New version (version 7.2)

The SFC language could not be used. The SFC language can be used in programs. (SFC programs can

be allocated to tasks.)
Different languages can be used in a single user program, which
allows the overall system processing to be written in SFC programs,
while other processing is written in ladder or ST programs.
Note: The SFC language is supported only in CS/CJ-series CPU

Units with unit version 4.0 or later. It is not supported in CP­series CPU Units.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xi)

• Support for Array Variables in Ladder, ST, and SFC Programs

Previous version (version 7.0) New version (version 7.2)

Array variables could be used for internal
variables and input-output variables in a
function block’s algorithm, but array variables
could not be used in programs (tasks).

Array variables can be specified even in programs (tasks) written in
ladder, ST, or SFC language.
This feature allows multiple variables with the same data
characteristics to be managed as a group.

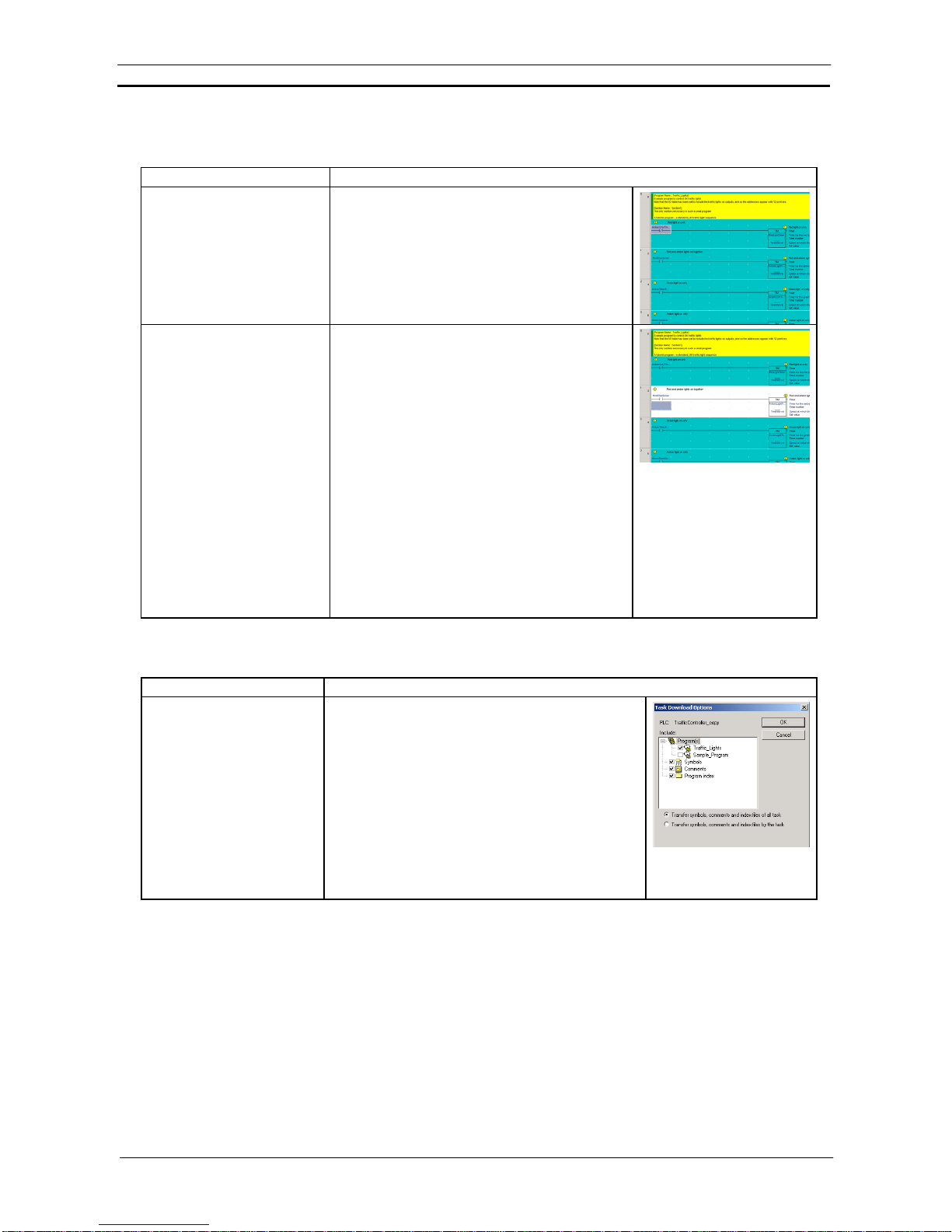

• Comparing Function Block Definitions

Previous version (version 7.0) New version (version 7.2)

Function block definitions could not be
compared.

Function block definitions can be compared in detail.
This feature makes it easy to check for differences between the
programs in function block definitions.

• Comparison of Function Block Definitions, ST Programs, and Action Programs/Transition

Programs/Subcharts in SFC Programs

Previous version (version 7.0) New version (version 7.2)

ST programs and SFC programs could not be
compared.

ST programs and SFC programs can be compared.
ST programs in an SFC program can also be compared in detail.

 PLC-PT Integrated Simulation

The following improvements have been made to the simultaneous interactive
debugging function (integrated simulation), which debugs operation between the
CX-Programmer’s ladder program and NS-series PT touch panel test screens in
the CX-Designer

.

• Starting Integrated Simulator from the CX-Programmer

Previous version (version 7.0) New version (version 7.2)

The integrated simulator could be started from
the CX-Designer only; it could not be started
from the CX-Programmer.

The integrated simulator can be started from the CX-Programmer
(specifying a saved CX-Designer screen file).
With this feature, it is possible to easily confirm the interaction
between a ladder program being edited in the CX-Programmer and
NS-series PT touch panel test screens.

• Simulating the Occurrence of PLC Errors

Previous version (version 7.0) New version (version 7.2)

During simulation, it was not possible to
generate PLC system errors by manipulating
the corresponding Auxiliary Area flags. (The
system error flags were write-protected.)
It was necessary to create ladder programming
that generated errors using the FAL and FALS
instructions, and check operation in the
simulation.

PLC system errors can be generated during CX-Programmer ladder
program simulation by selecting Simulation - PLC Error Simulator
and writing the corresponding system error flags in the Auxiliary
Area.
With this feature, it is not necessary to create ladder programming
to generate errors. Also, it is easy to check the operation of the
ladder program and NS-series touch panel when PLC errors occur.

 Improvements to Symbol Tables

• Improved Interaction of the CX-Designer with Symbol Table Data

Previous version (version 7.0) New version (version 7.2)

Symbol tables could be copied and pasted from
the CX-Programmer to the CX-Designer, but
not the opposite direction.
Consequently, when NS-series touch panel test
screens were being edited in the CX-Designer
and I/O comments were edited in the CX­Designer symbol table, it was necessary to
write the data in Excel and transfer it to the CX­Programmer’s symbol table.

Symbol tables can be copied in pasted in both directions between
the CX-Designer and CX-Programmer.
This feature makes it easy to reflect changes to the CX-Designer’s
symbol table, such as edited I/O comments, in the CX­Programmer’s symbol table.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xii)

• Support for the STRING Data Type in Ladder Programs and ST Programs

Previous version (version 7.0) New version (version 7.2)

The STRING data type could be used only in
ST-language function blocks.

The STRING data type can be used in both ladder and ST
languages, in both task programs and function blocks.
The STRING data type supports ASCII characters between 1 and

255.

 Improved Automatic Online Connection

• Added Automatic Detection of the Computer’s Serial Port

Previous version (version 7.0) New version (version 7.2)

When automatic online connection was
performed from the computer’s serial port, it
was not necessary for the user to set the PLC
model because it was recognized automatically,
but the serial port had to be set in advance.

It is not necessary for the user to select the computer’s serial port in
advance.
When automatic online connection is performed, the software
automatically searches for computer serial ports that can be used. If
the software finds a serial port that can be used for the online
connection, the software automatically connects online from the
detected port, and the serial port setting is also changed
automatically.

 Improved Conversion of C500/C120/C**P Programs

Previous version (version 7.0) New version (version 7.2)

Programs stored in C500, C120, or C**P-series
PLCs could be uploaded and converted for use
in CS/CJ/CP-series PLCs or CVM1/CV-series
PLCs, but the DM and HR Area data could not
be converted to PLC memory.

DM and HR Area data can also be converted to PLC memory.
After conversion, it is now possible to select the CP1L as the PLC
model.

A backup program and I/O memory (DM and
HR Area data) file (extension .c5b) could be
used to restore the program to a
C500/C120/C**P-series PLC, but it could not be
converted to a CX-Programmer project.

A backup program and I/O memory (DM and HR Area data) file
(extension .c5b) can be converted to a CX-Programmer project for
a CS/CJ/CP-series PLC or CVM1/CV-series PLC.

A program uploaded from a C500, C120, or
C**P-series PLC could not be saved to a file in
mnemonic-text format.

A program uploaded from a C500, C120, or C**P-series PLC can
be saved to a file in mnemonic-text format. The saved file can be
pasted as text in the CX-Programmer’s Statement List (mnemonic
window), and displayed or printed in ladder format.
This feature allows the program to be checked in the CX­Programmer before converting it to a CS/CJ/CP-series PLC or
CVM1/CV-series PLC program.

 Other Improvements

Previous version (version 7.0) New version (version 7.2)

The CPU Unit’s production information could be
displayed from the I/O table only.

The CPU Unit’s production information can be displayed from the

Main Menu’s PLC Information Dialog Box.
When a CS1D Duplex System CPU Unit was
being used, the CPU Unit’s Active/Standby
status could not be displayed in the project
directory tree.

When a CS1D Duplex System CPU Unit (CS1D-H) is being used,

the CPU Unit’s Active/Standby status is displayed in the project

directory tree.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xiii)

Version 7.0 Upgrade Information

Functionality Improved from Version 6.1 to Version 7.0

 Compatible PLC Models

The following PLC models have been added as compatible PLCs as part of the
version 6.1 to version 7.0 upgrade.

 CS/CJ Series CPU Units with unit version Ver. 4.0 and higher

Ver. 4.0 and higher CS/CJ Series CPU Units are supported.

 CP Series CPU Units

The CP Series CPU Units (CP1H-Y) are supported.

 Support for NSJ-M3D Controllers

The NSJ@-@@@@(B)-M3D Controllers are supported.

 Ladder Program to Function Block Conversion Function

Previous version (Ver. 6.1) New version (Ver. 7.0)

To convert existing ladder programming to a
function block, the ladder programming was
copied and pasted into a function block
definition. At that point, it was necessary to
check the variables and addresses used in
the program and manually register those
variables and addresses while organizing the
input variables, internal variables, and output
variables.

Existing ladder program sections can be easily converted to function
blocks by selecting the program circuits to be converted and selecting
Function Block (ladder) generation. The function block definition is
created automatically and the variables are allocated automatically
based on the usage of the variables and addresses in the program.

 Online Editing of Function Blocks

Previous version (Ver. 6.1) New version (Ver. 7.0)

A function block definition (algorithm and
variable table) could not be edited while the
PLC program was being executed. (The
instance I/O parameters could be changed.)

A function block definition (algorithm and variable table) can be edited
while the PLC program is being executed. (Instances cannot be added.)
With this capability, it is possible to debug and edit the function block
definitions themselves even if the PLC must operate 24 hours/day
because there are devices that cannot be stopped. To edit a function
block, select the function block definition in the Workspace and select
FB Online Edit – Begin from the popup menu.

Note: Function block instances cannot be added.
Note: This function cannot be used for simulations on the CX-

Simulator.

 STRING Data and Text-processing Functions Supported in ST-language Function Blocks

Previous version (Ver. 6.1) New version (Ver. 7.0)

The STRING data type could not be used in
the ST language. (See note.)

The STRING data type can be used as a data type in the ST language.
With this capability, it is easy to set a variable containing text (ASCII) in
another variable with a substitution operation (such as: a := ‘@READ’;).
In this case, it is not necessary to know the length of the ASCII text
string.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xiv)

Previous version (Ver. 6.1) New version (Ver. 7.0)

There were no text-processing functions for
the ST language.
To process text for message displays and
no-protocol communications in the ladder
language, the user had to know the length of
the ASCII string and execute instructions
such as text-processing instructions, data
conversion instructions, and serial
communications instructions.
Note: The user can input text strings can in

I/O memory using the CX­Programmer’s PLC memory function,
but it is necessary to know the data
size in I/O memory.

Text-processing functions (extracting text, merging, searching, etc.) are
supported for the ST language. With these functions, it is easy to create
text strings and process displayed messages using ST language in a
function block without knowing the actual ASCII codes.

 Support for Input-Output Variables

Previous version (Ver. 6.1) New version (Ver. 7.0)

Input-output variables were not supported in
function blocks. (Only input variables, internal
variables, and output variables could be used.)

Input-output variables can be used in function blocks.

Input variables could not be specified as arrays. Input-output variables can be specified as arrays.
Values are passed from input parameters to
input variables.

Addresses (not values) are passed from input parameters to input

variables. Consequently, array input-output variables can be used in

the function blocks and large amounts of data can be passed easily

to the function blocks through input parameters.

 Support for C500/C120/C**P Backup Function

Previous version (Ver. 6.1) New version (Ver. 7.0)

The programs in C500/C120/C**P PLCs could
not be managed online from the CX­Programmer.

A program stored in a C500/C120/C**P PLC can be uploaded and

converted to a CS/CJ/CP Series program or CVM1/CV Series PLC

program. If an instruction’s specifications are different, a comment is

displayed to alert the user of the differences when the program is

converted. To convert a program, select Tools – C500/C120/CxxP

Support – Online PLC Program Conversion.

Program and I/O memory data (DM and HR) stored in a

C500/C120/C**P PLC can be backed up. Later, the backed up

program and I/O memory data can be restored to a C500/C120/C**P

PLC. To backup or restore the data, select Tools – C500/C120/CxxP

Support – Backup from PLC or Tools – C500/C120/CxxP Support

– Restore to PLC.

Program and I/O memory data (DM and HR) stored in a specified file

can be compared to the program and I/O memory data (DM and HR)

in a C500/C120/C**P PLC. To compare the data, select Tools –

C500/C120/CxxP Support – Compare PLC and file.

 Improvements in Data Trace/Time Chart Monitoring

Previous version (Ver. 6.1) New version (Ver. 7.0)

Only one word of data could be specified at the
trace data for data tracing and timechart
monitoring.

Up to eight words of data can be specified at the trace data for data

tracing and timechart monitoring.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xv)

Version 6.1 Upgrade Information

 Functionality Improved from Version 6.0 to Version 6.1

 Compatible PLC Models

The following PLC models have been added as compatible PLCs as part of the
version 6.0 to version 6.1 upgrade:
CP Series CP1H CPU Units (CP1H-XA and CP1H-X)

 Support for NSJ-series NSJ Controllers

The PLC model (“device type”) can be set to “NSJ” and the CPU type can be set to
the G5D.

 Support for FQM1 Unit Version 3.0

The new models of the FQM1 Flexible Motion Controller are now supported (i.e.,
the FQM1-CM002 Coordinator Module and the FQM1-MMA22/MMP22 Motion
Control Modules).

 Ladder Program Simulation Function

Previous version (Ver. 6.0) New version (Ver. 6.1)

The CX-Simulator could be used to execute
a ladder program step (Step Run), execute
steps continuously (Continuous Step Run),
execute a single cycle (Scan Run), and set
I/O break point conditions.

The Step Run, Continuous Step Run, Scan Run, and Set/Clear Break
Point functions can be executed as CX-Programmer functions.
All of these functions can be used with ladder programs and ladder/ST
programs in function blocks.
Note 1: The CX-Simulator Ver. 1.6 (sold separately) must be installed in

order to use these functions.

Note 2: I/O break conditions cannot be set.

 Improved Function Block Functions

• Monitoring ST Programs in Function Blocks

Previous version (Ver. 6.0) New version (Ver. 6.1)

The operation of ST programs within function
block instances could not be monitored while
monitoring the program online.
(It was possible to check the contents of a
function block definition's program and
monitor the I/O status of a function block
instance's ladder diagram.)

The status of a function block instance's ST program can be monitored
while monitoring the program.
To monitor the ST program's status, either double-click the function
block instance or right-click the instance and select Monitor FB
Instance from the pop-up menu. At this point, it is possible to change
PVs and force-set/reset bits.
Note: Online editing is not supported.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xvi)

• Password Protection of Function Blocks

Previous version (Ver. 6.0) New version (Ver. 6.1)

The function block properties could be set to
prevent the display of a function block
definition's program.

The following two kinds of password protection can be set.

• Password protection restricting both reading and writing.

• Password protection restricting writing only.

 Starting the Switch Box Utility with PLC Information

Previous version (Ver. 6.0) New version (Ver. 6.1)

The Switch Box Utility could be started from
the CX-Programmer’s Tools Menu, but the
PLC model and communications settings
could not be inherited in that case.

The Switch Box Utility can start with the PLC model and
communications settings set in the CX-Programmer’s project.

 Saving the CPU Unit’s Error Log as a CSV File

Previous version (Ver. 6.0) New version (Ver. 6.1)

The CPU Unit’s error log could not be saved. The CPU Unit’s error log can be saved as a CSV file. The data

collected in these CSV files can be analyzed or printed later with
programs such as MS Excel.

 Displaying Current Consumption in the I/O Table Window

Previous version (Ver. 6.0) New version (Ver. 6.1)

The current consumption for the 5 V system
could not be separated from the 26 V/24 V
system in the I/O table window’s current
consumption display. The total current
consumption at the different voltages could
not be separated. There was no total power
consumption display.

The current consumption display in the I/O table window is divided into
5 V and 26 V/24 V system displays. A total power consumption display
was also added.

 Displaying Unit Versions in the I/O Table Window

Previous version (Ver. 6.0) New version (Ver. 6.1)

The I/O table window’s Unit profile information
display showed only the model number and
did not show the unit version.

The unit version was added to the I/O table window’s Unit profile
information display in addition to the model number.

 USB Supported as a Network Type

Previous version (Ver. 6.0) New version (Ver. 6.1)

USB was not available as a network type. As part of the CP Series support upgrade, USB is supported as a

network type for the connection between the computer and PLC. This
improvement allows the computer’s USB port to be connected to the
PLC’s USB port. In addition, if the computer supports automatic online
USB connections, this function can be used.
Note: This function can be used only with the CP Series PLCs, which

are equipped with USB port.

 CP1H Memory Cassette Transfers and Flash Memory Backup Functions

Previous version (Ver. 6.0) New version (Ver. 6.1)

The CP1H CPU Units were not supported. When the PLC model is set to CP Series CP1H, it is possible to

transfer and verify data between a Memory Cassette and the CP1H
CPU Unit. The contents of Data Memory in the CPU Unit’s RAM can
also be backed up to flash memory as initial values. (To access these
functions, select PLC – Edit – Memory Cassette/DM.)

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xvii)

Version 6.0 Upgrade Information

 Functionality Improved from Version 5.0 to Version 6.0

 Installing the CX-Programmer from the Integrated CX-One Package

Previous version (Ver. 5.0) New version (Ver. 6.0)

The CX-Programmer could
be installed only
independently.

The CX-Programmer can be installed as one of the functions of the integrated CX-One
Software Package.

 Automatic Selection of Network Configuration Tool (CX-Integrator/CX-Net Startup)

Previous version (Ver. 5.0) New version (Ver. 6.0)

The CX-Net started
automatically when Tools –
Network Configuration Tool
was selected.

If the PLC model is set to the CS/CJ-series, the CX-Integrator starts when Tools –
Network Settings is selected.
If the PLC model is set to a model other than the CS/CJ-series, the CX-Net starts when
Tools – Network Settings is selected.

 CX-Programmer Startup Method

Previous version (Ver. 5.0) New version (Ver. 6.0)

The CX-Programmer could
be started only from the Start
Menu.

The CX-Programmer can also be started by right-clicking a PLC in the CX-Integrator’s
Network Configuration Window and selecting Start Special Tool from the pop-up menu.
Note: When the Start with Settings Inherited Option is selected, the CX-Programmer will
start with the same online/offline status as the CX-Integrator and a new project will be
created (i.e., inserted into the Network Configuration Window).

 Switch Box Utility Location and Startup Method

Previous version (Ver. 5.0) New version (Ver. 6.0)

The Utility could be installed
from the CX-Programmer’s
Setup Disk as a separate
program and started from the
Start Menu.

The Switch Box Utility is handled as a Programming Device and it can be started from
the Tools Menu.
Note: The Switch Box Utility supports the PLC’s Debug operations. The Utility can be
used to display I/O status of a user-specified address. A specified bit’s status can be
Set/Reset or Force-Set/Reset from the keyboard and a specified word’s content can be
changed. For details, refer to the Switch Box Utility’s online help program.

 Compatible PLC Models

• FQM1-series Compatibility

The CX-Programmer now supports FQM1 Flexible Motion Controllers.
An FQM1-CM Coordinator Module and FQM1-MMA/FQM1-MMP Motion Control
Module can be selected as the PLC model.

Note: After selecting the FQM1-CM as the PLC model, insert the FQM1-MMA or FQM1-MMP as the PLC.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xviii)

 Improved I/O Table Window (CS/CJ-series PLCs Only)

• Setting CPU Bus Unit and Special I/O Unit Parameters in the I/O Table Window

Previous version (Ver. 5.0) New version (Ver. 6.0)

The CX-Programmer had to be
online and only the following
Communications Unit settings could
be made from the I/O table window.

1. Software Switch Settings

(for Controller Link Units,
Ethernet Units, Serial
Communication Boards/Units,
etc.)

2. Unit Settings (Ethernet Units)

If the PLC model is set to the CS/CJ-series, parameters for Special I/O Units
and CPU Bus Units (such as the allocated DM area and CPU Bus Unit System
Settings) can be set offline without knowing the parameter addresses. The
parameter data and I/O table can be downloaded (see note), uploaded, or
compared with the actual PLC’s data. The parameter data can also be stored in
a CX-Programmer project file (extension .CXP) or an individual Unit’s
parameters can be stored as a file (extension .XML).

Note: When downloading PLC memory data from the computer to an actual PLC, a warning will be

displayed if the PLC memory area addresses to be transferred from the computer overlap the
addresses of the Special Unit settings in the computer’s I/O Table Window.

• Monitoring Additional Rack Information in the I/O Table Window

Previous version (Ver. 5.0) New version (Ver. 6.0)

The Rack’s power supply
status,

If the PLC model is set to the CS/CJ-series, each Rack’s power consumption and rack
width (CJ-series only) is displayed offline in a dialog box. When the CX-Programmer is
online, the CPU Unit’s front DIP Switch settings can be monitored in a dialog box.

 Improved Data Trace and Time Chart Functions

• Storing Collected Data in CSV Files

Previous version (Ver. 5.0) New version (Ver. 6.0)

Data collected with the Data
Trace function or Time Chart
Monitor function could be
stored in specialized CX­Programmer (.cdt) files only.

Data collected with the Data Trace function or Time Chart Monitor function can be
stored in standard CSV files, so the collected data can be analyzed/printed with
programs such as Microsoft Excel.

 Improved Function Block Functions

• Nesting Function Blocks

Previous version (Ver. 5.0) New version (Ver. 6.0)

A function block could not be
called from another function
block. (Nesting not
supported.)

A function block can be called from another function block (nested). Up to 8 nesting
levels are supported.
The languages of the calling function block and called function block can be either
ladder language or ST language.
The nesting level relationship between function blocks can be displayed in a directory
tree format.
All nested function block definitions are stored in one Function Block Library file (.cxf
extension).

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xix)

• Monitoring Word and Bit Status of Ladder Programs in Function Blocks

Previous version (Ver. 5.0) New version (Ver. 6.0)

The I/O status of a function
block instance’s ladder
diagram could not be
monitored while monitoring
the program online. (It was
only possible to check the
program in the function block
definition.)

The I/O status of a function block instance’s ladder diagram can be monitored while
monitoring the program online. To monitor the I/O status, either double-click the function
block instance or right-click the instance and select Monitor FB Ladder Instance from the
pop-up menu. At this point, it will be possible to monitor the status of I/O bits and the
content of words, change PVs, force-set/reset bits, and monitor differentiation (ON/OFF
transitions) of bits.
Note: Online editing is not supported and timer/counter SVs cannot be changed.

• Registering and Monitoring Function Block Instance Variables in a Watch Window

Previous version (Ver. 5.0) New version (Ver. 6.0)

To register a function block
instance’s variable in a
Watch Window, it was
necessary to display the
Watch Window, double-click
the window, and select the
desired variable from a pull­down list.

Multiple variables in a function block instance can be easily registered together in the
Watch Window. The FB variables registration Dialog Box can be displayed with any of
the following methods and the variables can be registered together in that Dialog Box.

1. Right-click the function block instance and select Register in Watch Window from
the pop-up menu.

2. Select the desired function block instance in the program or variable table and
either copy/paste or drag/drop the instance into the Watch Window.

3. Move the cursor to an empty line in the Watch Window and select Register in
Watch Window from the pop-up menu.

• Other Improvements Related to Function Blocks

 The cross-reference pop-up function is supported in ladder programs within

function blocks.

 The ST language help program can be started from the pop-up menu in ST Editor.
 A function block’s definitions can be opened just by double-clicking the function

block instance.

 The cursor automatically moves down after a function block instance’s parameter

input is confirmed.

 Other Improvements

 Improvements to PLC Setup Downloading

When the PLC Setup is downloaded to a PLC, the serial port related settings (Host
Link Port Tab, Peripheral port Tab, and FINS Protection Tab settings) can be
eliminated from the download. (This function allows the user to protect against
overwriting from the CX-Programmer after using NT Link auto-detection from the
CX-Integrator or making changes with a PLC parameter transfer.)

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xx)

Version 5.0 Upgrade Information

The following tables outline the changes that have been made from version 4.0 to version 5.0 of the CX­Programmer.

 Functionality Improved from Version 4.0 to Version 5.0

Compatible PLCs

CX-Programmer version 5.0 supports the following PLCs:

 CS/CJ-series CPU Unit Ver. 3.0
 CJ-series CJ1H-CPU67H CPU Unit

(Program capacity: 250K steps, I/O points: 2,560 points)

 Improvements to Functionality

Function Block (FB) Support (CS/CJ-series CPU Unit Ver. 3.0 or later)

Previous version (Ver. 4.0) New version (Ver. 5.0)

Function blocks (FB) were
not supported.

Function blocks are supported for CS/CJ-series CPU Units Unit Ver. 3.0 or later.
Ladder programming or structured text (ST language) can be used for algorithms.
Function block data can be downloaded from or uploaded to CS/CJ-series CPU Units
Unit Ver. 3.0 or later and saved in standard project files (.cxp) and standard file
memory .obj files. OMRON’s Function Block Library can also be used.

 Symbol Filtering Using Symbol Names and I/O Comments When Inputting Contacts,

Coils, and Special Instruction Operands

Previous version (Ver. 4.0) New version (Ver. 5.0)

Searches were possible only
for symbol names of
contacts and coils, and
mnemonics of special
instructions when inputting
contacts, coils, or special
instruction operands.

Searches and list displays are possible for text strings that are part of symbol names or
I/O comments when inputting contacts, coils, or special instruction operands.
a) By entering a specific text string when inputting I/O contacts or operands, a list of

address_comment or name_address_comment combinations that contain the
specified text string in the symbol name or I/O comment is displayed in a drop­down list. The desired symbol can then be input by selecting it from the list.

b) In the same way, when inputting operands for special instructions, the Filter

Symbol Button can be clicked to input a text string in the Filter Symbol Dialog Box
to display a list of address_comment or name_address_comment combinations
that contain the specified string in the symbol name or I/O comment in a drop-down
list. The desired symbol can then be input by selecting it from the list.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xxi)

Previous version (Ver. 4.0) New version (Ver. 5.0)

This function is available in both Ladder Section Windows and the Function Block Editor.
Use this function to increase input efficiency when inputting symbols and comments that
have been input before.

Example
Input temp in the Symbol/Address Input field.

Click the button on the right of the pull-down menu to display all the symbols/addresses that contain
“temp” in the symbol name or I/O comment.

A list of all variables/addr esses containing
“temperature” are displayed.

For example, select the item at the bottom of the list temp_alarm02, W0.05, The lower part of a device A
temperature error (70 degrees min) to simply input the symbol name temp_alarm02.

Select Tools - Options, and then select the Symbol Filtering option on the Diagrams Tab
Page to enable searching for specified text strings for the following: Name only, Comment
only, or Both (default)

 Storing Comments, Symbol Names, Rung Comments, and Other Data in CPU Unit’s

Comment Memory (CS/CJ-series CPU Unit Ver. 3.0 or Later)

Previous version (Ver. 4.0) New version (Ver. 5.0)

The following common data could be stored in the
Memory Card or EM file memory (Memory Card when
both are available) by downloading projects from the CX­Programmer.

• Symbol tables (symbol names, comments, and

automatic allocation area setting data:
SYMBOLS.SYM)

• Comments (rung comments and other comments:

COMMENTS.CMT)

• Program indexes (section names, section comments,

and program comments)

When downloading projects using CS/CJ-series CPU Units
with Ver. 3.0 or later, the Memory Card, EM file memory, or
comment memory (in the CPU Unit’s flash memory) can be
selected as the transfer destination for I/O comments,
symbol names, rung comments, and other data.
This enables data such as I/O comments, symbol names,
and rung comments to be stored in the CPU Unit’s internal
comment memory when a Memory Card or EM file memory
are both not available.

 Inputting I/O Comments for Timer/Counter Numbers in Timer/Counter Instructions

Previous version (Ver. 4.0) New version (Ver. 5.0)

When inputting timer/counter
instructions, I/O comments
could not be input for
timer/counter numbers (first
operand) in the timer/counter
instruction.
I/O comments could be input
for timer/counter Completion
Flags, after which, these I/O
comments were
automatically displayed for
the timer/counter numbers
(first operand) of the
timer/counter instructions.

When inputting timer/counter instructions using simple dialog mode selected in the
Instruction Dialog Box, I/O comments can be input for the timer/counter number (first
operand) in the timer/counter instruction. (The Completion Flag of the timer/counter
instruction that corresponds to this number is automatically registered in the global
symbol table.)
Also, the … (three dots) button can be clicked in detailed dialog mode to display the
Find Symbol Dialog and then input a new symbol name using the NUMBER data type
for the timer/counter number (first operand) of the timer/counter instruction and the
symbol comment. The NUMBER type symbol will be registered in the local symbol table
and at the same time, the number of the timer/counter Completion Flag is registered in
the global symbol table.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xxii)

 Online Connection to PLCs Connected Via Serial Gateway to Host Link FINS

Previous version (Ver. 4.0) New version (Ver. 5.0)

Online connection to PLCs
connected using a Serial
Gateway to Host Link FINS
was not supported.

Online connection is possible through the serial port of a Serial Communications
Board/Unit (Ver. 1.2 or later) to PLCs connected using Host Link FINS via a Serial
Gateway.
In the Change PLC Dialog Box, specify serial port 1 or 2 of the Serial Communications
Board/Unit (Ver. 1.2 or later) and the Host Link number of the destination PLC.

 Increased Data Link Capacity for Controller Link Networks and Areas 1 and 2 Can Use the

Same Area for Data Links (CS/CJ-series Controller Link Units Unit Ver. 1.2 (Available

Soon) or Later)

Previous version (Ver. 4.0) New version (Ver. 5.0)

A maximum of 12,000
send/receive words (total of
Area 1 and Area 2) per node
could be set when using
Controller Link data links
(manually set) with a CS/CJ­series Controller Link Unit.

Using a CS/CJ-series Controller Link Unit with Ver. 1.2 (available soon) or later, a
maximum of 20,000 send/receive words per node (total of Area 1 and Area 2) can be
set for nodes in Controller Link data links (manually set).

Area 1 and Area 2 had to be
in different areas when using
Controller Link data links
(manually set) with a CS/CJ­series Controller Link Unit.

A CS/CJ-series Controller Link Unit Ver. 1.2 (available soon) or later and Controller Link
data links (manually set) enables setting the same memory area for both Area 1 and
Area 2, provided that the addresses are not the same.
Example: The entire Data Link (i.e., Area 1 and Area 2) can be set in EM bank 0.

 Setting Local Network Tables (Using CX-Net Routing Tables) for the Serial Ports of Serial

Communications Boards/Units (Ver. 1.2 or Later)

Previous version (Ver. 4.0) New version (Ver. 5.0)

The following items could be
displayed in the Unit
directory of the SIOU Tab
Page on the left of the
routing table main view. The
local network address could
be set for the serial port of
the CPU Unit and registered
in the local network table by
right-clicking and selecting
Insert CPU SIOU.

• Unit 252 (serial port)

• Unit 253 (peripheral port)

The same function is now supported for the serial ports of Serial Communications
Boards/Units (Ver. 1.2 or later). By right-clicking a device under the Unit directory and
selecting Insert CPU SIOU, local network addresses can also be set for the serial ports
of the Serial Communications Boards and Units to register them in the local network
table.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xxiii)

Version 4.0 Upgrade Information

The following tables outline the changes that have been made from version 3.3 to version 4.0 of the CX­Programmer.

 Functionality Improved from Version 3.3 to Version 4.0

Compatible PLCs

CX-Programmer Version 4.0 supports the following PLCs:

 CS/CJ-series CPU Unit Ver. 2.0 (including CJ1G-H Ver. 2.0, CJ1H-H Ver. 2.0, CJ1M

Ver. 2.0 (see note 1), CS1G-H Ver. 2.0, and CS1D-S Ver. 2.0)
 CS1D-H CPU Unit Ver. 1.1
Note: 1. Includes CJ1M-CPU11/21.

2. Although previously “CS1H-H” was selected as the device type for CS1D

CPU Units for Duplex-CPU Systems,

CX-Programmer Version 4.0 allows

selection of “CS1D-H.”

Network Compatibility

• Ethernet Connection Using TCP/IP

TCP/IP can be used instead of the earlier UDP/IP for Ethernet connections with a
PLC to which a CS1W-ETN21 or CJ1W-ETN21 100Base-TX Ethernet Unit is
mounted. Select Ethernet (FINS/TCP) as the network type.

• Settings for CS1D (Duplex) Ethernet Unit

Unit setting and PLC Setup settings are supported for the CS1D-ETN21D Duplex
Ethernet Unit, enabling duplex operation for Ethernet. Refer to the CS1D-ETN21D
Duplex Ethernet Unit Operation Manual (Cat. No. W430) for details on settings.

Improvements to Program Reusability

• Creating Files of Multiple Rungs or a Single Program Section as a File (Reusable File) for

Saving/Reading

Previous version (Ver. 3.3) New version (Ver. 4.0)

Reusing a part of the
program (multiple rungs or a
single section) enabled by
moving or copying between
two sections using the
Section/Rung Manager
Dialog Box. Parts of the
program, however, could not
be saved or read as files.

Parts of the program (single or multiple rungs, or a single program section) can be
saved as a file (.cxr: text file) by selecting File − Reusable File − Save As. The file can
then be read and inserted in a user-set location in the program of another project by
selecting File − Reusable File − Add to Project.
In the same way, specified variables in a symbol table can be saved as files, and then
read and inserted in a symbol table of another project.

Multiple reusable files can also be inserted all together in a specified order. The
order used to insert multiple reusable files can also be saved in the list of reusable
files added to the project. This allows the group of reusable files to be managed as
a single unit of data.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xxiv)

Improvements to Program Editing Efficiency

• Read Only Mode

Previous version (Ver. 3.3) New version (Ver. 4.0)

When editing a program offline,
editing could not be prohibited.

Allowing ladder screen display only, and prohibiting
program editing by mistake while offline is possible.
Set the Offline Edit Mode to Read Only Mode in the
Option Dialog Box to enable this function.

When editing a program, an
operation could be reversed
(Undo), but all the edited parts
could not be selected to be
either applied (store) or
cancelled.

After temporary editing of a specific rung, the user
can select to utilize (store) or delete (cancel) the
editing results.
Select Read Only Mode Edit – Start Edit from the
Edit Menu, and then perform either of the following
steps after editing.
a) To apply the editing results, select Read Only
Mode Edit – Store from the Edit Menu. The edited
contents will be reflected in the program.
b) To not apply the editing results, select Read Only
Mode Edit – Cancel from the Edit Menu. The edited
contents will be deleted.
Therefore, after editing rungs and writing and
recording temporary changes, the changes can be
selected to be either applied or deleted, enhancing
program editing efficiency

Improvements to Program Development in Task Units

• Downloading by Task (Program) (CS/CJ-series CPU Unit Ver. 2.0 or Later)

Previous version (Ver. 3.3) New version (Ver. 4.0)

When downloading a program
to the PLC, only the whole
user program could be
downloaded.
Note: Uploading in sections or
tasks (program) was possible
when using CS/CJ-, or
CVM1/CV-series PLCs.

Programs can be downloaded to CS/CJ-series PLCs
Ver. 2.0 or later, and downloading by task (program)
instead of the whole user program is possible.
Select Partial Transfer – Task Transfer to PLC from the
PLC Menu, and download a specified single task or
multiple tasks.
This function enhances the efficiency of program
development by multiple personnel.
Particularly, by downloading to the PLC by task
(program, only the parts to be changed are reflected in
the PLC, resulting in fewer working errors.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xxv)

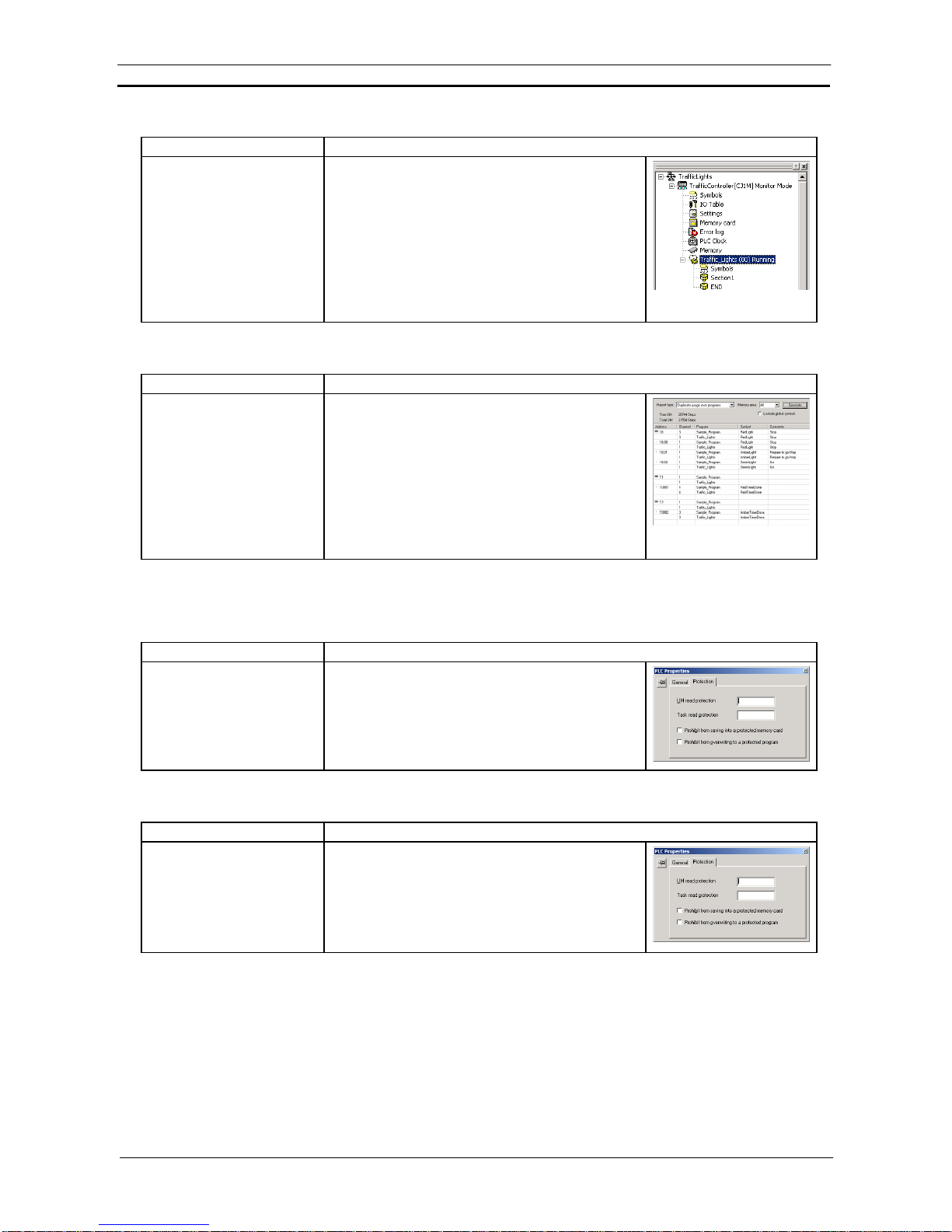

• Confirming whether a Task (Program) Is Executing or Stopped (CS/CJ-series PLCs Only)

Previous version (Ver. 3.3) New version (Ver. 4.0)

CS/CJ-series PLCs supported
tasks, but the execution status
could be confirmed for the
whole program only and not
for each task.

The following executing/stopped status is displayed for
every task (see note) in the project space.

Note: Cyclic tasks only. Interrupt tasks not included.

• Running: Indicated as READY (execution enabled) or

RUN (executing status).

• Stopped: Indicated as INI (not executing status) or

WAIT (standby status).
This function improves debugging efficiency when
using multiple tasks.

• Checking Whether the Same Address Is Being Used by Another Task (Program): Cross

Reference Report Function (CS/CJ-series PLCs Only)

Previous version (Ver. 3.3) New version (Ver. 4.0)

CS/CJ-series PLCs supported
tasks, but they did not check
whether the same address
was being used by another
task (program).

By selecting Duplicate usage over programs in the
cross reference report function, a list can be checked
for any bits/words that have been allocated an address
already being used by another task (see note).
This function can be used to easily check whether the
same address is being used by another task
(programmer) when two or more programmers are
creating multiple tasks.
Note: Cyclic tasks only (interrupt tasks not included).

Improvements to Password Protection

• Password Protection for a Single User-set Task or Multiple Tasks (CS/CJ-series CPU Unit

Ver. 2.0 or later)

Previous version (Ver. 3.3) New version (Ver. 4.0)

Password protection
(reading/editing prohibited)
could be set.

Password protection (reading/editing prohibited) can be
set for a user-set single task or multiple tasks
(programs).
This function provides security and prevents the loss of
intellectual property for specific tasks (programs).

• Allowing/Prohibiting Creation of Program Files for File Memory (CS/CJ-series CPU Unit

Ver. 2.0 or Later)

Previous version (Ver. 3.3) New version (Ver. 4.0)

The user could use file
memory operations to transfer
program files (.OBJ) to a
Memory Card, even if UM
(user memory) read protection
was set with a password.

When a password is registered for the whole user
program or individual tasks, an optional setting can be
selected at the same time to allow/prohibit creation
(backup) of the program file (.OBJ).
This function prevents copying of user programs to
Memory Cards.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xxvi)

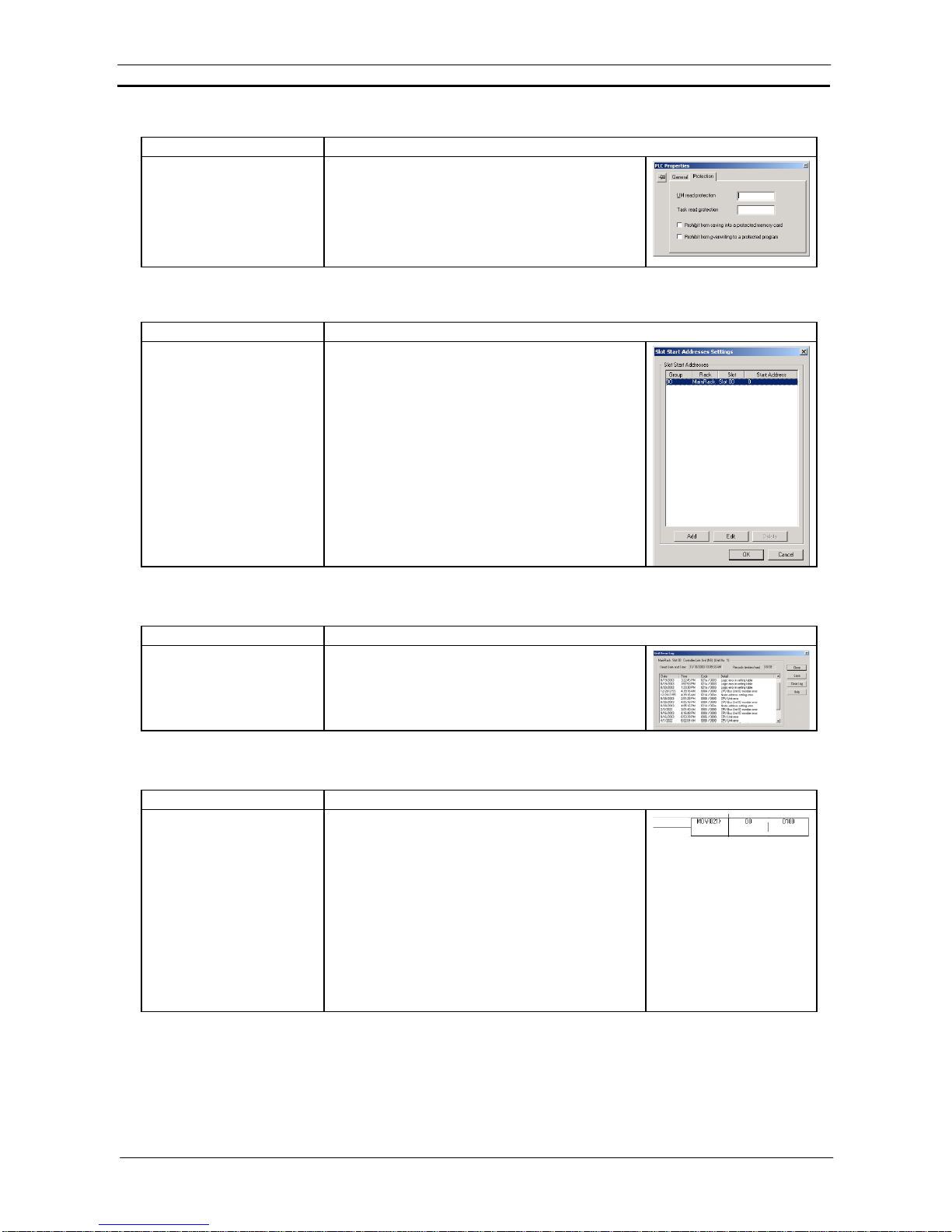

• Allowing/Prohibiting Program Overwriting (CS/CJ-series CPU Unit Ver. 2.0 or Later)

Previous version (Ver. 3.3) New version (Ver. 4.0)

Overwriting the user program
in the CPU Unit was
prohibited by turning ON pin 2
of the DIP switch. If pin 2 was
turned OFF, however,
overwriting was possible.

When a password is registered for the whole user
program or individual tasks, an optional setting can be
selected at the same time to allow/prohibit program
overwriting. Set the option in the PLC properties.
This function uses a password to prohibit overwriting of
the program by a third party.

Improvements to I/O Table Editing Functions

• Specifying up to 64 Sets of Slot/Rack Start Addresses

Previous version (Ver. 3.3) New version (Ver. 4.0)

For CS/CJ-series PLCs, up to
eight sets, comprising
rack/slot number and start
address, could be set.

For CS/CJ-series PLCs Ver. 2.0 or later, up to 64 sets
of rack/slot numbers and start addresses can be set.

Improvements to Unit Error Log Display

• Displaying Error Log for CPU Bus Units or Special I/O Units in the I/O Table

Previous version (Ver. 3.3) New version (Ver. 4.0)

The error log could not be
displayed for Special I/O
Units.

By selecting a CPU Bus Unit or Special I/O Unit in the
I/O table tree and clicking the right mouse button to
select the Unit Error Log Menu, the error log for the
selected Unit can be displayed.

Improvements to Ladder Screen Display Functions

• Addition of Horizontal Display Mode for Instructions

Previous version (Ver. 3.3) New version (Ver. 4.0)

Instructions could be
displayed in vertical writing
only.

Instructions on the right side of rungs, which were
previously displayed vertically only, can now also be
displayed horizontally. Enable this function by selecting

Tools – Options, and then selecting Show output
instructions horizontally in the Diagrams Tab Page (the

default setting is OFF: previously used vertical display).
By using the horizontal display mode, the number of
instruction rungs that can be printed and displayed on
one screen is increased, improving the readability of
the program. At the same time, the number of printed
pages can be reduced.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xxvii)

Improvements to Comment Functions

• Setting Multiple Comments (up to 16) for a Single Address, and Selecting a Label to Switch

All the Comments

Previous version (Ver. 3.3) New version (Ver. 4.0)

A single comment could be
set for each address (symbol)
only.

Multiple comments (up to 16) can be registered for
a single address (symbol). By selecting the
comment group to be displayed from the multiple
comment groups (up to 16 groups), the comments
on the ladder diagram screen can be changed all
at once.
This function allows multilingual development of a
single program or attachment of comments
according to the development step.

• Importing and Editing Rung Comments

Previous version (Ver. 3.3) New version (Ver. 4.0)

After uploading a program
from a PLC that did not
support rung comment data,
the rung comments could not
be reallocated.
Even when programs were
uploaded from PLCs that did
support rung comment data, if
the program in the personal
computer and actual PLC
were different, the rung
comments could not be
reallocated.

By selecting Section/Rung Manager from the Program
Menu, the rung comment data can be read (imported)
from the project in the personal computer, and
operations can be performed to move the data up and
down.
This function allows rung comments to be allocated to a
program all at once after uploading the program under
the following conditions, even if there is no comment
file (COMMENTS.CMT) in the Memory Card/EM file
memory.

1) When uploading programs from a C-series PLC or
other PLC that cannot record rung comments.

2) When uploading programs from a CS/CJ-series,
CVM1/CV-series, or C200HX/HG/HE-ZE PLC.
When the uploaded programs are changed in the actual
PLC using functions such as online editing, the position
of the rung comment can be edited.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xxviii)

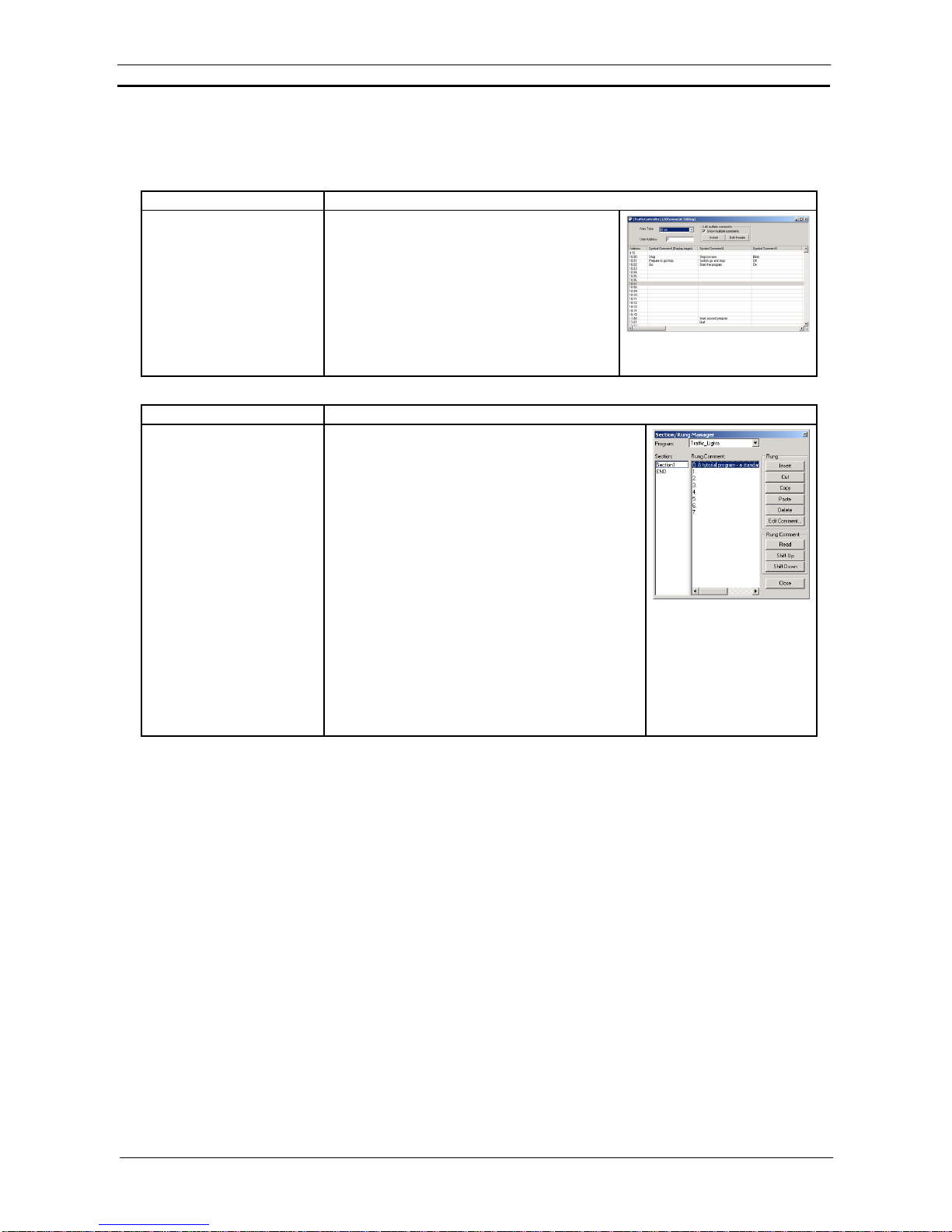

• Displaying the Global/Local, Name, Address/Value, and Comment Fields for the Symbol at

the Cursor Position below the Ladder Section Window (Symbol Bar)

Previous version (Ver. 3.3) New version (Ver. 4.0)

To display all comments, the
font size, cell width, and other
settings must be changed in
the Appearance Tab settings,
or detailed dialog mode must
be used to check the
comment display.

The global/local, name,
address/value, and comment fields
for the symbol at the cursor position
are displayed in the symbol bar
below the Ladder Section window.
Enable this function by selecting
Show symbol bar in the Diagrams
Tab in the Options Dialog Box of the
Tools Menu (the default setting is
ON: display).
Therefore, while increasing the
program display density, the text in
particularly long comments can be
checked, thereby improving the
readability of the program.

Improvements to Cross Reference Functions

• Displaying/Printing Cross Reference Function Usage List with Comments

Previous version (Ver. 3.3) New version (Ver. 4.0)

The cross reference function
usage list was displayed
without comments.

The cross reference function usage list can be
displayed with comments and the list can also be
printed.
Therefore, the user can check what the addresses
mean when checking the number of times the
addresses have been used. This thereby reduces the
labor required for programming/debugging.
This function can also be used to jump to the position of
the rungs being used.

• Displaying the Cross Reference Function Usage List for the Corresponding Address from

the Ladder Screen

Previous version (Ver. 3.3) New version (Ver. 4.0)

The cross reference function
only enabled the cross
reference report to be
selected from the display
menu or a cross reference
pop-up display to be selected
from the display menu for the
address at the cursor position.

By moving the cursor to an address in the ladder diagram and selecting Check usage
including unused, the usage list (with comments) can be displayed starting with the
selected address.
This function enables the cross references to be checked for the address directly from
the ladder display instead of from the cross reference report.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xxix)

• Printing Word Address Cross References

Previous version (Ver. 3.3) New version (Ver. 4.0)

Printing with cross reference
information was possible for
the cross references of output
bits only (the rung number
used by the output bit address
was printed at the right of the
coil).

Printing with cross reference information also includes
the cross reference of the word address.
Therefore, by viewing the printed program, information
that is equivalent to that from the CX-Programmer’s
cross reference function can be obtained even if a CX­Programmer is not onsite.

Improvements to Search Functions

• Omitting Symbol Table from Search

Previous version (Ver. 3.3) New version (Ver. 4.0)

The search range included the
ladder program and symbol
table.

By deselecting Include symbol table, the search range
includes the ladder program only. Therefore,
unnecessary searches of symbol tables are omitted,
thereby shortening the search time.

• Specifying All the Search Targets

Previous version (Ver. 3.3) New version (Ver. 4.0)

Search targets were split into
addresses and comments,
etc.

By selecting All (strings) as the search target, a search
can be performed for all the search targets, including
addresses, constants, numbers, mnemonics, symbol
names, comments, rung comments, and other
comments.

• Mnemonic Function Code Input Not Required

Previous version (Ver. 3.3) New version (Ver. 4.0)

Mnemonic searches required

an asterisk * or parentheses ()
with function code inputs after
the mnemonic search target.

Mnemonic searches do not require an asterisk * or parentheses () with function codes
input after the mnemonic search target.

Improvements to Watch Window

• Displaying PVs of Addresses in the Watch Window Sheet in Binary

Previous version (Ver. 3.3) New version (Ver. 4.0)

The PV for each address
could be displayed in the
specified data type only.

A new column has been added to the watch sheet that
allows the PVs of addresses to always be displayed in
binary regardless of the settings specified in Data

Type/Format.
16 BIT (Binary, Channel) has also been added to the
Data Type/Format Options, allowing values to be

displayed in binary, even if the Binary column is hidden
(except in the Timer/Counter Areas).

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xxx)

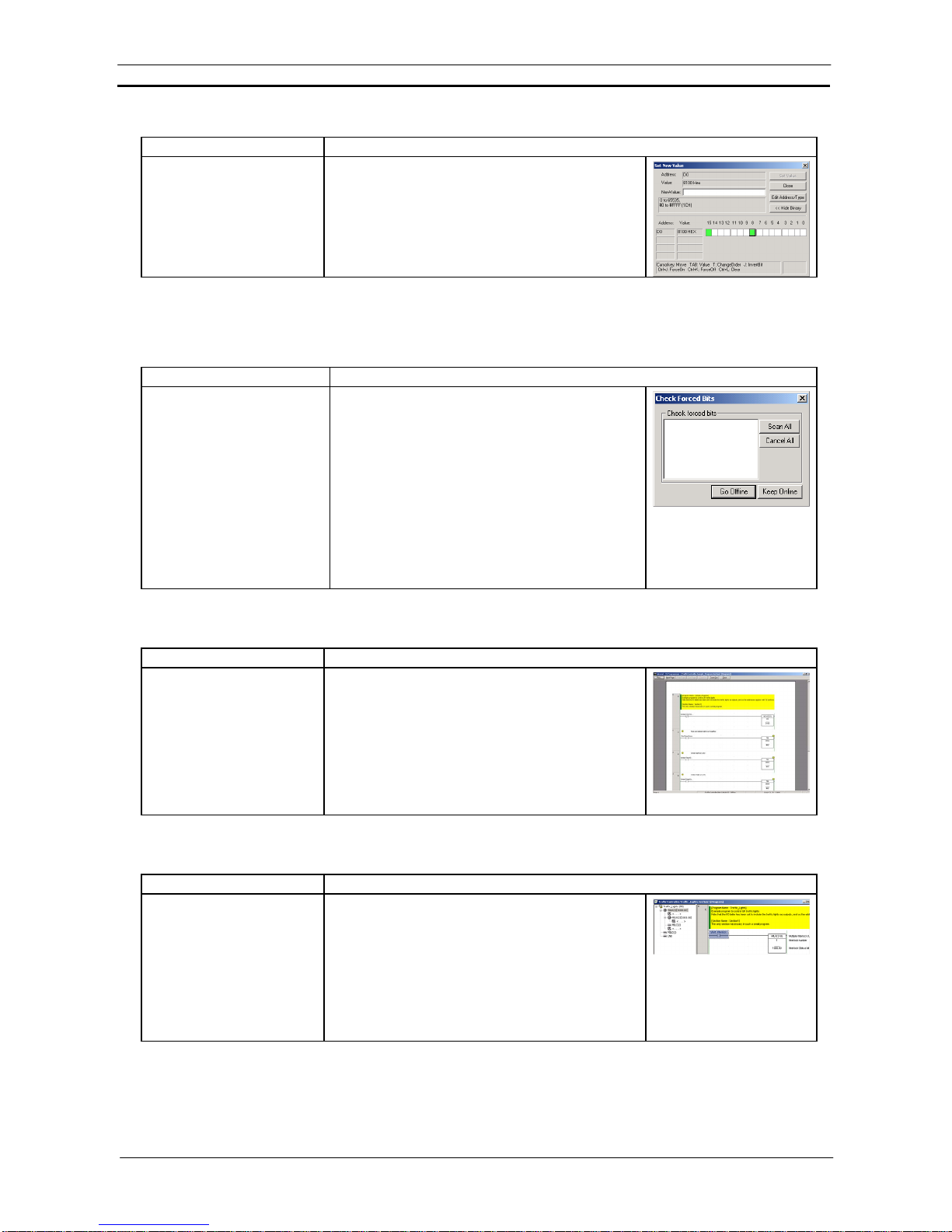

• Changing the PVs for DM/EM Areas in Bit Units

Previous version (Ver. 3.3) New version (Ver. 4.0)

PVs for DM/EM Area data
could not be changed in bit
units.

While online, when the binary display is selected in the
Set New Value dialog that is displayed when the
address in the watch window is clicked, the DM/EM
Area data can be changed into PVs in bit units.

Prevention of Leaving Set Forced Set/Reset Status

• Checking the Forced Set/Reset Status when Changing from Online to Offline

Previous version (Ver. 3.3) New version (Ver. 4.0)

After forced setting/resetting of
a bit online, the forced set/reset
status remained unchanged
when online status was
changed to offline status.

After forced setting/resetting of a bit online, a dialog
box is displayed when status returns to offline to allow
the forced set/reset status of addresses to be
displayed. The forced set/reset status can also be
cancelled.
Enable this function by selecting Tools − Options and
then selecting Check forced status after online
connection in the PLCs Tab Page (the default setting
is OFF: no confirmation).
This function prevents going offline unprepared when
the CPU Unit is still in forced set/reset status.

Improvements to Printing Functions

• Printing Ladder Programs as Shown on Screen

Previous version (Ver. 3.3) New version (Ver. 4.0)

Ladder programs could not be
printed as they were shown
on the screen.

Sections of the ladder program can be printed
separately as they are shown on the screen.
Select to print the ladder screen in the page setting.
The ladder screen can be printed as it is shown on the
ladder screen.
The program can also be printed at a smaller size
(Reduced size), or a larger size (Enlarged size), instead
of the standard size (Normal size).

Improvements to Multi-interlock Display Functions

• Displaying the Multi-interlock Status (CS/CJ-series CPU Unit Ver. 2.0 or Later)

Previous version (Ver. 3.3) New version (Ver. 4.0)

Interlock instructions allowing
nesting were not supported.

If the interlock instruction that allows nesting (multi
interlock instruction) is used with a CS/CJ-series PLC
Ver. 2.0 or later when performing online monitoring, the
display will show which instruction segment is presently
in interlock status using a tree-structure at the left of the
ladder screen (multi-interlock map). By double-clicking
the instruction in the multi-interlock map, the ladder
view will jump to the display of the applicable rung.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xxxi)

CX-Net (CX-Server Network Configuration Tool)

• Accessing up to Eight Network Levels (Set in the Routing Table)

Previous version (Ver. 3.3) New version (Ver. 4.0)

FINS commands could be
used to access nodes up to
three network levels away,
including the local network.

If a CS/CJ-series PLC of Ver. 2.0 or later is used, FINS commands can be used to
access nodes up to eight.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xxxii)

Version 3.3 Upgrade Information

The following tables outline the changes that have been made from version 3.2 to version 3.3 of the CX­Programmer.

• CJ1M-CPU11/21 Support Added

Previous version (version 3.2) New version (version 3.3)

The CJ1M-CPU11/21 was not
supported.

The CJ1M-CPU11/21 is supported.
To use the CX-Programmer for the CJ1M-CPU11, set the Device Type to the CJ1M and
the CPU Type to the CPU12. To use the CX-Programmer for the CJ1M-CPU21, set the
Device Type to the CJ1M and the CPU Type to the CPU22.

Creating a CX-Programmer Project for the CJ1M-CPU11/21

1. On the initial CX-Programmer display, select File – New and then set the Device Type to the CJ1M in
the Change PLC Dialog Box.

2. Click the Settings Button by the Device Type Field and set the CPU Type in the Device Type

Settings Dialog Box as shown below.

● CJ1M-CPU11: Set CPU12.

● CJ1M-CPU21: Set CPU22.

Setting Table

CPU Unit Model

Item

CJ1M-CPU11 CJ1M-CPU21

Device Type Set CJ1M.

CX-Programmer
Ver. 3.3

CPU Type Set CPU12. Set CPU22.

There are some restrictions in using the CJ1M-CPU11/21 with the new version of CX-Programmer (version 3.3). These
restrictions will be eliminated in the next version.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xxxiii)

Function Restrictions when Using CX-Programmer Version 3.3 for the CJ1M-

CPU11/21

Restriction Description

Program capacity: 5 Ksteps max. Although the program capacity of the CJ1M-CPU12/22 is 10 Ksteps, the program

capacity of the CJ1M-CPU11/21 is 5 Ksteps. A program containing more than
5 Ksteps can be written offline, but an error will occur when it is transferred. An error
will also occur if a program transferred automatically when power is turned ON is

larger than 5 Ksteps.
Subroutine numbers for subroutine
instructions (SBS, GSBS, and
MCRO): 0 to 255 only

Although the subroutine numbers for the CJ1M-CPU12/22 are 0 to 1023, the

subroutine numbers for the CJ1M-CPU11/21 are 0 to 255. A program containing

subroutine numbers higher than 255 can be written and can be transferred, but an

error will occur when the program is executed.
Jump numbers for jump
instructions (JMP, CJP, and
CJPN): 0 to 255 only

Although the jump numbers for the CJ1M-CPU12/22 are 0 to 1023, the jump numbers

for the CJ1M-CPU11/21 are 0 to 255. A program containing jump numbers higher

than 255 can be written and can be transferred, but an error will occur when the

program is executed.
Use only 1 scheduled interrupt. Although the CJ1M-CPU12/22 support 2 scheduled interrupts, the CJ1M-CPU11/21

support only 1. Thus, only scheduled interrupt 0 can be used with the interrupt

instructions (MSKR, CLI, and MSKR). A program containing schedule interrupt 1 can

be written and can be transferred, but an error will occur when the program is

executed.
Use only 1 PWM output. Although the CJ1M-CPU12/22 support 2 PWM outputs, the CJ1M-CPU11/21 support

only 1. Thus, only PWM output 0 can be used with the PWM instruction. A program

containing PWM output 1 can be written and can be transferred, but an error will occur

when the program is executed.

Note: The Stop CPU on Instruction Error Option in the PLC Setup can be selected to stop program

execution by creating a fatal error when an instruction error is detected. Instruction errors include
instruction processing errors (the ER Flag will turn ON), DM/EM indirect addressing BCD errors, and
illegal access errors. This option can be used to check to see if instruction errors are occurring in
unexpected places in the program.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xxxiv)

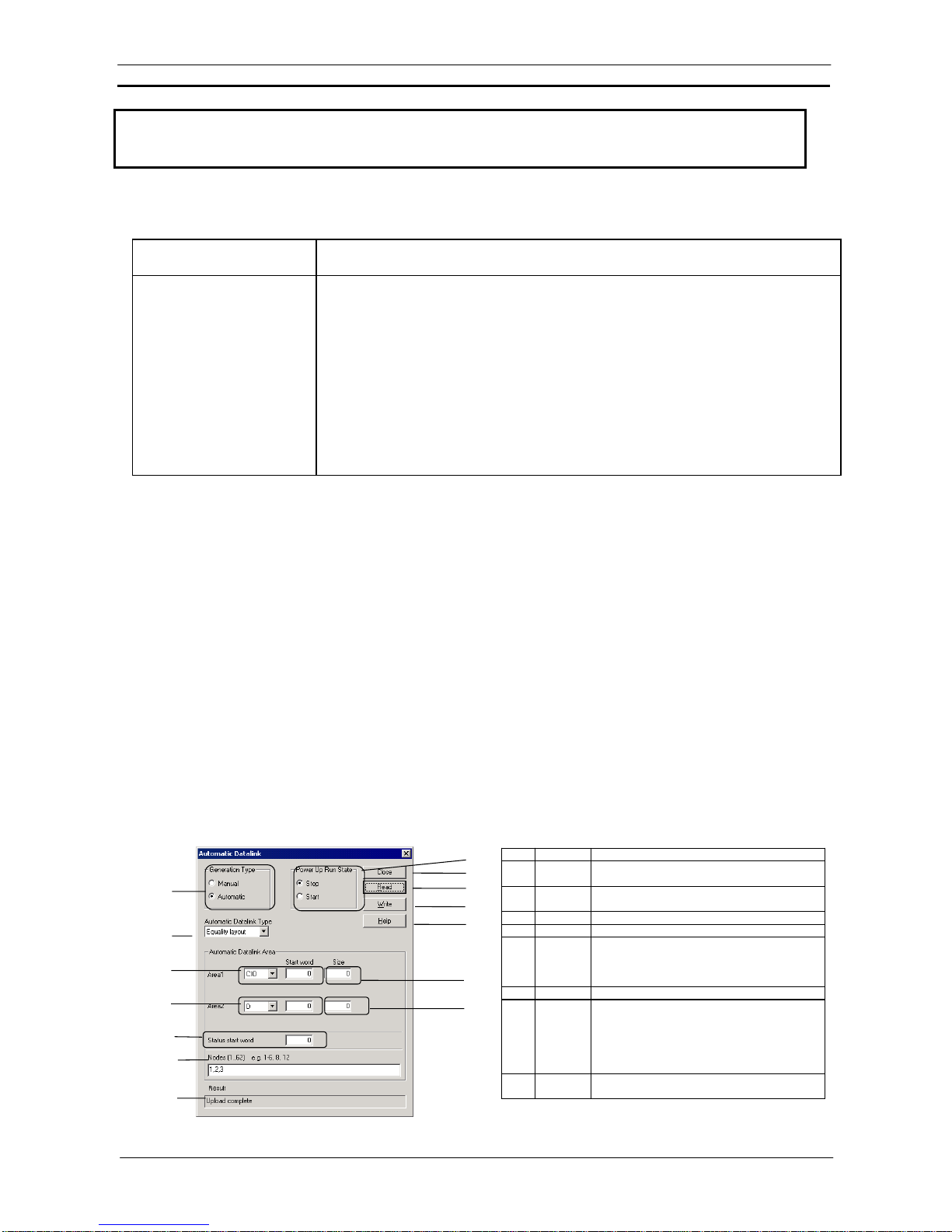

Version 3.2 Upgrade Information

The following tables outline the changes that have been made from version 3.1 to version 3.2 of the CX­Programmer.

• New Models for Automatically Set Data Links

Previous version

(version 3.1)

New version (version 3.2)

With automatically set data links for Controller Link Networks, 1:N allocations are supported
in which data communications are set individually for the master node and slave nodes. (The
models that support this functionality are listed below.)
Any of the following four settings (data link patterns) can be used for automatic data links.
Equality layout (previous method), common type, 1 to 1 type, or chain type

• CS1W-CLK21-V1 • 3G8F7-CLK21-EV1

• CS1W-CLK12-V1 • 3G8F7-CLK12-EV1

• CS1W-CLK52-V1 • 3G8F7-CLK52-EV1

Applicable
models:

• CJ1W-CLK21-V1

With automatically set data
links, all nodes shared the
same data using the common
settings, i.e., the send size for
each node was the same, and
send/receive nodes were
always in the order of node
addresses.

Note: The 1:N allocations for automatic data links cannot be used with any other models.
Refer to the Controller Link Operation Manual for details.

 Automatic Setting Procedure for Controller Link Networks

1. Go online with the PLC that is to be used as the polling node.

2. Select Data Link – Setup from the CX-Net.
If on the local network (i.e., if the network address is 0), select Controller Link and click the OK
Button.

The Data Link Component Dialog Box will be displayed.

3. Select Automatic Datalink Setup from the Online Menu.

Select Controller Link and click the OK Button.

The Automatic Datalink Dialog Box will be displayed.

4. In the Automatic Datalink Type Box, select Equality layout, Common type, 1 to 1 type, or Chain
type and set the automatic data link areas as shown below.

• Equality Layout (Previous Method)

This is the previous automatic data link type where all nodes are allocated the same sizes of data
links.

Settings Common to All Automatic Data Link Types

A

G

H

1

B

2

6

5

3

D

E

F

C

4

No. Item Description of function
A Generation

Type

Select Automatic. (If Manual is selected, data links will
be run using data link tables set separately.)

B Power Up

Run State

Select Start to automatically start data links when power

is turned ON to the PLC.
C Close Closes the Automatic Datalink Dialog Box.
D Read Reads the settings from the PLC.
E Write Writes the settings to the PLC.

(If the Power Up Run State is set to Start, the data links

will start running when the settings are written to the

PLC.)
F Help Displays help.
G Automatic

Datalink
Type

Select the type of data links to be automatically set up

from the following.

Equality Layout (Previous method)
Common Type (1:N settings)
1 to 1 Type (1:N settings)
Chain Type (1:N settings)

H Result The status is displayed when the Read or Write Button is

clicked.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xxxv)

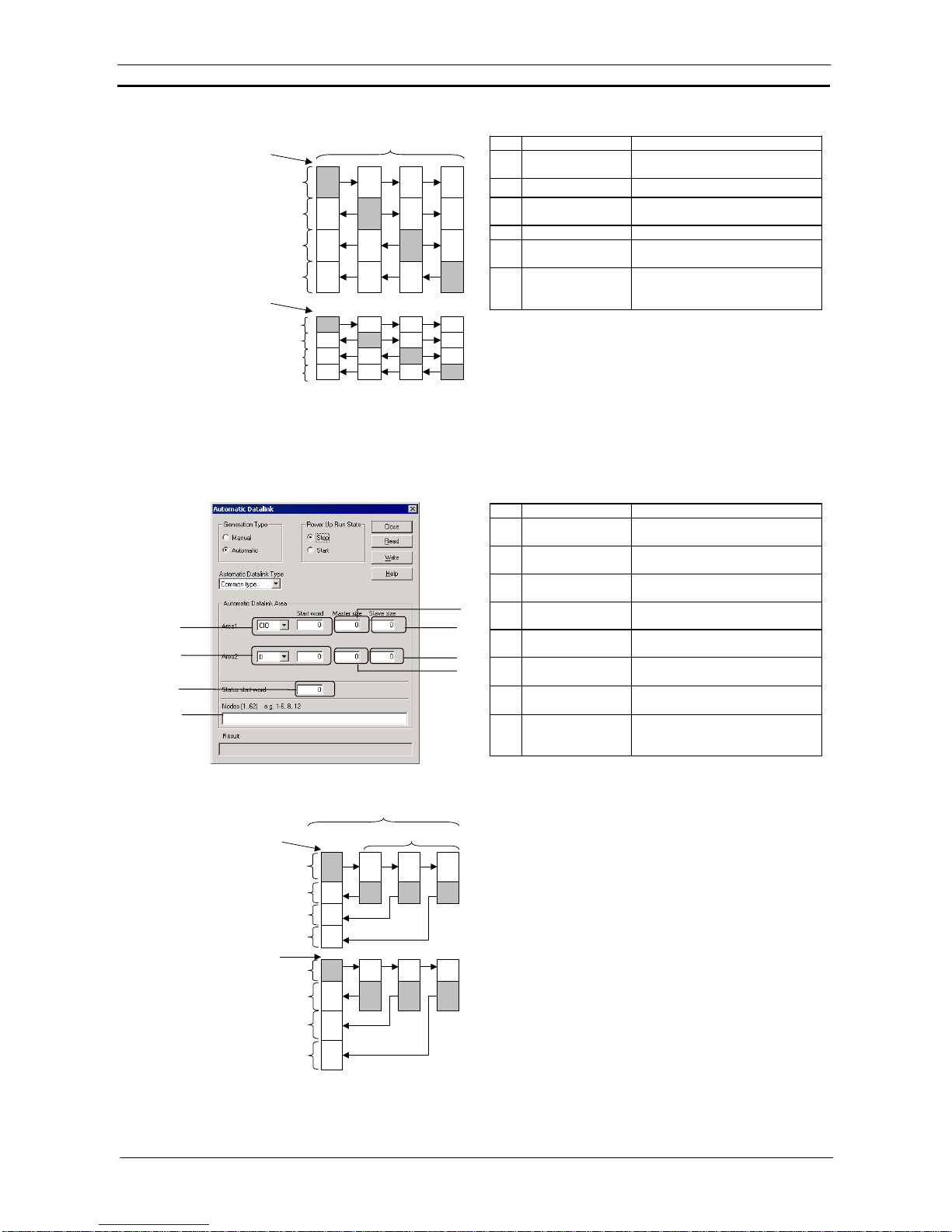

1

4

1

2 2

3

1 1

3

4

3

4

2

3

4

2

1

4

1

2 2

3

1 1

3

4

3

4

2

3

4

2

(5) Participating nodes

A

rea 1

A

rea 1

(1) Area and Start Word

(2) Size

(Same as (2).)

(Same as (2).)

(Same as (2).)

A

rea 2

(3) Area and Start Word

A

rea 2

(4) Size

(Same as (4).)

No. Item Description of function
(1) Area and Start Word

for Area 1

Set the area and the start data link word
to use for area 1.

(2) Size of Area 1 Set the send size per node for area 1.

(3) Area and Start Word

for Area 2

Set the area and the start data link word

to use for area 2.
(4) Size of Area 2 Set the send size per node for area 2.
(5) Nodes Set the nodes to participate in the data

links.
(6) Status start word Set the first word to store data link status.

(If 0 words is set, the default area will be

used.)

Features of Equality Layout

•

The send data sizes is the same for all nodes for each area.

•

Area 1 is selected from the bit-access areas (e.g., CIO Area) and area 2 is
selected from word-access areas (e.g., DM Area).

•

Data link areas are allocated in ascending order of node addresses.

•

Data link participation can be specified for each node.

•

The same data link areas are shared by all nodes par ticipating in the data links.

• Common Type

(2)

(3)

(5)

(6)

(8)

(7)

(1)

(4)

No. Item Description of function
(1) Area and Start Word

for Area 1

Set the area and the start data link word

to use for area 1.
(2) Master size Set the area 1 send size for the master

node.
(3) Slave size Set the area 1 send size for the slave

node.
(4) Area and Start Word

for Area 2

Set the area and the start data link word

to use for area 2.
(5) Master size Set the area 2 send size for the master

node.
(6) Slave size Set the area 2 send size for the slave

node.
(7) Nodes Set the nodes to participate in the data

links.
(8) Status start word Set the first word to store data link status.

(If 0 words is set, the default area will be

used.)

Area 1

1 4 1

2 2

3

1 1

3 4

Area 2

1 4 1

2 2

3

1 1

3 4

Master node Slave node

(7) Participating nodes

Area 1
(1) Area and Start Word

Area 2
(4) Area and Start Word

(2) Master size

(3) Slave size

(Same as (3).)

(Same as (3).)

(5) Master size

(6) Slave size

(Same as (6).)

(Same as (6).)

Features of Common Type 1:N Allocation

•

Data communications are 1:1 between the master node and slave nodes.

•

All slave nodes receive the data sent by the master node.

•

The master node receives all data sent by the slaves. The reception siz

e

for the master node is thus the node send data size times the number o

f

slave nodes.

•

Slaves do not send or receive data with other slaves.

•

Area 1 is selected from the bit-access areas (e.g., CIO Area) and area 2 is

selected from word-access areas (e.g., DM Area).

•

Data link areas are allocated in ascending order of node addresses.

•

Data link participation can be specified for each node.

•

The same area classification can be used for both Area 1 and Area 2,

provided that the same addresses are not used (CS/CJ-series Controlle

r

Link Units with unit Ver. 1.2 or later).

Equality Layout Settings

Common Type Settings

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xxxvi)

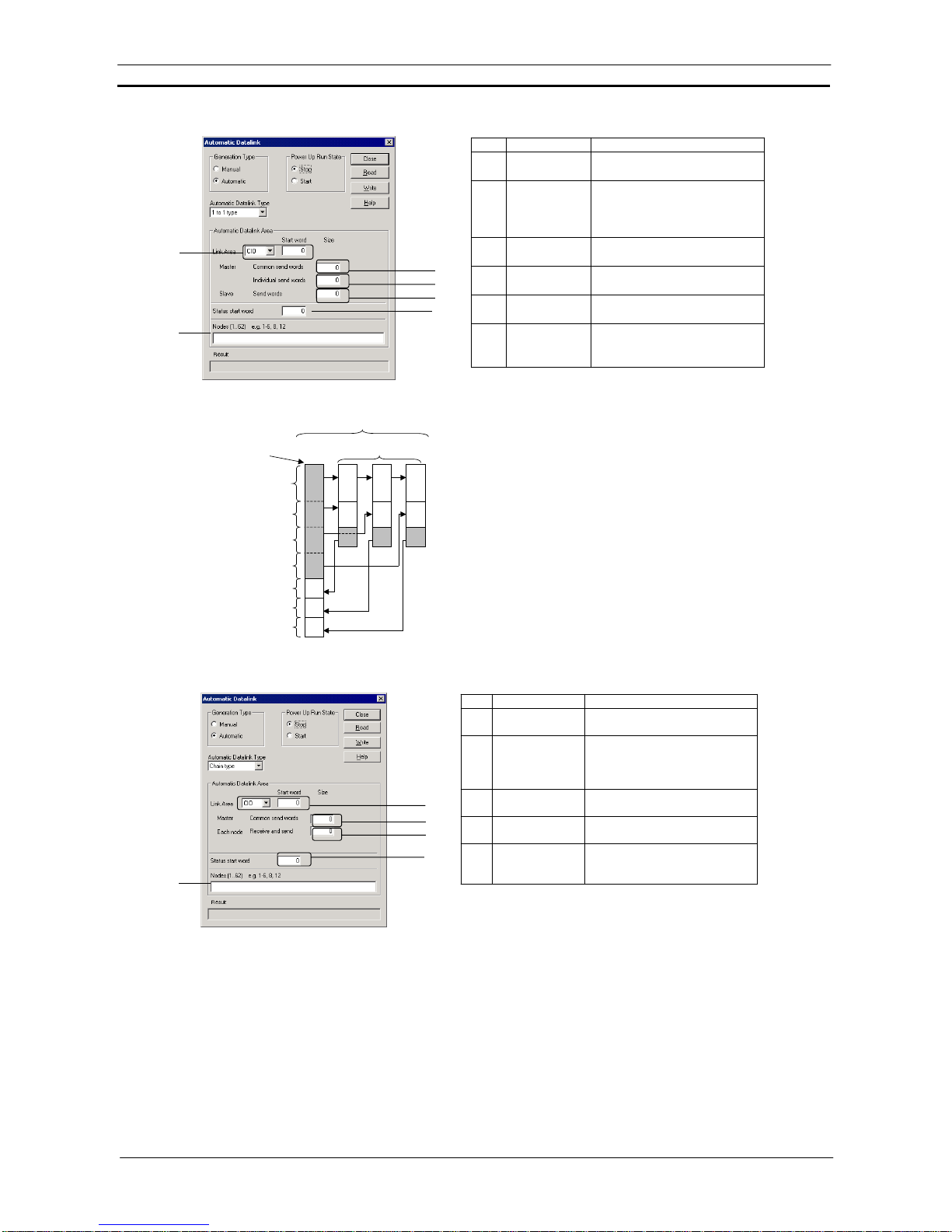

• 1 to 1 Type

(2)

(3)

(4)

(1)

(6)

(5)

4

1b

2

2

3

1c 1d

3 4

1a 1a 1a

1a

1b

1c

1d

Master node Slave node

(5) Participating nodes

(1) Area and Start Word

(2) Master, Common Send Words

(3) Master, Individual Send Words

(Same as (3)).

(4) Slave, Send Words

(Same as (4)).

(Same as (4)).

(Same as (3)).

Features of 1 to 1 Type 1:N Allocation

•

Data communications are 1:1 between the master node and slave nodes.

•

All slave nodes receive part of the data sent by the master node. In addition,
each slave node receives unique data from the master node (see a to d in
figure).

•

The master node receives all data sent by the slaves. The data sizes are

fixed for all nodes.

•

Slaves do not send or receive data with other slaves.

•

One area is selected from the bit-access areas (e.g., CIO Area) o

r

word-access areas (e.g., DM Area).

•

Data link areas are allocated in ascending order of node addresses.

•

Data link participation can be specified for each node.

• Chain Type

(1)

(2)

(3)

(5)

(4)

No. Item Description of function
(1) Link Area and Start

Word

Set the area and the start data link
word.

(2) Master, Common

Send Words

Set the send size of the data to send
from the master node to all slave
nodes. The same size of data is sent
to all nodes.

(3) Each Node,

Receive and Send

Set the send size of data for each
node to send to the next node.

(4) Nodes Set the nodes participating in the data

links.

(5) Status start word Set the start word to store data link

status. (If 0 words is set, the default
area will be used.)

1 to 1 Type Settings

Chain Type Settings

No. Item Description of function

(1) Link Area and

Start Word

Set the area and start data link word.

(2) Master, Common

Send Words

Set the send size of the data to send
from the master node to all slave
nodes. The same size of data is sent
to all nodes.

(3) Master, Individual

Send Words

Set the send size for the master node
to sent individually to each slave node.

(4) Slave, Send

Words

Set the send size of the data sent from
each slave node to the master node.

(5) Nodes Set the nodes participating in the data

links.

(6) Status start

word

Set the start word to store data link
status. (If 0 words is set, the default
area will be used.)

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xxxvii)

1a

1b

4

1a

2

2

3

2

1a

3

1a

3

4

1b

Master node

Slave node

(4) Participating nodes

(1) Area and Start Word

(3) Each Node, Received

and Sent

(2) Master, C ommon

Send Words

(Same as (3).)

(Same as (3).)

(Same as (3).)

Features of Chain Type 1:N Allocation

•

Data communications are 1:1 between the master node and slave nodes.

•

All slave nodes receive part of the data sent by the master node (1a in figure).

•

The master node receives all data sent by the slaves. The data sizes are fixe

d

for all nodes.

•

Each slave nodes receives data from the previous node and then sends dat

a

to the next node. Data is thus passed in ascending order of the node

s

participating in the data link.

•

One area is selected from the bit-access areas (e.g., CIO Area) or
word-access areas (e.g., DM Area).

•

Data link areas are allocated in ascending order of node addresses.

•

Data link participation can be specified for each node.

5. Click the Write Button to transfer the automatic data link setting.

• Adding Nodes while Data Links Are Running

Previous version (version 3.1) New version (version 3.2)

Nodes can be added while data links are running if both the following Units/Boards and
Repeater Units (CS1W-RPT01) are used.

Controller Link Units

• CS1W-CLK21-V1

Controller Support Boards

• 3G8F7-CLK21-V1 (-EV1)

• CS1W-CLK12-V1 • 3G8F7-CLK12-V1 (-EV1)

• CS1W-CLK52-V1 • 3G8F7-CLK52-V1 (-EV1)

Applicable
models:

• CJ1W-CLK21-V1

Data link tables could not be
downloaded when data link
were running.

Note: Refer to the Controller Link Operation Manual for the procedure to add nodes and
details on changing data link tables while data links are running.

• Up to 62 Nodes for Wired Controller Link Units

Previous version (version 3.1) New version (version 3.2)

A maximum of 62 nodes can now be used with Wired Controller Link Units.

• CS1W-CLK21-V1

• CJ1W-CLK21-V1

Applicable
models:

• 3G8F7-CLK21-V1 (-EV1)

Only a maximum of 32 nodes
could be used with Wired
Controller Link Units.

Note: A CS1W-RPT01 Repeater Unit must be purchased separately to use 62 Controller
Link Units. Refer to the Controller Link Operation Manual for details.

• Displaying Data Link Table Information for Data Link Table

Verification

Previous version (version 3.1) New version (version 3.2)

Data link table verification
results were displayed in a
simple list in an Error List
Dialog Box.

When inconsistencies are detected in data link
verification, the number of inconsistent (failed)
nodes is displayed, and both the data link
settings within the selected PLC and those
with the inconsistencies indicated between
pointed parentheses (< >). (The size of the
dialog box can be changed.) Also, if reading is
not possible for verification, the reasons are
displayed.
The results can be pasted as text after clicking
a Copy Button.

• 100Base-TX for Ethernet Units

Previous version (version 3.1) New version (version 3.2)

Only 10Base-T and 10Base-5 were
supported in Unit settings (CPU Bus Unit
setups).

100Base-TX is also supported for Ethernet Unit in the Unit settings (CPU Bus
Unit setups).
Applicable models: CS1W-ETN21, CJ1W-ETN21

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xxxviii)

• Importing DM/EM Data Files from Previous Support Software

Previous version

(version 3.1)

New version (version 3.2)

DM/EM data files created with the SYSMAC Support Software (SSS) or CV Support
Software (CVSS) can be imported from the PLC Memory Window.
The following DM/EM data files can be imported.

Support Software DM/EM data file type

(file name extension)

Memory area Method used on the SSS/CVSS

.SP6 DM DM data save (All DM) SSS
.SL4 DM DM data save (Partial DM save)
.DMD DM DM data save (Bank No.: Base

selected.)

.EDM EM DM data save (Bank No: 0 on

selected.)

.IOM DM File data save (Partial save, Bank

No.: Base selected.)

DM/EM data files created with
the SYSMAC Support
Software (SSS) or CV Support
Software (CVSS) could not be
imported from the PLC
Memory Window.
(Importing was possible only
from the File Menu or the File
Conversion Utility.)

CVSS

.IOM EM File data save (Partial save, Bank

No: 0 on selected.)

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xxxix)

Version 3.1 Upgrade Information

The following tables outline the changes that have been made from version 3.0 to version 3.1 of the CX­Programmer.

• Program Editing Functions

Improvements to Global Replacement Operation

Previous version (Ver. 3.0) New version (Ver. 3.1)

Changes between normally open
contacts and normally closed contacts
could be performed only with the / key.
They could not be performed globally.

If Change All is selected from the Edit menu and a checkmark is placed in the
checkbox for Invert open/close bit before performing a global replacement for the
PLC, all specified operands that are normally open contacts will be changed to
normally closed contacts and all normally closed contacts will be changed to

normally open contacts.
Global replacements for addresses
applied to both the ladder programs and
symbol data.

If the check box for symbols (including I/O comments) is cleared before an

address is replaced globally, the symbols table and I/O comments will not be

changed and only addresses in the ladder program will be changed.

If the check box for symbols (including I/O comments) is selected before an

address is replaced globally, the replacement operation will be the same as the

previous version.

Drawing or Deleting a Connecting Line by Dragging from the Start Point to the End Point

Previous version (Ver. 3.0) New version (Ver. 3.1)

Connecting lines could be input from the
keyboard, icons, or menus. (They could
not be input by dragging with the
mouse.)

Connecting lines can be drawn by clicking the Line Connect Mode icon and

then clicking the starting point and dragging to the end point. Connecting lines

can also be deleted by dragging after clicking the Line Delete Mode icon.

Note: A line can also be drawn by dragging on a line that is not connected on

one end.

Operand at the Cursor Position Appears as Default for Find or Replace Operations

Previous version (Ver. 3.0) New version (Ver. 3.1)

When performing a Find or Replace
operation, the previous contents of the
previous Find and Replace fields are
displayed regardless of the position of
the cursor.

When a Find or Replace operation is performed, the Bit Addresses, Addresses,

Values, Symbol Names, or Mnemonics (i.e., in the Look at field for each) at the

position of the cursor is displayed in the Find what field.

Note: If the Look at field is a Symbol comments or Program comments, the Find

what field will be blank.

History of Previous Find or Replace Settings

Previous version (Ver. 3.0) New version (Ver. 3.1)

No history of previous settings was

displayed for Find or Replace operations.

Histories of previous find and replace settings are displayed in pull-down menus

for the Find what field and Replace with field.

Size Changes for Go to Commented Rung Window

Previous version (Ver. 3.0) New version (Ver. 3.1)

The size of the Go to Commented
Rung window was fixed when jumping to

rung comments. (This window was
previously a dialog box.)

The size of the Go to Commented Rung window displayed when Edit | Go to |

Commented Rung is selected can be changed.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xl)

Guidance Displays for SYSMAC Support Software or SYSWIN Shortcut Keys

Previous version (Ver. 3.0) New version (Ver. 3.1)

Shortcut keys could be allocated for CX­Programmer functions for SYSMAC
Support Software operations and
SYSWIN operations, but guidance could
not be displayed.

Guidance can be displayed for CX-Programmer functions for SYSMAC Support

Software operations and SYSWIN operations by selecting Function Key

Guidance from the View menu. The CX-Programmer shortcut key allocations for

all keys can be displayed by selecting Information Window from the View menu.

• Online Functions

• Monitor Functions

Display Form Setting for Operands for Special Instructions when Monitoring in Ladder

Section Windows

Previous version (Ver. 3.0) New version (Ver. 3.1)

When monitoring on the Ladder Section
window, the symbol data type was given
priority as the display format for
operands for special instructions.
For example, the data type for the MOV
instruction is CHANNEL, so the display
was always 4-digit hexadecimal.
The data type for MOVL is also
CHANNEL so the display was always 8­digit hexadecimal.
Also, for an unnamed symbol the data
type is CHANNEL so the display was
always 4-digit hexadecimal.

The display format for the present values of operands of special instructions

when monitoring on the Ladder Section Window can be selected from the

following data types. The same display format must be used globally.

To select the display format, click the desired button or select Monitoring Data

Type from the View menu.

• Decimal

• Signed Decimal

• Monitor in Hex

The default display formats will be as follows if none of the above display

formats is selected.

• Named symbol will be monitored in the symbol data type.

• Unnamed symbol will be monitored in the operand data type.

• Two-word operations, such as for the MOVL instruction, will be monitored in

2-word hexadecimal.

• For present values displayed in formats other than hexadecimal, “D” is

attached for 2-word data and “L” is attached for 4-word data.

Improvement in Operation to Change PVs for Special Instructions

Previous version (Ver. 3.0) New version (Ver. 3.1)

Present values were changed from the
menus.

Present values can be changed by pressing the Enter key on an operand that is

being monitored, or by double-clicking it.

Start Address Setting when Monitoring Present Values in I/O Memory

(Continuous Address Monitoring)

Previous version (Ver. 3.0) New version (Ver. 3.1)

The address to monitor in the PLC
Memory Window could not be specified
(either the screen had to be scrolled or
individual addresses had to be monitored
in Watch windows).
Also, with floating-point or double­precision floating-point binary, monitoring
was possible only from addresses
divisible by 2 or 4.

The start address to be monitored can be specified to monitor consecutive

addresses in the PLC Memory Window.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xli)

Monitoring Bit Status and Word Contents when Monitoring Present Values in I/O Memory

Previous version (Ver. 3.0) New version (Ver. 3.1)

Bit status displays in the PLC Memory
Window had to be performed in word
units.

When the binary word display format is selected for the PLC Memory Window,

bit status is displayed both for individual bits and as hexadecimal word values.

Simple Transfer of Data to the PLC when Monitoring Present Values in I/O Memory

Previous version (Ver. 3.0) New version (Ver. 3.1)

To transfer data changed in I/O memory
while monitoring, the monitor status had
to be cleared and then PLC | Transfer |
To PLC had to be selected, the range
specified, and the transfer specified in
the PLC Memory Window.

Individual cells being monitoring in the PLC Memory Window can be selected

and the Set | Value command or the Set Value button can be used to display

the Set Present Value dialog box. Data can be input into this dialog box for

individual I/O memory address and then the OK Button can be clicked to

directly change the value in the PLC.

When binary values are being displayed, the menus and buttons can be used to

Set, Reset, Force On, Force Off, or Force Cancel individual bits.

• Clear All Memory Areas Function

All Clear Operation for CPU Unit Memory (User Program, Parameter Area, and I/O Memory)

Previous version (Ver. 3.0) New version (Ver. 3.1)

Unless a memory error actually occurred in the PLC
the CPU Unit memory clear operation (see note) could
not be performed from the Error Log. Also there was no
function (all clear) to initialize the CPU Unit memory.
Note: The CX-Programmer had to be placed online,
PLC | Edit Error Log had to be selected to display the
Errors window, and then the Clear All Button had to be
clicked.

The user program, Parameter Area, and I/O Memory in the CPU
Unit can be cleared to initialize the CPU Unit by selecting Clear
All Memory Areas from the CX-Programmer's PLC menu or
selecting Clear All Memory Areas from the Options menu of the
PLC Errors dialog box.
These operations are possible even if a memory error has not
occurred in the PLC (the same as they are for a Programming
Console).

• On-line Editing

Power Flow Monitoring during Online Editing

Previous version (Ver. 3.0) New version (Ver. 3.1)

The power flow could not be monitored
during online editing.

The power flow is displayed during online editing in monitoring status.

I/O Comment Changes during Online Editing

Previous version (Ver. 3.0) New version (Ver. 3.1)

Changes to I/O comments made during
online editing could not be saved in the
CPU Unit (see note).
If changes were made, the symbol table
file had to be transferred to file memory
in a CS-, CJ-, CVM1, or CV-series PLC
or to the I/O comment area in UM (user
memory) in a C-series PLC.
Note: New I/O comments could be
added to the symbol table in CX­Programmer.

I/O comments can be changed during online editing in Ladder diagram view,

in the Symbol Table, or in I/O Comment View.

If I/O comments have been changed when online editing is ended, a

confirmation message will appear asking if the symbol table file should be

transferred to file memory in a CS-, CJ-, CVM1, or CV-series PLC or to the I/O

comment area in the allocated UM (user memory) in a C-series PLC.

Note 1: Symbol table names and addresses cannot be changed during online

editing.

Note 2: I/O comments with symbol names cannot be transferred to the I/O

comment area in UM (User Memory) in C-series PLCs.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xlii)

• Verification

Program Verification Offline or Online

Previous version (Ver. 3.0) New version (Ver. 3.1)

Program verification was possible only
between the current project and the PLC.

Program verification is possible offline between the current project and a

closed project file. (Select Compare Program from the File menu and select

the file to be compared.) The results of verification can be saved to a file in

CSV format.

Added or omitted instructions were not
displayed in verification results (if added
or omitted instructions were
encountered, the verification results for
the rest of the program would show that
the programs were completely different).

Verification results are displayed by section and mnemonic, including added

or omitted instructions. Jumping is also possible from mnemonic verification

results to the corresponding locations in ladder view.

Displaying Dialog Box for Verification or Transfer when Going Online

Previous version (Ver. 3.0) New version (Ver. 3.1)

Nothing was displayed before going
online.

If a checkmark is placed in the Prohibit the online operations until the PC and

PLC data matches checkbox on the PLCs Tab Page that appears when Tools

| Options is selected, an Online Action Dialog Box to select either verifying or

transferring data will be displayed. Depending on the selection, before going

online, the program will be verified between the CX-Programmer and the PLC,

the program will be transferred to the PLC, or the program will be transferred

from the PLC.

• Unit Online Replacement

Unit Online Replacement for CS1D or CVM1D PLCs

Previous version (Ver. 3.0) New version (Ver. 3.1)

With a CS1D or CVM1D CPU Unit, hot swapping (i.e., online replacement) is

possible during operation for Basic I/O Units and, for the CS1D, Special I/O

Units and CPU Bus Units as well. Open the I/O tables for the project, select the

Unit to be replaced, and select Hot Swap from the Options menu. Click the

Start Hot Swap Button, remove the old Unit, mount the new Unit and click the

End Hot Swap Button. Perform this operation for each Unit to be replaced.

Note: Online replacement is possible for a CS1D or CVM1D CPU Unit in any

operating mode. Use the following settings in the Change PLC Dialog

Box.
CPU Unit being used PLC type selection list CPU Unit model
CS1D CS1H-H CPU65 or CPU67

Unit online replacement for CS1D or
CVM1D CPU Units was possible only
from a Programming Console and was
not possible from the CX-Programmer.
(C2000H I/O Unit online replacement
was possible.)

CVM1D CVM1-V2 CPU21

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xliii)

• I/O Table Editing Functions

Specifying Slot Start Address when Editing I/O Tables for Slots Other than First Rack Slots

Previous version (Ver. 3.0) New version (Ver. 3.1)

For CS- and CJ-series PLCs, the start
address for each Rack could be set (but
the start address could not be set for
each slot).

For CS1-H, CJ1-H, CJ1M, and CS1D CPU Units in the CS- and CJ-series PLCs,
Options | Rack/Slot Start Address can be selected during I/O table editing to set
the start address for a specific Rack and slot (in addition to the start address for
each Rack).
This can be used, for example, to allocate fixed addresses to Input Units and
Output Units.
Note: The start address information set for Racks and slots can be downloaded

and uploaded for the CPU Unit.

Previous version (Ver. 3.0) New version (Ver. 3.1)

When editing I/O tables, unit number,
number of allocated unit numbers,
number of input words, number of output
words had to be set for Special I/O Units
and CPU Bus Units, and the unit
numbers and number of allocated unit
numbers were displayed in the I/O Table
window, but the number of input words
and the number of output words were not
displayed in the I/O Table window.

When editing I/O tables, the number of input words and number of output words
are displayed in the I/O Table window for Special I/O Units and CPU Bus Units
that have been set (Out: , In: ).

• Other Changes

Data Transfer and Verification for a ROM Writer

Previous version (Ver. 3.0) New version (Ver. 3.1)

With the C-series PLCs, any of the following methods can be used for data transfer and
verification with a ROM Writer.

• Using the CX-Programmer, transfer the program from the computer to the ROM

Writer.

• Transfer program from the ROM Writer to a CX-Programmer project.

• Verify programs between CX-Programmer and ROM Writer.

• Create Intel Hex format files from CX-Programmer programs.

• Input from an Intel Hex format file to the CX-Programmer project.

Note: The data transferred for each PLC is listed below.

PLC Data

C1000H/2000H Program, I/O tables, SYSMAC NET data link tables, battery

error detection method

C200H Program, I/O tables, Fixed DM, battery error detection method

C200HS Program, I/O tables, PLC Setup, Expansion DM, expansion

instructions

CQM1, CQM1H Program, PLC Setup, expansion instructions

Transfer and verification were
not possible for a ROM Writer.

C200HX/HG/HE (-Z) Program, I/O tables, PLC Setup, Expansion DM, expansion

instructions

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xliv)

CX-Net (Network Configuration) Functions

• CX-Net

Menus Changed

Previous version (Ver. 3.0) New version (Ver. 3.1)

Unit Status and Communications
Unit Setup were on the PLC

menu.

Operations for Communication units were separated from those for the PLCs and
Unit Status/Error Log and Communications Unit Setup were moved to the
Network menu.

Both Setup and Edit appeared
on the Routing Tables and Data

Link menus.

Setup and Edit were placed together on a Setup menu on the Routing Tables and
Data Link menus.

When Setup is selected online, the Routing Table or Data Link Component window
is displayed.
When Setup is selected offline, a dialog box with the following selections is
displayed before the Routing Table or Data Link Component window is displayed.
Routing tables: FINS Local, FINS Network, or SYSMAC NET
Data links tables: Controller Link, SYSMAC LINK, SYSMAC NET

Exporting Communications Unit Status and Error Log in CSV Format

Previous version (Ver. 3.0) New version (Ver. 3.1)

Unit status and the error log can
be monitored in a window but
cannot be saved as files. (The
error log data must be read and
then manipulated manually.)

Unit status and error log data for Communications Units (Controller Link Units and
SYSMAC LINK Units) can be written to files in CSV format.
This allows network errors to be analyzed from CSV files.

Displaying Communications Unit Error Logs for C-series PLCs

Previous version (Ver. 3.0) New version (Ver. 3.1)

For C-series PLCs, the error log
displayed when PLC | Unit
Status was selected was the
CPU Unit error log. (A
Communications Unit error log
could not be read or cleared.)

For C-series PLCs, the error log for a Communications Unit (Controller Link Units
and SYSMAC LINK Units) can be displayed and cleared using PLC | Unit
Status/Error Log.

Save As Operation for CX-Net Projects

Previous version (Ver. 3.0) New version (Ver. 3.1)

An open project could not be
saved under a new file name.
(The file name could be set only
when a new project was created.

Select Save As from the Project menu to save a project open in CX-Net under any
desired name.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xlv)

• Data Links

Changes in Edit Node Window for Manually Set Data Link Tables

Previous version (Ver. 3.0) New version (Ver. 3.1)

In the Edit Node window for
manually set data link tables, the
start and end address for
refreshing (send and receive)
with other nodes were displayed
only for the local node.

In the Edit Node window for manually set data links tables, the start address, end
address, and data size for refreshing (send and receive) with other nodes are
displayed for both the local node and the remote (partner) nodes.

Area 1 and area 2 could not be
accessed simultaneously for
manually set data link tables in
the Edit Node window.

Area 1 and area 2 can be accessed side-by-side for manually set data link tables in
the Edit Node window.

With manually set data link
tables in the Edit Node window,
an Area Specify dialog box must
be displayed to input values.

With manually set data link tables in the Edit Node window, values can be keyed
directly into the tables.
Also, a function bar that can be used to input values is displayed below with
window.

Reading and Writing Manually Set Data Link Tables in CSV Format

Previous version (Ver. 3.0) New version (Ver. 3.1)

Data link tables could be read
and written only as data link
table files (binary files).

Manually set data link table can be read and written as CSV-format files.
Note: CSV-format files are created using the Excel template stored in the CD.

• Routing Tables

Registering CPU Unit Serial Ports (Peripheral and RS-232C) in a Local Network Table (Serial

Expansion Routing Tables)

Previous version (Ver. 3.0) New version (Ver. 3.1)

Only the unit number and
network address were set in the
local network table in the routing
tables for Communications Units.

A CS/CJ-series CPU Unit serial port (peripheral or RS-232C) can be set in the local
network table in the routing tables instead of the Communications Unit's unit
number. (Unit 252 (COMM) and Unit 253 (PRPHL))
This enables screen data to be sent from the NS-Designer (Ver. 3) via a network to
an NS-series PT connected to a serial port.
Refer to the PT user's manual for details.

No Network Type Setting or Display for Routing Tables

Previous version (Ver. 3.0) New version (Ver. 3.1)

When the local network table in
the routing tables were set, the
local network type and the
network type were displayed on
the main view.

The local network type is not set in the local network table in the routing tables for
CS-, CJ-, and CV-series PLCs and the network type is not displayed on the main
view.

Changes in Routing Table Operation

(Transferring Routing Tables from the Table View Tab Page)

Previous version (Ver. 3.0) New version (Ver. 3.1)

Routing table transfers and
similar operations could not be
performed from the Table View
tab page. (The OK button had to
be clicked to return to the Main
View tab page first.)

Node changes, routing table transfers, and other operations are possible from the
Table View tab page.

OMRON PART 1: CX-Programmer

CX-Programmer_Page (xlvi)

Detailed Information Displays when Verifying Routing Tables

Previous version (Ver. 3.0) New version (Ver. 3.1)

Details were not displayed when
verifying routing tables, making it
difficult to find errors.

Detailed results are displayed after verifying routing tables.

TABLE OF CONTENTS

Precautions........................................................................................................ vii

CHAPTER 1 Technical Specifications............................................................. 1

CX-Programmer Software .....................................................................................................................................1

About this Manual .................................................................................................................................................1

CX-Programmer Features......................................................................................................................................1

System Requirements ............................................................................................................................................3

Installing and Uninstalling the Software................................................................................................................5

Uninstalling the CX-Programmer........................................................................................................................13

Uninstalling the CX-Server .................................................................................................................................14

Help and How to Access it ..................................................................................................................................17

Technical Support................................................................................................................................................18

CHAPTER 2 Quick Start Guide .................................................................... 21

Starting CX-Programmer.....................................................................................................................................21

Licensing .............................................................................................................................................................21

Introducing CX-Programmer Projects .................................................................................................................22

The CX-Programmer Environment......................................................................................................................22

Using CX-Programmer........................................................................................................................................28

Summary..............................................................................................................................................................39

CHAPTER 3 Project Reference ..................................................................... 41

Project Workspace ...............................................................................................................................................41

Program Sections.................................................................................................................................................41

Cross-Reference Report.......................................................................................................................................44

Address Reference Tool.......................................................................................................................................45

Output Window ...................................................................................................................................................46

Watch Window ....................................................................................................................................................46

Options and Preferences ......................................................................................................................................48

Finding and Replacing.........................................................................................................................................56

Properties .............................................................................................................................................................61

Using Microsoft Windows Features in CX-Programmer.....................................................................................63

CHAPTER 4 Reference................................................................................... 71

PLCs and Projects................................................................................................................................................71

Symbols ...............................................................................................................................................................72

Program Editing...................................................................................................................................................85

Memory View....................................................................................................................................................100

Mnemonic Program Editing...............................................................................................................................100

Simulation..........................................................................................................................................................101

Working On-line................................................................................................................................................102

Flash ROM Backup ...........................................................................................................................................115

Data Trace/Time Chart Monitoring ...................................................................................................................116

CX-Net Network Configuration Tool................................................................................................................116

IO Table.............................................................................................................................................................117

CHAPTER 5 Advanced Topics..................................................................... 119

Writing More Maintainable Programs ...............................................................................................................119

Copying Information between Projects..............................................................................................................119

Using CX-Programmer with Other Applications...............................................................................................120

Converting Programs between PLC Types........................................................................................................123

Applying a Password to the PLC Programs.......................................................................................................123

CHAPTER 6 Converting a C500/C120/C**P Program to

CS/CJ/CP/CVM1 Format ............................................................................. 125

C500/C120/C**P Program Conversion.............................................................................................................125

C500/C120/C**P Program Backup ...................................................................................................................126

Conversion Table for C500/C120/C**P Instructions ........................................................................................127

APPENDIX A Toolbars and Keyboard Shortcuts ..................................... 133

Standard Toolbar ...............................................................................................................................................133

Diagram Toolbar................................................................................................................................................134

Insert Toolbar.....................................................................................................................................................134

Symbol Table Toolbar .......................................................................................................................................135

PLC Toolbar ......................................................................................................................................................135

SFC Toolbar.......................................................................................................................................................136

Program Toolbar................................................................................................................................................136

Views Toolbar ...................................................................................................................................................137

Keyboard Shortcuts ....................................................................................... 138

Default CX-Programmer Keyboard Mappings..................................................................................................138

Default SYSMAC Support Soft Keyboard Mapping.........................................................................................140

Default GPPQ Keyboard Mapping (CX-Programmer Ver. 9.@ Only)..............................................................142

APPENDIX B EtherNet/IP Connections from Windows XP (SP2 or

Higher), Windows Vista and Windows 7.................................................... 145

APPENDIX C Smart Input Mode ................................................................ 147

Input Procedure in Smart Input Mode................................................................................................................147

GLOSSARY OF TERMS.............................................................................. 151

INDEX............................................................................................................. 155

PART 1: CX-Programmer

OMRON CHAPTER 1 – Technical Specifications

CX-Programmer _Page 1

CHAPTER 1
Technical Specifications

This chapter describes the CX-Programmer software in general terms and provides details of the operating
environment and minimum configuration necessary for the satisfactory operation of CX-Programmer.

CX-Programmer Software

CX-Programmer is a PLC programming tool for the creation, testing and maintenance of programs associated
with OMRON CS/CJ/CP-series PLCs, CV-series PLCs and C-series PLCs. It provides facilities for the support
of PLC device and address information and for communications with OMRON PLCs and their supported
network types.

CX-Programmer operates on IBM compatible personal computers with Pentium or better central processors,
including Pentium II. It runs in a Microsoft Windows environment (Microsoft Windows 95, 98, Millennium,
2000, XP, NT4.0 with Service Pack 5 or later, or Vista).

About this Manual

This User Manual acts as a reference for CX-Programmer by describing its various concepts and abilities, and
by leading the user through the basics of CX-Programmer programming. It also provides a detailed reference for
all of the CX-Programmer functions.

Separate OMRON manuals describe the PLC programming structure and instruction set in detail. A separate
OMRON manual describes the common features to PLC programming used by software other than CX­Programmer.

CX-Programmer comes with a context sensitive on-line help system which is designed to
complement this manual and to provide a quick reference at any point while using CX­Programmer when the manual is not to hand. This general help system uses a fast ‘hypertext
system’ which allows progressively more information about any topic to be obtained by
selecting keywords within the descriptive text.

Throughout this manual it is assumed that the reader has a working knowledge of Microsoft Windows, and
knows how to:

♦ Use the keyboard and mouse.
♦ Select options from Microsoft Windows menus.
♦ Operate dialog boxes.
♦ Locate, open and save data files.
♦ Edit, cut and paste text.
♦ Use the Microsoft Windows desktop environment.

If Microsoft Windows has not been used before, it is recommended that the reader spends some time working
with it using the Microsoft documentation before using CX-Programmer.

This manual also assumes that a working knowledge of OMRON PLC devices has been obtained.

CX-Programmer Features

CX-Programmer is a support tool for the programming of OMRON PLCs and for maintenance of their device
settings. It supersedes the OMRON applications SYSWIN and SYSMAC-CPT.

The following list describes important features that were present in CX-Programmer 2.1.
♦ Support for new PLCs – Full support has been added for the, CS1G-H, CS1H-H and CJ1G, CJ1G-H, CJ1H-

H series PLCs and the D/S Gateway PLC (CPM2*-S*).

♦ Flash ROM backup – Flash ROM backup is supported for the PLCs incorporating this feature.
♦ Find and Replace – Enhanced and extended Find and Replace functionality. The GUI has been enhanced to

include the scope of the search i.e. whether the Section, Global symbol and/or the Local symbol will be
affected by the search.

PART 1: CX-Programmer
CHAPTER 1 – Technical Specifications OMRON

CX-Programmer _Page 2

♦ Upload/Download – The Upload/Download functionality has been updated to include the CV/CVM1,

CS1/CJ1, CJ1H/H-H and CS1G/H-H PLCs to avoid searching section markers on the initial dialog Upload.

♦ The range of the Send/Recv instruction has been extended to include the PLCs CS1/CJ1, CS1G/H-H and

CJ1G/H-H

♦ Operation – The levels of operation have been extended to include Junior, Demo and Trial versions of the

product.

♦ Symbol Sorting – The symbol sort for number data types has been enhanced and is now sorted separately

from other data types in the symbol table view.

♦ Direct import file range extended to include CPT, SP1 and COD files.

Version 3.0 of CX-Programmer offers the following enhancements.

♦ Support for new PLCs – Full support has been added for the, CJ1M, and CS1D series PLCs.
♦ Changed the sizes and positions of dialogs for editing Contact/Coil/Instruction, Find and Replace, and

Commented Rung.

♦ Auto Online, Work Online Simulator - Enhanced the online functionality making it easier to connect to

PLCs and debug programs.

♦ Combine and Split rungs - The combine and split functions have been added making it easy to add and

divide rungs.

♦ Watch Window - The watch window has been enhanced to enable addresses to be entered directly on the

watch sheet.

♦ Key Mapping - The data of Keyboard Mapping can be saved to a file (*.mac) and loaded into a CX-

Programmer.

♦ Section/Rung Manager - A function to edit a structure of Program is supported. Sections, Rungs and

comments can be edited on this dialog.

♦ I/O Comment view - A View to edit comments of addresses is now supported.

CX-Programmer supports the following PLCs.

Series Model CPU Types

CP1H X, XA

CP1L M, L

CP-Series

CP1E E, N

CJ-Series CJ1G CPU 44, CPU 45

CJ-Series CJ1G-H CPU 42, CPU 43, CPU 44, CPU 45

CJ-Series CJ2H CPU 64, CPU 65, CPU 66, CPU 67, CPU 68,

CPU64-EIP, CPU65-EIP, CPU66-EIP, CPU67-EIP, CPU68-EIP

CJ-Series CJ1H-H CPU64-R, CPU65-R, CPU66-R, CPU67-R, CPU 65, CPU 66, CPU 67

CJ-Series CJ1M CPU 11, CPU 12, CPU 13, CPU 21, CPU 22, CPU 23

CS-Series CS1G

CS1G-H

CPU 42, CPU 43, CPU 44, CPU 45

CS-Series CS1H

CS1H-H

CPU 63, CPU 64, CPU 65, CPU 66, CPU 67

CS1D-H CPU 65, CPU 67 CS-Series

CS1D-S CPU 42, CPU 44, CPU 65, CPU 67

CV-Series CV1000 CPU 01

CV-Series CV2000 CPU 01

CV-Series CV500 CPU 01

CV-Series CVM1 CPU 01, CPU 11

CV-Series CVM1-V2 CPU 01, CPU 11, CPU 21

C-Series C1000H CPU 01

C-Series C2000H CPU 01

C-Series C200H CPU 01, CPU 02, CPU 03, CPU 11, CPU 21, CPU 22, CPU 23, CPU 31

PART 1: CX-Programmer

OMRON CHAPTER 1 – Technical Specifications

CX-Programmer _Page 3

Series Model CPU Types

C-Series C200HE CPU 11, CPU 32, CPU 42

C-Series C200HE-Z CPU 11, CPU 32, CPU 42

C-Series C200HG CPU 33, CPU 43, CPU 53, CPU 63

C-Series C200HG-Z CPU 33, CPU 43, CPU 53, CPU 63

C-Series C200HS CPU 01, CPU 03, CPU 21, CPU 23, CPU 31, CPU 33

C-Series C200HX CPU 34, CPU 44, CPU 54, CPU 64

C-Series C200HX-Z CPU 34, CPU 44, CPU 54, CPU 64, CPU 65, CPU 85

C-Series CPM1

(CPM1A)

CPU 10, CPU 20, CPU 30, CPU 40

C-Series CPM2*

CPM2*-S*

–

C-Series CQM1 CPU 11, CPU 21, CPU 41, CPU 42, CPU 43, CPU 44, CPU 45

C-Series CQM1H CPU 11, CPU 21, CPU 51, CPU 61

NSJ-Series NSJ G5D (Used for the NSJ5-TQ0*-G5D, NSJ5-SQ0*-G5D, NSJ8-TV0*-G5D,

NSJ10-TV0*-G5D, and NSJ12-TS0*-G5D)

FQM-CM FQM1-CM001/002

FQM-MMA FQM1-MMA21/22

FQM-Series

FQM-MMP FQM1-MMP21/22

IDSC – –

SRM1 SRM1 C01, C02

SRM1 SRM1-V2 C01, C02

Note: The CVM1-V1 PLC for types CPU01 and CPU11 cannot be specifically selected. Use the non

V2 types.

Refer to the CX-Server PLC Tools User Manual for information regarding available communication types.

System Requirements

Note: CX-Programmer is not guaranteed to be compatible with computers running Windows

emulation (for example, Apple Macintosh).

The following configurations are required for computers to use the CX-Programmer. These specifications apply
when CX-Programmer is installed from the individual CX-Programmer CD-ROM.

PART 1: CX-Programmer
CHAPTER 1 – Technical Specifications OMRON

CX-Programmer _Page 4

Minimum System Requirements

• Installing the CX-Programmer from the Individual CX-Programmer CD-ROM

Item Microsoft Windows

2000 Service Pack 2

or later or Windows

XP

Microsoft Windows

Vista

(See note 3.)

Computer IBM PC/AT or

compatible

IBM PC/AT or
compatible personal
computer that uses a
processor
recommended by
Microsoft.

Processor Pentium Class

330 MHz minimum

Pentium III Class
1 GHz or faster
recommended.

Processor
recommended by
Microsoft (1 GHz or
faster recommended.)

Program
size of 30
Ksteps or

less

(See note 2.)

128 MB min.

(192 MB min. when
CX-Simulator is also
used.)

Program

size of 120

Ksteps or

less

(See note 2.)

256 MB min.

(256 MB min. when
CX-Simulator is also
used.)

RAM

Memory

Program

size of 120

Ksteps or

more

(See note 2.)

384 MB min.

(384 MB min. when
CX-Simulator is also
used.)

512 MB min. of
memory is required. 1
GB or more is
recommended.

Hard Disk Space 550 MB minimum free

space

550 MB minimum free
space

Display SVGA (800x600) or

better

SVGA (800x600) or
better

CD-ROM Drive One drive min. One drive min.

Communications Port One RS-232C port

min.

One RS-232C port
min.

Note 1: The amount of memory (RAM) required depends on the size of the programs being created.

The CX-Programmer operation may slow significantly if the memory requirements exceed the
computer’s available memory.

Note 2: The program sizes assume that only one PLC is registered. If more than one PLC is registered

in a project, the memory size of the computer must be increased by approximately 1 MB per
1 Kstep of PLC program.

Note 3: Some Help files cannot be accessed when CX-Programmer is used with Microsoft Windows

Vista. These Help files can be accessed if the Help program for Windows Vista from
Microsoft (WinHlp32.exe) is installed. For installation information, refer to the Microsoft
homepage listed below or contact Microsoft Corporation. (The download page is
automatically displayed when the Help file is opened when connected to the Internet.)
http://support.microsoft.com/kb/917607/en_us

• Installing the CX-Programmer from the CX-One Package CD-ROM

Refer to the CX-One Setup Manual (Cat. No. W463) for the conditions required if the CX-Programmer
has been installed from the CX-One CD-ROM.

PART 1: CX-Programmer

OMRON CHAPTER 1 – Technical Specifications

CX-Programmer _Page 5

Installing and Uninstalling the Software

Software That Must Be Installed

The following software must be installed on the same computer to use the CX-Programmer.

1. CX-Programmer

2. CX-Server (the communications driver), including the CX-Server Driver Management Tool

Types of CX-Programmer

The CX-Programmer is available both on an independent CD-ROM and on the CX-One FA Integrated Tool
Package. The contents of the CX-Programmer are the same in either case.

The installation procedure for the independent CD-ROM is provided here. Refer to the CX-One Setup Manual
(W463, provided with the CX-One) for the installation procedure for the CX-One.

Cat. No. Model Manual name Contents

W463 CXONE-AL@@C-E CX-One Setup

Manual

An overview of the CX-One FA Integrated Tool
Package and the CX-One installation procedure

Preparations for Installation

Note: If the CX-Programmer was previously installed from the CX-One and it’s necessary to install

it from the individual CX-Programmer CD-ROM, always uninstall the CX-Programmer using
the following procedure before installing it from its individual CD-ROM. The CX­Programmer will not operate properly if it is installed without first uninstalling it.

1, 2, 3…

1. Insert the CX-One installation disk 1 into the CD-ROM drive.

2. Select the Modify Option to enable modifying the Support Software that is
installed.

3. In the Select Features Dialog Box, clear the selection of only the CX­Programmer. Do not change any other selections.

4. Continue by following the instructions in the dialog boxes to modify the
installation and uninstall CX-Programmer.

5. Once the CX-Programmer uninstallation process has been completed,
place the individual CD-ROM disk for the CX-Programmer into the CD­ROM drive and install the CX-Programmer. (See note.)

Note: If the version of the CX-Server bundled on the individual CX-

Programmer CD-ROM is lower than the version of the CX-Server
bundled with the CX-One, install only the CX-Programmer and NOT
the CX-Server. (A message will be displayed if the version is lower.) If
a version of CX-Server that is lower than the version with the CX-One
is installed, the CX-One will not operate properly.

PART 1: CX-Programmer
CHAPTER 1 – Technical Specifications OMRON

CX-Programmer _Page 6

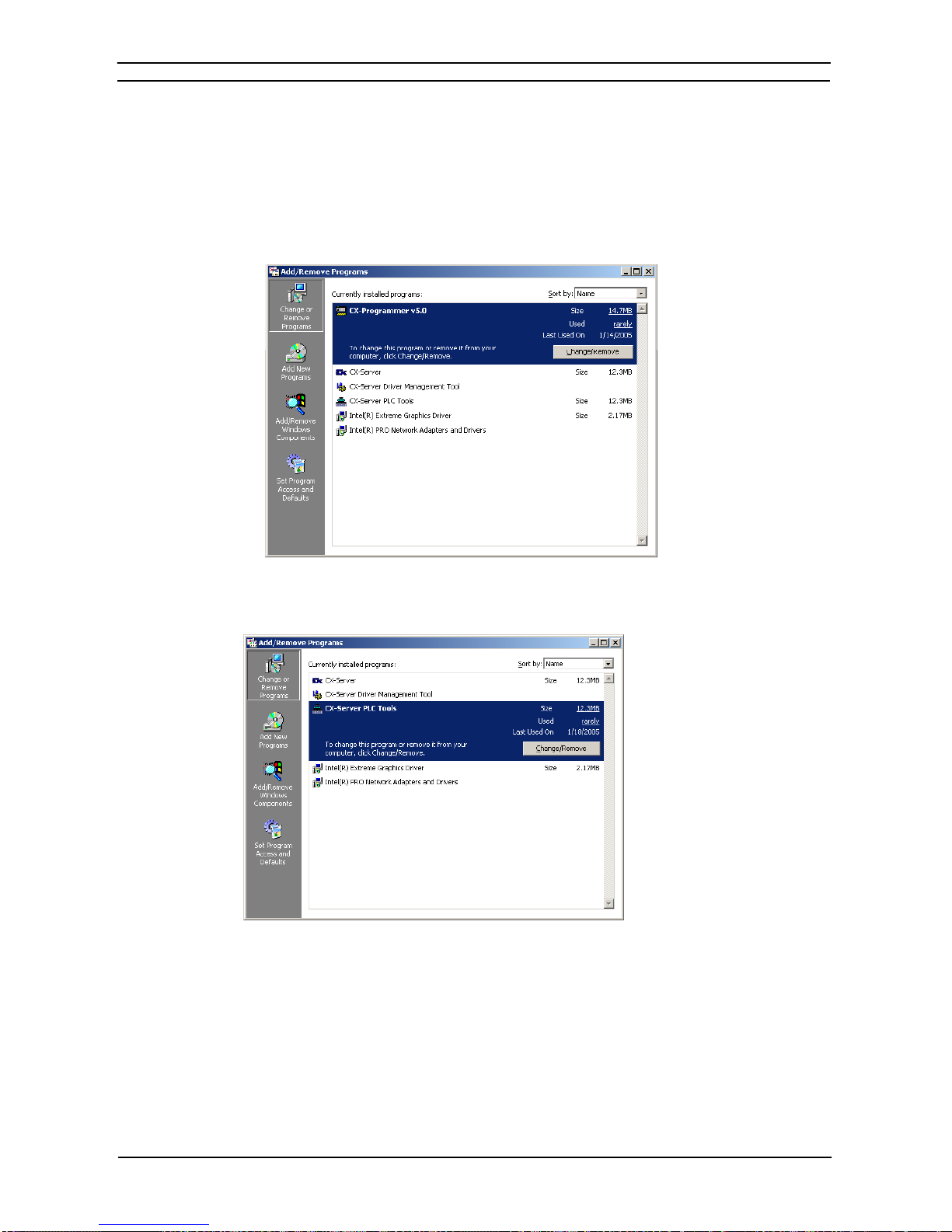

Uninstalling the Previous Version of CX-Programmer

Always uninstall the previous version of the CX-Programmer before installing the new version.

1, 2, 3…

1. Start Add/Remove Programs from the control panel.

2. Select CX-Programmer from the dialog box.

3. Click the Change/Remove Button. The CX-Programmer will be uninstalled.

Uninstalling the CX-Server PLC Tools

Also uninstall the CX-Server PLC Tools in the same way as for the previous version of the CX-Programmer
before installing the new version of CX-Programmer.

Note: The Installer manages the version and driver for the CX-Server. If the CX-Server installed on

the computer is old, the Installer will automatically update the CX-Server. If the CX-Server
Driver Management Tool or the CX-Server is uninstalled from the control panel, it may no
longer be possible to use certain Units. Do not uninstall the CX-Server Driver Management
Tool or the CX-Server from the control panel.

PART 1: CX-Programmer

OMRON CHAPTER 1 – Technical Specifications

CX-Programmer _Page 7

Precautions for Installation

This section describes the procedures involved in the installation of CX-Programmer on a standard workstation
running Microsoft Windows 2000 or XP.

♦ Close all programs running on Windows before starting the installation procedure.
♦ Do not stop the setup process in the middle. Copied files may remain in the installation directory.
♦ Do not turn OFF or reset the computer in the middle of the installation process. Computer data may become

corrupted.

♦ On Windows 2000, or XP, the administrator or a user with administrator rights must perform the

installation. Other users will not have sufficient write permissions and access errors will occur.

♦ With Windows 2000, always use service pack 2. The service pack can be confirmed by selecting Start -

Settings - Control Panel - System. The service pack will be displayed under System on the General Tab

Page of the System Properties Dialog Box. If a service pack is not displayed, no service pack has been
installed. Refer to Microsoft’s website for service pack installation methods.

♦ It may be necessary to restart Windows after finishing the installation. If required, restart Windows

according to the messages displayed by the Installer.

Note: Internet Explorer version 5.0 or higher must be installed in advance to use the CX-Server

Installer. Install Internet Explorer version 5.0 in advance if it is not already installed.

PART 1: CX-Programmer
CHAPTER 1 – Technical Specifications OMRON

CX-Programmer _Page 8

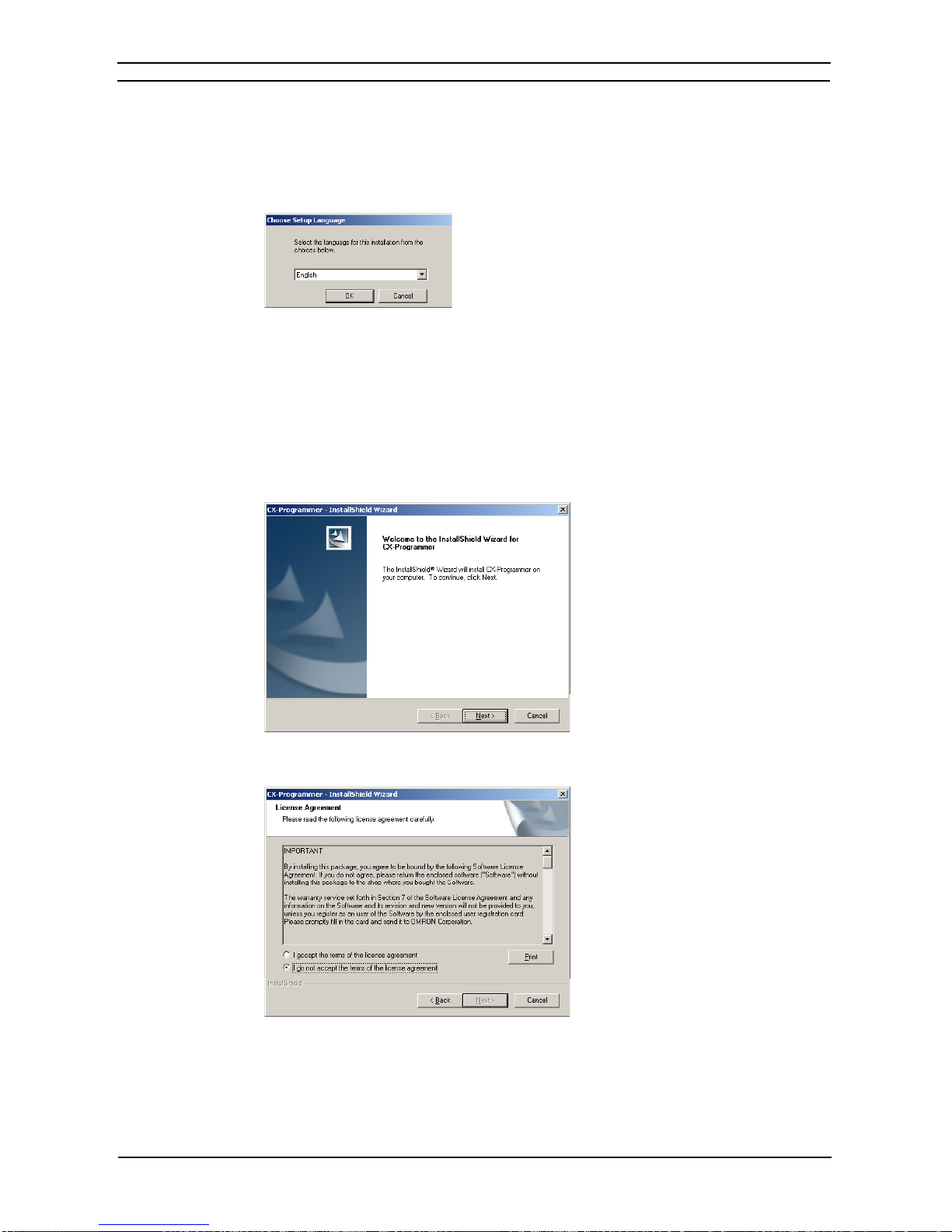

Installing the CX-Programmer

1, 2, 3…

1. Insert the CX-Programmer installation disk (CD-ROM) into the CD-ROM drive.

2. The setup program will start automatically and the Choose Setup Language Dialog Box
will be displayed.

The language of the operating system running on the computer will be selected

automatically.

If the above dialog box is not displayed, double-click the CD-ROM driver from the
Explorer to display it.

Select the language to be installed and click OK button. (See note.)

Note: The following languages can be selected: English, Italian, Spanish,

German, French or Chinese.

3. A splash window for the CX-Programmer will be displayed, followed by the Setup
Wizard.

Click the Next Button.

4. The License Agreement Dialog Box will be displayed.

Read the license agreement completely and if you accept all of the terms, select the I

accept the terms of the license agreement Option and click the Next Button.

PART 1: CX-Programmer

OMRON CHAPTER 1 – Technical Specifications

CX-Programmer _Page 9

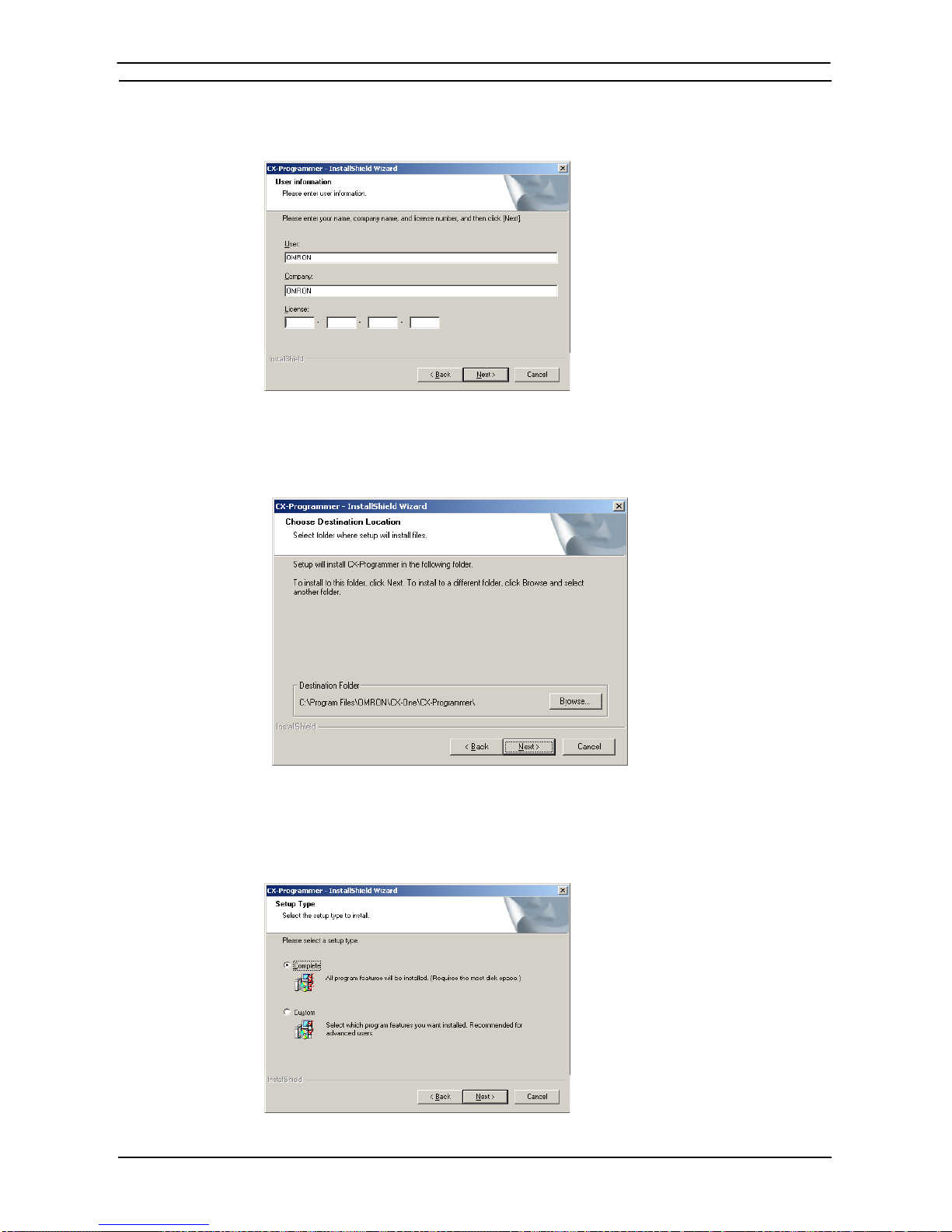

5. The User Information Dialog Box will be displayed.

The default names registered in the computer will be entered for the user name and

company name. Enter the license number and click the Next Button. The license number
is given on the Software License/Registration Card provided with the product.

6. The Choose Destination Location Dialog Box will be displayed.

Select the destination location and click the Next Button. By default, the CX-Programmer
will be installed in the following location: C:\Program Files\OMRON\CX-One\CX­Programmer\.

7. The Setup Type Dialog Box will be displayed.

PART 1: CX-Programmer
CHAPTER 1 – Technical Specifications OMRON

CX-Programmer _Page 10

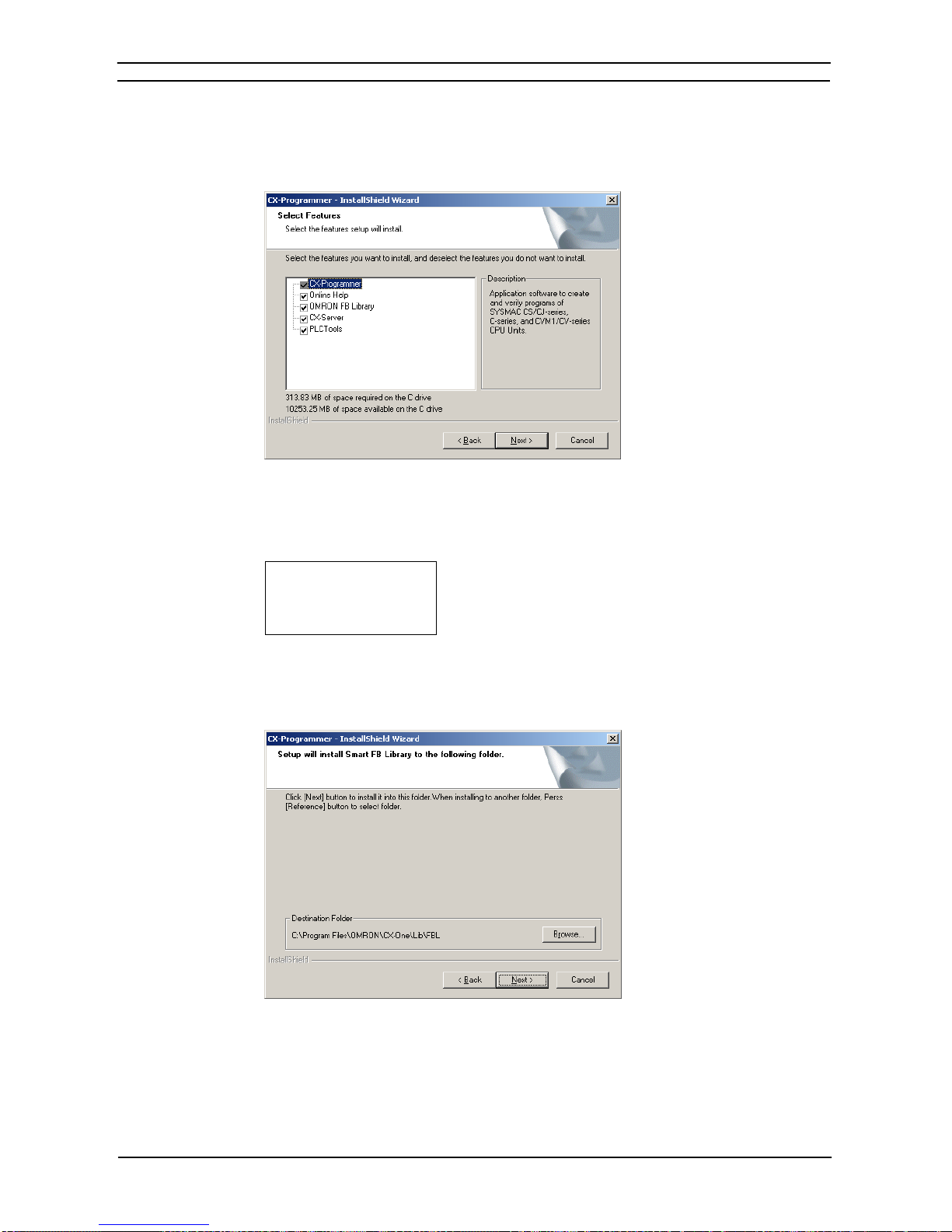

Select the Complete or Custom Option and click the Next Button.

8. The Select Features Dialog Box will be displayed if Custom was selected.

Note: The above dialog box will not be displayed if Complete is selected. Proceed to step 9.

Select the features to be installed and click the Next Button.

Options

@CX-Programmer
@

Onl ine Hel p

@OMRON FB Lib rary
@CX-Server
@PLCTools

9. The Setup will install Smart FB Library to the following folder Dialog Box will be
displayed.

Check the destination location and click the Next Button. By default, the Smart FB

Library will be installed in C:\Program Files\OMRON\CX-One\Lib\FBL\.

PART 1: CX-Programmer

OMRON CHAPTER 1 – Technical Specifications

CX-Programmer _Page 11

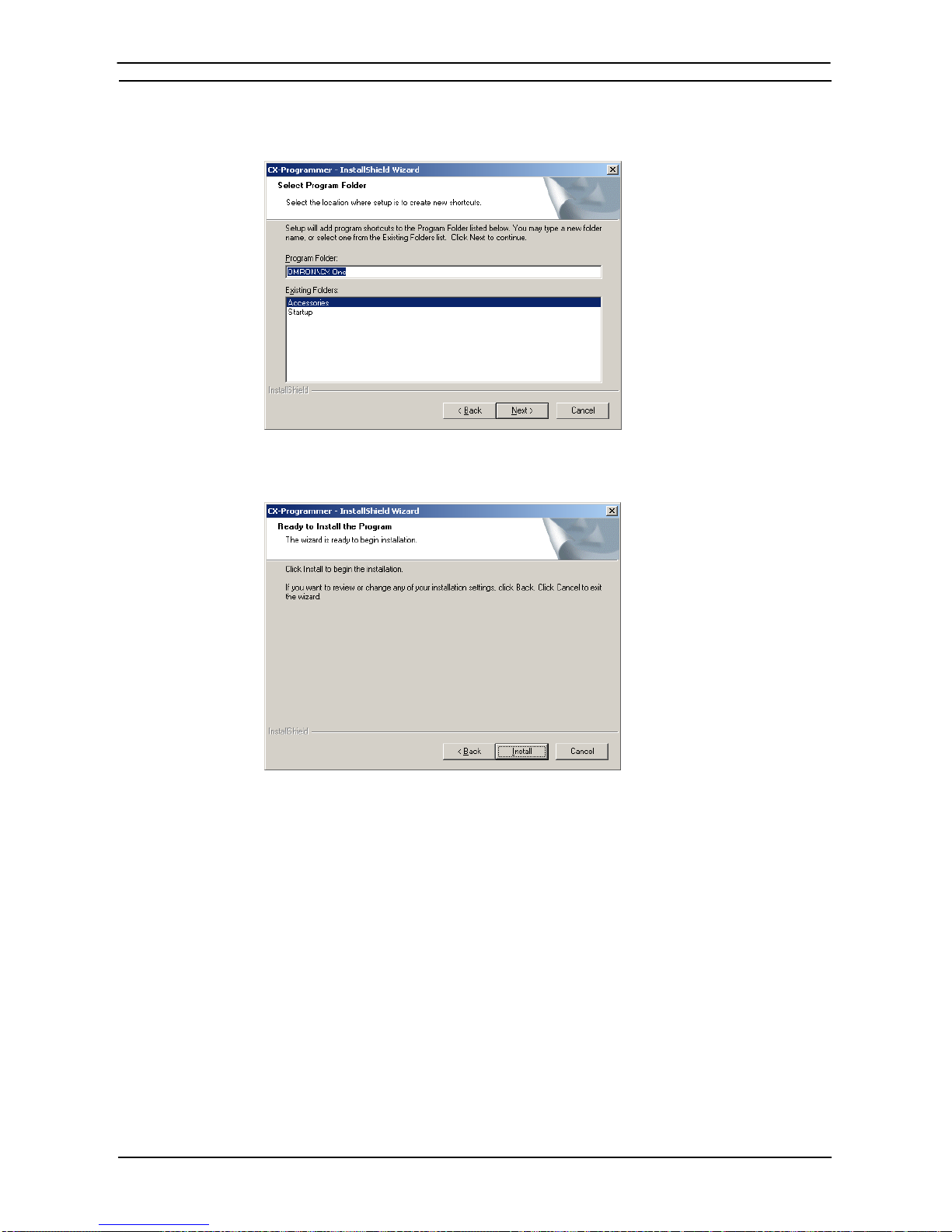

10. The Select Program Folder Dialog Box will be displayed.

Specify the location to add a shortcut in the program folder of the Windows Start Menu

and click the Next Button.

11. The Ready to Install the Program Dialog Box will be displayed.

Click the Install Button.

The Installer will start the installation.

To check the installation settings, click the Back Button.

To cancel installation, click the Cancel Button.

12. If the CX-Server is already installed on the computer, the Installer will automatically
check the CX-Server version and driver and update them as required. Depending on the
version of CX-Server that was already installed, and confirmation dialog box may be
displayed.

PART 1: CX-Programmer
CHAPTER 1 – Technical Specifications OMRON

CX-Programmer _Page 12

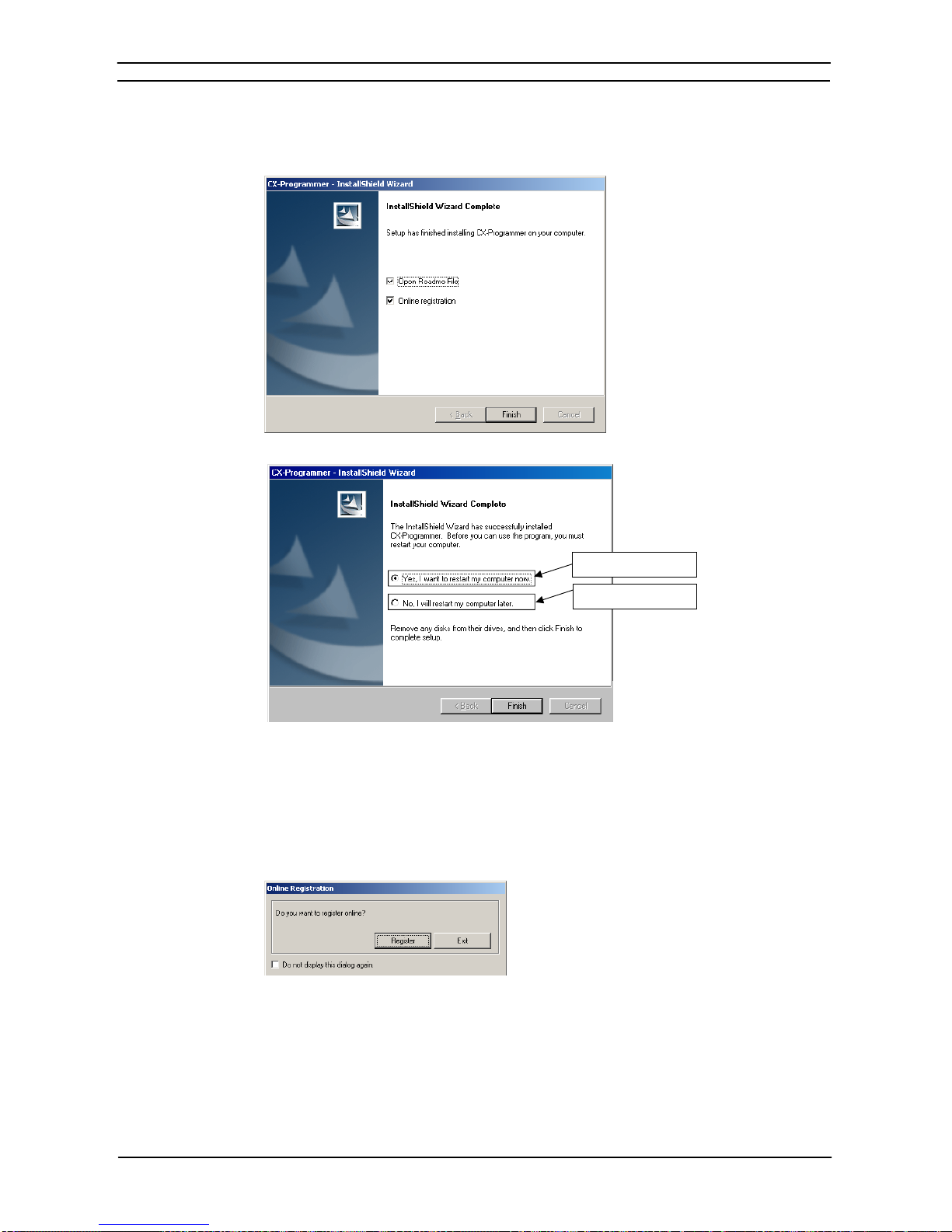

13. The following dialog box will be displayed when the Installer completes the installation.
Click the Finish Button.

The following dialog box will be displayed if restarting the computer is required.

Select to restart t he computer
immediately (default).

Select to restart t he computer
manually sometime later.

Select the desired option and click the Finish Button. If the Yes, I want to restart my

computer now Option was selected, the computer will be restarted.

14. The Readme.txt file will be displayed after the computer is restarted.

Note: Always read the Readme.txt file before using the CX-Programmer.

15. The Online Registration Dialog Box will be displayed when the Readme.txt file is
closed.

A wizard will be started and will connect to the OMRON CX-One Web if the Register

Button is clicked. (See notes.)

Note: 1. If the Exit Button is clicked to cancel registration, the Online Registration Dialog

Box will be displayed every time the CX-One Configuration Tool is started.

2. Online installation will not be possible if the computer is not connected to the
Internet. Enter the required information on the registration card and mail it in.

This completes installation of the CX-Programmer.

PART 1: CX-Programmer

OMRON CHAPTER 1 – Technical Specifications

CX-Programmer _Page 13

Uninstalling the CX-Programmer

Use the following procedure to delete the CX-Programmer from the computer.

1, 2, 3…

1. Select Start - Settings - Control Panel - Add/Remove Programs.

The Add/Remove Programs Dialog box will be displayed.

2. Select CX-Programmer from the dialog box.

3. Click the Change/Remove Button.

4. The CX-Programmer Installation Wizard will be displayed. Select the Remove Option
and click the Next Button.

5. If deleting the CX-Programmer completely is selected, the following dialog box will be
displayed. Click the Yes Button to start the Uninstaller that will delete the CX­Programmer.

PART 1: CX-Programmer
CHAPTER 1 – Technical Specifications OMRON

CX-Programmer _Page 14

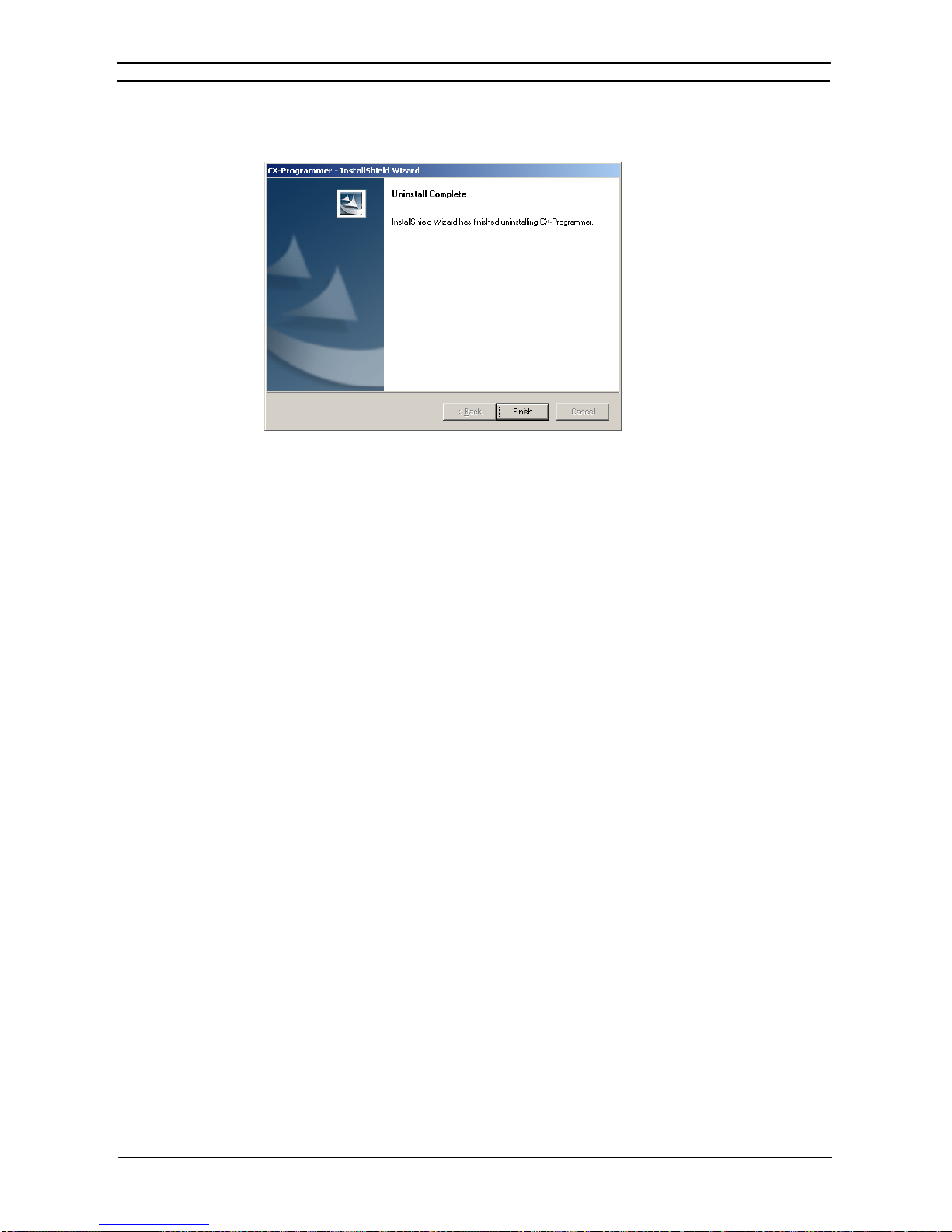

6. When the uninstallation has been completed, the following dialog box will be displayed.

Uninstalling the CX-Server

Note

1. The Installer manages the version and driver for the CX-Server. If the CX-Server installed
on the computer is old, the Installer will automatically update the CX-Server. If the CX­Server Driver Management Tool or the CX-Server is uninstalled from the control panel, it
may no longer be possible to use certain Units. Do not uninstall the CX-Server Driver
Management Tool or the CX-Server from the control panel.

2. Do not uninstall the CX-Server if there are other programs on the computer that use it as
the communications driver, e.g., the CX-Motion. If the CX-Server is uninstalled, it will no
longer be possible to use these other programs.

3. Do not uninstall the CX-Server while other programs that use it as the communications
driver are running on the computer, e.g., the CX-Motion. The CX-Server may not
uninstall properly if other programs are using it.

4. Always uninstall the CX-Server Driver Management Tool before uninstalling the CX­Server. If the CX-Server is uninstalled first, it may no longer be possible to uninstall the
CX-Server Driver Management Tool properly.

PART 1: CX-Programmer

OMRON CHAPTER 1 – Technical Specifications

CX-Programmer _Page 15

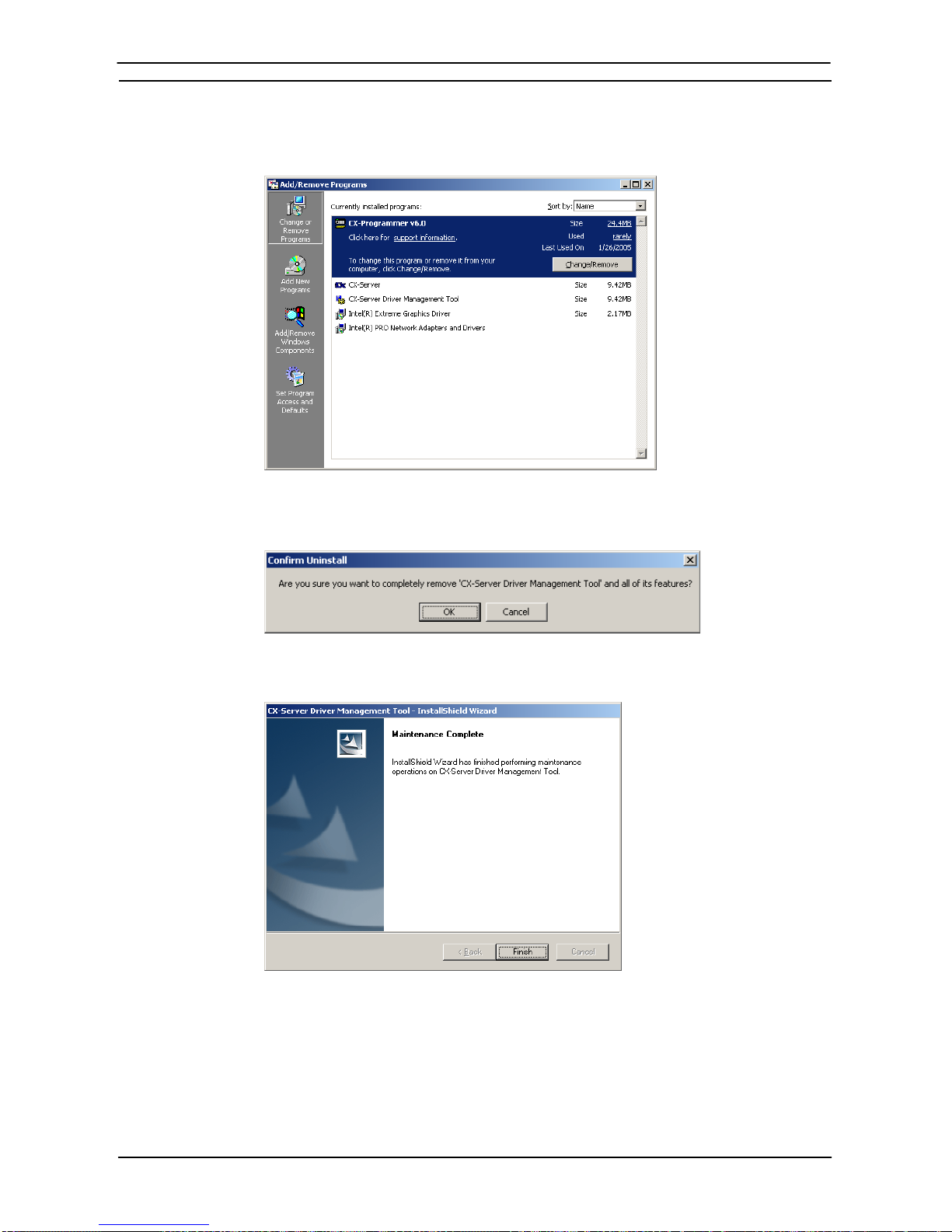

1, 2, 3…

1. Select Start - Settings - Control Panel - Add/Remove Programs.

The Add/Remove Programs Dialog box will be displayed.

2. Select CX-Server Driver Management Tool from the dialog box.

3. Click the Change/Remove Button.

4. A confirmation dialog box will be displayed. Click the Yes Button.

The CX-Server Driver Management Tool will be uninstalled.

5. When the uninstallation has been completed, the following dialog box will be displayed.

Click the Finish Button. The Add/Remove Programs Dialog Box will be displayed again.

6. In the same way, select CX-Server from the Add/Remove Programs Dialog Box, click

the Change/Remove Button, and uninstall the CX-Server following the messages that
appear on the screen.

7. Restart the computer when all programs have been uninstalled.

PART 1: CX-Programmer
CHAPTER 1 – Technical Specifications OMRON

CX-Programmer _Page 16

Installation Options

The following components can be installed individually during a custom installation when the CX-Programmer
is being installed from the individual CX-Programmer CD-ROM.

♦ Online Help (selected by default)
♦ Function Block Library (selected by default)
♦ CX-Server (selected by default)
♦ PLC Tools (selected by default)
♦ NCF_European_DB (not selected by default)

Note: Refer to the CX-One Setup Manual for details on installing the CX-Programmer from the CX-

One Package CD-ROM.

Entering a License Number

During the installation, a license number must be entered. The license number is supplied with the purchase of
CX-Programmer. There are eight different license number types representing eight different modes of
installation. Upgrade license numbers are available on request.

The eight installation modes are:

Full (1 User)

Installation providing full functionality support for all PLCs.
The license is restricted to a single user installation.

Full (3 User)

Installation providing full functionality support for all PLCs.
The license is restricted to a three-user installation.

Full (10 User)

Installation providing full functionality support for all PLCs.
The license is restricted to a ten-user installation.

Multiple User

Installation providing full functionality support for all PLCs.
The license is restricted to a multiple-user installation.

Junior

Installation providing full functionality support for the junior range PLCs only
CP1H, CP1L, CP1E, CPM1 (CPM1A), CPM2*, SRM1, SRM1-V2.
The license is restricted to a single-user installation.

Multiple User
(Junior)

Installation providing full functionality support for the junior range PLCs only
CP1H, CP1L, CP1E, CPM1 (CPM1A), CPM2*, SRM1, SRM1-V2.
The license is restricted to a multiple-user installation.

Trial

Installation providing full functionality support for all PLCs. Its use is limited to 30 days
from time of installation.
The license is restricted to a single-user installation.

Demonstration

Installation providing limited functionality support for all PLCs. Full system operation is
provided but projects can not be saved or printed.

If no license number is entered then CX-Programmer is automatically installed in demonstration mode.

If CX-Server was included in the installation then on completion of the CX-Programmer installation a number
of dialogs will prompt for information concerning the installation of CX-Server and its components.

PART 1: CX-Programmer

OMRON CHAPTER 1 – Technical Specifications

CX-Programmer _Page 17

Help and How to Access it

CX-Programmer comes with a detailed context-sensitive help system. At any time while using the software, it is
possible to get help on the particular point that is currently being worked on, or on general aspects of CX­Programmer. This system is intended to complement the manual, by providing an on-line reference to specific
functions of the software. The manual is designed to provide tutorial information and discuss the various
facilities offered by CX-Programmer.

♦ Help topics (available from the Help menu);
♦ Instruction Reference (available from the Help menu and from the instruction entry dialog);
♦ Context sensitive help;
♦ About (available from the Help menu);
♦ Status Bar.

Help Topics

Select the Help Topics option on the Help menu. The Help system provides a standard look-up dialog under the
Contents tab showing the contents of the CX-Programmer Help file. Double-click on an item to read the

associated information.

Index

Use the following procedure to retrieve on-line help from the Index tab of the Help Topics dialog.

1, 2, 3…

1. Select the Help Topics option from the Help menu.

2. Select the Index tab.

3. Enter a text query into the first step field. The second step field is refreshed according to
the query entered in the first step field.

4. Select an entry in the second step field and select the Display pushbutton, or double-click
on the index entry.

5. If an entry is linked to two or more topics, the names of the topics are displayed in the
Topics Found dialog. Select a topic and choose the Display pushbutton or double-click on
the topic.

Find

Use the following procedure to retrieve on-line help from the Find tab of the Help Topics dialog.

1, 2, 3…

4. Select the Help Topics option from the Help menu.

5. Select the Find tab.

6. Enter a text query into the first step field. The second step field is refreshed according to
the query entered in the first step field. Previous text queries can be retrieved by selecting
from the drop-down list in the first step field.

7. Select a word that matches the query – some words may be automatically selected. More
than one word can be selected by pressing Shift and selecting another word to extend the
selection or by pressing Ctrl and selecting another word to add to the selection. The third
step field is refreshed according to the word or words selected. The number of topics
found is shown at the bottom of the dialog.

8. Select a topic from the third step field and select the Display pushbutton, or double-click
on the topic from the third step field. Select the Clear pushbutton to restart the Find
operation.

The Find operation can be enhanced by the use of the Options pushbutton and Rebuild push-button. Refer to
Microsoft Windows documentation for further information.

Instruction Reference

CX-Programmer supports additional help for CS/CJ/CP-series PLCs, CV-series PLCs and C-series PLCs. All
valid instructions relating to PLC programming can be retrieved by selecting Instruction Reference from the
Help menu, followed by either CS/CJ/CP-Series, CV-Series or C-Series. Individual help topics are displayed.

PART 1: CX-Programmer
CHAPTER 1 – Technical Specifications OMRON

CX-Programmer _Page 18

Keyboard Mapping Reference

CX-Programmer supports a function to customize the keyboard mapping, and provides default keyboard
mapping files for CX-Programmer, SYSWIN and SYSMAC Support Software. A list of each keyboard mapping
file is displayed.

Note: Guidance can be displayed for CX-Programmer functions for SYSMAC Support Software

operations and SYSWIN operations by selecting Function Key Guidance from the View
menu. The CX-Programmer shortcut key allocations for all keys can be displayed by selecting
Information Window from the View menu.

Context Sensitive Help

CX-Programmer supports the use of context sensitive help. The relevant on-line help topic is provided
automatically by selecting the current area of the display responsible for carrying out those actions. Select the F1
function key to retrieve context sensitive help. Some dialogs include a Help pushbutton when F1 cannot be
accessed.

It is also possible to retrieve context sensitive help by selecting the Help button from the
toolbar and selecting an area of the display to retrieve help.

About CX-Programmer

CX-Programmer includes an About button accessible from the toolbar. The About CX­Programmer dialog supplies technical reference information about the application such as
version and copyright information. It also contains essential version number information that
is required for obtaining technical support.

Status Bar

The status bar is displayed at the bottom of many of the CX-Programmer display and tool windows. It provides
several helpful pieces of information while programming:

♦ Instant Help. A brief message appears in the status bar as menu commands and buttons are selected.
♦ On-line Status. This shows the on-line or off-line status of the PLC. If connection to a PLC is lost, the status

bar will indicate this by flashing.

♦ Network and Node number. This shows the network number and the node number of the current PLC,

which the cursor is pointing at. When connected to a simulator, Simulator will be displayed instead.

♦ PLC Operating Mode. When connected to a PLC, this shows the current PLC mode. Connection errors are

also displayed here.

♦ Connected PLC and CPU Type. The currently connected PLC and associated CPU can always be

referenced in the status bar.

♦ PLC Cycle Time. This shows the current cycle time of the PLC when connected.
♦ Cursor Position. This shows the position of the cursor within the program.
♦ On-line Edit Buffer Size. This shows the size remaining in the on-line edit buffer when connected to a PLC

and editing on-line.

♦ PLC memory backup. This shows the status of the PLC memory backup.

The CX-Programmer status bar can be enabled and disabled by selecting the Status Bar option from the View
menu.

Technical Support

If the installation instructions for this application have been followed (refer to Chapter 1 - Technical
Specifications), no difficulties should be encountered. However, if there is a problem, contact Customer

Services.

If a problem occurs, check that it does not relate to a fault outside CX-Programmer, for instance, with CX­Server components. Check the following:

♦ The computer is working correctly.
♦ The PLC is working correctly.
♦ The communications system is set up correctly.

PART 1: CX-Programmer

OMRON CHAPTER 1 – Technical Specifications

CX-Programmer _Page 19

♦ The errors are cleared in the PLC.

When Customer Services need to be contacted, keep the following details to hand. A clear and concise
description of the problem is required, together with the exact text of any error messages.

Note: Use the About dialog to obtain the version number of the application (the four-fielded version

listed against the ‘CX-P.exe’ entry in the bottom list).

Customer Services Request Form

Version number of CX­Programmer:

Serial number of the software:

Operating system and version
number:

Language of operating system:

PLC type, model and CPU details:

Type of communications in use:

Serial

SYSMAC LINK

SYSMAC NET

Controller Link

Ethernet

Toolbus

Nature of the problem:

Steps taken to reproduce problem:

Other comments:

Refer to the CX-Server PLC Tools User Manual for support details regarding CX-Server components.
