Page 1
INSTRUCTION MANUAL
10 series Plus
Blood Pressure Monitor
with ComFitTMCuff
Model BP791IT
ESPAÑOL
ENGLISH
Page 2
TABLE OF CONTENTS
Before Using the Monitor
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Operating the Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Risk of Electrical Shock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Before Taking a Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Operating Instructions
Know Your Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Unit Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Display Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Irregular Heartbeat Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Movement Error Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
USER ID Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Morning Hypertension Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Heartbeat Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Average Value Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Morning Average Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Evening Average Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Cuff Wrap Guide Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Using the AC Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Setting the Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Setting TruRead
Applying the Arm Cuff . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
TM
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
2
Page 3
TABLE OF CONTENTS
Taking a Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Calibration Check System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Cuff Wrap Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Using the Guest Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Selecting the USER ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Using the USER ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Using the Single Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Using the TruRead
Special Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Using the Memory Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Averaging Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
To Display the Measurement Values . . . . . . . . . . . . . . . . . . . . . . . .39
Morning and Evening Averages . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
To Display Morning and Evening Averages . . . . . . . . . . . . . . . . . .42
Display Combinations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
To Delete All Values Stored in the Memory . . . . . . . . . . . . . . . . . .44
Downloading Instructions
Installing the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Downloading and Installing Microsoft®HealthVaultTM . . . . . . . . .45
Downloading and Installing Omron Health
Management Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Using the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Care and Maintenance
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Error Indicators and Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . .55
FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
TM
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
3
Page 4
Before Using the Monitor
INTRODUCTION
Thank you for purchasing the Omron®BP791IT 10 series Plus
Automatic Blood Pressure Monitor with ComFit
TM
Cuff.
Fill in for future reference.
DATE PURCHASED: __________________
SERIAL NUMBER: ____________________
• Staple your purchase receipt here
• Register your product on-line at
www.register-omron.com
Your new blood pressure monitor uses the oscillometric method of
blood pressure measurement. This means the monitor detects your
blood’s movement through your brachial artery and converts the
movements into a digital reading. The monitor stores measurement
results for two people and features Morning and Evening Averages.
TruRead
intervals for an average reading.
The BP791IT comes with the following components:
• Monitor • ComFit
• 4 “AA” Alkaline Batteries • Storage Case • USB Cable
• Instruction Manual printed in English and Spanish
• Quick Start Guide
The BP791IT 10 series Plus Automatic Blood Pressure Monitor is
intended for home use.
TM
allows for three consecutive measurements with timed
TM
Cuff • AC Adapter
Please read this instruction manual thoroughly before using the unit.
Please keep for future reference.
For specific information about your own blood pressure,
CONSULT YOUR DOCTOR.
SAVE THESE INSTRUCTIONS
4
Page 5
SAFETY INFORMATION
To assure the correct use of the product basic safety measures should
always be followed including the warnings and cautions listed in this
instruction manual.
SAFETY SYMBOLS USED IN THIS INSTRUCTION MANUAL
Indicates a potentially hazardous situation
WARNING
CAUTION
OPERATING THE DEVICE
Contact your physician for specific information about your blood
pressure. Self-diagnosis and treatment using measured results may
be dangerous. Follow the instructions of your physician or licensed
healthcare provider.
DO NOT adjust medication based on measurement results from this
blood pressure monitor. Take medication as prescribed by your
physician. Only a physician is qualified to diagnose and treat High
Blood Pressure.
The monitor is not intended to be a diagnostic device.
If battery fluid should get in your eyes, immediately rinse with
plenty of clean water. Contact a physician immediately.
Read all of the information in the instruction manual and any other
literature in the box before operating the unit.
which, if not avoided, could result in death or
serious injury.
Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderate injury to the user or patient or
damage to the equipment or other property.
5
Page 6
SAFETY INFORMATION
OPERATING THE DEVICE (continued)
This device is intended for use in measuring blood pressure and
pulse rate in the adult population. Do not use this device on infants
or persons who cannot express their intentions.
Read the Special Conditions section (page 37) of the instruction
manual if your systolic pressure is known to be more than 220
mmHg. Inflating to a higher pressure than necessary may result in
bruising where the cuff is applied.
Operate the device only as intended. Do not use the device for any
other purpose.
Dispose of the device, components and optional accessories
according to applicable local regulations. Unlawful disposal may
cause environmental pollution.
Do not use a cellular phone near the device. It may result in an
operational failure.
Use only Omron authorized parts and accessories. Parts and
accessories not approved for use with the device may damage the
unit.
Use only 1.5V alkaline batteries with this device.
Do not use other types of batteries. This may damage the unit.
6
Page 7
SAFETY INFORMATION
RISK OF ELECTRICAL SHOCK
Do not plug or unplug the power cord into the electrical outlet with
wet hands.
Do not overload power outlets. Plug the device into the appropriate
voltage outlet.
CARE AND MAINTENANCE
Do not subject the monitor to strong shocks, such as dropping the
unit on the floor.
Do not submerge the device or any of the components in water.
Store the device and the components in a clean, safe location.
Changes or modification not approved by Omron Healthcare will
void the user warranty. Do not disassemble or attempt to repair the
unit or components.
7
Page 8
BEFORE TAKING A MEASUREMENT
To ensure a reliable reading follow these recommendations:
1. Avoid eating, drinking alcohol, smoking, exercising, and bathing for
30 minutes prior to taking a measurement. Rest for at least 15
minutes prior to taking the measurement.
2. Stress raises blood pressure. Avoid taking measurements during
stressful times.
3. Measurements should be taken in a quiet place.
4. Remove tight-fitting clothing from your arm.
5. Sit on a chair with your feet flat on the floor. Rest your arm on
a table so that the cuff is at the same level as your heart.
6. Remain still and do not talk during the measurement.
7. Keep a record of your blood pressure and pulse readings for your
physician. A single measurement may not provide an accurate
indication of your true blood pressure. You need to take and record
several readings over a period of time. Try to measure your blood
pressure at about the same time each day for consistency.
8
Page 9
Operating Instructions
KNOW YOUR UNIT
Main Unit:
Calibration
Check System
SET Button
USER ID
Selection
Switch
Up/Down
(
USB Port
/
Display
Morning/Evening Average
( ) Button
Memory ( ) Button
Start/Stop Button
) Buttons
Battery Compartment
Air Jack
AC Adapter Jack
9
Page 10
Components:
KNOW YOUR UNIT
Air Plug
(Connects to Air Jack)
Arm Cuff
4 “AA” Alkaline
Batteries
Air Tube
Storage Case
Housing
Cord
AC Adapter
INSTRUCTION MANUAL
Blood Pressure Monitor
with ComFitTMCuff
USB Cable
10 series
Plus
ModelBP791IT
ESPAÑOL
ENGLISH
Quick Start Guide
Instruction Manual
10
Page 11
USER ID Symbol (A or B)
Week Display
TM
TruRead
Symbol
UNIT DISPLAY
Date/Time Display
Morning Average Symbol
Evening Average Symbol
Irregular Heartbeat Symbol
Average Value Symbol
Memory Symbol
Systolic Blood Pressure
Diastolic Blood Pressure
Heartbeat Symbol
Low Battery Indicator
Morning Hypertension Symbol
Movement Symbol
Blood Pressure Level Indicator
Deflation Symbol
Cuff Wrap Guide
Pulse Display / Memory Number
11
Page 12
/
DISPLAY SYMBOLS
IRREGULAR HEARTBEAT SYMBOL ( )
When the monitor detects an irregular rhythm two or more times during
the measurement, the Irregular Heartbeat Symbol ( ) will appear on the
display with the measurement values.
Pulse
Blood
pressure
Pulse
Blood
pressure
Normal Heartbeat
Irregular Heartbeat
Short Long
An irregular heartbeat rhythm is defined as
a rhythm that varies by less than 25% from
the average rhythm or 25% more than the
average rhythm detected while the monitor
is measuring the systolic and diastolic blood
pressure.
If the irregular heartbeat symbol ( )
displays with your measurement results, we
recommend you consult your physician.
Follow the directions of your doctor.
MOVEMENT ERROR SYMBOL ( )
The Movement Error Symbol is displayed if you move your body during
the measurement. Please remove the arm cuff, and wait 2-3 minutes.
Take another measurement, remain still during inflation.
USER ID SYMBOL (
)
The USER ID Symbol indicates USER A or USER B as selected by
the user to take a measurement or when using the memory function.
The USER ID Symbol is not displayed when using the Guest Mode to
take a measurement.
12
Page 13
DISPLAY SYMBOLS
Internationally recognized guidelines for upper limit of normal home
blood pressure readings are as follows:
Home Guideline for Upper Limit of Normal BP
Systolic Blood Pressure 135 mmHg
Diastolic Blood Pressure 85 mmHg
This is a general guideline because blood pressure depends on
age and morbidity. A lower home blood pressure goal may be
recommended for certain patients, including diabetic patients,
pregnant women, and patients with renal failure.
The monitor is not intended to be a diagnostic device.
MORNING HYPERTENSION SYMBOL ( )

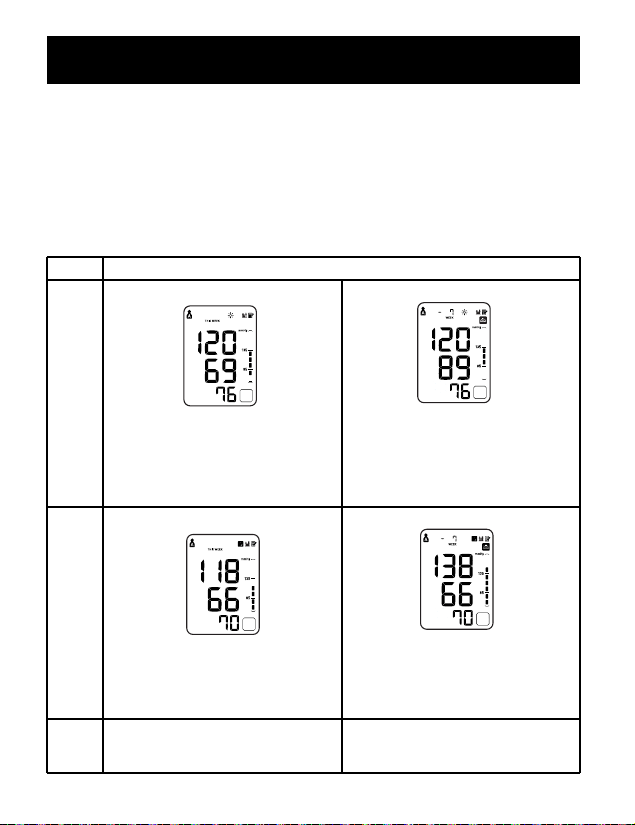

The Morning Hypertension Symbol is displayed if the morning average
reading for a week is above 135 for the Systolic Blood Pressure value
and/or 85 for the Diastolic Blood Pressure value when viewing the
Morning Averages and the Evening Averages in the memory.
Omron Healthcare recommends you contact your physician if the
MORNING HYPERTENSION SYMBOL appears on the display with
your measurement values.
13
Page 14
DISPLAY SYMBOLS
HEARTBEAT SYMBOL ( )
The Heartbeat symbol flashes on the display at every heartbeat during
the measurement.
AVERAGE VALUE SYMBOL ( )
The Average Value Symbol is displayed when you press the memory
button. The most recent average reading appears on the display screen.
MORNING AVERAGE SYMBOL ( )
The Morning Average symbol is displayed when viewing Morning
Averages using the Memory Function.
EVENING AVERAGE SYMBOL ( )
The Evening Average symbol is displayed when viewing Evening
Averages using the Memory Function.
CUFF WRAP GUIDE SYMBOL ( / )
When the cuff is wrapped around the arm correctly, ( ) is displayed
while taking a measurement or using the memory function. If the cuff is
not wrapped around the arm correctly, ( ) is displayed.
14
Page 15
USING THE AC ADAPTER
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
- DANGER -
TO REDUCE THE RISK OF
FIRE OR ELECTRIC SHOCK,
CAREFULLY FOLLOW THESE INSTRUCTIONS.
For connection to a power supply not in the U.S.A., use an
attachment plug adapter of the proper configuration for the power
outlet.
The power unit (AC Adapter) is intended to be correctly oriented
in a vertical or floor mount position.
NOTES: • Use only the authorized Omron AC Adapter that came with
this monitor.
• We recommend you install the batteries even if the AC
Adapter is used. If no batteries are installed, you may need to
reset the date and time if the AC Adapter is disconnected.
The measurement results will not be deleted.
CAUTION
Use only Omron authorized parts and accessories. Parts and
accessories not approved for use with the device may damage the
unit.
15
Page 16
USING THE AC ADAPTER
TO CONNECT THE AC ADAPTER
① Insert the AC Adapter Plug into
the AC Adapter Jack on the back
side of the monitor as illustrated.
② Plug the AC Adapter into a 120V
AC outlet (60 cycles).
TO DISCONNECT THE AC ADAPTER
① Hold the Housing to remove the AC Adapter from the electrical
outlet.
② Remove the AC Adapter plug from the monitor.
WARNING
Do not plug or unplug the power cord into the electrical outlet with
wet hands.
WARNING
Do not overload power outlets. Plug the device into the appropriate
voltage outlet.
Housing
Cord
16
Page 17
BATTERY INSTALLATION
1. Remove the battery cover by pulling the
hook up while pushing it in the direction
of the arrow.
2. Install 4 “AA” size batteries so the +
(positive) and - (negative) polarities match
the polarities of the battery compartment
as indicated.
3. Replace the battery cover.
Battery Cover
17
Page 18
BATTERY INSTALLATION
BATTERY REPLACEMENT
Low Battery Indicator
When the Low Battery Indicator appears on the display screen turn the
monitor off and remove all the batteries. Replace with four new batteries
at the same time. Longlife alkaline batteries are recommended.
WARNING
If battery fluid should get in your eyes, immediately rinse with
plenty of clean water. Contact a physician immediately.
NOTES: • Turn the unit off before replacing the batteries. If the
batteries are removed while the unit is still on, the date and
time will be reset to that of the previous use. However, the
measurement results are not deleted.
• When the batteries are replaced, you may need to reset the
date and time. If "-:--" appears on the display, refer to
“Setting the Date and Time”.
• The supplied batteries may have a shorter life.
CAUTION
Dispose of the device, components and optional accessories
according to applicable local regulations. Unlawful disposal may
cause environmental pollution.
18
Page 19
SETTING THE DATE AND TIME
Set the monitor to the current date and time before taking a
measurement for the first time. If the date and time are not set correctly,
the measurement values stored in the memory and the average values
may not be correct.
If the date and time are not set, “-:--” appears during or after
measurement.
The Blood Pressure Monitor automatically stores up to 100
measurement values per user with the dates and times. The monitor also
calculates weekly averages for measurements in the morning and in the
evening. Morning and Evening averages are stored for this week and the
last seven weeks.
The monitor can also calculate an average reading based on the three
most recent measurements taken within 10 minutes of the last reading.
NOTE: • If only two readings are stored in the memory for the 10-
minute period, the average is based on the two readings.
• If one reading is stored in the memory for the 10-minute
period, this reading is displayed as the average.
19
Page 20
SETTING THE DATE AND TIME
1. TO START THE SETTING
Press and hold the SET button to
adjust the date and time.
The year flashes on the display.
2. SETTING THE YEAR
The year can be set between 2010 and
2040. When the display reaches 2040,
it will return to 2010.
Press the Up button ( ) to advance
by one year.
Press the SET button to set the current
year.
The month flashes on the display.
NOTES: • Press the Down button ( ) to decrease the date and time
values.
• Press and hold the Up or Down button to increase or
decrease the date and time values faster.
20
Page 21
SETTING THE DATE AND TIME
3. SETTING THE MONTH
Press the Up button ( ) to advance
by one month.
Press the SET button to set the current
month.
The day flashes on the display.
4. SETTING THE DAY
Press the Up button ( ) to advance
by one day.
Press the SET button to set the current
day.
The hour flashes on the display.
21
Page 22
SETTING THE DATE AND TIME
5. SETTING THE HOUR
The time is set using AM or PM.
Press the Up button ( ) to advance
by one hour.
Press the SET button to set the current
hour.
The minute flashes on the display.
6. SETTING THE MINUTE
Press the Up button ( ) to advance by one minute.
Press the SET button to set the minute setting.
7. TO TURN THE MONITOR OFF
Press the START/STOP button.
22
Page 23
SETTING TRUREAD
TM
The TruRead
TM
Mode takes three consecutive measurements.
The monitor will inflate, take a measurement, and deflate three times
separated by a short interval of time between each measurement.
1. Select your USER ID (A or B).
2. Press the SET button.
TM
The TruRead
symbol and the oFF setting appears
on the display.
3. Press the Up or Down button (
/ ) to select on.
NOTE: Press the Up or Down button
to alternate between on and
oFF.
23
Page 24
SETTING TRUREAD
4. Press the SET button to confirm the change.
If on is selected, the number of seconds between each measurement is
displayed.
NOTE: The default value between each measurement is 60 seconds.
5. Press the Up or Down button ( / ) to change the interval of
time between each measurement.
The interval can be set to 15 seconds, 30 seconds, 60 seconds or 120
seconds. Continue to press the Up or Down button until the desired
interval appears on the display.
6. Press the SET button to confirm the setting.
The year flashes on the display.
TM
24
Page 25
SETTING TRUREAD
7. If the date and time are correct, press the START/STOP button to turn
the monitor off.
To change the date and time, refer to “Setting the Date and Time”.
TM
25
Page 26
APPLYING THE ARM CUFF
CAUTION
Read all of the information in the instruction manual and any other
literature in the box before operating the unit.
CAUTION
This device is intended for use in measuring blood pressure and
pulse rate in the adult population. Do not use this device on infants
or persons who cannot express their intentions.
APPLYING THE CUFF ON THE LEFT ARM
1. Make sure the air plug is securely inserted in the main unit.
2. Remove tight-fitting clothing from your upper left arm.
26
Page 27
APPLYING THE ARM CUFF
3. Sit on a chair with your feet flat on the floor. Place your left arm
on a table so the cuff is level with your heart.
Thumb Grip
4. Hold the thumb grip on the cuff
securely with your right hand.
Cloth Fastener
5. Turn the palm of your left hand upward.
27
Page 28
APPLYING THE ARM CUFF
6. Apply the cuff to your left upper arm so the blue stripe is on the
inside of your arm and aligned with your middle finger. The air tube
runs down the inside of your arm. The bottom of the cuff should be
approximately 1/2" above your elbow.
Blue Stripe
7. Wrap the cuff firmly in place around your arm using the cloth
fastener.
1/2 inch (1 - 2 cm)
Air Tube
28
Page 29
APPLYING THE ARM CUFF
APPLYING THE CUFF ON THE RIGHT ARM
When taking a measurement using the right arm use this instruction
for Step 6 on page 28.
Apply the cuff to your right upper arm so the thumb grip is centered
on the inside of your inner arm. The bottom of the cuff should be
approximately 1/2'' above your elbow.
Thumb Grip
NOTE: Be careful not to rest your arm on the air tube. This will restrict
the flow of air to the cuff.
29
Page 30
TAKING A MEASUREMENT
The monitor is designed to take measurements and store the
measurement values in the memory for two people using
USER ID A and USER ID B.
The monitor can also be used to take a single measurement for other
persons using the GUEST Mode. The USER ID symbol is not displayed
when using the GUEST Mode. Measurements taken using the GUEST
Mode are not stored in the memory.
WARNING
Contact your physician for specific information about your blood
pressure. Self-diagnosis and treatment using measured results may
be dangerous. Follow the instructions of your physician or licensed
healthcare provider.
CAUTION
Operate the device only as intended. Do not use the device for any
other purpose.
CALIBRATION CHECK SYSTEM
When you press the START/STOP button, the Calibration Check
System light turns on and the unit starts monitoring your readings
using dual sensors. If the unit is accurate and functioning correctly,
the Calibration Check System light remains lit during the
measurement. If an error is detected, the Calibration Check System
light flashes and “ER” will appear on the display.
CUFF WRAP GUIDE
This monitor checks whether the arm cuff is wrapped around the arm
correctly during the inflation. When the cuff is wrapped correctly, is
displayed while taking a measurement or using the memory function. If
the cuff is not wrapped correctly, is displayed. If is displayed,
refer to the section “Applying the Arm Cuff”, wrap the cuff firmly
around the arm and take another measurement.
30
Page 31
TAKING A MEASUREMENT
USING THE GUEST MODE
1. Press and hold the START/STOP button.
The A and B Symbols disappear from the display.
A and B Symbols disappear
2. Release the START/STOP button.
The cuff starts to inflate automatically.
NOTE: To stop the inflation press the START/STOP button.
The monitor will stop inflating, start deflation and turn off.
3. Inflation stops and the measurement is started. When the
measurement is completed, your blood pressure and pulse rate appear
on the display.
31
Page 32
TAKING A MEASUREMENT
SELECTING THE USER ID
Select your USER ID. Always use the same USER ID when taking a
measurement. The monitor stores the measurement values in the
memory by the USER ID selected. These measurement values are used
to calculate the Morning Averages and Evening Averages.
Slide the USER ID Selection Switch right or left to select USER A or B.
USING THE USER ID
After you select a USER ID, the monitor can be set to take one
measurement using the Single Mode or three consecutive measurements
using the TruReadTMMode.
NOTE: The default value is set to the Single Mode to take one
measurement. Refer to “Setting TruRead
TM
”.
32
Page 33
TAKING A MEASUREMENT
USING THE SINGLE MODE
1. Select your USER ID (A or B).
2. Press the START/STOP button.
All symbols appear on the display. The USER ID Symbol you
selected flashes on the display.
The cuff starts to inflate automatically. As the cuff inflates, the monitor
automatically determines your ideal inflation level.
This monitor detects the pulse during inflation. Do not move your arm
and remain still until the entire measurement process is completed.
NOTE: To stop the inflation or measurement, press the START/STOP
button. The monitor will stop inflating, start deflating and will
turn off.
33
Page 34
TAKING A MEASUREMENT
3. Inflation stops automatically and the measurement is started.
As the cuff deflates, decreasing numbers appear on the display.
The Heartbeat Symbol ( ) flashes at every heartbeat.
4. When the measurement is complete, the arm cuff
completely deflates. Your blood pressure and pulse
rate are displayed.
5. Press the START/STOP button to turn the
monitor off.
NOTE: The monitor will automatically turn
off after two minutes.
34
Page 35
TAKING A MEASUREMENT
USING THE TRUREADTMMODE
1. Select your USER ID (A or B).
2. Press the START/STOP button.
All symbols appear on the display. The USER ID Symbol you
selected flashes on the display. The cuff starts to inflate automatically.
NOTE: To stop the inflation or measurement, press the START/STOP
button. The monitor will stop inflating, start deflating and will
turn off.
3. Inflation stops automatically and the measurement is started.
As the cuff deflates, decreasing numbers appear on the display.
The Heartbeat Symbol ( ) flashes at every heartbeat. When the
measurement is complete, the arm cuff completely deflates.
NOTE: Do not move your arm and remain still until the entire
measurement process is completed.
4. Check the progress of the consecutive measurements.
NOTE: If a measurement fails, the monitor will repeat taking
a measurement up to five times during the consecutive
measurement process.
The first measurement is complete, waiting to start the next
measurement. The interval of time set between each measurement will
appear on the display.
35
Page 36
TAKING A MEASUREMENT
The second measurement is complete, waiting to start the
next measurement.
The consecutive measurements are complete. The average for three
measurements appears on the display.
5. Press the SET button to display the blood pressure and pulse rate for
the first measurement. Press the SET button again to display the next
measurement.
6. Press the START/STOP button to turn the monitor off.
WARNING
Contact your physician for specific information about your blood
pressure. Self-diagnosis and treatment using measured results may
be dangerous. Follow the instructions of your physician or licensed
healthcare provider.
WARNING
DO NOT adjust medication based on measurement results from this
blood pressure monitor. Take medication as prescribed by your
physician. Only a physician is qualified to diagnose and treat High
Blood Pressure.
36
Page 37
TAKING A MEASUREMENT
WARNING
The monitor is not intended to be a diagnostic device.
SPECIAL CONDITIONS
CAUTION
Inflating to a higher pressure than necessary may result in bruising
where the cuff is applied.
If your systolic pressure is known to be more than 220 mmHg, press
and hold the START/STOP button until the monitor inflates 30 to 40
mmHg higher than your expected systolic pressure.
NOTES: • Do not apply more pressure than necessary.
When the measurement is complete, the arm cuff completely deflates.
Your blood pressure and pulse rate are displayed.
• The monitor will not inflate above 299 mmHg.
37
Page 38
USING THE MEMORY FUNCTION
The monitor is designed to store the blood pressure and the pulse
rate in the memory for two people (USER A and USER B) every time
a measurement is completed.
The monitor automatically stores up to 100 sets of measurement values
(blood pressure and pulse rate) for each user (A and B). When 100 sets
of measurement values are stored, the oldest record is deleted to save
the most recent values. The monitor also stores 8 weeks of Morning
Averages and 8 weeks of Evening Averages for each user (A and B).
AVERAGING FUNCTION
The monitor calculates the average reading based on the three most
recent sets of measurement values taken within 10 minutes of the most
recent reading.
NOTES: • If two sets of measurement values are stored in the memory
for the 10 minutes period, the average is based on the two
sets of measurement values. If one set of measurement
values is stored, this is displayed as the average.
• When viewing the reading taken without setting the date and
time, “-:--” is displayed instead of the date and time.
38
Page 39
USING THE MEMORY FUNCTION
TO DISPLAY THE MEASUREMENT VALUES
1. Select your USER ID (A or B).
2. Press the Memory button ( ).
The Average Symbol ( ) appears on the display when the average
reading is shown.
39
Page 40
USING THE MEMORY FUNCTION
3. Press the Down button ( ) to display the most recent set of
measurement values on the screen. The values are displayed from the
most recent to the oldest.
NOTE: The date and time are alternately
displayed with the measurement
values.
Press the Up or Down button to display the
next set of values.
: To the older readings
: To the more recent readings
NOTE: Press and hold the Up or Down button to display the values
faster.
TM
TruRead
Mode
The average for the consecutive measurements appears on the display
TM
with the TruRead
symbol ( ). To display the values for the
individual measurements press the SET button while the average is
displayed.
Alternating display
4. Press the START/STOP button to turn the power off.
40
Page 41
USING THE MEMORY FUNCTION
MORNING AND EVENING AVERAGES
The monitor calculates and displays a weekly average for measurements
taken in the morning ( ) and evening ( ). The monitor stores 8
weeks of Morning Averages and 8 weeks of Evening Averages for each
user (A and B).
NOTE: The week begins Sunday at 4:00 AM.
MORNING AVERAGES
Morning averages are based on the first average reading using the
TruReadTMMode or the first reading using the Single Mode.
Measurement times must be between:
4:00 AM and 9:59 AM.
EVENING AVERAGES
Evening averages are based on the last average reading using the
TruReadTMMode or the last reading using the Single Mode.
Measurement times must be between:
7:00 PM and 1:59 AM.
41
Page 42
USING THE MEMORY FUNCTION
TO DISPLAY MORNING AND EVENING AVERAGES
1. Select your USER ID (A or B).
2. Press the Morning/ Evening
Average button ( ) to select
the Morning or Evening average.
The average for the current week
“THIS WEEK” appears on
the display.
3. Press the Down ( ) button to display the previous weeks.
With each press of the Down ( ) button, the values are displayed
from 1 week ago to the older.
With each press of the Up ( ) button, the values are displayed
from 7 weeks ago to the recent.
NOTE: If no measurement is taken in a given week, the
display will appear as illustrated.
4. Press the START/STOP button to turn the monitor off.
42
Page 43
USING THE MEMORY FUNCTION
DISPLAY COMBINATIONS
In addition to the Morning Average and Evening Average Symbols, the
monitor may also display the Morning Hypertension Symbol if the
morning average for that week is above the internationally recognized
guidelines. (See page 13 for details.) Depending on your measurement
results, these may be displayed in the following combinations.
Display
Morning
Average
Evening
Average
Morning average from This Week
with Morning Average Symbol
Evening average from This Week
with Evening Average Symbol
Average within internationally
recognized guidelines
Morning average from 7 weeks ago
with Morning Average Symbol +
Morning Hypertension Symbol
Evening average from 7 weeks ago
with Evening Average Symbol +
Morning Hypertension Symbol
Average above internationally
recognized guidelines + Morning
Hypertension
43
Page 44
USING THE MEMORY FUNCTION
The Morning Hypertension Symbol ()appears if the weekly average
for morning measurements is above 135/85.
In this case the Morning Hypertension Symbol
the Evening Average is displayed, regardless of the values for the
Evening Average.
()is displayed when
TO DELETE ALL VALUES STORED IN THE MEMORY
The values stored in the memory are deleted by USER ID.
You cannot partially delete values stored in the memory. All values for
the user you select will be deleted.
1. Select your USER ID (A or B).
2. While holding the Memory button ( ) and the START/STOP button
simultaneously for more than 2 seconds all values will be deleted.
44
Page 45
Downloading Instructions
INSTALLING THE SOFTWARE
Optional Instructions for PC Connection
To install software, choose either Microsoft®HealthVaultTMor Omron
Health Management software.
NOTE: Any measurement values taken before setting the date and time
are not transferred to Microsoft HealthVault
Management software.
DOWNLOADING AND INSTALLING MICROSOFT HEALTHVAULT
HealthVault is a free Web-based platform designed to put people in
control of their health data. It helps them collect, store and share health
information with family members and participating healthcare providers,
and provides people with a choice of third-party applications and
devices to help them manage things such as fitness, diet and health.
TM
TM
and Omron Health
®
1. Go to http://www
2. Create a HealthVault account to store your blood
pressure data online.
3. Track your progress and manage your health goals
using HealthVault.
.healthvault.com/hvcc/system-requirements.aspx
45
Page 46
INSTALLING THE SOFTWARE
OPERATING ENVIRONMENT REQUIREMENTS
The following operating environments are required to run Microsoft
HealthVault.
Supported OS*: HealthVault works best with the following operating systems:
Either 32-bit or 64-bit versions of:
Microsoft®Windows®7®Home Premium
Windows®7®Professional
Windows®7®Ultimate
Either 32-bit or 64-bit versions of:
Microsoft®Windows®Vis ta®Home Basic
Windows®Vis ta®Home Premium
Windows®Vis ta®Business
Windows®Vis ta®Enterprise
Windows®Vis ta®Ultimate
32-bit versions of:
Windows®XP Home Edition Service Pack 2 (SP2)
Windows®XP Professional SP2
Windows®XP Tablet PC Edition SP2
Windows®XP Media Center Edition 2005 (Rollup Update 2)
Windows®XP Service Pack 3 (SP3)
HealthVault won’t run on versions of Windows®earlier than Windows
XP SP2, any 64-bit version of Windows®XP, Windows®Vis ta®Starter
edition, or any version of Windows®Server.
Memory capacity: 512 MB (minimum)/1 GB (recommended)
Processor: 1 GHz
Hard disc space: 200 MB
Internet connection: Broadband
Display resolution: 1024 × 768
* To view details about your computer:
1. Go to the Start menu.
2. Select Control Panel.
3. Select System and Maintenance.
4. Select System.
5. From this screen you can see your operating system, RAM, processor,
system type, and other details about your computer.
®
®
46
Page 47
INSTALLING THE SOFTWARE
DOWNLOADING AND INSTALLING OMRON HEALTH MANAGEMENT SOFTWARE
Omron Health Management Software allows you to view, process and
print data about blood pressure and walking measured by Omron’s
compatible blood pressure monitor and pedometer.
• To install Omron Health Management Software onto your PC, you
must have administrative privileges.
• Close all applications currently running before you install the software.
• When using anti-virus software, disable anti-virus software before
installation. It may interfere with the set-up program of this software.
Enable the anti-virus software again after installation is complete.
1. Download the Omron Health Management Software at
.software.omronhealthcare.com. Follow the installation
www
directions when prompted. Read the License Agreements thoroughly
and accept the terms if you agree. Once Omron Health Management
Software is installed, continue to the next section, “Using the
Software”.
2. After downloading the software, extract a zip file and double-click the
[setup.exe] icon.
47
Page 48
INSTALLING THE SOFTWARE
OPERATING ENVIRONMENT REQUIREMENTS
The following operating environments are required to run the Omron
Health Management software.
Supported OS: Microsoft®Windows®2000 Professional (SP4)
PC: 800 MHz or higher CPU, PC/AT compatible machine
Memory capacity: 512 MB or more
Hard disc space: 32 MB or more*
Display: Super VGA (800 × 600 pixel) or higher resolution video
Others: USB connector (USB Revision 1.1 compliant)
NOTE: If the OS environmental requirements are above those listed,
then additional resources may be required.
*Additional 200 MB is necessary in the case that Microsoft.
Trademark and Registered trademark
• Microsoft
Sates and other countries.
®
• Adobe
, Adobe logo, Acrobat®and Reader®are registered trademarks
or trademarks of Adobe Systems Incorporated in the United States and
other countries.
Microsoft®Windows®XP Home Edition (SP2)
Microsoft®Windows®XP Professional (SP2)
Microsoft®Windows®Vis ta®Home Basic
Microsoft®Windows®Vis ta®Home Premium
Microsoft®Windows®Vis ta®Business
Microsoft®Windows®Vis ta®Enterprise
Microsoft®Windows®Vis ta®Ultimate
Microsoft®Windows®7®Starter
Microsoft®Windows®7®Home Basic
Microsoft®Windows®7®Home Premium
Microsoft®Windows®7®Professional
Microsoft®Windows®7®Enterprise
Microsoft®Windows®7®Ultimate
adapter and monitor
Adobe Acrobat Reader 5.0 or higher
NET or MDAC is not installed.
®
and Windows®are registered trademarks in the United
48
Page 49
USING THE SOFTWARE
For help using the software, double-click [Omron Health
Management Software Users Manual.pdf] shortcut on
desktop, or click [Help] in this software after starting up.
1. Double-click the [Omron Health Management Software]
shortcut icon on the desktop.
If no icon appears on the desktop: From the [Start]
menu, select [All programs] or [Programs] [Omron
Health Management Software], and click the [Omron
Health Management Software] shortcut.
2. If you are using Omron Health
Management Software for the
first time, click [Add User] on
the User Management screen.
49
Page 50
USING THE SOFTWARE
3. In the New User Registration
box, enter your name
(e.g., Chuck) and click [OK].
NOTES:
• Omron Health Management
Software can manage multiple users’ data. Data is controlled by user
name.
• The number of users who can register for this software varies
depending on the amount of free disc space in your PC.
• The user name can be up to 28 characters.
4. Click the user name, and click
[Graph Screen].
5. Click the [Blood Pressure
Monitor] icon.
50
Page 51
USING THE SOFTWARE
Use only the authorized Omron USB cable, Model HHX-CABLEUSB2, included with this unit.
CAUTION
Use only Omron authorized parts and accessories. Parts and
accessories not approved for use with the device may damage
the unit.
1. Open the USB Port cover.
2. Plug the normal USB Connector
(Large Connector) into the
personal computer.
3. Plug the mini USB connector
(Small Connector) into the
USB Port.
NOTE: You cannot take a
measurement while
connecting the USB cable.
51
Normal USB
Connector
Mini USB Connector
Page 52
USING THE SOFTWARE
4. Click [Download Data] icon to import the data.
5. The Confirm dialog
appears. Make sure your
cable is connected then
click [Yes].
6. Select the blood pressure
monitor being used and
click [OK].
7. Start importing data. Click
[Cancel] if you want to
cancel.
8. The dialog appears when complete. Click [OK]
and view your data on the graph.
52
Page 53
Care and Maintenance
CARE AND MAINTENANCE
To keep your blood pressure monitor in the best condition and protect
the unit from damage, follow the directions listed below:
Keep the monitor in the storage case
when not in use. Make sure the AC
adapter is placed under the main unit so
that it does not damage the display.
Avoid kinking or sharply bending the AC
Adapter cord.
Do not forcefully bend the arm cuff or
air tube. Do not fold tightly.
Clean the monitor with a soft dry cloth. Do not use any abrasive
or volatile cleaners. Do not attempt to clean the cuff.
CAUTION
Do not submerge the device or any of the components in water.
Do not subject the monitor to extreme hot or cold temperatures,
humidity or direct sunlight.
CAUTION
Store the device and the components in a clean, safe location.
CAUTION
Do not subject the monitor to strong shocks, such as dropping the
unit on the floor.
Remove the batteries if the unit will not be used for three months or
longer. Always replace all the batteries with new ones at the same time.
53
Page 54
CARE AND MAINTENANCE
Use the unit consistent with the instruction provided in this manual.
CAUTION
Changes or modification not approved by Omron Healthcare will
void the user warranty. Do not disassemble or attempt to repair the
unit or components.
CAUTION
Use only Omron authorized parts and accessories. Parts and
accessories not approved for use with the device may damage
the unit.
54
Page 55
ERROR INDICATORS AND TROUBLESHOOTING TIPS
ERROR INDICATORS
SYMBOL CAUSE CORRECTION
Air plug disconnected.
Arm cuff not applied correctly.
Insert the plug securely. Refer to “Applying the
Arm Cuff”.
Apply the arm cuff correctly. Refer to “Applying
the Arm Cuff”.
Air is leaking from the arm cuff.
Cuff over or under inflated.
The arm cuff was inflated above 299
mmHg when inflating the cuff manually.
Movement during measurement.
Clothing is interfering with the
arm cuff.
Device error.
Cuff is not applied correctly.
Replace the cuff with the new one.
Repeat measurement. Remain still and do not talk
during measurement. Refer to “Taking a
Measurement”.
If “E2” appears repeatedly, inflate the cuff manually
until it is 30 to 40 mmHg above your previous
measurement result. Refer to “Taking a Measurement”.
Do not inflate the cuff above 299 mmHg. Refer to
“Taking a Measurement”.
Repeat measurement. Remain still and do not talk
during measurement. Refer to “Taking a
Measurement”.
Remove any clothing interfering with the arm cuff.
Refer to “Applying the Arm Cuff”.
Contact Customer Service.
Contact Customer Service for repair information.Sensor may be out of alignment.
Refer to “Applying the Arm Cuff”.
55
Page 56
ERROR INDICATORS AND TROUBLESHOOTING TIPS
ERROR INDICATORS
SYMBOL CAUSE CORRECTION
Batteries are worn.
TROUBLESHOOTING TIPS
PROBLEM CAUSES AND SOLUTIONS
No power.
No display appears on the unit.
Measurement values appear
too high or too low.
Replace the four batteries.
Refer to “Battery Installation”.
Replace all four batteries with new
ones.
Check the battery installation
for proper placement of the
battery polarities.
Blood pressure varies constantly.
Many factors including stress, time
of day, and how you wrap the cuff,
may affect your blood pressure.
Review the sections “Before Taking
a Measurement” and “Taking a
Measurement”.
56
Page 57
FCC STATEMENT
NOTE:
POTENTIAL FOR RADIO/TELEVISION INTERFERENCE (for U.S.A. only)
This product has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. The product generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If the product does cause harmful interference to radio or television
reception, which can be determined by turning the product on and off, the
user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the product and the receiver.
• Connect the product into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
POTENTIAL FOR RADIO/TELEVISION INTERFERENCE (for Canada only)
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus as set out in the interference-causing equipment
standard entitled “Digital Apparatus”, ICES-003 of the Canadian Department of
Communications.
Cet appareil numérique respecte les limites de bruits radioeléctriques applicables
aux appareils numériques de Clase B prescrites dans la norme sur le materiel
brouilleur: “Appareils Numériques”, ICES-003 édictée par le minister des
communications.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
57
Page 58
LIMITED WARRANTY
Your Omron®BP791IT 10 series Plus Automatic Blood Pressure Monitor,
excluding the arm cuff and batteries, is warranted to be free from defects in materials
and workmanship appearing within 5 years from the date of purchase, when used
in accordance with the instructions provided with the monitor. The arm cuff is
warranted to be free from defects in materials and workmanship appearing within
one year from the date of purchase when the monitor is used in accordance with
the instructions provided with the monitor. The above warranties extend only to
the original retail purchaser.
We will, at our option, repair or replace without charge any monitor or arm cuff
covered by the above warranties. Repair or replacement is our only responsibility
and your only remedy under the above warranties.
To obtain warranty service contact Customer Service by calling 1-800-634-4350 for
the address of the repair location and the return shipping and handling fee.
Enclose the Proof of Purchase. Include a letter, with your name, address, phone
number, and description of the specific problem. Pack the product carefully to
prevent damage in transit. Because of possible loss in transit, we recommend
insuring the product with return receipt requested.
THE FOREGOING IS THE SOLE WARRANTY PROVIDED BY OMRON
IN CONNECTION WITH THIS PRODUCT, AND OMRON HEREBY
DISCLAIMS ANY OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE. IMPLIED WARRANTIES
AND OTHER TERMS THAT MAY BE IMPOSED BY LAW, IFANY, ARE
LIMITED IN DURATION TO THE PERIOD OF THE ABOVE EXPRESS
WARRANTY.
OMRON SHALL NOT BE LIABLE FOR LOSS OF USE OR ANY OTHER
SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT COSTS,
EXPENSES OR DAMAGES.
This warranty provides you with specific legal rights, and you may have other
rights that vary by jurisdiction. Because of special local requirements, some of
the above limitations and exclusions may not apply to you.
FOR CUSTOMER SERVICE
Visit our web site at: www.omronhealthcare.com
Call toll free: 1-800-634-4350
58
Page 59
SPECIFICATIONS
Model: BP791IT (HEM-7222-ITZ)
Display: LCD Digital Display
Measurement Range: Pressure: 0 to 299 mmHg, Pulse: 40 to 180/min.
Accuracy/Calibration: Pressure: ±3mmHg or 2% of reading
Inflation: Automatic by electric pump
Deflation: Automatic pressure release valve
Rapid Air Release: Automatic exhaust valve
Measurement Method: Oscillometric method
Power Source: 120V 60Hz AC adapter or 4 “AA” batteries
Battery Life: Approx. 300 uses when used 6 times a day
Operating Temperature 50ºF to 104ºF (10ºC to 40ºC) /15 to 90% RH
/Humidity:
Storage Temperature -4ºF to 140ºF (-20ºC to 60ºC) /10 to 95% RH
/Humidity/Air Pressure: /700 - 1060 hPa
Main Unit Weight: Approximately 15 1/2 oz. (440 g)
Main Unit Dimensions: Approx. 6 1/4" (l) × 4 7/8" (w) × 3 5/16" (h)
Cuff Size: Approximately 6" (w) (152 mm)
Cuff Circumference: Fits arm circumferences 9" to 17"
Memory: Up to 100 per user
Contents: Main Unit, ComFit
Pulse: ±5% of reading
with 4 new alkaline batteries
not including batteries
(158 mm × 124 mm × 86 mm)
Cuff tube 23 5/8" (l) (600 mm)
(220 mm to 420 mm)
TM
4 “AA” Alkaline Batteries, USB Cable,
Instruction Manual, Quick Start Guide, Storage Case
Cuff, AC Adapter,
= Type B
NOTE: These specifications are subject to change without notice.
59
Page 60
Manufactured by OMRON HEALTHCARE Co., Ltd.
Made in China
Distributed by:
Omron Healthcare, Inc.
1200 Lakeside Drive
Bannockburn, IL 60015
www.omronhealthcare.com
Copyright © 2011 Omron Healthcare, Inc.
Loading...
