Omnimount PLAY25 Sales Sheet

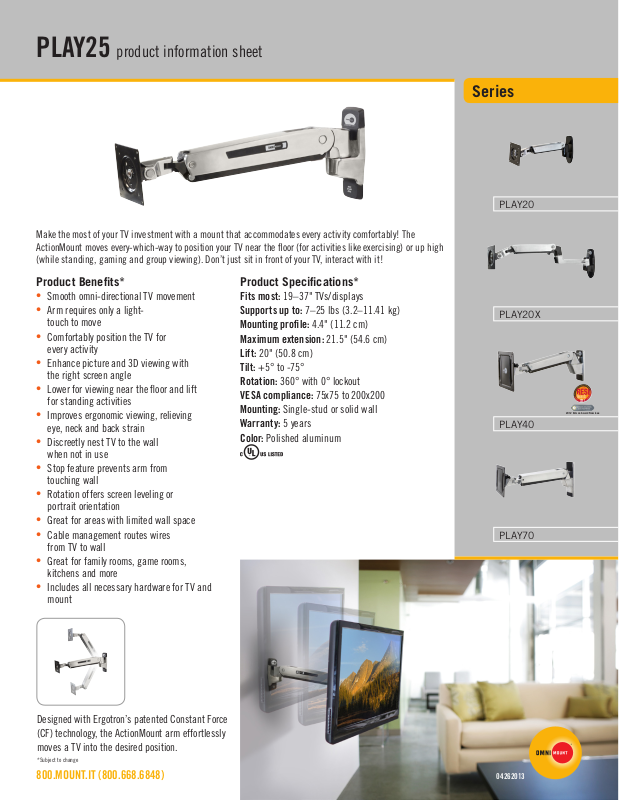

PLAY25 product information sheet
2011
Make the most of your TV investment with a mount that accommodates every activity comfortably! The
ActionMount moves every-which-way to position your TV near the floor (for activities like exercising) or up high
(while standing, gaming and group viewing). Don’t just sit in front of your TV, interact with it!
Series
PLAY20
Product Benefits*
• Smooth omni-directional TV movement
• Arm requires only a light-
touch to move
• Comfortably position the TV for
every activity
• Enhance picture and 3D viewing with
the right screen angle
• Lower for viewing near the floor and lift
for standing activities
• Improves ergonomic viewing, relieving
eye, neck and back strain
• Discreetly nest TV to the wall
when not in use
• Stop feature prevents arm from
touching wall
• Rotation offers screen leveling or
portrait orientation
• Great for areas with limited wall space
• Cable management routes wires
from TV to wall
• Great for family rooms, game rooms,
kitchens and more
• Includes all necessary hardware for TV and
mount
Product Specifications*
Fits most: 19–37" TVs/displays
Supports up to: 7–25 lbs (3.2–11.41 kg)
Mounting profile: 4.4" (11.2 cm)
Maximum extension: 21.5" (54.6 cm)
Lift: 20" (50.8 cm)
Tilt: +5° to -75°
Rotation: 360° with 0° lockout
VESA compliance: 75x75 to 200x200
Mounting: Single-stud or solid wall
Warranty: 5 years
Color: Polished aluminum
PLAY20X
2012 Edison Award Nominee
PLAY40
PLAY70
Designed with Ergotron’s patented Constant Force
(CF) technology, the ActionMount arm effortlessly
moves a TV into the desired position.
*Subjec t to change
800.MOUNT.IT (800.668.6848)
04262013
PLAY25 technical data sheet
8.4
(213)
1.9
(48)
(78)
3.1
20
(508)
14.9
(378)
3.4
(86)
12
(304)
4.1
(103)
20.1
(511)
70°
5°
17.1
(436)
14.9
(378)
3.2
(80)
180°
21.4
(543)
4.4
(112)
360°
180°
3.2
(80)
1.6
(40)
1.1
(29)
6.5
(165)
1.3
(34)
Americas
International
3.9
(100)
2.9
(75)
0.7
(18)
3.9
(100)
5.1
(129)
0.4
(11)
7.1
(180)
Packaging UPC MC UPC
698833034059 10698833034056
698833034059 10698833034056
2.9
(75)
7.9
(200)
3.9
(100)
7.9
(200)
7.9
(200)
7.9
(200)
3.9
(100)
Dimensions WxDxH Inches (mm) Wt lbs (kg) Qty
23 x 10.8 x 6.3 (585x274x159) 12.6 (5.7) NA
Box
23.4 x 13.1 x 11.3 (595x333x288) 23.6 (10.7) 2
MC
inches (mm)
Box Contents Qty
LX sit-stand arm 1
Wall mount 1
800.MOUNT.IT (800.668.6848)
Box Contents Qty
Instruction manual 1
Complete hardware kit 1
04262013
