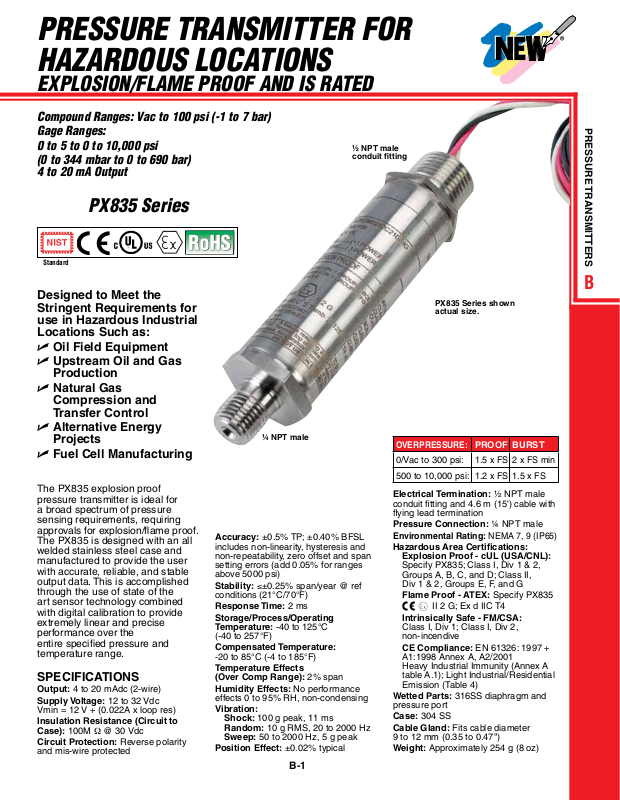

PRESSURE TRANSMITTER FOR
HAZARDOUS LOCATIONS

EXPLOSION/FLAME PROOF AND IS RATED

Compound Ranges: Vac to 100 psi (-1 to 7 bar)
Gage Ranges:
0 to 5 to 0 to 10,000 psi
(0 to 344 mbar to 0 to 690 bar)

4 to 20 mA Output

PX835 Series

Standard

Designed to Meet the
Stringent Requirements for
use in Hazardous Industrial
Locations Such as:

 Oil Field Equipment
 Upstream Oil and Gas

Production

 Natural Gas

Compression and
Transfer Control

 Alternative Energy

Projects

 Fuel Cell Manufacturing

The PX835 explosion proof
pressure transmitter is ideal for
a broad spectrum of pressure
sensing requirements, requiring
approvals for explosion/flame proof.
The PX835 is designed with an all
welded stainless steel case and
manufactured to provide the user
with accurate, reliable, and stable
output data. This is accomplished
through the use of state of the
art sensor technology combined
with digital calibration to provide
extremely linear and precise
performance over the
entire specified pressure and
temperature range.

SPECIFICATIONS

Output: 4 to 20 mAdc (2-wire)
Supply Voltage: 12 to 32 Vdc

Vmin = 12 V + (0.022A x loop res)

Insulation Resistance (Circuit to
Case): 100M Ω @ 30 Vdc

Circuit Protection: Reverse polarity

and mis-wire protected

Accuracy: ±0.5% TP; ±0.40% BFSL
includes non-linearity, hysteresis and
non-repeatability, zero offset and span
setting errors (add 0.05% for ranges
above 5000 psi)

Stability: ≤±0.25% span/year @ ref
conditions (21°C/70°F)

Response Time: 2 ms
Storage/Process/Operating

Temperature: -40 to 125°C

(-40 to 257°F)
Compensated Temperature:

-20 to 85°C (-4 to 185°F)

Temperature Effects
(Over Comp Range): 2% span

Humidity Effects: No performance

effects 0 to 95% RH, non-condensing
Vibration:

Shock: 100 g peak, 11 ms
Random: 10 g RMS, 20 to 2000 Hz
Sweep: 50 to 2000 Hz, 5 g peak

Position Effect: ±0.02% typical

¼ NPT male

B-1

½ NPT male
conduit fitting

OVERPRESSURE:

0/Vac to 300 psi:

500 to 10,000 psi:

Electrical Termination: ½ NPT male
conduit fitting and 4.6 m (15') cable with
flying lead termination

Pressure Connection: ¼ NPT male
Environmental Rating: NEMA 7, 9 (IP65)
Hazardous Area Certifications:

Explosion Proof - cUL (USA/CNL):

Flame Proof - ATEX: Specify PX835

II 2 G; Ex d IIC T4

Intrinsically Safe - FM/CSA:

Class I, Div 1; Class I, Div 2,
non-incendive

CE Compliance: EN 61326: 1997 +

Wetted Parts: 316SS diaphragm and
pressure port

Case: 304 SS
Cable Gland: Fits cable diameter

9 to 12 mm (0.35 to 0.47")

Weight: Approximately 254 g (8 oz)

PRESSURE TRANSMITTERS

B

PX835 Series shown
actual size.

PROOF BURST

1.5 x FS 2 x FS min

1.2 x FS 1.5 x FS

Specify PX835; Class I, Div 1 & 2,
Groups A, B, C, and D; Class II,
Div 1 & 2, Groups E, F, and G

A1:1998 Annex A, A2/2001
Heavy Industrial Immunity (Annex A
table A.1); Light Industrial/Residential
Emission (Table 4)

(

Explosion / Flame Proof Enclosure

(0.887)

121

4.78)

(3.065)

Dimensions: mm (inch)

22.5

78

27

(1.06)
DIA.

121

(4.78)

22.5

(0.887)

78

(3.065)

27

(1.06)

DIA.

 Explosion Proof
 Flame Proof

17

(0.675)

22

(0.885)

27 (1.06) Hex.
Common For All
Pressure Fittings

 Instrinsically Safe

To Order Visit omega.com/px835 for Pricing and Details

RANGE

psi bar

¼ NPT MALE CONDUIT FITTING

VACUUM and COMPOUND RANGES

0 to Vac 0 to -1 PX835-15NGI

Vac to 15 -1 to +1 PX835-015CGI

Vac to 30 -1 to +2 PX835-030CGI

Vac to 45 -1 to +3 PX835-045CGI

Vac to 60 -1 to +4 PX835-060CGI

Vac to 100 -1 to +7 PX835-100CGI

GAGE PRESSURE RANGES

0 to 5 0 to 0.3 PX835-005GI

0 to 10 0 to 0.7 PX835-010GI

0 to 15 0 to 1 PX835-015GI

0 to 30 0 to 2 PX835-030GI

0 to 60 0 to 4 PX835-060GI

0 to 100 0 to 7 PX835-100GI

0 to 150 0 to 10 PX835-150GI

0 to 200 0 to 14 PX835-200GI

0 to 300 0 to 20 PX835-300GI

0 to 500 0 to 34 PX835-500GI

0 to 750 0 to 51 PX835-750GI

0 to 1000 0 to 69 PX835-1KGI

0 to 1500 0 to 103 PX835-1.5KGI

PX835 Series shown

actual size.

0 to 2000 0 to 138 PX835-2KGI

0 to 3000 0 to 207 PX835-3KGI

0 to 5000 0 to 345 PX835-5KGI

0 to 7500 0 to 517 PX835-7.5KGI

0 to 10,000 0 to 690 PX835-10KGI

Comes complete with 9-point NIST traceable calibration and operating instructions.
For oxygen cleaning, add suffix “-X6B” to model number, for additional cost.
Ordering Example: PX835-030GI, 0 to 30 psi range pressure transmitter, 4 to 20 mA output,

¼ NPT male termination.
