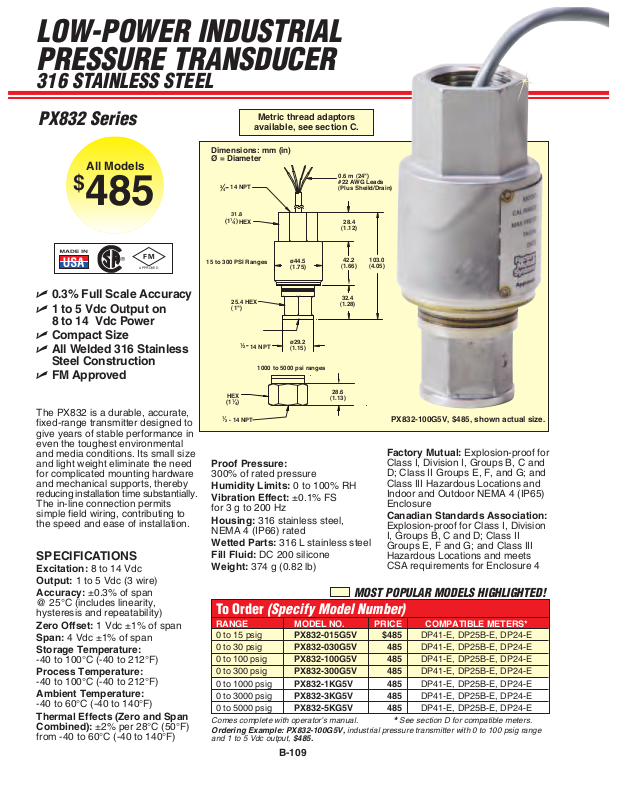

Omega Products PX832-030G5V User Manual
B-109
Comes complete with operator’s manual.
*
See section D for compatible meters.
Ordering Example: PX832-100G5V, industrial pressure transmitter with 0 to 100 psig range
and 1 to 5 Vdc output, $485.
PX832 Series
$
485
All Models
To Order
(Specify Model Number)
RANGE MODEL NO. PRICE COMPATIBLE METERS*
0 to 15 psig PX832-015G5V $485 DP41-E, DP25B-E, DP24-E
0 to 30 psig PX832-030G5V 485 DP41-E, DP25B-E, DP24-E
0 to 100 psig PX832-100G5V 485 DP41-E, DP25B-E, DP24-E
0 to 300 psig PX832-300G5V 485 DP41-E, DP25B-E, DP24-E
0 to 1000 psig PX832-1KG5V 485 DP41-E, DP25B-E, DP24-E
0 to 3000 psig PX832-3KG5V 485 DP41-E, DP25B-E, DP24-E
0 to 5000 psig PX832-5KG5V 485 DP41-E, DP25B-E, DP24-E
MOST POPULAR MODELS HIGHLIGHTED!
⻬ 0.3% Full Scale Accuracy
⻬ 1 to 5 Vdc Output on
8 to 14 Vdc Power
⻬ Compact Size
⻬ All Welded 316 Stainless
Steel Construction
⻬ FM Approved
The PX832 is a durable, accurate,
fixed-range transmitter designed to
give years of stable performance in
even the toughest environmental
and media conditions. Its small size
and light weight eliminate the need
for complicated mounting hardware
and mechanical supports, thereby
reducing installation time substantially.
The in-line connection permits
simple field wiring, contributing to
the speed and ease of installation.
SPECIFICATIONS
Excitation: 8 to 14 Vdc
Output: 1 to 5 Vdc (3 wire)
Accuracy: ±0.3% of span
@ 25°C (includes linearity,
hysteresis and repeatability)
Zero Offset: 1 Vdc ±1% of span
Span: 4 Vdc ±1% of span
Storage Temperature:
-40 to 100°C (-40 to 212°F)
Process Temperature:
-40 to 100°C (-40 to 212°F)
Ambient Temperature:
-40 to 60°C (-40 to 140°F)
Thermal Effects (Zero and Span
Combined): ±2% per 28°C (50°F)
from -40 to 60°C (-40 to 140°F)
FM
APPROVED
Proof Pressure:
300% of rated pressure
Humidity Limits: 0 to 100% RH
Vibration Effect: ±0.1% FS
for 3 g to 200 Hz
Housing: 316 stainless steel,
NEMA 4 (IP66) rated
Wetted Parts: 316 L stainless steel
Fill Fluid: DC 200 silicone
Weight: 374 g (0.82 lb)
PX832-100G5V, $485, shown actual size.
LOW-POWER INDUSTRIAL
PRESSURE TRANSDUCER
316 STAINLESS STEEL
Factory Mutual: Explosion-proof for
Class I, Division I, Groups B, C and
D; Class II Groups E, F, and G; and
Class III Hazardous Locations and
Indoor and Outdoor NEMA 4 (IP65)
Enclosure
Canadian Standards Association:
Explosion-proof for Class I, Division
I, Groups B, C and D; Class II
Groups E, F and G; and Class III
Hazardous Locations and meets
CSA requirements for Enclosure 4
3
⁄4-
1
⁄
2
-
31.8
(1
1
⁄
4
)
Dimensions: mm (in)
Ø = Diameter
1
⁄
2
(1
1
⁄
4
)
Metric thread adaptors
available, see section C.
14 NPT
HEX
15 to 300 PSI Ranges
25.4 HEX
(1")
14 NPT
HEX
- 14 NPT
ø44.5
(1.75)
ø29.2
(1.15)
1000 to 5000 psi ranges
0.6 m (24")
#22 AWG Leads
(Plus Sheild/Drain)
28.4
(1.12)
42.2
(1.66)
32.4
(1.28)
28.6
(1.13)
103.0
(4.05)
