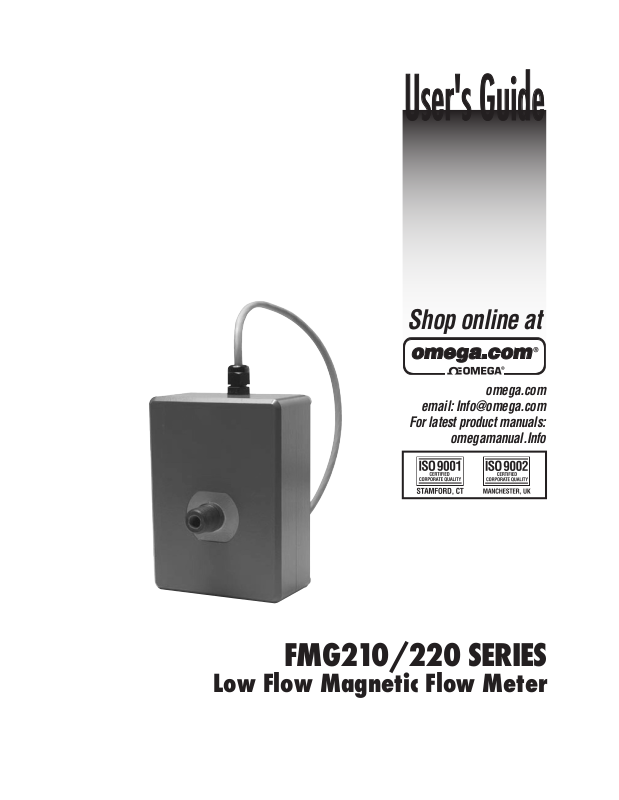

Omega Products FMG210 Installation Manual

User's Guide

Shop online at

omega.com

email: [e-mail]

For latest product manuals:

omegamanual.Info

FMG210/220 SERIES

Low Flow Magnetic Flow Meter

Servicing North America:

U.S.A.: One Omega Drive, P.O. Box 4047

ISO 9001 Certified

Stamford, CT 06907-0047
TEL: [phone] FAX: [phone]
e-mail: [e-mail]

Canada: 976 Bergar

Laval (Quebec) H7L 5A1, Canada
TEL: [phone] FAX: [phone]
e-mail: [e-mail]

For immediate technical or application assistance:

U.S.A. and Canada: Sales Service: 1-800-826-6342 / 1-800-TC-OMEGA

®

Customer Service: 1-800-622-2378 / 1-800-622-BEST

®

Engineering Service: 1-800-872-9436 / 1-800-USA-WHEN

®

TELEX: 996404 EASYLINK: 62968934 CABLE: OMEGA

Mexico: En Espan˜ol: [phone]-7803 e-mail: [e-mail]

FAX: [phone] [e-mail]

Servicing Europe:

Benelux: Postbus 8034, 1180 LA Amstelveen, The Netherlands

TEL: [phone] FAX: [phone]
Toll Free in Benelux: 0800 0993344
e-mail: [e-mail]

Czech Republic: Frystatska 184, 733 01 Karviná, Czech Republic

TEL: [phone] FAX: [phone]
Toll Free: 0800-1-66342 e-mail: [e-mail]

France: 11, rue Jacques Cartier, 78280 Guyancourt, France

TEL: [phone] FAX: [phone]
Toll Free in France: 0800 466 342
e-mail: [e-mail]

Germany/Austria: Daimlerstrasse 26, D-75392 Deckenpfronn, Germany

TEL: [phone] FAX: [phone]
Toll Free in Germany: 0800 639 7678
e-mail: [e-mail]

United Kingdom: One Omega Drive, River Bend Technology Centre

ISO 9002 Certified

Northbank, Irlam, Manchester
M44 5BD United Kingdom
TEL: [phone] FAX: [phone]
Toll Free in United Kingdom: 0800-488-488
e-mail: [e-mail]

OMEGAnet®Online Service Internet e-mail

omega.com i n f o @ o m e g a . c o m

It is the policy of OMEGA Engineering, Inc. to comply with all worldwide safety and EMC/EMI
regulations that apply. OMEGA is constantly pursuing certification of its products to the European New
Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification.

The information contained in this document is believed to be correct, but OMEGA accepts no liability for any
errors it contains, and reserves the right to alter specifications without notice.
WARNING: These products are not designed for use in, and should not be used for, human applications.

GENERAL INFORMATION

The FMG210/220 Series are small electromagnetic low-ow
owmeters with chemically-resistant plastic wetted parts and
platinum electrodes suitable for use with a variety of chemicals.
Capable of measuring pulsating ows from diaphragm-type
metering pumps, they are designed primarily for electrically­conductive chemical injection applications. The 1/4” and 3/8”
sizes monitor maximum ows of 1 and 3 gallons per minute (or
4 and 11 L/min), respectively. Barb or NPT ttings are available
and must be designated at time of order.

FEATURES

6 ft. control cable

Strain relief

Rugged ABS plastic body

The FMG210/220 Series are 12-24 Vdc powered and come
with standard pulse and analog outputs. All electronics are
self-contained in a single compact chemically-resistant hous­ing, well suited for OEM applications.

These meters are also appropriate for remote monitoring of
chemical volume or rate using a computer or a PLC.

SPECIFICATIONS

Materials Body

Electrodes

O-Ring

Fittings

Power

Accuracy

Max Fluid Temperature

Maximum Pressure

Minimum Conductivity

Outputs

Male NPT or barb pipe ttings,

PVDF plastic (must designate at time
of order).

ABS plastic

Platinum

FKM (EPDM optional)

PVDF plastic

12-24 Vdc, 180 mA

+/-1% of reading, plus .005 gpm (0.02 lpm)

185˚ F (85˚ C)

150 psi (@ 75˚ F)

>20 microSiemens/cm

• Frequency opto isolated 1000 pulse/liter (3785 p/g)

• 4-20 mA opto isolated passive

FLOW RANGE

SIZE LOW FLOW CUTOFF MINIMUM FLOW for spec accuracy MAXIMUM FLOW

L/MIN GAL/MIN GAL/HR L/MIN GAL/MIN GAL/HR L/MIN GAL/MIN GAL/HR

-025

.04 .01 .60 .26 .07 4.2 3.8 1 60

-038

.11 .03 1.80 .76 0.2 12 11 3 180

Page 1
