Omega Products FMA6600 Installation Manual

User’s Guide

FMA6600 and FMA6700

Multi-Parameter

Digital Mass Flow Meters

Shop online at

www.omega.com

e-mail: [e-mail]

for latest product manuals:

omegamanual.info

Servicing North America:

USA: One Omega Drive, Box 4047

ISO 9001 Certified Stamford CT 06907-0047

Tel: [phone] FAX: [phone]
e-mail: info@ omega.com

Canada: 976 Bergar

Laval (Quebec) H7L 5A1
Tel: [phone] FAX: [phone]
e-mail: info@ omega.ca

For immediate technical or application assistance:

USA and Canada: Sales Service: 1-800-826-6342 / 1-800-TC-OMEGA

®

Customer Service: 1-800-622-2378 / 1-800-622-BEST

®

Engineering Service: 1-800-872-9436 / 1-800-USA-WHEN

®

TELEX: 996404 EASYLINK: 62968934 CABLE: OMEGA

Mexico: En Espan˜ ol: [phone]-7803 e-mail: espanol@ omega.com

FAX: [phone] info@ omega.com.mx

Servicing Europe:

Benelux: Postbus 8034, 1180 LA Amstelveen, The Netherlands

Tel: [phone] FAX: [phone]
Toll Free in Benelux: 0800 0993344
e-mail: sales@ omegaeng.nl

Czech Republic: Rude´ arm-dy 1868, 733 01 Karvin- 8

Tel: [phone] FAX: [phone]
Toll Free: 0800-1-66342 e-mail: info@ omegashop.cz

France: 11, rue Jacques Cartier, 78280 Guyancourt, France

Tel: [phone] FAX: [phone]
Toll Free in France: 0800 466 342
e-mail: sales@ omega.fr

Germany/Austria: Daimlerstrasse 26, D-75392 Deckenpfronn, Germany

Tel: [phone] FAX: [phone]
Toll Free in Germany: 0800 639 7678
e-mail: info@ omega.de

United Kingdom: One Omega Drive, River Bend Technology Centre

ISO 9002 Certified Northbank, Irlam, Manchester

M44 5BD United Kingdom
Tel: [phone]
Toll Free in United Kingdom: 0800-488-48 FAX: [phone]
e-mail: sales@ omega.co.uk

OMEGAnet®Online Service Internet e-mail

www.omega.com info@ omega.com

It is the policy of OMEGA to comply with all worldwide safety and EMC/EMI regulations that
apply. OMEGA is constantly pursuing certification of its products to the European New Approach
Directives. OMEGA will add the CE mark to every appropriate device upon certification.

The information contained in this document is believed to be correct, but OMEGA Engineering, Inc. accepts
no liability for any errors it contains, and reserves the right to alter specifications without notice.
WARNING: These products are not designed for use in, and should not be used for, patient-connected applications.

TABLE OF CONTENTS

1. UNPACKING THE FMA6600/6700 DIGITAL MASS FLOW METER...........

1.1 Inspect Package for External Damage........................................................

1.2 Unpack the Digital Mass Flow Meter..............................................................

1.3 Returning Merchandise for Repair..............................................................

2. INSTALLATION.....................................................................

2.1 Primary Gas Connections...........................................................................

2.2 Electrical Connections................................................................................

2.2.1 Power Supply Connections........................................................................

2.2.2 Output Signals Connections.......................................................................

2.2.3 Output Communication Parameters and Connections................................

3. PRINCIPLE OF OPERATION......................................................

4. SPECIFICATIONS..................................................................

4.1 CE Compliance...........................................................................................

5. OPERATING INSTRUCTIONS.....................................................

5.1 Preparation and Warm Up..........................................................................

5.2 Swamping Condition....................................................................................

5.3 Programming FMA6600/6700 using LCD and Keypad................................

5.3.1 Changing Units of Measurement for Temperature & Pressure Reading.....

5.3.2 Monitoring FMA6600/6700 peripheries settings............................................

5.3.3 FMA6600/6700 Main Menu...........................................................................

5.3.4 Gas Flow Engineering Units Settings..........................................................

5.3.5 Gas Table Settings......................................................................................

5.3.6 Totalizer Settings........................................................................................

5.3.7 Alarm Settings...........................................................................................

5.3.8 Relay Assignment Settings........................................................................

5.3.9 K Factors Settings.....................................................................................

5.3.10 Zero Calibration..........................................................................................

5.3.11 Flow Conditions Settings...........................................................................

5.3.12 LCD Backlit Energy-saving Setting............................................................

5.4 Flow, Temperature, Pressure Output Signals Configuration......................

6. MAINTENANCE....................................................................

6.1 Introduction................................................................................................

6.2 Flow Path Cleaning....................................................................................

6.2.1 Restrictor Flow Element (RFE)..................................................................

6.2.2 Meters up to 10 LPM................................................................................

6.2.3 Meters 15 SLPM to 50 SLPM and Meters greater than 50 SLPM............

1

1
1
1

1

1
2
2
3
4

6

7

9

12

12
12
13
13
13
14
15
17
18
20
22
24
24
26
27
27

28

28
29
29
29
30

7. CALIBRATION PROCEDURES..................................................

7.1 Flow Calibration........................................................................................

7.2 Gas Flow Calibration of FMA6600/6700 Digital Mass Flow Meters..........

7.2.1 Connections and Initial Warm Up.............................................................

7.2.2 ZERO Check/Adjustment..........................................................................

7.2.3 Gas Linearization Table Adjustment.........................................................

7.3 Analog output Calibration of FMA6600/6700 Digital Mass Flow Meters.....

7.3.1 Initial Setup..............................................................................................

7.3.2 Gas flow 0-5 Vdc analog output calibration.............................................

7.3.3 Gas flow 4-20 mA analog output calibration............................................

7.3.4 Gas temperature 0-5 Vdc analog output calibration (FMA6700 Meters).....

7.3.5 Gas temperature 4-20 mA analog output calibration (FMA6700 Meters)....

7.3.6 Gas pressure 0-5 Vdc analog output calibration (FMA6700 Meters).......

7.3.7 Gas pressure 4-20 mA analog output calibration (FMA6700 Meters)......

7.4 Temperature or/and Pressure sensor Calibration.....................................

8. RS485/RS232 SOFTWARE INTERFACE COMMANDS.....................

8.1 General.....................................................................................................

8.2 Commands Structure...............................................................................

8.3 ASCII Commands Set...............................................................................

9. TROUBLESHOOTING............................................................

9.1 Common Conditions................................................................................

9.2 Troubleshooting Guide.............................................................................

9.3 Technical Assistance................................................................................

10. CALIBRATION CONVERSIONS FROM REFERENCE GASES................

APPENDIX I OMEGA FMA6600/6700 EEPROM Variables....................................

APPENDIX II INTERNAL USER SELECTABLE GAS FACTOR TABLE......................

(INTERNAL "K" FACTORS)

APPENDIX III GAS FACTOR TABLE ("K" FACTORS)................................................

APPENDIX IV COMPONENT DIAGRAM..................................................................

APPENDIX V DIMENSIONAL DRAWINGS.............................................................

APPENDIX VI WARRANTY.....................................................................................

30

30
31
31
31
31
33
34
35
35
35
36
36
37
37

37

37
38
40

46

46
47
49

49

50
53

54
58
62
64

1. UNPACKING THE FMA6600/6700
DIGITAL MASS FLOW METER

1.1 Inspect Package for External Damage

Your FMA6600/6700 Digital Mass Flow Meter was carefully packed in a sturdy
cardboard carton, with anti-static cushioning materials to withstand shipping
shock. Upon receipt, inspect the package for possible external damage. In case of
external damage to the package contact the shipping company immediately.

1.2 Unpack the Digital Mass Flow Meter

Open the carton carefully from the top and inspect for any sign of concealed ship­ping damage. In addition to contacting the shipping carrier please forward a copy
of any damage report to Omega7. When unpacking the instrument please make
sure that you have all the items indicated on the Packing List. Please report any
shortages promptly.

1.3 Returning Merchandise for Repair

Please contact an Omega7 customer service representative at 1-800-872-9436
(extension 2208), and request a Return Authorization Number (AR). Equipment
returned without an AR will not be accepted. Omega7 reserves the right to charge
a fee to the customer for equipment returned under warranty claims if the instru­ments are tested to be free from warrantied defects. Shipping charges are borne by
the customer. Meters returned "collect" will not be accepted! It is mandatory that any
equipment returned for servicing be purged and neutralized of any dangerous con­tents including but not limited to toxic, bacterially infectious, corrosive or radioac­tive substances. No work shall be performed on a returned product unless the cus­tomer submits a fully executed, signed SAFETY CERTIFICATE. Please request form
from the Service Manager.

2. INSTALLATION

2.1 Primary Gas Connections

Please note that the FMA6600/6700 Digital Mass Flow Meter will not operate with
liquids. Only clean gases are allowed to be introduced into the instrument. If gases
are contaminated they must be filtered to prevent the introduction of impediments
into the sensor.

Caution: FMA6600/6700 transducers should not be used for
monitoring OXYGEN gas unless specifically cleaned and prepared
for such application.

1



2

Attitude limit of Digital Mass Flow Meter is ±15deg from calibration position (stan­dard calibration is in horizontal position). This means that the gas flow path of the
Flow Meter must be within this limit in order to maintain the original calibration
accuracy. Should there be need for a different orientation of the meter, re-calibra­tion may be necessary. It is also preferable to install the FMA6600/6700 trans­ducer in a stable environment, free of frequent and sudden temperature changes,
high moisture, and drafts.

Prior to connecting gas lines inspect all parts of the piping system including fer­rules and fittings for dust or other contaminants. Be sure to observe the direction
of gas flow as indicated by the arrow on the front of the meter when connecting
the gas system to be monitored. Insert tubing into the compression fittings until
the ends of the properly sized tubing home flush against the shoulders of the fit­tings. Compression fittings are to be tightened according to the manufacturer's
instructions to one and one quarter turns. Avoid over tightening which will seri­ously damage the Restrictor Flow Elements (RFE's)!

Caution: For FMA6700 (Multi Parameter versions)
the maximum pressure in the gas line should not exceed 100 PSIA
(6.8 bars). Applying pressure above 100 PSIA (6.8 bars) for
extended periods of time will seriously damage the pressure sensor.
Burst pressure is 200 PSIA (13.6 bar)!

FMA6600/6700 transducers are supplied with standard 1/4 inch (50 LPM or less)
or 3/8 inch (60 LPM or greater), or optional 1/8 inch inlet and outlet compression
fittings which should not be removed unless the meter is being cleaned or cali­brated for a new flow range.

Using a Helium Leak Detector or other equivalent method perform a thorough
leak test of the entire system. (All FMA6600/6700's are checked prior to shipment
for leakage within stated limits. See specifications in this manual.)

2.2 Electrical Connections

FMA6600/6700 is supplied with a 25 pin "D" connector. Pin diagram is presented
in figure b-1.

2.2.1 Power Supply Connections

FMA6600/6700 transducers are supplied for three different power supply options:

±15Vdc (bipolar power supply)

DC Power (+) --------------- pin 1 of the 25 pin "D" connector
DC Power Common --------------- pin 18 of the 25 pin "D" connector
DC Power (-) --------------- pin 14 of the 25 pin "D" connector



3

+12Vdc or +24Vdc (unipolar power supply)

DC Power (+) --------------- pin 1 of the 25 pin "D" connector
DC Power (-) --------------- pin 18 of the 25 pin "D" connector

Caution: DO NOT CONNECT 24Vdc POWER SUPPLY UNLESS YOUR
FMA6600/6700 METER WAS ORDERED AND CONFIGURED FOR 24Vdc!
(See power requirements label at the rear of the FMA6600/6700 meter)

2.2.2 Output Signals Connections

Caution: When connecting the load to the output terminals, do not
exceed the rated values shown in the specifications. Failure to do so
might cause damage to this device. Be sure to check that the wiring
and the polarity of the power supply is correct before turning the power
ON. Wiring error may cause damage or faulty operation.

FMA6600/6700 series Digital Mass Flow Meters are equipped with either calibrat­ed 0-5 VDC (0-10 VDC optional) or calibrated 4-20 mA output signals (jumper
selectable). This linear output signal represents 0-100% of the flow meter's full
scale range. Multi Parameter versions (FMA6700 Series) are in addition equipped
with either a calibrated 0-5 VDC (0-10VDC optional) or a calibrated 4-20 mA out­put signal (jumper selectable) for pressure and temperature. Pressure linear out­put signal represents 0-100PSIA (46.9 kPa). Temperature linear output signal rep­resents 0-50

F

C.

Warning: All 4-20 mA current loop outputs are self-powered
(non-isolated).
Do not connect an external voltage source to the output signals!

Flow 0-5 VDC or 4-20 mA output signal connection:

Plus (+) ------------------- pin 2 of the 25 pin "D" connector
Minus (-) ------------------- pin 15 of the 25 pin "D" connector

Temperature 0-5 VDC or 4-20 mA output signal connection
(For FMA6700 Series only):

Plus (+) -------------------- pin 3 of the 25 pin "D" connector
Minus (-) -------------------- pin 16 of the 25 pin "D" connector

Pressure 0-5 VDC or 4-20 mA output signal connection
(For FMA6700 Series only):

Plus (+) -------------------- pin 4 of the 25 pin "D" connector
Minus (-) -------------------- pin 17 of the 25 pin "D" connector

To eliminate the possibility of noise interference, use a separate cable entry for the
DC power and signal lines.







4

2.2.3 Communication Parameters and Connections

The digital interface operates via RS485 (optional RS232 is available) and pro­vides access to applicable internal data including: flow, temperature, pressure
reading, auto zero, totalizer and alarm settings, gas table, conversion factors and
engineering units selection, dynamic response compensation and linearization
table adjustment.

Communication Settings:

Baud rate: ------------------- 9600 baud
Stop bit: ------------------- 1
Data bits: ------------------- 8
Parity: ------------------- None
Flow Control: ------------------- None

RS485 communication interface connection:

The RS485 converter/adapter has to be configured for: multidrop, 2 wire, half
duplex mode. The transmitter circuit has to be enabled by TD or RTS (depending
on which is available on the converter/adapter). Settings for the receiver circuit
usually should follow the selection made for the transmitter circuit in order to
eliminate echo.

RS485 T(-) or R(-) -------- pin 11 of the 25 pin "D" connector (-)
RS485 T(+) or R(+) -------- pin 24 of the 25 pin "D" connector (+)
RS485 GND (if available) -------- pin 20 of the 25 pin "D" connector (GND)

RS232 communication interface connection:

Crossover connection has to be established:

RS232 RX
(pin 2 on the DB9 connector) -------- pin 11 of the 25 pin "D" connector (TX)
RS232 TX
(pin 3 on the DB9 connector) -------- pin 24 of the 25 pin "D" connector (RX)
RS232 GND
(pin 5 on the DB9 connector) -------- pin 20 of the 25 pin "D" connector (GND)

5

PIN FUNCTION

1 +15 Vdc (Optional +12 or +24 Vdc) Power Supply
2 0 5 Vdc or 4-20mA Flow Signal Output
3 0 5 Vdc or 4-20mA Temperature Signal Output (Optional)
4 0 5 Vdc or 4-20mA Pressure Signal Output (Optional)
5 (reserved)
6 (reserved)
7 (reserved)
8 Relay No. 1 - Common Contact
9 Relay No. 1 - Normally Open Contact
10 Relay No. 2 - Normally Closed Contact
11 RS485 (-) (Optional RS232 TX)
12 (No Connection)
13 Common
14 -15 VDC Power Supply (Only for ±15Vdc option)
15 Common, Signal Ground For Pin 2 (4-20 mA return)
16 Common, Signal Ground For Pin 3 (4-20 mA return)
17 Common, Signal Ground For Pin 4 (4-20 mA return)
18 Common, Power Supply (- DC power for 12 and 24 Vdc)
19 Common
20 RS232 Signal GND (RS485 GND Optional)
21 Relay No. 1 - Normally Closed Contact
22 Relay No. 2 - Common Contact
23 Relay No. 2 - Normally Open Contact
24 RS485 (+) (Optional RS232 RX)
25 Chassis Ground

Figure b-1, FMA6600/6700 25 Pin "D" Connector Configuration.

IMPORTANT NOTES: In general, "D" Connector numbering patterns are
standardized. There are, however, some connectors with nonconform­ing patterns and the numbering sequence on your mating connector
may or may not coincide with the numbering sequence shown in our
pin configuration table above. It is imperative that you match the
appropriate wires in accordance with the correct sequence regardless
of the particular numbers displayed on the mating connector.

Make sure power is OFF when connecting or disconnecting any cables
in the system.

The (+) and (-) power inputs are each protected by a 400mA M (medium time-lag) reset­table fuse. If a shorting condition or polarity reversal occurs, the fuse will cut power
to the flow transducer circuit. Disconnect the power to the unit, remove the faulty
condition, and reconnect the power. The fuse will reset once the faulty condition
has been removed. DC Power cable length may not exceed 9.5 feet (3 meters).





6

Use of the FMA6600/6700 flow transducer in a manner other than that specified
in this manual or in writing from Omega7, may impair the protection provided by
the equipment.

3. PRINCIPLE OF OPERATION

The stream of gas entering the Mass Flow transducer is split by shunting a small
portion of the flow through a capillary stainless steel sensor tube. The remainder
of the gas flows through the primary flow conduit. The geometry of the primary
conduit and the sensor tube are designed to ensure laminar flow in each branch.
According to principles of fluid dynamics the flow rates of a gas in the two lami­nar flow conduits are proportional to one another. Therefore, the flow rates meas­ured in the sensor tube are directly proportional to the total flow through the trans­ducer. In order to sense the flow in the sensor tube, heat flux is introduced at two
sections of the sensor tube by means of precision wound heater sensor coils. Heat
is transferred through the thin wall of the sensor tube to the gas flowing inside.
As gas flow takes place heat is carried by the gas stream from the upstream coil
to the downstream coil windings. The resultant temperature dependent resistance
differential is detected by the electronic control circuit. The measured gradient at
the sensor windings is linearly proportional to the instantaneous rate of flow tak­ing place. An output signal is generated that is a function of the amount of heat
carried by the gases to indicate mass molecular based flow rates. Additionally, the
FMA6600/6700 Digital Mass Flow Meter incorporates a Digital Signal Processor
(DSP) and non-volatile memory that stores all hardware specific variables and up
to 10 different calibration tables. Multi parameter flow meters (FMA6700 Series)
provide accurate data on three different fluid parameters:

 flow
 pressure
 temperature

The flow rate can be displayed in volumetric flow or mass flow engineering units
for standard or actual (temperature, pressure) conditions. Flow meters can be
programmed locally via the four button keypad and LCD, or remotely, via the RS­232/RS485 interface. FMA6600/6700 flow meters support various functions
including: flow totalizer, flow, temperature, pressure alarms, automatic zero
adjustment, 2 SPDT relays output, 0-5 Vdc / 0-10 Vdc / 4-20 mA analog outputs
for flow, pressure and temperature.

7

4. SPECIFICATIONS

FLOW MEDIUM: Please note that FMA6600/6700 Digital Mass Flow Meters are

designed to work with clean gases only. Never try to measure
flow rates of liquids with any FMA6600/6700.

CALIBRATIONS: Performed at standard conditions [14.7 psia (101.4 kPa) and

70F F (21.1FC)] unless otherwise requested or stated.

ENVIRONMENTAL (PER IEC 664):

Installation Level II; Pollution Degree II.

FLOW ACCURACY FOR FMA6700 Series (INCLUDING LINEARITY):

0

F

C to 50FC and 5 to 100 psia (34.5 - 689.5 kPa): ±1% of full

scale (F.S.)

FLOW ACCURACY FOR FMA6600 Series (INCLUDING LINEARITY):

±1% of FS at calibration temperature and pressure.

REPEATABILITY: ±0.15% of full scale.

FLOW TEMPERATURE COEFFICIENT:

0.15% of full scale/

F

C or better.

FLOW PRESSURE COEFFICIENT:

0.01% of full scale/psi (6.895 kPa) or better.

FLOW RESPONSE TIME:

Meters up to 10 LPM: 300ms time constant; approximately

1 second to within ±2% of set flow rate for 25% to 100% of
full scale flow.

Meters greater than 10 LPM: 600ms time constant;
approximately 2 seconds to within ±2% of set flow rate for
25% to 100% of full scale flow.

MAXIMUM BURST PRESSURE:

FMA6600 Series: 500 psig (3447 kPa gauge).
FMA6700 Series: 200 psig (1379 kPa gauge).

PRESSURE MEASUREMENT RANGE:

0 to 100 psia (689.5 kPa absolute).
P (absolute) = P (gauge) + P (atmospheric)

8

PRESSURE MEASUREMENT ACCURACY:

±1% of F.S.

MAXIMUM PRESSURE DROP:

8 psi (at 100 L/min flow). See Table IV for pressure drops
associated with various meters and flow rates.

TEMPERATURE MEASUREMENT RANGE:

0

F

C to 50FC.

TEMPERATURE MEASUREMENT ACCURACY:

±1

F

C.

GAS AND AMBIENT TEMPERATURE:

32 FF to 122 FF (0 FC to 50 FC). 14 FF to 122 FF (-10 FC to 50 FC) ­Dry gases only.

RELATIVE GAS HUMIDITY:

Up to 70%.

LEAK INTEGRITY: 1 x 10

-9

sccs He maximum to the outside environment.

ATTITUDE SENSITIVITY:

Incremental deviation of up to 1% from stated accuracy, after
re-zeroing.

OUTPUT SIGNALS:

Linear 0-5 Vdc (3000 ohms min load impedance);
Linear 0-10Vdc (6000 ohms min impedance);
Linear 4-20 mA (500 ohms maximum loop resistance).
Maximum noise 20mV peak to peak (for 0-5 Vdc output).

TRANSDUCER INPUT POWER:

May be configured for three different options:
Bipolar ±15Vdc (±200 mA maximum);
Unipolar +12Vdc (300 mA maximum);
Unipolar +24Vdc (250 mA maximum);
Circuit boards have built-in polarity reversal protection.
Resettable fuses provide power input protection.

WETTED MATERIALS:

316 stainless steel, 416 stainless steel, FKM O-rings;
BUNA, EPR or Perflouroelastomer O-rings are optional.

9

Omega7 makes no expressed or implied guarantees of corrosion resistance of
Digital Mass Flow Meters as pertains to different flow media reacting with com­ponents of meters. It is the customers' sole responsibility to select the meter suit­able for a particular gas based on the fluid contacting (wetted) materials offered
in the different meters.

INLET AND OUTLET CONNECTIONS:

Meters up to 10 SLPM: standard 1/4" compression fittings,
Meters 15 SLPM to 50 SLPM: standard 1/4" compression fittings,
Meters greater than 50 SLPM: standard 3/8" compression fittings.

Optional 1/8" or 3/8" compression fittings and 1/4" VCR7 fittings are available.

DISPLAY: 128 x 64 graphic LCD with backlight (up to 8 lines of text).

User selectable backlight saver.

CALIBRATION OPTIONS:

Standard is one 10 points NIST calibration. Optional, up to 9
additional calibrations may be ordered at additional charge.

CE COMPLIANCE:

EMC Compliance with 89/336/EEC as amended.
Emission Standard: EN 55011:1991, Group 1, Class A
Immunity Standard: EN 55082-1:1992

10

Table I Low Flow Mass Flow Meters*

Table II Medium Flow Mass Flow Meters *

Table III High Flow Mass Flow Meters *80

* Flow rates are stated for Nitrogen at STP conditions [i.e. 70

F

F (21.1FC) at

1 atm]. For other gases use the K factor as a multiplier from APPENDIX 2.

CODE scc/min [N2]

CODE

std liters/min [N

2

]

01 0 to 10 07 0 to 1

02 0 to 20 08 0 to 2

03

0 to 50

09

0 to 5

04 0 to 100 10

0 to 10

05

0 to 200

06 0 to 500

CODE standard liters/min [N2]

11

0 to 15

30 20

31 30

32 40

33 50

CODE standard liters/min [N2]

40 60

41 80

42 100

11

Table IV Pressure Drops

Table V Approximate Weights

FLOW RATE

[std liters/min]

MAXIMUM PRESSURE DROP

[mm H2O] [psid] [kPa]

up to 10 25 0.04 0.276

20 300 0.44 3.03
30 800 1.18 8.14
40 1480 2.18 15.03
50 2200 3.23 22.3
60 3100 4.56

31.4

100 5500 8.08 55.7

MODEL WEIGHT SHIPPING WEIGHT

Meters up to 10 SLPM 2.20 lbs (1.00 kg)

3.70 lbs (1.68 kg)

Meters 15 SLPM and greater 2.95 lbs (1.33 kg)

4.34 lbs (1.97 kg)

12

5. OPERATING INSTRUCTIONS

5.1 Preparation and Warm Up

It is assumed that the Digital Mass Flow Meter has been correctly installed and
thoroughly leak tested as described in section 2. Make sure the flow source is OFF.
When applying power to a flow meter within the first two seconds you will see on
the LCD display: the product name, the software version, and revision of the
EEPROM table. After two seconds the LSD display switches to the main screen
with the following information:

 Temperature and Pressure reading (for meters FMA6700 Series only).
 Mass Flow reading in current engineering units.
 Current Gas Table and Gas Name.
 Totalizer Volume reading in current volume based engineering units.
 Totalizer , Alarm, and Relays status.

FMA6600/6700 Main Screen

Note: Allow the Digital Mass Flow Meter to warm-up for a

minimum of 15 minutes.

During initial powering of the FMA6600/6700 transducer, the flow output signal
will be indicating a higher than usual output. This is an indication that the
FMA6600/6700 transducer has not yet attained it's minimum operating tempera­ture. This condition will automatically cancel within a few minutes and the trans­ducer should eventually zero.

5.2 Swamping Condition

If a flow of more than 10% above the maximum flow rate of the Digital Mass Flow
Meter is taking place, a condition known as "swamping" may occur. Readings of a
"swamped" meter cannot be assumed to be either accurate or linear. Flow must
be restored to below 110% of maximum meter range. Once flow rates are lowered
to within calibrated range, the swamping condition will end. Operation of the meter
above 110% of maximum calibrated flow may increase recovery time.



F

F

13

5.3 Programming FMA6600/6700

using LCD and Keypad

All features of the flow meter can be accessed via the local four button keypad and
LCD.The LCD incorporates an energy-saving auto shut-off backlit feature. If
enabled, after 15 minutes of operation without user intervention the LCD backlit
turns off. In order to turn on the LCD backlit press any key on the keypad. The LCD
backlit energy-saving auto shut-off feature can be disabled or enabled by user (see
p. 5.3.12 "LCD backlit Energy-saving Setting").

5.3.1 Changing Units of measurement for

Temperature and Pressure reading

By default after power up the temperature reading is displayed in

F

F and pressure

in PSI. Pressing () [Enter] button from main screen will alter the units of meas­ure to

F

C for temperature and kPa for pressure reading respectively. In order to

change units of measure back to

F

F for temperature and PSI for pressure press

() [Enter] button while in the main screen one more time.

5.3.2 Monitoring FMA6600/6700 Peripheries Settings

The last row at the bottom of the main LCD screen reflects settings and status for
Totalizer, Flow Alarm, and Relays (see Figure b-2).

Totalizer Status:

TOT: R - totalizer is running (Enabled).
TOT: S - totalizer is stopped (Disabled).

Flow Alarm Status:

A: S - flow alarm is disabled.
A: R,N - flow alarm is enabled and currently there are no alarm conditions.
A: R,L - flow alarm is enabled and currently there is Low alarm condition.
A: R,H - flow alarm is enabled and currently there is High alarm condition.

F

F

14

Relay Settings:

N - No assignment (relay is not assigned to any events).
H - High Flow Alarm condition.
L - Low Flow Alarm condition.
R - Range between High and Low Flow Alarm condition.
T - Totalizer reached set limit.
A - High Temperature Alarm condition.
B - Low Temperature Alarm condition.
C - High Pressure Alarm condition.
D - Low Pressure Alarm condition.

Continued pressing of the () [Up] button from the main screen will switch the
status line to display the following information:

- Calibrated Full scale range in standard L/min for current Gas Table.

- Device Digital Communication interface type (RS485 or RS-232).

- Device RS485 address (two hexadecimal characters).

- Device Zero DAC counts (for troubleshooting purposes).

- Device Sensor Average ADC counts (for troubleshooting purposes).

- Device Sensor Compensated ADC counts
(for troubleshooting purposes).

Note: Pressing the () [Dn] button from any of the status line will switch
the status display to one step back.

5.3.3 FMA6600/6700 Main Menu

Pressing of the () [Esc] button from the main screen will switch the display to
the Main Menu. The following screen will appear:

Figure b-3, FMA6600/6700 Main Menu Screen

Pressing of the () [Up] or () [Dn] buttons allows the user to scroll up or down
the menu options. Press () [Enter] button to select the highlighted option of the
menu.





15

The following menu options are available:

1. Units of Measure -

View or Change the Units of Measure for Flow process variable.

2. Gas Table Select -

View or Change the Gas Table.

3. Totalizer -

View or Change settings for Totalizer.

4. Alarm Settings -

View or Change settings for Flow , Pressure and Temperature Alarm.

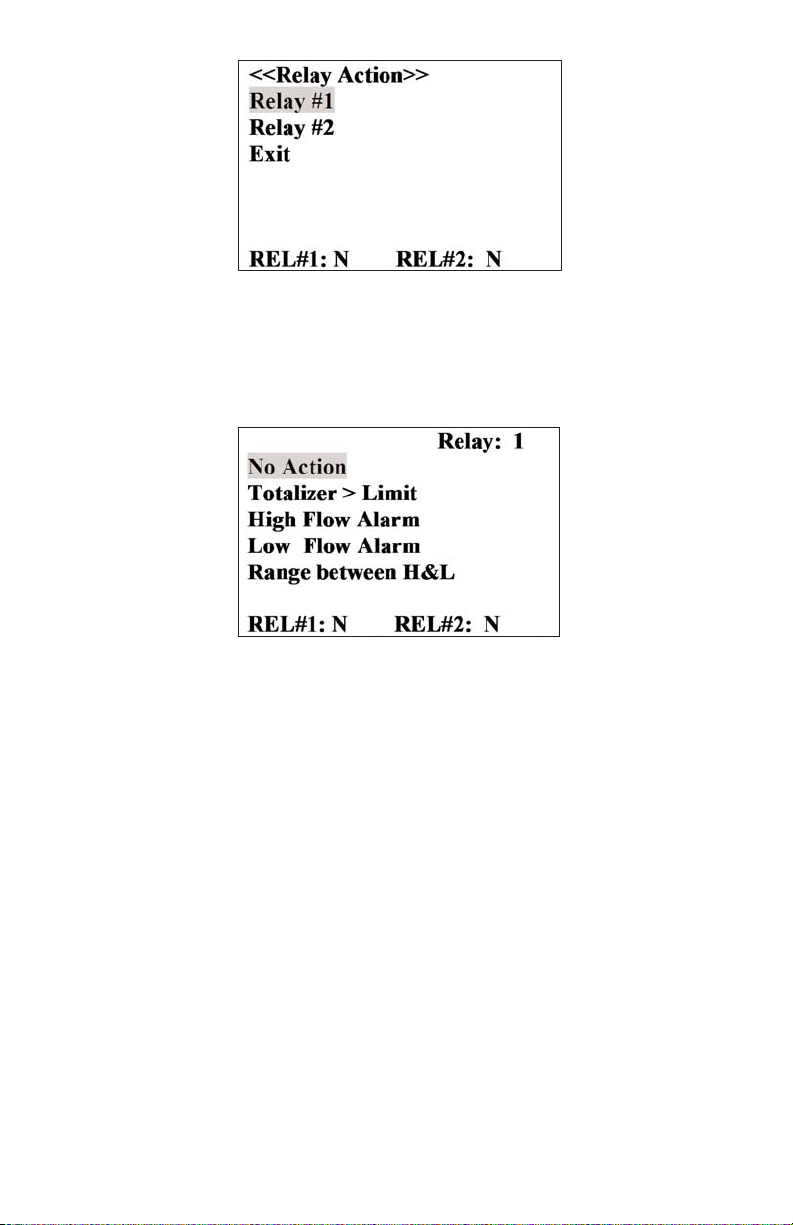

5. Relay Action -

View or Change settings for each of two available Relays.

6. K Factors -

View or Change settings for User defined or Internal K Factors.

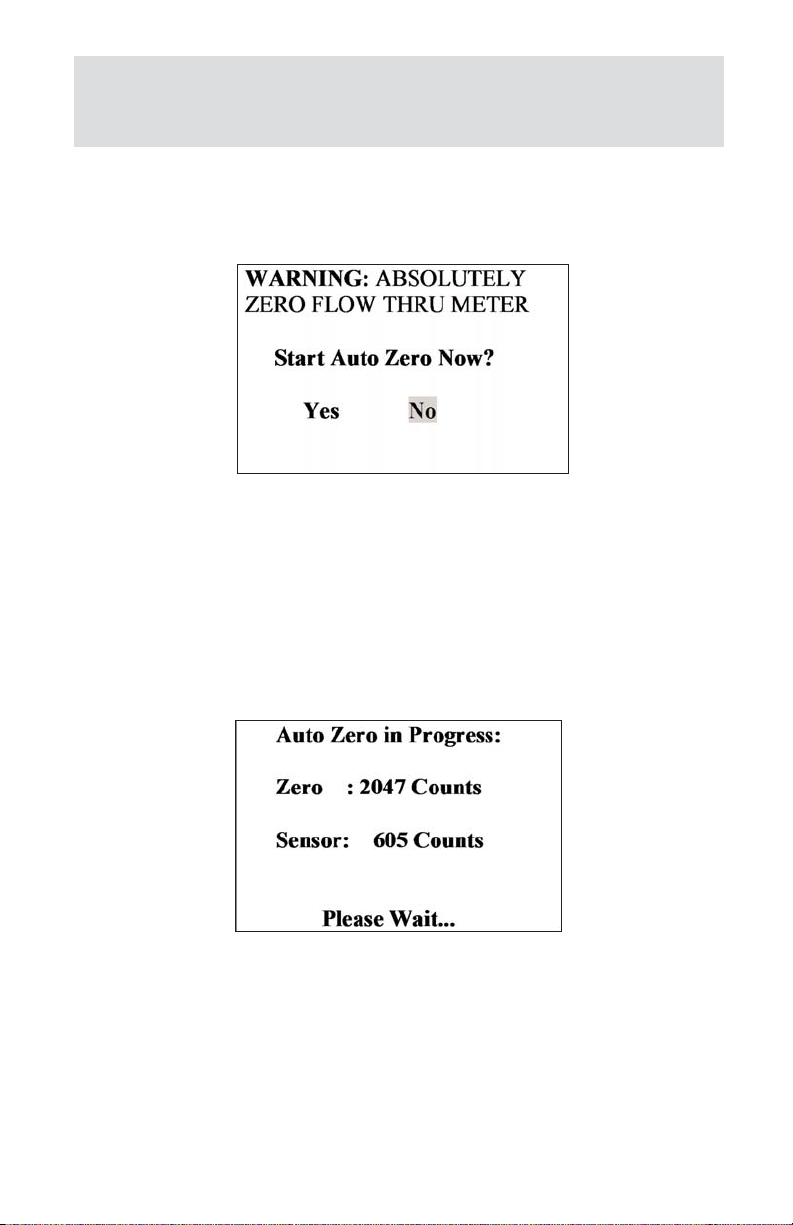

7. Zero Calibration -

Initiate Automatic Sensor Zero Calibration.

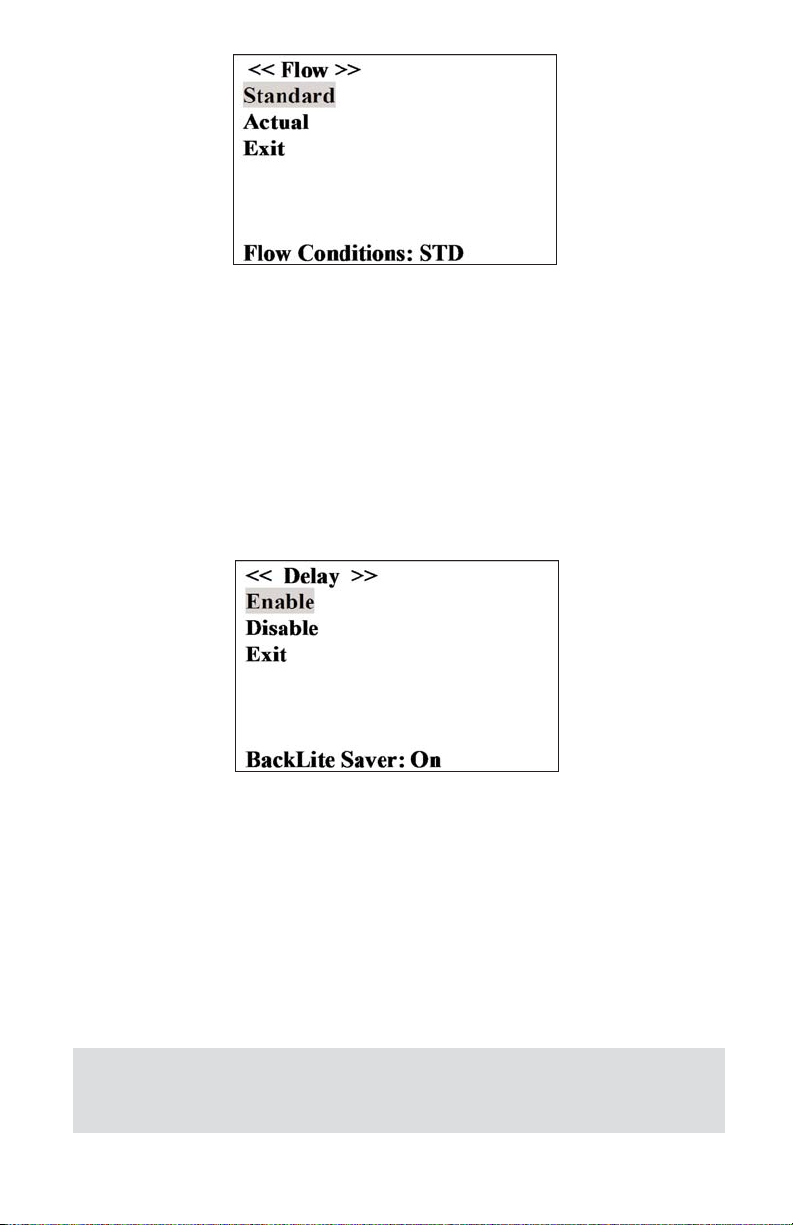

8. Flow Conditions -

Allows the user to set the Actual or Standard Flow conditions.

9. BackLight Timer -

Allows the user to turn On/Off the Energy-saving for LCD backlit.

10. Exit -

Returns to the Main Screen with process variables reading.

Note: Pressing the [Esc] button from any level of the Menu will switch
the menu to one level higher (up to Main Screen).

5.3.4 Gas Flow Engineering Units Settings

While in the Main Menu scroll with () [Up] or () [Dn] buttons to highlight the
Units of Measure option and press the () [Enter] button. The following screen
will appear:

Figure b-4, FMA6600/6700 Units of Measure Screen





The following Engineering Units menu options are available:

1. % F.S. - percent of full scale.

2. L/min - Liters per minute.

3. L/h - Liters per hour.

4. mL/min - milliliters per minute.

5. mL/h - milliliters per hour.

6. SCFH - cubic feet per hour.

7. SCFM - cubic feet per minute.

8. LbPH - pounds per hour.

9. LbPM - pounds per minute.

10. User - User defined Unit of Measure.

11. Exit - Exit to Main Menu

Selecting option 1 to 9 sets the corresponding Unit of Measure and switches the
LCD back to Main Menu.

Note: Once Flow Unit of Measure is changed the Totalizer's Volume
based Unit of Measure will be changed automatically.

If the User defined Unit of Measure option is selected the following screen will
appear:

Figure b-5, User Defined Unit of Measure Screen (K factor)

In order to specify the User Defined Unit of Measure user has to set three key
parameters:

K factor: - Conversion factor relative to L/min unit of measure.
Time base: - Hours, Minutes, or Seconds
Density: - Use density (YES / NO)

Press the () [Enter] button, to move the flashing cursor to the digit, which has
to be adjusted. Pressing () or () will increment or decrement a particular digit
respectively. The numbers will change from 0 to 9 and next to the decimal

16



17

point (.). Pressing the () button one more time will change the digit on the high­lighted position of the cursor back to 0. The same is true in reverse, when press­ing the () button. Only one decimal point is allowed. If changing position of the
decimal point is required, change decimal point to any desired digit then move the
cursor to the required position and adjust it to the decimal point with () or ()
button. When complete with K-factor value settings, press the () [Esc] button to
move in to the Time base settings screen. The following screen will appear:

Figure b-6, User Defined Unit of Measure Screen (Time base)

Use () or () buttons to highlight desired time base option. Press the ()
[Enter] button to set the Time base and move in to the Density settings screen.
The following screen will appear:

Figure b-7, User Defined Unit of Measure Screen (Density)

Use () or () buttons to highlight desired Density option. Press the () [Enter]
button when done. The LCD will display the Units of Measure Screen and new set­tings will be reflected at the bottom status line.

5.3.5 Gas Table Settings

The FMA6600/6700 Digital Mass Flow Meter is capable to store calibration data for
up to 10 different gases.

18

Note: By default the FMA6600/6700 is shipped with at least one valid
calibration table (unless optional additional calibrations were ordered).
If instead of the valid Gas Name (for example NITROGEN) the main
screen displays Gas designator as "Uncalibrated", then user have
chosen the gas table which was not calibrated. Using an Uncalibrated
Gas Table will result in erroneous reading.

From the Main Menu, the user would traverse the menu tree until reaching the "Gas
Table Select" menu. The following screen will appear:

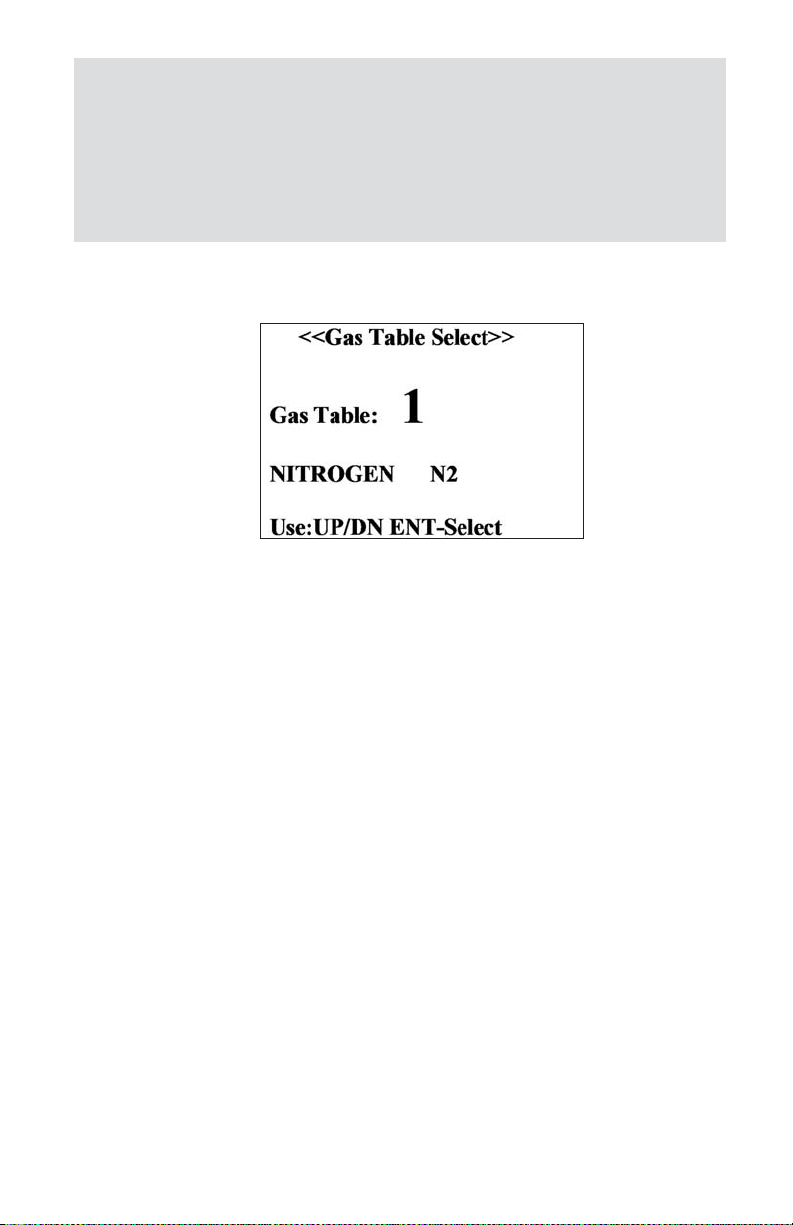

Figure b-8, Current Gas Table Settings

Use () or () buttons to select desired Gas Table, press the () [Enter] button
when done. The LCD will display the Main Menu screen. If desired, press the ()
[Esc] button to go back to the Main FMA6600/6700 screen. The new gas table
number and the name of the gas will be reflected on the Main FMA6600/6700
screen.

5.3.6 Totalizer Settings

The total volume of the gas is calculated by integrating the actual gas flow rate with
respect to time. Both keypad menu and digital interface commands are provided
to:

 set the totalizer to ZERO
 start the totalizer at a preset flow
 assign action at a preset total volume
 start/stop (enable/disable) totalizing the flow
 read totalizer

The Totalizer has several attributes which may be configured by the user. These
attributes control the conditions which cause the Totalizer to start integrating of
the gas flow and also specifying actions to be taken when the Total Volume is out­side the specified limit.



19

Note: Before enabling the Totalizer, ensure that all totalizer settings
are configured properly. Totalizer Start values have to be entered in
%F.S. engineering unit. Totalizer will not totalize until the flow rate
becomes equal or more than the Totalizer Start value. Totalizer Stop
values have to be entered in volume / mass based engineering units.

Totalizer action conditions become true, when the totalizer reading and preset
"Stop at Total" volumes are equal.

From the Main Menu, the user would traverse the menu tree until reaching the
"Totalizer" menu. The following screen will appear:

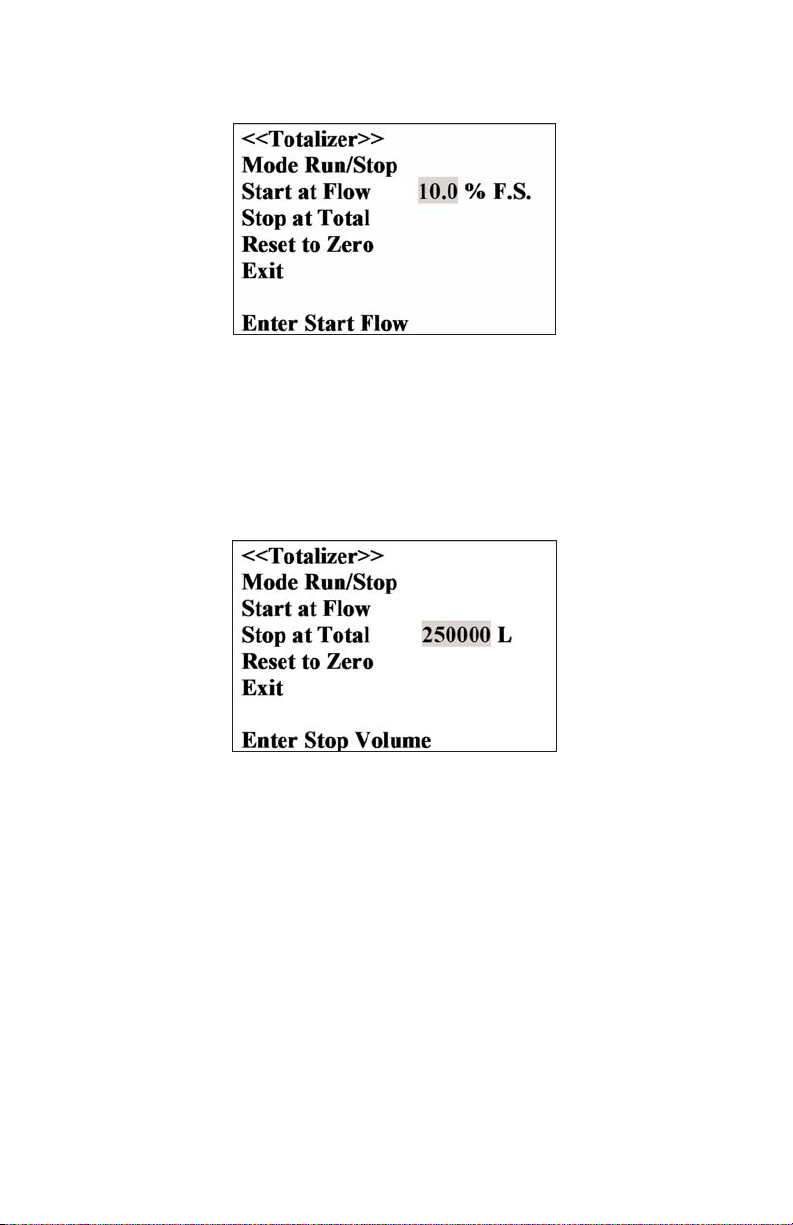

Figure b-9, Totalizer Settings

Mode Run/Stop - Allows the user to Enable/Disable Totalizer
Start at Flow - Allows the user to enter Gas flow rate in %F.S. at which

Totalizer starts integrating of the gas flow.

Stop at Total - Allows the user to enter Totalizer Limit Volume when user

defined action will occur.

Reset to Zero - Allows the user to reset Totalizer reading to zero.

Use () or () buttons to highlight "Mode Run/Stop" option and press the ()
[Enter] button. The following screen will appear:

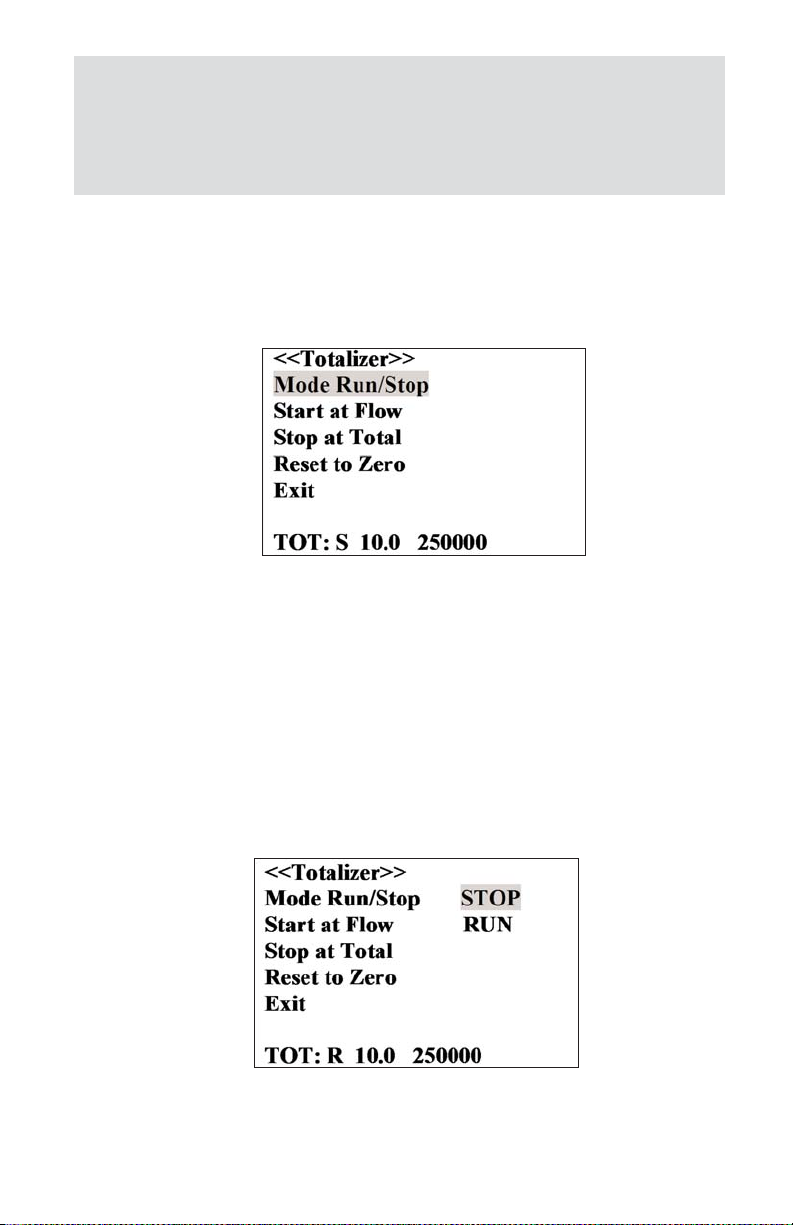

Figure b-10, Totalizer Settings (Stop/Run)





20

Use () or () buttons to highlight "Start at Flow" option and press the ()
[Enter] button. The following screen will appear:

Figure b-11, Totalizer Settings (Start)

Pressing () or () will increment or decrement Start Flow value per 0.1% F.S.
respectively. When done with adjustment, press the () [Enter] button.

Use () or () buttons to highlight "Stop at Total" option and press the ()
[Enter] button. The following screen will appear:

Figure b-12, Totalizer Settings (Stop)

Press the () [Enter] button, to move the flashing cursor to the digit, which has
to be adjusted. Pressing () or () will increment or decrement a particular digit
respectively. The numbers will change from 0 to 9 and next to the decimal point
(.). Pressing the () button one more time will change the digit on the highlight­ed position of the cursor back to 0. The same is true in reverse, when pressing the
() button. Only one decimal point is allowed. If changing position of the decimal
point is required, change decimal point to any desired digit then move the cursor
to the required position and adjust it to the decimal point with () or () button.
When done with adjustment, press the () [Esc] button.

5.3.7 Alarm Settings

FMA6600/6700 provides the user a flexible alarm/warning system that monitors
the Process Variables (Gas Flow, Pressure and Temperature) for conditions



:

21

that fall outside configurable limits and then provides feedback to the user visu­ally via the LCD (only for Flow) or via a Relay contact closure.

There are three different Alarms:

 Gas Flow
 Gas Temperature
 Gas Pressure

Each alarm has several attributes which may be configured by the user. These
attributes control the conditions which cause the alarm to occur and also specify
actions to be taken when the Process Variable is outside the specified conditions.

Note: All three alarms are non-latching. That means the alarm is
indicated only while the monitored value exceeds the specified
conditions.

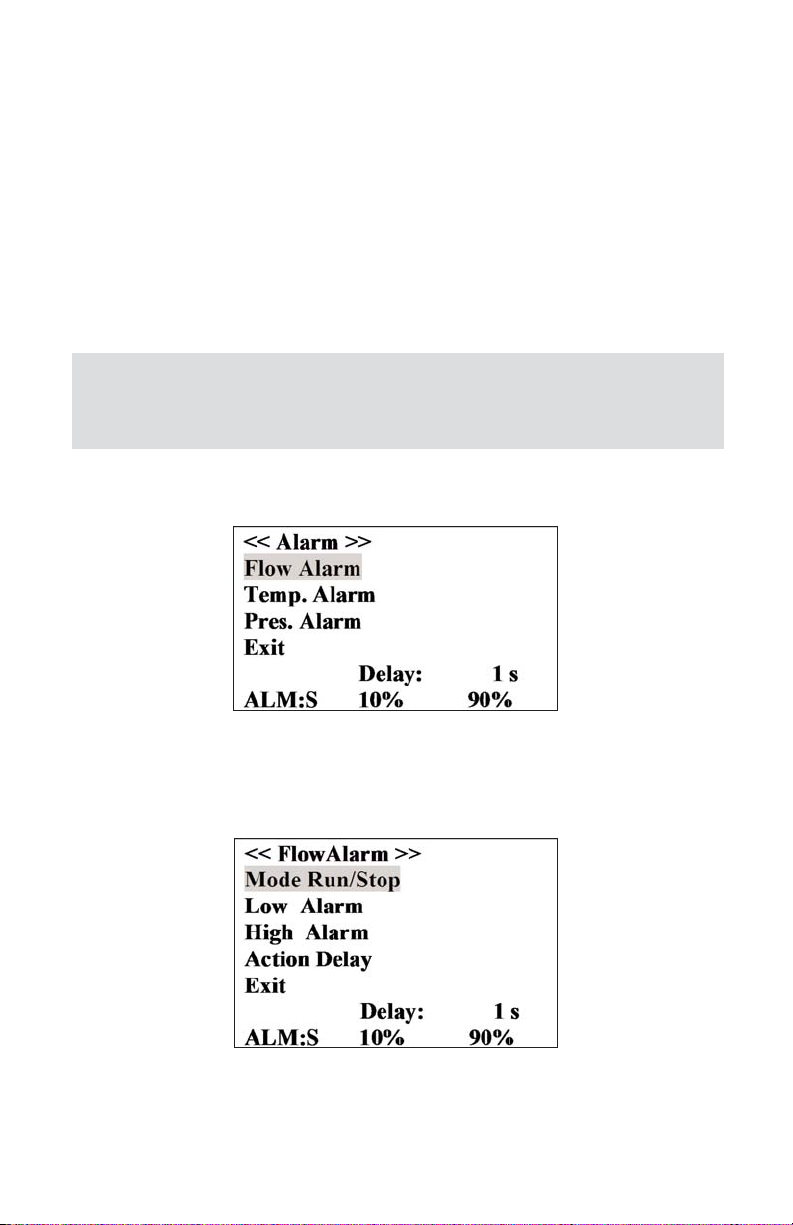

From the Main Menu, the user would traverse the menu tree until reaching the
"Alarm Settings" menu. The following screen will appear:

Figure b-13, Alarm Settings

Use () or () buttons to highlight "Flow Alarm" option and press the () [Enter]
button. The following screen will appear:

Figure b-14, Flow Alarm Settings



Mode Run/Stop - Allows the user to Enable/Disable Flow Alarm

Low Alarm - The value of the monitored Flow in % F.S. below which is

considered an alarm condition.

Note: The value of the Low alarm has to be less then the
value of the High Alarm.

High Alarm - The value of the monitored Flow in % F.S. above which is

considered an alarm condition.

Note: The value of the High alarm has to be more then the
value of the Low Alarm.

Action Delay - The time in seconds that the Flow rate value must remain

above the high limit or below the low limit before an alarm
condition is indicated. Valid settings are in the range from
0 to 3600 seconds.

Note: If the alarm condition is detected, and the Relay is assigned to
Alarm event, then the corresponding Relay will be energized.

The user can enable and configure Temperature and Pressure Alarms via the
similar menu:

Main Menu " Alarm Settings " Temp. Alarms - For Temperature Alarm
Main Menu " Alarm Settings " Pres. Alarms - For Pressure Alarm

Note: High and Low limits for the Temperature Alarm have to be
entered in

F

C. High and Low limits for the Pressure Alarm have to be

entered in the currently set engineering units: PSI or kPa (absolute).

P (absolute) = P (gauge) + P (atmospheric).

5.3.8 Relay Assignment Settings

Two sets of dry contact relay outputs are provided to actuate user supplied equip­ment. These are programmable via local keypad or digital interface such that the
relays can be made to switch when a specified event occurs (e.g. when a low or
high flow, pressure or temperature alarm limit is exceeded or when the totalizer
reaches a specified value).

From the Main Menu, the user would traverse the menu tree until reaching the
"Relay Action" menu. The following screen will appear:

22









23

Figure b-15, Relay Assignment Screen

The user selects a Relay by scrolling up/down the list of available Relays until the
desired Relay is highlighted and then presses the () [Enter] button. The follow­ing screen will appear:

Figure b-16, Relay #1 Action Settings

The user can configure the Relay action from 9 different options:

No Action : (N) No assignment (relay is not assigned to any events).
Totalizer > Limit : (T) Totalizer reached set limit volume.
High Flow Alarm : (H) High Flow Alarm condition.
Low Flow Alarm : (L) Low Flow Alarm condition.
Range between H&L : (R) Range between High and Low Flow Alarm condition.
High Temp. Alarm : (A) High Temperature Alarm condition.
Low Temp. Alarm : (B) Low Temperature Alarm condition.
High Pres. Alarm : (C) High Pressure Alarm condition.
Low Pres. Alarm : (D) Low Pressure Alarm condition.
Exit

The user selects an Action by scrolling up/down the list of available options until
the desired option is highlighted and then presses the () [Enter] button.



24

5.3.9 K Factors Settings

Conversion factors relative to Nitrogen for up to 32 gases are stored in the
FMA6600/6700 (see APPENDIX II). In addition, provision is made for a user
defined conversion factor. Conversion factors may be applied to any of the ten gas
calibrations via keypad or digital interface commands.

The available K Factor settings are:

 Disabled (K = 1)
 Internal Index The index [0-31] from internal K factor table (see APPENDIX II).
 User Defined User defined conversion factor

Note: The conversion factors will not be applied for % F.S.
engineering unit.)

From the Main Menu, the user would traverse the menu tree until reaching the "K
Factors" menu. The following screen will appear:

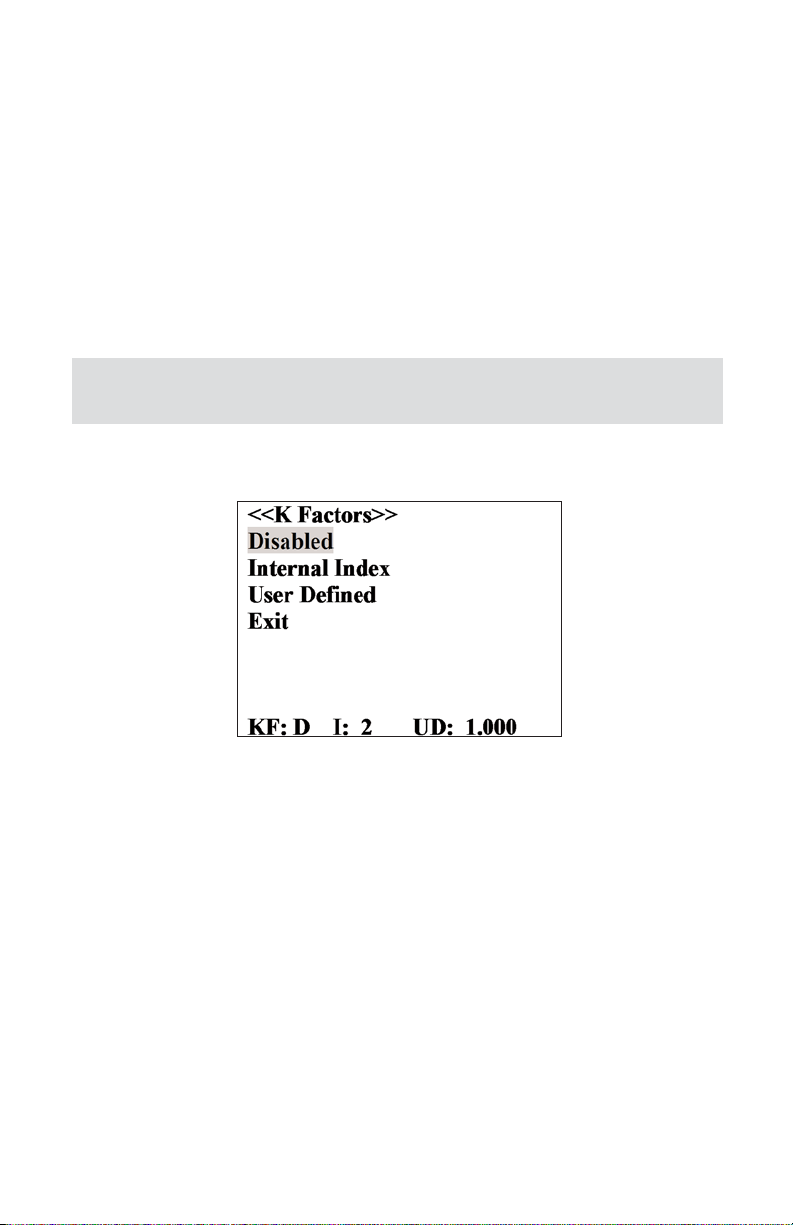

Figure b-17, K Factors Screen

The user selects a K factor by scrolling up/down the list of available options until
the desired option is highlighted and then presses () [Enter] button. For Internal
Index and User Defined options user will be prompted to enter desired index/value
of conversion factor.

5.3.10 Zero Calibration

The FMA6600/6700 includes an auto zero function that when activated, automati­cally adjusts the mass flow sensor to read zero. The initial zero adjustment for your
FMA6600/6700 was performed at the factory. It is not required to perform zero
calibration unless the device has zero reading offset with no flow conditions.



25

NOTE: Before performing Zero Calibration make sure the device is
powered up for at least 30 minutes and absolute no flow condition
is established.

Shut off the flow of gas into the Digital Mass Flow Meter. To ensure that no seep­age or leak occurs into the meter, it is good practice to temporarily disconnect the
gas source. From the Main Menu, the user would traverse the menu tree until
reaching the "Zero Calibration" menu. The following screen will appear:

Figure b-18, Zero Calibration (Start)

The user must acknowledge the warning that the Auto Zero procedure is about to
be started and there is absolutely zero flow thru the meter. Selecting YES confirms
that user has taken the necessary precautions and starts Auto Zero algorithm.
Selecting NO aborts the Auto Zero procedure.

To start Auto Zero use () or () buttons to highlight "Yes" option and press the
() [Enter] button. The following screen will appear:

Figure b-19, Zero Calibration (In progress)

The Auto Zero procedure normally takes 2 - 3 minutes during which Zero and
Sensor reading will be changed approximately every 4 seconds. The nominal value
for fully balanced sensor is 120 Counts. If the FMA6600/6700's digital signal
processor was able to adjust the Sensor reading within 120 ± 2 counts, then Auto
Zero is considered as successful and the screen below will appear:



26

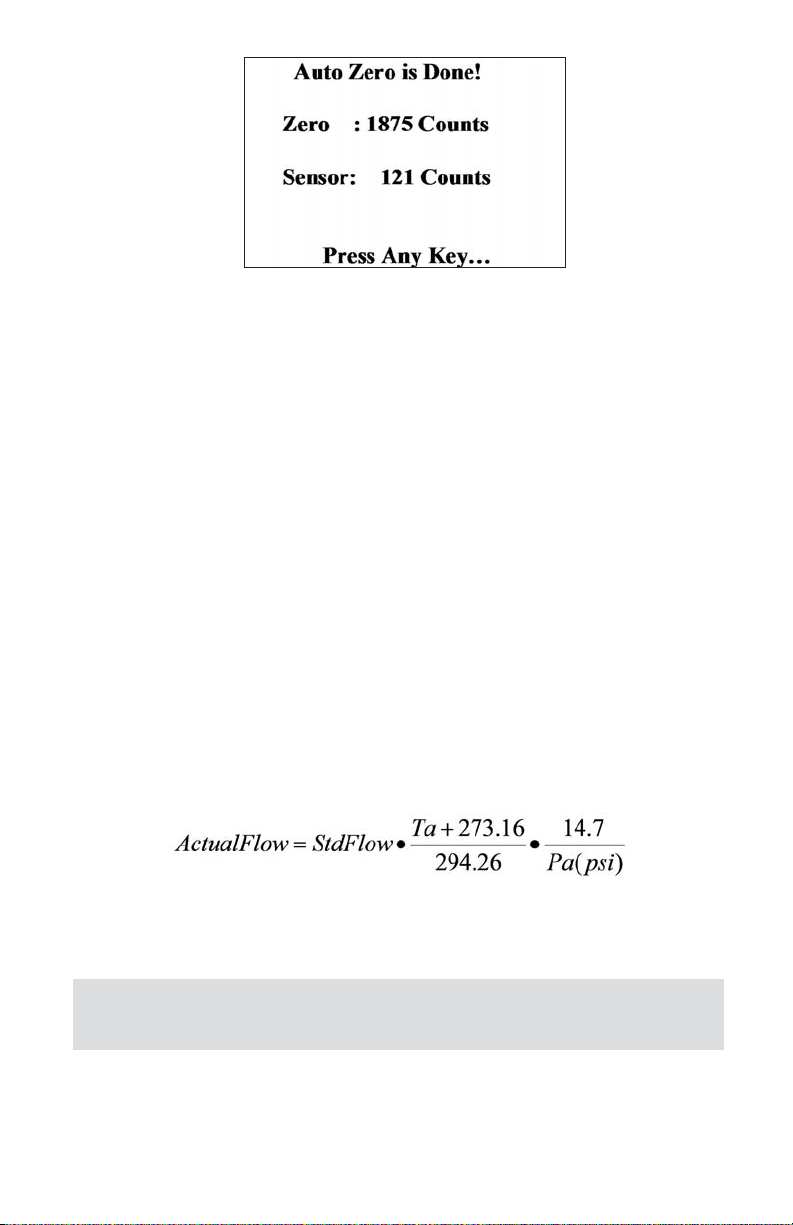

Figure b-20, Zero Calibration (Completed)

If the device was unable to adjust Sensor reading to within 120 ± 2 counts, then
Auto Zero is considered as unsuccessful and user will be prompted with "Auto
Zero is Failed!" screen.

5.3.11 Flow Conditions Settings

For FMA6700 Series the flow reading can be displayed for standard or actual con­ditions (Temperature / Pressure adjusted). Since mass flow sensors are sensitive
to changes in gas density and gas velocity, all Digital Mass Flow Meters indicate
flow rates with reference to a set of standard conditions. For Omega7 Engineering,
standard conditions are defined as 21.1° C (70° F) and 101.3 kPa (14.7 psia).
Other manufacturers may use different values. Standard flow rate is the flow rate
the gas would be moving if the temperature and pressure were at standard condi­tions. It is usually the most convenient measure of the gas flow because it defines
the heat-carrying capacity of the air. Actual (volumetric) flow rate is the true vol­ume flow of the gas exiting the flow meter. In some instances, actual (volumetric)
flow rate rather than standard flow rate may be of interest. To display actual (vol­umetric) flow rate, the FMA6600/6700 will multiply the standard flow measure­ment by the following density correction factor:

Where:
Ta = Actual gas temperature measured by the FMA6600/6700 in units of degrees Celsius
Pa = Actual absolute pressure measured by the FMA6600/6700 in units of PSI

Note: The Actual Flow reading will not be calculated for % F.S.
engineering unit.

In order to select Standard or Actual flow measurement user would traverse the
menu tree until reaching the "Flow Conditions" menu. The following screen will
appear:



27

Figure b-21, Flow Condition Screen

Use () or () buttons to highlight desired option and press the () [Enter] button.

5.3.12 LCD backlit Energy-Saving Setting

The FMA6600/6700's LCD incorporates Energy-saving auto shut-off backlit fea­ture. If enabled, after 15 minutes of operation without user intervention the LCD
backlit turns off. In order to turn on LCD backlit press any key on the keypad. In
order to enable/disable Energy-saving auto shut-off backlit feature user would tra­verse the menu tree until reaching the "Back Light Timer" menu. The following
screen will appear:

Figure b-22, LCD backlit Energy-saving Screen

Use () or () buttons to highlight desired option and press the () [Enter] button.

5.4 Flow, Temperature, Pressure output Signals
Configuration

FMA6600/6700 series Digital Mass Flow Meters are equipped with calibrated 0-5
Vdc (0-10 Vdc optional) and 4-20 mA output signals. The set of the jumpers (J2,
J3, J4) on the analog printed circuit board is used to switch between 0-5 Vdc, 0­10 Vdc or 4-20 mA output signals (see Table VI).

Note: FMA6600 Series are equipped with gas flow rate output signal
only. FMA6700 Series in addition provide output signals for temperature
and pressure.



Analog output signals of 0-5 Vdc, (0-10 Vdc optional) or 4-20 mA are attained at
the appropriate pins of the 25-pin "D" connector (see Figure b-1) on the side of the
FMA6600/6700 transducer.

Table VI Analog Output Jumper Configuration

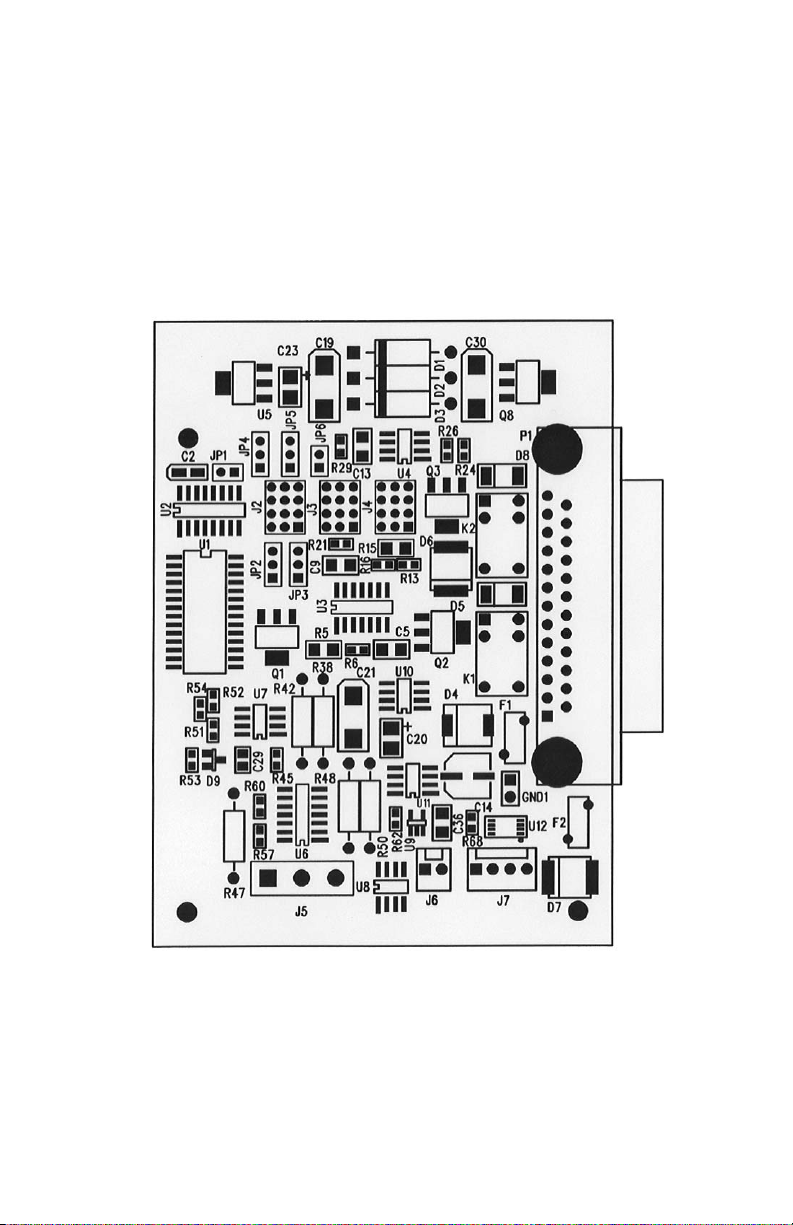

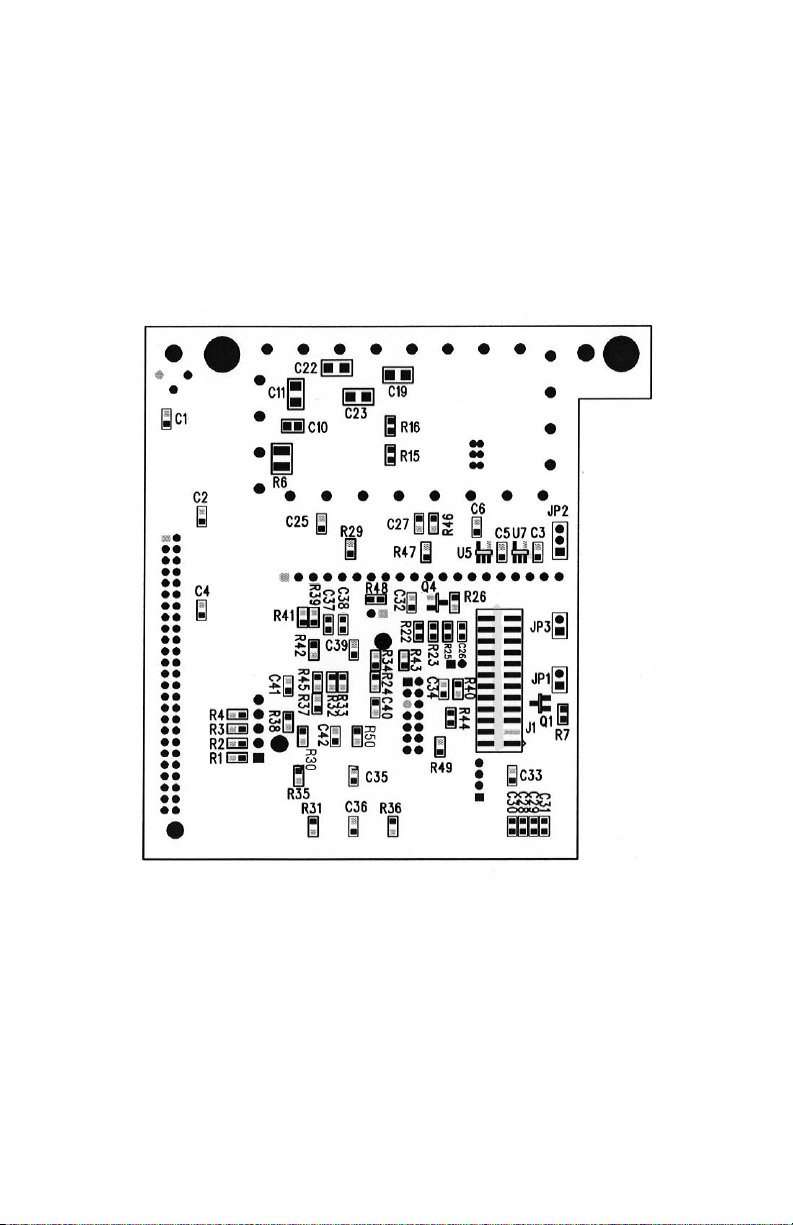

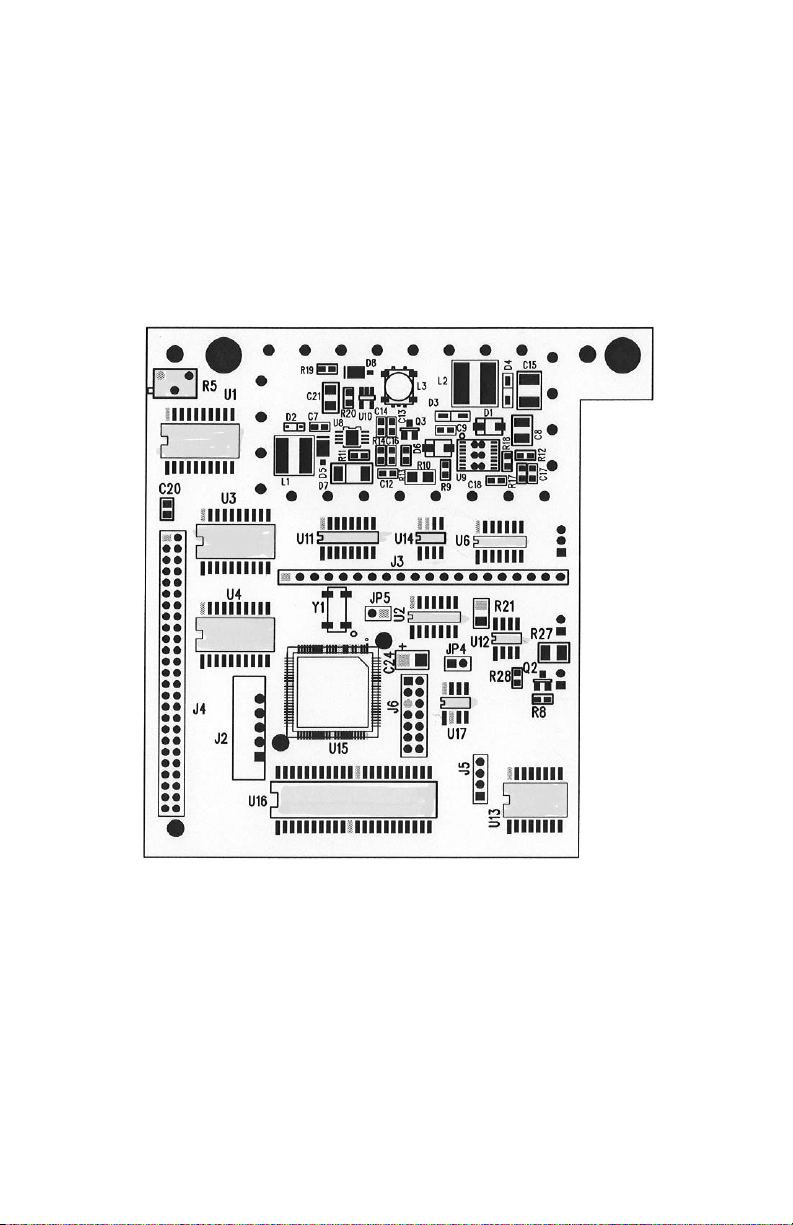

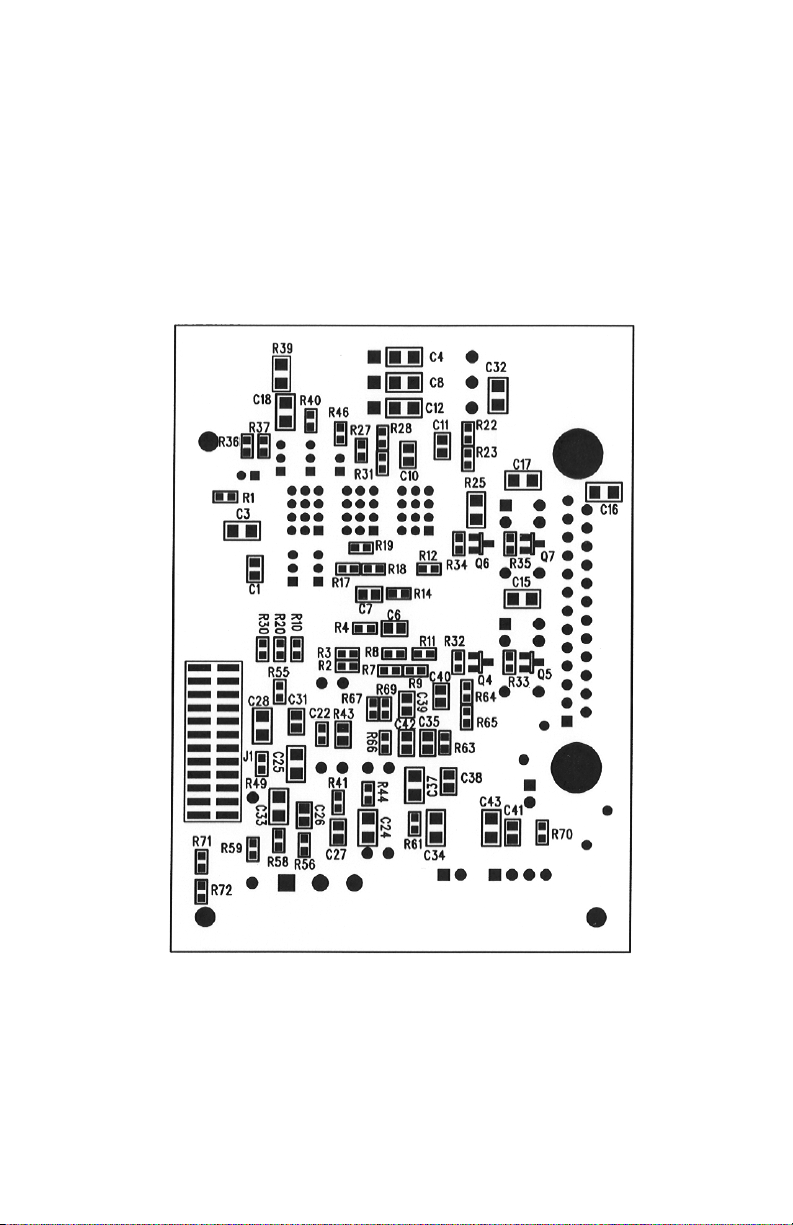

See APPENDIX IV for actual jumpers layout on the analog PCB.

6. MAINTENANCE

6.1 Introduction

It is important that the Digital Mass Flow Meter is used with clean, filtered gases
only. Liquids may not be metered. Since the RTD sensor consists, in part, of a small
capillary stainless steel tube, it is prone to occlusion due to impediments or gas
crystallization. Other flow passages are also easily obstructed. Therefore, great care
must be exercised to avoid the introduction of any potential flow impediment. To
protect the instrument a 50 micron (up to 10 SLPM) or 60 micron (15 SLPM and
greater) filter is built into the inlet of the flow transducer. The filter screen and the
flow paths may require occasional cleaning as described below. There is no other
recommended maintenance required. It is good practice, however, to keep the meter
away from vibration, hot or corrosive environments and excessive RF or magnetic
interference. If periodic calibrations are required they should be performed by qual­ified personnel and calibrating instruments, as described in section 7. It is recom­mended that units are returned to Omega7 for repair service and calibration.

28

ANALOG SIGNAL

0-5 VDC 0-10 VDC 4-20 mA

Flow Rate Output

Jumper Header J2

J2.A 5-9 J2.A 5-9 J2.A 1-5

J2.B 2-6 J2.B 6-10 J2.B 2-6

J2.C 7-11 J2.C 7-11 J2.C 3-7

J2.D 8-12 J2.D 8-12 J2.D 4-8

Temperature Output

Jumper Header J3

J3.A 5-9 J3.A 5-9 J3.A 1-5

J3.B 2-6 J3.B 6-10 J3.B 2-6

J3.C 7-11 J3.C 7-11 J3.C 3-7

J3.D 8-12 J3.D 8-12 J3.D 4-8

Pressure Output

Jumper Header J4

J4.A 5-9 J4.A 5-9 J4.A 1-5

J4.B 2-6 J4.B 6-10 J4.B 2-6

J4.C 7-11 J4.C 7-11 J4.C 3-7

J4.D 8-12 J4.D 8-12 J4.D 4-8

29

CAUTION: TO PROTECT SERVICING PERSONNEL IT IS MANDATORY
THAT ANY INSTRUMENT BEING SERVICED IS COMPLETELY PURGED
AND NEUTRALIZED OF TOXIC, BACTERIOLOGICALLY INFECTED,
CORROSIVE OR RADIOACTIVE CONTENTS.

6.2 Flow Path Cleaning.

Before attempting any disassembly of the unit for cleaning, try inspecting the flow
paths by looking into the inlet and outlet ends of the meter for any debris that may
be clogging the flow through the meter. Remove debris as necessary. If the flow
path is clogged, proceed with steps below.

Do not attempt to disassemble the sensor. If blockage of the sensor tube is not alle­viated by flushing through with cleaning fluids, please return meter for servicing.

NOTE: DISASSEMBLY MAY COMPROMISE CURRENT CALIBRATION.

6.2.1 Restrictor Flow Element (RFE).

The Restrictor Flow Element (RFE) is a precision flow divider inside the transduc­er, which splits the inlet gas flow by a preset amount to the sensor and main flow
paths. The particular RFE used in a given Digital Mass Flow Meter depends on the
gas and flow range of the instrument.

6.2.2 Meters up to 10 LPM.

Unscrew the inlet compression fitting of meter. Note that the Restrictor Flow
Element (RFE) is connected to the inlet fitting. Carefully disassemble the RFE from
the inlet connection. The 50 micron filter screen will now become visible. Push the
screen out through the inlet fitting. Clean or replace each of the removed parts as
necessary. If alcohol is used for cleaning, allow time for drying. Inspect the flow
path inside the transducer for any visible signs of contaminant. If necessary, flush
the flow path through with alcohol. Thoroughly dry the flow paths by flowing clean
dry gas through. Carefully re-install the RFE and inlet fitting, avoiding any twisting
and deforming the RFE. Be sure that no dust has collected on the O-ring seal.

NOTE: OVER TIGHTENING WILL DEFORM AND RENDER THE RFE
DEFECTIVE. IT IS ADVISABLE THAT AT LEAST ONE CALIBRATION
POINT BE CHECKED AFTER RE-INSTALLING THE INLET FITTING­SEE SECTION (7.2.3).







30

6.2.3 Meters 15 SLPM and greater.

Unscrew the four socket head cap screws (two 10-24 and two 6-32) at the inlet side
of the meter. This will release the short square block containing the inlet compres­sion fitting. The 60 micron filter screen will now become visible. Remove the screen.
DO NOT remove the RFE inside the flow transducer! Clean or replace each of the
removed parts as necessary. If alcohol is used for cleaning, allow time for drying.
Inspect the flow path inside the transducer for any visible signs of contaminants.If
necessary, flush the flow path through with alcohol. Thoroughly dry the flow paths
by flowing clean dry gas through. Re-install the inlet parts and filter screen. Be sure
that no dust has collected on the O-ring seal. It is advisable that at least one cali­bration point be checked after re-installing the inlet fitting - see section 7.

7. CALIBRATION PROCEDURES.

NOTE: REMOVAL OF THE FACTORY INSTALLED CALIBRATION SEALS
AND/OR ANY ADJUSTMENTS MADE TO THE METER, AS DESCRIBED
IN THIS SECTION, WILL VOID ANY CALIBRATION WARRANTY
APPLICABLE.

7.1 Flow Calibration.

Omega7 Engineering' Flow Calibration Laboratory offers professional calibration
support for Digital Mass Flow Meters, using precision calibrators under strictly con­trolled conditions. NIST traceable calibrations are available. Calibrations can also be
performed at customers' site using available standards. Factory calibrations are
performed using NIST traceable precision volumetric calibrators incorporating liq­uid sealed frictionless actuators. Generally, calibrations are performed using dry
nitrogen gas. The calibration can then be corrected to the appropriate gas desired
based on relative correction [K] factors shown in the gas factor table (see APPEN­DIX III). A reference gas, other than nitrogen, may be used to better approximate
the flow characteristics of certain gases. This practice is recommended when a ref­erence gas is found with thermodynamic properties similar to the actual gas under
consideration. The appropriate relative correction factor should be recalculated (see
section 9). It is standard practice to calibrate Digital Mass Flow Meters with dry
nitrogen gas at 70.0

F

F (21.1 FC), 20 psia (137.9 kPa absolute) inlet pressure and 0
psig outlet pressure. It is best to calibrate FMA6600/6700 transducers to actual
operating conditions. Specific gas calibrations of non-toxic and non-corrosive
gases are available at specific conditions.

It is recommended that a flow calibrator of at least four times better collective
accuracy than that of the Digital Mass Flow Meter to be calibrated be used.
Equipment required for calibration includes: a flow calibration standard, PC with
available RS485/RS232 communication interface, a certified high sensitivity



multi meter (for analog output calibration only), an insulated (plastic) screwdriv­er, a flow regulator (for example - metering needle valve) installed upstream from
the Digital Mass Flow Meter and a pressure regulated source of dry filtered nitro­gen gas (or other suitable reference gas). It is recommended to use Omega7 sup-
plied calibration and maintenance software to simplify the calibration process. Gas
and ambient temperature, as well as inlet and outlet pressure conditions should be
set up in accordance with actual operating conditions.

7.2 Gas Flow Calibration of FMA6600/6700

Digital Mass Flow Meters

All adjustments in this section are made from the outside of the meter
via digital communication interface between a PC (terminal) and
FMA6600/6700. There is no need to disassemble any part of the instru­ment or perform internal PCB component (potentiometers) adjustment.

FMA6600/6700 Digital Mass Flow Meters may be field recalibrated/checked for the
same range they were originally factory calibrated for. When linearity adjustment
is needed, or flow range changes are being made proceed to step 7.2.3. Flow
range changes may require a different Restrictor Flow Element (RFE).

7.2.1 Connections and Initial Warm Up.

Power up the Digital Mass Flow Meter for at least 30 minutes prior to commenc­ing the calibration procedure. Establish digital RS485/RS232 communication
between PC (communication terminal) and the FMA6600/6700. Start Omega7
supplied calibration and maintenance software on the PC.

7.2.2 ZERO Check/Adjustment.

Check SENSOR AVERAGE counts on the FMA6600/6700 LCD status line. Keep
pressing the () [Up] button from the main screen until status line will display
Device Sensor Average ADC counts. With no flow conditions the sensor Average
reading must be in the range 120 10 counts. If it is not, perform Auto Zero pro­cedure (see section 5.3.10 "Zero Calibration").

7.2.3 Gas Linearization Table Adjustment

NOTE: Your FMA6600/6700 Digital Mass Flow Meter was calibrated at
the factory for the specified gas and full scale flow range (see device
front label). There is no need to adjust the gas linearization table
unless linearity adjustment is needed, flow range has to be changed,
or new additional calibration is required.
Any alteration of the gas linearization table will void calibration
warranty supplied with instrument!





31

Gas flow calibration parameters are stored in the Gas Dependent portion of the
EEPROM memory separately for each of 10 calibration tables. See APPENDIX I for
complete list of gas dependent variables.

NOTE: Make sure the correct gas number and name is selected as
current on the main FMA6600/6700 screen. All adjustments made to
the gas linearization table will be applied to the currently selected gas.

The FMA6600/6700 gas flow calibration involves building of the table of the actu­al flow values (indexes 114, 116, 118, 120, 122, 124, 126, 128, 130, 132, 134)
and corresponding sensor readings (indexes 113, 115, 117, 118, 119, 121, 123,
125, 127, 129, 131, 133). Actual flow values are entered in normalized fraction for­mat: 100.000 % F.S. corresponds to 1.000000 flow value and 0.000 % F.S. corre­sponds to 0.000000 flow value. The valid range for flow values is from 0.000000
to 1.000000 (note: FMA6600/6700 will accept up to 6 digits after decimal point).
Sensor readings are entered in counts of 12 bits ADC output and should always
be in the range of 0 to 4095. There are 11 elements in the table so the data should
be obtained at increment 10.0 % of full scale (0.0, 10.0, 20.0, 30.0, 40.0, 50.0,

60.0, 70.0, 80.0, 90.0 and 100.0 % F.S.).

NOTE: Do not alter memory index 113 (must be 120 counts) and 114
(must be 0.0). These numbers represent zero flow calibration point
and should not be changed.

If a new gas table is going to be created, it is recommended to start calibration
from 100% full scale. If only linearity adjustment is required, calibration can be
started in any intermediate portion of the gas table. Using the flow regulator,
adjust the flow rate to 100% of full scale flow. Check the flow rate indicated against
the flow calibrator. Observe flow reading on the FMA6600/6700. If the difference
between calibrator and FMA6600/6700 flow reading is more than 0.5% F.S., make
a correction in the sensor reading in the corresponding position of the lineariza­tion table (Index 133). If the FMA6600/6700 flow reading is more than the cali­brator reading, the number of counts in the index 133 has to be decreased. If the
FMA6600/6700 flow reading is less than the calibrator reading, the number of
counts in the index 133 has to be increased. Once Index 133 is adjusted with a
new value, check the FMA6600/6700 flow rate against the calibrator and if
required perform additional adjustments for Index 133. If a simple communication
terminal is used for communication with the FMA6600/6700, then "MW" (Memory
Write) command from the software interface commands set may be used to adjust
sensor value in the linearization table (see section 8.3 for complete software inter­face commands list). Memory Read "MR" command can be used to read the cur­rent value of the index. Assuming the FMA6600/6700 is configured with RS485
interface and has address "11", the following example will first read the existing
value of Index 133 and then write a new adjusted value:

32





33

!11,MR,133[CR] - reads EEPROM address 133

!11,MW,133,3450[CR] - writes new sensor value (3450 counts) in to the index 133

Once 100% F.S. calibration is completed user can proceed with calibration for
another 9 points of the linearization table using the same approach.

NOTE: It is recommended to use Omega7 supplied calibration and
maintenance software for gas table calibration. This software includes
an automated calibration procedure which may radically simplify
reading and writing in to the EEPROM linearization table.

7.3 Analog output Calibration of FMA6600/6700

Digital Mass Flow Meters

FMA6600/6700 series Digital Mass Flow Meters are equipped with calibrated 0-5
Vdc (0-10 Vdc optional) and 4-20 mA output signals. The set of the jumpers (J2,
J3, J4) on the analog printed circuit board is used to switch between 0-5 Vdc, 0­10 Vdc or 4-20 mA output signals (see APPENDIX IV).

NOTE: All analog outputs available on the FMA6600/6700 Digital Mass
Flow Meter were calibrated at the factory for the specified gas and full
scale flow range (see device front label). There is no need to perform
analog output calibration unless the analog PC board was replaced or
off set/span adjustment is needed. Any alteration of the analog output
scaling variables in the Gas independent table will void calibration
warranty supplied with instrument!

NOTE: It is recommended to use the Omega7 supplied calibration and
maintenance software for analog output calibration. This software
includes an automated calibration procedure which may radically
simplify calculation of the offsets and spans variables and reading and
writing in to the EEPROM table.

The FMA6600/6700 analog output calibration involves calculation and storing of
the offset and span variables in to the EEPROM for each available output. The 0-5
Vdc and 0-10 Vdc outputs have only scale variable and 20 mA outputs have offset
and scale variables. The following is a list of the Gas independent variables used
for analog output computation:







34

GAS FLOW

26 FlowOutScaleV - DAC 0-5/0-10 Analog Output Scale for Flow

27 FlowOutScale_mA - DAC 4-20mA Analog Output Scale for Flow

28 FlowOutOffset_mA - DAC 4-20mA Analog Output Offset for Flow

GAS TEMPERATURE

29 TempOutScaleV - DAC 0-5/0-10 Analog Output Scale for Temperature

30 TempOutScale_mA - DAC 4-20mA Analog Output Scale for Temperature

31 TempOutOffset_mA - DAC 4-20mA Analog Output Offset for Temperature

GAS PRESSURE

32 PresOutScaleV - DAC 0-5/0-10 Analog Output Scale for Pressure

33 PresOutScale_mA- DAC 4-20mA Analog Output Scale for Pressure

NOTE: Meters FMA6600 do not support temperature and pressure
measurement and have only one gas flow analog output.

7.3.1 Initial Setup

Power up the Digital Mass Flow Meter for at least 3 minutes prior to commencing
the calibration procedure. Make sure absolutely no flow takes place through the
meter. Establish digital RS485/RS232 communication between PC (communica­tion terminal) and FMA6600/6700. The commands provided below assume that
calibration will be performed manually (w/o Omega7 supplied calibration and
maintenance software) and the device has RS485 address 11. If Omega7 supplied
calibration and maintenance software is used, skip the next section and follow
prompts from the software.

Enter Backdoor mode by typing: !11,MW,1000,1[CR]
Unit will respond with: !11,BackDoorEnabled: Y
Disable DAC update by typing: !11,WRITE,4,D[CR]
Unit will respond with: !11,DisableUpdate: D



35

7.3.2 Gas flow 0-5 Vdc analog output calibration

1. Install jumpers J2 on the analog PC board for 0-5 Vdc output (see Table VI).

2. Connect a certified high sensitivity multi meter set for the voltage

measurement to the pins 2 (+) and 15 (-) of the 25 pins D connector.

3. Write 4000 counts to the DAC channel 1: !11,WRITE,1,4000[CR]

4. Read voltage with the meter and calculate:

5. Save FlowOutScaleV in to the EEPROM: !11,MW,26,X[CR]

Where: X - the calculated FlowOutScaleV value.

7.3.3 Gas flow 4-20 mA analog output calibration

1. Install jumpers J2 on the analog PC board for 4-20 mA output (see Table VI).

2. Connect a certified high sensitivity multi meter set for the current

measurement to pins 2 (+) and 15 (-) of the 25 pins D connector.

3. Write 4000 counts to the DAC channel 1: !11,WRITE,1,4000[CR]

4. Read current with the meter and calculate:

5. Write zero counts to the DAC channel 1: !11,WRITE,1,0CR]

6. Read offset current with the meter and calculate:

7. Save FlowOutScale_mA in to the EEPROM: !11,MW,27,Y[CR]

Save FlowOutOffset_mA in to the EEPROM: !11,MW,28,Z[CR]

Where: Y - the calculated FlowOutScale_mA value.

Z - the calculated FlowOutOffset_mA value.

7.3.4 Gas temperature 0-5 Vdc analog output

calibration (FMA6700 Series)

1. Install jumpers J3 on the analog PC board for 0-5 Vdc output (see Table VI).

2. Connect a certified high sensitivity multi-meter set for the voltage

measurement to the pins 3 (+) and 16 (-) of the 25 pin D connector.

3. Write 4000 counts to the DAC channel 2: !11,WRITE,2,4000[CR]

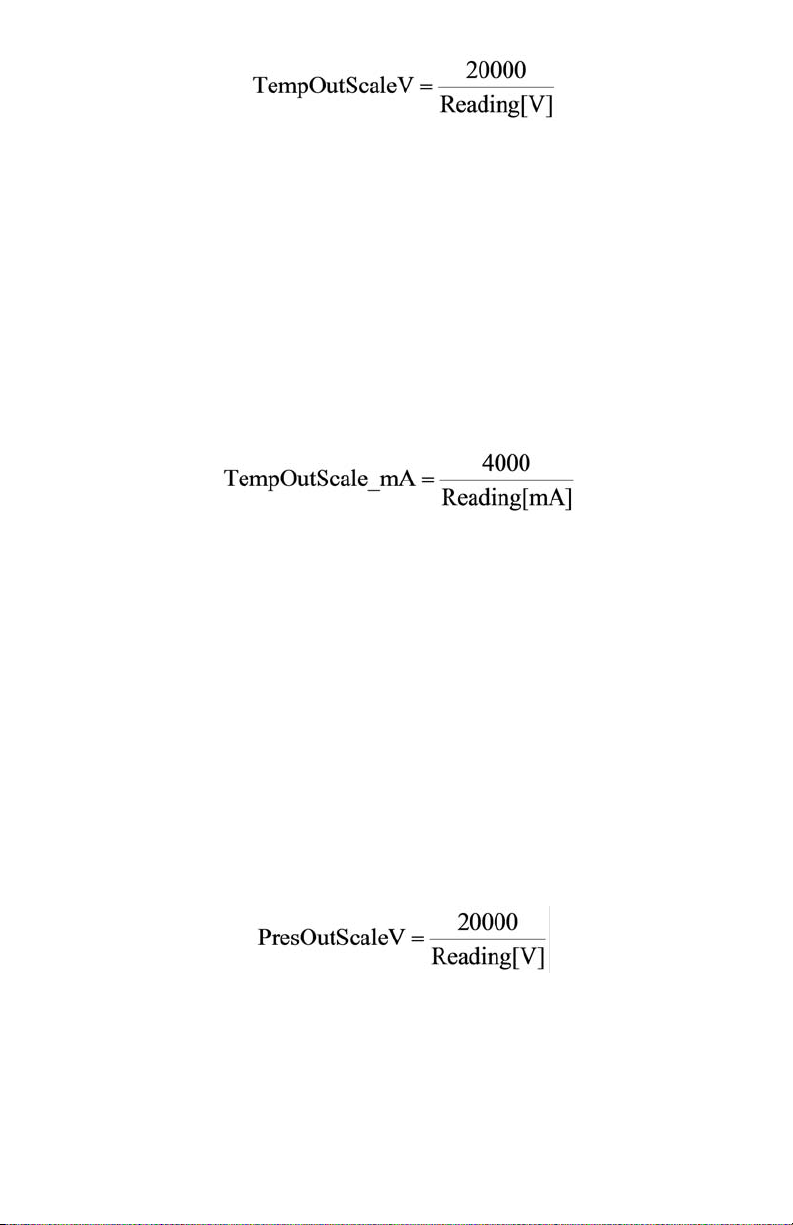

4. Read voltage with the meter and calculate:

36

5. Save TempOutScaleV in to the EEPROM: !11,MW,29,X[CR]

Where: X - the calculated TempOutScaleV value.

7.3.5 Gas temperature 4-20 mA analog output

calibration (FMA6700 Series)

1. Install jumpers J3 on the analog PC board for 4-20 mA output (see Table VI).

2. Connect a certified high sensitivity multi-meter set for the current

measurement to the pins 3 (+) and 16 (-) of the 25 pins D connector.

3. Write 4000 counts to the DAC channel 2: !11,WRITE,2,4000[CR]

4. Read current with the meter and calculate:

5. Write zero counts to the DAC channel 2: !11,WRITE,2,0CR]

6. Read offset current with the meter and calculate:

7. Save TempOutScale_mA in to the EEPROM: !11,MW,30,Y[CR]

Save TempOutOffset_mA in to the EEPROM: !11,MW,31,Z[CR]

Where: Y - the calculated TempOutScale_mA value.

Z - the calculated TempOutOffset_mA value.

7.3.6 Gas pressure 0-5 Vdc analog output

calibration (FMA6700 Series)

1. Install jumpers J4 on the analog PC board for 0-5 Vdc output (see Table VI).

2. Connect a certified high sensitivity multi-meter set for the voltage

measurement to the pins 4 (+) and 17 (-) of the 25 pin D connector.

3. Write 4000 counts to the DAC channel 3: !11,WRITE,3,4000[CR]

4. Read voltage with the meter and calculate:

5. Save PresOutScaleV in to the EEPROM: !11,MW,32,X[CR]

Where: X - the calculated PresOutScaleV value.

37

7.3.7 Gas pressure 4-20 mA analog output

calibration (FMA6700 Series)

1. Install jumpers J4 on the analog PC board for 4-20 mA output (see Table VI).

2. Connect a certified high sensitivity multi-meter set for the current

measurement to the pins 4 (+) and 17 (-) of the 25 pin D connector.

3. Write 4000 counts to the DAC channel 3: !11,WRITE,3,4000[CR]

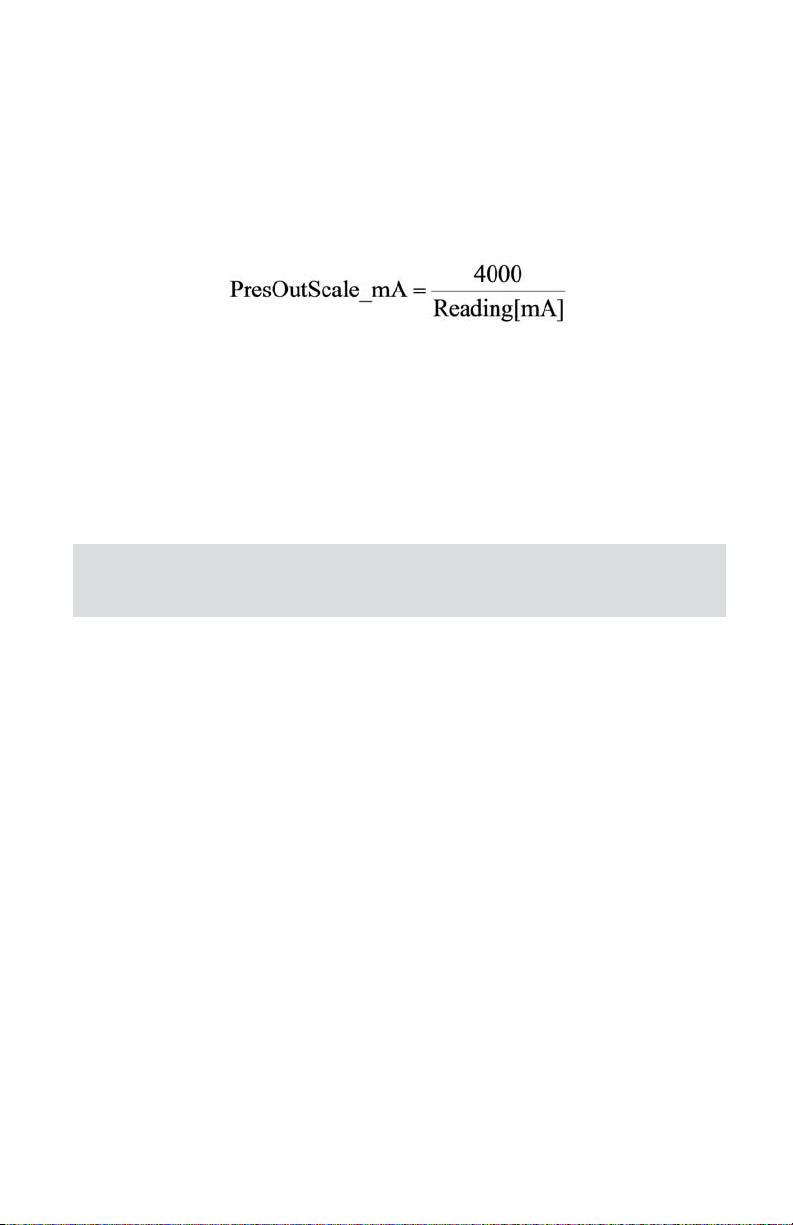

4. Read current with the meter and calculate:

5. Write zero counts to the DAC channel 3: !11,WRITE,3,0CR]

6. Read offset current with the meter and calculate:

7. Save PresOutScale_mA in to the EEPROM: !11,MW,33,Y[CR]

Save PresOutOffset_mA in to the EEPROM: !11,MW,34,Z[CR]

Where: Y - the calculated PresOutScale_mA value.

Z - the calculated PresOutOffset_mA value.

NOTE: When done with the analog output calibration make sure the DAC
update is enabled and the BackDoor is closed (see command below).

Enable DAC update by typing: !11,WRITE,4,N[CR]
Unit will respond with: !11,DisableUpdate: N

Close Backdoor mode by typing: !11,MW,1000,0[CR]
Unit will respond with: !11,BackDoorEnabled: N

7.4 Temperature or/and Pressure sensor

Calibration

Calibration of the temperature and pressure sensors for FMA6700 Series devices
is not described in this manual. Temperature or/and pressure sensors re-calibra­tion requires factory assistance.

8. RS485/RS232 SOFTWARE INTERFACE

COMMANDS

8.1 General

The standard FMA6600/6700 comes with an RS485 interface. For the optional
RS232 interface the start character (!) and two hexadecimal characters for the
address have to be omitted. The protocol described below allows for communications



38

with the unit using either a custom software program or a "dumb terminal." All val­ues are sent as printable ASCII characters. For RS485 interface the start character
is always (!), and the command string is terminated with a carriage return (line
feeds are automatically stripped out by the FMA6600/6700). See section 2.2.3 for
information regarding communication parameters and cable connections.

8.2 Commands Structure

The structure of the command string:

!<Addr>,<Cmd>,Arg1,Arg2,Arg3,Arg4<CR>

Where:

! Start character **
Addr RS485 device address in the ASCII representation of

hexadecimal (00 through FF are valid).**
Cmd The one or two character command from the table below.
Arg1 to Arg4 The command arguments from the table below.

Multiple arguments are comma delimited.
CR Carriage Return character.

Several examples of commands follow. All assume that the FMA6600/6700 has
been configured for address 15 (0F hex) on the RS485 bus:

1. To get the temperature reading: !0F,TR<CR>

The FMA6600/6700 will reply: !0F72.5 F<CR> >

(Assuming temperature is 72.5F)

2. To get the pressure reading: !0F,PR<CR>

The FMA6600/6700 will reply: !0F14.5 PSI<CR> >

(Assuming pressure is 14.5 PSI)

3. To get a flow reading: !0F,F<CR>

The FMA6600/6700 will reply: !0F50.0<CR>

(Assuming the flow is at 50%F.S.)

4. Set the high alarm limit to 85% F.S.: !0F,A,H,85.0<CR>

The FMA6600/6700 will reply: !0FAH85.0<CR>

** Default address for all units is 11. Do not submit start character and two character

hexadecimal device address for RS232 option.

39

Note: Address 00 is reserved for global addressing. Do not assign
global address for any device. When command with global address is
sent, all devices on the RS485 bus execute the command, but do not
reply with acknowledge message.

The global address can be used to change RS485 address for a particular
device with unknown address:

1. Make sure only one device (which address has to be changed) is
connected to the RS485 network.

2. Type the memory write command with global address:
!00,MW,7,XX[CR]

where XX, the new hexadecimal address can be [01 - FF].
After assigning the new address a device will accept commands with
the new address.

Note: Do not assign the same RS485 address for two or more

devices on the same RS485 bus. If two or more devices with the
same address are connected to the one RS485 network, the bus will
be corrupted and communication errors will occur.





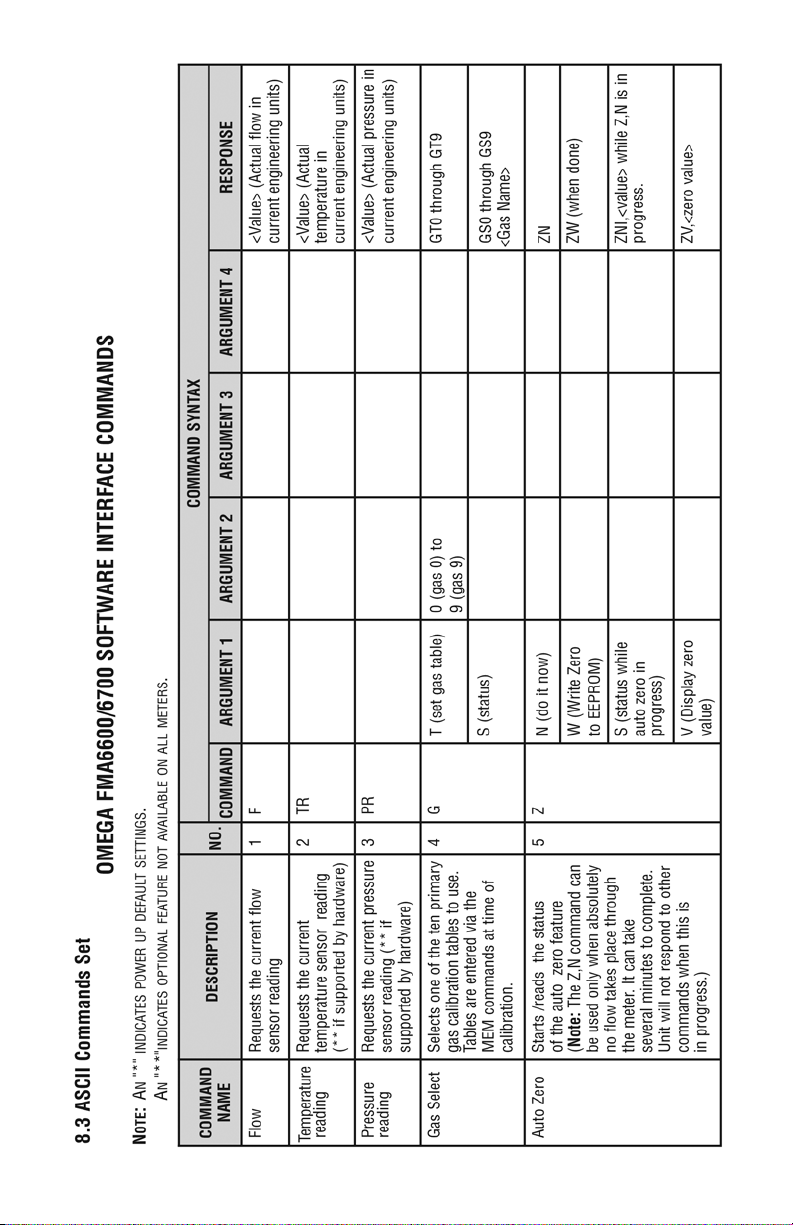

40

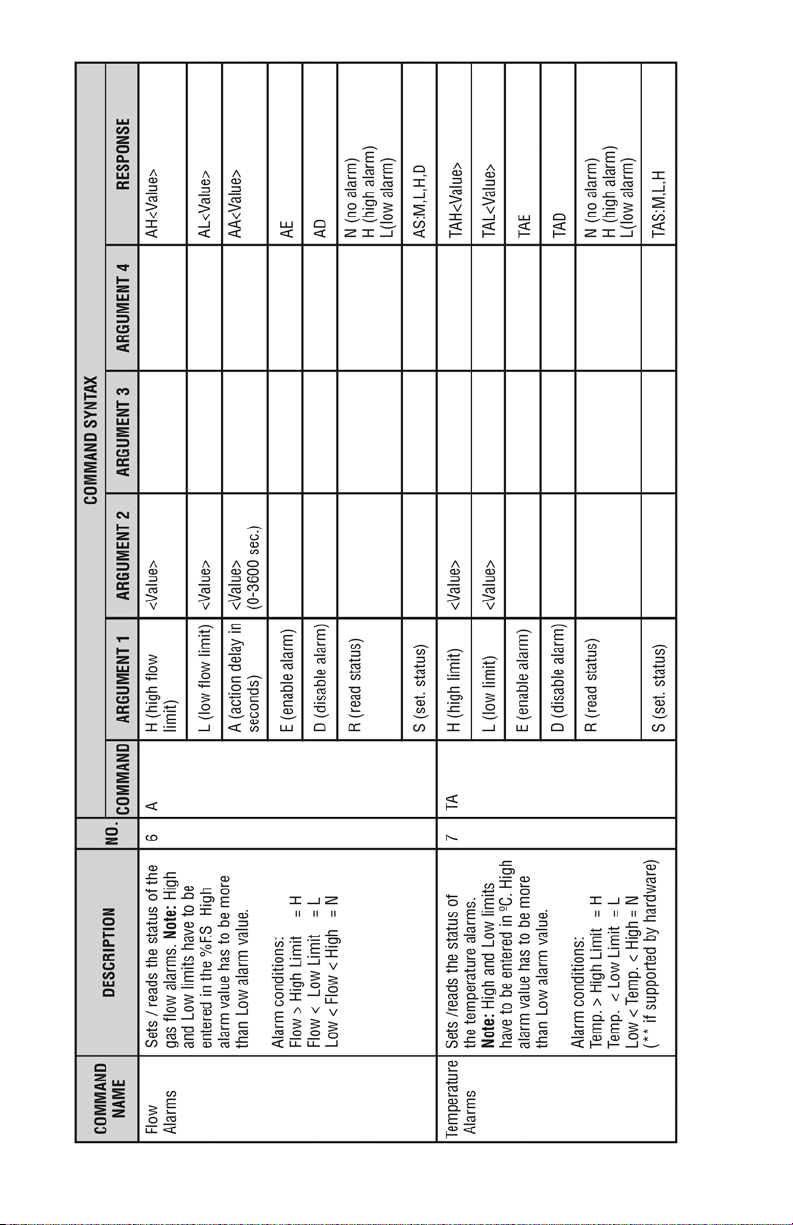

41

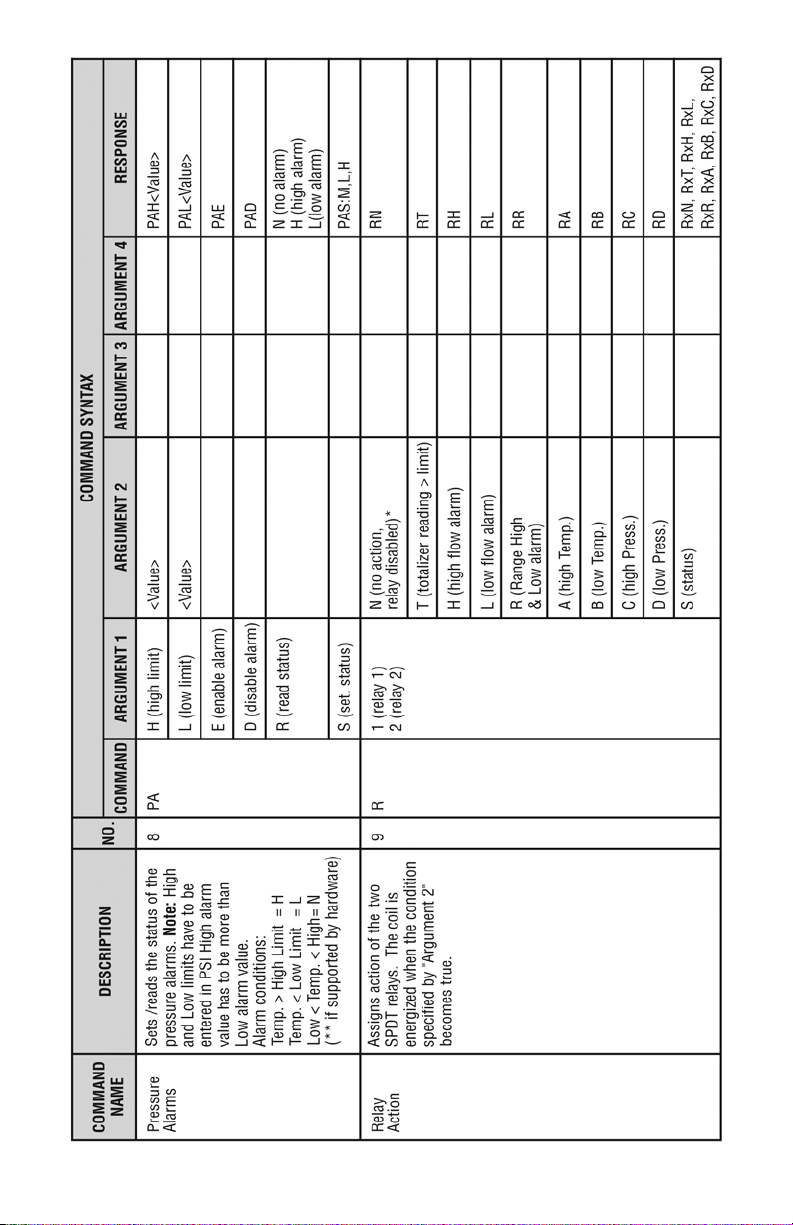

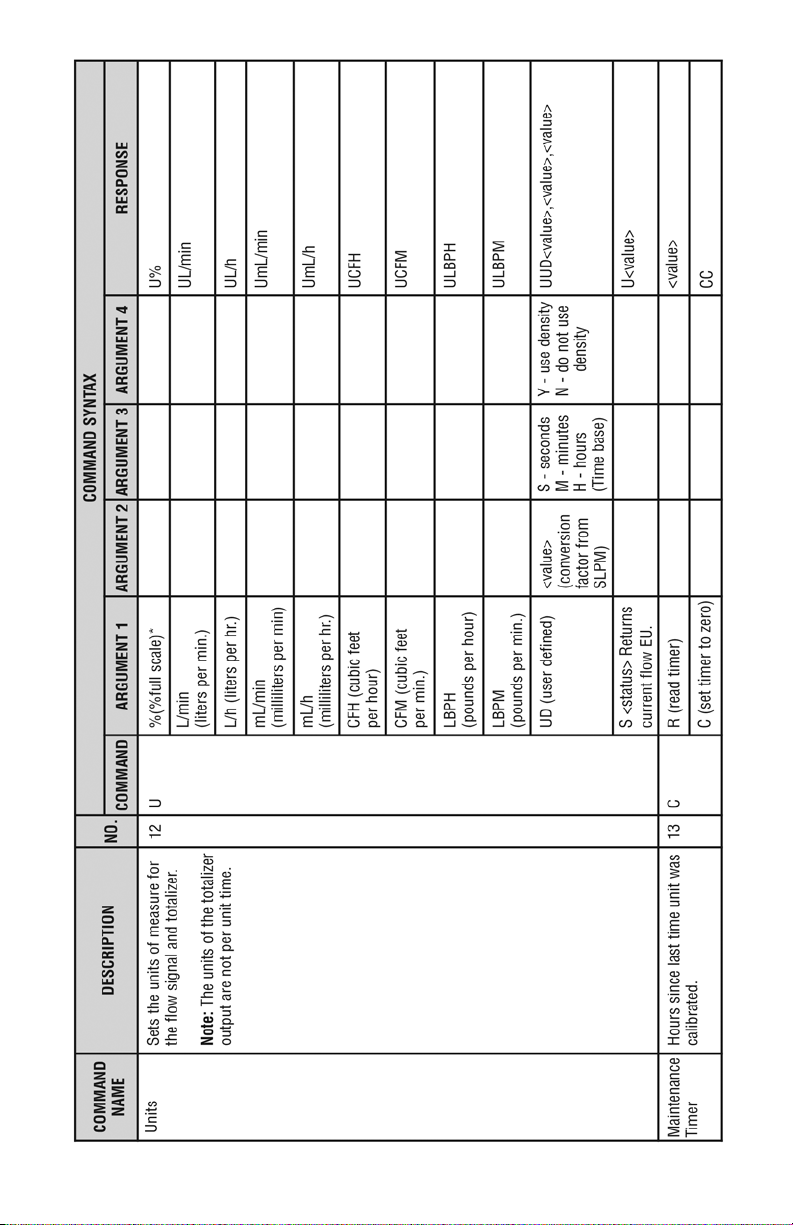

42

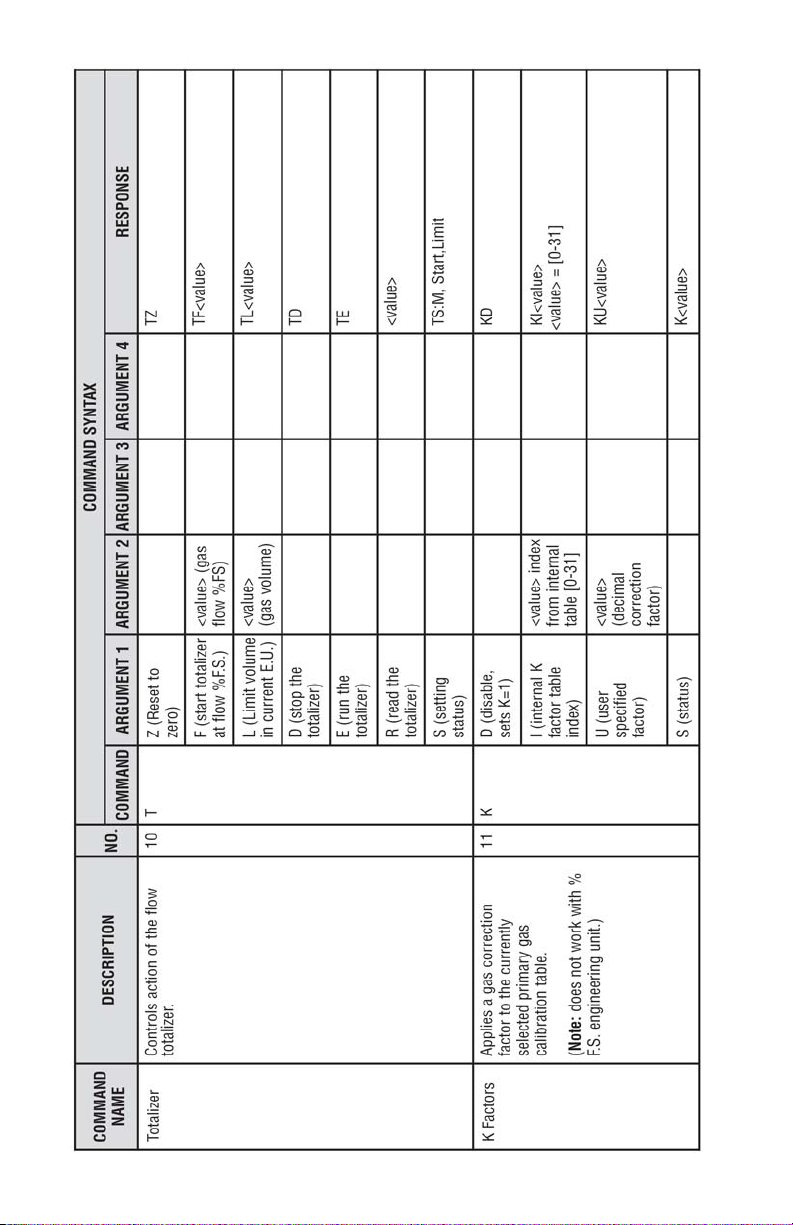

43

44

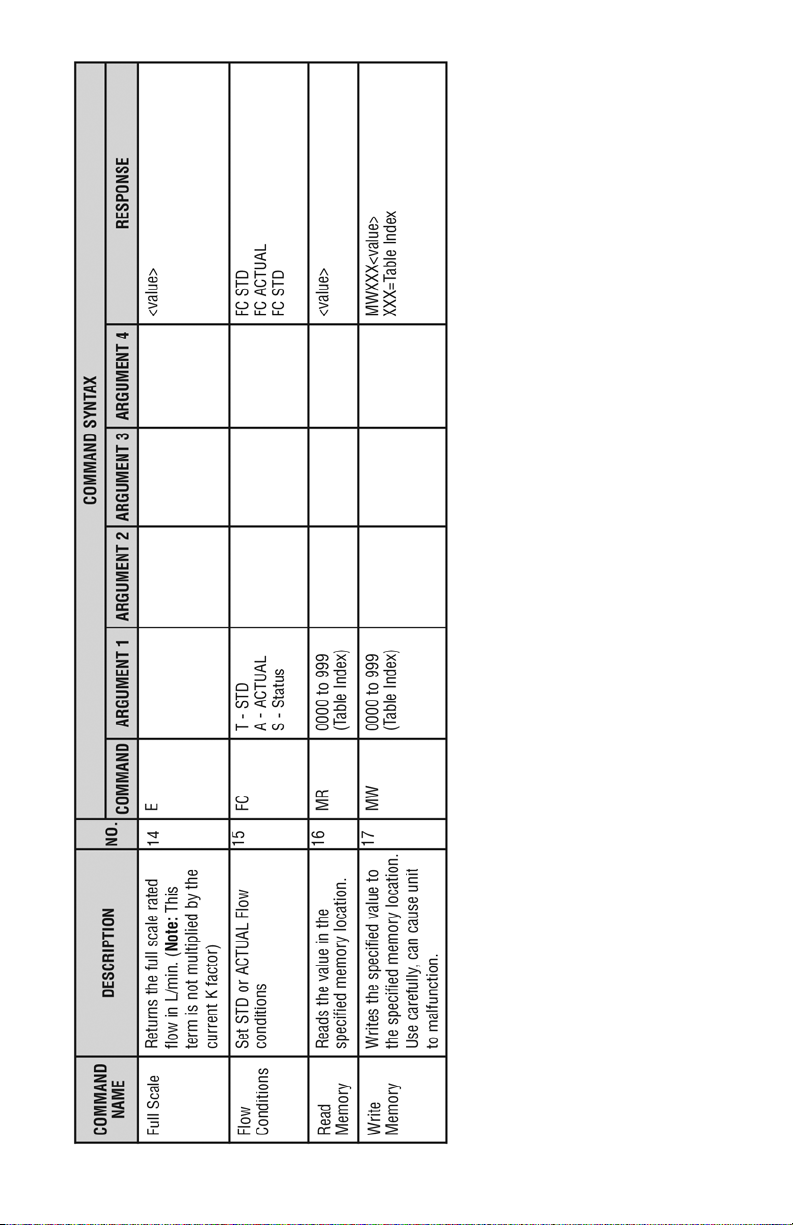

45

UART Error Codes:

1- BackDoor is not enabled

2- Wrong number of Arguments

3- Hardware for requested function is not installed (not available).

4- Wrong number of the characters in the Argument.

5- Attempt to Alter Write Protected Area in the EEPROM.

6- Proper Command or Argument is not found.

7- Wrong value of the Argument.

8- Wrong Command.

9- Reserved.

10- Argument out of range.

11- Auto ZERO in Progress

46

9. TROUBLESHOOTING

9.1 Common Conditions

Your FMA6600/6700 Digital Mass Flow Meter was thoroughly checked at numer­ous quality control points during and after manufacturing and assembly opera­tions. It was calibrated according to your desired flow and pressure conditions
for a given gas or a mixture of gases. It was carefully packed to prevent damage
during shipment. Should you feel that the instrument is not functioning properly
please check for the following common conditions first:

Are all cables connected correctly?
Are there any leaks in the installation?
Is the power supply correctly selected according to requirements?
When several meters are used a power supply with appropriate current
rating should be selected.

Were the connector pinouts matched properly?
When interchanging with other manufacturers' equipment, cables and
connectors must be carefully wired for correct pin configurations.
Is the pressure differential across the instrument sufficient?

47

NO. INDICATION LIKELY REASON SOLUTION

1

No zero reading after
15 min. warm up time
and no flow condition.

Embedded temperature
has been changed.

Perform Auto Zero Procedure (see section

5.3.10 "Zero Calibration").

2 LCD Display remains

blank when unit is
powered up. No
response when flow is
introduced from analog
outputs 0-5 Vdc or
4-20 mA.

Power supply is bad or
polarity is reversed.

For 12 or 24 Vdc option:

Measure voltage on pins 1 and 18 of the 25
pin D-connector. If voltage is out of specified
range, then replace power supply with a
new one. If polarity is reversed (reading is
negative) make correct connection.

For ±15 Vdc option:

Measure voltage on pins 1-18 and 14-18
of the 25 pin D-connector. If voltage is out
of specified range, then replace power
supply with a new one. If polarity is reversed
reversed (reading is negative) make connection.

PC board is defective. Return FMA6600/6700 to factory for repair.

3 LCD Display reading or

/and analog output
0-5Vdc signal fluctuate
in wide range during
flow measurement.

Output 0-5 Vdc signal
(pins 2-15, 3-16, 4-17
of the D-connector) is
shorted on the GND or
overloaded.

Check external connections to pins 2-15,
3-16, 4-17 of the D-connector. Make sure
the load resistance is more than 1000 Ohm.

4 LCD Display reading

does correspond to the
correct flow range, but
0-5 Vdc output signal
does not change
(always the same read

-ing or around zero).

Output 0-5Vdc
schematic is burned
out or damaged.

Return FMA6600/6700 to factory for repair.

Analog flow output
scale and offset
variable are corrupted.

Restore original EEPROM scale and offset
variable or perform analog output
recalibration (see section 7.3).

5 LCD Display reading

and 0-5 Vdc output volt
age do correspond to
the correct flow range,
but 4-20 mA output
signal does not change
(always the same or
reading around 4.0 mA).

External loop resistance
is open or more than
500 Ohm.

Check external connections to pins 2 and
15 of the D-connector. Make sure the loop
resistance is less than 500 Ohm.

Output 4-20 mA
schematic is burned
out or damaged.

Return FMA6600/6700 to factory for repair.

6 Calibration is off (more

than 1.0 % F.S.).

FMA6600/6700 has
initial zero shift.

Shut off the flow of gas into the
FMA6600/6700 (ensure gas source is
disconnected and no seepage or leak
occurs into the meter). Wait for 15 min.
with no flow condition and perform Auto
Zero calibration Procedure (see section

5.3.10 "Zero Calibration").

7 LCD Display reading is

above maximum flow
range and output
voltage 0-5 Vdc signal
is more than 5.0 Vdc
when gas flows
through the
FMA6600/6700.

Sensor under
swamping conditions
(flow is more than 10%
above maximum flow
rate for particular
FMA6600/6700).

Lower the flow through FMA6600/6700
within calibrated range or shut down the
flow completely. The swamping condition

will end automatically.

PC board is defective. Return FMA6600/6700 to factory for repair.

9.2 TROUBLESHOOTING GUIDE

48

NO. INDICATION LIKELY REASON SOLUTION

8 Gas flows through the

FMA6600/6700, but
LCD Display reading
and The output
voltage 0-5 Vdc signal
do not respond to flow.

The gas flow is too low
for particular
FMA6600/6700 meter.

Check maximum flow range on transducer's
front panel and make required flow
adjustment.

Meters Up to 10 SLPM:

RFE is not connected
properly to the inlet
fitting.

Unscrew the inlet compression fitting of the
meter and reinstall RFE (see section 6.2.2).

NOTE: Calibration accuracy can be affected.

Meters 15 SLPM and
greater: RFE is shifted

and blocked the sensor.

Unscrew the four socket head cap screws at
the inlet side of the meter. Reinstall RFE and
retaining ring (see section 6.2.3).
NOTE: Calibration accuracy can be affected.

Sensor or PC board is
defective.

Return FMA6600/6700 to factory for repair.

9 Gas does not flow

through the
FMA6600/6700 with
inlet pressure applied
to the inlet fitting. LCD
Display reading and out
put voltage 0-5 Vdc
signal show zero flow.

Filter screen obstructed
at inlet.

Flush clean or disassemble to remove
impediments or replace the filter screen
(see section 6.2).

NOTE: Calibration accuracy can be affected.

Direction of the gas
flow is reversed.

Check the direction of gas flow as indicated
by the arrow on the front of the meter and
make required reconnection in the
installation.

FMA6600/6700 is
connected in
the installation with
back pressure
conditions and gas leak
exist in the system.

Locate and correct gas leak in the system.
If FMA6600/6700 has internal leak return it
to factory for repair.

10 Gas flows through the

FMA6600/6700, but
LCD Display reading is
negative and output
voltage 0-5 Vdc
signal does not
respond to flow
(reading near 1mV).

Direction of the gas
flow is reversed.

Check the direction of gas flow as indicated
by the arrow on the front of the meter and
make required reconnection in the
installation.

FMA6600/6700 is
connected in the
installation with
back pressure
conditions and gas leak
exist in the system.

Locate and correct gas leak in the system.
If FMA6600/6700 has internal leak return it
to factory for repair.

11 FMA6600/6700 is

disconnected from the
source of the gas (no
flow conditions) but
LCD Display reading is
fluctuating in wide
range. Output voltage
0-5 Vdc signal also
fluctuating. The power
supply voltage is within
specification and
stable.

Sensor or PC board is
defective.

Return FMA6600/6700 to factory for repair.

49

Q

O

= Q

a

= Q

r

x K = 1000 X 0.9926 = 992.6 sccm

where K = relative K factor to reference gas (oxygen to nitrogen)

1

d X C

p

where d = gas density (gram/liter)
C

p

= coefficient of specific heat (cal/gram)

Q

a

K

a

Q

r

K

r

where Qa= mass flow rate of an actual gas (sccm)
Q

r

= mass flow rate of a reference gas (sccm)

K

a

= K factor of an actual gas

K

r

= K factor of a reference gas

=

10. CALIBRATION CONVERSIONS FROM
REFERENCE GASES

The calibration conversion incorporates the K factor. The K factor is derived from
gas density and coefficient of specific heat. For diatomic gases:

=

K

=

K

gas

Note in the above relationship that d and Cp are usually chosen at standard con­ditions of one atmosphere and 25FC.

If the flow range of a Mass Flow Controller or Controller remains unchanged, a rel­ative K factor is used to relate the calibration of the actual gas to the reference gas.

For example, if we want to know the flow rate of oxygen and wish to calibrate
with nitrogen at 1000 SCCM, the flow rate of oxygen is:

2

9.3 Technical Assistance

Omega7 Engineering will provide technical assistance over the phone to qualified
repair personnel. Please call our Technical Assistance at 1-800-872-9436.

50

APPENDIX I

Omega7 FMA6600/6700 EEPROM Variables Rev.A3 [12/05/2004]

Gas Independent Variables

INDEX NAME DATA TYPE NOTES

0

BlankEEPROM char[10] Do not modify. Table Revision.

1 SerialNumber char[20] Serial Number

2 ModelNumber char[20] Model Number

3 SoftwareVer char[10] Firmware Version

4 TimeSinceCalHr float Time since last calibration in hours.

5 Options1 uint Misc. Options*

6 Reserved2 char Flow Conditions [0-STD, 1-ACTUAL]

7 AddressRS485 char[3] Two character address for RS485 only

8

DigGasNumber int Current Gas Table Number [0-9]

9 FlowUnits int Current Units of Measure [0-10]

10 AlarmMode char Alarm Mode ['R'- Enabled, 'S' - Disabled]

11 LowAlarmPFS float Low Flow Alarm Setting [%FS] 0-Disabled

12 HiAlarmPFS float High Flow Alarm Setting [%FS] 0-Disabled

13 AlmDelay uint Flow Alarm Action Delay [0-3600sec] 0-Disabled

14 RelaySetting[0] char Relay #1 Assignment Setting (N, T, H, L, Range)

15 RelaySetting[1] char Relay #2 Assignment Setting (N, T, H, L, Range)

16 TotalMode char Totalizer Mode ['R'- Enabled, 'S' - Disabled]

17 Total float Totalizer Volume in %*s (updated every 6 min)

18 TotalFlowStart float Start Totalizer at flow [%FS] 0 - Disabled

19 TotalVolStop float Totalizer Action Limit Volume [%*s] 0-Disabled

20 KfactorIndex int Internal K-Factor Index [0-31]**

21 UserDefKfactor float User Defined K-Factor

22 UDUnitKfactor float K-Factor for User Defined Units of Measure

23 UDUnitTimeBase int User Defined Unit Time Base [1, 60, 3600 sec]

24 UDUnitDensity char User Defined Unit Density Flag [Y, N]

25 TPUnits char Temperature/Pressure Units [C (Bar), F (PSI)]

26 FlowOutScaleV float DAC 0-5/0-10 Analog Output Scale for Flow

27 FlowOutScale_mA float DAC 4-20mA Analog Output Scale for Flow

28 FlowOutOffset_mA float DAC 4-20mA Analog Output Offset for Flow

29 TempOutScaleV float DAC 0-5/0-10 Analog Output Scale for Temp.

30 TempOutScale_mA float DAC 4-20mA Analog Output Scale for Temp.

31 TempOutOffset_mA float DAC 4-20mA Analog Output Offset for Temp.

32 PresOutScaleV float DAC 0-5/0-10 Analog Output Scale for Pressure

33 PresOutScale_mA float DAC 4-20mA Analog Output Scale for Pressure

34 PresOutOffset_mA float DAC 4-20mA Analog Output Offset for Pressure

51

INDEX NAME DATA TYPE NOTES

35 TAInScaleV float ADC Temp. Analog In Scale (0-5V)

36 TAInOffsetV float ADC Temp. Analog In Offset (0-5V)

37 PAInScaleV float ADC Pressure Analog In Scale (0-5V)

38 PAInOffsetV float ADC Pressure Analog In Offset (0-5V)

39 SensorZero uint D/A Value for Sensor Zero [0-4095 counts]

40 Klag [0] float DRC Lag Constant [Do Not Alter]

41 Klag [1] float DRC Lag Constant [Do Not Alter]

42 Klag [2] float DRC Lag Constant [Do Not Alter]

43 Klag [3] float DRC Lag Constant [Do Not Alter]

44 Klag [4] float DRC Lag Constant [Do Not Alter]

45 Klag [5] float DRC Lag Constant [Do Not Alter]

46 Reserved float

47 Reserved float

48 Reserved float

49 Reserved float

50 Reserved float

51 Reserved float

52 Kgain[0] float Gain for DRC Lag Constant [Do Not Alter]

53 Kgain[1] float Gain for DRC Lag Constant [Do Not Alter]

54 Kgain[2] float Gain for DRC Lag Constant [Do Not Alter]

55 Kgain[3] float Gain for DRC Lag Constant [Do Not Alter]

56 Kgain[4] float Gain for DRC Lag Constant [Do Not Alter]

57 Kgain[5] float Gain for DRC Lag Constant [Do Not Alter]

58 Reserved float

59 Reserved float

60 Reserved float

61 Reserved float

62 Reserved float

63 Reserved float

64 KfactorMode char K-Factor Mode: D-Dis'd, I-Internal, U-User Def'd

65 TmpAlarmMode char Temp. Alarm Mode ['R'- Enabled, 'S' - Disabled]

66 LowAlarmC float Low Temp. Alarm Setting [0-50 C]

67 HiAlarmC float High Temp. Alarm Setting [0-50 C]

68 PrsAlarmMode char Press. Alarm Mode ['R'- Enabled, 'S' - Disabled]

69 LowAlarmP float Low Press. Alarm Setting [0-100 PSI]

70 HiAlarmP float High Press. Alarm Setting [0-100 PSI]

71 Zero_T float Resistance when last AutoZero was done [Counts]

72 Tcor_K float Resistance correction coefficient [PFS/count]

52

INDEX NAME DATA TYPE NOTES

100 GasIdentifer char[27] Name of Gas [If not calibrated = "Uncalibrated"]

101 FullScaleRange float Full Scale Range in SLPM.

102 StdTemp float Standard Temperature

103 StdPressure float Standard Pressure

104 StdDensity float Gas Standard Density

105 CalibrationGas char[27]

Name of Gas used for Calibration
[If not calibrated=["Uncalibrated"]

106 CalibratedBy char[20] Name of person who performed actual calibration

107 CalibratedAt char[20] Name of Calibration Facility

108 DateCalibrated char[10] Calibration Date

109 DateCalibrationDue char[10] Date Calibration Due

110 PID_Kp float Reserved

111 PID_Ki float Reserved

112 PID_Kd float Reserved

113 SensorTbl[0][Sensor Value] uint Index 0: Must be 120 (zero value) Do not Alter!

114 SensorTbl[0][Flow] float Index 0: Must be 0.0 (zero PFS) Do not Alter!

115 SensorTbl[1][Sensor Value] uint 10.0%F.S. A/D value from sensor [counts].

116 SensorTbl[1][Flow] float Actual Flow in PFS [0.1].

117 SensorTbl[2][Sensor Value] uint 20.0%F.S. A/D value from sensor [counts].

118 SensorTbl[2][Flow] float Actual Flow in PFS [0.2].

119 SensorTbl[3][Sensor Value] uint 30.0%F.S. A/D value from sensor [counts].

120 SensorTbl[3][Flow] float Actual Flow in PFS [0.3].

121 SensorTbl[4][Sensor Value]

uint

40.0%F.S. A/D value from sensor [counts].

122 SensorTbl[4][Flow] float Actual Flow in PFS [0.4].

123 SensorTbl[5][Sensor Value] uint 50.0%F.S. A/D value from sensor [counts].

124 SensorTbl[5][Flow] float Actual Flow in PFS [0.5].

125 SensorTbl[6][Sensor Value] uint 60.0%F.S. A/D value from sensor [counts].

126 SensorTbl[6][Flow] float Actual Flow in PFS [0.6].

127 SensorTbl[7][Sensor Value] uint 70.0%F.S. A/D value from sensor [counts].

128 SensorTbl[7][Flow] float Actual Flow in PFS [0.7].

129 SensorTbl[8][Sensor Value] uint 80.0%F.S. A/D value from sensor [counts].

130 SensorTbl[8][Flow] float Actual Flow in PFS [0.8].

131 SensorTbl[9][Sensor Value] uint 90.0%F.S. A/D value from sensor [counts].

132 SensorTbl[9][Flow] float Actual Flow in PFS [0.9].

133 SensorTbl[10][Sensor Value] uint 100.0%F.S. A/D value from sensor [counts].

134 SensorTbl[10][Flow] float Flow in PFS. Should be 1.0 Do not Alter!

Calibration Table: Gas Dependent Variables.

Note: Values will be available for selected gas only.

53

APPENDIX II INTERNAL "K" FACTORS

 CAUTION: K-Factors at best are only an approximation. K factors should not

be used in applications that require accuracy better than +/- 5 to 10%.

INDEX ACTUAL GAS

K Factor
Relative

to N

2

Cp

[Cal/g]

DENSITY

[g/I]

0

Air 1.0000 .240 1.293

1

*Argon Ar
*Argon AR-1 (>10 L/min)

1.4573

1.205

.1244
.1244

1.782

1.782

2

Acetylene C2H

2

.5829 .4036 1.162

3

Ammonia NH

3

.7310 .492 .760

4

Butane C4H

10

.2631 .4007 2.593

5

Chlorine Cl

2

.86 .114 3.163

6 Carbon Monoxide CO 1.00 .2488 1.250

7

*Carbon Dioxide CO

2

*Carbon Dioxide CO2-1 (>10 L/min)

.7382
.658

.2016
.2016

1.964

1.964

8

Chloroform CHCl

3

.3912 .1309 5.326

9

Ethane C2H

6

.50 .420 1.342

10

Ethylene C2H

4

.60 .365 1.251

11

Freon-134A CF3CH2F

.5096 .127 4.224

12

Fluorine F

2

.9784 .1873 1.695

13

Fluoroform (Freon-23) CHF

3

.4967 .176 3.127

14

*Helium He
*Helium He-1 (>50 L/min)
*Helium He-2 (>10-50 L/min)

1.454

2.43

2.05

1.241

1.241

1.241

.1786
.1786
.1786

15

*Hydrogen H

2

*Hydrogen H2-2 (>10-100 L)
*Hydrogen H2-3 (>100 L)

1.0106

1.35

1.9

3.419

3.419

3.419

.0899
.0899
.0899

16

Hydrogen Chloride HCl

1.000 .1912 1.627

17

Hydrogen Sulfide H2S

.80 .2397 1.520

18

Hexane C6H

14

.1792 .3968 3.845

19

*Methane CH

4

*Methane CH4-1 (>10 L/min)

.7175
.75

.5328
.5328

.715
.715

20

Neon NE

1.46 .246 .900

21

Nitrous Oxide N2O

.7128 .2088 1.964

22

Nitrogen Dioxide NO

2

.737 .1933 2.052

23 Nitric Oxide NO .990 .2328 1.339

24

Nitrogen Trifluoride NF

3

.4802 .1797 3.168

25

Oxygen O

2

.9926 .2193 1.427

26

Ozone

.446 .195 2.144

27

Propane C3H

8

.35 .399 1.967

28

Propylene C3H

6

.40 .366 1.877

29

Sulfur Dioxide SO

2

.69 .1488 2.858

30

Sulfur Hexafluoride SF

6

.2635 .1592 6.516

31 Xenon Xe 1.44 .0378 5.858

* Flow rates indicated ( ) is the maximum flow range of the Mass Flow meter being used.

54

APPENDIX III GAS FACTOR TABLE (“K FACTORS”)

 CAUTION: K-Factors at best are only an approximation. K factors should not

be used in applications that require accuracy better than +/- 5 to 10%.

INDEX ACTUAL GAS

K Factor
Relative

to N

2

Cp

[Cal/g]

DENSITY

[g/I]

0 Acetylene C2H

2

.5829 .4036 1.162
1 Air 1.0000 .240 1.293
2 Allene (Propadiene) C3H

4

.4346 .352 1.787

3

Ammonia NH

3

.7310 .492 .760

4

*Argon Ar
*Argon AR-1 (>10 L/min)

1.4573

1.205

.1244
.1244

1.782

1.782

5

Arsine AsH

3

.6735 .1167 3.478
6

Boron Trichloride BCl

3

.4089 .1279 5.227
7

Boron Trifluoride BF

3

.5082 .1778 3.025
8

Bromine Br

2

.8083 .0539 7.130
9

Boron Tribromide Br

3

.38 .0647 11.18

10

Bromine PentaTrifluoride BrF

5

.26 .1369 7.803

11

Bromine Trifluoride BrF

3

.3855 .1161 6.108

12

Bromotrifluoromethane (Freon-13 B1) CBrF

3

.3697 .1113 6.644

13

1,3-Butadiene C4H

6

.3224 .3514 2.413

14

Butane C4H

10

.2631 .4007 2.593

15

1-Butene C4H

8

.2994 .3648 2.503

16

2-Butene C4H8 CIS

.324 .336 2.503

17

2-Butene C4H8TRANS

.291 .374 2.503

18

*Carbon Dioxide CO

2

*Carbon Dioxide CO2-1 (>10 L/min)

.7382

.658

.2016
.2016

1.964

1.964

19

Carbon Disulfide CS

2

.6026 .1428 3.397

20 Carbon Monoxide C0 1.00 .2488 1.250
21

Carbon Tetrachloride CCl

4

.31 .1655 6.860

22

Carbon Tetrafluoride (Freon-14)CF

4

.42 .1654 3.926

23

Carbonyl Fluoride COF

2

.5428 .1710 2.945

24 Carbonyl Sulfide COS .6606 .1651 2.680
25

Chlorine Cl

2

.86 .114 3.163

26

Chlorine Trifluoride ClF

3

.4016 .1650 4.125

27

Chlorodifluoromethane (Freon-22) CHClF

2

.4589 .1544 3.858

28

Chloroform CHCl

3

.3912 .1309 5.326

29

Chloropentafluoroethane(Freon-115)C2ClF

5

.2418 .164 6.892

30

Chlorotrifluromethane (Freon-13) CClF

3

.3834 .153 4.660

31

CyanogenC2N

2

.61 .2613 2.322

32

CyanogenChloride CICN .6130 .1739 2.742

* Flow rates indicated ( ) is the maximum flow range of the Mass Flow meter being used.

55

INDEX ACTUAL GAS

K Factor
Relative

to N

2

Cp

[Cal/g]

DENSITY

[g/I]

33

Cyclopropane C3H

5

.4584 .3177 1.877

34

Deuterium D

2

1.00 1.722 1.799

35

Diborane B2H

6

.4357 .508 1.235

36

Dibromodifluoromethane CBr2F

2

.1947 .15 9.362

37

Dichlorodifluoromethane (Freon-12) CCl2F

2

.3538 .1432 5.395

38

Dichlofluoromethane (Freon-21) CHCl2F

.4252 .140 4.592

39

Dichloromethylsilane (CH3)2SiCl

2

.2522 .1882 5.758

40

Dichlorosilane SiH2Cl

2

.4044 .150 4.506

41

Dichlorotetrafluoroethane (Freon-114) C2Cl2F

4

.2235 .1604 7.626

42

1,1-Difluoroethylene (Freon-1132A) C2H2F

2

.4271 .224 2.857

43

Dimethylamine (CH3)2NH

.3714 .366 2.011

44

Dimethyl Ether (CH3)2O

.3896 .3414 2.055

45

2,2-Dimethylpropane C3H

12

.2170 .3914 3.219

46

Ethane C2H

6

.50 .420 1.342

47

Ethanol C2H6O

.3918 .3395 2.055

48

Ethyl Acetylene C4H

6

.3225 .3513 2.413

49

Ethyl Chloride C2H5Cl

.3891 .244 2.879

50

Ethylene C2H

4

.60 .365 1.251

51

Ethylene Oxide C2H4O

.5191 .268 1.965

52

Fluorine F

2

.9784 .1873 1.695

53

Fluoroform (Freon-23) CHF

3

.4967 .176 3.127

54

Freon-11 CCl3F

.3287 .1357 6.129

55

Freon-12 CCl2F

2

.3538 .1432 5.395

56

Freon-13 CClF

3

.3834 .153 4.660

57

Freon-13B1 CBrF

3

.3697 .1113 6.644

58

Freon-14 CF

4

.4210 .1654 3.926

59

Freon-21 CHCl2F

.4252 .140 4.592

60

Freon-22 CHClF

2

.4589 .1544 3.858

61

Freon-113 CCl2FCClF

2

.2031 .161 8.360

62

Freon-114 C2Cl2F

4

.2240 .160 7.626

63

Freon-115 C2ClF

5

.2418 .164 6.892

64

Freon-C318 C4F

8

.1760 .185 8.397

65

Germane GeH

4

.5696 .1404 3.418

66

Germanium Tetrachloride GeCl

4

.2668 .1071 9.565

67

*Helium He
*Helium He-1 (>50 L/min)
*Helium He-2 (>10-50 L/min)

1.454

2.43

2.05

1.241

1.241

1.241

.1786
.1786
.1786

68

Hexafluoroethane C2F6(Freon-116)

.2421 .1834 6.157

69

Hexane C6H

14

.1792 .3968 3.845

* Flow rates indicated ( ) is the maximum flow range of the Mass Flow meter being used.

56

INDEX

ACTUAL GAS

K Factor
Relative

to N

2

Cp

[Cal/g]

DENSITY

[g/I]

70

*Hydrogen H2-1
*Hydrogen H

2

-2 (>10-100 L)

*Hydrogen H

2

-3 (>100 L)

1.0106

1.35

1.9

3.419

3.419

3.419

.0899
.0899
.0899

71

Hydrogen Bromide HBr 1.000 .0861 3.610

72

Hydrogen Chloride HCl 1.000 .1912 1.627

73

Hydrogen Cyanide HCN .764 .3171 1.206

74

Hydrogen Fluoride HF .9998 .3479 .893

75

Hydrogen Iodide HI .9987 .0545 5.707

76

Hydrogen Selenide H2Se .7893 .1025 3.613

77

Hydrogen Sulfide H2S .80 .2397 1.520

78

Iodine Pentafluoride IF

5

.2492 .1108 9.90

79

Isobutane CH(CH3)

3

.27 .3872 3.593

80

Isobutylene C4H

6

.2951 .3701 2.503

81

Krypton Kr 1.453 .0593 3.739

82

*Methane CH

4

*Methane CH4-1 (>10 L/min)

.7175
.75

.5328
.5328

.7175
.7175

83

Methanol CH

3

.5843 .3274 1.429

84

Methyl Acetylene C3H

4

.4313 .3547 1.787

85

Methyl Bromide CH2Br .5835 .1106 4.236

86

Methyl Chloride CH3Cl .6299 .1926 2.253

87

Methyl Fluoride CH3F .68 .3221 1.518

88

Methyl Mercaptan CH3SH .5180 .2459 2.146

89

Methyl Trichlorosilane (CH3)SiCl

3

.2499 .164 6.669

90

Molybdenum Hexafluoride MoF

6

.2126 .1373 9.366

91

Monoethylamine C2H5NH

2

.3512 .387 2.011

92

Monomethylamine CH3NH

2

.51 .4343 1.386

93

Neon NE 1.46 .246 .900

94

Nitric Oxide NO .990 .2328 1.339

95

Nitrogen N

2

1.000 .2485 1.25

96

Nitrogen Dioxide NO

2

.737 .1933 2.052

97

Nitrogen Trifluoride NF

3

.4802 .1797 3.168

98

Nitrosyl Chloride NOCl .6134 .1632 2.920

99

Nitrous Oxide N2O .7128 .2088 1.964

100 Octafluorocyclobutane (Freon-C318) C4F

8

.176 .185 8.397

101 Oxygen O

2

.9926 .2193 1.427

* Flow rates indicated ( ) is the maximum flow range of the Mass Flow meter being used.

57

INDEX

ACTUAL GAS

K Factor
Relative

to N

2

Cp

[Cal/g]

DENSITY

[g/I]

102

Oxygen Difluoride OF

2

.6337 .1917 2.406

103

Ozone

.446 .195 2.144

104

Pentaborane B5H

9

.2554 .38 2.816

105

Pentane C5H

12

.2134 .398 3.219

106

Perchloryl Fluoride ClO3F

.3950 .1514 4.571

107

Perfluoropropane C3F

8

.174 .197 8.388

108

Phosgene COCl

2

.4438 .1394 4.418

109

Phosphine PH

3

.759 .2374 1.517

110

Phosphorous Oxychloride POCl

3

.36 .1324 6.843

111

Phosphorous Pentafluoride PH

5

.3021 .1610 5.620

112

Phosphorous Trichloride PCl

3

.30 .1250 6.127

113

Propane C3H

8

.35 .399 1.967

114

Propylene C3H

6

.40 .366 1.877

115

Silane SiH

4

.5982 .3189 1.433

116

Silicon Tetrachloride SiCl

4

.284 .1270 7.580

117

Silicon Tetrafluoride SiF

4

.3482 .1691 4.643

118

Sulfur Dioxide SO

2

.69 .1488 2.858

119

Sulfur Hexafluoride SF

6

.2635 .1592 6.516

120

Sulfuryl Fluoride SO2F

2

.3883 .1543 4.562

121

Tetrafluoroethane (Forane 134A) CF3CH2F

.5096 .127 4.224

122

Tetrafluorohydrazine N2F

4

.3237 .182 4.64

123

Trichlorofluoromethane (Freon-11) CCl3F

.3287 .1357 6.129

124

Trichlorosilane SiHCl

3

.3278 .1380 6.043

125

1,1,2-Trichloro-1,2,2 Trifluoroethane
(Freon-113) CCl

2

FCClF

2

.2031 .161 8.36

126

Triisobutyl Aluminum (C4H9)AL

.0608 .508 8.848

127

Titanium Tetrachloride TiCl

4

.2691 .120 8.465

128

Trichloro Ethylene C2HCl

3

.32 .163 5.95

129

Trimethylamine (CH3)3N

.2792 .3710 2.639

130

Tungsten Hexafluoride WF

6

.2541 .0810 13.28

131

Uranium Hexafluoride UF

6

.1961 .0888 15.70

132

Vinyl Bromide CH2CHBr

.4616 .1241 4.772

133

Vinyl Chloride CH2CHCl

.48 .12054 2.788

134

Xenon Xe

1.44 .0378 5.858

58

APPENDIX IV

COMPONENT DIAGRAM

FMA6600/6700 Analog PC Board TOP

59

COMPONENT DIAGRAM

FMA6600/6700 Analog PC Board BOTTOM

60

COMPONENT DIAGRAM

FMA6600/6700 Digital PC Board TOP

61

COMPONENT DIAGRAM

FMA6600/6700 Digital PC Board BOTTOM

62

APPENDIX V

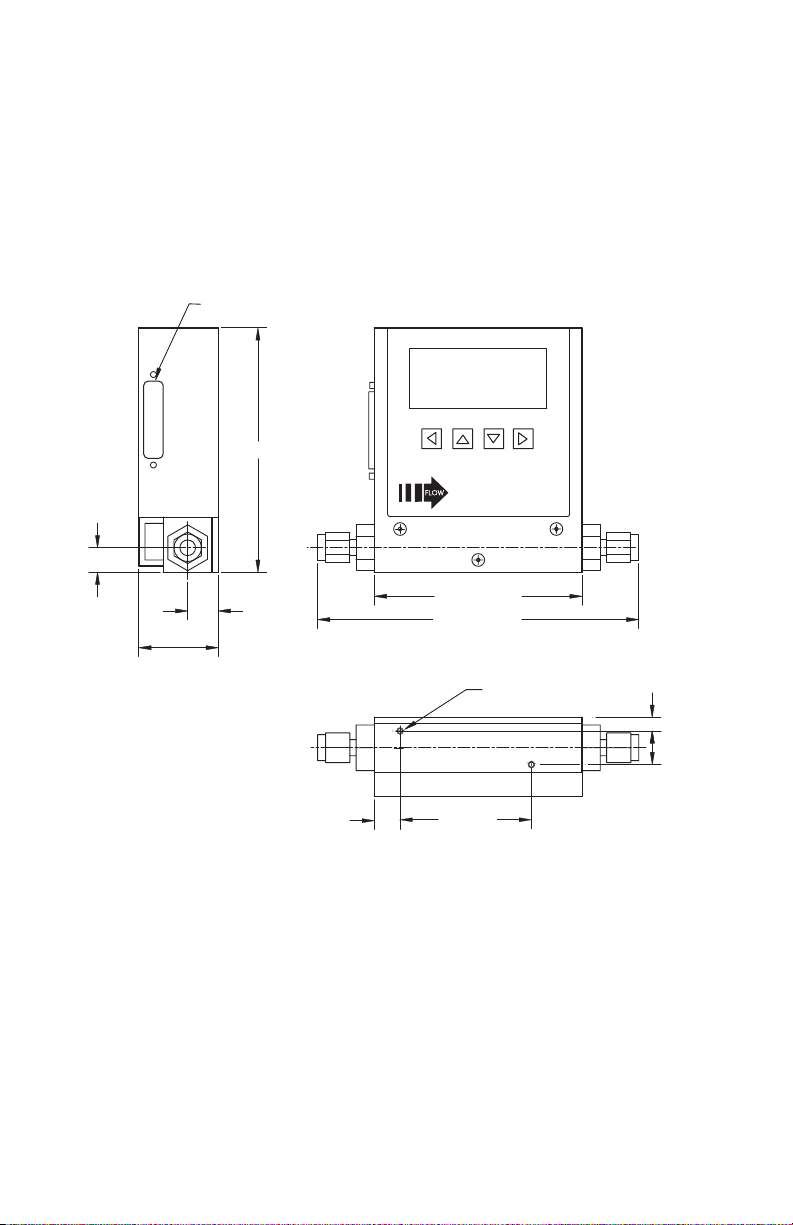

DIMENSIONAL DRAWINGS

Meters up to 10 SLPM

0.50 [12.7]

25-PIN
D-CONNECTOR MALE

5.00 [127.0]

0.63 [15.9]

1.63 [41.3]

0.53 [13.5]

4.25 [108.0]

6.27 [159.3]

6-32-2B 0.15 DEEP

0.28 [7.1]

0.69 [17.5]

2.69 [68.3]

63

0.50 [12.7]

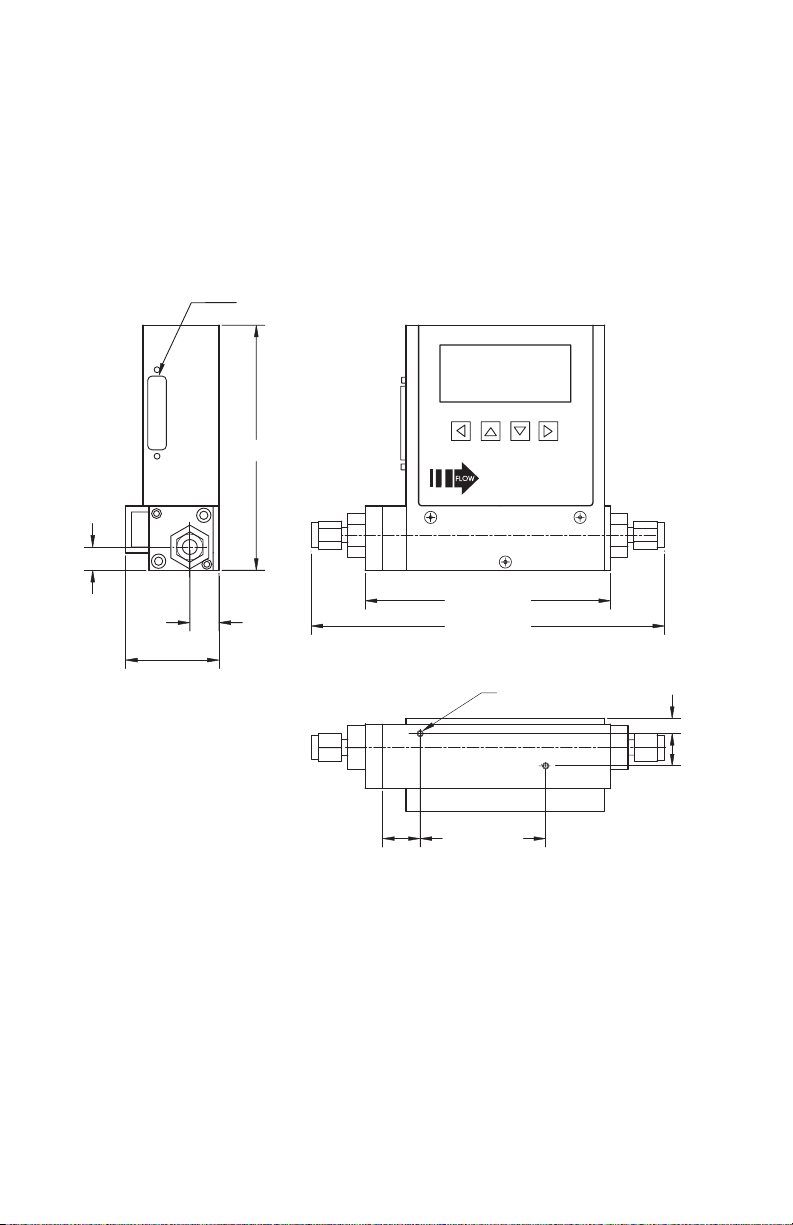

DIMENSIONAL DRAWINGS

Meters 15 SLPM and Greater

25-PIN
D-CONNECTOR MALE

5.25 [133.4]

0.63 [15.9]

2.00 [50.8]

5.25 [133.4]

7.27 [184.6]

7.49 [190.2]

*

6-32-2B 0.15 DEEP

FOR HIGH FLOW MASS FLOW METER

*

0.80 [20.3]

0.32 [8.3]

0.69 [17.5]

2.69 [68.3]

64

APPENDIX VI

WARRANTY/DISCLAIMER

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a
period of 13 months from date of purchase. OMEGA’s Warranty adds an additional one (1) month grace
period to the normal one (1) year product warranty to cover handling and shipping time. This ensures
that OMEGA’s customers receive maximum coverage on each product.

If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service
Department will issue an Authorized Return (AR) number immediately upon phone or written request.
Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no
charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser,
including but not limited to mishandling, improper interfacing, operation outside of design limits, improp­er repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of having
been tampered with or shows evidence of having been damaged as a result of excessive corrosion; or
current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating con­ditions outside of OMEGA’s control. Components which wear are not warranted, including but not limited
to contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However, OMEGA nei­ther assumes responsibility for any omissions or errors nor assumes liability for any damages
that result from the use of its products in accordance with information provided by OMEGA, either
verbal or written. OMEGA warrants only that the parts manufactured by it will be as specified and
free of defects. OMEGA MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF ANY KIND
WHATSOEVER, EXPRESS OR IMPLIED, EXCEPT THAT OF TITLE, AND ALL IMPLIED WARRANTIES
INCLUDING ANY WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PUR­POSE ARE HEREBY DISCLAIMED. LIMITATION OF LIABILITY: The remedies of purchaser set forth
herein are exclusive, and the total liability of OMEGA with respect to this order, whether based on
contract, warranty, negligence, indemnification, strict liability or otherwise, shall not exceed the
purchase price of the component upon which liability is based. In no event shall OMEGA be liable
for consequential, incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a

“Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in
medical applications or used on humans. Should any Product(s) be used in or with any nuclear
installation or activity, medical application, used on humans, or misused in any way, OMEGA assumes
no responsibility as set forth in our basic WARRANTY/ DISCLAIMER language, and, additionally,
purchaser will indemnify OMEGA and hold OMEGA harmless from any liability or damage whatsoever
arising out of the use of the Product(s) in such a manner.

RETURN REQUESTS/INQUIRIES

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department.
BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN
AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN
ORDER TO AVOID PROCESSING DELAYS). The assigned AR number should then be marked on the
outside of the return package and on any correspondence.

The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent
breakage in transit.

FOR WARRANTY

RETURNS, please have the
following information available BEFORE
contacting OMEGA:

1. Purchase Order number under which

the product was PURCHASED,

2. Model and serial number of the product

under warranty, and

3. Repair instructions and/or specific

problems relative to the product.

FOR NON-WARRANTY REPAIRS,

consult OMEGA
for current repair charges. Have the following
information available BEFORE contacting OMEGA:

1. Purchase Order number to cover the

COST of the repair,

2. Model and serial number of the

product, and

3. Repair instructions and/or specific problems

relative to the product.

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible.
This affords our customers the latest in technology and engineering.

OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2001 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photo-

copied, reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part,
without the prior written consent of OMEGA ENGINEERING, INC.

Where Do I Find Everything I Need for

Process Measurement and Control?

OMEGA… Of Course!

Shop online at www.omega.com

TEMPERATURE



Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies



Wire: Thermocouple, RTD & Thermistor



Calibrators & Ice Point References



Recorders, Controllers & Process Monitors



Infrared Pyrometers

PRESSURE, STRAIN AND FORCE



Transducers & Strain Gages



Load Cells & Pressure Gages



Displacement Transducers



Instrumentation & Accessories

FLOW/LEVEL



Rotameters, Gas Mass Flow meter & Flow Computers



Air Velocity Indicators



Turbine/Paddlewheel Systems



Totalizers & Batch Controllers

pH/CONDUCTIVITY



pH Electrodes, Testers & Accessories



Benchtop/Laboratory Meters



Controllers, Calibrators, Simulators & Pumps



Industrial pH & Conductivity Equipment

DATA ACQUISITION



Data Acquisition & Engineering Software



Communications-Based Acquisition Systems



Plug-in Cards for Apple, IBM & Compatibles



Datalogging Systems



Recorders, Printers & Plotters

HEATERS



Heating Cable



Cartridge & Strip Heaters



Immersion & Band Heaters



Flexible Heaters



Laboratory Heaters

ENVIRONMENTAL
MONITORING AND CONTROL



Metering & Control Instrumentation



Refractometers



Pumps & Tubing



Air, Soil & Water Monitors



Industrial Water & Wastewater Treatment



pH, Conductivity & Dissolved Oxygen Instruments

M-4154/0410
