The DRA-WVT-3 is a precision instrument and was
carefully and accurately calibrated.
Please do not change the internal potentiometers’
setting.
In order to change slightly the calibration setting,
please use the external Zero & Span potentiometers
on the unit’s panel
Please connect the unit to the calibrator according to
the following:
EXT. POWER
910
OPT.
EXT
PWR
OMEGA
ENGINEERING.INC.
Ic
20 1917 16 15 1412 11
CURRENT
OUTPUT
WATT
DVM
mA
+-- +
ZSSZ
WATT
VAR
CAL
CAL
WATT/VAR TRANSDUCER
Vcb
VOLTAGE
OUTPUT
SINGLE PHASE
POWER CALIBRATOR
For single-phase unit, the calibrator calculated
power (CP)
is: CP = Pmax
For Three-phase unit, the calibrator calculated
power (CP)
is: CP = Pmax/2
VAR
DVM
mA
3
2
1
COM
VAR
WATT
OUTPUT
DRA-WVT-3
Vab
Ia
Please follow the following instructions:
a. Set the calibrator to the desired maximum
input voltage. Set the output calculated power (CP).
Set Power Factor (P.F) = 1.0
b. With no power delivered to the DRA-WVT-3 unit,
set the Watt and Var potentiometers for 4.000mA
reading in both current meters.
c. Turn on the calibrator for full power. Tune the Watt’s
Span potentiometer to 20.000mA.
d. Set the P.F = 0 and tune the Var’s Span
potentiometer to 20.000mA.
2. CONNECTION DIAGRAMS
The power transducer is phase sensitive. Please keep
the voltage/current phases according to the following
diagrams.
+/- Io
(WATT)
EXT. POWER
910
OPT.
EXT
PWR
OMEGA
ENGINEERING. INC.
Ic
20 1917 16 15 1412 11
AA
BB
CC
ZSSZ
WATT
VAR
CAL
CAL
WATT/VAR TRANSDUCER
Vcb
WATT
Vab
3
2
COM
OUTPUT
DRA-WVT-3
+/- Io
(VAR)
1
VAR
Ia

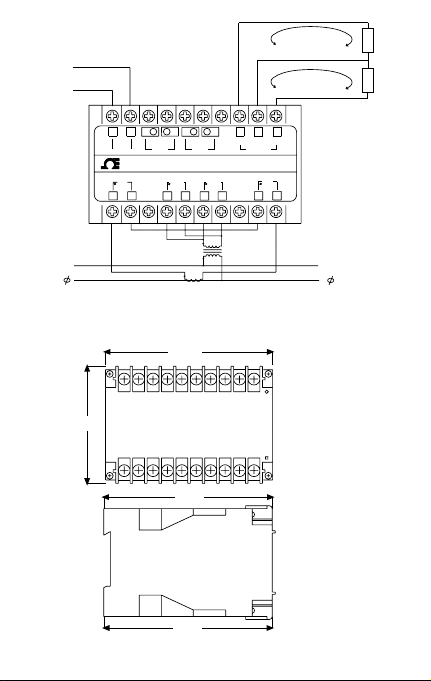

Three-Phase Connection
LOAD
WATT
LOAD
VAR
EXT. POWER
3
910
ENGINEERING.INC.
ZSSZ
WATT
VAR
CAL
CAL
WATT/VAR TRANSDUCER
Vcb
OPT.
EXT
PWR
OMEGA
Ic
20 1917 16 15 1412 11
2
COM
WATT
OUTPUT
DRA-WVT-3
Vab
+/- Io
(WATT)
+/- Io
(VAR)
1
VAR
Ia
LOAD
WATT
LOAD
VAR
0
LINE
Single Phase Connection
3. DIMENSIONS mm (inch)
(2.87) 73
(3.90)
100
(4.41)
112
(4.45)
114
0
LOAD
4.SPECIFICATIONS
INPUTS
CONNECTION:
POWER FACTOR:
POWER CALIBRATION SPAN:
OVER RANGE:
CURRENT
CURRENT RANGES:
CURRENT OVER RANGE:
PEAK OVERLOAD:
VOLTAGE
VOLTAGE RANGES:
VOLTAGE OVER-RANGE:
VOLTAGE OVERLOAD
(maximum 600 Vac)
POWER SUPPLY
SUPPLY RANGES:
POWER OVERLOAD:
INPUT BURDEN
CURRENT:
VOLTAGE
VOLTAGE
power configuration):
:
:
(Vab) (at Self-
1 or 3 phase, 3 wire, unrestricted
Unity - to lead or lag zero
170 to 8500 Watt/Var
+42% (at full accuracy)
0 - 1 to 0 - 5 Aac RMS
+20% (at full accuracy)
40 Aac RMS, for 5 sec. every 10 min.
0 - 85 to 0 - 500 Vac
+20% (at full accuracy)
Withstand 1.6 x [nom. rating]
continuous, limited to 600Vac
115, 230 Vac -15/+25%
and Self-powered
Withstand 1.45 x [nom. rating]
continuous
0.26 VA @ 5 Aac
0.15 VA @ 150 Vac, 0.3 VA @
300 Vac
2.6 VA @ 150 Vac
SUPPLY:
2.4 - 2.6 VA @ 150/300
Vac at 20 mA output
ISOLATION:
CURRENT INPUTS:
VOLTAGE AND POWER
IINPUTS:
FREQUENCY RANGES:
FREQUENCY VARIATION
EFFECT:
2.5 KV RMS /1 minute
4KV RMS /1 minute
50, 60, 400 Hz (Factory set)
< 0.02%/Hz for Watt output
< 0.1%/Hz for Var output
OUTPUTS (Watt or Var)
OUTPUT SPANS:
MAXIMUM OUTPUT LOAD:
LOAD VARIATION EFFECT:
RESPONSE TIME:
-20 to +20mA, 0..1 to 0/4..20 mA
800 Ω
< ±0.03% (for full change)
< 200 msec (10-90% of span)
ACCURACY
±0.1% of span (typical), ±0.25%
of span (max)
TEMPERATURE
OPERATING:
STORAGE:
TEMPERATURE STABILITY:
HUMIDITY:
HOUSING:
PROTECTION LEVEL:
-5 to +65oC
-35 to +85oC
Better than ±0.01/1oC
5 - 95% relative, non-condensed
Plastic Polycarbonate
Box: According to IP-40
Terminals: According to IP-20
WEIGHT:
0.6 Kg
