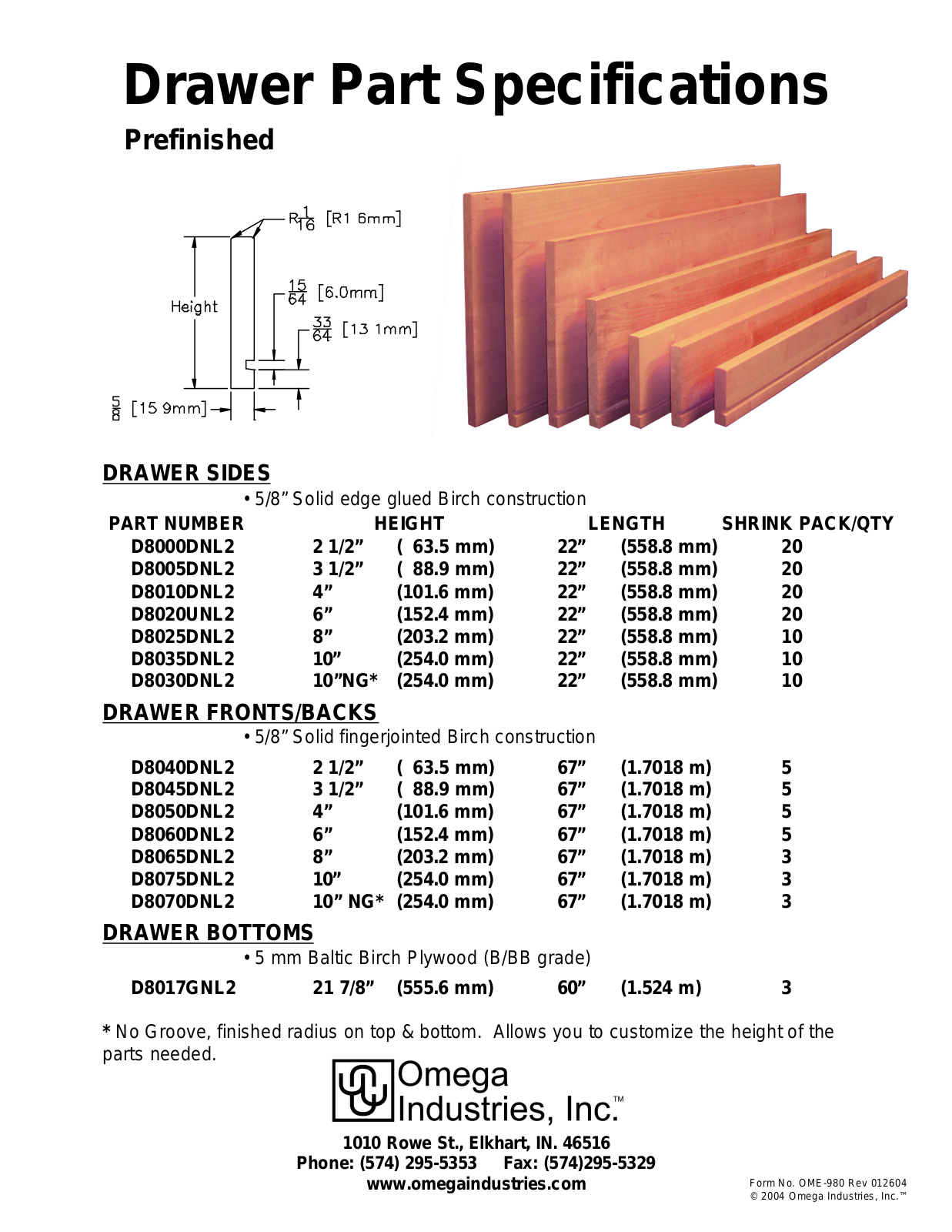

Drawer Part Specifications

Prefinished

DRAWER SIDES

• 5/8” Solid edge glued Birch construction

PART NUMBER HEIGHT LENGTH SHRINK PACK/QTY

D8000DNL2 2 1/2” ( 63.5 mm) 22” (558.8 mm) 20 D8005DNL2 3 1/2” ( 88.9 mm) 22” (558.8 mm) 20 D8010DNL2 4” (101.6 mm) 22” (558.8 mm) 20 D8020UNL2 6” (152.4 mm) 22” (558.8 mm) 20 D8025DNL2 8” (203.2 mm) 22” (558.8 mm) 10 D8035DNL2 10” (254.0 mm) 22” (558.8 mm) 10 D8030DNL2 10”NG* (254.0 mm) 22” (558.8 mm) 10

DRAWER FRONTS/BACKS

• 5/8” Solid fingerjointed Birch construction

D8040DNL2 2 1/2” ( 63.5 mm) 67” (1.7018 m) 5 D8045DNL2 3 1/2” ( 88.9 mm) 67” (1.7018 m) 5 D8050DNL2 4” (101.6 mm) 67” (1.7018 m) 5 D8060DNL2 6” (152.4 mm) 67” (1.7018 m) 5 D8065DNL2 8” (203.2 mm) 67” (1.7018 m) 3 D8075DNL2 10” (254.0 mm) 67” (1.7018 m) 3 D8070DNL2 10” NG* (254.0 mm) 67” (1.7018 m) 3

DRAWER BOTTOMS

• 5 mm Baltic Birch Plywood (B/BB grade)

D8017GNL2 21 7/8” (555.6 mm) 60” (1.524 m) 3

* No Groove, finished radius on top & bottom. Allows you to customize the height of the

parts needed.
