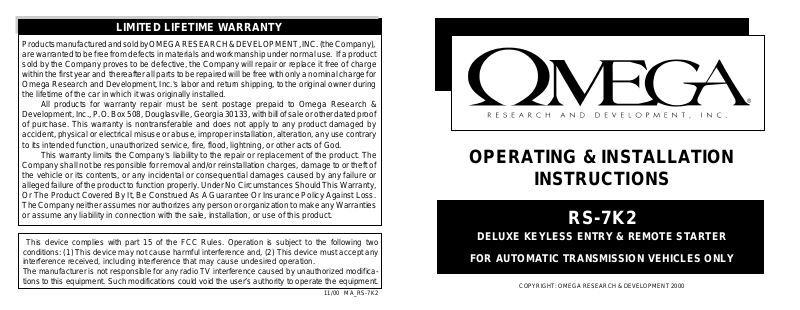

LIMITED LIFETIME WARRANTY
Products manufactured and sold by OMEGA RESEARCH & DEVELOPMENT, INC. (the Company),
are warranted to be free from defects in materials and workmanship under normal use. If a product
sold by the Company proves to be defective, the Company will repair or replace it free of charge
within the first year and thereafter all parts to be repaired will be free with only a nominal charge for
Omega Research and Development, Inc.'s labor and return shipping, to the original owner during
the lifetime of the car in which it was originally installed.
All products for warranty repair must be sent postage prepaid to Omega Research &
Development, Inc., P.O. Box 508, Douglasville, Georgia 30133, with bill of sale or other dated proof
of purchase. This warranty is nontransferable and does not apply to any product damaged by
accident, physical or electrical misuse or abuse, improper installation, alteration, any use contrary
to its intended function, unauthorized service, fire, flood, lightning, or other acts of God.
This warranty limits the Company's liability to the repair or replacement of the product. The
Company shall not be responsible for removal and/or reinstallation charges, damage to or theft of
the vehicle or its contents, or any incidental or consequential damages caused by any failure or
alleged failure of the product to function properly. Under No Circumstances Should This Warranty,
Or The Product Covered By It, Be Construed As A Guarantee Or Insurance Policy Against Loss.
The Company neither assumes nor authorizes any person or organization to make any Warranties
or assume any liability in connection with the sale, installation, or use of this product.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference and, (2) This device must accept any
interference received, including interference that may cause undesired operation.
The manufacturer is not responsible for any radio TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.
11/00 MA_RS-7K2
OPERATING & INSTALLATION
INSTRUCTIONS
RS-7K2
DELUXE KEYLESS ENTRY & REMOTE STARTER
FOR AUTOMATIC TRANSMISSION VEHICLES ONLY
COPYRIGHT: OMEGA RESEARCH & DEVELOPMENT 2000
Contents
the unit, all of the transmitters must be programmed.
Operation Guide
Introduction & Safety Considerations .......................................................................... 3
Basic Transmitter Functions Overview ........................................................................4
Remote Locking & Unlocking the Doors ...................................................................... 5
Remote Trunk Release ................................................................................................ 6
Carfinder Feature......................................................................................................... 6
Remote Starting the Engine......................................................................................7-8
Valet Mode................................................................................................................ 8-9
Installation Cautions and Warnings ............................................................................. 9
Installation Instructions
Installation Considerations ........................................................................................ 1 0
Wiring Diagram Overview .....................................................................................20-21
5 Wire Connector ..................................................................................................11-13
10 Wire Connector .................................................................................. 13-19 & 22-25
2 Wire Connector ..................................................................................................26-32
3 Wire Connector ..................................................................................................33-34
Receiver Module ........................................................................................................ 35
Valet Switch ...............................................................................................................35
Programmable Features ....................................................................................... 36-38
Programming Transmitters ...................................................................................38-39
Limited Lifetime Warranty ........................................................................... Back Cover
2
To program transmitters to operate the RS unit:
1) Turn the ignition switch “On”.
2) Within 7 seconds flip the Valet Switch “on” and “off” 5 times. The parking lights
will flash once, then turn back on indicating that the unit is ready to receive the
first transmitter’s code.
3) Press the transmitter’s lower right “START” button. The RS unit will acknowledge learning and storing the transmitter code by turning off the parking lights,
quickly flashing them once and then turning them back on.
4)Repeat the previous step for each remaining transmitter. Be sure to wait for
the parking lights to turn back on before pressing the next transmitter’s “START”
button.
The RS unit will automatically exit the transmitter programming mode, which is
indicated by the parking lights turning off, 8 seconds after the last transmission, if
the ignition switch is turned “On”, or if a fourth transmitter code is entered.
39
doorlocking systems or 3 seconds for certain vehicles having vacuum pump
actuated doorlocking systems.
Introduction & Safety Considerations
Feature #3- “Double Unlock Pulse” is for certain newer vehicles requiring two
pulses for unlocking the doors.
Feature #4- “Engine Running Time” selects the remote start engine run period to
be 15 minutes or 30 minutes.
Feature #5- “Starter Cranking Time” slightly lengthens the starter engagement,
which is useful for vehicles which may have difficult-to-start engines.
Feature #6- “1 Or 2 Pulse Remote Start Activation” changes the Pink “Start Acti-
vation Input” wire’s operation so that two Negative pulses instead of one is
required for an external device to activate the remote starting feature. This
feature, explained on page 24, will allow an existing keyless entry system to
activate the RS unit’s remote start feature.
Programming Transmitters
The RS-7K2 comes with two pre-programmed transmitters, but up to four transmitters
total may be programmed to operate the RS unit. Each transmitter has its own
unique “code”, and when a new transmitter is programmed, all previous codes will
be erased. So when an additional or replacement transmitter is added to operate
38
Congratulations on your purchase of the RS-7K2 Keyless Entry and Remote
Starter unit. The RS-7K2 offers you the convenience of locking and unlocking
your vehicle’s doors with the press of a button, and the starting of your vehicle's
engine from the comfort of your home or office, allowing your vehicle to warm up
in winter and cool down in summer. The RS-7K2 can also be optionally configured to remotely open your vehicle’s trunk.
We highly recommend that this system be professionally installed, as the
complexity of the modern automobile and the nature of circuits to be accessed is
often beyond the abilities of most do-it-yourselfers.
There are several important safety considerations with using and installing
the RS-7K2 keyless entry and remote starter. Among them are:
- This unit is for vehicles with an automatic transmission only. Installation in a
vehicle equipped with a manual transmission can result in property damage or
personal injury.
- This unit is for fuel injected gasoline or diesel engines.
- Children should not be left unattended in, or be allowed to play with the activat-
ing transmitters of any remote starter equipped vehicle.
- Do not use the remote starter feature in an enclosed garage or other structure.
3
Basic Transmitter Functions
The RS-7K2 comes with two 4-button remote transmitters. Please familiarize
yourself with the buttons and operations of the transmitters which are explained
in the following pages.
Upper left button
with “LOCK” icon
locks the doors, or activates
the “carfinder” feature
•
Upper right button
• with “UNLOCK” icon
unlocks the doors
Lower right button
Lower left button
with “START”
activates the remote
engine start feature
•
4
• with “OPEN TRUNK” icon
opens the trunk
3) Select the feature to be changed by flipping the Valet Switch the same number
of times as the feature number; the RS-unit’s response is an equal number of
parking light flashes.
4)Once the feature has been confirmed by the parking light flashes, press either
the transmitter’s upper left “LOCK” button or the upper right “UNLOCK” button.
- The “LOCK” button sets the feature to the “default” position, and the RS unit will
flash the parking lights once to acknowledge receiving this command.
- The “UNLOCK” button sets the feature to the “optional” position, and the RS unit
will flash the parking lights twice to acknowledge receiving this command.
5)Select another feature by repeating step 3), or allow the unit to exit Features
Programming Mode by simply not performing any programming actions- after 8
seconds the RS unit briefly turns on the parking lights to indicate its exit from
Features Programming Mode.
The programmable features:
Feature #1- “Doors Lock/Unlock Upon Ignition On/Off” configures the RS unit to
automatically lock the doors when the ignition is turned “On” and unlock the
doors when the ignition is turned “Off”.
Feature #2- “Door Lock Pulse Time” selects .75 second for most vehicles’ power
37
Programmable Features
Locking & Unlocking the Doors
The RS-7K2 has six programmable features. These features can be changed
using the transmitter when the unit is in Features Programming Mode. These six
features, their default and optional settings, are:
# FEATURE DEFAULT OPTION
#
1 Doors Lock/Unlock Upon Ignition On/Off ON OFF
#
2 Door Lock Pulse Duration .75 Second 3 Seconds
#
3 Single Or Double Unlock Pulse Single Double
#
4 Engine Running Time 15 Minutes 30 Minutes
#
5 Starter Cranking Time (in seconds) .8, 1.2, 1.5 1.2, 1.5, 2
#
6 1 Or 2 Pulse Remote Start Activation 1 Pulse 2 Pulses
To access Features Programming Mode and changing features:
1) Turn the ignition switch “On”, then “Off”.
2) Within 7 seconds flip the Valet Switch “on” and “off” 5 times. The parking lights
flash once indicating Features Programming Mode.
36
To Lock the Vehicle's Doors: Press & Release the upper left
transmitter button
*
THE PARKING
LIGHTS WILL FLASH
ONCE
THE DOORS WILL LOCK
- The parking lights will flash once to confirm and the doors will lock.
To Unlock the Vehicle's Doors: Press & Release the upper right
transmitter button
*
THE PARKING
LIGHTS WILL FLASH
TWICE
THE DOORS WILL UNLOCK
- The parking lights will flash twice to confirm and the doors will unlock.
5
Remote Trunk Release & Carfinder
Receiver Module & Valet Switch:
To Activate the Trunk Release: Press & Release the lower right
transmitter button
OPERATE OPTIONAL
TRUNK RELEASE
*
To Activate Carfinder: Press & Hold the upper left transmitter button
for 3 seconds
THE PARKING LIGHTS
*
WILL FLASH ONCE, THEN
SIX TIMES
6
Receiver Module:
An essential part of the RS-7K2 is the plug-in window mount Receiver Module. The
unit will not operate unless this Receiver Module is plugged-in. Select a desired
mounting location for the Receiver Module; optimum performance is obtained by
mounting this module high and unobstructed on the vehicle’s glass, such as the
windshield behind the rearview mirror. Make sure the glass surface is clean and
free of dust, grease, or debris. Peel the backing off of the adhesive tape and affix
the Receiver Module. Carefully route the module’s 3-wire ribbon cable to the RS
unit control module, and plug the cable into the Black 3-pin port on the rear of the
module.
Valet Switch:
Mount this switch in a location that’s easily accessible to the user. Route the wires
to the RS unit's control module and plug the 2-wire connector into the matching 2pin port on the control module. The Valet Switch is used to place the system into
Valet Mode, Features Programming Mode, and Transmitter Programing Mode. In
everyday operation, the “on” or “off” status of this switch controls Valet Mode. For
the two programming modes, this switched is toggled “on” and “off” within 7
seconds of the ignition switch being turned “On” (for transmitter programming
mode) or “Off” (for features programming mode).
35
In cases where an additional Ignition or second Starter circuit is present in the
vehicle, configure optional relays
as needed. This Red 3-pin port
also is used for certain optional
Omega bypass modules for OEM
security systems utilizing
resistors in the ignition
switch or transponders
in the ignition key.
Blue Wire
The wires
used and
the power
source for
the optional
relays must be
capable of supplying
and carrying high
amperage.
Red Wire
Green Wire
34
Fused
constant
12 Volts
85
87
Coil
86
Fused
constant
12 Volts
85
87
Coil
86
Typical Additional
Ignition & Starter
Circuit Optional
Relay Configuration
87a
Optional
Relay
30
To Additional
Ignition Circuit
87a
Optional
Relay
30
To Additional
Starter Circuit
Remote Starting
To Activate Remote Start: Press & Release the lower left
transmitter button
THE PARKING LIGHTS
WILL TURN ON, OFF, THE
ENGINE STARTS, THEN
THE PARKING LIGHTS
*
To Remote Start: Press & Release the lower left transmitter button
1) The parking lights will turn on to confirm the starting process.
2) The ignition circuit will turn on.
3) Within a few seconds the parking lights will turn off and the starter will engage.
4) The engine will start, run, and the starter will be disengaged.
5) The parking lights will turn back on while the RS unit is controlling the engine.
6) If the engine stalls, the RS unit will make two attempts to restart it.
When you leave your vehicle, simply set the climate controls for what you de-
sire to be operating upon remote start - heater, defroster or air conditioning. Upon
entering the vehicle place the ignition key in the switch and turn it to the "On"
RESUME ILLUMINATION
7
position. Do not turn the key to the "Start" position.
Deactivation
- After 15 or 30 minutes (programmable) the RS unit will turn the engine off.
- To stop the engine by remote control, simply press the lower left button again.
- Stepping on the brake pedal will turn the engine off.
- Opening the hood will turn the engine off. If the hood is open when an activation
attempt is made, the RS unit will not respond, and will not start the engine.
- Turning “on” the Valet Switch will also stop the engine.
Valet Mode
The RS unit may be placed into a “valet mode” which prevents the remote
start feature from being activated. Valet Mode should always be used when you
do not wish for remote start to be operated, such as when you leave your vehicle
with a valet parking attendant, mechanic or if you loan it to another person. An
“on/off toggle” switch, the Valet Switch, is used for this, and it is typically mounted
within easy reach of the driver. To engage the Valet Mode:
- At any time simply flip the Valet Switch to the “on” position. Three seconds later
the parking lights will flash 3 times to indicate Valet Mode.
Once the RS unit is in Valet Mode, an attempt to remote start will instead be
acknowledged by 4 parking light flashes, but no starting attempt.
- To turn off Valet Mode, with the ignition switch “On” simply flip the Valet Switch
8
W I R I N G - 3 Wire Connector
This harness, which plugs into the Red 3-pin port on the control module, can
be used, if needed, to configure optional relays to energize additional Ignition or
Starter circuits. Also, Omega OEM security bypass interfaces use the Blue port.
22 Gauge Blue Wire:
Connection If Needed.
output having basically the same operation as the 12 gauge Blue Ignition output.
If two or more Primary Ignition wires are present in the vehicle an optional relay is
needed, connected to this wire as shown in the diagram on the next page.
22 Gauge Red Wire:
Connection If Needed.
be used to power the relay's coil only- DO NOT use this Red wire for the optional
relay(s) pin.
22 Gauge Green Wire:
Connection If Needed.
output, which has the same operation as the 12 gauge Green Starter output. If a
second Starter wire is present in the vehicle, an optional relay will be needed,
connected to the 22 gauge Green wire as shown in the diagram on the next page.
500mA Negative Ignition Output
This 22 gauge Blue wire is a 500mA Negative
+12 Volt Output For Optional Relay Coil
The Red wire supplies constant 12 Volts that can
500mA Negative Starter Output
This 22 gauge Green wire is a 500mA Negative
33
Reversing Polarity System Using External Relays
Control
Module
Master Doorlock
Green
Wire
+
Lock
Unlock
Switch
85
Coil
87
86
Blue Wire
87a
30
Doorlock Actuators
+
+
32
++
85
87
Coil
+
+
+
86
Secondary Doorlock
87a
30
Switch
Lock
Unlock
Switch “off”; the parking lights will flash once. If the Valet Switch is turned “off”
while the ignition switch is “Off”, the RS unit will remain in Valet Mode until the
ignition switch is next turned “On”.
Installation Cautions and Warnings
Do not attempt to install this Remote Car Starter into a manual transmission vehicle! Doing so could cause serious property damage, personal
injury, and will void all warranties!
Be aware of, and avoid, any airbag circuitry! Due to the fact that an installer
will not be in a normal, upright seated position, severe injury may occur in
an accidental airbag deployment!
The use of a Digital Multimeter (DMM) or Volt-Ohm Meter (VOM) instead of
a standard testlight is required. This can greatly reduce the risk of an accidental airbag deployment or on-board computer damage.
Battery gases are explosive! Avoid sparks and do not smoke while working near the vehicle's battery!
Always protect wires ran through the firewall from sharp metal edges and
hot parts of the engine! Always fuse positive wires at their source!
9
Installation Instructions
5 Wire Reversing Polarity Systems
IMPORTANT!
After reading this manual, start the installation by affixing the
WARNING DECAL to a visible area in the engine compartment!
Installation Considerations: This entire booklet should be read before starting
the installation. An understanding of which control module wires are to be used
and their functions is essential. Installations will vary from car to car, as some
control module wires are required, while others are optional. Before starting the
installation, it should be determined which control module wires will be used.
Most installers will list these wires, then "map out" the installation by locating and
noting the target wires in the vehicle. This will also determine the best location for
the RS control module, which is mounted upon completion of the installation.
This Remote Start Unit duplicates the actions that occur within the ignition
switch when you use your key to start the engine. Because of this, most of the
main wiring harness connections will be made at the ignition switch harness. The
ignition switch wires usually are high amperage circuits, which means that high
reliability connections must be made- soldering of all connections is recommended.
Caution!
cased in Yellow or Red tubing or sleeves. Do not use a standard test light, as it
can deploy an airbag or damage on-board computers and sensors.
Avoid the Airbag circuit!
Especially avoid any harness or wires en-
10
This power doorlock system differs from the negative and positive pulse systems in
that there is no doorlock control unit or relays. In this type of system, the switches
themselves supply the positive voltage directly to the doorlock actuators, and, more
importantly, provide the return ground path. It is important to note that the lock and
unlock wires in this system
lock and unlock wires must be "opened", or cut, to make the proper connections.
Examine the wires on the back of the switch. (Normally 5 wires will be found)
1) One wire will show +12 Volts, regardless of the switch's position.
2) Two wires will be grounded regardless of the switch's position.
3) One wire will show +12 Volts only when the switch is pushed to "Lock".
4) One wire will show +12 Volts only when the switch is pushed to "Unlock".
- When the lock /unlock wires are found, they must be cut one at a time. If the correct
wires are cut the door locking system should not operate from the primary switch.
- Notice that in the diagram the driver's switch is the primary or “Master” switch (in
some vehicles, the primary switch is on the passenger's side). The half of the cut
wires which come from this primary switch are referred to as the "Switch" side. The
half of the cut wires which go to the secondary switch are referred to as the "Motor"
side even though the cut is made between the switches.
actually rest at chassis ground.
31
This means that both the
Positive Pulse System Using External Relays
W I R I N G - 5 Wire Connector
Control
Module
+
Red Connector
Green
Wire
Doorlock
Switch
Blue Wire
(Two 12-Gauge) Red Wires:
Connection Required
. Connect both Red wires to constant 12 Volts. The
Constant +12 Volts Input
source used must supply adequate amperage. The most common sources are
++
the battery's Positive terminal and the ignition switch wiring harness. Good reliable connections and use of the included fuses are a must. Please note that
85
87
87a
Coil
+
86
30
85
87
Coil
+
86
Vehicle's Doorlock
Relay Control Unit
Unlock
Lock
87a
30
Doorlock
Actuators
+
Two Typical “Electrical”
Ignition Switch Locations
30
some Ignition Switches have the electrical
switch as part of the mechanical switch; oth ers have the electrical switch lower on
the steering column and connected
to the mechanical switch by a linkage.
The ignition switch wiring harness is
the best source for this and the
ignition #1 and accessory
OR
wire connections.
11
12-Gauge Green Wire:
Connection Required
wire. This wire will show +12 Volts only when the ignition key is in the "Start"
position. This wire is also found in the ignition switch wiring harness (see diagram
on previous page). Some vehicles have a second Starter wire known as a "Cold
Start" wire. When this is encountered, an optional relay may be needed, configured to the 3-pin Red port, to energize the second Starter wire (see pages 33-
34).
. Connect the Green wire to the vehicle's Starter
Starter Output
3 Wire Positive Pulse Systems
This doorlock system is similar to the 3 wire negative pulse system except the
doorlock switches send +12 Volt pulses to operate the doorlock relays/control unit.
Examine the wires on the back of the doorlock switch:
1) One wire will show +12 Volts, regardless of the switch's position.
2) One wire will show +12 Volts only when the switch is pushed to "lock".
3) One wire will show +12 Volts only when the switch is pushed to "unlock".
Note: If a security system is present which utilizes a starter interrupt circuit, the
Green wire must be connected to the Starter Motor side of the interrupt.
12-Gauge Blue Wire:
Connection Required
(also known as “Primary Ignition”). This wire will show +12 Volts when the ignition key is in the "Run" and "Start" positions and no voltage in the "Off" and
"Accessory" positions. This wire is found in the ignition switch wiring harness
(see diagram on previous page).
Note: If two or more Primary Ignition wires are present, you will need to connect
an optional relay or relays to the 3-pin Red port (see pages 33-34).
. Connect the Blue wire to the vehicle's Ignition wire
Ignition Output
Warning: The Positive pulse system can be confused with the 5-wire Reversing
Polarity system. This is because both systems show +12 Volt pulses on the “Lock”
and “Unlock” wires when the vehicle’s switch is pressed respectively. It is critical
to identify which system is present, since if +12 Volts is pulsed into a Reversing
Polarity system, which rests at ground, a direct short circuit will occur.
3 main differences between a Positive pulse and a Reversing Polarity system:
1) In a Reversing system the Lock/Unlock wires
tive system the wires
2) The doorlock switch in a Reversing system will have 5 wires, while a Positive
pulse system the switch will have 3 wires.
3) A
Positive pulse system
system
does not.
show partial ground
uses
factory relays or a control unit, a
2912
rest at ground,
through the relay’s coils.
while in a Posi-
Reversing
Negative Pulse System Using Direct Connection
Control
Module
Red Connector
12-Gauge Yellow Wire:
Connection Required
. Connect the Yellow wire to the vehicle's Acces-
Accessory Output
sory wire. This circuit supplies power to the Heat, Ventilation and Air Conditioning
(HVAC) system. This wire will show 12 Volts when the ignition key is in the "Run"
and "Accessory" positions and No voltage in the "Start" and "Off" positions. The
connection point for this wire is also found in the ignition switch wiring harness
(see diagram on page 11).
Green Wire To Switch
Door Lock Wire
Door Lock
Switch
Ground
Blue Wire To Switch
Door Unlock Wire
Vehicle's Doorlock
Relay Control Unit
Unlock
Lock
28
+
Doorlock
Actuators
W I R I N G - 10 Wire Connector
22-Gauge Black Wire:
Connection Required.
sis ground. A recommended connection is to an existing machine-thread bolt,
either in the driver's kick panel, steering column area or a major structural member behind the dash. Small dash braces are not adequate, and the area must be
clean, bright metal. Use of a sheet metal screw or otherwise grounding to the
vehicle’s sheet metal is least desirable, and in some cases will result in an inadequate grounding of the system.
Connect the Black wire to a very good, clean chas-
13
System Ground
22-Gauge Yellow/Black Wire:
Connection Required-
part a critical safety feature which disables the RS unit whenever the brake pedal
is pressed. Connect the Yellow/Black wire to the brake switch wire which shows
+12 Volts when the brake pedal is pressed. The brake switch is typically located
above the brake pedal, and usually mounted to the brake pedal support bracket.
Always make this connection in a fashion ensuring its long-term reliability; soldering is highly recommended. Upon completing the Yellow/Black wire's connection, thoroughly test the operation of this circuit.
The Yellow/Black wire must be connected. It is
22-Gauge Dark Blue Wire:
Connection Required-
the Dark Blue wire must be connected. This prevents operation of the RS unit
if the hood is open.
Carefully install the included pin switch so that it is open (pin down) when the
hood is shut and closed (pin up) when the hood is open. Connect the Dark Blue
wire to the pin switch and carefully route this wire through the firewall, using an
added or existing grommet, avoiding any hot or moving parts.
If there is an existing hood pin switch for an alarm system, you may use it for
the Dark Blue wire connection; but the two systems must be diode-isolated.
The Hood Safety Switch must be installed and
14
(+) Brake Input
(-) Hood Input
The following sections describe typical power doorlocking systems, which are
categorized as “3 Wire Negative Pulse”; “3 Wire Positive Pulse”, and “5 Wire
Reversing Polarity” systems
3 Wire Negative Pulse Systems
This power doorlock system is simplest of all doorlocking systems. A Negative
pulse system will have only three wires at the doorlock switch.
Examine the wires on the back of the doorlock switch:
1) One wire will show Ground, regardless of the switch's position.
2) One wire will show Ground only when the switch is pushed to "Lock".
3) One wire will show Ground only when the switch is pushed to "Unlock".
The lock & unlock wires coming out of the switch operate the vehicle’s doorlock
relays or a control unit with on-board relays, therefore the lock & unlock wires will
read Positive voltage, up to +12 Volts, when the switch is at rest. The correct
connection point is between the switches and the relays. The Red connector's
Green and Blue wires can be connected directly to the vehicle’s Negative pulse
system since only a Negative pulse is required to operate the vehicle’s on-board
doorlocking relays. If the vehicle’s Negative pulse doorlocking system requires
more than 500mA Negative output, optional relays must be used.
27
W I R I N G - 2 Wire (3 Cavity) Connector
Optional Parts Needed:
Two IN4002 Diodes
Hood
Pin
Switch
Diode Isolating
The Hood Switch
22 Gauge Green Wire:
Negative Lock Output
Connection If Desired
The Green wire supplies a negative pulse for locking the vehicle's doors.
22 Gauge Blue Wire:
Negative Unlock Output
Connection If Desired
The Blue wire supplies a negative pulse for locking the vehicle's doors. Programmable feature #3 changes the single unlock pulse to be a double unlock pulse.
This harness, which plugs into the White 3-pin port on the control module, is
the power doorlock outputs which allow the RS unit to operate the vehicle’s existing power doorlock system. The vehicle must have existing power doorlocks; or,
if it does not, power doorlocks may be added to the vehicle in the form of installing
a model DS-2 actuator to each of the doors, along with a doorlock interface. The
doorlock interface needed to allow the RS unit to operate the doorlocks will depend upon the type of power doorlocking system the vehicle is equipped with.
26
To Existing Alarm
Instead of using a pin switch to monitor the hood's open or shut status, an Omega
AU-46 Mercury Tilt Switch may used. Connect one of the AU-46's wires to Negative Chassis Ground and connect the remaining wire to the Dark Blue wire.
22-Gauge Orange/Black Wire:
Connection Required.
The RS unit utilizes two different methods of monitoring the vehicle during the
remote starting process. Consider both methods before deciding which one to
use. Normally the Smart Start method is used, especially for diesel engine applications in which the vehicle has no true tach signal available. An adjustment
control and LED indicator for each method are on the side of the unit’s case.
The Orange/Black wire is the engine detect wire.
15
Engine Detect Input
Dark Blue Wire
1) Smart Start:
This method uses a voltage sensing circuit which reads the vehicle's voltage
before attempting to start, and then monitors for a voltage increase which occurs
when the alternator has output. The Orange/Black wire connects to a constant
12 Volt source; the recommended location is the vehicle's battery. Once all of
the wiring connections are made, the Smart Start voltage sensing input must be
adjusted, and Programmable Feature #5 offers two levels of the starter motor
preset cranking times. To make the initial Smart Start adjustment:
1) Position the selector switch for Smart Start (right position).
22-Gauge Green Wire:
Connection If Needed.
diesel engines. Connect the Green wire to the wire in the vehicle which powers
the glow plugs, or the wire which illuminates the “Wait To Start” light on the instrument panel. When connected, the RS unit will not engage the starter if the Green
wire has +12 Volts; in other words, using this wire simply delays the RS unit’s
engagement of the starter. If the “Wait To Start” light in the vehicle has a Negative switching circuit, it can still be used by simply reversing the polarity with an
optional relay.
The Green wire allows the RS-7K2 to be used with
(+) Glow Plug Input
2) Locate the Smart Start adjustment and LED indicator on the side of the unit.
Ensure that both adjustment screws are completely counterclockwise.
3) Now start the engine with the key; then, turn the Smart Start adjustment screw
slowly clockwise until the LED indicator begins to flash. The flashes confirm
that the unit is sensing the engine.
4) Turn the engine off.
5) Confirm that unwanted noise is not being picked up from other vehicle circuits:
16
22-Gauge Light Blue Wire:
Connection If Needed.
disarm a factory alarm system. Connect the Light Blue wire to the wire in the
vehicle which is connected to one of the doorlock key cylinders. The typical OEM
alarm has an electrical switch in the key cylinders which switches -Ground when
the key unlocks the door. This wire can usually be located in the vehicle in either
kick panel area, in the wiring harness which is routed into the cab from the door.
The Light Blue wire has a -Ground pulse whenever the RS unit has an unlock
output or its remote start operation is activated.
If needed, the Light Blue wire allows the RS-7K2 to
(-) OEM Disarm Output
25
22-Gauge Pink Wire:
Connection If Needed.
as an existing keyless entry or alarm system to activate the remote start operation. If the Pink wire receives a Negative pulse, the RS unit will start the vehicle's
engine, provided that all safety circuits are in the proper status. After the engine
has been started by remote control, another Negative pulse on the Pink wire will
turn the RS unit off, stopping the engine.
The Pink wire can be connected to an available auxiliary output of an existing
Remote Security System, and the RS-7K2's remote control may also be used to
activate the remote start operation.
Should it be desired to activate the RS unit’s remote start operation from an
existing keyless entry system, programmable feature #6 will configure the Pink
wire to activate the remote start feature only if it receives two Negative pulses
within 10 seconds. This allows configuring the RS unit to remote start when the
OEM transmitter’s “LOCK” button is pressed twice. In most cases the existing
keyless entry system will have Negative switching door lock circuits to which the
Pink wire may be connected directly. In the other cases, an optional relay is
needed to reverse Positive polarity to Negative. When feature #6 is selected for
“two pulse” operation, once the RS unit has started the engine, the Pink wire must
receive two more Negative pulses within 10 seconds to stop the engine.
The Pink wire allows for alternative devices such
(-) Start Activation Input
a. Without starting the engine, turn the ignition key to the "On" position.
b. If the LED indicator remains off the unit has been properly tuned.
c. If the LED indicator flashes there is noise on the Orange/Black wire's connec tion and it will be necessary to relocate the connection.
2) Tach Sense:
If the vehicle is generally hard to start (example: requiring the starter to be engaged for more than 1 second) this method will produce more consistent remote
starting. With this method the Orange/Black wire reads the engine speed (tach)
information from a wire in the vehicle. The Orange/Black wire connects to the
vehicle's tach wire, which is found in the engine compartment, although in some
cases it may also be located inside the vehicle. To use a multimeter to verify the
correct tach wire, set it for AC Volts scale. The correct wire will read 1 to 6 volts
AC with the engine idling, and will increase with engine speed. An additional
adjustment control and LED indicator allows tuning the unit’s tach wire sensitivity.
1) Position the selector switch for Tach Sense (left position).
2) Locate the Tach Sense adjustment and LED indicator on the side of the unit.
Ensure that both adjustment screws completely counterclockwise.
1724
3) Start the engine with the key; then turn the Tach Sense adjustment screw
slowly clockwise until the LED indicator illuminates solid.
- To increase sensitivity, thus the crank time, turn the adjustment screw counterclockwise.
- To decrease sensitivity, thus the crank time, turn the adjustment screw clockwise.
22-Gauge White Wire:
Connection Recommended.
Parking Light Output
The White wire is a +12 Volt output to the
vehicle’s exterior parking lights and its function is to visually confirm system operations. The parking lights are also used as indicators when programming features. Connect the White wire to the vehicle's 12 Volt parking light circuit as
shown in the accompanying diagrams. The correct wire will show 12 Volts only
when the headlight switch is in the "Parking Light" and "Head Light" positions.
This wire can usually be found at the headlight switch, and various other locations within the vehicle, such as the rear body harness or firewall connector.
Caution: When such a wire is located, be sure to also test that it is non-rheostated:
While metering the wire, operate the dash light dimmer control. The correct wire
will show no change in voltage when the dimmer is operated. Some vehicles
have a parking-light relay which is triggered by a Negative signal from the headlight switch. In these vehicles, the White wire must be connected after the relay,
usually at the Fuse/Junction Block. Do NOT connect the White wire directly to
18
22-Gauge Orange Wire:
Connection If Desired.
The function of the Orange wire is to provide a
Anti-Grind Output
250mA Negative auxiliary output which may be used to operate a starter motor
"Anti-Grind" relay, which prevents accidental starter grind should the key be turned
while the remote starter is in operation.
Connect "Switch" side of cut wire
to terminal #30 of the relay.
Ignition Switch
Connect "Motor" side of cut wire
to terminal
Note: Connect 12-gauge
Green starter wire to the
motor side of the cut wire
87a
87
86
Coil
#
87a of the relay.
30
85
Orange Wire
Control
Module
Starter Motor
23
22-Gauge Gray Wire:
4
4
4
4
4
4
4
4
4
Connection If Desired
Trunk Release Output
. The Gray wire has a 500mA Negative output which
is operated by the transmitter button with the open trunk icon, and this output is
designed for trunk release. In most cases, an optional external relay will be needed,
configured as follows:
Control
Module
Trunk
Switch
Gray Wire
12 Volts
85
Coil
86
Connect to 12 Volts or Negative Ground
as needed in the particular application.
(In this example Negative is required)
87
87a
Relay
30
Release
Solenoid
Typical Parking Lights Connection
Dash Board
Lights
White Wire
the vehicle’s headlights. An external relay is required. Vehicles having a split
parking light system must be
diode isolated, requiring the
use of two IN4006 diodes:
Control
Module
Light
Switch
Right Side Circuit
23
23
23
23
23
23
23
23
23
Parking Lights
In some applications the solenoid wire will rest at ground. In these cases:
- Cut the solenoid wire:
- Connect the switch side to pin
- Connect the solenoid side to pin #30 of the external relay.
- Connect 12 Volts to pin #87 of the external relay (Fused).
#
87a of the external relay.
22
Control
Two IN4006 Diodes.
Module
White Wire
Diode Isolation Of Split
Parking Light Systems
19
Light
Switch
Left Side Circuit
Parking Lights
+
Battery
Red & Red:
(+) 12 Volts
Starter
30 Amp
30 Amp
White:
To Starter
Green:
Starter (+)
Parking Lights
Relay
✄
Blue:
Ignition (+)
OPTIONAL
AU-SOCKET &
SPDT RELAY FOR
ANTI-GRIND FEATURE
Orange: (-) Output When
Red: To
Ignition
Switch
Ignition
Switch
Yellow:
Accessory (+)
Light
Switch
White: (+) Parking
Light Output
Activated
Hood Pin
Switch
Blue:
(-) Hood Switch
Yellow/Black:
Brake (+)
Pink: To
Alarm or
Keyless Entry
Green:
To Glow Plug or
“Wait To Start” light
Gray:
To Trunk Release
Lt. Blue:
To OEM Disarm
Orange/Black:
To Coil or
Battery
10 Amp
Black:
(-) Ground
WIRING DIAGRAM OVERVIEW
Smart
Tach
Tach
LED
Adjust
Voltage
Tach
SMART START OR TACH
SELECT SWITCH
ORG/BLK = ENGINE DETECT INPUT
ORANGE = ANTI-GRIND OUTPUT LT. BLUE = OEM DISARM OUTPUT GRAY = TRUNK RELEASE OUTPUT PINK = START ACTIVATION INPUT YEL/BLK = BRAKE INPUT +
DK. BLUE = HOOD INPUT GREEN = GLOW PLUG INPUT +
WHITE = PARKING LIGHT OUTPUT +
BLACK = GROUND
DOORLOCK OUTPUT PORT
SATELLITE RELAY PORT
BLUE = IGNITION + OUTPUT
RED = +12V INPUT
RED = +12V INPUT
YELLOW = ACCESSORY + OUTPUT
GREEN = STARTER + OUTPUT
Start
LED
Smart
Start
Adjust
Valet Switch
VALET
SWITCH
PORT
Receiver
RECEIVER
PORT
Unit
20
21
Loading...
