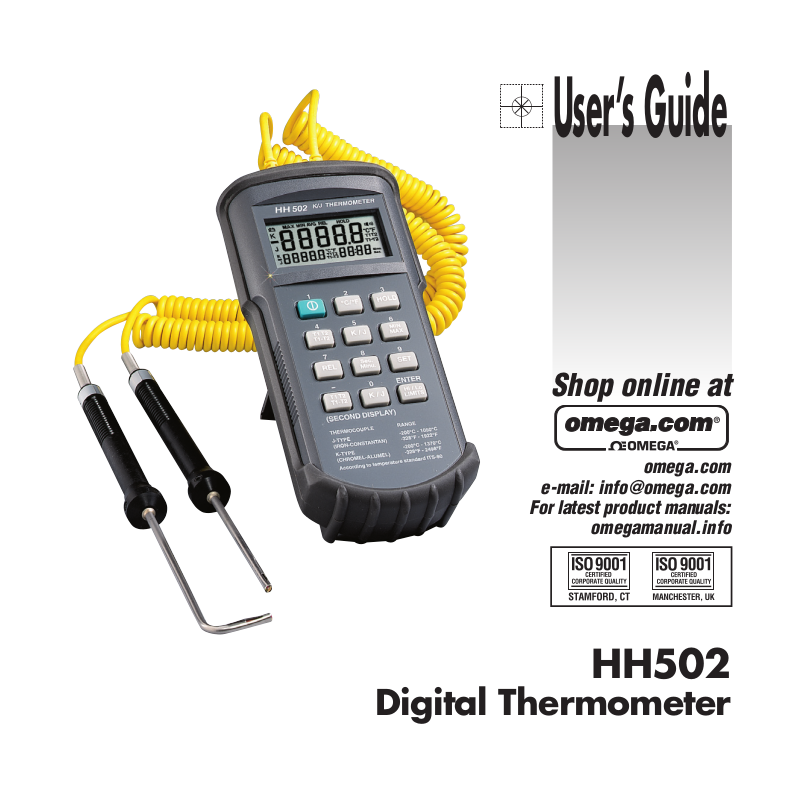

User’s Guide

HH502

Digital Thermometer

Shop online at

OMEGAnet®On-Line Service Internet e-mail

omega.com [e-mail]

It is the policy of OMEGA Engineering, Inc. to comply with all worldwide safety and EMC/EMI regulations that apply. OMEGA is
constantly pursuing certification of its products to the European New Approach Directives. OMEGA will add the CE mark to every
appropriate device upon certification.

The information contained in this document is believed to be correct, but OMEGA accepts
no liability for any errors it contains, and reserves the right to alter specifications without notice.
WARNING: These products are not designed for use in, and should not be used for, human applications.

Benelux:

Managed by the United Kingdom Office
Toll-Free: 0800 099 3344 TEL: [phone]
FAX: [phone] e-mail: [e-mail]

Czech Republic:

Frystatska 184, 733 01 Karviná, Czech Republic
Toll-Free: 0800-1-66342 TEL: [phone]
FAX: [phone] e-mail: [e-mail]

France:

Managed by the United Kingdom Office
Toll-Free: 0800 466 342 TEL: [phone]
FAX: [phone] e-mail: [e-mail]

Servicing Europe:

U.S.A. and Canada:

Sales Service: 1-800-826-6342/1-800-TC-OMEGA

®

Customer Service: 1-800-622-2378/1-800-622-BEST

®

Engineering Service: 1-800-872-9436/1-800-USA-WHEN

®

U.S.A.: ISO 9001 Certified

OMEGA Engineering, Inc.
One Omega Drive, P.O. Box 4047
Stamford, CT 06907-0047 USA
Toll-Free: 1-800-826-6342 TEL: [phone]
FAX: [phone] e-mail: [e-mail]

Servicing North America:

For immediate technical or application assistance:

Mexico:

En Español: 001 [phone]
FAX: [phone]
[e-mail]
e-mail: [e-mail]

Germany/Austria:

Daimlerstrasse 26, D-75392 Deckenpfronn, Germany
Toll-Free: 0 800 6397678 TEL: [phone]
FAX: [phone] e-mail: [e-mail]

United Kingdom:

ISO 9001 Certified

OMEGA Engineering Ltd.
One Omega Drive, River Bend Technology Centre
Northbank , Irlam, Manchester M44 5BD England
Toll-Free: 0800-488-488 TEL: [phone]
FAX: [phone]
e-mail: [e-mail]

Canada:

976 Bergar
Laval (Quebec), Canada H7L 5A1
Toll-Free: 1-800-826-6342 TEL: [phone]
FAX: [phone] e-mail: [e-mail]

INTRODUCTION

This instrument is a 4½ digit, compact-sized portable digital thermometer
designed to use external K-type and J-type thermocouples as temperature
sensor. Temperature indication follows Reference Temperature/Voltage Tables
(N.I.S.T. Monograph 175 Revised to ITS-90) for K-type and J-type thermo­couples. Two K-type thermocouple are supplied with the thermometer.

SAFETY INFORMATION

It is recommended that you read the safety and operation instructions before
using the thermometer.

WARNING

To avoid electrical shock, do not use this instrument when working

voltages at the measurement surface over 24V AC or DC.

WARNING

To avoid damage or burns, do not make temperature

measurement in microwave ovens.

CAUTION

Repeated sharp flexing can break the thermocouple leads. To prolong

lead life, avoid sharp bends in the leads, especially near the connector.
The symbol on the instrument indicates that the operator must refer to an

explanation in this manual.

SPECIFICATIONS

ELECTRICAL

Temperature Scale: Celsius or Fahrenheit user-selectable.
Measurement Range:

J-TYPE -200°C to 1050°C, (-328°F to 1922°F)
K-TYPE -200°C to 1370°C, (-328°F to 2498°F)

Resolution: 0.1°C or 0.2°F.
Accuracy: Accuracy is specified for operating temperatures over the range of

18°C to 28°C (64°F to 82°F), for 1 year, not including thermocouple error.

±(0.05% rdg + 0.3°C) -50°C to 1370°C
±(0.05% rdg + 0.7°C) -50°C to -200°C
±(0.05% rdg + 0.6°F) -58°F to 2498°F
±(0.05% rdg + 1.4°F) -58°F to -328°F

Temperature Coefficient: 0.1 times the applicable accuracy specification per

°C from 0°C to 18°C and 28°C to 50°C (32°F to 64°F and 82°F to 122°F).
Input Protection: 24V dc or 24V ac rms maximum input voltage on any

combination of input pins.

Maximum Differential Common Mode Voltage (Maximum Voltage be­tween T1 and T2 during measurement): 1volt.
Reading Rate: one time per second.
Input Connector: Accepts SMP male miniature thermocouple connectors.

2

ENVIRONMENTAL

Ambient Operating Ranges: 0°C to 50°C (32°F to 122°F) <80% R.H.
Storage Temperature: -20°C to 60°C (-4°F to 140°F) <70% R.H.

GENERAL

Display: 4½ digit liquid crystal display (LCD) with maximum reading of 19999.
Overload: "----.-" is display.
Battery: Standard 9V battery.
Battery Life: 100 hours typical.
Auto power off: The meter key switch inactive for more than 30 minutes,

press power key to resume operation.

Dimensions: 192mm(H) x 91mm(W) x 52.5mm(D).
Weight: 365g.
