Page 1

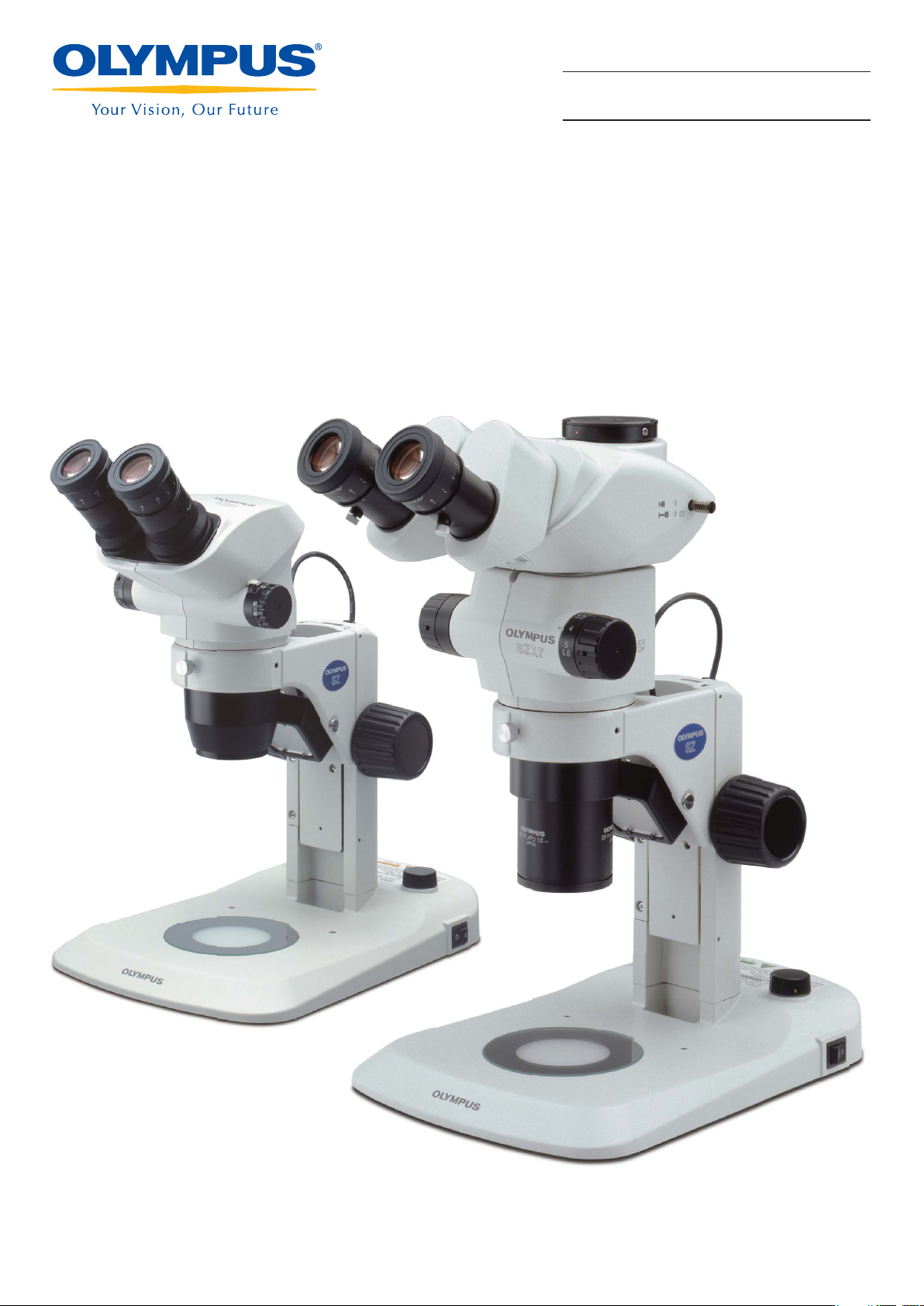

Stereo Microscope System

SZX7/SZ61/SZ51

For Industrial Use

Comfort and Precision in Industrial Applications

Page 2

Comfort for Your Eyes—Precision for Your Work

Using a microscope for a long period of time can cause eyes to become fatigued. Olympus redesigned the

SZ series of stereo zoom microscopes to reduce eyestrain and maximize user comfort.

Less fatigue and eyestrain leads to more precise and consistent results in an operator's daily work.

All three models—the SZX7 with its advanced Galilean optical system, the full-featured SZ61, and

the versatile SZ51—are designed for user comfort and provide 3D images with true color, high resolution,

and no distortion.

SZ51

CONTENTS

Features 1–12

• SZX7 Optical Performance • SZ61/SZ51 Optical Performance

• Ergonomic Design • Illumination System

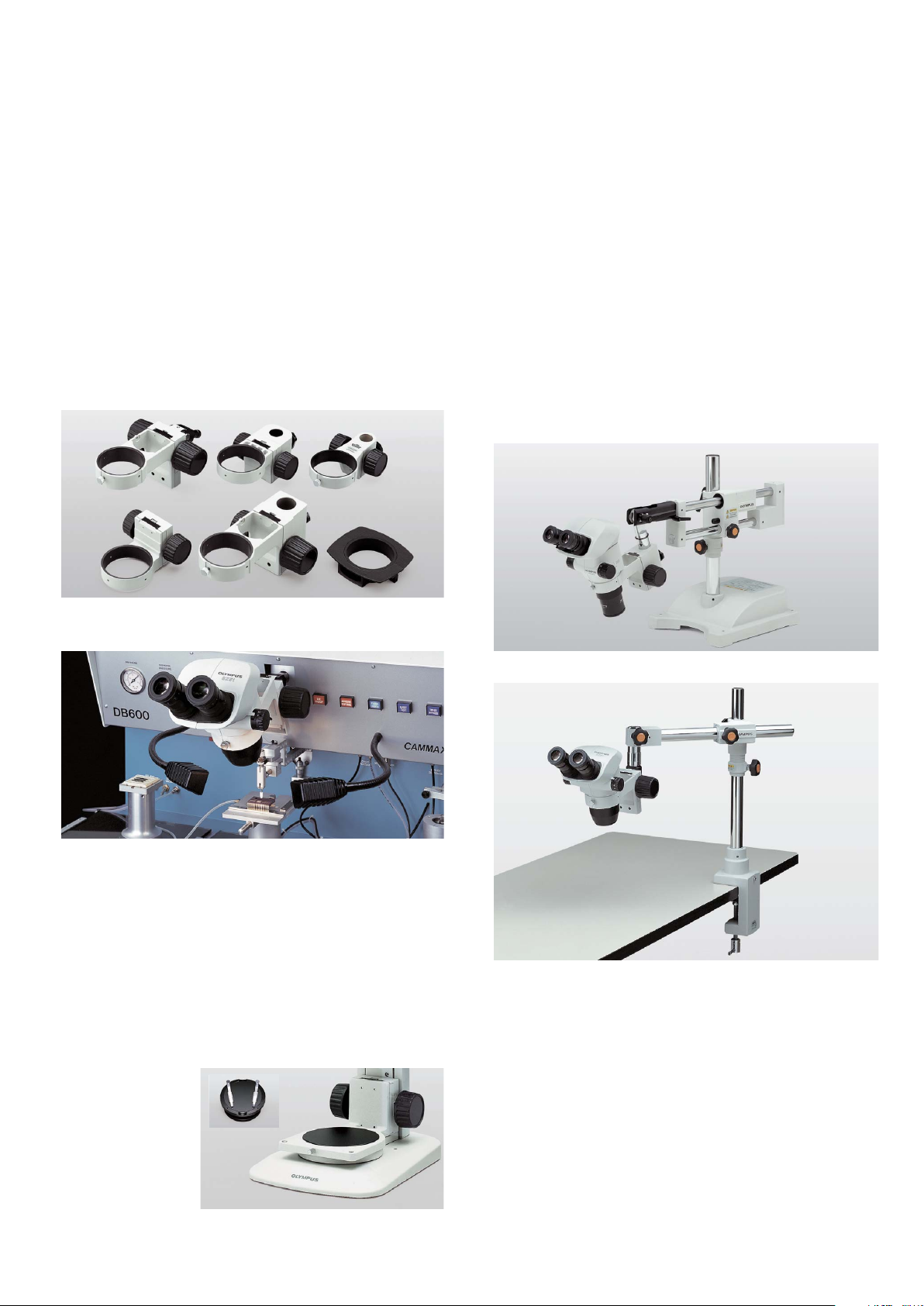

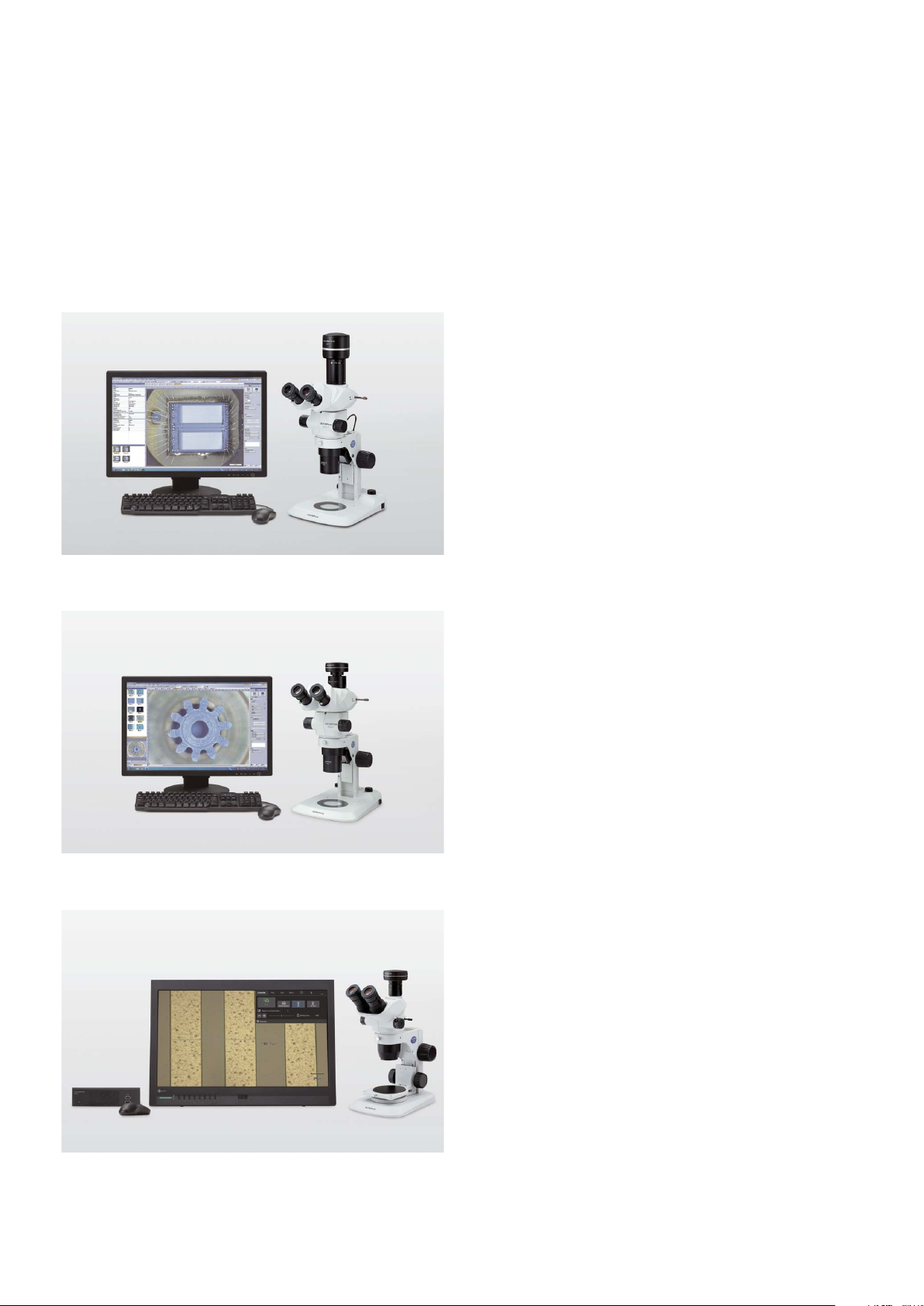

• Digital Imaging & Recording System • Mounting System & Accessories

Specifications 13–14

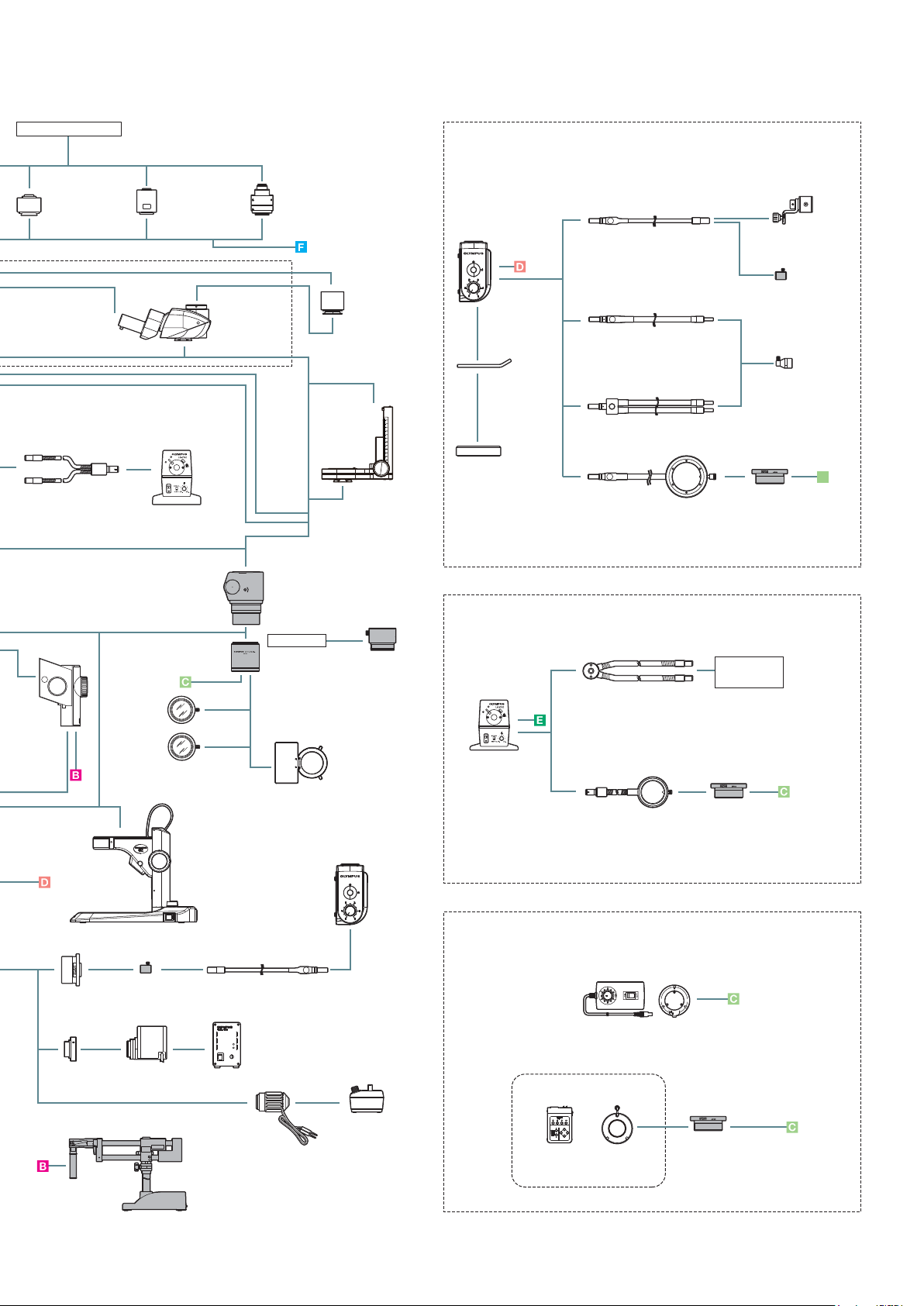

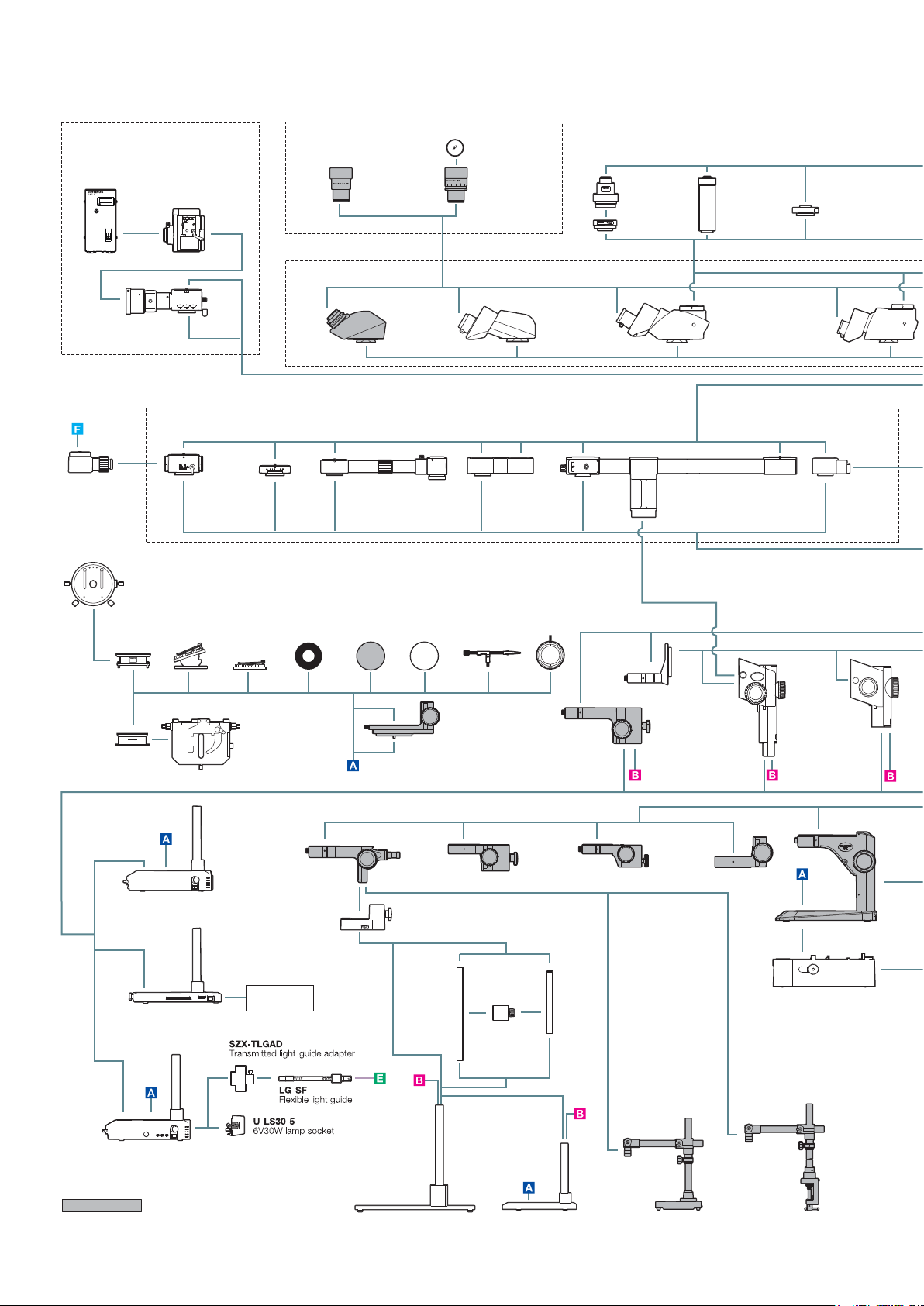

SZX7 system diagram 15–16

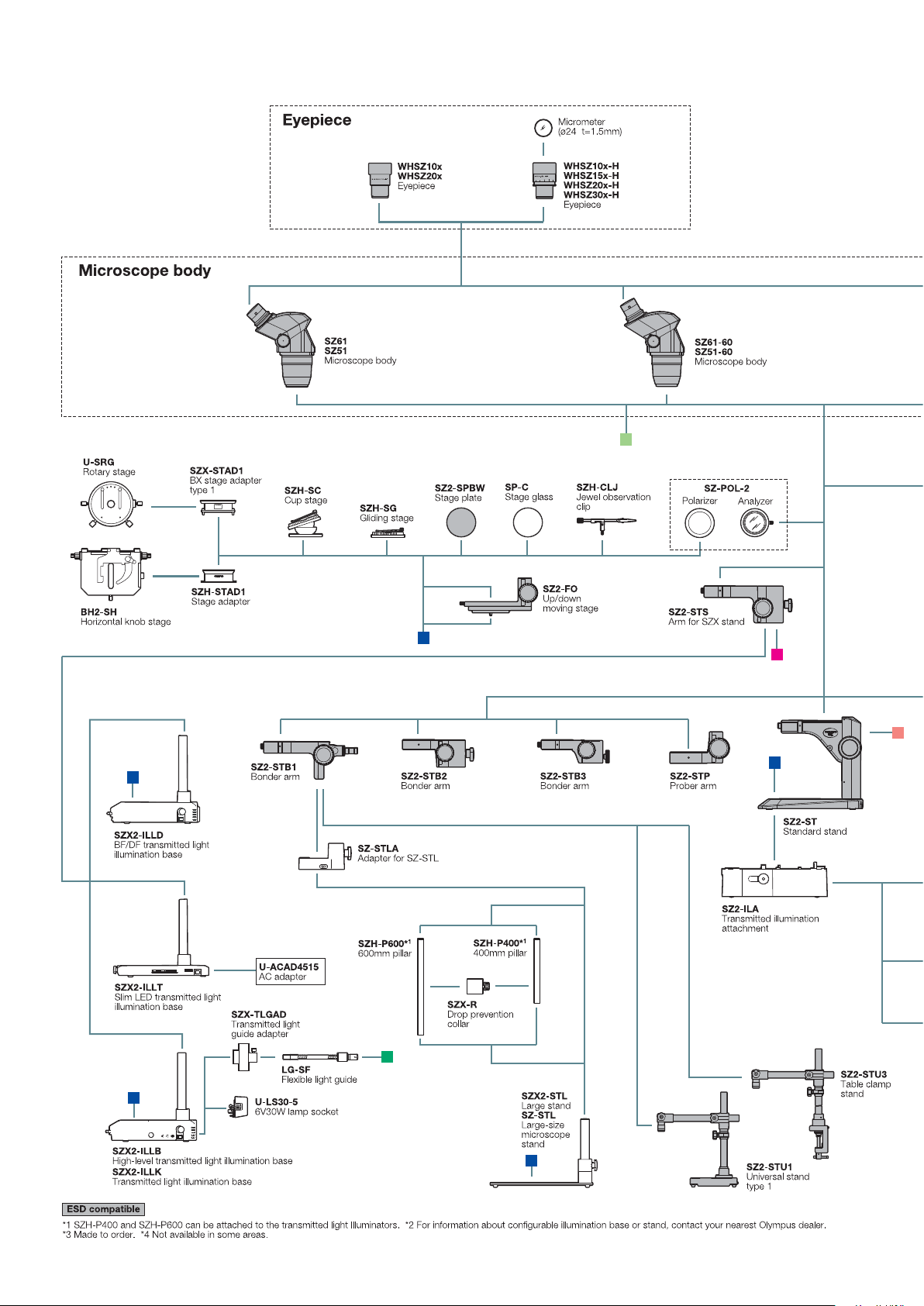

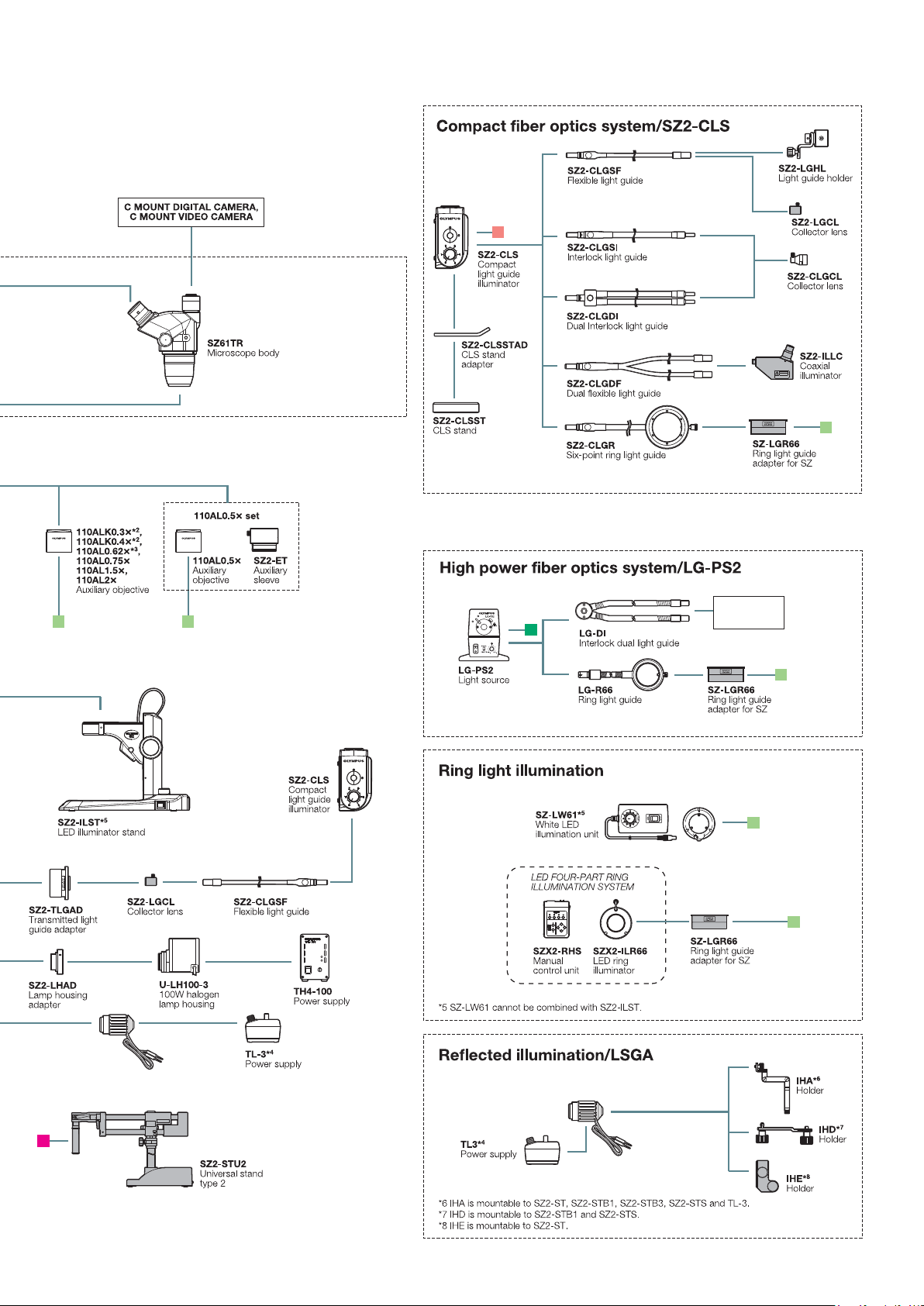

SZ61/SZ51 system diagram 17–18

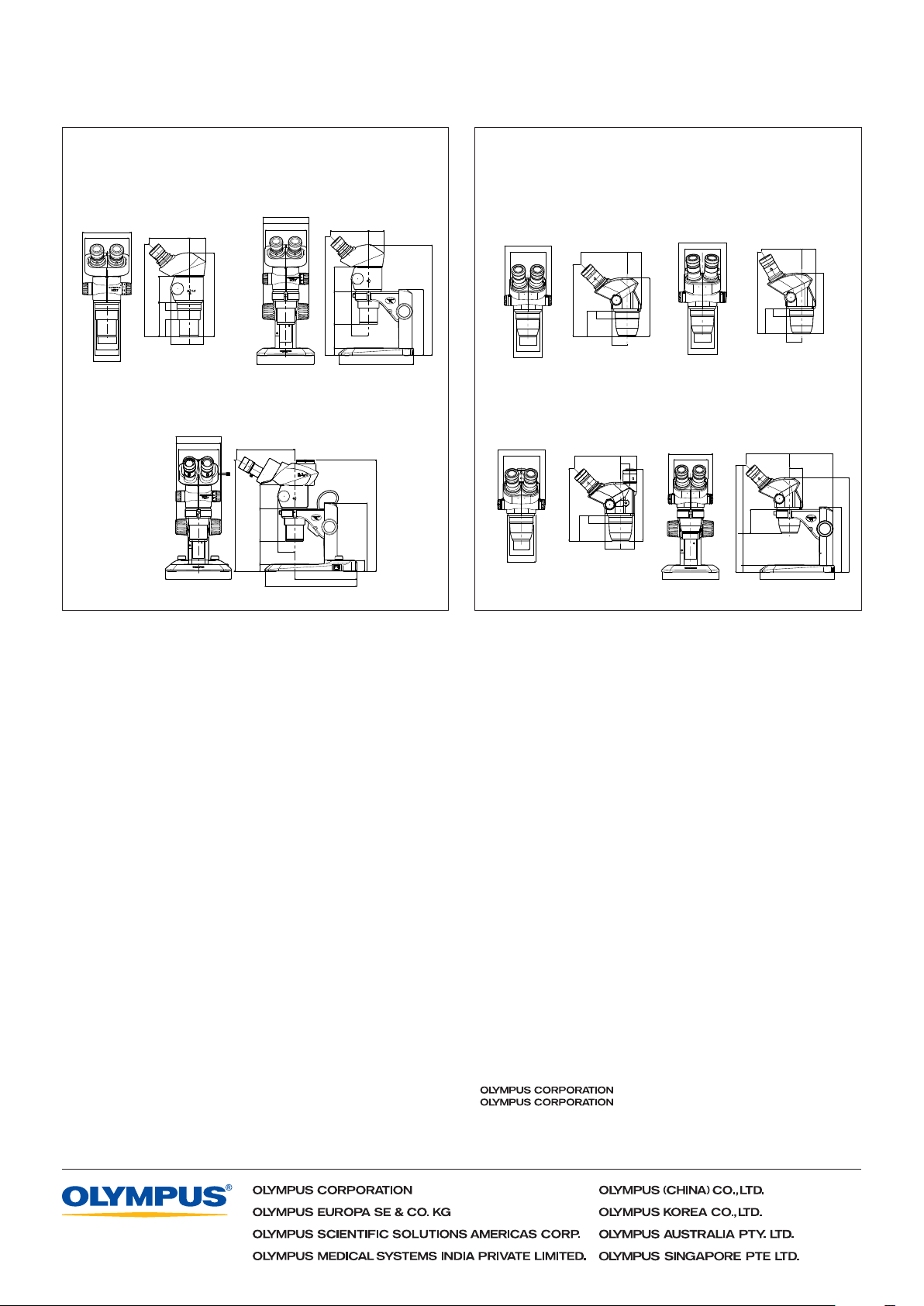

Dimensions Back Cover

SZ61

Page 3

SZX7

SZ61TR

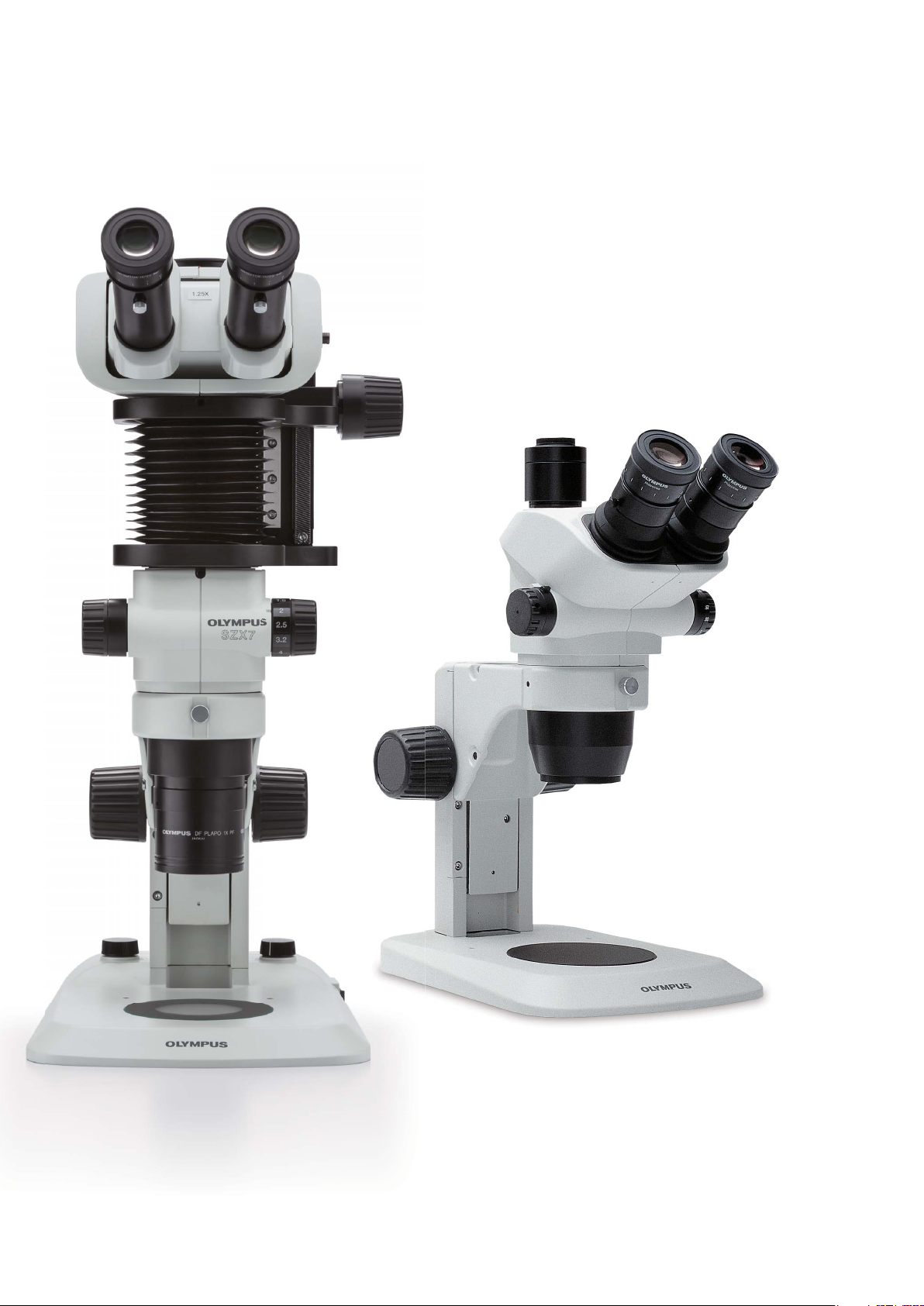

SZX7: The ergonomic design combined with high image quality enables users to work for long periods of time without becoming fatigued. SZ61:

Excellent optical performance with a zoom ratio of 6.7:1. Model variations: SZ61TR (with trinocular tube) and SZ61-60 (with 60 degree observation tube inclination). SZ51: Versatile, cost-efficient, and ideal in all line inspection applications.

Page 4

Improved Ergonomic Instrumentation Means Improved Work Performance

Ergonomic improvements to our stereo microscopes enable natural posture for

each user, improving comfort even when working for long periods of time.

Work in Comfort with Our New Ergonomic Components

With the SZX7’s ergonomic instrumentation, eyepiece height and

angle can be easily adjusted to suit individual users. This reduces

user fatigue, which leads to increased productivity and

profitability.

7:1 Wide Zoom Ratio

With a magnification range of 8X–56X (using 1X objective/10X

eyepiece), the SZX7 offers a maximum zoom ratio of 7:1. This

zoom ratio enables most specimens to be observed at the

appropriate magnifications.

Excellent Resolving Power

Superior quality objectives deliver accurate, high resolution

images that show specimens in minute detail.

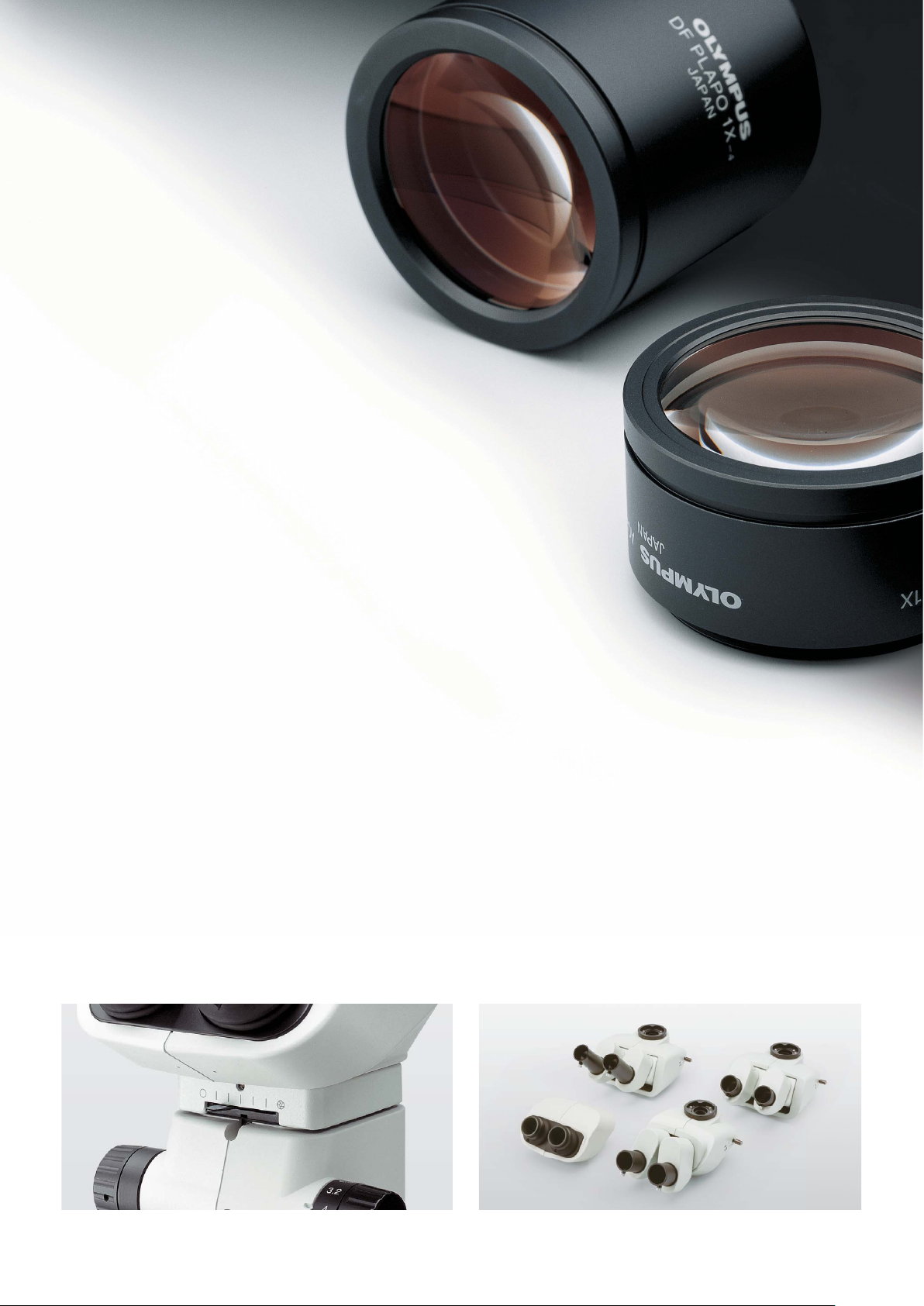

A Range of Objectives to Suit Every Specimen and Every

Application

• Superior image flatness:

The DFPlan objective series accurately reproduces the original

shape of the specimen.

• Long working distance (W.D.):

The objectives range from the SZX-ACH1X (90 mm W.D.) to the

DFPL0.5X (198 mm W.D.). As a result, even specimen surfaces

that are difficult to access can be easily observed.

• Ideal for high magnification:

The microscope delivers excellent image quality up to 336X, by

combining a 2X objective with 30X eyepieces. Also available is an

excellent apochromatic objective DFPLAPO1.25X, with a higher

zoom range of 1X through 7X.

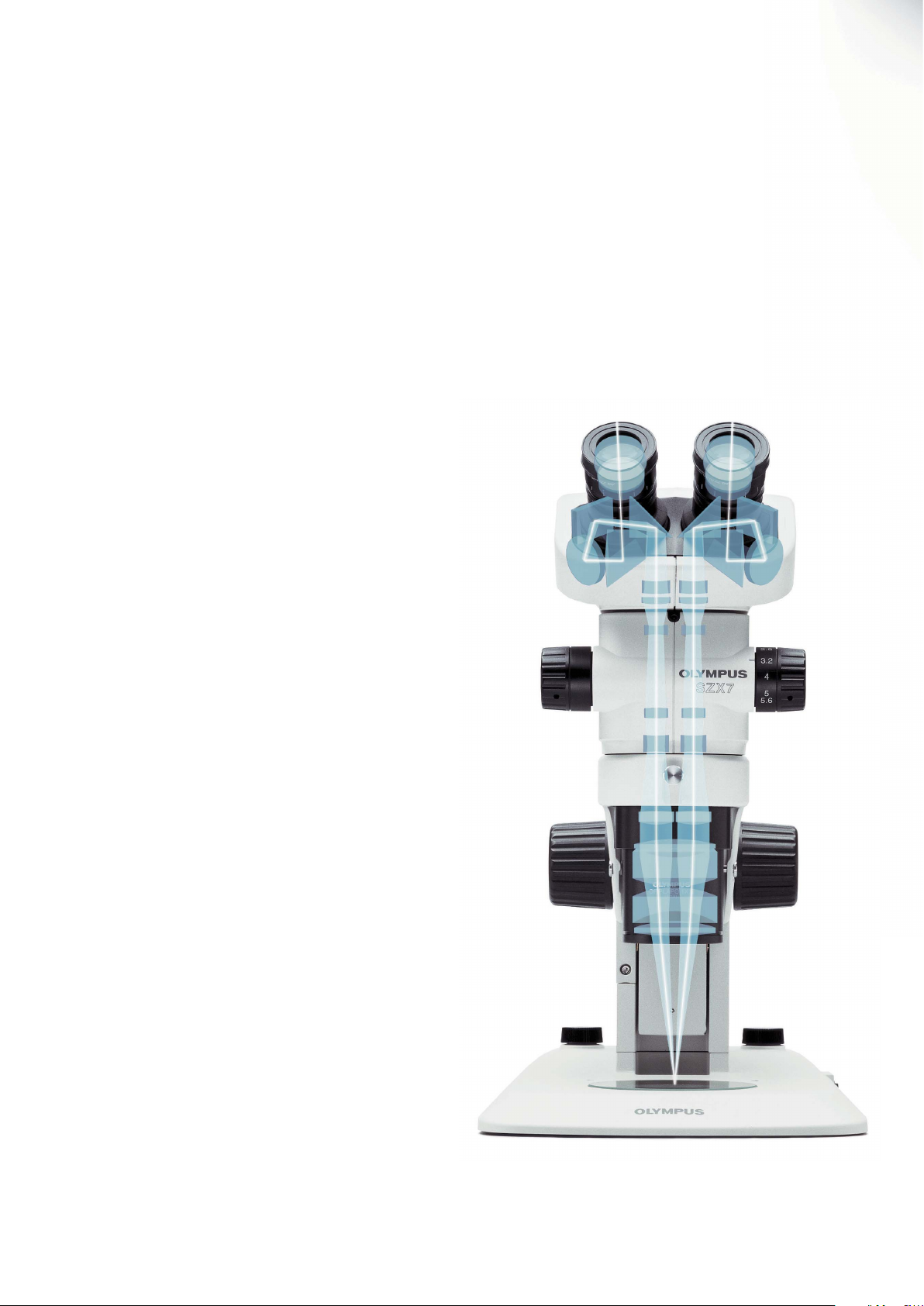

Galilean optics feature two (right/left) independent and parallel zoom optical paths to produce the focal point with one objective. The system enables high optical performance as well as functional modularity.

Page 5

“ComfortView” Eyepieces for Greater Comfort and

Faster Work

New ComfortView eyepieces feature pupil aberration control

and appropriate positioning in the eye point for fast and

comfortable observations.

Accurate Color Reproduction

The careful selection of lens surface coating and glass materials

for the entire optical system make it possible to observe and

document specimens with accurate color reproducibility.

Sharp, Clear, High-Contrast Images

The low, suppressed field curvature ensures that the shape of

the specimen is accurately reproduced.

A Wide Variety of Observation Tubes and Intermediate Tubes

Enable Operators to Obtain the Right Image

Various types of tubes are available, and they can be freely

combined to create the ideal system for any application.

Aperture diaphragm unit / SZX-AS

1. 45 degree binocular head / SZX-BI45 2.Tilting trinocular head / SZ X2-TTR

3. 30 degree trinocular head / SZX-TR30

Ergonomic Long Tilting Trinocular / SZ X2-LTTR

Page 6

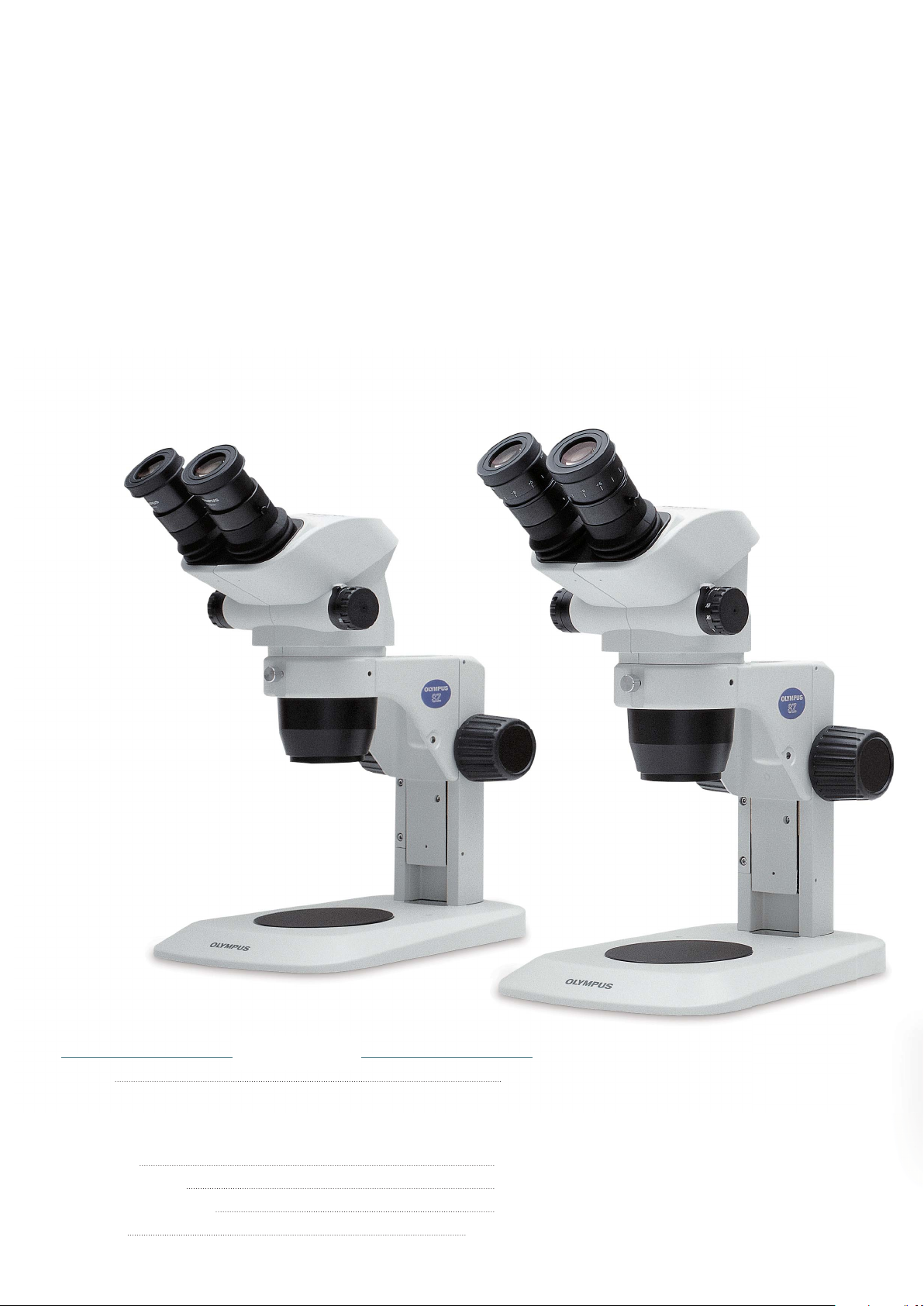

Precise, Functional, and Compact—SZ61/SZ51

The SZ61/SZ51 incorporate the Greenough optical system and accomplish a range of practical observation

and documentation functions in a compact design.

6.7:1 Wide Zoom Ratio

The SZ61's wide magnification range extends from 6.7 through

45X (using 10X eyepieces) with a zoom ratio of 6.7:1. The newly

developed optical system enables fast, comfortable observations

at the most appropriate magnification. The SZ51 has a

magnification range of 8X through 40X (using 10X eyepieces)

with a zoom ratio of 5:1.

Outstanding Depth of Focus and Flatness

The 10-degree angle convergence of the image forming path in

the Greenough optical system delivers excellent image flatness

with a deep depth of focus.

“ComfortView” Eyepieces for Greater Comfort and

Faster Work

ComfortView eyepieces feature pupil aberration control and

appropriate positioning in the eye point for fast and comfortable

observations.

Accurate Color Reproduction

The glass material and surface coating on these objectives

provide accurate specimen color reproducibility.

Sharp, Clear, High-Contrast Images

The low, suppressed field curvature ensures that the shape of

your specimens is accurately reproduced.

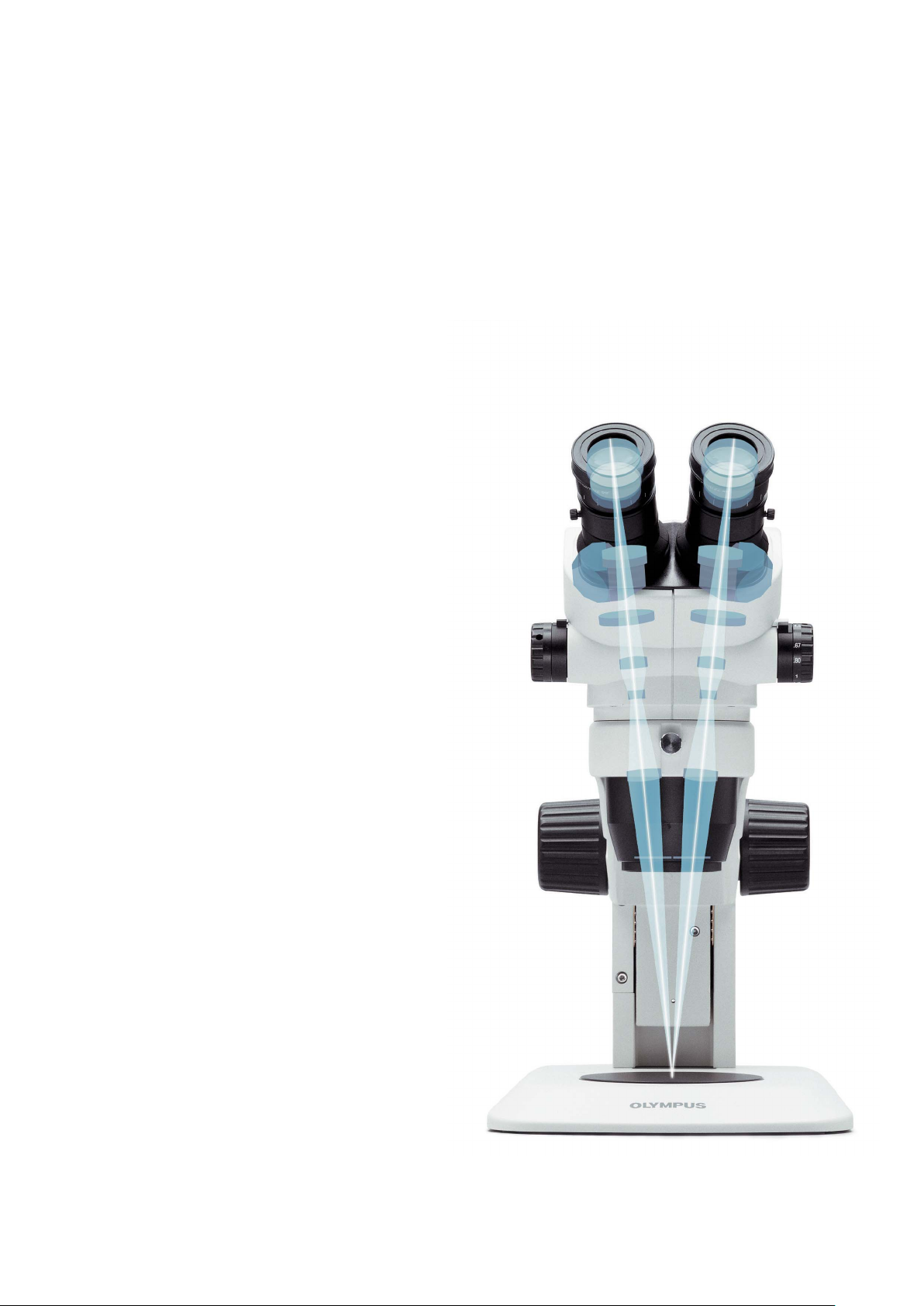

The Greenough optical system has two zoom optical paths inclined at an inward angle. This enables a more compact microscope design while maintaining high performance.

Page 7

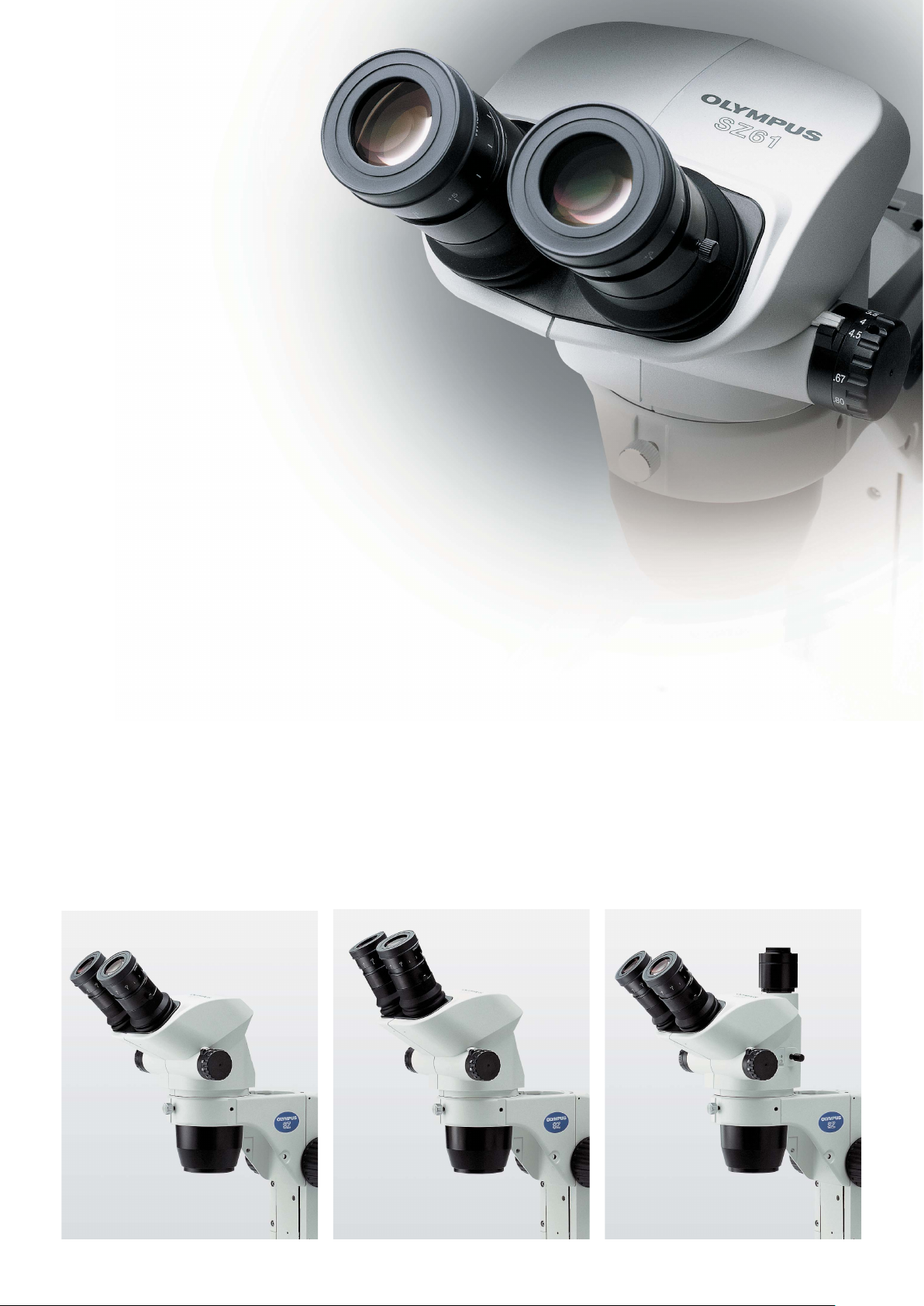

Five Zoom Body Variations with High Performance

The SZ61 and SZ51 zoom bodies provide two different

magnification ranges. They are available with an ergonomically

designed 45-degree inclination tube for use on the standard

stand. Models with a 60-degree inclination tube (SZ61-60/SZ51-

60) are available for special applications where the zoom body

has to be tilted for use with other equipment or mounted on a

universal stand. For documentation purposes, Olympus also

offers the SZ61TR, which incorporates a trinocular tube for easy

attachment of digital and video cameras.

Wide Choice of Auxiliary Objectives

A wide choice of auxiliary objectives enable observations at

magnifications from 2X to 270X and W.D. up to 350 mm to meet

every application purpose.

SZ61-60/SZ51-60SZ61/SZ51 SZ61TR

Page 8

Work Comfortably and Productively

Olympus is committed to making work easy, comfortable, and productive through leading-edge ergonomic designs.

That means applying advanced technological methods to excellent operability, reducing factors that contribute to

operator fatigue, and building in effective safety features like an electrostatic discharge (ESD) safe design.

Ergonomic Instruments Enable Natural Posture, Reduced

Stress, and Increased Productivity

The ergonomic long tilting trinocular provides an optimized work

position for individual users by bringing the microscope closer to

the user, while the extendable eyepoint adjuster provides

flexibility for users of different heights. The SZX series’ ergonomic

instruments reduce stress during observation by providing the

most comfortable position for each user, increasing work

efficiency.

Ergonomic Design Based on 3D CAD Analysis

The microscope body and stand feature precisely curved

contours developed through careful 3D computer aided design

(CAD) analysis. Key ergonomic features help to reduce fatigue in

periods of long observation and include an all-round finish that’s

smooth to the touch.

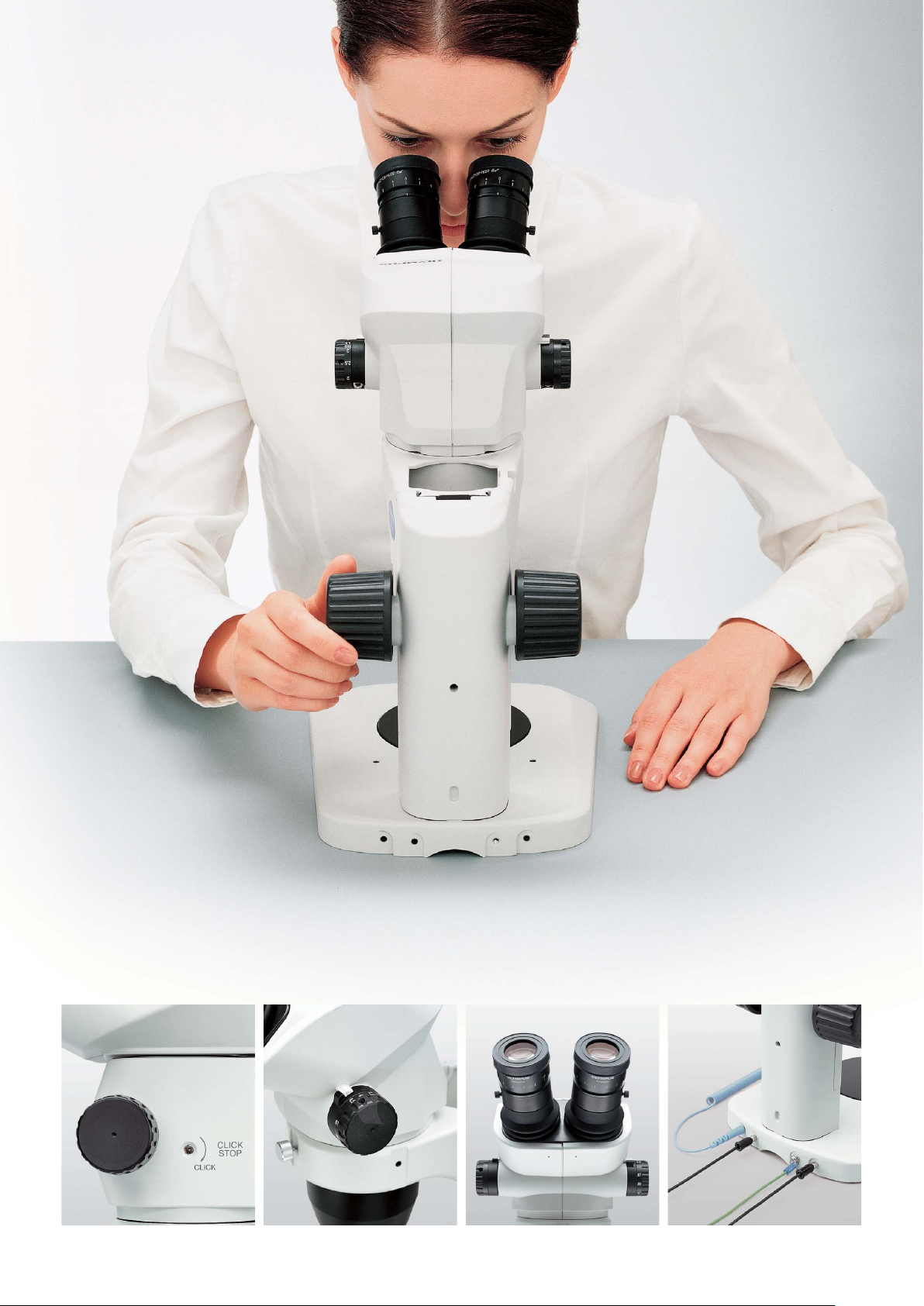

Convenient Front-Access Operation

Improved ease of access to the most frequently used knobs and

switches maximizes operator comfort and reduces back strain.

Precise Recall of Specific Magnification Settings via

Integrated Click-Stop Mechanism (SZX7) or Zoom Knob

Stopper (SZ61/SZ51)

Many inspection tasks require the use of the same zoom

magnification setting to ensure consistent and comparable results.

The integrated click-stop mechanism provides quick and easy

access to this important function. The zoom knob stopper enables

the user to accurately choose their desired magnification, and the

setting in use is clearly displayed on the front control panel.

New Eyepiece Reduces Fatigue and Excludes Dust

This eyepiece features a pupillary aberration control mechanism

whereby the image remains visible even if the operator’s eyes move.

This lessens operator fatigue in long duration observations. The

unique eyepiece mounting design excludes dust particles and keep

the eyepiece firmly in place ensuring clear images and an ergonomic

eyepiece position.

ESD Safety Design

All microscope bodies and accessories are ESD-safe and are able

to discharge static electricity from 1000 V down to 100 V in less

than 0.2 seconds, protecting the equipment and preventing

sample damage.

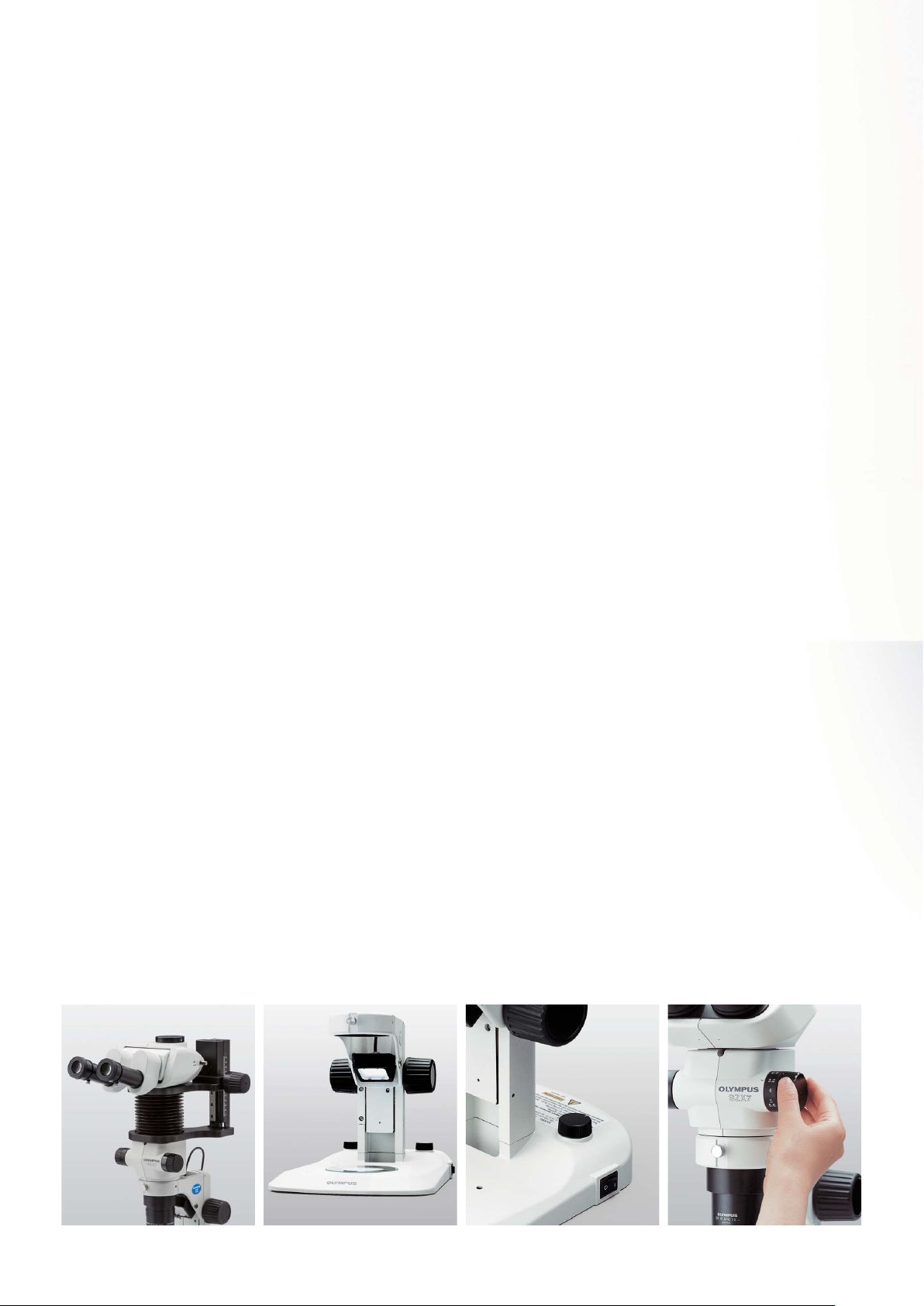

LED Transmitted / Reflected Light Illumination StandExtendable Eyepoint adjuster Zoom handle

Page 9

Eyepiece lock Ground wire connection (back side)Click-stop mechanism (SZX7) Zoom knob stopper (SZ61/SZ51)

Page 10

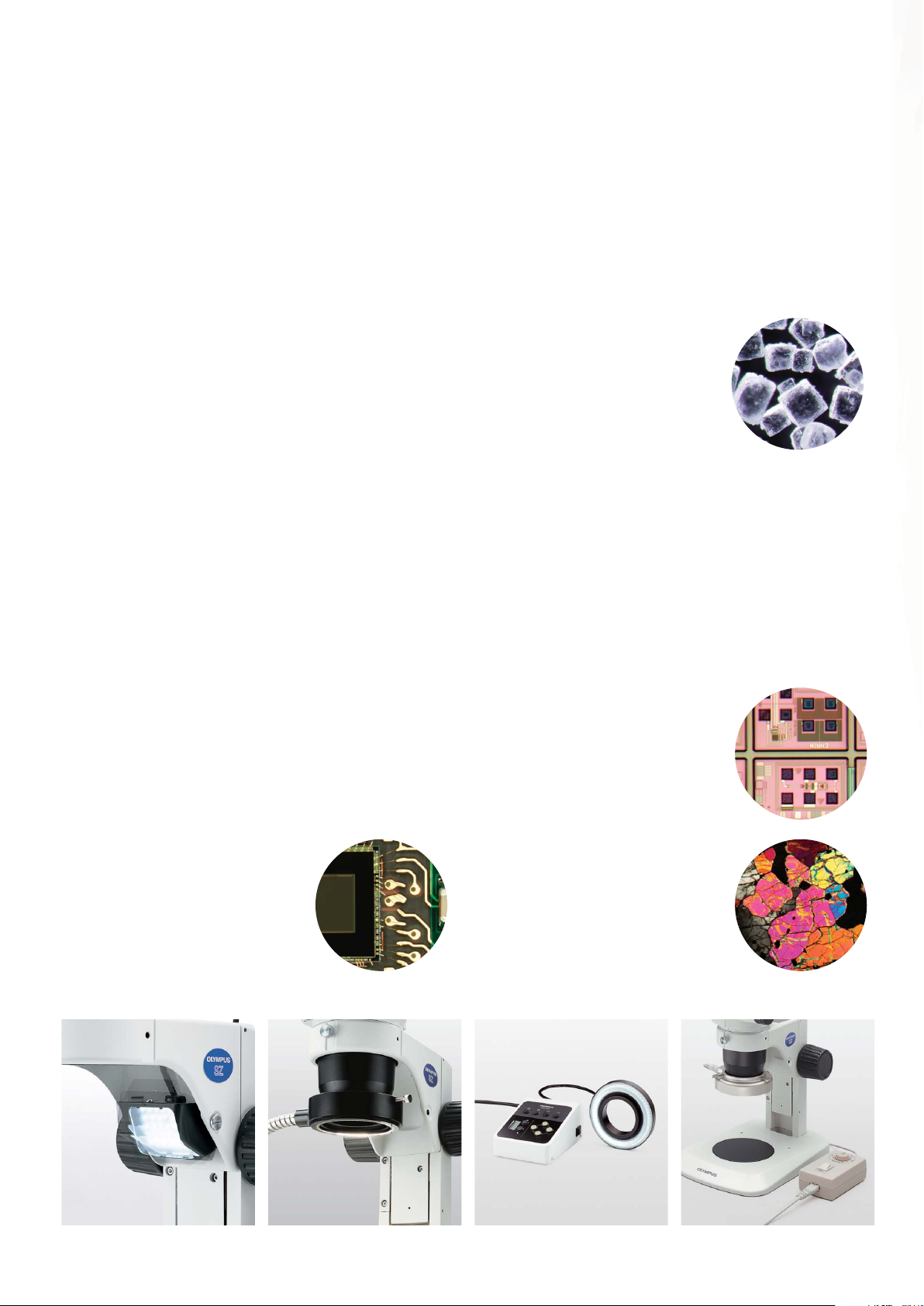

Olympus Light Solutions Maximize Visibility in Different Tasks

Olympus offers a range of light solutions perfectly tuned to the stereo zoom microscope's optical system to

maximize the visibility of even minute characteristics.

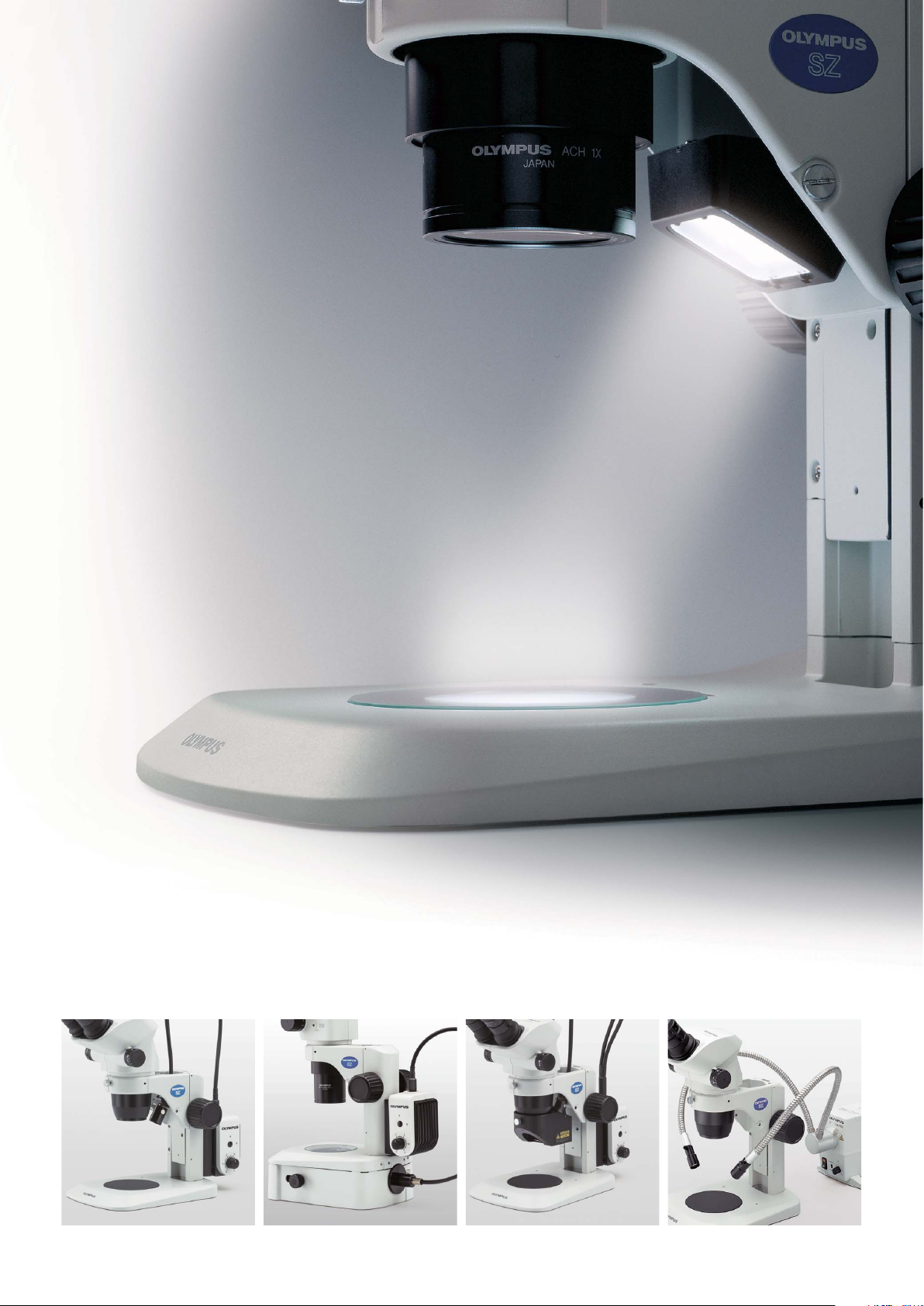

The New LED Integrated Reflected /Transmitted

Illumination Stand

The universal reflected/transmitted illumination stand brings

together all the advantages of LED technology. It enables the

simultaneous use of reflected and transmitted illumination, and

can alter their respective intensities continuously and separately

by means of convenient dials on the stand. The use of slim, ultra-

bright LED’s successfully integrates transmitted illumination in a

slim 25 mm thick base that facilitates easy specimen access and

manipulation. The complete microscope, including LED

integrated stand, is lightweight, compact, and easy to carry.

Universal Reflected Illumination Systems

Fiber optic illumination systems offer excellent illumination quality

and flexibility. Olympus offers a compact 6 W LED light source

(SZ2-CLS) and a 100 W light source (LG-PS2*) for professional

use. Homogeneous illumination can be achieved by a ring light.

For special contrast effects on free form 3D shapes, Olympus

offers a choice of single and double self supporting spot

illumination fiber guides and precisely adjustable flexible fiber

guides.

* An equivalent model may be offered in some areas.

Homogeneous light

Transmitted Light Illumination Systems

For all transparent materials as well as for

background illumination for the inspection

of through holes, Olympus' choice of

illumination stands ranges from simple

brightfield/simple oblique (SZX2-ILLK) up

to brightfield/darkfield (SZX2-ILLD) and

brightfield/oblique Koehler (SZX2-ILLB) illumination models. Also

available is a brightfield/oblique illumination attachment (SZ2-ILA)

that can accommodate various light sources including a 100 W

halogen lamp housing.

Special Illumination Techniques

• Looking into holes

Olympus offers effective coaxial illuminators for the SZX7 (SZX2-

ILLC10) and the SZ61/SZ51 (SZ2-ILLC) which

direct the light through the microscope’s

optical axis onto the specimen.

• Mirrored Surfaces

The illumination of highly reflective

specimens needs special techniques in

order to avoid disturbing light reflections.

For spot and ring light illuminators, as

well as for coaxial illuminators, Olympus

offers dedicated polarizing equipment

which eliminates such light effects

(LG-R66PL for ring light illumination).

Darkfield light

Coaxial light

Polarized light

Flexible angle of LED light source Homogeneous illuminations fiber optic systems Intelligent LED ring illumination White LED illumination unit

Page 11

Making Stress in Transparent Materials Visible

Also available are simple and advanced transmitted illumination

stands with polarizing equipment (SZX2-AN, SZX-POL, and

SZ-POL2) for the efficient evaluation of tensions in transparent

materials like plastic and glass. Their ease of use enables

continuous, reliable production control of processes like injection

molding.

The transmitted/reflected integrated LED illumination stand’s slim body and easy operation enables quick observations in a comfortable posture.

Single illuminations fiber optic systems Transmitted and coaxial illuminations with fiber optic systems

High power fiber optic illumination system

Page 12

Digital Imaging

SZX7 in combination with DP73 digital camera system

High Resolution Digital Camera DP73

This outstanding 17.3-megapixel cooled digital camera with pixel-

shift technology attains superior resolving power, sensitivity, and

precise 14-bit (16384 steps) color fidelity. The DP73 is compatible

with all light microscope observation methods and produces contrast

-balanced images using a unique dynamic range technology.

ISO1600 sensitivity delivers clear display even for faint fluorescence

signals. A high-definition 1600 × 1200-pixel image can be displayed

live at a rate of 15 frames-per-second without compression and

images with a maximum 4800 × 3600-pixels can be instantly saved.

SZX7 in combination with DP27 digital camera system

Digital Camera DP27

This high-resolution, 5-megapixel color CCD camera provides

optimal true color performance for all industrial applications and

imaging techniques. The DP27 incorporates high speed

progressive scanning with USB 3.0 connectivity.

High-speed, Compact Digital Camera DP22

This 2.8-megapixel color CCD camera can be used as a complete

stand-alone model (no PC required). The control box incorporates

the 12 most frequently used measurement functions for efficient

inspection of industrial parts, providing smooth and intuitive

operation via a touchscreen monitor or a mouse.

DP22 digital camera mounting on the SZ61

Page 13

A Range of Accessories to Meet Your Needs

Easy Mounting with Other Equipment (Bonder and Prober Arms)

The SZX7, SZ61, and SZ51 are designed to be integrated into

process equipment. Olympus offers various bonder and prober

arms for all common brands.

1. B & L style bonder arm / SZ2-STB1 2. Bonder arm / SZ2-STB2 3. Bonder arm / SZ2-STB3

Prober arm / SZ2-STP

Arm for SZX stand /SZ2-STS

Adapter for B & L bonder arm / SZ-BLAD

Various Universal Stands

A variety of universal stands are available for the observation of

large specimens. No matter how big the samples are or how

much they vary in size, Olympus has the right choice of stands to

suit any requirements.

SZX7+SZ2-STU2

Ergonomic Low-Positioned Focus Handle and More Stage

Adapters

With the focusing unit SZ2-FO, focus adjustment can be made

while the user's hands are resting on the work surface. The action of

focusing requires minimal force as the microscope zoom body does

not need to be moved. This enables prolonged work on difficult

samples without fatigue. There are also more stage adapters,

including the cup stage SZH-SC which gives the specimen a slant

angle up to 30 degrees

from the level.

SZH-SC

SZ2-FO

SZ61+SZ2-STU3

Page 14

SZX7 specifications

Item Speci cations

Zoom microscope body SZX-ZB7

Observation tube SZX-BI45 SZX2-TTR SZX2-TR30 SZX2-LTTR

Interpupillary distance adjustable range

Extendable Eyepoint adjuster SZX2-EEPA: Height adjustment range: 30–150 mm, (with a scale attached)

Stand SZ2-ST SZ2-ILST

Frame installation Mounting diameter 76 mm

Focusing adjustment

Stage plate SZ2-SPBW (Black & white)

Light source Compact light guide

Objectives Model Working distance

Eyepieces "ComfortView" WHSZ series

Weight Con guration 1 4,360 g 5,400 g 5,200 g 5,300 g

SZX2-LTTR: intermediate magnification is 1.25X.

The SZ2-ET auxiliary sleeve is required when the SZ2-ST/ SZ2-ILST is used.

Con guration 2 5,160 g 6,200 g 6,000 g 6,100 g

Configuration 1: SZX-ZB7 + DFPLAPO1X-4 + individual observation tube + WHSZ10X-H (2) + SZ2-ST Configuration 2: SZX-ZB7 + DFPLAPO1X-4 + individual observation tube + WHSZ10X-H (2) + SZ2-ILST

Zoom drive: Horizontal knob system Click stop for each zoom magnification: ON-OFF switching possible Zoom ratio values: 7:1 (0.8X to 5.6X) Zoom magnification indication: 0.8, 1, 1.25, 1.6, 2, 2.5, 3.2, 4, 5, 5.6 Objective mounting: Screw mounting into thread Lead-free materials used

Aperture iris diaphragm control: The AS unit (SZX-AS) is mountable

SZX-BI45 SZX2-TTR SZX2-TR30 SZX2-LTTR*

Binocular tube View inclination angle 45˚ Lead-free materials used

Tilting binocular (trinocular)

tube

View tilting angle 5˚ to 45˚

Trinocular tube View inclination angle 30˚ Light path selection: 2 steps (Binocular 100%, Video 50%/Binocular 50%)

52 to 76 mm Eyepiece clamping knob provided

SZ2-ST SZ2-ILST

Standard stand LED reflected/transmitted illumination stand

Knob rotation tension adjustment

Focusing stroke 120 mm

The dedicated glass plate in 100 mm dia. included

SP-C (Glass clear transparent)

illuminator (SZ2-CLS)

mountable (option)

Transmitted light illumination

attachment (SZ2-ILA)

Input rating: 100–120 V/200–240 V~0.15/0.1 A, 50/60 Hz

Transmitted illumination: LED

Reflected illumination: LED

Average LED life span: 6000 hrs.

mountable (option)

DFPL0.5X-4* DFPL0.75X-4

DFPLAPO1X-4

SZX-ACH1X

DFPLAPO1.25X

SZX-ACH1.25X-2

DFPL1.5X-4

DFPL2X-4

All objectives: Lead-free materials

171 mm 116 mm

81 mm

90 mm 60 mm 68 mm

45.5 mm

33.5 mm

All eyepieces: Lead-free materials

Ergonomic Long Tilting Trinocular View tilting angle 5˚ to 45˚, Light path selection: 2 steps (Binocular 100%, Video 50%/Binocular 50%)

57 to 80 mm Eyepiece clamping knob provided

SZ61/SZ51 specifications

Item Speci cations

Microscope body SZ61 SZ61-60 SZ61TR SZ51 SZ51-60

Magni cation 0.67X to 4.5X 0.8X to 4X Zoom ratio 6.7:1 5:1 Working distance 110 mm Tube inclination angle 45˚ 60˚ 45˚ 60˚

Interpupillary distance adjustment

Video camera adaptability

Zoom adjustment knob Left/right single-shaft horizontal knob

Optical components Lead-free materials used

Auxiliary objective Mounting by screwing into the thread at the bottom of frame (M48 thread X0.75) Eyepiece "ComfortView" WHSZ series

Stand SZ2-ST SZ2-ILST

Frame installation Mounting diameter: 76 mm Focusing adjustment Focusing stroke: 120 mm Stage plate SZ2-SPBW (Black & white for anti-ESD)

Light source Compact light guide illuminator (SZ2-CLS)

Weight Zoom body only 1,300 g 1,500 g 1,300 g

Con guration 3 3,520 g 3,720 g 3,520 g

Configuration3: Zoom body + WHSZ10X-H(2) + SZ2-ST

SZ61 SZ61-60 SZ61TR SZ51 SZ51-60

Left/right interlocked Adjustment range: 52 to 76 mm (using the WHSZ10X eyepieces)

—

C-mount (0.5X built in)

—

Interpupillary distance high/low magnification stopper incorporated.

Lead-free materials used

SZ2-ST SZ2-ILST

Standard stand LED reflected/transmitted illumination stand

The dedicated glass plate in

SP-C (Clear glass plate)

mountable (option)

Transmitted light illumination attachment (SZ2-ILA)

mountable (option)

100 mm dia. included

Transmitted illumination: LED

Reflected illumination: LED

Average LED life span: 6000 hrs.

Input rating: 100–120 V/200–240 V

~0.15/0.1 A, 50/60 Hz

Page 15

“ComfortView” WHSZ eyepiece Auxiliary objective for SZ61/SZ51

FN Diopter adjustment Reticle Focal magni cation Working distance (mm)

WHSZ10X 22 — N.A. — 110ALK0.3X 250– 350 WHSZ20X 12.5 — N.A. — 110ALK0.4X 180–250 WHSZ10X-H 22 -8– +5 Yes* WHSZ15X-H 16 -8– +5 Yes* WHSZ20X-H 12.5 -8– +5 Yes* WHSZ30X-H 7 -8– +5 Yes*

Applicable reticle size: 24 mm diameter, t1.5 110AL2X 38

SZX7 optical performance

Eyepiece

WHSZ10X-H

WHSZ10X

— 110AL0.5X 200 — 110AL0.62X 160

1.3X 110AL0.75X 130 2X 110AL1.5X 61

WHSZ15X-H

WHSZ20X-H

WHSZ20X

WHSZ30X-H

FN 22 16 12.5 7

Objective Total magnification Field of view (mm) Total magnification Field of view (mm) Total magnification Field of view (mm) Total magnification Field of view (mm)

0.5X 4X–28X 55–7.8 6X–42X 40.0–5.7 8X–56X 31.3–4.5 12X–84X 17.5–2.5

0.75X 6X–42X 36.7–5.2 9X–63X 26.7–3.8 12X–84X 20.8–3.0 18X–126X 11.7–1.7 1X 8X–56X 27.5–3.9 12X–84X 20.0–2.9 16X–112X 15.6–2.2 24X–168X 8.8–1.3

1.25X 10X–70X 22–3.1 15X–105X 16.0–2.3 20X–140X 12.5–1.8 30X–210X 7.0–1.0

1.5X 12X–84X 18.3–2.6 18X–126X 13.3–1.9 24X–168X 10.4–1.5 36X–252X 5.8–0.83 2X 16X–112X 13.8–1.9 24X–168X 10.0–1.4 32X–224X 7.8–1.1 48X–336X 4.4–0.63

SZX2-LTTR: Intermediate magnification is 1.25X SZX2-ILLC10: Intermediate magnification is 1.5X

SZ61/SZ51 optical performance

WHSZ20X-H

WHSZ20X

WHSZ30X-H

Microscope body

Zoom magni cation

0.67X 6.7 32.8 10.1 23.9 13.4 18.7 20.1 10.4 1X 10 22 15 16 20 12.5 30 7.0

SZ61

2X 20 11 30 8 40 6.3 60 3.5 3X 30 7.3 45 5.3 60 4.2 90 2.3

4.5X 45 4.9 67.5 3.6 90 2.8 135 1.6

0.8X 8 27.5 12 20 16 15.6 24 8.8 1X 10 22 15 16 20 12.5 30 7.0

SZ51

2X 20 11 30 8.0 40 6.3 60 3.5 3X 30 7.3 45 5.3 60 4.2 90 2.3 4X 40 5.5 60 4.0 80 3.1 120 1.8

No auxiliary objective is attached

WHSZ10X-H

WHSZ10X

WHSZ15X-H

FN 22 FN 16 FN 12.5 FN 7

Total magnification Field of view (mm) Total magnification Field of view (mm) Total magnification Field of view (mm) Total magnification Field of view (mm)

Light guide

Item Speci cations Model SZ2-CLGR SZ2-CLGDI SZ2-CLGDF SZ2-CLGSI SZ2-CLGSF Tube type Flexible tube Interlocked tube Flexible tube Interlocked tube Flexible tube Total length 900 mm 580 mm 691 mm 570 mm 663 mm Fiber Type (Material) Multicomponent glass Bundle diameter Input end ø6 mm ø5 mm ø5 mm ø3.5 mm ø4.5 mm

Output end ø2.4 × 6 mm ø3.5 mm ø6.4 mm ø3.5 mm ø4.5 mm

Minimum bending radius 60 mm 60 mm 25 mm 60 mm 25 mm

Compact light guide illuminator SZ2-CLS LED ring illumination SZX2-ILR66

Item Speci cations Item Speci cations Dimensions (W × D × H) 107 × 61 × 114 mm Features 4-part LED ring illumination Weight Approx. 0.35 kg (Main body) Color temperature Approx. 5,600 K Illumination Operation modes : rotary, mirror Light intensity adjustment Continuous LED life time Approx. 50,000 hours

Light source 17-step light intensity adjustable

(The light intensity is reduced by 70%.)

Cooling Convection Others SZX-LGR66/SZ-LGR66 adapters are required Ambient temperature 5 to 40 ˚C (41 to 104 ˚F) Operating voltage AC100–240 V (AC adapter) Power consumption Max. 6 W

4-part independent ON/OFF available

ESD compatible, Clean class 1

AC100–240 V

for SZX7/SZ61 respectively

Page 16

SZX7 System Diagram

FL-unit

U-RFL-T

Power supply unit for mercury lamp

LIFE TIME

BURNER ON

U-LH100HGAPO

100 W mercury apo lamp housing

U-LH100HG

100 W mercury lamp housing

Eyepiece

WHSZ10X WHSZ20X

Eyepiece

Observation tube

Micrometer (ø24 t=1.5 mm)

WHSZ10X-H WHSZ15X-H WHSZ20X-H WHSZ30X-H

Eyepiece

U-CMAD3

C-mount Adapter

U-TV1X-2

Direct image camera port 1x

U-TV0.25XC*

C-mount camera port with 0.25x lens

U-TV0.35XC-2*

C-mount camera port with 0.35x lens

SZX-PHA

Photo adapter

SZX-STAD1

BX stage adapter type 1

SZH-STAD1

Stage adapter

SZX-RFA

Fluorescence illuminator

Intermediate tube

SZX2-LBS

Light beam splitter

U-SRP U-SRG2

Rotary stage

SZH-SC

Cup stage

SZX-STAD1

JAPAN

SZX-AS

AS unit

SP-FL

Stage plate

SZH-SG

Gliding stage

for fluorescence

BH2-SH

Horizontal knob stage

SZX-BI45

Binocular tube

SZX-DA

Drawing attachment

SZ2-SPBW

Stage plate

SP-C

Stage glass

SZ2-FO

Up/down moving stage

SZX-DO*

Dual discussion tube

SZH-CLJ

Jewel observation clip

SZX-BI30

Binocular tube

SZX-PO

Simple polarizer

SZ2-STS

Arm for SZX stand

SZX-STF*

Focusing adapter for ring mount

SZX-SDO2*

Side by side discussion tube

SZX2-FOFH

Fine focusing for heavy loading

SZX2-TR30 SZX2-TR30PT

Trinocular tube

SZX2-ILLC10

Coaxial reflected light illuminator

SZX2-FOF

Fine focusing unit

SZ2-STP

Prober arm

SZ2-STU1

Universal stand type 1

SZX2-ILLD

BF/DF transmitted light illumination base

U-ACAD4515

SZX2-ILLT

Slim LED transmitted light illumination base

SZX2-ILLB

High-level transmitted light illumination base

SZX2-ILLK

Transmitted light illumination base

AC adapter

SZ2-STB1

Bonder arm

SZX2-STL2

Large stand for SDO

SZ2-STB2

Bonder arm

SZ-STLA

Adapter for SZ-STL

SZH-P600*

600 mm pillar

SZH-P400*4

400 mm pillar

SZX-R

Drop prevention collar

SZX2-ST

Stand

SZX2-STL

Large-size microscope stand

SZ2-STB3

Bonder arm

ESD compatible

*1 Focusing unit (SZX2-FOF, SZX-FOFH or SZX-FO) and SZX-STF are required when mounting fluorescent unit. *2 SZX2-FOFH and SZX2-STL2 are required when using SZX-SDO2. *3 Please contact your nearest Olympus dealer for applicable cameras. *4 SZH-P400 and SZH-P600 can be attached to the transmitted light Illuminators. *5 Equipped to SZX2-ILLC10.

SZ2-ST

Standard stand

SZ2-ILA

Transmitted illumination attachment

SZ2-STU3

Table clamp stand

Page 17

C MOUNT CAMERA

U-TV0.5XC-3

C-mount camera port with 0.5x lens

U-TV0.63XC

C-mount camera port with 0.63x lens

U-TV1

C-mount camera port with 1x lens

Compact fiber optics system/SZ2-CLS

SZ2-CLGSF

Flexible light guide

SZ2-LGHL

Light guide holder

SZX2-TTR SZX2-TTRPT

Tilting trinocular tube

LG-DF

Dual flexible light guide

SZX2-FO

Focusing unit

SZX2-AN

Rotatable analyzer

1/4 wavelength retardation

plate*

LG-PS2

12 V 100 W Light source

SZX2-LTTR

Ergonomic Long Tilting Trinocular

SZX2-EEPA*

Extendable Eyepoint adjuster

SZX-ZB7

Microscope zoom body

DFPL0.5X-4

DFPL0.75X-4 DFPLAPO1X-4 SZX-ACH1X DFPLAPO1.25X SZX-ACH1.25X-2 DFPL1.5X-4 DFPL2X-4

Objective

SZX2-LTTRAD

Extender for camera adapter

SZ2-ET

Auxiliary sleeve

SZX-CCV

Light shield

SZ2-CLS

Compact light guide illuminator

SZ2-CLGSI

Interlock light guide

SZ2-CLSSTAD

CLS stand adapter

SZ2-CLGDI

Dual Interlock light guide

SZ2-CLSST

CLS stand

SZ2-CLGR

Six-point ring light guide

High power fiber optics system/LG-PS2

HLL301

Spot lens

LG-DI

Interlock dual light guide

LG-PS2

12V 100W Light source

SZ2-LGCL

Collector lens

SZ2-CLGCL

Collector lens

SZX-LGR66

Ring light guide adapter for SZX

LG-R66

Ring light guide

SZ2-CLS

Compact light guide

SZ2-ILST*

LED illuminator stand

SZ2-TLGAD

Transmitted light guide adapter

SZ2-LHAD

Lamp housing adapter

*6 Please contact your nearest Olympus dealer for applicable combination. *7 Not available in some areas. *8 SZ-LW61 cannot be combined with SZ2-ILST. *9 SZX-ACH1.25X and DFPLAPO1.5X-4 cannot be combined with SZX-STF.

SZ2-LGCL

Collector lens

U-LH100-3

100 W halogen lamp housing

LSGA*

6 V 15 W Illuminator

SZ2-STU2

Universal stand type 2

illuminator

SZ2-CLGSF

Flexible light guide

TH4-100

Power supply

TL-3*

Power supply

LED illumination System

SZ-LW61*

White LED illumination unit

LED FOUR-PART RING ILLUMINATION SYSTEM

SZX2-RHS

Manual control unit

SZX2-ILR66

LED ring illuminator

SZX-LGR66

Ring light guide adapter for SZX

Consumables: JCR12V-100WB

SZX-LGR66

Ring light guide adapter for SZX

Page 18

SZ61/SZ51 System Diagram

JAPAN

SZX-STAD1

Page 19

C C

HLL301

Spot lens

LSGA*

6 V 15 W Illuminator

LSGA*

6 V 15 W Illuminator

Page 20

ø60 ø70 ø76

140

154

269

297

110

4559

129 53

140

129 53

154

8425

223

156

194

253

11081

375

403

184

384

383

841108125

131

154

156

215

318

237

226

SZX7 dimensions

152

149

233

188

116

ø54 ø76 92

128

262

152 116

ø54

ø76

194

ø54 ø76

152

149

4550

233

231

116

152

149

253

368

23311025

223

147

194

116

324

SZ61/SZ51 dimensions

(Unit : mm)(Unit : mm)

SZX7 SZX7+SZ2-ST

SZX7 (SZX2-TR30 configuration) +SZ2-ILST

SZ61/SZ51

SZ61TR

SZ61-60/SZ51-60

SZ61+SZ2-ST

SZ51+SZ2-ST

www.olympus-ims.com

For enquiries - contact

www.olympus-ims.com/contact-us

•

• Illumination devices for microscope have suggested lifetimes. Periodic inspections are required. Please visit our web site for details.

• All company and product names are registered trademarks and/or trademarks of their respective owners.

• Images on the PC monitors are simulated.

• Speci cations and appearances are subject to change without any notice or obligation on the part of the manufacturer.

Shinjuku Monolith, 2-3-1 Nishi-Shinjuku, Shinjuku-ku, Tokyo 163-0914, Japan

Wendenstrasse 14-18, 20097 Hamburg, Germany

48 Woerd Avenue, Waltham, MA 02453, U.S.A.

102-B, First Floor, Time Tower, M.G. Road, Gurgaon 122001, Haryana, INDIA

is ISO14001 certi ed. is ISO9001 certi ed.

10F, K. Wah Centre, 1010 Huai Hai Road (M), Xuhui District, Shanghai, 200031 P.R.C.

8F Olympus Tower, 446 Bongeunsa-ro, Gangnam-gu, Seoul, 06153 Korea

3 Acacia Place, Notting Hill VIC 3168, Australia

491B River Valley Road, #12-01/04 Valley Point Of ce Tower, Singapore 248373

M1701E-012016
