Olympus Stylus 790 SW User Manual

DIGITAL CAMERA

ENGLISH 2

FRANÇAIS 30

Basic

Manual

ESPAÑOL 58

DEUTSCH 86

РУССКИЙ 114

Gather these items (box contents)......................................................3

Prepare the camera...............................................................................4

Turn the camera on...............................................................................6

Set date and time ..................................................................................7

Select a language..................................................................................9

Take a picture......................................................................................10

View pictures.......................................................................................11

Basic operation ...................................................................................12

Shooting Mode Buttons ......................................................................... 12

s Modes (Scene)............................................................................. 13

Macro Mode........................................................................................... 13

Self-Timer .............................................................................................. 14

Flash Modes .......................................................................................... 14

Power Save Feature .............................................................................. 14

Menus and settings ............................................................................15

Top Menu............................................................................................... 15

Erase All Pictures .................................................................................. 15

Connecting the camera ......................................................................16

Playback on a TV................................................................................... 16

Direct Printing (PictBridge) .................................................................... 17

Transfer images ..................................................................................18

OLYMPUS Master Software ...............................................................20

Specifications......................................................................................21

Safety precautions..............................................................................23

Before using your camera, read this manual carefully to ensure correct use. We recommend that you take test shots to get accustomed to your camera

before taking important photographs.

Please observe the safety precautions at the end of this manual. The screen and camera illustrations shown in this manual were produced

during the development stages and may differ from the actual product.

Gather these items (box contents)

Digital Camera Strap LI-42B

LI-40C

Battery Charger

Items not shown: Advanced Manual (CD-ROM), Basic Manual (this manual), warranty card. Contents may vary depending on purchase location.

USB Cable AV Cable OLYMPUS Master 2

Lithium Ion Battery

Software CD-ROM

Attach the strap

( Pull the strap tight so that it does not come loose.

Prepare the camera

a. Charge the battery.

AC Wall Outlet

( Battery comes partially charged.

Insert the battery and an xD-Picture Card (optional) in the camera.

Power Cable

Lithium Ion Battery

Charging Indicator

Light On (Red): Charging Light Off: Charging complete (Charging time: Approx. 5 hours)

Battery Charger

Prepare the camera

( Insert the battery by

putting in the marked side first, with the marks toward the battery lock knob.

If you insert the battery incorrectly, you will not be able to remove it. Do not use force. Contact authorized distributors/service centers. Damage to the battery exterior (scratches, etc.) may produce heat or an explosion.

Battery lock knob

To remove the battery, slide the battery lock knob in the direction of the arrow.

Index area

Notch

( Orient the card as shown in the

illustration and insert it straight into the card slot.

Insert the card until it clicks into place.

To remove the card, push it all the way in and release it slowly. Then grasp the card and remove.

( You can shoot pictures with this camera even without using an optional

xD-Picture Card™ (hereinafter referred to as “the card”). If an xD-Picture Card is not inserted, your pictures will be saved to the internal memory. For details on the card, please refer to the Advanced Manual.

Turn the camera on

Y/ M /D

TI M E

----.--.-- --:--

This explains how to turn on the camera in shooting mode.

a. Set the mode dial to K.

When shooting still pictures (shooting mode)

When shooting movies (shooting mode)

Still picture shooting modes

When viewing pictures (playback mode)

K This function allows you to shoot with the camera’s automatic

settings.

h This function reduces the blur incurred by a moving subject, or

camera shake when taking pictures.

s This function allows you to shoot pictures by selecting a scene

according to the shooting condition.

g This function allows you to set the target items by following the

shooting guide displayed on the screen.

b. Press the o button.

Y M D TIME

o Button

----.--.-- --:--

CANCEL

• When the date and time have not yet been set, this screen will appear.

( To turn off the camera, press the o button once again.

Hint

The directions of the arrow pad (1243) are indicated with 1243 in this manual.

Y/M/D

Set date and time

Y/ M /D

TI M E

----.--.-- --:--

Y/ M/ D

TI M E

Y/ M/ D

TI M E

About the date and time setting screen

Y-M-D (Year-Month-Day)

Y M D TIME

----.--.-- --:--

CANCEL

Y/M/D

Exits a setting.

a. Press the 1F button and the 2Y button to select [Y].

• The first two digits of the year are fixed.

Hour Minute Date formats (Y-M-D, M-D-Y, D-M-Y)

b. Press the 3# button.

c. Press the 1F button and the 2Y

d. Press the 3# button.

button to select [M].

1F Button

2Y Button

3# Button

CANCEL

M D

TIME

Y/M/D

TIME

Y/M/D

Set date and time

Y/ M/ D

TI M E

Y/ M/ D

TI M E

Y/ M/ D

TI M E

3072

2304

e. Press the 1F button and the 2Y

button to select [D].

f. Press the 3# button. g. Press the 1F button and the 2Y

button to select the hours and minutes.

• The time is displayed in the 24-hour format.

h. Press the 3# button. i. Press the 1F button and the 2Y

button to select [Y/M/D].

j. After all items have been set, press the o button.

• For precise time setting, press the o button as the time signal strikes 00 seconds.

M D

TIME

CANCEL

M D

TIME

CANCEL SET

M D

TIME

CANCEL SET

Y/M/D

o Button

HQHQ3072

[ ]

2304

[

]

Select a language

SETUP


QUALITY

RESET

CAMERA

SILENT

MODE

SE TUP

a. Press the m button to display the top menu.

m Button

b. Press the 3# button to select [SETUP], and press the o

button.


QUALITY

CAMERA

RESET

3# Button

EXIT SET

c. Press the 1F button and the 2Y button to select [W], and

press the o button.

1F Button

2Y Button

d. Press the arrow pad to select a

language, and press the o button.

• You can add other languages to your camera with the provided OLYMPUS Master software. Please refer to the Advanced Manual.

MEMORY FORMA T

BACKUP

W ENGLISH

PW ON SETUP MENU THEME

BACK SET

ENGLISH

FRANCAIS DEUTSCH ESPAÑOL

BACK SET

ITALIANO РУССКИЙ ČESKY NEDERLANDS

[SETUP]

SETUP

SILENT

MODE

OFF NORMAL

Take a picture

1/400

F3.5

3072

2304

a. Hold the camera.

b. Focus.

Horizontal grip Vertical grip

Place this mark over your subject.

1/400

Shutter Button

F3.5

c. Shoot.

(Pressed

halfway)

The green lamp indicates the focus and exposure are locked. The shutter speed and aperture value are displayed.

The card access lamp blinks.

Shutter Button

(Pressed

completely)

[ ]

[

]

2304

HQHQ3072

The number of storable still pictures is displayed.

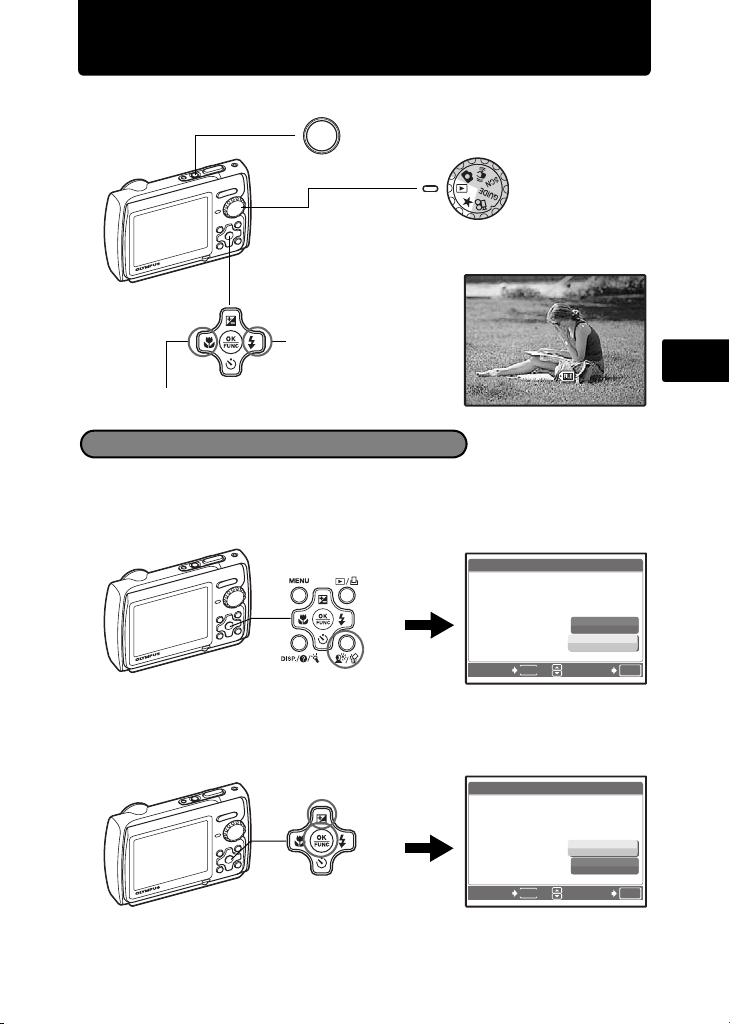

View pictures

12:30

'07.11.26

100-0001

a. Set the mode dial to q.

o Button

Mode Dial

[

]

Arrow Pad

Next Picture

'07.11.26

Prev. Picture

Erase pictures

a. Press the 4& button and the 3# button to display the picture

that you want to erase.

b. Press the f/S button.

12:30

100-0001

ERASE

f/S Button

BACK

c. Press the 1F button to select [YES] and press the o button

to erase the picture.

ERASE

BACK

1F Button

o Button

YES

SET

[IN]

Basic operation

Shooting Mode Buttons

While in shooting mode, use these buttons for quick access to some of the more commonly used features.

6 1

1 4& button (Macro Mode)

Use macro, super macro or S-macro LED mode when taking close-up pictures such as of a flower.

2 1F button (Exposure Compensation)

Use this setting to overexpose (+) or underexpose (–) a picture. Use the arrow pad to select the frame with the settings you want, and press o.

3 3# button (Flash Mode)

Select from 4 flash modes – Auto, Red-eye reduction, Fill-in flash, or Flash off.

4 2Y button (Self-timer)

Select the self-timer to delay the shot approximately 12 seconds from when the shutter button is pressed.

5 o button (OK/FUNC)

Displays the function menu and sets the functions often used in shooting mode. Also confirms and sets your selection of menu items.

6 m button (MENU)

Press this button to display the top menu.

7 q/< button

Press q in shooting mode to switch to playback mode and display the last picture taken.

8 f/S button

Press f in shooting mode to turn on or off Shadow Adjustment Technology. This function makes the subject’s face appear brighter even against backlight. Hold down f/S in shooting mode to display the guide indicating the location of the buttons.

9 g/E/Y button

Press g/E/Y repeatedly to display the composition guide lines and histogram. Select a menu item, and press g/E/Y to display an explanation of its function.

7 5 3

s Modes (Scene)

This function allows you to switch the s (scene mode) according to the subject.

1 Set the mode dial to s. 2 Press 12 to select a scene mode, and press o.

1 PORTRAIT

BACK

SET

Mode Dial

m button o button

12 button

Shooting s (Scene) Modes

• PORTRAIT • SELF PORTRAIT • SHOOT & SELECT1

• LANDSCAPE • AVAILABLE LIGHT• SHOOT & SELECT2

• LANDSCAPE+PORTRAIT• SUNSET • BEACH & SNOW

• NIGHT SCENE • FIREWORKS • UNDERWATER SNAPSHOT

• NIGHT+PORTRAIT • CUISINE • UNDER WATER WIDE1

• SPORT • BEHIND GLASS • UNDER WATER WIDE2

• INDOOR • DOCUMENTS • UNDER WATER MACRO

• CANDLE • AUCTION

Macro Mode

& This mode lets you shoot from as close as 20 cm/7.9 in. (when the zoom is set

for the zoom-out angle) and as close as 30 cm/11.8 in. (when the zoom is set for the zoom-in angle) to your subject.

% Use this mode to take pictures as close as 7 cm/2.8 in. to your subject. In %

mode, the position of the zoom lens is fixed. If the distance between the camera and the subject is over 50 cm/19.7 in., the picture will be out of focus.

O The LED light illuminates from 7 cm/2.8 in to 20 cm/7.9 in. from the lens in super

macro mode. Press the shutter button halfway to turn on the LED light.

1 Press 4&. 2 Press 12 to select [&], [%] or [O] and press o.

Self-Timer

1 Press 2Y.

Self-Timer Lamp

2 Press 12 to select [Y ON], and press o. 3 Press the shutter button fully to take the picture.

The self-timer lamp lights for approximately 10 seconds after

the shutter button is pressed, then starts blinking. After blinking for approximately 2 seconds, the picture is taken.

Flash Modes

1 Press 3#. 2 Press 12 to select the flash mode, and press o. 3 Press the shutter button halfway.

When the flash is set to fire, the # mark lights.

4 Press the shutter button completely to take the picture.

Icon Flash Mode Description

indication

Auto flash The flash fires automatically in low light or backlight

Red-eye

reduction flash

Fill-in flash The flash fires regardless of the available light.

$ Flash off The flash does not fire.

conditions.

The red-eye reduction flash mode significantly reduces this phenomenon by emitting pre-flashes before firing the regular flash.

Power Save Feature

To save battery power, the camera automatically enters sleep mode and stops

operating if not used for 3 minutes in shooting mode. Press the shutter button or zoom button to reactivate the camera.

If the camera is not operated for 15 minutes after the camera enters sleep

mode, it automatically retracts the lens and turns off. To resume operation, turn on the power again.

Menus and settings

SETUP


QUALITY

RESET

CAMERA

SILENT

MODE

CAUTION ERASING ALL

AL L

ER ASE

Top Menu

1 Press m to display the top menu.


QUALITY

CAMERA

RESET

EXIT SET

Top menu in shooting mode

2 Use the arrow pad (1243) to select menu items, and press o to set them.

 IMAGE QUALITY

Set the image quality of the picture you will shoot according to its intended purpose.

 RESET

Return the changed shooting functions back to default settings.

 CAMERA MENU

Adjust various shooting settings.

 SETUP

Set the date, time, language, and operation sound, etc.

 SCN (Scene)

Select the scene according to the subject and shooting condition when the s mode is selected.

 SILENT MODE

Mute operational sounds that occur during shooting and playback,warning beeps, shutter sounds, etc.

SETUP

SILENT

MODE

1 From the top menu of playback mode, select

[ERASE] -> [ALL ERASE], and press o.

2 Select [YES] and press o.

All the pictures are erased.

Erase All Pictures

ERASE CAUTION ERASING ALL

YES

BACK

SET

[IN]ALL

Connecting the camera

Playback on a TV

Use the AV cable provided with the camera to playback recorded images on your TV. Both still pictures and movies can be played back.

1 Make sure that the TV and camera are turned off. Connect the multi-connector

on the camera to the video input terminal on the TV using the AV cable.

Multi-connector

Connect to the TV’s video input (yellow) and audio input (white) terminals.

Connector cover

AV cable (provided)

2 Turn the TV on and set it to the video input mode.

For details of switching to video input, refer to your TV’s instruction manual.

3 Set the mode dial to q, and press o to turn the camera on.

The last picture taken is displayed on the TV. Use the arrow pad to select the picture

you want to display.

Direct Printing (PictBridge)

Using the provided USB cable, you may connect your camera directly to a PictBridge compatible printer to make prints.

1 In playback mode, display the picture you want to print out on the monitor. 2 Connect one end of the provided USB cable into the camera’s multi-connector

and the other end into the printer’s USB connector.

Multi-connector

Connector cover

USB cable

3 Press q/<.

Printing starts. When printing is finished, disconnect the USB cable

from the camera with the picture selection screen displayed.

EASY PRINT START PC / CUSTOM PRINT

Transfer images

a. Install the software.

Insert the OLYMPUS Master 2

CD-ROM.

2 Windows: Click the “OLYMPUS

Macintosh: Double-click the “Setup”

3 Simply follow the on-screen

instructions.

b. Connect the camera to the computer.

Connect the camera and computer using the USB cable (included).

The monitor will turn on automatically.

Multi-connector

Master 2” button.

icon.

Connector cover

USB cable

2 Select [PC] on the monitor, and press o.

Your PC will now recognize your camera as

a removable storage drive.

USB

EASY PRINT CUSTOM PRINT EXIT

SET

[IN]

c. Transfer images to the computer.

1 With the camera now connected,

open OLYMPUS Master.

2 Click “Transfer Images” on

the browse window, and then click “From Camera” .

3 Simply follow the on-screen

instructions.

“Transfer Images” button

Tips

• For more detailed information regarding camera setup and usage, please refer to the camera’s “Advanced Manual” provided on CD-ROM.

• For additional assistance, refer to the “Help” file in the OLYMPUS Master software.

OLYMPUS Master Software

OLYMPUS Master Software: Use this software to download pictures from the camera, view, organize, retouch, e-mail and print your digital pictures and movies and more!

(System Requirements

CPU Pentium III 500 MHz/Power PC G3 500 MHz/Intel Core Solo/Duo

RAM 256 MB or more

Hard Disk 500 MB or more free space

Connection USB port/IEEE 1394 port

Monitor 1024 × 768 pixels resolution or more with minimum 65,536 colors

Other Internet Explorer 6 or later (Windows), Safari 1.0 or later, QuickTime

For the latest support information, visit the Olympus website (http://www.olympus.com/)

Windows 2000 Professional/XP/Vista or Mac OS X (v10.3 or later)

1.5 GHz, or later

(Windows), 32,000 colors (Macintosh) (16.77 million colors or more recommended)

6 or later (Macintosh)

User Registration

Register your camera when you install OLYMPUS Master to activate your warranty, receive notifications of software and camera firmware updates, and more.

Specifications

(Camera

Product type : Digital camera (for recording and playback) Recording system

Still pictures :

Applicable standards :

Sound with still pictures : Wave format Movies : AVI Motion JPEG

Memory : Internal memory

No. of pictures (when fully charged)

No. of effective pixels : 7,110,000 pixels Image pickup device : 1/2.33" CCD (primary color filter), 7,380,000 (gross) Lens : Olympus lens 6.7 to 20.1 mm, f3.5 to 5.0

Photometric system : Digital ESP metering, spot metering system Shutter speed : 4 to 1/1000 sec. Shooting range : 0.5 m (1.6 ft.) to ) (W/T) (normal)

Monitor : 2.5" TFT color LCD display, 230,000 pixels Flash charge time : Approx. 6 sec. (for full flash discharge at room temperature using a

Outer connectors : Multi-connector (DC-IN jack, USB connector, A/V OUT jack) Automatic calendar system : 2000 up to 2099 Water resistance

Type : Equivalent to IEC Standard publication 529 IPX8 (under OLYMPUS

Meaning : Camera can normally be used under water at a specified water

Dust resistance : IEC Standard publication 529 IPX6 (under OLYMPUS test

Operating environment

Temperature : -10°C to 40°C (14°F to 104°F) (operation),

Humidity : 30% to 90% (operation)/10% to 90% (storage)

Power supply : One Olympus lithium ion battery (LI-42B/LI-40B) or Olympus AC

Dimensions : 93.6 mm (W) × 60.9 mm (H) × 21.3 mm (D) (3.7 × 2.4 × 0.8 in.)

Weight : 136 g (4.8 oz) (excluding battery and card)

Digital recording, JPEG (in accordance with Design rule for Camera File system (DCF))

Exif 2.2, Digital Print Order Format (DPOF), PRINT Image Matching III, PictBridge

xD-Picture Card 16 MB to 2 GB (TypeH/M, Standard)

: Approx. 200

(based on CIPA battery life measurement standards)

(equivalent to 38 to 114 mm on a 35 mm camera)

0.2 m (0.7 ft.) to ) (W), 0.3 m (1.0 ft.) to ) (T) (macro mode)

0.07 m (2.8 in.) to 0.5 m (1.6 ft.) (W only) (super macro mode/S-macro LED mode)

new fully charged battery)

test conditions), available in 3 m (9.8 feet) deep water

pressure.

conditions)

-20°C to 60°C (-4°F to 140°F) (storage)

adapter

(excluding protrusions)

“Shadow Adjustment Technology” function contains patented technologies from Apical Limited.

(Lithium ion battery (LI-42B)

Product type : Lithium ion rechargeable battery Standard voltage : DC 3.7 V Standard capacity : 740 mAh Battery life : Approx. 300 full charges (varies on usage) Operating environment

Temperature : 0°C to 40°C (32°F to 104°F) (charging)/

Dimensions : 31.5 × 39.5 × 6 mm (1.2 × 1.5 × 0.2 in.) Weight : Approx. 15 g (0.5 oz)

-10°C to 60°C (14°F to 140°F) (operation)/

-20°C to 35°C (-4°F to 95°F) (storage)

(Battery charger (LI-40C)

Power requirements : AC 100 to 240 V (50 to 60 Hz)

Output : DC 4.2 V, 200 mA Charging time : Approx. 5 hours Operating environment

Temperature : 0°C to 40°C (32°F to 104°F) (operation)/

Dimensions : 62 × 23 × 90 mm (2.4 × 0.9 × 3.5 in.) Weight : Approx. 65 g (2.2 oz)

3.2 VA (100 V) to 5.0 VA (240 V)

-20°C to 60°C (-4°F to 140°F) (storage)

(Using in low temperatures

Low temperature operation of the optional Olympus xD-Picture Card and lithium ion battery are guaranteed to 0°C (32°F). However, the following have been tested for use with this product in temperatures up to -10°C (14°F).

Olympus xD-Picture Card

16 MB 32 MB 64 MB 128 MB 256 MB 512 MB 1 GB 2 GB

Standard 999999

TypeM 9999

TypeH 9999

9: Operation confirmed

Olympus lithium ion battery

LI-42B LI-40B

• The number of storable still pictures is reduced in low temperatures.

Design and specifications subject to change without notice.

Safety precautions

Important Information About Water And Shock Resistant Features

Water resistance: The waterproof feature is warranted*1 to operate at depths up to 3m

(9.8 feet) for up to one hour. The waterproof feature may be compromised if the camera is subject to substantial or excessive impact. Shock resistance: The anti-shock feature warrants*2 the operation of the camera against accidental impact incurred from everyday use of your digital compact camera. The anti-shock feature does not unconditionally warrant all defective operation or cosmetic damage. Cosmetic damage, such as scratches and dents, are not covered under the warranty. As with any electronic device, proper care and maintenance are required to preserve the integrity and operation of your camera. To maintain camera performance, please take your camera to the nearest Olympus Authorized Service Center to have it inspected after any major impact. In the event the camera is damaged as a result of negligence or misuse, the warranty will not cover costs associated with the service or repair of your camera. For additional information on our warranty, please visit to the Olympus website for your local area. Please observe the following care instructions for your camera.

Before Use:

• Check the camera for foreign material including dirt, dust or sand.

• Be sure to close the battery/card compartment cover and connector cover firmly so that each lock makes clicking sound.

• Do not open the battery/card compartment cover and connector cover with wet hands, while under water, or in a damp or dusty environment (e.g. beach).

After Use:

• Be sure to wipe off any excess water or debris after using the camera under water.

• After the camera is used under sea water, immerse the camera in a bucket containing fresh water for about 10 minutes (with the battery/card compartment cover and connector cover firmly closed). After that, dry the camera in a shade with good ventilation.

• Water drops may be observed on the inner surface of the battery/card

compartment cover or connector cover after you open each cover. If any water drops are found, be sure to wipe them off before using the camera.

Notes after use

• Any foreign material may be adhered to the periphery of the lens cover, after you use the camera in an environment containing foreign material including dirt, dust or sand, or when the lens cover won’t move smoothly. If you continue to use the camera in such a condition, the lens may be damaged or the lens cover may become stuck, causing a failure. To avoid such a failure, wash the camera using the following method.

1 Insert the battery and close the battery/card

compartment cover and connector cover firmly so that each lock makes the clicking sound.

2 Fill a bucket with fresh water, immerse the

camera in the bucket with the lens surface downward and shake the camera thoroughly.

3 Press the o button several times in the

water and close/open the lens cover repeatedly.

4 Furthermore, shake the camera further with the cover opened. Follow the steps 1 to 4, then check if the lens cover moves smoothly.

If the lens cover does not move smoothly, rinse the lens face by placing it directly under a strong stream of tap water and pressing the o button repeatedly.

Storage and Maintenance

• Do not leave the camera in an environment at high temperature (40°C (104°F) or more) or at low temperature (-10°C (14°F) or less). Failure to do so may break down water resistance.

• Do not use chemicals for cleaning, rust prevention, anti-fogging, repairing, etc.

• Failure to do so may break down water resistance.

• Do not leave the camera in water for a long time. Failure to do so will cause damage to the camera’s appearance and/or deteriorate water resistance.

• In addition do not pour water over the camera directly from the water faucet.

•

In order to preserve the water resistant feature, as with any underwater housing, it is recommended that the waterproof packing (and seals) are replaced annually. For the Olympus distributors or service stations where the waterproof packing can be replaced, visit Olympus website for your local area.

Closing Battery/Card Compartment Cover and Connector cover

Battery/card compartment cover

Connector cover

Note: The included accessories (e.g. charger) do not offer shock or water resistance. *1 as determined by Olympus pressure testing equipment in accordance to IEC

Standard Publication 529 IPX8 - This means that the camera can be used normally under water at a specified water pressure.

*2 This anti-shock performance is confirmed by Olympus’ testing conditions in

accordance with MIL-STD-810F, Method 516.5, Procedure IV (Transit Drop Test). For more details of Olympus’ testing conditions, please refer to the Olympus website for your local area.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED OLYMPUS SERVICE PERSONNEL.

An exclamation mark enclosed in a triangle aler ts you to important operating and maintenance instructions in the documentatio n provided with the product.

DANGER

WARNING

CAUTION

WARNING! TO AVOID THE RISK OF FIRE OR ELECTRICAL SHOCK, NEVER DISASSEMBLE, EXPOSE THIS PRODUCT TO WATER OR OPERATE IN A HIGH HUMIDITY ENVIRONMENT.

If the product is used without observing the infor mation given under this symbol, serious injury or death may result.

If the product is used without observing th e information given under this symbol, injury or death may result.

If the product is used without observing the inform ation given under this symbol, minor personal injury, damage to the equipment, or los s of valuable data may result.

General Precautions

Read All Instructions — Before you use the product, read all operating

instructions. Save all manuals and documentation for future reference.

Cleaning — Always unplug this product from the wall outlet before cleaning. Use

only a damp cloth for cleaning. Never use any type of liquid or aerosol cleaner, or any type of organic solvent to clean this product.

Attachments — For your safety, and to avoid damaging the product, use only

accessories recommended by Olympus.

Water and Moisture — For precautions on products with weatherproof designs,

read the weatherproofing sections.

Location — To avoid damage to the product, mount the product securely on a

stable tripod, stand, or bracket.

Power Source — Connect this product only to the power source described on the

product label.

Lightning — If a lightning storm occurs while using an AC adapter, remove it from

the wall outlet immediately.

Foreign Objects — To avoid personal injury, never insert a metal object into the

product.

Heat — Never use or store this product near any heat source such as a radiator,

heat register, stove, or any type of equipment or appliance that generates heat, including stereo amplifiers.

Handling the Camera

WARNING

( Do not use the camera near flammable or explosive gases. ( Do not use the flash and LED on people (infants, small children, etc.)

at close range.

• You must be at least 1 m (3 ft.) away from the faces of your subjects. Firing the flash too close to the subject’s eyes could cause a momentary loss of vision.

( Keep young children and infants away from the camera.

• Always use and store the camera out of the reach of young children and infants

to prevent the following dangerous situations which could cause serious injury:

• Becoming entangled in the camera strap, causing strangulation.

• Accidentally swallowing the battery, cards or other small parts.

• Accidentally firing the flash into their own eyes or those of another child.

• Accidentally being injured by the moving parts of the camera.

( Do not look at the sun or strong lights with the camera. ( Do not use or store the camera in dusty or humid places. ( Do not cover the flash with a hand while firing.

CAUTION

( Stop using the camera immediately if you notice any unusual odors,

noise, or smoke around it.

• Never remove the batteries with bare hands, which may cause a fire or burn your hands.

( Do not leave the camera in places where it may be subject to

extremely high temperatures.

• Doing so may cause parts to deteriorate and, in some circumstances, cause the camera to catch fire. Do not use the charger or AC adapter if it is covered (such as a blanket). This could cause overheating, resulting in fire.

( Handle the camera with care to avoid getting a low-temperature

burn.

• When the camera contains metal parts, overheating can result in a lowtemperature burn. Pay attention to the following:

• When used for a long period, the camera will get hot. If you hold on to the

camera in this state, a low-temperature burn may be caused.

• In places subject to extremely cold temperatures, the temperature of the

camera’s body may be lower than the environmental temperature. If possible,

( Be careful with the strap.

( Do not touch the metallic parts of the camera for a long period of

wear gloves when handling the camera in cold temperatures.

• Be careful with the strap when you carry the camera. It could easily catch on stray objects - and cause serious damage.

time at low temperatures.

• This may damage your skin. At low temperatures, handle the camera while wearing gloves.

Battery Handling Precautions

Follow these important guidelines to prevent batteries from leaking, overheating, burning, exploding, or causing electrical shocks or burns.

DANGER

• The camera uses a lithium ion battery specified by Olympus. Charge the battery with the specified charger. Do not use any other chargers.

• Never heat or incinerate batteries.

• Take precautions when carrying or storing batteries to prevent them from coming into contact with any metal objects such as jewelry, pins, fasteners, etc.

• Never store batteries where they will be exposed to direct sunlight, or subjected to high temperatures in a hot vehicle, near a heat source, etc.

• To prevent causing battery leaks or damaging their terminals, carefully follow all instructions regarding the use of batteries. Never attempt to disassemble a battery or modify it in any way, by soldering, etc.

• If battery fluid gets into your eyes, flush your eyes immediately with clear, cold running water and seek medical attention immediately.

• Always store batteries out of the reach of small children. If a child accidentally swallows a battery, seek medical attention immediately.

WARNING

• Keep batteries dry at all times.

• To prevent batteries from leaking, overheating, or causing a fire or explosion, use only batteries recommended for use with this product.

• Insert the battery carefully as described in the operating instructions.

• If rechargeable batteries have not been recharged within the specified time, stop charging them and do not use them.

• Do not use a battery if it is cracked or broken.

• If a battery leaks, becomes discolored or deformed, or becomes abnormal in any other way during operation, stop using the camera.

• If a battery leaks fluid onto your clothing or skin, remove the clothing and flush the affected area with clean, running cold water immediately. If the fluid burns your skin, seek medical attention immediately.

• Never subject batteries to strong shocks or continuous vibration.

CAUTION

• Before loading, always inspect the battery carefully for leaks, discoloration, warping, or any other abnormality.

• The battery may become hot during prolonged use. To avoid minor burns, do not remove it immediately after using the camera.

• Always unload the battery from the camera before storing the camera for a long period.

For customers in Europe

“CE” mark indicates that this product complies with the European requirements for safety, health, environment and customer protection. “CE” mark cameras are intended for sales in Europe.

This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries. Please do not throw the equipment into the domestic refuse. Please use the return and collection systems available in your country for the disposal of this product.

Use Only Dedicated Rechargeable Battery and Battery Charger

We strongly recommend that you use only the genuine Olympus dedicated rechargeable battery and battery charger with this camera. Using a non-genuine rechargeable battery and/or battery charger may result in fire or personal injury due to leakage, heating, ignition or damage to the battery. Olympus does not assume any liability for accidents or damage that may result from the use of a battery and/or battery charger that are not genuine Olympus accessories.

Trademarks

• IBM is a registered trademark of International Business Machines Corporation.

• Microsoft and Windows are registered trademarks of Microsoft Corporation.

• Macintosh is a trademark of Apple Inc.

• xD-Picture Card™ is a trademark.

• All other company and product names are registered trademarks and/or trademarks of their respective owners.

• The standards for camera file systems referred to in this manual are the “Design Rule for Camera File System/DCF” standards stipulated by the Japan Electronics and Information Technology Industries Association (JEITA).

Provisions of warranty

1. If this product proves to be defective, although it has been used properly (in accordance with the written Handling Care and Operating instructions supplied with it), during a period of two years from the date of purchase from an authorized Olympus distributor within the business area of Olympus Imaging Europa GmbH as stipulated on the website: http://www.olympus.com this product will be repaired, or at Olympus’s option replaced, free of charge. To claim under this warranty the customer must take the product and this Warranty Certificate before the end of the two year warranty period to the dealer where the product was purchased or any other Olympus service station within the business area of Olympus Imaging Europa GmbH as stipulated on the website: http://www.olympus.com. During the one year period of the World Wide Warranty the customer may turn the product in at any Olympus service station. Please notice that not in all countries such Olympus service station exists.

2. The customer shall transport the product to the dealer or Olympus authorized service station at his own risk and shall be responsible for any costs incurred in transporting the product.

3. This warranty does not cover the following and the customer will be required to pay repair charge, even for defects occurring within the warranty period referred to above. (a) Any defect that occurs due to mishandling (such as an operation performed that is not

mentioned in the Handling Care or other sections of the instructions, etc.)

(b) Any defect that occurs due to repair, modification, cleaning, etc. performed by anyone other

than Olympus or an Olympus authorized service station.

product.

(d) Any defect or damage that occurs due to fire, earthquake, flood damage, thunderbolt, other

natural disasters, environmental pollution and irregular voltage sources.

(e) Any defect that occurs due to careless or improper storage (such as keeping the product under

conditions of high temperature and humidity, near insect repellents such as naphthalene or

harmful drugs, etc.), improper maintenance, etc. (f) Any defect that occurs due to exhausted batteries, etc. (g) Any defect that occurs due to sand, mud, etc. entering the inside of the product casing. (h) When this Warranty Certificate is not returned with the product. (i) When any alterations whatsoever are made to the Warranty Certificate regarding the year,

month and date of purchase, the customer’s name, the dealer’s name, and the serial number. (j) When proof of purchase is not presented with this Warranty Certificate.

4. This Warranty applies to the product only; the Warranty does not apply to any other accessory equipment, such as the case, strap, lens cap and batteries.

5. Olympus’s sole liability under this warranty shall be limited to repairing or replacing the product. Any liability for indirect or consequential loss or damage of any kind incurred or suffered by the customer due to a defect of the product, and in particular any loss or damage caused to any lenses, films, other equipment or accessories used with the product or for any loss resulting from a delay in repair or loss of data, is excluded. Compelling regulations by law remain unaffected by this.

Notes regarding warranty maintenance

1. This warranty will only be valid if the Warranty Certificate is duly completed by Olympus or an authorized dealer or other documents contain sufficient proof. Therefore, please make sure that your name, the name of the dealer, the serial number and the year, month and date of purchase are all completed or the original invoice or the sales receipt (indicating the dealer’s name, the date of purchase and product type) is attached to this Warranty Certificate. Olympus reserves the right to refuse free-of-charge service if neither Warranty Certificate is completed nor the above document is attached or if the information contained in it is incomplete or illegible.

2. Since this Warranty Certificate will not be re-issued, keep it in a safe place.

* Please refer to the list on the web site: http://www.olympus.com for the authorized international

Olympus service network.

Disclaimer of Warranty

Olympus makes no representations or warranties, either expressed or implied, by or concerning any content of these written materials or software, and in no event shall be liable for any impelled warranty purchase are all completed or the original invoice or the sales receipt of merchantability or fitness for any particular purpose or for any consequential, incidental or indirect damages (including but not limited to damages for loss of business profits, business interruption and loss of business information) arising from the use of inability to use these written materials or software. Some states do not allow the exclusion or limitation of liability for consequential or incidental damages, so the above limitations may not apply to you.

Table des matières

Réunissez ces éléments (contenu de la boîte) ................................31

Préparation de l’appareil photo.........................................................32

Allumer l’appareil photo.....................................................................34

Réglage de la date et de l’heure ........................................................35

Sélectionnez une langue....................................................................37

Prenez une photo................................................................................38

Affichage des photos .........................................................................39

Fonctionnement de base....................................................................40

Touches du mode prise de vue ............................................................. 40

Modes s (Scène)............................................................................. 41

Mode Gros plan ..................................................................................... 41

Retardateur............................................................................................ 42

Modes flash ........................................................................................... 42

Fonction d’économie d’énergie.............................................................. 42

Menus et réglages...............................................................................43

Menu principal ....................................................................................... 43

Effacer toutes les photos ....................................................................... 43

Connexion de l’appareil photo ..........................................................44

Affichage sur un téléviseur .................................................................... 44

Impression directe (PictBridge).............................................................. 45

Transférez des images .......................................................................46

Logiciel OLYMPUS Master.................................................................48

Caractéristiques..................................................................................49

Précautions de sécurité .....................................................................51

Avant d’utiliser votre appareil photo, lisez attentivement ce manuel pour

garantir une utilisation correcte.

Nous vous recommandons de prendre des photos-test pour vous habituer à

votre appareil avant de commencer à prendre de vraies photos.

Veillez à ce que les mesures de sécurité présentées à la fin de ce manuel soit

respectées.

Les captures d’écran et les illustrations de l’appareil photo présentées dans ce

manuel ont été réalisées au cours des phases de développement et peuvent ne pas correspondre au produit réel.

+ 118 hidden pages

Olympus Stylus 790 SW User Manual

Table of Contents

Gather these items (box contents)

Attach the strap

Prepare the camera

Turn the camera on

Set date and time

About the date and time setting screen

Select a language

Take a picture

View pictures

Erase pictures

Basic operation

Shooting Mode Buttons

s Modes (Scene)

Macro Mode

Self-Timer

Flash Modes

Power Save Feature

Menus and settings

Top Menu

Erase All Pictures

Connecting the camera

Playback on a TV

Direct Printing (PictBridge)

Transfer images

OLYMPUS Master Software

Specifications

Safety precautions
