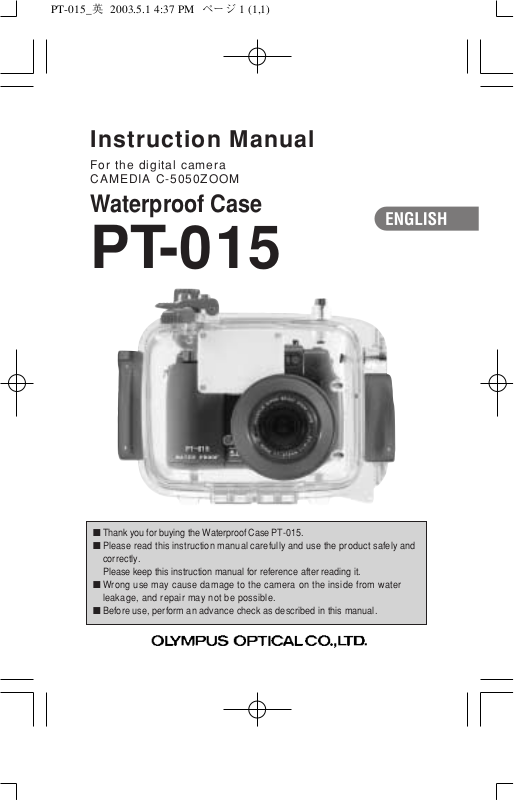

Olympus PT-15 User Manual
Instruction Manual
For the digital camera
CAMEDIA C-5050ZOOM
Waterproof Case
PT-015
■
Thank you for buying the Waterproof Case PT-015.
■
Please read this instruction manual carefully and use the product safely and
correctly.
Please keep this instruction manual for reference after reading it.
■
Wrong use may cause damage to the camera on the inside from water
leakage, and repair may not be possible.
■
Before use, perform an advance check as described in this manual.
Introduction
WARNING
CAUTION
●
Unauthorized copying of this manual in part or in full, except for private
use, is prohibited.
Unauthorized reproduction is strictly prohibited.
●
Our company shall not be responsible in any way for lost profits or any
claims by third parties in case of any damage occurring from unsuitable
use of this product.
●
Our company shall not be responsible for damage, lost profits, etc. caused
by loss of image data because of defects, disassembly, repair or
modification of this product by people other than third parties specified by
our company, or for other reasons.
Please read the following items before use
●
This Case is a precision device designed for use at a water depth within 40
m. Please handle it with sufficient care.
●
Please use the Case correctly after sufficient understanding of the contents
of this manual in regard to handling of the Case, checks before use,
maintenance, and storage after use.
●
Our company shall in no way be responsible for accidents involving
immersion of a digital camera in water.
●
Ourcompany shall notpay any compensationfor accidents(injuries or
materialdamage)atthetimeofuse.
For safe use
This instruction manual uses various pictographs for correct use of the
product and to prevent danger to the user and other persons as well as
property damage. These pictographs and their meanings are shown below.
This indicates contents for which the possibility of human
death or severe injury in case of handling under disregard of
this indication can be assumed.
This indicates contents for which the possibility of human
injury or the possibility of material damage in case of handling
under disregard of this indication can be assumed.
E-1
1. Keep this product out of the reach of babies, infants, and children. There
WARNING
is the possibility of occurrence of the following types of accidents.
• Injury by dropping onto the body from a height.
• Injury from parts of the body getting caught in parts which open and close.
• Swallowing of small parts. Please consult a physician immediately if any
parts have been swallowed.
• Triggering of the flash in front of the eyes may cause permanent vision
impairment etc.
2. Do not store with a battery in the digital camera housed in this product.
Storage with a battery inserted may lead to leakage of the battery liquid
and fire.
3. If leakage of water should occur with a camera installed in this product,
quickly remove the battery from the camera. There is the possibility of
ignition and explosion from generation of hydrogen gas.
4. This product is made of resin. There is the possibility that injuries may be
caused when it becomes broken because of strong impact with a rock or
other hard objects. Please handle with sufficient care.
5. The silica gel and the grease for silicone O-rings for this product are not
edible.
CAUTION
1. Do not disassemble or modify this product. This may cause water leakage or
trouble. In case of disassembly or modification by persons other than those
appointed by our company, the guarantee shall not apply.
2. Do not place this product at locations with abnormally high or abnormally low
temperatures or at locations with extreme temperature changes. The product
may deteriorate.
3. Opening and closing at locations with much sand, dust, or dirt may impair the
waterproof characteristic and cause water leakage. This should be avoided.
4. This product has been designed and manufactured for use at a water depth
within 40 m. Please note that diving to a depth in excess of 40 m may cause
permanent deformation or damage to the Case and the camera inside the
Case or may lead to water leakage.
5. Jumping into the water with the Case in your pocket or in your hand, throwing
the Case from a boat or ship into the water, and other rough handling may
cause water leakage. Please handle with sufficient care, when handing it over
from hand to hand etc.
E-2
6. When using this product, install the O-ring for the front lid and the O-ring for
the rear lid.
7. If the camera on the inside should become wet because of water leakage etc.,
immediately wipe off all moisture and confirm the operation.
8. Please remove the O-ring when traveling by air. Otherwise air pressure may
make it impossible to open the Case.
9. For safe use of the digital camera in this product, please read the "Instruction
Manual" for the digital camera carefully.
10. When sealing this product, take sufficient care that no foreign matter gets
caught at the O-ring and the contact surfaces.
Batteries
● This protector uses the LCD monitor of the installed digital camera
for shooting. Accordingly, the battery is exhausted faster than in
case of shooting without use of the LCD monitor.
● Please use two lithium battery packs CR-V3 (our model LB-01).
This is recommended because of its long life.
● When size AA batteries are used, alkaline batteries and Nicad
batteries cannot exhibit their abilities at low temperatures. We
recommend the use of Olympus Ni-H batteries. They are effective
even when used at low temperatures, and as they can be used
repeatedly, they are economical.
● Batteries are subject to self-discharging. Always use fresh
batteries. Use a battery charger after recharging.
● Take care that the battery electrodes do not become wet. This may
cause trouble or accidents.
● Carefully read the instruction manual for the camera about other
cautions regarding batteries.
E-3
For Prevention of Water Leakage Accidents
When water leakage occurs while this product is being used, repair of the camera
housed in this product may become impossible. Please observe the following
cautions for use.
1. When sealing this product, make sure that no hairs, fibers, sand particles or
other foreign matter stick not only to the O-ring, but also to the contact surface
(flat part of the front cover). Even a single hair or a single grain of sand may
cause water leakage. Please check with special care.
<Examples for foreign matter sticking to the O-ring>
Hair Fibers Grains of sand
2. The O-ring is a consumption product. Please replace it at least once a year by
new one. Also perform maintenance for every use.
3. Deterioration of the O-ring will progress according to the use conditions and
the storage conditions. Immediately replace the O-ring by a new one if it is
damaged, shows cracks, or has lost its elasticity.
4. At the time of O-ring maintenance, clean the inside of the O-ring groove and
confirm the absence of dirt, dust, sand, and other foreign matter.
5. Apply the specified silicone O-ring grease to the O-ring.
6. The waterproof function is not effective when the O-ring is not installed
correctly. When installing the O-ring, take care that it does not project from the
groove and that it is not twisted. Also, when sealing the Case, close the lid
after confirming that the O-ring has not come out of the groove.
7. This product is an airtight construction made of plastic (polycarbonate). When
it is left for a long time in a car, on a boat, at the beach, or at other places
reaching a high temperature, or when it is subjected for a long time to uneven
external force, it may be deformed and the waterproof function may be lost.
Pay sufficient attention to temperature control. Also do not place heavy
objects onto the product during storage or transport, and avoid unreasonable
storage.
E-4
8. When the O-ring contact surface is pressed strongly from the outside of the
Case, or when the Case is twisted, the waterproof function may be lost. Take
care not to exert excessive force.
9. Please use the Case after performing the advance test and the final check.
If you should notice drops of water or other signs of water leakage while taking
10.
pictures, immediately stop the dive, remove any water from the camera and
the product, test according to the item "Final check", and confirm whether
leakage has occurred or not.
Handling the Product
● Use or storage of the product at the following locations may cause
defective operation, defects, trouble, damage, fire, internal
clouding, or water leakage. Always avoid these locations.
• Locations reaching high temperatures such as those under direct
sunlight, in an automobile, etc.
• Locations with open fire
• Water depths in excess of 40 m
• Locations subject to vibrations
• Locations with high temperatures and much dust or with severe
temperature changes
• Locations with volatile substances
● This product is made of polycarbonate resin with excellent impact
resistance, but it may be damaged by scraping against rocks etc. It
also may break when it hits hard objects or is dropped.
● This product is not a case to soften impacts to the camera inside
the product. When this product with a digital camera inside it is
subjected to impacts or heavy objects are placed onto it, the digital
camera may become damaged. Please handle the product with
sufficient care.
● When the product is not used for a long time, the waterproof
performance may drop because of deterioration of the O-ring etc.
Before use, always perform the advance test and the final check.
● Do not apply excessive force to the tripod socket.
● When a flash is used while the Case is being used, shadows may
appear at the edges of the picture. This is especially notable when
taking pictures in macro mode on the wide-angle side. Please use
a flash after image confirmation.
E-5
● Do not use the following chemicals for cleaning, corrosion
prevention, prevention of fogging, repair or other purposes. When
these are used for the Case directly or indirectly (with the
chemicals in vaporized state), they may cause cracking under high
pressure or other problems.
Chemicals which cannot be used
Volatile organic solvents,
chemical detergents
Anticorrosion agent
Commercial defogging
agents
Grease other than specified
silicone grease
Adhesive
Explanation
Do not clean the Case with alcohol, gasoline, thinner
or other volatile organic solvents or with chemical
detergents etc. Pure water or lukewarm water is
sufficient.
Do not use anticorrosion agents. The metal parts use
stainless steel or brass, and washing with pure water
is sufficient.
Do not use commercial defogging agents. Always
use the specified desiccant silica gel.
Use only the specified silicone grease for the silicone
O-ring, as otherwise the O-ring surface may
deteriorate and water leakage may be caused.
Do not use adhesive for repairs or other purposes.
When repair is required, please contact a dealer or a
service station of our company.
● Do not perform operations other than specified in this instruction
manual, do not remove or modify parts other than specified, and do
not use parts other than specified.
Any troubles in taking pictures or with the equipment resulting from
the above actions shall be outside the guarantee.
● Our company shall be in no way responsible for accidents involving
immersion of a digital camera in water.
● Our company shall not pay any compensation for accidents (injury
or material damage) at the time of use.
● When the enclosure of the balance weight breaks, the metal on the
inside may corrode. Take care not to damage the enclosure.
● After use, wash the balance weight with pure water and wipe off all
moisture sufficiently.
E-6
E-22
E-23
E-26
E-29
Contents
E-
14
E-
15
E-
9
E-
7
-
8
Introduction
Please read the following items before use
For safe use
Batteries
For Prevention of Water Leakage Accidents
Handling the Product
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
E-1
E-1
E-1
E-3
E-4
E-5
Contents
1.Preparations
2. Advance Check of the Case
3. Install the digital camera.
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
Check the contents of the package.
Names of the parts
Install the strap.
Master the basic operation.
Holding the Case
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
How to Press the Shutter
How to Use the Mode Dial
How to Use the Zoom Lever
Setting the Zoom Lever
Advance test before use E-14
Check the digital camera.
Loading in the Case
Which digital cameras can be loaded?
Open the Case.
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
Pull up the mode dial of the protector.
Set the mode of the digital camera.
Load the digital camera.
Set the mode dial
Insertion of silica gel
Check the loading status.
Seal the Case.
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
Installation and Removal of the LCD Hood.
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
E-7
E-
E-
E-
7
E-
E-9
E-10
E-11
E-11
E-11
E-12
E-12
E-13
E-13
14
15
E-15
E-15
E-15
E-16
E-16
E-16
E-17
E-17
E-18
E-19
E-19
E-20
-
8
9
E-8
Perform the final checks.
Visual Inspection
Try to move the mode dial
Final Test
4. Taking Pictures Under Water
How to Use the Hand Strap E-22
E-22
E-22
E-22
E-22
Take pictures carefully.
Confirm the picture on the LCD monitor
Quietly press the shutter lever.
Cautions when using the flash
5. Handling After Shooting
Wipe off any waterdrop. E-23
E-24
E-25
E-25
Take out the digital camera.
Wash the Case with pure water.
Dry the Case.
6. Maintaining the Waterproof Function
Remove the O-ring. E-26
E-26
E-27
E-28
E-28
Remove any sand, dirt, etc.
Install the O-ring.
How to Apply Grease to the O-ring
Replace consumables products.
7. Appendix
Q & A on the use of the PT-015 E-29
E-34
E-35
After-sale Service
Specifications
E-20
E-20
E-20
E-21
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
E-E-2222
E-E-2323
E-E-2626
E-E-2929
Case body
LCD hood
LCD hood strap
(on the body)
(Check that the O-ring is normal.)
Hand strap
Grease for
silicon O-ring
5 Silica gel
packs
Pick for O-ring removal
Balance weight
Instruction manual
(this manual)
Please read before use
Warranty card
Read this firstabout your new
OLYMPUS Waterproof Case!
!
1. Preparations
Check the contents of the package.
Check that all accessories are in the box.
Contact your dealer if accessories should be missing or damaged.
Instruction Manual
For the digital camera
CAMEDIA C-5050ZOOM
Waterproof Case
PT-015
■
Thank you for buying the Waterproof Case PT-015.
■
Please read this instruction manual carefully and use the product safely and
correctly.
Please keep this instruction manual for reference after reading it.
■
Wrong use may cause damage to the camera on the inside from water
leakage, and repair may not be possible.
■
Before use, perform an advance check as described in this manual.
Serial No.
USNA
Printed in Japan VT184704
LIMITED WARRANTY
This limited warranty must be presented at an Olympus Service Center before any repair can be made under conditions of the warranty.
Model:
Date of Purchase:
Customer
Name:
Address:
Dealer
Name and address:
E-9
Names of the parts
Palm grip
Buckle stopper
Buckle lock lever
Buckle hook
O-ring
Diffuser and diffuser cover
Hand strap ring
Hand strap
Tripod seat
Lens ring
Lens window
❈
Shutter lever
❈
Zoom lever
Note: •
The Case operation parts marked by❈ corresponds to the operation parts
❈
Mode dial knob
❈
Power switch lever
❈
Dial knob
❈
Custom/Print reservation button
❈
Self-timer/Remote control/Rotation
playback button
❈
Exposure meter/Protect button
❈
AF/Macro/MF button
❈
Flash mode button
❈
Exposure compensation button
Front lid
LCD inner hood
Loading guide rail
LCD hood
❈
AEL/Erase button
❈
LCD monitor button
❈
OK/Menu button
❈
Arrow pad
❈
Card switching button
Rear lid
LCD hood strap
Grease for silicone O-ring
(white cap)
Silica gel
Balance weight
Pick for O-ring removal
of the digital camera. When the operation parts of the Case are operated,
the corresponding functions of the digital camera will operate. For details of
the functions, refer to the instruction manual for the digital
•
The 2 O-rings are common.
camera.
E-10
Installation explanation
Hand strap
Hand strap ring
Finished installation
Good example Bad example
Install the strap.
CAUTION
CAUTION
Install the strap on the Case body.
: Please install the strap correctly as shown above. Our company
shall bear no responsibility for damage etc. caused by dropping
the Case because of incorrect installation of the strap.
Master the basic operation.
Please master the basic operation of the Case before taking pictures.
Holding the Case
Hold the Case securely with both hands, keep your elbows close to your
body, and hold the Case so that you can confirm the picture on the LCD
monitor of the digital camera through the LCD monitor window of the Case.
Note: • Use the LCD monitor to confirm your picture. The optical viewfinder
: •
Do not exert excessive force onto the lens window or the lens ring.
• Take care not to put your fingers etc. over the lens window
and the flash diffuser.
cannot be used.
E-11
Loading...
