OLYMPUS °

DIGITAL CAMERA

STYLUS TOUGH-6000/

_1 TOUGH-6000

instruction ManuaJ

_ ......

..... " econtentsofthebox

Strap LI-50B Lithium ion Battery

Digital camera

LI-50C Battery Charger

USB cable AV cable OLYMPUS Master 2 CD-ROM microSD Attachment

Other accessories not shown: instruction Manual (this mant_al), warranty card Contents may vary depending on purchase location.

.... i " Images

"Preparing the Camera" (p. 10) "Shooting,Viewing, and Erasing" (p.15)

"Four Types of Setting Operations" (p. 3)

Printing "Direct printing (PictBridge)" (p. 48)

"Print Reservations (DPOF)" (p. 51)

> Names of Parts ...................................... 6

> Preparing the Camera ......................... 10

> Shooting, Viewing, and Erasing ......... 15

> Using Shooting Modes ........................ 18

> Using Shooting Functions .................. 20

> Using Playback Features .................... 25

> Menus for Shooting Functions ........... 27

> Menus for Playback, Editing, and

Printing Functions ............................... 35

> Menus for Other Camera Settings .....40

> Printing ................................................. 48

> Using OLYMPUS Master 2................... 54

> Usage Tips ........................................... 56

> Appendix .............................................. 61

> Index ..................................................... 78

MENUbutton

ArrowpadMENU

button ......

@ button

_ There may be unavailable menus depending on the

other related settings or the selected 810N mode (p. 31).

.................................................................................... 4 Use _ to select the desired

Set the mode dial to a position other Submenu 1, and press the _ button,

than [_[1_.

Pagetab Submenu 2

_ The f._&_)symbol in "Menu _? _

Settings" (p. 27 to 47) indicates available shooting

modes.

Press the MENU button. ® This example describes how to set the @_ To quickly move to the desired submenu,

[DIGITAL ZOOM]. press _ to highlight the page tab, and then

I :_p.A;_r_ I use _!_ to move the page tab. Press _ to

i _ return to the Sub .... t.

_S ........ include sub..... that appear

Use _ to select the Submenu 2, and

Shooting mode top menu press the

button.

....................................................................... • Once a setting is adjusted, the display returns to

3 Use _ to select the desired the previous screen.

menu, and press the @ button. _!_

There

may

_ Pressing and additional operations.

holding the _ "Menu Settings" (p. 27 button displays to 47)

an explanation (menu guide) of the

selected option.

Sub..... I _-Press'the MENUbutton to comelete_the -

setting.

Shutter button (p. 15)

Zoom button (p. 20, p. 25)

[] button (exposure compensation) (p. 21)

button (macro)(p. 21)

_. button (flash) (p. 20) _) button (self-timer) (p. 22)

[_,_ [] button (playback)(p. 16)

DISR/@/'_ button (information display change/menu guide/date and time check/LED

illuminator) (p. 3, p. 13, p. 22) OR/_ button (panorama/tap control/

Shadow Adjustment Technology/multi window/

erase) (p. 17, p. 24)

button (p. 3, p. 23)

Arrow pad

®bot,oo

To set [TAP CONTROL] to [ON]

Tap the top surface of the camera twice.

• The [TAP CONTROL] settings screen displays.

2 Tap the top surface of the camera twice.

• The setting is confirmed.

Menu _nde×

Menus for Shooting Functions ......................................................................................................................................................................................................................................................................................................................................................................................................,

When the mode dial is set to a shooting mode position (_ _ SCN BEAUTY_), settings can be adjusted.

_: _, IMAGE QUALITY ......... p.27

_2 :_ CAMERA MENU

WB ............................... p.28

ISO .............................. p.28

DRIVE .......................... p.28

FINE ZOOM ................. p.29

DIGITAL ZOOM ........... p.29

ESP/[_ ....................... p.29

AF MODE .................... p.29

_ (Sound recording) .... p.3O

IMAGE STABILIZER

(Still images)/ DIS MOVIE MODE

(Movies) ................... p.30

SHADOW ADJ ............. p.30

_ SCENE MODE ............. p.31

_ _ PANORAMA ................. p.32

_b RESET ......................... p.34

_,_ SETUP

MEMORY FORMAT/

FORMAT .................. p.40

BACKUP ...................... p.40

i_'_ (Language) ........ p.40

PW ON SETUP ........... p.41

MENU COLOR ............ p.41

SOUND SETTINGS..... p.42

REC VIEW ................... p.42

Shooting mode top menu

FILE NAME .................. p.43

PIXEL MAPPING ......... p.43

[.C_,J (Monitor) ............... p.44

(Date/time) ............ p.44

DUALTIME ................... p.44

VIDEO OUT ................. p.45

POWER SAVE ............. p.46

LED ILLUMINATOR..... p.46

TAP CONTROL ........... p.46

_ SILENT MODE ............ p.47

Menus for Playback, Editing, and Printing Functions

When the mode dial is set to the [] position, settings can be adjusted.

EXIT*_

Playback mode top r_qenu

_: I_ SLIDESHOW ............... p.35

_2"2:_, PERFECT FIX ............. p.35

3_ i;_ BEAUTY FIX ................ p.35

_4 2_ EDIT

[_ (Resize) ................ p.36

4:::J"(Crop) .................... p.36

COLOR EDIT ............... p.36

CALENDAR ................. p.37

INDEX .......................... p.37

,[_. PLAYBACK MENU

O-_ (Protect) ............... p.37

_q (Rotate) ................... p.38

(Add sound to still

images) .................... p.38

_6)@ ERASE ......................... p.38

_ PRINT ORDER ............ p.39

_8 _: SETUP"

*Same as 'Menus for

Shooting Functions"

_9 _ SILENT MODE ............ p.47

ENiiiii_i_ii_i_iii_i!_!_!!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_i_i!_!_i_i_i_i_!!i!i!i!i!_!_

of Parts

........Camera unit

4 ........_%

.................

I Microphone ............................ p.30, 38

2 Multi-connector ................ p.45, 48, 54

3 Connector cover ........ p.45, 48, 54, 66

4 Strap eyelet .................................. p.lO

5 Speaker .......................................... --

6 Battery/card compartment cover

......................................... p.11, 57, 66

7 Lens ............................................. p.61

8 Self-timer lamp/LED illuminator

......................................... p.22, 31,46

9 Flash ............................................ p.20

I0 Tripod socket .................................. --

1 7

3 4

5 6

[--8 k

Y....... 9

..............1t

..........12

I ON/OFF button ............................. p.13

2 Zoom button ........................... p.20, 25

3 Monitor ......................... p.8, 15, 44, 56

4 Card access lamp ........................ p.63

5 MENU button .............................. p.3, 5

6 DISP./_/'_, button

(information display change/ menu guide/date and time check/

LED illuminator) ................. p.3, 13, 22

7 Shutter button ........................ p.15, 56

8 Mode dial ................. p.3, 5, 15, 16, 18

9 [] button (playback) ................... p.16

I0 @ button (OK/FUNC) .............. p.3, 23

II OR/'_ button (panorama/tap control/

Shadow Adjustment Technology/

multi window/erase) ............... p.!7, 24

I2 Arrowpad ............................ p.3, 4, 12

[] button

(exposure compensation) ........ p.21

_,_button (macro) .................... p.21

button (self-timer) ............... p.22

button (flash) ....................... p.20

Shooting mode display

1 234567 89 1 23 4 56 89

-10

11 11

19 18 17 16 15 14

Still image

I Shooting mode ....................... p.18, 19

2 Flash mode .................................. p.20

3 Silent mode .................................. p.47

4 Image stabilization (still images)/

Digital image stabilization (movies)

..................................................... p.3O

5 Macro/super macro/

S-macro LED mode ..................... p.21

6 Shadow Adjustment Technology... p.30

7 AF tock ......................................... p.18

8 Tap control ......................... p.4, 32, 46

9 Battery check ......................... p.10, 57

I0 Flash standby/camera shake warning/

flash charge ................................. p.56

I1 AF target mark ............................. p.15

I2 Sound record ......................... p.19, 30

19 16 15 14

Movie

I3 I4

I5 I6 I7 I8 I9 2O 21 22 23 24 25

Dual time ...................................... p.44

Number of storable still pictures/ remaining recording time

......................................... p.15, 19, 63

Current memory ........................... _.62

Self-timer ..................................... _.22

Aperture value ............................. _.15

Shutter speed .............................. _.15

Exposure compensation .............. _.21

Compression/Frame rate ............. _.27

Image size ................................... _.27

Metering ....................................... _.29

Drive ............................................ _.28

ISO ............................................... _,28

White balance .............................. ).28

Playback mode display

1 2 34 56 34 56

1514 13

stiII image

I Silent mode .................................. p.47

2 Print reservation/

number of prints ................... p.51/p.50

3 Sound record ............. p.19, 30, 38, 60

4 Protect ......................................... p.37

5 Tap control ......................... p.4, 32, 46

6 Battery check ......................... p.10, 57

7 Aperture value ............................. p.15

8 Exposure compensation .............. p.21

9 White balance .............................. p.28

14 13

Movie

I0 Image size ................................... p.27

I1 File number .................................. p.43

I2 Frame number

Elapsed time/total recording time

..................................................... p.17

I3 Current memory ........................... p.62

I4 Compression/Frame rate ............. p.27

I5 ISO ............................................... p.28

I6 Date and time ........................ p.13, 44

I7 Shutter speed .............................. p.15

the Camera

.......Attaching the camera _trap ....................

MdS Pull the strap tight so that it does not come

loose.

.........Charging the battery

_ The included battery charger (AC cable type

or plug-in type) differs depending on the region where you purchased the camera. If

you received a plug-in type battery charger, plug it directly into an AC outlet.

Example: AC cable type battery charger

Battery charger

Lithium ion battery

Battery comes partially charged. Before use, be sure to charge the battery until the

charging indicator goes off (for approx. 2 hours).

_} If the charge indicator does not light

it blinks, the battery may not be inserted correctly or the battery or the charger may

be broken.

(j_) For detaiIs on the battery and the charger,

see "Battery and charger" (p. 61).

When to charge the battery

Charge the battery when the error message

shown below appears.

Flashes in red

Monitor top right Error message

Charging indicator Lights: Charging Off: Charged

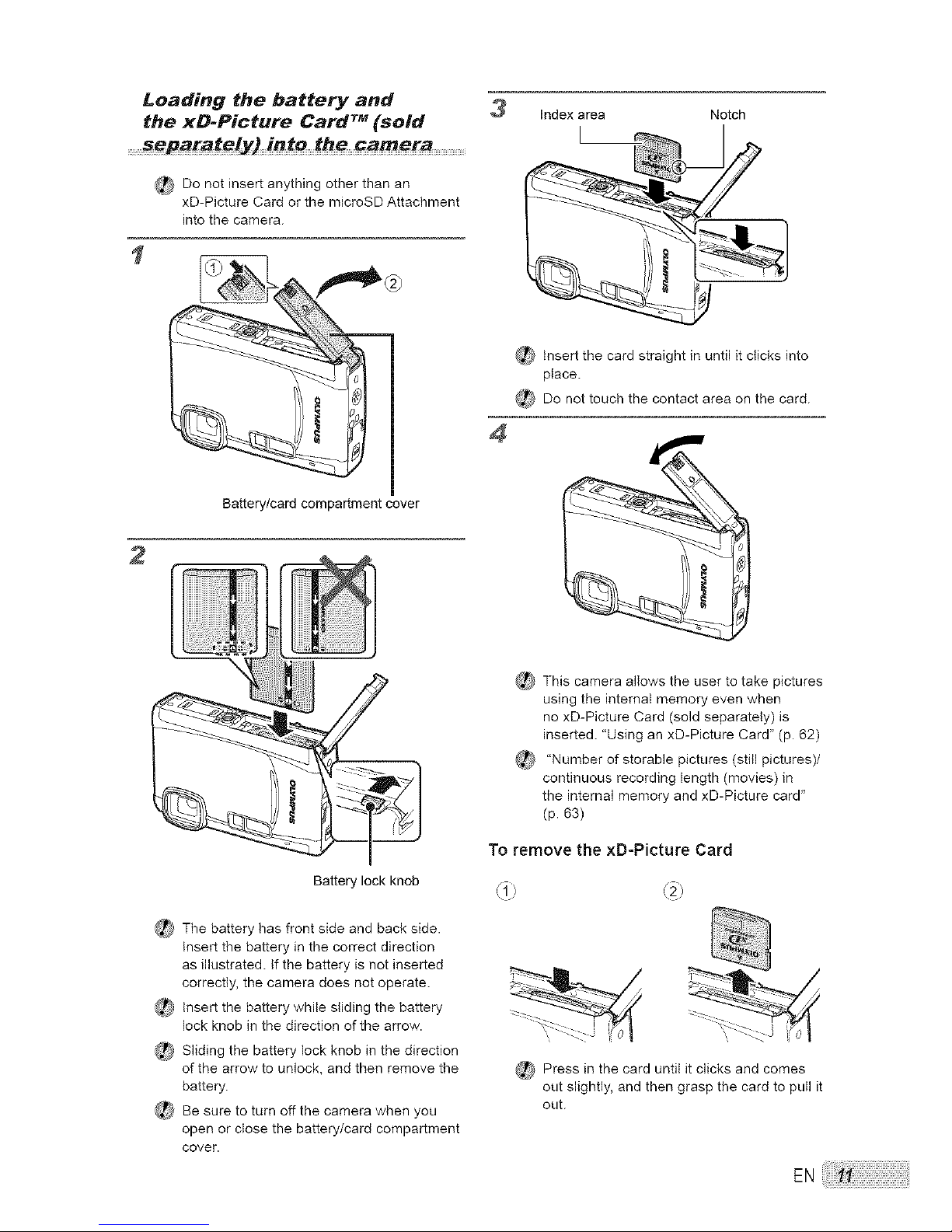

Loading the battery and

the xD-Picture Card TM (sold

3 Index area Notch

_ Do not insert anything other than an

xD-Picture Card or the microSD Attachment into the camera.

Battery/card compartment cover

Insert the card straight in until it ciicks into

_ Do not touch the contact area on the card.

Battery lock knob

_ The battery has front side and back side.

Insert the battery in the correct direction as illustrated. If the battery is not inserted

correctly, the camera does not operate.

_ Insert the battery while sliding the battery

lock knob in the direction of the arrow.

@ Sliding the battery lock knob in the direction

of the arrow to unlock, and then remove the

battery.

_ Be sure to turn off the camera when you

open or close the battery/card compartment cover.

_ This camera allows the user to take pictures

using the internat memory even when no xD-Picture Card (sold separately) is

inserted. "Using an xD-Picture Card" (p. 62)

"Number of storable pictures (still pictures)/

continuous recording length (movies) in

the internal memory and xD-Picture card"

(p. 63)

To remove the xD-Picture Card

_it_ Press in the card until it clicks and comes

out slightly, and then grasp the card to pull it out.

Using a microSD card/

microSOHC card

microSD card/microSDHC card (hereinafter referred to as "the microSD card") is also compatible with this camera by using the

microSD Attachment.

_ "Using a microSDAttachment" (p. 64)

Insert the microSD card into the

Attachment.

........Arrow pad and eperation guide

Thesymbols_q_>, _ r_E]I;]displayed

on various setting and movie playback screens indicate that arrow pad are used.

_r_l

2 Insert the microSD Attachment into

the camera,

Notch

Arrow pad

Operation guides displayed at the bottom of the screen indicate that the MENU button, _ button,

zoom button, or "_ button is used.

To remove the microSD card

(_ Pullthe microSDcard straight out. (_ Do not touchthe contact areaon the

microSDAttachment and microSD card.

Operation guide

.........Setting the date and time ............................................................

The date and time set here are saved to image file names, date prints, and other data.

Press the 0N/0FF button to turn on

the camera,

• Thedateandtimesettingscreenisdisplayed whenthedateandtimearenotset.

CANCEL*_E_

Dateand timesetting screen

2 Use _ to select the year for [Y].

CANCEL*_

3 Press _ to save the setting for [Y].

As in steps 2 and 3, use _ and the _ button to set

[M] (month), [D] (day), and [TIME] (hours and minutes), and [Y/M/D] (date order).

_ Forprecise time setting, press the _ button

asthe time signal strikes 00seconds.

_ Tochange the dateand time, adjust the

setting from the menu. [(_] (Date/time) (p.44)

To check the date and time

Press the DISR button while the camera is

turned off. The current time is displayed for approx. 3 seconds.

.........Changing the display languag_

The language for the menu and error messages displayed on the monitor is selectable.

Press the MENU button, and press _ to select [_] (SETUP).

Press the _ button.

i uP"

3 Use _ to select [_'_] and

press the _ button,

4 Use _ to select your

language and press the _ button.

5 Press the MENU button.

g, Viewing, and Erasing

Shooting with optimum

aperture value and shutter

...........speed (_ mode)

In this mode, automatic camera shooting can be used while also ailowing changes to a wide range of other shooting menu functions, such as

exposure compensation, white balance, and so on when needed.

Set the mode dial to I_.

3 Hold the camera, and compose the

shot.

i i ,

Horizontal grip

2 Press the ON/OFF button to turn on

the camera,

Number of storable still pictures (p. 63)

Monitor

(standby mode screen)

Vertical grip

4 Press the shutter button halfway

down to focus on the subject.

® When the camera focuses on the subject, the

exposure is locked (shutter speed and aperture value are displayed), and the AF target mark changes to green.

® The camera was unable to focus if the AF target

mark flashes red. Try focusing again.

_ Press the ON/OFF button again to turn off

the camera.

Press halfway

Shutter speed

Aperture value

_ "Focusing" (p. 58)

5 To take the picture, gently press

the shutter button all the way down while being careful not to shake the

camera,

Image review screen

Viewing images

Set the mode dial to r_-].

Framenumber

Press fully

To view images during shooting

Pressing the [] button enables playback of images. To return to shooting, either press

the [] button again or press the shutter

button halfway down.

_ You canoperate the camera by tapping the

bodywhen [TAPCONTROL] is [ON]. [TAPCONTROL] (p. 46)

To shoot movies

"Shooting movies (_ mode)" (p. 19)

Playback image

2 Use _ to select an image.

Displays_ _ Displaysnext

10frames before ._ | image

the current image_ I

Displays previousJ_ Displays

image 10 framesafter

the current image

_ The display sizeof the images can be

changed. "Index view,calendar view, and close-up view" (p.25)

To play back movies

Select a movie, and press the @ button.

Erasing images during

p/ayback (Sing/e image era_e)

Press the "_ button when the playback image to be erased is

displayed.

Movie

Operations during movie playback

Volume: During playback, press _.

Fast=forwardlrewind: Select with _. Each time a button is pressed, the playback

speed cycles through 2x, 20x, and standard (lx) speed in the direction of the pressed

button. Pause: Press the _ button.

During playback

on/

2 Press _ to select [YES], and press

the _ button, _ [_ ERASE] (p. 38)

Elapsed time/

Total recording time

First (last) frame/frame advance: During pause, press _ to display the first

frame, and press _ to display the last frame. Playback is reversed while _ is

pressed, playback occurs normally while is pressed. Press the _ button to resume playback.

During pause

To stop movie playback

Press the MENU button.

Shooting Modes

This section describes the available shooting modes. Depending on the mode, some settings

can be changed. For details on the functions that can be adjusted, see "Menus for Shooting

Functions" on page 27.

Using the best mode for the

............... mode)

Set the mode dial to S_;N.

• An explanation of the selected mode is displayed while the @ button is pressed and held.

Use _ to select the best shooting mode for the scene, and press the _ button.

Icon indicating

the scene mode

that is set

_P_ To change to another scene mode, use the

menu. [_ SCENE MODE] (p. 31)

To take underwater photos

Select [_ UNDERWATER SNAPSHOT], [_ UNDERWATER WIDE1],

[_2 UNDERWATER WIDE2] _, [_ UNDERWATER MACRO].

Whenset to[_2 UNDERWATERWtDE2], thefocus distanceis automaticallyfixed to approx.5.0 m(16.4ft.).

@_ Be sure to use an underwatercase when

using the camera at depths exceeding 3 m (9.8 ft.).

_} " mportant information about water and

shock resistant features" (p. 64)

To lock the focus distance for

underwater shoots (AF lock)

When [_ UNDERWATER SNAPSHOT],

[_ UNDERWATER WIDE1], or, [_ UNDERWATER MACRO] is selected,

press _

mark

_ To cancel, press _ again to clear the

mark.

Enhancing skin tone and

The camera finds a person's face and gives tile skin a smooth, translucent look for taking the

picture.

Set the mode dial to BEAUTY.

BEAUTYmode indicator

2 Point the camera toward the

subject. Check the frame appearing around the face detected by the camera, and then press the shutter button to take the picture,

• The unedited image and edited image are both saved.

• If the image cannot be retouched, only the unedited image is saved.

For some subjects, the frame may not appear, may take some time to appear, or the editing may not be effective,

_ The [IMAGE SIZE] of the retouched image

is limited to [F_I] or lower,

Shooting with automatic

..............._ttings (_ m:ode) ...........................................................

The camera will automatically select the optimal shooting mode for the scene. This is a fully automatic mode that allows you to take a picture

suited to the scene by simply pressing the shutter button. Settings in the shooting function

menu are not available in _ mode.

Set the mode dial to I:!'_'li_.

The indicator changes to the icon for the scene mode

selected by the camera.

.........ShQoting mavie_ (_ m_de)

Audio is recorded with the movie.

Set the mode dial to _).

mode indicator

To zoom while shooting a movie The optical zoom is not available while

shooting a movie.

Use [DIGITAL ZOOM] (p. 29).

To shoot a movie with digital image stabilization

[DIS MOVIE MODE] (p. 30)

Press the shutter button halfway down to focus on the subject, and gently press the button all the way down to start recording.

Lights red during shooting

• Press the shutter button helfivay down or press the DISP, button to check which shooting mode the

camera has automatically selected.

_} In some cases, the camera may not select

the desired shooting mode.

_ When the camera cannot identify which is

the optimal mode, P mode will be selected.

Press halfway

Press fully

Remaining recording time (p. 63)

Gently press the shutter button all

the way down to stop recording.

Shooting Functions

In addition to the wide variety of shooting modes,

the camera has functions that broaden the expressive range and shooting options available to the photographer.

........Using the optica! zoom ................................................

Pressing the zoom button adjusts the shooting

range.

Pressing the wide (W) Pressing the telephoto

button (T) button

Zoom bar

@_ Optical zoom: 3.6×, Digital zoom: 5.0×. _ Use of[IMAGE STABILIZER] (Still images)/

[DtS MOVIE MODE] (Movies) (p. 30) is recommended when shooting with the

telephoto zoom.

To take larger images without reducing

image quality

[FINE ZOOM] (p. 29)

To take larger images

[DIGITAL ZOOM] (p. 29)

_ The zoom bar appearance identifies the

status of the fine zoom/digital zoom.

When using _

optical zoom I_...........................................

Optical zoom range

When using _= _ _

fine zoom |LT='J

Fine zoom range

Wh .... ing _

digital zoom

I IL l_

Digital zoom range

.........Using the flas h

The flash functions can be selected to best match the shooting conditions and render the

desired image.

Press the ,_ button.

_ You can operate the camera by tapping the

body when [TAP CONTROL] is [ON]. [TAP CONTROL] (p. 46)

2 Use _ to select the setting

option, and press the _ button to set.

FLASH AUTO

REDEYE

FILLIN

FLASH OFF

The flash fires automatically in

low-light or backlight conditions.

This emits pre-flashes to reduce the occurrence of red eye in your

)hotos.

The flash fires regardless of the

available light.

The flash does not fire.

Shooting closeups (Macro shooting)

This function enables the camera to focus and shoot subjects at close distances.

Press the _ button.

_ You can operate the camera by tapping the

body when [TAP CONTROL] is [ON]. [TAP CONTROL] (p. 46)

Adjusting the brightness

.............(Exposure _ompensation)

The standard brightness (appropriate exposure) set by the camera based on the shooting mode (except for _) can be adjusted brighter or

darker to obtain a desired shot.

Press the [] button.

Exposurecompensationvalue

Use _ to select the desired brightness image, and press the

@ button.

Use _ to select the setting

option, and press the _ button to set.

Macro mode is deactivated. This enables shooting as close as

MACRO 10 cm/3.9 in._ (30 cm/11.8 in._2)to

the subject. This enables shooting as close

SUPER as 2 cm/0.8 in. to the subject. MACRO,3 Subjects at 50 cm/19.7 in. or

farther cannot be brought into focus.

The LED iliuminator lights the area

S-MACRO 7 to 20 cm (2.8 to 7.9 in.) from the LED _34 lens, while the shutter button is

pressed halfway down.

"_ When the zoom is at the widest (W) position. ,2 When the zoom is at the most telephoto (T) position. ,3 The zoom is automatically fixed. ,4 [ISO] (p. 28) is automatically fixed to [AUTO].

_ The flash (p. 20) and zoom (p. 20) cannot

be set when [e,_] or [s_] is selected.

After the shutter button is pressed all the way In a dark location, the LED illuminator can down, the picture is taken after a time delay, be used as an auxiliary light to see things or

compose shots.

Pressthe_)button,

Set [LED ILLUMINATOR] (p. 46) to

[ON].

2 Press and hold the _, button down

until the LED illuminator lights up. ®Ifyou performan operationwhentheLED

illuminatorison,itwill illuminateup to approx.90 seconds.

Use _ to select the setting option, and press the _ button to

set.

(_f_} Self-timer shooting is automatically canceled

after one shot.

To cancel the self-timer after it starts

Press the _ button again.

LED illuminator

_[_? The LED illuminator turns off if no operation

is performed for approx. 30 seconds.

_ Even when the camera's power is turned

off, if the -_ button is pressed until the LED illuminator lights up, it lights for 30 seconds.

To turn the LED illuminator off

Press and hold the "_ button down, until the LED illuminator turns off.

Changing the shooting

information disp/ay

Tile display of the screen information can be changed to best match the situation, such as

for the need of clear view of the screen or for making a precise composition by using the grid display.

Press the DISR button.

• The displayed shooting information changes in

the order shown below each time the button is pressed. "Shooting mode display" (p. 8)

Normal Histogram

.........Using the _UNC menu

The FUNC menu provides the following menu functions that can be quickly called and set.

• [WB] (p. 28) • [ESP/[_}] (p. 29)

• [ISO] (p. 28) * [{_, IMAGE QUALITY] (p. 27)

• [DRIVE] (p. 28)

Press the _ button,

No information Grid

2 Use _ to select the menu

function and _ to select the setting option, and then press the

button to set.

Reading a histogram

If the peak fills too much of the frame, the image will appear mostly white.

If the peak fills too much of the frame, the image will appear mostly black.

The green section shows the luminance distribution in the

center area of the monitor.

Quickly calling and using

shooting functions ..................................................................

The following menu functions can be quickly called and used.

• [PANORAMA] (p. 32) • [SHADOW ADJ] (p. 30)

• [TAPCONTROL](p. 46) • [MULTIWINDOW](p.24)

Press the OR/"_ button.

;ili; OR/@

Use _ to select the menu

function, and press the _ button to

set.

To use the effects preview screen

(Multi window) Selecting an option from [ZOOM],

[EXPOSURE COMP.], [WB] or [ESP/_] shows 4 preview images that reflect the adjusted values of the selected shooting

function. Use _ to select the desired

image, and press the @ button.

Brightening the monitor

Pressing and holding the OR/"_ button brightens the monitor. The monitor returns to the original brightness if no operation is performed

for 10 seconds.

24 EN

PlaybackFeat,,res

index view_ calendar view_ and

Index view and calendar view enable quick selection of a target image. Close-up view (up

to 10x magnification) allows checking of image details.

Press the zoom button.

To select an image in index view

Use _ to select an image, and press the _ button to display the selected image in single-image view.

To select images in calendar view

Use _ to select a date and press the _ button or T on the zoom button to view the images taken on the selected date.

To scroll an image in close-up view

Use _1_ to move the viewing area.

Changing the image

........information display

Shooting information displayed on the screen can be changed.

Press the DISR button.

® The displayed image information changes in

the order shown below each time the button is pressed.

Normal Histogram

Detailed No information

_} "Reading a histogram" (p. 23)

Playing back panorama

Panorama images that were combined together

using [COMBINE IN CAMERA 1]or [COMBINE

IN CAMERA 2] can be scrolled for viewing.

_ "Creating panoramic images

[_ PANORAMA]"(p. 32)

Select a panorama image during playback.

(_ "Viewing images" (p.16)

2 Press the _ button.

Current viewing area

To control panorama image playback Zoom in/Zoom out: Press the zoom button.

Playback direction: Press _ to scroll in the direction of the pressed button.

Pause: Press the _ button. Restart scrolling: Press the @ button. Stop playback: Press the MENU button.

26: EN

Menus for Shooting Functions

When the mode dial is set to a shooting mode position (l_i_ II_ 8CN BEAUTY_), settings can be adjusted.

_ @ indicates positions of the mode dial at which the function can be set. _ The default settings of the function are highlighted in

Selecting the appropriate image quality for your application [_.o. IMAGE QUALITY]

........ tALIIY ............

@ : _ !_1 ,_I_1 BEAUTY

Still images

IMAGE SIZE

COMPRESSION

5M (2560× 1920) 3M (2048× 1536)

2M (1600×1200) 1M (1280×960)

VGA (640×480)

16:9 (1920x1080) FINE

iii

Suitable for printing pictures over A3 (11× 17 in.). Suitable for printing pictures at A4 (8.5×11 in.). Suitable for printing pictures up to A4 (8.5×11 in.). Suitable for printing pictures at A5 (5×7 in.). Suitable for printing pictures at postcard size. Suitable for viewing pictures on a TV or using pictures on emails and

web sites. Suitable for playing pictures on wide screen TV.

Shooting at high quality. Shooting at normal quality.

Movies

IMAGE SIZE

FRAME RATE

VGA (640x480) / Setect the image quality based on the image size and frame rate.

H gher frame rates prov de smoother mov es.

" frames per second

_ "Number of storable pictures (still pictures)/continuous recording length (movies) in the internal

memory and xD-Picture Card" (p. 63)

Adjusting to a natural color scheme

[WB]

[:_CAMERAMENU_ WB ........ _B

: _ SeN BEAUTY_)

The camera automatically adjusts

TO the white balance according to the

shooting scene. For shooting outdoors under a

_;_" clear sky

cC5 For shooting outdoors under a

cloudy sky For shooting under tungsten

:6,_ lighting

For shooting under daylight

_i fluorescent lighting (household

lighting, etc.) For shooting under neutral

:,@"2 fluorescent lighting (desk lamps,

etc.) For shooting under white

_3 fluorescent lighting (offices, etc.)

Selecting the ISO sensitivity [ISO]

L:_CAMEBA MENU _ !SO

Abbreviation for the International Organization for Standardization. ISO

standards specify the sensitivity for digital cameras and film, thus codes such as "ISO

100" are used to represent sensitivity. In the ISO setting, although smaller values

result in less sensitivity, sharp images can be taken under fully lit conditions. Larger

values result in higher sensitivity, and images can be taken at fast shutter speeds

even under dimly lit conditions. However, high sensitivity introduces electrostatic noise

into the resulting picture, which may give it a grainy appearance.

HIGH ISO AUTO

50/100/200/400/ 800/1600

The camera automatically adjusts the sensitivity according to the shooting scene.

The camera uses a higher sensitivity compared to [AUTO) to minimize blur caused by a moving subject or by camera shake.

The ISO (sensitivity) setting is fixed by manually selecting it.

Shooting pictures sequentially while the shutter button is held down

[DRIVE]

....... _ OB!_E .......................

One frame is shot each time the shutter button is pressed.

Sequential shooting at the focus,

E_'I brightness (exposure), and white

balance that is locked in the first frame.

Sequential shooting at a higher

H_-'J_J-J speed than [E_] ].

"1The shooting speed varies depending on the

settings for [_i, IMAGE QUALITY] (p. 28).

_ When set to [1::_]], [_l] (Sound recording)

(p. 30) is not available.

_,_ When set to [a'-3_Jj],flash is set fixed [(_)]

(FLASH OFF) and [ISO] is fixed to [AUTO].

_ When set to [a'-3_J_l],[IMAGE SIZE] is limited

to [E_] or lower. Moreover, [FINE ZOOM]

(p. 29), [DIGITAL ZOOM] (p. 29), and [_] (Sound recording) (p. 30) are not available.

Shooting at higher magnifications than optical zoom without reducing the image quality [FINE ZOOM]

....... !QQM

_-_ : _ ._,CNt BEAUTY

Only optical zoom is used to zoom in for shooting.

Optical zoom and image cropping

ON are combined to zoom in for

shoot ng (Approx. 21x (max.).

_P_ This function will not reduce the image

quality since it dose not convert the data with fewer pixels into the data with larger

pixels.

_ When set to [ON], [IMAGE SIZE] is limited

to [E_] or lower. This function is not available when

[DIGITAL ZOOM] is [ON].

@_ This function is not available when

[s,_ SUPER MACRO] (p. 21) or [s_ S-MACRO LED] (p. 21)is selected.

Selecting the range for measuring the brightness [ESP/[_]

Shoots to obtain a balanced brightness over the entire screen. (Meters the brightness at the

center and surrounding areas of

the screen separately.)

Shoots the subject at the center

[_ (spot) dar ng back ght ng.

_ When set to [ESP], the center may

appear dark when shooting against strong backtighting.

Selecting the focusing area [AF MODE]

.......:_ GAMBRA MBNU _ AE MQD5 .......................................................

Shooting at higher magnifications than optical zoom [DIGITAL ZOOM]

....... FACE DETECT

: It_ _N BEAUTY_)

Only optical zoom is used to zoom in for shooting.

Optical zoom and digital zoom are

ON combined to zoom in for shooting

(Approx. 18x max..

_ This function is not available when

[FINE ZOOM] is [ON].

_F_ This function is not available when

[s,_ SUPER MACRO] (p. 21) or [s_ S-MACRO LED] (p. 21)is selected.

iESP

This is used for taking pictures of people. (The camera automatically detects a face and displays a frame on the monitor). Press the shatter button halfway, when the

camera focuses on a face the AF target mark lights green. When the

AF target mark lights orange, this indicates the camera has focused

on something other than a face. This enables you to compose the

shot without worrying about the focusing position. The camera finds the subject to focus on and automatically adjusts the focus.

The camera focuses on the subject within the AF target mark.

_ For some subjects, the frame may not appear or

may take some time to appear.

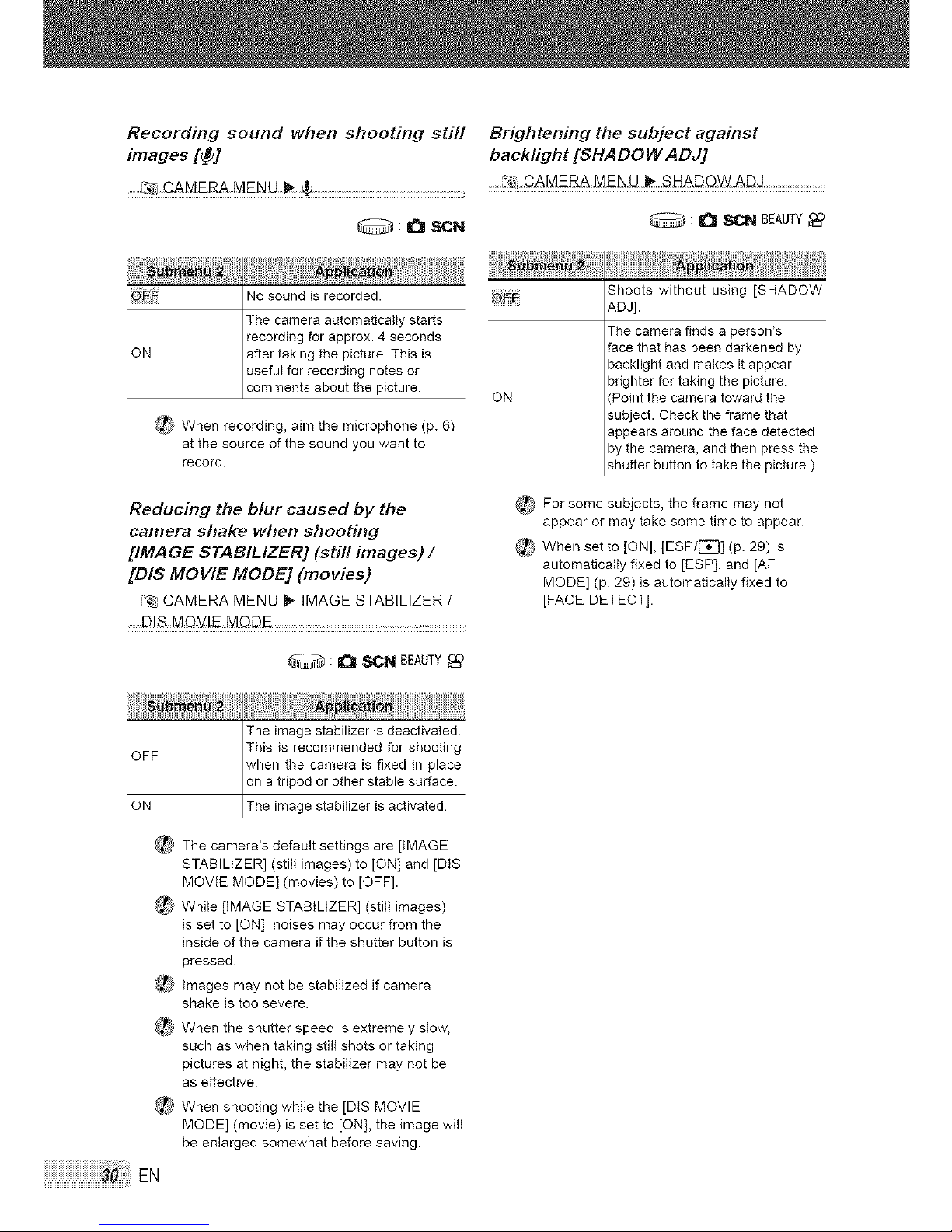

Recording sound when shooting still Brightening the subject against images [_] backlight [SHADOWADJ]

......._:_CAMEBA ........ .................................

C_ : it_ ,_:_!_1 0 : I_1 ,SeN BEAUTY

No sound is recorded.

The camera automatically starts

recording for approx. 4 seconds

ON after taking the picture. This is

useful for recording notes or comments about the p cture.

_ When recording, aim the microphone (p. 6)

at the source of the sound you want to record.

Reducing the blur caused by the

camera shake when shooting [IMAGE STABILIZER] (still images) / [DIS MOVIE MODE] (movies)

?_iCAMERA MENU _ IMAGE STABILIZER /

........DIS MQ_IE MQDE ............................

_ : _ sen BEAUTY

Shoots without using [SHADOW ADd].

The camera finds a person's face that has been darkened by backlight and makes it appear brighter for taking the picture. (Point the camera toward the subject. Check the frame that appears around the face detected by the camera, and then press the shutter button to take the picture.)

(_ For some subjects, the frame may not

appear or may take some time to appear.

When set to [ON], [ESP/E_] (p. 29) is

automatically fixed to [ESP], and [AF MODE] (p. 29) is automatically fixed to

[FACE DETECT].

OFF

® ®

The image stabilizer is deactivated. This is recommended for shooting

when the camera is fixed in place

on a tripod or other stable surface.

The mage stab zer s actvated.

The camera's default settings are [IMAGE STABILIZER] (still images) to [ON] and [DIS

MOVIE MODE] (movies) to [OFF]. While [IMAGE STABILIZER] (stilt images)

is set to [ON], noises may occur from the inside of the camera if the shutter button is

pressed. Images may not be stabilized if camera

shake is too severe. When the shutter speed is extremely stow,

such as when taking still shots or taking pictures at night, the stabilizer may not be as effective.

When shooting while the [DIS MOVIE MODE] (movie) is set to [ON], the image will

be enlarged somewhat before saving.

Selecting a scene mode according

to the shooting situation [_# SCENE MODE]

......._ SCSNE MQD5 .....

(::::_ :scN

_ In ,_01_1 mode, the optimum shooting

settings are pre-programmed for specific shooting scenes. For this reason, settings

may not be changed in some modes.

¢t

_1 LANDSCAPE/

NIGHT SCENE/

*_,_NIGHT+PORTRAITW t_ SPORT/

_ INDOOR/

CANDLEW SELF PORTAIT/

i_i SUNSET*/

FIREWORKS*/

ICUtSINE/_ DOCUMENTS/

_'_ BEACH & SNOW/

SMILE SHOT 2/

"_ UNDERWATER

SNAPSHOT/

_1 UNDERWATER WIDE1/ _,_2UNDERWATER WIDE2/

UNDERWATER MACRO/

_ PRE-CAPTURE MOVIE/

8SNOW

The camera takes a

picture in the mode

for the shooting scene.

When the subject is dark, noise reduction is automatically activated. This approximately doubles the shooting time, during which no other pictures

can be taken.

2 The focus is locked at the first frame.

To shoot with the selected mode

"Using the best mode for the shooting scene (_i_1 mode)" (p. 18)

Detecting a smiling face to release the

shutter automatically

([_SMILE SHOT) mode)

{_ Setect [_SMILE SHOT], and then aim

the camera towards the subject.

® The self-timer lamp turns on. When a smiling

face is detected, the camera automatically takes 3 sequential shots.

_ Pictures can also be taken manually by

pressing the shutter button.

_ The camera may not be able to detect a

smiling face for some subjects.

_ [IMAGE SIZE] is limited to [E_] or lower.

Capturing the perfect moment when shooting ([_PRE-CAPTURE MOVIE]

mode)

{_ Use _ to select [_PRE-CAPTURE

MOVIE], and then press the @ button to set.

® This function is ready for shooting

immediately after setting this option.

Press the shutter button to start movie shooting.

® A 7-second movie, including 2-second movie

immediately before pressing the shutter button, is taken.

• The optical zoom and auto focus function are available during movie recording.

_ Sound is not recorded. _ AF target mark does not appear on the

monitor.

(,_ Select [IMAGE SIZE] from [VGA] or [QVGA],

and setect [FRAME RATE] from [_]_3Ofps] or [_ 15fps].

Tapping the camera to shoot a picture

([_SNOW] mode) J_'Select [_SNOW], and then press the

button.

® [TAPCONTROL](p.46)automatically

becomesactiveand thecameracanbe

operatedbytapping.

(_)Tap the back of the camera body twice.

® [SELFTtMER]becomesactiveandthe picture

isautomaticallytaken after2 seconds.

Taking pictures with

[COMBINE IN CAMERA 1]

_ Press the shutter button to take the first

frame. Move the camera slightly in the direction

of the second frame.

Target mark

Creating panoramic images

[_ PANORAMA]

L_ PANORAMA

(f_: t'! SCN

Three frames are taken and

combined by the camera. The user only composes the shots

so that the target marks and

M_P.A __ pointers overlap, and the camera

.........................................automatically reteases the shutter.

The shooting functions are already

preset to the optimum settings for

)anoramic shooting.

Three frames are taken and

COMBINE IN combined by the camera. The CAMERA 2"_.2 user composes the shots using

the guide frame and manually

releases the shutter.

The frames that were taken are

combined into a panorama image using the OLYMPUS Master 2

COMBINE IN PC software from the provided CD-

ROM. Pictures are taken in the last [ISO] or [_6 SCENE MODE]

settings (except for some scene modes).

Not available in .SCN mode (p. 18).

2 The ['{_-IMAGE QUALITY] (p. 27) setting cannot be

changed.

_ The focus, exposure (p. 21), zoom position

(p. 20), and [WB] (p. 28) are locked at the first frame.

_ The flash (p. 20) is fixed to (_) (FLASH OFF)

mode.

_ Panorama images can be edited using

[SHADOW ADd] (p. 30), [COLOR EDIT] (p. 36) only.

_} "Playing back panorama images" (p. 26)

Pointer

Screen when combining

images from left to right

3> Move the camera slowly while keeping it

straight, and stop the camera where the pointer and target mark overlap.

® The camera releases the shutter

automatically.

_ To combine onty two pictures, press the

button before taking the third frame.

4_ Take the third frame in the same way as

Step 3_.

® After the third frame is taken, the camera

automatically processes the frames and the combined panorama image is displayed.

(_/_ To cancei making panoramic picture during

shooting, press the MENU button.

_ When the shutter does not automatically

release, try [COMBINE IN CAMERA 2] or [COMBINE IN PC].

Taking pictures with

[COMBINE IN CAMERA 2]

J_'Use _D to select the direction that the

frames are combined.

Direction for

combining the

next frame

Press the shutter button to take the first frame.

• A guide frame appears as a reference. Guide frame

Joint area

1stframe

,3 Compose the second shot so that the

joint area overlaps the guide frame.

Composition of the 2nd frame

4. Press the shutter button to take the second frame.

To combine onty two pictures, press the

button before taking the third frame.

5> Take the third frame in the same way as

Steps 3_ to 14_,.

• After the third frame is taken, the camera automatically processes the frames and the combined panorama image is displayed.

_ To cancei making panoramic picture during

shooting, press the MENU button.

Taking pictures with [COMBINE IN PC] £_ Use _ to select the direction that

the frames are combined.

_i Press the shutter button to take the first

frame, and then compose the second shot.

• Compose the shot using the guide frame so that the two adjacent frames overlap.

3_ Repeat Step <_) until the number of

required frames are taken, and then press the @ button when finished.

_ When the [[_1 mark is displayed, you cannot

continue shooting any further. Panorama shooting is possible for up to 10 frames.

Refer to the OLYMPUS Master 2 help guide for details on how to make panorama images.

Restoring the shooting functions to the default settings [_ RESET]

........_ BESE! ..........

_ : _ _ SCN BEAUTY

YES

Restores the following menu

functions to the default settings.

• Flash (p. 20)

• Exposure compensation (p. 21)

• Macro (p. 21)

• Self-timer (p. 22)

• [{_, IMAGE QUALITY] (p. 27)

• Menu functions in [I;_ CAMERA MENU]

(p. 28 to 30)

The current settings are not

changed.

Menus for Playback, Editing, and Printing Functions

_ The default settings of the function are highlighted in.

When the mode dial is set to the [] position, settings can be adjusted.

Playing back automatically [_ SLIDESHOW]

......._:,_SL!_ESU_ .... ....

) _ _ _/ / Selects the range of images for the slideshow, the

STILL PICTURE/ FADEw_iSLIDEW OFF/ }2 type of transition effect ([TYPE]) used between

MOVIE/ Lmages, and the background mus c BGM.

CALENDAR ZOOM Vdatd2

Only when [STILL PICTURE] is selected in Submenu 1.

2 Only when [CALENDAR] is selected in Submenu 1.

To start a slideshow After pressing the @ button to make the [BGM] settings, the slideshow starts. To stop the

slideshow, press the @ button or the MENU button.

_ [BGM] is not available when [_ SILENT MODE] (p. 47) is setto [ON].

Retouching images [L_ PERFECT FIX]

......._1_BEREEGI EIX

_ Depending on the picture, the editing may

not be effective.

_ The retouching process may lower the

image resolution.

Retouching the skin and eyes [_ BEA UTY FIX]

......._$ BEAU!Y EIX...........................................................................................................................

_ Dependingon the picture, the editing may

not be effective,

SHADOW ADJ

REDEYE FIX

[SHADOW ADJ] and [REDEYE FIX] are applied

together.

Only sections darkened by backlighting and dim lighting are brightened.

Eyes that are reddened by the

flash are corrected.

U_'Use _ to select a correction method

and press the @ button. Use _D to select an image for

retouching, and press the @ button.

®The retouchedimageissavedasaseparate

image.

CLEAR SKIN

SPARKLE EYE DRAMATIC

EYE

SOFT/AVG/ HARD

[CLEAR SKIN], [SPARKLE EYE] and [DRAMATIC EYE] are applied together.

Makes skin look smooth and translucent. Select the desired effect from

among the 3 levels. Enhances the contrast

of the eyes. Enlarges the subject's

eyes.

{_ Use _U to select a correction method,

and press the @ button. Use _ to select an image for

retouching, and press the @ button.

®Theretouchedimageissavedas aseparate

image.

When [CLEAR SKIN] is selected Changing the color tone of image

Use _ to select the retouching level, and [COLOR EDIT]

press the _ button. .............

Changing the image size [_]

Black & white This changes the image to bIack

and white. This changes the image to a

Sepia sepia tone.

This increases the color saturation

Saturation(hard) of the image.

This slightty increases the color

Saturation (soft) saturation of the image.

Sepia

BIack &

J Use _D to select an image.

Use _ to select an image size and press the @ button.

• The image with the selected size is saved as a separate image.

Cropping a picture [_ct]

.......£ED!I_ _ .................................................

:1_,Use _ to select an image, and press

the @ button. Use the zoom button to select the size of the cropping frame, and use _ to

move the frame.

Saturation

Saturation (soft)

% Use _ to select an image, and press

the @ button. Use _ to select the desired color,

and press the @ button.

• Theimagewiththeselectedcolorissavedas e separateimage.

Cropping frame

'_ Press the @ button.

• Theeditedimageis savedasa separateimage.

Adding a calendar to an image Creating an index of 9 frames from a [CALENDAR] movie [INDEX]

_, Use _ to select a movie, and press

the _ button.

::1_,Use _D to select an image, and then

press the @ button. Use _ to select a calendar, and use

_ to select the image orientation, and press the @ button.

3_Use _ to select the Year of the

calendar, and then press _.

(4j Use _ to select the Month of the

calendar, and then press the @ button.

• Theeditedimageis savedasa separateimage.

® This function extracts 9 frames from a movie

and saves them as a new picture (INDEX) containing thumbnails of each frame.

Protecting images [On]

........L_]RLAYBAGK ......................................................................

_ Protected images cannot be erased by

[ERASE] (p. 17), [SEE IMAGE], or [ALL ERASE] (p. 38), but all images are erased

by [MEMORY FORMAT]/[FORMAT](p.40).

Imagescan be erased, Imagesare protectedso that

they cannotbe erasedexcept

ON byformatting of the internal

memory/card.

_ Use _ to select an image.

Use _ to select [ON].

3_ If necessary, repeat Steps ,::1_,and ,2

to protect other images, and press the

button.

Rotating images [_] Erasing images [_ ERASE]

....... ....................... EBASE....

_ Check each picture before erasing to avoid

erasing any important pictures you may

_| +90° The image is rotated 90 ° want to keep.

clockwise.

The image is not rotated.

_90° The image is rotated 90 °

counter-clockwise.

J_'Use _D to select an image.

Use _ to select the rotation direction.

3_ If necessary, repeat Steps _ and

to adjust settings for other images, and press the @ button.

_ The new pictureorientation will be saved

evenafter the power is turned off.

Adding sound to still images [_]

The camera adds (records) sound for approx. 4 seconds while

playing back the image. This is useful for recording notes or

comments about the image.

NO No sound s recorded.

,::1_,Use _ to select an image.

Aim the microphone towards the sound source.

Microphone __

_) Use _ to select [YES], and press the

@ button.

® Recording starts.

_ When erasing pictures in the internal

memory, do not insert the card into the camera.

{_ When erasing pictures from the card, insert

a card into the camera in advance.

To individually select and erase

images [SEL, iMAGE]

_ Use _ to select [SEL. IMAGE], and

press the _ button. Use _ to select the image to be

erased, and press the _ button to add a

mark to the image.

"M_ mark

(3>Repeat Step ,2 to select the images to be

erased, and then press the "_ button to erase the selected images.

4_ Use _ to select [YES], and press the

button.

®Theimageswitha ",/" markare erased.

To erase all images [ALL ERASE] _ Use _ to select [ALL ERASE], and

press the @ button. Use _ to select [YES], and press the

button.

Saving print settings to the image data

[_ PRINT ORDER]

........_ RB!N! ORDEB ................................................................................................................................................

_} "Print Reservations (DPOF)" (p. 51) _t_ Print reservationcan onty beset for stiII

images thatare recorded to the card.

Menus for Other Camera Settings

_ The default settings of the function are highlighted in.

Erasing data completely

[MEMORY FORMAT]/[FORMAT]

_, Beforeformatting, check that no important

data is left in the internat memory or card.

_ Non-Olympus cards andcards that have

been formatted by a computer must be formatted with this camera before use.

Completely erases the image data

YES in the internal memory* or card

(including protected images).

N Cance s formatt ng.

Be sure to remove the card before formatting the internal memory.

Changing the display language [_]

........_ 8B_uR_

_; "Chang ng the display language" (p. 13)

The language for the menus and

Languages "_ error messages displayed on the

Imonitor is selected.

n The available languages vary depending on the

country and/or region where the camera was purchased.

Copying images in the internal memory

to the card [BACKUP]

Backs up image data in the

YES internal memory to the card.

Cance s the backup.

_ It takes some time to back up data. Check

that the battery has sufficient power before starting the backup, or use an AC adapter.

Setting the startup display screen and sound when the camera is turned on

[PW ONSETUP]

OFF No image is displayed.

2OFF A preset image is displayed.

SCREEN A still image stored in the internal memory or card is

registered for display. (This option leads to the setup screen.)

(N d)/

VOLUME2_s _!H GH The vo ume of the star up sound s se ected.

This image cannot be changed. 2 When [SCREEN] is set to [OFF], this setting is not available. 3 When [_ SILENT MODE] (p. 47) is set to [ON], this setting is not available.

To register a startup image

,:1_,Select [2] in Submenu 3 for [SCREEN], and press the @ button.

Use _ to select the image to be registered, and press the @ button.

Selecting the menu screen color and background [MENU COLOR]

......._sE_u_ .............................................................................................

N _ COLOR 1/ Selects the menu screen color or background image according to your preference. COLOR 2/COLOR 3

Selecting the camera sound and its volume [SOUND SETTINGS]

BEEP

SHUTTER SOUND

O_]VOLUME

SOUND TYPE

VOLUME SOUND TYPE

VOLUME

OFF (No sound)/

OFF (No sound)/ _iOW/HIGH

_2 OFF (No sound)/

_!HIGH 1/2/3

OFF (No sound)/ _!HIGH

iiiii_iiiiii_i@i@iiiiiii_iiiiii@i_i@_i_!iii!_iiiiiiiHiliiiiii_ii@iiiiiiiiiiii_

Selects the operating sound and volume of the camera buttons (except the shutter button).

Selects the type and volume of the shatter sound.

-- Adjusts the warning sound volume.

-- Adjusts the image playback volume.

_ To turn off all sounds at once, adjust the setting from [_ SILENT MODE] (p. 47).

Viewing the image immediately after shooting [REC VIEW]

....... vtEw .... ...... ...... :

_i_iiilli!i_ii! !i,!,!,!,:ili:iiii!!,!,!,,,L£!,,,,,_:!,,iS! _iiii!i!,,,,,,,,,,,J!',,i!!!!:!L,,_i,iiii_,_!..........ii,L:!,,,L! L:L::ii£ i,,l,,:i!__......

The image being recorded is not displayed. This allows the user to prepare for the next

OFF shot while following the subject in the monitor after shooting.

The image being recorded is displayed. This allows the user to briefly check the image

O:i'4 that was ust taken.

Even when set to [ON], you can resume shooting while the image is being displayed.

Resetting the file name numbers of Adjusting the CCD and the image

pictures [FILE NAME] processing function

........ [PIXEL MAPPING]

Folder name

DCIM

Folder name File name


.jPg

Automatic Automatic numbering numbering

-- Month: 1 to C (A=October,

B=November, C=December)

......._,_8BIUB _ B!XSLMABB!NG................................................................

_ This function has already been adjusted

at factory shipping, and no adjustment is needed right after purchase. Approximately

once a year is recommended,

_ For best results, wait at least one minute

after taking or viewing pictures before performing pixel mapping. If the camera is

turned off during pixel mapping, be sure to

perform it again.

To adjust the CCD and the image

processing function Press the _ button when [START]

(Submenu 2) is displayed.

• ThecamerachecksandadjuststheCCD andthe imageprocessingfunctionatthe sametime.

Day: 01 to 31

AUTO

This resets the sequential number for the folder name and file name

whenever a new card is inserted. _1 This is useful when grouping

images on separate cards. Even when a new card is inserted,

this continues the numbering for the folder name and file name from

the previous card. This is useful for

managing all image folder names and files names with sequential

numbers.

The number for the folder name is reset to 100, and the one for the file name is reset to 0001.

Adjusting the brightness of the monitor Setting the date and time for another [I..l_J] time zone [DUAL TIME]

To adjust the monitor brightness

J_,Use _1_ to adjust the brightness while

viewing the screen, and then press the

button,

_[_ By setting [DUALTIME] to [ON] and setting

the date and time, the set date and time is

reflected in the image file names, date prints and so on.

.........................................Switches to the date and

-- time set in [(_::)] (Date/ time). Switches to the date

(Proceeds and time that were set in

to the [DUALTIME] when using setting

screen.L) the camera in another

time zone.

Setting the date and time [_:)]

_ "Setting the date and time" (p. 13)

_ The setting procedure is identical to that in "Setting

the date and time" (p. 13).

_ The date display order is the same as that

set with [_].

To select the date and time display

order J_,Press _ after setting "Minute", and use

_ to setect the date display order.

Date orde_

I CANCEL*_ SET*_

Selecting the video signal system to match your TV [VIDEO OUT]

_) The TV video signal system varies depending on the countries and regions. Before viewing camera

images on your TV, select the video output according to your TV's video signal type.

NTSC Connecting the camera to a TV in North America, Taiwan, Korea, Japan, and so on PAL Connecting the camera to a TV in European countries, China, and so on

_ The factory defaultsettings differaccording tothe region where the camera is sold. To play back camera images on a TV

d_,Connect the TV and camera.

.......

audio input jack (white).

AV cable (supplied)

Connector cover

Use the camera to select the same video signal system as the one of connected TV ([NTSC]/ [PAL]).

3j Turn on the TV, and change "INPUT" to "VIDEO (an input jack connected to the camera)."

Fordetails on changing the inputsource of the TV,refer to the TV's instruction manual.

4j Set the mode dial to [_, and use _ to select the image for playback.

_ Dependingon the TV's settings, the displayed images and information maybecome cropped.

Saving battery power between shots Using the LED illuminator as an

[POWER SAVE] auxiliary light [LED ILLUMINATOR]

......... .....................LEO !LLUM!NATOe ..........

Cancels [POWER SAVE].

When the camera is not being

used for approx. 10 seconds, the

ON monitor automatically turns off to

save battery power.

Disables the LED illuminator. Enables the LED illuminator.

_) "Using the LED illuminator" (p. 22)

To resume standby mode

Press any button or turn the mode dial.

Operating the camera by tapping the body [TAP CONTROL]

......._ SE_UR _ TAR GON!BOL ....

Cancels [TAP CONTROL].

ON [TAP CONTROL] is activated.

Adjusts the tap strength and intervals between multiple taps on each side of the camera

CALIBRATE body. top, eft, rght, & back

Functions available when [TAP CONTROL] is set to [ON]

Camera's top [TOP]: Tap twice

• Confirms the selected menu.

• Switches [TAP CONTROL] to [ON] or [OFF]. (p. 4)

Camera's left sideTap[LEFT]:onceI_

Sets the macro mode. (p. 21)

Camera's back [BACK]: Tap once Switches to playback mode. (p. 47)

_11 Camera's right side [RIGHT]: Tap once

Sets the flash mode. (p. 20)

Operating during shooting mode (Example: Flash mode) j_, Tap the right side of the camera body once.

®Theflash modeselectionscreenis displayed.

Tap the right or left side of the camera body to select a function.

3_ Tap the top of the camera body twice to confirm your

selection.

_ Tap the camera firmly using the pad of your finger. _ When the camera is stabilized on a tripod for example, tap control

may not work properly.

_ To prevent dropping the camera when using tap control, strap the

camera to your wrist.

Operating during playback mode

When switched to playback mode by tapping the back of the

camera body once, the operations below can be used.

Display next image: Tap the right side of the camera once. Display previous image: Tap the left side of the camera

once.

When tapping the camera's top

Start slideshow: Tap the top surface of the camera twice. (The slideshow will automatically start for all images stored in internal memory or on the card, with [BGM] set to [OFF].)

Display next image daring a slideshow: Tilt the camera right or tap the right side of the camera once.

Display previous image during a slideshow: Tap the left side of the camera once. Stop slideshow: Tap the top surface of the camera twice.

Return to the shooting mode: Tap the back side of the camera once.

To adjust the tap control

j_, Select [CALIBRATE] in Submenu 2 and press the @ button.

Select the part to adjust with _ and press the @ button. Select the [STR] setting with _1_ and press the _ button.

(4/Select the [INTVL] setting with _ and press the @ button.

_ Check the operation of the camera by tapping on the camera after making

the settings.

Turning off the camera sounds [_ SILENT MODE]

Activates the [SOUND SETTINGS] setting.

ON The electronic sounds (operating sound, shutter sound, warning sound) and playback

sounds are muted.

_ [SOUND SETTINGS] (p. 42)

By connecting the camera to a PictBridge-

compatible printer, you can print images directly without using a computer. To find out if your printer supports PictBridge, refer to the printer's instruction manual.

• PictBridge is a standard for connecting digital cameras and printers of different makers and printing out pictures directly.

The printing modes, paper sizes, and other parameters that can be set with the camera

vary depending on the printer that is used. For details, refer to the printer's instruction

manuat.

_} For details on the available paper types,

loading paper, and installing ink cassettes, refer to the printer's instruction manual.

Printing images at the printer's standard settings

........[EAS Y PR IN T] ...........................................................................................................................................................................................................

Display the image to be printed on

the monitor, _ "Viewing images" (p. 16)

_ Printing can also be started when the

camera is turned off. After performing Step 2, use _U to select [EASY PRINT], press

the _ button. Use _ to select an image, and press the _ button.

2 Turn on the printer, and then

connect the printer and camera.

)_}bu_on_

3 Press _ to start printing.

4 To print another image, use _

to select an image, and press the

button.

To exit printing After a selected image is displayed on the

screen, disconnect the USB cable from the camera and printer.

Changing the printer's settings

fo_ printing [CUSTOM PRINT]

Follow Steps I and 2 for [EASY PRINT] (p. 48), then press the

button.

4 Use _ to select [SIZE]

(Submenu 3), and press _.

_} If the [PRINTPAPER] screen is not

displayed, the [SIZE], [BORDERLESS], and [PICS/SHEET] are set to the printer's

standard.

2 Use _ to select [CUSTOM

PRINT], and press the _ button.

3 Use _ to select the print mode,

and press the _ button.

ALL PRINT

MULTI PRINT

ALL INDEX

PRINT ORDER "1

This prints the image selected in

Step 6.

This prints all images stored in the

internal memory or card.

This prints one image in a multiple

layout format.

This prints an index of all images

stored in the internal memory or card.

This prints images based on the

)rint reservation data on the card.

[PRINT ORDER] is available only when print reservations have been made. "Print Reservations

(DPOF)" (p. 51)

5 Use _ to select the

[BORDERLESS] or [PICS/SHEET]

settings, and press the _ button.

The image is printed with a border around it ([OFF]).

OFF/ON'_ The image is printed to fill the

entire paper ([ON]). (The number of The number of images per sheet images per sheet ([PICS/SHEET]) is seiectable only varies depending when [MULTI PRINT] is selected

on the printer.) n Step 3.

"_ The available settings for [BORDERLESS] vary

depending on the printer.

_} If [STANDARD] is selected in Steps 4 and 5,

the image is printed at the printer's standard

settings.

6 Use _ to select an image.

7 Press _ to make a [SINGLEPRINT]

reservation for the current image. Press _ if you wish to adjust detailed printer settings for the current image.

To adjust detailed printer settings

,::1_.Use _D to adjust the detailed

printer settings, and press the _ button.

DATE

FILE NAME

To crop an image [-F_] {b Use the zoom button to select the size

of the cropping frame, use _1_ to move the frame, and then press the

button.

Cropping

frame

<2 Use _ to select [OK], and press the

button.

WITH/

WITH/ _i_6

(Proceeds to the

setting screen.)

This selects the number of prints.

Selecting [WITH] prints the images with the date. Selecting [WITHOUT] prints the images without

the date.

Selecting [WITH] prints the

file name on the image.

Selecting [WITHOUT] does not print any file name on

the image.

This selects a portion of the image for printing.

If necessary, repeat Steps 6 and 7

to select the image to be printed,

make the detailed settings, and set [SINGLEPRINT].

Press the _ button.

_OUse _ to select [PRINT], and

the _ button,press

• Printing starts.

• When [OPTION SET] is selected in [ALL PRINT] mode, [PRINT INFO] screen is displayed.

• When printing is finished, the [PRINT MODE SELECT] screen is displayed.

To cancel printing

J_,Press the _ button while

[TRANSFERRING] is displayed. Use _ to select [CANCEL], then press

the _ button.

_ Press the MENU button.

_2When the message [REMOVE USB

CABLE] is displayed, disconnect

the USB cable from the camera and

printer.

In print reservations, the number of prints and date imprint option are saved in the image on

the card. This enables easy printing at a printer or print shop supporting DPOF by using only the print reservations on the card without a computer

or a camera.

*_ DPOF is a standard for storing automatic printout

information from digital cameras.

Print reservations can be set only for the images stored on the card. Insert a card

with recorded images before making print

reservations.

_} DPOF reservations set by another DPOF

device cannot be changed by this camera. Make changes using the original device. Making new DPOF reservations with this

camera will erase the reservations made by

the other device.

_ DPOF print reservations can be made for up

to 999 images per card.

Single=frame print

reservations [_] ...........................................................................

Set the mode dial to [_7, and then

press the MENU button to display

the top menu.

2 Use _ to select [_ PRINT

ORDER], and press the _ button.

3 Use _ to select [_]_], and press

the _ button.

4 Use _ to select the image for

print reservation. Use _ to select the quantity. Press the _ button.

5 Use _ to select the [(_] (date

print) screen option, and press the

button.

NO This prints the image only.

This prints the image with the

DATE shooting date.

This prints the image with the

TIME shoot ng time.

Reserving one print each of all

Follow Steps I and 2 in [r[_] (p. 51).

2 Use _ to select [_L], and press

the _ button.

3 Follow Steps 5 to 6 in [r[_].

Resetting all print reservation

Set the mode dial to [_, and then press the MENU button to display

the top menu.

Use _ to select [_/_ PRINT ORDER], and press the _ button.

3 Select either [r[_] or [_[._L],and press

the _ button.

8AcK_ SET*_

Use _ to select [RESET], and press the _ button.

6 Use _ to select [SET], and press

the _ button.

Resetting the print reservation

Follow Steps 1 and 2 of "Resetting all print reservation data" (p. 52).

2 Use _ to select [r[_], and press

the _ button.

3 Use _ to select [KEEP] and

press the _ button.

4 Use _ to select the image with

the print reservation you want to

cancei. Use _ to set the print quantity to "0".

5 If necessary, repeat Step 4, and then

press the _ button when finished.

6 Use _ to select the [(_] (date

print) screen option, and press the

button.

• Thesettingsareappliedtothe remainingimages withthe printreservationdata.

7 Use _ to select [SET], and press

the _ button,

OLYMPUS Master 2

System requirements and installation of OLYMPUS

Master 2 ............................

Install the OLYMPUS Master 2 software by referring to the included installation guide.

Connecting the camera to a

computer

m Make sure the camera is turned off,

• The monitor is off.

2 Connect the camera to a computer.

• The camera automatically turns on.

_ r Multi-connector

USE cable (supplied)_

__..,.. _.[_ Connector cover

_ Locate the position of the USB port by

referring to your computer's instructions manual.

3 Use _ to select [PC], and press

the @ button.

• The computer automatically detects the camera as a new device on the first connection.

Windows After the computer detects the camera, a

message indicating the completion of the setting appears. Confirm the message and click "OK". The camera is recognized as a

removable disk.

Macintosh When iPhoto started, exit iPhoto and start

OLYMPUS Master 2.

_ While the camera is connected to the

computer, shooting functions are disabled.

_ Connecting the camera to a computer via a

USB hub may cause unstable operation.

_ When [MTP] is set for the submenu that

appears by pressing _ after selecting [PC] in Step 3, images cannot be transferred to a computer using OLYMPUS Master 2.

........8tarting OLYMPUS Maste_ 2

Double=click the OLYMPUS Master 2 icon.

Windows

app ...... the desktop.

Macintosh

"_ appears in the OLYMPUS Master 2 folder.

® Browse window appears after starting the

software.

_ When you start OLYMPUS Master 2 for the

first time after installation, "Default Settings"

and "Registration" screens appear. Follow

the instructions on the screen.

YMPUS Master 2

When OLYMPUS Master 2 is started, Quick

Start Guide appears on the screen that helps you to handle the camera without any

question. When the Quick Start Guide is not displayed, click _ in the toolbar to show

the Guide.

For details on the operation, refer to the help

guide of the software.

Transferring and saving

images without using

OLYMPUS Master 2 .......................................................................

This cameraiscompatible with tile USB Mass

StorageClass, You can transfer and save the imagedata on your computerwhile the camera andthe computer are connected,

System requirements

Windows : Windows 2000 Professional/

XP Home Edition/ XP Professional/Vista

Macintosh : Mac OS X v10.3 or later

On a computer running Windows Vista, if [MTP] is set for the submenu that appears

by pressing _ after selecting [PC] in Step 3 of "Connecting the camera to a computer"

(p. 54), Windows Photo Gallery will become available.

_i_ Even if a computer has USB ports, proper

operation is not guaranteed in the following cases.

® Computers with USB ports installed using an

expansion card, etc.

® Computers without a factory-installed OS and

home-built computers

If the camera does not work as intended, or if

an error message is displayed on the screen, and you are unsure of what to do, refer to the

information below to fix the problem(s).

...................TroubleshQoting .................................................................................................................................................................................

Sattery : :: :::

"The camera does not work e_e_:;W_n battery is installed"

• Insert recharged battery in the correci di}ecti_.

"Charging the battery" (p. 10), _i_g ihe _a_ery and the xa-Picture Card TM (sold se_raieiyt i_to the camera" (p. I1)

• Battery performance may have been reduced temporarily due to low temperature. Take the battery out of the camera, and warm it by putting it in your pocket for a while•

Card/Internal memory

"An error message is displayed"

"Error message" (p. 57)

Shutter button

"No picture is taken when the shutt_ button is pressed" ;

• Cancel sleep mode. To save battery power, the camera automatically

goes into sleep mode and the monitor turns off if there is no operation after 3 minutes When the camera is turned on. No picture is taken even if the shutter button is fully pressed in this mode• Operate the zoom button or other buttons to restore the camera from sleep mode before taking a picture• If the camera is left for f 5 minutes, it automatically turns off. Press the ON/OFF button to

turn on the camera•

® Set the mode dial to a position other than []_j. ® Wait until _.(flash charge) stops blinking before

taking pictures•

/i11:_¸:e x ....................

Monitor

"Difficult to see" ® Condensation *_may have formed. Turn offthe

p.......dwaitforth....... _dytob.....

acclimated to th........ ding temperat ...... d dr_

out before taking pictures.

• Dew drops can form in the camer_ whe:_ !t is suddenly taken from a cold location into a _l'm

humid room.

"Vertical lines appear on the screen" ® Vertical lines may appear on the screen at

times such as when the camera is pointed at an extremely bright subject under a clear sky. The lines do not appear, however, in the final image.

"The light is caught in the picture" ® Shooting with flash in dark situations results in

an image with many flash reflections on dust in the air.

Date and time function

default setting"

® If the battery is removed an_ ieff:ou{ of the camera

for about 1 day.2,the date and time settings return to the default setting and must be reset•

•2 The time until the date and time settings return to the default setting varies depending on how long the battery have been loaded.

"Setting the date and time" (p. I3)

Others

"Noises occur from the inside of the

camera in shooting standby mode"

® Auto focusing operation may cause lens

movement noises even if you do not make any camera operation.

Error message

_P_ When one of the messages below is

displayed on the monitor, check the corrective action.

CARD ERROR

WRITE

PROTECT

MEMORY FULL

CARD FULL

sF0_

_F_LOK

{::3

NO PICTURE


ERROR

Card problem

Insert a new card. Card problem

Use a computer to cancel the read-only setting.

Internal memory problem

• Insert a card.

• Erase unwanted images/_ Card problem

• Replace the card.

• Erase unwanted images/_ Card problem

• Use _} to select [CLEAN CARD], and press the

button. Take out the card, wipe the contact area (p. 62) with a soft, dry cloth, and then load the card again.

• Use _} to select [FORMAT], and press the _ button. Next, use _.j_} to select [YES], and press the _ button/2

Internal memory problem Use _} to select [MEMORY

FORMAT], and press the

button. Next, use _ to

select [YES], and press the

button. 2

Internal memory/Card problem

Take pictures before viewing them.

Problem with selected image Use photo retouch software,

etc. to view the image on a computer. If the image stitl cannot be viewed, the image file

is corrupted.

Problem with selected image

THE iMAGE

CANNOT Use photo retouch software, etc.

BE EDITED to edit the image on a computer.

Operation problem Close the battery/card

CARD-COVER compartment cover.

OPEN

=[ZZJ

BATTERY Battery problem

EMPTY Charge the battery.

[_X Connection problem

Connect the camera and

NO computer or printer correctly.

CONNECTION

Printer problem

Load paper into tile printer.

NO PAPER

Printer problem

Refill the ink in the printer.

NO INK

,/'_ Printer problem

Remove the jammed paper.

JAMMED

SETTINGS Printer problem

Return to the status where the

CHANGED _

printer can be used.

Printer problem

r_ Turn off the camera and printer,check the printer for any

PRINT ERROR problems, and then turn the

power on again.

Problem with selected image

CANNOT PRINT .4 Use a computer to pdnt.

_ Before erasing important images, download them to

a computer.

_2All data will be erased. ,s This is displayed, for instance, when the pdnte(s

paper tray has been removed. Do not operate the printer while making the print settings on the camera.

_4This camera may be unable to print images taken by

other cameras.

.....ShQoting tips ............................................................................................................

When you are unsure of how to take a picture that you envision, refer to the information below.

Focusing

"Focusing on the subject"

• Taking a picture of a subject not in the center of the screen

After focusing on an object at the same distance as the subject, compose the shot, and take the picture.

Pressing the shutter button halfway (p. 15) AF lock (p. 18)

• Set [AF MODE] (p. 29) to [iESP]

• Taking a picture of subjects where autefocus is difficult

In the following cases, after focusing on an object (by pressing the shutter button halfway down) with high contrast at the same distance as the subject, compose the shot, and take the picture.

Subjects with low contrast

When extremely bright objects r, _-I

appear in the center of the _'_!i_,kz4"--__-,__._?_ t

...... _ F [-1_i[,'_' : _' 1

_ ...._ 1

When objects are at different

distances

Fast-moving object

The subject is not in the

center of the frame

Object with no vertical lines "_

It is also effective to compose the shot by holding the camera vertically to focus, and then returning to the horizontal position to take the picture.

"Taking pictures (or movies) without

camera shake _

• Taking pictures using [IMAGE STABILIZER]

(p. 30) When a picture istaken of a shadowy subject, the

CCD "_shifts to correct for camera shake even if the ISO speed is not increased. This function is

a{so effective when taking pictures at a high zoom magnification.

A device that takes light received through the

lens and converts it into electric signals.

• Shooting movies using [DIS MOVIE MODE] (p. 3O)

• Taking picture with [.t_ SPORT] (p. 31) Since you can take pictures with a high shutter

speed by setting [¢_ SPORT], it's also effective for blurry subjects.

• Taking pictures at a high ]SO sensitivity If a high ISO sensitivity is selected, pictures can

be taken at a high shutter speed even at locations where a flash cannot be used.

[ISO] (p. 28)

"Taking pictures with the right brightness"

• Taking pictures of a subject against a backlight

A face against the backlight is brightened.

[SHADOW ADJ] (p. 30)

• Taking pictures using [FACE DETECT] for [AF MODE] (p. 29)

Appropriate exposure is obtained for a face against the backiight, and the face is brightened.

• Taking pictures using [[j_] for [ESP![][[}] (p. 29) The picture can be taken based on the brightness

at the center of the monitor, so it's not affected by the light in the background.

• Taking pictures using [FILL IN] (p. 21) flash

A subject against a backlight is brightened.

• Taking pictures of a white beach or snow scene

Set the mode to [_ BEACH & SNOW], [8 SNOW] (p. 31)

® Taking pictures using exposure compensation

(p. 21) Adjust the brightness while viewing the screen

for taking the picture. Normally, taking pictures of white subjects (such as snow) results in images that are darker than the actual subject. Use the

[] button to adjust in the positive (+) direction

to express whites as they appear. When taking pictures of black subjects, on the other hand, it is effective to adjust in the negative (-) direction.

Color hue

"Taking pictures with colors at the same

shade as they appear"

® Taking pictures by selecting [WB] (p. 28)

Best results in most environments can normally be obtained with the AUTO setting, but for some subjects, you should try experimenting with different settings. (This is especially true for sunshade under a clear sky, mixed natural and artificial light settings, and so on.)

"Taking sharper pictures" ® Taking pictures with the optical zoom

Avoid using [DIGITAL ZOOM] (p. 29) to take pictures.

® Taking pictures at a low ISO sensitivity

If the picture is taken with a high ISO sensitivity, noise (small colored spots and color unevenness that were not in the original image) can occur, and the image can appear grainy.

[ISO] (p. 28)

"Taking pictures so that the frames are

stitched smoothly"

® A tip for panoramic shooting

Taking pictures by pivoting with the camera at the center prevents shifting of the image. When taking pictures of close objects in particular, pivoting with the lens end at the center produces favorable

results. [_-_PANORAMA] (p. 32)

"Makingbattery last longer"

• Avoid performing the following operations as much as possible as they use up battery power even if no pictures are actually taken

® Repeatedly pressing the shutter button

halfway.

• Repeatedly using the zoom.

• Set [POWER SAVE] (p. 46) to [ON]

"Viewing images in the internal memory

and card"

• Remove the card when viewing pictures in the internal memory.

® "Loading the battery and the xD-Picture

card TM (sold separately) into the camera"

(p. 11)

• "Using the microSD card/microSDHC card (sold separately)" (p. 12)

"Erasing the sound recorded to a still image"

• Record over the sound with silence when playing back the image

[_] (Add sound to still images) (p. 38)

........Camera Gate ........Battery and charger

Exterior

• Wipe gently with a soft cloth. If the camera is

very dirty, soak the cloth in mild soapy water and wring well. Wipe the camera with the

damp cloth and then dry it with a dry cloth. If you have used the camera at the beach, use a cloth soaked in clean water and wrung well.

• If any dirt, dust, sand, or other foreign material adheres to the periphery of the lens cover

after use, or the lens cover does not move smoothly, wash the camera using the method

described on P. 65.

Monitor

• Wipe gently with a soft cloth.

Lens

• Blow dust off the lens with a commercial

blower, then wipe gently with a lens cleaner.

Battery/Charger

• Wipe gently with a soft, dry cloth.

_ Do not use strong solvents such as benzene

or alcohol, or chemically treated cloth.

@_/ Mold may form on the lens surface if the

lens is left dirty.

• When storing the camera for extended periods, remove the battery, AC adapter and card, and keep in a cool, dry place that is well

ventilated. Periodically insert the battery and test the

camera functions.

_ Avoid leaving the camera in places where

chemical products are handled since this may result in corrosion.

This camera uses one Olympus lithium ion battery (LI-50B). No other type of batteries can be used.

_P_ Caution:

There is a risk of explosion ifthe battery is replacedwith the incorrectbattery type.

Dispose of the used battery following the instructions.(p. 69)

• Power consumption by the camera varies depending on which functions are used.

• During the conditions described below, power is consumed continuously and the battery becomes exhausted quickly.

The zoom is used repeatedly. The shutter button is pressed halfway

repeatedly in shooting mode, activating the

auto focus.

• A picture is displayed on the monitor for an

extended period of time. The camera is connected to a computer or

printer. Using an exhausted battery may cause the camera to turn off without displaying the

battery level warning.

• The rechargeable battery is not fully charged at the time of purchase. Charge the battery fully with the LI-50C charger before use.

• The provided rechargeable battery usually takes approximately 2 hours to charge (varies

on usage).

• The supplied LI-50C battery charger is used only for LI-50B battery. Do not charge other type of battery with the supplied battery

charger. It might cause explosion, leaking, overheating or fire.

• For plug-in type battery charger: This power unit is intended to be correctly orientated in a vertical or floor mount position.

......... adapter ...............................................................

An AC adapter is useful for time-consuming tasks such as image downloads to a computer

or when running a slideshow for a long period of time. To use an AC adapter for this camera, the multi-adapter (CB-MAl/accessory) is required.

Do not use any other AC adapter with this

camera.

Using your charger and AC

• The charger and AC adapter can be used in most home electrical sources within the range

of 100 V to 240 V AC (50/6OHz) around the world. However, depending on the country or area you are in, theAC wall outlet may be shaped differently and the charger and AC adapter may require a plug adapter to match

the wall outlet. For details, ask at your local electrical shop or travel agent.

• Do not use travel voltage converters as they could damage your charger and AC adapter.

.........UsinganxD-PictureCard

A card (and internal memory) also corresponds to the film that records images in a film camera.

Otherwise, the recorded images (data) can be erased, and retouching is also available with the use of a computer. Cards can be removed from the camera and exchanged, but this is not possible with the internal memory. Use of

larger capacity cards enables you to take more pictures.

Index area

(Notes can be filled in

here)

Cards compatible with this camera

xD-Picture Card (16MB to 2GB)

(TypeH/M/M+, Standard)

Using a new card

Before using a non-Olympus card or a card that was used for another purpose in a computer or other device, use [MEMORY

FORMAT]/[FORMAT] (p. 40) to format the card.

Checking the image saving location

The memory indicator shows whether the

internal memory or card is being used during shooting and playback.

Current memory indicator

_: Internal memory is being used

None: Card is being used

Current memory

indicator

Shooting mode

Even if [MEMORY FORMAT]/[FORMAT], [ERASE], [SEE IMAGE], or [ALL ERASE]

is performed, the data in the card is not completely erased. When disposing of

the card, damage the card to prevent the

disclosure of personat data.

Contact area

(Contact section of the

card with the internal

camera terminal)

_) Do not touch the contact area directly.

62 EN

Readout/recording process of the card

Never open the battery/card compartment cover or unplug the USB cable while the camera is reading or writing data, which is indicated by blinking of the card access

tamp. This can not only damage the image data but also render the internal memory or

card unusable.

Card access lamp

Number of storable pictures (still pictures)/continuous recording length (movies) in the internal memory and xD=Picture Card

Still pictures

F_E 6 8 204 205

IT_ 3648×2736

N_M 16 16 399 404 F_E 16 17 404 410

2560×1920

N_M 34 35 820 841 F_E 25 26 615 627

I_ 2048×1536

N_M 52 54 1254 1305 F_E 43 44 1031 1066

I_ 1600×1200

N_M 81 86 1938 2063

F_E 65 68 1560 1640

E_ 1280x960

N_M 121 134 2907 3198

F_E 206 243 4920 5815

640×480

N_M 335 446 7996 10661

F_E 40 41 954 984

1920×1080

N_M 76 81 1827 1938

Movies

640×480

320×240

i::::Co_i _,. }

23 sec. 46 sec. 55 sec.

1 min. 49 sec.

9min. 21 sec.* 18min. 37 sec.

22 min. 3 sec.

43min. 37 sec.

_ The maximum file size of a single movie is 2 GB, regardless of the capacity of the card.

*The maximum length is 10 seconds when using a TypeM or Standard xD-Picture Card.

Increasing the number of pictures that

can be taken

Either erase unwanted imagos, or connect

the camera to a computer or other device to

save the imagos, and then erase the images in the internal memory or card. [ERASE] (p. 17), [SEL. IMAGE] (p. 38),

[ALL ERASE] (p. 38), [MEMORY FORMAT]/ [FORMAT] (p. 40)

.........Using a microSD A#a_#me_t

_t_ Do not use the attachment with Olympus

digital cameras that do not support this microSD Attachment, as well as with other

brands of digital cameras, computers, printers, and other devices that support

xD-Picture Card. Doing so not only may damage the pictures taken, but may also

result in the malfunction of the device.

_ If the microSD card cannot be removed,

do not use force. Contact authorized distributors/service centers.

Cards compatible with this camera

microSD card/microSDHC card

_} For alist of tested microSD cards, please

visit our website (http://www.olympus.com/).

Sending images

You can send images to a computer or

printer by using the USB cable provided with

the camera. To send data to other devices, remove

the attachment from the camera and use

a commercially available microSD card adapter.

Handling precautions

Do not touch the contact area of the attachment or microSD card. Doing so

may cause failure in reading the images. When fingerprints or stains are found on the contact area, wipe the area with a soft

dry cloth.

important information about

water and shock resistant

features ........................................................................................................................................

Water resistance: The waterproof feature is warranted n to operate at depths up to 3 m (9.8 feet) for up to one hour. The waterproof feature may be compromised if the camera is

subject to substantial or excessive impact. Shock resistance: The anti-shock feature

warrants .2the operation of the camera against accidental impact incurred from everyday use of your digital compact camera. The anti-shock

feature does not unconditionally warrant all defective operation or cosmetic damage. Cosmetic damage, such as scratches and dents, are not covered under the warranty. As with any electronic device, proper care

and maintenance are required to preserve the integrity and operation of your camera. To maintain camera performance, please take your camera to the nearest Olympus Authorized Service Center to have it inspected after

any major impact. In the event the camera is damaged as a result of negligence or misuse, the warranty will not cover costs associated with the service or repair of your camera. For additional information on our warranty, please

visit to the Olympus website for your local area. Please observe the following care instructions for your camera.

"1 As determined by Olympus pressure testing

equipmentin accordancewith IEC Standard Publication 529 IPX8 - This meansthat the

cameracan be used normally under water ata specified water pressure.

*2 This anti-shock performance is confirmed by

Olympus'testing conditions in accordance

with MIL-STD-81OF,Method516.5,

Procedure IV (TransitDrop Test).For more details ofOlympus' testing conditions,

please refer to the Olympus website for your Iocatarea.

64 EN

Before Use:

• Check the camera for foreign material including dirt, dust or sand.

• Be sure to close the battery/card compartment cover and connector cover firmly so that each

lock makes clicking sound.

• Do not open the battery/card compartment cover and connector cover with wet hands, while under water, or in a damp or dusty environment (e.g. beach).

After Use:

Be sure to wipe off any excess water or debris after using the camera under water.

• After the camera is used under seawater, immerse the camera in a bucket containing

fresh water for about 10 minutes (with the battery/card compartment cover and connector cover firmly closed). After that, dry the camera in a shade with good

ventilation.

• Water drops may be observed on the inner surface of the battery/card compartment cover or connector cover after you open each cover. If any water drops are found,

be sure to wipe them off before using the camera.

Notes after use

• Foreign materials may be attached to the periphery of the lens cover from using the

camera in conditions with foreign materials such as dirt, dust or sand, or when the lens cover is not moving smoothly. If you continue to use the camera in such conditions, the lens

could become damaged or the lens cover could stick causing additional damage to the camera. To avoid such damage, wash the camera using the following method.

J_,Insert the battery and close the battery/

card compartment cover and connector cover firmly so that each lock makes the clicking sound.

(2 Fill a bucket with fresh water, immerse

the camera in the bucket with the lens surface downward and shake the camera

thoroughly.

(3_Press the ON/OFF button several times in

the water and close/open the lens cover repeatedly.

(4j Furthermore, shake the camera further

with the cover opened.

Follow the Steps _ to 4_,,then check if the lens cover moves smoothly. If the lens cover does not move smoothly, rinse the lens face by placing it directly under

a strong stream of tap water and pressing the ON/OFF button repeatedly.

Storage and Maintenance

• Do not leave the camera in an environment at

high temperature (40°C (104°F) or more) or at low temperature (-10°C (14°F) or tess). Failure

to do so may break down water resistance.

• Do not use chemicals for cleaning, rust prevention, anti-fogging, repairing, etc. Failure to do so may break down water resistance.

• Do not leave the camera in water for a long time. Failure to do so will cause damage to the camera's appearance and/or deteriorate

water resistance.

• In order to preserve the water resistant feature, as with any underwater housing,

it is recommended that the waterproof packing (and seals) are replaced annually. For the Olympus distributors or service stations where the waterproof packing can

be replaced, visit Olympus website for your local area.

Closing Battery/card compartment cover and Connector cover

Battery/card compartment cover

Connector cover

_P} The inc{uded accessories (e.g. charger) do

not offer shock or water resistance.

........SAFETY PRECAUTIONS

CAUTION: TO REDUCETHE RISK OF ELECTRICAL

SHOCK.DO NOT REMOVECOVER (ORBACK).

NOUSER-SERVICEABLEPARTSINSIDE.

REFERSERVICINGTO QUALIFIEDOLYMPUS

SERVICEPERSONNEL

/_ An exclamation mark enclosed in a

triang}e alerts you to important operating and maintenance instructions in the

documentation provided with the product.

Ifthe product is used without observing

the information given under this symbol senous injury or death may result.

Ifthe product is used without observing the information given under this symbol, injury

or death may result.

Ifthe product is used without observing the information given under this symbol, minor

personal injury, damage to the equipment,

or loss of valuable data may result.

l WARNING' 1

TO AVOID THE RISK OF FIRE OR ELECTRICAL SHOCK, NEVER DISASSEMBLE, EXPOSE THIS PRODUCT TO WATER OR OPERATE IN A HIGH HUMIDITY ENVIRONMENT.

//_ DANGER

Z_ WARNING

Z_ CAUTION

General Precautions

Read All Instructions -- Before you use the

product, read alt operating instructions. Save all

manuals and documentation for future reference.

Cleaning --Always unplug this product from the

wall outlet before cleaning. Use only a damp cloth for cleaning. Never use any type of liquid or aerosol cleaner, or any type of organic solvent to clean this product.

Attachments -- For your safety, and to avoid

damaging the product, use only accessories

recommended by Olympus.

Water and Moisture -- For precautions on

products with weatherproof designs, read the

weatherproofing sections.

Location -- To avoid damage to the product, mount

the product securely on a stable tripod, stand, or bracket.

Power Source -- Connect this product only to the

power source described on the product label.

Lightning -- If a lightning storm occurs while using

an AC adapter, remove it from the wall outlet

immediately.

Foreign Objects -- To avoid personal injury, never

insert a metal object into the product.

Heat -- Never use or store this product near any

heat source such as a radiator, heat register, stove, or any type of equipment or appliance that generates heat, including stereo amplifiers.

Handling the Camera

•/_ WARNING

• Do not use the camera near flammable or explosive gases.

• Do not use the flash and LED on people (infants, small children, etc.) at close range.

• You must be at least 1 m (3 ft.) away from the

faces of your subjects. Firing the flash too close to the subject's eyes could cause a momentary

loss of vision.

• Keep young children and infants away from the camera.

• Always use and store the camera out of the

reach of young children and infants to prevent

the following dangerous situations which could

cause serious injury:

• Becoming entangled in the camera strap, causing strangulation.

• Accidentally swallowing the battery, cards or other small parts.

• Accidentally firing the flash into their own eyes or those of another child.

• Accidentally being injured by the moving parts of the camera.

• Do not look at the sun or strong lights with the camera.

• Do not use or store the camera in dusty or humid places.

• Do not cover the flash with a hand while firing.

• Do not insert anything into the microSD Attachment other than the microSD card.

This attachment is exclusive for use of microSD cards only. Other types of cards cannot be

installed.

• Do not insert anything other than an xD-Picture Card or the microSD Attachment into the

camera If you insert a card by mistake, such as a microSD

card, do not use force. Contact authorized distributors/service centers.

Z_ CAUTION

• Stop using the camera immediately if you notice any unusual odors, noise, or smoke around it.

• Never remove the batteries with bare hands,

which may cause a fire or burn your hands.

• Do not leave the camera in places where it may be subject to extremely high temperatures.

• Doing so may cause parts to deteriorate and, in

some circumstances, cause the camera to catch fire. Do not use the charger orAC adapter if it is covered (such as a blanket). This could cause overheating, resulting in fire.

• Handle the camera with care to avoid getting a tow-temperature burn.

• When the camera contains metal parts,

overheating can result in a low-temperature

burn. Pay attention to the following:

• When used for a long period, the camera will get hot. If you hold on to the camera in this state, a low-temperature burn may be caused.

• In places subject to extremely cold temperatures, the temperature of the camera's

body may be lower than the environmental temperature, tf possible, wear gloves when

handling the camera in cold temperatures.

• Be careful with the strap.

• Be careful with the strap when you carry the camera. It could easily catch on stray objects

and cause serious damage.

• Do not touch the metallic parts of the camera for a long period of time at tow temperatures.

• This may damage your skin. At low

temperatures, handle the camera while wearing gloves.

Battery Handling Precautions

Follow these important guidelines to prevent batteries from leaking, overheating, burning, exploding, or causing electrical

shocks or burns.

Z_ DANGER

• Tile camera uses a lithium ion battery specified by Olympus. Charge the battery with the specified charger. Do not use any other chargers.

• Never heat or incinerate batteries.

• Take precautions when carrying or storing

batteries to prevent them from coming into contact with any metal objects such as jewelry, pins, fasteners, etc.

• Never store batteries where they will be exposed to direct sunlight, or subjected to high

temperatures in a hot vehicle, near a heat source, etc.

• To prevent causing battery leaks or damaging their terminals, carefully follow all instructions regarding

the use of batteries. Never attempt to disassemble a battery or modify it in any way, solder, etc.

• If battery fluid gets into your eyes, flush your eyes immediately with clear, cold running water and seek medical attention immediately.

• Always store batteries out of the reach of small children. If a child accidentally swallows a battery, seek medical attention immediately.

,A.'_ WARNIN G

• Keep batteries dry at all times.

• To prevent batteries from leaking, overheating, or causing a fire or explosion, use only batteries recommended for use with this product.

• Insert the battery carefully as described in the operating instructions.

• If rechargeable batteries have not been recharged within the specified time, stop charging them and

do not use them.

• Do not use a battery if it is cracked or broken.

• If a battery leaks, becomes discolored or

deformed, or becomes abnormal in any other way during operation, stop using the camera.

• If a battery leaks fluid onto your clothing or skin, remove the clothing and flush the affected area

with clean, running cold water immediately. If the fluid burns your skin, seek medical attention

immediately.

• Never subject batteries to strong shocks or

continuous vibration.

/_ CAUTION

• Before loading, always inspect tile battery carefully for leaks, discoloration, warping, or any other abnormality.

• The battery may become hot during prolonged use. To avoid minor burns, do not remove it

immediately after using the camera.

• Always unload the battery from the camera before storing the camera for a long period.

Caution for Usage Environment

• To protect the high-precision technology contained in this product, never leave the camera in the places listed below, no matter if in use or storage:

• Places where temperatures and/or humidity

are high or go through extreme changes.

Direct sunlight, beaches, locked cars, or near

other heat sources (stove, radiator, etc.) or

humidifiers.

• In sandy or dusty environments.

• Near flammable items or explosives.

• In wet places, such as bathrooms or in the rain.

When using products with weatherproof designs,

read their manuals as well.

• In places prone to strong vibrations.

• Never drop the camera or subject it to severe shocks or vibrations.

• When mounted on a tripod, adjust the position of the camera with the tripod head, De net twist the

camera.

• Do not touch electric contacts on cameras.

• Do not leave the camera pointed directly at the

sun. This may cause lens or shutter curtain damage, color failure, ghosting on the CCD, or may possibly cause fires.

• Do not push or pull severely on the lens.

• Before storing the camera for a long period,

remove the batteries. Select a cool, dry location for storage to prevent condensation or mold from forming inside the camera. After storage, test the camera by turning it on and pressing the shutter button to make sure that it is operating normally.

• Always observe the operating environment restrictions described in the camera's manual.

Battery Handling Precautions

• This camera uses a tithium ion battery specified by

Olympus. Do not use any other type of battery.

• If the battery's terminals get wet or greasy, camera contact failure may result. Wipe the battery well

with a dry cloth before use.

• Always charge a battery when using it for the first time, or if it has not been used for a long period.

• When operating the camera with battery power at low temperatures, try to keep the camera and

spare battery as warm as possible. A battery that has run down at low temperatures may be restored after it is warmed at room temperature.

• The number of pictures you can take may vary depending on the shooting conditions or battery.

• Before going on a long trip, and especially before traveling abroad, purchase extra batteries. A recommended battery may be difficult to obtain while traveling.

• Please recycle batteries to help save our planet's resources. When you throw away dead batteries, be sure to cover their terminals and always observe local laws and regulations.

: LCD Monitor

• Do not push the monitor forcibly; otherwise the image may become vague, resulting in a playback mode failure or damage to the monitor.

• A strip of light may appear on the top/bottom of the monitor, but this is not a malfunction.

• When a subject is viewed diagonally in the camera, the edges may appear zigzagged on the monitor. This is not a malfunction; it will be less

noticeable in playback mode.

• In places subject to low temperatures, the LCD monitor may take a long time to turn on or its color may change temporarily. When using the camera in extremely cold places, it is a good idea

to occasionally place it in a warm place. An LCD monitor exhibiting poor performance due to low temperatures will recover in normal temperatures.

• The LCD used for the monitor is made with high-precision technology. However, black spots or bright spots of light may appear constantly on

the LCD monitor. Due to its characteristics or the angte at which you are viewing the monitor, the

spot may not be uniform in color and brightness. This is not a malfunction.

Legal and Other Notices

• Olympus makes no representations or warranties regarding any damages, or benefit expected by

using this unit lawfully, or any request from a third person, which are caused by the inappropriate use of this product.

• Olympus makes no representations or warranties regarding any damages or any benefit expected

by using this unit lawfully which are caused by erasing picture data.

Disclaimer of Warranty

Olympus makes no representations or warranties, either expressed or implied, by or concerning any content of these written materials or software, and

in no event shall be liable for any implied warranty of merchantability or fitness for any particular purpose or for any consequential, incidental or indirect damages (including but not limited to damages for loss of business profits, business

interruption and loss of business information) arising from the use or inability to use these written materials or software or equipment. Some

countries do not allow the exclusion or limitation of liability for consequential or incidental damages, so the above limitations may not apply to you.

• Olympus reserves all rights to this manual.

Warn_ng

Unauthorized photographing or use of copyrighted material may violate applicable copyright taws. Olympus assumes no responsibility for unauthorized photographing,

use or other acts that infringe upon the rights of copyright owners.

or used in any form or by any means, electronic or mechanical, including photocopying and recording or the use of any type of information storage and retrieval system, without the prior written permission of Olympus. No liability

is assumed with respect to the use of the information contained in these written materials

or software, or for damages resulting from the use of the information contained therein.

Olympus reserves the right to alter the features and contents of this publication or software

without obligation or advance notice.

FCC Notice

• Radio and Television Interference

• Changes or modifications not expressly approved by the manufacturer may void the user's authority

to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

• This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

• However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Adjust or relocate the receiving antenna.

• increase the distance between the camera and

receiver.

• Connect the equipment to an outlet on a circuit

different from that to which the receiver is connected.

• Consult your dealer or an experienced radio/TV

technician for help. Onty the OLYMPUS-supplied

USB cable should be used to connect the

camera to USB enabled personal computers

(PC).

Any unauthorized changes or modifications to this equipment would void the user's authority to operate it.

Ropreseo,o.,vop,u0o.powe.sopp,ycordo.oount.es,roo,onsaround,.e

world

GOG G 0

AType B Type BF Type B3 Type C Type SE Type O Type

(America°Type) (British Type) (British Type) (British Type) (CEE Type) (OEE Type) (Oceania Type)

The representative supply voltage and plug type are described in this chart.

Depending on the area, different types of plugs and supply voltages are used.

Attention: Power cord meeting demands from each country shall be used.

- For only the United States Use a UL Listed, 1.8 - 3 m (6 - 10 ft), Type SPT-2 or NISPT-2, AWG no. 18 power supply cord, rated for 125 V 7 A, with a non-polarized NEMA 1-15P plug rated for 125 V 15 A".

Europe North America Countries/Re,qions Voltage Frequency(Hz)Plugtype Countries/Reqions Voltage Frequency(Hz) Plu,gtype Austria 230 50 C Canada 120 60 A

Belgium 230 50 C USA 120 60 A Czech 220 50 C

Denmark 230 50 C Central America

Finland 230 50 C Countries/Regions Voltage Frequency(Hz)Plugtype

France 230 50 C Bahamas 120/240 60 A

Germany 230 50 C Costa Rica 110 60 A

Greece 220 50 C Cuba 110/220 60 A/C

Hungary 220 50 C Dominican (rep) 110 60 A

Iceland 230 50 C El Salvador 110 60 A

Ireland 230 50 C/BF Guatemala 120 60 A

Italy 220 50 C Honduras 110 60 A

Luxemburg 230 50 C Jamaica 110 50 A

Netherlands 230 50 C Mexico 120/127 60 A

Norway 230 50 C Nicaragua 120/240 60 A

Poland 220 50 C Panama 110/220 60 A

Portugal 230 50 C

Romania 220 50 C South America

Russia 220 50 C Countries/Regions Volta,qe Frequency(Hz) Plu,gtype Slovak 220 50 C Argentina 220 50 C/BF/O

Spain I27/230 50 C Brazil 127/220 60 A/C Sweden 230 50 C Chile 220 50 C Switzerland 230 50 C Colombia 120 60 A

UK 240 50 BP Peru 220 60 A/C

Venezuela 120 60 A Asia Countries/Re_qions Voltaqe Frequency(Bz) Pluq type

China 220 50 A

Hong Kong 200/220 50 BP India 230/240 50 C Indonesia I27/230 50 C

Japan 100 50/60 A

Korea (rep) 220 60 C Malaysia 240 50 BP

Philippines 220/230 60 A/C Singapore 230 50 BP Taiwan 110 60 A Thailand 220 50 C/BF

Vietnam 220 50 A/C

Oceania Countries/Reqions Voltage Frequency(Hz)Plugtype

Australia 240 50 O

New Zealand 230/240 50 O

Middle East Cauntries/Re_ians Valtaqe Frequency(Hz) Pluqtype

Iran 220 50 C/BF Iraq 220 50 C/BF

Israel 230 50 C

Saudi Arabia 127/220 50 A/C/BF Turkey 220 50 C

UAE 240 50 C/BP

Africa Countries/Reqions Volta,qe Frequency(Hz) Plu,gtype

Algeria 127/220 50 C Congo (dem) 220 50 C Egypt 220 50 C

Ethiopia 220 50 C Kenya 240 50 C/BP

Nigeria 230 50 C/BP South Africa 220/230 50 C/BP Tanzania 230 50 C/BP

Tunisia 220 50 C

Forous,omers,°.or,.andSou,.

America

For customers in USA Declaration of Conformity

Model Number : STYLUS TOUGH-6000/

p TOUGH-6000

Trade Name : OLYMPUS

Responsible Party

OLYMPUS iMAGiNG AMERICA |NC.

Address : 3500 Corporate

Parkway, P.O. Box 610, Center Valley, PA

18034-0610, U.S.A.

Telephone Number :484-896-5000

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference.

(2) This device must accept any interference

received, inc{uding interference that may cause undesired operation.

For customers in Canada

This Class B digital apparatus meets all requirements of the Canadian Interference-

Causing Equipment Regulations.

Use Only Dedicated Rechargeable Battery

and Battery Charger We strongly recommend that you use only

the genuine Olympus dedicated rechargeable battery and battery charger with this camera.

Using a non-genuine rechargeabte battery

and/or battery charger may result in fire or personal injury due to leakage, heating, ignition or damage to the battery. Olympus does not

assume any liability for accidents or damage that may result from the use of a battery and/or battery charger that are not genuine Olympus

accessories.

OLYMPUS WORLDWIDE LIMITED WARRANTY - IMAGING PRODUCTS

Olympus warrants that the enclosed Olympus@ imaging product(s) and related Olympus@ accessories (individually a 'Product" and collectively the "Products") will be free from

defects in materials and workmanship under normal use and service for a period of one (1) year from the date of purchase. If any Product proves to be defective within the one-year warranty period, the customer must

return the defective Product to any of Olympus Service Centers, following the procedure set forth below (See "WHAT TO DO WHEN SERVICE IS NEEDED"). Olympus, at its sole discretion, will repair,

replace, or adjust the defective Product, provided that Olympus investigation and factory inspection disclose that (a) such defect developed under normal and proper use and (b) the Product is covered under this limited

warranty. Repair, replacement, or adjustment of defective Products shall be Olympus's sole obligation and the customer's sole remedy hereunder. The customer is liable and shall pay for shipment

of the Products to the Olympus Service Center. Olympus shall not be obligated to perform preventive maintenance, installation, deinstallation, or maintenance. Olympus reserves the right to (i) use

reconditioned, refurbished, and/or serviceable used parts (that meet Olympus's quality assurance standards) for warranty or any other repairs and (ii) make any internal or external design and/or feature changes on or to its

products without any liability to incorporate such changes on or to the Products.

WHAT IS NOT COVERED BY THIS

LIMITED WARRANTY Excluded from this limited warranty and not

warranted by Olympus in any fashion, either express, implied, or by statute, are:

(a) products and accessories not manufactured by

Olympus and/or not bearing the "OLYMPUS" brand label (the warranty coverage for products and accessories of other manufacturers,

which may be distributed by Olympus, is the

responsibility of the manufacturers of such products and accessories in accordance with

the terms and duration of such manufacturers' warranties);

(b) any Product which has been disassembled,

repaired, tampered with, altered, changed, or modified by persons other than Olympus's own authorized service personnel unless repair

by others is made with the written consent of Olympus;

from wear, tear, misuse, abuse, negligence,

sand, liquids, impact, improper storage, nonperformance of scheduled operator and

maintenance items, battery leakage, use of non- "OLYMPUS" brand accessories, consumables, or supplies, or use of the Products in combination

with non-compatible devices;

(d) software programs; (e) supplies and consumables (including but not

limited to lamps, ink, paper, film, prints, negatives, cables and batteries); and/or

(f) Products which do not contain a validly placed

and recorded Olympus serial number, unless they are a model on which Olympus does not place

and record serial numbers.

EXCEPT FOR THE LIMITED WARRANTY

SET FORTH ABOVE, OLYMPUS MAKES

NOAND DISCLAIMS ALL OTHER REPRESENTATIONS, GUARANTIES,

CONDITIONS, AND WARRANTIES CONCERNING THE PRODUCTS, WHETHER

DIRECT OR INDIRECT, EXPRESS OR IMPLIED, OR ARISING UNDER ANY STATUTE,

ORDINANCE, COMMERCIAL USAGE OR OTHERWISE, INCLUDING BUT NOT LIMITED

TO ANY WARRANTY OR REPRESENTATION AS TO THE SUITABILITY, DURABILITY,

DESIGN, OPERATION, OR CONDITON OF

THE PRODUCTS (OR ANY PART THEREOF) OR THE MERCHANTABILITY OF THE

PRODUCTS OR THEIR FITNESS FOR A PARTICULAR PURPOSE, OR RELATING

TO THE INFRINGEMENT OFANY PATENT, COPYRIGHT, OR OTHER PROPRIETARY

RIGHT USED OR INCLUDED THEREIN.

IF ANY IMPLIED WARRANTIES APPLY AS A MATTER OF LAW, THEY ARE LIMITED

IN DURATION TO THE LENGTH OF THIS LIMITED WARRANTY.

SOME STATES MAY NOT RECOGNIZE A DISCLAIMER OR LIMITATION OF WARRANTIES AND/OR LIMITATION OF LIABILITY SO THE ABOVE DISCLAIMERS AND EXCLUSIONS MAY NOTAPPLY.

THE CUSTOMER MAY ALSO HAVE DIFFERENTAND/OR ADDITIONAL RIGHTS AND REMEDIES THAT VARY FROM STATE TO STATE.

THE CUSTOMER ACKNOWLEDGES AND AGREES THAT OLYMPUS SHALL NOT BE RESPONSIBLE FORANY DAMAGES THAT THE CUSTOMER MAY INCUR FROM DELAYED SHIPMENT, PRODUCT FAILURE, PRODUCT DESIGN, SELECTION, OR PRODUCTION, IMAGE OR DATA LOSS OR IMPAIRMENT OR FROM ANY OTHER CAUSE,

WHETHER LIABILITY ISASSERTED IN CONTRACT, TORT (INCLUDING NEGLIGENCE AND STRICT PRODUCT LIABILITY) OR

OTHERWISE. IN NO EVENT SHALL OLYMPUS BE LIABLE FORANY INDIRECT, INCIDENTAL,

CONSEQUENTIAL OR SPECIAL DAMAGES OF ANY KIND (INCLUDING WITHOUT LIMITATION

LOSS OF PROFITS OR LOSS OF USE), WHETHER OR NOT OLYMPUS SHALL BE OR

SHOULD BE AWARE OF THE POSSIBILITY OF SUCH POTENTIAL LOSS OR DAMAGE.

Representations and warranties made by any person, including but not limited to dealers, representatives, salespersons, or agents of Olympus, which are inconsistent or in conflict

with or in addition to the terms of this limited warranty, shall not be binding upon Olympus

unless reduced to writing and approved by an expressly authorized officer of Olympus. This limited warranty is the complete and exclusive statement of warranty which

Olympus agrees to provide with respect to the Products and it shall supersede all prior and contemporaneous oral or written agreements, understandings, proposals, and communications pertaining to the subject matter hereof. This limited warranty is exclusively for the

benefit of the original customer and cannot be transferred or assigned.

WHAT TO DO WHEN SERVICE IS NEEDED The customer must transfer any image or other

data saved on a Product to another image or data storage medium and/or remove any film from the Product prior to sending the Product to

Olympus for service.

IN NO EVENT SHALL OLYMPUS BE RESPONSIBLE FOR SAVING, KEEPING OR

MAINTAINING ANY IMAGE OR DATA SAVED

ON A PRODUCT RECEIVED BY IT FOR SERVICE, OR ON ANY FILM CONTAINED

WITHIN A PRODUCT RECEIVED BY IT

FOR SERVICE, NOR SHALL OLYMPUS BE RESPONSIBLE FORANY DAMAGES IN

THE EVENTANY IMAGE OR DATA IS LOST OR IMPAIRED WHILE SERVICE IS BEING

PERFORMED (INCLUDING, WITHOUT LIMITATION, DIRECT, INDIRECT, INCIDENTAL,

CONSEQUENTIAL OR SPECIAL DAMAGES,

LOSS OF PROFITS OR LOSS OF USE),

WHETHER OR NOT OLYMPUS SHALL BE OR SHOULD BE AWARE OF THE POSSIBILITY OF SUCH POTENTIAL LOSS OR IMPAIRMENT.

Package the Product carefully using ample

padding material to prevent damage in transit and either deliver it to the Authorized Olympus

Dealer that sold you the Product or ship it

postage prepaid and insured to any of our Olympus Service Centers.

When returning Products for service, your package should include the following:

I Sales receipt showing date and place of

purchase.

2 Copy of this limited warranty bearing the

Product serial number corresponding to the serial number on the Product (unless it is a model on which Olympus does not place and

record serial numbers).

3 A detailed description of the problem. 4 Sample prints, negatives, digitat prints (or files on

disk) if available and related to the problem. When service is completed, the Product will be returned to you postage prepaid.

WHERE TO SEND PRODUCT FOR

SERVICE

See "WORLDWIDE WARRANTY" for the nearest service center.

INTERNATIONAL WARRANTY SERVICE International warranty service is available under

this warranty.

Trademarks

• IBM is a registered trademark of International Business Machines Corporation.

• Microsoft and Windows are registered trademarks of Microsoft Corporation.

• Macintosh is a trademark of Apple Inc.

• xD-Picture Card TM iS a trademark.

• microSD is a trademark of the SD Association.

• All other company and product names are registered trademarks and/or trademarks of their

respective owners.

• The standards for camera file systems referred to in this manual are the 'Design rule for Camera File system/DCF" standards stipulated by the Japan

Electronics and information Technology industries Association (JEITA).

........SPECIFICATIONS

Camera

Product type : Digital camera (for shooting and displaying)

Still pictures : Digital recording, JPEG (in accordance with Design rule for Camera File

Applicable standards : Extt 2.2, Digital Print Order Format (DPOF), PRINT Image Matching Ill,

Sound with still pictures : Wave format Movie : AVI Motion JPEG

Memory : Internal memory

xD-Picture Card (16 MB to 2 GB) (TypeH/M/M+, Standard) microSD card/microSDHC card (with the supplied microSD Attachment)

N__ efft_!v,t_J_!_ i !°,°°°,°°°E!x_!s..............................................................................................

Lens : Olympus lens 5.0 to 18.2 mm, f3.5 to 5.1

Shooting range : 0.5 m (1.6 ft.) to _ (W/T) (normal)

0.1 m (0.3 ft.) to = (W), 0.3 m (1.0 ft.) to _o(T) (macro mode)

0.02 m (0.8 in.) to 0.5 m (1.6 ft.) (W only) (super macro mode)

0.07 m (2.8 in.) to 0.2 m (0.7 ft.) (W only) (S-macro LED mode)

Flash charge time : Approx. 3.5 sec. (for full flash discharge at room temperature using a

............................................................ne_tu!!_char_ed2atte_)_

Connector : Multi-connector (DC-tN jack USB connector, AN OUT jack) Automatic calendar system : 2000 up to 2099 Water resistance

Type : Equivalent to IEC Standard publication 529 IPX8 (under OLYMPUS test

conditions), available in 3 m (9.8 feet) deep water

Meaning : Camera can normally be used under water at a specified water

pressure.

Dust resistance : IEC Standard publication 529 IP6X (under OLYMPUS test conditions)

Temperature : -10 °C to 40 °C (14 °F to 104 °F) (operation)/

-20 °C to 60 °C (-4 °F to 140 °F) (storage)

Dimensions : 95.3 mm (W) x 63.4 mm (H) x 22.4 mm (D) (3.8 x 2.5 × 0.9 in.)

(excluding protrusions)

Weight : 149 g (5.3 oz) (excluding battery and card)

Lithium ion battery (LI=50B)

Product type : Lithium ion rechargeable battery

Model No. : LP50BA/LI-50BB Standard voltage : DC 3.7 V Standard capacity : 925 mAh

Battery life : Approx. 300 full charges (varies on usage)

Temperature : 0°C to 40°C (32°F to 104°F) (charging)/

-10°C to 60°C (14°F to 140°F) (operation)/

D!mens!ons 34:4 mm _W!, _ 40 0 m !H mm (D)!1 ! 0 !%! Weight : Approx. 20 g (0.7 oz)

Battery charger (LI-50C)

Model No. : Lb50CAA/LI-50CAB/Lb50CBA/LI-50CBB

Power requirements : AC 100 to 240 V (50/60 Hz) Output : DC 4.2 V, 700 mA

Operating environment

Temperature : O°C to 40°C (32°F to 104°F) (operation)/

Weight : Approx. 70 g (2.5 oz)

Using in low temperatures

Low temperature operation of the optional Olympus xD-Picture Card and lithium ion battery are guaranteed to 0°C (32°F). However, the following have been tested for use with this product in temperatures up to -10°C (14°F).

Olympus xD-Picture Card

16MB 32MB 64MB 128MB 256MB 512MB 1GB 2GB

Standard ,/ ,/ ,/ ,/ ,/ ,/ ........ ,........

TypeM/M+ ..... -........ ..... -........ ....... "........ ...... "........ ,/ ,/ ,/ ,/

TypeH ...... -........ ...... "........ ....... ...... ,/ ,/ ,/ ,/

•/ Operation confirmed

Olympus lithium ion battery LI-50B

® The number of storable still pictures is reduced in low temperatures.

microSD attachment

Temperature : -10°C to 40°C (14 to 104°F) (operation) /

-20°C to 65°C (-4 to 149°F) (storage)

Dimensions : 25.0 mm (W) x 20.3 mm (H) x 1.7 mm (D) (1.0 × 0.8 × 0.07 in.)

Weight : Approx. 0.9 g (0.03 oz)

Design and specifications subject to change without notice.

J_dfii/i_i!iiiiiiii/iJiiii_....

AC adapter ............................................ 62

AF lock .................................................. 18

AF MODE ............................................. 29

ALL (PERFECT FIX) ............................. 35

ALL (SLIDESHOW) .............................. 35

ALL INDEX ........................................... 49

ALL PRINT ............................................ 49

All-image print reservation [[_L.............. 52

AUTO (FILE NAME) ............................. 43

AUTO (ISO) .......................................... 28

AUTO (WB) ........................................... 28

AV cable ............................................ 2, 45

BACKUP ............................................... 40

Battery ............................ 2, 10, 56, 60, 61

Battery charger ............................... 10, 61

BEAUTY FIX r,_,_................................... 35

BEAUTYmode ......................................... 18

BEEP .................................................... 42

BGM ...................................................... 35

Black & White ....................................... 36

CALENDAR .......................................... 37

CALENDAR (SLIDESHOW) ................. 35

CALIBRATE .......................................... 46

Calendar view ....................................... 25

CAMERA MENU/'_j .............................. 28

Card .......................................... 11, 12, 62

CLEAR SKIN ........................................ 35

Close-up view Q, .................................. 25

Cloudy day d2_ ..................................... 28

COLOR 1/2/3 ........................................ 41

COLOR EDIT ........................................ 36

COMBINE IN CAMERA1 ...................... 32

COMBINE IN CAMERA2 ..................... 32

COMBINE IN PC .................................. 32

COMPRESSION ................................... 27

Connection

To Computer ................................... 54

To Printer ........................................ 48

To Television ................................... 45

Cropping a picture 4::f".................... 36, 50

CUSTOM PRINT .................................. 49

DATE (_)) ........................................... 52

DATE (PRINT INFO) ............................. 50

Date and time _) .......................... 13, 44

DIGITAL ZOOM .................................... 29

Direct printing ........................................ 48

Display tanguage _'_ .................. 13, 40

DIS MOVIE MODE (Movie) .................. 30

DPOF .................................................... 51

DRAMATIC EYE ................................... 35

DRIVE ................................................... 28

DUALTIME ............................................ 44

.........E.

EASY PRINT ........................................ 48

EDIT 2_............................................ 36, 37

Erase

ALL ERASE .................................... 38

ERASE _ ........................................ 38

SELIMAGE .................................... 38

Single image erase ......................... 17

ESP ....................................................... 29

ESP/[2_} ................................................ 29

Exposure ............................................... 15

Exposure compensation [] .................. 21

FACE DETECT ..................................... 29

FADER (SLIDESHOW) ......................... 35

FILE NAME ........................................... 43

File name .............................................. 43

FILE NAME (PRINT INFO) ................... 50

FILL IN _ ............................................. 21

FINE ...................................................... 27

FINE ZOOM .......................................... 29

FLASH AUTO ....................................... 21

Flash charge ......................................... 56

Flash mode _ ...................................... 20

FLASHOFF @ ..................................... 21

Fluorescent lamp 1/2/3 _i_2_3 .......... 28

FORMAT ............................................... 40

Format .................................................. 40

FRAME RATE ....................................... 27

FUNC menu .......................................... 23

High speed sequential shooting _ ..... 28

Histogram display ........................... 23, 25

.........K= _ 7

mode ........................................... 19

iESP ...................................................... 29

IMAGE QUALITY {_.. ............................ 27

IMAGE SIZE ......................................... 27

IMAGE STABILIZER (Still images) ....... 30

INDEX ................................................... 37

Index view [] ....................................... 25

Information displays ........................ 23, 25

Internal memory .............................. 11,63

ISO ........................................................ 28

.........L

LED ILLUMINATOR ........................ 22, 46

Lithium ion battery .................................. 2

MACRO _ ........................................... 21

Macro mode _,_..................................... 21

MEMORY FORMAT .............................. 40

Menu ....................................................... 3

MENU COLOR ..................................... 41

Menu guide ............................................. 3

microSD Attachment ................... 2, 12, 64

microSD card .................................. 12, 64

microSDHC card ............................. 12, 64

Monitor brightness adjustment [.c:_,_....... 44

MOVIE (SLIDESHOW) ......................... 35

MULTI PRINT ....................................... 49

MULTI WINDOW .................................. 24

NO (_)) ............................................... 52

NORMAL .............................................. 27

NORMAL (MENU COLOR) ................... 41

NORMAL (SLIDESHOW) ..................... 35

NTSC .................................................... 45

Number of prints (,E]_x).......................... 50

OLYMPUS Master 2 ......................... 2, 54

Optical zoom ......................................... 20

PAL ....................................................... 45

PANORAMA L:_..................................... 32

Panorama playback .............................. 26

PC ......................................................... 54

PERFECT FIX I_ .................................. 35

PictBridge ............................................. 48

Picture rotation .¢m................................. 38

PIXEL MAPPING .................................. 43

PLAYBACK MENU L-c)..................... 37, 38

Playback mode [] ............................... 16

Playback on a TV .................................. 45

POWER SAVE ...................................... 46

PRINT ORDER _ .......................... 39, 49

Print reservations .................................. 51

Printing pictures .................................... 48

Protect _ ........................................... 37

PW ON SETUP ..................................... 41

REC VIEW ............................................ 42

REDEYE @ ....................................... 21

REDEYE FIX ........................................ 35

RESET _ .............................................. 34

RESET (FILE NAME) ........................... 43

Resizing _ ......................................... 36

Saturation (Hard) .................................. 36

Saturation (Soft) .................................... 36

SCN (SCENE MODE) _ ............... 18, 3t

SCREEN ............................................... 41

SELFTIMER _ ..................................... 22

Sepia ..................................................... 36

Sequential shooting _ ....................... 28

SETUP _ ............................................. 40

SHADOW ADJ ................................ 24, 30

Shooting mode ...................................... 15

Shooting movies _ .............................. 19

Shooting still pictures

(Full auto mode) _ .................... 19

Shooting still pictures _ ..................... 15

SHUTTER SOUND ............................... 42

SILENT MODE _ ................................. 47

Single-image print reservation r[_ ......... 51

Single-frame shooting E3 .................... 28

SLIDE (SLIDESHOW) .......................... 35

SLIDESHOW _; ................................... 35

S-MACRO LED s'_ .............................. 21

Sound recording

Adding sound to still pictures _ ...... 38

Recording sound with still pictures

........................................................ 30

SOUND SETTINGS .............................. 42

SPARKLE EYE ..................................... 35

SPOT (AF MODE) ................................ 29

Spot metering [2_ ................................. 29

STILL PICTURE (SLIDESHOW) .......... 35

Strap ....................................................... 2

Sunny day "_ ....................................... 28

SUPER MACRO s_ ............................. 21

TAP CONTROL ..................................... 46

TIME (_)) ............................................ 52

Top menu ................................................ 5

Tungsten light ;,,6_.................................. 28

Turn the camera on ........................ 13, 15

TYPE .................................................... 35

USB cable ................................... 2, 48, 54

VIDEO OUT .......................................... 45

VOLUME ............................................... 41

VOLUME [] ........................................ 42

..........W ....................................................................................................

Warning sound m)))................................ 42

White balance WB ................................ 28

xD-Picture Card .............................. !!, 62

........Z

Zoom ..................................................... 20

ZOOM (SLIDESHOW) .......................... 35

OLYMPUS

http://www.olympusamerica.com/

OLYMPUS iMAGiNG AMERICA iNC.

3500 Corporate Parkway, P.O. Box 610, Center Valley, PA 18034-06t0, U.S.A. TeL 484-896-5000 TechnicaJ Support (USA)

24/7 online automated help: http://www.olympusamerica.com/support

Phone customer support: Tel. 1-888=553=4448 (Toll-free)

Our phone customer support is available from 8am to 10pm (Monday to Friday) and 9am to 5pm (Sunday) ET

http://olympusamerica.com/contactus Olympus software updates can be obtained at: httpd/www.olympusamerica.com/digital TO find the nearest Service Centers, please visit: http://www.olympusamerica.com/digitaJ, and click on the Worldwide Warranty icon at the bottom of the page.

U.S.A.:

California

NewYork

Canada:

Mexico:

Argentina:
