Olympus D-720, D-725, D-730, VR-310, VR-320 Instruction Manual

...

0 (0)

VR-330/D-730 VR-320/D-725 VR-310/D-720

DIGITAL CAMERA

VR-330/D-730 VR-320/D-725 VR-310/D-720

Instruction Manual

● Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please read these instructions carefully to enjoy optimum performance and a longer service life. Keep this manual in a safe place for future reference.

● We recommend that you take test shots to get accustomed to your camera before taking important photographs.

● In the interest of continually improving our products, Olympus reserves the right to update or modify information

contained in this manual.

● The screen and camera illustrations shown in this manual were produced during the development stages and may differ from the actual product. Unless otherwise speciﬁ ed, the explanation about these illustrations is provided for VR-330/D-730.

Step

Contents

Checking the contents of the box

LI-42B Lithium

Digital camera

Other accessories not shown: warranty card Contents may vary depending on purchase location.

Step

“Preparing the Camera” (p. 12)

Step

“Camera Settings” (p. 3)

Contents

Preparing the Camera

How to Use the Camera

Names of Parts ............................................... 8

Preparing the Camera .................................. 12

Shooting, Viewing, and Erasing ................. 19

Using Shooting Modes ................................ 26

Using Shooting Functions .......................... 30

Menus for Shooting Functions ................... 34

Strap AV cableF-2AC

Ion Battery

USB-AC adapter

Step

“Shooting, Viewing, and Erasing” (p. 19)

Step

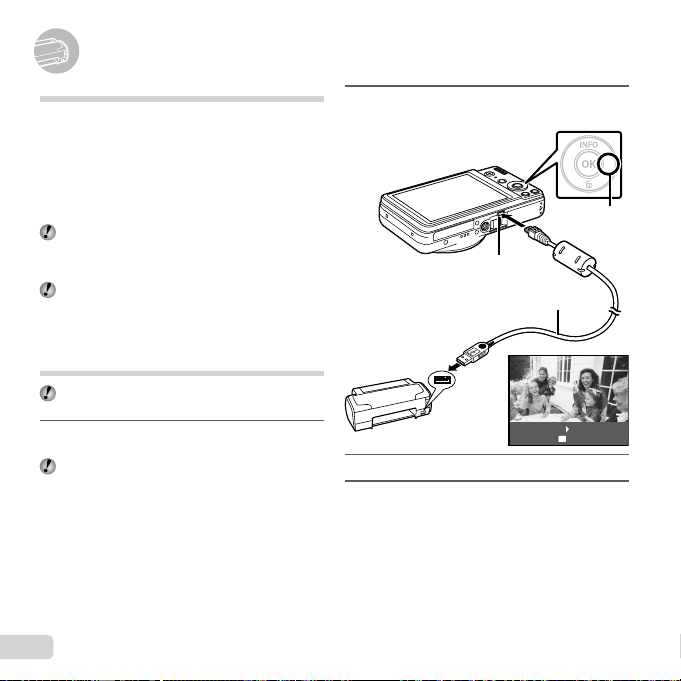

“Direct printing (PictBridge)” (p. 48) “Print Reservations (DPOF)” (p. 52)

Menus for Playback, Editing, and Printing

Functions ...................................................... 38

Menus for Other Camera Settings .............. 41

Printing .......................................................... 48

Usage Tips .................................................... 55

Appendix ....................................................... 60

USB cable OLYMPUS

Shooting and Playing Back Images

Printing

Setup

CD-ROM

Camera Settings

Using the Direct Buttons

Frequently used functions can be accessed using the direct buttons.

Zoom lever (p. 21, 24)

Shutter button (p. 20)

R button (shooting movies) (p. 20) q button (switch between shooting and

playback) (p. 20, 22)

m button (p. 5)

E button (menu guide) (p. 25)

Arrow pad

H (left)

F (up) /

INFO button (change information display) (p. 22, 24)

I (right)

Q button (p. 17)

G (down) / D button (erase) (p. 23)

The symbols FGHI displayed for image selections and settings indicate that the arrow pad is to be used.

YMDTime

Single Print

Y/M/DY/M/D

4/304/30

Set

FILE

ORM

100 0004100 0004

12:30’11/02/26’11/02/26 12:30

Print More

Cancel

02 26 12 30:..2011

Using the Menu

Function menu

Using the Menu

Use the menu to change camera settings such as the shooting mode.

There may be menus that are unavailable depending on other related settings or the s mode (p. 26).

Function menu

Press H during shooting to display the function menu. The function menu is used to choose the shooting mode and provides access to frequently used shooting settings.

Shooting mode

Selected option

Program AutoProgram Auto

ORM

Shooting

To select the shooting mode

Use HI to select a shooting mode and press the Q button.

To select the function menu

Use FG to select a menu and use HI to select a menu option. Press the Q button to set the function menu.

0.00.0

AUTOWBAUTO

ISO

AUTO

ISO

Function menu

Setup menu (p. 5)

Setup menu

Press the m button during shooting or playback to display the setup menu. The setup menu provides access to a variety of camera settings, including options not listed in the function menu, display options, and the time and date.

1 Press the m button.

The setup menu is displayed.

●

ResetReset

Image Size 14M

Compression Normal

AF Mode Face/iESP

Digital Zoom Off

Image Stabilizer On

AF Illuminat. On

Exit

2 Press H to highlight the page tabs. Use

FG to select the desired page tab and press I.

Page tab

Pixel Mapping

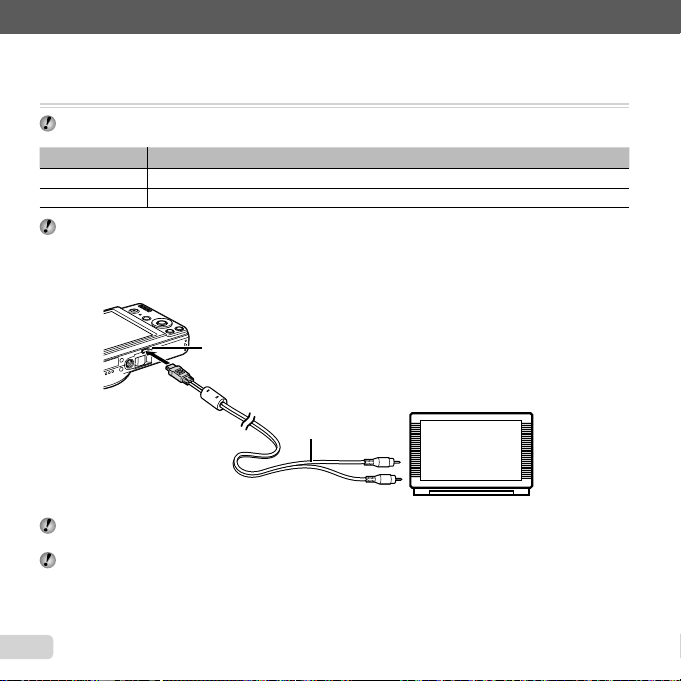

TV Out

Power Save Off

World Time

Exit

3 Use FG to select the desired submenu 1

and then press the Q button.

Pixel Mapping

TV Out

Power Save

World Time

Exit

Bright

English

Bright

OffPower Save Off

English

Set

Submenu 1

Pixel MappingPixel Mapping

TV Out

Power Save Off

World Time

Exit

Pixel Mapping

TV Out

Power Save

W English

World Time

Back

English

Submenu 2

Power Save

OffOff

4 Use FG to select the desired submenu 2

and then press the Q button.

Once a setting is selected, the display returns to

●

the previous screen.

There may be additional operations.

“Menu Settings” (p. 34 to 47)

Set

5 Press the m button to complete the

Bright

Set

Off

Set

setting.

Pixel Mapping

TV Out

Power Save

World Time

Exit

Bright

OnPower Save On

English

Set

Menu Index

Menus for Shooting Functions

Program AutoProgram Auto

ORM

0.00.0

AUTOWBAUTO

ISO

AUTO

2 3 4 5 6 7 8

Reset

Image Size 14M

Compression Normal

AF Mode Face/iESP

Digital Zoom Off

Image Stabilizer

AF Illuminat. On

Exit

Image Size VGA

Frame Rate 30fps

IS Movie Mode Off

Exit

Set

1 Shooting mode

P (Program Auto) .............p. 19

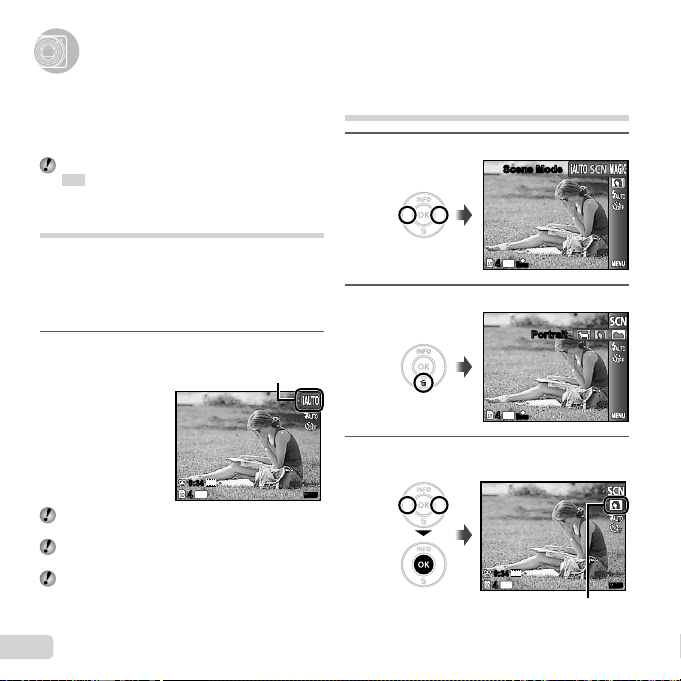

M (iAUTO) ...................p. 26

s (Scene Mode) .........p. 26

P (Magic Filter) ..........p. 27

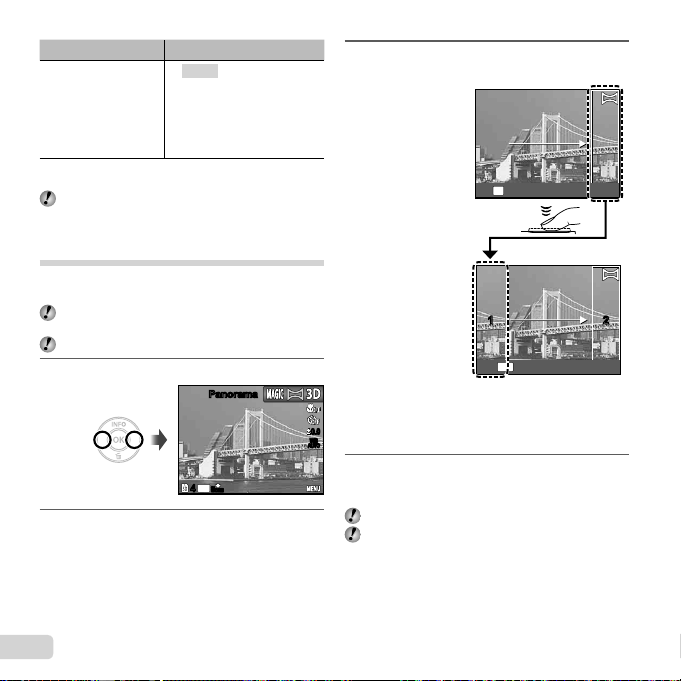

~ (Panorama)..................p. 28

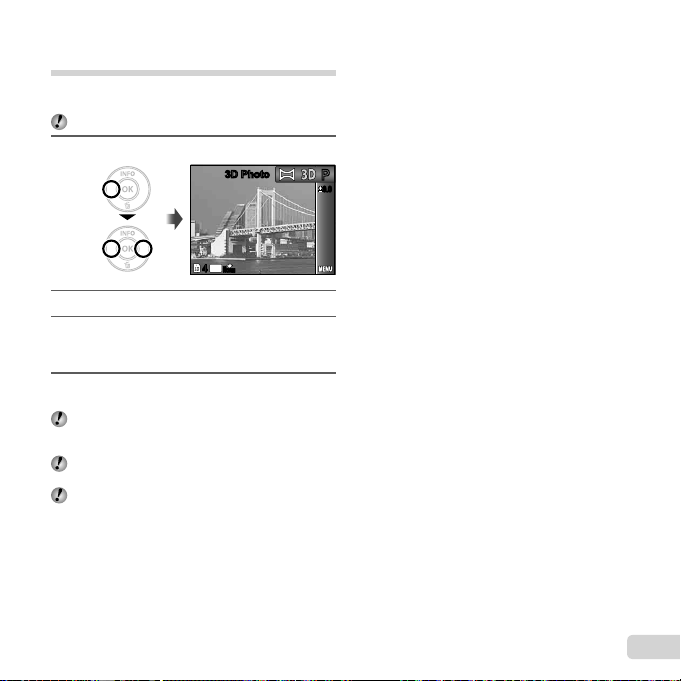

D (3D Photo)*1 .................p. 25

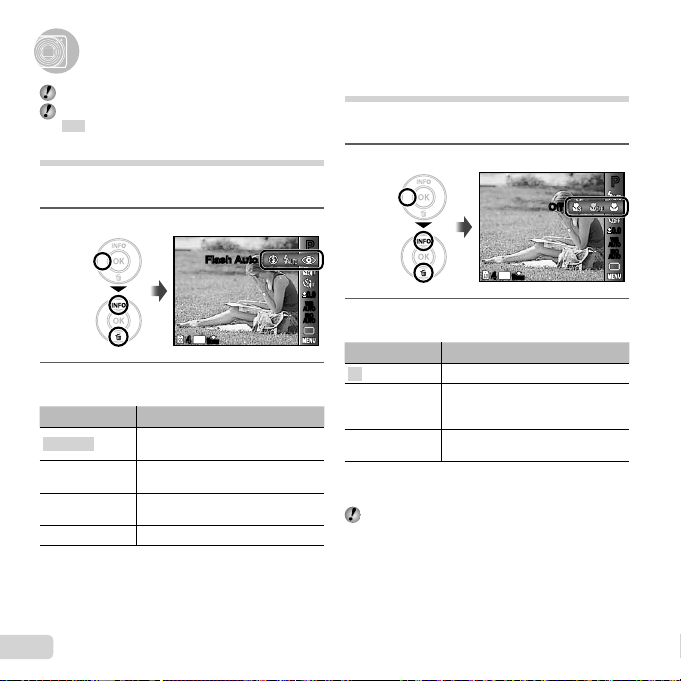

2 Flash .................................p. 30

3 Macro ...............................p. 30

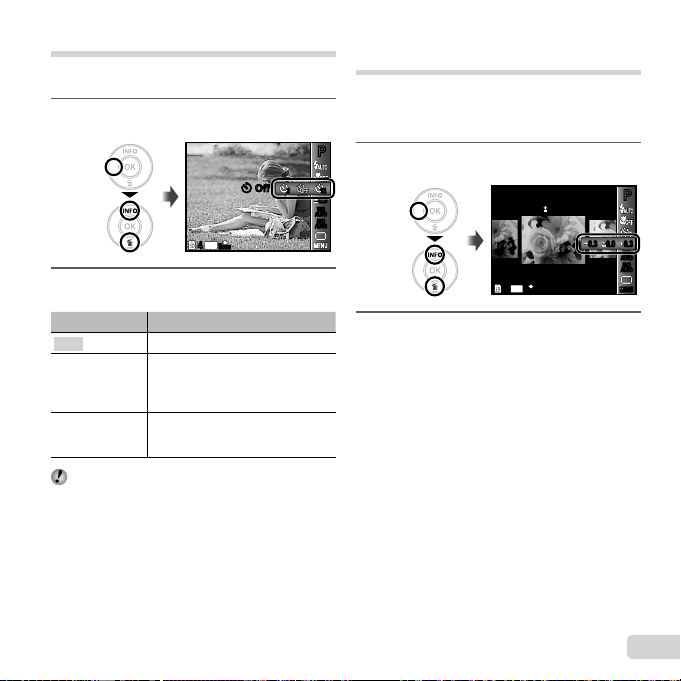

4 Self-timer ..........................p. 31

5 Exposure compensation ...p. 31

VR-330/D-730 only

6 White balance ...................p. 32

7 ISO ...................................p. 32

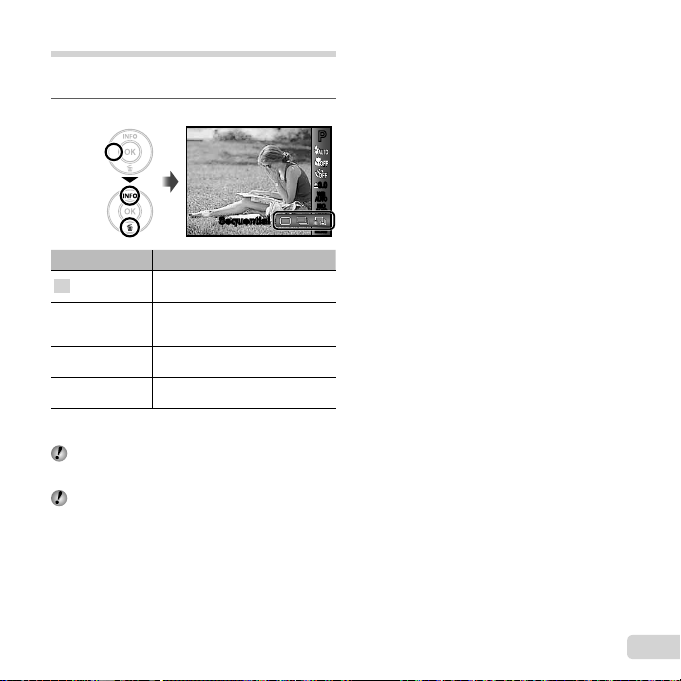

8 Drive .................................p. 33

9 # (Setup) X

p (Shooting menu 1)

Reset ...........................p. 34

Image Size ..................p. 34

Compression ...............p. 34

AF Mode ......................p. 35

Digital Zoom ................p. 36

Image Stabilizer...........p. 36

AF Illuminat. ................p. 37

q (Shooting menu 2)

Icon Guide ...................p. 37

Date Stamp .................p. 37

A (Movie menu)

Image Size ..................p. 35

Frame Rate .................p. 35

IS Movie Mode ............p. 36

R (Movie sound

recording) ..................p. 37

Menus for Playback, Editing, and Printing Functions

Set

1 q (Playback menu)

Slideshow ..................... p. 38

Edit ......................... p. 38, 39

Erase ............................ p. 39

Print Order .................... p. 40

? (Protect) .................... p. 40

y (Rotate).................... p. 40

Slideshow

Edit

Erase

Print Order

Exit

Menus for Other Camera Settings

Set

1 r (Settings 1)

Format

Backup

USB Connection q Power On Yes

KeepK Settings

Pw On Setup On

Sound Settings

Exit

VR-330/D-730 only

VR-320/D-725 and VR-310/D-720 only

Storage

Yes

Memory Format/

Format .......................... p. 41

Backup ......................... p. 41

USB Connection ........... p. 41

q Power On ...............p. 42

Keep K Settings ......... p. 42

Pw On Setup ................p. 42

Sound Settings ............. p. 42

2 s (Settings 2)

Pixel Mapping ............... p. 42

s (Monitor) ................ p. 43

TV Out*1 ........................ p. 43

Video Out*2.................... p. 46

Power Save .................. p. 47

W (Language) ............ p. 47

X (Date/time) ............. p. 47

World Time ...................p. 47

Names of Parts

Camera unit

1 2

1 Connector cover

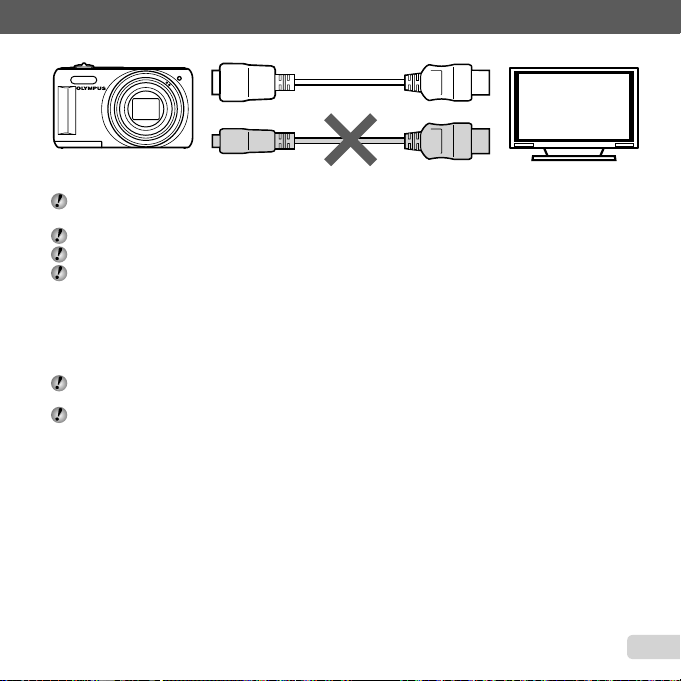

2 HDMI mini connector

.................................... p. 44

3 Strap eyelet .................... p. 9

4 Multi-connector

............ p. 14, 16, 44, 46, 48

5 Battery/card compartment

cover ........................... p. 12

6 Flash ............................. p. 30

7 Self-timer lamp ............. p. 31

AF illuminator ............... p. 37

8 Microphone ............. p. 37, 39

9 Lens ........................ p. 60, 73

Tripod socket

Speaker

VR-330/D-730 only

......... p. 44

1 4

Attaching the camera strap

Pull the strap tight so that it does not come loose.

1 n button ........ p. 17, 19

2 Shutter button ...............p. 20

3 Monitor ...................p. 19, 55

4 Zoom lever .............p. 21, 24

5 R button

(shooting movies) .......p. 20

6 Indicator lamp ......... p. 14, 16

7 q button

5 6

7 8 9

10 11

(switch between shooting

and playback) .......p. 20, 22

8 Q button (OK).............. p. 17

9 Arrow pad .......................p. 3

INFO button

(change information

display) ................. p. 22, 24

D button (erase) .......... p. 23

E button (menu guide)

.................................... p. 25

m button .................. p. 5

Monitor

Shooting mode display

1 2

22 21 20

VGA

0:340:34

ORM

ONON

151617 13 12 11

1/100 F3.0F3.0

1/100

DATE

2425

1 Battery check ................ p. 16

0.00.0

WB AUTOWBAUTO

ISO

ISO AUTO

AUTO

2 Shooting mode .......p. 19, 26

3 Flash ............................. p. 30

3 4 5 6 7 8 9 10

Flash standby/ﬂ ash charge

.................................... p. 55

4 Macro ...........................p. 30

5 Self-timer ...................... p. 31

6 Exposure compensation

.................................... p. 31

7 White balance ............... p. 32

8 ISO ............................... p. 32

9 Drive ............................. p. 33

Setup menu ....................p. 5

Recording with sound

(movies) ...................... p. 37

Date stamp ...................p. 37

World time .................... p. 47

Image stabilization ........ p. 36

Compression

(still images)................ p. 34

Image size

(still images)................ p. 34

Number of storable pictures

(still images)................ p. 19

Current memory ........... p. 62

Movie recording icon .... p. 20

Continuous recording length

(movies) ...................... p. 20

Image size (movies) ..... p. 35

AF target mark .............. p. 20

Camera shake warning

Aperture value ..............p. 20

Shutter speed ...............p. 20

Playback mode display

Normal display●

1 765432

1010

Still image Movie

Detailed display●

1 7 98 10 12116543

1010

1/1000 F3.0 2.0

FILE

100 0004

’11/02/26 12:30

1 Battery check ................p. 16

4/30

12:30’11/02/26’11/02/26 12:30

4/304/30

ISO

AUTOWB100

ORM

1/1000 F3.0 2.0

FILE

100 0004

00:12/00:3400:12/00:34

ISO

AUTO

100

14M

ORM

’11/02/26 12:30

2 3D image 3 Print reservation/number of

4 Protect ..........................p. 40

5 Adding sound ...............p. 39

6 Current memory ...........p. 62

7 Frame number/

8 Shooting mode ....... p. 19, 26

9 Shutter speed ............... p. 20

10 11 12

16 17

VR-330/D-730 only

.................... p. 25

prints ...................p. 52/p. 50

total number of images

(still images)................ p. 22

Elapsed time/

total recording time

(movies) ...................... p. 23

Aperture value ..............p. 20

ISO ...............................p. 32

Exposure compensation

.................................... p. 31

White balance ............... p. 32

Image size ..............p. 34, 35

File number

Date and time ...............p. 17

Compression

(still images)................ p. 34

Frame rate (movies) ..... p. 35

Volume ......................... p. 42

Preparing the Camera

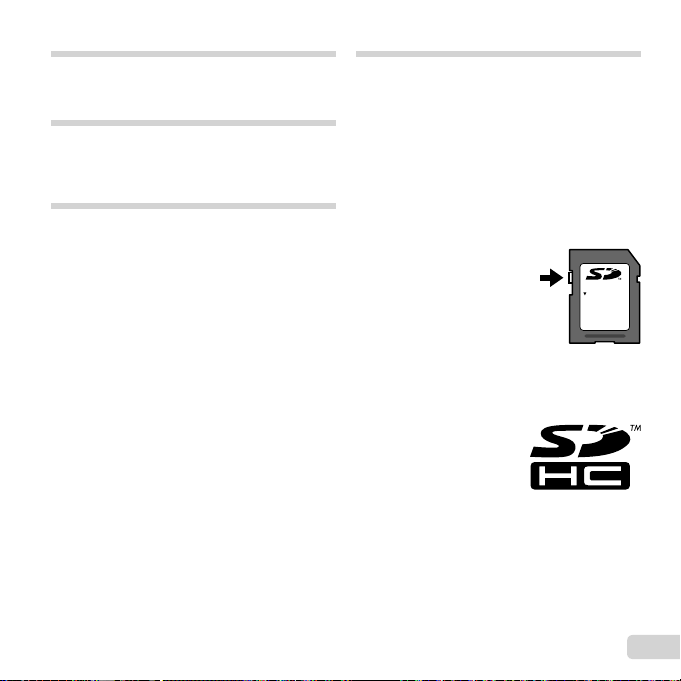

Inserting the battery and the SD/SDHC memory card (sold separately)

Always use SD/SDHC memory cards with this

camera. Do not insert any other types of memory card.

Battery/card compartment cover

Battery lock knob

Write-protect switch

Insert the battery with the B symbol on the same

side as the battery lock knob. Damage to the battery exterior (scratches, etc.) may produce heat or an explosion.

Insert the battery while sliding the battery lock knob in

the direction of the arrow.

Slide the battery lock knob in the direction of the

arrow to unlock, and then remove the battery.

Turn off the camera before opening the battery/card

compartment cover.

When using the camera, be sure to close the battery/

card compartment cover.

Insert the card straight until it clicks into place.

Do not touch the contact area directly.

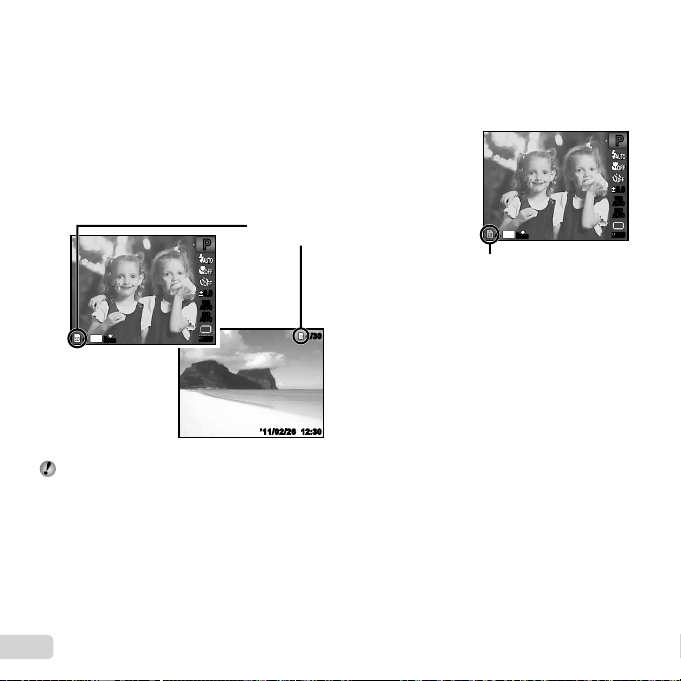

This camera allows the user to take pictures using the

internal memory even when no SD/SDHC memory card (sold separately) is inserted. “Using an SD/SDHC memory card” (p. 61)

“Number of storable pictures (still images)/Continuous

recording length (movies) in the internal memory and SD/SDHC memory cards” (p. 63)

To remove the SD/SDHC memory card

Windows

To remove the SD/SDHC memory card

Press the card in until it clicks and comes out slightly,

then grab the card and pull it out.

Charging the battery and setting up using the supplied CD

Connect the camera to the computer to charge the battery and use the supplied CD for setup.

User registration using the supplied CD and

installation of [ib] computer software is available on Windows computers only.

The camera battery can be charged while the camera is connected to a computer.

The indicator lamp lights during charging and turns

●

off when charging is complete.

Charging takes up to 3 hours.

If the indicator lamp does not light, the camera is not

correctly connected or the battery, camera, computer, or USB cable may not be functioning as expected.

We recommend that you use a computer equipped

with Windows XP (Service Pack 2 or later), Windows Vista, or Windows 7. See “Charging the battery with the supplied USB-AC adapter” (p. 16) if you are using a different computer or wish to charge the battery without using a computer.

Windows

Insert the supplied CD in a CD-ROM drive.

Windows XP

A “Setup” dialog will be displayed.

●

Windows Vista/Windows 7

●

An Autorun dialog will be displayed. Click “OLYMPUS Setup” to display the “Setup” dialog.

If the “Setup” dialog is not displayed, select “My

Computer” (Windows XP) or “Computer” (Windows Vista/Windows 7) from the start menu. Double-click the CD-ROM (OLYMPUS Setup) icon to open the “OLYMPUS Setup” window and then double-click “Launcher.exe”.

If a “User Account Control” dialog is displayed, click

“Yes” or “Continue”.

Follow the on-screen instructions on your

Connecting the camera

computer.

If nothing is displayed on the camera screen even

after connecting the camera to the computer, the battery may be exhausted. Leave the camera connected to the computer until the battery has charged, then disconnect and reconnect the camera.

Connecting the camera

Indicator lamp

Computer (on and running)

Click the “Registration” button and follow the on-

●

screen instructions.

Install OLYMPUS Viewer 2 and [ib] computer

software.

●

Check the system requirements before beginning installation.

●

Click the “OLYMPUS Viewer 2” or “OLYMPUS ib” button and follow the on-screen instructions to install the software.

Multi-connector

USB cable (supplied)

OLYMPUS Viewer 2

Operating System

Processor Pentium 4 1.3 GHz or better

RAM

Free Hard Drive Space

Monitor Settings

[ib]

Operating System

Processor

RAM

Free Hard Drive Space

Monitor Settings

Graphics

* See online help for information on using the software.

Install the camera manual.

Windows XP (Service Pack 2 or later) / Windows Vista / Windows 7

1 GB or more (2 GB or more recommended)

1 GB or more

1024 × 768 pixels or more Minimum 65,536 colors (16,770,000 colors recommended)

Windows XP (Service Pack 2 or later) / Windows Vista / Windows 7

Pentium 4 1.3 GHz or better (Pentium D 3.0 GHz or better required for movies)

512 MB or more (1 GB or more recommended) (1 GB or more required for movies — 2 GB or more recommended)

1 GB or more

1024 × 768 pixels or more Minimum 65,536 colors (16,770,000 colors recommended)

A minimum of 64 MB video RAM with DirectX 9 or later.

Click the “Camera Instruction Manual” button and

●

follow the on-screen instructions.

Macintosh

Insert the supplied CD in a CD-ROM drive.

Double-click the CD (OLYMPUS Setup) icon on

●

the desktop. Double-click the “Setup” icon to display the “Setup”

●

dialog.

Install OLYMPUS Viewer 2.

Check the system requirements before beginning

●

installation. Click the “OLYMPUS Viewer 2” button and follow

●

the on-screen instructions to install the software.

You can make user registration via “Registration” in

OLYMPUS Viewer 2 “Help”.

OLYMPUS Viewer 2

Operating System

Processor Intel Core Solo/Duo 1.5 GHz or better

RAM

Free Hard Drive Space

Monitor Settings

* Other languages can be selected from the language

combo box. For information on using the software, see online help.

Copy the camera manual.

Mac OS X v10.4.11–v10.6

1 GB or more (2 GB or more recommended)

1 GB or more

1024 × 768 pixels or more Minimum 32,000 colors (16,770,000 colors recommended)

Click the “Camera Instruction Manual” button to

●

open the folder containing the camera manuals. Copy the manual for your language to the computer.

Charging the battery with the supplied

When to charge the batteries

USB-AC adapter

The included F-2AC USB-AC adapter (hereafter

referred to as USB-AC adapter) differs depending on the region where you purchased the camera.

The supplied USB-AC adapter is for charging and

playback only. Do not take pictures while the USB-AC adapter is connected to the camera. The camera cannot playback without the battery even when connected to the USB-AC adapter.

connector

USB

USB cable

(supplied)

USB cable (supplied)

USB connector

Multi-connectorMulti-connector

Indicator lamp On: Charging Off: Charged

The battery is not fully charged at the time of

purchase. Before use, be sure to charge the battery until the indicator lamp turns off (up to 3 hours).

If the indicator lamp does not light, the camera is not

correctly connected or the battery, camera, or USBAC adapter may not be functioning as expected.

For details on the battery and the USB-AC adapter,

see “The battery and USB-AC adapter” (p. 60).

The battery can be charged while the camera is

connected to the computer. Charging time varies depending on the performance of a computer. (There may be cases in which it takes approx. 10 hours.)

When to charge the batteries

Charge the battery when the error message shown below appears.

Flashes in red

AC outlet AC outlet

VGA

0:340:34

Monitor top left Error message

Battery Empty

Operation guide

Operation guides displayed at the bottom of the screen indicate that the m button, Q button, or zoom lever should be used.

Reset

Image Size 14M

Compression Normal

AF Mode Face/iESP

Digital Zoom Off

Image Stabilizer

AF Illuminat. On

Exit

Operation guide

Sel. Image

Set

Erase/Cancel

Date, time, time zone, and language

The date and time set here are saved to image ﬁ le names, date prints, and other data. You can also choose the language for the menus and messages displayed in the monitor.

Press the n button to turn on the

camera.

The date and time setting screen is displayed when

●

the date and time are not set.

YMDTime

-- -- -- --

--------

Cancel

Date and time setting screen

Use FG to select the year for [Y].

YMDTime

-- -- -- --

20112011

Cancel

Y/M/D

:..

Y/M/D

:..

Press I to save the setting for [Y].

Y M D Time

-- -- ------

:..2011

Cancel

As in Steps 2 and 3, use FGHI and the

Q button to set [M] (month), [D] (day), [Time]

(hours and minutes), and [Y/M/D] (date order).

For a more accurate setting, press the Q button

when the time signal hits 00 seconds while setting the minutes.

The menus can be used to change the selected date

and time. [X] (Date/time) (p. 47)

Use HI to select your home time zone and

press the Q button.

Use FG to turn daylight saving time ([Summer])

●

on or off.

’11.02.26.12:30

Seoul

Seoul Tokyo

Tokyo

Y/M/D

Summer

The menus can be used to change the selected time

zone. [World Time] (p. 47)

Use FGHI to select your language and

press the Q button.

The menus can be used to change the selected

language. [W] (Language) (p. 47)

Set

Shooting, Viewing, and Erasing

Shooting with the optimum aperture value and shutter speed [Program Auto]

In this mode, automatic shooting settings are activated while also allowing changes to a wide range of other shooting menu functions, such as exposure compensation, white balance, etc. as needed.

Press the n button to turn on the

camera.

Number of storable still pictures (p. 63)

If the [Program Auto] indicator is not displayed, press

H to display the function menu and then set the shooting mode to P. “Using the Menu” (p. 4)

[Program Auto] indicator

VGA

0:340:34

Monitor (standby mode screen)

Current shooting mode display

Program AutoProgram Auto

Press the n button again to turn off the camera.

Hold the camera and compose the shot.

Monitor

0.00.0

AUTOWBAUTO ISO

ISO AUTO

AUTO

When holding the camera, take care not to cover the

ﬂ ash with your ﬁ ngers, etc.

Horizontal grip

Vertical grip

0.00.0

AUTOWBAUTO

ISO

AUTO

ORM

Press the shutter button halfway down to

To view images during shooting

0:00

RECREC

0:34

0:00

0:34

focus on the subject.

When the camera focuses on the subject, the

●

exposure is locked (shutter speed and aperture value are displayed), and the AF target mark changes to green.

The camera was unable to focus if the AF target

●

mark ﬂ ashes red. Try focusing again.

Press halfway

“Focusing” (p. 57)

To take the picture, gently press the shutter

button all the way down while being careful not to shake the camera.

Press fully

To view images during shooting

Pressing the q button enables playback of images. To return to shooting, either press the q button or press the shutter button halfway down.

AF target mark

1/4001/400 F3.0F3.0

Shutter speed Aperture value

1/4001/400 F3.0F3.0

Image review screen

Shooting movies

Press the R button to start recording.

0:34

Sound will also be recorded.

The shooting mode selected for still photography

applies to movies (some shooting modes have no effect).

Press the R button again to end recording.

During sound recording, only the digital zoom can be

used. To record a movie with optical zoom, set [R] (Movie sound recording) (p. 37) to [Off].

0:34

RECREC

0:00

Lights up red when recording

Current length

Continuous recording length (p. 63)

Using the zoom

To take larger images [Digital Zoom]

Turning the zoom lever adjusts the shooting range.

W side T side

[Off] selected for [Digital Zoom]:

Image size Zoom bar

14M

Optical zoom range

Zoom bar

0.00.0

AUTOWBAUTO

ISO

AUTO

VGA

0:340:34

AUTO

####

VGA

0:340:34

Model No. Optical zoom Digital zoom

VR-330/D-730

VR-320/D-725

VR-310/D-720

To take larger images [Digital Zoom]

The type and amount of zoom can be identiﬁ ed from

the appearance of the zoom bar. The display differs depending on the options selected for [Digital Zoom] (p. 36) and [Image Size] (p. 34).

12.5 × 4 ×

10 × 4 ×

Other

[On] selected for [Digital Zoom]:

Image size Zoom bar

0.00.0

WB AUTOWBAUTO ISO

ISO AUTO

AUTO

14M

Other

If an image size is less than the full resolution after

reaching the maximum optical zoom, the camera will automatically resize and crop the image to the selected image size and enter the digital zoom range if [Digital Zoom] is [On].

Photographs taken with the zoom bar displayed in

red may appear “grainy.”

Image zoomed and cropped.

Image zoomed and

cropped.

Digital zoom range

Changing the shooting information

To play sound recordings

To play back movies

display

The display of the screen information can be changed to best match the situation, for example, the need for a clear view of the screen or for making a precise composition by using the grid display.

Press F (INFO).

The displayed shooting information changes in

●

the order shown below each time the button is pressed. “Shooting mode display” (p. 10)

Normal

0:340:34

VGA

0.00.0

AUTOWBAUTO

No information

ISO

ISO AUTO

AUTO

Use HI to select an image.

Displays

previous image

Hold I to fast forward and hold H to reverse.

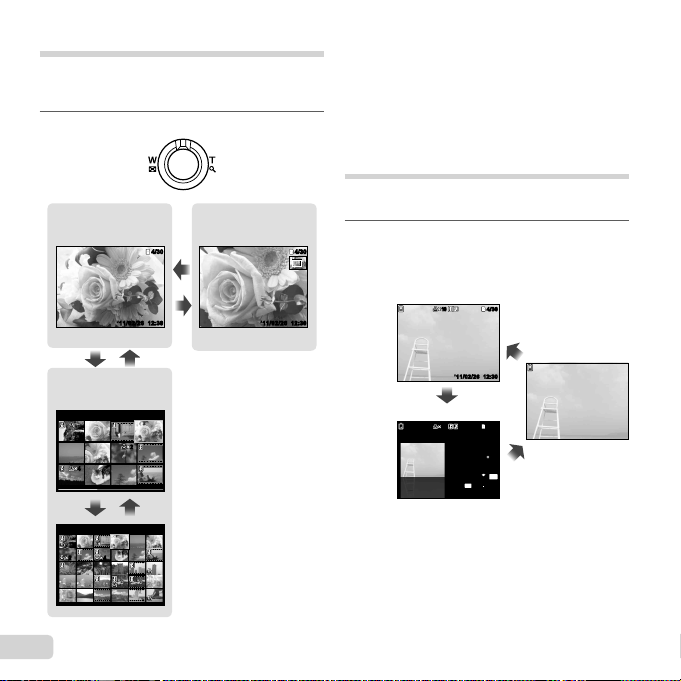

The display size of the images can be changed.

“Index view and close-up view” (p. 24)

To play sound recordings

To play sound recorded with an image, select the image and press the Q button. A ! icon appears on images with which sound has been recorded.

[R] (still images) (p. 39)

Displays next image

Detailed

VGA

0:340:34

ORM

Viewing images

Press the q button.

0.00.0

WB AUTOWBAUTO ISO

ISO AUTO

AUTO

Number of frames/Total number of images

4/30

12:30’11/02/26’11/02 /26 12:30

Playback image

Press FG to adjust volume.

During audio playback

To play back movies

Select a movie, and press the Q button.

Movie PlayMovie Play

Movie

4/30

12:30’11/02/26’11/02/26 12:30

Operations during movie playback

Operations during pausing playback

To stop movie playback

Operations during movie playback

During playback

Pausing and

resuming playback

Fast forward

Rewind

Adjusting the

volume

Operations during pausing playback

Total recording time

Press the Q button to pause playback. To resume playback during pause, fast forward, or rewind, press the Q button.

Press I to fast forward. Press I again to increase the fast forward speed.

Press H to rewind. The rewinding speed increases each time H is pressed.

Use FG to adjust the volume.

Elapsed time/

During pause

00:14/00:3400:14/00:34

Cueing

Advancing and

rewinding one

frame at a time

Resuming

playback

To stop movie playback

Press the m button.

Press F to display the ﬁ rst frame and press G to display the last frame.

Press I or H to advance or rewind one frame at a time. Hold I or H pressed for continuous advance or rewind.

Press the Q button to resume playback.

Erasing images during playback (Single image erase)

Display the image you want to erase and

press G (D).

Erase

Cancel

Press FG to select [Erase], and press the

Q button.

For erasing multiple images at the same time, see

“Erasing images [Erase]” (p. 39).

Erase

Cancel

Set

+ 53 hidden pages
