Olldcastlebe MSD-375 User Manual

MANUAL COMP

MSD-375 BlastMax Medium Stile Doors

Installation and Glazing

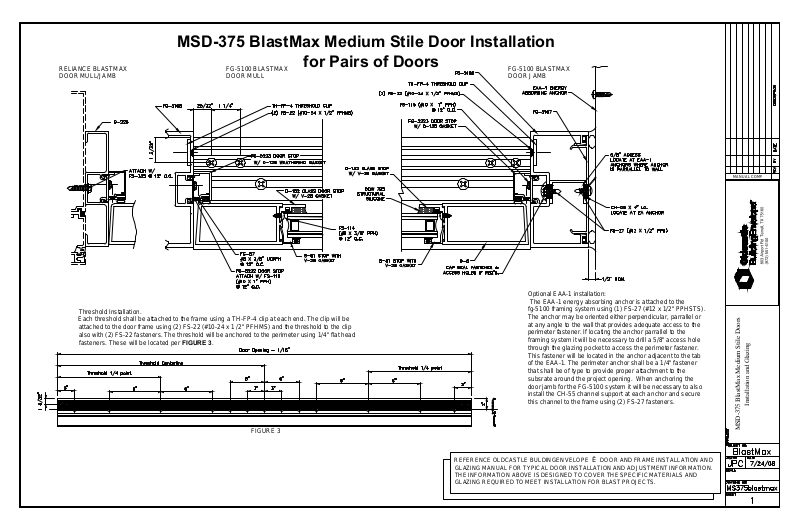

MSD-375 BlastMax Medium Stile Door Installation

for Pairs of Doors

REFERENCE OLDCASTLE BULDINGENVELOPE  DOOR AND FRAME INSTALLATION AND
GLAZING MANUAL FOR TYPICAL DOOR INSTALLATION AND ADJUSTMENT INFORMATION.
THE INFORMATION ABOVE IS DESIGNED TO COVER THE SPECIFIC MATERIALS AND
GLAZING REQUIRED TO MEET INSTALLATION FOR BLAST PROJECTS.

Optional EAA-1 installation:
The EAA-1 energy absorbing anchor is attached to the
fg-5100 framing system using (1) FS-27 (#12 x 1/2" PPHSTS).
The anchor may be oriented either perpendicular, parrallel or
at any angle to the wall that provides adequate access to the
perimeter fastener. If locating the anchor parrallel to the
framing system it will be necessary to drill a 5/8" access hole
through the glazing pocket to access the perimeter fastener.
This fastener will be located in the anchor adjacent to the tab
of the EAA-1. The perimeter anchor shall be a 1/4" fastener
that shall be of type to provide proper attachment to the
subsrate around the project opening. When anchoring the
door jamb for the FG-5100 system it will be necessary to also
install the CH-55 channel support at each anchor and secure
this channel to the frame using (2) FS-27 fasteners.

Threshold Installation.
Each threshold shall be attached to the frame using a TH-FP-4 clip at each end. The clip will be
attached to the door frame using (2) FS-22 (#10-24 x 1 /2" PFHMS) and the threshold to the clip
also with (2) FS-22 fasteners. The threshold will be anchored to the perimeter using 1/4" flat head
fasteners. These will be located per FIGURE 3.

FIGURE 3

RELIANCE BLASTMAX
DOOR MULL/JAMB

FG-5100 BLASTMAX
DOOR MULL

FG-5100 BLASTMAX
DOOR JAMB

MANUAL COMP

MSD-375 BlastMax Medium Stile Doors

Installation and Glazing

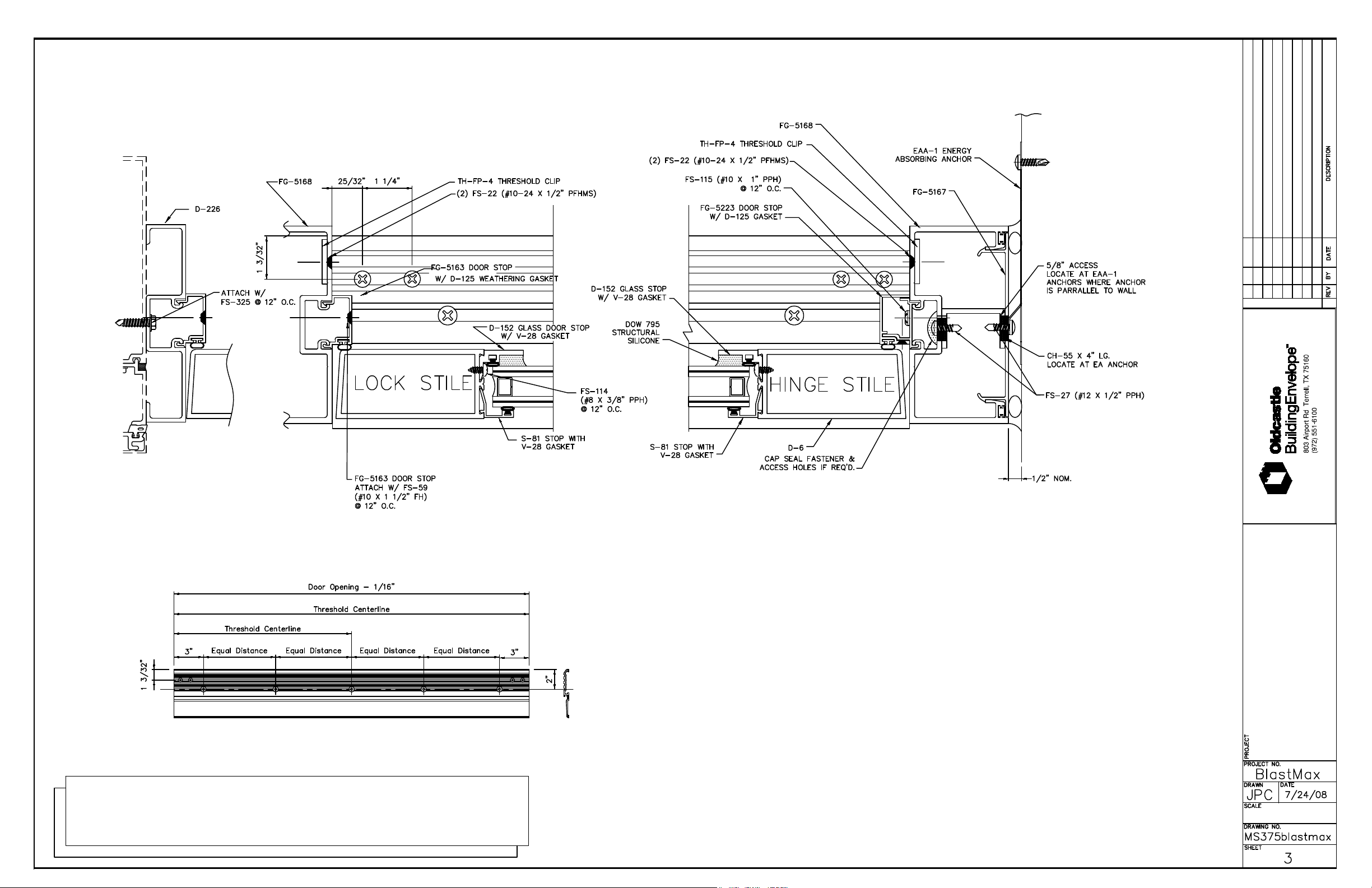

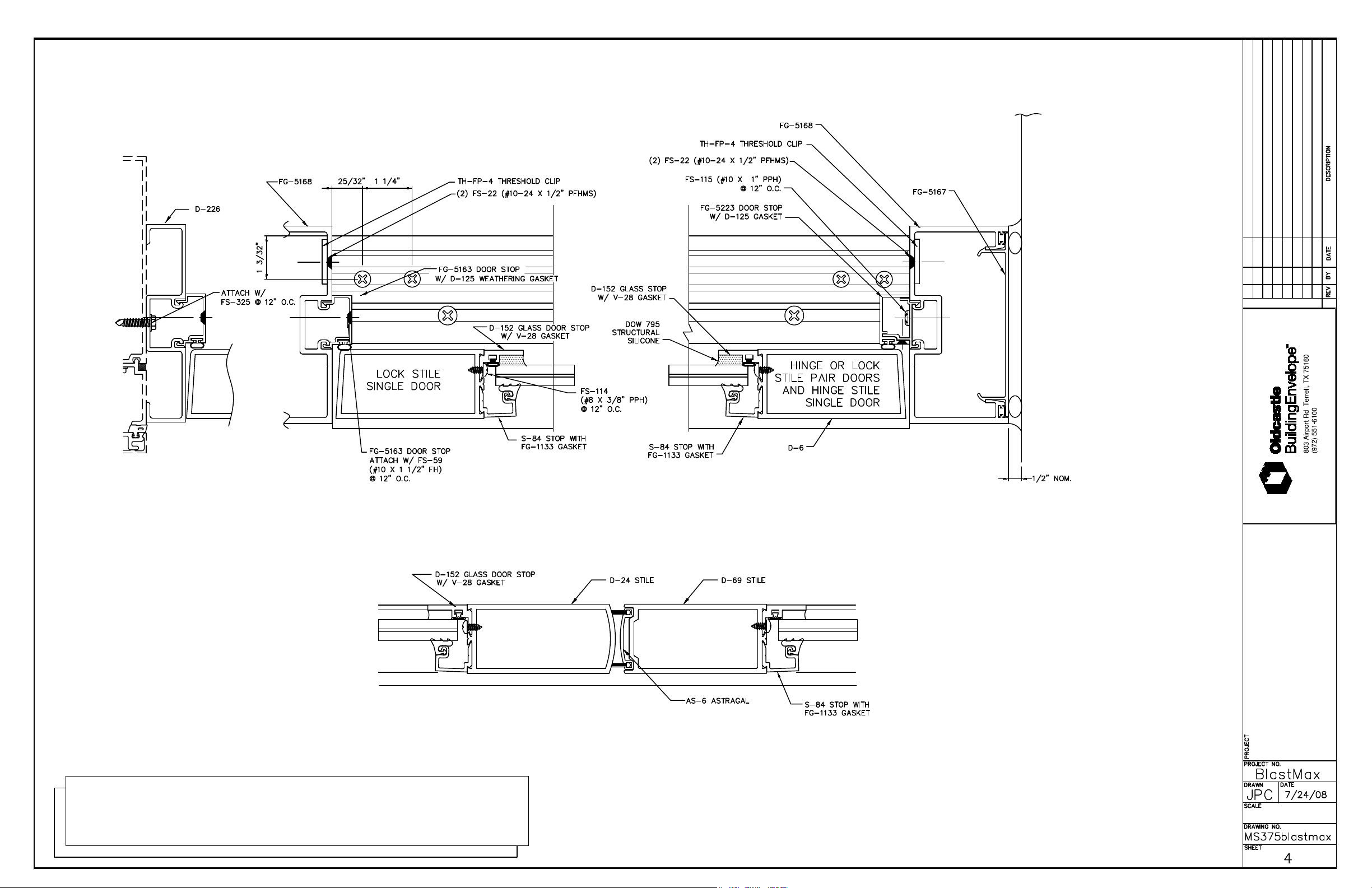

MSD-375 BlastMax Medium Stile Door
Installation

REFERENCE OLDCASTLE bUILDINGENVELOPE DOOR AND FRAME

INSTALLATION AND GLAZING MANUAL FOR TYPICAL DOOR INSTALLATION

AND ADJUSTMENT INFORMATION. THE INFORMATION ABOVE IS

DESIGNED TO COVER THE SPECIFIC MATERIALS AND GLAZING REQUIRED

TO MEET INSTALLATION FOR BLAST PROJECTS.

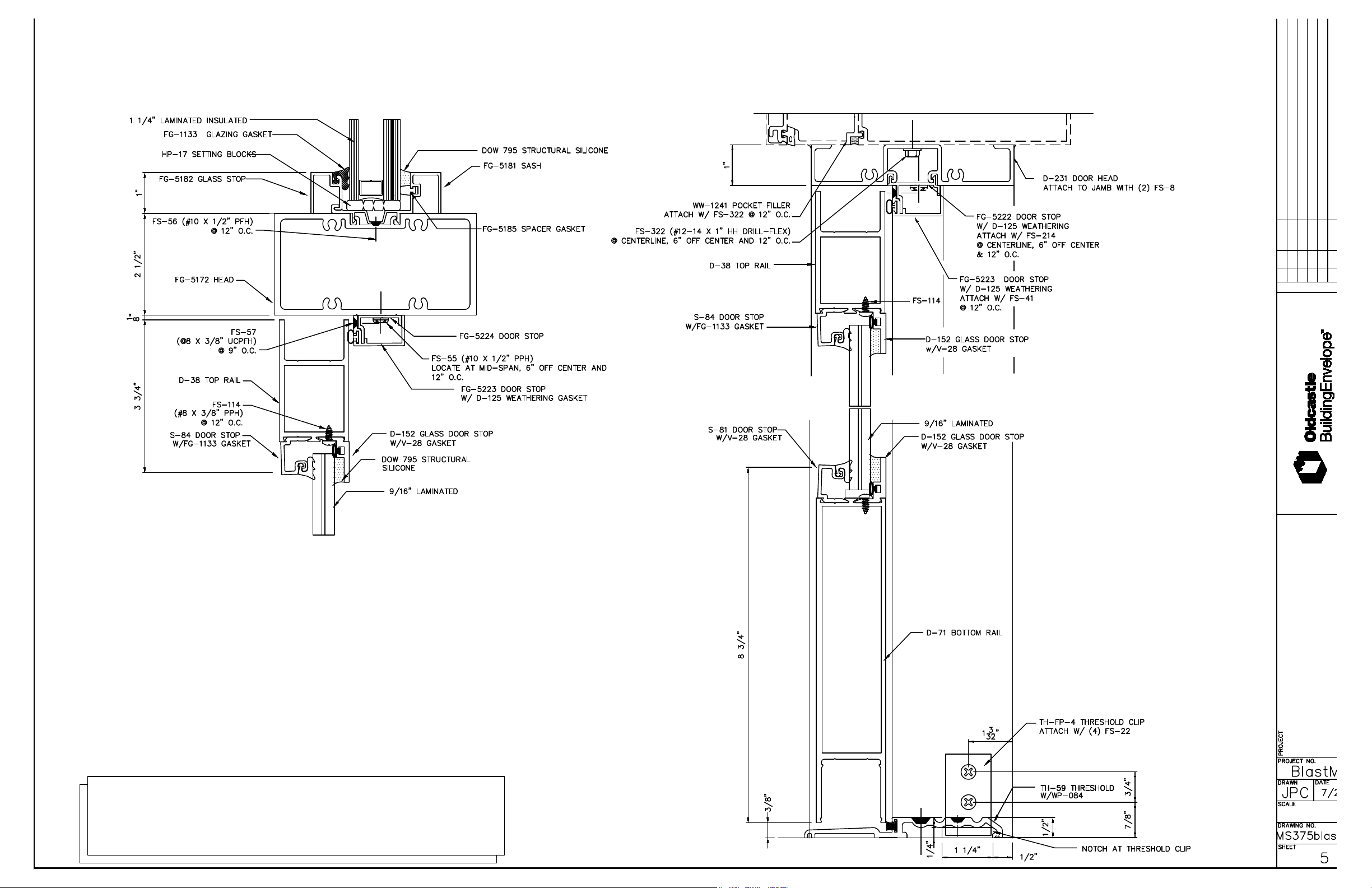

NOTE: SPECIAL DOOR HEIGHT WHEN CALCULATING DOORS
FOR BLAST INSTALLATIONS. OVERALL DOOR HEIGHT SHALL BE
DOOR OPENING MINUS 1/2". (1/8" AT DOOR HEAD PLUS 3/8" AT
THRESHOLD)
