Oki PT340, PT341 Windows Driver User's Guide

Download

PT34

PT341

Windows Driver User’s Guide

Windows Driver User'

s Guide 1.0.0.0

Table of Contents

1 Introduction ..............................................................................................................................................2

1.1 Overview.............................................................................................................................................2

1.2 Trademarks.........................................................................................................................................2

1.3 System Requirements.........................................................................................................................2

2 Installing and Uninstalling the Driver.....................................................................................................5

3 How to Use the Printer Driver .................................................................................................................6

3.1 How to Display the Setting Screen .....................................................................................................7

3.1.1 How to Display the Printer Properties ............................................................................................8

3.1.2 How to Display the Printing Preferences (Document Properties) ................................................10

3.2 Initial Settings....................................................................................................................................11

3.2.1 Port Setting (for Serial Interface)..................................................................................................11

3.2.2 Setting Custom Paper ..................................................................................................................12

3.3 Printing from an Application..............................................................................................................15

3.4 Printing Bar Codes and 2D Codes....................................................................................................17

4 Setting up the Printer Driver .................................................................................................................21

4.1 [Custom Paper] Tab ..........................................................................................................................22

4.2 [Paper] Tab........................................................................................................................................24

4.3 [Paper Cut and Paper Feed] Dialog Box ..........................................................................................29

4.4 [Graphics] Tab...................................................................................................................................33

4.5 [Operations] Tab................................................................................................................................35

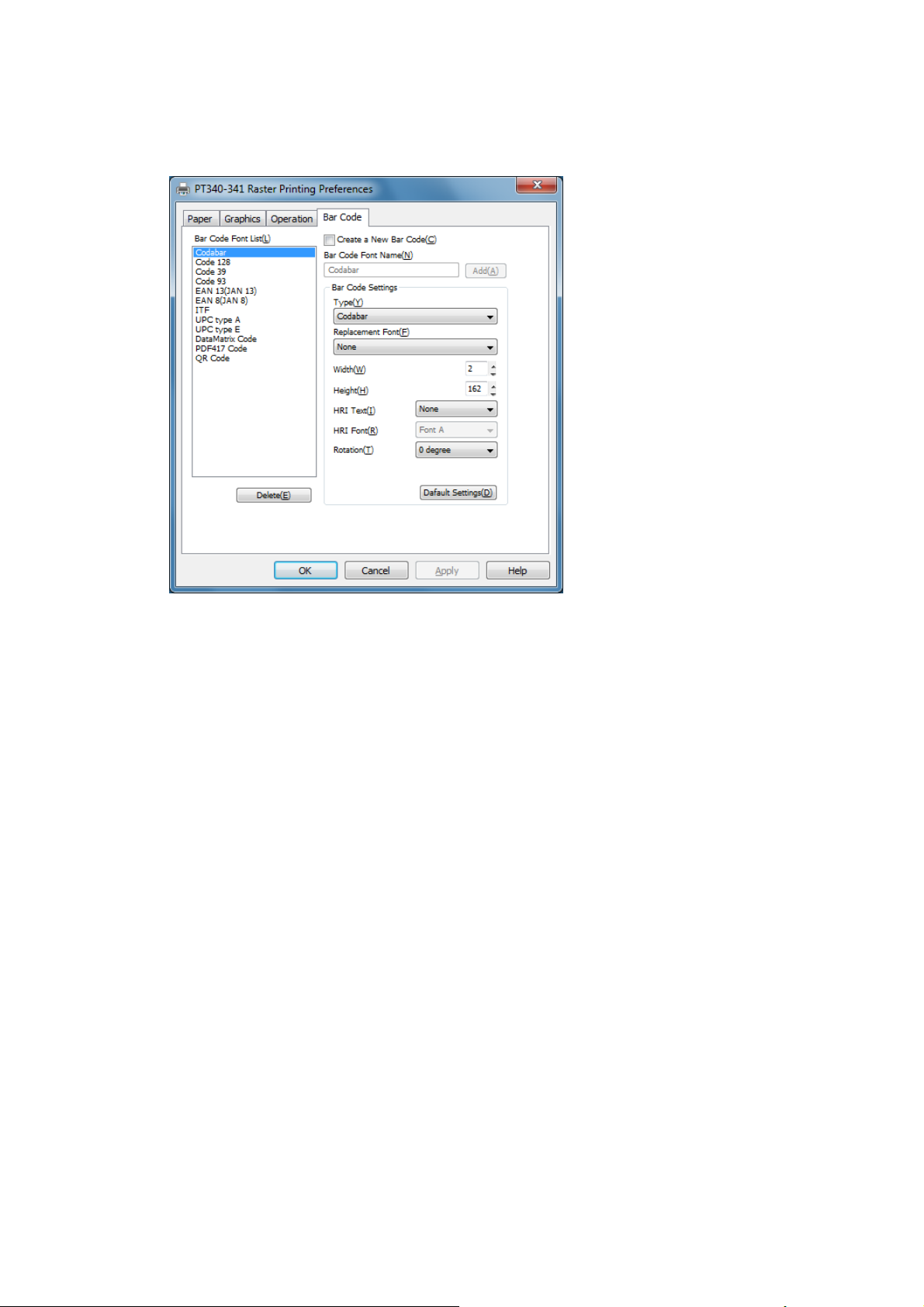

4.6 [Bar Code] Tab..................................................................................................................................39

4.6.1 List of Supported Bar Codes and 2D Codes................................................................................40

4.6.2 How to Register a New Bar Code Font........................................................................................41

4.6.3 How to Change Bar Code Font Settings......................................................................................41

4.6.4 Setting Items (for all Bar Codes)..................................................................................................42

4.6.5 Bar Code Settings ........................................................................................................................45

4.6.6 DataMatrix Code Settings.............................................................................................................47

4.6.7 PDF417 Code Settings.................................................................................................................48

4.6.8 QR Code Settings.........................................................................................................................50

5 Displaying Printer Status Information..................................................................................................51

6 Precautions for Use ...............................................................................................................................53

6.1 Warnings for Printer Driver Settings .................................................................................................53

6.2 Application Warnings ........................................................................................................................54

6.3 Bar Code and 2D Code Warnings ....................................................................................................55

6.4 Other Notes.......................................................................................................................................57

7 Revision History.....................................................................................................................................58

1 of 58

1.1 Overview

This document describes how to use the Windows printer driver for the PT340-341 printer. The PT340-341 Windows printer driver is a software program for printing documents from Windows

applications to the PT340-341 printer. It converts printing data from applications into the format required by the PT340-341 and sends it to the printer. You can also set various printing functions su ch as bar codes, paper saving, print position alignment, and pape r cutting.

1.2 Trademarks

All company names and product names contained in this manual are registered trademarks or trademarks of their respective owners.

1 Introduction

Windows Driver User'

s Guide 1.0.0.0

1.3 System Requirements

This printer driver can be used with the following system configurations.

 Printer Setup

 Error : Auto Recovery  Cover Open Error: Auto Recovery

<Guide> The above settings are the factory defaults.

Usually, you do not have to modify the setting. However, the OPOS driver uses "Recovery by Command" as the [Error] setting and therefore you need to change the default value in this case. For information on how to set the value, please see the printer User's Guide.

Configure the printer settings as follows depending on the interface you are using.

■ For the LAN interface

• LAN: Enable

■ For the USB or Serial interface

• LAN: Disable

<Guide> The factory default value is "Enable".

Refer to the instruction manual for the printer for details on how to configure this setting.

2 of 58

Windows Driver User'

s Guide 1.0.0.0

 Host Hardw

are

A personal computer with the following interfaces running one of the listed operating systems (OS).

 Serial interface  USB interface  LAN interface

<Guide> When using a Windows printer driver via the LAN,

you need to configure the LAN information and create a original TCP/IP ports for this printer. You can configure these settings easily by using the "Printer LAN Settings Tool". Refer to the Installation Guide for details on how to install and the Printer LAN Online Manual for details on how to use the "Printer LAN Settings Tool".

*) WEPOS 2009 For using the LAN interface Please add the "Management and Monitoring Tool" component.

3 of 58

Windows Driver User'

s Guide 1.0.0.0

 Operating System (OS)

 Microsof

t® Windows® XP Professional (*1)

 Microsoft® Windows® XP Home Edition (*1)  Microsoft® Windows Vista® Enterprise (*2)  Microsoft® Windows Vista® Business (*2)  Microsoft® Windows Vista® Ultimate (*2)  Microsoft® Windows Vista® Home Premium (*2)  Microsoft® Windows Vista® Home Basic (*2)  Microsoft® Windows® 7 Ultimate (*3)  Microsoft® Windows® 7 Enterprise (*3)  Microsoft® Windows® 7 Professional (*3)  Microsoft® Windows® 7 Home Premium (*3)  Microsoft® Windows® 7 Starter (*3)  Microsoft® Windows® 8 Enterprise (*4)  Microsoft® Windows® 8 Pro (*4)  Microsoft® Windows® 8 (*4)  Microsoft® Windows Server® 2003, Enterprise Edition (*5)  Microsoft® Windows Server® 2003, Standard Edition (*5)  Microsoft® Windows Server® 2008, Enterprise Edition (*6)  Microsoft® Windows Server® 2008, Standard Edition (*6)  Microsoft® Windows Server® 2008 R2, Enterprise Edition (*7)  Microsoft® Windows Server® 2008 R2, Standard Edition (*7)  Microsoft® Windows Server® 2012, Standard (*8)  Microsoft® Windows Server® 2012, Essentials (*8)  Microsoft® Windows® Embedded for Point of Service (*9)  Microsoft® Windows® Embedded POSReady 2009 (*10)

<Guide> The 64-bit OS versions are also supported.

In this document, each of the products is abbreviated as follows:

*1 : Windows XP *2 : Windows Vista *3 : Windows 7 *4 : Windows 8 *5 : Windows Server 2003 *6 : Windows Server 2008 *7 : Windows Server 2008 R2 *8 : Windows Server 2012 *9 : WEPOS *10 : WEPOS 2009

4 of 58

Windows Driver User'

2 Installing and Uninstalling the Driver

For information on how to install or uninstall this printer driver, please see the following topics:

"2. Installation" in the "Installation Guide" "4. Uninstallation" in the "Installation Guide"

s Guide 1.0.0.0

5 of 58

Windows Driver User'

s Guide 1.0.0.0

3 How to Use the Printer Driver

This section describes how to setup the printer driver and the typical printing method s for printing documents from Windows applications to the PT340-341 printer.

After the printer driver is installed, printing a document from an application is performed as follows:

Ⅰ Install the printer driver

Ⅱ Set the port

If using with serial interface, configure the settings for the serial interface on the [Ports] tab of the [Printer Properties].

 [See Also]

3.1.1 How to Display the Printer Properties

3.2.1 Port Setting (for Serial Interface)

Ⅲ Set the custom paper type

While this printer driver provides four standard p a per sizes, you can also cre ate and regi ster new paper sizes for the printer driver using the [Custom Paper] tab of [Printer Properties].

 [See Also]

3.1.1 How to Display the Printer Properties

3.2.2 Setting Custom Paper

Ⅳ Print from application

Configure the print setup for the printer driver and print the document created in the application with the printer.

 [See Also]

3.1.2 How to Display the Printing Preferences (Document Properties)

3.3 Printing from an Application

3.4 Printing Bar Codes and 2D Codes

6 of 58

3.1 How to Display the Setting Screen

There are two types of setting screens for the printer driver:

 Printer Properties

In the [Printer Properties] screen, you configure the initial settings required for the printer driver to print documents, such as the custom paper and port (serial interface, for example) settings.

Windows Driver User'

s Guide 1.0.0.0

 Printing Preferences (Document Properties)

In the Printing Preferences screen, you configure various printing features of the printer d river (for example, bar code or paper cut).

The following section explains how to display each of the screens. Please note that the actual menu names may vary depending on the Windows screen settings.

7 of 58

Windows Driver User'

3.1.1 How to Display the Printer Properties

Administrative privileges are required to change the printer properties. Log on with an Administrator account to change the settings.

(1) Open the Printer folder.

For Windows XP Professional

・

From Windows' [Start] menu, select [Printers and Faxes].

For Windows XP Home Edition

・

From Windows' [Start] menu, select [Control Panel]→[Printers and Other Hardware], and on the [Printers and Other Hardware] screen, select [View installed printers or fax printers].

For Windows Server 2003

・

From Windows' [Start] menu, select [Printers and Faxes].

For Windows Vista

・

From Windows' [Start] menu , select [Control Panel], and on the [Hardware and Sound] screen, select [Printers].

For Windows Server 2008

・

From Windows' [Start] menu, select [Control Panel]→[Printers].

For Windows 7

From Windows' [Start] menu , select [Devices and Printers].

For Windows Server 2008 R2

s Guide 1.0.0.0

From Windows' [Start] menu, select [Devices and Printers].

8 of 58

Windows Driver User'

s Guide 1.0.0.0

For Windows 8

Press the Windows logo key + X key,

shortcut menu is displayed bottom left of the screen.

Click [Control Panel], and click [Devices and Printers].

For Windows Server 2012

Press the Windows logo key + X key, shortcut menu is displayed bottom left of the screen. Click [Control Panel], and click [Devices and Printers].

(2) Right-click “PT340

-341 Raster” and select [Properties].

* For Windows Vista and Server 2008, if [Run as administrator] is displayed when you right-click a

printer name, select [Run as administrator]→[Properties]. If the [User Account Control] dialog is displayed, select [Continue].

* For Windows 7 / Windows 8 / Server 2008 R2 / Server 2012, right-click the printer name and

select [Printer Properties].

(3) The properties screen is displayed for the selected printer.

9 of 58

Windows Driver User'

s Guide 1.0.0.0

3.1.2 How to Display the Printing Preferences (Document Properties)

(1) Open the Printer folder.

See 3.1.1(1) for instructions on how to open the Printer folder.

(2) Right-click “PT340-341 Raster” and select [Printing Preferences].

(3) The Printing Preferences screen is displayed for the selected printer.

The values specified in the printer folder (shown above) are used as the initial values when printing from an application. You can also set the values for each job from within the application. For information on how to set the values in the application, please see "3.3 Printing from an Application".

10 of 58

Windows Driver User'

s Guide 1.0.0.0

3.2 Initial Settings

Setup the following items before using the printer driver to print documents. The initial values are specified in the printer properties screen.

 Set Port (for Serial Interface)  Set Custom Paper

The settings are as follows.

3.2.1 Port Setting (for Serial Interface)

If this printer driver is used with the serial interface, set the port as follows:

 Bits per second ： 115200  Data bits ： 8  Parity ： None  Stop bits ： 1  Flow control ： Hardware

The procedure is as follows.

(1) Open the Printer folder.

See 3.1.1(1) for instructions on how to open the Printer folder.

(2) Right-click “PT340-341 Raster” and select [Properties].

* For Windows Vista and Server 2008, if [Run as administrator] is displayed when you right-click a

printer name, select [Run as administrator]→[Properties]. If the [User Account Control] dialog is displayed, select [Continue].

* For Windows 7 / Windows 8 / Server 2008 R2 / Server 2012, right-click a printer name and select

[Printer Properties].

(3) Click the [Ports] tab and select the connected port (COMx:).

* "x" of "COMx:" indicates the port number.

(4) Click the [Configure Port] button.

(5) In the [COMx Properties] screen, set the bits per second, data bits, p arity , stop bits, and flow con trol,

and click the [OK] button.

(6) Click the [OK] button in the properties screen.

11 of 58

3.2.2 Setting Custom Paper

This printer driver provides the following four standard paper sizes.

Paper Size 80 x 297 mm (48 column) 3.0 5.0 0.0 0.0

80 x 297 mm (42 column) 8.0 8.0 0.0 0.0 58 x 297 mm (35 column) 3.0 2.5 0.0 0.0 58 x 297 mm (32 column) 5.0 5.0 0.0 0.0

If printing documents on different-sized paper, use the printer driver to define a custom paper size in advance. To specify a custom paper size, specify the printing paper size, assign a name, an d register it with the printer driver. The following section describes how to setup custom paper size s.

(1) Open the Printer folder.

See 3.1.1(1) for instruction on how to open the Printer folder.

(2) Right-click “PT340-341 Raster” and select [Properties].

* For Windows Vista and Server 2008, if [Run as admini strator] is displayed when you right-cli ck a

printer name, select [Run as administrator]→[Properties]. If the [User Account Control] dialog is displayed, select [Continue].

* For Windows 7 / Windows 8 / Server 2008 R2 / Server 2012, right-click a printer name and select

[Printer Properties].

Left Right Top Bottom

Windows Driver User'

Margin (mm)

s Guide 1.0.0.0

12 of 58

Windows Driver User'

(3) Click the [Custom Paper] t

(4)

(5)

(6)

(4)

Check [Creat

(5) Enter a paper name in [Paper Name].

* The paper name can be unique. The figure above shows an example with the name "Receipt-A."

(6) Select the [Unit], and enter the [S1], [S3], [L] and [R] values according to the layout shown in the

box.

* Changing between units can result in a rounding error of 0.1mm.

If this happens, set the value again.

* The [Paper Type], [S2], [S4] and [S5] settings are used for label printers.

They cannot be specified for this printer. In addition, the margins [T] and [B] are fixed at "0.0."

(7) Click the [Save] button.

The created paper is added to the [Paper] list.

e a Ne

ab.

(3)

w Paper].

s Guide 1.0.0.0

(7)

(6)

(8) Click the [OK] button to close the properties screen.

13 of 58

* When printing documents,

in the [Printing Preferences] screen.

Windows Driver User'

s Guide 1.0.0.0

the registered paper will be available for selection in the [Paper Size] field

The figure shows an example named "Receipt-A" that was registered as a custom paper size with a width of 80mm and height of 400mm.

14 of 58

3.3 Printing from an Application

Y ou can use the p aper types registered with the printe r driver to print documents from applications. As an example, this section describes how to print a document on the PT340-341 printer using W ordPad.

(1) Select [Page setup] from the [File] menu of WordPad. (2) In the [Page Setup] screen, set the Paper Size, Orientation and Margins, and click the [OK]

button.

(3) Edit the document in the WordPad

(4) Select [Print] from the [File] menu. (5) The [Print] screen is displayed.

Specify the “PT340-341 Raster” printer in [Select Printer].

(6) To specify the settings for the printer driver, click the [Preferences] button.

* This button depends on the application. In Word or Excel, for example, the button name becomes [Properties].

(1)

(2)

screen.

Windows Driver User'

s Guide 1.0.0.0

(4)

(5)

(6)

15 of 58

Windows Driver User'

(7) The [PT340-341 Raste

Specify the settings and click the [OK] button.

(8) Specify [Page Range] or [Number of copies] as needed, and click the [Print] button.

(9) The print data is se

(7)

r Properties] (Printing Preferences) screen is displayed.

(8)

nt to the printer and the document is printed.

s Guide 1.0.0.0

16 of 58

Windows Driver User'

3.4 Printing Bar Codes and 2D Codes

This printer driver supports printing of various bar codes and 2D co des. Thi s enables you to print bar code or 2D codes from general applications such as Word or Exce l.

How a bar code or 2D code is printed

When the printer driver is used, a number of fonts with names corresponding to types of bar code (see [1] bar code font) are added to the fonts available in the application. To print text as a bar code, enter the text in the document (see [2] ba r code dat a) and assign the desired bar code font. The same method can be used to print 2D codes.

[2] Bar code

data

Please print af Windows as a bar code font) when the bar code font is not displayed in the font selection list by your using application. Please refer to “Setup procedures of Replacement Font” for details of this setting.

The procedure for printing a bar code or 2D code is as follows.

How to print a bar code or 2D code

 Instruction on How to Print Bar Code (1) Start the applic

(2) In the application's edit screen, enter the data to be printed as a bar code or 2D code.

ter setting Replacemen

ation and set the paper size for the document.

[1] Bar code

font

When printing, the

bar code font is

converted into a bar

code.

t Font (setting that uses the arbitrary font registered in

s Guide 1.0.0.0

17 of 58

Windows Driver User'

(3) Select the entered bar code or 2D code data then use the application's font selection list to select

the font corresponding to the type of bar code or 2D code you want to print. The following exa mple prints a "QR code" (a type of 2D code).

(4) Select [Print] from the [File] menu. The [Print] dialog is displayed.

* To spe cify the bar code or 2D code settings (size, rot ation,

and so on), click the [Properties] button to open the [Printing Preferences] screen for the printer driver. For detailed information on setting the values, please see "4.6 [Bar Code] Tab".

(5) Click the [OK] button to print out the document.

The text to which the ba

r code font is assigned is printed as a bar code or 2D code.

s Guide 1.0.0.0

18 of 58

Setup procedures of Replacement Font

Windows Driver User'

s Guide 1.0.0.0

This chapter explain

s the setting that uses the arbitrary font registered in Windows as a bar code font.

(1) Select [Print] in File menu of the application, and click [Properties] button in Print dialog.

(2) Sel

ct the

"Bar Cod

" tab in the properties screen of the printer driver.

(3) Sele

ct the barcode that you use from

"Bar Code Font List", specify the arbitrary font registered in Windows from "Replacement Font", and click [OK]. The example of setting Replacement Font of "QR Code" to "T imes New Roman" is shown as follows.

19 of 58

Windows Driver User'

s Guide 1.0.0.0

(4) The bar code can be printed by selecting the font spe

cified by (3) from the font selection list of the application. Please refer to “How to print a bar code or 2D code” for the print procedure of the bar code.

* Please d

o not spe

cify the font used by the application as a character for Replacement Font.

20 of 58

Windows Driver User'

s Guide 1.0.0.0

4 Setting up the Printer Driver

This section describes the functions in the [Printer Properties] and [Printing Preferences] screens. The figure below shows how the printer driver settings screen i s organized. This section descri bes the settings specific to this printer driver (indicated by information about the Windows settings (indicated by

Printer Properties

General Edit printer name, specify the print settings, and print a test page.

Sharing Configure the printer share settings.

Ports Configure the port settings.

Advanced Configure the print settings.

Security Set the printer driver's security.

). Please refer to Windows Help for

Custom Paper Create or edit a custom paper size.

Printing Preferences

Paper

Paper Cut and Paper Feed

Graphics

Operation

Bar code

Configure the paper settings and display the version information. <Paper Size, Output Size, Saving Paper, Paper Feed Direction, Print Position Adjustment, Copies, Collate>

Configure the paper cut and feeder. <Paper Cut, Paper Feed, Top of Form Position, Reducing Blank lines, Skip Blank Pages>

Configure the graphics settings. <Color, Half toning, Max Speed, Print Density, BK Density>

Configure the operational settings. <Drawer, Buzzer, Logo Printing>

Configure the bar code and 2D code settings. <Bar Code Settings>

21 of 58

4.1 [Custom Paper] Tab

Windows Driver User'

s Guide 1.0.0.0

Administrative privileges are required to change the [Custom Paper] settings. Log on with an Administrator account to change the settings. If you are using Windows Vista or Server 2008, open the properties for the printer from [Run as

administrator]. If you are using Windows 7, Windows 8, Server 2008 R2 or Server 2012, open “Printer Properties”. For more information, please see "3.1.1 How to Display the Printer Properties."

Setting Description and Setting Options or Range Paper Lists the registered custom paper sizes.

Create a New Paper Select this checkbox if you want to create a new paper size.

Clear if you want to edit a paper size that has already been registered

(the paper size selected in the [Paper] list). Delete Deletes the paper size selected in the [Paper] list. Save Saves the paper size.

If you selected [Create a New Paper], the new paper size is added to

the [Paper] list. If [Create a New Paper] is cleared, saving overwrites

the paper size selected in the [Paper] list. Transfer to Printer * This setting only applies to label printers.

It appears grayed out for this printer and cannot be selected.

22 of 58

Windows Driver User'

s Guide 1.0.0.0

Setting Description and Setting Options or Range Paper Name Specify the name of the paper size.

The name can be unique.

The name can be entered if you select [Create a New Paper].

Paper Type

Specify the type of the paper that you create or modify.

* This setting o nly applies to label printers.

It does not need to be specified for this printer. Use “Normal”.

Selection

Normal

[S1]Paper Width

Specify the wid t h of the paper.

If you selected an existing custom paper size, the width of the custom

paper size is displayed.

Setting range

58.0 - 80.0mm (2.28 - 3.15inch)

[S2]Label Width Specify the width of the label that you create or modify.

* This setting only applies to label printers.

It appears grayed out for this printer and cannot be selected.

[S3]Paper Height

Specify the height of the paper that you create or modify .

If you selected an existing custom paper size, the height of the custom

paper size is displayed.

Setting range

25.4 - 2039.9mm (1.00 - 80.31inch)

[S4]Between Labels [S4]BM Length

Specify the interval between the labels or the BM length.

* This setting only applies to label printers.

It appears grayed out for this printer and cannot be selected.

[S5]Cut Position Specify the cut position.

* This setting only applies to label printers

It appears grayed out for this printer and cannot be selected.

Margin [L]Left [R]Right [T]Top [B]Bottom

Specify the left and right margins.

If you selected an existing custom paper size, the margins of the

custom paper size are displayed.

* For this printer, [T] and [B] are fixed as "0.0mm."

Unit

Specify the units for the paper size dimensions.

Setting

0.1mm Displays in millimeters.

0.01inch Displays in inches.

23 of 58

4.2 [Paper] Tab

Windows Driver User'

s Guide 1.0.0.0

Setting Description and Setting Options or Range (*: Default Value) Paper Size

Specify the size of the p aper.

Selection

* 80 x 297 mm (48 column)

80 x 297 mm (42 column)

58 x 297 mm (35 column)

58 x 297 mm (32 column)

<Guide>

In addition to the above defaults, any paper sizes you have defined

using [Custom Paper] are also available.

For custom paper sizes, the paper size is displayed after the paper

name.

24 of 58

Windows Driver User'

s Guide 1.0.0.0

Setting Description and Setting Options or Range (*: Default Value) Output Size

Specify whether to print the document scaled to match the selected

paper size (output).

Selection

* Same as Paper Size Uses the size specified in [Paper Size].

The document is printed with no scaling. (Normal printing)

<Paper smaller than the

paper size>

Prints the document scaled to match the specified paper size. Only paper sizes with a pri nt are a small er than the paper set in [Paper Size] can be specified.

<Guide>

 This setting is available when “Off” is selected for [Saving Paper].

 Warning when using scaling

 Problems with print quality such as ink bleed may occur if the

specified size is too small or depending on the size or type of characters being printed. Us e the preview image on the right of the screen to check the scaling before printing the document scaled to the size.

 The bar codes and logos predefined in the printer driver are

printed without scaling. If a bar code cannot fit within the downscaled paper, it is not printed. Also, the bar code and other print data may overlap depending on the print position. In this case, the bar code size and print position should be adjusted before printing.

Transfer to Printer * This setting only applies to label printers.

It appears grayed out for this printer and cannot be selected.

25 of 58

Windows Driver User'

s Guide 1.0.0.0

Setting Description and Setting Options or Range (*: Default Value) Saving Paper

Specify whether to scale the print data vertically to save paper.

Selection

* Off Prints the document normally without

saving paper . (Normal printing)

1/4 Shrinks the document vertically to save

1/4 of the paper.

1/2 Shrinks the document vertically to save

1/2 of the paper.

<Guide>

 This setting can be specified when “Same as Paper Size” is selected

in [Output Size].

 If “1/4” or “1/2” is specified, blank lines at the bottom of the paper are

automatically deleted when printing.

 Warning when performing saving (scaling) print

 Problems with print quality such as ink bleed may occur

depending on the size or type of character . Check th e print quality when using this function.

 The bar codes and logos predefined in the printer driver are

Orientation

Specify the orientation of the document to be printed.

Selection

* Portrait Prints the document vertically.

Feeding direction

Landscape Prints the document horizontally.

Feeding direction

26 of 58

Windows Driver User'

s Guide 1.0.0.0

Setting Description and Setting Options or Range (*: Default Value) Rotate 180

Specify whether to rotate 180 degrees to print the document.

Selection

* Off (cleared) Prints the document without rotating 180

degrees. Orientation = Portrait Landscape

Feeding

direction

On (Selected) Prints the document after rotating 180 degrees.

Orientation = Portrait Landscape

Feeding

direction

Print Position Adjustment

Aligns the print start position.

Horizontal (X) Direction

Aligns the horizontal position relative to the feeding direction. If a negative value is specified, the left margin is decreased. If a positive value is specified, the left margin is increased.

Vertical (Y) Di rection

Aligns the vertical position relative to the feeding direction. If a negative value is specified, the top margin is decreased. If a positive value is specified, the top margin is increased.

Setting range

Horizontal (X) Direction

±Paper Width (*Default value: 0.0mm, Range: 0.5mm)

Vertical (Y) Di rection ±Paper Height (*Default value: 0.0mm, Range: 0.5mm)

Feeding direction

<Guide>

This setting does not apply to logo printing.

27 of 58

Windows Driver User'

s Guide 1.0.0.0

Setting Description and Setting Options or Range (*: Default Value) Number of Copies

Specify the number of copies to pri nt.

Setting range

1 - 999 (* Default value: 1)

Collate

Specify whether multiple copies of the document are printed by

document or by page.

Selection

* Off (cleared) Prints the copies of the document

by page.

On (selected) Prints the copies of the document

by document.

Paper Cut and Paper Feed Opens the [Paper Cut and Paper Feed] dialog box.

For information on the [Paper Cut and Paper Feed] dialog box, please

see Chapter 4.3.

Version Opens the [Version] dialog.

The version of this printer driver is displayed.

Default Settings Resets the settings in the [Paper] tab to the default (initial) value.

28 of 58

Windows Driver User'

4.3 [Paper Cut and Paper Feed] Dialog Box

s Guide 1.0.0.0

Setting Description and Setting Options or Range (*: Default Value) Start of Document Specify whether to perform a paper cut and feed when printing starts.

Paper Cut

Paper Feed Specify whether to perform a paper feed when printing starts.

Specify whether to perform a paper cut when printing starts.

Selection

* Off Do not cut the paper.

On (Partial Cut)

* This setting only applies to label printers.

It appears grayed out for this printer and cannot be selected.

Partially cuts the paper.

29 of 58

Windows Driver User'

s Guide 1.0.0.0

Setting Description and Setting Options or Range (*: Default Value) End of Page Specify whether to perform a paper cut and feed at the end of each

page.

Paper Cut

Specify whether to perform a paper cut at the end of each page.

Selection

Off Do not cut the paper.

* On (Partial Cut) Partially cuts the paper.

Paper Feed Specify whether to perform a paper feed at the end of each page.

* This setting only applies to label printers.

It appears grayed out for this printer and cannot be selected.

End of Document Specify whether to perform a paper cut and feed at the end of each

document.

Paper Cut

Specify whether to perform a paper cut at the end of each document.

Selection

Off Do not cut the paper.

* On (Partial Cut) Partially cuts the paper.

Paper Feed Specify whether to perform a paper feed at the end of each do cument.

* This setting only applies to label printers.

It appears grayed out for this printer and cannot be selected.

30 of 58

Windows Driver User'

s Guide 1.0.0.0

Setting Description and Setting Options or Range (*: Default Value) Top of Form Position

Specify the print position from the top edge of the pap er.

Selection

* 12.0mm Starts to print the document at 12.0mm from

the top edge of the paper.

3.0mm Starts to print the document at 3.0mm from the top edge of the paper.

Reducing Blank Lines

Specify whether to save paper by not feeding the margin if there is no print data at the bottom (bottom edge if [Orientation] is “Portrait”, or right edge if [Orientation] is “Landscape”) of the print image.

Setting Off Feeds the paper to the specified paper-l ength

position even if there is no print data in the page.

* On Saves paper by not feeding when there is no

print data in the page.

<Guide>

This setting can be specified when “Off” is selected in [Saving Paper].

Skip Blank Pages

Specify whether to save paper by not outputting blank pages. Setting

* Off Prints blank pages.

Outputs a blank page for pages with no print data.

On Doe s not prin t blank pages.

Does not output a blank page for pages with no print data.

If invalid paper size is setup, the printer prints it with the setting of the printer driver

Specify whether to print the document using the settings from the driver properties if the application specifies an undefined paper size (dmPaperSize).

The recommended setting is “Off”. However, turn this setting on if documents printed by an application do not have the expected size or the paper is not cut correctly.

Selection * Off (cleared) Print s the document based on the other

paper definition (dmFormName) if an undefined paper is specified in dmPaperSize.

On (selected)) Prints the document based on the driver

properties if an undefined paper is specified in dmPaperSize.

31 of 58

Windows Driver User'

Setting Description and Setting Options or Range (*: Default Value) OK Closes this dialog box and saves the changes.

Cancel Closes this dialog box without saving the changes. Default Settings Resets the settings in the [Paper Cut and Paper Feed] dialog box to

their default (initial) values.

Help Displays help for this dialog box.

s Guide 1.0.0.0

32 of 58

4.4 [Graphics] Tab

Windows Driver User'

s Guide 1.0.0.0

Setting Description and Setting Options or Range (*: Default Value) Color Specify a color mode.

* It appears grayed out for this printer and cannot be selected.

Half toning

Max Speed

Specify how to perform half toning when colors are converted to black and white.

Selection * Dither 6x6 Prints the image with a fine mesh

Dither 8x8 Prints the image with a coarse mesh

Sets the print speed. Selection

* Depending on

Printer Setting

100mm/s (Low Speed)

300mm/s (High S peed)

pattern. The gradation range is relatively narrower.

pattern. The gradation range is relatively wider.

Prints the document using the printer setup settings. You can select a speed from 100mm/s (Low Speed) to 300mm/s (High Speed).

33 of 58

Windows Driver User'

s Guide 1.0.0.0

Setting Description and Setting Options or Range (*: Default Value) Print Density

Specify the print density. Selection

* Depending on

Printer Setting 130% (Darkest) : 70% (Lightest)

Prints the document using the printer setup settings.

You can select a darkness by units of 10% from 130% (darkest) to 70% (lightest).

BK Density Specify the black density when p rinting the document in two colors.

* It appears grayed out for this printer and cannot be selected.

Default Settings Resets the settings in the [Graphics] tab to the default (initial) values.

34 of 58

4.5 [Operations] Tab

Windows Driver User'

s Guide 1.0.0.0

Setting Description and Setting Options or Range (*: Default Value) Drawer Specify the kick behavior of the drawers. Drawer #1

Drawer #2

Specify the kick behavior of drawer #1. Selection

* None Does not open drawer #1. Start of Document Opens drawer #1 when printing starts. End of Document Opens drawer #1 when printing ends. Specify the kick time (in milliseconds) when drawer #1 is open. Time of Pulse Setting range * 20ms

| (Range: 20ms) 500ms Specify the kick behavior of drawer #2.

Selection * None Does not open drawer #2. Start of Document Opens drawer #2 when printing starts. End of Document Opens drawer #2 when printing ends. Specify the kick time (in milliseconds) when drawer #2 is open. Time of Pulse Setting range * 20ms

| (Range: 20ms) 500ms

35 of 58

Windows Driver User'

s Guide 1.0.0.0

Setting Description and Setting Options or Range (*: Default Value) Buzzer Specify the behavior of the buzze r. Beep

Specify when to ring the buzzer. Selection

* None The buzzer does not ring. Start of Document The buzzer rings when printing starts. End of Document The buzzer rings when printing ends.

Buzzer Pattern

Specify a sound pattern for the buzzer. Selection

* Depending on Printer Setting The buzzer rings according to the

printer settings.

Pattern 1 Uses Pattern 1

(40ms ON / 120ms OFF).

Pattern 2 Uses Pattern 2

(140ms ON / 140ms OFF).

Pattern 3 Uses Pattern 3

(200msON / 200msOFF).

Pattern 4 Uses Pattern 4

(10msON / 50msOFF).

Pattern 5 Uses Pattern 5

(30msON / 50msOFF).

Repeat

Specify the number of repetitions for the buzzer. Setting range

1 - 5 (* Default value: 3)

<Guide>

This setting can be specified when other than “Depending on Printer Setting” is selected in [Buzzer Pattern].

Play The pattern specified in [Buzzer Pattern] and [Repeat] is played back.

Click if you want to check how the buzzer actually sounds on the printer. To play the sound, ensure that the printer is connected and ready to print before clicking the button.

36 of 58

Windows Driver User'

s Guide 1.0.0.0

Setting Description and Setting Options or Range (*: Default Value) Logo Printing Specify how to perform logo printing.

<Guide>

Before printing a logo, use the utility to register the logo with the printer . For information on how to register logos, please see "3.4 Setting a Logo" of "Utility User's Guide."

Start of Document

Specify the logo to print when printing starts. Selection

* None Does not print a logo when printing starts.

Logo 1 (2020)

Logo 60 (205B)

Prints the specified logo when printing starts. The number in the brackets is the key code of the logo registered in the printer. The keycode can be checked using the utility.

Start of Page

Specify the logo to print at the start of each page. Selection

* None Does not print the logo at the head of the

page.

Logo 1 (2020)

Logo 60 (205B)

Prints the specified logo at the head of the page. The number in the brackets is the key code of the logo registered in the printer. The keycode can be checked using the utility.

End of Document

Specify the logo to print at the end of each document. Selection

* None Does not print the logo when printing ends.

Logo 1 (2020)

Logo 60 (205B)

Prints the specified logo when printing ends. The number in the brackets is the key code of the logo registered in the printer. The keycode can be checked using the utility.

37 of 58

Windows Driver User'

s Guide 1.0.0.0

Setting Description and Setting Options or Range (*: Default Value) Logo Position Conform to Print Image

Specify where to print the logos specified in [Start of Document], [Start of Page] or [End of Document].

Selection Off (cleared) Prints the [Start of Document], [Start

of Page] or [End of Document] logo at a position based on the feeding direction without considering the finished print image. The logo is printed at a fixed position, ignoring the "Rotate 180" setting of [Orientation].

* On (selected) Prints the logo at a position

determined by the finished print image. If "Rotate 180" is specified in [Orientation], both the print image and logo are rotated by 180 degrees when printing the document.

Default Settings Resets the settings in the [Operations] t ab to the default (initial)

value.

38 of 58

4.6 [Bar Code] Tab

Windows Driver User'

s Guide 1.0.0.0

You can change the bar code and 2D code settings such as the width or height and set these in the printer driver. Registered bar codes appear as printer fonts in applications. If you assign one of these fonts to text, the corresponding bar code or 2D code is printed.

This section describes the bar codes and 2D codes supported by the printer driver, how to register a new bar code, and how to change existing bar code settings. It also explains each of the settings.

39 of 58

Windows Driver User'

4.6.1 List of Supported Bar Codes and 2D Codes

The table below lists the types of bar code and 2D code supported by the printer driver. The supported bar codes and 2D codes (bar codes and 2D codes suppo rted in [Type]) appear as the

initial defaults in the [Bar Code Font List].

: Supported, : Unsupported

Bar code font name initially registered in

the Bar Code Font List

Codabar Codabar Code 128 Code 128 Code 39 Code 39 Code 93 Code 93 EAN 13(JAN 13) EAN 13(JAN 13) EAN 8(JAN 8) EAN 8(JAN 8) ITF ITF UPC type A UPC type A UPC type E UPC type E DataMatrix Code DataMatrix Code PDF417 Code PDF417 Code QR Code QR Code

Bar Code Types PT340-341

s Guide 1.0.0.0

           

40 of 58

Windows Driver User'

4.6.2 How to Register a New Bar Code Font

(1) Open the printer driver's print settings from the printer folder.

(2) Open the [Bar Code] tab and select the [Create a New Bar Code] checkbox. (New creation

mode) To copy font settings from an existing bar code or 2D code, select the bar code font from [Bar Code Font List]. ↓ The name and settings of the selected bar code font appear in [Bar Code Font Name] and [Bar Code Settings].

(3) Enter the new bar code font name in [Bar Code Font Name].

(4) Make any changes to [Bar Code Settings].

(5) Click [Add].

↓ The bar code font is added to [Bar Code Font List]. The added font is listed alphabetically (in ascending order) sorted by whether they are 1D or 2D.

* If you select another item from [Bar Code Font List] without clicking [Add], the changes mad e

in steps (3) and (4) are discarded.

(6) Click [Apply] or [OK] to apply the added settings to the driver.

* Note that if you click [Add] and then [Cancel], the settings will not be applied.

s Guide 1.0.0.0

4.6.3 How to Change Bar Code Font Settings

(1) Open the printer driver's print settings from the printer folder.

(2) Open the [Bar Code] tab and clear the [Create a New Bar Code] checkbox. (Edit mode)

(3) Select a bar code font to edit from [Bar Code Font List].

↓ The name and settings of the selected bar code font appear in [Bar Code Font Name] and [Bar Code Settings].

(3) Make any changes to [Bar Code Settings].

(4) Click [Apply] or [OK] to apply the added settings to the driver.

* If you select another item from [Bar Code Font List], any changes you made will remain

available temporarily. However, you need to click [Apply] or [OK] to apply the settings to the driver.

41 of 58

4.6.4 Setting Items (for all Bar Codes)

Setting Description and Setting Options or Range (*: Default Value) Bar Code Font List

Delete

Lists the bar code fonts registered with the driver.

<Guide>

 Bar code fonts in this list are registered in the operating system

(OS) as printer fonts and become available for use in applications.

 The bar codes or 2D codes supported by the printer driver are

set as defaults.

For more information, please see "4.6.1 List of Supported Bar Codes and 2D Codes."

 Up to 30 fonts can be registered (including those initially

registered).

 The bar code fonts in the list appear al phabetically (in

ascending order) sorted by whether they are 1D or 2D.

Deletes the bar code font selected in [Bar Code Font List].

<Guide>

This setting is available if:  You open the driver properties (Printing Preferences screen)

from the printer folder. You cannot specify the setting when you open the driver properties from an application.

Windows Driver User'

s Guide 1.0.0.0

42 of 58

Windows Driver User'

s Guide 1.0.0.0

Setting Description and Setting Options or Range (*: Default Value) Create a New Bar Code

Select if you want to create a new bar code font. Selection

* Off (cleared) Edit mode

Use this to edit the settings of a registered bar code font (the font selected in [Bar Code Font List]).

On (selected) Create mode

Use this to create a new bar code font. The font is registered in [Bar Code Font List] by clicking the [Add] button.

<Guide>

This setting is available if:

 You open the driver properties (Printing Preferences screen)

from the printer folder.

 The number of registered bar code fonts is less than the

maximum (30).

Bar Code Font Name

Enter the name of the new bar code font.

<Guide>

This setting is available if:

 You open the driver properties (Printing Preferences screen)

from the printer folder.

 You specified create mode (the [Create a New Bar Code]

checkbox is selected).

Up to 31 characters (for 1-byte) or 15 characters (for 2-byte) ca n be entered. The following characters cannot be used:

 Space (blank) at the head or tail of the name  "@" symbol

Add

Adds the bar code font [Bar Code Font List]. The settings specified in [Bar Code Settings] are saved.

<Guide>

This setting is available if:

 You open the driver properties (Printing Preferences screen)

from the printer folder.

 You specified create mode (the [Create a New Bar Code]

checkbox is selected).

 There is no font with the same name in [Bar Code Font List]

or registered in the system (OS).

43 of 58

Windows Driver User'

s Guide 1.0.0.0

Setting Description and Setting Options or Range (*: Default Value) Bar Code Settings Specify the various settings for the bar code or 2D co de in create

or edit mode.

Type

Specify the type of bar code or 2D co de. For information on the available code types, please see "4.6.1 List of Supported Bar Codes/2D Codes."

<Guide>

This setting is available if:

 You open the driver p roperties (Printing Preferences screen)

from the printer folder.

If you change this setting, the other [Bar Code Settings] are updated with the default values for the new [Type].

Replacement Font

Use this setting if you want to print using the bar code or 2D code selected in [Type] in place of a font registered in Windows.

Selection * None Does not replace a

Windows-registered font with a bar code or 2D code when printing. Instead, only prints a bar code or 2D code for the bar code or 2D code type selected in [Type].

(Font registered in Windows)

Replaces the specified Windows-registered font with the bar code or 2D code selected in [Type].

Default Settings Resets the settings of the bar code (2D code) selected in [Type]

to the default (initial) value.

44 of 58

4.6.5 Bar Code Settings

Setting Description and Setting Options or Range (*: Default Value) Type Please see "4.6.4 Setting Items (for all Bar Codes)."

Replacement Font Please see "4.6.4 Setting Items (for all Bar Codes)." Width

Height

HRI Text

HRI Font

Rotation

Specify the wid t h of the narrow bar. (by 1/203 inch.) Setting range

1 - 6 *Default value: 2

<Guide>

A setting of at least two dots is recommended for the [Width]. When using a one-dot width, be sure to carefully evaluate factors such as the bar code reader, the paper, and the printer's print darkness settings.

Specify the height of the bar code. (by 1/203 inch.) Setting range

1 - 255 *Default value: 162 Specify whether and how to print the HRI text. Selection

* None Does not print the HRI text. Top Prints the HRI text above the bar code.

Bottom Prints the HRI text below the ba r code. Top and Bottom Prints the HRI text above and below the bar

Specify the typeface for the HRI text. This setting can be specified when “Print Top (Bottom, or Top and Bottom)” is selected in [HRI Text].

Selection * Font A Prints the HRI text with Font A. Font B Prints the HRI text with Font B. Font C Prints the HRI text with Font C. Specify the rotation angle for the bar code.

Selection * 0 degrees Prints the bar code based on the

90 degrees Prints the bar code, rotating 90 degrees

180 degrees Prints the bar code, rotating 180 degrees

270 degrees Prints the bar code, rotating 270 degrees

Windows Driver User'

code.

[Orientation] setting, without rotating it.

relative to the [Orientation] setting.

s Guide 1.0.0.0

45 of 58

<Guide>

 For Code 39 bar cod

- Alphabetical characters (A - Z) should be spe cified in uppercase.

- The start and stop codes (*) are automatically appended by the printer.

- If '*' exists in the string, the bar code is printed up to '*'. The subsequent string is printed as normal text.

 For Code128 bar codes:

- Append the start code ({A,{B,{C * 1-byte) at the head of the string.

If there is no start code, the Code128 bar code is not printed.

- For the start code C, the code or function should not be specified except at the head of the string.

 For ITF bar codes:

- Y ou can only specify even number of characters.

If an odd number of characters is specified, one letter at the end of the string is omitted to create the

bar code.

es:

Windows Driver User'

s Guide 1.0.0.0

46 of 58

4.6.6 DataMatrix Code Settings

Setting Description and Setting Options or Range (*: Default Value) Replacement Font Please see "4.6.4 Setting Items (for all Bar Codes)."

Type

Square Size

Rectangle Size

Cell Size

Rotation

Specify the type, square or rectangle. Selection

* Square Rectangle Specify the size of the squ are.

Setting Range 0, 10 - 144 * Default value: 0 (Auto)

Specify the size of the rectangle. Selection

* 18x8 32x8 26x12 36x12 36x16 48x16 Specify the size of the cell.

Setting Range 3 - 16 * Default value: 5

Specify the rotation angle for the DataMatrix Code. Selection

* 0 degrees Prints the DataMatrix Code based on the

90 degrees Prints the DataMatrix Code, rotating 90

180 degrees Prints the DataMatrix Code, rotating 180

270 degrees Prints the DataMatrix Code, rotating 270

Windows Driver User'

[Orientation] setting, without rotating it.

degrees relative to the [Orientation] setting.

s Guide 1.0.0.0

47 of 58

4.6.7 PDF417 Code Settings

Setting Description and Setting Options or Range (*: Default Value) Replacement Font Please see "4.6.4 Setting Items (for all Bar Codes)."

Column

Row

Width

Height

Error Correction

Specify the number of columns. Setting Range

0 - 30 * Default value: 0 (Auto) Specify the number of rows. Setting Range

0, 3 – 90 * Default value: 0 (Auto) Specify the wid t h. Setting Range

2 - 8 * Default value: 3 Specify the height. Setting Range

2 - 8 * Default value: 3 Specify the error correction level of the PDF417 code. Selection

Level 0 * Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 Level 8

Specify this setting if the PDF417 code is printed a s a Compact PDF. Compact PDF

Windows Driver User'

s Guide 1.0.0.0

Selection * Off (Unchecked) On (Checked)

48 of 58

Windows Driver User'

s Guide 1.0.0.0

Setting Description and Setting Options or Range (*: Default Value) Rotation

Specify the rotation angle for the PDF417 Code. Selection

* 0 degrees Prints the PDF417 Code based on the

[Orientation] setting, without rotating it.

90 degrees Prints the PDF417 Code, rotating 90

degrees relative to the [Orientation] setting.

180 degrees Prints the PDF417 Code, rotating 180

degrees relative to the [Orientation] setting.

270 degrees Prints the PDF417 Code, rotating 270

degrees relative to the [Orientation] setting.

<Guide>

If the Column = 0 and Row = 0 (default value), the PDF417 Code is printed by calculating the number of rows based on the minimum number of columns.

49 of 58

4.6.8 QR Code Settings

Setting Description and Setting Options or Range (*: Default Value) Replacement Font Please see "4.6.4 Setting Items (for all Bar Codes)."

Cell Size

Model

Error Correction

Rotation

Specify the size of the cell. Setting range

3 - 12 * Default value: 4 Specify the type of the QR code. Selection

Model 1 Specifies QR code mod el 1 . * Model 2 Specifies QR code model 2. Micro Specifies a micro QR code. Specify the error correction level of the QR code.

Selection * Level L Can be restored if about 7% of the code is

Level M Can be restored if about 15% of the code is Level Q Can be restored if about 25% of the code is Level H Can be restored if about 30% of the code is

Specify the rotation angle for the QR Code. Selection

* 0 degrees Prints the QR Code based on the

90 degrees Prints the QR Code rotated 90 degrees

180 degrees Prints the QR Code rotated 180 degrees

270 degrees Prints the QR Code rotated 270 degrees

Windows Driver User'

damaged. damaged. damaged. damaged.

This setting cannot be specified when [Model] is [Micro].

[Orientation] setting without rotating it.

relative to the [Orientation] setting.

s Guide 1.0.0.0

50 of 58

Windows Driver User'

s Guide 1.0.0.0

5 Displaying Printer Status Information

The PT340-341 printer driver displays printer status information in the printer folder or spoole r window when using a serial, USB or LAN interface connection.

 Displayed in “Status” in the printer folder

 Displayed in the title bar of the spooler

The displayed information may vary depending on the OS. The following table shows the examples for Windows XP and Windows 7.

Printer Status

Offline Offline (None displayed) Offline Offline Cover Open Door Open

Offline Busy

Paper Out Out Of Paper

Offline Busy

Cutter Jam Paper Jam

Offline Busy

Head Hot Offline

Busy Hardware Error Communication Error

Offline

Not Available

Not Available Not Available Not Available Not Available

[Status] in Printer Folder Title Bar of Spooler

Windows XP Windows 7 Windows XP Windows 7

Door open Door Open

Offline Busy

Paper out Out of Paper

Offline Busy

Paper jam Paper Jam

Offline Busy

(None displayed) Offline

Busy

Not Available Not Available

Offline

Door Open Offline Busy Out of Paper Offline Busy Paper Jam Offline Busy Offline Busy Not Available Offline

Use Printer Offline

51 of 58

Windows Driver User'

s Guide 1.0.0.0

<Guide>

 The printer status information can be displayed when using a serial or USB interface connection.

Note that the USB interface uses the printer class. The virtual COM class cann ot be used. Th e [USB] setting in the Printer Setup should be left as “Printer”.

 The printer status information can be displayed when bi-directional comm unications is enabl ed for the

printer driver.

The default setting in the PT340-341 printer driver is enabled, so no changes are require d.



If using the serial interface,

the printer status information does not display a “Communication Error” if

you turn off the printer when any of the following errors occur during printing.

 Head hot  Paper Out  Cover Open  Cutter Jam  Hardware Error

 Printer status information is not supported when multiple printers are connected. If multiple printers

are connected, valid status information is not displayed.

 If you are using the serial interface, a baud rate of 115200bps is recommended.

 If you use LAN interface, the current status is appeared only during printing.

 The printer status information cannot be used if you run any applications that sen d control commands

to the printer. The application malfun ctions because it sends and receives commands to get the printe r status information. In this case, disable the bi-directional communication function in the printer driver (uncheck [Enable bidirectional support]) before running the application.

52 of 58

6 Precautions for Use

6.1 Warnings for Printer Driver Settings

(1) Do not select the [Hold mismatched documents] checkbox in the [Advanced] tab. Otherwise, the

message "Invalid print setting" is displayed (in the status on the spooler) and the document cannot be printed.

(2) To use a USB connection to connect two or more of this model of printer:

To add more printers, follow these steps to install the printer driver:

1. Set [Serial No] to “Enable” when adding each printer.

2. Install the printer driver again.

* The printer setup can be performed from the utility. Please see "Utility User's Guide" for

information on how to use the utility. See "2. Installation" of "Printer Driver Installation Guide" for information on how to install the printer driver.

Windows Driver User'

s Guide 1.0.0.0

53 of 58

6.2 Application Warnings

(1) If printing a document from application software designed for a different version of the Windows

operating system, the printout may be different to that version of Windows.

(2) Depending on the application that you use, the document may not be printed properly if you

decrease the margin. In the case of the printer driver’s default paper sizes, set the margins to values greater than those shown below. For custom paper sizes, set the margin when you define the custom paper size.

Orientation: Portrait Orientation: Landscape

Paper Size

80 x 297 mm (48 column) 3.0 5.0 0.0 0.0 0.0 0.0 5.0 3.0 80 x 297 mm (42 column) 8.0 8.0 0.0 0.0 0.0 0.0 8.0 8.0 58 x 297 mm (35 column) 3.0 2.5 0.0 0.0 0.0 0.0 2.5 3.0 58 x 297 mm (32 column) 5.0 5.0 0.0 0.0 0.0 0.0 5.0 5.0

(3) If you want to print multiple copies, select the collate checkbox. Depending on the application that

you use, the document may not be printed properly if you clear the collate checkbox. For applications (such as Microsoft Excel) that print multiple copies by creating m ultiple print jobs, the [End of Document]-[Paper Cut] setting may not work correctly.

(4) If using this printer driver to collate copies, the maximum number allowed in the application is

"999." To set a higher number, print the job multiple times.

Left

Margin

Right

Top

Margin

Windows Driver User'

Bottom Margin

Left

Margin

Right

Margin

s Guide 1.0.0.0

Top

Margin

Bottom Margin

[Unit : mm]

54 of 58

6.3 Bar Code and 2D Code Warnings

(1) The bar code fonts provided by the printer driver are defined as printer fonts. These printer fonts

may not appear in the font list of some applications. In this case, you can still print bar codes by using the [Replacement Font] setting to specify substitution of a Windows font with a bar code font.

(2) If an application has a font substitution function, the bar code font may be replaced by a different

font in the application.

(3) A bar code may not be printed if it exceeds the print area for the specified paper due to the

settings (narrow bar or rotation, etc.), position, o r number of characters. Check th e printed result to set the values.

(4) Do not apply effects (such as bold, italic or outline) when using bar code font s. Note that the bar

code is not printed properly for vertical or wrapped text.

(5) The printed bar code is not displayed on the application screen.

- Adjust the position to avoid the bar code or 2D code from overlapping the neighboring characters.

- The same bar code or 2D code cannot be printed repeatedly on the same line.

(6) Some applications do not send 2- or 1-byte spaces at the end of strings to the printer driver

correctly. If 2- or 1-byte space is specified at the end of the string from an application, the bar code may not print as expected.

(7) Restrictions for 2D codes

- Depending on the application, 2-byte spaces in the specified string are printed as 1-byte spaces.

(8) Bar code and 2D code data

- If the number of characters in the bar code text is invalid (too many or too few), it is not printed.

- The following table lists the available character set s and string lengths for bar codes and 2D codes.

Windows Driver User'

s Guide 1.0.0.0

55 of 58

Windows Driver User'

s Guide 1.0.0.0

[Bar Code]

Bar Code Type A v ailable Character Set String Length

Codabar Numeral: '0' - '9'

1 - 210 Symbol: '$', '+', '-', '.', '/', ':', '\' Start/Stop Character: 'A' - 'D' (automatically appended)

Code 128 Code Set A: '{A' 0x00 - 0x5F

3 - 210 Code Set B: '{B' 0x20 - 0x7F Code Set C: '{C' 0x00 - 0x63 However, the character '{' is not included.

Code 39 Numeral: '0' - '9'

1 - 210 Alphabetical: 'A' - 'Z' Symbol: ' ', '%', '$', '+', '-', '.', '/' * The start/stop character '*' is automatically appended.

Code 93 0x00 - 0x7F 1 - 210 EAN 13 (JAN 13) Numeral: '0' - '9' 12 - 13 EAN 8 (JAN 8) Numeral: '0' - '9' 7 - 8 ITF Numeral: '0' - '9' 2 - 210 UPC type A Numeral: '0' - '9' 11 - 12 UPC type E Numeral: '0' - '9' 11 - 12

[2D Code]

2D Code Type Available Character Set String Length

DataMatrix All the codes (0x00 - 0xFF) Alphanumeral: - 2335

Numeral: - 3116

PDF417 0x00 - 0xFF. However,

0x00 - 0x7F should conform to the ASCII code, and 0x80 - 0xFF should conform to the extended

Alphanumeral: - 1850

Numeral: - 2710 character set of the English table in PC437 (USA:Stand ard Europe).

QR Code All the codes (0x00 - 0xFF) Model 1

Alphanumeri c: - 707

Numeral: - 1167

Kanji: - 299

Model 2

Alphanumeri c: - 4296

Numeral: - 7089

Kanji: - 1817

Micro QR

Alphanumeri c: - 21

Numeral: - 35

Kanji: - 9

56 of 58

6.4 Other Notes

(1) If you “cancel” a print job while printing from the printer port, please turn the printer off and on

again. If you resume printing a document without restarting the printer, problems such as incorrect print out may occur .

(2) If you change the port settings in print properties, please restart the computer. If you skip the

restart, "Not Available" will be displayed on the spooler and problems such as the print job not completing may occur.

(3) Problems such as failure to print correctly from the OPOS(JavaPOS) driver may occur if the

Windows driver and OPOS(JavaPOS) driver are both installed in the same system. In this case, it is recommended that you uninstall the driver that is not being used.

(4) When printing to multiple printers from a single PC, the printing might not operate correctly

depending on the OS standard TCP/IP port.If this happens, set the bidirectional communi cation function in the printer driver to disabled before printing.

(5) If the printer is turned off in the middle of printing, printing might not automatically resume when

the printer is turned on. If this happens, delete the print job data from the printer spooler and then execute the printing again.

Windows Driver User'

s Guide 1.0.0.0

57 of 58

Windows Driver User's Guide 1.0.0.0

7 Revision History

Revision Updated date

1.0.0.0 First Edition (2013/04/24)

58 of 58

Oki contact details

Oki Systems (UK) Ltd

Blays House Wick Road Egham Surrey TW20 0HJ

Tel: +44 (0) 1784 274300 Fax: +44 (0) 1784 274301 http://www.oki.co.uk

Oki Systems Ireland Limited

The Square Industrial Complex Tallaght Dublin 24

Tel:+353 (0) 1 4049590 Fax:+353 (0)1 4049591 http://www.oki.ie

Oki Systems Ireland Limited Northern Ireland

19 Ferndale Avenue Glengormley BT36 5AL Northern Ireland

Tel:+44 (0) 7767 271447 Fax:+44 (0) 1 404 9520 http://www.oki.ie

Technical Support for all Ireland: Tel:+353 1 4049570 Fax:+353 1 4049555 E-mail: tech.support@oki.ie

OKI Systems (Czech and Slovak), s.r.o.

IBC – Pobřežní 3

186 00 Praha 8 Czech Republic

Tel: +420 224 890158 Fax:+420 22 232 6621 Website: www.oki.cz, www.oki.sk

Oki Systems (Deutschland) GmbH

Hansaallee 187 40549 Düsseldorf

Tel: 01805/6544357** 01805/OKIHELP** Fax: +49 (0) 211 59 33 45 Website: www.okiprintingsolutions.de info@oki.de

**0,14€/Minute aus dem dt. Festnetz der T-Com (Stand

11.2008)

Διανομέας των συστημάτων OKI

CPI S.A1 Rafailidou str. 177 78 Tavros Athens Greece

Tel: +30 210 48 05 800 Fax:+30 210 48 05 801 EMail:sales@cpi.gr

Oki Systèmes (France) S.A.

44-50 Av. du Général de Gaulle 94246 L'Hay les Roses Paris

Tel:+33 01 46 15 80 00 Télécopie:+33 01 46 15 80 60 Website: www.oki.fr

OKI Systems (Magyarország) Kft.

Capital Square Tower 2 7th Floor H-1133 Budapest, Váci út 76 Hungary

Telefon: +36 1 814 8000 Telefax: +36 1 814 8009 Website: www.okihu.hu

OKI Systems (Italia) S.p.A.

via Milano, 11, 20084 Lacchiarella (MI)

Tel:+39 (0) 2 900261 Fax:+39 (0) 2 90026344 Website: www.oki.it

OKI Printing Solutions

Platinium Business Park II, 3rd Floor ul. Domaniewska 42 02-672 Warsaw Poland

Tel:+48 22 448 65 00 Fax:+48 22 448 65 01 Website: www.oki.com.pl E-mail: oki@oki.com.pl Hotline: 0800 120066 E-mail: tech@oki.com.pl

Oki Systems (Ibérica) S.A.

Sucursal Portugal

Edifício Prime -

Av. Quinta Grande 53 7º C Alfragide 2614-521 Amadora Portugal

Tel:+351 21 470 4200 Fax:+351 21 470 4201 Website:www.oki.pt E-mail : oki@oki.pt

Oki Service Serviço de apoio técnico ao Cliente

Tel: 808 200 197 E-mail : okiserv@oki.pt

OKI Europe Ltd. (Russia)

Ofce 702, Bldg 1

Zagorodnoye shosse 117152, Moscow

Tel: +74 095 258 6065 Fax: +74 095 258 6070 e-mail: info@oki.ru Website: www.oki.ru

Technical support: Tel: +7 495 564 8421 e-mail: tech@oki.ru

Oki Systems (Österreich)

Campus 21 Businesszentrum Wien Sued Liebermannstrasse A02 603 22345 Brun am Gebirge

Tel: +43 223 6677 110 Drucker Support: +43 (0) 2236 677110-501 Fax Support: +43 (0) 2236 677110-502 Website: www.oki.at

OKI Europe Ltd. (Ukraine)

Raisy Opkinoy Street,8 Building B, 2 Kiev 02002 Ukraine

Tel: +380 44 537 5288 e-mail: info@oki.ua Website: www.oki.ua

OKI Sistem ve Yazıcı Çözümleri Tic. Ltd. Şti.

Harman sok Duran Is Merkezi, No:4, Kat:6, 34394, Levent

İstanbul

Tel: +90 212 279 2393 Faks: +90 212 279 2366 Web: www.oki.com.tr www.okiprintingsolutions.com.tr

Oki Systems (Belgium)

Medialaan 24 1800 Vilvoorde

Helpdesk: 02-2574620 Fax: 02 2531848 Website: www.oki.be

AlphaLink Bulgaria Ltd.

2 Kukush Str.

Building "Antim Tower", . 6 1463 Soa, Bulgaria

tel: +359 2 821 1160 fax: +359 2 821 1193 Website: http://bulgaria.oki.com

Floor,

OKI Printing Solutions

Herstedøstervej 27 2620 Albertslund Danmark

Adm.: +45 43 66 65 00 Hotline: +45 43 66 65 40 Salg: +45 43 66 65 30 Fax: +45 43 66 65 90 Website: www.oki.dk

Oki Systems (Finland) Oy

Polaris Capella Vänrikinkuja 3 02600 Espoo

Tel: +358 (0) 207 900 800 Fax: +358 (0) 207 900 809

Website: www.oki.

Oki Systems (Holland) b.v.

Neptunustraat 27-29 2132 JA Hoofddorp

Helpdesk: 0800 5667654 Tel:+31 (0) 23 55 63 740 Fax:+31 (0) 23 55 63 750 Website: www.oki.nl

Oki Systems (Norway) AS

Tevlingveien 23 N-1081 Oslo

Tel:+47 (0) 63 89 36 00 Telefax:+47 (0) 63 89 36 01 Ordrefax:+47 (0) 63 89 36 02 Website: www.oki.no

General Systems S.R.L. (Romania)

Sos. Bucuresti-Ploiesti Nr. 135. Bucharest 1 Romania

Tel: +40 21 303 3138 Fax: +40 21303 3150 Website: http://romania.oki.com

Var vänlig kontakta din Återförsäljare i första hand, för konsultation. I andra hand kontakta

Oki Systems (Sweden) AB

Borgafjordsgatan 7 Box 1191 164 26 Kista

Tel. +46 (0) 8 634 37 00 e-mail: info@oki.se för allmänna frågor om Oki produkter

support@oki.se för teknisk support gällandes Oki produkter

Vardagar: 08.30 - 12.00,

13.00 - 16.00 Website: www.oki.se

Oki Systems (Schweiz)

Baslerstrasse 15 CH-4310 Rheinfelden

Support deutsch +41 61 827 94 81 Support français +41 61 827 94 82 Support italiano +41 061 827 9473 Tel: +41 61 827 9494 Website: www.oki.ch

Oki Data Americas Inc.(United

States • États-Unis)

2000 Bishops Gate Blvd. Mt. Laurel, NJ 08054 USA

Tel: 1-800-654-3282 Fax: 1-856-222-5247

WWW.OKIPRINTINGSOLUTIONS.

http:// COM http://my.okidata.com

Oki Data Americas Inc.(Canada

• Canadá)

4140B Sladeview Crescent Unit 7 & 8 Mississauga, Ontario Canada L5L 6A1

Tél: 1-905-608-5000 Téléc: 1-905-608-5040 http://

WWW.OKIPRINTINGSOLUTIONS.

COM

Oki Data Americas Inc.(América Latina (OTRO))

2000 Bishops Gate Blvd. Mt. Laurel, NJ 08054 USA

Tel (Español): 1-856-222-7496 1-856-222-5276 Fax: 1-856-222-5260 Email: LASatisfaction@okidata.com

Oki Data de Mexico, S.A. de C.V.

Mariano Escobedo #748, Piso 8 Col. Nueva Anzures C.P. 11590, México, D.F.

Tel: 52-555-263-8780 Fax: 52-555-250-3501 http://

WWW.OKIPRINTINGSOLUTIONS.

COM

Oki Data do Brasil, Ltda.

Rua Alexandre Dumas, 2220-80 andar Chácara Santo Antonio 04717-004, São Paulo, SP Brasil

Tel: 55-11-3444-6747 (Grande São

Paulo)

0800-11-5577 (Demais

localidades) Fax: 5511-3444-3501 e-mail: okidata@okidata.com.br http://

WWW.OKIPRINTINGSOLUTIONS.

COM

Oki Data (Singapore) Pte. Ltd.

438A Alexandra Road #02-11/12, Lobby 3, Alexandra Technopark Singapore(119967)

Tel:(65) 6221 3722 Fax:(65) 6594 0609 http://www.okidata.com.sg

Oki Systems (Thailand) Ltd.

1168/81-82 Lumpini Tower, 27th Floor Rama IV Road Tungmahamek, Sathorn Bangkok 10120

Tel:(662) 679 9235 Fax:(662) 679 9243/245 http://www.okisysthai.com

Oki Data(Australia) Pty Ltd.

Level1 67 Epping Road, Macquarie Park NSW 2113, Australia

Tel: +61 2 8071 0000 (Support Tel: 1800 807 472) Fax: +61 2 8071 0010 http://www.oki.com.au

Comworth Systems Ltd.

8 Antares Place Rosedale, Auckland 0632, New Zealand

Tel:(64) 9 477 0500 Fax:(64) 9 477 0549 http://www.comworth.co.nz

Oki Data(S) P Ltd. Malaysia Rep

Ofce

Suite 21.03, 21st Floor Menara IGB, Mid Valley City, Lingkaran Syed Pura 59200, Kuala Lumpur, Malaysia

Tel: (60) 3 2287 1177 Fax: (60) 3 2287 1166

Oki Data Corporation

4-11-22 Shibaura, Minato-ku,Tokyo 108-8551, Japan

www.okiprintingsolutions.com

Oki PT340, PT341 Windows Driver User's Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

1.1 Overview

1.2 Trademarks

1 Introduction

1.3 System Requirements

2 Installing and Uninstalling the Driver

3 How to Use the Printer Driver

3.1 How to Display the Setting Screen

3.1.1 How to Display the Printer Properties

3.1.2 How to Display the Printing Preferences (Document Properties)

3.2 Initial Settings

3.2.1 Port Setting (for Serial Interface)

3.2.2 Setting Custom Paper

3.3 Printing from an Application

3.4 Printing Bar Codes and 2D Codes

4 Setting up the Printer Driver

4.1 [Custom Paper] Tab

4.2 [Paper] Tab

4.3 [Paper Cut and Paper Feed] Dialog Box

4.4 [Graphics] Tab

4.5 [Operations] Tab

4.6 [Bar Code] Tab

4.6.1 List of Supported Bar Codes and 2D Codes

4.6.2 How to Register a New Bar Code Font

4.6.3 How to Change Bar Code Font Settings

4.6.4 Setting Items (for all Bar Codes)

4.6.5 Bar Code Settings

4.6.6 DataMatrix Code Settings

4.6.7 PDF417 Code Settings

4.6.8 QR Code Settings

5 Displaying Printer Status Information

6 Precautions for Use

6.1 Warnings for Printer Driver Settings

6.2 Application Warnings

6.3 Bar Code and 2D Code Warnings

6.4 Other Notes

7 Revision History
