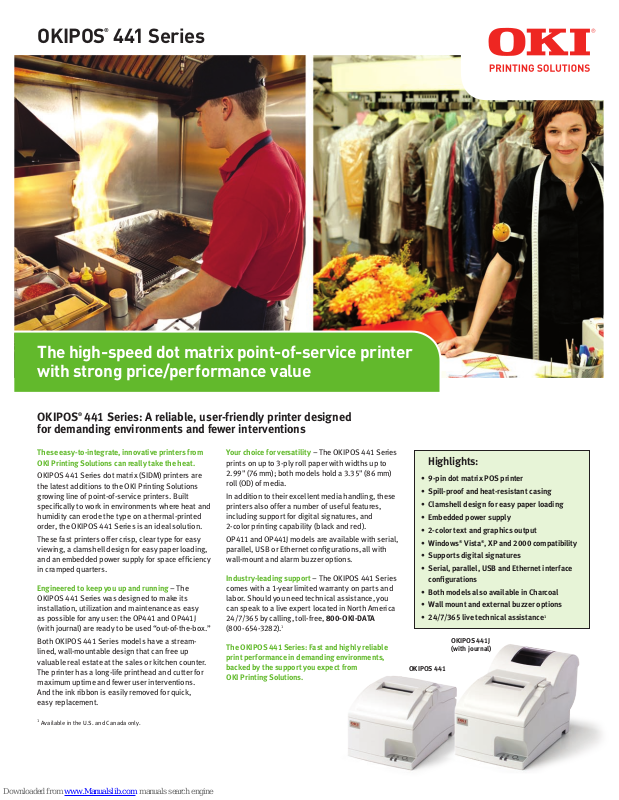

Page 1
OKIPOS® 441 Series
The high-speed dot matrix point-of-service printer
with strong price/performance value
OKIPOS® 441 Series: A reliable, user-friendly printer designed
for demanding environments and fewer interventions
These easy-to-integrate, innovative printers from
OKI Printing Solutions can really take the heat.
OKIPOS 441 Series dot matrix (SIDM) printers are
the latest additions to the OKI Printing Solutions
growing line of point-of-service printers. Built
specifically to work in environments where heat and
humidity can erode the type on a thermal-printed
order, the OKIPOS 441 Series is an ideal solution.
These fast printers offer crisp, clear type for easy
viewing, a clamshell design for easy paper loading,
and an embedded power supply for space efficiency
in cramped quarters.
Engineered to keep you up and running – The
OKIPOS 441 Series was designed to make its
installation, utilization and maintenance as easy
as possible for any user: the OP441 and OP441J
(with journal) are ready to be used “out-of-the-box.”
Both OKIPOS 441 Series models have a streamlined, wall-mountable design that can free up
valuable real estate at the sales or kitchen counter.
The printer has a long-life printhead and cutter for
maximum uptime and fewer user interventions.
And the ink ribbon is easily removed for quick,
easy replacement.
Your choice for versatility – The OKIPOS 441 Series
prints on up to 3-ply roll paper with widths up to
2.99" (76 mm); both models hold a 3.35" (86 mm)
roll (OD) of media.
In addition to their excellent media handling, these
printers also offer a number of useful features,
including support for digital signatures, and
2-color printing capability (black and red).
OP411 and OP441J models are available with serial,
parallel, USB or Ethernet configurations, all with
wall-mount and alarm buzzer options.
Industry-leading support – The OKIPOS 441 Series
comes with a 1-year limited warranty on parts and
labor. Should you need technical assistance, you
can speak to a live expert located in North America
24/7/365 by calling, toll-free, 800-OKI-DATA
(800-654-3282).
The OKIPOS 441 Series: Fast and highly reliable
print performance in demanding environments,
backed by the support you expect from
OKI Printing Solutions.
1
Highlights:
9-pin dot matrix POS printer
•
Spill-proof and heat-resistant casing
•
Clamshell design for easy paper loading
•
Embedded power supply
•
2-color text and graphics output
•
Windows® Vista®, XP and 2000 compatibility
•
Supports digital signatures
•
Serial, parallel, USB and Ethernet interface
•
configurations
Both models also available in Charcoal
•
Wall mount and external buzzer options
•
24/7/365 live technical assistance
•
OKIPOS 441J
(with journal)
OKIPOS 441
1
1
Ava ilable in the U.S. and Canada o nly.
Page 2
OKIPOS® 441 Series
Specifications
Technology
Memory
Interface
Compatibility
Font and Graphics
Paper Handling
Environmental
Reliability
Warranty
Options
For more information on Point of Service Printers from OKI Printing Solutions, contact your
OKI representative. Or visit our Web site: www.okiprintingsolutions.com
Print Method 9-Pin Dot Matrix (SIDM)
Print Speed Up to 4.7 lines per second (250 mm/sec)1
Printing Width 2.48" (63 mm), 2.24" (57 mm); 1.77" (45 mm)
Data Buffer 8 KB
Program ROM 16 MB Flash; 256 KB non-volatile bit image
Standard Serial, Parallel, USB and Ethernet
Operating Systems Windows® Vista®, XP, Server 2003, 2000
Emulation Star Mode and ESC/POS
Character Matrix 7 x 9 (half dot); 5 x 9 dots
Columns Capacity 42 columns
Character Set 95 Alphanumeric; International 46 (Star
Mode)/37 (ESC/POS)
Media Width (+/- 0.02"
[0.5 mm])
2.99" (76 mm), 2.74" (79.5 mm),
2.28" (82.5 mm)
Media Roll Diameter Max 3.35" (85 mm)
Media Thickness 1 ply: 0.0024"–0.0034" (0.06 mm–0.0.85 mm);
2 ply: 0.002"–0.0032" (0.05 mm–0.08 mm) per
page/total < 0.006" (0.14 mm);
3 ply: 0.002"–0.0032" (0.05 mm–0.08 mm) per
page/total < 0.008" (0.20 mm)
Cutter Tear bar, Auto-cutter (partial cut)
Paper Loading Drop-in
Paper Sensor Paper end (near-end sensor, factory option)
Size (WxDxH) OP441 – 6.3" x 9.65" x 5.98"
(160 mm x 245 mm x 152 mm);
OP441J – 6.3" x 11.34" x 7.2"
(160 mm x 288 mm x 183 mm)
Weight OP441 Tear Bar – 6.61 lb. (3.0 kg);
OP441 Auto Cutter – 7.05 lb. (3.2 kg)
OP441J Tear Bar – 7.72 lb. (3.5 kg);
OP441J Auto Cutter – 8.16 lb. (3.7 kg)
Electrical 100 V – 240 V +/-10%, 50/60 MHz
Operating Temperature 32° F – 122° F (0° C – 50° C), 10% – 90% RH
Storage -4° F – 158° F (-20° C – 60° C), 10% 90% RH
Printhead 150 million characters
Cutter 1 million cuttings (65μm–100μm paper thickness)
Printer 1-Year limited warranty, parts and labor
Accessories External buzzer (ticket alarm)
Ordering Information
Description Part Number
OKIPOS 441 Parallel 62113401
OKIPOS 441 Parallel w/Cutter 62113403
OKIPOS 441 Serial 62113501
OKIPOS 441 Serial w/Cutter 62113503
OKIPOS 441 USB 62113601
OKIPOS 441 USB w/Cutter 62113603
OKIPOS 441 Ethernet 62113701
OKIPOS 441 Ethernet w/Cutter 62113703
OKIPOS 441 Parallel (Charcoal) 62113801
OKIPOS 441 Parallel w/Cutter (Charcoal) 62113803
OKIPOS 441 Serial (Charcoal) 62113901
OKIPOS 441 Serial w/Cutter (Charcoal) 62113903
OKIPOS 441 USB (Charcoal) 62114001
OKIPOS 441 USB w/Cutter (Charcoal) 62114003
OKIPOS 441 Ethernet (Charcoal) 62114101
OKIPOS 441 Ethernet w/Cutter (Charcoal) 62114103
OKIPOS 441J Parallel 62114201
OKIPOS 441J Parallel w/Cutter 62114203
OKIPOS 441J Serial 62114301
OKIPOS 441J Serial w/Cutter 62114303
OKIPOS 441J USB 62114401
OKIPOS 441J USB w/Cutter 62114403
OKIPOS 441J Ethernet 62114501
OKIPOS 441J Ethernet w/Cutter 62114503
OKIPOS 441J Parallel (Charcoal) 62114601
OKIPOS 441J Parallel w/Cutter (Charcoal) 62114603
OKIPOS 441J Serial (Charcoal) 62114701
OKIPOS 441J Serial w/Cutter (Charcoal) 62114703
OKIPOS 441J USB (Charcoal) 62114801
OKIPOS 441J USB w/Cutter (Charcoal) 62114803
OKIPOS 441J Ethernet (Charcoal) 62114901
OKIPOS 441J Ethernet w/Cutter (Charcoal) 62114903
Options
External Buzzer 72007002
2
Consumables
Black Ribbon 52119001
Red/Black Ribbon 52119002
Oki Data Americas, Inc.
USA
2000 Bishops Gate Blvd.
Mount Laurel, NJ 08054-4620
Tel: 800.OKI.DATA (800.654.3282)
Fax: 856.222.5320
Canada
2735 Matheson Blvd. East
Mississauga, Ontario L4W 4M8
Tel: 905.238.4250
Fax: 905.238.4421
Latin America
2000 Bishops Gate Blvd.
Mount Laurel, NJ 08054-4620
Tel: 856.231.0002
Fax: 856.222.5071
www.okiprintingsolutions.com
1
Published perf ormance results bas ed on laboratory te sting. Individual results may var y.
2
Available in the U.S. and Ca nada only.
Specific ations are subje ct to change with out notice.
© 2008 Ok i Data Americ as, Inc. OKI , OKIPOS Reg. T.M. , Oki Electric Ind ustry Co., L td. Windows,
Vista Reg. T.M., Microsoft Co rp. USB I/F logo T.M. , Universal Se rial Bus Impleme nters Forum, I nc.
Oki Data de México, S.A. de C.V.
Mariano Escobedo, 748 8º Piso
Col. Nueva Anzures C.P. 11590
México, D.F.
Tel: 55.5263.8780
Fax: 55.5250.3501
Printed in the USA MS15934/0708
Oki Data do Brasil Informática Ltda.
Av. Alfredo Egídio de Souza Aranha, 100
Bloco C – 4º andar
04726-170 – São Paulo – SP – Brasil
Tel: 11.3444.3500
Fax: 11.3444.3502
