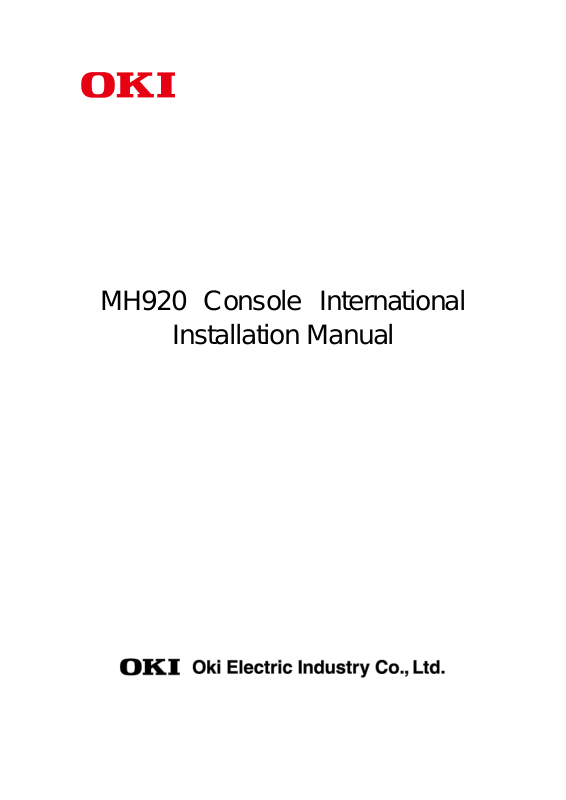

Oki MH920 Installation Manual

MH920 Console International

Installation Manual

Table of Contents

1. Preface .......................................................................................................................... 3

2. System requirements ................................................................................................... 3

3. Installing the maintenance console............................................................................. 4

4. Installing the USB Driver ........................................................................................... 8

【About trademark】

 Microsoft®, Windows®, Internet Explorer® are registered trademarks or

trademarks of Microsoft® Corporation in the United States and other countries.

 Windows® 7, Windows® 8.1, and Windows® 10 are operating systems.
 Screen shots in this manual are used in accordance with Microsoft Corporation's

guidelines.

 Other company names and product names mentioned in this manual are generally

trademarks or registered trademarks of each company.

【Others】

 Oki is not responsible for any effect caused by the results of using this product and

this manual.

 Please note that the contents described in this manual are subject to change

without notice.

 "Maintenance console" in this manual indicates "MH 920 Console International".
 "Wireless communication module" in this manual indicates "wireless

communication module (coordinator module)" and "wireless communication module

(router module)".

2

Component

Minimum requirements

CPU

Core Duo 1GHz equivalent or above

RAM

1GB or above

HDD

100MB minimum free space

Interface

USB version 1.1 or 2.0

Component

Minimum requirement

OS

Windows® 7 Professional SP1（32bit）
Windows® 8.1（64bit）
Windows® 10（64bit）

Runtime

Microsoft .NET Framework version 4.0

1. Preface

This manual describes the usage of "MH920 Console International" (maintenance

console) for setting wireless communication module and installation procedure of USB

driver for wireless communication module.

2. System requirements

A PC that the maintenance console is to be installed must satisfy the following system

requirements. Please check the operating environment of the installing PC before

installation.

Table 1. Hardware requirements

Table 2. Software requirements

3

3. Installing the maintenance console

The installation procedure of the maintenance console is described below.

(1) Extract the downloaded file of maintenance console.
(2) Execute "mh920consoleInternational.msi" in the extracted files and start

the maintenance wizard setup wizard. On the "Setup Wizard" screen, press

the "Next" button.

Figure 1. Setup Wizard

* If Microsoft .NET Framework 4 is not installed, a message box that

require installation should be displayed. After installing Microsoft .NET
Framework 4, execute mh920console_module.msi again.

4

(3) Read the license Agreement to the end with the scroll bar, select "I Agree",

then press the "Next" button.

Figure 2. License Agreement dialog

(4) On the "Select Installation Folder" dialog box, select the installation folder

and click "Next" button. Default location of an installation folder is as

follows depending on the Operating System of the destination PC.

· For 32bit OS

C: ¥ Program Files ¥ OKI ¥ MH920 Console International¥

· For 64bit OS

C: ¥ Program Files (x86) ¥ OKI ¥ MH920 Console International¥

Figure 3-1 Installation Folder Selection dialog (32 bit OS)

5
