Oki C9655 BROCHURE

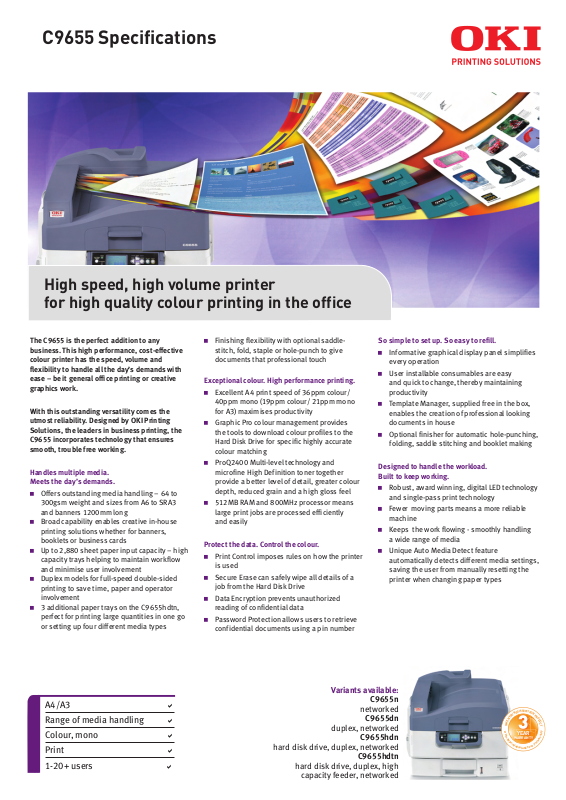

C9655 Specifications

YEAR

WARRANTY

High speed, high volume printer for high quality colour printing in the office

The C9655 is the perfect addition to any business. This high performance, cost-effective colour printer has the speed, volume and

flexibility to handle all the day’s demands with ease – be it general office printing or creative

graphics work.

With this outstanding versatility comes the utmost reliability. Designed by OKI Printing Solutions, the leaders in business printing, the C9655 incorporates technology that ensures smooth, trouble free working.

Handles multiple media.

Meets the day’s demands.

Offers outstanding media handling – 64 to 300gsm weight and sizes from A6 to SRA3 and banners 1200mm long

Broad capability enables creative in-house printing solutions whether for banners, booklets or business cards

Up to 2,880 sheet paper input capacity – high capacity trays helping to maintain workflow and minimise user involvement

Duplex models for full-speed double-sided printing to save time, paper and operator involvement

3 additional paper trays on the C9655hdtn, perfect for printing large quantities in one go or setting up four different media types

Finishing flexibility with optional saddle stitch, fold, staple or hole-punch to give documents that professional touch

Exceptional colour. High performance printing.

Excellent A4 print speed of 36ppm colour/ 40ppm mono (19ppm colour/ 21ppm mono for A3) maximises productivity

Graphic Pro colour management provides the tools to download colour profiles to the Hard Disk Drive for specific highly accurate colour matching

ProQ2400 Multi-level technology and microfine High Definition toner together provide a better level of detail, greater colour depth, reduced grain and a high gloss feel

512MB RAM and 800MHz processor means large print jobs are processed efficiently and easily

Protect the data. Control the colour.

Print Control imposes rules on how the printer is used

Secure Erase can safely wipe all details of a job from the Hard Disk Drive

Data Encryption prevents unauthorized reading of confidential data

Password Protection allows users to retrieve confidential documents using a pin number

So simple to set up. So easy to refill.

Informative graphical display panel simplifies

every operation

User installable consumables are easy and quick to change, thereby maintaining productivity

Template Manager, supplied free in the box, enables the creation of professional looking documents in house

Optional finisher for automatic hole-punching, folding, saddle stitching and booklet making

Designed to handle the workload. Built to keep working.

Robust, award winning, digital LED technology and single-pass print technology

Fewer moving parts means a more reliable machine

Keeps the work flowing - smoothly handling a wide range of media

Unique Auto Media Detect feature automatically detects different media settings, saving the user from manually resetting the printer when changing paper types

A4/A3 a

Range of media handling a

Colour, mono a

Print a

1-20+ users a

Variants available:

C9655n

networked

C9655dn

duplex, networked

C9655hdn

hard disk drive, duplex, networked

C9655hdtn

hard disk drive, duplex, high

capacity feeder, networked

YEAR

WARRANTY

C9655 - Colour and Mono Printers

Printer

Print speed A4: 36ppm colour, 40ppm mono; A3: 19ppm colour, 21ppm mono

10.5 sec

Time to rst print

Warm up time

Processor speed

onds colour, 9 seconds mono 85 seconds or less from power on P

owerPC 750 800MHz

Interface and Software

Connectivity

Printer languages

Network & protocols

Advanced networking

& security

OS Compatibility

Utility suite

IEEE 1284 Bi-directional Parallel, Hi-Speed USB 2.0, 10Base-T/100Base-TX/1000Base-T Ethernet

PCL5c, PCL XL (Colour), Adobe PostScript 3 with direct PDF Printing (v1.6), SIDM

10Base-T/100Base-TX/1000Base-T Ethernet Card with internal Web Server for printer and network card set-up and management. TCP/IP:- ARP, RARP, IPv4/v6, ICMPv4/v6, TCP, UDP, LPR, FTP, TELNET, HTTP(IPP), BOOTP, DHCP, SNMPv1/v3, DNS, DDNS, UPnP, Bonjour, WINS, SSL/TLS, SMTP, POP3, SNTP, WSDPrint, LLTD, JetDirect protocols. Netware 3.x, 4.x, 5.x and 6 with full NDS and NDPS support:- PServer, RPrinter, NDPS supported via dedicated OKI NDPS Gateway. EtherTalk:- ELAP, AARP, DDP, AEP, NBP, ZIP, RTMP, ATP, PAP. NetBEUI:- SMB, NetBIOS. Other: EAP

IPv6, 802.1x authentication, SNMPv3, SSL3/TLS HTTPS encryption, Data Encryption Secure Erase

Windows 2000 / XP (32-bit & 64-bit) / Server 2003 (32-bit & 64-bit) / Server 2008 R2 / Server 2008 (32-bit & 64-bit) /

Vista (32-bit & 64-bit) / Windows 7 (32-bit & 64-bit); Mac OS X (10.3.9 to 10.6.5)

Template Manager3, Color Correct, OKI LPR3, Color Correct Utility, Color Swatch Utility, Color Access Policy Manager PrintSuperVision.net

Server Driver Installer

Prole Assistant, PDF Direct Print, Storage Device Manager ColorSync Proles, ICC Proles

, Secure Print

, Print Control Client, Print Control Report Tool3, Web

, ICC Color Proles3, PostScript Gamma Utility,

, MAC ltering, IP ltering,

, PrintSuperVision Java3, Print Control

Paper Handling

Paper capacity

Paper capacity optional tray

Maximum paper capacity

Paper sizes

Paper weight

Tray 1: 530 sheets of 80gsm; Multi-purpose tray: 230 sheets of 80gsm

Tray 2: 530 sheets of 80gsm; Tray 3: 530 sheets of 80gsm High Capacity Feeder: 1,590 sheets of 80gsm (standard on

C9655hdtn)

2,880 sheets Tray 1/2/3: A3+, A3, A4, A5, A6, Custom size: Width 105 -

328mm Length 148 - 457mm; Multi-purpose tray: A3+, A3, A4, A5, A6, Custom size: Width 76 - 328mm Length 127 - 1,200mm; High Capacity Feeder: A3+, A3, A4, A5, A6, Custom size: Width 105 - 328mm Length 148 - 457mm

Tray 1/2/3: 64 to 216gsm: Multi-purpose tray: 64 to 300gsm; Duplex: 64 to 188gsm; High Capacity Feeder: 64 to 216gsm

of 80gsm

Duplex Standard: C9655dn/C9655hdn/C9655hdtn; Optional: C9655n

Paper output

500 sheets face down tray, 200 sheets face up tray

Typefaces

Printer fonts

86 scalable PCL fonts, 1 bitmap font, 10 TrueType fonts, 136 Adobe PostScript Type 1 fonts

Barcode with Checksum support

Barcode

Print Quality

Resolution

Enhancements

Check local OKI Printing Solutions website for latest driver releases and OS compatibility; 2Hard Disk Drive required; 3Windows only; 4Including all consumables.

Consumables Information: For the protection of your printer, and in order to ensure that you benet from its full functionality, this model has been designed to operate only with genuine OKI Printing Solutions toner cartridges. These can be identied by the OKI trademark. Any other toner cartridge may not operate at all, even if it is described as “compatible”, and if it does work, your printer’s

performance and print quality may be degraded.

ProQ2400 Multi-level technology, 1200 x 600dpi Auto Colour Balance, Auto Registration, Auto Media Detect

General Features

Standard RAM: 512MB; Maximum RAM: 1024MB

Memory

Hard Disk Drive: 40GB (Optional on C9655n/C9655dn)

Operating temperature/ humidity: 10°C to 32°C (17°C to 27°C

Environment

recommended) / 20% to 80% RH (50% to 70% RH recommended)

Storage temperature/ humidity: -20°C to 45°C, 10% to 90%RH

Power supply

Single phase 220 to 240VAC, frequency 50Hz +/- 2Hz

Power consumption Typical: 750W; Max: 1500W; Idle: 200W; Power Save: <26W

Noise level

Dimensions (HxWxD)

Duty cycle

Warranty

Product order numbers

Operating: 54dB(A) or less; Standby: 42dB(A) or less; Power save: 28dB(A) after 30 mins

C9655n/C9655dn/C9655hdn: 471 x 654.5 x 623mm; C9655hdtn: 873 x 654.5 x 623mm

C9655n: 76kg; C9655dn/C9655hdn: 81kg; C9655hdtn: 133kg

Weight

Maximum: 150,000 pages/month; Recommended: 5,000 to 15,000 pages per month

3 years extended warranty upon registration within 30 days of purchase

C9655n: 01307501; C9655dn: 01307601; C9655hdn: 01307701; C9655hdtn: 01307801

Accessories (Order Numbers)

2nd/3rd paper tray

2nd/3rd lockable paper tray

High Capacity Feeder

42831303 01216601 42797203 (Standard on C9655dn/C9655hdn/C9655hdtn)

Duplex

42831503 (Standard on C9655hdtn) 09004256 (Not available on C9655hdtn)

Cabinet

Memory 256MB: 01182901; 512MB: 01182902

Hard Disk Drive 40GB: 01163803 (Standard on C9655hdn/C9655hdtn)

4-tray Finisher

5-tray Finisher 2-hole Finisher-Punch Unit 4-hole Finisher-Punch Unit

4-hole (Swedish)

Finisher-Punch Unit

01166701 (High Capacity Feeder required) 01166801 (High Capacity Feeder & 2nd paper tray required) 42872901 (Finisher unit required) 42872903 (Finisher unit required)

42872904 (Finisher unit required)

Consumables (Order Numbers)

Toner cartridges*

(22,000 pages)

Toner cartridge*

(22,500 pages)

Image drum**

(30,000 pages)

Transfer Belt

(100,000 pages)

Fuser Unit (100,000 pages)

Waste Toner Box

(30,000 pages)

Finisher Staples

(15,000 staples)

*Toners: A4 pages yield compliant with ISO/ISC 19798. Printer shipped with toner for 7,500 A4 pages yield compliant with ISO/ISC 19798. **Drum: Average number of A4 pages printed.

Cyan: 43837131; Magenta: 43837130; Yellow: 43837129

Black: 43837132

Cyan: 42918107; Magenta: 42918106; Yellow: 42918105; Black: 42918108

42931603

42931703

42869403

42937603

Simply Unique - 3 Year Warranty

Our devices are manufactured to the highest standards of quality and technology, which has been confirmed by independent tests. We are so convinced of the high quality of our

products that we are offering you an extension of the standard warranty period to 3 years – for free! Simply register your product within 30 days of purchase to be eligible for our unique all inclusive offer. Fully covered by OKI! For further information please visit: www.okiprintingsolutions.co.uk/warranty

Without registration, the standard pan-European 1 year warranty applies.

WARNING! This product complies with EN55022 Class B. However, when fitted with the optional scanner and/or finisher, compliance to EN55022 is Class A. In a domestic environment this configuration may cause radio interference, in which case the user may be required to take adequate measures.

Specication subject to change without notice. All trademarks acknowledged.
