OKI C910dn, C910n User Guide

User’s Guide
TM
C910n C910dn
REFACE
Every effort has been made to ensure that the information in this document is complete, accurate, and up-to-date. The manufacturer assumes no responsibility for the results of errors beyond its control. The manufacturer also cannot guarantee that changes in software and equipment made by other manufacturers and referred to in this guide will not affect the applicability of the information in it. Mention of software products manufactured by other companies does not necessarily constitute endorsement by the manufacturer.
While all reasonable efforts have been made to make this document as accurate and helpful as possible, we make no warranty of any kind, expressed or implied, as to the accuracy or completeness of the information contained herein.
The most up-to-date drivers and manuals are available from the Oki web site:
http://www.okiprintingsolutions.com
07103801 Iss. 2; Copyright © 2011 Oki Europe Ltd. All rights reserved. Oki is a registered trademark of Oki Electric Industry Company, Ltd. Oki Printing Solutions is a trademark of Oki Data Corporation. Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corporation. Apple, Macintosh, Mac and Mac OS are registered trademarks of Apple Inc. Other product names and brand names are registered trademarks or trademarks of their
proprietors.
This product complies with the requirements of the Council Directives 2004/ 108/EC (EMC), 2006/95/EC (LVD), 1999/5/EC (R&TTE) and 2009/125/EC (ErP), as amended where applicable, on the approximation of the laws of the member states relating to Electromagnetic Compatibility, Low Voltage, Radio & Telecommunications Terminal Equipment and Energy Related Products.
CAUTION!
This product complies with EN55022 Class B. However, when fitted with the optional finisher, compliance to EN55022 is Class A. In a domestic environment this configuration may cause radio interference, in which case the user may be required to take adequate measures.
The following cables were used to evaluate this product to achieve EMC directive 2004/108/EC compliance and configurations other than this may affect that compliance.
CABLE TYPE LENGTH
(METRE)
Power 1.8 ✘✘
USB 5.0 ✘✔
Parallel 2.0 ✘✔
LAN 15.0 ✔✘
CORE SHIELD
Preface > 2
E
MERGENCY FIRST AID
Take care with toner powder:
If swallowed, give small amounts of cold water and seek medical attention. DO NOT attempt to induce vomiting.
If inhale d, move the person to an open area for fresh air. Seek medic al attention.
If it gets into the eyes, flush with large amounts of water for at least 15 minutes keeping eyelids open. Seek medical attention.
Spillages should be treated with cold water and soap to help reduce risk of staining skin or clothing.
M
ANUFACTURER
Oki Data Corporation, 4-11-22 Shibaura, Minato-ku, Tokyo 108-8551, Japan
I
MPORTER TO THE
Oki Europe Limited (trading as Oki Printing Solutions) Blays House
Wick Road Egham Surrey, TW20 0HJ United Kingdom
EU/
AUTHORISED REPRESENTATIVE
For all sales, support and general enquiries contact your local distributor.
E
NVIRONMENTAL INFORMATION
Emergency first aid > 3
C
ONTENTS
Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Emergency first aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Manufacturer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Importer to the EU/authorised representative. . . . . . . . . . . . . . . . . . . . .3
Environmental information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Notes, cautions and warnings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
About this guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Online usage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Printing pages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Printer and paper overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Opening and closing the top cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Identifying major components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Software supplied . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Paper recommendations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Paper input and output information . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Trays and stackers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Trays 1 to 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
MP tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Face-down stacker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Face-up stacker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Duplex unit (if installed). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Tray and stacker examples. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Loading trays 1 to 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Using the MP tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Using the stackers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Control panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
LCD panel modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Status information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Menu (functions) information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Configuration information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Help mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
LCD panel messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Using the menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Printer location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Turning off/on. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Turning off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Turning on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Changing the display language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Checking current settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Interfaces and connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Connecting the parallel interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Connecting the USB interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Connecting the network interface . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Using the drivers DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Contents > 4
Consumables and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Checking consumable/maintenance item usage . . . . . . . . . . . . . . . . . . . .33
Replacement indications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Replacing consumables/maintenance items . . . . . . . . . . . . . . . . . . . . . . .33
Cleaning the LED heads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Cleaning the paper feed rollers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Cleaning the printer casing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Emptying the punch chip box (punch unit optional accessory) . . . . . . . . . .38
Optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Installing accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Paper jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Paper jams – printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Open cover, paper jam, tray # side cover . . . . . . . . . . . . . . . . . . . . . .41
Open cover, paper jam, side cover . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Open cover, paper jam, top cover . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Paper jams – duplex unit (if installed) . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Check duplex unit, paper jam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Paper jams – finisher (optional accessory) . . . . . . . . . . . . . . . . . . . . . . . .51
Check finisher, paper jam/paper remains . . . . . . . . . . . . . . . . . . . . . . .51
591, 592, 593, 599/ 643, 645 (paper jam around finisher). . . . . . . . . . .51
594, 597, 598/ 644, 646 (paper jam in finisher) . . . . . . . . . . . . . . . . . .53
590 (paper jam in finisher/punch unit). . . . . . . . . . . . . . . . . . . . . . . . .56
Check inverter, paper jam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Avoiding paper jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Dealing with unsatisfactory printing. . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Staple jams – finisher (optional accessory). . . . . . . . . . . . . . . . . . . . . . . .63
Check finisher, staple jam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Appendix A – LCD messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Appendix B – menu system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
Print page count . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
Finisher count . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
Supplies life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Paper size in tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
Configuration example – monochrome pages printed. . . . . . . . . . . . . . .71
Print information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
Print information example – demonstration page . . . . . . . . . . . . . . . . .72
Print secure job. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Tray configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
System adjust. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Menus example 1 – tray 1 transparencies . . . . . . . . . . . . . . . . . . . . . .81
Menus example 2 – MP tray paper size . . . . . . . . . . . . . . . . . . . . . . . .81
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82
Oki contact details. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83
Contents > 5
N
OTES, CAUTIONS AND WARNINGS
NOTE A note provides additional information to supplement the main text.
CAUTION!
A caution provides additional information which, if ignored, may result in equipment malfunction or damage.
WARNING!
A warning provides additional information which, if ignored, may result in a risk of personal injury.
For the protection of your product, and in order to ensure that you benefit from its full functionality, this model has been designed to operate only with genuine original toner cartridges. Any other toner cartridge may not operate at all, even if it is described as “compatible”, and if it does work, your product's performance and print quality may be degraded.
Use of non-genuine products may invalidate your warranty.
Specifications subject to change without notice. All trademarks acknowledged.
Notes, cautions and warnings > 6
I
NTRODUCTION
Congratulations on buying an Oki colour printer. Your new printer is designed with advanced features to give you clear, vibrant colour prints and crisp black and white pages at high speed on a range of print media for the office.
There are two different models available: C910n and C910dn, where n denotes networking capability and d denotes duplex unit installed.
F
EATURES
The following features are standard on all models:
> 1200 x 600 dpi (dots per inch) print resolution for high quality image production
showing the finest detail
> ProQ2400 multi level technology produces subtler tones and smoother gradations of
colour to lend photographic quality to your documents
> Single Pass Colour Digital LED technology for high speed processing of your printed
pages
> Hard disk drive enables spooled and verified printing > 10Base-T, 100Base-TX and 1000Base-T network connection lets you share this
valuable resource among users on your office network
> USB 2.0 and parallel (IEEE-1284) interfaces > PCL, PS, IBM PPR, Epson FX emulations > “Ask Oki” – a user-friendly function that gives a direct link from your printer driver
screen (but not illustrated in this guide) to a dedicated web site specific to the exact model you are using. This is where you will find all the advice, assistance and support you could need to help you get the best possible results from your Oki printer.
Additionally, the following optional features are available:
> Automatic two-sided (duplex) printing for economical use of paper and compact
printing of larger documents
NOTE This optional feature is only applicable to the C910n.
> Additional paper trays for loading a further 530 sheets at a time to reduce operator
intervention, or different paper stocks for letterhead stationery, alternative paper sizes or other print media:
> Standard 2nd/3rd Tray (530 sheets each) > High Capacity Feeder (HCF) (1590 sheets)
NOTE
1. Tray configurations are: Tray 1 only, Tray 1 + 2nd Tray, Tray 1 + 2nd Tray + 3rd Tray, Tray 1 + HCF, Tray1 + 2nd Tray + HCF
> Additional memory > Finisher (for stapling printer output) > Punch unit (to extend Finisher functionality) > Printer cabinet
Introduction > 7
A
BOUT THIS GUIDE
NOTE Images used in this manual may include optional features that your printer does not have installed.
This manual is your user’s guide (check the web site, www.okiprintingsolutions.com, for the most up-to-date version) for your printer and forms part of the overall user support listed below:
> Installation Safety Booklet: as with all electrical equipment, there are a few basic
precautions that should be taken to avoid injury or damage. Please be careful to read and understand the safety warnings in the Safety Booklet before operating the product.
This is a paper document that is packaged with the printer.
> Set-up guide: to describe how to unpack, connect and turn on your printer
This is a paper document that is packaged with the printer.
> This User’s Guide: to help you to become familiar with your printer and make the
best use of its many features. Also included are guidelines for troubleshooting and maintenance to ensure that it performs at its best. Additionally, information is provided for adding optional accessories as your printing needs evolve.
This is an electronic document.
> Printing Guide for Windows users and Mac users: to help you operate your printer
effectively and efficiently This is an electronic document.
> Configuration Guide: to provide machine configuration and network configuration
information This is an electronic document.
> Installation Guides: accompany consumable items and optional accessories to
describe how to install them These are paper documents that are packaged with the consumables and optional
accessories.
> Online Help: online information accessible from the printer driver and utility
software
Introduction > 8
O
NLINE USAGE
This guide is intended to be read on screen using an Adobe Reader. Use the navigation and viewing tools provided in Acrobat.
You can access specific information in two ways:
> In the list of bookmarks down the left hand side of your screen, click on the topic of
interest to jump to the required topic. (If the bookmarks are not available, use the
“Contents” on page 4.)
> In the list of bookmarks, click on Index to jump to the Index. (If the bookmarks are
not available, use the “Contents” on page 4.) Find the term of interest in the alphabetically arranged index and click on the associated page number to jump to the page containing the term.
P
RINTING PAGES
The whole manual, individual pages, or sections may be printed. The procedure is:
1. From the toolbar, select File, then Print (or press the Ctrl + P keys).
2. Choose which pages you wish to print:
(a) All pages, (1), for the entire manual. (b) Current page, (2), for the page at which you are looking.
1 2 3
(c) Pages from and to, (3), for the range of pages you specify by entering their
page numbers.
3. Click OK.
Introduction > 9
RINTER AND PAPER OVERVIEW
O
PENING AND CLOSING THE TOP COVER
CAUTION!
To gain access to the inside of the printer, ensure that the top cover is fully opened.
To open the top cover, squeeze the top cover handle (1) to release the catch and raise the cover.
1
To close the top cover, (2) to close the cover completely. Ensure that the cover is securely closed.
push gently (1) until the cover stops midway and then push harder
1
2
Printer and paper overview > 10
I
DENTIFYING MAJOR COMPONENTS
The major components of your printer are identified in the representations below.
1
2
3
9
1. Paper holding arm 5. Paper size label
2. Top cover (face-down stacker)
3. MP Tray (multi­purpose tray)
4. Tray 1 side cover 8. Control panel
6. Paper volume indicator
7. Tray 1 (paper tray)
9. Top cover handle
8
7
4
6
5
12
11
10
10. Face-down stacker 12. Face-up stacker
11. Power (on/off) switch
13. Interface unit 16. USB interface connector
14. Network
interface connector
15. Parallel interface
connector
17. Power connector
18. Ventilation holes
18
14
15
16
13
17
Printer and paper overview > 11
26
25
19
20
21
22
23
24
19. Image drum cartridge and toner cartridge (Cyan)
20. Image drum cartridge and toner cartridge (Magenta)
21. Image drum cartridge and toner cartridge (Yellow)
22. Image drum cartridge and toner cartridge (Black)
23. Toner cartridge
24. Image drum cartridge
25. Fuser unit
26. LED heads
30
31
29
28
27
27. Belt unit 30. Duplex unit
28. Drum basket handle
29. Drum basket
31. High Capacity Feeder (HCF), three trays
Printer and paper overview > 12
S
OFTWARE SUPPLIED
> Drivers and Utilities
Contains driver and application software for use by a general user.
> Network and Administrator Utilities
Contains software for use by system administrators.
> User’s Guides
Contains documentation in electronic form (for example, the User’s Guide and Printing Guide) to describe how to use the printer for day-to-day printing tasks.
> Template Ma na ge r
Contains software to help you create business cards, CD packaging, banners and much more.
P
APER RECOMMENDATIONS
Your printer will handle a variety of print media, including a range of paper weights and sizes, transparencies and envelopes. This section provides general advice on choice of media, and explains how to use each type.
The best performance will be obtained when using standard weight 75 – 90g/m² paper designed for use in copiers and laser printers. Suitable types are:
> M-Real Data Copy 80g/m² > Color Copy by Mondi
Use of heavily embossed or very rough textured paper is not recommended.
Pre-printed stationery
CAUTION!
Pre-printed stationery can be used, but the ink must not offset when exposed to the high fuser temperatures used in the printing process.Continued use of pre-printed stationery may cause the paper feed performance to degrade over time and paper jams may occur. Clean the paper feed rollers as described on page 35.
Glossy paper
CAUTION!
Glossy paper must be of the type designed for use in electrophotographic printers and must not melt, change in quality, or warp during the printer’s thermal fusing process.
Printer and paper overview > 13
NOTE Always print a sample to check the output results are satisfactory.
Printing on glossy paper may have unexpected results:
> Compared with plain paper, glossy paper may often be printed with a thin
toner film over it, or the images may be printed lighter.
> In a high temperature and high humidity environment, a thin toner film is
likely to occur. Glossy paper is best used in an environment below 25°C temperature and 60% humidity.
> Image offsetting may occur particularly if you are printing high density
images or printing several copies.
> Due to its coating, glossy paper may “slip” when being fed into the
printer.
Envelopes
Envelopes should be free from twist, curl or other deformations. They should also be of the rectangular flap type, with glue that remains intact when subjected to hot roll pressure fusing used in this type of printer. Window envelopes are not suitable.
Transparencies
CAUTION!
CAUTION!
Transparencies should be of the type designed for use in copiers and laser printers. In particular, avoid office transparencies designed for use by hand with marker pens. These will melt in the fuser and cause damage.
Recommended type is: CG3720 by 3M (A4 or Letter size)
Labels
CAUTION!
Labels should also be of the type recommended for use in copiers and laser printers, in which the base carrier page is entirely covered by labels. Other types of label stock may damage the printer due to the labels peeling off during the printing process.
Recommended type is: Avery White Laser Label types 7162, 7664, 7666 (A4), or 5161 (Letter)
Printer and paper overview > 14
P
APER INPUT AND OUTPUT INFORMATION
The following table relates paper parameters to input trays (Tray 1 to Tray 5 (numbering from the top) and MP Tray) and to output areas (Face-down stacker and Face-up stacker).
TYPE SIZE WEIGHT INPUT/OUTPUT
Plain paper A3, A3 Nobi, A3 Wide,
A4, A5, A6, B4, B5, Letter, Legal 13, Legal 13.5, Legal 14, Executive, Tabloid, Tabl oi d E x tra
Custom: W: 100 – 328mm
L: 148 – 457.2mm
Custom: W: 79.2 – 328mm
L: 90 – 457.2mm
Banner: W: A4 width
L: 457.2 –1200mm
Postcard Tray 1 or MP Tray
Envelope
a
120 x 235mm 90 x 205mm 235 x 120mm 235 x 105mm 240 x 332mm 216 x 277mm 119 x 197mm 210 x 297mm
64 – 216g/m² Any Tray
Any Stacker
217 – 300g/m²
64 – 216g/m² Any Tray
64 – 300g/m² MP Tray
128g/m² recommended
85g/m² MP Tray
MP Tray Face-up Stacker
Face-up Stacker
Face-up Stacker
MP Tray Face-up Stacker
Face-up Stacker
Face-up Stacker
324 x 229mm 229 x 162mm 220 x 110mm
225.4 x 98.4mm
241.3 x 104.8mm
190.5 x 98.4mm
a
Labels
Transparencies
Glossy paper
a. See important comments in “Paper recommendations” on page 13
a
a
A4, Letter, B5 0.1 – 0.2mm MP Tray
A4, Letter 0.1 – 0.11mm Tray 1 or MP Tray
A4, A3, A3 outsize 0.13 – 0.16mm Tray 1 or MP Tray
Based on 90g/m² paper
Face-up Stacker
Face-up Stacker
Face-up Stacker
Printer and paper overview > 15
T
RAYS AND STACKERS
T
RAYS
1 TO 5
Tray 1 is the standard blank paper input tray and can hold up to 530 sheets of paper. Additional trays, to give a total of five, can be added as an option to give a total tray capacity of 2650 sheets of paper.
If you have identical paper stock loaded in another tray (for example Tray 2 or the MP Tray), you can have the printer automatically switch to that other tray when the current tray runs out of paper. This function can be enabled by driver settings when printing from a Windows application or by a menu setting when printing from other applications.
MP
TRAY
The multi-purpose tray is used for media sizes additional to those of the standard trays, heavier media weights and special media.
The multi-purpose tray can handle the same sizes as the standard trays but in weights up to 300g/m². For very heavy paper stock use the face-up paper stacker. This ensures that the paper path through the printer is almost straight.
The multi-purpose tray can feed paper widths as small as 76.2mm and lengths up to 1200mm. For banner printing, recommended sizes are A4 wide, 900mm and 1200mm long and weight 128g/m². Since paper of width less than 100mm does not auto feed, you have to press the ONLINE button to cause it to feed.
Use the multi purpose tray for printing on envelopes and transparencies. Up to 100 sheets of transparencies or 25 envelopes can be loaded at one time, subject to a maximum stacking depth of 25mm.
Paper or transparencies should be loaded print side up and top edge into the printer. Do not use the duplex (two-sided printing) function for transparencies.
F
ACE-DOWN STACKER
The face-down stacker on the top of the printer can hold up to 500 sheets of 80g/m² standard paper, and can handle paper stocks from 64 – 216g/m². Pages printed in reading order (page 1 first) will be sorted in reading order (last page on top, facing down).
F
ACE-UP STACKER
The face-up stacker should be opened and the tray extension pulled out when required for use. (With the face-up stacker either open or closed, the driver setting of Face Down will successfully direct prints to the Face-Down stacker.)
The face-up stacker can hold up to 200 sheets of 80g/m² standard paper and can handle stocks up to 300g/m².
Always use this stacker and the multi-purpose feeder for paper stocks heavier than 216g/m².
Printer and paper overview > 16
D
UPLEX UNIT (IF INSTALLED
)
This unit provides automatic two-sided printing on plain paper fed from Trays 1 – 5 or the MP Tray.
WEIGHT SIZE TRAY
64 – 120g/m² A6,
A5, B5, B5LEF, Executive, A4, A4LEF, Letter, LetterLEF, Legal 13 in, Legal 13.5 in, Legal 14 in, B4, Tabloid, Tabloid Extra, A3, A3 Wide, A3 Nobi, Custom size (100 –
328mm wide, 148 –
457.2mm long)
120 – 188g/m² A4, A4LEF, Letter,
Letter LEF, Tabloid, A3
Trays 1 - 5 MP Tray
MP Tray
Printer and paper overview > 17
T
RAY AND STACKER EXAMPLES
L
OADING TRAYS
Tray 1 is used in the following example.
1. Pull out the tray.
2. Press the paper rear stopper tab (1) and adjust the tab to the required paper size.
3. Fan the paper to be loaded then tap the edges of the stack on a flat surface to make
it flush.
1 TO 5
1
4. Load the paper (face down and top edge towards the right for headed paper), press the tab (2) on the paper guide and adjust the guides (3) for a snug fit to the paper.
To avoid paper jams:
> Do not leave space between the paper and the guides and rear stopper. > Do not overfill the paper tray. Capacity depends on the paper type. > Do not load damaged paper.
Printer and paper overview > 18
> Do not load paper of different sizes or types at the same time.
3
2
5. Gently push the tray back into the printer.
U
SING THE
1. Squeeze the handle (1) and open the multi-purpose tray.
MP
TRAY
1
Printer and paper overview > 19
2. Fold out the paper support section and swivel out the extension supports (2).
3
2
3. Adjust the paper guides (3) to the size of the paper being used.
4. Fan the paper to be loaded then tap the edges of the stack on a flat surface to make
it flush.
5. Load the paper.
> For single-sided printing on headed paper, load the paper into the multi-purpose
tray with pre-printed side up and top edge into the printer.
> For two-sided (duplex) printing on headed paper, load the paper with pre-printed
side down and top edge away from the printer. (The duplex unit must be installed for this function.)
> Envelopes should be loaded face-up with long edge into the printer. Do not select
duplex printing on envelopes.
> Do not leave space between the paper and the guides.
Printer and paper overview > 20
> Do not exceed the paper capacity of approximately 230 sheets (<80g/m²), 50
sheets (300g/m²), 100 transparencies or 25 envelopes. Maximum stacking depth is 25mm.
U
SING THE STACKERS
Face-down stacker
When the face-up stacker (1) on the left side of the printer is closed (its normal position), paper is ejected to the face-down stacker on the top of the printer.
1
Printer and paper overview > 21
Face-up stacker
The face-up exit path is used for heavy paper (cardstock etc.), envelopes, transparencies, and labels.
1. Open the stacker (1).
1
2. Flip out the paper support (2).
2
3. Swivel out the paper support extension (3).
3
Printer and paper overview > 22
C
ONTROL PANEL
The control panel can be swivelled to 90° (maximum) upwards from its base position (1) as required for ease of use.
1
C
ONTROLS AND INDICATORS
The parts of the control panel are identified and briefly explained below:
2
4
1
3
1. Shutdown/Restart button
Hold down for more than 2 seconds for a soft shutdown. You can then press this button again for a restart or use the Power switch to turn off the printer completely.
2. Ready indicator
On: indicates ready to print Flashing: indicates processing print data Off: indicates unable to receive data (offline)
78
11
5
6
10
9
3. Attention indicator
Off: indicates normal operation Flashing: indicates error(s) present but printing can continue On: indicates error(s) present and printing cannot continue
4. LCD panel
Displays status and setup information for the printer and user help information in your chosen language
Control panel > 23
5. Up-arrow button
Enters menu mode and enables upward movement through the displayed list of menu items
6. Down-arrow button
Enters menu mode and enables downward movement through the displayed list of menu items
7. Back button
Returns to the previous higher level menu item
8. Enter button
Enters menu mode and selects the menu item highlighted in the LCD panel
9. Online button
Switches between online (printer ready to receive data) and offline (printer not ready to receive data)
10. Cancel button
Cancels current print job
11. Help button
Provides additional textual or image data to supplement what is displayed on the LCD panel
LCD
PANEL MODES
The LCD panel can display the following:

> Status information > Menu (functions) information > Configuration information > Help information

S
TATUS INFORMATION
Status information is associated with three printer states:
In the Information state, such as idling or printing, the printer is able to process print jobs.
In the Warning state, the printer has encountered some minor problem but is still able to process print jobs.
In the Error state, the printer has encountered a problem and cannot continue printing until the user has intervened and removed the cause of the trouble.
The top two lines of the display panel show the printer status. The bottom of the display panel normally shows a bar chart of the toner usage.
M
ENU (FUNCTIONS) INFORMATION
There are three types of menu (functions) information:
User menus: activated by pressing the Enter button, Up-arrow or Down-arrow button on the control panel. These menus are available to the general user to make various settings that are used in the running of the printer.
Administrator menu: activated by pressing the Enter button for more than 2 seconds while turning on the printer power supply (including Restart). Available to
Control panel > 24
administrator level users. Restricts the changes that general users can make via the user menus.
System maintenance menu: activated by pressing the Up-arrow and Down-arrow buttons together for more than 2 seconds while turning on the printer power supply (including Restart). Available to specialist staff to allow printer configurations and special functions to be set.
C
ONFIGURATION INFORMATION
Configuration information displays printer configuration information such as internal firmware versions.
Menu options at each level can be scrolled through by moving the highlight with the Up- arrow/Down-arrow buttons and a highlighted option at that level can be selected by pressing the Enter button. When the lowest level menu has been selected, you can change the setting for that menu by selecting the required highlighted value from a list or by entering a numeric value. In other cases, you can display or print configuration information.
H
ELP MODE
When an error has occurred, press the Help button. Information displays that will help you correct the error.
LCD
PANEL MESSAGES
The LCD panel messages, supplemented by the Help messages where appropriate, are intended to be self-explanatory. More information on typical messages is provided in
“Appendix A – LCD messages” on page 67.
U
SING THE MENUS
NOTE Menu details are given in “Appendix B – menu system” on page 68 for reference.
The Enter, Up-arrow, Down-arrow and Back buttons are used to move through the printer menus. You can adjust settings (e.g. set the paper size for Tray 1) or view information (e.g. how much is left of a selected consumable).
Many of these menu settings can be, and often are, overridden by settings in the Windows printer drivers. However, several of the driver settings can be left at “Printer Setting,” which will then default to the settings entered in these printer menus.
The steps involved in using the menus are typically as follows:
1. Ensure that the LCD panel indicates that the printer is ready to print.
2. Enter User menu mode by pressing either the Enter button or the Up-arrow or Down-arrow button and press the latter two repeatedly as required until the
desired menu is highlighted in the displayed list.
3. Press the Enter button to select this menu.
4. Press the Up-arrow or Down-arrow buttons repeatedly until the desired Item is
highlighted.
5. Press the Enter button to select this Item.
6. Press the Up-arrow or Down-arrow buttons repeatedly until the desired Value is
highlighted.
7. Press the Enter button to select this Value. (If you are setting a parameter, ensure that an asterisk (*) appears beside the selected parameter Value.)
Control panel > 25
8. Press the Online button to exit menu mode and return to the ready to print status.
Refer to the section entitled “Getting started” on page 27 and “Appendix B – menu system”
on page 68 for examples of using the menus.
Control panel > 26
G
ETTING STARTED
This section provides information to help you get started with using your printer.
P
RINTER LOCATION
Check that you have sufficient space for access:
> around your printer:
20cm 8in
> above your printer:
60cm 60cm
24in24in
100cm 40in
70cm
28in
Getting started > 27
T

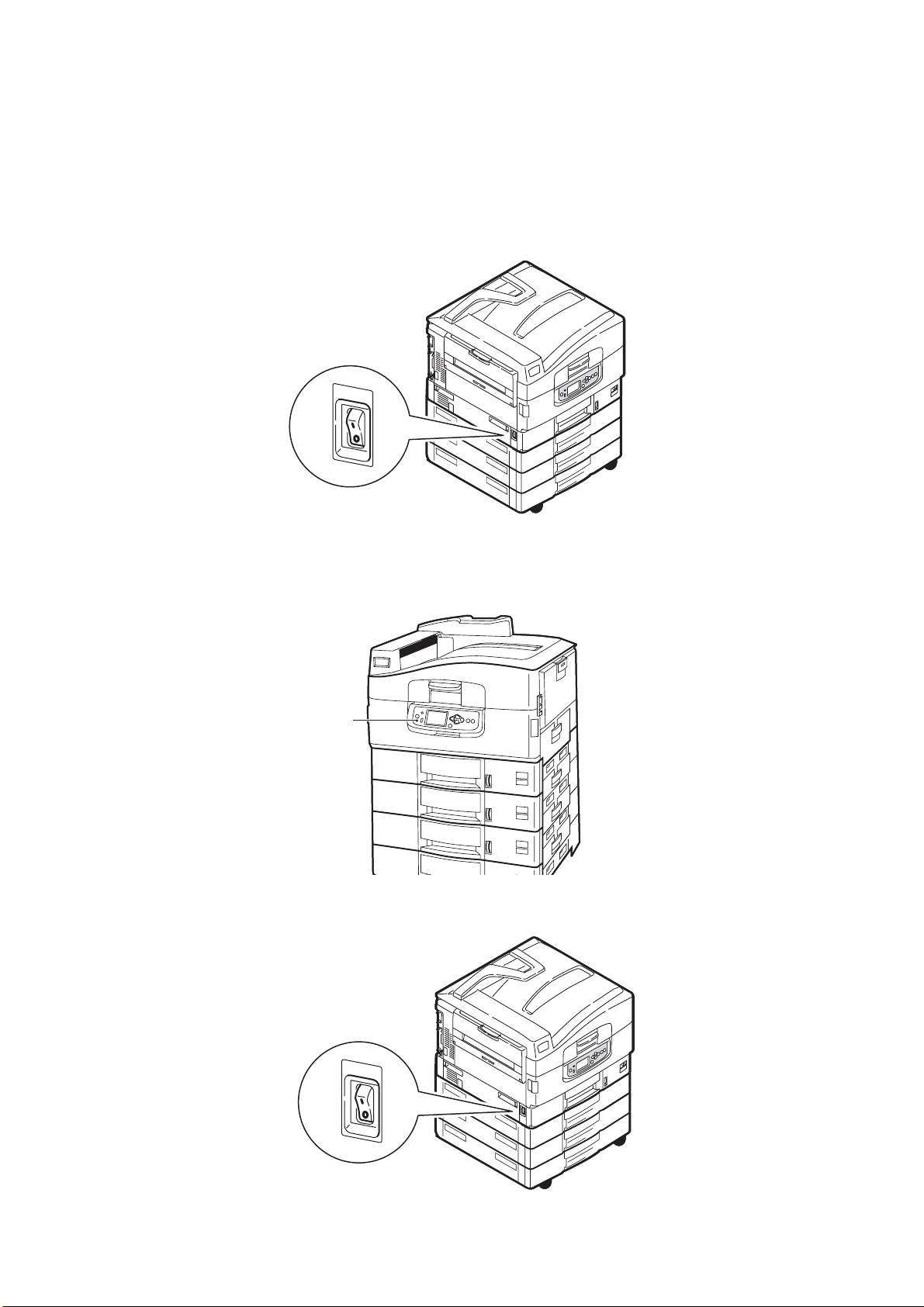

URNING OFF/ON
T
URNING OFF
No hard disk drive installed
1. If a hard disk drive is NOT installed, set the printer Power switch to Off.
Hard disk drive installed
1. Press and hold down the Shutdown/Restart button (1) on the control panel to
start the shutdown process.
1
2. When the LCD display shows that you can either turn off or restart the printer, set the printer Power switch to Off. Please wait as this may take a short time.
Getting started > 28
T
URNING ON
NOTE If you have used the Shutdown/Restart button to reduce the printer to a state where the LCD panel indicates it can be turned off or restarted, you can turn it on again by pressing the Shutdown/Restart button.
1. To start the printer after it has been turned off by using the Power switch, set the Power switch to On.
C
HANGING THE DISPLAY LANGUAGE
The default language used by your printer for display messages and for report printing is English. If required, this can be changed; see the information enclosed with the product (Operator Panel Language Set-up Utility) on the procedure for changing the language setting.
C
HECKING CURRENT SETTINGS
Carry out the following steps to generate a Configuration report (Menu Map) to confirm that your printer is correctly configured.
1. Ensure that there is A4 paper in Tray 1 (to be used in this operation).
2. Ensure that the LCD panel indicates that the printer is ready to print.
3. Press the Up-arrow or Down-arrow buttons repeatedly until Print Information is
highlighted.
4. Press the Enter button to select Print Information.
5. Press the Up-arrow or Down-arrow buttons repeatedly until Configuration is
highlighted.
6. Press the Enter button to select Configuration.
7. Press the Enter button to execute the command and a Configuration document is
printed. After printing the configuration document, the printer returns to the ready to print
status. You can use this document to check your printer configuration. System values and
installed accessories are listed at the top of the first page while status values and settings follow.
Getting started > 29
I
NTERFACES AND CONNECTION
Your printer is equipped with a selection of data interfaces:
> Parallel – For direct connection to a PC. This port requires a bi-directional (IEEE
1284 compliant) parallel cable.
> USB – This port requires a cable conforming to USB version 2.0 or above. > The printer may not work if a USB- compatible device is connected concurrently with
other USB-compatible machines.
> When connecting multiple printers of the same type, they appear as *****, *****
(2), ***** (3), etc. These numbers depend on the order of connecting or turning on each printer.
> Ethernet – For network cable connection.
NOTE Interface cables are not supplied with your printer.
C
ONNECTING THE PARALLEL INTERFACE
1. Turn off the printer and the computer.
2. Connect the parallel cable between the printer and computer.
3. Turn on the printer and then the computer.
C
ONNECTING THE
Do not connect the USB cable at this time. You will be instructed when to connect the USB cable when you run the Drivers DVD.
If you are connecting your printer directly to a stand alone computer proceed to the section entitled “Using the drivers DVD” on page 31.
USB
INTERFACE
Getting started > 30
C
ONNECTING THE NETWORK INTERFACE
CAUTION!
Do not connect a USB cable into the network interface connector as this may lead to malfunction.
1. Turn off the printer and the computer.
2. Fit ferrite to an Ethernet cable as shown.
3. Connect the Ethernet cable between the printer and an Ethernet hub.
20mm max.
4. Turn on the printer and then the computer.
If your printer is to be installed as a network printer, please refer to the relevant section in the Configuration Guide for further details on how to configure the network connection before installing the printer drivers.
NOTE Administrator’s authority is required when installing a network connection.
U
SING THE DRIVERS
Insert the Drivers DVD into your computer and follow the on-screen instructions. You are prompted to follow a set of basic steps to configure the display panel language, install drivers and other software and finally print a test page to check that your printer is operating correctly thus far.
DVD
Getting started > 31
O
PERATION
For full details of how to use the printer and any optional accessories to print jobs efficiently and effectively, please refer to the Printing Guide and the Barcode Printing Guide.
For full details of how to access and use the printer security features, please refer to the Security Guide.
Operation > 32
C
ONSUMABLES AND MAINTENANCE
This section explains how to replace consumable and maintenance items when due.
C
HECKING CONSUMABLE/MAINTENANCE ITEM USAGE
At any time, you can check how much of each consumable/maintenance item is left by using the appropriate menus. For example, enter the menu system and follow the path:
Configuration > Supplies Life > Cyan Toner
The percentage of Cyan Toner remaining is displayed on the LCD panel and the printer then returns to the ready to print status.
R
EPLACEMENT INDICATIONS
The LCD panel provides messages to the effect that consumables/maintenance items are running low or nearing end of life followed some time later by a message that replacement is required. You should replace the item as soon as possible after this message is displayed to avoid the possibility of print quality being compromised.
The paper feed rollers and the multi-purpose (MP) tray feed rollers do not have any replacement warning messages. Recommended replacement: after approximately 120,000 A4 sheets.
R
EPLACING CONSUMABLES/MAINTENANCE ITEMS
Each consumable or maintenance item comes complete with its own installation details which give full instructions on replacement. You are advised to follow these instructions
carefully.
CAUTION!
Only use genuine Oki Original consumables to ensure the best quality and performance from your hardware. Non-Oki Original products may damage your printer’s performance and invalidate your warranty. Specifications subject to change without notice. All trademarks acknowledged.
C
LEANING THE
You are advised to clean the LED heads:
> any time you replace a toner cartridge > if printing is showing signs of faded images, white stripes or blurred letters
You can use a dry, soft cloth for cleaning the LED heads.
1. Open the top cover.
LED
HEADS
Consumables and maintenance > 33
2. With a soft cloth, gently wipe each of the four heads (1). Move the cloth as shown, using a clean section of the cloth with each pass. Be careful not to damage the guards (2).
3. Close the top cover.
Consumables and maintenance > 34
C
LEANING THE PAPER FEED ROLLERS
Clean the paper feed rollers if paper jams frequently occur.
1. Remove items like a wrist watch or bracelet and follow the correct steps to turn the printer off.
2. Open Tray 1 side cover.
3. Remove Tray 1 completely from the printer.
Consumables and maintenance > 35
4. Gaining access through the gap left by Tray 1, wipe the 3 paper feed rollers (2) with a soft cloth lightly moistened with water.
2
5. Replace Tray 1.
6. Close Tray 1 side cover.
Consumables and maintenance > 36
7. Turn on the printer.
C
LEANING THE PRINTER CASING
1. Follow the correct steps to turn the printer off.
2. Wipe the printer surface with a soft cloth moistened sparingly with water or neutral
detergent.
3. Use a soft dry cloth to dry the printer surface.
Consumables and maintenance > 37
4. Turn on the printer.
E
MPTYING THE PUNCH CHIP BOX (PUNCH UNIT OPTIONAL ACCESSORY
When the LCD panel indicates that the punch chip box is full, empty the box as follows:
1. Operate the Finisher lever and move the Finisher away from the printer.
)
2. Pull out the punch chip box, being careful to keep it level so as not to spill any chips.
Consumables and maintenance > 38
3. Discard the chips in an appropriate place.
4. Refit the punch chip box carefully into the Finisher.
5. Check that the punch chip box has been refitted correctly then move the Finisher
back into position, being careful not to trap your fingers.
Consumables and maintenance > 39
O
PTIONAL ACCESSORIES
This section describes optional accessory equipment for your printer. The following accessories are available:
> duplex unit (to enable two-sided printing) (C910n only) > additional RAM memory > standard second, third paper tray (to increase paper input capacity))
NOTE Tray configurations are: Tray 1 only, Tray 1 + 2nd Tray, Tray 1 + 2nd Tray + 3rd Tray, Tray 1 + HCF, Tray1 + 2nd Tray + HCF
> Finisher (for stapling printer output) > Printer cabinet > Punch unit (to extend Finisher functionality)
I
NSTALLING ACCESSORIES
Each accessory (apart from the Finisher) comes complete with its own documentation which gives full instructions on installation. You are advised to follow these instructions carefully.
After installation, print out a Menu Map (Configuration document) to check that the installation has been successful.
NOTE The finisher and punch unit must be installed by an authorised engineer.
For the following accessories, you have to make the appropriate setting in your printer driver(s):
> duplex unit > paper tray(s) > finisher
Refer to the Printing Guide for driver setting details.
Optional accessories > 40
T
ROUBLESHOOTING
G
ENERAL
If the printer display panel does not display anything or is still in stand-by mode 10 minutes after switching on, follow the printer shutdown sequence to switch it off. Check all cable connections before restarting the printer. If the problem persists, contact your dealer.
P
APER JAMS
This section provides information to help you deal with problems that may arise when using the printer. The following paragraphs describe actions to take in the event of a paper jam and how to deal with unsatisfactory print results. LCD panel messages about paper jams and relevant actions are given in this section while a list of other typical messages and suggested responses is given in “Appendix A – LCD messages” on page 67.
P
APER JAMS
If a paper jam occurs, a message appears on the LCD panel in the printer Control Panel. You can press the Help button to display guidance on how to clear the jam.
For full details of clearing jams, refer to the following paragraphs, which correspond to the paper jam messages.
O
PEN COVER, PAPER JAM, TRAY
PRINTER
#
SIDE COVER
Tray 1, or any one of Tray 2 to Tray 5 (if installed), can appear in place of the tttttt characters in the LCD panel message. In this example Tray 1 is used, the procedure being similar for all other trays.
1. Squeeze the catch (1) on Tray 1 side cover and open the cover.
1
2. Carefully remove the jammed paper.
Troubleshooting > 41
3. Close Tray 1 side cover.
O
PEN COVER, PAPER JAM, SIDE COVER
1. If the MP Tray is open, close it so that the side cover (1) is visible.
1
2. Pull the release lever (2) and pull open the side cover.
2
Troubleshooting > 42
3. Carefully remove the jammed paper.
4. Close the side cover.
Troubleshooting > 43
O
PEN COVER, PAPER JAM, TOP COVER
1. Squeeze the top cover handle (1) and open the top cover.
1
WARNING!
Be careful not to touch the fuser unit which is hot after printing.
2. Squeeze the basket handle (2) and raise the drum basket.
3. Carefully remove any paper on the belt.
Troubleshooting > 44
4. If paper is jammed in the fuser unit, push the lock lever (3) in the direction shown to release the unit.
WARNING!
Be careful not to touch the fuser unit which may be hot after printing. If the fuser unit is hot, wait until it cools before attempting to remove any jammed paper.
Holding the fuser unit (4) by the handle, lift it out of the printer and place it on a flat surface.
4
3
5. Pull up the jam release levers (5) and remove the jammed paper.
5
Troubleshooting > 45
6. Carefully replace the fuser unit into the printer and turn the lock lever (6) in the direction shown to lock the fuser unit.
6
7. If paper is jammed near the paper exit, open the face-up stacker (7).
7
8. Open the side cover (paper exit) (8) and remove the jammed paper.
8
Troubleshooting > 46
9. Close the side cover (paper exit) and then the face-up stacker.
10. Return the image drum basket (9) into position and check it is locked.
9
11. Close the top cover and ensure it is latched.
Troubleshooting > 47
P
APER JAMS
C
HECK DUPLEX UNIT, PAPER JAM
1. If a Finisher unit is attached to your printer, operate the lever (1) of the Inverter
unit to separate the Inverter from the printer.
2. Operate the duplex cover release button (2) and open the cover.
DUPLEX UNIT (IF INSTALLED
1
)
2
3. Carefully remove any jammed paper then close the cover.
Troubleshooting > 48
4. Operate the levers (3) and pull out the duplex unit.
3
3
5. Holding the front top cover by the grip (4), push it gently inwards and raise it.
6. Remove any jammed paper.
4
Troubleshooting > 49
7. In similar manner, check for and clear any paper jammed under the rear top cover.
8. Replace the two top covers.
9. Push the duplex unit back into position.
Troubleshooting > 50
10. If you detached a Finisher unit to gain access to the duplex unit, replace the Finisher unit.
P
APER JAMS
C
HECK FINISHER, PAPER JAM/PAPER REMAINS
FINISHER (OPTIONAL ACCESSORY
)
Use the Help button on the printer control panel to check the number displayed. You will need this to be able to clear the paper jam. The following paragraphs explain what to do for each of the indicated numeric codes.
591, 592, 593, 599/ 643, 645 (
1. Remove any paper at the Finisher paper exit.
PAPER JAM AROUND FINISHER
)
Troubleshooting > 51
2. Operate the Finisher lever (1) and move the Finisher away from the Inverter.
1
3. Open the Finisher top cover.
4. Carefully remove any jammed paper.
5. Close the Finisher top cover.
Troubleshooting > 52
6. Move the Finisher back into position and connect it to the Inverter.
594, 597, 598/ 644, 646 (
1. Operate the Finisher lever (1) and move the Finisher away from the Inverter.
2. Open the Finisher front cover (2).
PAPER JAM IN FINISHER
1
)
2
Troubleshooting > 53
3. Continue to turn the lower knob (3) clockwise until any jammed paper is completely ejected.
3
4. Remove the ejected paper.
5. Close the Finisher front cover.
6. Open the Finisher right side cover.
Troubleshooting > 54
7. Carefully remove any jammed paper.
8. Close the Finisher right side cover.
9. Move the Finisher back into position and connect it to the Inverter.
Troubleshooting > 55
590 (
PAPER JAM IN FINISHER/PUNCH UNIT
1. Operate the Finisher lever (1) and move the Finisher away from the Inverter.
2. Move the tab (2) on the right side of the Finisher to align it with the mark (3).
)
1
3. Open the Finisher top cover.
3
2
Troubleshooting > 56
4. Carefully remove any jammed paper.
5. Close the Finisher top cover.
6. Move the Finisher back into position and connect it to the Inverter.
C
HECK INVERTER, PAPER JAM
1. Operate the Finisher lever (1) and move the Finisher away from the Inverter.
1
Troubleshooting > 57
2. Squeeze the recessed handle (2) and open the left side cover of the Inverter.
2
3. Carefully remove any jammed paper.
4. Close the Inverter left side cover.
5. Move the Finisher back into position and connect it to the Inverter.
Troubleshooting > 58
6. Operate the Inverter lever (3) and separate the Inverter from the printer.
3
7. Open the right side door (4) of the Inverter.
8. Remove any jammed paper.
4
Troubleshooting > 59
9. Close the right side door.
10. Move the Finisher and Inverter back into position and connect to the printer.
Troubleshooting > 60
A
VOIDING PAPER JAMS
The following table summarises possible causes of paper jams and suggests ways of avoiding them.
POSSIBLE CAUSE SUGGESTED REMEDY
The printer is not level. Place the printer on a steady, level surface.
Your print media is too light or too heavy.
Your print media is damp or charged with static electricity.
Your print media is creased or curled.
Your print media sheets are not aligned with each other.
Your print media is not aligned properly in the paper tray.
Your envelopes to be printed are not oriented properly.
Your printer feed roller is dirty. Wipe the roller with a cloth moistened with water.
Your printer feed rollers are wearing out.
The media weight or type have been wrongly set.
D
EALING WITH UNSATISFACTORY PRINTING
Use appropriate media.
Use media that has been stored in appropriate temperature and humidity conditions.
Use appropriate media. Decurled media can be used.
Remove the sheets, jog them into alignment and reload them.
Adjust the paper stop and paper guides of the tray, or the manual feed guide on the MP Tray to align the media properly.
Adjust the orientation as required.
Replace the feed rollers.
Select the correct printer menu settings for media weight and media type.
SYMPTOMS POSSIBLE CAUSES STEPS TO TAKE
Vertical white lines can be seen on the printed page.
Printed images are fading vertically.
The LED head is dirty. Wipe the LED head with a LED lens
cleaner or with a soft cloth.
The toner is low. Replace the toner cartridge.
Foreign materials may be present in the image drum.
Light-shielding film of the image drum cartridge is dirty.
The LED head is dirty. Wipe the LED head with a LED lens
The toner is low. Replace the toner cartridge.
The paper is not suitable for the printer.
Replace the image drum cartridge.
Wipe the film with a LED lens cleaner or with a soft cloth.
cleaner or with a soft cloth.
Use recommended paper.
Troubleshooting > 61
SYMPTOMS POSSIBLE CAUSES STEPS TO TAKE
Printing is light. The toner cartridge is not properly
seated.
The toner is low. Replace the toner cartridge.
The paper is moist. Use paper stored in proper
The paper is not suitable for the printer.
Thickness and type of paper are inappropriate.
Recycled paper is being used. Set one value thicker for media weight
Partially faded images. White spots and lines appear in solid printing.
Vertical lines appear. The image drum cartridge is
Horizontal Lines and spots appear periodically.
Paper is moist or dry. Use paper stored in proper
damaged.
The toner is low. Replace the toner cartridge.
When the interval is about 94mm (4in), the image drum (the green tube) is damaged or dirty.
When the interval is about 42mm (1.5in), there may be foreign particles in the image drum cartridge.
Reinstall the toner cartridge.
temperature and humidity conditions.
Use recommended paper.
Set a proper value for media weight and media type in the menu setup, or set one value thicker for media weight.
in the menu setup.
temperature and humidity conditions.
Replace the image drum cartridge.
Wipe it lightly with a soft cloth. Replace the image drum cartridge when it is damaged.
Open/close the top cover, and print again.
When the interval is about 87mm (3.5in), the fuser unit is damaged.
The image drum cartridge has been exposed to light.
White area of paper is lightly stained.
Periphery of the letters is smudged.
Toner comes off when it is rubbed.
Glossiness is not uniform. The thickness and type of the paper
Paper contains static. Use paper stored in proper
Too thick paper is used. Use thinner paper.
The toner is low. Replace the toner cartridge.
The LED head is dirty. Wipe the head with LED lens cleaner or
The thickness and type of the paper are incorrectly set.
Recycled paper is used. Set one value thicker for media weight
are incorrectly set.
Replace the fuser unit.
Replace the image drum cartridge if the problem is not resolved.
temperature and humidity conditions.
with a soft cloth.
Set the correct value of media type and media weight in the menu setup or set one value thicker for media weight.
in the menu setup.
Set the correct value of media type and media weight in the menu setup or set one value lighter for media weight.
Troubleshooting > 62
S
TAPLE JAMS
C
HECK FINISHER, STAPLE JAM
When the display indicates a staple jam has occurred, clear the jam as follows:
1. Open the Finisher front cover.
2. Turn the knob in the direction indicated until the coloured indicator appears.
FINISHER (OPTIONAL ACCESSORY
)
3. Remove any paper that awaits stapling in the paper ejection area.
4. Pull out the staple unit.
Troubleshooting > 63
5. Turn the knob in the direction indicated to move the stapler to the front.
6. Grip both sides of the staple cartridge, pull it up and remove it.
7. Raise the staple cartridge gate.
8. Remove all staples that are emerging from the staple case.
Troubleshooting > 64
9. Return the staple cartridge gate to its original position.
10. Refit the staple cartridge.
11. Ensure that the staple cartridge is securely installed back into the staple unit then
push the staple unit fully home.
12. Close the Finisher front cover, being careful not to trap your fingers.
Troubleshooting > 65
S
PECIFICATIONS
C910 N31204B
ITEM SPECIFICATION
Dimensions n, dn: 654.5x623x471mm (WxDxH)
Weight Without options, approx. 76kg
Power rating 220 – 240 VAC, 50/60 Hz 6A
Power consumption Operating: <1,500 W maximum, 780 W typical
Operating environment Operating: 10 – 32°C/20 – 80%RH
Noise level Operating: 54dBA maximum
Stand-by: 600 W maximum, 200 W typical Power save: <26 W
Off: 0 – 43°C/10 – 90%RH
Stand-by: 42dBA maximum Power save: 28dBA maximum after 30 mins background
level
Specifications > 66
A
PPENDIX
A – LCD
MESSAGES
The LCD panel messages are intended to be self-explanatory. Representative messages are given as examples below.
MESSAGE COMMENT
Ready to Print Your printer is online and ready to print.
Printing tttttt Your printer is printing and paper is currently being fed
from tttttt, where tttttt identifies a tray.
tttttt Near End The paper supply in the tray identified by tttttt will run out
cccccc Toner Low The remaining toner of colour cccccc is running low.
Fuser Unit Near Life The fuser unit is nearing the end of its working life.
Change Fuser Unit The fuser unit has reached the end of its working life and
Inverter is Removed The Inverter unit has been separated from the printer and
Invalid Data Press ONLINE Button
Change Paper in tttttt mmmmmm pppppp Press ONLINE button Please see HELP for details
Install Paper tttttt mmmmmm Please see HELP for details
soon.
has to be changed.
all Finisher functions are disabled. (Finisher/Inverter is an optional accessory.)
Invalid data has been received by the printer. Press the ONLINE button to clear this warning.
There is a mismatch between the media in the tray and print data. Load media of size mmmmmm and type pppppp into tray tttttt. The message may remain for some time after you have closed the tray.
You can have the printer ignore this error for the current print job by pressing the ONLINE button.
You can access help details by pressing the HELP button.
The printer has tried to take paper from an empty tray. Load media of size mmmmmm into tray tttttt. The message may remain for some time after you have closed the tray.
You can access help details by pressing the HELP button.
Install Tray tttttt Please see HELP for details
Open Cover Paper Remains tttttt Please see HELP for details
Check Image Drum cccccc Please see HELP for details
The printer has tried to take paper from a tray that has been removed. Ensure that tray tttttt is correctly located or put tray tttttt loaded with paper back into the printer.
Additional paper has been detected after a paper jam has been cleared. Open tttttt side cover to check for additional paper.
You can access help details by pressing the HELP button.
Check that the image drum of colour cccccc is correctly installed.
You can access help details by pressing the HELP button.
Appendix A – LCD messages > 67
A
PPENDIX
The top-level functions menus are:
> Configuration > Print Information > Print Secure Job > Menus > Admin Setup > Calibration
The two other special top-level menus are:
> Print Statistics > Boot Menu
The following tables summarise the Configuration, Print Information, Print Secure Job and Menus menu trees and provide some usage examples. The menu trees are given to the lowest menu item level. Typically, this can be a parameter that can be set by selecting from a range of values provided or a command that can be executed to display or print a status or setting value.
Emboldened values followed by an (A) denote default values associated with locations where A4 is default paper size. Emboldened values followed by an (L) denote default values associated with locations where Letter is default paper size. Emboldened values followed by neither (A) nor (L) denote common defaults.
B –
MENU SYSTEM
Certain menus and items associated with, for example, the Finisher appear only if the associated hardware is installed or under certain conditions.
The remainder of the menus above are intended for more specialised usage and are not described further here. For full details of using all menus to configure and use the printer, refer to the Configuration Guide.
Appendix B – menu system > 68
C
ONFIGURATION
P
RINT PAGE COUNT
ITEM VALUE DESCRIPTION
Total Pages nnnnnn Displays the total number of
Colour Page nnnnnn Displays number of colour
Monochrome Page
Traym nnnnnn Displays total printed pages
MP Tray nnnnnn Displays total printed pages
F
INISHER COUNT
ITEM VALUE DESCRIPTION
Staple nnnnnn Displays total number of
Punch nnnnnn Displays number of times
pages printed. Note in duplex printing, each sheet is counted as 2 pages.
printed pages converted to A4 equivalent.
nnnnnn Displays number of
monochrome printed pages converted to A4 equivalent.
from Traym, where m is in range 1 to 5.
from MP tray.
staples used.
punching has been performed.
Finisher nnnnnn Displays total pages ejected
S
UPPLIES LIFE
ITEM VALUE DESCRIPTION
xxxx Drum Remaining nnn% Displays the remaining life
Belt Remaining nnn% Displays the remaining life
Fuser Remaining nnn% Displays the remaining life
xxxx Toner (n.nK)
into the Finisher.
span of the xxxx drum as a percentage where xxxx can be Cyan, Magenta, Yellow, Black.
span of the belt unit as a percentage.
span of the fuser unit as a percentage.
Remaining nnn% Displays the remaining life
span of xxxx toner as a percentage, where xxxx can be Cyan, Magenta, Yellow, Black.
(n.nK) indicates the capacity of the toner cartridge being used.
Appendix B – menu system > 69
N
ETWORK
ITEM VALUE DESCRIPTION
Printer Name xxxxxxxxxxxxxxx
Short Printer Name xxxxxxxxxxxxxxx Displays printer name
IP Address xxx.xxx.xxx.xxx Displays IP address.
Subnet Mask xxx.xxx.xxx.xxx Displays subnet mask.
Gateway Address xxx.xxx.xxx.xxx Displays gateway address.
MAC Address xx.xx.xx.xx.xx.xx Displays the network MAC
Network FW Version xx.xx Displays the network
Web Remote Version xx.xx Indicates the network web
P
APER SIZE IN TRAY
ITEM VALUE DESCRIPTION
Traym whe r e m is in range 1 to 5
(similar arrangement for all trays)
xxxxxxxxxxxxxxx
Executive Letter Short Edge Letter Long Edge Legal 14 Legal 13.5 Tab lo id Tab l oi d Ex tra Legal 13 A6 A5 A4 Short Edge A4 Long Edge A3 A3 Nobi A3 Wide B5 Short Edge B5 Long Edge B4 Postcard Double Postcard Custom
Displays printer name (DNS or PnP).
(NetBEUI).
address.
firmware version.
page version.
Displays detected paper size of Traym.
MP Tray Similar to values for Traym Displays detected paper size
of the MP Tray.
Appendix B – menu system > 70
S
YSTEM
ITEM VALUE DESCRIPTION
Serial Number xxxxxxxxxxxxxxx Displays serial no. of the
printer.
Asset Number xxxxxxx Displays Asset Number.
CU Version xx.xx Displays version no. of CU
PU Version xx.xx.xx Displays version no. of PU
Total Memory xx MB Displays total RAM memory
Flash Memory xx MB [Fxx] Displays total flash
HDD xx.xx GB [Fxx] Displays size of hard disk
Asset Number is 8 alphanumeric characters that can be assigned by a user. Same as Asset Number of Menu Map.
(Control Unit) firmware. Same as CU version of Menu Map.
(Print Unit) firmware. Same as PU version of Menu Map.
installed in the printer. Same as Total Memory of Menu Map.
memory installed in the printer and version. Same as Flash Memory of Menu Map.
and file system version. Same as HDD of Menu Map.
C
ONFIGURATION EXAMPLE
MONOCHROME PAGES PRINTED
To display the total monochrome pages printed so far (remembering that a duplex page counts as two pages):
1. Ensure that the LCD panel indicates that the printer is ready to print.
2. Enter menu mode by pressing either the Up-arrow or Down-arrow button and
press them repeatedly as required until the CONFIGURATION MENU is highlighted.
3. Press the Enter button to select this menu.
4. Press the Up-arrow or Down-arrow buttons repeatedly until PRINT PAGE COUNT is
highlighted.
5. Press the Enter button to select this Item.
6. Press the Up-arrow or Down-arrow buttons repeatedly until MONOCHROME PAGE is
highlighted.
7. Press the Enter button and the monochrome page count is displayed.
8. Press the Online button to exit menu mode and return to the ready to print status.
Appendix B – menu system > 71
P
RINT INFORMATION
ITEM ITEM DESCRIPTION
Configuration Execute Prints printer configuration details.
Network Execute Prints information about the wired
Demo Page Demo 1 Execute Prints a demo page.
File List Execute Prints a list of jobs stored on the
PS Font List Execute Prints PostScript font list
PCL Font List Execute Prints PCL emulation font list.
network.
Hard Disk (if installed).
IBM PPR Font List
EPSON FX Font List
Statistics Log Execute Prints Job records by print job.
Usage Report Execute Prints all of Job Log.
Error Log Execute Prints the error log.
Colour Profile List
P
RINT INFORMATION EXAMPLE
Execute Prints IBM PPR emulation font list.
Execute Prints EPSON FX emulation font
list.
Execute Prints a colour profile list.
DEMONSTRATION PAGE
To print a printer demo page to demonstrate how your printer prints:
1. Ensure that the LCD panel indicates that the printer is ready to print.
2. Enter menu mode by pressing either the Up-arrow or Down-arrow button and
press them repeatedly as required until the PRINT INFORMATION MENU is highlighted.
3. Press the Enter button to select this menu.
4. Press the Up-arrow or Down-arrow buttons repeatedly until DEMO PAGE is
highlighted.
5. Press the Enter button to select this Item.
6. Press the Up-arrow or Down-arrow buttons repeatedly until DEMO 1 is highlighted.
7. Press the Enter button to select this Item and the demo page is printed.
After printing, the printer returns to ready to print status.
Appendix B – menu system > 72
P
RINT SECURE JOB
ITEM VALUE DESCRIPTION
Encrypted Job
Stored Job Enter
Enter Password
Not Found Use to print an encrypted secure job that has
Encrypted Job Print
Password
Not Found
Stored Job Print
nnnn Enter a password to use secure printing.
been stored on the HDD.
Delete
nnnn Use to print a secure job that has been stored
Delete
Not Found: (no jobs) is indicated when there is no output file. The following messages are displayed when there are printable files. Print: When you select Print, Set Collating Amount is displayed to enable you to specify a number of copies. After specifying the number of copies, press Enter to print all jobs with the specified number of copies. Delete: When you select Delete, you are prompted to recheck by Yes/No display, and selecting Yes deletes the entire job.
After the job is printed, or the deletion of the job is instructed by the menu, the job is deleted in the manner specified in the printer driver.
on the HDD. Not Found: (no jobs) is indicated when there is no output file. The following messages are displayed when there are printable files. Print: When you select Print, Set Collating Amount is displayed to enable you to specify a number of copies. After specifying the number of copies, press Enter to print all jobs with the specified number of copies. Delete: When you select Delete, you are prompted to recheck by Yes/No display, and selecting Yes deletes the entire job.
Appendix B – menu system > 73
M
ENUS
T
RAY CONFIGURATION
ITEM VALUE DESCRIPTION
Paper Feed Tray1
Auto Tray Switch ON
Tray Sequ e n ce Down
Unit of Measure Inch (L)
Traym Con f ig , where m is in range 1 to 5
(similar arrangement for all trays)
Tray2 Tray3 Tray4 Tray5 MP Tray
OFF
Up Paper feed tray
mm (A)
Paper Size CassetteSize
X Dimension 3.9 – 8.3 (A) – 8.5
Y Dimension 5.8 – 11 (L) –
Custom
(L) – 12.9 inch 100 – 210 (A) –
216 (L) – 328 mm
11.7 (A) – 18 inch 148 – 279 (L) – 297 (A) – 457 mm
Specifies a feed tray. Indicated only when Tray2– 5 implemented.
Sets the automatic tray switch function.
Specifies selection order priority for automatic tray selection/automatic tray switch.
Specifies units for custom paper size.
Sets paper in Traym.
Sets Custom paper width for Traym. Sets for the direction perpendicular to the direction of paper movement.
Sets Custom paper length for Traym. Sets for the same direction as paper movement.
Appendix B – menu system > 74
ITEM VALUE DESCRIPTION
Traym Con f ig , where m is in range 1 to 5
(similar arrangement for all trays)
Media Type Plain Letterhead
Transparency Bond Recycled Card stock Rough Glossy User Type1 User Type2 User Type3 User Type4 User Type5 User Type6 User Type7 User Type8 User Type9 User Type10
Media Weight Auto
Light Medium Light Medium Medium Heavy Heavy Ultra Heavy 1 Ultra Heavy 2
A3 Nobi Paper A3 Nobi
A3 Wide Tabloid Extra
Sets the media type for Traym.
User Type1 to User Type10 are reserved for custom paper sizes set in the printer driver.
Sets media weight for Traym.
The printer detects A3 Nobi, A3 Wide and Tabloid Extra sizes as the same. Use this setting to tell the printer which of the three sizes is loaded in Traym.
Legal 14 Paper Legal 14
Legal 13.5
Sets the length of the legal paper in Traym. Change this to Legal 13.5 if that is the standard legal size in your country.
Appendix B – menu system > 75
ITEM VALUE DESCRIPTION
MP Tray Config Paper Size A3 Nobi
A3 Wide A3 A4 Sht Edge A4 Long Edge (A) A5 A6 B4 B5 Short Edge B5 Long Edge Legal 14 Legal 13.5 Legal 13
Tabloid Extra Tabloid Letter Sht Edge
Letter Long Edge
(L) Executive Custom Com-9 Envelope Com-10 Envelope Monarch Envelope DL Envelope C5 C4 Index Card
Sets paper size for MP Tray.
X Dimension 3 – 8.3 (A) – 8.5
(L) – 12.9 inch 76 – 210 (A) – 216 (L) – 328 mm
Y Dimension 3.5 – 11.0 (L) –
11.7 (A) –
47.2 inch 90 – 279 (L) – 297 (A) – 1200 mm
Sets Custom paper width for the MP Tray. Sets for the direction perpendicular to the direction of paper movement.
Sets Custom paper length for MP Tray. Sets for the same direction as paper movement.
Appendix B – menu system > 76
ITEM VALUE DESCRIPTION
MP Tray Config Media Type Plain Letterhead
Transparency Labels Bond Recycled Card stock Rough Glossy Envelope User Type1 User Type2 User Type3 User Type4 User Type5 User Type6 User Type7 User Type8 User Type9 User Type10
Media Weight Auto
Light Medium Light Medium Medium Heavy Heavy Ultra Heavy 1 Ultra Heavy 2 Ultra Heavy 3 Ultra Heavy 4
Sets the media type for MP Tray.
Sets the media weight for MP Tray.
S
YSTEM ADJUST
ITEM VALUE DESCRIPTION
Power Save Time 1 min
Clearable Warning Online
Tray Usag e Nor m a l Tray Tra y s electi o n/swit c h ing
uses this tray as the normal tray.
When Mismatching
Do Not Use Makes the MP tray
3 min
5 min
15 min 30 min 60 min 240 min
Job
If a paper size or type in a tray is not matched to that of the print data, use paper from this tray instead of the specified tray.
unavailable in auto tray selection/switching.
Sets the period after which power save mode starts.
When Online is selected, you must manually clear the warning by pressing the Online button. Change to Job if you wish the message to automatically clear when a new print job is received.
Appendix B – menu system > 77
ITEM VALUE DESCRIPTION
Auto Continue ON
OFF
Manual Timeout OFF
30 sec
60 sec
Wait Timeout OFF
5 sec 10 sec 20 sec 30 sec
40 sec
50 sec 60 sec 90 sec 120 sec 150 sec 180 sec 210 sec 240 sec 270 sec 300 sec
Low Toner Continue
Stop
Sets whether the printer is automatically recovered when Memory Overflow or Tray Reques t occurs .
If paper is not fed within this time in manual feed, the job is cancelled.
Sets the time period between stopping receipt of job data and forced print. For PS, printing is not carried out and the job is cancelled.
Sets the printing operation when insufficient toner is detected. Continue: the printer can continue printing while remaining online. Stop: the printer stops printing and goes offline.
Jam Recovery ON
OFF
Error Report ON
OFF
Print Position Adjust
X Adjust 0.00
Y Adjust 0.00
+0.25 – +2.00
-2.00 – -0.25 mm
0.00 +0.01 – +0.08
-0.08 – -0.01 in
+0.25 – +2.00
-2.00 – -0.25 mm
0.00 +0.01 – +0.08
-0.08 – -0.01 in
ON: continues printing the job, including any jammed pages, once the jam has been cleared. OFF: Cancels a job including the page currently jammed.
ON: prints an error report during the occurrence of an internal error. This item is valid only for PS and PCLXL.
Adjusts the position of the whole printing image (0.25 mm, 0.01 in interval) perpendicular to the direction of paper movement (i.e. horizontally).
Adjusts the position of the whole printing image (0.25 mm, 0.01 in interval) parallel to the direction of paper movement (i.e. vertically).
Appendix B – menu system > 78
ITEM VALUE DESCRIPTION
Print Position Adjust
Paper Black Setting
Duplex X Adjust 0.00
+0.25 – +2.00 -
2.00 – -0.25 mm
0.00 +0.01 – +0.08
-0.08 – -0.01in
Duplex Y Adjust 0.00
+0.25 – +2.00 -
2.00 – -0.25 mm
0.00 +0.01 – +0.08
-0.08 – -0.01 in
0
+1 +2
-2
-1
During the flip-side printing of duplex printing, adjusts the location of the whole printing image (0.25 mm, 0.01in interval) perpendicular to the direction of paper movement (i.e. horizontally).
During the flip-side printing of duplex printing, adjusts the location of the whole printing image (0.25 mm, 0.01 in interval) parallel to the direction of paper movement (i.e. vertically).
Used for fine black adjustment for a significantly white horizontal dotted line, a significantly faded image or other such a problem that occurs in results printed on plain paper. Decrement setting when a white horizontal dotted line or a snowing image occurs in high-coverage print portions. Increment setting when a faded image occurs.
Paper Colour Setting
Trans. Black Setting
0
+1 +2
-2
-1
0
+1 +2
-2
-1
Used for fine colour adjustment for a significantly white horizontal dotted line, a significantly faded image or other such a problem that occurs in results printed on plain paper. Decrement setting when a white horizontal dotted line or a snowing image occurs in high-coverage print portions. Increment setting when a faded image occurs.
Used for fine black adjustment for a significantly white horizontal dotted line, a significantly faded image or other such a problem that occurs in results printed on transparencies. Decrement setting when a white horizontal dotted line or a snowing image occurs in high-coverage print portions. Increment setting when a faded image occurs.
Appendix B – menu system > 79
ITEM VALUE DESCRIPTION
Trans. Co l our Setting
SMR Setting 0
BG Setting 0
0
+1 +2
-2
-1
+1 +2 +3
-3
-2
-1
+1 +2 +3
-3
-2
-1
Used for fine colour adjustment for a significantly white horizontal dotted line, a significantly faded image or other such a problem that occurs in results printed on transparencies. Decrement setting when a white horizontal dotted line or a snowing image occurs in high-coverage print portions. Increment setting when a faded image occurs.
Corrects print result variations caused by differences in temperature and humidity environment, or print density or frequency. This setting must be changed when print quality varies by printed result.
Corrects print result variations caused by differences in temperature and humidity environment, or print density or frequency. This setting must be changed when a dark background occurs in printed result.
Drum Cleaning ON
OFF
Hex Dump Execute Prints out the data
Set to produce idling of a drum before printing in order to reduce horizontal white lines. This shortens image drum life.
received from the host PC in hexadecimal code.
Appendix B – menu system > 80
M
ENUS EXAMPLE
To print on transparencies (accommodated in Tray1):
1. Ensure that the LCD panel indicates that the printer is ready to print.
2. Enter menu mode by pressing either the Up-arrow or Down-arrow button and
press them repeatedly as required until the MENUS MENU is highlighted.
3. Press the Enter button to select this menu.
4. Press the Up-arrow or Down-arrow buttons repeatedly until TRAY CONFIGURATION
is highlighted.
5. Press the Enter button to select this Item.
6. Press the Up-arrow or Down-arrow buttons repeatedly until TRAY1 CONFIG is
highlighted.
7. Press the Enter button to select this Item.
8. Press the Up-arrow or Down-arrow buttons repeatedly until MEDIATYPE is
highlighted.
9. Press the Enter button to select this Item.
10. Press the Up-arrow or Down-arrow buttons repeatedly to move through the range
of media types until TRANSPARENCY is highlighted.
11. Press the Enter button to select this value.
1 –
TRAY
1
TRANSPARENCIES
12. Check that an asterisk (*) appears beside TRANSPARENCY.
13. Press the Online button to exit menu mode and return to the ready to print status.
M
ENUS EXAMPLE
To set paper size in the MP Tray:
1. Ensure that the LCD panel indicates that the printer is ready to print.
2. Enter menu mode by pressing either the Up-arrow or Down-arrow button and
press them repeatedly as required until the MENUS MENU is highlighted.
3. Press the Enter button to select this menu.
4. Press the Up-arrow or Down-arrow buttons repeatedly until TRAY CONFIGURATION
is highlighted.
5. Press the Enter button to select this Item.
6. Press the Up-arrow or Down-arrow buttons repeatedly until MP TRAY CONFIG is
highlighted.
7. Press the Enter button to select this Item.
8. Press the Up-arrow or Down-arrow buttons repeatedly until PAPER SIZE is
highlighted.
9. Press the Enter button to select this Item.
2 – MP
TRAY PAPER SIZE
10. Press the Up-arrow or Down-arrow buttons repeatedly to move through the range
of paper sizes until the required size is highlighted.
11. Press the Enter button to select this value.
12. Check that an asterisk (*) appears beside the chosen size.
13. Press the Online button to exit menu mode and return to the ready to print status.
Appendix B – menu system > 81
I
NDEX
A
accessories............................ 40
installing ........................... 40
order details ..................... 40
arrow buttons........................ 24
B
back button........................... 24
C
cancel button ........................ 24
cleaning
feed rollers
LED heads......................... 33
printer casing.................... 37
clearing
paper jams
staple jams ....................... 63
consumables
replacing
control panel
adjusting
controls............................. 23
current settings
checking
....................... 35
....................... 41
........................... 33
........................... 23
........................... 29
D
display................................... 23
Configuration
information
Help information ............... 25
Menu information ............. 24
Status information............ 24
..................... 25
E
enter button .......................... 24
F
features
optional
standard ............................. 7
...............................7
H
help button............................ 24
P
paper
face-down stacker
face-up stacker................. 16
inputs ............................... 15
loading.............................. 18
MP tray............................. 16
outputs ............................. 15
stackers............................ 21
trays ................................. 16
paper jams
avoiding
duplex............................... 48
finisher ............................. 51
inverter............................. 57
side cover......................... 41
top cover .......................... 44
printer
components
location............................. 27
specifications.................... 66
printing ................................. 32
punch chip box
emptying
............................ 61
.......................... 38
............ 16
...................... 11
R
recommended media ............ 13
S
shutdown/restart button....... 23
specifications ........................ 66
T
troubleshooting..................... 41
turning
off
..................................... 28
on ..................................... 29
U
unsatisfactory printing.......... 61
user’s guide
printing
............................... 9
I
indicator light
attention
ready ................................ 23
interface
Ethernet
parallel.............................. 30
USB................................... 30
........................... 23
.......................30, 31
M
maintenance items
replacing
menu
Calibration
Configuration...............68, 69
Menus ..........................68, 74
Print Information .........68, 72
Print Secure Job ..........68, 73
using................................. 25
........................... 33
........................ 68
O
online button......................... 24
Index > 82
OKI
Oki Systems (UK) Limited
550 Dundee Road Slough Trading Estate Slough Berkshire SL1 4LE
Tel:+44 (0) 1753 819819 Fax:+44 (0) 1753 819899 http://www.oki.co.uk
Oki Systems Ireland Limited
The Square Industrial Complex Tallaght Dublin 24
Tel:+353 (0) 1 4049590 Fax:+353 (0)1 4049591 http://www.oki.ie
Oki Systems Ireland Limited ­Northern Ireland
19 Ferndale Avenue Glengormley BT36 5AL Northern Ireland
Tel:+44 (0) 7767 271447 Fax:+44 (0) 1 404 9520 http://www.oki.ie
Technical Support for all Ireland: Tel:+353 1 4049570 Fax:+353 1 4049555 E-mail: tech.support@oki.ie
OKI Systems (Czech and Slovak), s.r.o.
IBC – Pobřežní 3 186 00 Praha 8 Czech Republic
Tel: +420 224 890158 Fax:+420 22 232 6621 Website: www.oki.cz, www.oki.sk
Oki Systems (Deutschland) GmbH
Hansaallee 187 40549 Düsseldorf
Tel: 01805/6544357**
Fax: +49 (0) 211 59 33 45 Website: www.okiprintingsolutions.de info@oki.de
**0,14€/Minute aus dem dt. Festnetz der T-Com (Stand 11.2008)
Διανομέας των συστημάτων OKI
CPI S.A1 Rafailidou str. 177 78 Tavros Athens Greece
Τel: +30 210 48 05 800 Fax:+30 210 48 05 801 EMail:sales@cpi.gr
Oki Systems (Iberica), S.A.U
C/Teide, 3 San Sebastian de los Reyes 28703, Madrid
Tel:+34 91 3431620 Fax: +34 91-3431624 Atención al cliente: 902 36 00 36 Website: www.oki.es
CONTACT DETAILS
01805/OKIHELP**
Oki Systèmes (France) S.A.
44-50 Av. du Général de Gaulle 94246 L'Hay les Roses Paris
Tel:+33 01 46 15 80 00 Télécopie:+33 01 46 15 80 60 Website: www.oki.fr
OKI Systems (Magyarország) Kft.
Capital Square Tower 2 7th Floor H-1133 Budapest, Váci út 76 Hungary
Telefon: +36 1 814 8000 Telefax: +36 1 814 8009 Website: www.okihu.hu
OKI Systems (Italia) S.p.A.
via Milano, 11, 20084 Lacchiarella (MI)
Tel:+39 (0) 2 900261 Fax:+39 (0) 2 90026344 Website: www.oki.it
OKI Printing Solutions
Platinium Business Park II, 3rd Floor ul. Domaniewska 42 02-672 Warsaw Poland
Tel:+48 22 448 65 00 Fax:+48 22 448 65 01 Website: www.oki.com.pl E-mail: oki@oki.com.pl Hotline: 0800 120066 E-mail: tech@oki.com.pl
Oki Systems (Ibérica) S.A.
Sucursal Portugal Edifício Prime ­Av. Quinta Grande 53 7º C Alfragide 2614-521 Amadora Portugal
Tel:+351 21 470 4200 Fax:+351 21 470 4201 Website:www.oki.pt E-mail : oki@oki.pt
Oki Service Serviço de apoio técnico ao Cliente
Tel: 808 200 197 E-mail : okiserv@oki.pt
OKI Europe Ltd. (Russia)
Office 702, Bldg 1 Zagorodnoye shosse 117152, Moscow
Tel: +74 095 258 6065 Fax: +74 095 258 6070 e-mail: info@oki.ru Website: www.oki.ru
Technical support: Tel: +7 495 564 8421 e-mail: tech@oki.ru
Oki Systems (Österreich)
Campus 21 Businesszentrum Wien Sued Liebermannstrasse A02 603 22345 Brun am Gebirge
