NTRODUCTION

Congratulations on buying this Oki colour printer. Your new printer is designed with advanced features to give you clear, vibrant colour prints and crisp black and white pages at high speed on a range of office print media.

Your printer includes these features:

> ProQ2400 Multi-level technology produces subtle tones

and smooth gradations of colour to lend photographic

quality to your documents.

> This model prints up to 16ppm (pages per minute) in full

colour for fast printing of high impact colour presentations

and other documents, and up to 20ppm (pages per

minute) in black and white for fast and efficient printing of

all general purpose documents not requiring colour.

> 600 x 600dpi (dots per inch), 1200 x 600dpi and 600 x

600dpi x 2bit print resolution for high quality image

production showing the finest detail (ProQ2400).

> Single Pass Colour Digital LED technology for high speed

processing of your printed pages.

> 10Base-T and 100Base-TX network connection lets you

share this valuable resource among users on your office

network.

> High speed USB 2.0 interface.

> “Ask Oki” (Windows only) – a user-friendly function that

gives a direct link from your printer driver screen (but not

always illustrated in this guide) to a dedicated web site

specific to the exact model you are using. This is where

you’ll find all the advice, assistance and support you could

need to help you get the best possible results from your

Oki printer.

Additionally, the following optional feature is available :

> Additional memory, to allow printing of more complex

pages.

Introduction > 8

RINTER OVERVIEW

RONT VIEW

1. Printer cover.

2. Operation Panel. Status LEDs and operator buttons.

3. Multi Purpose Feeder Tray Release. (when closed, press to open).

4. Multi Purpose Tray (shown open). Used for manual duplex, feeding heavier paper stocks, envelopes and other special media. Also for manual feeding of single sheets when required.

Introduction > 9

5. Cassette Tray. Standard blank paper tray. Holds up to 250 sheets of 80g/m² paper.

6. Printer Cover Open Release (push to open).

7. Front Cover Open Release (press to open)

8. ON/OFF switch.

EAR VIEW

This view shows the connection panel and the rear output stacker.

LAN

9. Output stacker, face down. Standard printed copy delivery point. Holds up to 150 sheets at 80g/m².

10. Rear Stacker, face up. Can hold up to 10 sheets of 80g/ m² standard paper and can handle paper stocks of up to 203g/m².

11. AC Power Socket.

12. USB interface and LAN Port USB cable must be of length 2m maximum for reliable Status Monitor operation.

When the rear paper stacker is folded down, paper exits through the rear of the printer and is stacked face up. The rear stacker is mainly used for heavy print media. When used in conjunction with the Multi Purpose Tray, the paper path through the printer is essentially straight. This avoids bending the paper around curves in the paper path inside the printer and enables feeding of up to 203g/m² media.

TEST

Introduction > 10

NSIDE YOUR PRINTER

13. Fuser unit. The Fuser unit contains a heated roller that fixes toner to the print media (paper or card).

14. Fuser lever. The lever has a locked position for when the toner cartridge is in place and an unlocked position for removal and changing.

15. Toner cartridges and toner cartridge levers. The 4 toner cartridges hold dry powdered ink. The lever locks the toner cartridge into place on the image drum or releases it for changing.

16. Image drum units. The toner from the toner cartridges adheres to the outer plate of the image drum. The image drum then transfers the toner to the print media as it passes through the printer.

17. LED Heads. 4 LED (Light Emitting Diode) Heads direct light onto the 4 image drums.

Press the Cover Open Release (7) to open the printer cover and look inside the printer.

Introduction > 11

THE O

PERATION PANEL

The Operation Panel allows operator intervention and indicates both when the printer is operating normally and when it requires attention. Detailed printer status is provided by the Status Monitor in Windows or Printer Driver in Mac. (See “Using the

Status Monitor” on page 67.)

The Operation Panel incorporates 3 LEDs and 2 push-button switches as follows (from left to right):

> Power (Ready) LED (green)

> Paper LED (amber)

> Alarm LED (amber)

> ON LINE switch

> CANCEL switch

The switches enable printer operation while the LEDs display the status of the printer operation.

WITCHES

Operation

There are two switches on the operation panel labelled ON LINE and CANCEL. Each has four modes of operation as follows:

MODE OF OPERATION

Momentary press (Press 1)

2-second press

(Press 2)

5-second press

(Press 5)

Press at Power On At Power On, press the switch

DESCRIPTION

Press the switch and release it within 2 seconds of pressing it. On releasing the switch, operation starts.

Press the switch and hold for between 2 and 5 seconds after pressing it. On releasing the switch, operation starts (except in the case of a job cancellation).

Press the switch and hold it for 5 seconds or more. The operation starts 5 seconds after pressing the switch, even if you hold it pressed for more than 5 seconds.

Introduction > 12

Function

The results of operating the switches in different contexts are summarised below:

STATUS BEFORE PRESSING

ON LINE (idling mode)

OFF LINE (idling mode)

ON LINE (data being received, processing or printing)

Requesting manual feed

Paper is set in Multi Purpose Tray (no print job)

No paper in Cassette Tray or Cassette Tra y o p e n

Memory overflow or invalid data

Paper jam – – – – – –

ONLINE SWITCH CANCEL SWITCH

PRESS 1

Shifts to OFF LINE

Shifts to ON LINE

Shifts to OFF LINE

Loads paper from Cassette Tray

Shifts to OFF LINE

- - - – Cancels

Recovers from the error and shifts to ON LINE

PRESS 2PRESS 5PRESS

PRESS 2PRESS

Prints Menu Map (*1)

Prints Menu Map (*2)

––– Cancels

– – – Cancels

Prints Menu Map (*1)

Prints Demo Print

Prints Demo Print (*2)

Prints Demo Print

–––

– – –

job

(*3)

job

(*3)

Forcefully ejects paper

job

(*3)

–––

*1:The Menu Map (or Status Page) provides details of printer

settings and status information. *2:Shifts to ON LINE after printing has started. *3:Cancels job 2 seconds after start of switch operation (even if

the switch is held down longer).

–

Introduction > 13

LED

DISPLAYS

General

Printer status (as indicated by the LEDs) can be broadly categorised as follows:

1. Normal status (Green): the printer is operating normally e.g. it is ON LINE or processing.

2. Warning status (Amber): you can continue to use the printer without intervention but an error may result.

3. Error status (Amber, blinking): you cannot continue to use the printer. Intervention is required to recover from the error. Fatal errors are irrecoverable and require a service call.

When several different status situations occur concurrently, only the status with the highest priority is displayed on the LEDs. Warning status combined with the highest-priority normal status is displayed on the LEDs.

Function

A summary of the functions of each LED is given below:

LED COLOUR FUNCTION

Power (Ready) Green (static) Indicates POWER ON, ON LINE, OFF LINE, power

Paper Green (static)

Consumable Green (static)

Alarm Green (static)

and Amber (blinking)

saving, data receiving, printing, job cancelling, warming up, density adjustment/temperature adjustment in progress

Indicates paper out warning/alarm, manual feed request

Indicates consumables life warning/alarm, consumables installation error

Indicates paper jam, cover open error

Introduction > 14

Illumination and meaning

To be able to indicate a large number of status situations both individually and in combination, the LEDs are illuminated as follows:

LED ILLUMINATION STATUS

Power (Ready)

Green

Paper, Consumable, Alarm

(Amber)

OFF Power OFF

ON ON LINE (idle)

Blinking 1 (2S cycle) OFF LINE (this blinking pattern

Blinking 2 (500mS cycle) Data being received, printing,

Blinking 3 (120mS cycle) Job cancelling in progress

Blinking 4 (4.5S ON and 500mS OFF)

OFF ON LINE

ON A warning is indicated (printing

Blinking 1 (2S cycle) An error has occurred but printing

Blinking 2 (500mS cycle) An error has occurred. You need to

Blinking 3 (120mS cycle) A serious error has occurred.

always takes place while an error is occurring)

warming up, density adjustment/ temperature adjustment in progress

Power saving mode

possible)

can continue if you press the ON LINE or CANCEL switch.

replace consumables or remove jammed paper, for example. The printer then recovers from the error and printing becomes possible again.

rebooting or a service call is required.

The Status Monitor in Windows provides a readable description of the printer status corresponding to the indications of the LEDs. In Mac, the printer driver provides status information once you have sent a document to print. In Windows, if you have the Status Monitor Preferences set to Pop up on alerts, this readable message will be presented on screen whenever an abnormal condition occurs. See “Using the printer software” on page 66 for more information.

Service call error

When a service call error occurs, all LEDs blink rapidly and simultaneously at 120ms intervals.

Introduction > 15

APER RECOMMENDATIONS

Your printer will handle a variety of print media, including a range of paper weights and sizes, including envelopes. This section provides general advice on choice of media, and explains how to use each type.

The best performance will be obtained when using standard 75~90g/m² paper designed for use in copiers and laser printers. Suitable types are:

> Arjo Wiggins Conqueror Colour Solutions 90g/m²;

> Colour Copy by Neusiedler.

Use of heavily embossed or very rough textured paper is not recommended.

Pre-printed stationery can be used, but the ink must not offset when exposed to the high fuser temperatures used in the printing process.

Envelopes shoul d b e f r e e fr o m tw i st , c u rl o r ot h e r d e f or m a ti o n s. They should also be of the rectangular flap type, with glue that remains intact when subjected to hot roll pressure fusing used in this type of printer. Window envelopes are not suitable.

Labels should also be of the type recommended for use in copiers and laser printers, in which the base carrier page is entirely covered by labels. Other types of label stock may damage the printer due to the labels peeling off during the printing process. Suitable types are:

> Avery White Laser Label types 7162, 7664, 7666 (A4),

or 5161 (Letter);

Paper recommendations > 16

ASSETTE TRAY

TRAY WEIGHT (G/M²) SIZE DIMENSIONS

A6 105 x 148mm

A5 148 x 210mm

Cassette

Tra y

Light: 64-74g/m²

Medium: 75-90g/m²

Heavy: 91-120g/m²

B5 182 x 257mm

Executive 184.2 x 266.7mm

A4 210 x 297mm

Letter 215.9 x 279.4mm

Legal 13in. 216 x 330mm

Legal 13.5in. 216 x 343mm

Legal 14in. 216 x 356mm

The Cassette Tray can handle paper in weights of 64g/m² to 120g/m². The Cassette Tray is ideal for printing A4 documents of more than 1 page in length.

ULTI PURPOSE TRAY

The Multi Purpose Tray can handle the same sizes as the Cassette Tray but in weights 75 - 203g/m². For very heavy paper stock, always use the face up (rear) paper stacker. This ensures that the paper path through the printer is almost straight.

The Multi Purpose Tray can feed paper widths as small as 100mm and lengths up to 1200mm (banner printing). For paper lengths exceeding 356mm (Legal 14in.) use paper stock between 90g/m² and 128g/m² and the face up (rear) paper stacker.

When using the Multi Purpose Tray, feed each sheet of paper or envelope one-by-one, rather than stacking them. This helps to avoid paper jams.

Paper recommendations > 17

Watermarked or Headed paper should be loaded print side up and top edge into the printer.

TRAY WEIGHT (G/M²) SIZE DIMENSIONS

A6 105 x 148mm

A5 148 x 210mm

B5 182 x 257mm

Executive 184.2 x 266.7mm

A4 210 x 297mm

Letter 215.9 x 279.4mm

Light: 64-74g/m²

Multi

Purpose

Tra y

ACE DOWN STACKER

Medium: 75-90g/m²

Heavy: 91-120g/m²

Ultra heavy: 121-

203g/m²

Legal 13in. 216 x 330mm

Legal 13.5in. 216 x 343mm

Legal 14in. 216 x 356mm

Custom sizes 216 x 356mm

Letterhead 216 x 279

COM-9 Envelope 98.4 x 225.4mm

COM-10 Envelope 104.7 x 241.3mm

Monarch Envelope

C5 162 x 229mm

Banner 210 x 900

Banner 215 x 900

Banner 215 x 1200

98.4 x 190.5mm

The Face Down Stacker on the top of the printer can hold up to 150 sheets of 80g/m² standard paper, and can handle paper stocks up to 120g/m². Pages printed in reading order (page 1 first) will be sorted in reading order (last page on top, facing down).

ACE UP STACKER

The Face Up Stacker at the rear of the printer should be opened and the paper support extended when required for use. In this condition paper will exit via this path, regardless of driver settings.

The Face Up Stacker can hold up to 10 sheets of 80g/m² standard paper and can handle stocks up to 203g/m².

Always use the Face Up Stacker and the Multi Purpose Tray for paper stocks heavier than 176g/m².

Paper recommendations > 18

OADING PAPER

ASSETTE TRAY

1. Remove the Cassette Tray from the printer.

Fan the paper to be loaded at the edges (1) and in the middle (2) to ensure that all sheets are properly separated, then tap the edges of the stack on a flat surface to make it flush again.(3).

Loading Paper > 19

3. Adjust the Rear Stopper (1) and Paper Guides (2) to the size of paper being used. Use the markings on the printer as a guide.

4. Load the paper (1). Use the level indicators (2) as a guide. For letter headed paper, load face down with top edge towards the front of the printer.

Loading Paper > 20

To prevent paper jams:

> Do not leave space between the paper and the guides

and rear stopper.

> Do not overfill the Cassette Tray. Capacity depends on

the type of paper stock.

> Do not load damaged paper.

> Do not load paper of different sizes or types at the

same time.

> Do not pull the Cassette Tray out during printing.

5. Close the Cassette Tray gently.

6. For face down printing, make sure the Face Up (rear)

Stacker is closed (the paper exits from the top of the printer). Stacking capacity is approximately 150 sheets, depending on paper weight.

7. For face up printing, make sure the Face Up (rear) Stacker is open and the paper support (1) is extended. Paper is stacked in reverse order and tray capacity is approximately 10 A4 sheets, depending on paper weight, or 1 envelope or 1 sheet of heavier media.

Loading Paper > 21

8. Always use the Face Up (rear) Stacker for heavy paper (card stock etc.).

CAUTION!

Do not open or close the rear paper exit while printing as it may result in a paper jam.

Loading Paper > 22

ULTI PURPOSE TRAY

1. Open the Multi Purpose Tray and press gently down on the

Paper Platform (2) to ensure it is latched down.

2. Adjust the Paper Guides (1) to the size of paper you are going to print on, using the markings on the Paper Platform.

3. Position a sheet of paper on the Paper Platform so that it is gripped in place.

> Load your chosen media one sheet at a time.

> When printing on headed paper load the paper into the

Multi Purpose Tray with pre-printed side up and top edge into the printer.

> An envelope should be loaded face up with top edge to

the left and short edge facing into the printer.

Set the correct paper size for the Multi Purpose Tray in the Media Menu. (See “Printer functions (User Settings)” on page 70.)

Loading Paper > 23

RINTING FROM

Your printer’s menus provide access to many options. See “Using

the printer software” on page 66 for more information.

The Windows printer driver also contains settings for many of these items. Where items in the printer driver are the same as those in the menus, and you print documents from Windows, the settings in the Windows printer driver will override those items in the menus.

RINTER DRIVER SETTINGS

A printer driver is a software program that controls a printer. The printer driver feeds data about printing requirements for a document to the printer.

You can make printer driver settings either from Windows Printers window (called “Printers and Faxes” in Windows XP) or from within a Windows application. The driver settings you make from the Windows “Printing Preferences” dialog box are essentially default settings and will be remembered from one Windows session to the next. The driver settings you make from within a Windows application, e.g. in the File -> Print dialog box in Microsoft Word, are those required for a particular job and will not be remembered the next time you open this application. In both cases, you can save and name (on the Setup tab) specific sets of driver settings which can be recalled for future use.

INDOWS

Printing from Windows > 24

RINTING PREFERENCES IN WINDOWS APPLICATIONS

When you choose to print your document from a Windows application program a Print dialog box appears. This dialog usually specifies the name of the printer on which you will print your document. Next to the printer name is a Properties button.

When you click Properties a new window opens which contains a short list of the printer settings available in the driver, which you can choose for this document. The settings available from within your application are only those which you may want to change for specific applications or documents. Settings you change here will usually only last for as long as the particular application program is running.

Printing from Windows > 25

ETUP TAB

When you click the Properties button from your application’s Print dialog, the driver window opens to allow you to specify your printing preferences for the current document.

1. Paper size should be the same as the page size of your document (unless you wish to scale the printout to fit another size), and should also be the same as the size of paper you will feed into the printer.

2. You can choose the source of the paper to feed, which may be Tray 1 (the Cassette Tray) or the Multi Purpose Tray. You can either select the tray from the dropdown list or you can click on the appropriate part of the printer graphic to select your preferred tray.

3. The setting for paper weight should match the type of paper on which you intend to print.

4. Click on the Paper Feed Options button to modify your document to fit to paper of a different size and to access advanced Cassette Tray and Multi Purpose tray settings.

Printing from Windows > 26

5. A variety of document finishing options can be selected, such as normal one page per sheet, or N-up (where N can be a maximum of 16) for printing scaled down pages at more than one page per sheet.

Select the Poster printing option to print large pages as tiles spread over multiple sheets.

6. You can choose to print on one side of a sheet only or to use 2-sided printing (duplex printing). Your printer allows you to carry out manual duplex printing, meaning you must pass the paper through the printer twice. For more information, see “2-sided printing (Windows only)” on

page 50. The Duplex Help button also offers guidelines

on how to carry out manual duplex printing.

7. If you have changed some printing preferences before and saved them as a set under a specific name, you can recall them under driver settings. Saving driver settings means that you can avoid having to set printing preferences individually each time you need them.

8. Click the Default button to restore the default printer settings.

JOB O

PTIONS TAB

Printing from Windows > 27

1. The output resolution of the printed page can be set as follows.

> The ProQ2400 setting prints at 600 x 600dpi multi-

level. This setting requires the most printer memory and takes the longest to print. It is the best option for printing photographs and reproducing colour details.

> The Fine/Detail setting prints at 1200 x 600dpi is the

best option for printing vector objects such as graphics and text.

> The Normal setting prints at 600 x 600dpi and is

suitable for most printing jobs.

2. Select this option to improve the quality of photographic images.

3. Select to help save your toner.

4. Select this option to avoid printing out any blank pages

that are in your document.

5. You can select up to 999 copies to print consecutively, although you will need to top up the Cassette Tray during such a long print run.

6. Page orientation can be set to either portrait (tall) or landscape (wide).

7. Your printed pages can be scaled to fit larger or smaller stationery.

8. You can print watermark text behind the main page image. This is useful for marking documents as draft, confidential, etc.

9. Clicking the Advanced button gives you access to further settings. For example, you can elect to have black areas printed using 100%K toner (a more matte appearance).

10. Click the Default button to restore the default printer settings.

Printing from Windows > 28

OLOR TAB

1. Control over the colour output of your printer may be

performed automatically, or for advanced control, by manual adjustment. The automatic setting will be appropriate in most cases. The other options in this window only become visible when you select a choice other than Auto. For grayscale printing, the printer runs at the fastest print speed (approx. 20ppm) and all pages are printed in black and white.

2. You can choose from a range of colour matching options, depending on the image source for your document. For example, a photograph taken on a digital camera might require different colour matching from a business graphic created in a spreadsheet application. Again, for most general purpose use, Auto is the best choice.

3. Printed output may be made lighter or darker, or the colours made more saturated and vibrant as required.

Printing from Windows > 29

4. Black areas may be printed using 100% cyan, magenta and yellow, giving a more glossy appearance (composite black), or using only black toner (true black), giving a more matte appearance. Choosing the Auto setting allows the driver to make the most appropriate choice based on image content.

5. Click the Default button to restore the default printer settings.

ETTING FROM WINDOWS CONTROL PANEL

When you open the driver properties window directly from Windows, rather than from within an application program, a somewhat more extensive range of settings is provided. Changes made here will generally affect all documents you print from Windows applications, and will be remembered from one Windows session to the next.

ENERAL TAB

1. This area lists some of the main features of your printer.

Printing from Windows > 30

2. This button opens the same windows for items which can be set from within application programs, as described earlier in “Printing preferences in Windows applications” on page 25. Changes you make here, however, will become the new default settings for all Windows applications.

3. This button prints a test page to check that your printer is working.

DVANCED TAB

1. You can specify which times of day your printer will be available.

2. Indicates current priority, from 1 (lowest) to 99 (highest). Highest priority documents will print first.

3. Specifies that documents should be spooled (stored in a special print file) before being printed. The document is then printed in the background, allowing your application program to become available more quickly.

Printing from Windows > 31

4. This specifies that printing should not start until the last page has been spooled. If your application program needs a lot of time for further computation in the middle of printing, causing the print job to pause for more than a short period, the printer could prematurely assume that the document has finished. Selecting this option would prevent that situation, but printing will be completed a little later, as the start is delayed.

5. This is the opposite choice to the one above. Printing starts as soon as possible after the document begins spooling.

6. This specifies that the document should not be spooled, but printed directly. Your application will not normally be ready for further use until the print job is complete. This requires less disk space on your computer, since there is no spool file.

7. Directs the spooler to check the document setup and match it to the printer setup before sending the document to print. If a mismatch is detected, the document is held in the print queue and does not print until the printer setup is changed and the document restarted from the print queue. Mismatched documents in the queue will not prevent correctly matched documents from printing.

8. Specifies that the spooler should favour documents which have completed spooling when deciding which document to print next, even if completed documents are lower priority than documents which are still spooling. If no documents have completed spooling, the spooler will favour larger spooling documents over shorter ones. Use this option if you want to maximise printer efficiency. When this option is disabled the spooler chooses documents based only on their priority settings.

9. Specifies that the spooler should not delete documents after they are completed. This allows documents to be resubmitted to the printer from the spooler instead of printing again from the application program. If you use this option frequently it will require large amounts of disk space on your computer.

10. Specifies whether advanced features, such as page order and pages per sheet, are available, depending on your

Printing from Windows > 32

printer. For normal printing keep this option enabled. If compatibility problems occur you can disable the feature. However, these advanced options may then not be available, even though the hardware might support them.

11. This button provides access to the same setup windows as when printing from applications. Changes made via the Windows Control Panel become the Windows default settings.

Printing from Windows > 33

RINTING FROM

Mac OS 9 is not supported.

MAC OS X

The information in this section is based on Mac OS X Tiger (10.4). Other versions such as Panther (10.3) and Jaguar(10.2) versions may appear slightly different, but the principles are the same.

ETTING PRINTING OPTIONS

You can choose your printer and select options for how you want your documents to print from the Print dialog box.

To set your printer options:

1. Open the document you want to print.

2. To change the paper size or page orientation, select File >

Page Setup.

3. Close the Page Setup dialog box.

4. Select File > Print.

Printing From Mac > 34

5. Select your printer from the Printer drop-down menu.

6. To change any printer driver settings, select the required

options from the “Settings” drop-down menu. You can select more options from the Copies & Pages menu. For a description of these options, see “Print options - Copies &

pages” on page 38.

7. Click the Print button.

Printing From Mac > 35

AVING PRINTING OPTIONS

You can save a set of printer driver options to use for future documents.

1. Open the document you want to print.

2. To change the paper size or page orientation, select File >

Page Setup.

3. Select Save As Default from the Settings drop-down menu.

4. To save the current printer driver settings as a preset, select Save As from the Preset menu.

5. Enter a name for your preset and click OK.

HANGING THE DEFAULT PRINTER AND PAPER SIZE

The following steps describe how to change your default printer and the paper size options.

1. Select Apple menu > System Preferences.

2. Click the Print & Fax icon.

3. Select your printer in the “Selected Printer in Print Dialog”

drop-down menu.

4. Select your required paper size in the “Default Size in Page Setup” drop-down menu.

Printing From Mac > 36

AGE SETUP OPTIONS

This section provides a description of the page setup options available to you.

Page Attributes

You can select “Save As Default” to use the current Page Setup settings as a standard for all documents.

Format for

Allows you to select your printer model before changing options such as Paper size and Orientation.

Paper Size

Select a paper size to match your document and the paper loaded in the printer. The paper margin is 4.2mm at all edges. To specify your own paper sizes, select “Manage Custom Sizes...”

Scale

You can scale documents up or down to fit onto different paper sizes. To fit your document on a specific paper size, select Options in the Paper Handling drop-down menu in the Print Options dialog box.

Orientation

You can select a portrait or landscape option. When using landscape, you can rotate the document 180 degrees.

Printing From Mac > 37

RINT OPTIONS

Copies

This option allows you to enter the number of copies to print. If you select Collate, all pages of the document will print before the next copy prints.

Pages

You can select whether to print all pages of a document or just a section of it.

- C

OPIES

PAGES

Printing From Mac > 38

Layout

Pages per sheet

You can shrink multiple pages and print them on a single sheet of paper. For example, choosing 4-up will tile four of your document's pages across a single sheet of paper.

You can control the order in which the documents are tiled and also choose to surround each document page with a border.

Printing From Mac > 39

Scheduler

This option lets you choose whether to print your document immediately, or defer printing until later. You can also assign a priority to a print job.

These features are useful if you are printing large documents that take a long time to print.

Printing From Mac > 40

Paper handling

Page order

You can choose to print your document in the normal page order (1,2,3..) or reverse order (..3,2,1).

This option allows you to choose whether to print only odd or even numbered pages. This is useful if you are using manual duplex for which you first print all odd pages, reinsert the paper in the printer and then print all even pages.

Destination paper size

Scale documents to fit on the size of paper in your printer. For example, you can take a document formatted for A3 and print it on A4 paper using an A4 printer.

Printing From Mac > 41

ColorSync

Color conversion

For Color Conversion, Standard is the only option available for your printer model.

Quartz Filter

Choose a Quartz filter if you wish to apply a special effect to your print job, such as Sepia or Blue Tone. This is only available on Mac OS X 10.3 (Panther) or later versions.

Printing From Mac > 42

Cover page

Choosing a cover page may help you to identify your printed document in a large pile of paper. This is useful in a busy office with many people sharing the printer.

Paper source

This option allows you to select which paper tray to use for your print job.

Printing From Mac > 43

Print quality

Use this option to select the print resolution. The ProQ2400 setting produces the best graphic images, but these images can take longer to print.

Photo Enhance

Use Photo Enhance to significantly improve quality when printing images. The printer driver analyses any photographic images and processes them to improve the overall appearance. This setting cannot be used together with the ProQ2400 print quality setting.

Toner Saving

Toner saving uses less toner when printing your document. This is best suited to draft text documents as it lightens the print significantly.

Printing From Mac > 44

Color

Color mode

COLOR MODE DESCRIPTION

Auto Color The driver selects the most appropriate

Advanced Color Allows you to manually adjust color and

Grayscale Convert all colors to shades of grey.

Printing From Mac > 45

color settings.

black and white settings or select.

Color matching

COLOR DESCRIPTION

Monitor (6500K) Perceptual

Monitor (6500K) Vivid

Monitor (9300K) Optimised for printing graphics from

Digital Camera Results will vary depending on the subject and

sRGB The printer reproduces the sRGB color space.

Optimised for printing photos. Colors are printed with emphasis on saturation.

Optimised for printing photos, but with even more saturated colors.

applications such as Microsoft Office. Colors are printed with emphasis on Lightness.

conditions the image was taken.

This might be useful if color matching from an sRGB input device such as a scanner or digital camera.

Black Finish

Use this option to control the way black is printed in color documents. Select Composite Black (CMYK) to use all 4 toner colors to represent black. This option is recommended for color photos. Select True Black (K) to use 100% black toner to represent black. This option is recommended for text and business graphics.

Brightness / Saturation

This option allows you to increase brightness for a lighter print. Modify saturation to change the strength (or purity) of a color.

If the printed colors are too strong, reduce saturation and increase brightness. As a general rule, reduce saturation by the same amount as you increase brightness. For example, if you reduce saturation by 10, increase brightness by 10 to compensate.

Printing From Mac > 46

RINTER SETUP OPTIONS

RINTER OPTIONS

Media weight

Select the thickness or type of paper in the printer. It is important to set this correctly as it affects the temperature at which the toner is fused to the paper. For example, if you are printing on normal A4 paper, do not select Labels as this may cause toner smearing and paper jams.

Paper size check

Select Paper Size check if you want the printer to warn you when the document paper size is different from the paper in the printer.

A warning message is displayed and printing continues when you load the correct paper in the tray and press ON LINE. When this option is deselected, the printer uses the paper loaded in the selected tray regardless of the document size.

Feed manually from Multi Purpose Tray

Select this option if you want the printer to wait until you press the ON LINE button when feeding from the Multi Purpose Tray. This can be useful if printing on envelopes.

Printing From Mac > 47

Always create 100% black (K) toner

Select this option if you want the printer to always use only black (K) toner when printing pure black (RGB = 0,0,0). This is effective even when Composite Black (CMYK) is selected in the color options.

Run maintenance cycle before printing

Depending on printing habits and usage patterns, running the maintenance cycle before printing may ensure the best possible print quality. This feature uses the printer's image drums and transfer belt. The life of these printer consumables may be shortened if the printer runs a maintenance cycle frequently.

Print control

If you are using the Windows Print Control Server software to manage printers, enter your assigned user name and ID. This information is sent to the printer with your print job and is recorded by the printer.

Printing From Mac > 48

Summary

This option displays a summary of all selected print options for the current job.

Printing From Mac > 49

RINTING

This chapter describes how to carry out basic printing tasks using your printer.

EST PRINTING

RINT A DEMO PAGE

Switch on the printer and allow it to warm up. Press the ON LINE button on your printer and hold down for 5 seconds. A demo page should print.

RINT A STATUS PAGE

Switch on the printer and allow it to warm up. To print a status page, hold down the ON LINE button on your printer for 2 seconds. A status page should print.

SIDED PRINTING

To carry out 2-sided, or Manual Duplex Printing you must pass paper through the printer twice. You can carry out 2-sided printing using the Cassette Tray or the Multi Purpose Tray.

2-sided Printing is supported on Windows operating systems only.

INDOWS ONLY

)

ANUAL DUPLEX PRINTING USING THE CASSETTE TRAY

1. Ensure that there is enough paper in the cassette tray to

carry out the print job.

Printing > 50

2. Select File -> Print and click the Properties button. In the 2-sided printing drop down menu, select either “Long Edge” or “Short Edge” according to your printing preferences. If you require further information, click the

Duplex Help button. Then, Click the Print button.

3. Every second page of your document is printed first.

When this is complete, the following a message appears on screen prompting you to take the paper, flip it and replace it in the Cassette Tray.

4. Open the Cassette Tray.

Printing > 51

5. Take the printed paper from the Output Stacker and place it in the Cassette Tray with the printed side facing up and the bottom of the page facing into the printer.

6. Close the Cassette Tray and press the ON LINE button as directed in the status message. The message window

should disappear from your screen and the document finishes printing the remaining pages of your document.

Printing > 52

ANUAL DUPLEX PRINTING USING THE

ULTI PURPOSE TRAY

NOTE: When using the Multi Purpose Tray, feed pages one sheet at a time.

1. Position the paper guides on the Multi Purpose Tray according to the paper size.

2. Place paper one sheet at a time in the Multi Purpose Tray. The paper is automatically gripped in position.

3. Select File -> Print to display the Print dialog box.

4. Click the Properties button. On the 2-sided printing drop

down menu, select either “Long Edge” or “Short Edge” according to your printing preferences. If you require further information, click the Duplex Help button

5. When every second page has printed, take the paper from the output stacker.

Printing > 53

6. Set the paper one page at a time in the Multi Purpose Tray with the printed side facing up and the bottom of the page facing into the printer. Ensure that the paper is gripped in place.

7. Press the ON LINE button. The remaining pages of your document print on the blank side of the paper.

RINTING ON DIFFERENT MEDIA

This section describes how to print on material other than normal A4 paper.

RINTING ON LEGAL PAPER

When printing on legal paper you need to change the media settings for the printer software to get the best results.

You can either set a default driver for each type of media or you can change the print media settings through your Windows printer properties or Mac Print options any time you print on different media.

Printing > 54

RINTING ON ENVELOPES

NOTE: Do not use envelopes with clear windows. Use paper envelopes only.

1. In either the cassette tray or the Multi Purpose Tray, adjust the paper guides using the indicators marked on the printer.

2. Place your envelopes in the tray, face up with the short edge facing into the printer and the flap to the right. Do not add more than 10 envelopes at a time.

3. From your operating system, access the print media menu and select your envelope size.

4. Print in the usual manner for your operating system software.

Printing > 55

ETTING OTHER PRINTING OPTIONS

This sections briefly describes how to set printing options for your particular print job.

FIT TO

You can choose to print your document on larger or smaller sized paper depending on the size of print media available to you.

1. Insert paper in the Cassette Tray or Multi Purpose Tray in

2. Select File -> Print and click the Properties button. Then

PAGE PRINTING

the usual manner.

click the Paper Feed Options button. Under Fit to Page, select the page size from the Conversion drop down list.

RINTING MULTIPLE PAGES TO ONE SHEET

In Windows, open the Printing Preferences Setup Tab. Under Finishing Mode, select the number of document pages that you want to print per sheet of paper from the drop down list.

RINTING COLOR DOCUMENTS IN BLACK AND WHITE

You can save both time and toner by printing color documents in black and white. Access the Color tab in printing properties and select the “Monochrome” option in Windows or the Grayscale option in Mac before printing your document.

Printing > 56

ANCELLING A PRINT JOB

You can cancel a print job from your software application, from the print queue or by using the CANCEL button on your printer.

PRINTING STATE HOW TO CANCEL

Document has not started printing

Document is waiting in a print queue

Document has started printing

Try to cancel printing job within software application

Delete print job from Print Queue. You can access the print queue from the System Tray in Windows or the Print Center Queue in Mac.

Press the CANCEL button on your printer. Any pages that are already moving through the printer will be printed. You will need to press CANCEL for each print job you wish to stop.

Printing > 57

OLOUR PRINTING

The printer drivers supplied with your printer provide several controls for changing the colour output. For general use the automatic settings will suffice, providing reasonable default settings that will produce good results for most documents.

Many applications have their own colour settings, and these may override the settings in the printer driver. Please refer to the documentation for your software application for details on how that particular program’s colour management functions.

ACTORS THAT AFFECT THE APPEARANCE OF PRINTS

If you wish to manually adjust the colour settings in your printer driver, please be aware that colour reproduction is a complex topic, and there are many factors to take into consideration. Some of the most important factors are listed below.

Differences between the range of colours a monitor or printer can reproduce

> Neither a printer nor a monitor is capable of reproducing

the full range of colours visible to the human eye. Each device is restricted to a certain range of colours. In addition to this, a printer cannot reproduce all of the colours displayed on a monitor, and vice versa.

> Both devices use very different technologies to represent

colour. A monitor uses Red, Green and Blue (RGB) phosphors (or LCDs), a printer uses Cyan, Magenta, Yellow and Black (CMYK) toner or ink.

> A monitor can display very vivid colours such as intense

reds and blues and these cannot be easily produced on any printer using toner or ink. Similarly, there are certain colours, (some yellows for example), that can be printed, but cannot be displayed accurately on a monitor. This disparity between monitors and printers is often the main reason that printed colours do not match the colours displayed on screen.

Colour Printing > 58

Viewing conditions

A print can look very different under different lighting conditions. For example, the colours in a print may look different when viewed standing next to a sunlit window, compared to how they look under standard office fluorescent lighting.

Printer driver colour settings

The driver settings for Manual colour can change the appearance of a print. There are several options available to help match the printed colours with those displayed on screen.

Monitor settings

The brightness and contrast controls on your monitor can change how your document looks on-screen. Additionally, your monitor’s colour temperature influences how “warm” or “cool” the colours look.

There are several settings found on a typical monitor:

> 5000k Warmest; yellowish lighting, typically used in

graphic art environments.

> 6500k Cooler; approximates daylight conditions.

> 9300k Cool; the default setting for many monitors and

television sets.

(k = degrees Kelvin, a measurement of temperature.)

How your software application displays colour

Some graphics applications such as Corel Draw or Adobe Photoshop may display colour differently from “Office” applications such as Microsoft Word. Please see your application’s on-line help or user manual for more information.

Paper type

The type of paper used can also significantly affect the printed colour. For example, a printout on recycled paper can look duller than one on specially formulated high-quality paper.

Colour Printing > 59

IPS FOR PRINTING IN COLOUR

The following guidelines may help you to achieve good colour output from your printer.

RINTING PHOTOGRAPHIC IMAGES

Use the Monitor (6500k) Perceptual setting.

If the colours look too dull, try the Monitor (6500k) Vivid or Digital Camera settings.

RINTING FROM MICROSOFT OFFICE APPLICATIONS

Use the Monitor (9300k) setting. This may help if you are having problems with specific colours from applications such as Microsoft Excel or Microsoft Powerpoint.

RINTING SPECIFIC COLOURS (E.G. A COMPANY LOGO

There are 2 utilities on your printer driver CD-ROM that can help match specific colours:

Colour Correct Utility

Colour Swatch Utility

DJUSTING THE BRIGHTNESS OR INTENSITY OF A PRINT

)

If the print is too light/dark, you can use the Brightness control to adjust it.

If the colours are too intense/not intense enough, use the Saturation control.

Colour Printing > 60

CCESSING THE COLOUR MATCHING OPTIONS

The Colour Matching options in the printer driver can be used to help match your printed colours to the ones displayed on your monitor or from some other source, such as a digital camera.

To open colour matching options from the Windows Control Panel:

1. Open the Printers window (called “Printers and Faxes” in Windows XP).

2. Right-click the printer name and choose Properties.

3. Click the Printing Preferences button (1).

To open colour matching options from within a Windows application:

1. Choose File—Print… from the application’s menu bar.

2. Click the Properties button next to the printer name.

Colour Printing > 61

ETTING THE COLOUR MATCHING OPTIONS

1. On the Colour tab select Advanced Colour ((1) below)

for Colour Matching.

2. Choose the Manual colour setting (2) and select from the following options:

(a) Monitor (6500k) Perceptual

Optimised for printing photographs. Colours are printed with emphasis on saturation.

Colour Printing > 62

(b) Monitor (6500k) Vivid

Optimised for printing photographs, but with even more saturated colours than the Monitor (6500k) Perceptual setting.

Optimised for printing graphics from applications such as Microsoft Office. Colours are printed with emphasis on Lightness.

(d) Digital Camera

Optimised for printing photographs taken with a digital camera.

Your results will vary depending on the subject and the conditions under which the photograph was taken.

(e) sRGB

The printer will try to reproduce the sRGB colour space. This may be useful if colour matching from an sRGB input device such as a scanner or digital camera.

SING THE COLOUR SWATCH FEATURE

To use the Colour Swatch feature, you must install the Colour Swatch Utility. This is supplied on the CD-ROM that was supplied with your printer.

The Colour Swatch function prints charts which contain a range of sample colours. Note that this is not the full range of colours that the printer can produce. Listed on each sample colour are the corresponding RGB (Red, Green, Blue) values. This can be used to pick specific colours in applications that allow you to choose your own RGB values. Simply click the Colour Swatch button (1) and choose from the options available.

Colour Printing > 63

An example of using the Colour Swatch function:

You wish to print a logo in a particular shade of red. The steps you would follow are:

1. Print a colour swatch, then select the shade of red that best suits your needs.

2. Take a note of the RGB value for the particular shade that you liked.

3. Using your program’s colour picker, enter these same RGB values, and change the logo to that colour.

The RGB colour displayed on your monitor may not necessarily match what was printed on the colour swatch. If this is the case, it is probably due to the difference between how your monitor and printer reproduce colour. Here, it is unimportant since your primary objective is to print the required colour.

Colour Printing > 64

SING THE COLOUR CORRECT UTILITY

The Oki Colour Correct Utility is provided on your printer driver CD-ROM. You must install it separately since it is not installed along with the printer driver.

The Colour Correct utility has the following features:

> Microsoft Office palette colours can be individually

adjusted. This is useful if you want to change how a specific colour is printed.

> Colours can be adjusted by changing Hue, Saturation and

Gamma. This is useful if you wish to change the overall colour output.

Once these colour adjustments have been made, the new settings can be selected from the printer driver Colour tab.

To select adjustments made with the Colour Correct Utility:

1. From your application program, click File and point to Print.

2. Click Properties. This displays the printer driver options.

3. Click the Colour tab.

4. Click Advanced Colour.

5. Click User Defined.

Select the colour adjustment you made with the Colour Correct Utility.

Colour Printing > 65

SING THE PRINTER SOFTWARE

TATUS MONITOR

The Status Monitor software is distinct from and installed separately from the driver software.

NOTE For reliable operation of the Status Monitor, ensure that the USB cable is of length 2m maximum.

The Status Monitor provides a readable indication of the printer status as displayed on the indicator LEDs on the Operation Panel (see “The Operation Panel” on page 12.) and allows you to access the printer menus (listed at the end of this chapter) to set printer

parameters such as paper size etc.

NOTE The Status Monitor is available to Windows operating systems only. Mac OS X has a “Printer Menu” utility that allows you to change the user settings outlined in this chapter.

INDOWS ONLY

)

Using the printer software > 66

SING THE STATUS MONITOR

NOTE You are advised to refer to the extensive on-line help as required when using the Status Monitor.

Viewing the status of the printer, and viewing or changing the printer menu settings are carried out though the Status Monitor. Click on Start, All Programs and select Okidata OKI 3450

Status Monitor. The current printer status is shown.

RINTER STATE TAB

This tab is visible by default on opening the Status Monitor and displays detailed information about the status of the printer.

RINTER SETUP TAB

Selecting this tab provides access to the Select Printer button, which, when selected, allows you to monitor the status any printer configured for use with your computer.

Using the printer software > 67

The Printer Menu button enables you to access the printer menu settings.

From the printer menu, you can configure your printer settings.

Using the printer software > 68

REFERENCES TAB

Selecting this tab provides the means to choose the information displayed by the Status Monitor and how/when the Status Monitor appears.

The default Alert view setting (Pop up on alerts) ensures that the Status Monitor pops up to inform you of a condition that requires your attention e.g. paper out in Cassette Tray.

Using the printer software > 69

RINTER FUNCTIONS

The printer settings made from the Status Monitor can be seen collectively on a printed Menu Map (or Status Page). To print a status page, press printer ON LINE button and hold for 2 seconds.

SER SETTINGS

1. On the Status Monitor Setup tab, click Printer Menu. The

User Settings Print Menu appears. You change user settings options from this menu.

2. To save your changes, click the Apply the changed settings icon (1), in the top left hand corner.

To undo a change, click the Undo changed settings icon (2).

SER SETTINGS

1 2

)

Using the printer software > 70

Administrator Settings

This menu is intended to be used only by designated staff.

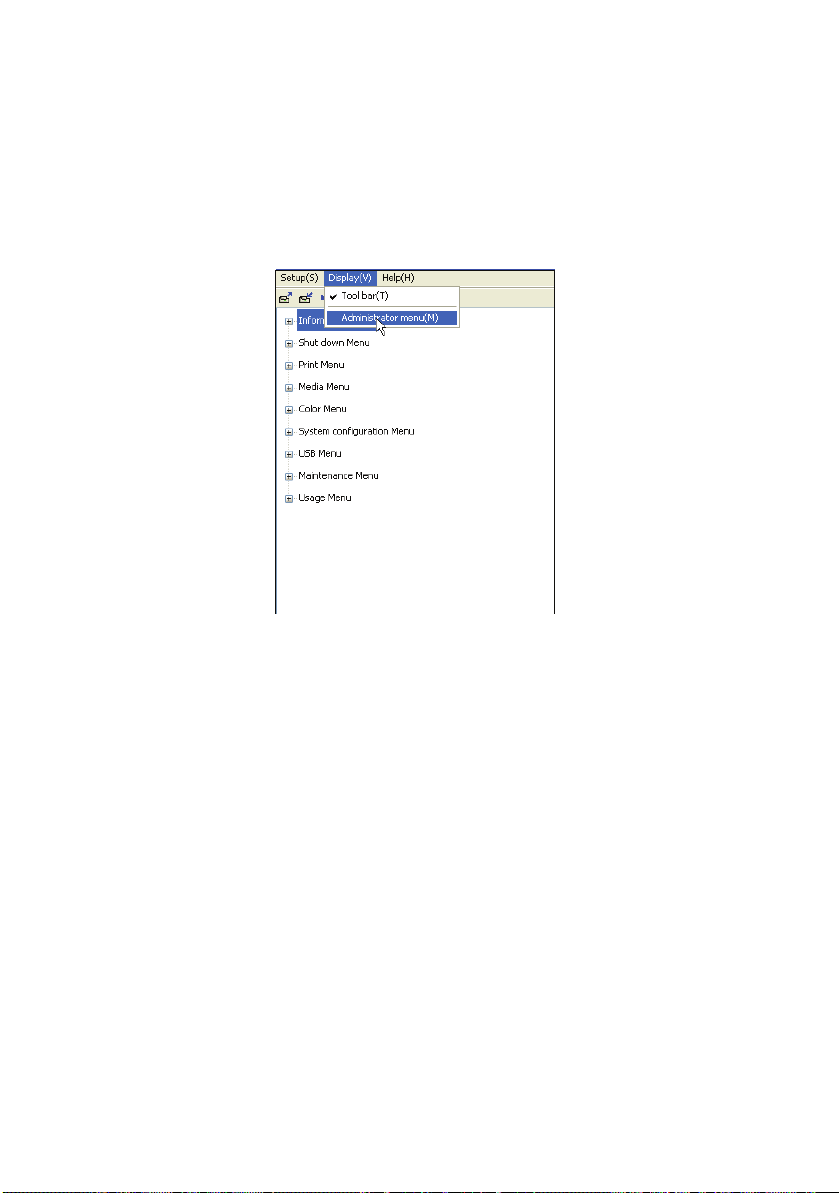

1. On the User Settings window, select Display -> Administrator Menu. The User Settings menu is

updated to include the Administrator menu options.

The Administrator Settings menu has the settable items, including access to the user menus. If you disable a menu from this tab, it does not appear on the User Settings tab.

Using the printer software > 71

2. To save your changes, click the Apply the changed settings icon (as shown below), in the top left hand

corner.

To undo a change, click the Undo changed settings icon.

NOTE You can access the printer menu settings window direct by clicking Start, All Programs and selecting Okidata OKI

3450.

Using the printer software > 72

It should be noted that many of these settings can be, and often are, overridden by settings made in the printer drivers. However, several of the driver settings can be left at “Printer Setting”, which will then default to the settings entered in these printer menus.

Factory default settings are shown in bold type in the following tables.

RINTER MENU UTILITY

(MAC

ONLY

)

There is no status monitor in Mac. You can change printer user settings through the Printer Menu utility.

You can use Windows Print Control Server Software to manage your printer in Mac. For more information, see “Printing From

Mac” on page 34.

RINTER MENUS

NFORMATION MENU

This menu provides a quick method of listing various items stored within the printer.

INFORMATION MENU

ITEM ACTION EXPLANATION

PRINT MENU MAP / STATUS PAGE PRINT

PRINT NETWORK CONFIGURATION

DEMO PRINT EXECUTE Prints demo page.

EXECUTE Prints complete menu listing with current

EXECUTE Prints a page that lists the printer’s current

settings shown.

network settings.

HUT DOWN MENU

This menu provides an option to ensure that your printer can be safely switched off.

SHUT DOWN MENU

ITEM ACTION EXPLANATION

SHUT DOWN START

EXECUTE Prepares printer to be safely switched off.

Using the printer software > 73

RINT MENU

This menu provides adjustment of various print job related functions.

PRINT MENU

ITEM SETTINGS EXPLANATION

COPIES 1-999 Enter the number of copies of a document to

MANUAL FEED (Multi Purpose Tra y )

MEDIA SIZE CHECK

MONO-PRINT SPEED

EDIA MENU

ON/OFF Selects the default tray for paper feed,

ENABLE

DISABLE

AUTO

COLOUR NORMAL

be printed from 1 to 999.

Cassette Tray or Multi Purpose Tray.

Determines whether the printer checks the size of paper loaded matches that required for the document sent to print.

Selects the printer's print engine speed for the

type of print media in use.

This menu provides adjustment to suit a wide range of print media.

MEDIA MENU

ITEM SETTINGS EXPLANATION

TRAY

- MEDIA SIZE

TRAY

- MEDIA TYPE

TRAY

- MEDIA WEIGHT

A4 / A5 / A6 / B5 LETTER EXECUTIVE LEGAL14 LEGAL13

LEGAL13.5 CUSTOM

PLAIN

LETTERHEAD BOND RECYCLED ROUGH USERTYPE1 – 5

LIGHT (64-74g/m²) MEDIUM (7590g/m²)

HEAVY (91120g/m²)

Selects the size of paper loaded in Tray 1. For CUSTOM setting see XDIMENSION and Y-DIMENSION later in this table.

Selects the type of media loaded in this tray. This will help the printer to adjust its internal operating parameters, such as engine speed and fusing temperature, to better accommodate the media to be fed. For example, letterhead may benefit from a slightly lower fusing temperature to ensure that its ink does not offset. Usertype 1 – 5 will be displayed only when registered from the host PC.

Adjusts the printer for the weight of paper stock loaded in this tray.

Using the printer software > 74

MEDIA MENU

ITEM SETTINGS EXPLANATION

MANUAL (Multi Purpose Tray)

- PAPER SIZE

MANUAL (Multi Purpose Tray)

- MEDIA TYPE

MANUAL (Multi Purpose Tray)

- MEDIA WEIGHT

CUSTOM PAPER SIZE

- MEDIA SIZE UNIT

CUSTOM PAPER SIZE

- MEDIA WIDTH

CUSTOM PAPER SIZE

- MEDIA LENGTH

A4 / A5 / A6 / B5LETTER EXECUTIVE LEGAL14 LEGAL13 LEGAL13.5 CUSTOM COM-9 ENVELOPE COM-10 ENVELOPE MONARCH ENV DL ENVELOPE C5 ENVELOPE BANNER 210 x 900 BANNER 215 x 900 BANNER 215 x 1200

PLAIN

LETTERHEAD LABELS BOND RECYCLED CARD STOCK ROUGH USERTYPE1 – 5

MEDIUM (75-90g/m²)

HEAVY (91120g/m²) ULTRA HEAVY (121203g/m²)

MILLIMETRE

INCH

64-210-216 MILLIMETRE

148-297-1200 MILLIMETRE

Selects the size of paper to be fed from the Multi Purpose Tray. For CUSTOM setting see X-DIMENSION and Y-DIMENSION later in this table.

Selects the type of media to be fed from the Multi Purpose Tray so that the printer can adjust its internal parameters to better accommodate the selected type of media. Usertype 1 – 5 will be displayed only when registered from the host PC.

Selects the media weight to be fed from the Multi Purpose Tray.

Selects the unit of measure for the next two items.

Selects the width of paper defined by the “CUSTOM” settings referred to in the foregoing PAPER SIZE settings.

Selects the length of paper defined by the “Custom” settings referred to in the foregoing PAPER SIZE settings. Note that media of up to 1200mm in length can be fed from the Multi Purpose Tray for banner printing.

Using the printer software > 75

OLOUR MENU

The printer automatically adjusts colour balance and density at appropriate intervals, optimising the printed output for bright white paper viewed in natural daylight conditions. The items on this menu provide a means of changing the default settings for special or particularly difficult print jobs. Settings revert to their default values when the next print job is complete.

COLOUR MENU

ITEM SETTINGS EXPLANATION

DENSITY ADJUSTMENT MODE

DENSITY ADJUSTMENT

COLOR REGISTRATION ADJUSTMENT

POSITION REG FINE ADJUSTMENT

C REG FINE ADJUST

M REG FINE ADJUST

Y REG FINE ADJUST

AUTO

MANUAL

EXECUTE Selecting this will perform the auto

EXECUTE Performs automatic colour registration

-3~0~+3

If set to AUTO, image density will be automatically adjusted at power on, when a new image drum or toner cartridge is installed, and at intervals of 100, 300 and 500 drum counts. If a 500 drum count interval occurs during a print job it will occur at the end of that job, and will take up to 55 seconds. If set to MANUAL, this adjustment will only be performed when initiated by the next menu item.

density set up immediately.

adjustment. Normally this is done on power on and when the top cover is opened and then closed. This process accurately aligns the cyan, magenta and yellow images to the black image.

Performs fine adjustment of image timing in relation to the black image component.

Using the printer software > 76

YSTEM CONFIGURATION MENU

This menu adjusts general printer settings to suit the way you prefer to work.

SYSTEM CONFIGURATION MENU

ITEMS SETTINGS EXPLANATION

STATUS PAGE AUTO PRINT

TIME TO POWER SAVE MODE

CLEAR ALARMS ON

MANUAL FEED (Multi Purpose Tra y ) T I M E O U T

PRINT TIMEOUT OFF

PRINT CONTINUATION AT TO NER SHORTAGE (LOW TONER)

JAM RECOVERY ON

ERROR REPORT ON

LANGUAGE English, German,

ENABLED DISABLED

5 MIN 15 MIN 30 MIN

60 MIN

240 MIN

JOB

OFF 30~90~300 SEC

5~90~300

CONTINUE

CANCEL

OFF

French, Italian, Spanish, Swedish, Norwegian, Finnish, Danish, Dutch, Turkish, Portuguese, Polish, Russian, Greek

Automatically prints status on power up.

Adjusts the idling time before the printer automatically switches into power saving mode. In this mode power consumption is reduced to a low level required to just keep the printer operating and ready to receive data. When a job is sent the printer will require a warm-up time of up to 1 minute before printing can begin.

When ON, non-critical warnings, such as requests for a different paper size, can be cleared by pressing the ON LINE button. When set to JOB, they are cleared when the print job resumes.

Specifies how many seconds the printer will wait for paper to be fed in manual feed mode before cancelling the job.

Specifies how many seconds the printer will wait when received data pauses before forcing a page eject. In PostScript Emulation mode the job will be cancelled if timeout occurs.

Specifies whether the printer should continue printing even after a low toner condition is detected.

Specifies whether the printer should perform jam recovery after a paper jam has occurred. If ON, the printer will attempt to print again any pages lost due to a paper jam once the jam has been cleared.

Specifies whether to print an error report when an internal error occurs.

Sets the language used for the Status Monitor and printed reports.

Using the printer software > 77

USB

This menu controls the operation of the printer’s USB data interface.

USB MENU

ITEM SETTINGS EXPLANATION

SOFTWARE RESET ENABLED /

MAXIMUM SPEED 12MBPS

SERIAL NUMBER ENABLED /

YSTEM ADJUSTMENT MENU

DISABLED

480MBPS

DISABLED

Enables or disables the SOFT RESET command. (Only available on Windows 98 and Windows Me.)

Specifies the maximum transfer speed.

Specifies the USB serial number to differentiate between USB devices connected to the PC. If ENABLED, the serial number is transmitted. If DISABLED, the serial number is not transmitted.

This menu provides access to USB settings for your printer.

SYS ADJUST MENU

ITEM SETTINGS EXPLANATION

X ADJUST -2.00 ~ 0 ~ +2.00 Horizontal position.

Y ADJUST -2.00 ~ 0 ~ +2.00 Ver ti ca l p os it io n.

DUPLEX X ADJUST -2.00 ~ 0 ~ +2.00 Horizontal position.

DUPLEX Y ADJUST -2.00 ~ 0 ~ +2.00 Vertical position.

DRUM CLEANING ON

OFF

POWER SAVE ON

OFF

ON rotates the drum (without printing) prior to printing to reduce any horizontal white line effect on the print.

Enables or disables automatic power save mode. Delay before entering this mode is set in the system configuration menu.

Using the printer software > 78

AINTENANCE MENU

This menu provides access to various printer maintenance functions.

MAINTENANCE MENU

ITEM SETTINGS EXPLANATION

MENU RESET EXECUTE Resets menus to default settings.

POWER SAVE MODE

PAPER BLACK SET –2~0~+2 Used for small adjustment when you

PLAIN PAPER COLOUR SET

SAGE MENU

ON/OFF Enables or disables automatic power save

–2~0~+2 As above, but for colour printing.

mode. Delay before entering this mode is set in the system configuration menu.

experience faded print or light specks / streaking in monochrome printing on white paper. Select a higher value to reduce fading, or a lower value to reduce specks or streaking in high density print areas.

This menu is for information only, and provides an indication of total usage of the printer and the expected life left in its consumable items. This is particularly useful if you do not have a full set of replacement consumables to hand and you need to know how soon you will need them.

USAGE MENU

ITEM EXPLANATION

SHEETS

- TOTAL

- TRAY

- MANUAL TRAY (MPT)

- COLOUR PAGE

- MONO

CONSUMABLE LIFE

- BLACK (K) DRUM

- C DRUM

- M DRUM

- Y DRUM

- BELT

- FUSER

The total number of prints output by the printer.

The total number of pages fed from Tray.

The total number of pages fed from the Multi Purpose Tra y.

The total number of pages printed in colour.

The total number of pages printed in monochrome.

Percentage of life remaining in these consumable items.

Using the printer software > 79

USAGE MENU

ITEM EXPLANATION

TONER LIFE

- BLACK (K)

- CYAN (C)

- MAGENTA (M)

- YELLOW (Y)

RINTING SETTINGS

Current toner level.

To print a list of the printer settings:

1. Start the Status Monitor.

2. Select the Printer Setup tab.

3. Click on the Printer Settings button on the Printer Setup

tab.

4. Click on the Information menu and then select Print Menu Map.

5. Click on the Printer Menu button to print a Menu Map of printer settings.

NOTE A menu map of printer settings can also be printed from the Status Panel by holding down the ON LINE button for 2 seconds.

HANGING THE DISPLAY LANGUAGE

If required, carry out the following instructions to change the language that is displayed in the Status Monitor.

1. Start the Status Monitor.

2. Select the Printer Setup tab.

3. Click on the Printer Settings button on the Printer Setup

tab.

4. In the System Configuration menu, select the required language.

5. Click on the Save button.

Using the printer software > 80

EPLACING CONSUMABLE ITEMS

This section explains how to replace consumable items when due. As a guide, the life expectancy of these items is:

> Toner

Starter Cartridge:

The machine is shipped with sufficient Black, Cyan, Magenta & Yellow toner for 1,500 A4 pages, of which 500 A4 pages of toner are used to initially charge the image drum (1,000 A4 pages remaining at 5% coverage).

Replacement Cartridge:

Replacement cartridges are available in Standard capacity (1,500 A4 pages @ 5% coverage) and High capacity (2,500 A4 pages @5% coverage).

NOTE: Toner life is directly affected by coverage, e.g. at 10% coverage there is sufficient toner for 750 A4 pages (standard capacity) or 1,250 A4 pages (high capacity).

> Image drum — 15,000 pages (calculated on typical

office usage of 3 A4 pages per job).

> Transfer belt — Approximately 50,000 A4 pages at 3

pages per job.

> Fuser — Approximately 50,000 A4 pages.

Replacing consumable items > 81

ONSUMABLE ORDER DETAILS

ITEM LIFE ORDER

NO.

Toner, Standard Capacity, black 1,500 A4 @ 5% 43459436

Toner, Standard Capacity, cyan 1,500 A4 @ 5% 43459435

Toner, Standard Capacity, magenta 1,500 A4 @ 5% 43459434

Toner, Standard Capacity, yellow 1,500 A4 @ 5% 43459433

Toner, High Capacity, black 2,500 A4 @ 5% 43459332

Toner, High Capacity, cyan 2,500 A4 @ 5% 43459331

Toner, High Capacity, magenta 2,500 A4 @ 5% 43459330

Toner, High Capacity, yellow 2,500 A4 @ 5% 43459329

Image drum kit, black, 15,000 A4 pages* 43460208

Image drum kit, cyan 15,000 A4 pages* 43460207

Image drum kit, magenta 15,000 A4 pages* 43460206

Image drum kit, yellow 15,000 A4 pages* 43460205

Fuser 50,000 A4 paper 43377003

Transport belt 50,000 A4 @ 3/job 43378002

* Average life: 20% pages at continuous print, 50% pages at 3

pages per job and 30% pages at 1 page per job.

Only use genuine Oki Original consumables to ensure the best quality and performance from your hardware. Non Oki Original products may adversely effect your printer's performance and invalidate your warranty. Specifications subject to change without notice. All trademarks acknowledged.

Replacing consumable items > 82

ONER CARTRIDGE REPLACEMENT

CAUTION!

To avoid toner wastage and possible toner sensor errors, do not change the- toner cartridge(s) until “TONER EMPTY” is displayed through the Status Monitor.

The toner used in this printer is a very fine dry powder. It is contained in four cartridges: one each for cyan, magenta, yellow and black.

Have a sheet of paper handy so that you have somewhere to place the used cartridge while you install the new one.

Dispose of the old cartridge responsibly by placing it inside the pack that the new one came in. Follow any regulations, recommendations, etc., which may be in force concerning waste recycling.

If you do spill any toner powder, lightly brush it off. If this is not enough, use a cool, damp cloth to remove any residue. Do not

use hot water, and never use solvents of any kind. They will make stains permanent.

WARNING!

If you inhale any toner or get it in your eyes, drink a little water or bathe your eyes liberally in cold water. Seek medical attention immediately.

Before changing the toner cartridge, switch off the printer and allow the fuser to cool for about 10 minutes before opening the cover.

Replacing consumable items > 83

1. Press the cover release and open the printer’s top cover fully.

WARNING!

If the printer has been powered on, the fuser may be hot. This area is clearly labelled. Do not touch this area.

2. Note the positions of the 4 cartridges.

1. Cyan cartridge 2. Magenta cartridge

3. Yellow cartridge 4. Black cartridge

Replacing consumable items > 84

3. Carry out one of the following:

(a) If you are replacing a toner cartridge that has been

supplied with your printer (release lever has 3 positions), pull the coloured toner release lever on the cartridge to be replaced towards the front of the printer, in the direction of the arrow, but stop at the central (upright) position (1).

(b) If you are replacing any other toner cartridge (lever

has 2 positions), pull the coloured toner release lever (1) on the cartridge to be replaced fully towards the front of the printer.

4. Lift the right-hand end of the cartridge and then draw the cartridge to the right to release the left-hand end as shown, and withdraw the toner cartridge from the printer.

Replacing consumable items > 85

5. Put the cartridge down gently onto a piece of paper to prevent toner from marking your furniture.

CAUTION!

The green image drum surface is very delicate and light sensitive. Do not touch it and do not expose it to normal room light for more than 5 minutes. If the drum unit needs to be out of the printer for longer than this, please wrap the cartridge inside a black plastic bag to keep it away from light. Never expose the drum to direct sunlight or very bright room lighting.

6. Remove the new cartridge from its box but leave its

wrapping material in place for the moment.

7. Gently shake the new cartridge from end to end several times to loosen and distribute the toner evenly inside the cartridge.

Replacing consumable items > 86

8. Remove the wrapping material and peel off the adhesive tape from the underside of the cartridge.

9. Holding the cartridge by its top centre with the coloured lever to the right, lower it into the printer over the image drum unit from which the old cartridge was removed.

10. Insert the left end of the cartridge into the top of the image drum unit first, pushing it against the spring on the drum unit, then lower the right end of the cartridge onto the image drum unit.

Replacing consumable items > 87

11. Pressing gently down on the cartridge to ensure that it is firmly seated, push the coloured lever (1) towards the rear of the printer. This will lock the cartridge into place and release toner into the image drum unit.

12. Finally, close the top cover and press down firmly so that the cover latches closed.

Replacing consumable items > 88

MAGE DRUM REPLACEMENT

WARNING!

If the printer has been powered on, the fuser will be hot. This area is clearly labelled. Do not touch.

CAUTION!

Static sensitive devices, handle with care.

The printer contains four image drums: cyan, magenta, yellow and black.

1. Press the cover release and open the printer’s top cover fully.

Replacing consumable items > 89

2. Note the positions of the 4 cartridges.

1. Cyan cartridge 2. Magenta cartridge

3. Yellow cartridge 4. Black cartridge

3. Holding it by its top centre, lift the image drum, complete with its toner cartridge (1), up and out of the printer.

4. Put the old unit down gently onto a piece of paper to prevent toner from marking your furniture.

Replacing consumable items > 90

5. Take the new image drum unit, complete with toner cartridge (assembled according to the installation guide) and place it on the piece of paper where the old ID unit

was placed.

CAUTION!

The green image drum surface at the base of the cartridge is very delicate and light sensitive. Do not touch it and do not expose it to normal room light for more than 5 minutes. If the drum unit needs to be out of the printer for longer than this, please wrap the cartridge inside a black plastic bag to keep it away from light. Never expose the drum to direct sunlight or very bright room lighting.

6. Remove the protective sheets from the image drum unit.

Keep it the same way round as the old unit. Pack the old ID unit inside the packaging material for disposal.

Replacing consumable items > 91

7. Holding the complete assembly by its top centre, lower it into place in the printer, locating the pegs at each end (1) into their slots (2) in the sides of the printer cavity.

8. Finally, close the top cover and press down firmly at both sides so that the cover latches closed.

NOTE If you need to return or transport your printer for any reason, please make sure you remove the image drum unit beforehand and place in the bag provided. This is to avoid toner spillage.

Replacing consumable items > 92

EPLACING THE BELT UNIT

The belt unit is located under the four image drums. This unit requires replacement approximately every 50,000 pages.

WARNING!

If the printer has been powered on, the fuser will be hot. This area is clearly labelled. Do not touch.

1. Press the cover release and open the printer’s top cover

fully.

2. Note the positions of the 4 cartridges. It is essential that they go back in the same order

1. Cyan cartridge 2. Magenta cartridge

3. Yellow cartridge 4. Black cartridge

Replacing consumable items > 93

3. Lift each of the image drum units (1), starting from the rear, out of the printer and place them in a safe place away from direct sources of heat and light (2).

CAUTION!

The green image drum surface at the base of each cartridge is very delicate and light sensitive. Do not touch it and do not expose it to normal room light for more than 5 minutes. If the drum unit needs to be out of the printer for longer than this, please wrap the cartridge inside a black plastic bag to keep it away from light. Never expose the drum to direct sunlight or very bright room lighting.

Replacing consumable items > 94

4. Locate the two fasteners (1) at each side of the belt (3) and the lifting bar (2) at the front end.

5. Turn the two fasteners (1) 90° to the left. This will release the belt from the printer chassis.

6. Pull the lifting bar (2) upwards so that belt tilts up towards the front, and withdraw the belt unit from the printer.

Replacing consumable items > 95

7. Lower the new belt unit into place, with the lifting bar at the front and the drive gear towards the rear of the printer. Locate the drive gear into the gear inside the printer by the rear left corner of the unit, and lower the belt unit flat inside the printer.

8. Turn the two fasteners (1) 90° to the right until they lock. This will secure the belt unit in place.

Replacing consumable items > 96

9. Replace the 4 image drums, complete with their toner cartridges, into the printer in the correct positions as

shown.

1. Cyan cartridge 2. Magenta cartridge

3. Yellow cartridge 4. Black cartridge

10. Finally, close the top cover and press down firmly at both sides so that the cover latches closed.

Replacing consumable items > 97

USER REPLACEMENT

The fuser is located inside the printer just behind the four image drum units.

WARNING!

If the printer has recently been powered on, some fuser components will be very hot. Handle the fuser with extreme care, holding it only by its handle, which will only be mildly warm to the touch. A warning label clearly indicates the area. If in doubt, switch the printer off and wait at least 10 minutes for the fuser to cool before opening the printer cover.

Switch off the printer and allow the fuser to cool for about 10 minutes before opening the cover.

1. Press the cover release and open the printer’s top cover fully.

Replacing consumable items > 98

2. Identify the fuser handle (1) on the top of the fuser unit.

3. Pull the two fuser retaining levers (2) towards the front of the printer so that they are fully upright.

4. Holding the fuser by its handle (1), lift the fuser straight up and out of the printer. If the fuser is still warm, place it on a flat surface which will not be damaged by heat.

5. Remove the new fuser from its packaging and remove the transit material.

6. Holding the new fuser by its handle, make sure that it is the correct way round. The retaining levers (2) should be fully upright, and the locating lugs (3) should be towards you. There is one locating lug at each end of the fuser.

Replacing consumable items > 99

7. Holding the fuser handle (2), lower the fuser into the printer, locating the two lugs into their slots in the metal partition which separates the fuser area from the image drums.

8. Push the two retaining levers (1) towards the rear of the printer to lock the fuser in place.

9. Finally, close the top cover and press down firmly at both sides so that the cover latches closed.

Replacing consumable items > 100

OKI C3450 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

MAC OS X

INFORMATION MENU

SHUT DOWN MENU

PRINT MENU

MEDIA MENU

COLOUR MENU

SYSTEM CONFIGURATION MENU

USB MENU

MAINTENANCE MENU

USAGE MENU
