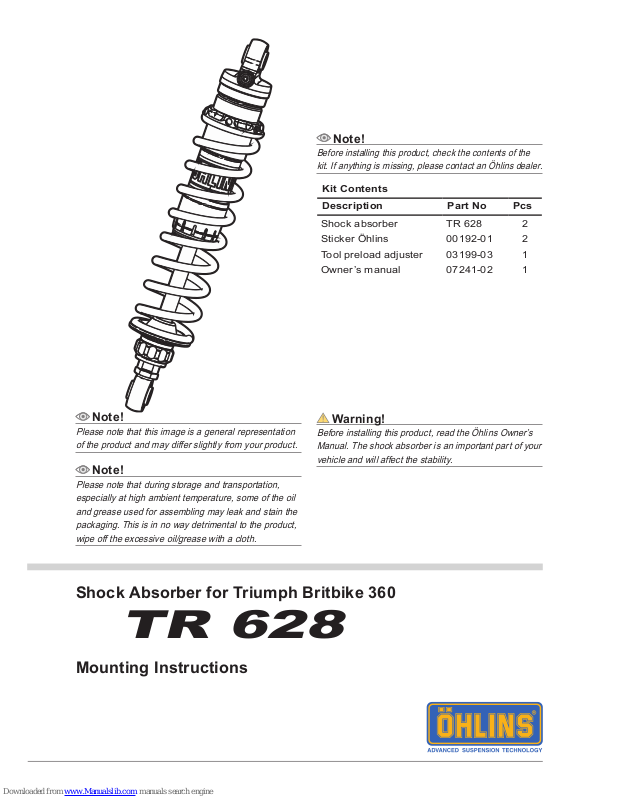

Page 1
Shock Absorber for Triumph Britbike 360
TR 628
Mounting Instructions

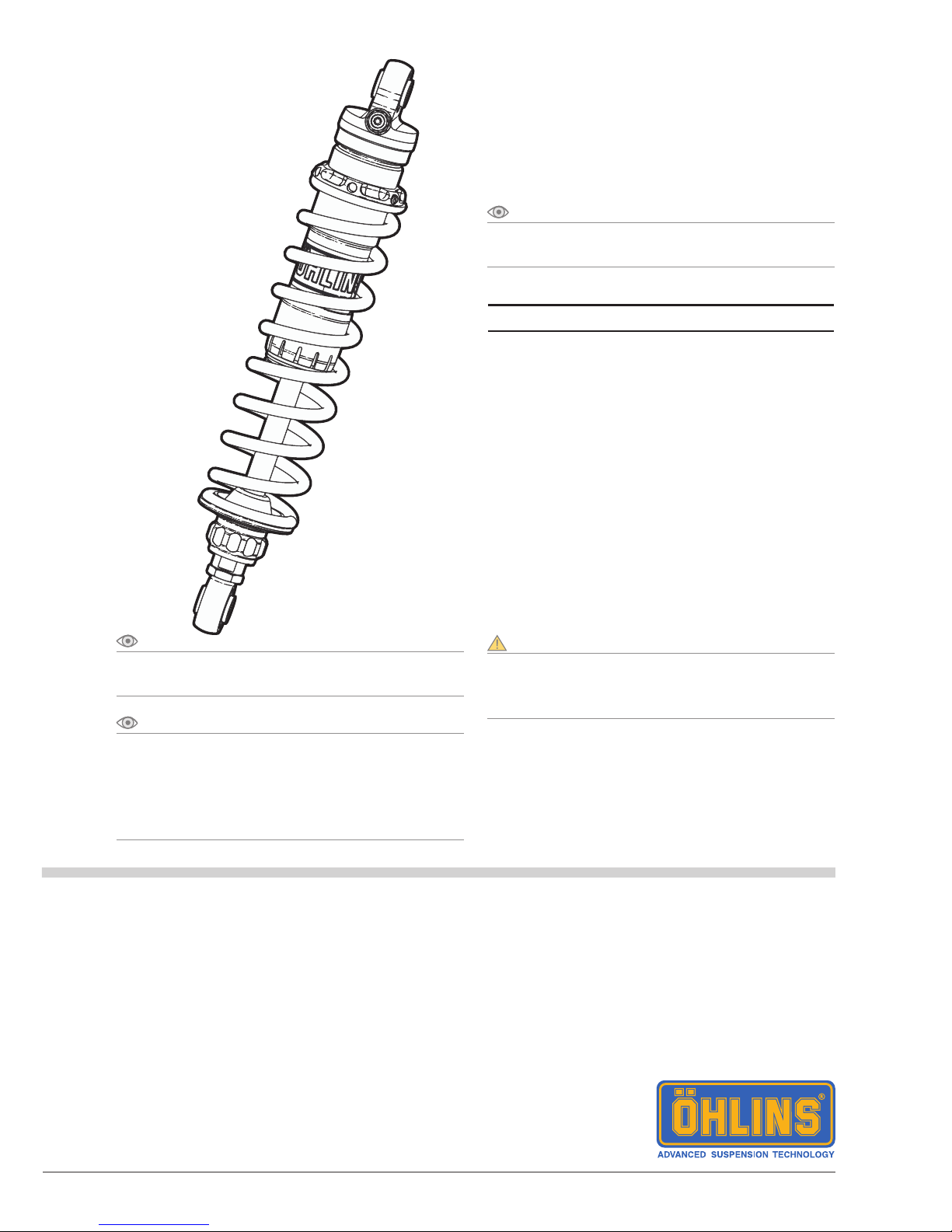

Note!
Please note that this image is a general representation
of the product and may differ slightly from your product.
Note!
Please note that during storage and transportation,
especially at high ambient temperature, some of the oil
and grease used for assembling may leak and stain the
packaging. This is in no way detrimental to the product,
wipe off the excessive oil/grease with a cloth.
Note!
Before installing this product, check the contents of the
kit. If anything is missing, please contact an Öhlins dealer
.
Warning!
Before installing this product, read the Öhlins Owner’s
Manual. The shock absorber is an important part of your
vehicle and will affect the stability.
Kit Contents
Description Part No Pcs
Shock absorber TR 628 2
Sticker Öhlins 00192-01 2
Tool preload adjuster 03199-03 1
Owner’s manual 07241-02 1
Page 2
Öhlins Asia Co. Ltd
700/937 Moo5, Tambol Nongkhaga,
Amphur Phantong, Chonburi Province
20160 Thailand
© Öhlins Asia Co.,Ltd. All rights
reserved. Any reprinting or
unauthorized use without the written
permission of Öhlins Asia Co.,Ltd.
is prohibited.
Öhlins products are subject to
continuous improvement and
development, therefore, although
these instructions include the most
up-to-date information available at
the time of printing, minor updates
may occur.
To nd the latest information
contact an Öhlins distributor.
Please contact Öhlins if you have
any questions regarding the
contents in this document.
SET-UP DATA
Warning!
Before riding, always make sure that the basic settings
made by Öhlins are according to recommended
Set-up Data. Read about adjustments and setting up
in the Öhlins Owner’s Manual before you make any
adjustments. Contact an Öhlins dealer if you have any
questions about setting up.
ADJUSTMENTS
Part no. MI_TR628_EN_0
Issued 2016-08-11
Recommended set-up
Spring Preload ...................... 18 mm
Rebound Adjuster .................. 10 Clicks
Spring
Part No ................................... 60480-03
Free spring length .................. 230 mm
Preload adjustment range ...... [0-33] mm
Shock absorber data
Length ................................ 360
+10
/
0
mm
Stroke ................................ 97 mm

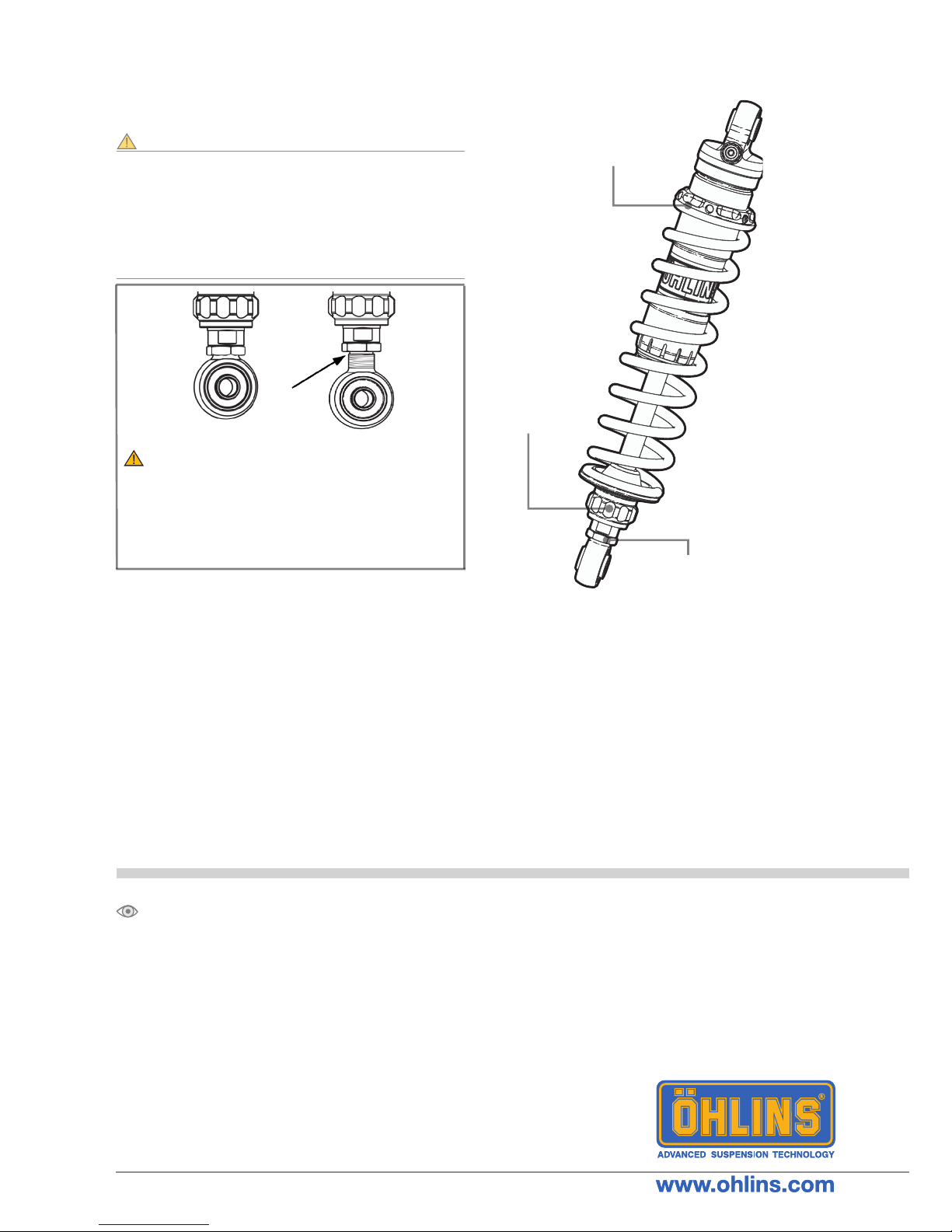

Spring Preload
Adjuster
Rebound
Adjuster
Length Adjuster
Max. Position
Min. Position
Warning!
The adjustable end eye/bracket must not be threaded
out more than that the groove is fully visible beneath
the lock nut. This is maximum length. After adjusting,
make sure that the lock nut is tightened (30Nm).
Page 3
Shock Absorber for Triumph Britbike 360
TR 628
Mounting Instructions
Note!
Please note that this image is a general representation
of the product and may differ slightly from your product.
Note!
Please note that during storage and transportation,
especially at high ambient temperature, some of the oil
and grease used for assembling may leak and stain the
packaging. This is in no way detrimental to the product,
wipe off the excessive oil/grease with a cloth.
Note!
Before installing this product, check the contents of the
kit. If anything is missing, please contact an Öhlins dealer
.
Warning!
Before installing this product, read the Öhlins Owner’s
Manual. The shock absorber is an important part of your
vehicle and will affect the stability.
Kit Contents
Description Part No Pcs
Shock absorber TR 628 2
Sticker Öhlins 00192-01 2
Tool preload adjuster 03199-03 1
Owner’s manual 07241-02 1
Page 4
Öhlins Asia Co. Ltd
700/937 Moo5, Tambol Nongkhaga,
Amphur Phantong, Chonburi Province
20160 Thailand
© Öhlins Asia Co.,Ltd. All rights
reserved. Any reprinting or
unauthorized use without the written
permission of Öhlins Asia Co.,Ltd.
is prohibited.
Öhlins products are subject to
continuous improvement and
development, therefore, although
these instructions include the most
up-to-date information available at
the time of printing, minor updates
may occur.
To nd the latest information
contact an Öhlins distributor.
Please contact Öhlins if you have
any questions regarding the
contents in this document.
SET-UP DATA
Warning!
Before riding, always make sure that the basic settings
made by Öhlins are according to recommended
Set-up Data. Read about adjustments and setting up
in the Öhlins Owner’s Manual before you make any
adjustments. Contact an Öhlins dealer if you have any
questions about setting up.
ADJUSTMENTS
Part no. MI_TR628_EN_0
Issued 2016-08-11
Recommended set-up
Spring Preload ...................... 18 mm
Rebound Adjuster .................. 10 Clicks
Spring
Part No ................................... 60480-03
Free spring length .................. 230 mm
Preload adjustment range ...... [0-33] mm
Shock absorber data
Length ................................ 360
+10
/
0
mm
Stroke ................................ 97 mm
Spring Preload
Adjuster
Rebound
Adjuster
Length Adjuster
Max. Position
Min. Position
Warning!
The adjustable end eye/bracket must not be threaded
out more than that the groove is fully visible beneath
the lock nut. This is maximum length. After adjusting,
make sure that the lock nut is tightened (30Nm).
