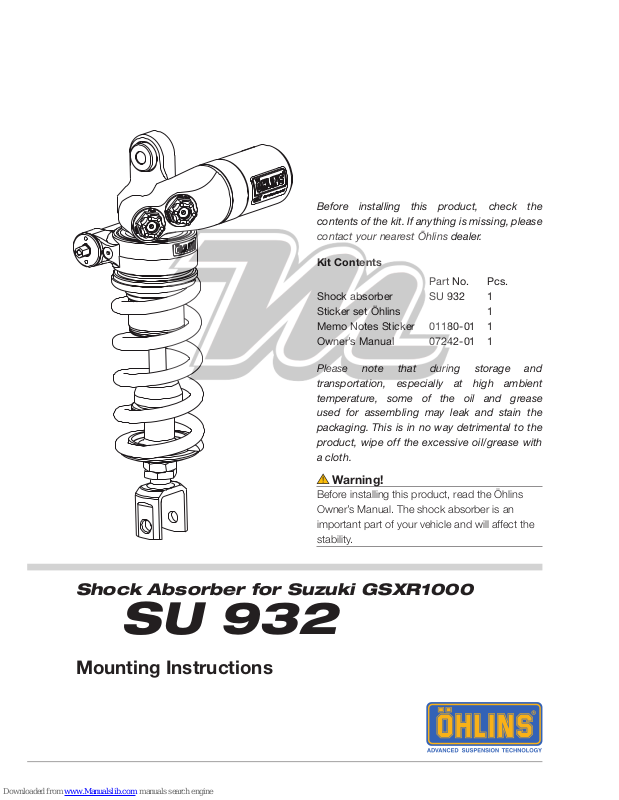

Shock Absorber for Suzuki GSXR1000
SU 932
Mounting Instructions
Part No. Pcs.
Shock absorber SU 932 1
Sticker set Öhlins 1
Memo Notes Sticker 01180-01 1
Owner’s Manual 07242-01 1
Before installing this product, check the
contents of the kit. If anything is missing, please
contact your nearest Öhlins dealer.
Kit Contents
Please note that during storage and
transportation, especially at high ambient
temperature, some of the oil and grease
used for assembling may leak and stain the
packaging. This is in no way detrimental to the
product, wipe off the excessive oil/grease with
a cloth.
Warning!
Before installing this product, read the Öhlins
Owner’s Manual. The shock absorber is an
important part of your vehicle and will affect the
stability.
Page 2
1
How to install
Warning!
It is advisable to have an Öhlins dealer install the
shock absorber.
When installing, consult your Vehicle Service
Manual.
1
Put the motorcycle on a workstand so that
the rear wheel barely touches the ground.
Warning!
Make sure the vehicle is securely supported so
that it will not tip.
2
Remove the right side exhaust guard.
3
Remove the upper screw of the link (A).
Remove the front screw (B), and loosen the
rear screw of the link arm (C).
Caution!
The brake hose must not be stretched. It can
be damaged. Support the swing arm once the
lower screw of the shock absorber is removed.
4
Push the link and the link arm backwards so
that you can remove the rear screw of the link
arm (C).
5
Remove the upper screw of the original shock
absorber. Remove the shock absorber and
the link, remove the whole unit above the rear
wheel.
2
C
3
View from the left
A
B
4
Link
arm
Page 3
2
Note!
Recommendation! Before installing the Öhlins
shock absorber:
• Clean the vehicle thoroughly
• Adjust the length of the shock absorber (check
the headlight angle after adjusting the length!)
6
Attach the Öhlins shock absorber to the link.
Install the Öhlins shock absorber and the link
in the same way as the original unit. Use the
original screws.
Note!
Lower the motorcycle so that the shock
absorber is sligthly compressed, before
tightening the screws.
7
Reinstall the right side exhaust guard. Make
sure that all removed parts are installed in the
same way as they were before the installation.
Warning!
Make sure that all screws are tightened to the
correct torque and that nothing fouls or restricts
movement of the shock absorber when the
suspension is fully compressed or extended.
Page 4
Öhlins Racing AB
Box 722
S-194 27 Upplands Väsby, Sweden
Phone +46 8 590 025 00
fax +46 8 590 025 80
© Öhlins Racing AB. All rights
reserved. Any reprinting or
unauthorized use without the written
permission of Öhlins Racing AB
is prohibited.
www.ohlins.com
Öhlins products are subject to
continuous improvement and
development, therefore, although
these instructions include the most
up-to-date information available at
the time of printing, minor updates
may occur.
To find the latest information contact
your Öhlins distributor. Please
consult your Öhlins dealer if you
have any questions regarding the
contents in this document.
Part no. SU932_1
Issued 2017-01-01
Recommended set-up
Spring preload 12.5 mm
Compression 11 clicks
Rebound damping 12 clicks
Shock absorber length 315 +2/-2 mm
Stroke 63 mm
Spring 21040-36
(105 N/mm)
Free spring length 160
0
/-3 mm
Free Sag (R1-R2) 15 mm
Ride Height (R1-R3) 28 mm
Read about Free Sag and Ride height in
the Öhlins Owner’s Manual.

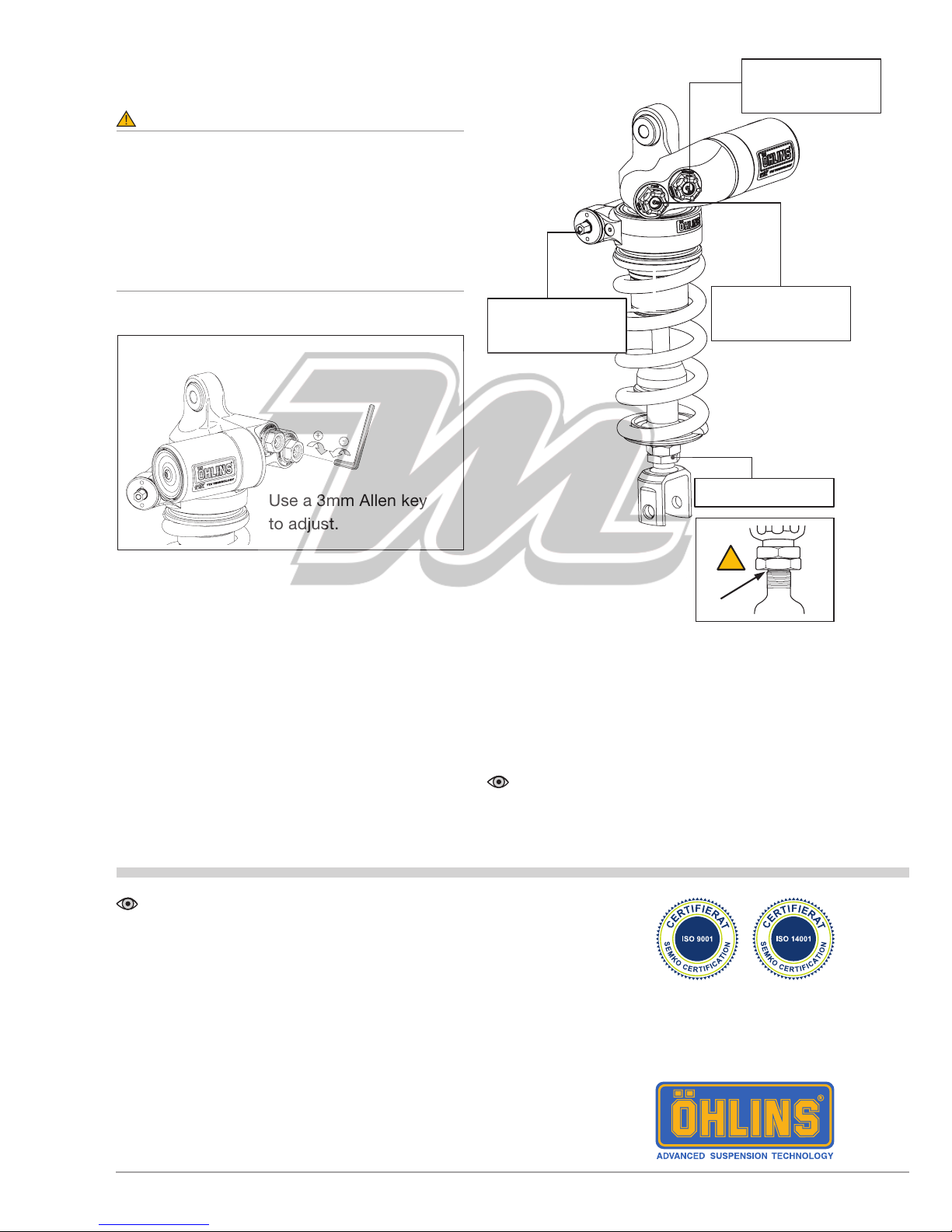

Set-up Data
Adjustments
Hydraulic Spring
Preload Adjuster
Warning!
Before riding, always make sure that the
basic settings made by Öhlins are according
to recommended Set-up Data. Read about
adjustments and setting up in the Öhlins Owner’s
Manual before you make any adjustments.
Contact an Öhlins dealer if you have any
questions about setting up the shock absorber.
Compression
Damping Adjuster
Rebound
Damping Adjuster
Length Adjuster
!
Compression and Rebound Adjuster
+
-
Use a 3mm Allen key
to adjust.
