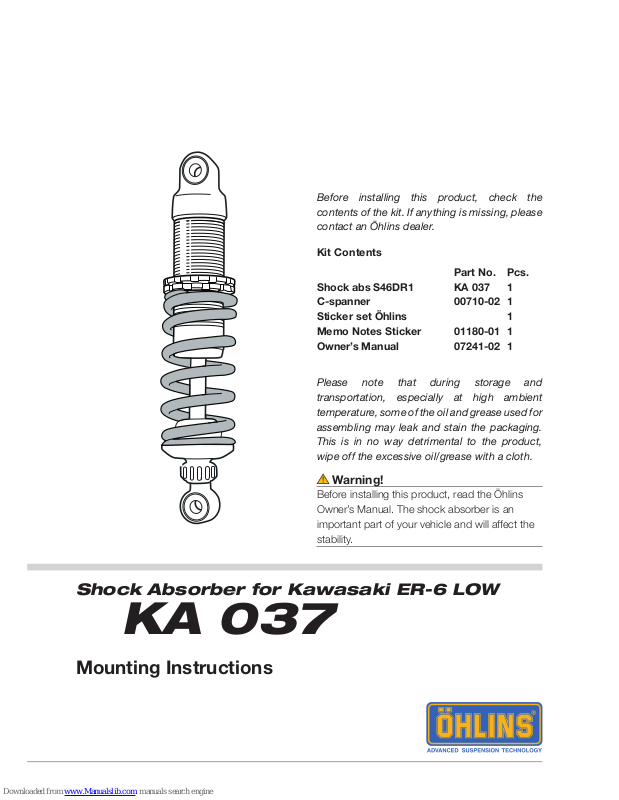

Page 1
Shock Absorber for Kawasaki ER-6 LOW
KA 037
Mounting Instructions
Part No. Pcs.
Shock abs S46DR1 KA 037 1
C-spanner 00710-02 1
Sticker set Öhlins 1
Memo Notes Sticker 01180-01 1
Owner’s Manual 07241-02 1
Before installing this product, check the
contents of the kit. If anything is missing, please
contact an Öhlins dealer.
Kit Contents
Please note that during storage and
transportation, especially at high ambient
temperature, some of the oil and grease used for
assembling may leak and stain the packaging.
This is in no way detrimental to the product,
wipe off the excessive oil/grease with a cloth.
Warning!
Before installing this product, read the Öhlins
Owner’s Manual. The shock absorber is an
important part of your vehicle and will affect the
stability.
Page 2
1
How to install
Warning!
It is advisable to have an Öhlins dealer install the
shock absorber.
When installing, consult your Vehicle Service
Manual.

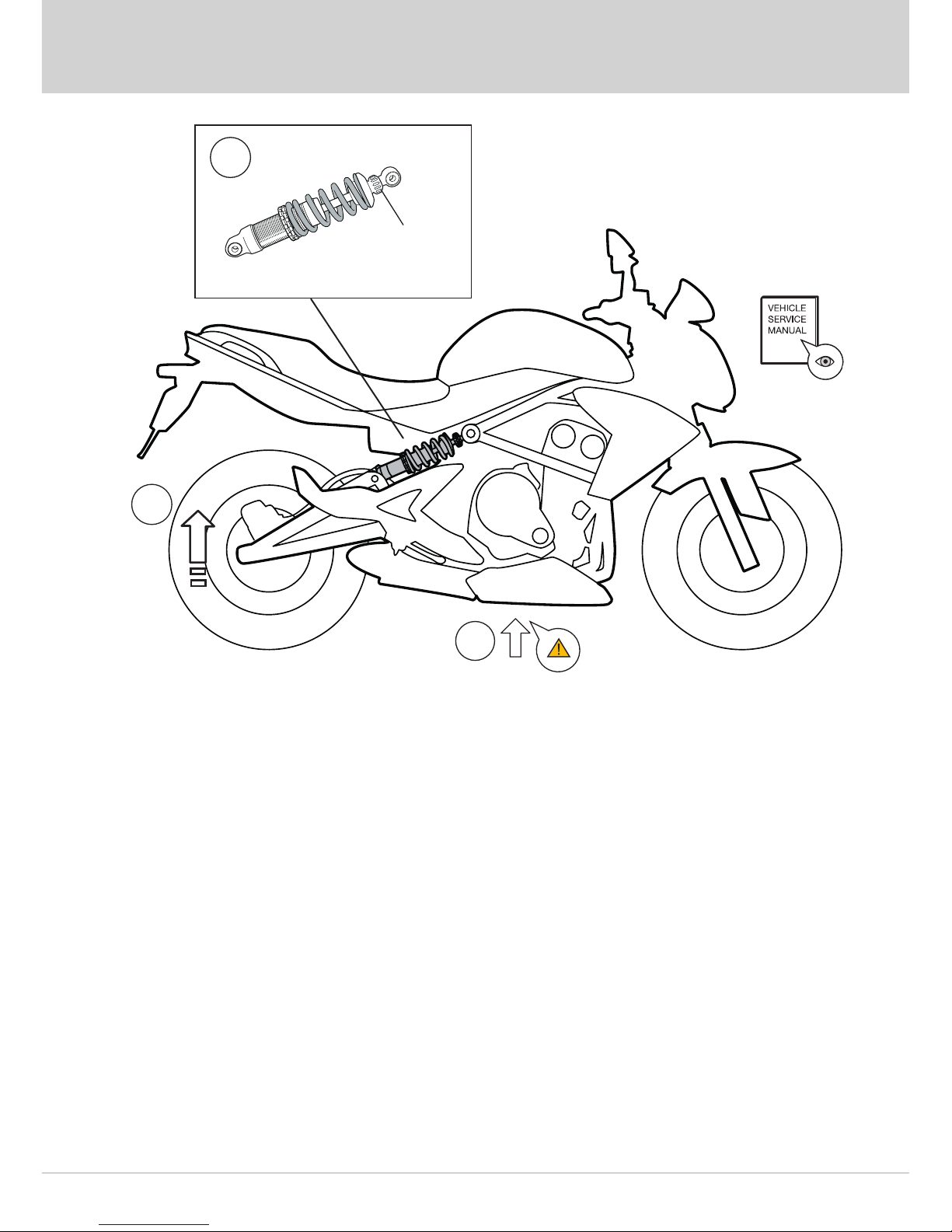

1
Put the motorcycle on a workstand so that
the rear wheel barely touches the ground.
Warning!
Make sure the vehicle is securely supported so
that it will not tip.
2
Remove the original shock absorber. Raise
the wheel slightly so that the rear bolt can
be removed.
Note!
Before installing the Öhlins shock absorber clean
the vehicle thoroughly.
3
Install the Öhlins shock absorber with
the rebound adjuster towards the front.
The thin ball joint spacers shall be on
the right side of the vehicle, so that the
shock absorber centre is as far to the right
as possible. See figure. Raise the rear
wheel slightly so that the rear bolt can be
installed.
Note!
Lower the motorcycle so that the shock
absorber is sligthly compressed, before
tightening the screws.
Caution!
Make sure that all screws are tightened to the
correct torque and that nothing fouls or restricts
movement of the shock absorber when the
suspension is fully compressed or extended.
4
Make sure that all removed parts are
reinstalled in the same way as they were
before the installation of the Öhlins shock
absorber.
Page 3
2
1
2
3
Rebound
adjuster at
the front
Page 4
Öhlins Racing AB
Box 722
S-194 27 Upplands Väsby, Sweden
Phone +46 8 590 025 00
fax +46 8 590 025 80
© Öhlins Racing AB. All rights
reserved. Any reprinting or
unauthorized use without the
written permission of Öhlins
Racing AB
is prohibited.
www.ohlins.com
Öhlins products are subject to
continuous improvement and
development, therefore, although
these instructions include the most
up-to-date information available at
the time of printing, minor updates
may occur.
To find the latest information contact
your Öhlins distributor. Please
consult your Öhlins dealer if you
have any questions regarding the
contents in this document.
Recommended set-up
Rebound 16 clicks
Spring Preload 10 mm
Spring
Part No. Rate
01093-74 180 N/mm
Free Spring length 150 mm
Shock absorber data
Length 282 mm
Stroke 49.5
Set-up Data
Adjustments
Part no. KA037_1
Issued 2017-01-01

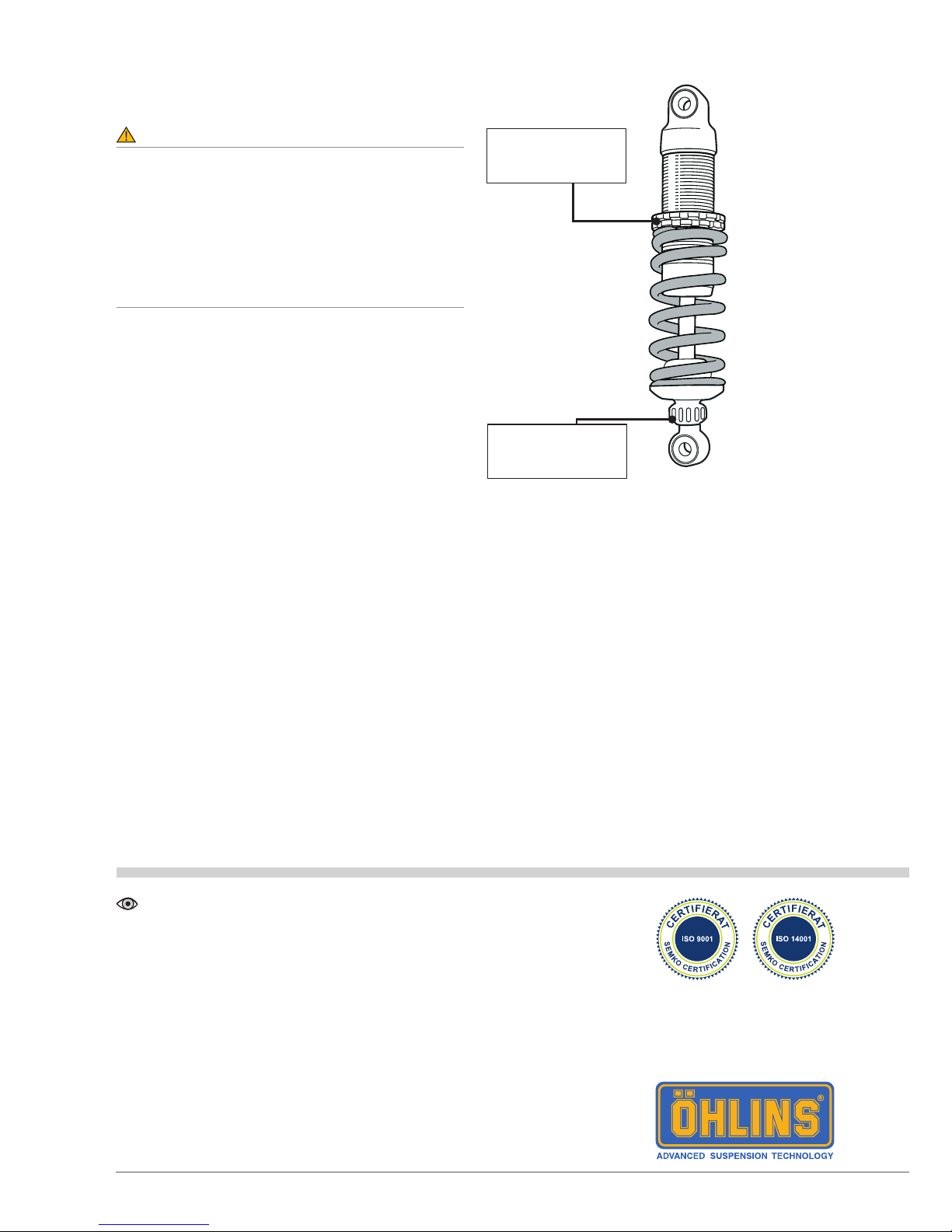

Spring Preload
Adjuster
Warning!
Before riding, always make sure that the
basic settings made by Öhlins are according
to recommended Set-up Data. Read about
adjustments and setting up in the Öhlins Owner’s
Manual before you make any adjustments.
Contact an Öhlins dealer if you have any
questions about setting up the shock absorber.
Recommended sag and ride height:
Without rider:
Rear 7 ± 5 mm (R1-R2)
Front 22 ± 5 mm (F1-F2)
(Öhlins FF Springs)
With rider:
Rear 32 ± 5 mm (R1-R3)
Front 31 ± 5 mm (F1-F3)
Rebound
Damping Adjuster
