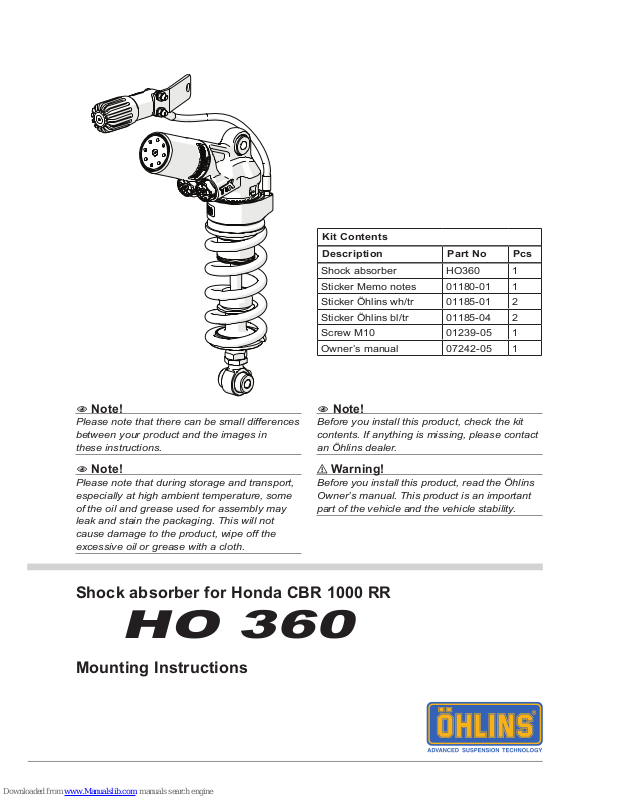

Ohlins HO 360 Mounting Instructions

Shock absorber for Honda CBR 1000 RR

ho 360

Mounting Instructions

Note!1

Please note that there can be small differences
between your product and the images in
these instructions.

Note!1

Please note that during storage and transport,
especially at high ambient temperature, some
of the oil and grease used for assembly may
leak and stain the packaging. This will not
cause damage to the product, wipe off the
excessive oil or grease with a cloth.

Note!1

Before you install this product, check the kit
contents. If anything is missing, please contact
an Öhlins dealer.

Warning!⚠

Before you install this product, read the Öhlins
Owner’s manual. This product is an important
part of the vehicle and the vehicle stability.

Kit Contents

Description Part No Pcs

Shock absorber HO360 1
Sticker Memo notes 01180-01 1
Sticker Öhlins wh/tr 01185-01 2
Sticker Öhlins bl/tr 01185-04 2
Screw M10 01239-05 1
Owner’s manual 07242-05 1

2

1

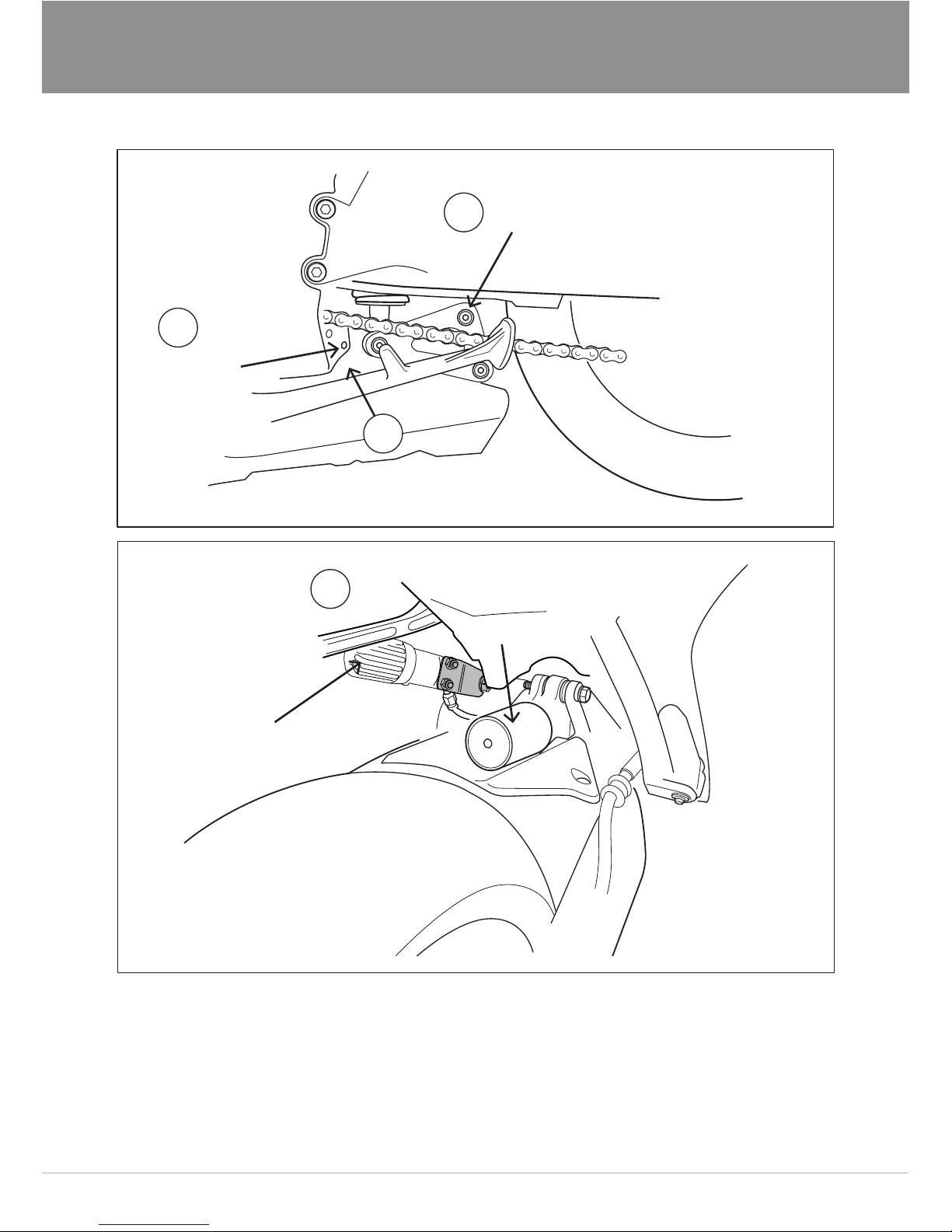

Put the motorcycle on a work stand so that the
rear wheel barely touches the ground.

2

Remove the fairing screw at the bottom.

3

Remove the lambda cable clip from the frame.

4

Remove the exup cable behind the rear brake

uid reservoir.

5

Be careful with the lambda and the exup cable.
Loosen and move the silencer to the right.

6

Remove the shock absorber screws and the
link screw fromt he swing arm.

7

Remove the original shock absorber.

MOUNTING INSTRUCTIONS

Warning!⚠

We strongly recommend to let an Öhlins dealer
install this product.

Warning!⚠

If you work with a lifted vehicle, make sure that it
is safely supported to prevent it from tipping over.

Note!1

When you work with this product, see the

vehicle service manual for vehicle specic

procedures and important data.

Note!1

Before you install this product clean the vehicle.

8

Install the Öhlins shock absorber.

9

Remove the lower left rear sub frame screw.
use the screw provided in this kit and install the
hydraulic preload adjuster on the inside. Rotate
the adjuster up as much as possible before you
tighten the nut.

10

Install all removed parts in the same positions
that they were before removal.

Note!1

Lower the vehicle so that the suspension
is slightly compressed before you tighten
the screws.

Caution!✋

Make sure that you tighten all screws to the
correct torque and that nothing fouls or restricts
movement of the shock absorber/front fork/
steering damper when the suspension is fully
compressed or extended.

3

MOUNTING INSTRUCTIONS

2

9

3

6

Fairing screw

Rear wheel

Spring preload
adjuster

Reservoir

Link screw

Öhlins Racing AB

Box 722

S-194 27 Upplands Väsby, Sweden

Phone [phone]

fax [phone]

© Öhlins Racing AB. All rights
reserved. Any reprinting or
unauthorized use without the written
permission of Öhlins Racing AB
is prohibited.

Öhlins products are subject to
continuous improvement and
development, therefore, although
these instructions include the most
up-to-date information available at
the time of printing, minor updates
may occur.

To nd the latest information

contact an Öhlins distributor.

Please contact Öhlins if you have

any questions regarding the

contents in this document.

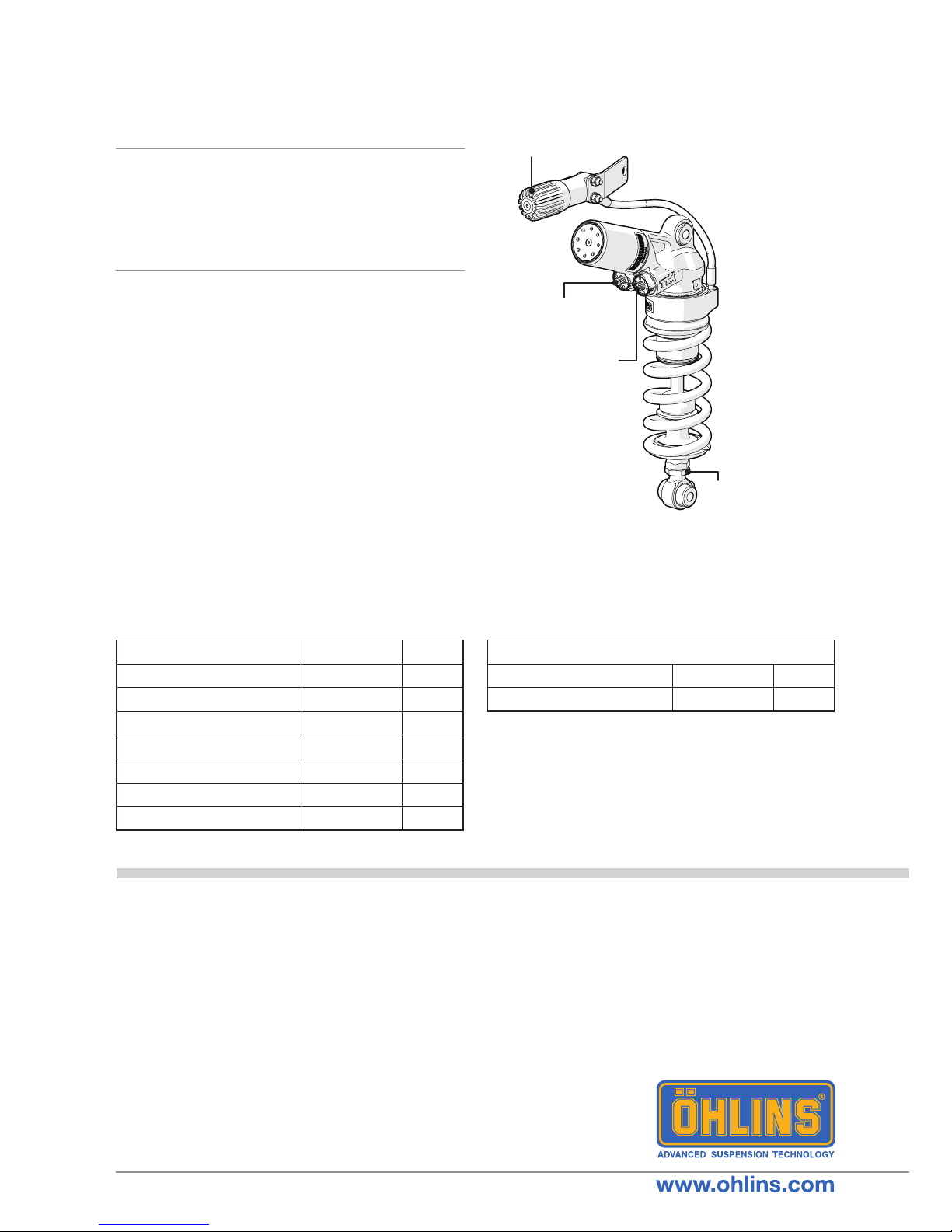

SETUP DATA

Spring
preload
adjuster

Compression
damping
adjuster

Rebound
damping
adjuster

Length
adjuster

Warning!⚠

Before you ride/drive, always make sure that the
setup is according to the recommended setup
data. Read about adjustments and setting up
in the Öhlins Owner’s Manual before you make
any adjustments. Contact an Öhlins dealer if
you have any questions about setting up.

ADJUSTMENTS

Part no. MI_HO360_0

Issued 2014-11-18

Length 302 +4/-2 mm
Stroke 60 mm
Rebound 13 clicks
Compression 10 clicks
Spring preload 14 mm
Spring 21040-36
Spring rate 105 N/mm
Spring free length 160 mm

Recommended sag and ride height

R1-R3 32 mm
F1-F3 41 mm
