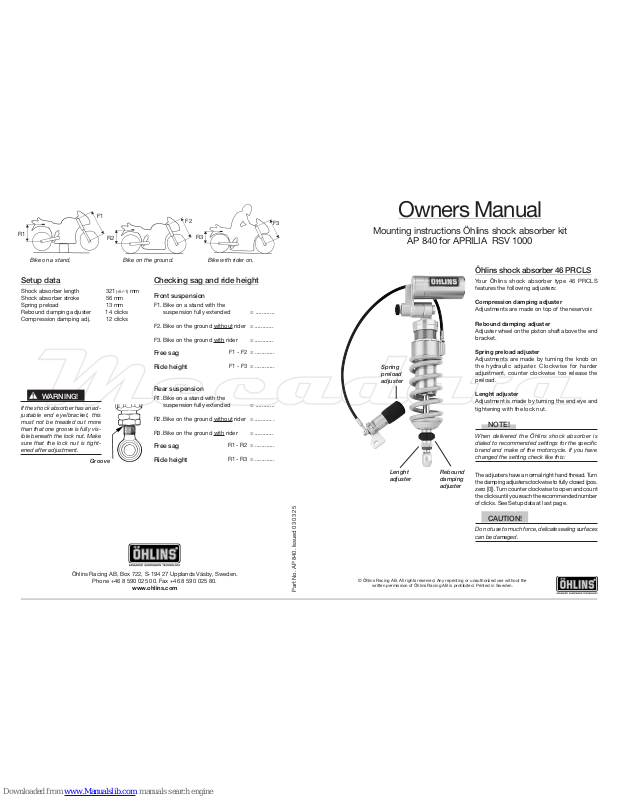

Ohlins AP 840 Mounting Instructions
Owners Manual
Mounting instructions Öhlins shock absorber kit
AP 840 for APRILIA RSV 1000
© Öhlins Racing AB. All rights reserved. Any reprinting or unauthorized use without the
written permission of Öhlins Racing AB is prohibited. Printed in Sweden.
Öhlins shock absorber 46 PRCLS
Your Öhlins shock absorber type 46 PRCLS
features the following adjusters:
Compression damping adjuster
Adjustments are made on top of the reservoir.
Rebound damping adjuster
Adjuster wheel on the piston shaft above the end
bracket.
Spring preload adjuster
Adjustments are made by turning the knob on
the hydraulic adjuster. Clockwise for harder
adjustment, counter clockwise too release the
preload.
Lenght adjuster
Adjustment is made by turning the end eye and
tightening with the lock nut.
NOTE!
When delivered the Öhlins shock absorber is
dialed to recommended settings for the specific
brand and make of the motorcycle. If you have
changed the setting check like this:
The adjusters have a normal right hand thread. Turn
the damping adjusters clockwise to fully closed (pos.
zero [0]). Turn counter clockwise to open and count
the clicks until you reach the recommended number
of clicks. See Setup data at last page.
CAUTION!
Do not use to much force, delicate sealing surfaces
can be damaged.
Öhlins Racing AB, Box 722, S-194 27 Upplands Väsby, Sweden.
Phone +46 8 590 025 00. Fax +46 8 590 025 80.
www.ohlins.com
Part No. AP 840. Issued 03 03 25
Setup data
Shock absorber length 321 (+5/-1) mm
Shock absorber stroke 56 mm
Spring preload 13 mm
Rebound damping adjuster 14 clicks
Compression damping adj. 12 clicks
Checking sag and ride height
Front suspension
F1. Bike on a stand with the
suspension fully extended = ............
F2. Bike on the ground without rider = ............
F3. Bike on the ground with rider = ............
Free sag
F1 - F2 = ............
Ride height
F1 - F3 = ............
Rear suspension
R1.Bike on a stand with the
suspension fully extended = ............
R2.Bike on the ground without rider = ........... .
R3.Bike on the ground with rider = ............
Free sag
R1 - R2 = ............
Ride height
R1 - R3 = ............
WARNING!
If the shock absorber has an adjustable end eye/bracket, this
must not be treaded out more
than that one groove is fully visible beneath the lock nut. Make
sure that the lock nut is tightened after adjustment.
Groove
Bike on a stand.
F1
R1
Bike on the ground.
F2
R2
Bike with rider on.
F3
R3
Spring
preload
adjuster
Rebound
damping
adjuster
Lenght
adjuster
Before installation
Öhlins Racing AB can not be held responsible for
any damage whatsoever to shock absorber or
vehicle, or injury to persons, if the instructions for
fitting and maintenance are not followed exactly.
Similarly, the warranty will become null and void
if the instructions are not adhered to.
WARNING!
1. Installing a shock absorber, that is not
approved by the vehicle manufacturer, may
affect the stability of your vehicle. Öhlins
Racing AB cannot be held responsible for
any personal injury or damage whatsoever
that may occur after fitting the shock
absorber. Contact an Öhlins dealer or other
qualified person for advice.
2. Please study and make certain that you
fully understand all the mounting instructions
and the owners manuals before handling this
shock absorber kit. If you have any questions
regarding proper installation procedures,
contact an Öhlins dealer or other qualified
person.
3. The vehicle service manual must be referred
to when installing the Öhlins shock absorber
Safety signals
Important information concerning safety is
distinguished in this manual by the
following notations:
The Safety alert symbol means:
Caution! Your safety is involved.
WARNING!
Failure to follow warning instructions
could result in severe or fatal injury
to anyone working with, inspecting or
using the suspension, or to bystanders.
CAUTION!
Caution indicates that special precautions must be taken to avoid damage to the suspension.
NOTE!
This indicates information that is of
importance with regard to procedures.
Öhlins products are subject to continual improvement and development. Consequently, although
these instructions include the most up-to-date
information available at the time of printing, there
may be minor differences between your suspension and this manual. Please consult your Öhlins
dealer if you have any questions with regard to
the contents of the manual.
NOTE!
During storage and transportation, especially
at high ambient temperature, the oil and
grease used for assembling may run out
inside the packing and damage the expanded
polystyrene packing material. This is not
unusual and is in no way detrimental to the
shock absorber.
Kit contents
Before installing the shock absorber, please
check the contents of the kit. If anything is
missing, contact your Öhlins dealer.
Description Pcs. Part No.
Shock absorber 46 PRXLS 1 AP 840
Tie-rap 1 00231-01
Sticker memo notes 1 01180-01
Sticker Öhlins 2 00192-01
Owners manual 1
WARNING!
1. It’s advisable to have an Öhlins dealer or other
qualified person to fit your shock absorber.
2. Instructions in the vehicle service manual are
to be followed when changing the shock
absorber.
3. When working on a lifted vehicle it must be
securely supported to prevent it from falling.
Mounting instructions
1
Put the motorcycle on a stand so the rear wheel
is clear of the ground. Make sure it’s steadily fixed
so it will not fall over.
NOTE!
Make sure that all bolts are tightened to the correct
torque and that nothing fouls or restricts movement
of the shock absorber when the suspension is
being fully compressed or extended.
2
Loosen first the lower and than the upper bolts
of the original shock absorber and remove them.
The absorber is removed by lifting it upwards and
out at any side of the bike.
3
Fit the Öhlins shock absorber in reverse order.
The piggyback towards the wheel. Fasten it by
using the two original bolts.
4
Attach the hydraulic preload adjuster to the wheel
side of the right silencer bracket by using the
original bolt
5
Fit the hose on the backside of the silencer
bracket on the right side of the motorcycle. Tie
up the hose by putting the tie rap around the
bracket behind the front upper bolt.
NOTE!
Make sure that all bolts are tightened to the correct torque and that nothing fouls the shock absorber when the suspension is being compressed. See: Motorcycle workshop manual.
Check with the Service Manual of the motorbike.
6
Continue your work according to the Owners
Manual, section Adjustments
This particular model has an adjustable end eye/
bracket. The eye/bracket must not be treated out
more than that one groove is fully visible beneath
the lock nut. Make sure that the lock nut is tightened after adjustment
5
4
