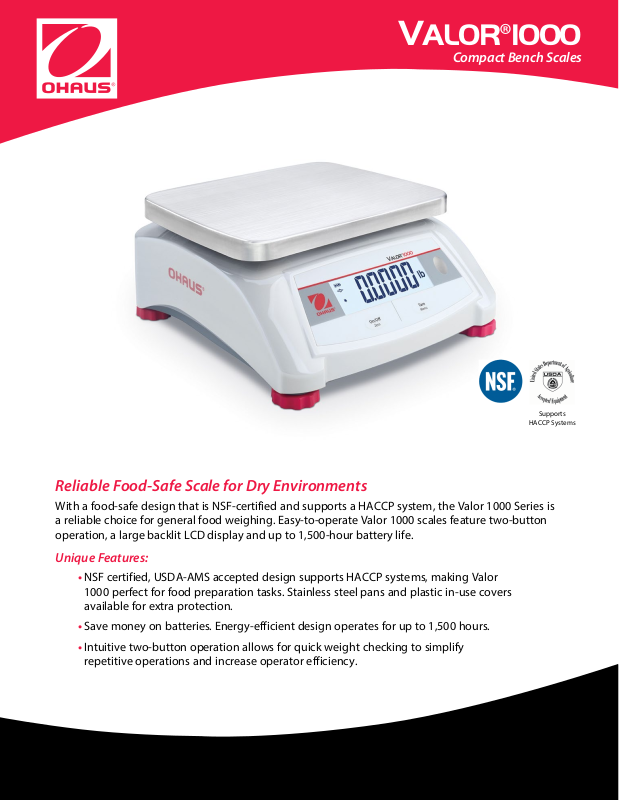

Ohaus V12P30, V12P3, V12P15, V12P6 Data Sheet

VALOR®1000

Compact Bench Scales

Supports

HACCP Systems

Reliable Food-Safe Scale for Dry Environments

With a food-safe design that is NSF-certified and supports a HACCP system, the Valor 1000 Series is a reliable choice for general food weighing. Easy-to-operate Valor 1000 scales feature two-button operation, a large backlit LCD display and up to 1,500-hour battery life.

Unique Features:

• NSF certified, USDA-AMS accepted design supports HACCP systems, making Valor

1000 perfect for food preparation tasks. Stainless steel pans and plastic in-use covers available for extra protection.

• Save money on batteries. Energy-efficient design operates for up to 1,500 hours.

• Intuitive two-button operation allows for quick weight checking to simplify

repetitive operations and increase operator efficiency.

VALOR®1000 - V12PCompact Bench Scales

10.6 in

Model V12P3 V12P6 V12P15 V12P30

6 lb x 0.001 lb

Capacity × Readability (Max x d non-approved)

Maximum Display Resolution (gram) 1:6,000 1:7,500 1:6,000

Maximum Display Resolution (pound) 1:6,000 1:7,500 1:6,000

Weighing Units g, kg, lb, oz, lb:oz

Application Mode Weighing

Tare Range To capacity by subtraction

Stabilization Time ≤ 2 seconds

Power Requirements AC adapter (included)

Calibration Digital with external weight

Typical Battery Life 1500 hours (with backlight turned off)

Construction ABS plastic housing, stainless steel pan, in-use cover

Safe Overload 150% of capacity

Specified Temperature Range 32 to 104 °F / 0 to 40 °C

Display Type Single display - LCD with white backlight

Display Size 1.0 in / 25.4 mm

Pan Size 9.65 x 7.48 in / 245 x 190 mm

Scale Dimensions (W x D x H) 10.2 x 10.6 x 4.8 in / 260 x 270 x 122 mm

Shipping Dimensions (W x D x H) 12.6 x 12.6 x 6.9 in / 319 x 319 x 175 mm

Net Weight 5.5 lb / 2.5 kg

Shipping Weight 6.8 lb / 3.1 kg

3 kg x 0.0005 kg

3,000 g x 0.5 g 96 oz x 0.02 oz

6 lb x 0.02 oz

15 lb x 0.002 lb 6 kg x 0.001 kg

6,000 g x 1 g

240 oz x 0.05 oz

15 lb x 0.05 oz

30 lb x 0.005 lb

15 kg x 0.002 kg

15,000 g x 2 g

480 oz x 0.1 oz

30 lb x 0.1 oz

60 lb x 0.01 lb

30 kg x 0.005 kg

30,000 g x 5 g

960 oz x 0.2 oz

60 lb x 0.2 oz

Other Standard Features and Equipment

Integrated level bubble and adjustable feet, selectable Auto-Off, selectable weighing units and integrated carrying handles for easy transportation

Compliance

• Product Safety: IEC/EN 61010-1; UL certified power supply

• Electromagnetic Compatibility: FCC Part 15 Class B; Canada ICES-003 Class B

• Food Safety: NSF/ANSI 169, NSF/ANSI /3-A 14159-1

• Compliance Marks: NSF, USDA-AMS

Accessories

In-use Cover (1) ..........................................30559105

In-use Cover (10) ........................................30559106

Stainless Steel Platform, 11.8 in x 8.9 in, 300 x 225 mm ....30559107

Outline Dimensions

270 mm

10.0 in

254.9 mm

4.8 in 122 mm

OHAUS CORPORATION

7 Campus Drive Suite 310 Parsippany, NJ 07054 USA

Tel: 800.672.7722

973.377.9000 Fax: 973.944.7177

www.ohaus.com

The management system governing the manufacture of this product is ISO 9001:2015 certified.

10.2 in

260 mm
